User Manual
Washer Dryer
8kg / 4kg
Dry Spin
Extra
Delay Start/PauseWash
Speed
Rinse
Temp
On / Off
Wash
Dry
Time/Air
Dry
Wash + Dry
Wash
Dry
HWD8040BW1
2
3
Index
Thank you for purchasing a Haier product
Please read these instructions carefully before using this appliance. It contains
important information which will help you get the best out of your appliance and
ensure safe and proper installation, use, care and cleaning.Keep this manual in a
convenient place so you can always refer to it for safe and proper use.
If you sell the applicance, give it away, or leave it behind when you move, make
sure you alse pass on this manual so that the new owner can become familiar with
all features and safety warnings.
Legend
Yes
No
General information and tips
Warning! Important safety information!
Environmental information
Safety and warnings............................................................................... 4-7
Installation.................................................................................................. 8-9

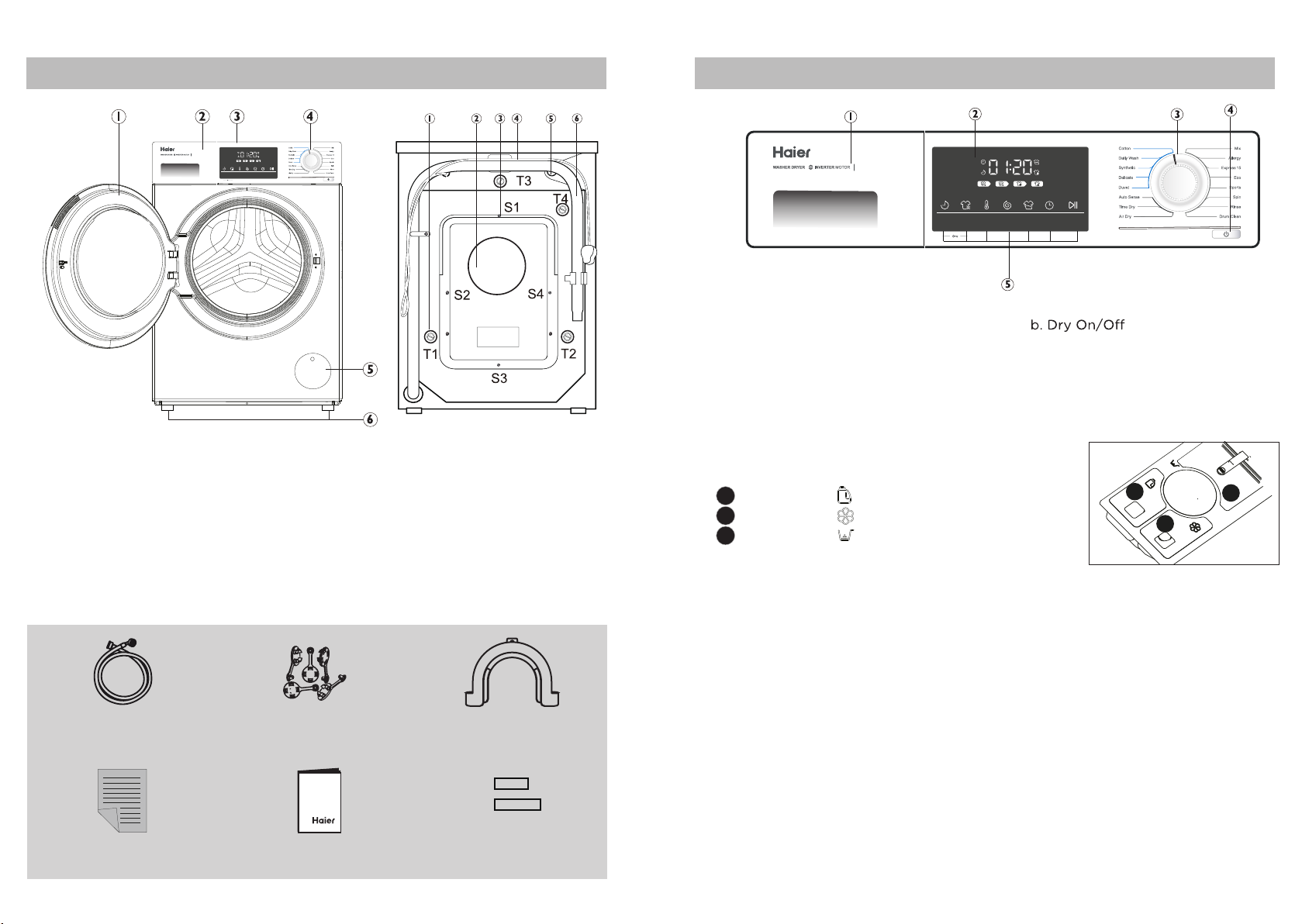

Product description...................................................................................
10
Control panel............................................................................................ 11-13
Programmes.................................................................................................

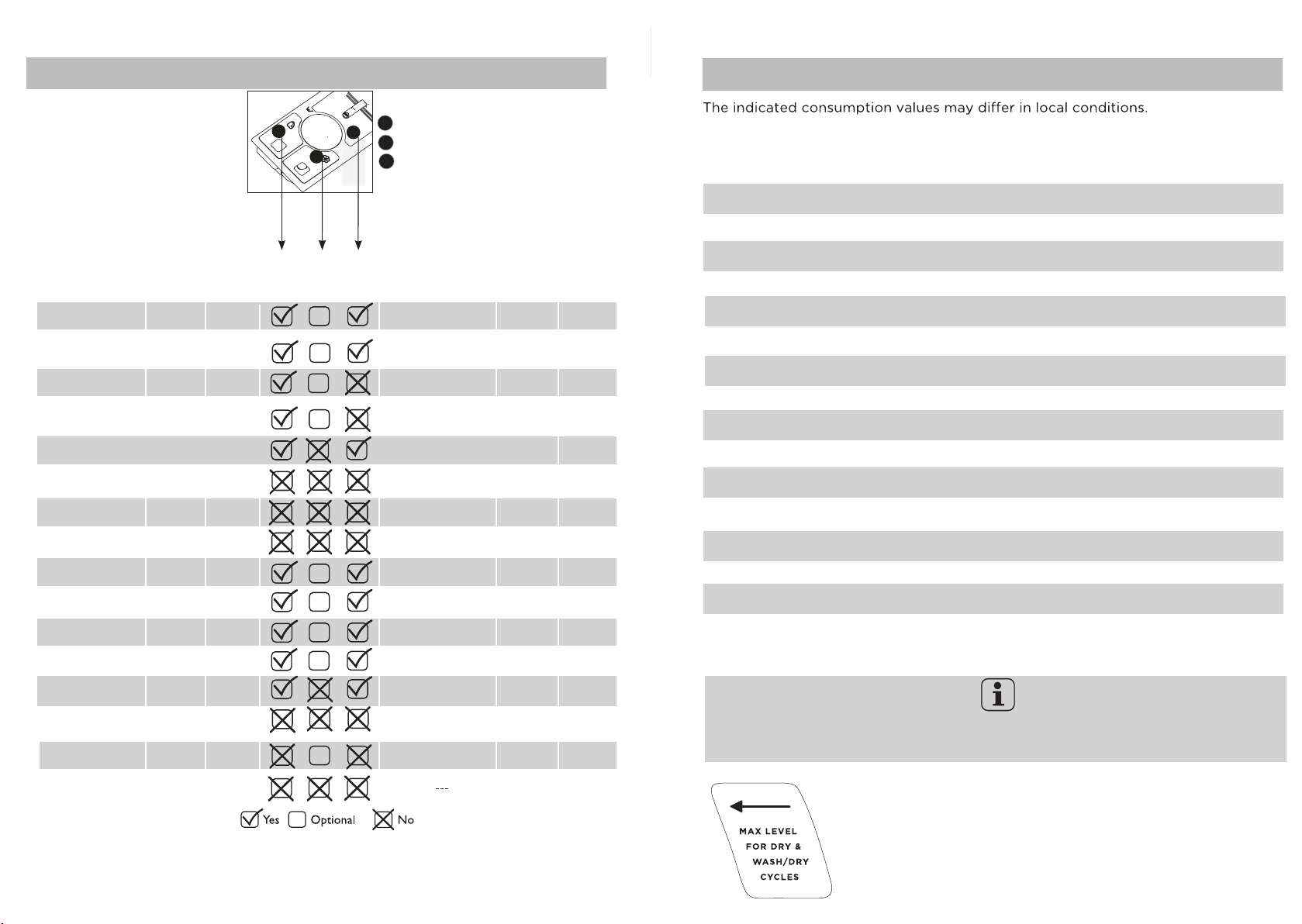

Consumption................................................................................................
14
15
Daily use.................................................................................................. 16 -19
Care and cleaning................................................................................ 20-22
Troubleshooting..................................................................................... 23-25
Technical data.............................................................................................. 26
Disposal
The presence of this symbol on the product,
accessories or materials that goes with this
information indicates that at the end of its useful
life the product or its electronic accessories (e.g.
cable,inlet hose-assembly ) should not be disposed
with other household waste. To prevent possible
damage to the environment or human health from
uncontrolled waste disposal, please separate these
items from other types of waste and recycle them.
This will promote the sustainable reuse of material
resources. Household users should contact either
the retailer where they purchased the product or
relevant local authorities to find out how they can
take this item for environmentally safe recycling
and safety. Business users should contact their
supplier and check the conditions of the purchase.
This product and its electronic acc
not be mixed with other commercial waste.
essories should
Safety and warnings
Caution, risk of fire-this is a safety symbol. Failure to follow the
warnings outlined in these user insructions can cause a fire hazard.
Fire Hazard
• Only dry fabrics that have been washed with water.
• Do not use heat to dry items such as foam rubber (latex foam),
shower caps, waterproof textiles, rubber backed articles and
clothes or pillows fitted with foam rubber pads
• Do not stop a washer dryer before the end of the drying cycle
unless all items are removed and spread out in order to dissipate
the heat.
• A washer dryer produces combustible lint; clean pump filter
regularly.
• Failure to follow these instructions can result in death or personal
injury.
Electric Shock Hazard
If you are using an extension cord or a portable electrical outlet device
(eg multi-socket outlet box), ensure that it is positioned so that it does
not come into contact with water or moisture.
Failure to do so may result in death or electrical shock.
!
WARNING!
!
WARNING!
4 5
,dry on”Time/Air Dry”.
Safety and warnings
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using your washer dryer, follow basic precautions, including the following:
• CAUTION: In order to avoid a hazard due to inadvertent resetting of thermal
cut-out, the appliance must not be supplied through an external switching device,
such as a timer, or connected to circuit that is regularly switched on and o
by the utility.
• This washer dryer is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they are supervised or given instructions on how to use the
washer dryer by someone responsible for their safety.
• The washer dryer should only be used for washing, rinsing and drying of textiles
where this is indicated on the care label.
• The door will be locked from the start of the cycle until the cycle is completed for
safety reasons. It is possible to open the door during the cycle under certain
conditions .
• Never force the door to open.
• Keep children away from the washer dryer while it is in operation.
• Supervise children to ensure that they do not play with the washer dryer or
climb inside the drum.
• Do not touch the door during a drying cycle, as the door can become hot.
• Do not open the detergent dispenser during the cycle.
• The only user-removable parts of the washer dryer are the inlet hose, detergent
dispenser and the pump
anyone other than a Haier trained and supported service technician.
filter. No other parts are designed to be removed by
Read the instructions
• When disposing of the washer dryer, it is recommended that the door is removed
to avoid children getting trapped inside, and that the electrical cable is cut
close to the washer dryer.
• Do not add gasoline, dry-cleaning solvents, or other flammable or explosive
substances to the wash water
ignite or explode.
• Do not wash or dry articles that have been previously cleaned in, washed in,
soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or
explosive substances as they give
. These substances give
vapours that could ignite or explode.
vapours that could
Safety and warnings
• Undergarments that contain metal reinforcements should not be placed in the
washer dryer. Damage to the machine can result if the metal reinforcements come
loose during washing or drying.
• Check and remove all objects from pockets, e.g. lighters and matches.
•
The maximum mass of dry and wash materials are respectively 4 and 8 kilograms
(HWD8040BW1 models)
• Do not overload your washer dryer
• Never wash or dry rubber articles, fibreglass, or any plastic items or film, e.g. plastic
lined tablecloths and baby bibs.
• Clothes must go through the cool down/airing phase in the final part of the drying
cycle. This ensures items are left at a temperature where they will not be damaged.
If for any reason the washer dryer is stopped before the cycle finished, dry clothes
should be removed immediately and not left in the dryer. Clothes
quickly spread
in a clothes basket.
This product has been designed for use in a normal domestic (residential)
•
environment. This product is not designed for any commercial use (whatsoever).
• Do not operate this product if there is an accumulation of lint in or around the
washer dryer.
• Children should be supervised to ensure they do not play with the washer dryer.
• Unplug the machine from the power supply when it is not in use.
• Do not swing or put weight on the do
• Your washer dryer is designed to stop operatin
pressed. To restart the washer dryer, touch ‘POWER’, select your wash or drying
cycle and touch ‘
• Never attempt to repair the washer dryer yourself.
• For problems that cannot be solved from information in this use
and unplug your washer dryer and contact a Haier trained and supported
service technician.
out flat to cool so heat can dissipate, not left bunched up, eg
’.
.
should be
product’s Manufacturer’s Warranty.
or.
g in the event of power outage.
‘POWER’ button is
6 7
Safety and warnings
Spontaneous combustion
IMPORTANT!
To reduce the risk of fire in a washer dryer the following should be observed:
•
Items that have been spotted or soaked with vegetable oil or cooking oil are
a fire hazard and should not be placed in a tumble washer dryer.
Items that have previously been cleaned in, washed in, soaked in or spotted
•
sources such as a washer dryer. The items become warm causing an oxidation
reaction in the oil. This oxidation creates heat. If the heat cannot escape the
items can become hot enough to catch fire. Piling, stacking or storin
items can prevent heat from escaping creating a fire hazard.
Fabrics that contain vegetable oil, cooking oil or have been contaminated by
•
hair care products should not be washed or dried. If unavoidable, these fabrics
should be washed in a hot water wash with extra detergent-this will reduce, but
not eliminate the fire hazard. The cool down cycle of the washer dryer should be
used to reduce the temperature of these items. They must not be removed from
the washer dryer and piled or stacked while hot.
•
Items that have previously been cleaned in, washed in, soaked in or spotted
with flammable liquids or solids, eg petrol/gasoline, kerosene, dry cleaning
solvents, vegetable or cooking oil, acetone, denatured alcohol, some brands of
spot removers, turpentine, waxes and wax removers or other flammable or
explosive substances should not be placed in a washer dr
yer.
• Do not dry unwashed items in the washer dryer.
•
Fabric softeners, or similar products, should be used as specified by the fabric
softener instructions.
• Washer dryer must not be used if industrial chemicals used for cleaning.
Carpet does not obstruct the openings for washing machines with ventilation
•
openings in the base.
The appliance must not be installed behind a lockable door, a sliding door or a door
•
with a hinge on the opposite side to that of the tumble dryer, in such a way that a
full opening of the tumble dryer door is restricted.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
•
agentor similarly qualified persons in order to avoid a hazard.
Installation
98
Installation
Preparation
Remove all packaging material including polystyrene
base. While opening the package , water drops may be
seen on plastic bag and porthole. This is normal as a
result from water tests and quality control in the factory.
Note: Packaging disposal:
Keep all packaging material out of children’s reach and
dispose them in an e nvironmentally friendly manner.
1.
2.
3.
OPTIONAL: Install noise reduction pads
1.When opening the shrink package,you will find four
noise reduction pads.These are used for reducing
noise.(Fig. 1)
2. Lay the washing machine down to its side, porthole pointing upwards, bottom side towards op-
erator.（Fig.2）
3. Take out the noise reduction pads and remove the
double-sided adhesive protective film；Paste around
the bottom；The noise reduction pads under the
washing machine cabinet as shown in Fig3.(two
longer pads in position 1 and 3, two shorter pads in
position 2 and 4). Finally set the machine upright again.
Removing the transportation bolts
The transportation bolts a re designed for clamping
antivibration components inside the appliance during
transportation.
1. Remove all 4 bolts.
General in formation and tips:
Keep the transportation bolts in a safe place for later
use. If the machine is to be moved to another location,
replace transportation bolts to prevent damage.
2. Fill the transportation bolt holes with blanking plugs.
3. Adjust all feets to achieve a complete level
position.This will minimize vibrations and noise
during use. It will also reduce wear and tear. We
recommend to use a spirit level for adjustment. Floor
should be as stable and flat as possible.

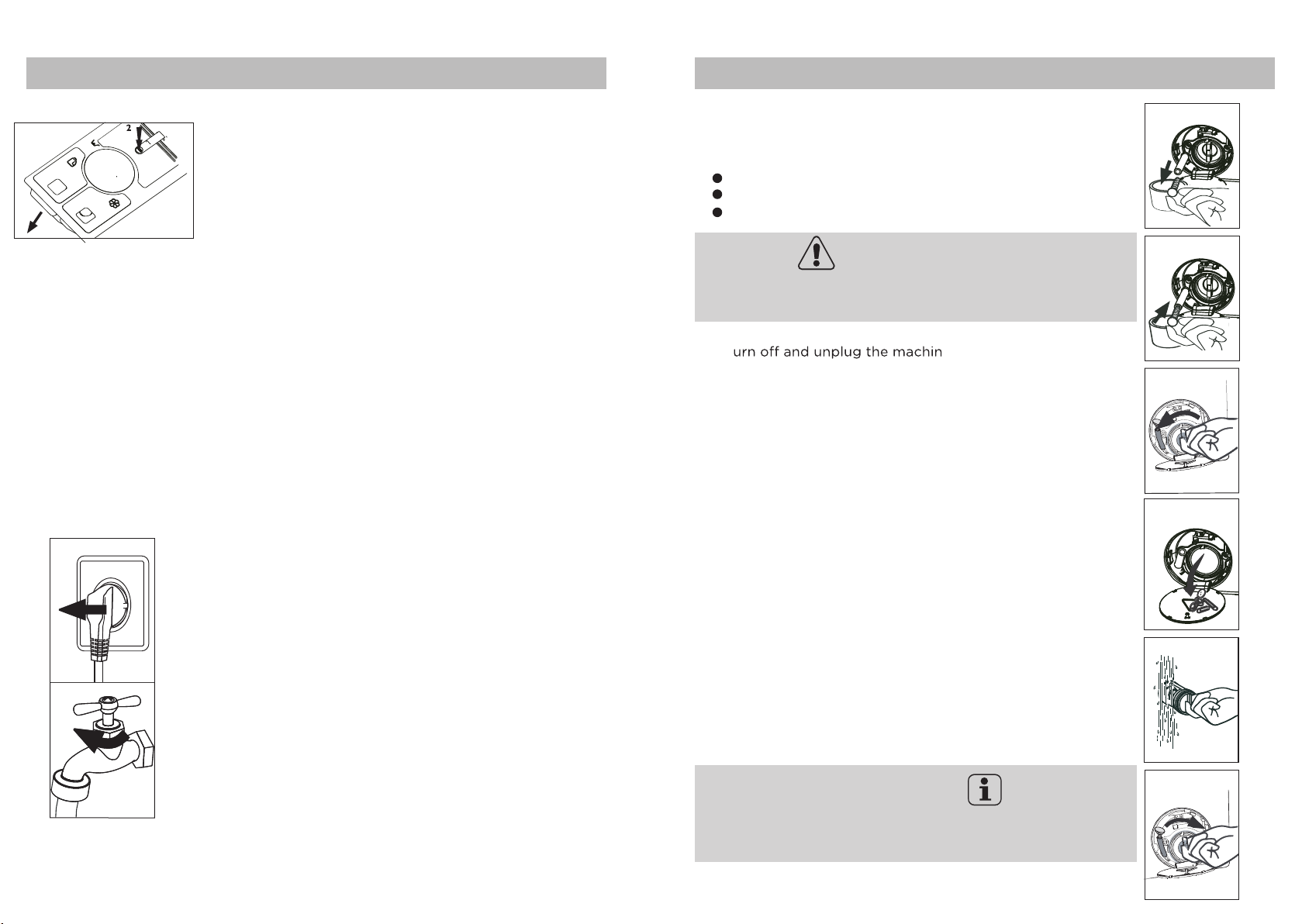

Inlet hose
1. Connect inlet hose to the machine of water inlet valve.
2. Connect inlet hose to a water tap.
3. Tighten inlet hose connections and turn on water
supply. Check for any water leaks. Stop all water
leaks before continuing with installation.
Warning!
Appliance is only qualified for cold water supply!
Drain hose
Drainage could be installed in dif ferent ways.
Regardless
80-100 cm.
If possible al ways keep drain hose fixed to the clip at
the back of the appliance.
1. Drain hose to sink
Use the drain hose bracket to keep drain hose end
retained and out of any water level.
Fix the bracket securely to avoid dropping due to operational movements.
2. Drain hose to sink siphon
Connection has to be securely sealed and fixed to corresponding adapter above the siphoning part!
of drain hose has to reach between
Warning!
The drain hose should not be submerged in water and
should be securely fixed and leak-free. If the d rain hose
is placed on the ground or if the pipe is at a height of
less than 80 cm, the washing machine will continuously
drain while being filled (self-siphoning).
80 - 100 cm
Product description
10 11
Control Panel
Wash + Dry
Delay Start/PauseWash
On / Off
Dry Spin
Wash
Dry
Time/Air
Extra
Dry
Speed
Rinse
Temp
Wash
Dry
8kg / 4kg
S5 S6
This drawing may be slightly different from the layout of the washing machine you have
just purchased.
1. Door
2. Detergent/Softener drawer
3. Wor ktop
4. Control panel
5. Service flap
6. Adjustable feet
1. Transportation bolts (T1-T4)
2. Back cover
3. Back cover screws(S1-S6)
4. Power cord
5. Water inlet valve
6. Drain hose
8kg / 4kg
Dry Spin
Delay Start/PauseWash
On / Off
Extra
Speed
Rinse
Temp
(a-g)
tergent/Softener drawer
1. De
a. Delay
2. Display
3. programme selector
4. Power button
5. Function buttons (a-g)
c. Wash Temp
d. Spin Speed
e. Extra Rinse
f. Time/Air Dry
g. Start/Pause
1.1 Detergent drawer
Open the drawer, three compartments can be
seen :
Compartment : Liquid detergent for programme
1
Compartment : Softener, Conditioning agent etc.
2
Compartment : Powder detergent for programme
3
Wash
Dry
Time/Air
Wash + Dry
Dry
Dry
Wash
1-1
1
3
2
Accessories
Check the accessories and literature in a ccordance with this list.
Inlet hose
assembly
Warranty-card
5 blanking plugs
User manual
Drain hose
2x
2x
Noise reduction pads
bracket
1.2 Programme selector
By turning the knob , one of 16 programmes can be selected,
be displayed.
its default settings will
1.3 Power button
Touch this button gently to switch on, the display is shining.
about 2 seconds to switch off. If no panel element or programme is activated after
a while, the machine will shut down automatically.
Touch it again for
12 13Control panel-function buttons
Delay
Display symbolsControl panel-
1-2
Dry Spin
Delay Start/PauseWash
On / Off
Time/Air
Extra
Speed
Temp
Dry
Rinse

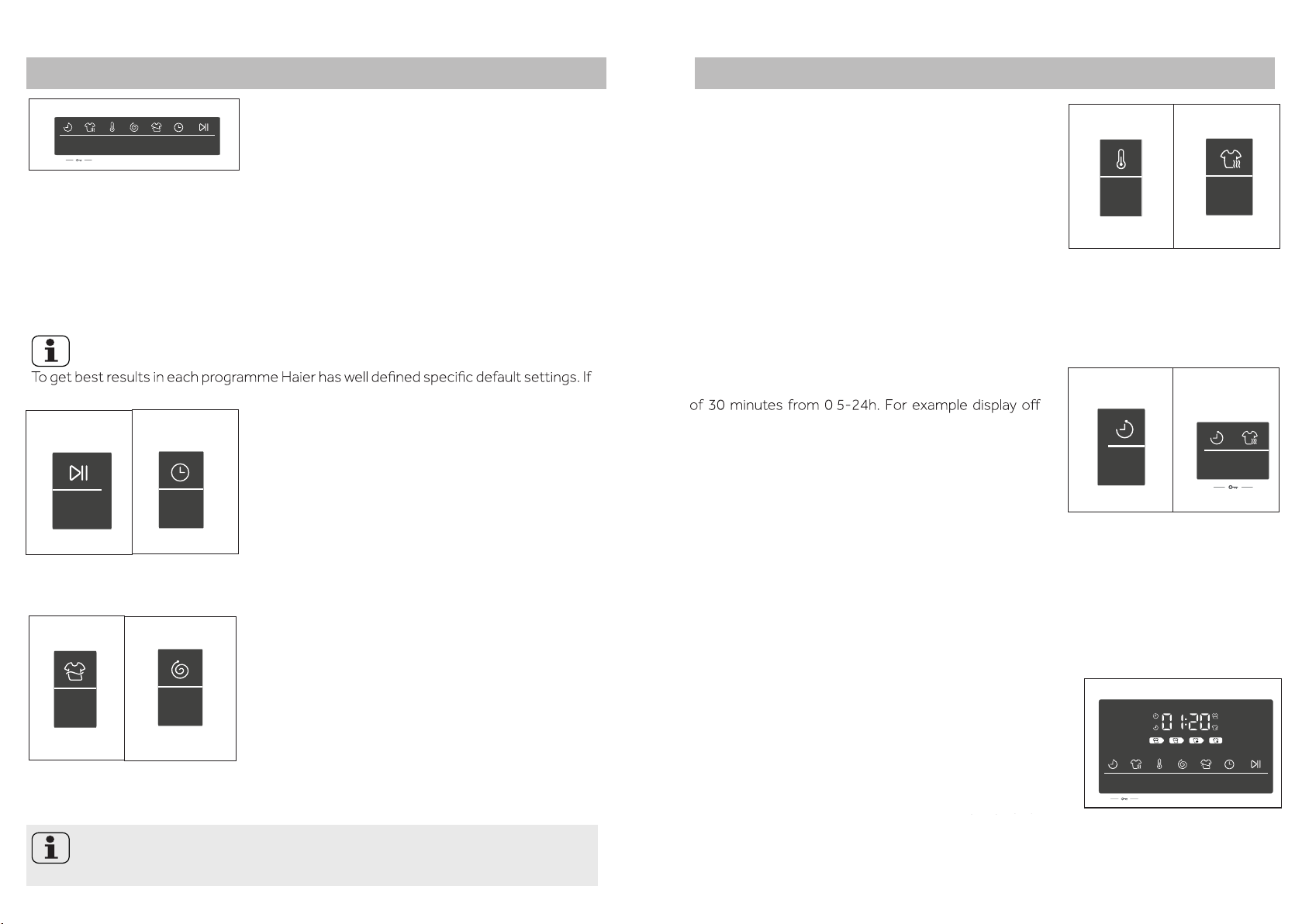

1.4 Function buttons
The function buttons (Fig. 1-2) enable additional options in the selected programme before programme
start. The related indicators are displayed.
By switching off the appliance, all options are disabled.
If a button has multiple options, the desired option can
be selected by touching the button sequentially.
To delete the setting or to cancel the setting process,
press the function button,
the LED switches off.
Not all functions are available for all programmes.
Note: Factory settings
there is no special requirement default settings are recommended.
1-3
1-4
1.4.1“Start/Pause“ button
Touch this button (Fig. 1-3) gently to start or inter-
rupt the currently displayed programme.
ration,
the displayed washing time is blinking.
During a pause also the time display is blinking.
Start/Pause
Time/Air
Dry
1.4.2 Function “Time/Air Dry”
Touch this button (Fig. 1-4) in order to activate /de-
activate the “Time/Air Dry” function.
By touching button sequentially, drying time can be seen
1-5
1-6
In combination with programme
function sets
1.4.3 Function button“Extra rinse“
Touch this button (Fig. 1-5) to rinse the laundry more
the drying time.
intense with fresh water. This is recommended for
people with sensitive skin.
By touching the button several times one to three ad-
Extra
Rinse
Spin
Speed
ditional cycles can be selected. They appear in the display with P--0/ P--1 /P--2 /P--3.
1.4.4 Function “Spin Speed”
Touch this button (Fig. 1-6) to change or deselect the
Spin Speed of the programme. If 0 is chosen ,then the
laundry will not spin.
“Time/Air Dry”, this
During ope-
1.4.5 Function “Wash Temp”
Touch this button (Fig. 1-7) to change the washing
temperature of the programme.
1.4.6 Function “Dry On/Off”
Knob is in the "Dry+Wash" area, Perform default settings;
Touch "Dry On/Off " button (Fig. 1-8),dry function will be
switched off and only perform wash function.
In conjunction with the “Delay”button,the child lock
function can be switched on/off (see child lock).
1.4.7 Function “Delay”
Touch this button (Fig. 1-9) to start the programme
with a delay. End time delay could be increased in steps
.
means the cycle will finish in 6 hours and 30 minutes
6:30
Touch “Start/Pause” button to activate
the time delay.
The time delay must be longer than the programme run
time. Otherwise the programme will start immediately.
For deactivating the time delay; rotate programme selector.
In conjunction with the “Dry On/Off”button,the child lock
function can be switched on/off (see child lock).
1.4.8 Function “child lock”
This option blocks all panel elements against activation. After programme start press button “Delay” and
”Dry On/Off” (Fig. 1-10) for 3 seconds simultaneous-
ly; “cLok” is displayed. For unlocking press again the
two buttons.
1.5 Display
If the appliance is on display will light up the actual
status on different sections. The information include
washing time, spin speed, tempe rature, etc will appear
(Fig. 1-11).
1-7
1-9
Wash
Temp
Delay
1-11
Delay Start/PauseWash
Dry Spin
On / Off
Temp
1-8
1-10
Speed
Extra
Rinse
Dry
On / Off
Wash
Dry
Time/Air
Dry
DryDelay
On / Off
Note: Liquid detergent
If using liquid detergent, it is not recommended to activate the end time delay.
Programmes
Programme Wash
Temp.
℃
1.
Cotton
2.
Daily Wash
3.
Synthetic
4.
Delicate
5.
Duvet
6.
Auto Sense
Time Dry
7.
8.
Air Dry
9.
Mix
10.
Allergy
Express 15
11.
12.
Eco
0-90
0-60
0-60
0-30
0-40
/
/
/
0-60
0-90
0-40
0-90
Preset
℃
30
30
30
30
40
/
/
/
30
60
0
30
Detergent compartment for:
Liquid detergent
1
2
1 2 Fibre Type Spin Speed
1
3
Softener, Conditioning agent etc.
2
3
Powder detergent
3
Cotton/Synth.
Cotton fabrics
Chemical
fibre fabrics
Cotton fabrics
Duvet
Cot ton /Synth/
Underwear/Jeans
Cot ton /Synth/
Underwear/Jeans
Cot ton /Synth/
Underwear/Jeans
Cotton/Synth.
Cotton
Cotton/Synth.
Cotton
Preset Max
rpm rpm
1400
1400
1400
600
800
/
/
/
1400
1000
1000
1000
1400
1400
1400
800
1400
1400
1400
1400
14
600
/
/
/
15 Consumption
Programme
1.
Cotton
Daily Wash
2.
Synthetic
3.
Delicate
4.
5.
Duvet
Auto Sense
6.
Time Dry
7.
8.
Air Dry
Mix
9.
10.
Allergy
11.
Express 15
12.
Eco
Sports
13.
Spin
14.
Rinse
15.
16.
Drum Clean
Wash
Max load
kg
8
4
8
2
2
/
/
/
8
8
2
8
2
8
8
0
Dry
Max load
kg
4
4
2
2
1
4
1
1
/
/
/
/
/
/
/
/
Extra
Rinse
Times
0-3
0-1
0-3
0-1
0-3
/
/
/
0-3
0-2
0-2
0-3
0-1
/
0-3
/
Wash
Temp
℃
30
30
30
30
40
/
/
/
30
60
0
30
30
/
/
90
Duration
time
h:min
Auto
3:18
Auto
2:25
2:47
Auto
0:30
0:20
Auto
1:46
0:15
Auto
0:56
0:07
0:26
1:00
Preset
Wash+Dry
Wash+Dry
Wash+Dry
Wash+Dry
Wash+Dry
Dry
Dry
Dry
Wash
Wash
Wash
Wash
Wash
Wash
Wash
Wash
Sports
13.
14.
Spin
15.
Rinse
16.
Drum Clean
0-40
/
/
90
30
/
/
90
Sports Wear
All fabrics
All fabrics
1000
1000
1000
600
1400
1400
1400
600
General information and tips:
Eco, 40℃, 1400rpm is the program recommended for a normally soiled cotton load.
Auto Sense, Dry ON is the program recommended for cotton loads.
IMPORTANT!
Over loading the washer dryer with a dry load above this line on
any drying cycle can
lead to poor drying performance.
1716
Daily useDaily use
This appliance is only for domestic use inside the house. If it is used for
commercial, industrial or not intended purposes any Haier guarantee will not
be valid anymore. Consider instructions on each garment label and wash only
machine-washable laundr y.
Power supply
Connect the washing machine to the power supply
(220V to 240V/50Hz).
Water connection
Turn on the tap. The water must be clean and clea r.
Warning!
Before use, check for leakage in the joints bet ween the tap and the inlet hose
by turning on the tap.
Preparing laundry
Sort out clothes according to fabric (cotton, synthetics, wool or silk) and to how dirty they are. Pay
attention to the care labelling of washing labels.
Separate white clothes from coloured ones. Wash
coloured textiles first by hand to check if they fade
or run.
Empty pockets (keys, coins, etc.) and remove
harder decorative objects (e.g. brooches).
Loading the appliance
Open the door and put clothes in the washing machine piece by piece. Close the
door carefully.
Don‘t overload. Check if you can put a hand upright on top of load.
General in formation and tips:
After installation or long down time , run programme “Drum Clean“ with no
load and add detergent in washing agent compartment to remove possibly
corruptive residues.
Selecting detergent
Washing and performance will vary, depending on detergent quality. Use only machine wash
approved detergent and if needed specific detergents, e.g. for synthetic and woolen fabric.
to the using suggestion of detergent manufacturer.
Pay attention
General in formation and tips:
Remove detergent residues before next wash cycle. Please follow given
detergent dosage recommendation.
Garments without hems, delicate and finely woven
textile such as f ine curtains are to be put into a
wash bag (hand or dry cleaning would be better).
Close zippers and hooks, make sure the buttons are
sewn on tightly and place small items such as socks,
belts, bras, etc. in a wash bag.
Unfold large pie ces of fabric such as bed sheets,
bedspreads etc.
Turn jeans and printed, decorated or color-intensive
textiles inside out; If possible, wash them separately.
Warning!
Non-textile, as well as small, loose or sharp-edged items may cause malfunctions
and damage of clothes and appliance.
Adding detergent
Slide out the detergent drawer and put the required
chemicals into corresponding compartments. Push
back the drawer gently.
Select a programme
To get the best washing results, select the program
that is most suitable to the laundry type loaded.
Select program by turning the p rogram selector dial.
Wash + Dry
Dry
Wash
Daily use Daily use
18 19
Add individual selections
Select required options and settings refer to “Control
panel”.
Start wash programme
Touch “Start/Pause” button to start. Appliance
operates according to selected settings. Changes are
only possible by cancelling wash programme.
Dry Spin
Delay Start/PauseWash
On / Off
Wash
Dry
Time/Air
Extra
Dry
Speed
Rinse
Temp
General information and tips:
1. For safety reasons the door is locked during the running cycle. It is
possible to open the door at the end of the programme or after the
programme was cancelled correctly (see description below ).
2. In case of high water level, high water temperature and drum spinning，
the door will be locked and 'cLok' will be displayed.
Wash + Dry
Interrupt cancel wash programme
To interrupt a running programme touch gently
“Start /Pause” button. Touch it again to resume
operation.
Dry
Wash
To cancel a running programme and all its individual
settings， touch “Start/Pause” and then hold the
power button
for about 3 seconds.
only

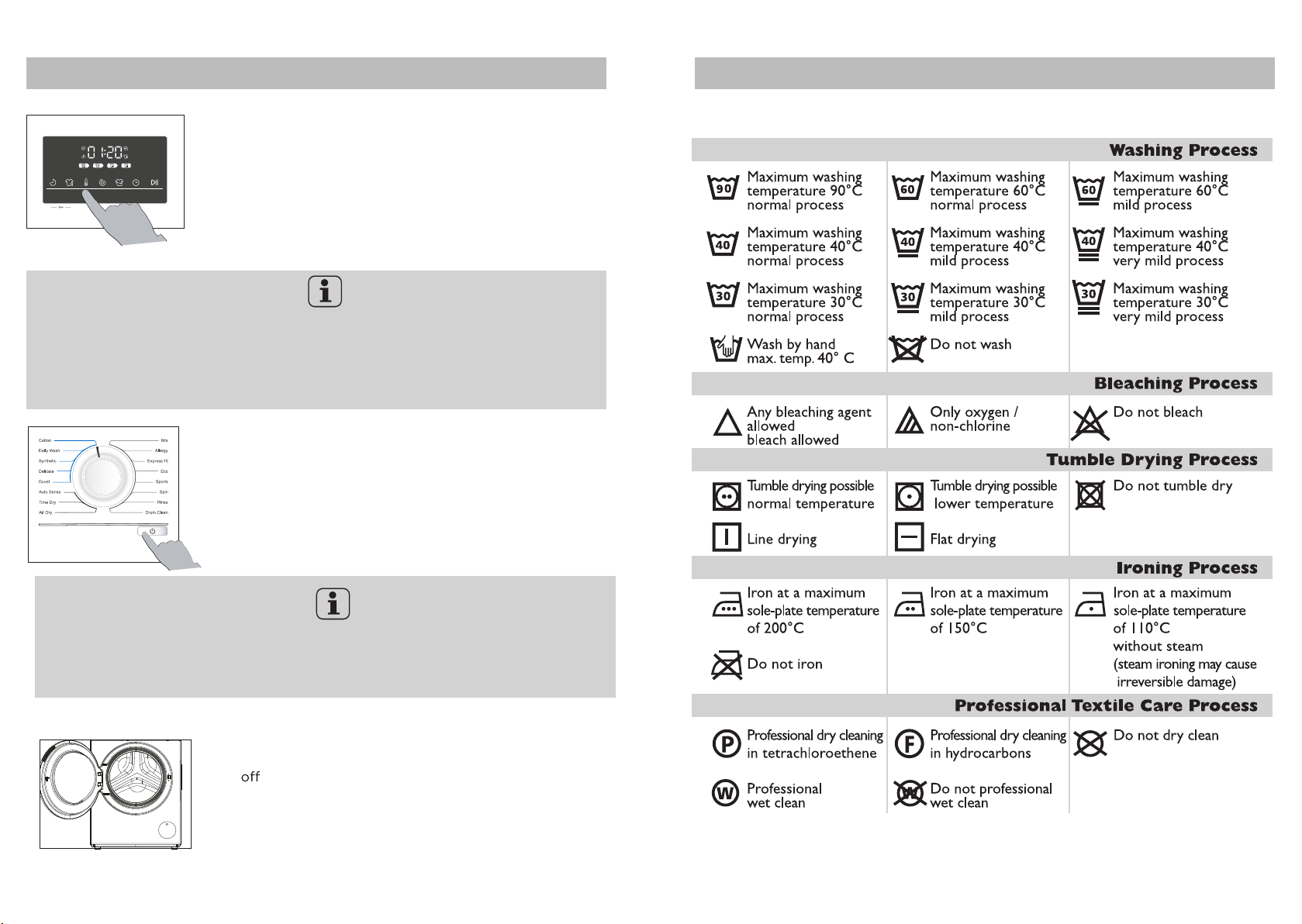

Care chart
General information and tips:
Choose programme settings carefully refering to icons on each laundry label
and “Care chart”. Removing laundry promptly at the end of cycle will minimise
wrinkling.
After washing
Turn the water supply and unplug the power cord.
Open the door to prevent formation of moisture and
odours. Leave it open while not used.
Care and cleaning Care and cleaning
20 21
Cleaning the de tergent drawer
Clean the drawer from detergent residues regularly.
Pull out the drawer until it stops (1) and press the
release button (2) to remove the drawer. Then flush the
drawer with water until it is clean and insert the
drawer back in the appliance.
1
Cleaning the machine
Unplug the machine during cleaning and maintenance. Use a soft cloth with
soap liquid to clean the machine case and rubber components. Do not use
organic chemicals or corrosive solvents.
Cleaning the drum
Remove accidentally washed metal parts, such as pins, coins, etc. from the
drum because they cause rust stains and damage. Use a non-chloride cleaner
for removing rust stains. Observe the warning hints of the cleaning agent
manufacturer. Do not use any hard objects or steel wool for cleaning.
2-1
Cleaning the machine
If the appliance is left idle for a long period:
1. Pull out the power plug.
2. Unplug water supply.
3. Open the door to prevent formation of moisture and
odours.
Do not leave the dispenser lids open for a long period of
4.
time, to prevent drying out.
5. Empty, clean and dry the detergent drawer.
Before next usage check carefully power cord, water
inlet and drain hose. Make sure everything is properly
installed and no leakage..
Pump filter
Clean the filter once a month and check the pump filter
immediately if the appliance:
doesn´t drain the water.
doesn´t spin.
does unmanual noise while running.
Warning!
Scalding Risk! Water in the pump filter can be very
hot! Before any action please ensure water has cooled down.
1. T
2. Open service flap at the right corner of appliance front.
3. Provide a flat container to catch leach water
4. Pull the drain hose out and hold its end above the
container
5. Take the sealing plug out of the drain hose
6. After complete drainage close drainhose and push it
back into the machine (Fig.2-3).
7. Unscrew and remove counter clockwise the pump filter
(Fig.2-4).
8. Remove contaminants and dirt
9. Clean pump fil ter carefully
10. Refix it thoroughly
11. Close service flap.
(Fig.2-2).
(Fig.2-7).
e (Fig.2-1).
(Fig.2-2).
(Fig.2-2).
(Fig.2-5).
(Fig.2-6).
General in formation and tips:
Pump filter sealing has to be clean and undamaged. If lid is
not full totally tightened,water will escape. The filter must be
in place, or it may lead to leakage.
2-2
2-3
2-4
2-5
2-6
2-7
Care and cleaning Troubleshooting
22
23
Display code

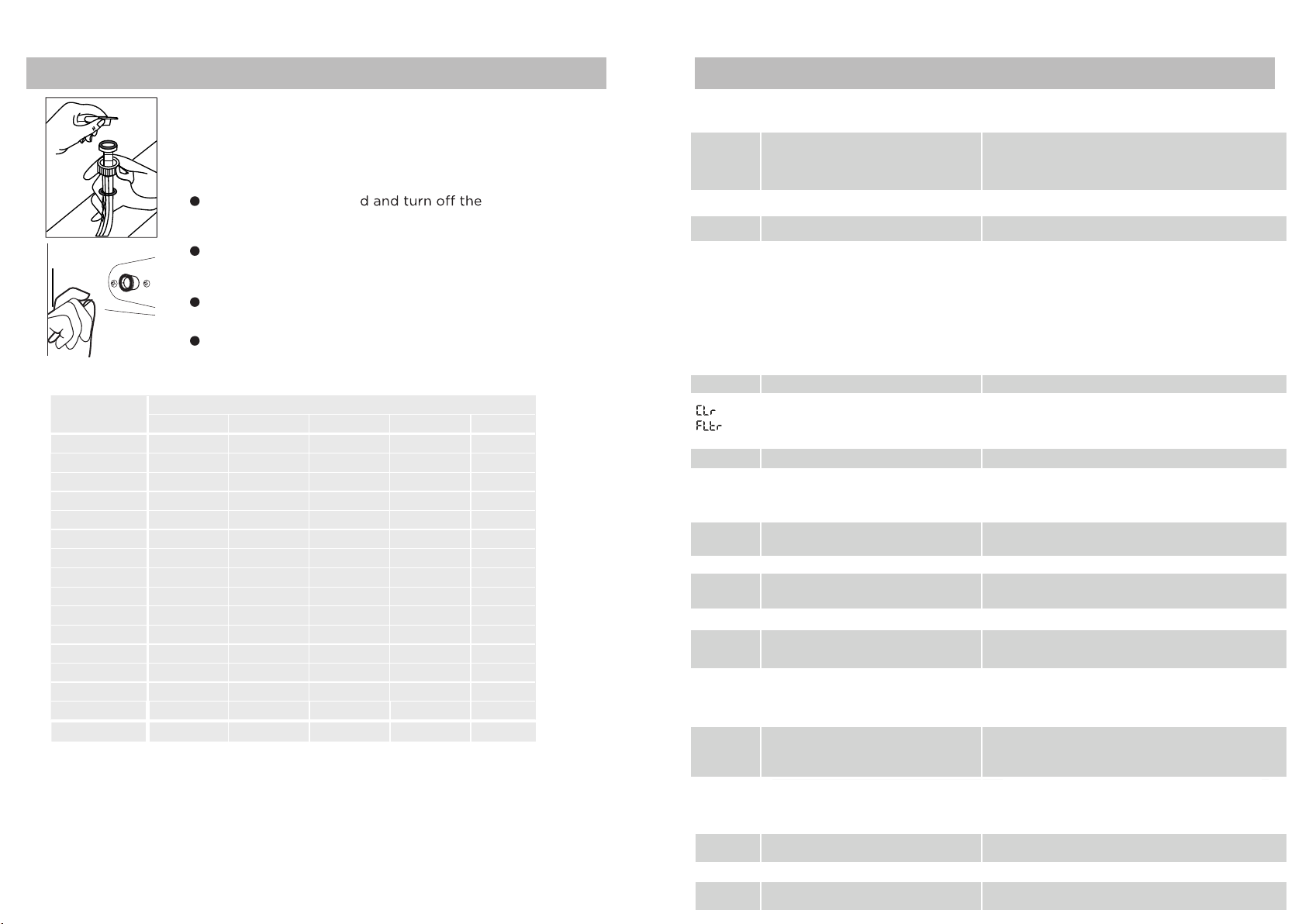

Water inlet valve and inlet valve filter
To prevent blockage of water supply by solid substance
like lime clean regularly the inlet valve filter.
Unplug the power cor water
supply.
Unscrew the water inlet hose at the back of the
appliance as well as on the tap.
Remove the filters and flush them with water and a
brush.
Insert the filter and install the inlet hose.
Code Cause
Auto
1：25
Automatic load detection
Remaining wash cycle time.
19：30 Remaining delay end time Likely showing the delay end operation.
LocI-
Door cannot be opened due
to water level or hot water
in the drum,or if the drum is
still moving,wait for it to stop
before attempting to open
the door.
Solution
Laundry weight detection in process.
please wait until p rogram cycle time is
displayed.
Wait for the program to end or cancel,
and select “Spin” programme, in case
that there is still hot water in the drum to
avoid scalding; select the “Rinse” programme
and leave it to wash, or several minutes later,
do “Spin” programme.
This should allow the drum to cool down.
Choose the best detergent
Kind of detergent
Programme
Cotton
Daily Wash
Synthetic
Delicate
Duvet
Auto Sense
Time Dry
Air Dry
Mix
Allergy
Express 15
Eco
Sports
Spin
Rinse
Drum Clean
L = gel-/liquid detergent P = powder detergent O = optional _ = no
If using liquid detergent, it is not recommended to activate the time delay.
We recomment by using:
▶ Laundry powder: 20°C to 90°C* (best use: 40-60°C)
▶ Color detergent: 20°C to 60°C (best use: 30-60°C)
▶ Wool/delicate detergent: 20°C to 30°C (= best use)
* Choose 90 °C wash temperature only for special hygienic requirements.
Universal Colour Delicate Special Softener
L/P L/P - -
L/P L/P - -
L/P -
L/P L/P L/P- -
- -
- - -
- - -
- - -
L/P L/P - -
L/P L/P - - L/P
L/P L/P - - L/P
L/P L/P - - L/P
- -
-
- - - -
- - -
- -
L/P L/P -
-
-
-
L/P L/P L/P
- -
L/P
L/P
L/P
L/P- -
-
-
L/P
L/P
End
E2 Lock – error with door.
E4
-
E8
F3
F4
End of cycle.
Drainage error, water not
emptied.
Water level not reached the set
level in 8 minutes.
Water protective level-error.
Temperature sensor-error.
Heating error (Appears at the
Clean pump filter.
Check drain hose for block
ensure it is installed properly.
Shut the door properly.
Check if water supply and water pressure
is normal.
Drain hose is self-syphoning.
Contact the after sales service.
Contact the after sales service.
Contact the after sales service.
age, and
end of a cycle).
F7 Motor - error.
FA
FCx
(X=1,2,3)
-
Unb
Water level sensor error.
Electronic control - error.
Unbalanced load and not able
to spin.
H
F9
Fd
FE
Temperature in drum is
higher than 80℃.
Dry temperature sensor error.
Dry heating element error.
Dry motor error.
Contact the after sales service.
Contact the after sales servi ce.
Contact the a fter sales service.
Check and balance the laundry load in
the drum. Also reduce the load if too
heavy. Restart with a spin program.
Tmperature in the drum is over 60℃therefore
it is not safe to open door.Wait until it drops
below 60℃ then the machine will open door.
Contact the After sales services.
Contact the After sales services.
Contact the After sales services.
Troubleshooting Troubleshooting
2524

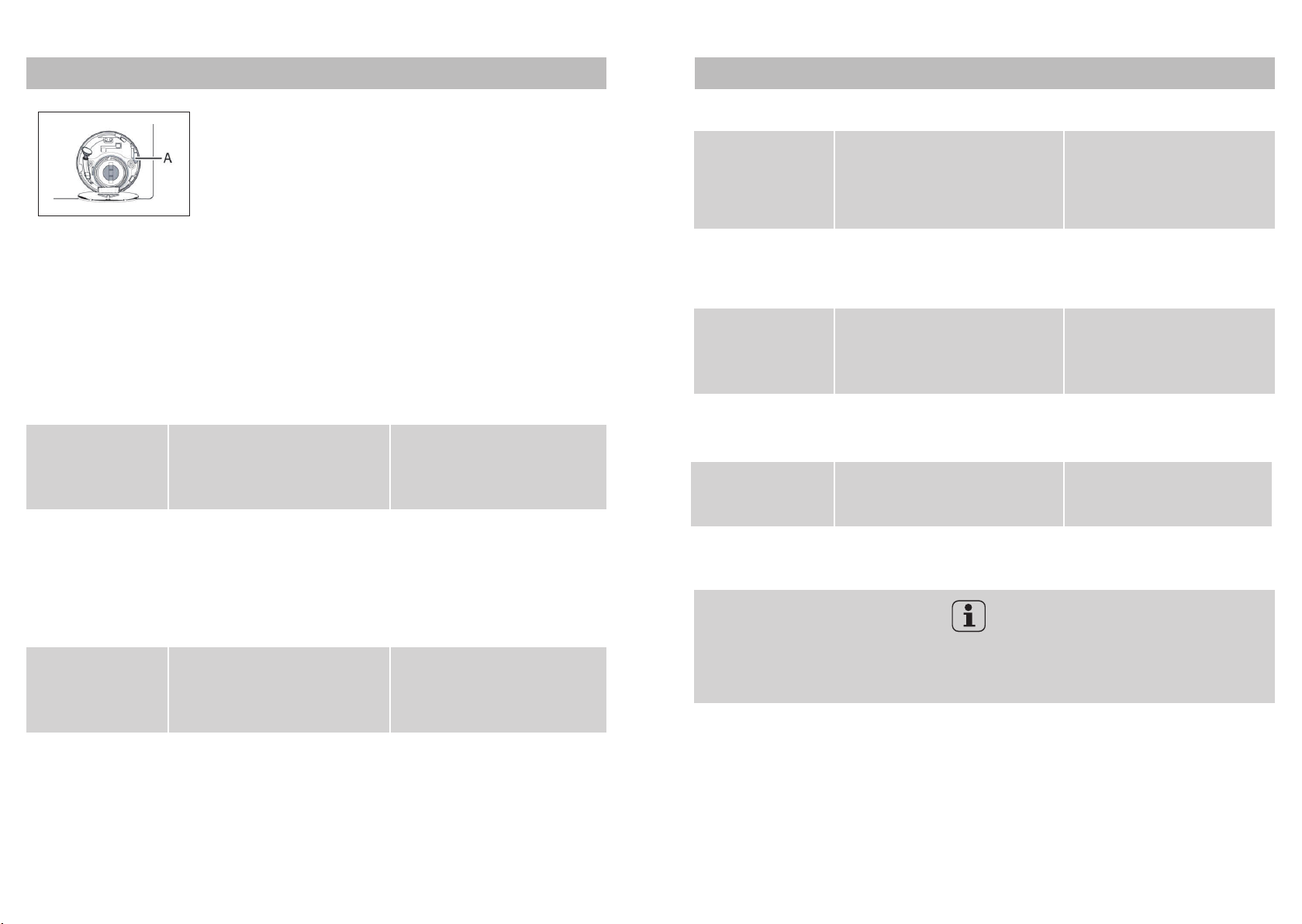

In case of power failure
The current programme and its setting
When power supply is restored, operation will be
resumed.
If a power failure cuts an operating wash programme，
door opening is mechanically blocked. To get out any
laundry，water level should not be seen in the glassy
porthole of the door. Danger of burns! Water level has
to be lowered as described in “Pump filter”. Not till then
pull level(A) beneath service flap until door as unlocked
by a gentle click. Afterwards refix all parts.
Troubleshooting without display code
Problem Cause Solution
Washing machine
fails to operate
Washing machine
will not fill with
water.
Machine is
draining while
being filled.
Drainage failure.
1. Power failure
2. Machine hasn’t been switched
on.
3. Door is not properly closed.
4. Programme is not yet. started
1. No water inlet.
2. Inlet hose is kinked.
3. Inlet hose filter is blocked.
4. Water pressure is less than
0.03MPa.
5. Door is not properly closed.
6. Water supply failure.
1. Height of drain hose is bel ow
80cm.
2. Drain hose end is submerged
in water?
1. Drain hose is bloc ked.
2. Pump filter is blocked.
3. Drain hose end is higher than
100cm above floor l evel.
1. Check power supply.
2. Switch the machine on.
3. Close the door properly.
4. Touch “ Start /Pause”
button.
1. Check water tap.
2. Check inlet hose.
3. Unblock inlet hose filter.
4. Check water pressure.
5. Close the door properly.
6. Ensure the water supply.
1. Make sure that drain hose is
properly installed.
2. Make sure the drain hose is
not in water.
1. Unblock drain hose.
2. Clean pump filter.
3. Make sure that drain hose is
properly installed.
will be saved.
Problem Cause Solution
Strong vibration
while spinning.
Operation stops
for a period of
time.
Operation stops
before completing wash cycle.
1. Not all transportation bolts
have been removed.
2. Appliance has no solid
position.
3. Machine load is not balanced.
1. Appliance displays error code.
2. Problem due to load pattern.
Water or electric failure.
1. Remove all transportation
bolts.
2. Ensure solid ground and
a levelled position.
3. Check load weight and
balance.
1. Consider displ ay codes.
2. Reduce or adjust load.
3. Cancel programme and
restart.
Check power and water
supply.
Excessive foam
floats drum and/or
detergent drawer.
Automatic adjust-
of washing duration will be adjusted. affect functionality.
ment
time
Spinning fails Unbalance of laundry. Check machine load.Run the
1. Detergent is not a appropriate.
2. Excessive use of detergent in
manually dosage.
Washing programme
1. Check detergent recom mendations.
2. Reduce amount of dete rgent.
This is normal and doesn‘t
Spin programme again.
General information and tips:
If too much foam is visible during spin cycle, the motor will stop and drain
pump will activate for 90 seconds. If that elimin ation of foam fails up to 3
times, programme ends without spinning.
Technical data
Basic technical information regarding the appliance
26
Power source
Max working current (A)
Water pressure (MPa)
Nominal load (kg)-Wash
Nominal load (kg)-Dry
Max spinning speed (rpm)
Washing programmes
Max power (W)-Wash
Max power (W)-Dry 1900
Dimensions (HxDxW mm)
Net weight (kg)
220-240V/50Hz
10
0.03 P 1
8
4
1400
16
1850
850*550*595
76
Loading...
