Page 1
WASHER AND DRYER
Service Manual
Suited model:
HTD1268
Washer And Dryer Model:HTD1268 SERIES
MANUAL CODE˖
SM-HTD1268-
1
Page 2
Washer And Dryer Model:HTD1268 SERIES
1.Contents----------------------------------------------------------------------------------------1
2.Product code illumination and series introduction-----------------------------------2
3.Features ---------------------------------------------------------------------------------------3
4.Specification ----------------------------------------------------------------------------------4
5.Safety caution --------------------------------------------------------------------------------6
6.Installation ------------------------------------------------------------------------------------9

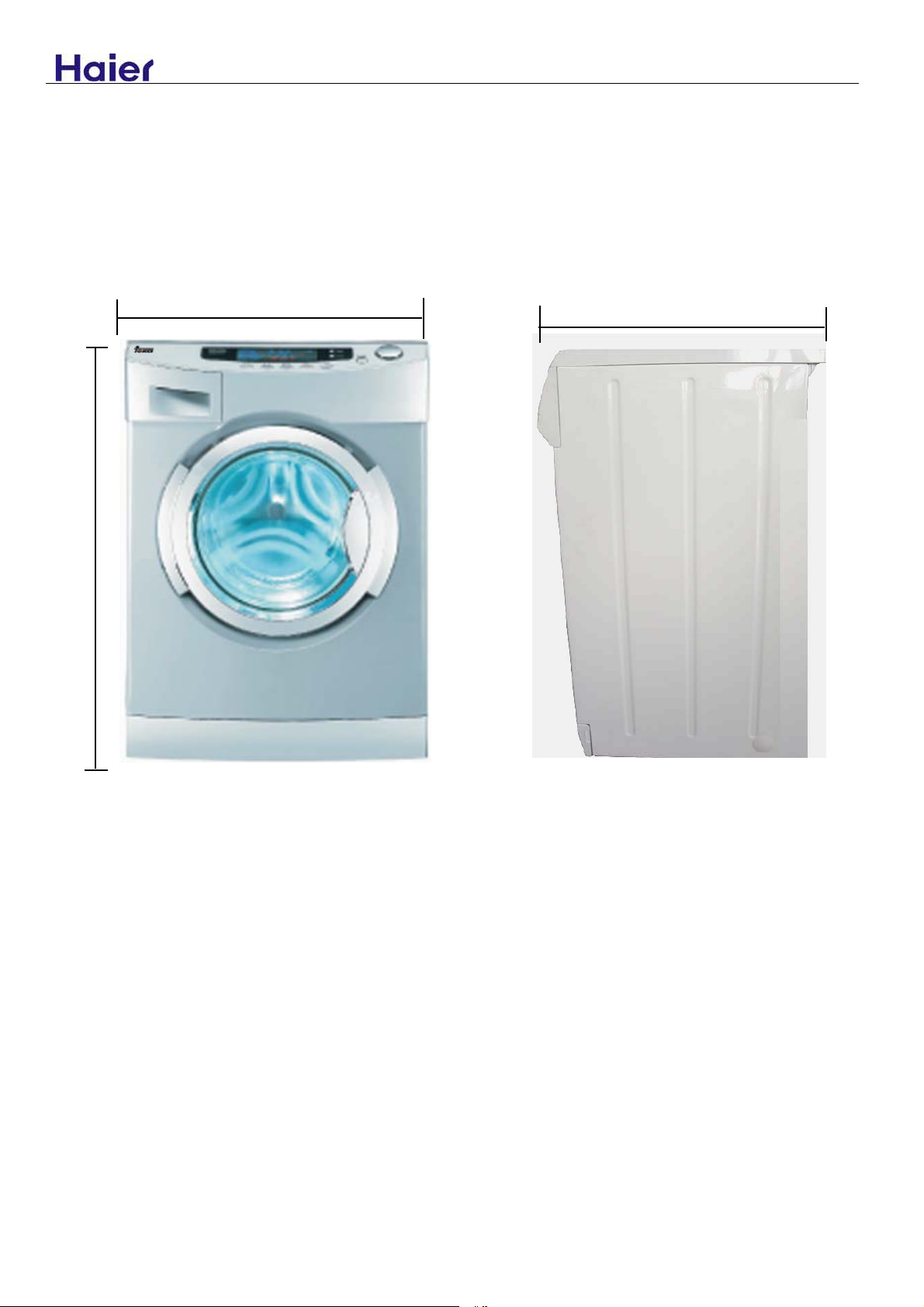

7.Net dimension -------------------------------------------------------------------------------11

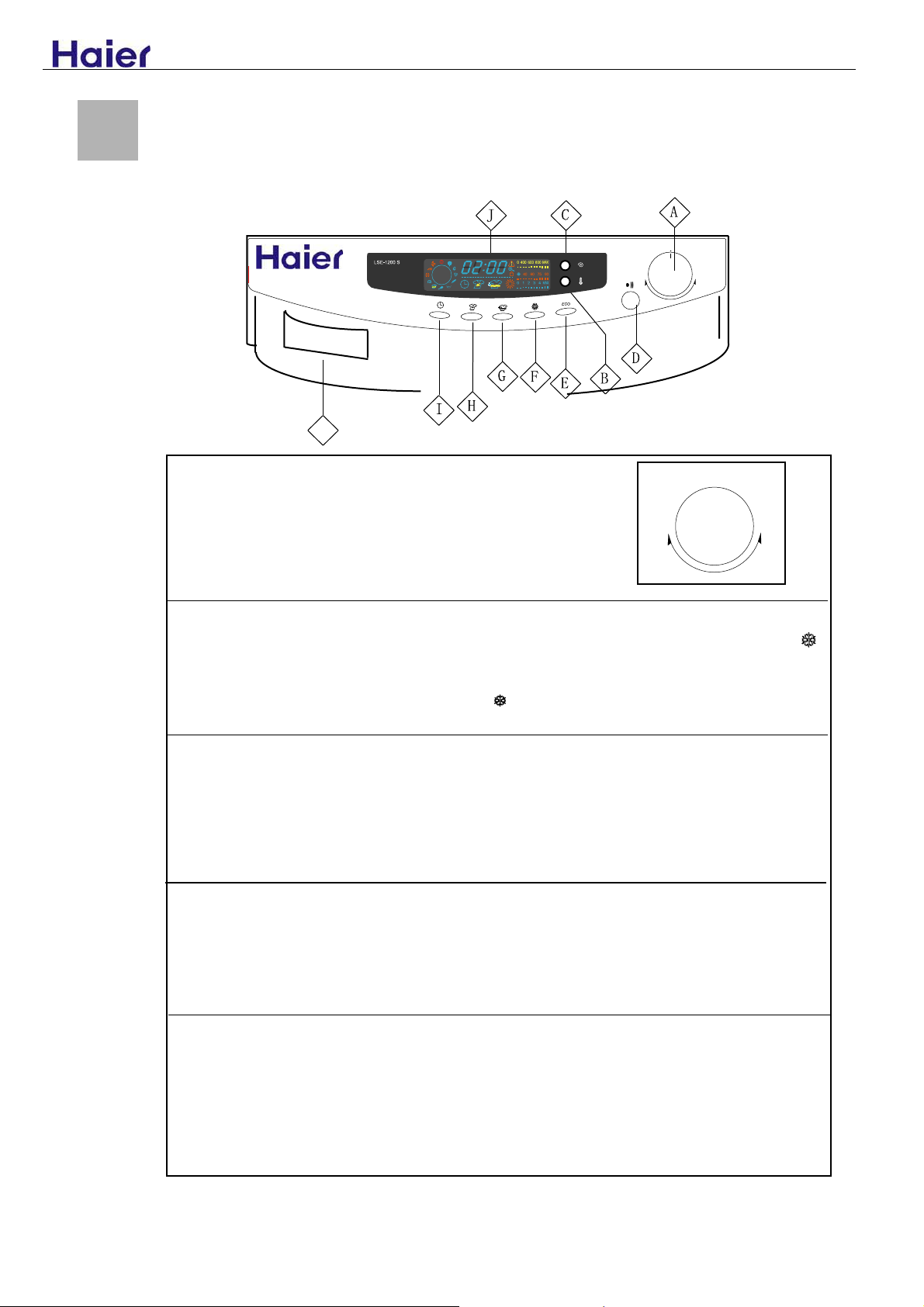

8.Names of the parts-------------------------------------------------------------------------12

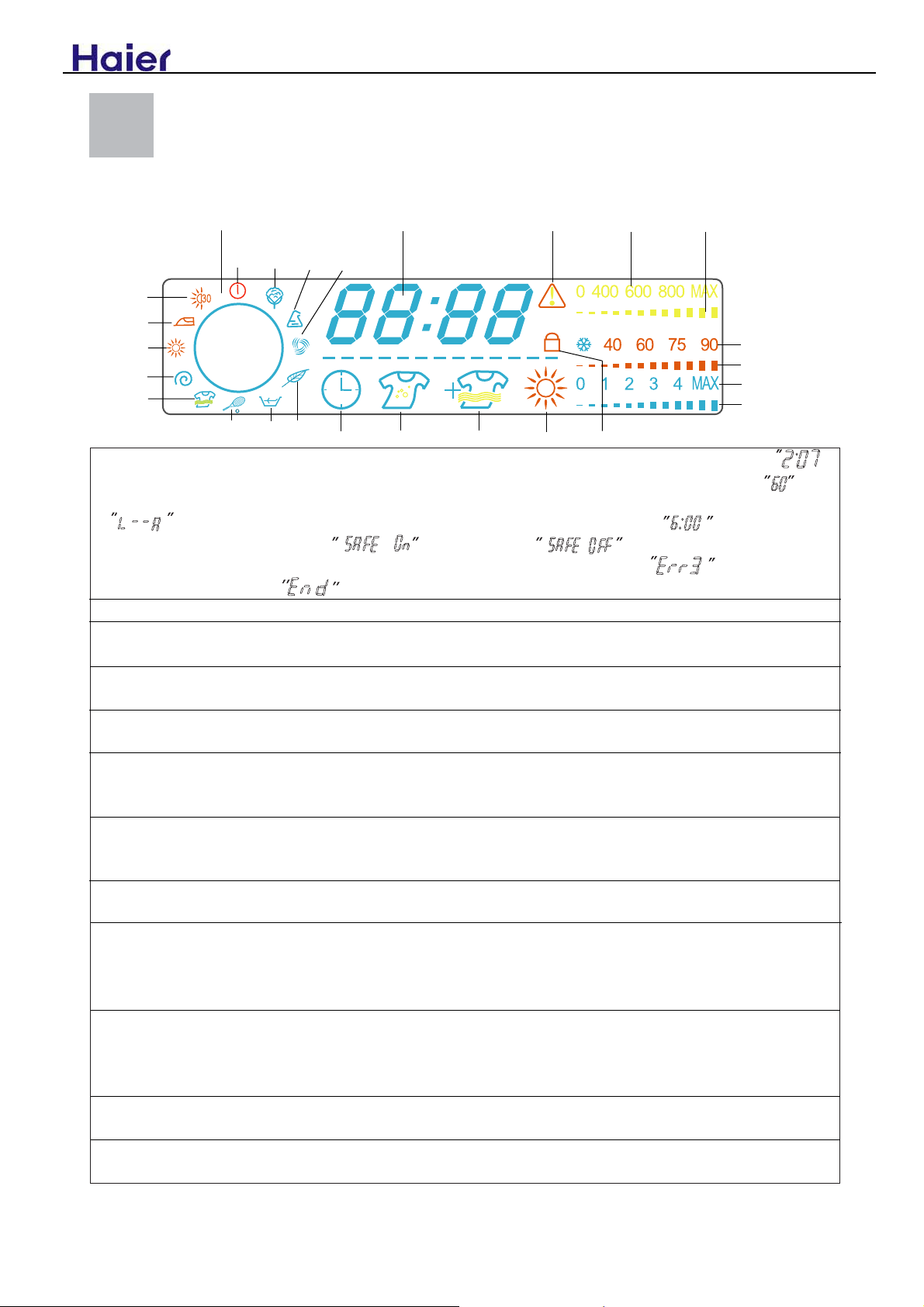

9.Operational Functions----------------------------------------------------------------------13

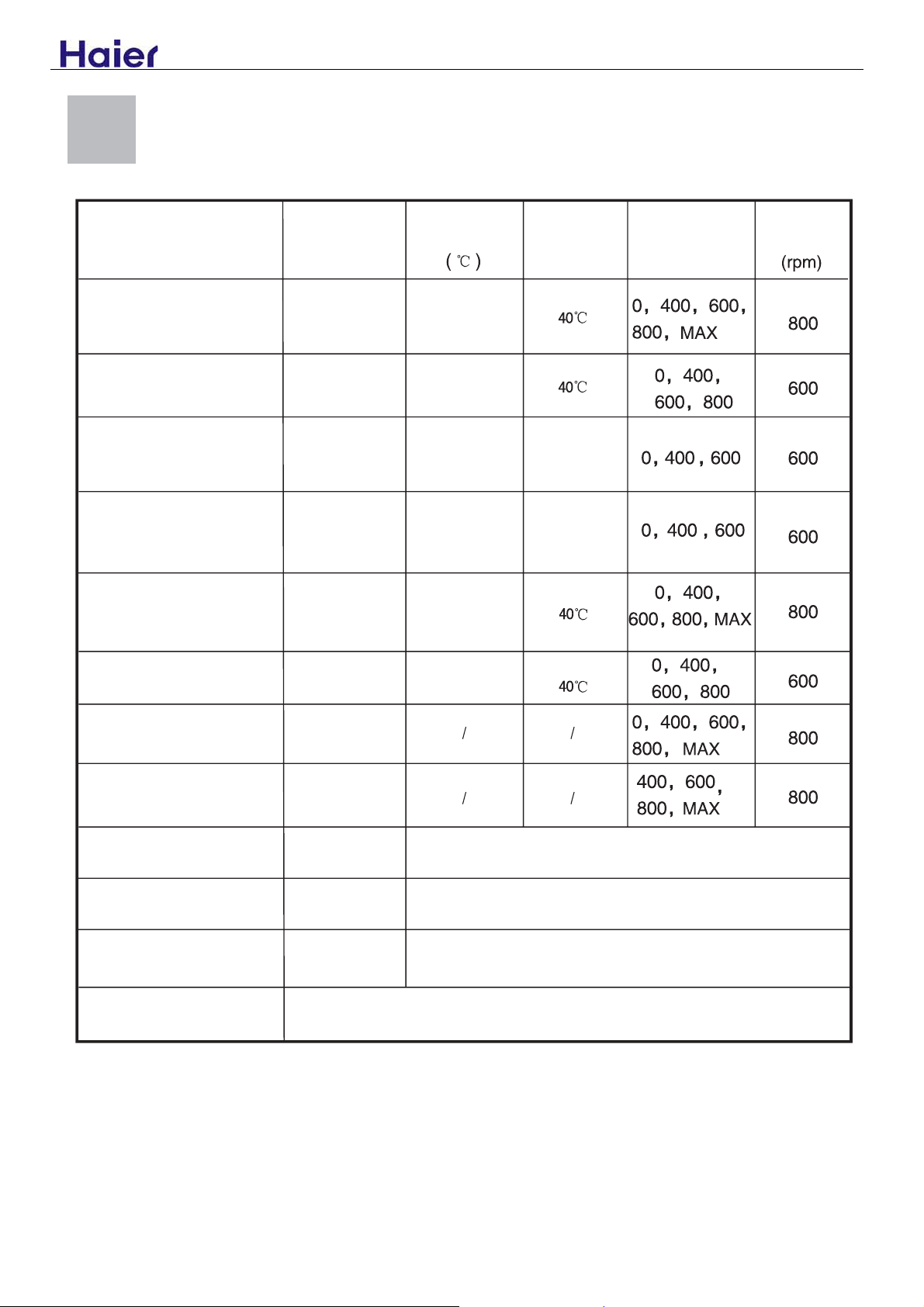

10.Functions schedule-----------------------------------------------------------------------15

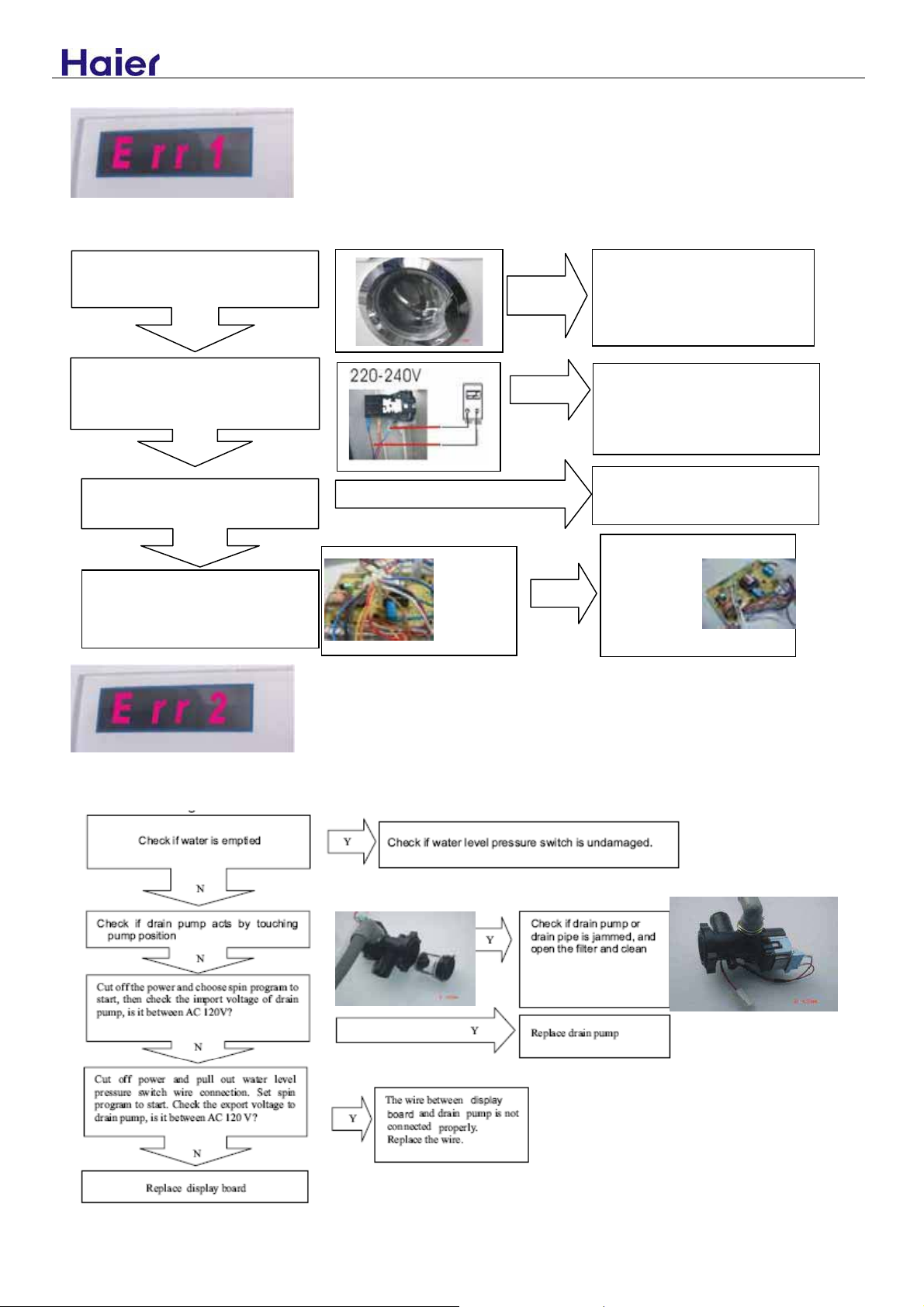

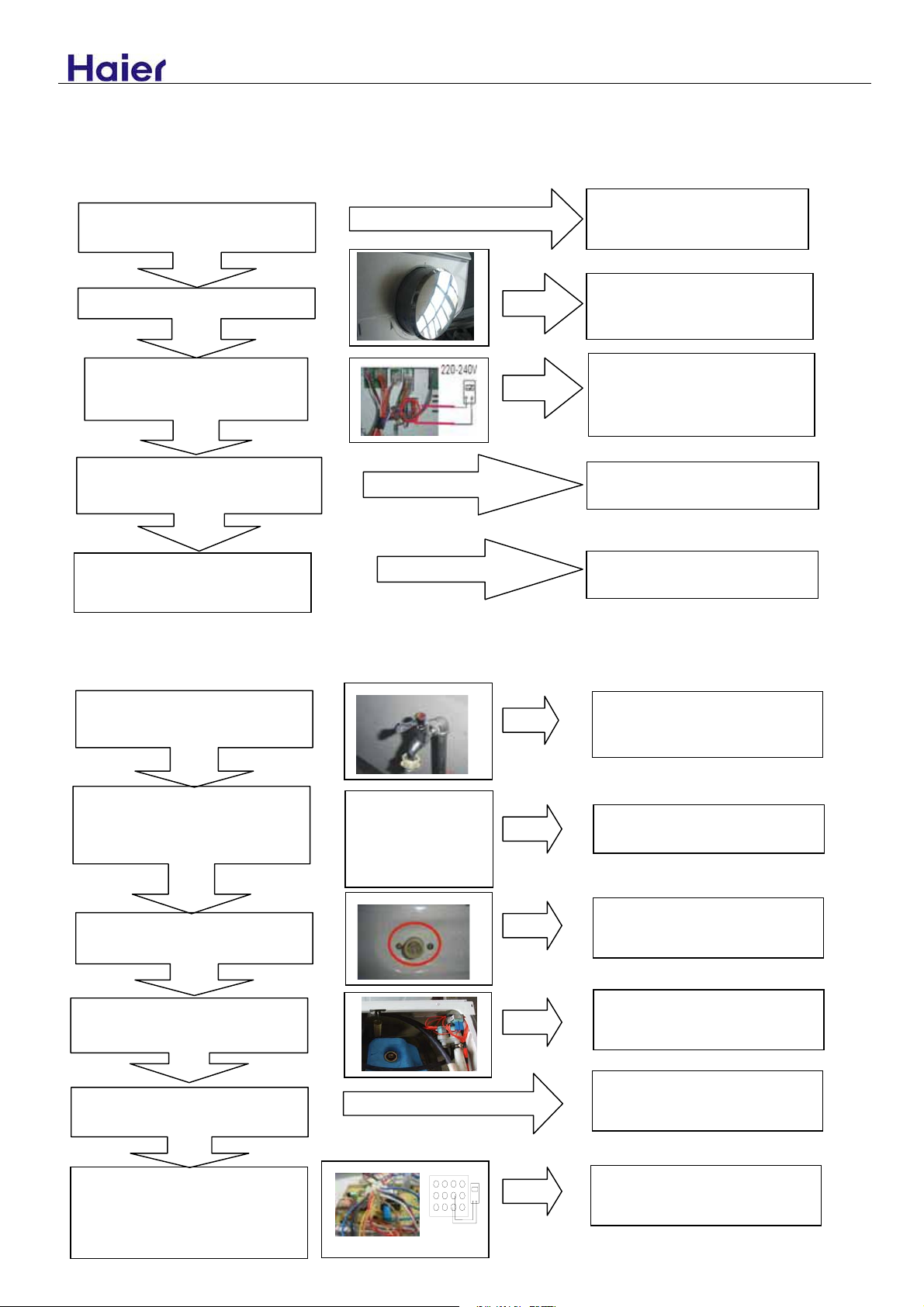

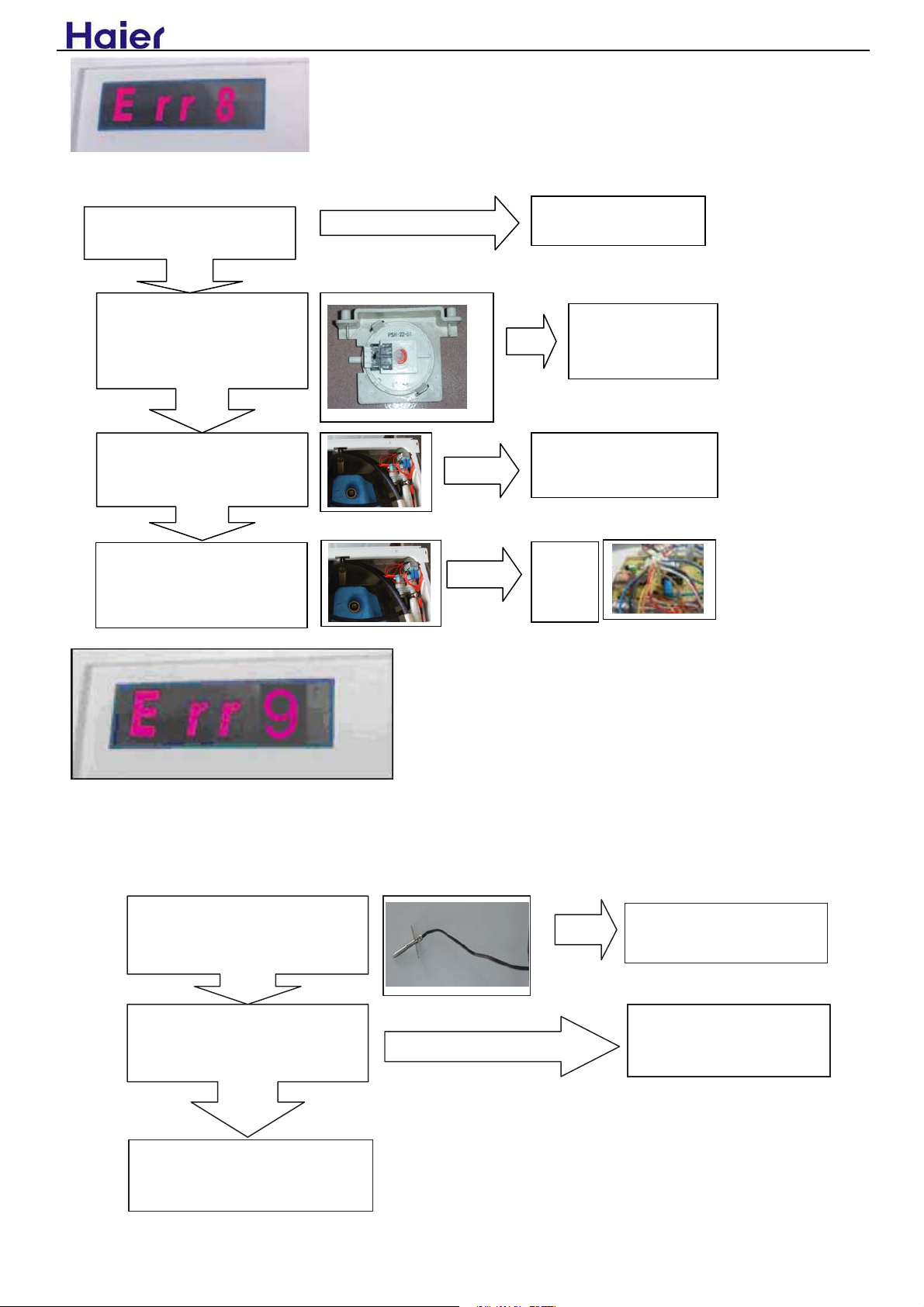

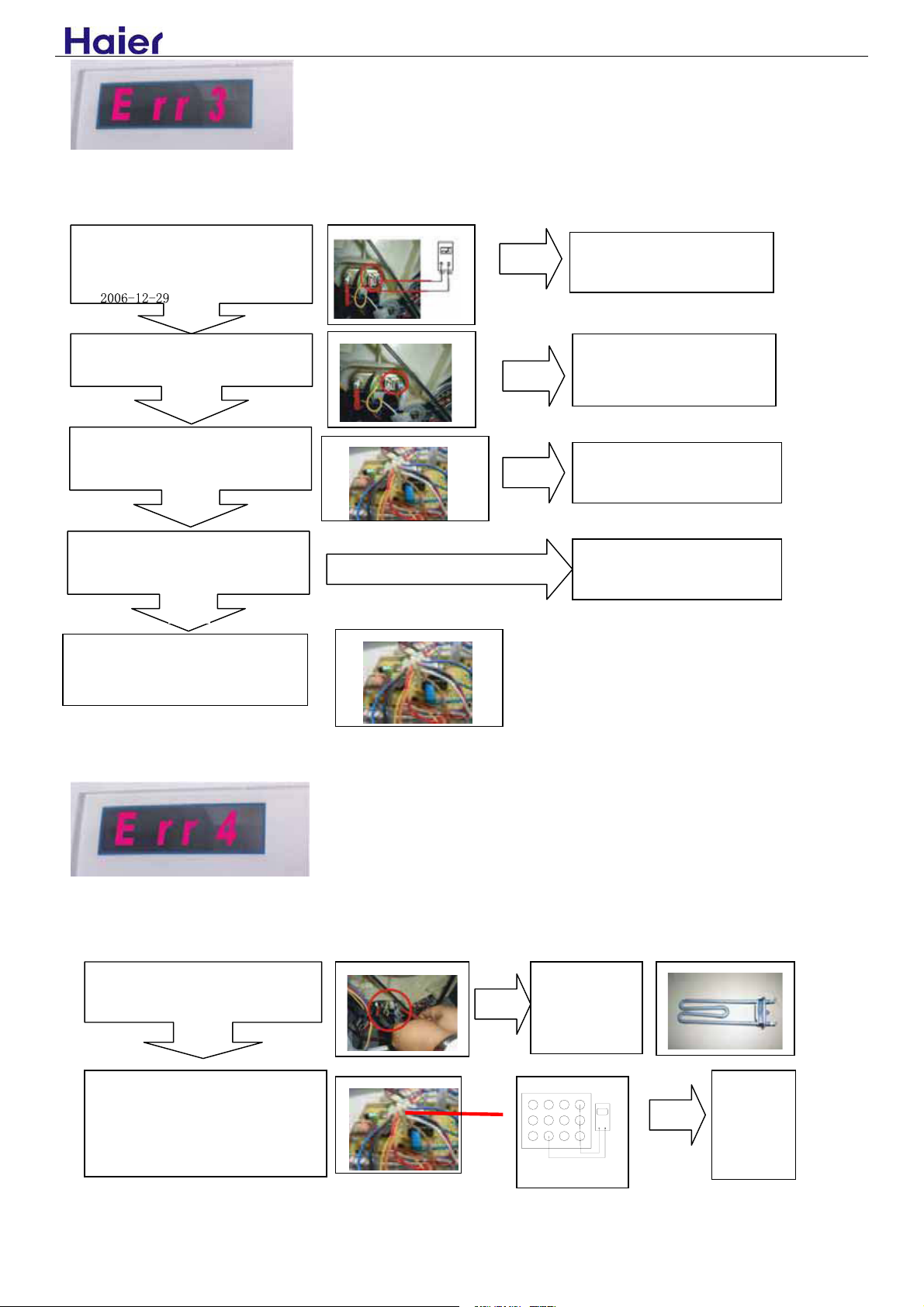

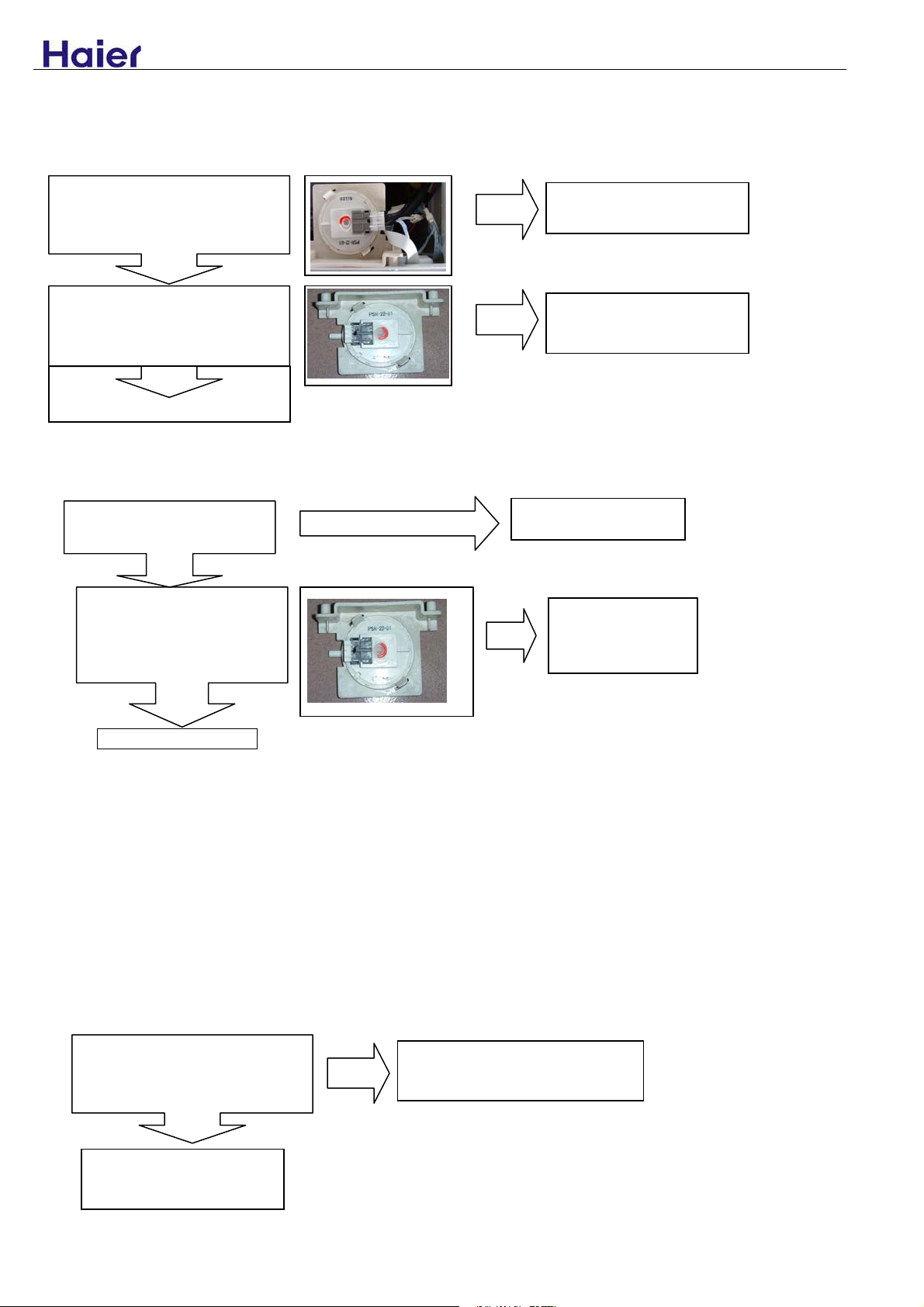

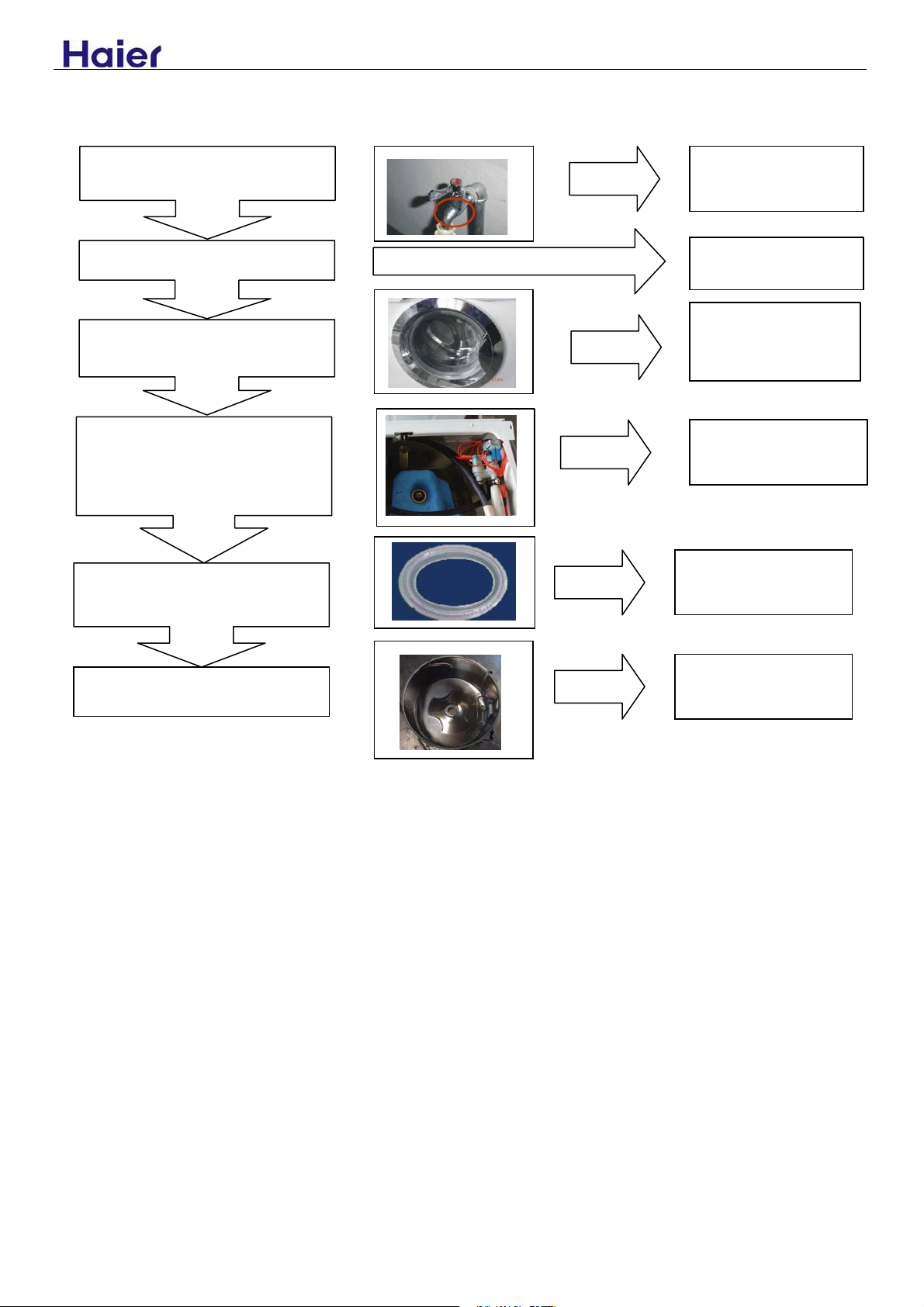

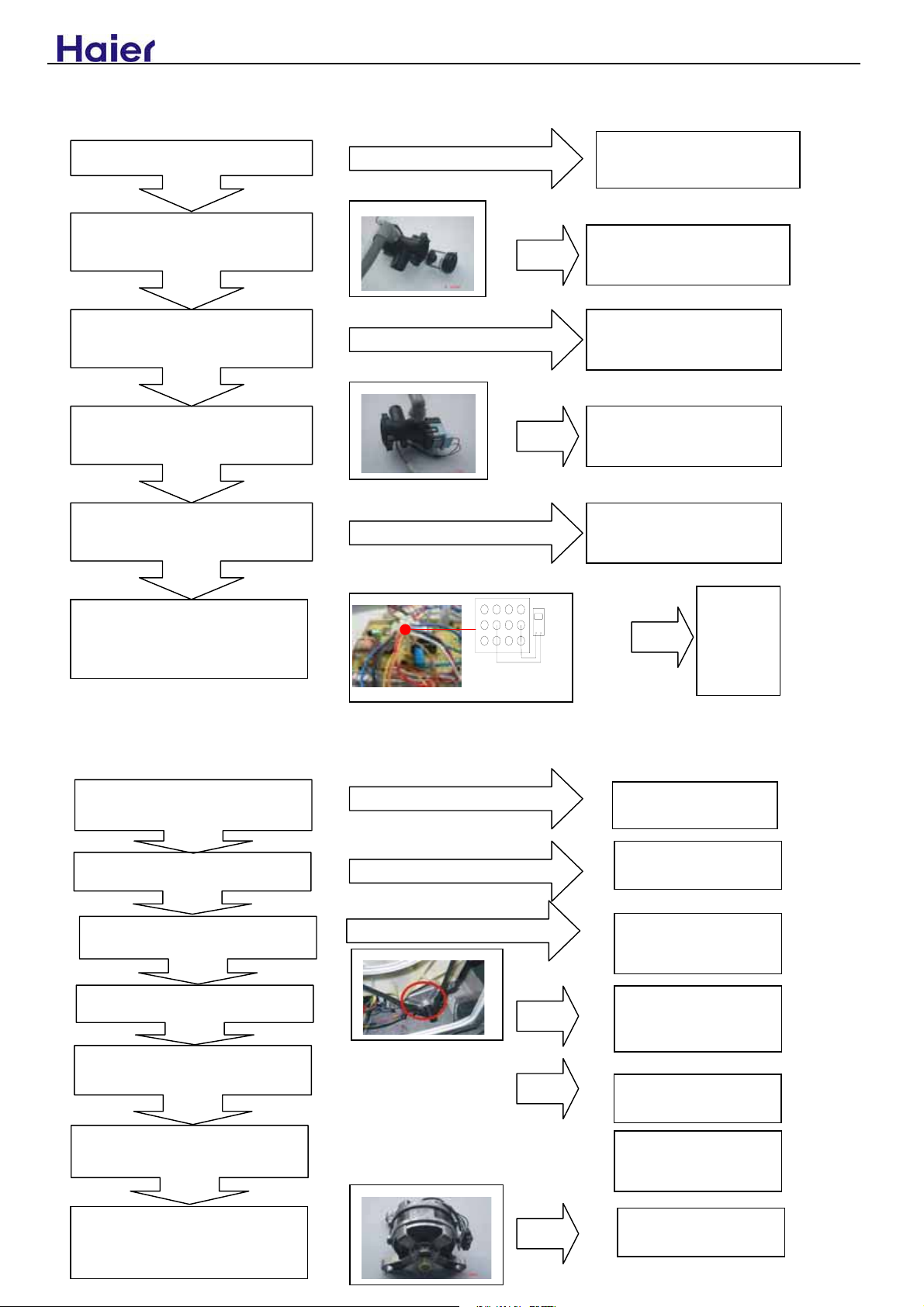

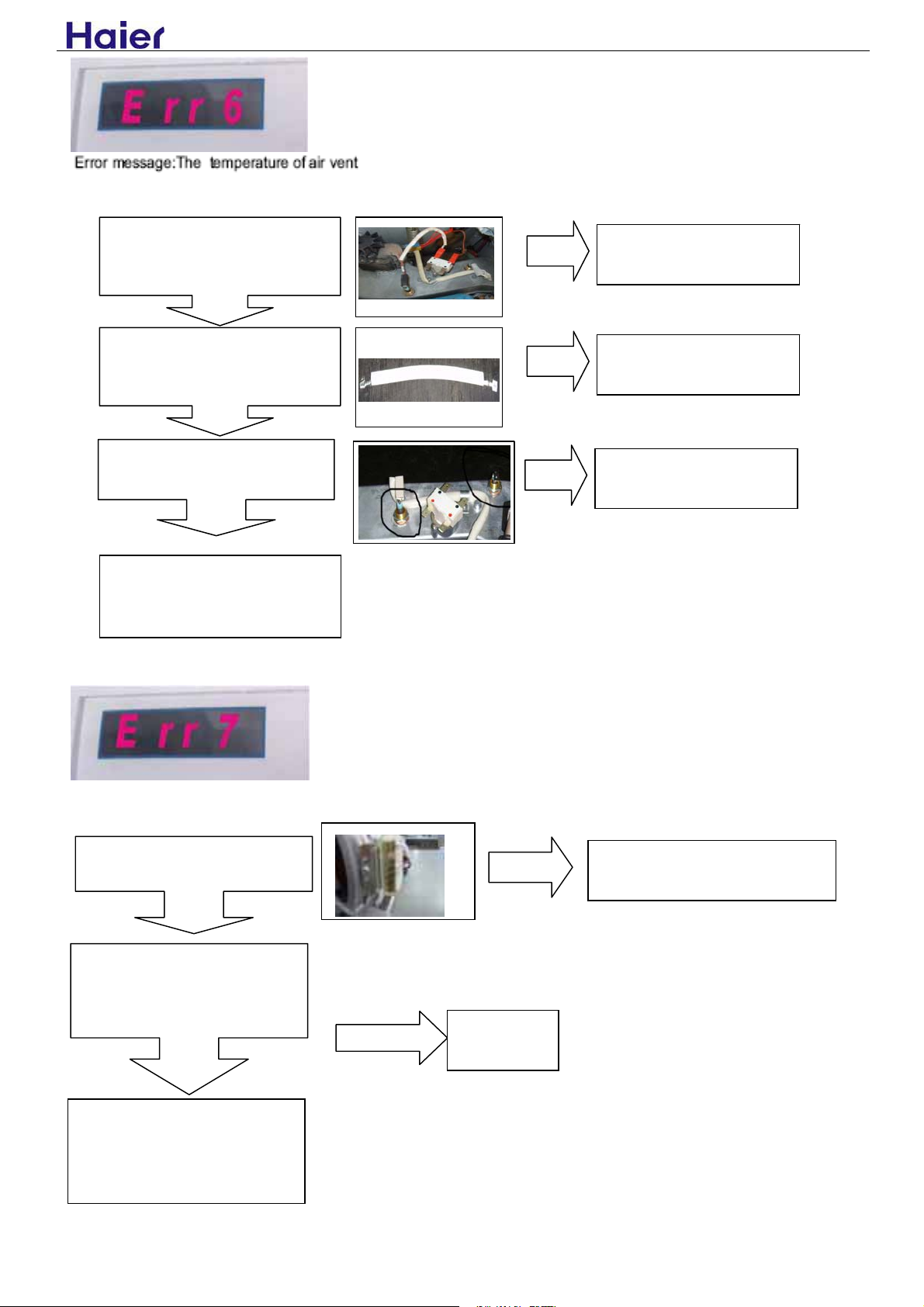

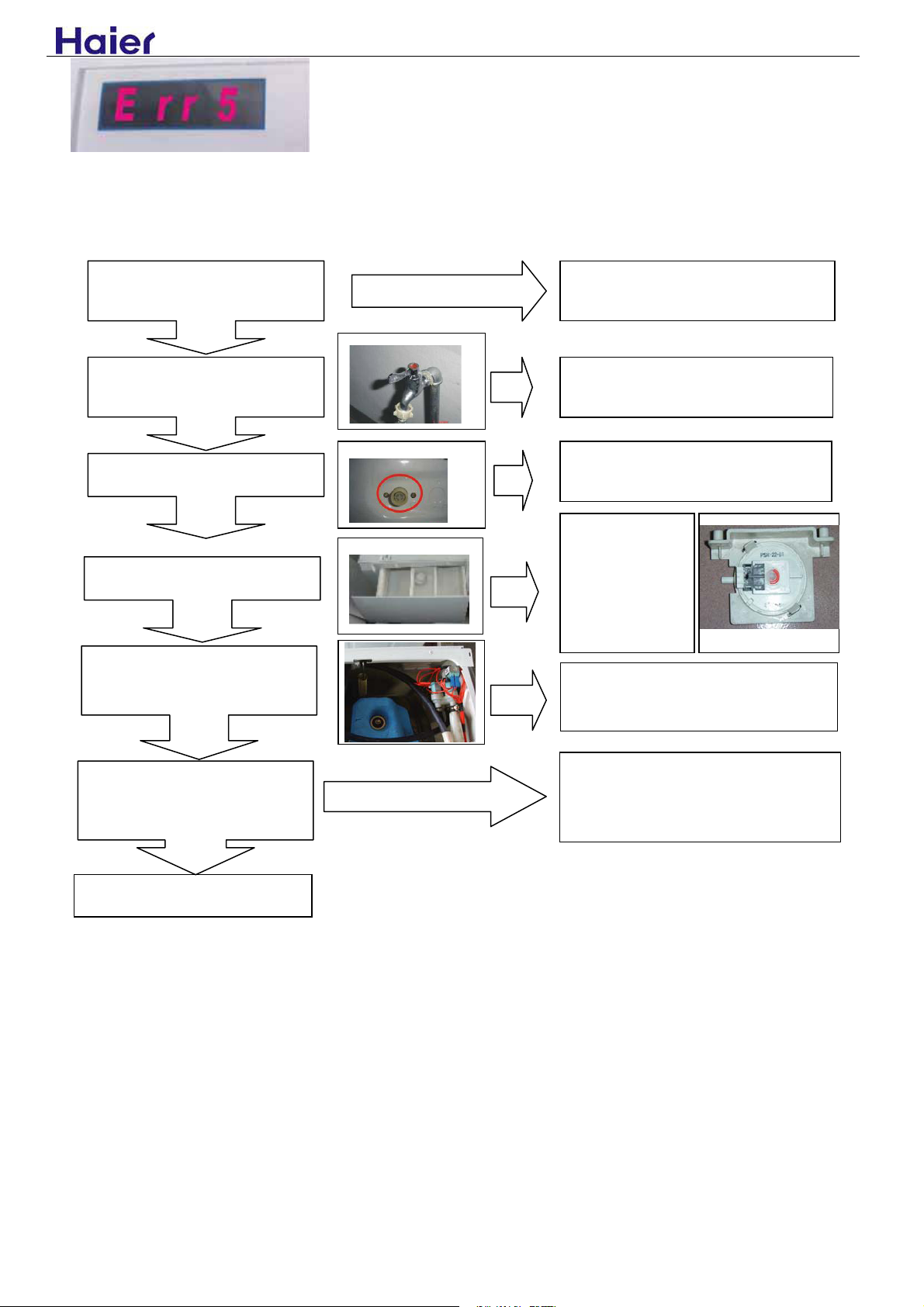

11.Error Display and Trouble shooting---------------------------------------------------16

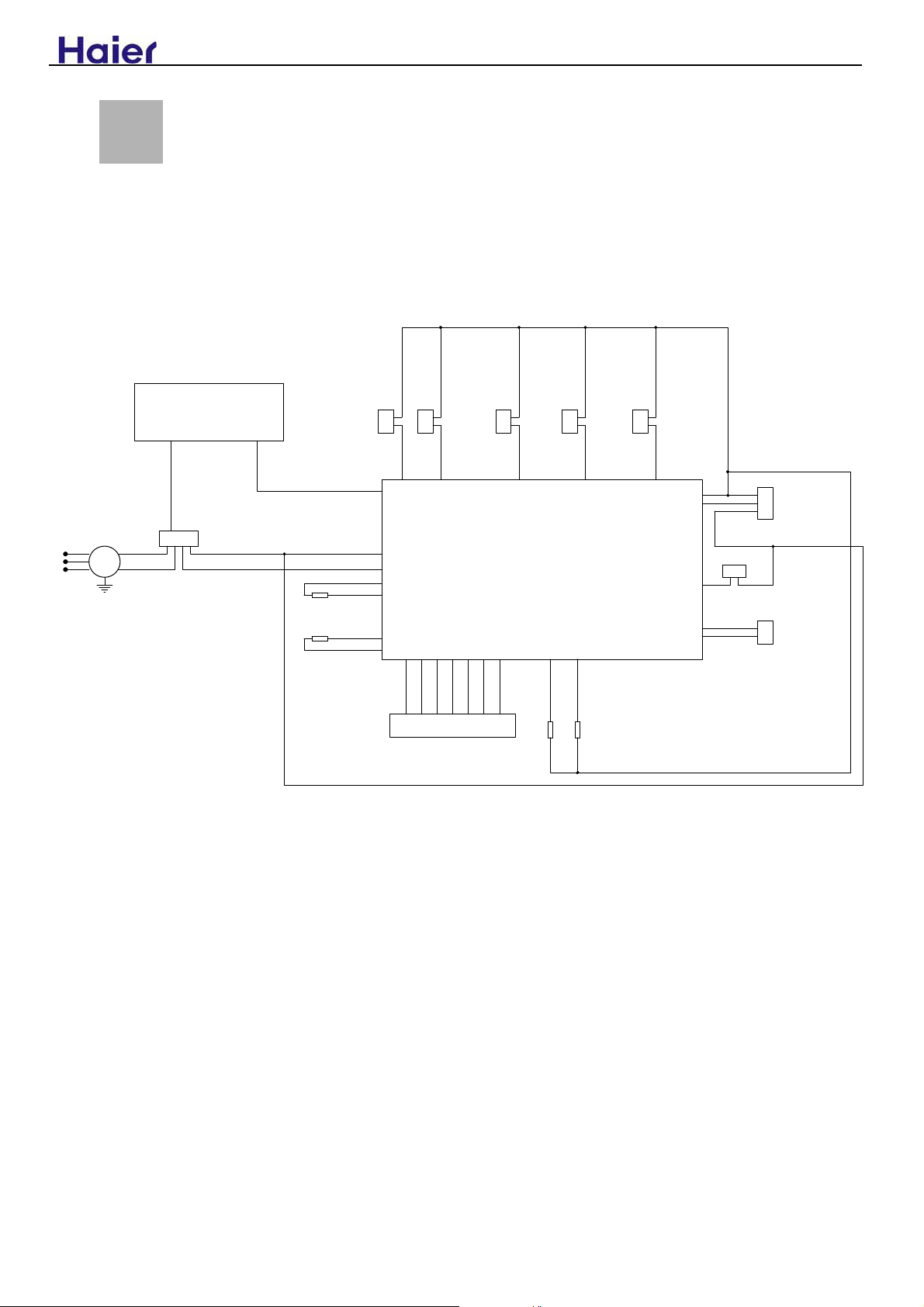

12.Wiring circuit --------------------------------------------------------------------------------26
13.Back cover-----------------------------------------------------------------------------------27
MANUAL CODE˖
SM-HTD1268-
1
1
Page 3
Washer And Dryer Model:HTD1268 SERIES
PRODUCT CODE ILLUMINATION AND SERIES INTRODUCTION
Model code rule description
Model identification˖
HTD
A˖Serial code
B˖Max spin speed
C˖silver gray
12
68
AB
C
MANUAL CODE˖
SM-HTD1268-
1
Page 4
Washer And Dryer Model:LSE-1200 S SERIES
Multi-gear speed controller
According to different costumingˈyou can select corresponding spin speedˈ
from 0 to 1200 rpm.
Unique gasket design featuring no residual water hidden inside.
By the unique gasketˈwashing machine can left no residual water hidden between outer
drum and front board.
Delay time adjustive.
According to different costumingˈyou can select delay timeˈfrom1hto24h.
Apperceive drying degree of laundry automatically, just in time to save energy and
make you more comfortable
.
Gradient 30 degree control panel, extra big VFD indication, washing process is clear
at a glance
Custom memory function, more time saving and convenient.
3
Page 5
5.6002senihcamgnihsaw
HTD1268
Last update
1. Product identification
enihcamgnihsaWecnailppafonoitpircseD
Type of appliance(FS = standing, BI = built-in
FS
HaierdnarbnworeilppuS
NAEedocrabreilppuS
Commercial Brand / Model
CBTNAEedocrablaicremmoC
2. Key-Features
AssalcycneiciffeygrenE
BssalcecnamrofrepgnihsaW
BssalcycneiciffenipS
°nsmargorP
11
gKyticapaC
6
Spin speed (max./optional) rpm
1200-400
Noise level sound pressure level
dB(A) 65
Energy consumption per wash circle kWh 1.14
Water consumption per wash cycle L
54
Annual average energy consumption * kWh 190
Annual average water consumption* L 9600
Residual dampness
(spin result)
% 54%
Spin speed selector switch
(steps)
rpm
Adjustable thermostat (
water temp. adjus
°C
90 -
Drum capacity dry laundry /
kg / l 6 /46
Auto water level adjust
(depending on volu
AWL
251nim).xam(emitgnihsaW
Washing temperatures
(program-co
°C
30 -90
Certification's (CE/ ISO 9001 / ISO 9002) CE / ISO 9001
).lhR(SG/VÜT)QMI/SG/VÜT/SG/EDV(slavorppA
* per average 200 wash cycles
(EN60456)ðT= COLD
3. Basics data
Unit dimension(H x W x D)
cm
85 x 59,5 x 60
88gkthgiewteN
zH05/~V042-022zH/Vycneuqerf/egatloV
Input power / main fuse (intensity) W / A 2100/10
Work top / removable
/
Control M
= electromechanical,E= electronic,F= fuzzy
E
Drum
S
= stainless steel /Z= zinc coated
S
Tub
P
= Polyprop./S= stainless steel
S
Door:
aesthetic (R= round,Y= big eye,Q= square)
Y
Diameter
cm 30
Outer door frameS= stainless steel /M= metal /P= plastic
P
Inner door
G
= glass /P= plastic
G
3°nstnemtrapmoctnegreteD
Removable compartment for liquid detergent
Delay timer
(from-to)
h 1-24
Self cleaning suds pump
Washer And Dryer Model:HTD1268 SERIES
4
Page 6
Water inlet hose cold water / hot water
/-
Water drain hose / -support
/
Adjustable feet n° 4
4. Safety systems
Auto door lock
ADL
Motor overheating protection
MOP
No heating without water
NHW
Auto water cool-down
(before drain 90°C b
AWC
Water protection
WRP
Acqua Stop kit
-
Child protection
5. Programs
1) COTTON PREWASH (90°C/60°C/40°C
n°
1
2) COTTON (60°C/40°C/Ć)
n°
1
3) SYNTHETIC (40°C/Ć)
n°
1
4)WOOL n°
1
5)CASHMERE n°
1
6)HAND WASH n°
1
7)QUICK WASH n°
1
8)SPORT WASH n°
1
9)DUVET n°
1
10)Drain n°
1
11)Spin n°
1
Optional function keys
(additional program settings)
-
Program button(with power switch)
Start / pause
Baby care
Economic key/load
Rinse hold / No Soak
Delay timer
speed
temperature
Packing dimensions & loadability -
Packing dimensions (H x W x D) cm
89×65×60
Gross weight kg 74
40' Container load pcs
-
40' HC load capacity pcs 171
Logistic / recicling information RS
Packing weight kg 6
Packing materials / Recycling symbols REzY
Carton (w
gr 0
Polistyren (w
gr 1000
Polyetylene foil
gr 500
Other packing materials
gr
-
Wood (w
kg
-
Service -
6.
User instruction (languages)
D/F/I/GB/E/P/NL
Max. failure rate (12 Months after sale
%
Washer And Dryer Model:HTD1268 SERIES
5
Page 7
Washer And Dryer Model:HTD1268 SERIES
Precaution
.
The power cable must be replaced
by a qualifed engineer; if not, please
consult the Service Center.
5. Do not use inflammable detergents or
dry-cleaning agents. Do not use inflammable
spray containers in close vicinity to the
washing machine. In the event of gas leaks,
remove the washing machine plug and do not
connect.
7. Do not allow childrenplaywith thepackingmaterials after unpacking.
6. The door of the washing machine will
become very hot during the water-heating
process. Avoid contact with the door during
the heating process. For safety, keep children
away from the washing machine.
6
Page 8
Washer And Dryer Model:HTD1268 SERIES
precaution
8. The washing machine must not be installed
outside or in a very humid areaas drops of
water may form on electricalcomponents,
If drops of water have splashed on the
warming on the washing machine,leave it
dry before use.
10. Keep away from heat sources and direct sunlight to prevent plastic and rubber
components from aging.
ƽ 8VH
1. Before starting the wash programme,
ensure that the washing machine is
correctly connected to the water supply. In
the event of water leakage, turn off the
water supply and reconnect, or call the
Service Center.
2. Keep the door slightly open when the
washing machine is not being used. Never
cover the machine with a plastic sheet.
7
Page 9
Washer And Dryer Model:HTD1268 SERIES
Precaution
3.Do not place heavy objects or container
with water on the washing machine,so as to
prevent deformation of the flat surface and
plastic parts.
5. Before washing, do up zippers and ensure
that buttons are securely fastened. Place
small items, such as socks,belts,etc. in a
small washing bag or a pillow-case . To
protect the washing machine, do not wash
garments containing wire parts.
4. Do not wash articles containing
polystyrene or similar elastic materials.
6.Do not open the detergent drawing
during the wash cycle.
7. The door is fitted with a self-lock device
and can not be opened until 2-3 minutes
after the end of the programme.You are not
recommended not to force the door open
before the programme end. Do not open the
door if the water level is above the lower
part of the door.
9.For appliances with type Y attachment,the
intructions shall contain the substance of the
following.
If the supply cord is damaged,it must be
replaced by the manufacturer,its service
agent or similarly qualifled persons in order
to avoid a hazard.
8. At the end of the wash cycle, turn off the
water supply to prevent water leakage, unplug the washing machine and thoroughly
clean the trim so as not to dirty the laundry
in the next wash cycle.
10.The installation instructions shall state
that the appliance is to be connected to the
water mains using new hose-sets and that
the old should not be used.
For washing machines with ventilation
openings in the base,that a carpet must not
obstruct the openings.
8
Page 10
Washer And Dryer Model:HTD1268 SERIES

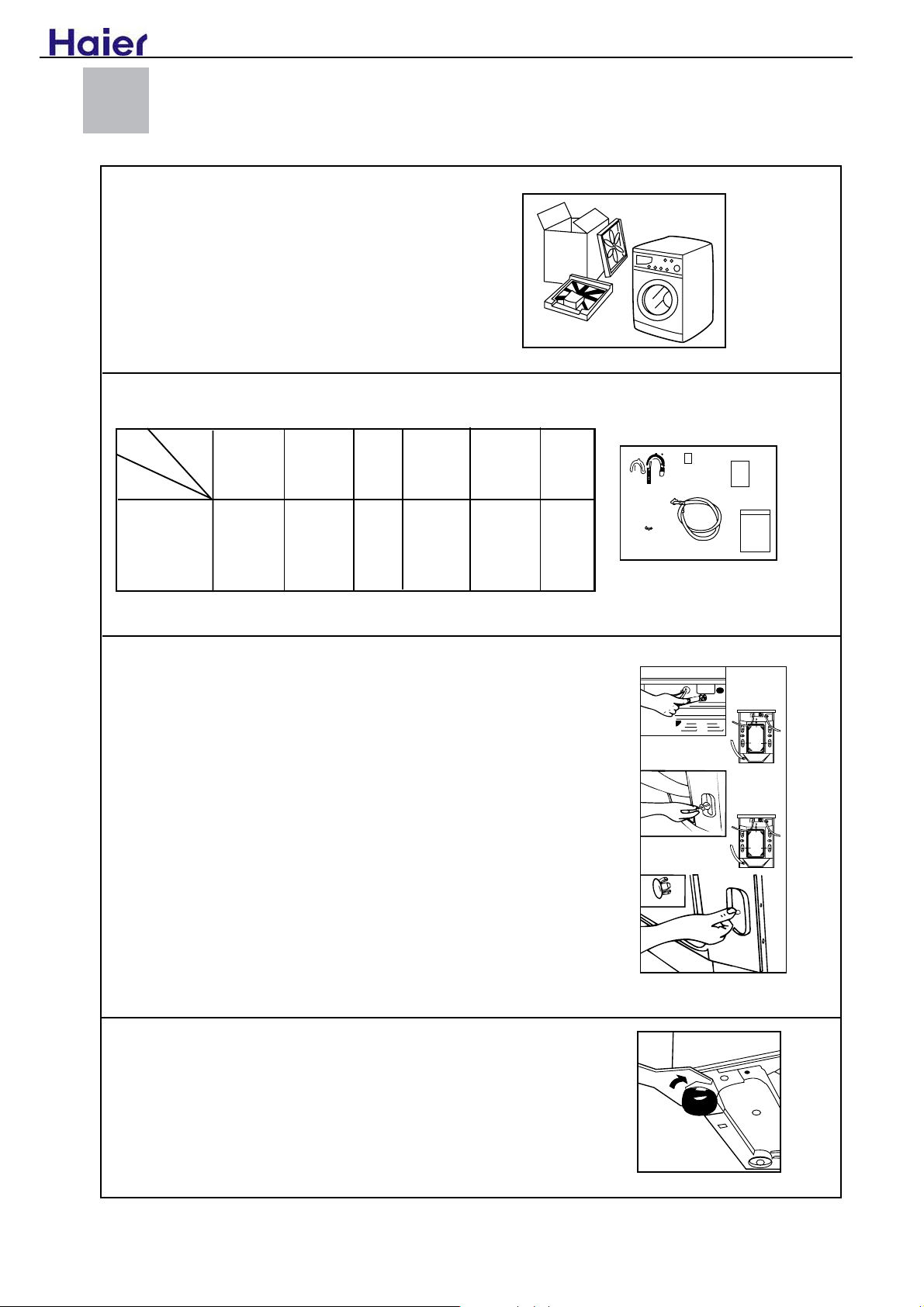

Installation
Remove all the packing materials (including the
ƽ
EPS base)to prevent vibration during use, as
shown in the right picture.Upon opening of the
package, water drops may be seen on the plastic
bag and the porthole. This is normal phenomenon
resulting from water test in the factory.
ƽ
Check attachments and materials with reference to the following
Qty
Name
Operation
manual
Quality
certificate
Water
hose
Drainage
holder
Warrantly
card
Plastic
plugs
Model
HTD1268
ƽ
Dismantle the packing bolts as shown in Fig. 2.
1
12
11
3
The packing bolts are designed for clamping anti-vibration components
inside of the washing machine during the transportation process.
Before use:
1. Remove the back plate;
2. Remove the three packing bolts on the back plate and take out the
rubber hose;
3. Replace the back plate;
4. Fill the holes left by the packing bolts with plastic plugs.
(Attention: The packing bolts and rubber hose should be kept in a safe
place for later use)
Plastic plugs
Quality certificate
Drainage holder
Water hose
Fig
Warrantly card
.1
Operation
manual
Adjusting the washing machine
ƽ
There are adjustable feet under the bottom of the washing machine. Before
use, the washing machine should be adjusted, as shown in Fig. 3, so that it
is level.
9
Fig.2
Fig.3
Page 11
Washer And Dryer Model:HTD1268 SERIES
Installation
1. Place the threaded end of the water inlet hose on
the water inlet valve connector. threaded end of
2. Check that the connection is correct by
tightening the threaded end on the connector.
Positioning the drainage hose
water inlet valve connector
• The free end must be at a height of between 80 and 100 cm. The drainage hose must be
fastened on the rear panel with the retaining clip.
• Fix the drainage hose in the correct position with the support supplied.
It is inadvisable to lengthen t he hose; if necessary, contact the Service
Centre. The extension must not exceed 250 cm in length (an overlong
extension could cause the water to drain while the washing machine is
still loading). The diameter of the extension hose must be the same as
that of the original drainage hose.
Note: the free end must not be immersed in water. Connect the
drainage hose securely in order to prevent leakage.
Connection of power supply
Check the following items before connection to the power supply.
• whether the socket is able to support the washing machine’s maximum load (the socket
and the power cable must be able to support a maximum current of no less than 15A).
• whether the mains voltage conforms to the required value.
• if the power socket to which the washing machine is connected is not the same as the plug,
replace it with a suitable one; alternatively, consult a specialised engineer or the Service
Centre for a suitable socket. The washing machine must be correctly earthed.
• the supplementary earth cable is not necessary if the power socket is earthed.
• the supplementary earth cable is installed at the top of the rear panel of the washing
machine and earthed if the power supply socket has no earth connection.
Note: do not connect the supplementary earth cable to the water hose or heating pipe.
10
Page 12
Net dimension
Washer And Dryer Model:HTD1268 SERIES
height: 850mm / width: 595mm / depth: 600mm
11
Page 13
Name of the parts
Washer And Dryer Model:HTD1268 SERIES
Detergent distribution drawer
Display
Door
Glass
Programme selector
Control panel
Function button
Door handle
Baseboard
12
Page 14
Washer And Dryer Model:HTD1268 SERIES
Control Panel
Control Panel (HTD1268)
.
A Program knob
By turning this knob, it is possible to select the desired program
Refer to "Program Guide" to select the Program .The program
selector knob is at the same time a power swith; when the knob is
at " ", the washing machine is off; when the knob is in the other 11
positions, the washing machine is on.
2
9
B Temperature button
By pressing and holding down this button, it is possible to select the desired washing temperature ( ,
40, 60, 75, 90C). Refer to "Program Guide" to Select the maximum temperature of each program.
When seledcted, the temperature is displayed in the digital display area on the screen.
Caution: Cold wash is selected when the symbol " " is displayed in the temperature display area and
"20" on the display area of the screen.
C Speed button
By pressing and holding down this button, it is possible to select the desired spin speed (0, 400,
600, 800, 1200). Refer to the “Program Guide” to choose the maximum speed of each program.
When selected, the speed value is displayed inthe digital display area of the
screen.
Caution: the washing machine does not spin when the number “0” is displayed in the speed
display area of the screen. The washing machine spins at 1200 rpm when “MAX” is displayed in
the speed display area of the screen.
D Start / Pause button
When the electric cable of the washing machine is plugged in and a program is selected, after
the washing temperature, spinning speed and other required functions are set, lightly press
this button, operation will start. During a wash cycle, press this buttonlightly, operation will
pause. Press it again to resume operation.
Note: After operation is suspended, the washing temperature, spinning speed and other functions
can be reset. After that, press the Start/Pause button to continue operation.
E Economic
Press the key and manually select different programs and power-saving and water-seaving fea-
ture based on the volume of load.
13
Page 15
Washer And Dryer Model:HTD1268 SERIES
Control Panel
F drying button
Press this button and the drying icon of the display screen brightens.When the
program finally comes to the drying process,the drying icon twinkles,indicating the
start of the drying program.If you want to cancel the program,press the start/pause
button before the program comes to the end of the drying process.Press the drying
button again and the drying function is canceled while the drying icon extinguishes.
G super-clean rinse button
Press this button and the super-clean rinse icon of the display screen brightens.Before
the program comes to the softening process,the machine will automatically add one
more rinse program.At the same time the super-clean rinse icon twinkles until the
super-clean rinse program comes to an end.The program continues until the end.
H pre-washing button
In room dirty clothes are to be washed,press down this button before the start of the program and
the pre-washing icon of the display screenbrightens.After starting the washing machine,the prewashing program is the first to be operated.At this time the pre-washing icon twinkles and there is
water inflow in room1of detergent-dispersing package.At the end of the pre-washing program,the
pre-washing icon extinguishes and other programs begin to operate.
I Reservation button
Press down the reservation button when needed before the program starts.The default time is 9
hours.Each time the button is pressed the default time increases by30minutes.If the button is
pressed continuously,the default time can be accumulated.It cycles from 0 hour to 24 hours until
you stop pressing the button.After setting the reservation time,the reservation icon brightens and it
won’t extinguish until the end of the reservation program.The reservation time includes the period
from the operation of the program till it send.Therefore,the preset reservation time should be at
least longer than the time span of the operation of the program,orelse the program won’t perform
the reservation function and goes directly to the washing process.
J Display screen
The remaining time of the washing process,the set temperature and speed,the additional functions
as well as the warning message are to be shown on the display screen.For details please refer to
the introduction of the display screen.
K Detergent-dispersing package
Open the detergent-dispersing package and you will see 3 little rooms fordetergent:
Room1:If pre-washing function is needed,put detergent in this room.Otherwise,
no detergent should be put in here.
Room2:When washing in the first 6 programs,put detergent in this room whether
a pre-washing program is needed or not.
Room3:Put some softener,conditioner or spice in this room to soften or do other treatment to ward
the clothes.
D+I Keyboard lock button
After starting the program,press down the reservation button and the start/pause button
simultaneously for 3 seconds and the keyboard lock function will be started.At this time the digital
area shows “SAFEON”.Press the buttons again for 3 seconds and the function is canceled.And the
digital area shows “SAFEOFF”.This function is set for fear of outside intrusion in the operation of
the program.For example,if children press the functional or program buttons out of curiosity,it will
do affect the washing program or even interrupt the program.
Note:if the keyboard lock is started when the program is in operation,the keyboard lock function
will be canceled automatically at the end of the program when it shows “End”.
Note:In the washing process,if the keyboard lock is not started,turn the program button to the off
position of the machine and the current program will be canceled.Turn the program button again to
choose a new program.
14
Page 16
Washer And Dryer Model:HTD1268 SERIES
Display Screen
The content of the displayscreen
content of program
off
cotton
synthetic cashmere
anti-virus
ironing
drying
spin
2
rinse
sport quick silk
1.Digital display area:The time the machine is turnedon,it shows the set time,such as ,
it also shows the current heating temperature and the dehydrating speed,such as ,it
tells the remaining time when the program is in operation.Choose the code manually,like
.When adjusting the reservation time,it tells the value such as ;When the key
board lock is chosen,it tells while it shows when the keyboard lock is
canceled.When there is any warning,it shows the malfunction code ,At the end of
the program,it shows
2.Speed(rpm):The current value twinkles and remains bright after the program is started
3.Dehydrating indication stripe:It remains bright before the program is started and after that in
the process of dehydrating the set values change in accordance with the dehydrating speed.
4.Temperature˄ć˅˖The current value twinkles and remains bright after the start up of the
program.
5.Temperature indication stripe:It remains bright before the program is started and after that in the
process of heating the set values change in accordance with the change of temperature
6.Clothes quantity and quantity indication stripe:.the stripe remains bright and the current
value twinkles.After the start up of the program,the current value and the corresponding
stripe remain bright.
7.Reservation icon˖It brightens when the reservation button is pressed or the reservation
time is adjusted.It twinkles when ther eservation program is in operation and extinguishes
at the beginning of the washing program.
8.Pre-washing icon:It brightens when the pre-washing program is chosen,twinkles when the
pre-washing program is in operation and extinguishes at the end of the program.
9.Super-clean rinse icon:It brightens when the super-clean rinse program is chosen,twinkles
when the program is in operation and extinguishes at the end of the program.The superclean rinse function can be set before the start of the program or by pressing start/pause
button before the program comes to the rinse process.
10.Drying icon:It brightens when the drying button is pressed,twinkles when the drying
program is in operation and extinguishes at the end of the program.The drying function can
be set before the start of the program or by pressing start/pause button before the program
comes to the end of the dehydrating process.
11.Lock icon:It brightens when the door is locked after the start of the machine.Only when it
extinguishes can the door be opened.
12.Warning icon:It brightens together with the malfunction code after some malfunction
occurs.In no cases except that does it brightens.
9
digital display area warning
delay
prewash extra rinse drying door lock
spin speed
spin speed indicator
temp.
temp. indicator
load
load indicator
15
Page 17
Washer And Dryer Model:HTD1268 SERIES
Program Setting
program setting mode
cotton
synthetic
cashmere
silk
quickwash
sport
recommended
laundry
cotton
fabric
fsat-colour
fiber
cashmere
silk
slightly-soiled
textiles
cotton
synthetic
temperature
range
,30,40,
60,90
,30,40,60
,30,40
,30,40
,30,40
,30,40
suggested
temperature
speed range
(rpm)
suggested
speed
rinse
spin
drying
ironing
anti-virus
off
Note:
The time that program needs differing from the time shown on the screen because of the
differences in water pressure,drainage condition,cloth texture,quality and equilibrium condition,
water quality,temperature and surrounding temperature,etc..
The remaining time of the drying process would suddenly reduce or stays at a certain value for
a long time in accordance with the texture and the quantity of the clothes.
cotton
synthetic
cotton
synthetic
cotton
synthetic
cotton
synthetic
cotton
synthetic
The power is off
Used for drying the cotton or synthetic cloth.
Used for drying the cotton or synthetic cloth.The
cloth dried needs to be ironed.
Used for getting rid of the smell and virus.
16
Page 18
N
V
N
k
Washer And Dryer Model:HTD1268 SERIES
Error message:Door is not properly shut 20s after program is started.
Troubleshooting:
Pushing the door to Check Whether Door
is properly shut or not
Y
N
Cut off the power and then turn on
again.Check the voltage between brown
wire and blue wire of door lock, is it
between AC 220-240V?
N
Check if the wire connecting door loc
Check the voltage between gray wire and
red wire of power driver PCB, is it
between AC 220-240V?
220-240
Error message:Drainage error, water not emptied within 4 min.
Troubleshooting:
Y
Y
Door lock is broken and n eed
replacing,then make sure wire is
connected properly.
Connect the wire properly
Power driver
PCB
Page
17
Page 19
N
N
t
N
b
f
N
N
f
y
N
r
Washer And Dryer Model:HTD1268 SERIES
Error message:Temperature sensor is not properly connected or damaged.
Troubleshooting:
Cut off power and measure the resisitance
of temperature sensor by multimeter,is
it between 5-14k ?
Y
Check if NTC is connected properly
Y
Check the black wire and blue wire of NTC,
are they connected well ?
Y
Disconnect the white wire and black wire
from PCB ,and measure if the resistance
etween white wire and black wire o
Repalce power driver PCB
TC exist open circui
Connect NTC well
Connect all wires well
Y
Repalce wire
Error message:The heater may be broken
Troubleshooting:
Cut off power,check the resisitance o
Y
Turn on power, and set wash mode ,then start.
Check the export voltage of power drive
Heater elelment
must be
broken,please
replace it
Power
driver PCB
Y
must be
broken ,plea
se replace it.
220-240V
18
Page 20
Washer And Dryer Model:HTD1268 SERIES
Error message:The required water level is not reached within 10 min.
Troubleshooting:
Check if water is leaking from washer
bottom. inlet pipe. drain pipe or other
pipe connection
N
Check if tap is closed or water pressure is too
low (usual between
Check if inlet valve is jammed
Draw out the dispenser and check if water is
entering
Turn on power, and set pre-wash mode, then
start. Check the import voltage of
electromagnetic valve by multimeter
, is it between AC 120 V?
N
N
N
N
0.05-1
MPa)
Y
Y
Y
Y
Y
Readjust or replace the broken parts
Open the tap or wait for normal water pressure to use
Clean inlet valve
Observe if the height of
drain pipe not reach 80
cm. If water
and
Electromagnetic valve must be broken, please replace
it.
level sensor
the hose is leaking gas
Check if export voltage from
to
board
between AC 1 2 0V?
electromagnetic valve, is
N
Replace display board
The wire connected and inlet
it
Y
valve is not
display baord
properly. P lease reconnect it or replace it.
19
Page 21
Troubleshooting:
N
Washer And Dryer Model:HTD1268 SERIES
Check if
Turn on power and choose dry program to start,
measure if voltage of heater by multimeter,is it
between AC 120v?
The control wire
otherwise display board
must be
Please replace
the wire of heater
is connected properly
N
the fuse
Check if
is connected properly
N
N
may be broken,
.
en
brok
the broken one.
Connect well
Y
Y
Y
Heater element must be broken,
please replace it
it
it
Connect well
Error message. Motor overheat protection or is damaged.
Troubleshooting:
Cut off power and check if motor wires
are connected well
Y
Pull out the wire connection of
mo of motorThen check if
circuit is open by multimeter
Y
Repair wires
Replace display board
N
Reconnect well
20
Page 22
Washer And Dryer Model:HTD1268 SERIES
Error message. Water level exceeds protective value.
Troubleshooting:
Check if water switch hose and air collector
are jammed
Pull out water switch inserts and turn on
power, then set wash mode. While water
is entering at the position of 1/4 glass
window, check the resistance between ķ
and ĸ,isit0?Checktheresistance
between ķand Ĺ, is it infinite?
N
N
Y
Clean water switch hose and air
collector
Replace water pressure switch
Y
Without power ,connect inlet pipe to inlet
vavle,then open the tap and observe if water
is entering in dispenser
N
Without starting but electrifying, measure the
import voltage of inlet valve, is it between
AC 220-240V?
Error message:
The dry temperature sensor short cut or open.
Troubleshooting:
Replace inlet valve
Y
Y
Replace
PCB
Check if
the dry temperature sensor
is connected properly
Y
Check if
is short cut or open
the dry temperature sensor
N
Replace display board
21
Connect well
N
Y
it
Replace it
Page 23
Washer And Dryer Model:HTD1268 SERIES
Err10
Error message:The water level sensor circuit short cut or open
Troubleshooting:
Check if
the wire of water levle sensor
is connected properly
N
Check if
is damaged
the water levle sensor
N
Replace PCB
Y
Y
Err12
Failure information: drying waterlevel sensor abnormity
Check if water switch hose and air collector
are jammed
Pull out water switch inserts and turn on
power, then set wash mode. While water
is entering at the position of 1/4 glass
window, check the resistance between ķ
and ĸ,isit0?Checktheresistance
between ķand Ĺ, is it infinite?
N
N
Y
Clean water switch hose and air
collector
Y
it
Connect well
Replace it
Replace water pressure switch
Replace PCB
Err13
Failure information: The door is not properly closed after the activation of the procedure
Processing mode:Please refer to Err1
Troubleshooting.
Err14
Failure information: when spined, clothes is unevenly distributed
Processing mode: Quiver and scatter the clothes to make it even. If there is still any
alarm,
pleasereplace the PCB.
Quiver and scatter the clothes to make it even.
N
Replace PCB
Y
Quiver and scatter the clothes to make it even.
22
Page 24
N
Y
r
N
N
N
N
g
r
N
Washer And Dryer Model:HTD1268 SERIES
HTD1268 Examination & Troubleshooting
Failure:Display nothing
Troubleshooting:
MMeasure the power supply ,is it exists
220-240V AC voltageeas
Repair power supply
Is power switch on ?
Y
Press power switch and check the voltage
between two pins of power switch. Is
there 220-240V AC voltage?
Y
Cut off power and check if plugs are
connected well by pulling the plug of PCB.
Y
Check if power plug exists 220V-240V AC
voltage at the import pin
Failure:no water inleting
Troubleshooting:
Is the tap shut off or the water pressure
too low?
N
Turn it on
Make sure power supply cabel assembly is
connected well and then replace powe
Insert the plug well and test
Replace Power driver PCB
Y
Open tap or wait for normal water pressure
Check if water is leaking from washe
N
Check if filter of electromagnetic vavle
is jamed
Choose pre-wash program and startˈ
Check if there is 220-240V at import pin
of electromagnetic vavle
N
Is there open circuit between
electroma
Choose pre-wash program and startˈ
then check if there is 220-240V at export
pin of electromagnetic vavle
netic vavle
N
Y
Y
Reconnect inlet pipe.
Clean filter
Replace electromagnetic vavle
Y
Y
Reconnect the wire
Replace Power driver PCB
23
Page 25
Failure:no draining
N
pump
f
N
N
N
N
N
y
t
k
Troubleshooting:
Washer And Dryer Model:HTD1268 SERIES
Is the height of drain pipe too high?
Turn filter anticlockwiseˈopen and check i
N
Check if hose connecting cylinder to pump
is bent or jammed
N
Turn on power and choose spin program to
start.Measure if import voltage of drain
pump is 220-240V
N
Cut off and check if the connection between
drain pump and PCB is open
N
Y
Y
Y
Y
Y
Adjust the height of drain pipe to
80-100 cm
Clean and tighten filter clockwise.
Arrange hose and clean
Replace drain pump
Replace the wire .
Turn on and choose spin program to
start.Measure if export voltage of PCB to
drain
is 220
Failure :abnormal noise and vibration
Troubleshooting:
Is the pack screws dismantled?
Y
Is there foreign material in the washer ?
Is washer in balance?
Y
Is belt loose or worn?
N
Replace
Power
driver
220-240V
Dismantle the screws
Y
Y
Clean
Adjust adjustable feet
Replace it
PCB
re the screws of counterweight and
N
Remove belt and turn belt pulley b
Turn on power and set spin program,then
startˈcheck if there is different noise from
motor
Y
Y
Y
Fasten them
Dismantle triangle and chec
Replace motor
24
Page 26
Failure:water leaking
Troubleshooting:
Washer And Dryer Model:HTD1268 SERIES
Check if water is leaking from the inlet pipe
or the tap
N
Is drain pipe broken˛
N
Check if there is foreign material nipped
between cushion of sight window and
sight window
N
Check if all tubes and tie-in is leaking
water, including the connecting of tube
and valve, dispenser, tube and
dispenser ,outer cylinder-cushion of sight
window-hose and outer cylinder, drain
pump and gas valve
N
Is cushion of sight window broken?
Y
Y
Y
Y
Y
Readjust it.
Replace drain pipe
Remove clothes
Reassemble or repair
Replace cushion of sight
window
N
Is water leaking from outer cylinder?
Y
Replace outer cylinder
25
Page 27
Washer And Dryer Model:HTD1268 SERIES
Wiring Circuit
1
3&%
JB10
Drain Pump
2
1
JB5
JB11
2
1
Drying Fan
JB8
JC6
;
JC1
JB7
Drying Switch
1
2
JC2
JC3
1-
MRC
1
2
2-
MRL
3
3-
MRN
1
Pressure Switch
2
9)'
2
Solenoid Valve
2
1
1
JB1
JB2
X1
Water supply
Solenoid Valve
2
1
JB4
Water supply
Solenoid Valve
Water supply
Program Selector
123
Filter
L
G
N
/
1
4
1
/
Heating Temperature Sensor
Drying Temperature Sensor
VCC
JB9
JB6
JC5
JC4
X4
JA1
JA2
JA3
JA4
JA5
JA6
JA7
Motor
Heater
1
Drying Heater125
1
26
Page 28
Washer And Dryer Model:HTD1268 SERIES
27
Loading...
