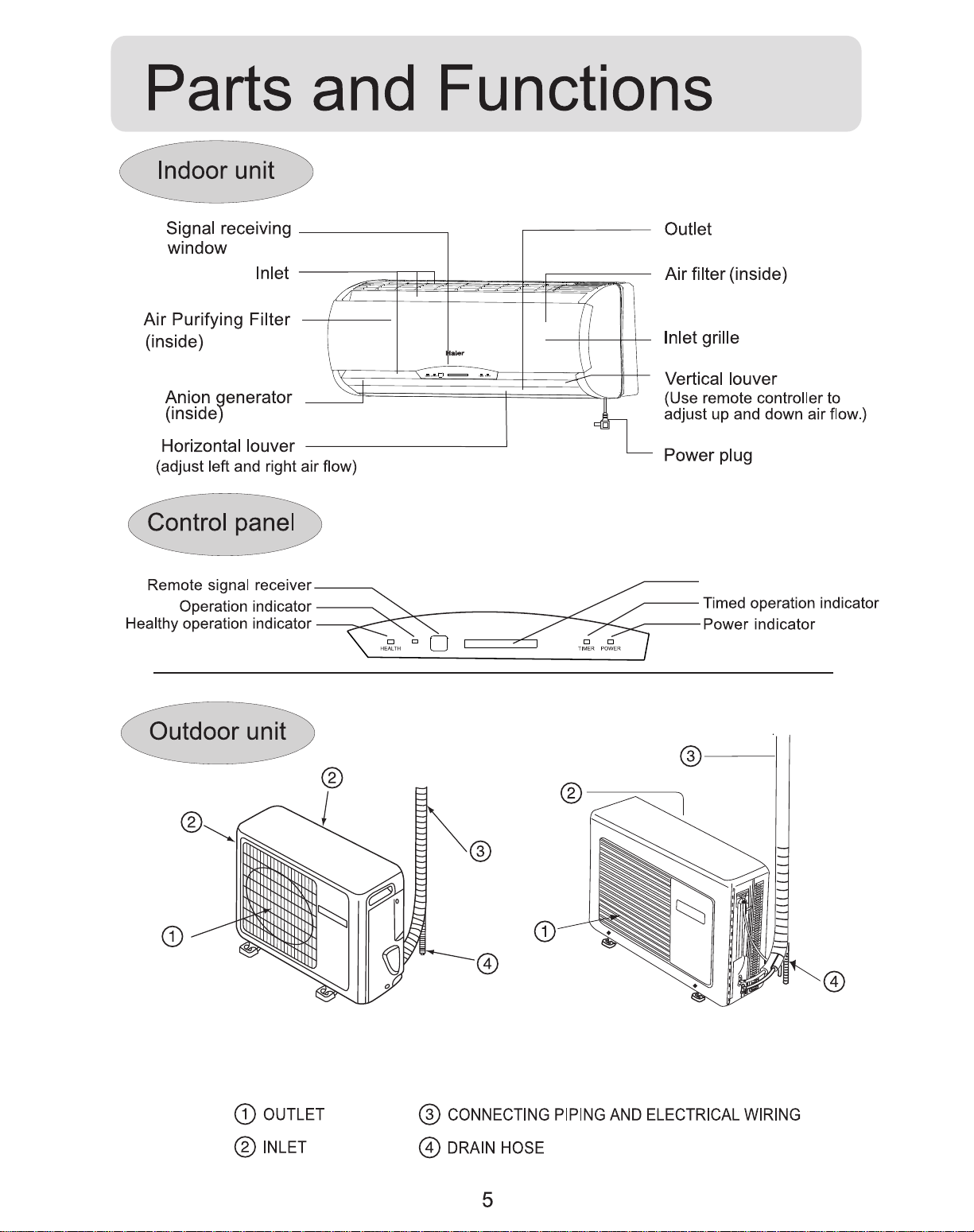

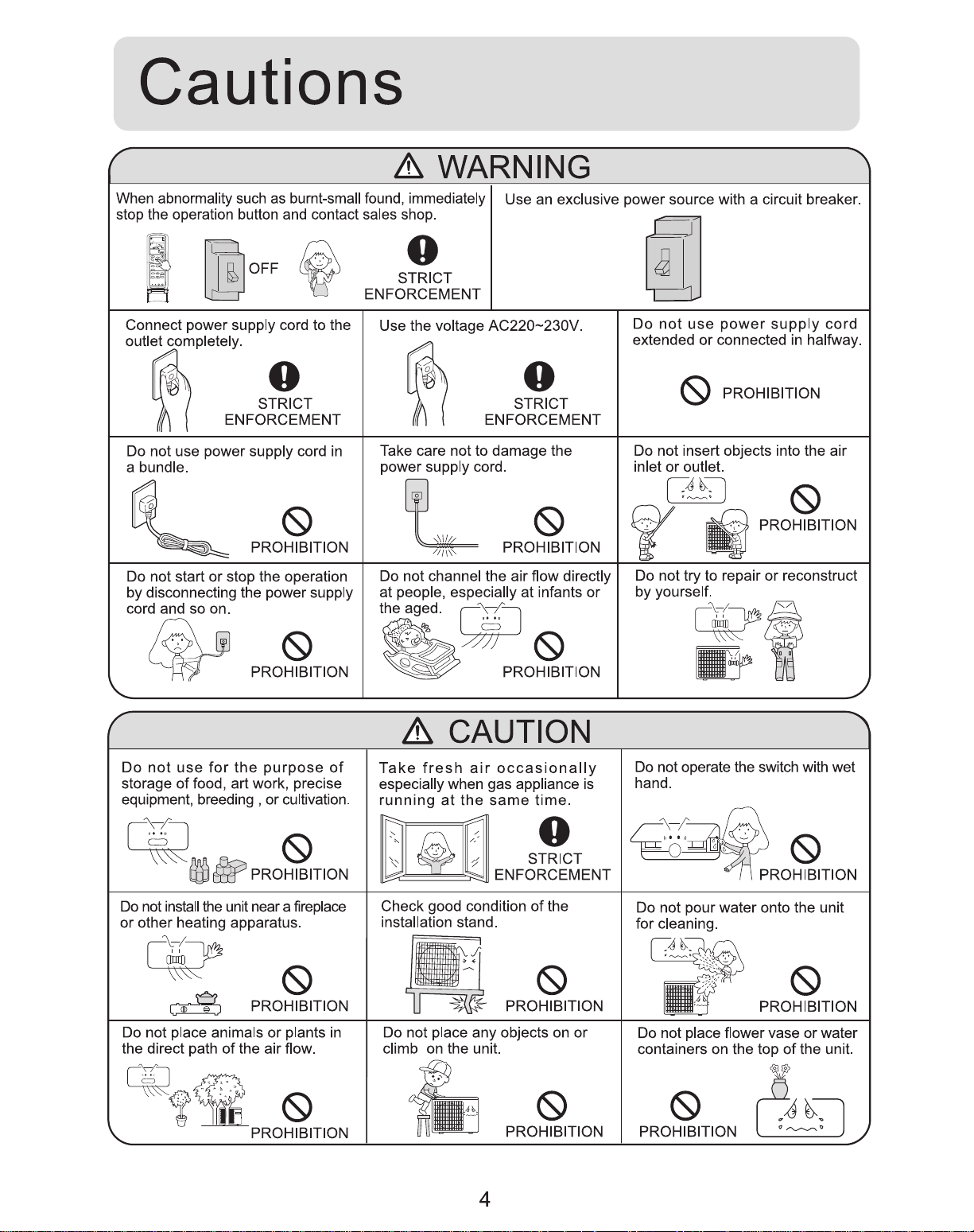

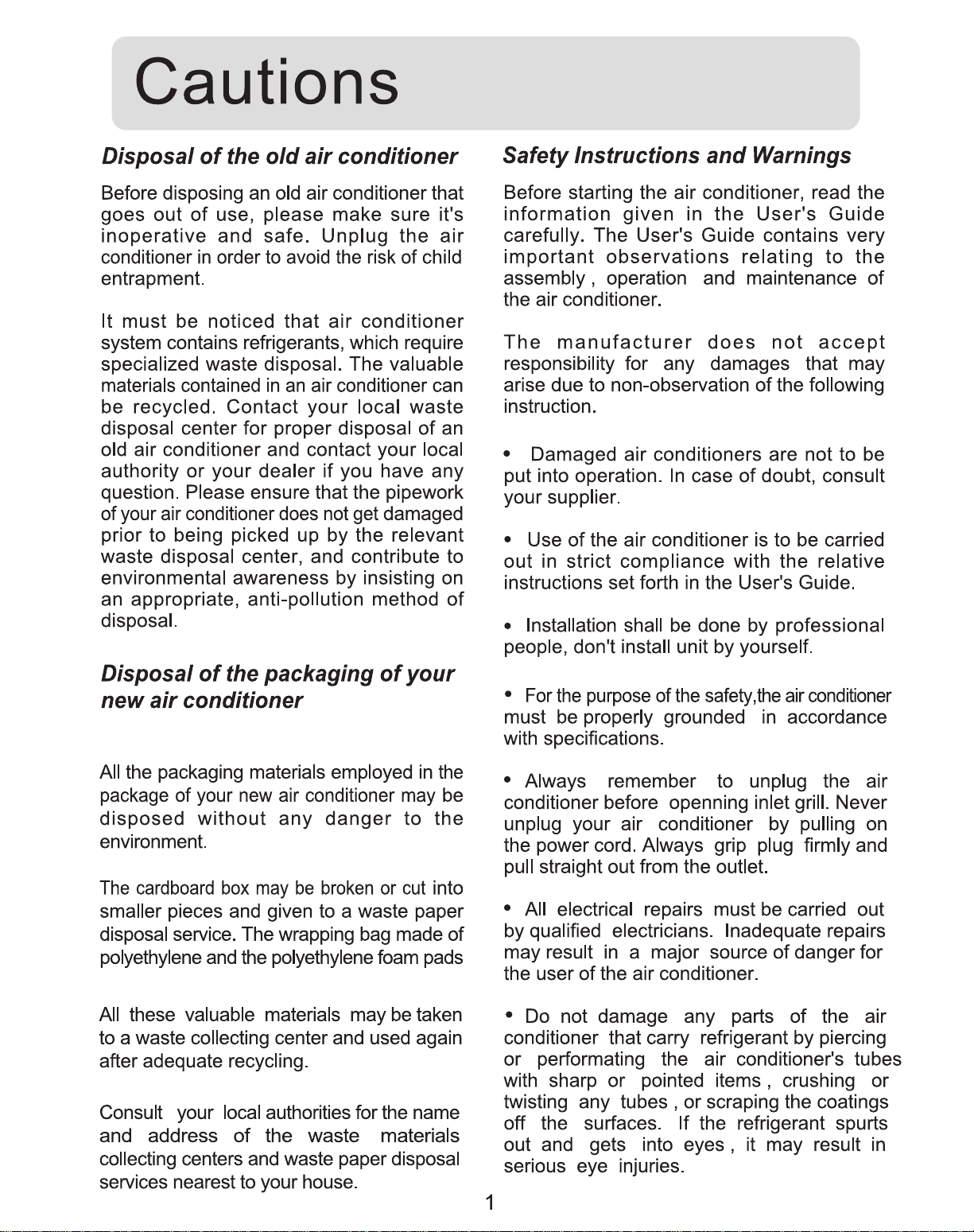

OPERATE
Colorful light bar indicator
AS122AFEAA
AU122AKEAA
(HSU-12RB03/R2)
AS072AFEAA
AU072ACEAA
(HSU-07RB03/R2)
AS092AFEAA
AU092ACEAA
(HSU-09RB03/R2)
1.
2.
3.
4.
5.
6.
Colorful display bar of the controlling indoor
machine is on and distinguished.
7.
8.
9.
11.
12.
13.
14.
15.
Operation mode display
Operation mode
Remote controller
16.
27.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
28.
29.
10.
Used to select CODE A or B with a press,A or
B will be displayed on LCD.
30.
CODE
Please select A without special explanation.
Link with electric power.
The liquid crystal will display the working state of last
time (Except Timer, Sleep, Power/Soft and Health
airflow).
Then set up the comfort working state.
The pilot light of healthy process on the displaying board
is on, and colorful displaying bar will be green, hence
healthy process begins.
.
When indoor wind machine is running, it has healthy
process function. (It’s available under any mode)
The pilot light of healthy process on the displaying board
is distinguished, colorful displaying bar will resume to the
color before setting healthy process, and then healthy
process will be cancelled.

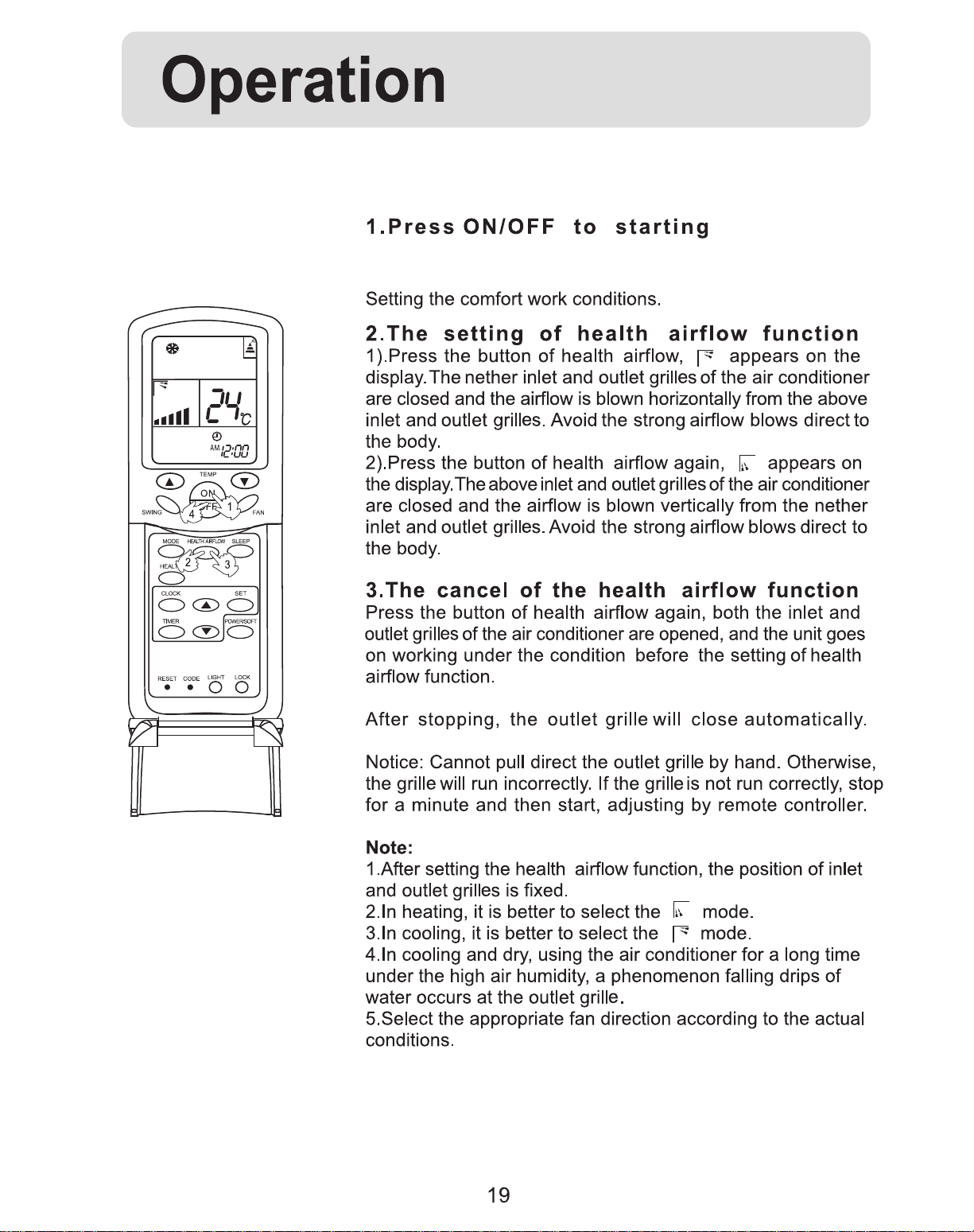

Health Operation
On the displaying board, colorful displaying bar will be green.
Link with electric power.
Complete Auto Operation
On the displaying board, colorful displaying bar will be white.
COMPLETE
AUTO
Complete Auto
Under the mode of complete auto-operation, air-conditioner will automatically select
Cool, Heat and way of sending wind according to the difference between indoor
temperature and the set temperature. And it can adjust indoor temperature in order to
reach or approach to the set temperature.
About Complete Auto Operation
The liquid crystal will display the working state of last
time (Except Timer, Sleep, Power/Soft and Health
airflow).
Air conditioner is running under displayed wind speed.
Cool Operation
On the displaying board, colorful displaying bar will be blue.
Link with electric power.
COMPLETE
AUTO
Air conditioner is running under displayed wind speed.
The liquid crystal will display the working state of last
time (Except Timer, Sleep, Power/Soft and Health
airflow).
Dry Operation
The colorful displaying bar on the displaying board will
display water-like color.
Link with electric power.
COMPLETE
AUTO
The liquid crystal will display the working state of last
time (Except Timer, Sleep, Power/Soft and Health
airflow).
Air conditioner is running under displayed wind speed.
unit will run ten minutes and
then stop six minutes.
Fan Operation
The colorful displaying bar on the displaying board will
display pink.
Link with electric power.
COMPLETE
AUTO
The liquid crystal will display the working state of last
time (Except Timer, Sleep, Power/Soft and Health
airflow).
Heat Operation
Air conditioner is running under displayed wind speed.
Link with electric power.
COMPLETE
AUTO
On the displaying board, colorful displaying bar will be red.
The liquid crystal will display the working state of last
time (Except Timer, Sleep, Power/Soft and Health
airflow).

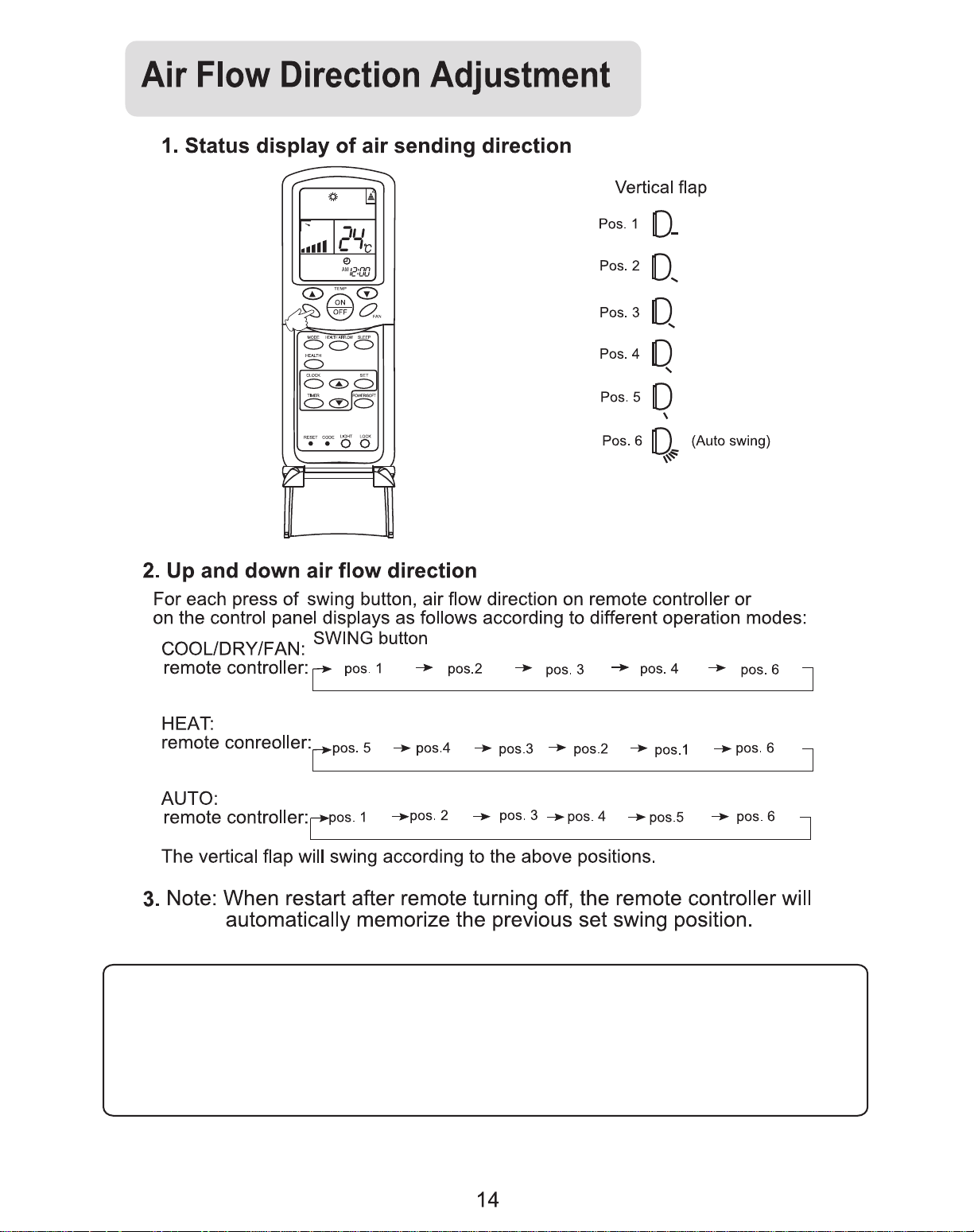

When making coolness, wind orientation should adjust to the horizontal state
in favor of air circulating in the room for cool air will agglomerate upside.
Hints:
When making heat, wind orientation should adjust to the slanting down state
in favor of air circulating in the room for hot air will agglomerate downside.
Sleep Operation
After the sleeping function is set up, if user resets timing on
function, the sleeping function will be cancelled; the
machine will be in the state of timing-on. If the sleeping
function and timing-on function are set up at the same time,
no matter which one is operated earlier, the machine will be
off automatically, and the other function will also be cancelled.
The sleeping hour lasts 8 hours and couldn’t be adjusted.
When timing on function is set, the sleeping function can’t be set up.
3
more
rises
Power/Soft Operation
The liquid crystal will display the working state of last time
(Except timer, sleeping, power/soft and health airflow).
When machine is running in emergency, the set value and wind speed of temperature
couldn’t be altered; meanwhile, it can’t operate for dehumidifying or under timing mode.
The upside and downside of the vertical wind leading board are different,
please distinguish them.
Clean the Outlet Grille and the Fan of the Indoor Unit
After being used for long time, there will be accumulated lots of
dirt on the fan. User can close the machine, cut off electric power and
then disconnect and clean it.
Take off vertical louvers
Draw out horizontal louvers
Clean the out-let grille and the fan
Installing back the horizontal louvers
Installing back the vertical louvers
Push through the fixed bolt of the louvers on
the right, take off vertical louvers and clean it.
Pinch the handle of the horizontal louvers, put
them down forward anddraw them out slightly.
Clean the horizontal louvers with dishcloth.
Clean the dirt around out-let grille with dishcloth.
Turn fans around slightly with hands, cleaning
fans when turning them around.
Pinch the handle of the horizontal
louvers; push them into the slot
backwards.
First aim the slot on the right of the vertical louvers to the bottom of electric
machinery axis, insert the axis on the right into the fixed aperture, and lock
up the fixed bolt on the right.
Note:
serial No. 0010202195 indicates the up side one and
serial No. 0010202196 indicates the downside one.
Put air purifying filter appliance into the left
and right .
Install air purifying filter
(Necessary installment)
Note: the green aspect of the bacteria-killing medium air purifying filter will faceoutside;
the white aspect will face to the machine.
The photocatalyst air purifying filter and the bacteria-killing medium air purifying filter
will be used based on real situation.
The photocatalyst air purifying filter will be solarized in fixed time. In normal family,
it will be solarized every 6 months. The solarization time will last no less than 8 hours
under the state of abundant sun.
The bacteria-killing medium air purifying filter is available for a long time and needn’t
to be changed. But it must be noticed to use the vacuum cleaner frequently to adsorb
the dusts covering the purifying filter lest the covering dusts effect the function of the
bacteria-killing medium air purifying filter. (It is strictly prohibited for the bacteria-killing
medium air purifying filter to be washed)
