Page 1
®
What The World Comes Home To
TM
PORTABLE AIR CONDITIONER
CLIMATISEUR PORTATIF
ACONDICIONADOR DE AIRE PORTATIL
Model#
Modèle#
Modelo#
HPR99XC5-C
Page 2
A Word From Haier
Product Registration
T ABLE
RECEPTACLE AND FUSE TYPES
RATED VOLTS
AMPS
WALL OUTLET
FUSE SIZE
TIME DELAY FUSE
(or circuit braker)
125/60 250/60
15 20 15 20
30
15 20* 15 20*
30
Plug
Plug
Plug
Thank You for buying a dependable, energy saving and easy to operate HAIER air conditioner.
This manual contains useful information for you to maintain, operate, install and safely use your air
conditioner. Your air conditioner cleans, cools and dehumidifies the air in your room to provide
you with the ultimate level of comfort.
Please read instructions carefully before using the product. Also, do not forget to fill out and mail
the Product Registration Card.
Record Your Model and Serial Number.
Attach the sales receipt to this guide and keep for future reference. Model and serial number can
be obtained from the serial label, which is on your air conditioner. For all your service calls during
the warranty period the following information will be needed:
Model Number: ......................................................................................................................
Serial Number:........................................................................................................................
Date of Purchase: ....................................................................................................................
Dealer’s Name:........................................................................................................................
Dealer’s Address: ....................................................................................................................
Dealer’s Phone Number: ..........................................................................................................
(1)
English
Page 3
SAFETY PRECAUTIONS
WARNING: Following these basic precautions will reduce the risk
of fire, electrical shock, injury or death when using
your air conditioner.
1) Air conditioner must be connected to proper electrical outlet with the correct electrical
supply. (see table previous page)
2) Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR
REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric receptacle outlet
in the wall, have a certified electrician install the proper receptacle. The wall receptacle MUST be
properly grounded.
3) Do not operate air conditioner if power cord is frayed or otherwise damaged. Also avoid using it
if there are cracks or abrasion damage along the length, plug connector or if the unit malfunctions
or is damaged in any manner. Contact an authorized service for examination, repairs or
adjustments.
4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
5) Do not block airflow around the air conditioner. Also the exhaust hose should be free of any
obstructions.
6) Always unplug the air conditioner before servicing it or moving it.
7) Do not install or use the air conditioner in any area where the atmosphere contains combustible
gases or where the atmosphere is oily or sulphurous. Avoid any chemicals coming in contact with
your air conditioner.
8) Do not place any object on the top of the unit.
9) Never operate the air conditioner without the filters in place.
10) Do not use the air conditioners near a bathtub, shower or wash basin.
(2)
English
Page 4
Table Of Contents
PAGE
A Word From Haier..................................................................................................................1
Product Registration ................................................................................................................1
Safety Precautions ..................................................................................................................2
Advantages ..............................................................................................................................4
Parts and Features ..................................................................................................................5
Assembly and Installation......................................................................................................6
Operation ..................................................................................................................................7
Product Specification ..............................................................................................................8
Care and Cleaning ..................................................................................................................8
Storage ......................................................................................................................................8
Trouble Shooting ......................................................................................................................9
Warranty Information ..........................................................................................................10
(3)
English
Page 5
Advantages of this Model
1. This model is easy to operate. The electronic control panel has a timer, thermostat, three speed
cooling speeds, three fan speeds and one speed dehumidification function (dry).
2. This portable air conditioner does not require water to be added.
3. The unit has a unique design which evaporates the water. Therefore no condensation tank is
necessary, thus avoiding you to have to wake up in the middle of the night to empty the bucket
and turn on the unit.
4. Easy to install window kit is included, which consists of the exhaust hose, 2 hose adaptors, the
window panel kit and window panel adaptor.
5. Full directional casters are included to help remove the unit to be conveniently used in almost
any area.
6. The filter screen is designed for easy accessibility of the filter.
7. Portable air conditioners are easy to store when not in use.
(4)
English
Page 6
Parts and Features
CONTROL PANEL
FRONT
HANDLE
AIR OUTLET
FOUR WAY MOVABLE CASTER
FILTER SCREEN
REAR
AIR INTAKE
EXHAUST DUCT
AIR INTAKE FOR
CONDENSOR
ELECTRIC POWER CORD
WATER DRAIN PIPE
(5)
English
Page 7
(6)
English

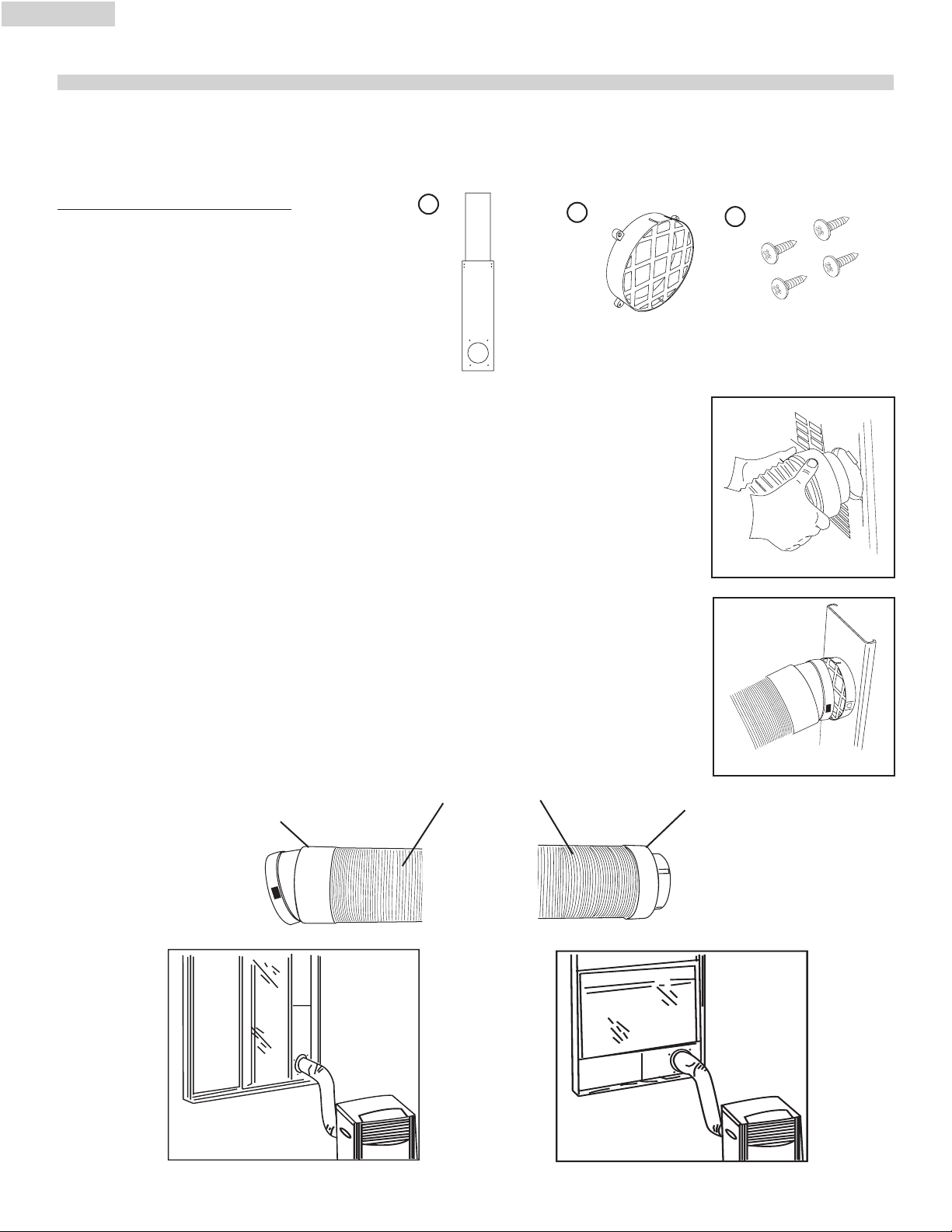

Assembly and Installation
1. Adjust the Plastic Panel to the width or height of your window and tighten
the 2 screws that are attached to the panel.
2. Push the round Window Panel Adapter through the rear of the Plastic Panel.
Line up the holes and tighten the Adapter with 4 screws that are included in
the kit. (Tighten screws from the front).
3. Install the Window Plastic Panel into the window. If necessary use duct tape
to better secure the panel.
4. Connect exhaust hose to the unit by inserting the narrower side of the Unit
Adapter that is attached to the hose into the exhaust. Turn Adapter clockwise
until it locks. (See Illustration A)
5. Move the unit to the window, extend the hose and attach the other end of the
hose to the window. Align the tabs on the hose and window panel adapters
and fasten them together.
USING
WINDOW PANEL KIT
1. Plastic panel - 2 pieces
2. Window Panel Adaptor - 1 piece
3. Screws - 4 pieces
1
2
3
Exhuast Hose
Window Adapter
Unit Adapter
A
B
Page 8
Operation
NOTE: Wait for 24 hours to turn on air conditioner if the unit has been tilted for any
reason. This is for the oils and the coolants to settle and level off.
1. After a normal shut down wait for 3 minutes before restarting the unit so as to complete the
compressor cycle.
2. Use an 115v /15 amp outlet for the air conditioner. Do not use any other electrical appliances on
this line or you may trip the fuse. Use a dedicated line for this air conditioner.
3. Do not place the air conditioner in direct sunlight or close to any heating appliances
(eg. baseboard heaters, stoves, etc).
4. Operate on a flat surface only.
5. Keep the unit free of any obstructions such as drapes, curtains, blinds, etc.
6. Keep unit at least 1 foot away from the wall.
7. Check and clean the filter once every week for highest efficiency.
NOTE: Do not use unit without filter.
8. If the unit is not being used for a long period of time, remove the plug from the water drain pipe
and drain out any condensed water.
When turning on the unit for the first time after plugging it into an electrical outlet, the unit will start in
a low fan cool mode. The temperature reading out on the LED will be the current room temperature.
When turning on the unit during regular usage, it will remember the last shut off setting. If you want
to operate the air conditioner as a dehumidifier, then adjust to dry mode.
Setting The Temperature
To set the temperature, press the + or the - key to raise or lower the temperature. The temperature can
be raised or lowered in the cool or dry mode. The temperature cannot be adjusted in the fan mode.
Fan Speeds
There are 3 adjustable speeds in the cool and fan mode: Low, Medium & High. In the dry or
dehumidification mode the fan will only operate at low speed.
On/Off Time Set
The air conditioner has a 1-12 hour on/off built-in timer. To delay the start time for 1-12 hours at 1
hour intervals, simply press the time/set key and then press the + or - key to adjust the start time.
Note that the unit has to be plugged in to an electrical outlet for the timer to operate.
To automatically shut-off the unit, press the time/set key while the unit is running and then press the +
or - key to adjust the shut-off time. The auto shut-off switch operates in all 3 modes: Cool, Dry & Fan.
NOTE: The temperature can be set between 60˚F to 89˚F.
(7)
English
Page 9
• Always unplug your air conditioner before cleaning.
• Air filter needs to be cleaned at least once a week for your unit to operate at optimum
efficiency. Slide out the filter from the back by pulling on the tab. The filter may be
washed or vacuumed. Remove the excess water from the filter by gently shaking the filter. This will remove dust and particles trapped in the filter. After cleaning, reinstall the
filter. DO NOT use your air conditioner without the air filter in place.
• To clean the cabinet, DO NOT use harsh chemicals, abrasives, ammonia, chlorine,
bleach, concentrated detergents, solvents or metal scouring pads. Some of these
chemicals may dissolve, damage and/or discolor your air conditioner.
• Always use a soft cloth dampened with water or a mild soap and water solution to wipe
the front of the cabinet. Wipe dry with a soft cloth.
• To store your air conditioner when not being used for a long period of time, drain
condensed water using the drain pipe. Remove exhaust hose, clean the filters, cover
with plastic bag and store away.
Care and Cleaning Guide
Storage
(8)
English
Product Specification
Voltage and Frequency 115V / 60Hz
Input Power 900 W
Cooling Capacity 9000 BTU
Moisture Removal (pints/day) 50
Coolant R22 / 0.99 lbs
Timer 12 Hours
Operating Temperature Range 61˚F - 100˚F
Unit Dimensions (WxDxH) (inches) 18
9/16 x 14 1/16 x 34 3/16
Net Weight lbs. approximate 79.4 lbs.
Power Cord 84 inches
Exhaust Hose 5 Feet
Page 10
(9)
English
If air conditioner does not operate:
• Check if unit is plugged in. The plug may have come loose.
• Check if the electrical wall receptacle is of proper voltage.
• Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.
• Check if the unit is in “Off” mode.
• If the tank full warning light is on, call for service.
Air conditioner working but room not cooling:
• Room may have appliances that produce heat. Use an exhaust fan to remove excess heat.
• Check exhaust hose for proper installation.
• Redirect the airflow. Remove any obstacles.
• All doors and windows need to be closed so that cool air does
not escape the room.
• Air filter may be blocked or may need cleaning.
• Unit BTU may be too low for the required cooling area.
• On extremely hot & humid days, air conditioners may take a little longer to cool.
• Drain the water drain pipe by removing the plug.
• Unit may be in fan or dry mode. Put air conditioner in cool mode.
Trouble-Shooting
Page 11
This warranty covers all defects in workmanship or materials for:
1. The mechanical and electrical parts (including
labor costs) contained in this Haier product, for a
period of 12 months, from the date of purchase,
(commercial or rental application, the warranty is
90 days).
2. The sealed system and compressor contained in
this Haier product is for a period of 5 years, from
the date of purchase (excluding labor costs after the
initial 12 month period). In commercial or rental
use, the additional limited compressor warranty is
for 1 year and 9 months, (excluding labor costs
after the initial 90 days period).
You must keep and be able to provide
your original sales receipt as proof of the
date of purchase.
Who is covered?
The original retail purchaser of this Haier product.
What will be done?
Haier will repair or replace, in your home, any
mechanical, electrical part or the compressor, which
proves defective in normal household, use for a
period of 12 months. Haier will repair or replace
(excluding labor costs) the sealed system and compressor (parts only) for an additional 4 year
period.
How can you get service?
1. Contact your nearest Haier
authorized Service Depot. For the name of the
Service Depot nearest you,
contact Haier at (877) 337-3639.
2. All service must be performed, by an authorized
Haier Service Depot.
THIS WARRANTY COVERS UNITS WITHIN
THE CONTINENTAL
UNITED STATES, CANADA
AND PUERTO RICO AND
DOES NOT COVER:
• Damages from improper installation.
• Damages in shipping.
• Damages from misuse, abuse, accident, alteration, lack of proper care and maintenance.
• Damages from service, by other than an authorized dealer or service center.
• Labor, service, transportation and shipping
charges for the removal of defective parts and
installation of a replacement part, beyond the initial 12 month period.
THIS LIMITED WARRANTY IS GIVEN
IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
The remedy provided in this warranty is exclusive
and is granted in lieu of all other remedies. This
warranty does not cover incidental or consequential
damages. Some states do not allow the exclusion of
incidental or consequential damages, so this limitation may not apply to you. Some states do not
allow limitations on how long an implied
warranty lasts, so this limitation may not apply to
you. This warranty gives you specific legal rights,
and you may also have other rights, which vary
from state to state.
Limited Warranty
(10)
English
Page 12
Made in China
Fabriqué en Chine
Hecho en China
Haier America
New York, NY 10018
Printed in China
®
IMPORTANT
Do Not Return This Product To The Store
If you have a problem with this product, please contact the "Haier Customer Satisfaction Center" at 1-877-337-3639.
DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE
IMPORTANT
Ne pas renvoyer cet appareil au magasin.
Si vous avez un problème avec cet appareil, veuillez contacter le service à la clientèle de Haier au 1-877-337-3639.
IL EST OBLIGATOIRE DE FOURNIR UNE PREUVE D'ACHAT DATÉE, LE NUMÉRO DU MODÈLE ET SON NUMÉRO DE SÉRIE
AFIN DE BÉNÉFICIER DE LA COUVERTURE DE LA GARANTIE.
IMPORTANTE
No Devuelva Este Producto al Establecimiento Compra.
Si tiene problemas con este producto, por favor póngase en contacto con el "Centro Haier de Atención al
Cliente" en el 1-877-337-3639.
PARA EL SERVICIO DE GARANTÍA SE REQUIERE PRUEBA DE COMPRA, FECHADA, No. DE MODELO Y No. DE SERIE
Loading...
