PORTABLE AIR CONDITIONER CLIMATISEUR PORTATIF ACONDICIONADOR DE AIRE PORTATIL
User Manual
Model # HPR10XC6
Guide de l’Utilisateur
Modéle # HPR10XC6
Manual del Usuario
Para Modelo de # HPR10XC6
Before operating this oven, please read these instructions completely.
Quality ■ Innovation ■ Style
English
A Word From Haier
Thank You for buying a dependable, energy saving and easy to operate HAIER air conditioner. This manual contains useful information for you to maintain, operate, install and safely use your air conditioner. Your air conditioner cleans, cools and dehumidifies the air in your room to provide you with the ultimate level of comfort.
Please read instructions carefully before using the product. Also, do not forget to fill out and mail the
Product Registration Card.
Product Registration
Record Your Model and Serial Number.
Attach the sales receipt to this guide and keep for future reference. Model and serial number can be obtained from the serial label, which is on your air conditioner. For all your service calls during the warranty period the following information will be needed:
Model Number:....................................................................................................................
Serial Number: ....................................................................................................................
Date of Purchase: ................................................................................................................
Dealer’s Name:....................................................................................................................
Dealer’s Address: ................................................................................................................
Dealer’s Phone Number: ......................................................................................................
T A B L E

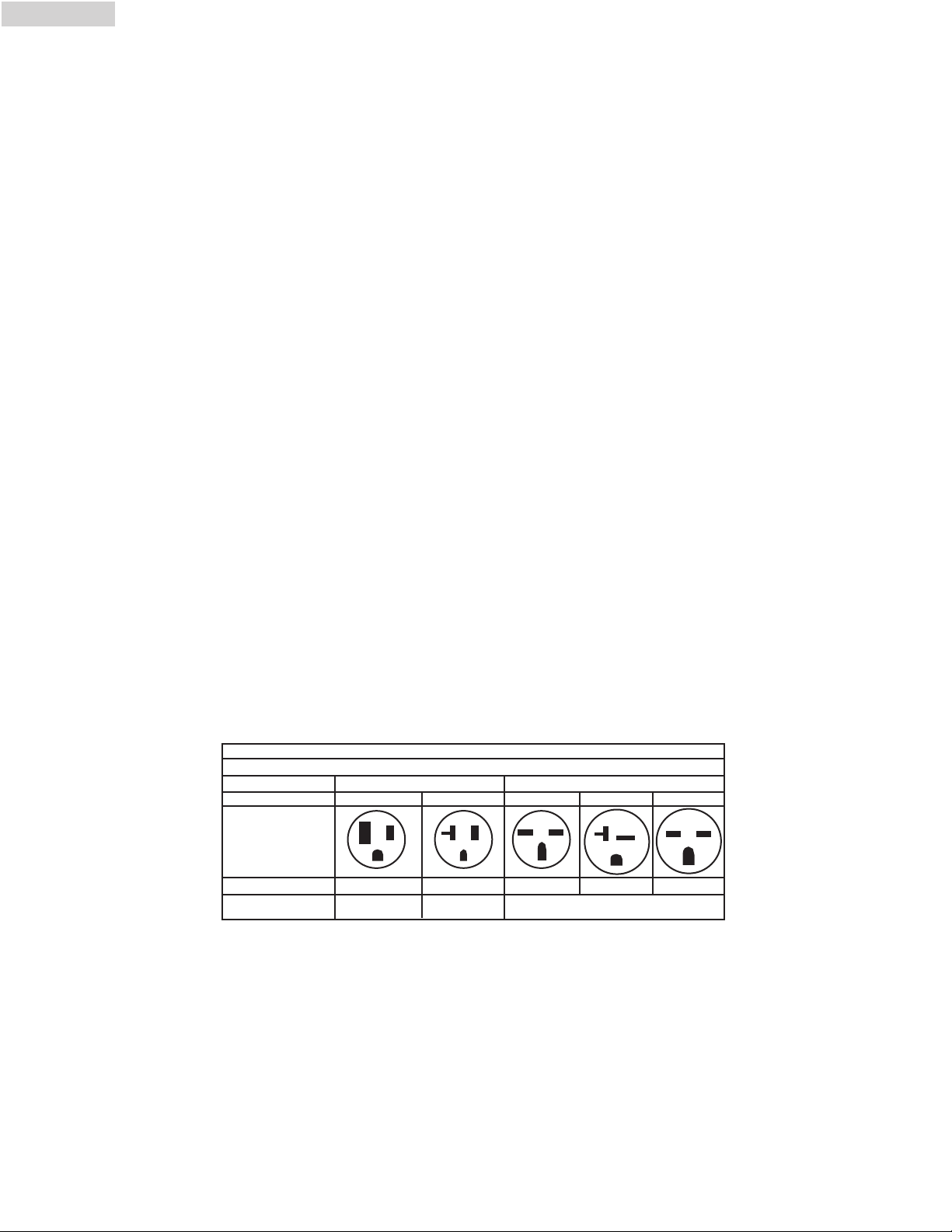

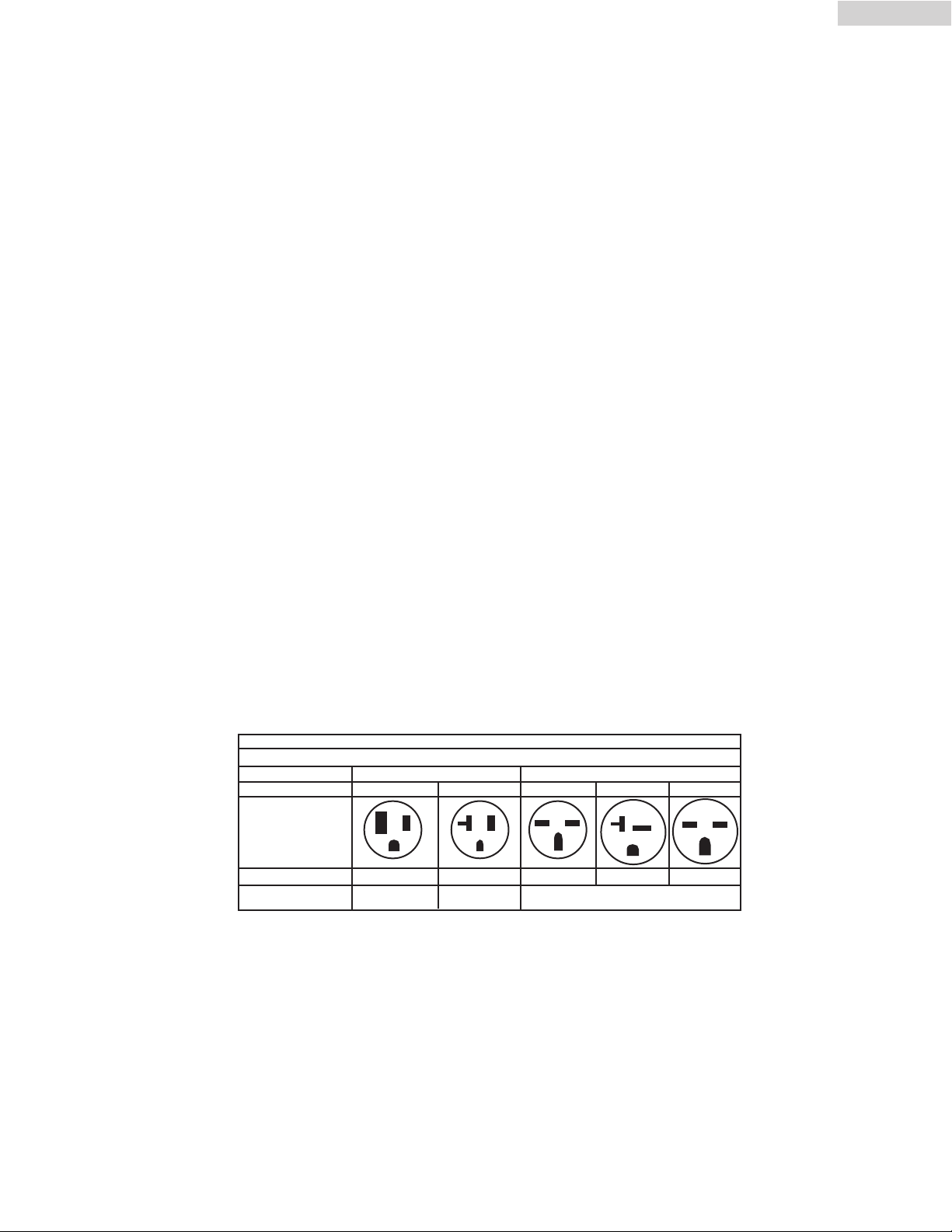

R E C E P T A C L E A N D F U S E T Y P E S
RATED VOLTS |
125/60 |
|
|
250/60 |
|
AMPS |
15 |
20 |
15 |
20 |
30 |
WALL OUTLET |
|
|
|
|
|
FUSE SIZE |
15 |
20 * |
15 |
20 |
30 |
TIME DELAY FUSE |
Plug |
Plug |
Plug |
|
|
(or circuit braker) |
|
|
|
|
|
1
English
SAFETY PRECAUTIONS
WARNING: Following these basic precautions will reduce the risk of fire, electrical shock, injury or death when using your air conditioner.
1) Air conditioner must be connected to proper electrical outlet with the correct electrical supply. (see table previous page)
2) Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric
receptacle outlet in the wall, have a certified electrician install the proper receptacle. The wall receptacle MUST be properly grounded.
3) Do not operate air conditioner if power cord is frayed or otherwise damaged. Also avoid using it if there are cracks or abrasion damage along the length, plug connector or if the unit malfunctions or is damaged in any manner. Contact an authorized service for examination, repairs or
adjustments.
4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
5)Do not block airflow around the air conditioner. Also the exhaust hose should be free of any obstructions.
6)Always unplug the air conditioner before servicing it or moving it.
7)Do not install or use the air conditioner in any area where the atmosphere contains combustible gases or where the atmosphere is oily or sulphurous. Avoid any chemicals coming in contact with your air conditioner.
8)Do not place any object on the top of the unit.
9)Never operate the air conditioner without the filters in place.
10)Do not use the air conditioners near a bathtub, shower or wash basin.
SAVE THESE INSTRUCTIONS
2
English |
|
Table Of Contents |
|
|
PAGE |
A Word From Haier .................................................................................................................... |
1 |
Product Registration .................................................................................................................... |
1 |
Safety Precautions ...................................................................................................................... |
2 |
Advantages ................................................................................................................................ |
4 |
Parts and Features ...................................................................................................................... |
5 |
Assembly and Installation............................................................................................................ |
7 |
Operation .................................................................................................................................. |
8 |
Product Specification .................................................................................................................. |
9 |
Care and Cleaning .................................................................................................................... |
9 |
Storage ...................................................................................................................................... |
9 |
Trouble Shooting ...................................................................................................................... |
10 |
Warranty Information................................................................................................................ |
11 |
3
English
Advantages of this Model
1.This model is easy to operate. The electronic control panel has a timer, thermostat, three cooling speeds, three fan speeds and one speed dehumidification function (dry).
2.The unit has a unique design which evaporates the water. Therefore no condensation tank is necessary, thus avoiding you to have to wake up in the middle of the night to empty the bucket and turn on the unit.
3.Easy to install window kit is included, which consists of the exhaust hose, 2 hose adapters, the window panel kit and window panel adapter.
4.Full directional casters are included to help the unit to be moved in almost any area.
5.The filter screen is designed for easy accessibility of the filter.
6.Portable air conditioners are easy to store when not in use.
4
English

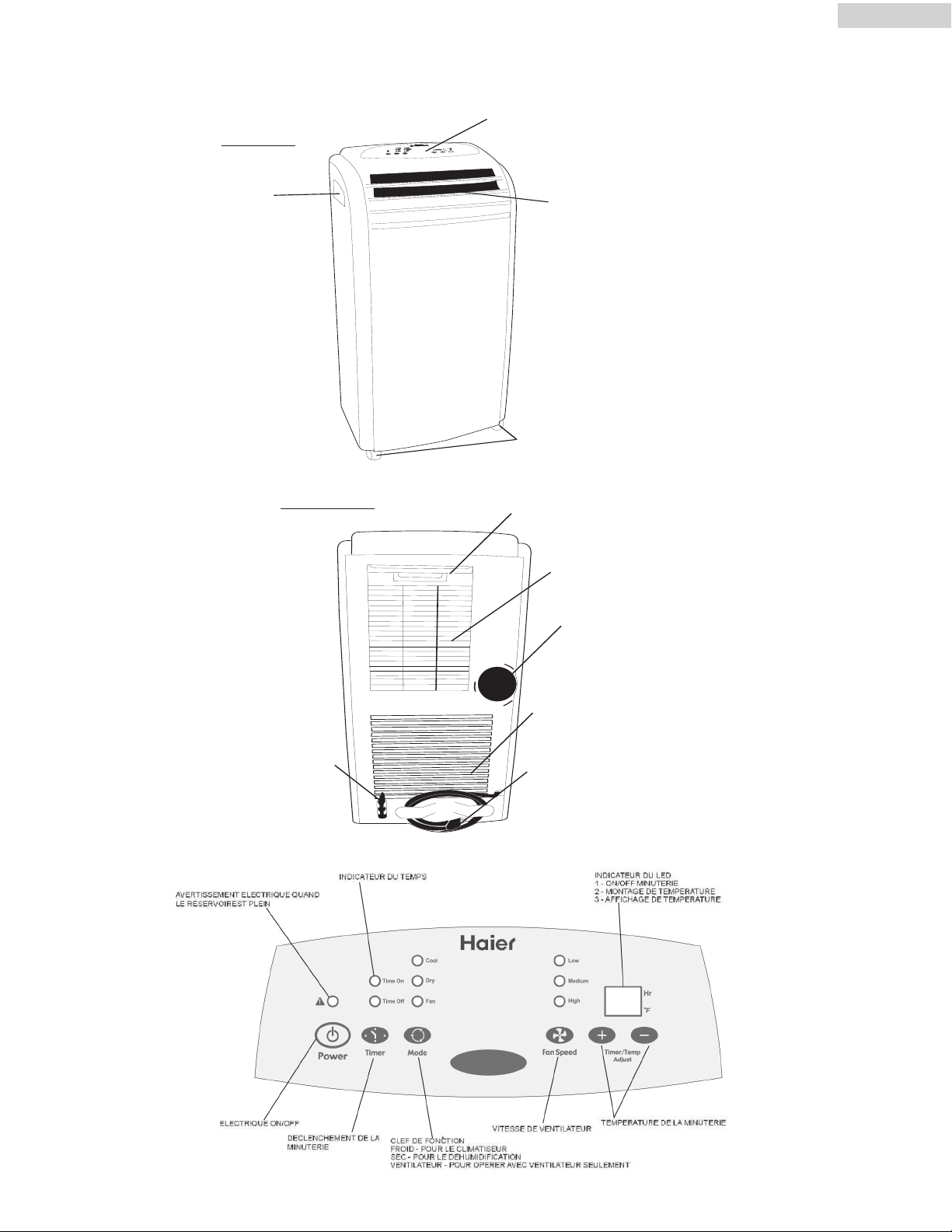

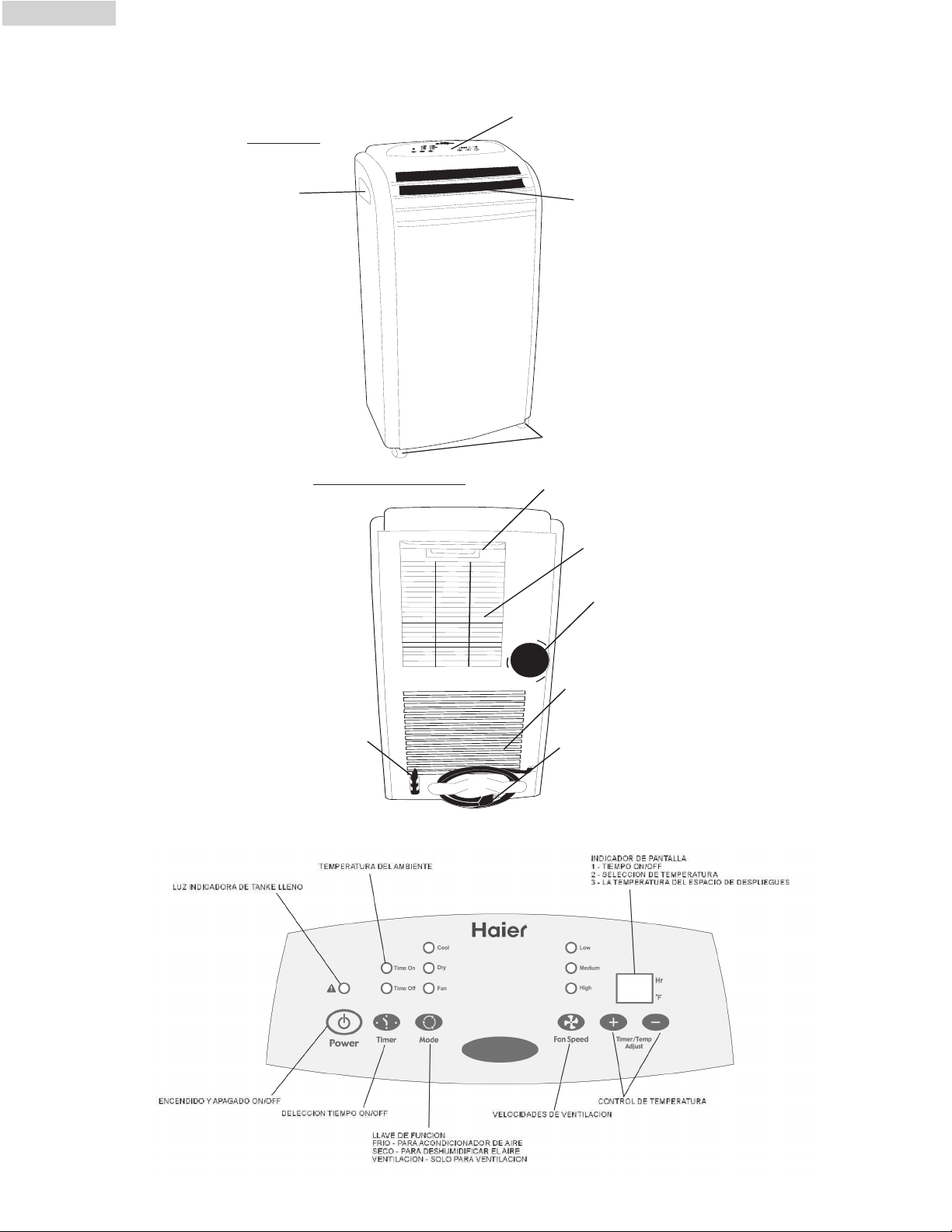

Parts and Features
FRONT
HANDLE
REAR
WATER DRAIN PIPE
CONTROL PANEL
AIR OUTLET
CASTERS
FILTER SCREEN
AIR INTAKE
EXHAUST DUCT
AIR INTAKE FOR
CONDENSOR
POWER CORD
5
English
6
English

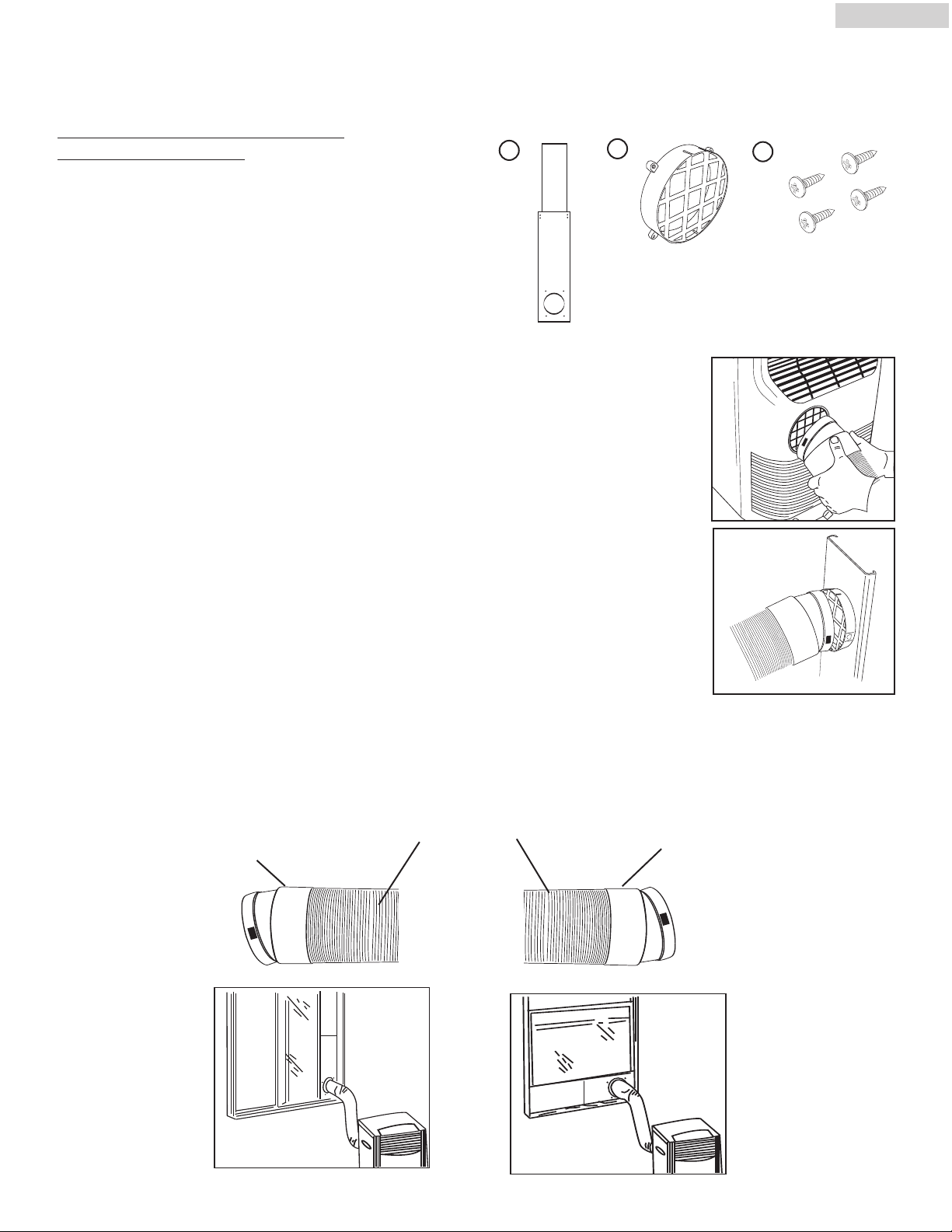

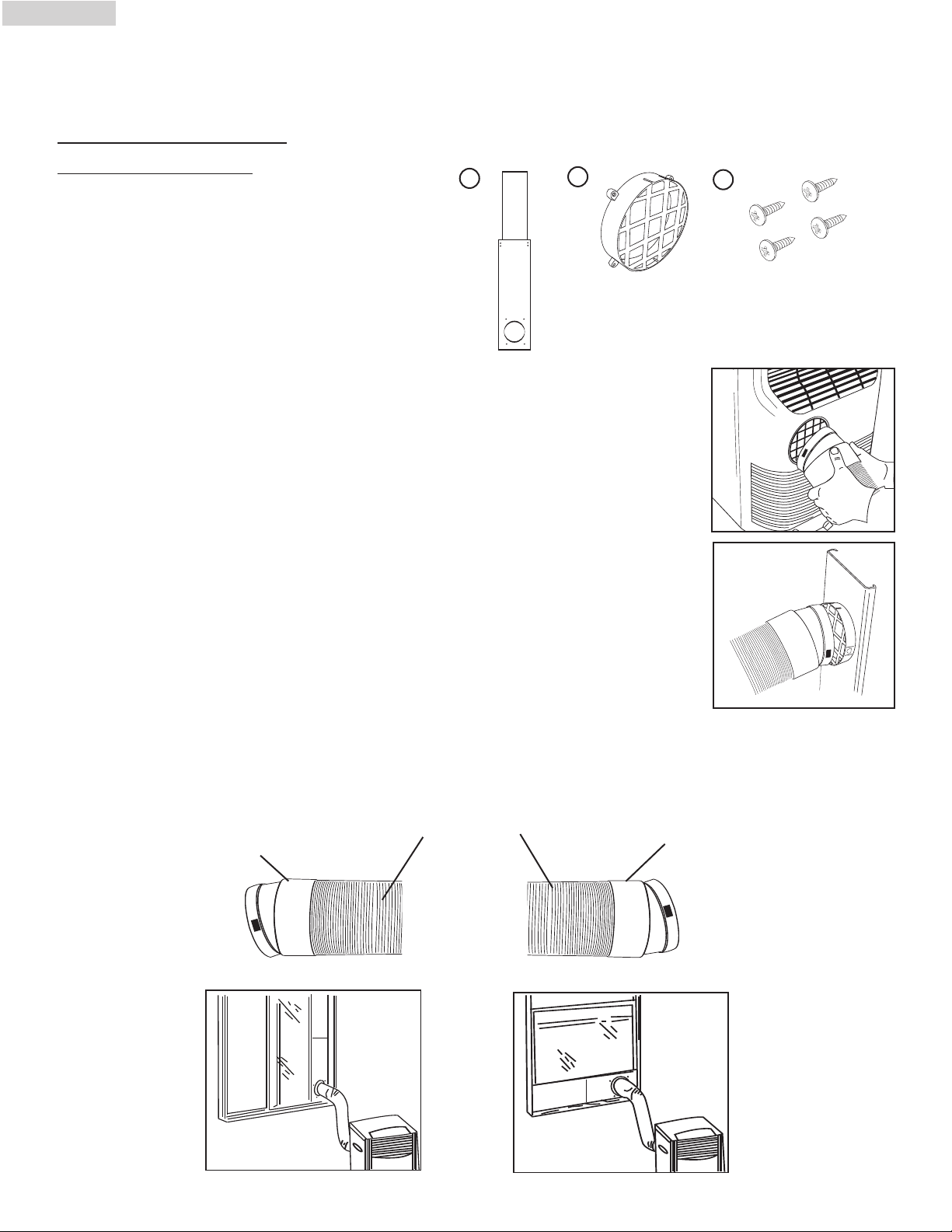

Assembly and Installation
Accessories Include |
1 |
2 |
3 |
1. Plastic panel - 2 pieces
2. Window Panel adapter - 1 piece
3. Screws - 4 pieces
4.Heat Exhaust hose connector-2 pieces
5. Heat Exhaust hose-1 piece
1. |
Push the round Window Panel Adapter through the rear of the Plastic Panel. |
|
|
|
|
|
|
|||||||||||||||||||||||
|
|
A |
|
|
|
|||||||||||||||||||||||||
|
Line up the holes and tighten the Adapter with 4 screws that are included in |
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||
|
the kit. (Tighten screws from the front). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
2. |
Adjust the Plastic Panel to the width or height of your window and tighten |
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||
|
the 2 screws that are attached to the panel. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||
3. |
Install the Window Plastic Panel into the window. If necessary use duct tape |
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||
|
to better secure the panel. |
|
|
|
|
|
|
|
|
|
|
B |
|
|||||||||||||||||
4. |
Connect exhaust hose to the unit by inserting the hose connector that is |
|
|
|
|
|||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||
|
attached to the hose into the exhaust. (See Illustration A) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||
5. |
Move the unit to the window, extend the hose and attach the other end of |
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||
|
the hose to the window. Align the tabs on the hose and window panel |
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||
|
adapters and fasten them together. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
6. |
Plug into wall outlet to get ready for operation. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||
* NOTE: Use on Single Outlet Circuit Only. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
Hose Connector |
Exhaust Hose |
Hose Connector |
|
|||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7
English
Operation
NOTE: Wait for 24 hours to turn on air conditioner if the unit has been tilted for any reason. This is for the oils and the coolants to settle and level off.
1.Wait for 3 minutes before restarting the unit after a normal shut down so as to complete the compressor cycle.
2.Use an 115v 15 amp outlet for the air conditioner. Do not use any other electrical appliances on this line or you may trip the fuse. Use a dedicated line for this air conditioner.
3.Do not place the air conditioner in direct sunlight or close to any heating appliances. ex. baseboard heaters, stoves, etc.
4.Operate on a flat surface only.
5.Keep the unit free of any obstructures such as drapes, curtains, blinds, etc.
6.Keep unit at least 1 foot away from the wall.
7.Check and clean the filter once every week to get the highest efficiency.
NOTE: Do not use unit without filter.
8.If the unit is not being used for a long period of time remove the plug from the water drain pipe and drain out any condensed water.
When turning on the unit first time after plugging it into an electrical outlet the unit will start in a low fan cool mode. The temperature read out on the LED will be the room temperature. When turning on the unit in regular usage it will remember the last shut off setting. If you want to operate the air conditioner as a dehumidifier then adjust to dry mode.
Setting The Temperature
To set the temperature press the + or the - key to raise or lower the temperature. The temperature can be raised or lowered in the cool or dry mode. The temperature cannot be adjusted in the fan mode.
Fan Speeds
There are 3 adjustable speeds in the cool and fan mode: Low, Medium & High. In the dry or dehumidification mode the fan will only operate at low speed.
On/Off Time Set
The air conditioner has a 1-12 hour on/off built-in timer. To delay start the unit from 1-12 hours at a 1 hour interval, simply press the time/set key and then press the + or - key to adjust the start time. Note that the unit has to be plugged in to an electrical outlet for the timer to operate.
To auto shut-off the unit press the time/set key while the unit is running and then press the + or - key to adjust the off time. The auto shut-off switch operates in all 3 modes: Cool, Dry & Fan.
NOTE: The temperature can be set between 60˚F to 89˚F.
8
English
Product Specification
|
|
|
|
|
Voltage and Frequency |
115V / 60Hz |
|
|
|
Input Power |
950 W |
|
|
|
Cooling Capacity |
10000 BTU |
|
|
|
Moisture Removal (pints/day) |
81 |
|
|
|
Coolant |
R-22 |
|
|
|
Timer |
12 Hours |
|
|
|
Operating Temperature Range |
64˚F - 100˚F |
|
|
|
Unit Dimensions (WxDxH) (inches) |
18 9/16 x 14 |
1/16 |
x 34 3/16 |
|
|
471 mm x 357 mm x 868 mm |
|||
Net Weight lbs. approximate |
79.3 lbs. |
|
|
|
Exhaust Hose |
5 Feet |
|
|
|
Care and Cleaning Guide
•Always unplug your air conditioner before cleaning.
•Air filter needs to be cleaned at least once a week for your unit to operate at optimum efficiency. Slide out the filter from the back by pulling on the tab. The filter may be washed or vacuumed. Remove the excess water from the filter by gently shaking the filter. This will remove dust and particles trapped in the filter. After cleaning, reinstall the filter. DO NOT use your air conditioner without the air filter in place.
•To clean the cabinet, DO NOT use harsh chemicals, abrasives, ammonia, chlorine, bleach, concentrated detergents, solvents or metal scouring pads. Some of these chemicals may dissolve, damage and/or discolor your air conditioner.
•Always use a soft cloth dampened with water or a mild soap and water solution to wipe the front of the cabinet. Wipe dry with a soft cloth.
Storage
•To store your air conditioner when not being used for a long period of time, drain condensed water using the drain pipe. Remove exhaust hose, clean the filters, cover with plastic bag and store away.
9
English
Trouble-Shooting
If air conditioner does not operate:
•Check if unit is plugged in. The plug may have come loose.
•Check if the electrical wall receptacle is of proper voltage.
•Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.
•Check if the unit is in “Off” mode.
•If the warning light is on, drain the water drain pipe by removing the plug.
Air conditioner working but room not cooling:
•Room may have appliances that produce heat. Use an exhaust fan to remove excess heat.
•Check exhaust hose for proper installation.
•Redirect the airflow. Remove any obstacles.
•All doors and windows need to be closed so that cool air does not escape the room.
•Air filter may be blocked or may need cleaning.
•Unit BTU may be too low for the required cooling area.
•On extremely hot & humid days, air conditioners may take a little longer to cool.
•Drain the water drain pipe by removing the plug.
•Unit may be in fan or dry mode. Put air conditioner in cool mode.
