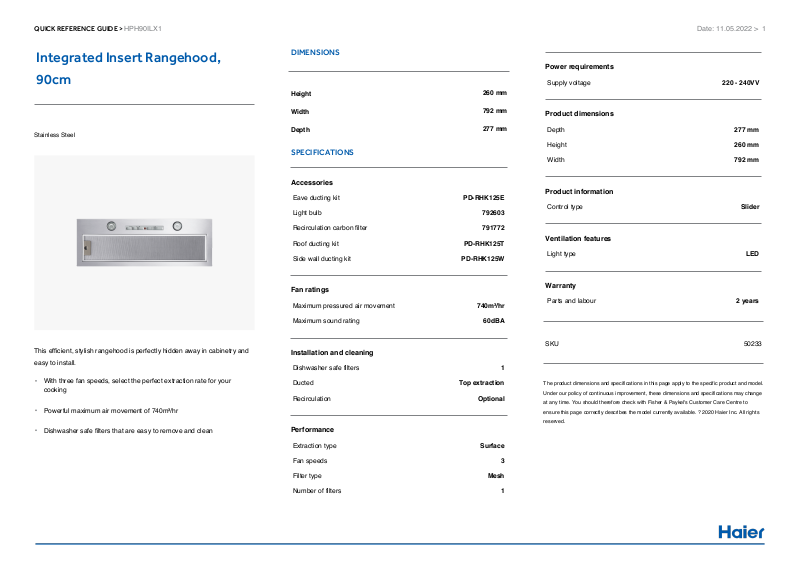

QUICK REFERENCE GUIDE > HPH90ILX1
Date: 11.05.2022 > 1
Integrated Insert Rangehood,
90cm
Stainless Steel
DIMENSIONS
Height
Width
Depth
SPECIFICATIONS
Accessories
Eave ducting kit
Light bulb
Recirculation carbon filter
Roof ducting kit
Side wall ducting kit
Fan ratings
Maximum pressured air movement
Maximum sound rating
260 mm
792 mm
277 mm
PD-RHK125E
792603
791772
PD-RHK125T
PD-RHK125W
740m³/hr
60dBA
Power requirements
Supply voltage
Product dimensions
Depth
Height
Width
Product information
Control type
Ventilation features
Light type
Warranty
Parts and labour
220 - 240VV
277 mm
260 mm
792 mm
Slider
LED
2 years
This efficient, stylish rangehood is perfectly hidden away in cabinetry and
easy to install.
With three fan speeds, select the perfect extraction rate for your
cooking
Powerful maximum air movement of 740m³/hr
Dishwasher safe filters that are easy to remove and clean
Installation and cleaning
Dishwasher safe filters
Ducted
Recirculation
Performance
Extraction type
Fan speeds
Filter type
Number of filters
Top extraction
Optional
Surface
Mesh
SKU 50233
1
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change
at any time. You should therefore check with Fisher & Paykel's Customer Care Centre to
ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights
reserved.
3
1
QUICK REFERENCE GUIDE > HPH90ILX1
Other product downloads available at haier.com
User Guide
Installation Guide
