Haier DWL3025DBBB, DWL3025DBWW, DWL7075DBWW Installation Guide

Dishwash÷r Installation

_av÷ovaiss÷l_÷

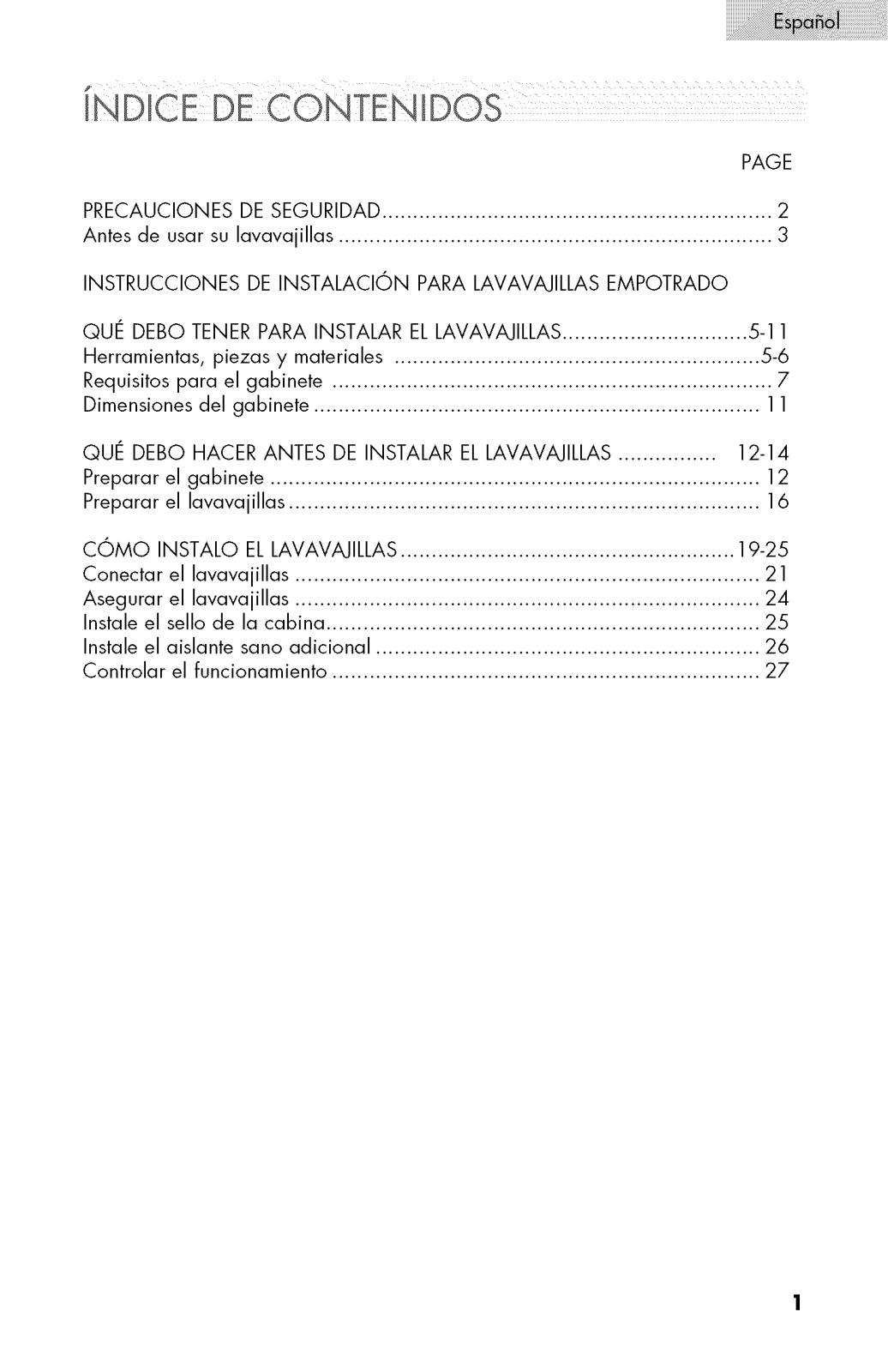

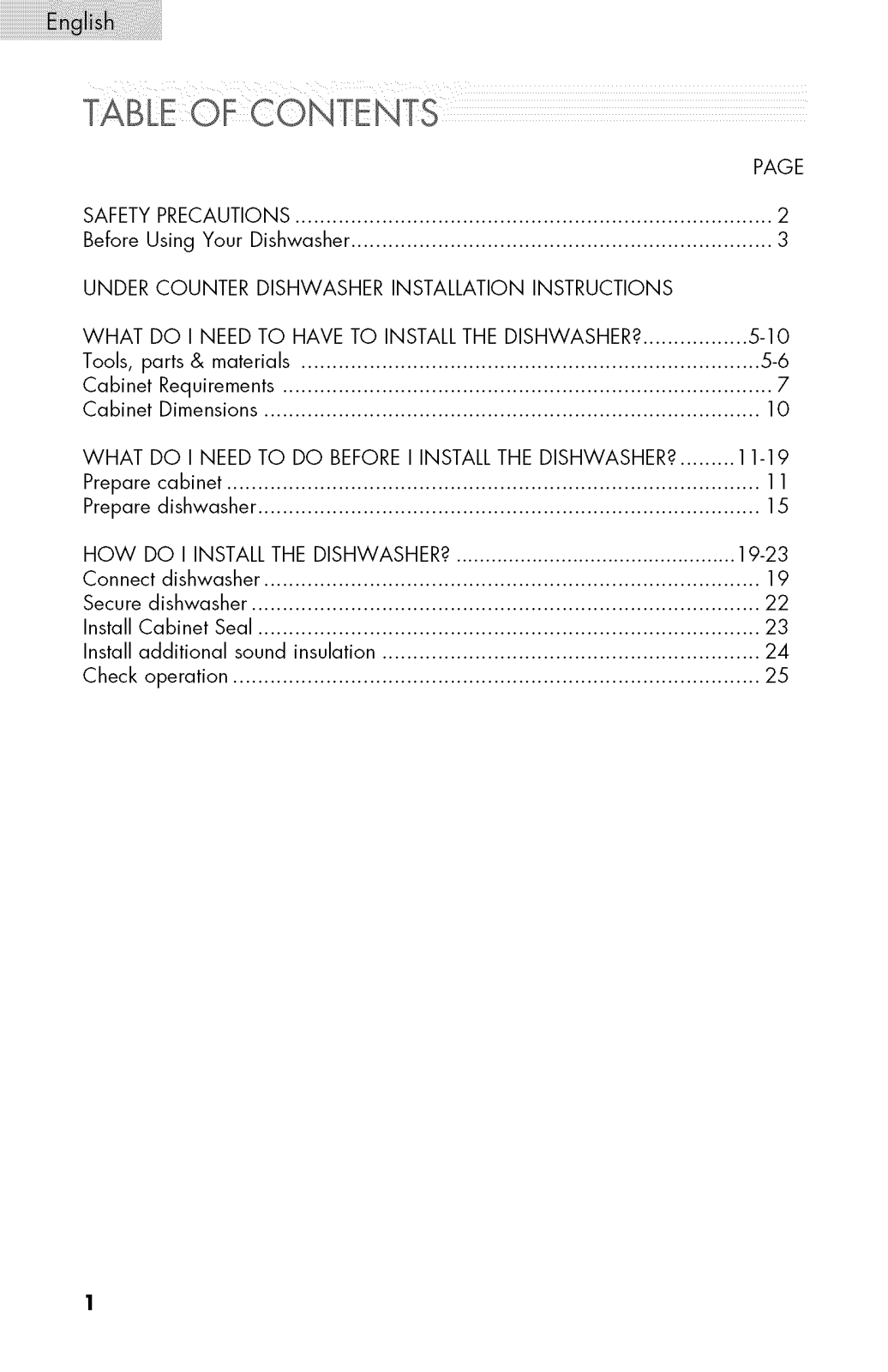

PAGE

SAFETY PRECAUTIONS ............................................................................. 2

Before Using Your Dishwasher .................................................................... 3

UNDER COUNTER DISHWASHER INSTALLATION INSTRUCTIONS

WHAT DO I NEED TO HAVE TO INSTALLTHE DISHWASHER? ................. 5-10

Tools, parts & materials .......................................................................... 5-6

Cabinet Requirements ............................................................................... 7

Cabinet Dimensions ................................................................................ 10

WHAT DO I NEED TO DO BEFORE I INSTALL THE DISHWASHER? ......... 11-19

Prepare cabinet ...................................................................................... 11

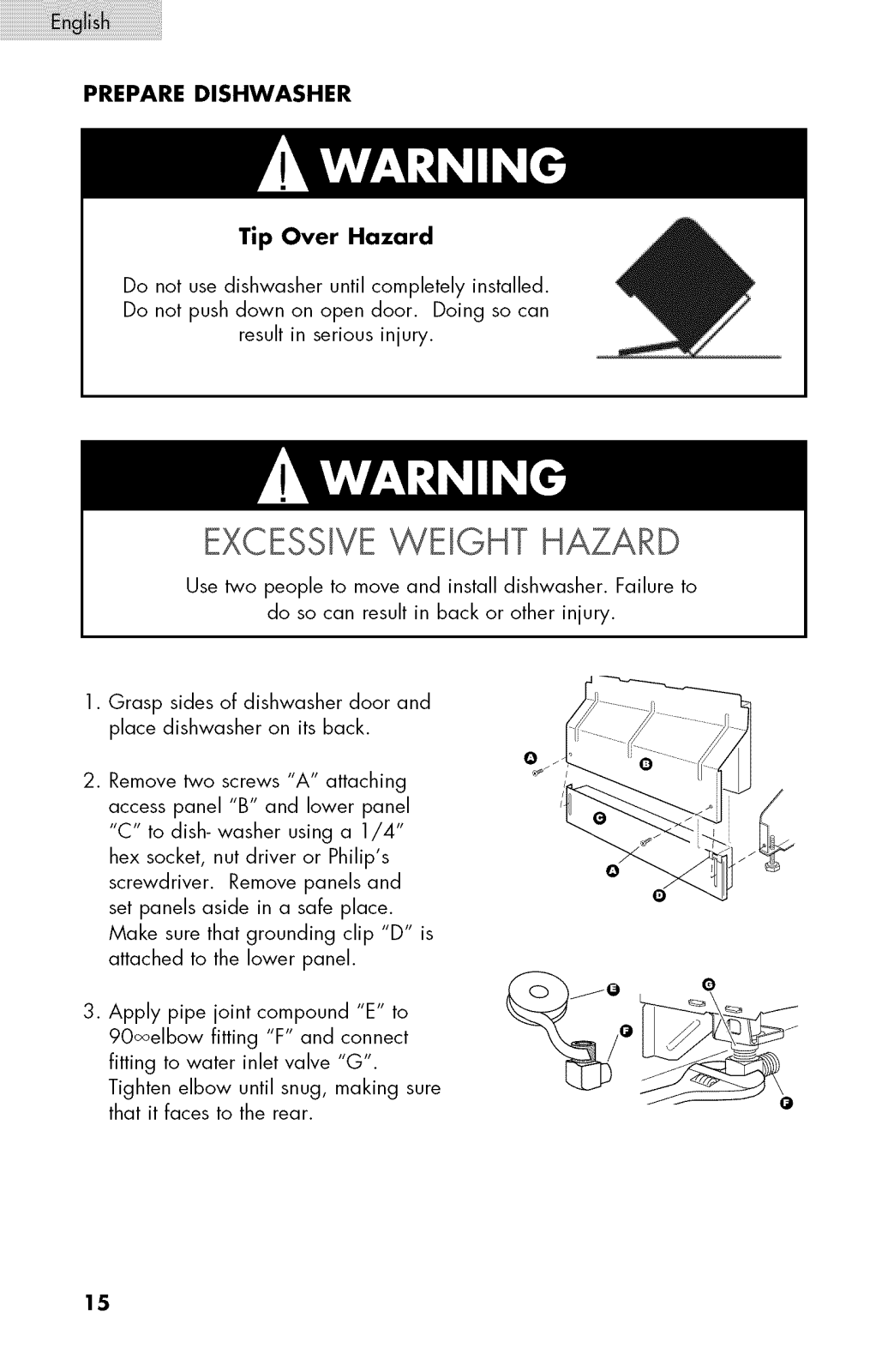

Prepare dishwasher ................................................................................. 15

HOW DO I INSTALL THE DISHWASHER? ................................................ 19-23

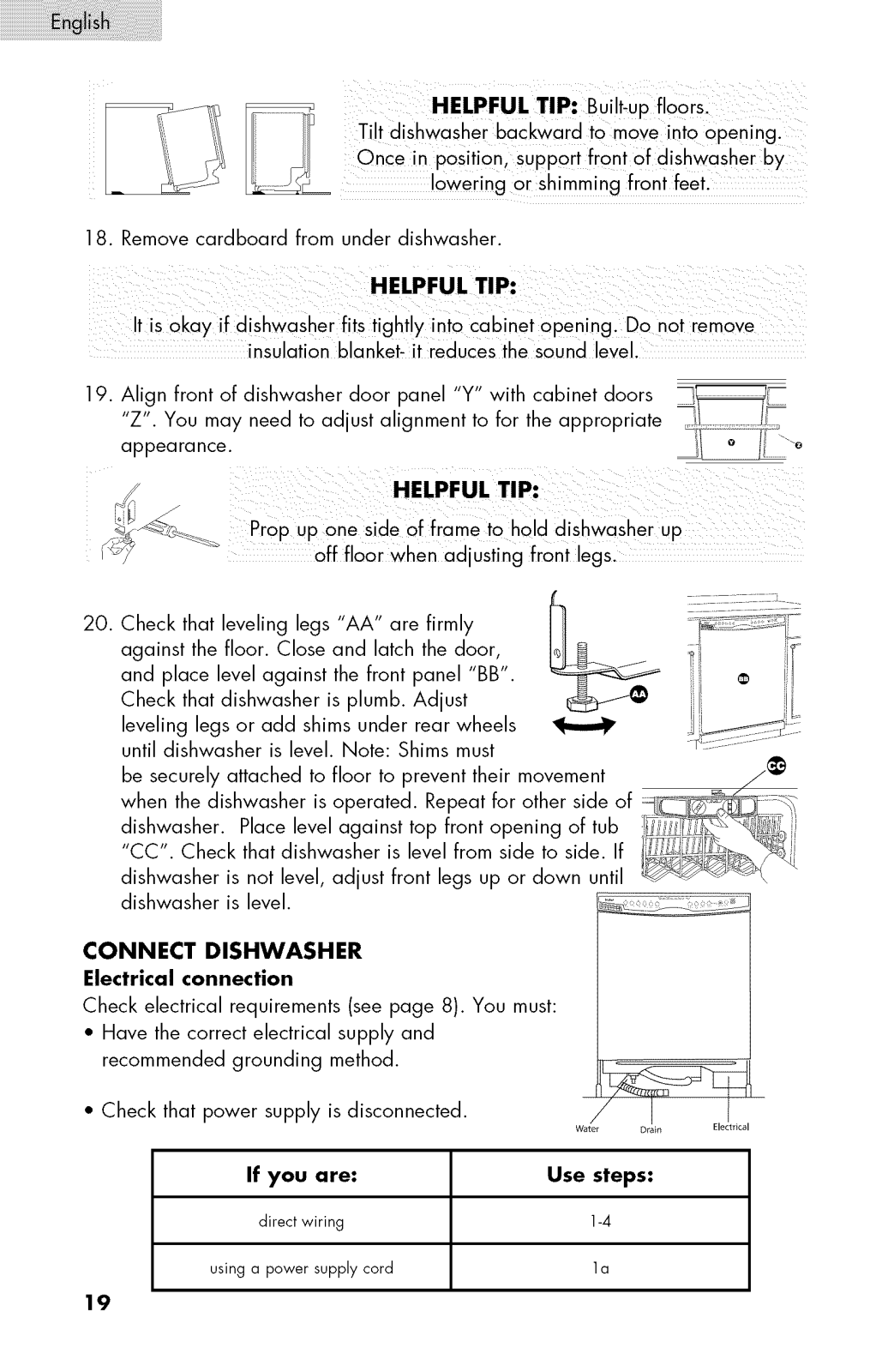

Connect dishwasher ................................................................................ 19

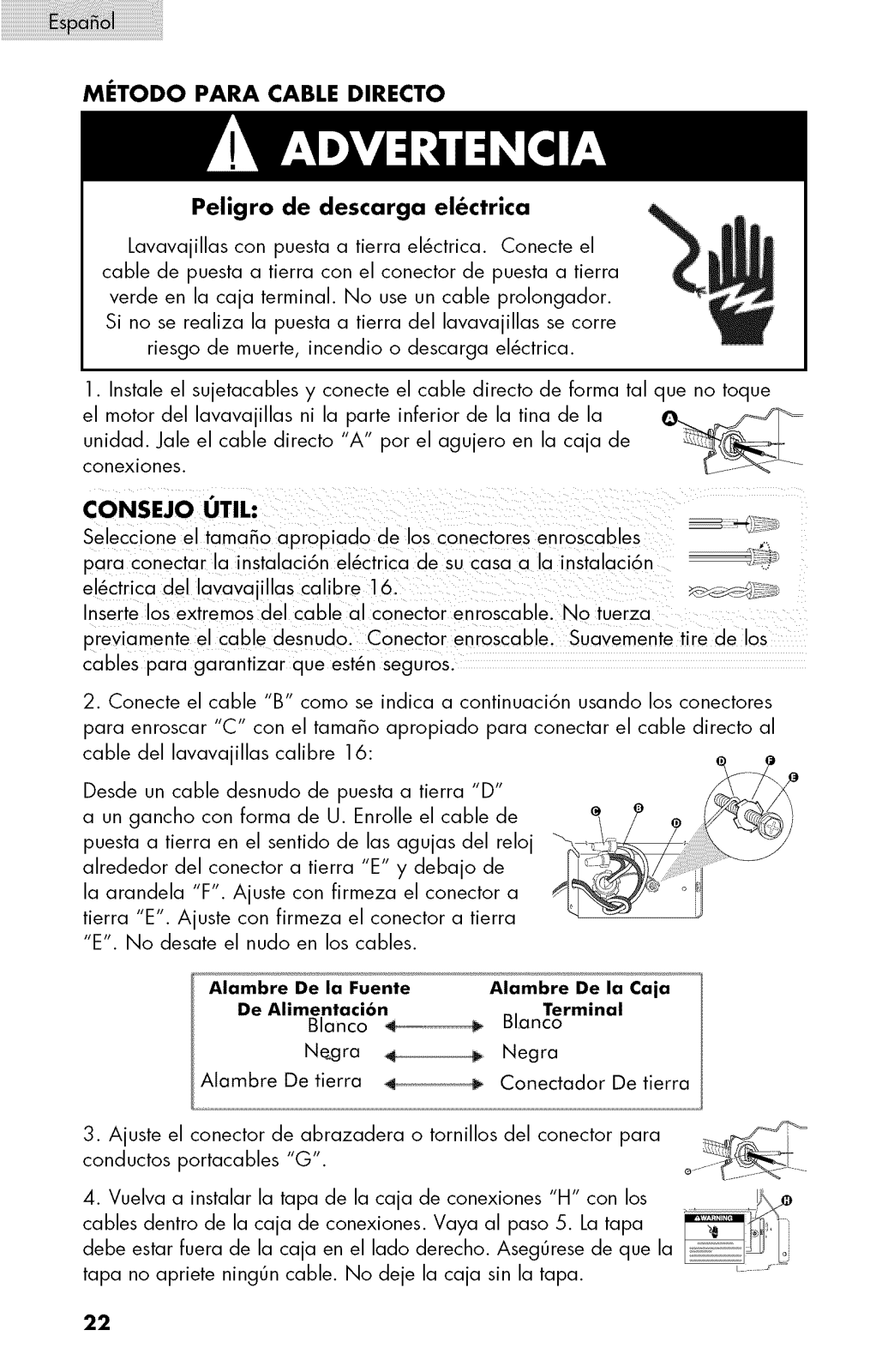

Secure dishwasher .................................................................................. 22

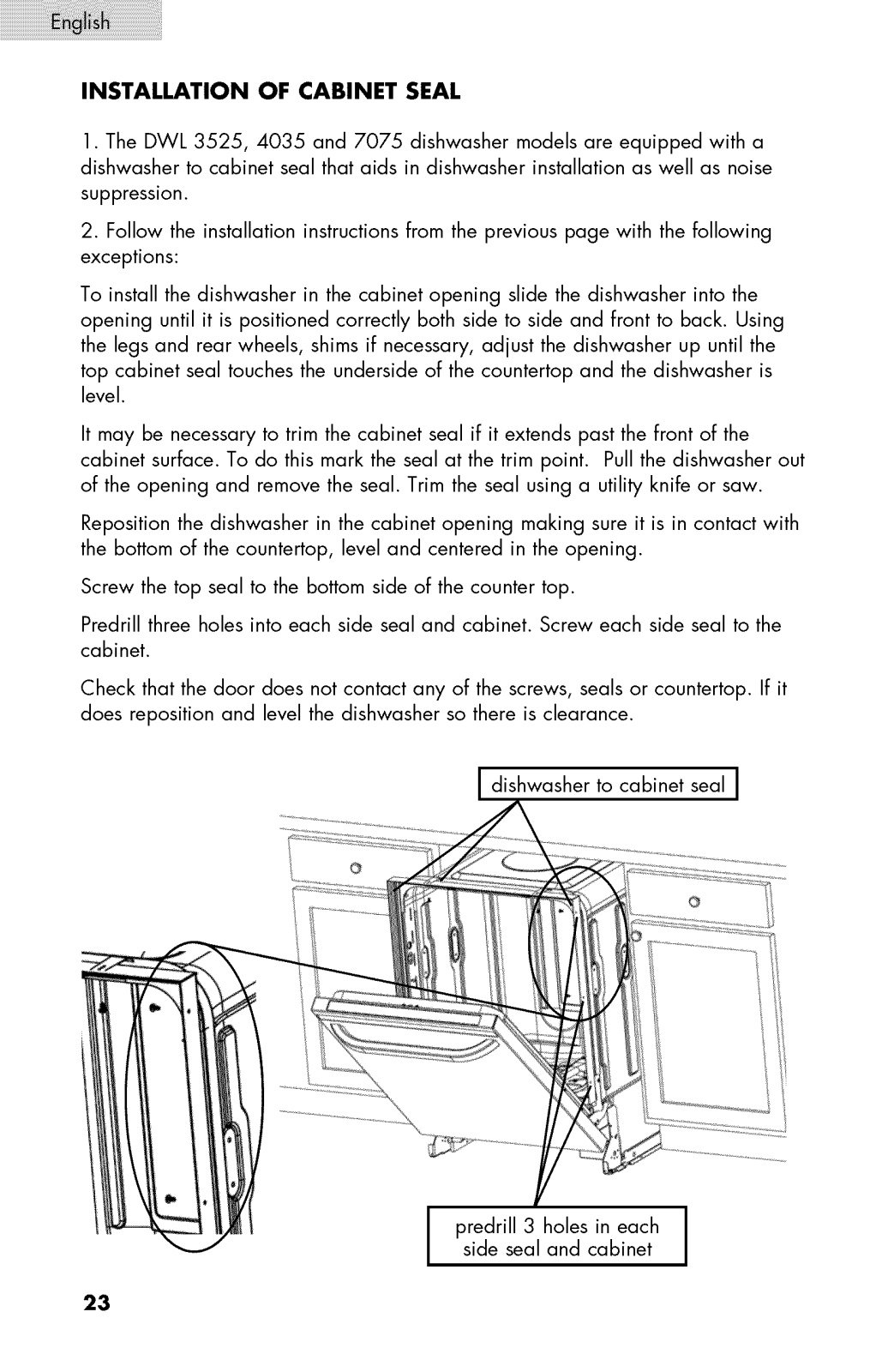

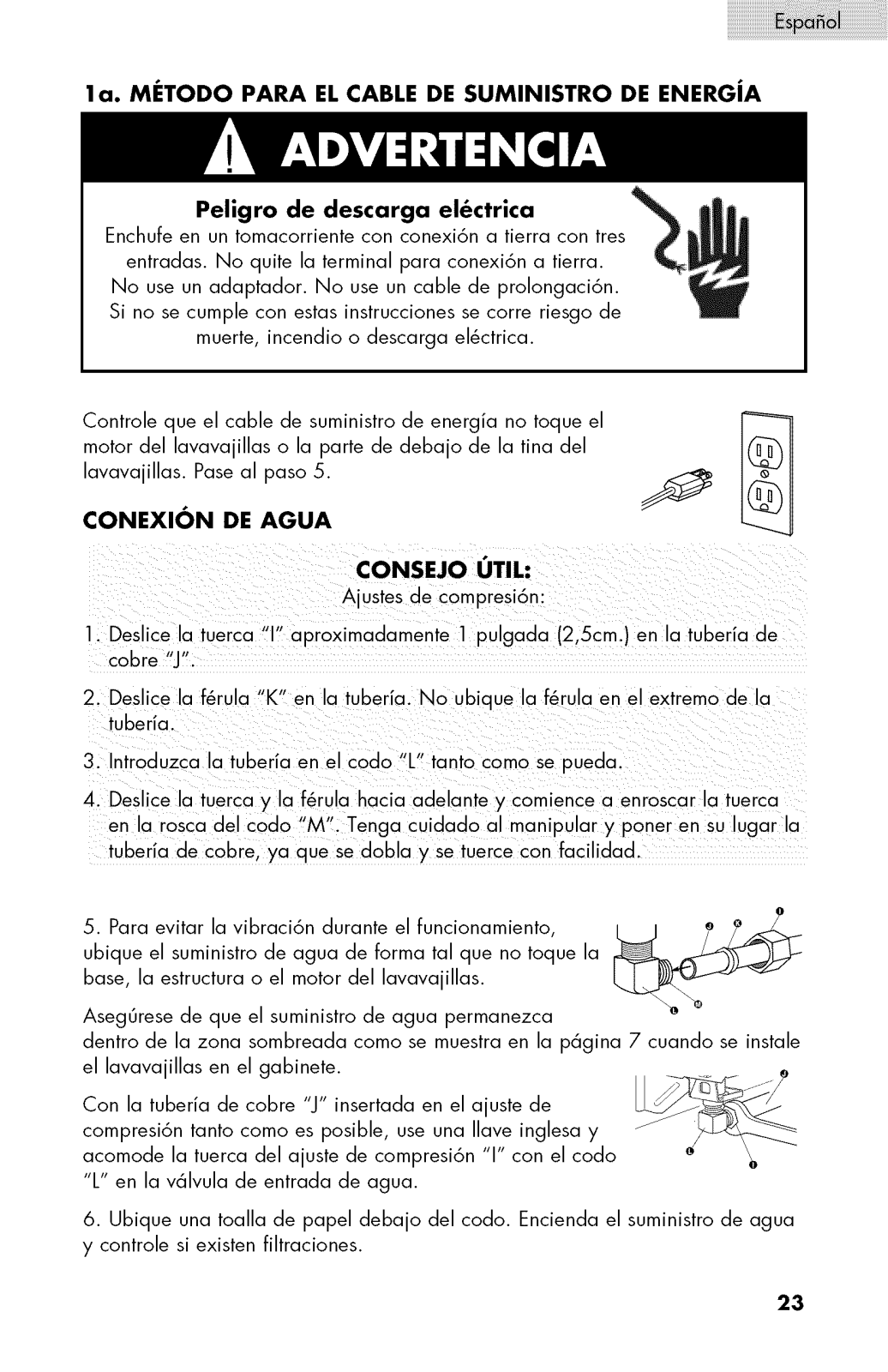

Install Cabinet Seal ................................................................................. 23

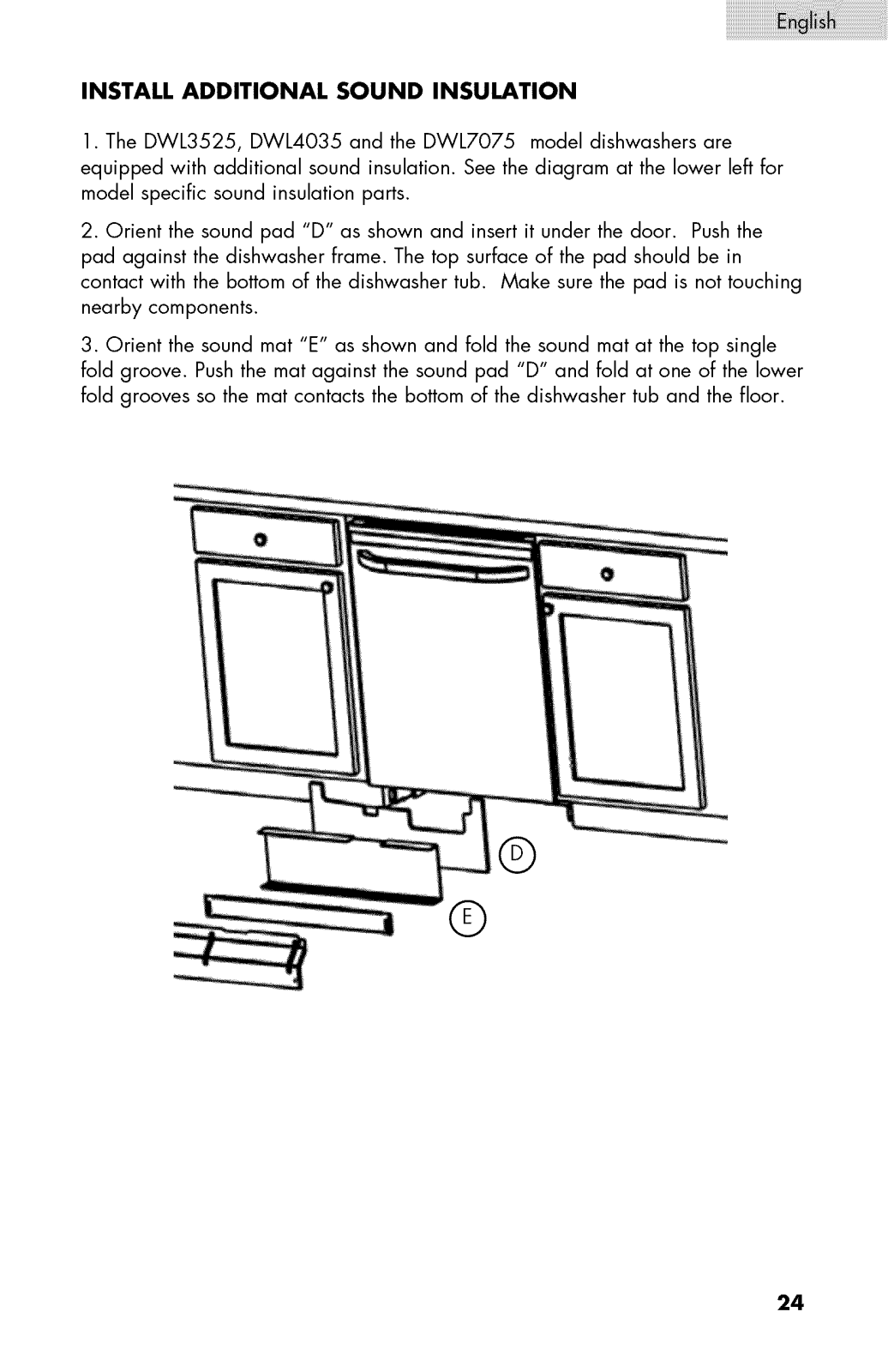

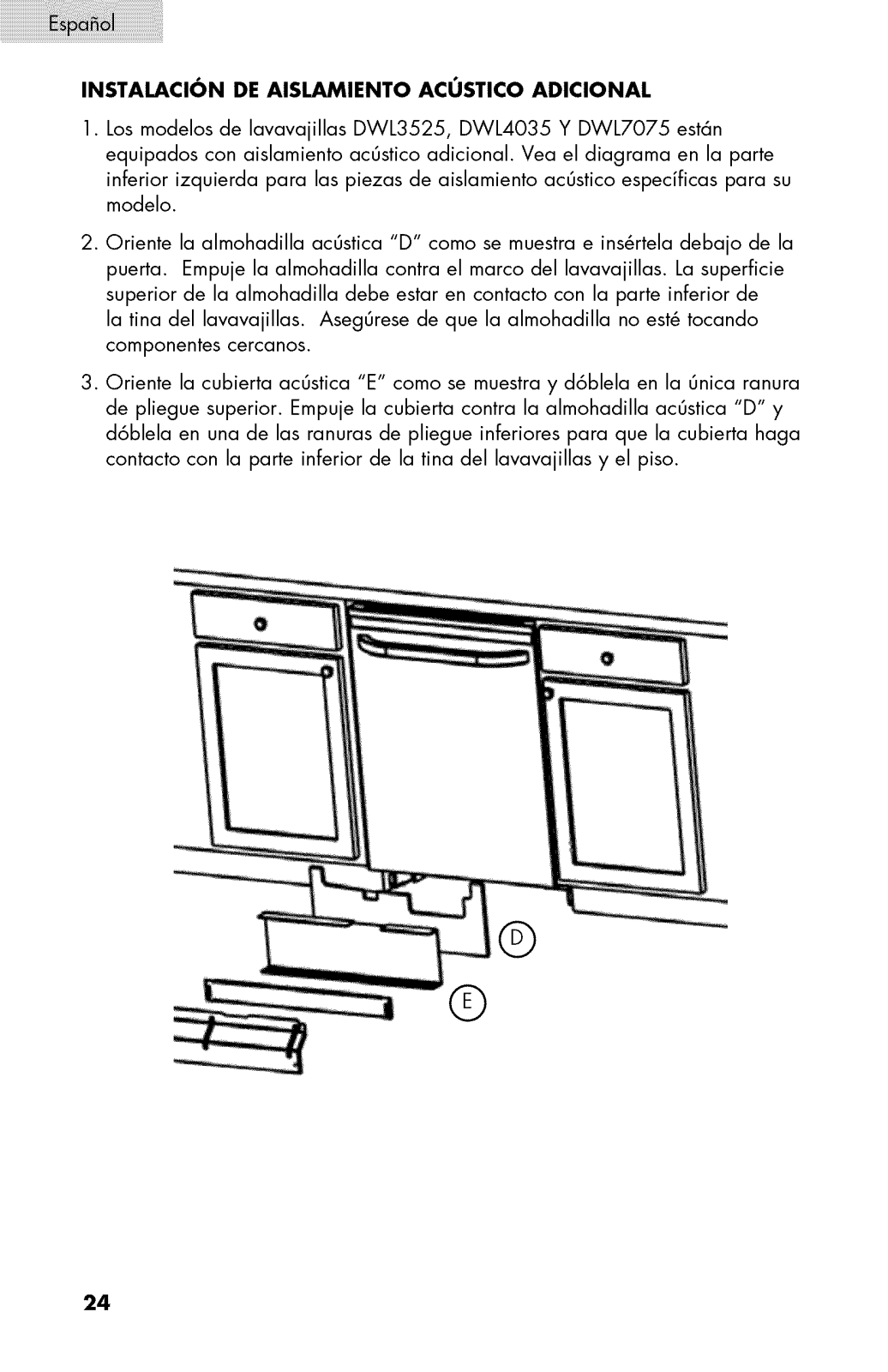

Install additional sound insulation ............................................................. 24

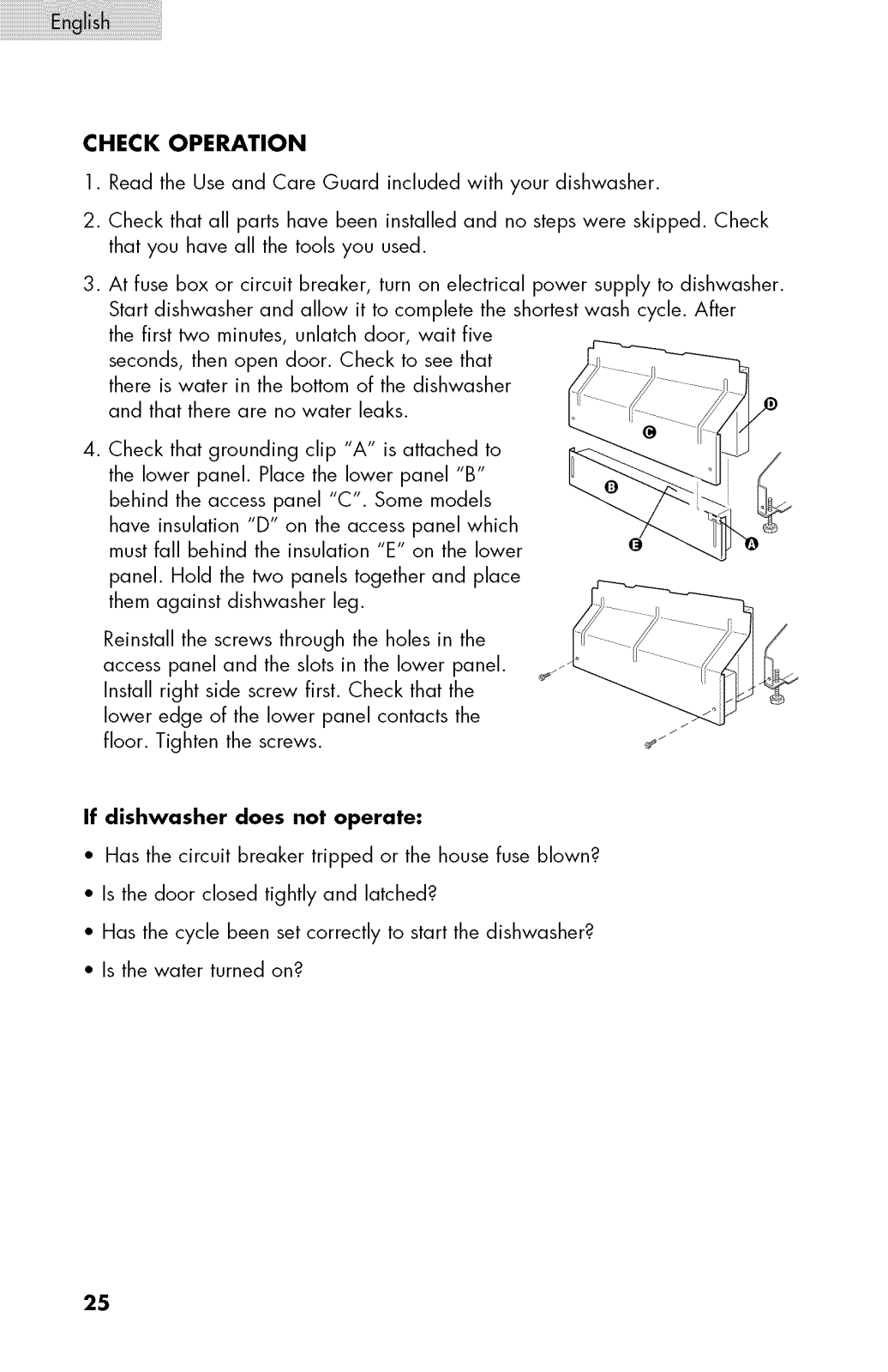

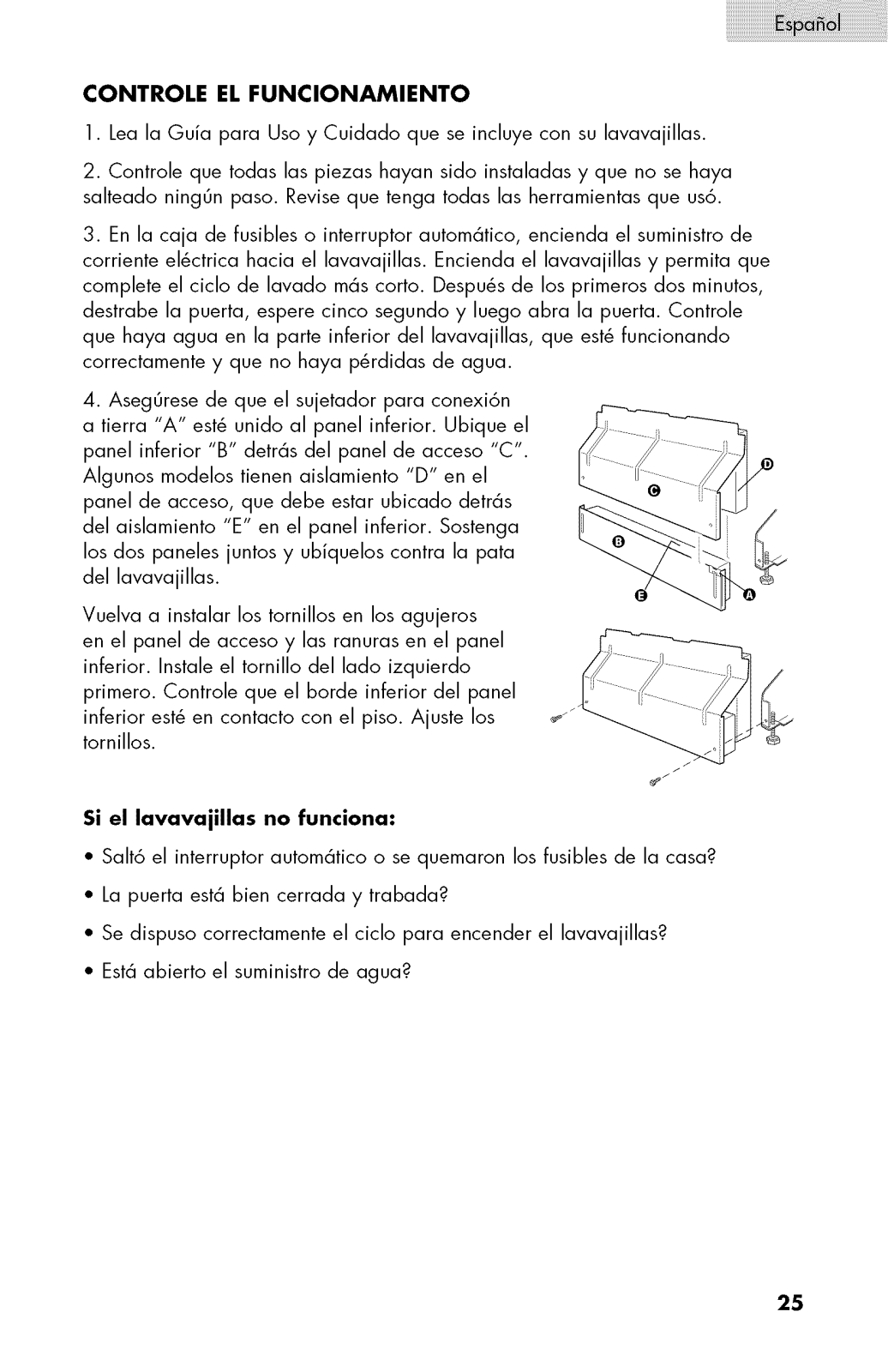

Check operation ..................................................................................... 25

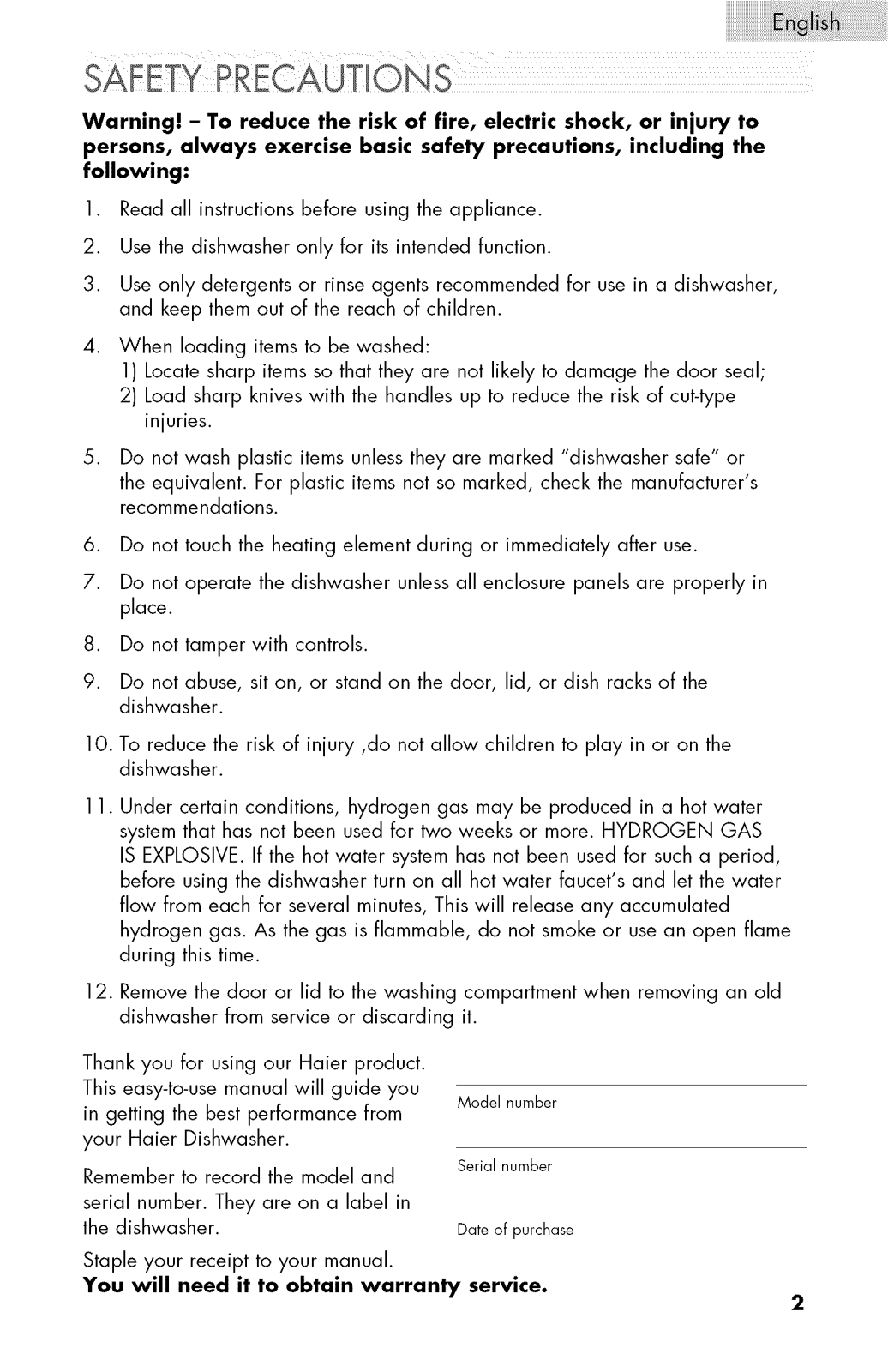

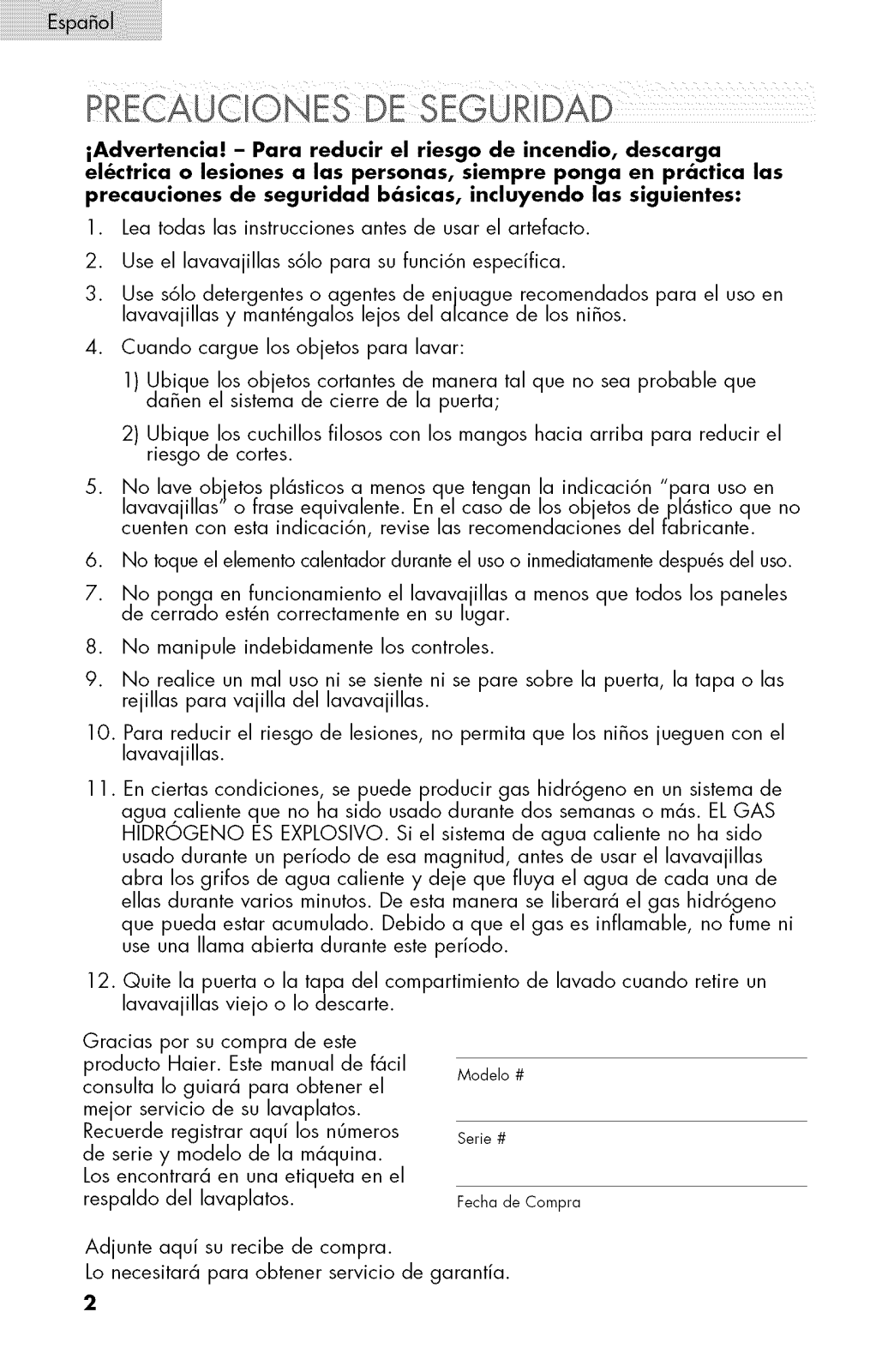

Warning! - To reduce the risk of fire, electric shock, or injury to

persons, always exercise basic safety precautions, including the following:

1. Read all instructions before using the appliance.

Use the dishwasher only for its intended function.

Use only detergents or rinse agents recommended for use in a dishwasher,

and keep them out of the reach of children.

When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;

2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.

Do not wash plastic items unless they are marked "dishwasher safe" or

the equivalent. For plastic items not so marked, check the manufacturer's

recommendations.

6. Do not touch the heating element during or immediately after use.

7. Do not operate the dishwasher unless all enclosure panels are properly in place.

8. Do not tamper with controls.

9. Do not abuse, sit on, or stand on the door, lid, or dish racks of the

dishwasher.

10. To reduce the risk of injury ,do not allow children to play in or on the dishwasher.

11. Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucet's and let the water

flow from each for several minutes, This will release any accumulated

hydrogen gas. As the gas is flammable, do not smoke or use an open flame

during this time.

12. Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it.

Thank you for using our Haier product. This easy-to-use manual will guide you

in getting the best performance from

Model number

your Haier Dishwasher.

Remember to record the model and

Serial number

serial number. They are on a label in the dishwasher.

Date af purchase

Staple your receipt to your manual.

You will need it to obtain warranty service.

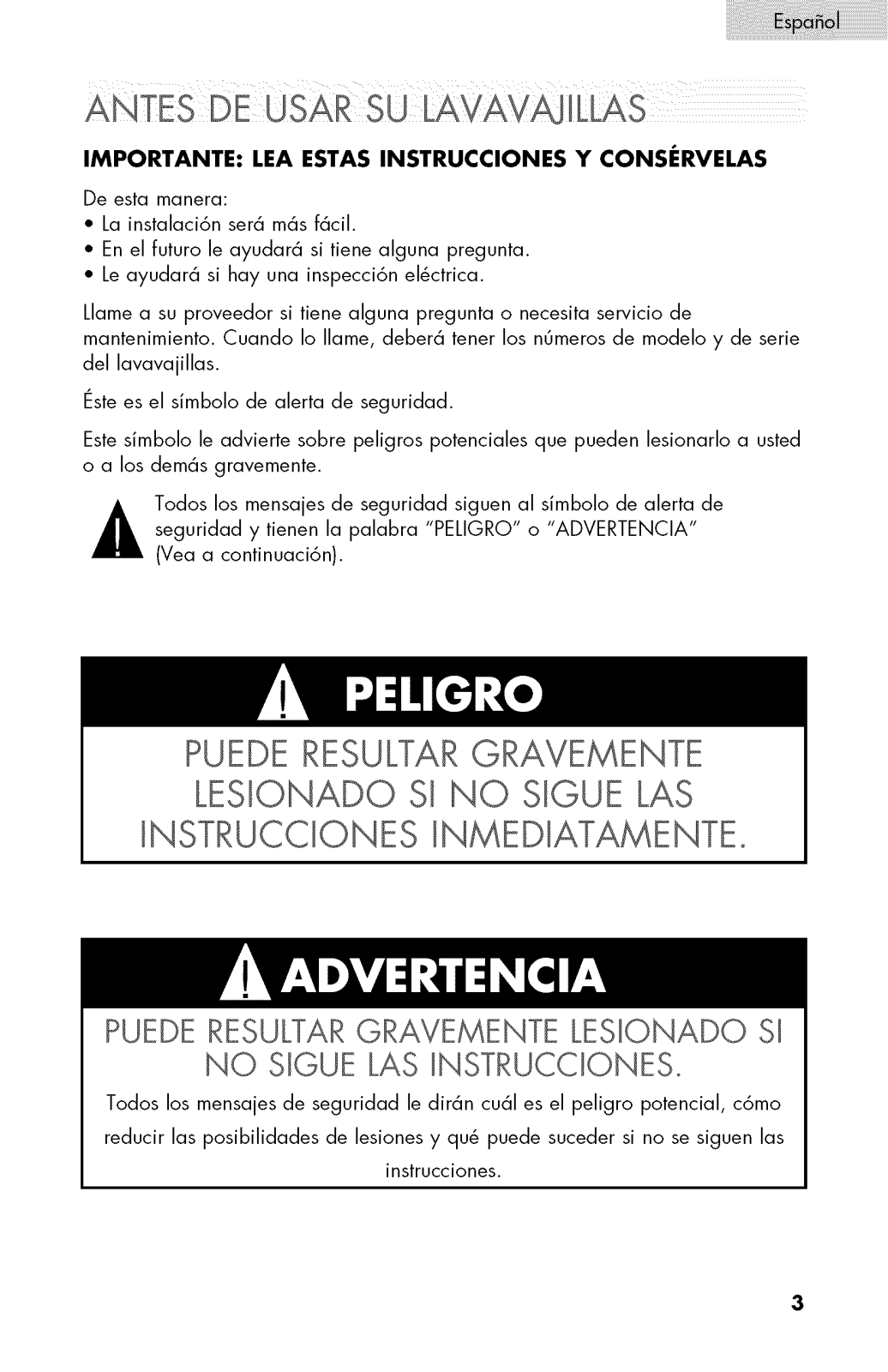

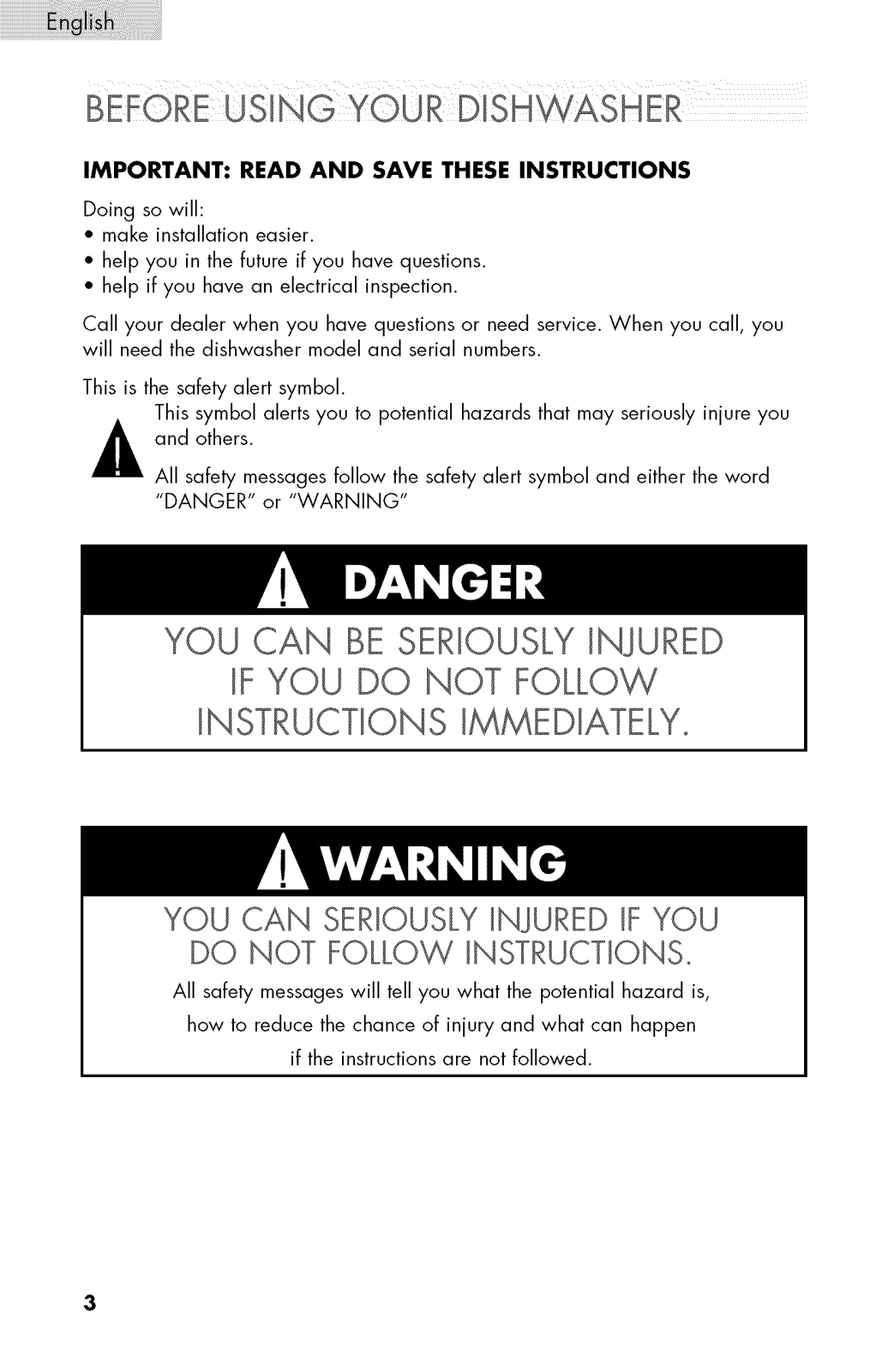

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS

Doing so will:

• make installation easier.

• help you in the future if you have questions.

• help if you have an electrical inspection. Call your dealer when you have questions or need service. When you call, you

will need the dishwasher model and serial numbers. This is the safely alert symbol.

This symbol alerts you to potential hazards that may seriously injure you

and others.

All safely messages follow the safely alert symbol and either the word "DANGER" or "WARNING"

YOU CAN BE SERIOUSLY INJURED

IF YOU DO NOT FOLLOW

INSTRUCTIONS IMMEDfATELY_

YOU CAN SERIOUSLY iNJURED iF YOU

DO NOT FOLLOW INSTRUCTIONS°

All safely messages will tell you what the potential hazard is,

how to reduce the chance of injury and what can happen

if the instructions are not followed.

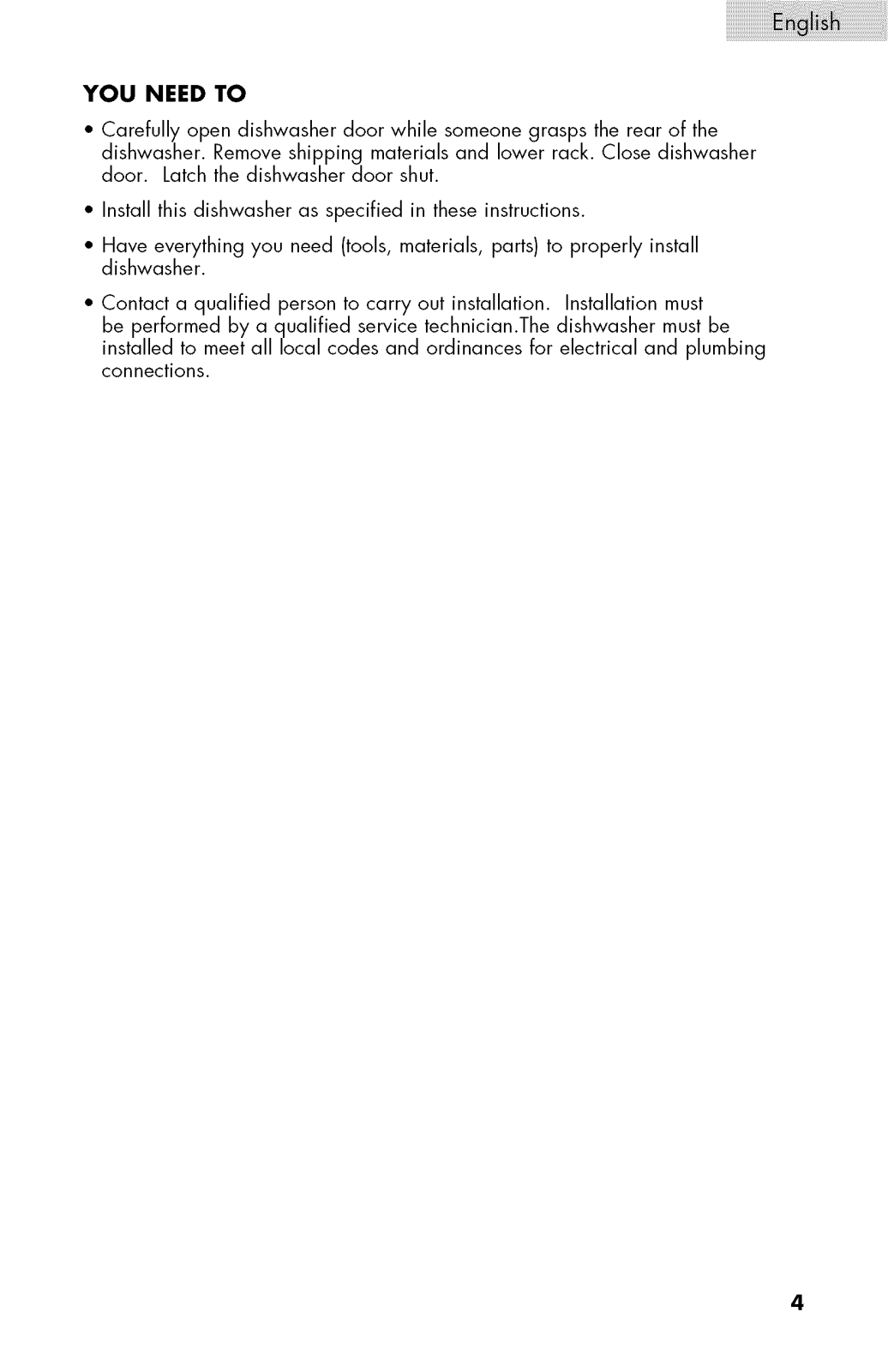

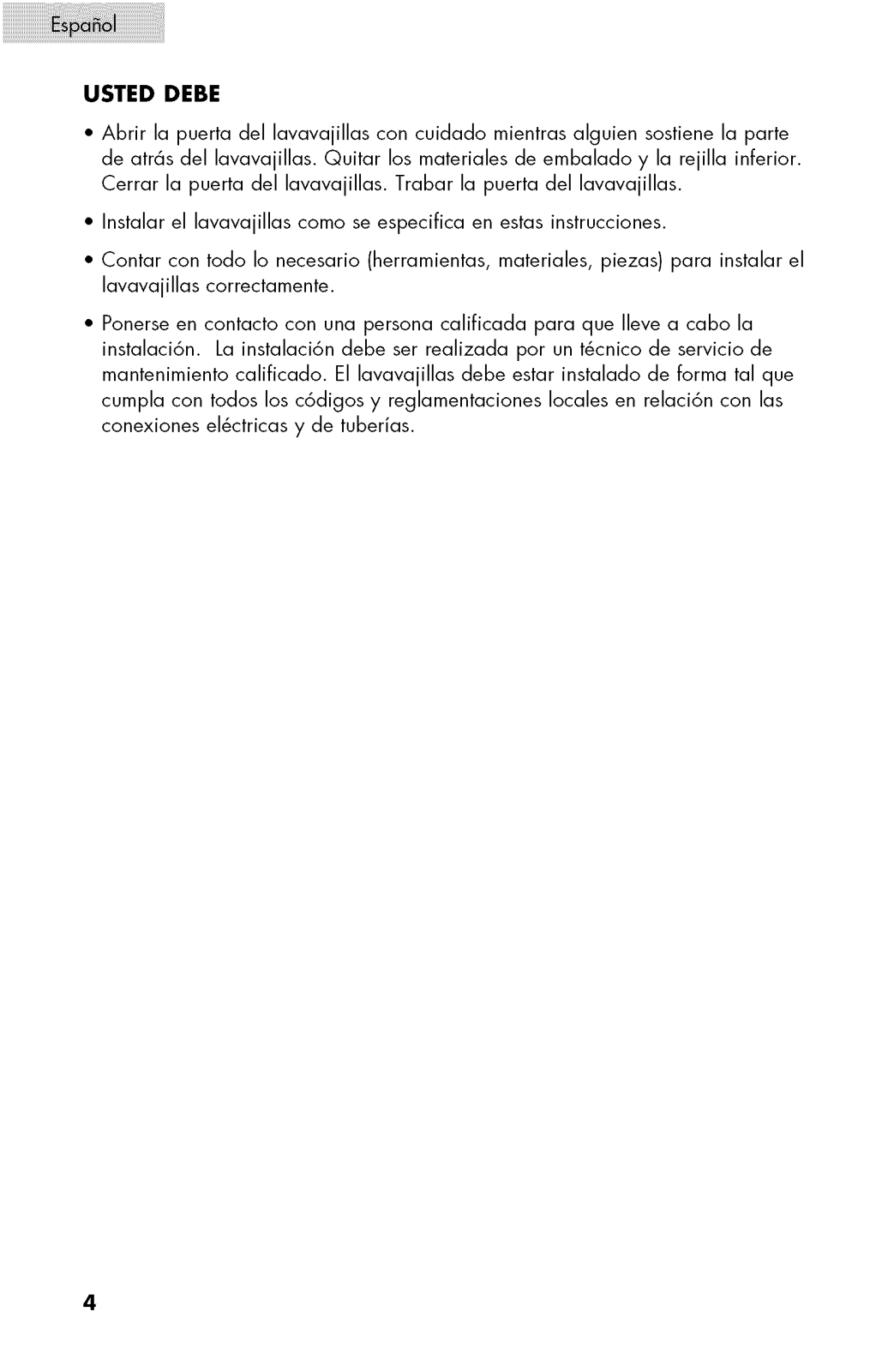

YOU NEEDTO

• Carefully open dishwasher door while someone grasps the rear of the dishwasher. Remove shipping materials and lower rack. Close dishwasher

door. Latch the dishwasher door shut.

• Install this dishwasher as specified in these instructions.

• Have everything you need (tools, materials, parts) to properly install dishwasher.

• Contact a qualified person to carry out installation. Installation must

be performed by a qualified service technician.The dishwasher must be installed to meet all local codes and ordinances for electrical and plumbing

connections.

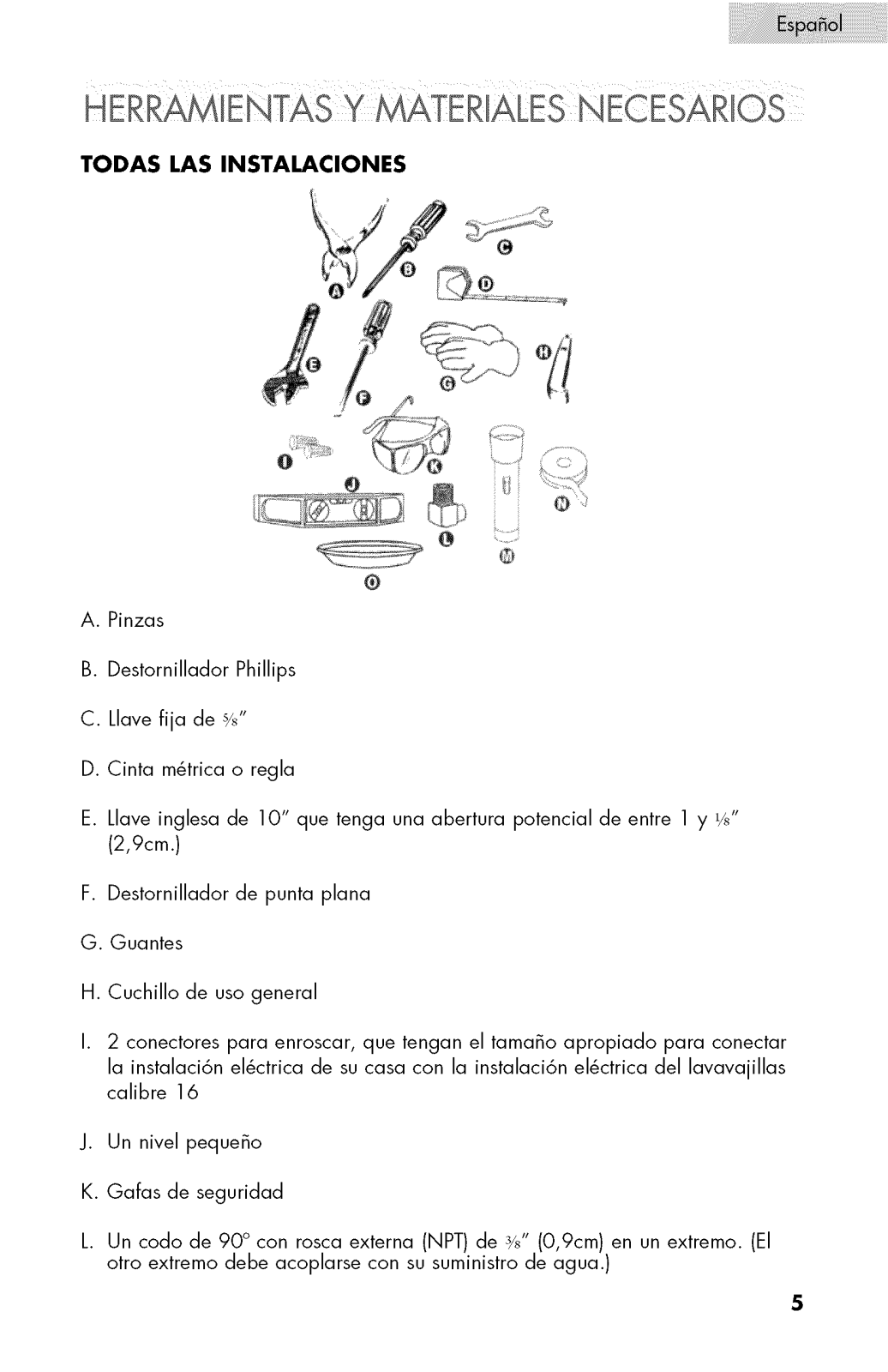

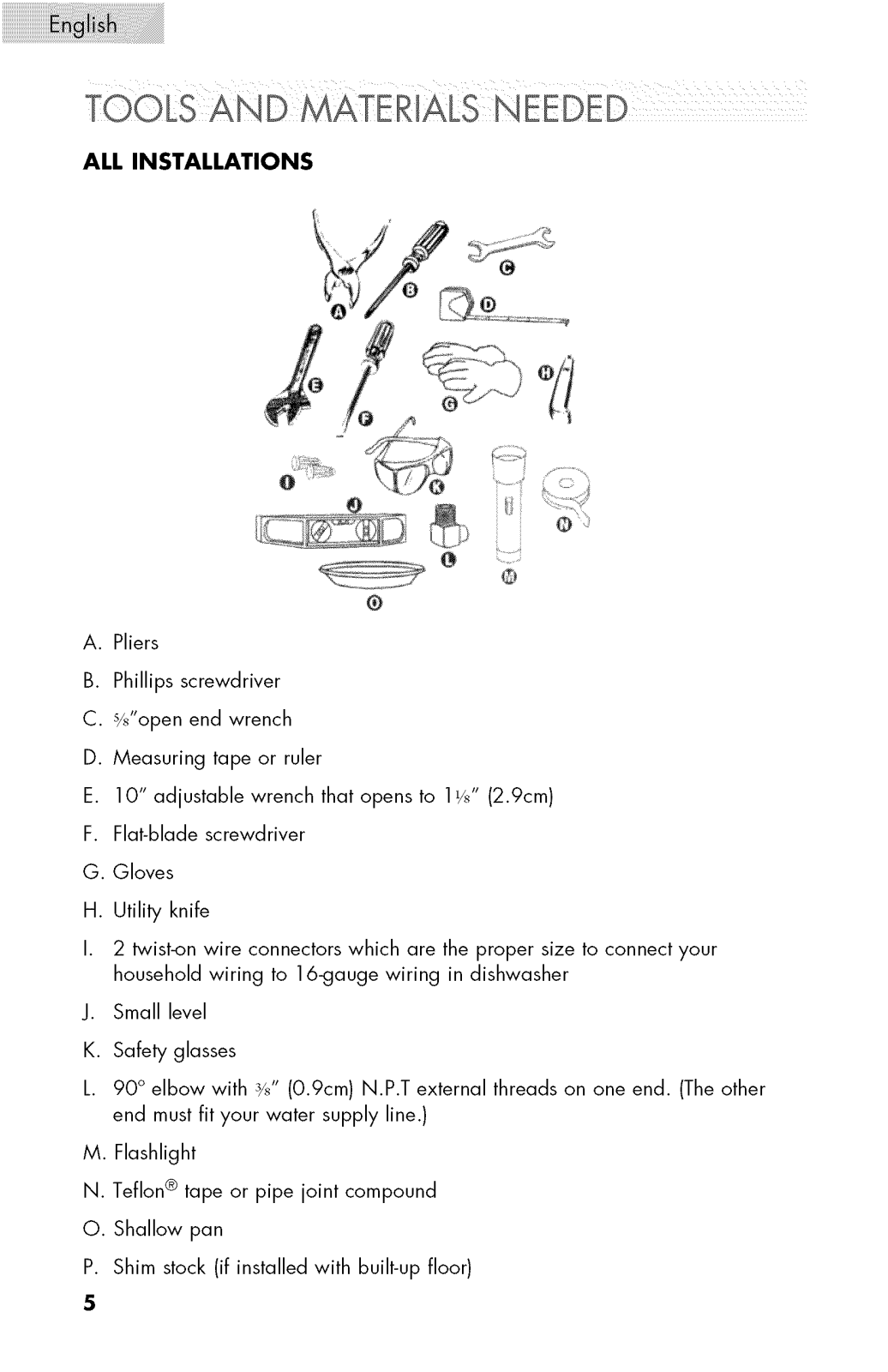

ALLINSTALLATIONS

A. Pliers B. Phillips screwdriver

C. s/_"open end wrench D. Measuring tape or ruler

E. 10" adjustable wrench that opens to 1_/_"(2.9cm F. Flat-blade screwdriver

G. Gloves H. Utility knife

I. 2 lwist-on wire connectors which are the proper s_zeto connect your

household wiring to 16-gauge wiring in dishwasher

J. Small level

K. Safety glasses L. 90° elbow with _" (0.9cm) N.P.T external threads on one end. (The other

end must fit your water supply line.)

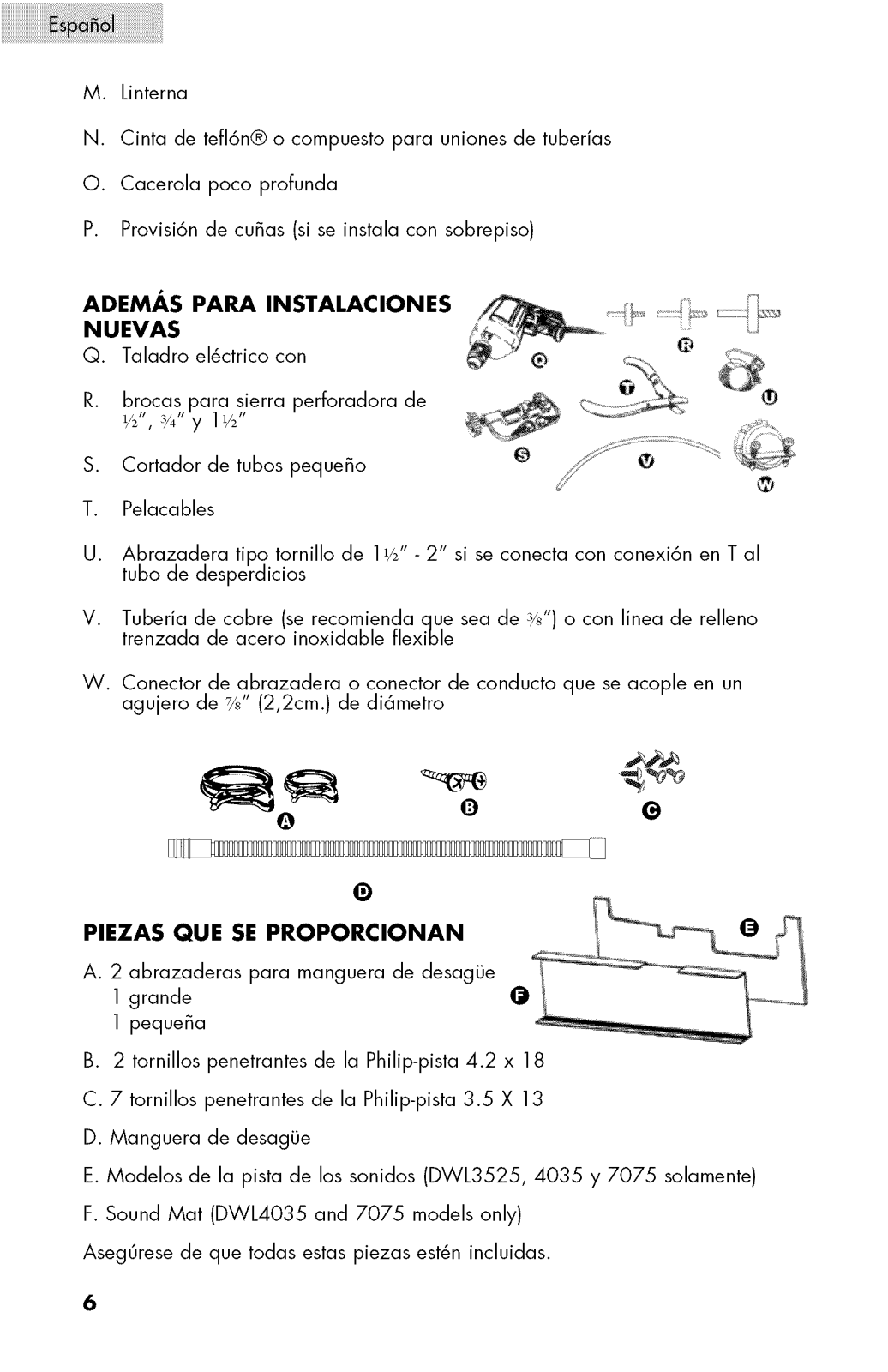

M. Flashlight N. Teflon® tape or pipe joint compound

O. Shallow pan P. Shim stock (if installed with built-up floor)

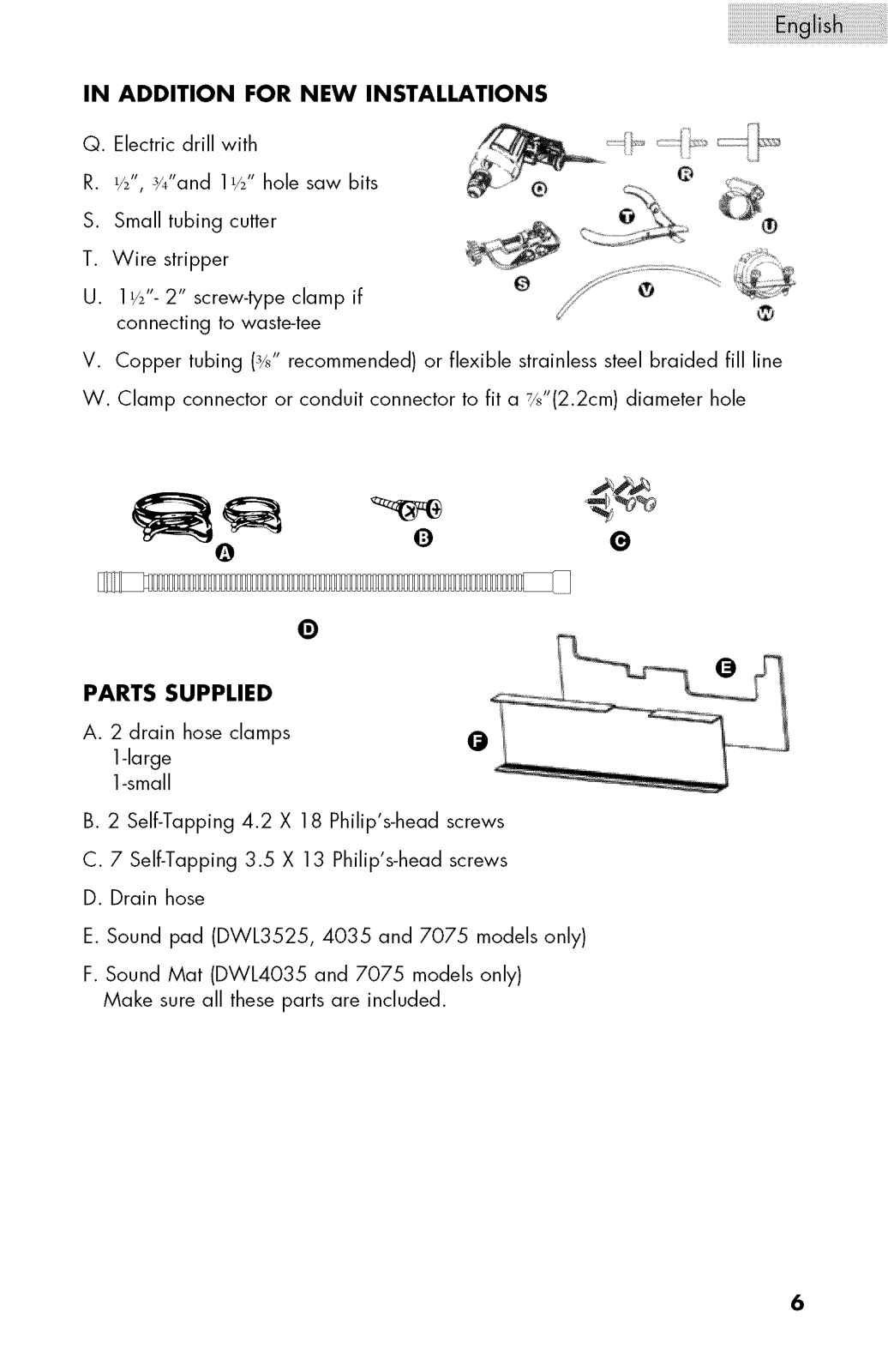

IN ADDITION FOR NEW INSTALLATIONS

Q. Electric drill with R. 1/2",_4"and 11/2"hole saw bits S. Small tubing cutter

T. Wire stripper

U. 1_2"-2" screw-type clamp if

connecting to waste-tee

V. Copper tubing (3_" recommended) or flexible strainless steel braided fill line W. Clamp connector or conduit connector to fit a %"(2.2cm) diameter hole

PARTS SUPPLIED

A. 2 drain hose clamps

l-large 1-small

B. 2 Self-Tapping 4.2 X 18 Philip's-head screws C. 7 Self-Tapping 3.5 X 13 Philip's-head screws

D. Drain hose E. Sound pad (DWL3525, 4035 and 7075 models only)

F. Sound Mat (DWL4035 and 7075 models only)

Make sure all these parts are included.

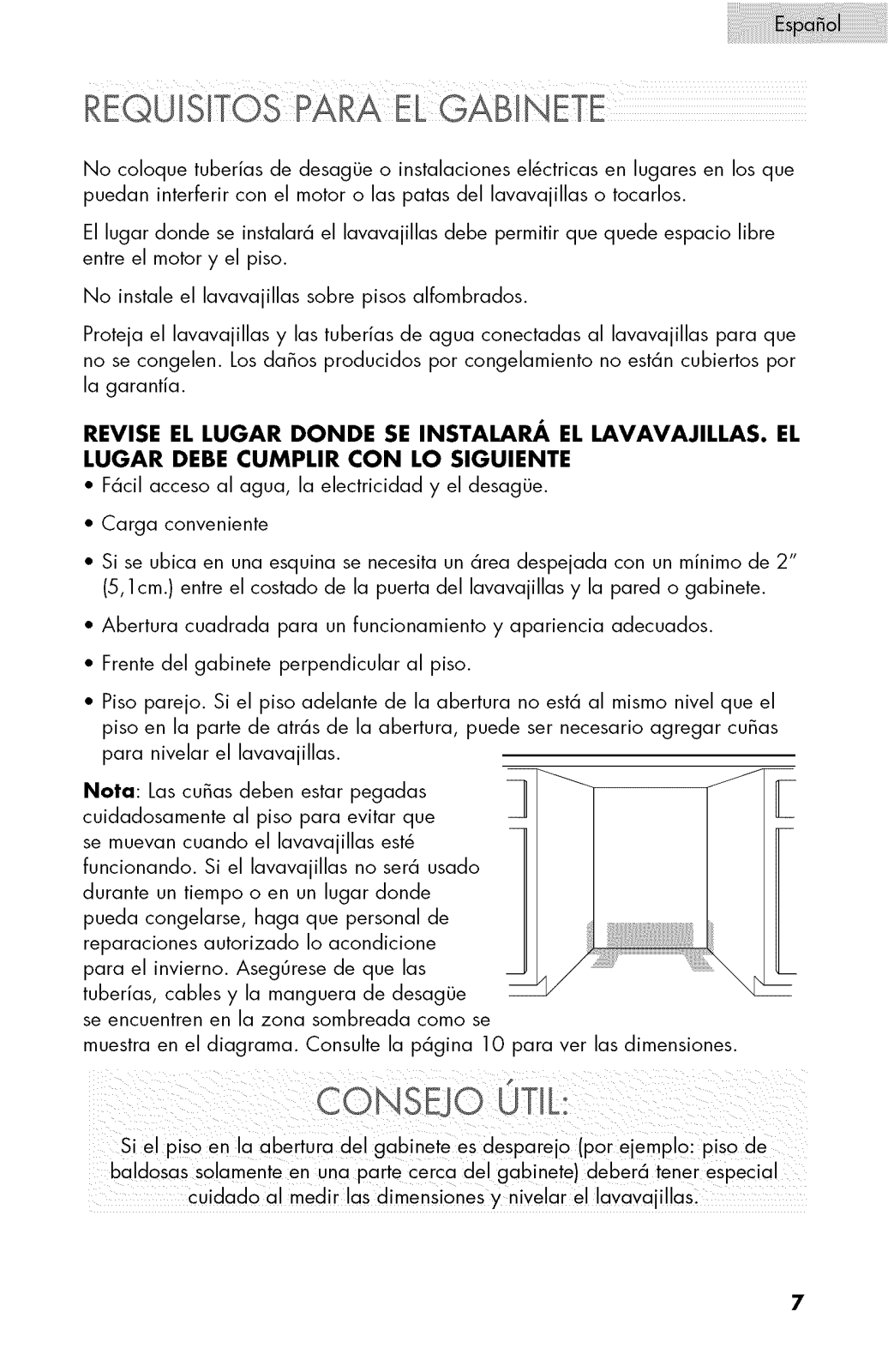

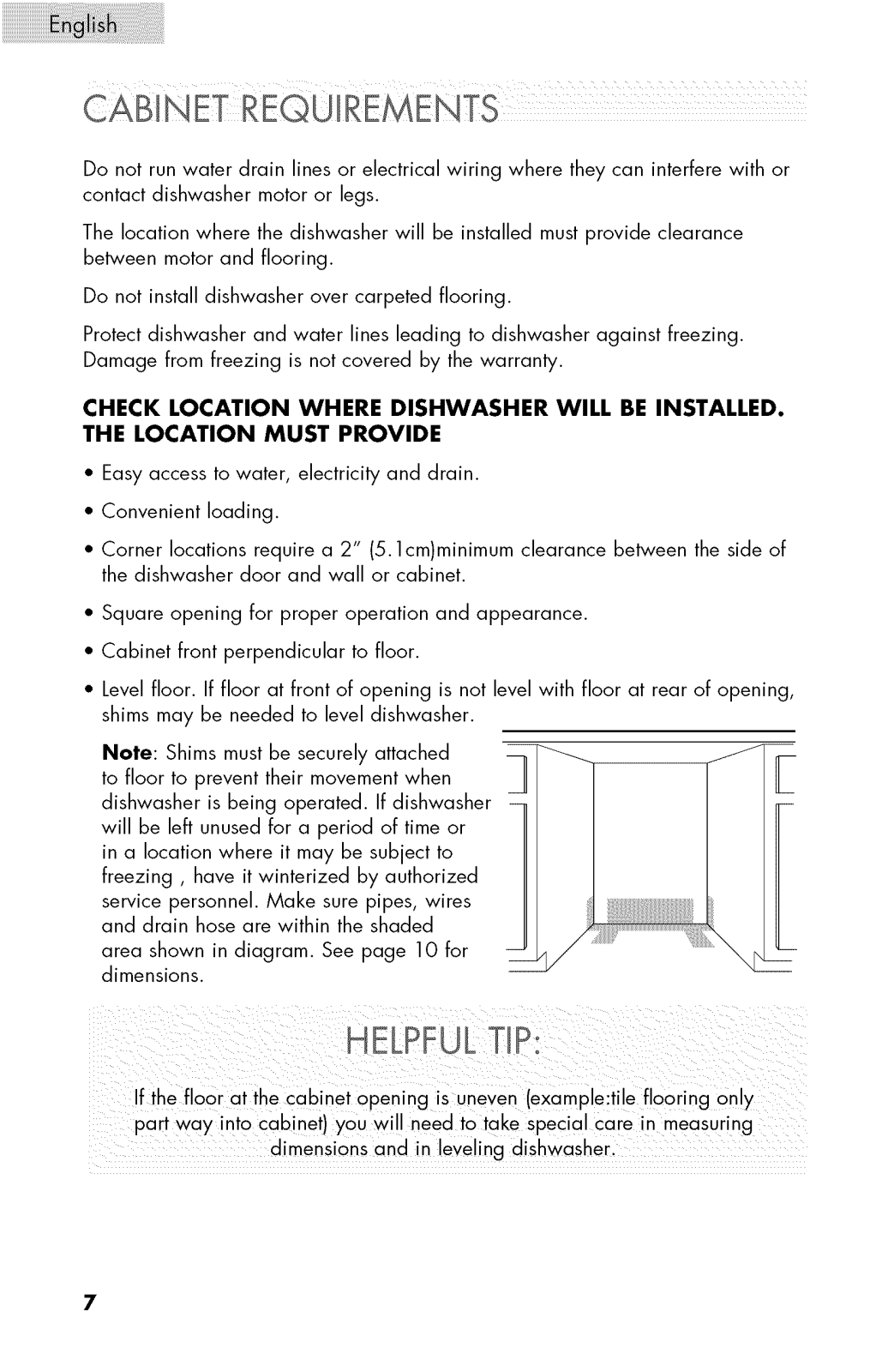

CABINET REQUIREMENTS

Do not run water drain lines or electrical wiring where they can interfere with or contact dishwasher motor or legs.

The location where the dishwasher will be installed must provide clearance

between motor and flooring. Do not install dishwasher over carpeted flooring. Protect dishwasher and water lines leading to dishwasher against freezing.

Damage from freezing is not covered by the warranty.

CHECK LOCATION WHERE DISHWASHER WILL BE INSTALLED.

THE LOCATION MUST PROVIDE

• Easy access to water, electricity and drain.

• Convenient loading.

• Corner locations require a 2" (5. l cm)minimum clearance between the side of the dishwasher door and wall or cabinet.

• Square opening for proper operation and appearance.

• Cabinet front perpendicular to floor.

• Level floor. If floor at front of opening is not level with floor at rear of opening, shims may be needed to level dishwasher.

Note: Shims must be securely attached to floor to prevent their movement when dishwasher is being operated. If dishwasher - will be left unused for a period of time or

in a location where it may be subject to freezing, have it winterized by authorized

service personnel. Make sure pipes, wires and drain hose are within the shaded

area shown in diagram. See page 10 for - dimensions.

HELPFULTIP

If the floor at the cabinet opening is uneven (example:tile flooring only part way into cabinet) you will need to take special care in measuring

dimensions and in leveling dishwasher.

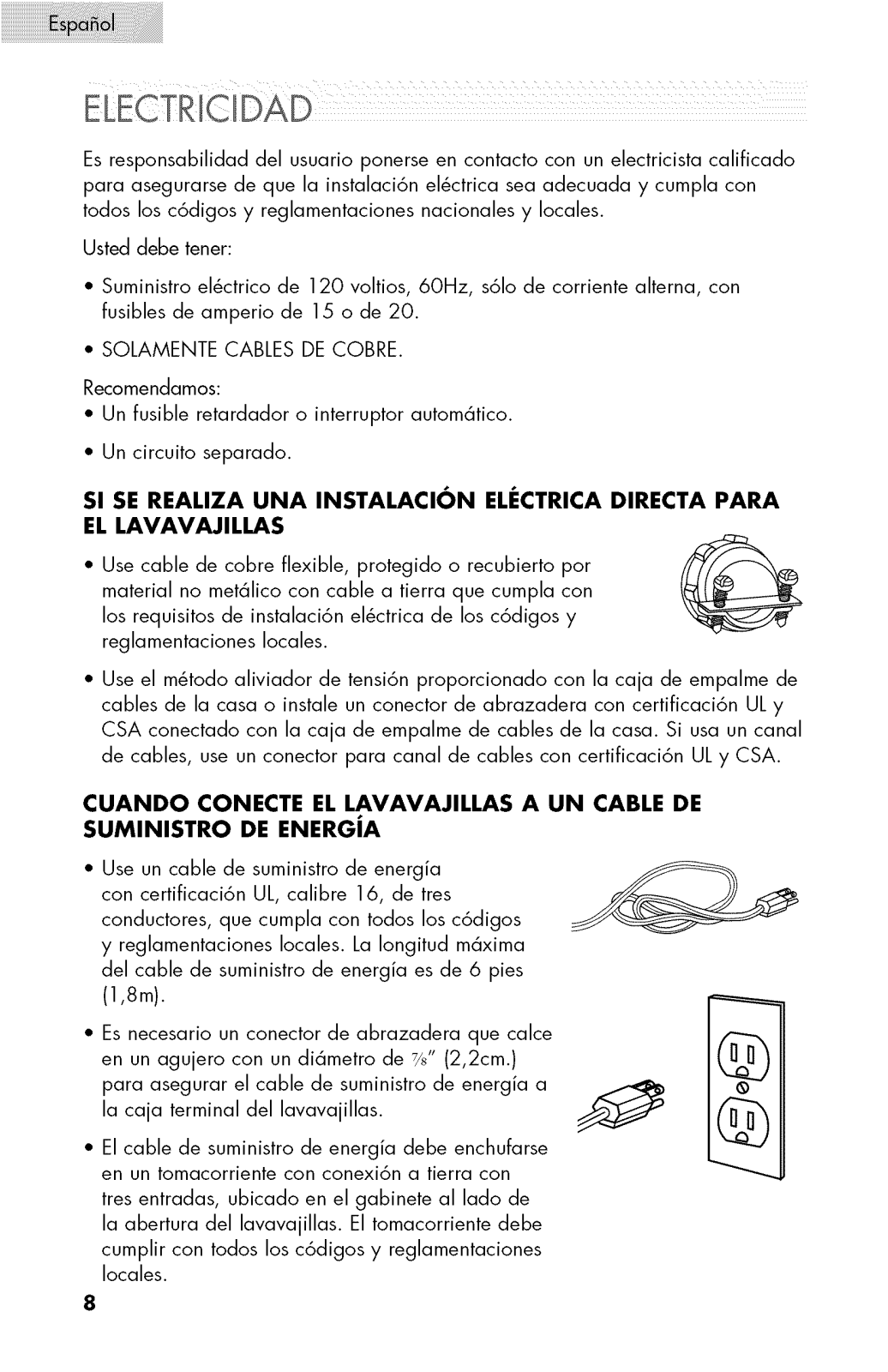

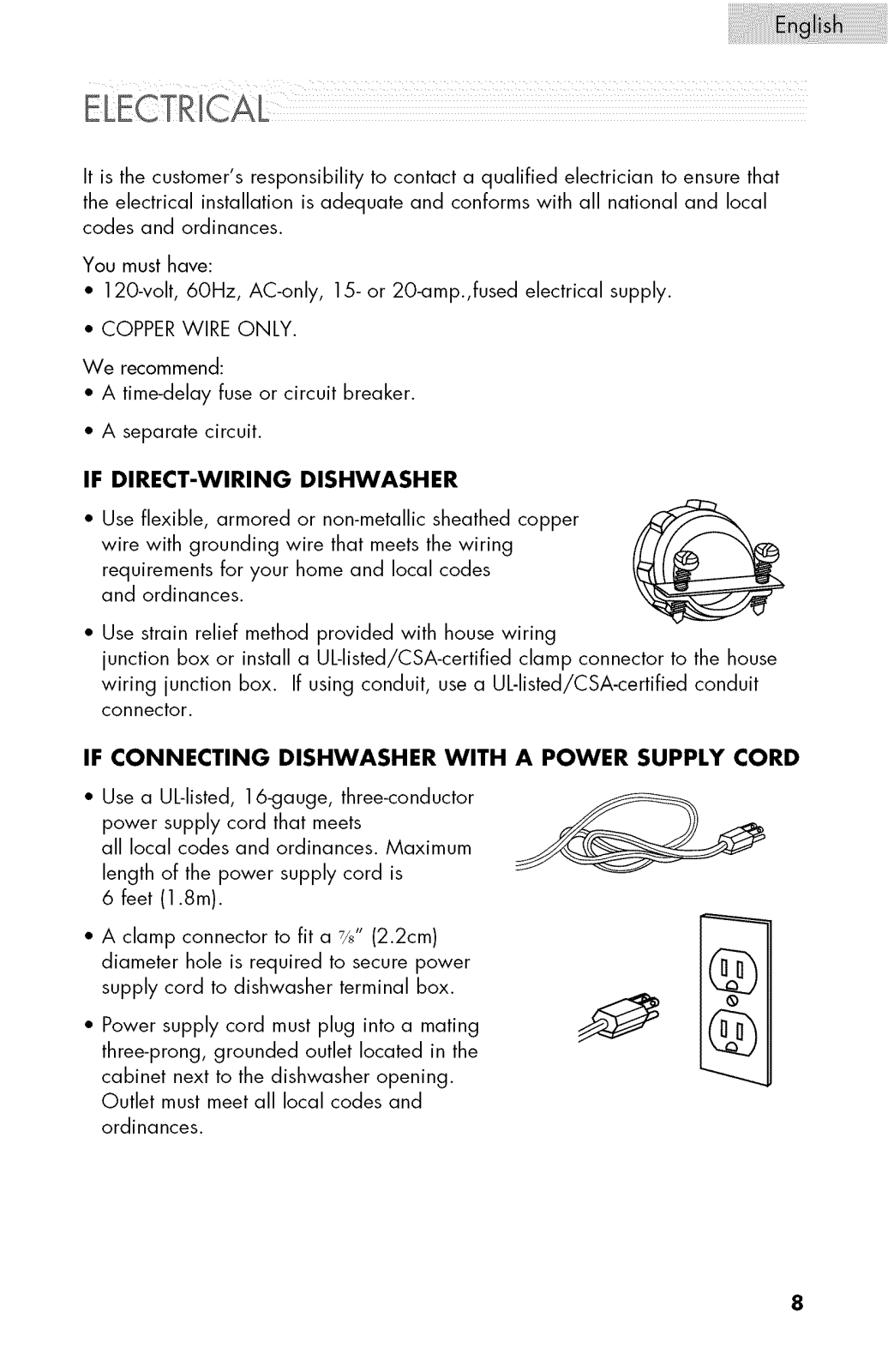

It is the customer's responsibility to contact a qualified electrician to ensure that the electrical installation is adequate and conforms with all national and local

codes and ordinances.

You must have:

• 120-volt, 60Hz, AC-only, 15- or 20-amp.,fused electrical supply.

• COPPER WIRE ONLY.

We recommend:

• A time-delay fuse or circuit breaker.

• A separate circuit.

IF DIRECT-WIRING DISHWASHER

• Use flexible, armored or non-metallic sheathed copper wire with grounding wire that meets the wiring

requirements for your home and local codes

and ordinances.

• Use strain relief method provided with house wiring

junction box or install a Ublisted/CSA-certified clamp connector to the house

wiring junction box. If using conduit, use a Ublisted/CSA-certified conduit connector.

IF CONNECTING DISHWASHER WITH A POWER SUPPLY CORD

• Use a Ublisted, 16-gauge, three-conductor

power supply cord that meets

all local codes and ordinances. Maximum

length of the power supply cord is

6 feet (1.8m).

• A clamp connector to fit a %" (2.2cm) diameter hole is required to secure power

supply cord to dishwasher terminal box.

• Power supply cord must plug into a mating three-prong, grounded outlet located in the

cabinet next to the dishwasher opening. Outlet must meet all local codes and

ordinances.

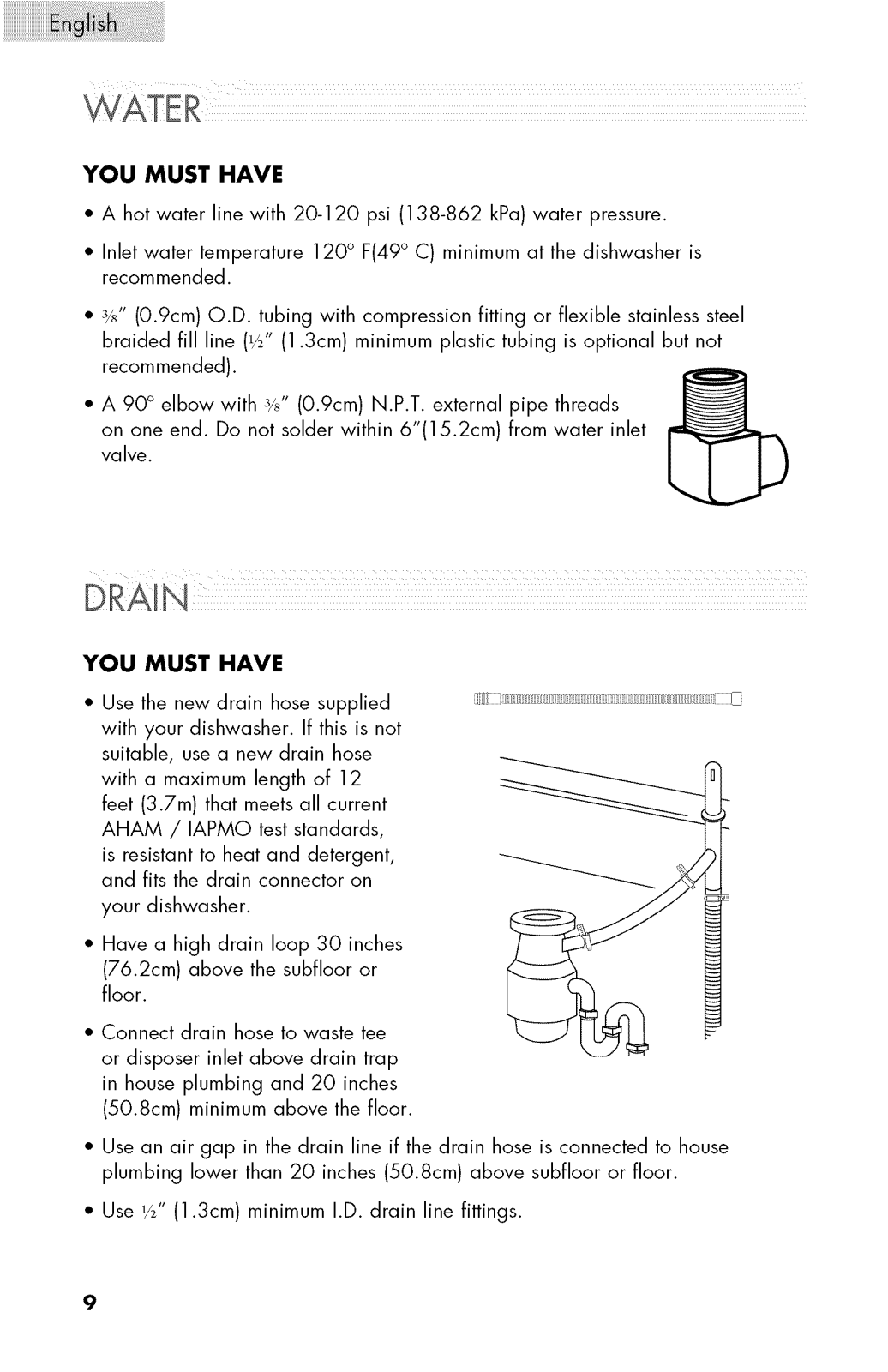

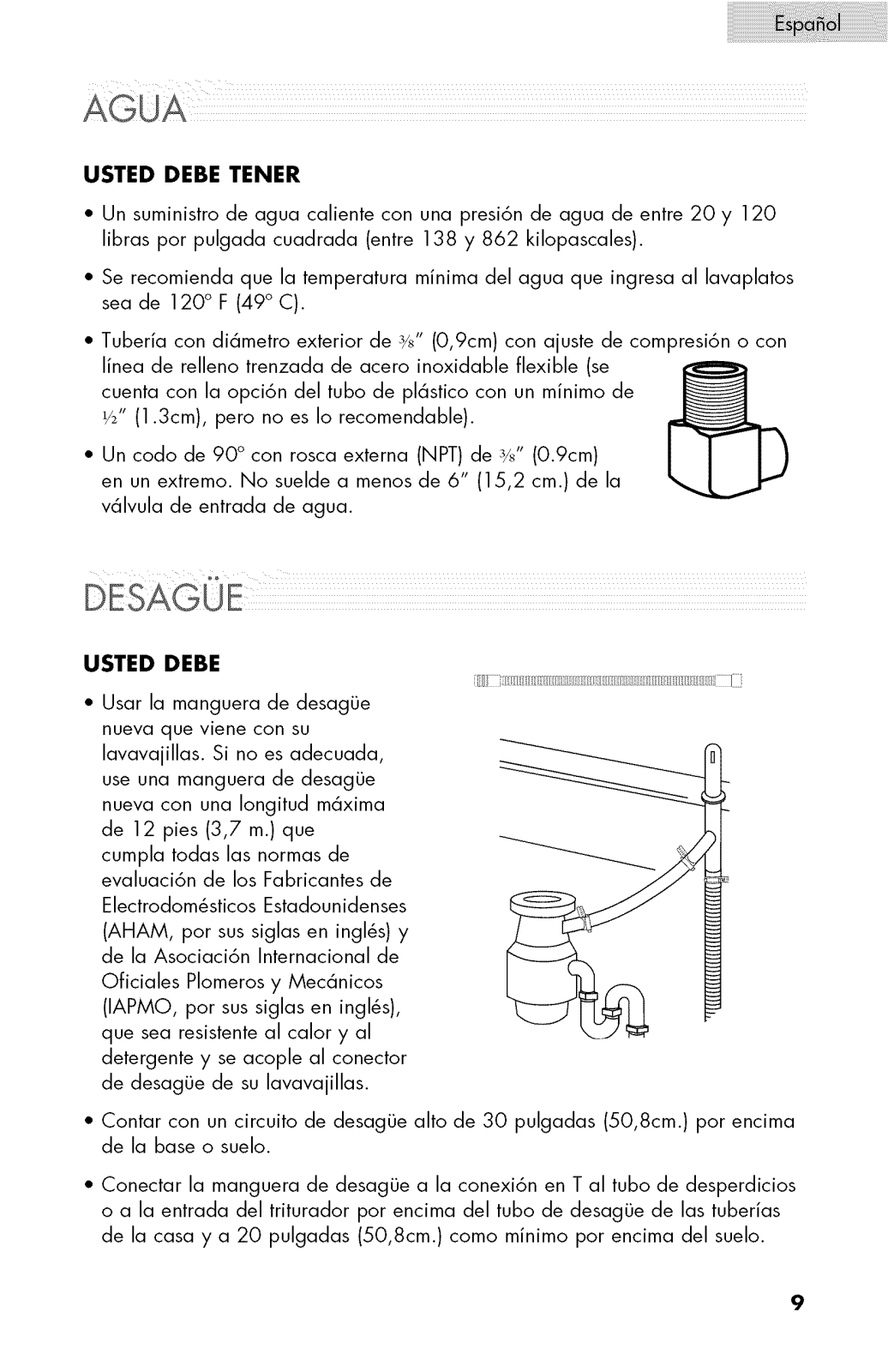

YOU MUST HAVE

• A hot water line with 20-120 psi (138-862 kPa) water pressure.

• Inlet water temperature 120 ° F(49° C) minimum at the dishwasher is

recommended.

• 3//' (0.9cm) O.D. tubing with compression fitting or flexible stainless steel

braided fill line (1/2" (1.3cm) minimum plastic tubing is optional but not recommended).

• A 90° elbow with 3//' (0.9cm) N.P.T. external pipe threads on one end. Do not solder within 6"(15.2cm) from water inlet

valye.

YOU MUST HAVE

• Use the new drain hose supplied with your dishwasher. If this is not suitable, use a new drain hose

with a maximum length of 12 feet (3.7m) that meets all current AHAM / IAPMO test standards,

is resistant to heat and detergent,

and fits the drain connector on your dishwasher.

• Have a high drain loop 30 inches

(76.2cm) above the subfloor or

floor.

• Connect drain hose to waste tee or disposer inlet above drain trap

in house plumbing and 20 inches (50.8cm) minimum above the floor.

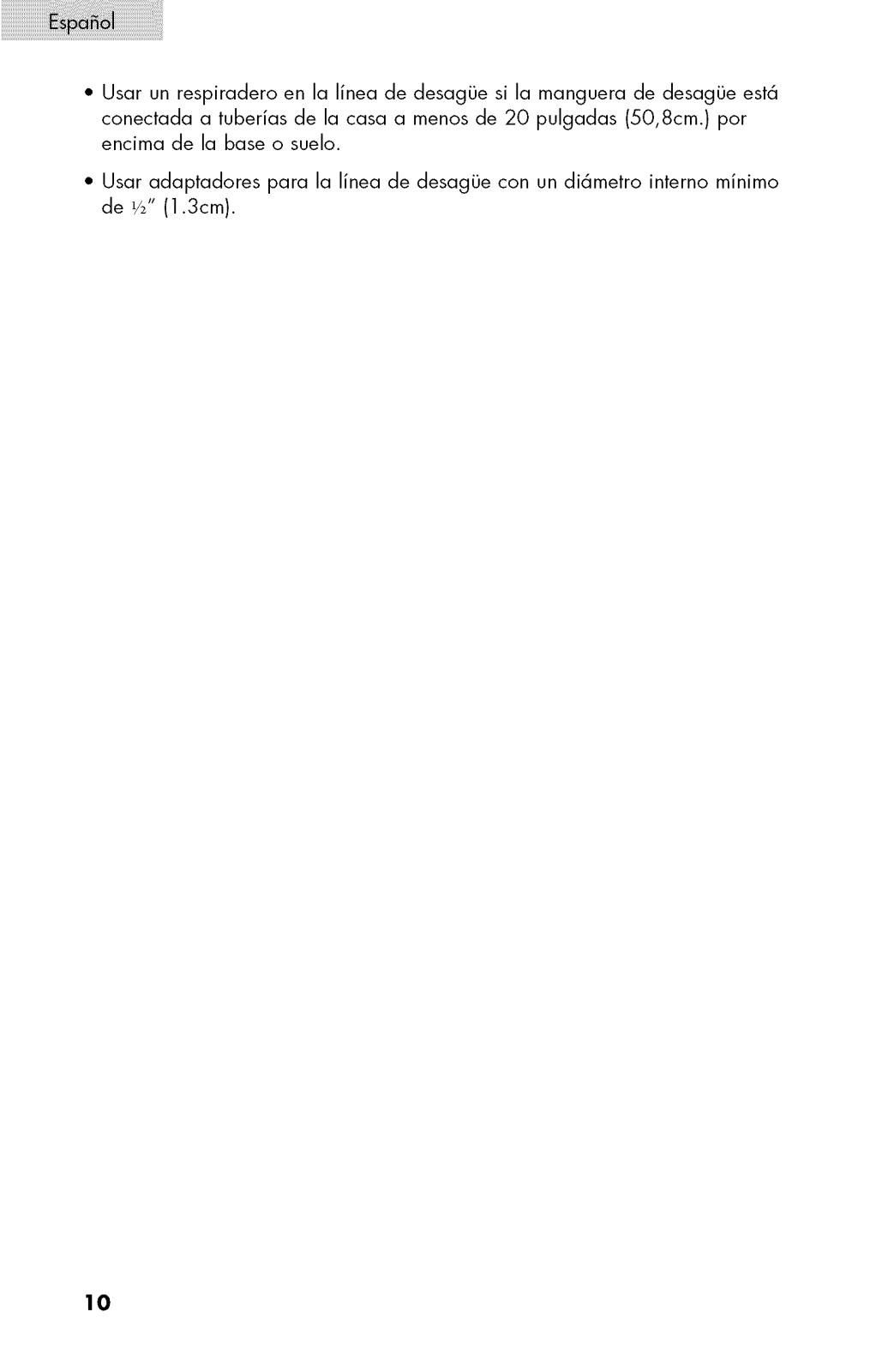

• Use an air gap in the drain line if the drain hose is connected to house

plumbing lower than 20 inches (50.8cm) above subfloor or floor.

• Use V2" (1.3cm) minimum I.D. drain line fittings.

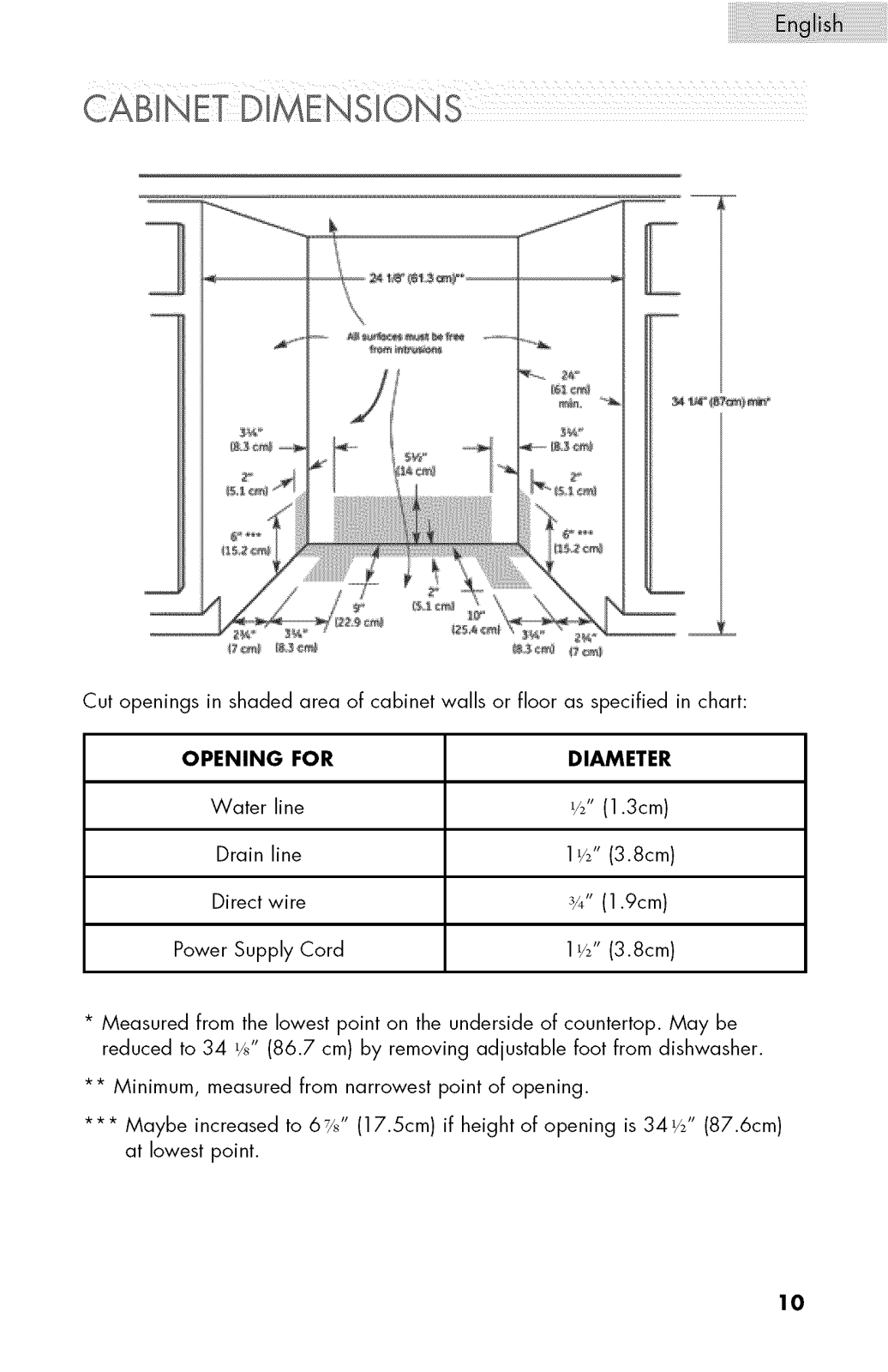

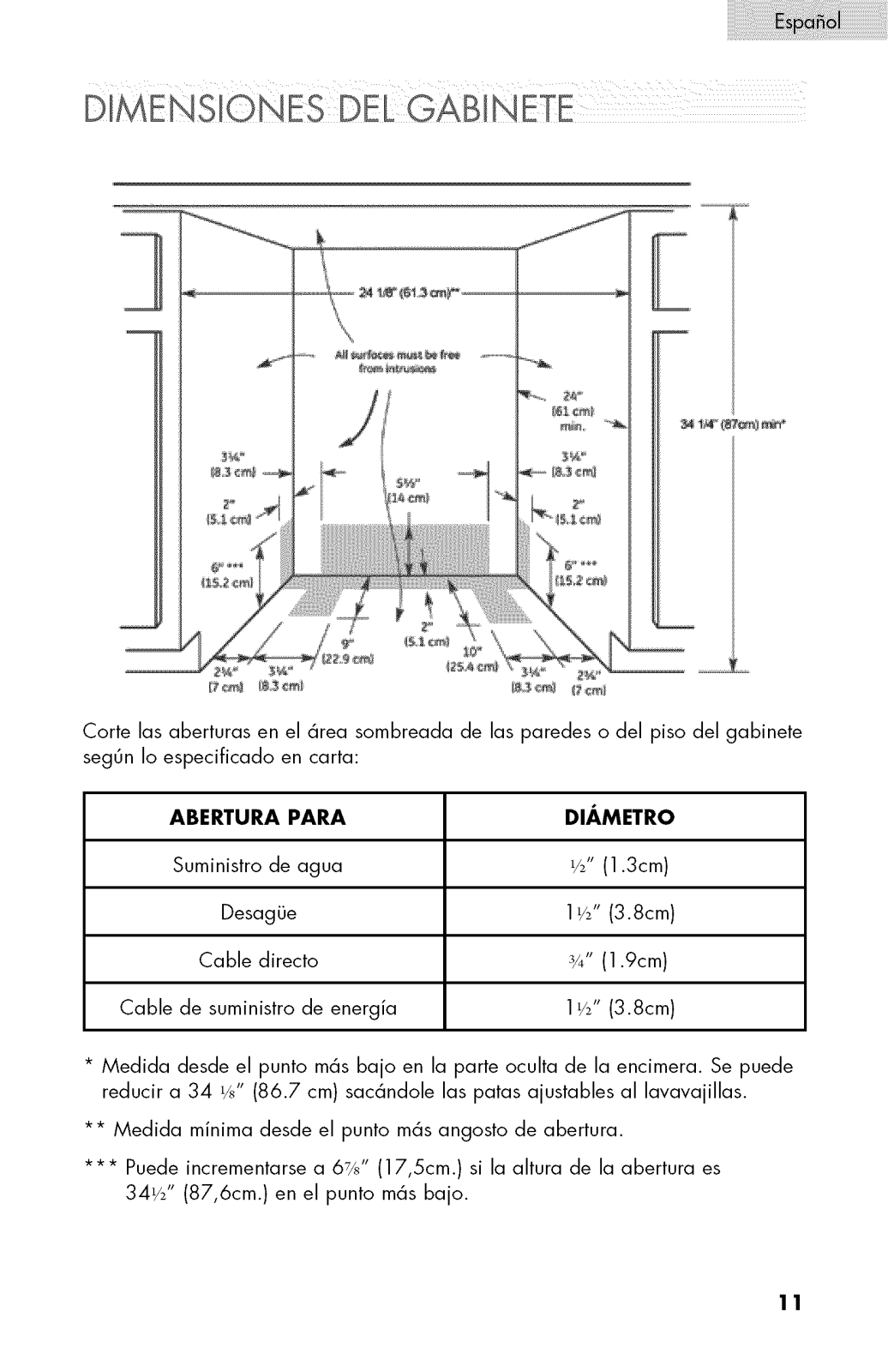

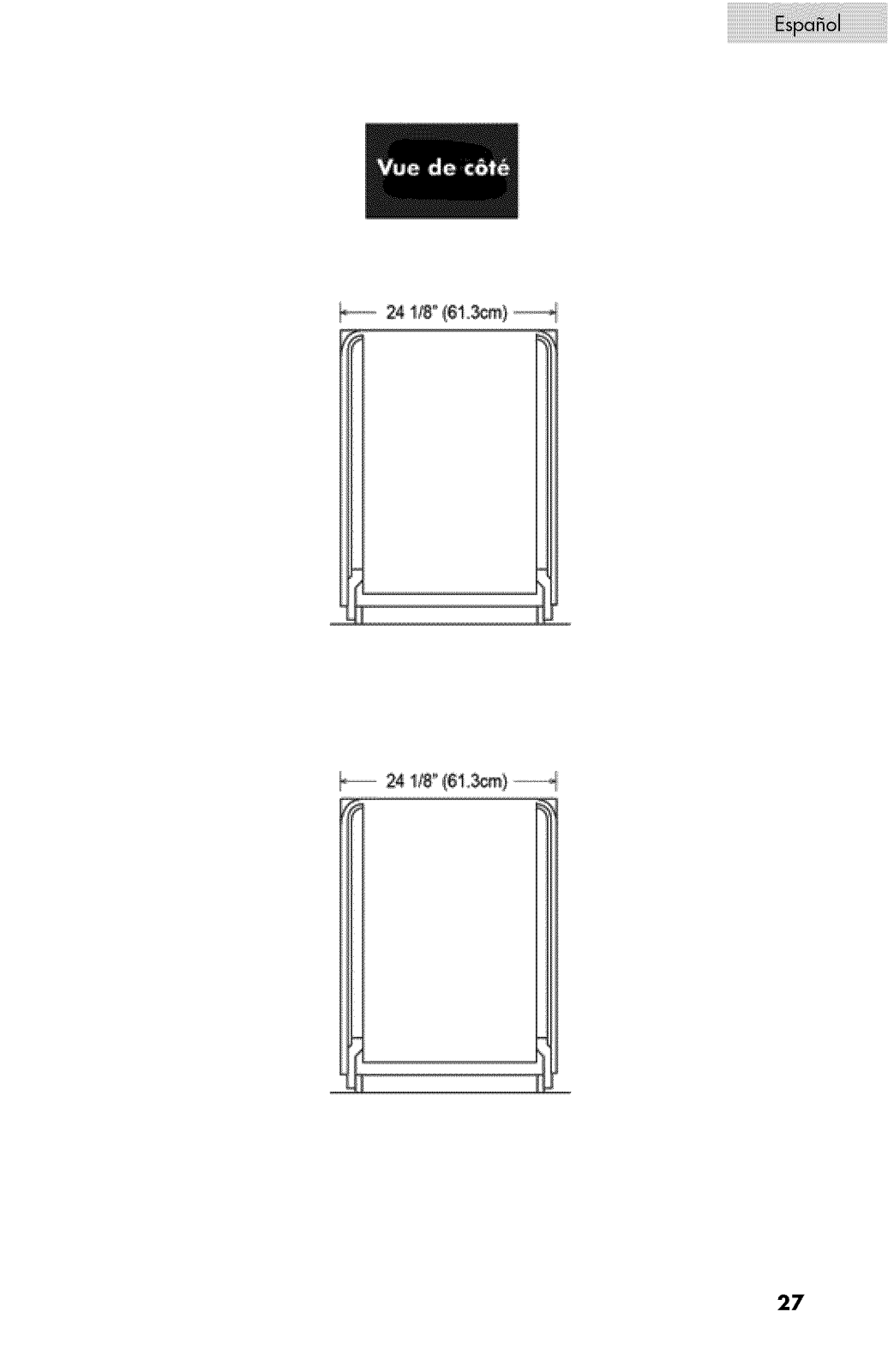

CABINETDIMENSiQNS

4 / / / ? _;°..%",_ x \.

Cut openings in shaded area of cabinet walls or floor as specified in chart:

OPENING FOR DIAMETER

Water line _/2"(1.3cm)

Drain line lV2" (3.8cm)

Direct wire 3/_" (1.9cm)

Power Supply Cord 1V2" (3.8cm)

* Measured from the lowest point on the underside of countertop. May be

reduced to 34 V/' (86.7 cm) by removing adjustable foot from dishwasher. ** Minimum, measured from narrowest point of opening. *** Maybe increased to 67//' (17.5cm)if height of opening is 341,'2" (87.6cm)

at lowest point.

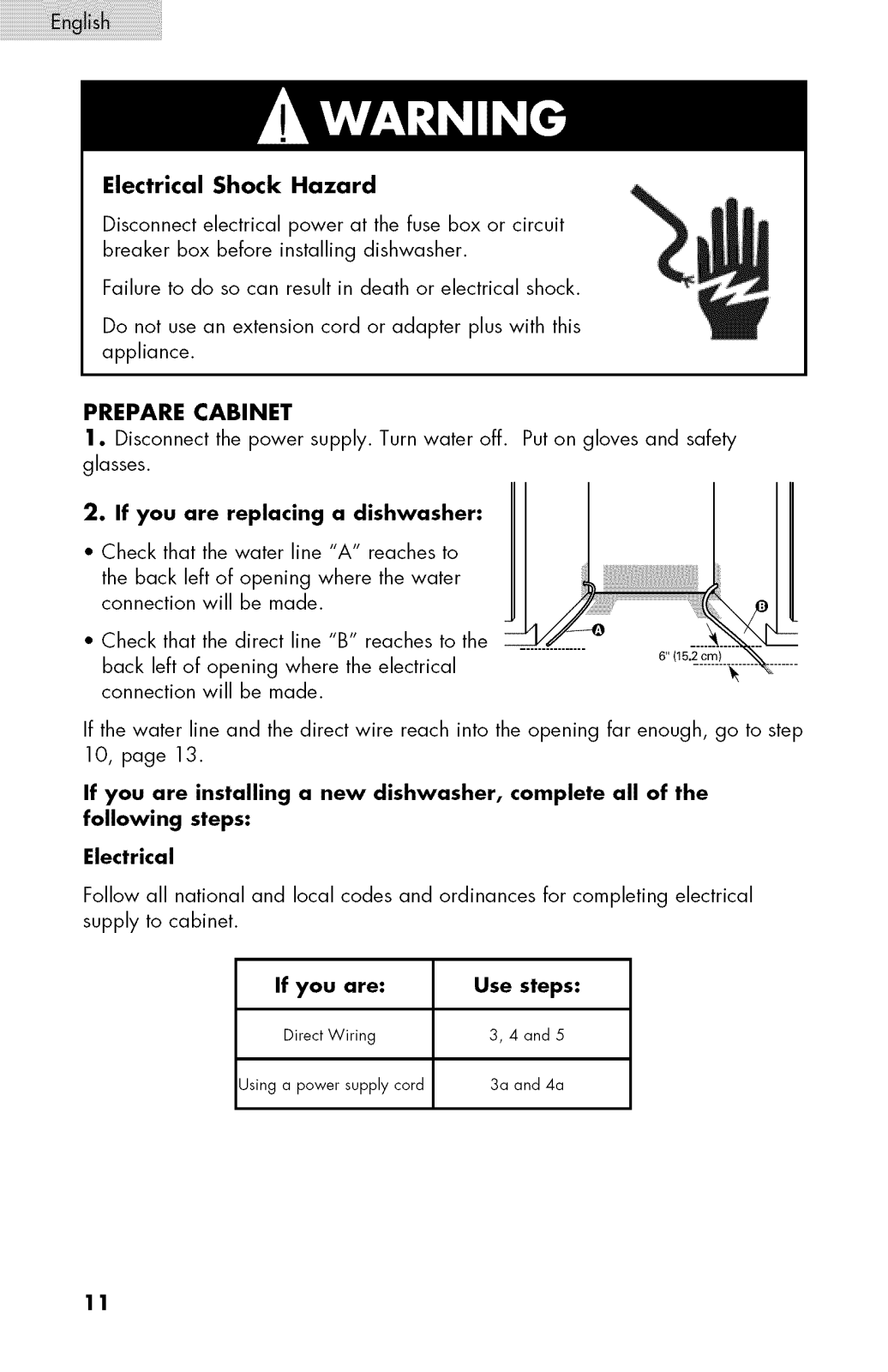

Electrical Shock Hazard

Disconnect electrical power at the fuse box or circuit

breaker box before installing dishwasher.

Failure to do so can result in death or electrical shock.

Do not use an extension cord or adapter plus with this

appliance.

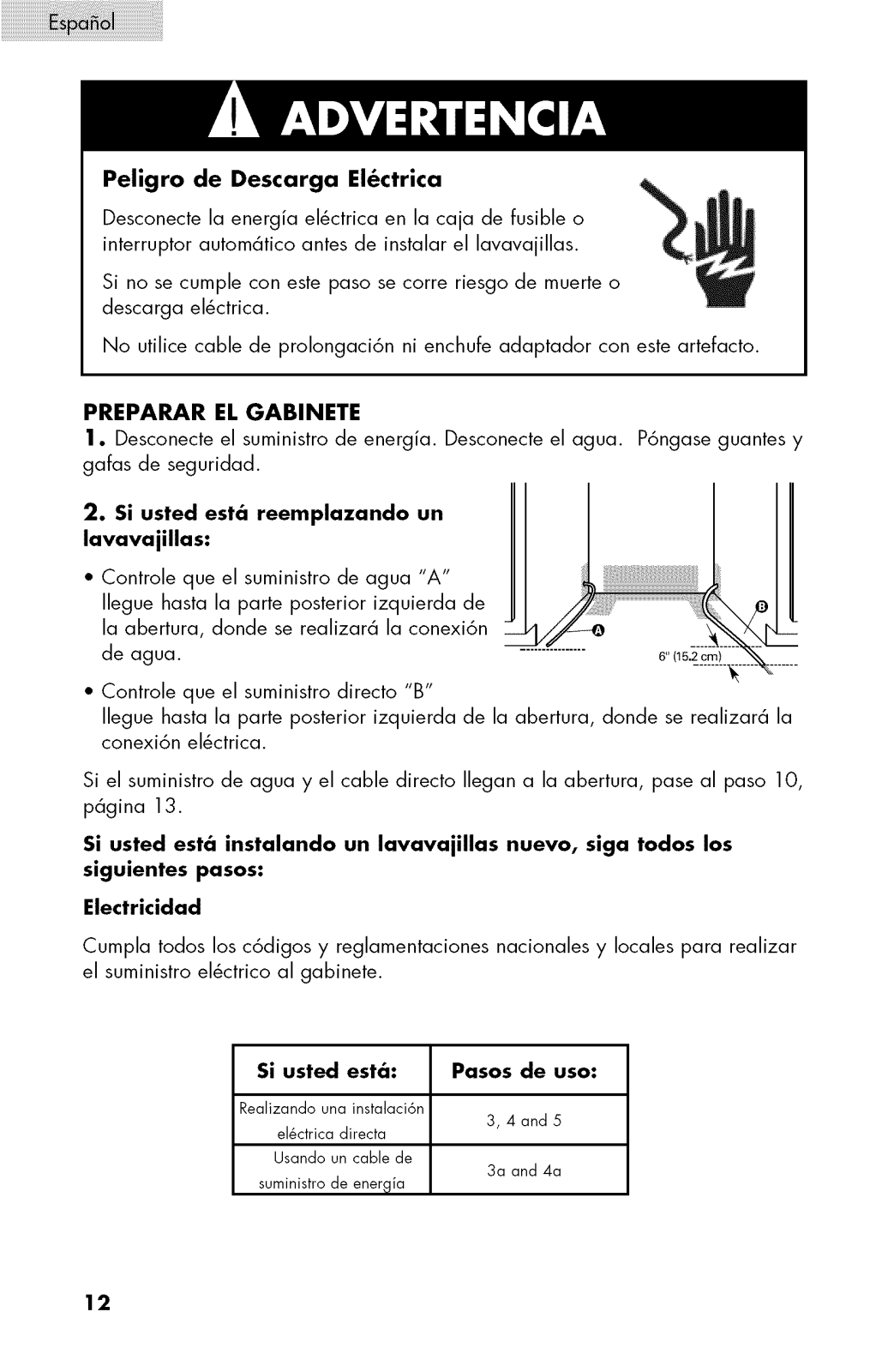

PREPARE CABINET

1. Disconnect the power supply. Turn water off. Puton gloves and safety

glasses.

2. If you are replacing a dishwasher: /

• Check that the water line "A" reaches to the back left of opening where the water

connection will be made.

• Check that the direct line "B" reaches to the

back left of opening where the electrical

connection will be made.

If the water line and the direct wire reach into theopening far enough, go to step

10, page 13.

If you are installing a new dishwasher, complete all of the following steps:

Electrical

Follow all national and local codes and ordinances for completing electrical supply to cabinet.

If you are: Use steps:

Direct Wiring 3, 4 and 5

gsing a power supply cord 3a and 4a

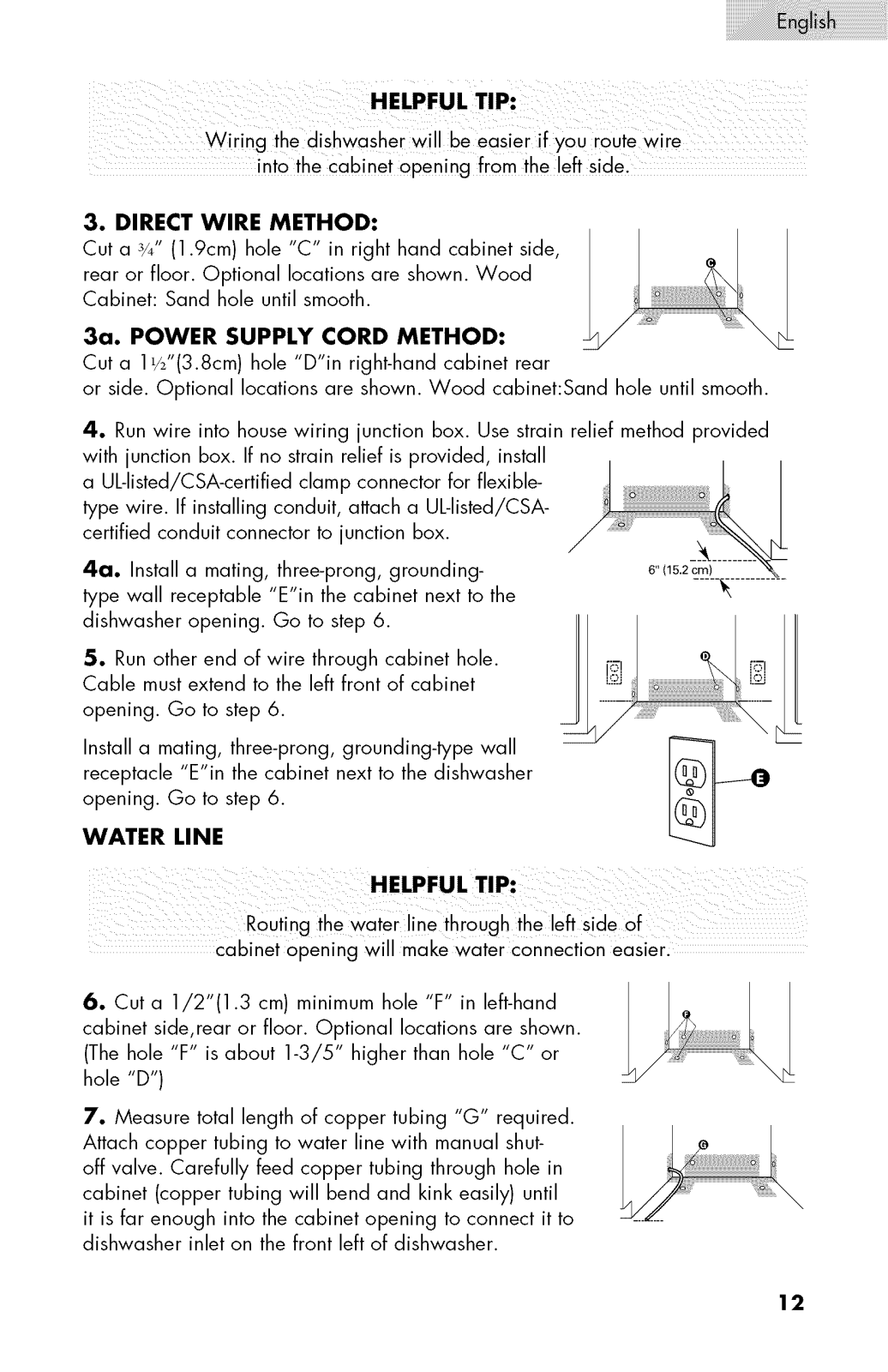

.......Wiring the dishwasher w I!b e easier if you route wire ..................

into the cabinet 0pening k0m the left Sidel

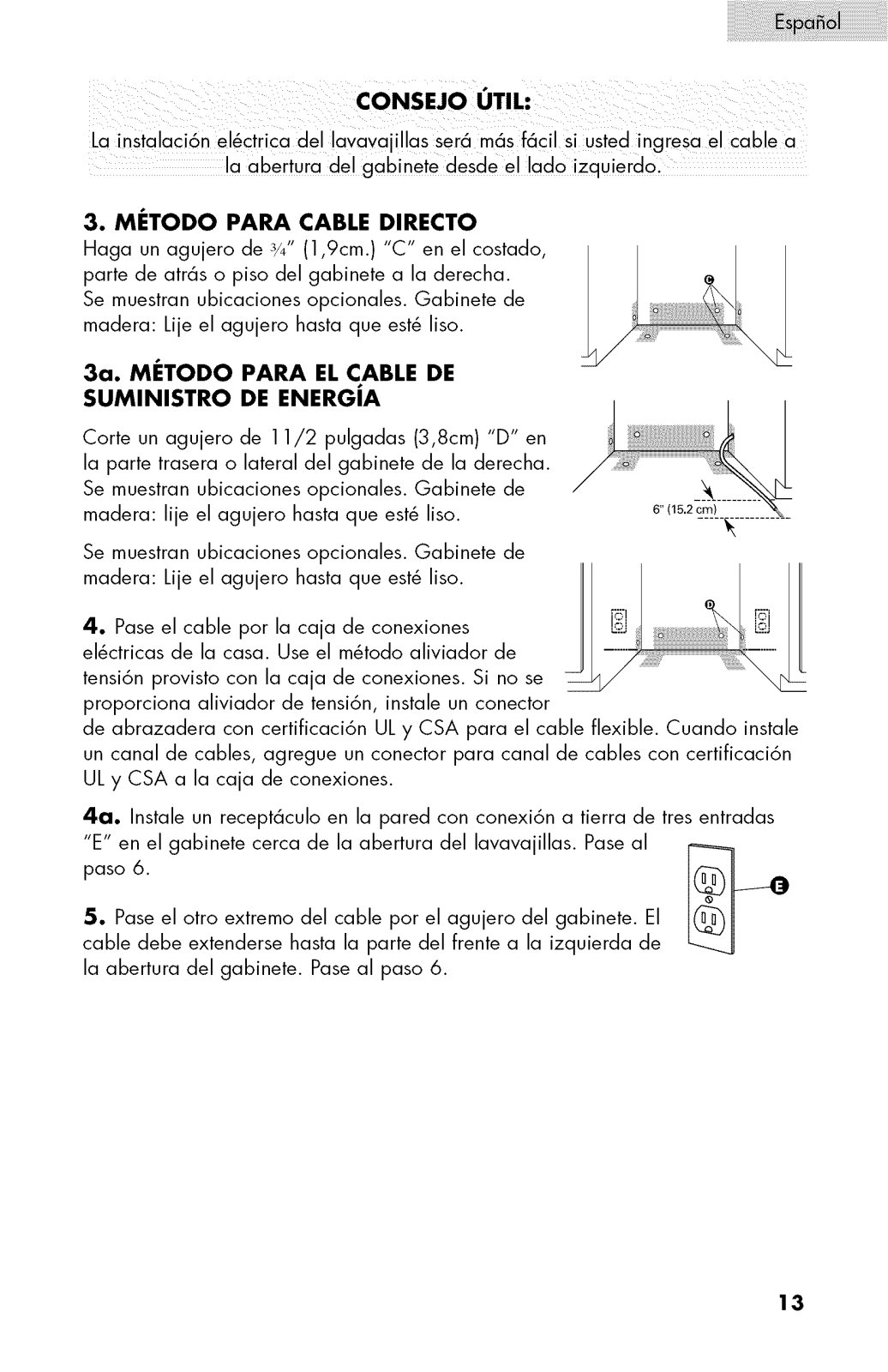

3. DIRECT WIRE METHOD:

Cut a 3j4"(1.9cm) hole "C" in right hand cabinet side, rear or floor. Optional locations are shown. Wood

Cabinet: Sand hole until smooth.

3a. POWER SUPPLY CORD METHOD:

Cut a 1lJ2"(3.8cm) hole "D"in right-hand cabinet rear or side. Optional locations are shown. Wood cabinet:Sand hole until smooth.

4.. Run wire into house wiring junction box. Use strain relief method provided

with junction box. If no strain relief is provided, install

a UL-listed/CSA-certified clamp connector for flexible- type wire. If installing conduit, attach a UL-listed/CSA-

certified conduit connector to junction box. 4a. Install a mating, three-prong, grounding-

type wall receptable "E"in the cabinet next to the dishwasher opening. Go to step 6.

5. Run other end of wire through cabinet hole.

Cable must extend to the left front of cabinet opening. Go to step 6.

Install a mating, three-prong, grounding-type wall receptacle "E"in the cabinet next to the dishwasher

opening. Go to step 6.

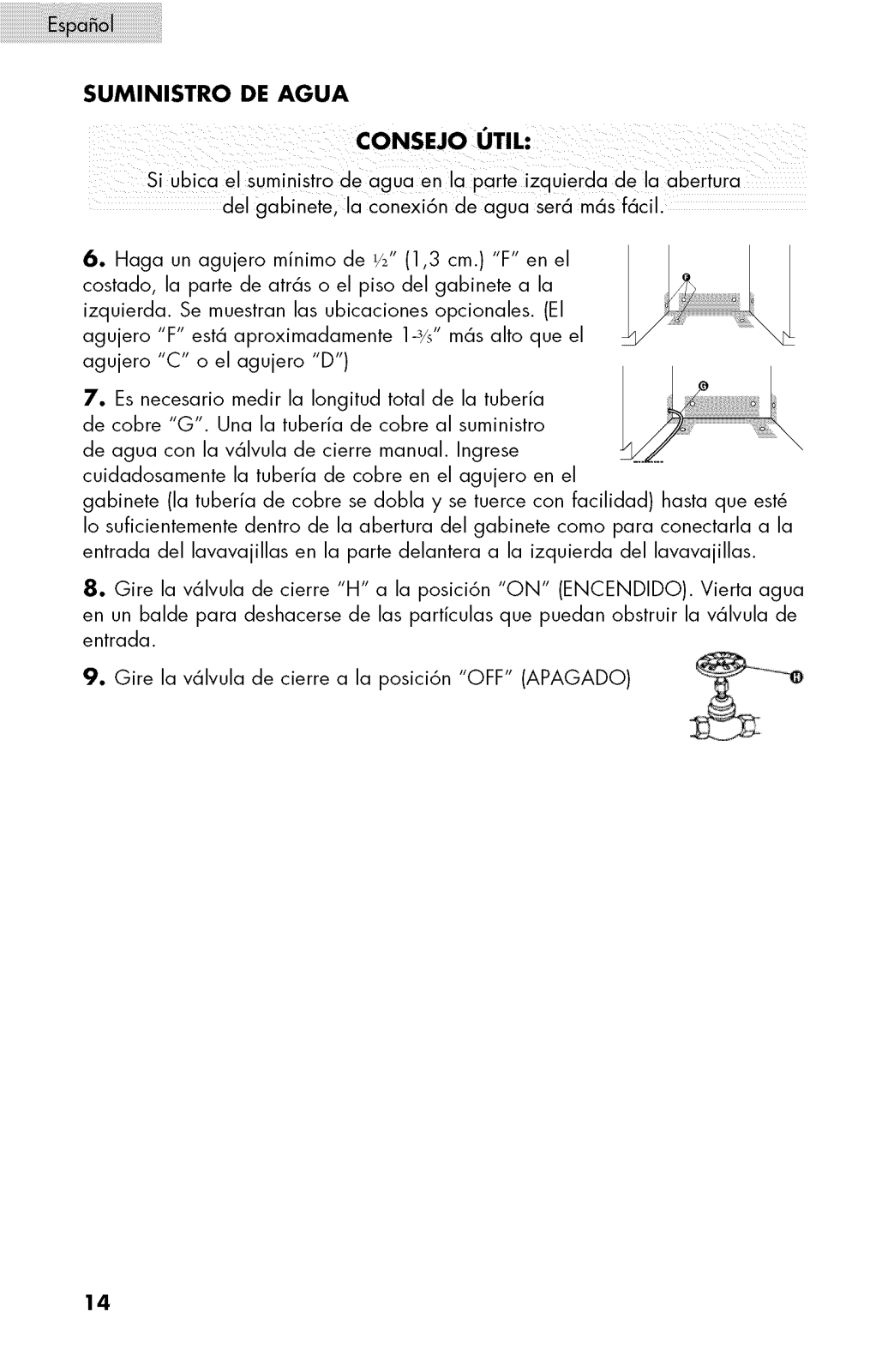

WATER LINE

cabinet opening will make water connection easier:

6. Cut a 1/2"(1.3 cm) minimum hole "F" in left-hand

cabinet side,rear or floor. Optional locations are shown. (The hole "F" is about 1-3/5" higher than hole "C" or

hole "D") 7'. Measure total length of copper tubing "G" required.

Attach copper tubing to water line with manual shut- off valve. Carefully feed copper tubing through hole in

cabinet (copper tubing will bend and kink easily) until it is far enough into the cabinet opening to connect it to

dishwasher inlet on the front left of dishwasher.

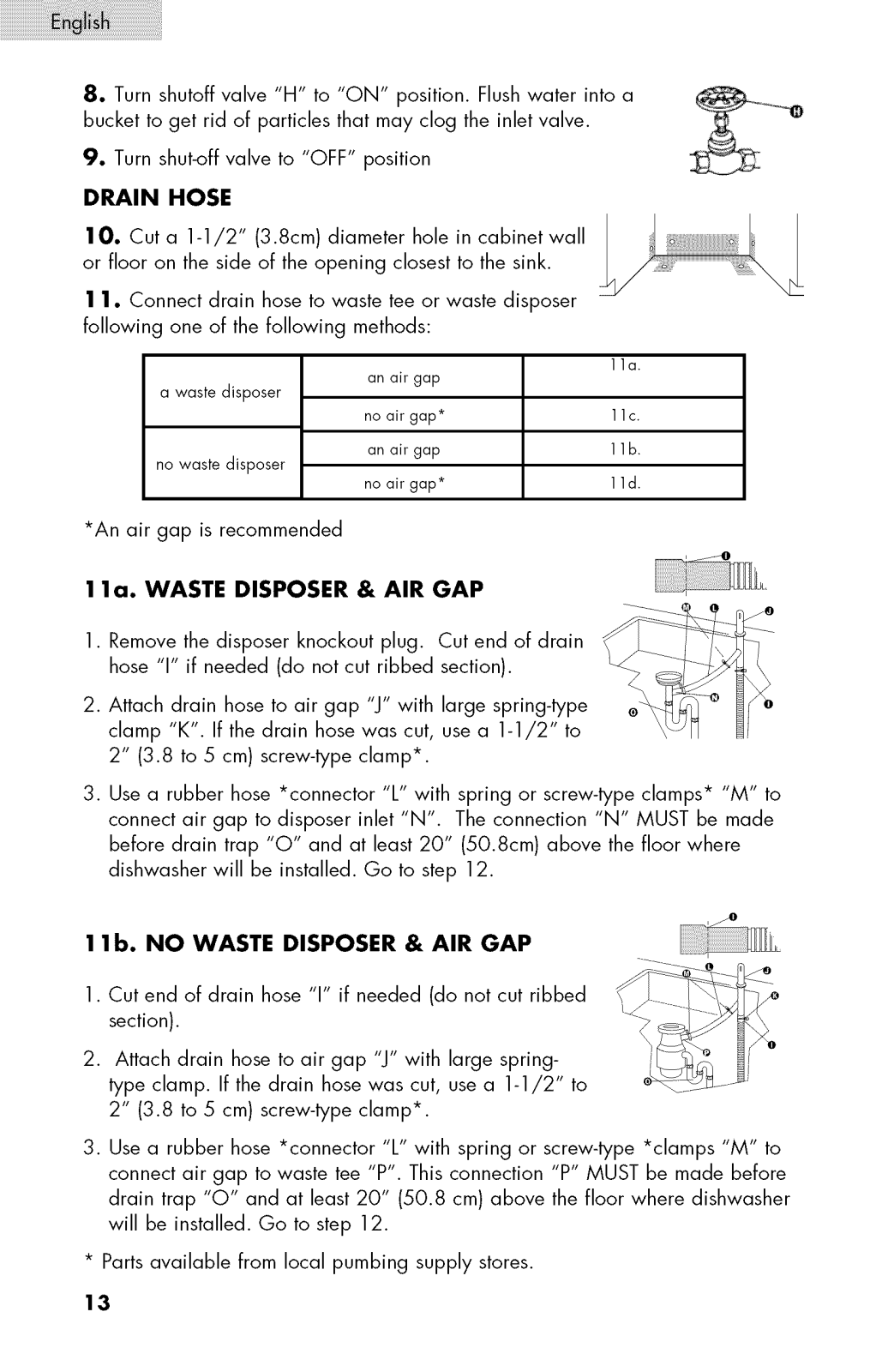

8. Turn shutoff valve "H" to "ON" position. Flush water into a

bucket to get rid of particles that may clog the inlet valve.

9. Turn shut-off valve to "OFF" position

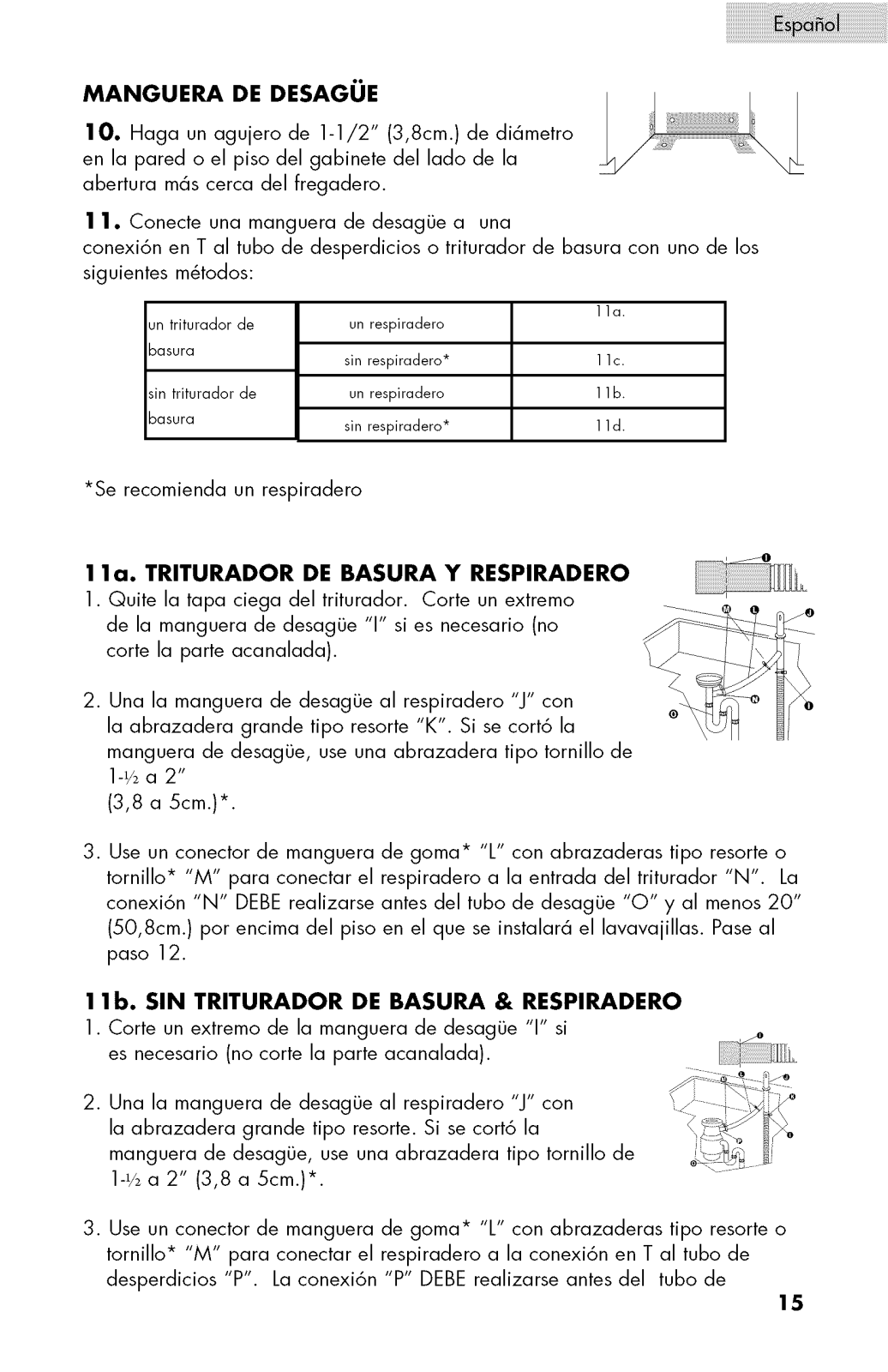

DRAIN HOSE

10. Cut a 1-1/2" (3.8cm) diameter hole in cabinet wall

or floor on the side of the opening closest to the sink.

1 1. Connect drain hose to waste tee or waste disposer

following one of the following methods:

11a.

11c.

11b.

11d.

a waste disposer

no waste disposer

an air gap

no air gap*

an air gap

no air gap*

*An air gap is recommended

1 la. WASTE DISPOSER & AIR GAP

1. Remove the disposer knockout plug. Cut end of drain hose "1" if needed (do not cut ribbed section).

2. Attach drain hose to air gap "J" with large spring-type clamp "K". If the drain hose was cut, use a 1-1/2" to

2" (3.8 to 5 cm) screw-type clamp*.

3. Use a rubber hose *connector "L" with spring or screw-type clamps* "M" to connect air gap to disposer inlet "N". The connection "N" MUST be made

before drain trap "O" and at least 20" (50.8cm) above the floor where

dishwasher will be installed. Go to step 12.

1 lb. NO WASTE DISPOSER & AIR GAP

1. Cut end of drain hose "1" if needed (do not cut ribbed section).

2. Attach drain hose to air gap "J" with large spring- type clamp. If the drain hose was cut, use a 1-1/2" to 2" (3.8 to 5 cm) screw-type clamp*.

3. Use a rubber hose *connector "L" with spring or screw-type *clamps "M" to connect air gap to waste tee "P". This connection "P" MUST be made before drain trap "O" and at least 20" (50.8 cm) above the floor where dishwasher will be installed. Go to step 12.

* Parts available from local pumbing supply stores.

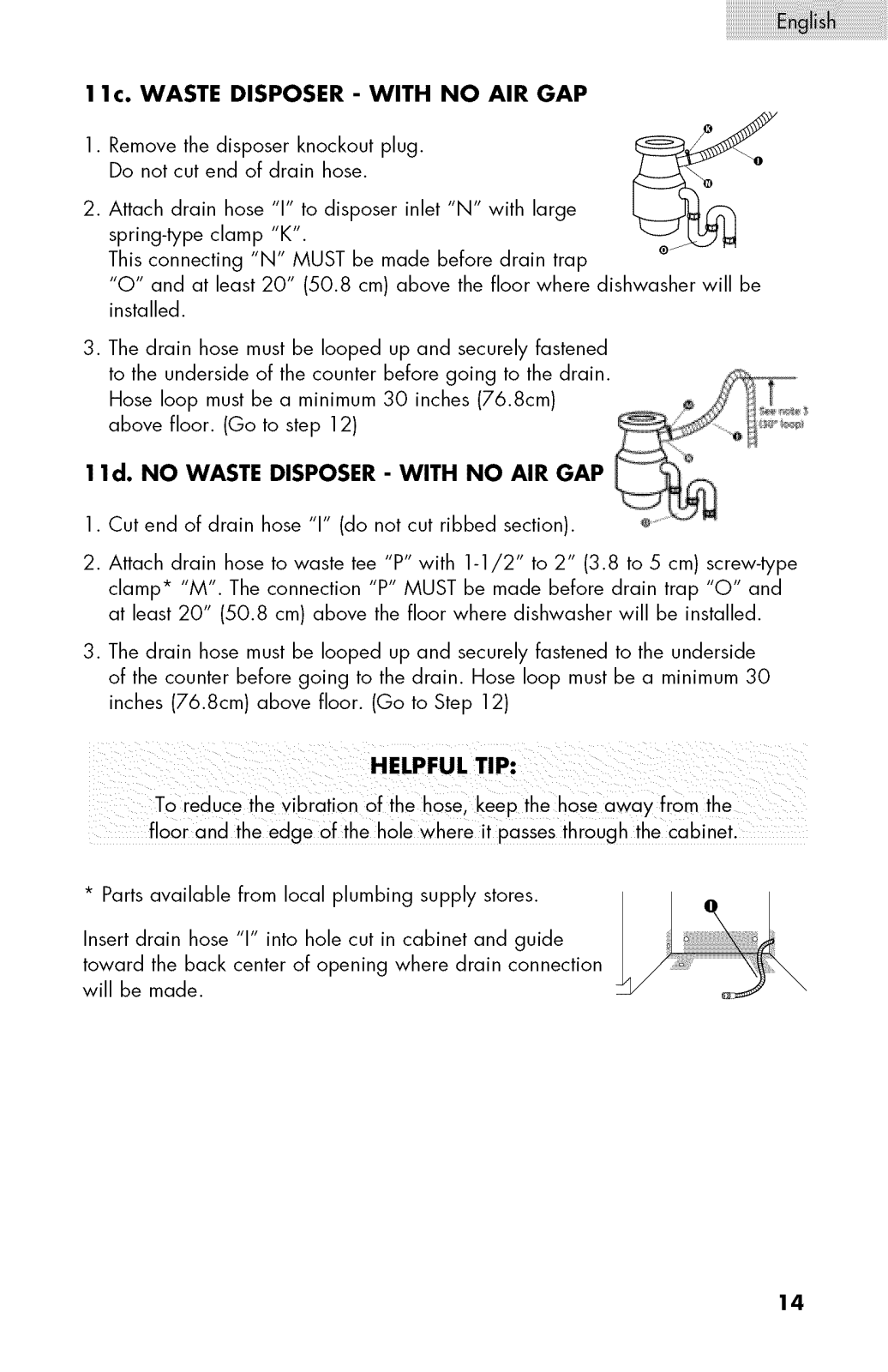

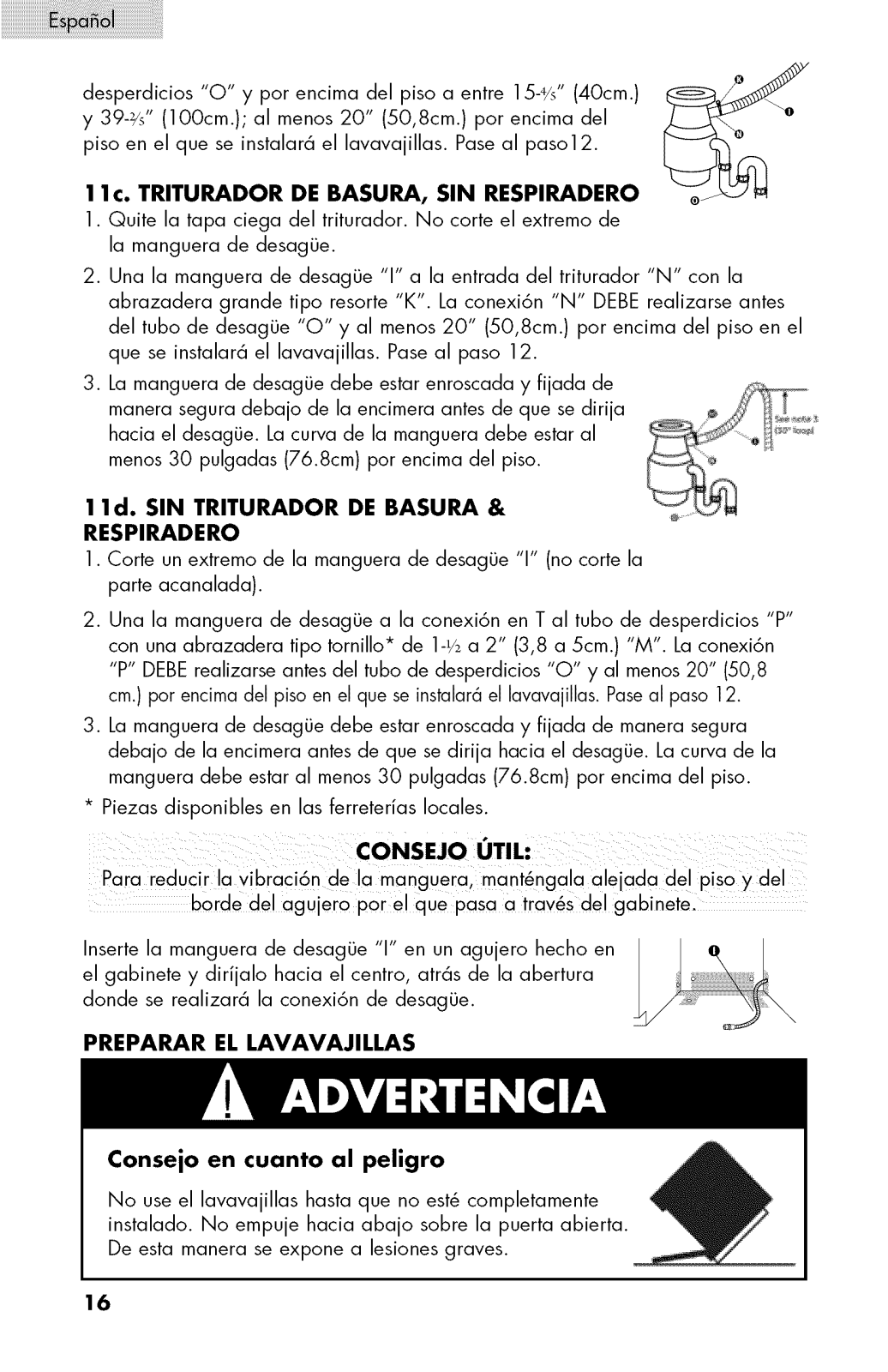

1lc. WASTEDISPOSER- WITH NO AIR GAP

1. Remove the disposer knockout plug. Do not cut end of drain hose.

2. Attach drain hose "1" to disposer inlet "N" with large spring-type clamp "K". This connecting "N" MUST be made before drain trap

"O" and at least 20" (50.8 cm) above the floor where dishwasher will be installed.

3. The drain hose must be looped up and securely fastened to the underside of the counter before going to the drain.

Hose loop must be a minimum 30 inches (76.8cm)

above floor. (Go to step 12)

1 ld. NO WASTE DISPOSER - WITH NO AIR GAP

1. Cut end of drain hose "1" (do not cut ribbed section).

2. Attach drain hose to waste tee "P" with 1-1/2" to 2" (3.8 to 5 cm) screw-type clamp* "M". The connection "P" MUST be made before drain trap "O" and at least 20" (50.8 cm) above the floor where dishwasher will be installed.

3. The drain hose must be looped up and securely fastened to the underside of the counter before going to the drain. Hose loop must be a minimum 30

inches (76.8cm) above floor. (Go to Step 12)

floor and the edge 0f the h0!e Where it PaSSeSthrough the cabinet .

. Parts available from local plumbing supply stores.

Insert drain hose "1" into hole cut in cabinet and guide toward the back center of opening where drain connection

will be made.

PREPAREDISHWASHER

TipOver Hazard

Do not use dishwasher until completely installed. Do not push down on open door. Doing so can

result in serious injury.

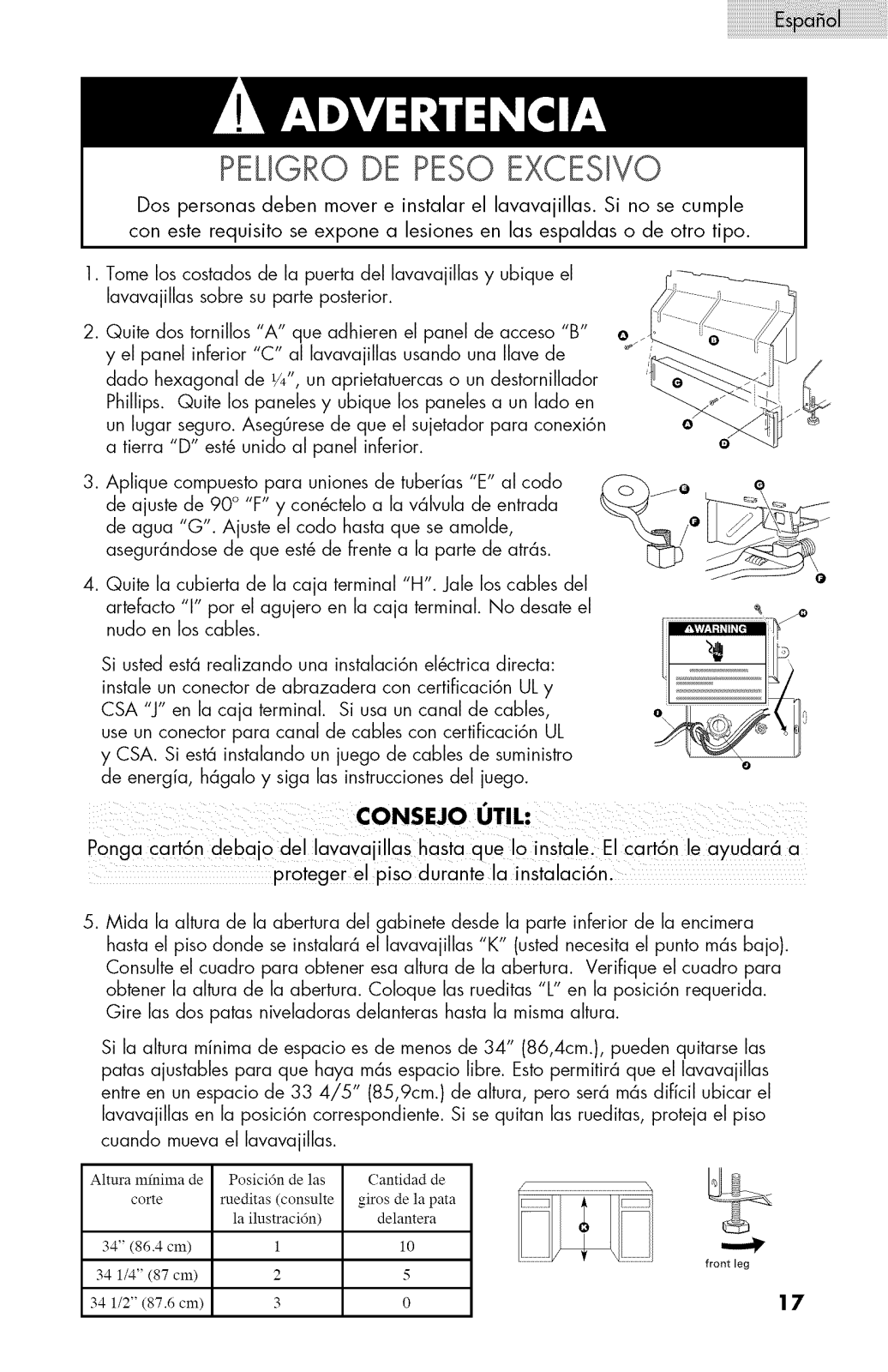

EXCESSIVE WEIGHT HAZARD

Use two people to move and install dishwasher. Failure to

do so can result in back or other injury.

1. Grasp sides of dishwasher door and place dishwasher on its back.

2. Remove two screws "A" attaching access panel "B" and lower panel

"C" to dish- washer using a 1/4"

hex socket, nut driver or Philip's screwdriver. Remove panels and set panels aside in a safe place.

Make sure that grounding clip "D" is attached to the lower panel.

3. Apply pipe joint compound "E" to 90ooelbow fitting "F" and connect fitting to water inlet valve "G".

Tighten elbow until snug, making sure that it faces to the rear.

PutCardboard Underdishwasher untilitis installed. The Carclboard

Wil! help protectfloor duiing insta!!aiianl

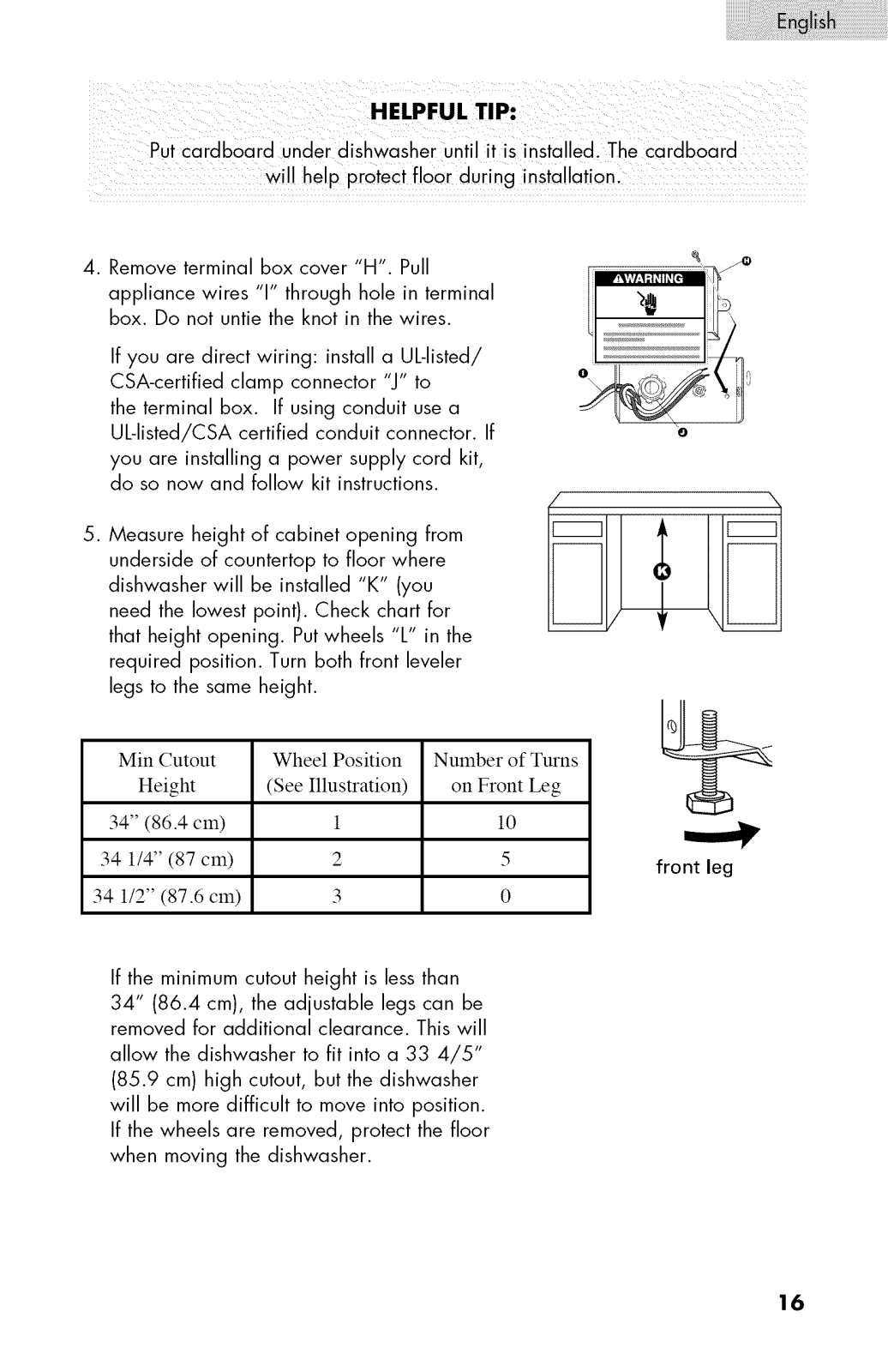

4. Remove terminal box cover "H". Pull appliance wires 'T' through hole in terminal

box. Do not untie the knot in the wires. If you are direct wiring: install a Ublisted/

CSA-certified clamp connector "J" to the terminal box. If using conduit use a Ublisted/CSA certified conduit connector. If

you are installing a power supply cord kit, do so now and follow kit instructions.

5. Measure height of cabinet opening from

underside of countertop to floor where

dishwasher will be installed "K" (you

need the lowest point). Check chart for

that height opening. Putwheels "L" in the

required position. Turn both front leveler legs to the same height.

Min Cutout Wheel Position Number of Turns

Height (See Illustration) on Front Leg

34" (86.4 cm) 1 10

34 1/4" (87 cm) 2 5

34 1/2" (87.6 cm) 3 0

front leg

If the minimum cutout height is less than 34" (86.4 cm), the adjustable legs can be

removed for additional clearance. This will allow the dishwasher to fit into a 33 4/5"

(85.9 cm) high cutout, but the dishwasher

will be more difficult to move into position. If the wheels are removed, protect the floor

when moving the dishwasher.

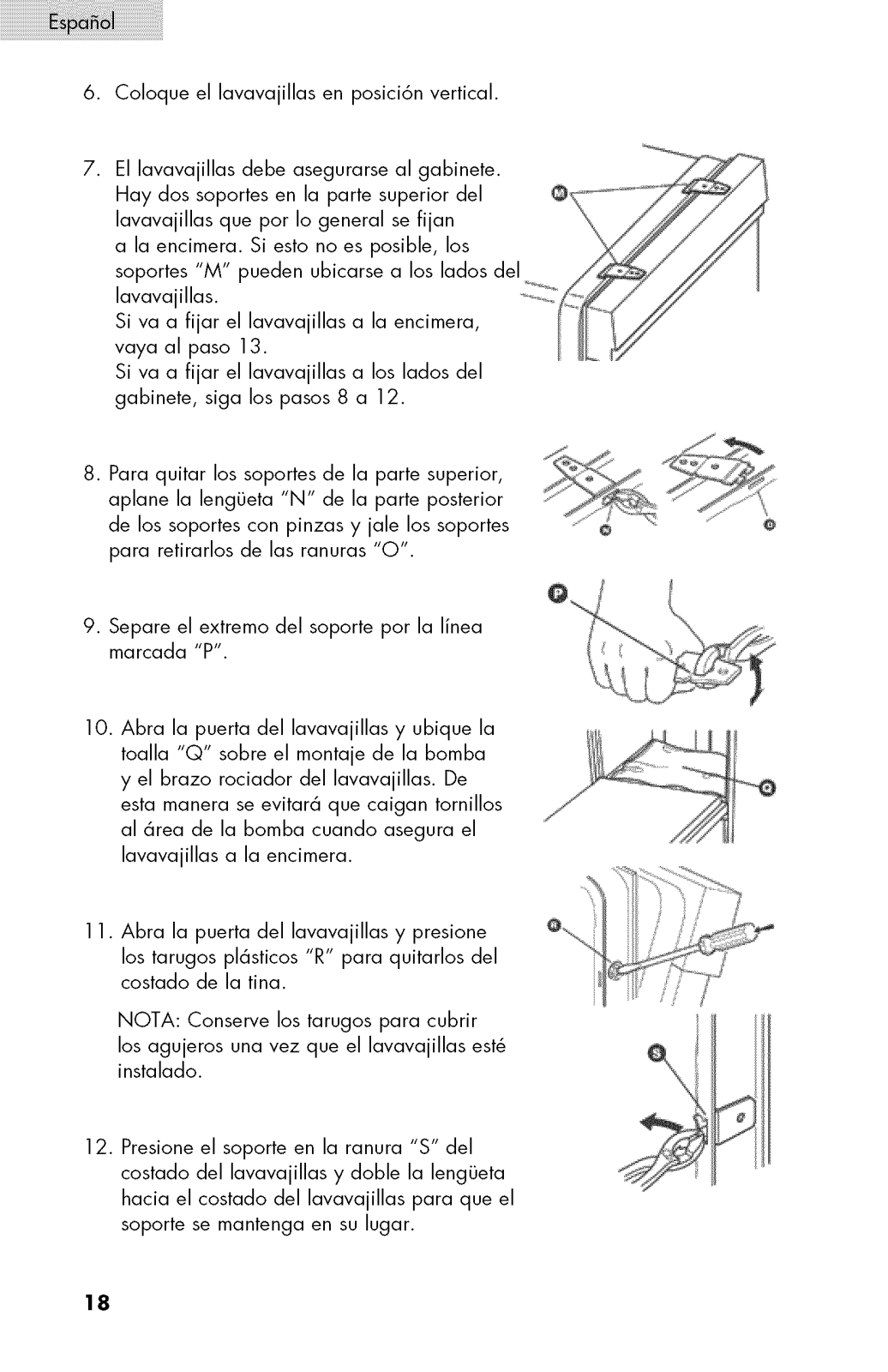

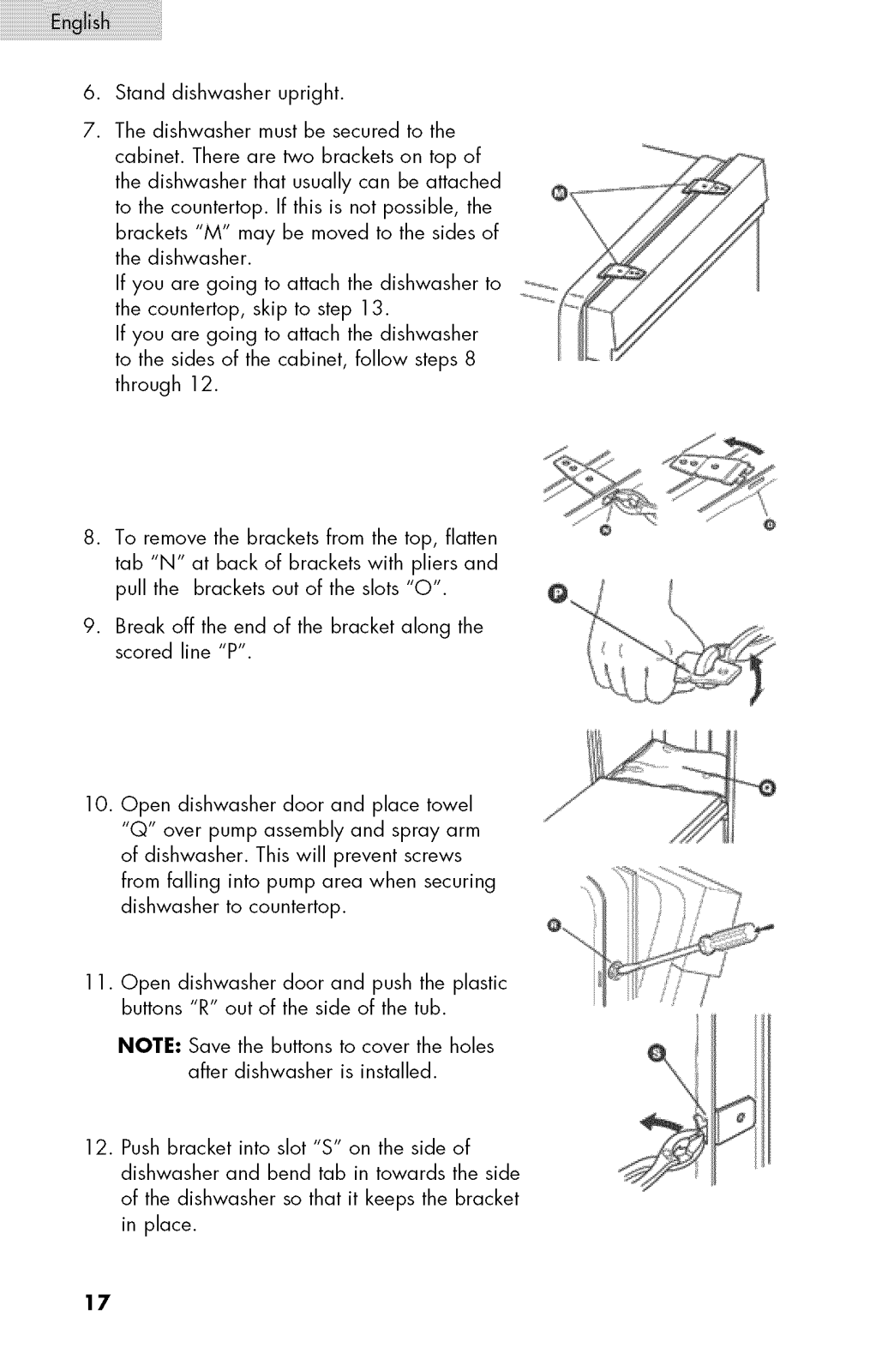

6. Stand dishwasher upright.

7. The dishwasher must be secured to the

cabinet. There are lwo brackets on top of the dishwasher that usually can be attached

to the countertop. If this is not possible, the

brackets "M" may be moved to the sides of

the dishwasher.

If you are going to attach the dishwasher to

the countertop, skip to step 13.

If you are going to attach the dishwasher

to the sides of the cabinet, follow steps 8 through 12.

8. To remove the brackets from the top, flatten

tab "N" at back of brackets with pliers and

pull the brackets out of the slots "O".

9. Break off the end of the bracket along the

scored line "P".

10. Open dishwasher door and place towel "Q" over pump assembly and spray arm

of dishwasher. This will prevent screws from falling into pump area when securing

dishwasher to countertop.

11. Open dishwasher door and push the plastic buttons "R" out of the side of the tub.

NOTE: Save the buttons to cover the holes

after dishwasher is installed.

12. Push bracket into slot "S" on the side of dishwasher and bend tab in towards the side

of the dishwasher so that it keeps the bracket in place.

+ 40 hidden pages
