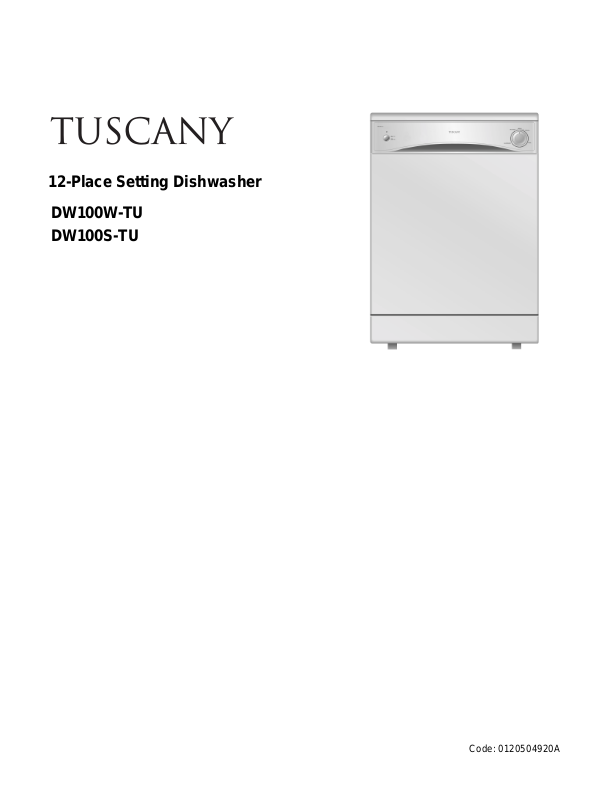

DW100S-TU
12-Place Setting Dishwasher
DW100W-TU
DW100S-TU
Code: 0120504920A
Safety Is Very Important
Carefully read the instructions contained in this manual, as it provides information that is essential to safe and proper installation,
use and maintenance of this appliance.
This appliance complies with the following EEC
directives:
-73/23/EEC of 19/02/73(Low Voltage)and subsequent
modifications;
- 89/336/EEC of 03/05/89 (Electromagnetic
Compatibility) and subsequent modifications.
- Carefully remove and dispose of the packing material.
- Check to make sure that the appliance is not damaged. If in
doubt, contact the retailer it was purchased from.
- This dishwasher is designed for washing household dishes and
cooking utensils.
- Do not install this appliance outdoors, even if a roof covers the
area.
- Do not lean or sit on the door when it is open, as it may overturn
the dishwasher.
- Do not touch the heating element during or after a wash cycle.
-
If the appliance malfunctions, turn off water supply to the appliance
and disconnect the plug from the wall socket and refer to the
section entitled, "Troubleshooting". If you cannot solve the problem,
contact an authorised service centre/agent.
- Only selected service centres/agents are authorised to make
repairs.
- If the supply cord is damaged ,it must be replaced by the
manufacture, a service agent of similar qualified persons in order
to avoid a hazard.
- The appliance is not instruct for use of young children of infirm
persons without supervision. Young children should be
supervised to ensure that they do not play with the appliance.
- Dishwasher detergents are strongly alkaline. They can be
extremely dangerous if swallowed. Avoid contact with the skin
and eyes and keep children away from the dishwasher when the
door is open. Check that the detergent receptacle is empty after
completion of the wash cycle.
- Do not use extension cords or multiple sockets.
- The plug must be accessible after installation.
- During installation the power cord must not be bent or flattened
excessively.
- If the appliance is not operating properly,disconnect the
appliance from the power supply.
Warning: Dishwasher detergents can be extremely dangerous if swallowed.Avoid contact with skin, eyes and keep children away from the dishwasher when the door is open. Check
that the detergent receptacle is empty after completion of
the wash cycle.
To maintain the EFFICIENCY and SAFETY of this appliance:
- Only call a authorised service centre.
- Always use original Spare Parts.
- Children and infirm must be supervised at all times during use of
the dishwasher by an adult.
Close-up View (Control Panel)
Power Button
A
Power Light
B
.1.
Handle For Opening Door
C
Dial For Selecting Cycle
D
Close-up View (Interior)
A
B
C
D
Width
Depth
Height
Capacity
Mains water pressure
Power voltage
Total absorber power
Upper Rack
Rack Height Adjustor
Top Spray Arm
Lower Rack
Technical Characteristics
Bottom Spray Arm
E
Washing Filter
F
Detergent and Rinse Aid Dispenser
G
12 standard place settings
220-240V~ 50Hz
60 cm
60 cm
85 cm
0.03-0.6 MPa
2100W
.2.
Detergent and Rinse Aid
Detergent
Detergent specifically intended for use with dishwashers must
be used. The dispenser must be refilled before the start of each
wash cycle following the instructions provided in the "Wash Cycle
Table." The detergent dispenser is located on the inside panel
the door.
Loading the detergent
To open the "A" cover on the dispenser, press the "B" button.
The detergent for the wash cycle should be poured into the "C"
compartment.
After the detergent has been placed in the dispenser, close the
cover and press down until it clicks in place.
B
Rinse Aid
This product makes dishes sparkle and helps them to dry without spotting. The dispenser is located on the inside panel of the
door and should be filled after every 80 wash cycle (or when the
rinse aid indicator light comes on for models with this feature).
Loading the Rinse Aid
To open the dispenser, turn the "C" cap in an anti-clockwise direction and then pour in the rinse aid, making sure not to overfill.
The amount of rinse aid used for each cycle, turn the dosage
adjuster "F", beneath the cap, with a screwdriver. There are 6
different settings; the normal dosage setting is 1.
Important
Proper dosage of the rinse aid improves drying.
If drops of water remain on the dishes or spotting occurs, the
dosage adjuster should be turned to a higher setting.
If the dishes have white streaks, turn the dosage adjuster to a
lower setting.
C A
NOTE: Remove excess detergent from the edges of the dispenser before closing the lid.
C
F
.3.
