DUCT TYPE AIR CONDITIONER
OPERATION MANUAL AND INSTALLATION MANUAL
ADH071M1ERG
ADH071M3ERG
ADH090M1ERG
ADH105M1ERG
ADH125M1ERG
ADH140M1ERG
ADH105H1ERG
Contents
Cautions
Safety Precautions
Parts and Functions
Heating Mode
Care and Maintenance
Troubleshooting
Accessories
Precaution for Installation
Is The Unit Installed Correctly
Installation Procedure
10
12
13
14
15
3
4
7
8
9
English
ADH125H1ERG
ADH140H1ERG
ADH160H1ERG
No. 0150519050
This product must only be installed or serviced by qualified personnel.
Please read this manual carefully before installation.
Keep this operation manual for future reference.
Original instructions
Haier Industrial Park,Qianwangang Road,Eco-Tech Development Zone,Qingdao 266555,Shandong,P.R.C.
DISPOSAL REQUIREMENTS:
Your air conditioning product is marked with this
symbol.This means that electrical and electronic
products shall not be mixed with unsorted
household waste.Do not try to dismantle the
system yourself:the dismantling of the air
conditioning system,treatment of the refrigerant,of oil and of
other part must be done by a qualified installer in accordance
with relevant local and national legislation.Air conditioners
must be treated at a specialized treatment facility for reuse,
recycling and recovery.By ensuring this product is disposed
of correctly,you will help to prevent potential negative consequences for the environment and human health.Please
contact the installer or local authority for more information.
Battery must be removed from the remote controller and disposed of separately in accordance with relevant local and
national legislation.
IMPORTANT INFORMATION REGARDING THE REFRIGERANT USED
Contains fluorinated greenhouse gases
covered by the Kyoto Protocol
R410A
This product contains fluorinated greenhouse gases covered
by the Kyoto Protocol.Do not vent into the atmosphere.
Refrigerant type:R410A
GWP:2088
GWP=global warming potential
Please fill in with indelible ink,
1 the factory refrigerant charge of the product
2 the additional refrigerant amount charged in the field
and
1+2 the total refrigerant charge
on the refrigerant charge label supplied with the product.
The filled out label must be adhered in the proximity of the
product charging port(e.g.onto the inside of the stop value
cover).
A contains fluorinated greenhouse gases covered by the
Kyoto Protocol
B factory refrigerant charge of the product:see unit name
plate
C additional refrigerant amount charged in the field
D total refrigerant charge
E outdoor unit
F refrigerant cylinder and manifold for charging
kg
kg
kg
A
B
C
D
WARNING
f the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in
I
order to avoid a hazard.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
The appliances are not intended to be operated by means of an external timer or separate remote-control system.
Keep the appliance and its cord out of reach of children less than 8 years.
The A-weighted sound pressure level is below 70 dB.
This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial
use by lay persons
Air conditioner working temperature: cooling 10~43 degree, heating -15~24 degree.
2
Cautions
Disposal of the old air conditioner
Before disposing an old air conditioner that goes out of use, please make sure it's inoperative and safe. Unplug the air conditioner
in order to avoid the risk of child entrapment.
It must be noticed that air conditioner system contains refrigerants, which require specialized waste disposal. The valuable
materials contained in a air conditioner can be recycled. Contact your local waste disposal center for proper disposal of an old
air conditioner and contact your local authority or your dealer if you have any question. Please ensure that the pipework of your
air conditioner does not get damaged prior to being picked up by the relevant waste disposal center, and contribute to environmental
awareness by insisting on an appropriate, anti-pollution method of disposal.
Disposal of the packaging of your new air conditioner
All the packaging materials employed in the package of your new air conditioner may be disposed without any danger to the
environment.
The cardboard box may be broken or cut into smaller pieces and given to a waste paper disposal service. The wrapping bag
made of polyethylene and the polyethylene foam pads contain no fluorochloric hydrocarbon.
All these valuable materials may be taken to a waste collecting center and used again after adequate recycling.
Consult your local authorities for the name and address of the waste materials collecting centers and waste paper disposal
services nearest to your house.
Safety Instructions and Warnings
Before starting the air conditioner, read the information given in the User's Guide carefully. The User's Guide contains very
important observations relating to the assembly, operation and maintenance of the air conditioner.
The manufacturer does not accept responsibility for any damages that may arise due to non-observation of the following
instruction.
Damaged air conditioners are not to be put into operation. In case of doubt, consult your supplier.
Use of the air conditioner is to be carried out in strict compliance with the relative instructions set forth in the User's Guide.
Installation shall be done by professional people, don't install unit by yourself.
For the purpose of safety, the air conditioner must be properly grounded in accordance with specifications.
Always remember to unplug the air conditioner before opening inlet grill. Never unplug your air conditioner by pulling on the
power cord. Always grip plug firmly and pull straight out from the outlet.
All electrical repairs must be carried out by qualified electricians. Inadequate repairs may result in a major source of danger for
the user of the air conditioner.
Do not damage any parts of the air conditioner that carry refrigerant by piercing or perforating the air conditioner's tubes with
sharp or pointed items, crushing or twisting any tubes, or scraping the coatings off the surfaces. If the refrigerant spurts out and
gets into eyes, it may result in serious eye injuries.
Do not obstruct or cover the ventilation grille of the air conditioner. Do not put fingers or any other things into the inlet/outlet and
swing louver.
Do not allow children to play with the air conditioner. In no case should children be allowed to sit on the outdoor unit.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
3
Safety Precautions
Before starting to use the system, read carefully this "SAFETY PRECAUTIONS" to ensure a proper operation of the system.
Safety precautions described here are classified to " WARNING" and " CAUTION". Precautions which are shown
in the column of " WANING" means that an improper handing could lead to a grave result like a death, serious injury,
etc. However, even if precautions are shown in the column of " CAUTION", a very serious problem could occur depending
on situation. Make sure to observe these safety precautions faithfully because they are very important information to ensure
the safety.
Symbols which appear frequently in the text have following meanings.
Strictly prohibited.
Observe instructions faithfully.
Provide a positive grounding.
When you have read through the manual, keep it always at hand for read consultation. If the operator is replaced, make
sure to hand over this manual to the new operator.
CAUTIONS FOR INSTALLATION
WARNING
The system should be applied to places as office,
restaurant, residence and the like.
Application to inferior environment such as an
engineering shop, could cause equipment
malfunction and serious injury or death.
Do not install nearby the place where may have
leakage of flammable gas.
If the gas leaks and gathers around, it may cause
the fire.
Where strong winds may prevail, the system
should be fixed securely to prevent a collapse.
The system should be installed by your dealer or
a professional installer.
Installation by yourself is not encouraged because
it could cause such problems as water leakage,
electrical shock or fire accident by some improper
handing.
CAUTION
Depending on the place of installation, a circuit
breaker may be necessary.
ON
OFF
Unless the circuit breaker is installed, it could cause
electrical shocks.
Install on the place where can endure the weight
of air conditioner.
When you need some optional devices such as a
humidifier, electric heater, etc., be sure to use the products
which are recommended by us. These devices should
be attached by a professional installer.
Installation by yourself is not encouraged because it could
cause such problems as water leakage, electrical shock
or fire accident by some improper handing.
Drain pipe should be arranged to provide a positive
draining.
If the pipe is arranged improperly, furniture or the
likes may be damaged by leaked water.
Make sure the system is grounded.
Bodily injury could result by a collapse. Bodily injury could result by a careless installation. Grounding cable should never be connected to
a gas pipe, city water pipe, lightning conductor
rod or grounding cable of telephone. If the
grounding cable is not set properly, it could cause
electric shocks.
CAUTIONS FOR TRANSFER OR REPAIR
WARNING
Modification of the system is strictly prohibited. When the system needs a
repair, consult your dealer.
Improper practice of repair could cause water leakage, electric shock or
fire.
When the air conditioner is relocated, contact your dealer or a professional
installer.
Improper practice of installation could cause water leakage, electric shock
or fire.
4
Safety Precautions
CAUTIONS FOR OPERATION
You should refrain from exposing your body directly
to cool wind for a long time.
WARNING
Do not poke the air inlet or outlet with a bar, etc. When any abnormal condition (scorching smell or
others) is found, stop the operation immediately
and turn off the power switch. Then consult your
dealer.
It could affect your physical condition or cause
some health problems.
The system should never be used for any other
purposes than intended such as for preservation
of food, flora and fauna, precision devices or work
of art.
problems.
Do not wash the air conditioner with water.
It could cause electric shocks. It will not be good for their health. Use of steel or copper wire in place of a fuse is
Neither stand on the air conditioner nor
place something on it.
object.
Do not use the power switch to turn on or off the
system.
It could cause a fire or water leakage. There is a risk of injury. If the system is operated at the vicinity of such
When operating the system simultaneously with
a combustion apparatus, indoor air must be
ventilated frequently.
ON
OFF
Since the internal fan is operating with a high
speed, it could cause an injury.
CAUTION
Do not handle switches with a wet hand. Combustion apparatus should not be placed
It could cause electric shocks.It could cause deterioration of food or other
Do not install the system where the air outlet
reaches directly the flora and fauna.
It is strictly prohibited to place a container of
combustible gas or liquid near the air conditioner
or to spray it directly with the gas or liquid.
Do not touch the air outlet section while the swing
louver is operating.
Check occasionally the support structure of the
unit for any damage after a use of long period of
time.
If you continue the operation without removing the
cause, it could result in a trouble, electric shock
or fire.
allowing a direct exposure to wind of air conditioner.
Incomplete combustion could occur on the
apparatus.
Make sure to use a fuse of proper electric rating.
strictly prohibited because it could result in a trouble
or fire accident.
Do not operate the system while the air outlet grill
is removed.
There is a risk of injury.It could cause a fire accident.There are risks of falling or injury by collapsed
Do not use such equipment as a water heater, etc.
around the indoor unit or the wire controller.
equipment which generates steam, condensed
water may drip during cooling operation or it could
cause a fault current or short-circuit.
When cleaning the system, stop the operation and
turn off the power switch.
Insufficient ventilation could cause an oxygen
deficiency accident.
Do not put water containers on the unit such as a flower vase, etc.
If the water enters into the unit and damages the electric insulation material, it may cause electric shock.
If the structure is not repaired immediately, the
unit could topple down to cause a personal injury.
Cleaning should never be done while the internal
fans are running with high speed.
5
Safety Precautions
The machine is adaptive in following situation
1. Applicable ambient temperature range:
Cooling
Heating
Indoor temperature
Outdoor temperature
Indoor temperature
Outdoor temperature
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person.
3. If the fuse on the indoor PC board is broken please change it with the type of T 3.15A /250V(For ADH105,
ADH125,ADH140
M1ERG
ADH105/125/140/160H1ERG)
4. The wiring method should be in line with the local wiring standard.
5. The power cable should be:
H05RN-F 3G 4.0mm
2
(outdoor unit 1UH071/090/105N1ERG),
or H05RN-F 3G 6.0mm
or H05RN-F 5G 4.0mm
The connecting cable should be:
H05RN-F4G 2.5mm2;
All the cables shall have got the European authentication certificate. During installation, when the connecting cables
break off, it must be assured that the grounding wire is the last one to be broken off.
6. The power cable and connect cable should be self-provided.
7. The breaker of the air conditioner should be all-pole switch, and the distance between its two contacts should be no
less than 3mm.
8. The indoor unit installation height is at least 2.5m.
9. A leakage breaker must be installed.
10.
10.1 FOR ADH071M1ERG, ADH090M1ERG, we can get the 4 different ESP through adjust the indoor unit PCB SW1-4
and SW1-5, please refer below:
SW1
(1) (2) (3) (4) (5) (6) (7) (8)
--- ---
--- ---
--- ---
--- ---
OFF OFF
OFF ON
ON OFF
ON ON
Attention:
Cut off the power supply to adjust the SW1-4, and SW1-5, or else the operation is invalid.
10.2 For
ADH071M3ERG,
ADH140H1ERG,ADH160H1ERG,static pressure selection need achieved by wired controller, refer wired controller's manual
to get details
Static pressure level ( N)
1
2
3
4
5
6
7
8
9
10
For AD105/125/140M1ERG,ADH071M3ERG,
be achieved by Infrared remote controller,method is:
Step a: set the Infrared remote controller at condition:FAN mode,fan speed high.
Step b:then aim the remote controller at the infrared remote receiver RE-02,press HEALTH button 4+N times(1
10,integer) within 12 seconds,then the receiver will beep N+1 times,the static pressure level N is been set successfully.
Note:For Infrared remote controller YR-HBS01, need press ON/OFF button make the controller's at OFF status
first,then open the button cover press FRESH button will enter FAN mode interface.
max. DB/WB
min. DB/WB
max. DB/WB
min. DB/WB
max. DB/WB
min. DB/WB
max. DB/WB
min. DB/WB
32/23 C
18/14 C
43/26 C
10/6 C
27 C
15 C
24/18 C
-15 C
);or the type T5A /250V(For ADH071M1ERG,
2
(outdoor unit 1UH125/140/160P1ERG),
2
(outdoor unit 1UH125/140P1EK);
Static pressure
10 Pa
30 Pa
50 Pa
70 Pa
ADH105M1ERG, ADH125M1ERG, ADH140M1ERG, ADH105H1ERG, ADH125H1ERG,
External static pressure
ADH105H1ERG
ADH125H1ERG
ADH140H1ERG
ADH160H1ERG
ADH071M3ERG
25
37
50
70
90
100
110
120
130
150
ADH105M1ERG
ADH125M1ERG
ADH140M1ERG
30
40
50
60
70
80
90
100
110
120
ADH105
/125/140/160
6
ADH071M3ERG,
(pa)
40
50
60
80
100
120
150
180
200
250
H1ERG
,static pressure level selection can also
ADH090M1ERG).
T8A/250V(For
N
Parts and Functions
ADH071M1ERG
Air outlet frame
Drain pan
ADH105M1ERG ADH125M1ERG ADH140M1ERG
Air outlet frame
ADH071M3ERG
Electrical components Case
Evaporator
ADH090M1ERG
The pump
drain opening
Electrical components Case
Drain pan
Evaporator
ADH105H1ERG ADH125H1ERG ADH140H1ERG ADH160H1ERG
Air outlet frame
Drain pan
Fan
Electrical components Case
The pump
drain opening
The drain opening
7
Heating Mode
"HOT KEEP" function
"HOT KEEP" is operated in the following cases.
When heating is started:
In order to prevent blowing out of cool wind, the indoor unit fan stopped according to the room temperature which heating
operation is started. Wait for approx. 2 to 3 minute, and the operation will be automatically changed to the ordinary heating
mode.
Defrosting operation (in the heating mode):
When it is liable to frost, the heating operation is stopped automatically for 5 to 12 minutes once per approx. one hour,
and defrosting is operated. After defrosting is completed, operation mode is automatically changed to ordinary heating
operation.
When the room thermostat is actuated:
When room temperature increases and room temperature controller actuates, the fan speed is automatically changed to
stop under low temperature condition of indoor heat exchanger. When room temperature decreases, air conditioner
automatically changes over to ordinary heating operation.
Warming operation
Heat pump type warming
With the heat pump type warming, the mechanism of heat pump that concentrate heat of outdoor air with the help of
refrigerant to warm the indoor space, is utilized.
Defrosting operation
When a room is warmed with a heat pump type air conditioner, frost accumulates on the heat exchanger of outdoor unit
along with the drop of indoor temperature. Since the accumulated frost reduces the effect of warming, it is necessary to
automatically switch the operation to the defrosting mode. During the defrosting operation, heating operation is interrupted.
Atmospheric temperature and warming capacity
Warming capacity of heat pump type air conditioner decreases along with the drop of outdoor temperature.
When the warming capacity is not sufficient, it is recommended to use another heating implement.
Period of warm-up
Since the heat pump type air conditioner employs a method to circulate warm winds to warm
the entire space of a room, it takes time before the room temperature rises.
It is recommendable to start the operation a little earlier in a very cold morning.
8
Care and Maintenance
Points to observe
Turn off the power supply switch. Do not touch with wet hand. Do not use hot water or volatile liquid.
Do not
use!
Benzine
Tooth powder
ON
OFF
CAUTION
Do not open the inlet grill until fan stops completely.
Fan will continue rotating for a while by the law of inertia after operation is being stopped.
Cleaning the air filter
1.Clean the air filter by lightly tapping it or with the cleaner. It is more effective to clean
the air filter with water.
If the air filter is very dirty, dissolve neutral detergent in the lukewarm water (approx. 30 C),
rinse the air filter in the water, and thoroughly wash the air filter off the detergent
in the plain water.
2.After drying the air filter, set it up on the air conditioner.
Thinner
CAUTION
Do not dry the air filter with fire.
Do not run the air conditioner without the air filter.
Care and Cleaning of the unit
Clean with soft and dry cloth.
If it is very dirty, dissolve neutral detergent in the lukewarm water and make the cloth wet with the water. After wiping,
clean off the detergent using clean water.
Post-Season Care
Operate the unit with FAN mode on a fair day for about half a day to dry the inside of the unit well.
Stop operation and turn off the power supply switch. Electric power is consumed even the air conditioner is in stop.
Clean the air filter and set it in the place.
Pre-Season Care
See that there are no obstacles blocking the air inlet and air outlet of both indoor and outdoor units.
Make sure that the air filter is not dirty.
Cut in the power supply switch 12 hours before starting run.
9
Troubleshooting
Please check the following things about your air conditioner before making a service call.
Unit fails to start
Is the power source switch
adjust cut in?
ON
OFF
Power supply switch is not ON.
Is city supply power in
normal?
Power
stoppage?
Cooling or heating is not sufficient
Isn't the signal receiving
section exposed to the direct
sunlight or strong illumination?
Isn't the earth leakage breaker
in action?
It is dangerous. Turn off the
power supply switch
immediately and contact the
sales dealer.
Is the thermostat adjust as
required?
Isn't the air filter dirty? Isn't any doors or windows
left open?
Doesn't any obstacle exist at
the air inlet or outlet?
Isn't the swing louver horizontal? (At HEATING mode)
If swing louver is horizontal, the blow wind does not reach floor.
Cooling is not sufficient
Isn't sun-shine invading direct? Isn't any unexpected heating
load generated?
Isn't the room much crowded?
The wind does not blow during
heating operation
Isn't it warming up?
When the air conditioner does not operate properly after you have checked the above mentioned items or when the following
phenomenon is observed, stop the operation of the air conditioner and contact your sales dealer.
The fuse or breaker often shuts down.
Water drops off during cooling operation.
There is a irregularity in operation or abnormal sound is audible.
The followings are not malfunction
Water flowing sound is heard.
When the air conditioner is started, when the compressor starts or stops
during operation or when the air conditioner is stopped, it sometimes sounds
"shuru shuru" or "gobo gobo". It is the flowing sound of the refrigerant, and it
is not a trouble.
Shuru
Shuru
This is caused by heat expansion or contraction of plastics.Cracking sound is heard.
It smells. Air which blows out from the indoor unit sometimes smells. The smell results
from residents of tobacco smoke or cosmetics stuck inside of unit.
During operation, white fog comes out
of indoor unit.
When the air conditioner is used at restaurant etc. where dense edible oil
fume is always exists, white fog sometimes blows out of air outlet during
operation. In this case consult sales dealer for cleaning the heat exchanger.
It is switched into the FAN mode during
cooling.
To prevent frost from being accumulated on the indoor unit heat exchanger,
it is sometimes automatically switched to the FAN mode,but it will soon return
to the cooling mode.
The air conditioner can not be restarted
soon after it stops.
Unit does
not start
Air does not blow or the fan speed can
not be changed during dehumidifying.
During operation, operation mode has
changed over automatically.
Even if the operation switch is turned on, cooling, dehumidifying or heating
is not operable for three minutes after the conditioner is stopped. Because
the protecting circuit is activated. (During this time air conditioner operates
in fan mode.)
Wait for
three
minutes
When it is excessively cooled during dehumidifying, the blower
automatically repeats reducing and lowering the fan speed.
Isn't the AUTO mode selected?
In the case of AUTO mode, operation mode is changed automatically from
cooling to heating or vise-versa according to the room temperature.
Water or steam generates from the outdoor
unit during heating.
This results when frost accumulated on the outdoor unit is removed (during
defrosting operation).
10
Troubleshooting
INDOOR UNIT TROUBLE SHOOTING
LED flash times
of indoor PCB
LED4
01 01
02 02
0
07 07
08 /
0120C
LED3
404
Wired
controller
display
Contents of Malfunction Possible reasons
Malfunction of indoor unit
ambient temperature sensor
Malfunction of indoor unit
piping temperature sensor
EEPROM wrong of indoor
PCB
Abnormal communication
between indoor and outdoor
units
Abnormal communication
between wired controller and
indoor unit
Malfunction of drain system
Sensor disconected,or broken, or at
wrong position,or short circuit
Sensor disconected,or broken,or at
wrong position,or short circuit
EEPROM chip disconected or broken
or wrong programmed, or PCB broken
Wrong connection,or the wires be
disconected or wrong address setting
of indoor unit or faulty power supply
or PCB hardware malfunction
Wrong connection or wired controller
broken,or PCB hardware malfunction
Pump motor disconnected or at wrong
position,or the float switch
disconnected, or at wrong position,or
the short circuit bridge disconnected
0130D
0140E
0150F
01711
01812
01913
M( 1) N( 0)
Note:
1.The outdoor failure can also be indicated by the indoor unit,the checking method as follows:
outdoor unit error code=(M 10+N)-20.LED4 flash M times and LED3 flash N times .
2.To get much more details about the out door unit failure,please refer to the outdoor unit trouble shooting list.
/
Zero cross signal wrong
Abnormal communication
between main control PCB &
fan motor driver
Fan motor overcurrent
DC voltage high or low
F.M.D temperature high
Fan motor out of step
Error of the outdoor unit
Zero cross signal detected wrong
communication wire disconnected or
wrong connected or PCB hardware
malfunction
Fan motor current too high
DC voltage of the fan motor driver too
high or too low
Fan motor driver over 95 C
Wrong rotor location detected
See note 1,2
11
Accessories
Accessories supplied with the indoor unit:
No. Quantity
Signal line
1
Wired controller
2
3
3/8" Brass nut (liquid side)
5/8" Brass nut (gas side)
4
5
Coupler heat insulation(gas side)
Coupler heat insulation(liquid side)
6
Drain pipe
7
Instructions
8
Name of parts
1
1
1
1
1
1
1
1 Air conditioner operation
Note
Connection between the wired remote
control and electric control board
For Air conditioner operation
For tightening the Connecting pipe
For indoor side pipe joint(gas side)
For indoor side pipe joint(liquid side)
Drainage fittings group
(For ADHM series only)
Shape
Cable tie(Large)
9
10
Cable tie(small)
For fixing the heat insulation
7
(For ADHH series only)
For fixing the remote controller cable and
4
connecting cable
(For ADHH series only)
12
Precaution for Installation
Please read these "Safety Precautions" first and then accurately execute the installation work.
Though the precautionary points indicated herein are divided under two headings, and , those
points which are related to the strong possibility of an installation done in error resulting in death or serious injury are
listed in the section. However, there is also a possibility of serious consequences in relationship to the
points listed in the section as well. In either case, important safety related information is indicated, so by all
means, properly observe all that is mentioned.
After completing the installation, along with confirming that no abnormalities were seen from the operation tests, please
explain operating methods as well as maintenance methods to the user (customer) of this equipment, based on the owner's
manual. Moreover, ask the customer to keep this sheet together with the owner's manual.
This system should be applied to places as office, restaurant, residence and the like. Application to inferior environment
such as engineering shop could cause equipment malfunction.
Please entrust installation to either the company which sold you the equipment or to a professional contractor. Defects
from improper installations can be the cause of water leakage, electric shocks and fires.
Execute the installation accurately, based on following the installation manual. Again, improper installations can result
in water leakage, electric shocks and fires.
When a large air-conditioning system is installed to a small room, it is necessary to have a prior planned countermeasure
for the rare case of a refrigerant leakage, to prevent the exceeding of threshold concentration. In regards to preparing
this countermeasure, consult with the company from which you purchased the equipment, and make the installation
accordingly. In the rare event that a refrigerant leakage and exceeding of threshold concentration does occur, there is
the danger of a resultant oxygen deficiency accident.
For installation, confirm that the installation site can sufficiently support heavy weight. When strength is insufficient,
injury can result from a falling of the unit.
Execute the prescribed installation construction to prepare for earthquakes and the strong winds of typhoons and
hurricanes, etc. Improper installations can result in accidents due to a violent falling over of the unit.
For electrical work, please see that a licensed electrician executes the work while following the safety standards related
to electrical equipment, and local regulations as well as the installation instructions, and that only exclusive use circuits
are used. Insufficient power source circuit capacity and defective installation execution can be the cause of electric
shocks and fires.
Accurately connect wiring using the proper cable, and insure that the external force of the cable is not conducted to
the terminal connection part, through properly securing it. Improper connection or securing can result in heat generation
or fire.
Take care that wiring does not rise upward, and accurately install the lid/service panel. Its improper installation can
also result in heat generation or fire.
When setting up or moving the location of the air conditioner, do not mix air etc. or anything other than the designated
refrigerant (R410A) within the refrigeration cycle. Rupture and injury caused by abnormal high pressure can result from
such mixing.
Always use accessory parts and authorized parts for installation construction. Using parts not authorized by this company
can result in water leakage, electric shock, fire and refrigerant leakage.
WARNING
CAUTION
WARNING
WARNING
CAUTION
CAUTION
Execute proper grounding. Do not connect the ground wire to a gas pipe, water pipe, lightning rod or a telephone ground
wire. Improper placement of ground wires can result in electric shock.
The installation of an earth leakage breaker is necessary depending on the established location of the unit. Not installing
an earth leakage breaker may result in electric shock.
Do not install the unit where there is a concern about leakage of combustible gas.
The rare event of leaked gas collecting around the unit could result in an outbreak of fire.
For the drain pipe, follow the installation manual to insure that it allows proper drainage and thermally insulate it to
prevent condensation. Inadequate plumbing can result in water leakage and water damage to interior items.
13
Is The Unit Installed Correctly
Confirm the following items for safe and comfortable use of air conditioner.
The installation work is to be burden on the sales dealer, and do not conduct it by yourself.
Installation place
Avoid installing the air conditioner near
the place where possibility of
inflammable gas leakage exists.
Explosion (Ignition) may occur.
Select the place so as not to annoy
neighbor with the hot air or noise.
Install the unit at well ventilated place.
capacity reduction or noise increase.
Snow protection work is necessary
where outdoor unit is blocked up by
snow.
For details consult your sales dealer.
Install the air conditioner firmly on the
foundation that can fully support the
weight of the unit.
If not, it may cause vibration or noise.If some obstacle exist, it may cause
It is advisable not to install the air conditioner at the following special place.
It may cause malfunction, consult the
sales dealer when you have to install
the unit on such a place.
The place where corrosive gas
generates (Hot spring area etc.)
The place where salt breeze blows
(Seaside etc.)
The place where dense soot smoke
exists
The place where humidity is
extraordinarily high
The place where near the machine
which radiates the electromagnetic
wave
The place where voltage variation is
considerably large
Electric work
The electric work must be burden on the authorized engineer with qualification for electric work and grounding work, and
the work must be conducted in accordance with electric equipment technical standard.
The power source for the unit is to be of exclusive use.
An earth leakage breaker should be installed.(This is necessary to prevent electric shock.)
The unit must be grounded.
When you change your address or the installation place
Special technology is required for removal or reinstallation of air conditioner, consult the sales dealer. Besides, construction
expense is charged for removal or reinstallation.
For inspection and maintenance
The capacity of air conditioner will decrease by contamination of inside of unit when it is used for about three years although
depending upon the circumstances under which it is used, and so in addition to the usual maintenance service, special
inspection/maintenance service is necessary. It is recommended to make a maintenance contract (charged) by consulting
your sales dealer.
14
Installation Procedure
Indoor Unit
NOTE
All wiring of this installation must comply with NATIONAL, STATE AND LOCAL REGULATIONS. These instructions
do not cover all variations for every kind of installation circumstance. Should further information be desired or should particular
problems occur, the matter should be referred to your local distributor.
WARNING
BE SURE TO READ THESE INSTRUCTIONS CAREFULLY BEFORE BEGINNING INSTALLATION. FAILURE TO FOLLOW
THESE INSTRUCTIONS COULD CAUSE SERIOUS INJURY OR DEATH, EQUIPMENT MALFUNCTION AND/OR
PROPERTY DAMAGE.
Preparation of indoor unit
Before or during the installation of the unit, assemble necessary optional panel etc. depending on the specific type.
Select places for installation satisfying following conditions and at the same time obtain the consent on the part
of your client user.
a.
Places where chilled or heated air circulates freely. When the installation height exceeds 3m warmed air stays close to
the ceiling. In such cases, suggest your client users to install air circulators.
b.
Places where perfect drainage can be prepared and sufficient drainage.
c.
Places free from air disturbances to the suction port and blowout hole of the indoor unit, places where the fire alarm
may not malfunction or short-circuit.
d.
Places with the environmental dew-point temperature is lower than 28 and the relative humidity is less than 80 %.
C
(When installing at a place under a high humidity environment, pay sufficient attention to the prevention of dewing such
as thermal insulation of the unit. )
e.
Installation dimension is the following.
(1) Installation by which service space is made on top of the
unit (recommended)
Install the unit away from the ceiling by 350mm or more
(2) Installation by which service is carried out from the bottom
of the unit
350 or more
2500 or more
(when no ceiling)
FLOOR
Service
space
Service access
500 or more
30 or more
Unit:mm
Service access
Service
space
500 or more
Avoid installation and use at those places listed below.
a.
Places exposed to oil splashes or steam (e.g. kitchens and machine plants).
Installation and use at such places incur deteriorations in the performance or corrosion with the heat exchanger or damage
in molded synthetic resin parts.
b.
Places where corrosive gas (such as sulfurous acid gas) or inflammable gas (thinner, gasoline etc.) in generated or
remains. Installation and use at such places cause corrosion in the heat exchanger and damage in molded synthetic
resin parts.
c.
Places adjacent to equipment generating electromagnetic waves or high-frequency waves such as in hospitals.
Generated noise may cause malfunctioning of the controller.
Pipe size
Model
Liquid side Gas side
ADH071M1ERG
ADH071M3ERG
ADH090M1ER
G
ADH105M1ERG
ADH125M1ERG
9.52mm 15.88mm
ADH140M1ERG
ADH105H1ERG
ADH125H1ERG
ADH140H1ERG
ADH160H1ERG
15
Installation Procedure

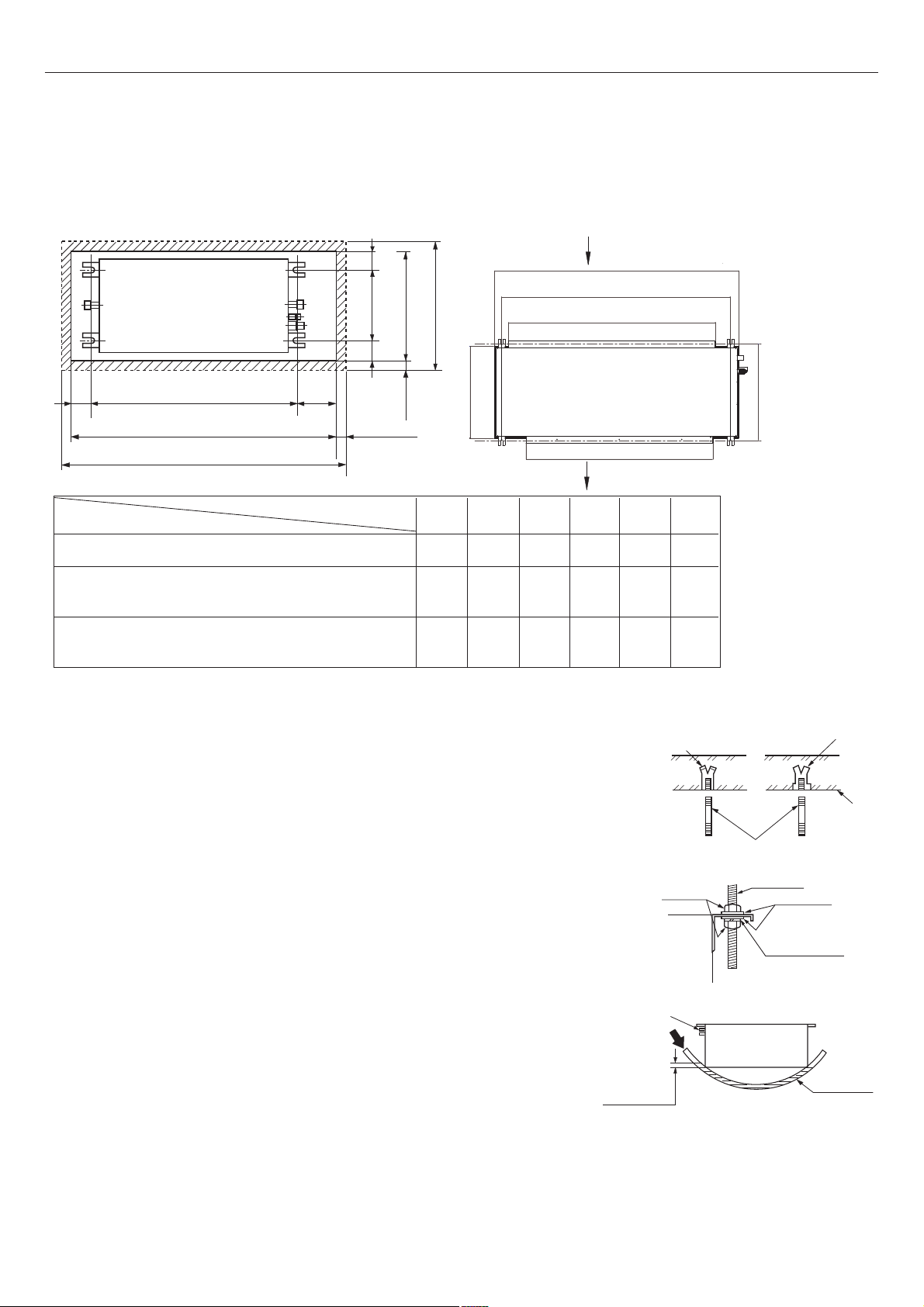

1. Preparation for suspending the unit
a.Size of hole at ceiling and position of hanging bolts
Indoor Unit
ADH071M1ERG ADH071M3ERG
ADH090M1ERG ADH105M1ERG
ADH125M1ERG ADH140M1ERG
70
D
E
Pipe connection
side
75
Hanging bolt position
150
Model
A
Hanging bolt position
B
Ceiling hole size
C
Panel dimensions
300
30
Ceiling ~ panel
wrap dimensions
Dimensions
30
ADH071M1ERG ADH071M3ERG ADH090M1ERG
ADH105M1ERG ADH125M1ERG
ADH140M1ERG
ADH105H1ERG ADH125H1ERG
ADH140H1ERG
ADH160H1ERG
ADH105H1ERG ADH125H1ERG
ADH140H1ERG
ADH160H1ERG
AIR INLET
B
A
F
Ceiling hole size
Panel dimensions
C
F
Ceiling ~ panel
wrap dimensions
A(mm)
B(mm) C(mm)
E
AIR OUTLET
D(mm) E(mm) F(mm)
983 1433 1493 595 740 800
1556 2006 2066 653 798 858
1285 1373 1163 543 1046 518
D
b.Hanger bolts installation
Use care of the piping direction when the unit is installed.
2.Installation of indoor unit
Fix the indoor unit to the hanger bolts.
If required, it is possible to suspend the unit to the beam, etc. Directly
by use of the bolts without using the hanger bolts.
Note
When the dimensions of main unit and ceiling holes does not match,
it can be adjusted with the slot holes of hanging bracket.
Adjusting to the levelness
(a) Adjust the out-of levelness using a level or by the following method.
Make adjustment so that the relation between the lower surface
of the unit proper and water level in the hose becomes as given
below.
(b) Unless the adjustment to the levelness is made properly,
malfunctioning or failure of the float switch may occur.
Hole-in anchor
Hole-in plug
Piping side
Supply water
Water level
0-6mm(for ADHM series)
5-20mm( for ADHH series)
Bring the piping side slightly lower.
M10 nut
Main unit
Insert
Concrete
Hanging bolt M10
Hanging bolt
M10 washer
M10 spring washer
PVC hose
16
Installation Procedure
Drain Pipe
Installing Drain Pipes
CAUTION
Install the drain pipe in accordance with the instructions in
this installation Manual and keep the area warm enough to
prevent condensation.Problems with the piping may lead
to water leaks.
Be sure to properly insulate the drain pipes.
The position of the installed drain pipe should have a
downward gradient of 1/100 or more.
Do not connect the drain pipe in which ammonia or other
types of gas affecting the unit is generated.
Install the drain pipes according to the measurements given
in the following figure.
Flange positions for connecting the drain pipes.
395
407
66
130
Safety drain port
25(O.D.)
Main drain port
25(O.D.)
The size of drain opening
Unit model The size of drain opening
ADH071M1ERG
ADH071M3ERG
ADH090M1ERG
ADH105M1ERG
32mm(O.D.)
ADH125M1ERG
ADH140M1ERG
ADH105H1ERG
ADH125H1ERG
25mm(O.D.)
ADH140H1ERG
ADH160H1ERG
Please refer to the diagram and select drain pipe size
according to drain opening inner diameter size.
(a) Drain piping should always be in a downhill grade
(1/50~1/100) and avoid riding across an elevation or making
traps.
Good piping
Suspension
bolts
1.5m ~ 2m
For unit without water pump
1.5m~2m
Down slope above 1/100
Insulation (supplied by the user)
Improper piping
Air vent
Support
Avoid riding across an elevation
Keep free from traps
Do not pipe under water
(b) When connecting the drain pipe to unit, pay sufficient
attention not to apply excess force to the piping on the unit
side. Also, fix the piping at a point as close as possible to
the unit.
(c) For unit without water pump, the drain pipe shall be slant
downwards (greater than 1/100).
The horizontal length of the drain pipe shall be less than
20 m. In case of long pipe, supports shall be provided every
1.5~2m to prevent wavy form.
Central piping shall be laid out according to the right figure.
Take care not to apply external force onto the drain pipe
connection part.
(d) For unit with water pump drain pipe use hard PVC general
purpose pipe VP which can be purchased locally. When
connecting, insert a PVC pipe end securely into the drain
socket before tightening securely using the attached drain
hose and clamp. Adhesive must not be used for connection
of the drain socket and drain hose (accessory).
Drain socket
Main unit
Pipe cover(large)
[for insulation]
(accessory)
Drain hose
(accessory)
Clamp
(accessory)
Pipe cover(small)
[for insulation]
(accessory)
Drain socket
VP(field purchased)
Adhesion
VP(field purchased)
Pipe cover
[for insulation]
(field purchased)
Stage
difference
part
Drain hose
Heat
insulation
A downhill grade
of 1/100 or more
17
Installation Procedure
Drain Pipe
(e) When constructing drain piping for several units, position
the common pipe about 100 mm below the drain outlet of
each unit as shown in the sketch. Use VP-30(11/4") or thicker
pipe for this purpose.
Secure the elevation as high as possible (approx. 100 mm)
VP-30
A downhill grade of 1/100 or more
(f) The stiff PVC pipe put indoor side should be heat insulated.
The height of the drain head can be elevated up to a point
500 mm above the ceiling, and when an obstacle exists in
the ceiling space, elevate the piping to avoid the obstacle
using an elbow or corresponding gadget. When doing this,
if the stretch for the needed height is higher than 500 mm,
the back-flow quantity of drain at the event of interruption
of the operation gets too much and it may cause overflow
at the drain pan. Therefore, make the height of the drain
pipe within the distance given in the sketch below.
290~325mm
Taking the ADH**H serials as an example, the installation
of the drain pipe is the following.
Use general hard polyvinyl chloride (VP25) and connect it
with adhesive (polyvinyl chloride) so that there is no leakage.
Do not perform air bleeding.
Main drain pipe
provide one trap on the main drain pipe near the indoor unit.
H1=100 mm(Approx)
H2=50~100 mm
Drain pipe
Unit
Drain pan
H2 H1
Trap
Safety drain
There is no need to provide a trap for the safety drain pipe.If
the safety drain pipe is connected to the main drain pipe,make
the connection below the trap on the main drain pipe.
Drain hose
600
(Maximum local drain up dimension)
Joint for VP-25
(Local procurement)
Right overhead
(g) Avoid positioning the drain piping outlet at a place where
generation of odor may be stimulated. Do not lead the drain
piping direct into a sewer from where sulfur gas may generate.
(h) Because the drain spout is at the position, which negative
pressure may occur. So with the rise of water level in the
drain pan, water leakage may occur. In order to prevent water
leakage, we designed a backwater bend. The structure of
backwater bend should be able to be cleaned. As the below
figure shown, use T type joint. The backwater bend is set
near the air conditioner.
As figure shown, set a backwater bend in the middle of drain
hose.
H1H2
H1=100mm or the static pressure of
air sending motor
H2=1/2H1 (or between 50~100mm)
Unit
Drain pan
Drain pipe
Safety pipe
Make sure that drain pipe is installed without rises.
Do not perform air bleeding.
Rise
Main pipe
18
Air bleeding
Rise
PROHIBITED
Installation Procedure
Drainage Test
(1)
Conduct a drainage test after completion of the electrical work.
During the trial, make sure that drain flows properly through the
(2)
piping and that no water leaks from connections.
In case of a new building, conduct the test before it is furnished
(3)
with the ceiling.
Be sure to conduct this test even when the unit is installed in the
(4)
heating season.
Drain Pipe
Insert water supply hose
for 20 mm ~ 30 mm to
supply water.
(Insert hose facing
toward bottom.)
Remove grommet.
Make sure to install
it back after test.
Procedures
(a)
Supply about 1000 cc of water to the unit through the air outlet
using a feed water pump.
(b)
Check the drain while cooling operation.
Before the electrical work has not been completed, connect a convex
joint in the drain pipe connection to provide a water inlet. Then, check
if water leaks from the piping system and that drain flows through
the drain pipe normally.
Installation Procedure
Installation work for air outlet ducts
Calculate the draft and external static pressure and select the length,
shape and blowout.
A Blowout duct
2-spot, 3-spot and 4-spot with 200 type duct are the standard
specifications.
Note (1) Shield the central blowout hole for 2-spot.
(2) Shield the blowout hole around the center for 3-spot.
Attached drain hose clamp
Main unit
Drain situation can be checked with transparent socket
Pour water into a convex joint.
Air conditioner main unit
Heat
Ceiling surface
Special
B
blowout
(Option)
insulation
Blowout duct
A
(Optional or
marketed item)
inlet duct
(Optional or
marketed item)
Hole for check
Drain piping
Air Duct
Suction panel
(Silent panel)
special inlet
C
(option) (with air
filter)
Limit the difference in length between spots at less than 2:1.
Reduce the length of duct as much as possible.
Reduce the number of bends as much as possible. (Corner R should
be as larger as possible.)
Use a band. etc. to connect the main unit and the blowout duct
flange.
Conduct the duct installation work before finishing the ceiling.
Connection of suction, exhaust ducts
a.Fresh air inlet
Inlet can be selected from the side or rear faces depending on the
working conditions.
Use the rear fresh air inlet when the simultaneous intake and exhaust
is conducted. (Side inlet cannot be used.)
b.Exhaust (Make sure to use also the suction.)
Use the side exhaust port.
State seeing from top of unit
Side fresh air inlet
Rear fresh air inlet
Fig.1
Good exampleBad exampleBad example
Exhaust hole
Fig.2
19
Installation Procedure
WARNING
DANGER OF BODILY INJURY OR DEATH
TURN OFF ELECTRIC POWER AT CIRCUIT BREAKER OR POWER SOURCE BEFORE MAKING ANY ELECTRIC
CONNECTIONS.
GROUND CONNECTIONS MUST BE COMPLETED BEFORE MAKING LINE VOLTAGE CONNECTIONS.
Precautions for electrical wiring
Electrical wiring work should be conducted only by authorized personnel.
Do not connect more than three wires to the terminal block. Always use round type crimped terminal lugs with insulated
grip on the ends of the wires.
Use copper conductor only.
Selection of size of power supply and interconnecting wires
Select wire sizes and circuit protection from table below. (This table shows 20 m length wires with less than 2% voltage drop.)
Power source
wire size
(minimum)
(mm2)
Earth leakage breaker
Switch
breaker(A)
Model
Item
Phase
Circuit breaker
Switch
breaker
(A)
Overcurrent
protector
rated capacity
(A)
Electrical wiring
Leak
current(mA)
ADH071M1ERG
ADH071M3ERG
ADH090M1ERG
ADH105M1ERG
ADH125M1ERG
ADH140M1ERG
ADH105H1ERG
ADH125H1ERG
ADH140H1ERG
ADH160H1ERG
Wiring connection
Make wiring to supply power to the outdoor unit, so that the power for the indoor unit is supplied by
Outdoor 3 phase type
Outdoor unit
terminal block
Power supply:380-415V, 3N~,50/60Hz
Indoor unit
terminal block
RS TN
123
Y/G
123
Y/G
30 6.0 40
Outdoor single phase type
Except ADH071M3ERG
Indoor unit
terminal block
Outdoor unit
terminal block
Power supply:1PH,220-240V~,50/60Hz
LN
outdoor unit
123
123
30130 26 4.0 40
30140
.
Y/G
Y/G
ADH071M3ERG
Outdoor unit
terminal block
20
Indoor unit
terminal block
LN
Power supply:1PH,220-240V~,50/60Hz
123
123
Y/G
Y/G
Address:Haier Industrial Park,Qianwangang Road,Eco-Tech Development Zone,Qingdao 266555,Shandong,P.R.C.
Contacts: TEL +86-532-88936943; FAX +86-532-8893-6999
Website: www.haier.com
Loading...
