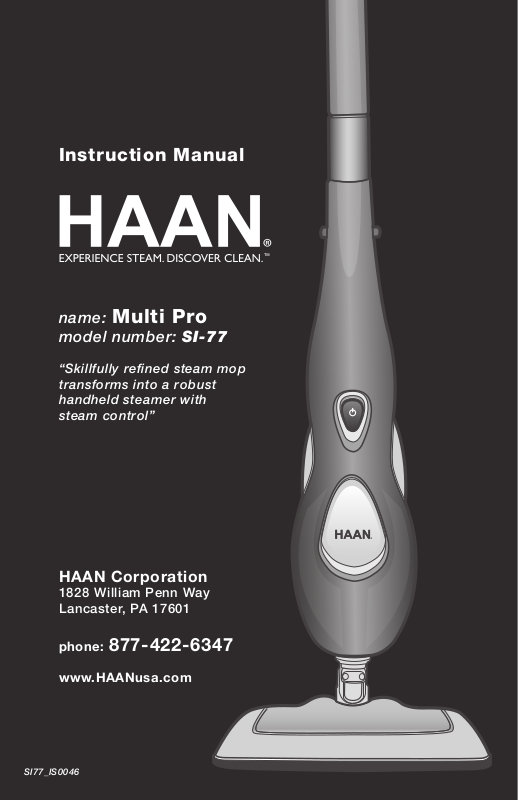

Instruction Manual
name: Multi Pro
model number: SI-77
“Skillfully refined steam mop
transforms into a robust
handheld steamer with
steam control”
HAAN Corporation
1828 William Penn Way
Lancaster, PA 17601
phone: 877-422-6347
www.HAANusa.com
SI77_IS0046
Copyright ©2012 HAAN Corporation
Notice
The information contained in this
document is subject to change
without notice.
HAAN Corporation assumes no
responsibility for any errors that may
appear in this document nor does it
make expressed or implied warranty
of any kind with regard to this material,
including, but not limited to, the implied
warranties of merchantability and
fitness for a particular purpose.
HAAN Corporation shall not be liable
for incidental or consequential damages in connection with or arising out of
the furnishing, performance, or use of
this document and the program materials which it describes.
All rights reserved. No part of this
document may be photocopied,
reproduced or translated to another language
without prior written
consent of HAAN Corporation.
HAAN® is a registered trademark of
the HAAN Corporation.
HAAN® Experience Steam. Discover Clean.™
is a trademark of the HAAN Corporation.
Introduction
Congratulations on purchasing a HAAN
product. Now
®
you have an easy way to clean your tile, hardwood, laminate, linoleum, vinyl floors.
Your steam cleaner uses steam to remove tough grease,
dirt and grime. Steam is nature’s purest and most powerful cleaner for safely cleaning all hard surfaces in your
home without harsh chemicals, for a perfectly ecological
approach. No film, no residue – just clean, germ-free
floors.
HAAN
products are so easy to assemble, you can put
®
them to use right away – anywhere you want to clean
and sanitize – from your kitchen and living room to your
bathroom floors.
Backed with a one-year limited warranty, your quality
HAAN
product is sure to give you years of dependabil-
®
ity. And our Customer Care representatives are available
to answer any of your questions about your new steam
cleaner.
Thousands of HAAN® customers have already fallen in
love with HAAN® Steam Cleaners. We’re confident you
will, too.
Thank you again for purchasing the HAAN® Multi Pro
Steam Cleaner.
The HAAN
Team
®
Important Safety Instructions
Basic precautions should be observed when using
an electrical appliance, including the following:
IMPORTANT
Be sure to read ALL
instructions and warnings
before using your HAAN®
Steam Cleaner.
WARNING
Risk of electrical
shock: Be sure to
read and follow all
instructions and warnings.
CAUTION
The unit emits steam
at 212˚F to sanitize
the area of use. This
means that the steam
head, Ultra-Microfiber
Pads and Carpet Glide
get very hot during
use. Care should be
taken when using this
appliance. DO NOT
touch them during use
except in the approved
manner as outlined in
this manual.
SAVE THESE
INSTRUCTIONS:
For household use only.
Any other use of this
appliance will void the
manufacturer’s warranty.
1. Do not direct steam at people, animals, or
at electrical outlets.
2. Do not expose to rain.
3. Store indoors.
4. Unplug from outlet when not in use and
before conducting service maintenance or
trouble-shooting.
5. Do not leave steam cleaner unattended.
6. Do not leave the steam cleaner connected
to an electrical outlet when not in use.
7. Do not service steam cleaner when it is
plugged in.
8. Do not use with damaged cord or plug.
9. Do not use steam cleaner if it has been
dropped, damaged, left outdoors or
dropped into water. Return to a service
center.
10. Do not handle steam cleaner with wet
hands.
11. Do not pull or carry by cord, use cord as a
handle, close door on cord, pull cord
around sharp corners or expose cord to
heated surfaces.
12. Do not unplug by pulling on cord.
13. Do not use appliance in an enclosed space
filled with vapor given off by oil-based paint
thinner, some moth-proofing substances,
flammable dust, or other explosive or toxic
vapors.
14. Do not allow unit to be used as a toy.
15. Do not use on leather, wax polished
furniture or floors, synthetic fabrics, velvet
or other delicate, steam-sensitive
materials.
16. Do not immerse in water or any other liquid.
17. Do not use for any purpose other than
described in this User Manual.
18. Use only manufacturer’s recommended
attachments – use of attachments not
provided or sold by HAAN® may cause fire,
electric shock or injury.
Important Safety Instructions
19. Never put descaling, aromatic, alcoholic or
detergent products into the steam cleaner,
as this may damage it or make it unsafe for use.
20. Unplug by grasping the plug, not the cord.
21. Close attention is necessary when used by or
near children.
22. If the circuit breaker activates while using the steam
function, discontinue product use immediately and
contact the customer support center. (Beware of the
risk of electrical shock.)
23. Do not allow the product to be disassembled and/
or modified by anyone other than an authorized
service technician. (Doing so can result in fire and/
or electrical shock.)
24. Do not puncture steam hose that is exposed by the
swivel steam head joint.
25. This product is NOT for space heating purposes.
IMPORTANT
WARNING
DO NOT modify
the plug. Improper
connection can result
in a risk of electrical
shock.
Electrical Plug Instructions:
This appliance has a polarized plug (one blade is wider than
the other). As a safety feature, this plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet,
reverse plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
Operating Instructions
Care & Maintenance
IMPORTANT
Always ensure that your
steam cleaner is
UNPLUGGED from the
wall receptacle prior to
cleaning or emptying the
water tank.
CAUTION
Do not immerse your
steam cleaner in water
or any other liquid.
CAUTION
Always opperate
steam cleaner by griping the handle. Do not
grip the pole.
1. Turn your steam cleaner off and unplug from
the electrical outlet.
2. Wrap power cord around cord hangers.
3. Let your steam cleaner cool for five (5)
minutes before removing the Ultra-Microfiber
Pad and before emptying the water tank.
4. Always empty the water tank when you have
finished using your steam cleaner.
5. Never leave Ultra-Microfiber Pad on steam
cleaner when you have finished using it.
Always remove the Ultra-Microfiber Pad and
wash in warm water with a mild detergent.
Never use bleach or fabric softener when
cleaning the Ultra-Microfiber Pad.
The Ultra-Microfiber Pad can be washed in a
washing machine and dried in a clothes
dryer but on low heat.
To decrease pad wear, we recommend the
pad be hung to dry for 24 hours.
6. Wipe your steam cleaner with a damp cloth to
clean. Never immerse the unit in water
or any other liquid.
7. In order to keep your steam cleaner in good
condition, we recommend that you clean the
water tank once a month to eliminate calcium
deposits. Add eight ounces (8 oz) of water to
the water tank and insert 1 packet of Fresh
Rinse™ Lime and Scale Remover. Shake to
loosen any deposits. Place unit on resting
mat without pad, turn unit on and allow water
to steam until water in tank is depleted. Do
not use vinegar or other decalcifying
substances in the steam cleaner
water tank.
Helpful Hints
1. Always use a vacuum or sweep before
sanitizing your floors.
2. The easiest way to use the machine is to
tilt the handle to a 45º angle and clean
slowly 2-3 yards at a time.
Helpful Hints Cont.
3. A good amount of steam passes through
the Ultra-Microfiber Pad. We recommend
that the Ultra-Microfiber Pad be changed
when it becomes oversaturated.
4. To remove stubborn stains from vinyl or
linoleum floors, pre-treat with a mild
detergent and some water before using the
steam cleaners.
Ultra-Microfiber Pads for HAAN® Steam Cleaners
What is an Ultra-Microfiber?
An Ultra-Microfiber is a textile fiber that is thinner and more absorbent than a microfiber (1.0dtex) pad typically used with steam mops. Specifically, to be defined as an
Ultra-Microfiber, it should be less than 0.2dtex. The Ultra-Microfiber pad by HAAN
Corporation is made of .17dtex Ultra-Microfibers.
How to Use Ultra-Microfiber Pads
1. Please make sure that a completely dry pad is used.
2. As high temperature steam passes through a pad to contact the floor
to kill germs, molds, mites and to provide a certain amount of water
necessary for cleaning, it is natural that the pad gradually absorbs
moisture. After a certain length of time, the pad repels water and
becomes damp.
3. To keep the floor clean and dry, replace the pad when it is dirty.
4. Only remove pad from unit when not in use and steam is not being
emitted.
How to Clean and Store
1. Hand wash or machine wash the Ultra-Microfiber Pad in cold water
on the delicate cycle with a mild detergent. (Do not use a
fabric softener)
2. Using a washing machine may shorten the lifespan of the pads.
3. We recommend air drying the Ultra-Microfiber Pad for 24 hours, but
they could be dried in a dryer on a low heat setting.
Chlorate
bleach
Hanger Lightly
Product Assembly & Parts
A
1
2
Handle Assembly:
Line up handle &
insert into base.
14
15
B
Base Assembly:
Insert screw as shown.
Tighten using a flathead screwdriver. If
screw turns freely
without “gripping” the
insert threads, apply
additional pressure
when turning.
17
16
18
19
5
6
7
8
9
10
11
3
20
4
22
(x4)
23
24 25 26 27
21
12
13
1. Handle
2. Steam Power Switch
3. Power Indicator Light
4. Floor Steamer Body
5. Grip Handle
6. Storage Hook (rotates 360º)
7. Power Cord Organizer (bottom)
8. Main Body Assembly Screw
9. Handheld Unit Release Buttons
10. Power Cord
11. Water Tank Release Button
12. Detachable Water Tank
13. Handheld Steamer Body
14. Handheld Unit (detached)
15. Steam Control Button
16. Shoulder Strap Connection Loops
17. Angled Nozzle Attachment
18. Brush Attachment
19. Mini Steam Head Attachment
20. Handheld Unit Shoulder Strap
21. Extended Flexible Hose
22. Mini Steam Head Cleaning Sock (x4)
23. Assembly Screw (x1) Located in Accessory Bag
24. Floor Protector / Resting Mat
25. Carpet Glide
26. Ultra-Microfiber Pads (x2)
27. Fresh Rinse™ Lime & Scale Remover (x12)
Helpful Hint:
To extend the life of your
Ultra-Microfiber Pads,
always place your unit on
the floor protector/resting
mat while the unit heats
up. Attach the Ultra-Microfiber Pad when the unit is
ready to use.
Helpful Hint:
When using the steam
cleaner with the Carpet
Glide it will not lift all set-in
stains from your carpet.
Our patented Ultra-Microfiber Pad may be used
to act as a “blotter” for
removing most fresh, wet
spills and stains.
Before Using Your Floor Steam Cleaner
Be sure to read ALL instructions and warnings before using
your Steam Cleaner.
WARNING
Your steam cleaner is designed to clean hard floor surfaces that will withstand high
heat. Do not use on unsealed wood or unglazed ceramic floors. On surfaces that
have been treated with wax or some no-wax floors, the sheen may be removed by
the heat and steam action. It is always recommended to test an isolated area of the
surface to be cleaned before proceeding. We also recommend that you check the
use and care instructions from the floor manufacturer.
Helpful Hint: Helpful Hint:
When heated, never leave the appliance in one spot on any surface
for any period of time. Always
place your Steam Cleaner on the
Floor Protector/Resting Mat when
stationary.
Always empty water from water
tank after use. To ensure optimum product function use Fresh
Rinse™ once a month.
Before Using Your Steam Cleaner cont.
CAUTION
Use only a heavy duty extension cord rated for 15 amps minimum – DO NOT use an
ordinary extension cord.
IMPORTANT
This product is NOT for space heating purposes.
CAUTION
HAAN® Steam Cleaners products emit steam at 212ºF to sanitize the area of use.
This means that the steam head, Ultra-Microfiber Pads and carpet glide get very
hot during use. Care should be taken when using this appliance and DO NOT touch
components of this machine during use except in the approved manner as outlined
in this manual.
Using Your Steam Cleaner - Operating Instructions
1
Assemble unit and place on
Floor Protector / Resting Mat.
4
Tighten cap. Insert tank (cap
down) until it “clicks”.
2
Press Water Tank Release button and remove water tank.
5
Press the steam power switch.
Wait 20 seconds for unit to heat up.
Unit may vibrate while heating.
3
Turn Cap counterclockwise to
Remove. Fill tank with water.
6
Gently place unit on Ultra-Microfiber Pad. You are now
ready to steam clean.
7
8
9
Tilt handle at a 45º angle. Push
and pull slowly across the floor
to clean thoroughly.
When done, push the steam power
switch.
Place unit with Ultra-microfiber pad attached onto Floor
Protector / Resting Mat. Allow
to cool down for five (5) min.
10
IMPORTANT: Vibration Sound
During use it’s normal to hear a “clicking” sound coming from
the unit. This sound is produced by the water being pumped
through the unit.
IMPORTANT
Always empty the water tank once you have finished using your
When unit has cooled, remove
Ultra-Microfiber Pad and empty the water tank. Store unit
upright in a dry area.
steam cleaner.
Using the Carpet Glide
What is the Carpet Glide?
The carpet glide enables the steam cleaner to freshen, deodorize and sanitize carpeting, rugs, upholstery, pet cushions and more. Used with the steam cleaner it kills dust
mites and other allergens on a variety of surfaces.
NOTE: The Carpet Glide is used WITHOUT the Ultra-Microfiber Pad.
To Remove
1 2
3
Carpet Glide
TAB
TAB
Attach carpet glide by placing
unit under “tabs” and gently
pushing down into place.
With carpet glide attached, place
on Floor Protector / Resting Mat.
Follow operating instructions to
clean.
“Hands Free”
Removal Tab
Turn unit off, unplug and let
cool. Use foot on “Hands
Free” tab to remove carpet
glide from steam head.
Using the Carpet Glide - FOR FRESH STAINS
1
Place unit on stain. Let stand for
a few seconds. Allow steam to
saturate stain.
4
Gently place unit on Ultra-Microfiber Pad.
2
Slowly move unit back and forth
over stain.
5
Use the pad to rub the area
“blotting” out the stain.
3
“Hands Free”
Removal Tab
Remove carpet glide from
unit with hands free tab.
6
Turn unit off. When cooled, remove Ultra-Microfiber Pad.
Using the Handheld Steamer - Operating Instructions
Steam Control Button
The Steam Control Button is located on the handheld unit above the Steam Power Switch. When
cleaning floors the Steam Control Button will automatically be set to release an optimal amount
of steam that will leave floors clean and dry. When the handheld unit is disengaged from the floor
unit the Steam Control Button will automatically switch to a higher steam output setting that is
the ideal power for handheld use.
1
Before detaching Handheld
unit, make sure the unit is
turned off.
2
Press Handheld release
buttons inward to release
Handheld unit.
3
Remove Handheld unit from
floor unit. DO NOT pull power
cord when removing
4
5 6
Turn Handheld unit on.
Wait 20 seconds for unit to heat
up. Unit may vibrate while heating.
To use steam control, hold in
steam control button to engage
the lower steam setting.
NOTE: When handheld is used pointing upward, the amount of steam emitted will reduce
over time. Tilt unit parallel with floor or pointing downward to eliminate the reduction of steam.
Using the Handheld Steamer Attachments
NOTE: Always turn unit off when attaching and removing attachments.
Twist to lock.
Mini Steam Head Attachment
Great for cleaning and sanitizing kitchen counter tops, tabletops, bathroom surfaces, bathtubs, bedding (pad removed), curtains, pet areas.
Angled Nozzle Attachment
Great for cleaning and sanitizing in between kitchen and bathroom tile,
faucets, counter tops, corners, toilet bowls.
Mini Steam Head should
be in the locked position
before steam cleaning.
Brush Attachment
Great for scrub cleaning grills, tile grout, stubborn
counter top stains.
Using the Long Extension Hose
Adds maneuverability when
cleaning hard to reach areas.
Works with the Mini Steam
Head Attachment, Angled
Nozzle Attachment and Brush
Attachment.
“Locked”
Position
*Works with the Mini Steam Head Attachment, Angled Nozzle Attachment and Brush Attachment.
Using the Power Cord Hook
Connect the cord to the cord hanger as
instructed in order to keep the cord from
being damaged. Loosely wind the cord
around the hooks before storing.
CAUTION
Special care should be exercised with the
power cord during steam cleaner use as
excessive twisting and/or subjecting it to
a substantial external shock can result in
damage, which can in turn cause product
malfunction.
Troubleshooting
Problem Solution
Unit not operating.
• Ensure plug is set firmly in outlet.
• Replace fuse or reset breaker.
Unit does not emit steam.
Water left on floor.
White spot left on floor.
• Ensure water tank is filled with water.
• Ensure the handheld is not being held with the tip pointing upward.
• Change the Ultra-Microfiber Pad.
• Ensure unit is always level and parallel to the floor.
• When cleaning do not leave unit in one spot for too long.
• Use protector resting pad / floor mat when unit is plugged in and
stationary.
• Use distilled water instead of hard tap water.
NOTE: To remove spot, use a damp cloth with a few drops of white vinegar
to rub and remove stain.
Commonly Asked Questions
Q: Can the HAAN® Steam Cleaner be used on laminate flooring?
A: Yes. Your steam cleaner was designed to be gentle on delicate flooring, yet powerful enough to penetrate stains and kill harmful germs and bacteria.
It is recommended that the flooring manufacturer be contacted to see if it is OK to
clean the floor with steam. Leaving the steam cleaner sitting in one spot while steaming could result in discoloration of flooring.
Q: How long can an Ultra-Microfiber Pad be used until it needs to be changed?
A: The pad should be changed every 10 minutes, or when it becomes saturated with
water. The unit will become harder to push with a overly wet pad.
Q: How long does a tank of water last?
A: A full tank will last approximately 20 minutes as a steam cleaner and 13 minutes as
a handheld.
Q: Sometimes my steam cleaner becomes hard to push - why?
A: If the unit is hard to push its likely because the Ultra-Microfiber Pad is too wet or
the angle at which you are using the machine is too high.
Q: How do you use the Carpet Glide for my carpet?
A: The carpet glide is to be used without the Ultra-Microfiber Pad and can be attached
directly to the unit.
Q: How can I prolong the life of my HAAN®?
A: To maintain the life of your unit, we recommend using the Fresh Rinse™ once a
month.
Q: Will the HAAN® Steam Cleaner clean grout?
A: Yes, but it needs a little help. If you glide your HAAN® over the problem areas and
then scrub with your Ultra-Microfiber Pad, it should effectively clean your grout. However, it will not remove discoloration as this has been absorbed into the grout.
Q: Can I use the lower steam setting for my handheld?
A: Yes. The low steam setting can be used with the handheld but the steam control
button must be pressed and held to engage the lower steam setting.
Couldn’t find the Answer to your Question?
Call Customer Care at 877-HAAN DIRECT / 877-422-6347
To order additional pads, accessories or replacement
parts call customer care at:
877-HAAN DIRECT / 877-422-6347
Or visit:
www.HAANusa.com
7
Product Specifications: Model SI-77
Color
Overall Size
Handheld Size
Weight
Voltage/Hz
Wattage
Cord Length
Tank Capacity
Heat-up Time
Operating Time
11.8” W x 7.1” D x 50” H
4.33” W x 4.33” D x 19.29” H
Around 13 minutes as a Handheld & 20 minutes as a Steam Mop
*Dimensions approximated. Dimensions include base and measured without hose, or attachments.
Red and Black
5.29 lb
AC 120V, 60Hz
1440 watts
25 Feet
11.83 oz.
20 sec.
One-Year Limited Warranty
Your HAAN® Steamer is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of purchase when utilized for normal
household use by the original purchaser only. The included Warranty Registration
Card should be filled out and returned within thirty (30) days of purchase. This will
register your product.
Should any defect covered by the terms of the limited warranty be discovered within
one year, HAAN Corporation will repair or replace the defective part. To process a
warranty claim, contact customer care at 1-877-422-6347 for further assistance and
instructions. A customer care agent will conduct trouble shooting in an attempt to fix
any minor problems. Should trouble shooting not provide any result, a return authorization will be issued. Proof of purchase is required and should accompany the return.
Freight costs must be prepaid by the purchaser.
The liability under this warranty is limited solely to the cost of the replacement parts
or the complete unit at our option. Labor charges are not included.
This warranty is extended to the original purchaser of the unit and excludes all other
legal and/or conventional warranties. The responsibility of HAAN Corporation, if
any, is limited to the specific obligations expressly assumed by it under the terms of
the limited warranty. In no event is HAAN Corporation liable for incidental or consequential damages of any nature whatsoever. Some states/provinces do not permit the
exclusion or limitation of incidental or consequential damages, so the above may not
apply to you. This warranty gives you specific legal rights which vary from state to
state or province to province.
Warranty Notice: failure to complete and return the product registration card will
not diminish your warranty rights.
Product Name/Model number
Date Purchased Place of Purchase
Address
City
Zip Code/Postal Code
First Name
use and the warnings set forth within the instructions.
Product Registration
Please fill out and mail this Product Registration Card within thirty
(30) days of purchase in order to validate the fore said Limited
Warranty. The registration will allow us to contact you in the unlike-
ly event of a product safety notification. By returning this card you
acknowledge that you have read and understood the instructions for
Cut along dashed line
Country/Territory
2)
What other HAAN
®
products have you purchased?
State/Province
(Fold here and tape closed before mailing)
Last Name
1)
MAIL
PHONE
EMAIL
Yes! I would like HAAN® to send me information on products
and services including new product releases, events and special
offers. You may contact me by:
Warranty Notice: FAILURE TO COMPLETE AND RETURN THIS
PRODUCT REGISTRATION CARD WILL NOT DIMINISH YOUR WAR-
RANTY RIGHTS.
Privacy Notice: We use this information requested on this card to
process your registration, thereby allowing you to receive the benets
of being a registered user, and for use in post-sales services. Other
uses of your information are governed by the choices you make in
answering the questions and the HAAN privacy policy. For information
on this policy contact 877- HAAN DIRECT.
Product Registration
HAAN® Corporation
1828 William Penn Way
Lancaster, PA 17601
Place
Stamp
Here
5) We like to hear from our product owners. Please add any
comments here:
4) How did you hear about HAAN
®
?
3) Where did you purchase your HAAN
®
product?
Loading...
