Haan HD-50 User Manual

duo

STEAM

™

SWEEPER

& Floor Sanitizer

Featuring the POWER-LIFT™ BRUSH with Gentle Ultra-Grip™ Bristles

HD-50

The two-in-one ﬂoor care revolution that cleans carpets and hard-surface ﬂoors twice as fast!

User Manual

Notice

The information contained in this document is subject to change without notice.

HAAN

Corporation assumes no responsibility for any errors that may appear in this document nor does it make expressed or implied warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

HAAN® Corporation shall not be liable

for incidental or consequential damages in connection with or arising out of the furnishing, performance, or use of this document and the program materials that it describes.

Edition 2, May 2010 Printed in Korea/China Product manufactured in Korea/China

HAAN HAAN

is a registered trademark of the

Corporation.

Duo™, Power-Lift™, Ultra-Grip™ and engineering clean™ are trademarks of HAAN® Corporation.

HD-50

duo

STEAM

™

SWEEPER

& Floor Sanitizer

Featuring the POWER-LIFT™ BRUSH with Gentle Ultra-Grip™ Bristles

Introduction

The ﬁrst of its kind. Twice as nice.

Congratulations on purchasing the HAAN® Duo™ Steam Sweeper and Floor Sanitizer.

You now have an easy way to sweep up dirt and clean away messes in one simple step with the floor care innovation designed to simultaneously sweep and steam – quickly, easily and effectively!

Dry messes… wet messes… dry and wet combinations … the Duo™ can handle them all – without a broom or bucket & mop.

The innovative Duo™ sweeper design features a patentpending Power-Lift™ Brush with Gentle Ultra-Grip™ Bristles that grab more dirt while being gentle on hard floors and carpets.And the Duo™ easily moves from hard-surface floors to carpets and rugs.

The Duo™ steam feature delivers the powerful 212°F steam that’s made HAAN® a household name. It cleans away the toughest grime and leaves ﬂoors clean and sanitized, killing up to 99.9% of E.coli, Salmonella and other common household germs – without chemicals – for a healthier home environment.

Use the sweeper and steam functions simultaneously or independently to clean your entire house. Lightweight and easy to use, the Duo™ just might be the only floor cleaner you’ll need!

Look for the HAAN® “steamlet” symbol in this manual for helpful HAAN® Hints that will help you make the most of your new Duo™.

Backed with a one-year limited warranty, your quality

HAAN® product is sure to give you years of dependability.

And our Customer Care representatives are available to answer any of your questions about your new

HAAN® Duo™.

Thank you for your purchase.

The HAAN® Team

www.HAANUSA.com 877-HAAN DIRECT / 877-422-6347 pg 1

IMPORTANT SAFETY INFORMATION

WARNING - When using your basic safety precautions should

always be observed, including the following:

Read ALL INSTRUCTIONS

BEFORE USING (THIS APPLIANCE)

WARNING - To reduce the risk of ﬁre, electric shock or injury:

1. Do not leave appliance when plugged in. Unplug from outlet when not in use

and before servicing.

2. Do not use outdoors or on wet surfaces.

3. Do not allow to be used as a toy. Close attention is necessary when used by or near children.

4. Use only as described in this manual. Use only manufacturer’s recommended attachments.

5. Do not use with damaged cord or plug. If appliance is not working as it should, has bee, dropped, damaged, left outdoors, or dropped into water, return it to a service center.

6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

8. Do not handle plug or appliance with wet hands.

9. Do not put any object into opening. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air ow.

10. Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts.

11. Turn off all controls before unplugging.

12. Use extra care when cleaning on stairs.

13. Do not use to pick up ammable or combustible liquids, such as gasoline, or use in areas where they may be present.

SAVE THESE INSTRUCTIONS

pg 2 877-HAAN DIRECT / 877-422-6347 www.HAANUSA.com

IMPORTANT SAFETY INFORMATION

SAVE THESE INSTRUCTIONS - For household use only. Any other use of this appliance will void the manufacturer’s warranty.

IMPORTANT

WARNING

CAUTION

WARNING

Be sure to read ALL instructions and warnings before using your HAAN® Duo™ Steam Sweeper & Floor Sanitizer.

Risk of electrical shock - be sure to read and follow all instructions and warnings.

The HAAN® Duo™emits steam at 212˚F to sanitize the area of use. This means that the steam head, Ultra-Microﬁber Pads and Pad Tray get very hot during use. Care should be taken when using this appliance and DO NOT touch them during use, except in the approved manner as outlined in this manual.

DO NOT operate your Steam Sweeper and Floor Sanitizer if the power indicator light ﬂickers. If ﬂickering occurs contact the HAAN the number shown below.

To avoid circuit overload, DO NOT operate another appliance on the same electrical outlet (circuit).

Customer Care Center at

IMPORTANT

Grounded

Grounded Pin

Outlet

WARNING

DO NOT modify the plug. Improper connection of the equipment-grounding conductor can result in a risk of electrical shock.

www.HAANUSA.com 877-HAAN DIRECT / 877-422-6347 pg 3

Grounding Instructions:

The HAAN® Duo™ must be connected to a grounded (3-prong) wiring system. In the event that thr unit should malfunction or breakdown, grounding provides a safe path of least resistance for electrical current, thereby reducing the risk of electrical shock. The cord for this product has an equipment-grounding conductor and a grounding plug. Do not plug it into an outlet that is not properly installed and grounded in accordance with all local codes and ordinances.

Check with a qualified electrician or service person if you aren’t sure if the outlet is properly grounded. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is designed for use on a nominal 120-volt circuit and has a grounding attachment plug, as illustrated above. Make certain that the appliance is connected to an outlet with the same configuration as the plug. A plug

adapter should NOT be used with this appliance.

Product Description

duo

™

STEAM SWEEPER

& Floor Sanitizer

HD-50

Included Accessories:

Ultra-Microﬁber

Pads (2)

pg 4 877-HAAN DIRECT / 877-422-6347 www.HAANUSA.com

Fill Cup (1)

Floor Protector/

Resting Mat (1)

Pad Tray (1) -

packaged attached to base

Product Description

HELPFUL HAAN

15 Powerful Steam Jets are spaced perfectly to cover more ﬂoor in less time. Be assured you are steam cleaning when you push the machine forward, as well as when you are pulling it back.

HELPFUL HAAN

To extend the life of your Ultra-Microﬁber Pads, always place your unit on the Floor Protector/ Resting Mat while the unit heats up, and attach the Ultra-Microﬁber Pad once the unit is ready to use.

HINT:

FEATURES:

1. Easy Grip Handle - designed for easy cleaning.

2. Storage Hook - rotates 360˚ so it can be used to manage the cord and then provide convenient, easy hanging for storage in a closet or laundry room.

3. Power Cord Management System - keeps your pathway clear.

4. Pivoting Power Cord Wrap- releases cord with a ﬂick of the wrist.

5. Ergonomic Pole - designed for easy maneuverability and to be easy on your back.

6. Power Cord with Flexible Cord Support - double insulated cord with a 3-prong plug, complete with a ﬂexible cord support that strengthens cord connection.

7. Indicator Lights - RED Light illuminates when STEAM or SWEEPER function is chosen, and RED Reﬁll Light indicates when water is needed.

8. ON/OFF Switches - Separate SWEEPER (8a) and STEAM (8b) ON/OFF switches for using functions separately or simultaneously.

9. Thermal Indicator - turns from black to orange when the Duo™ is ready to use.

10. Sweeper Collection Bin - Extra-large capacity bin lifts out easily for dirt removal.

11. Steam Head with 15 Powerful Steam Jets - spaced perfectly to cover more ﬂoor in less time.

12. Power-Lift™ Brush with Gentle Ultra-Grip™ Bristles - revolves at high rpm for better performance to pick up loose dirt, cereal, pet food and more, without harming your ﬂoors or carpets.

Make sure to check for the following accessories!

13. Ultra-Microber Pad - (2) patented super-absorbent

HELPFUL HAAN

HINT:

Using the HAAN® Duo will not lift all set-in stains from your carpet, but our patented Ultra-Microﬁber Pad may be used to act as a “blotter” for removing most fresh, wet spills and stains. See pgs 13-14 for details.

www.HAANUSA.com 877-HAAN DIRECT / 877-422-6347 pg 5

Ultra-Microﬁber Pads lock in dirt and leave ﬂoors dry to the touch. Specially designed for ‘No Touch’

™

attachment and removal.

14. Fill Cup (1) - makes it easy to put the right amount of water in the tank.

15. Floor Protector/Resting Mat (1) - for use when heating up your Steam Sweeper and Floor Sanitizer or when taking a break from active cleaning – place on the ﬂoor with the “bumpy” side facing up.

16. Pad Tray (1) - Easy attachment system for Ultra-Microﬁber Pads, which are used on the Duo™ to steam clean hard-surface ﬂoors. Easily removed to use the Duo™ on carpet and rugs.

Assembling Your Duo™ Steam Sweeper & Floor Sanitizer

1 2 3 Ready to Clean

To enable you to get the most satisfaction from your Steam Sweeper and Floor Sanitizer, be sure to follow the assembly and operating instructions included in this manual. Read this manual thoroughly before assembling your unit.

™

After unpacking the Duo the product parts before assembling. Pay speciﬁc attention to the product descriptions to familiarize yourself with all the parts of your Steam Sweeper and Floor Sanitizer. No additional tools are needed to put the unit together. It is quick and easy.

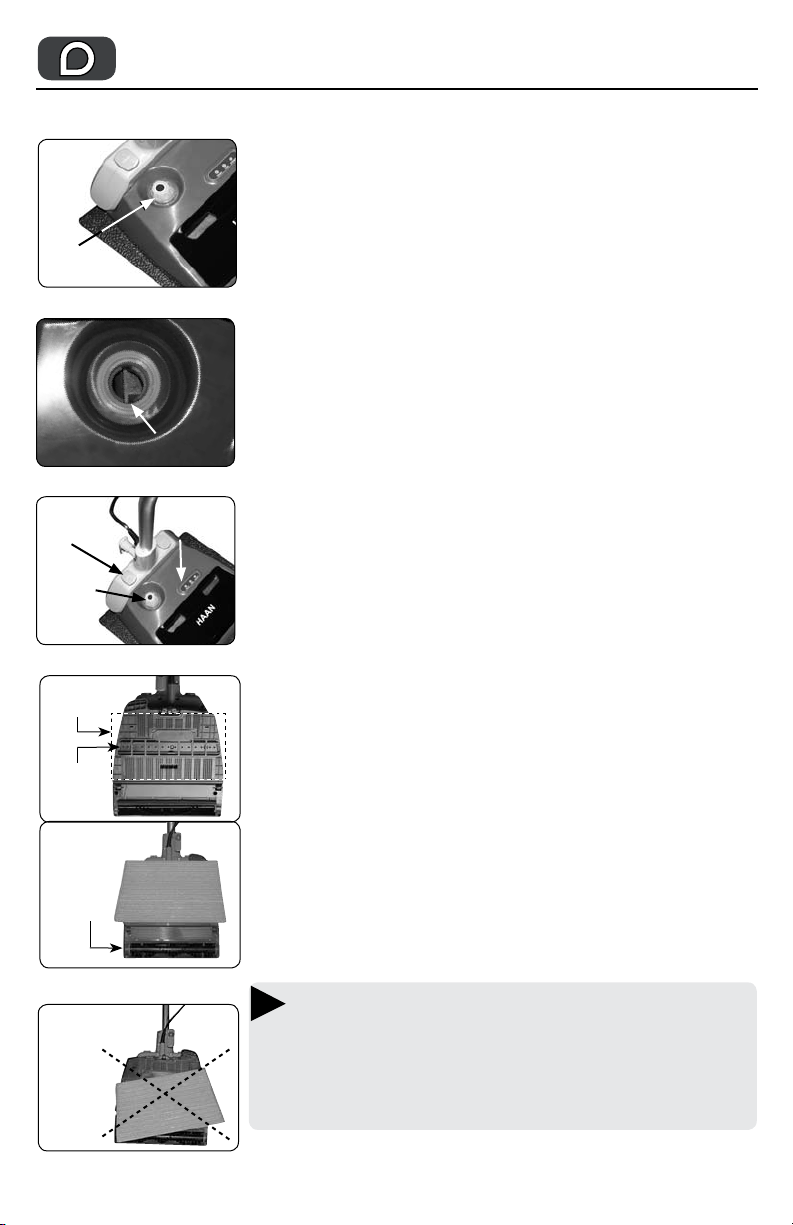

Insert the Easy Grip Handle onto the top end

of the silver upper ergonomic pole. IMPORTANT NOTE: The upper pole has one

end that is indented and narrow. The narrow end ﬁts into the Pole Connection, NOT the handle. See Fig under Step 2.

Align the indent in the pole to the ridge inside the handle and the Locking Pin to the hole in the handle. Hold the Locking Pin in, and slide them together until the pin snaps into place.

, identify

Upper Ergonomic Pole

Easy Grip Handle

Pole Base

Unit Head

Attach the upper pole once the handle has

been secured in place, to the lower pole at the plastic connection. The narrow end of the upper pole connects into the plastic pole connection. Align the ridge to the front and the Locking Pin to the hole in the plastic pole connection, and while holding the Locking Pin in, slide the poles together until the pin snaps into place.

Pole Connection

Lower Ergonomic Pole

Indented Narrow End -

Wider End of Upper Pole ﬁts into handle

Ridge towards the front

pg 6 877-HAAN DIRECT / 877-422-6347 www.HAANUSA.com

Note the indented end that ﬁts into the Pole Connection.

Ridge towards the front

Locking Pin in place

Assembling Your Duo™ Steam Sweeper & Floor Sanitizer

Attach the assembled ergonomic pole to the main body

by aligning the ridge in the pole to the ridge in the base, as well as aligning the hole in the pole base with the Locking Pin. Push the Locking Pin in, and slide the pole down until the pin clicks into place and secures the pole.

Ridge in pole to side, with Locking Pin to the rear

Locking Pin in place

Before Using Your HAAN® Duo™:

HELPFUL HAAN

DO NOT add cl ean ing solutions, scented perfumes, oils or any other chemicals to the water used in this appliance, except those authorized by HAAN®. While it is acceptable to use regular tap water, if the tap water in your area is hard, we recommend you use distilled/puriﬁed water to extend the life of your appliance.

ALWAYS empty water from water tank after use. For safety

purposes, be sure to remove the Collection Bin before turning the unit upside down to empty the water tank. Replace bin afterwards.

www.HAANUSA.com 877-HAAN DIRECT / 877-422-6347 pg 7

HINT:

CAUTION

Use a grounded receptacle. Use only a heavy duty extension cord rated for 15 amps minimum – DO NOT use an ordinary extension cord. To provide continued protection against the risk of electric shock, connect to properly grounded outlet only.

Always be sure that your Steam Sweeper & Floor Sanitizer is UNPLUGGED from the wall receptacle prior to ﬁlling the water tank.

Never use your Duo™ on hard ﬂoor surfaces without attaching the Ultra-Microﬁber Pad and Pad Tray to the base. The Pad Tray and Ultra-Microﬁber Pads are NOT used on carpets and soft surfaces.

IMPORTANT: This product is NOT to be used for space heating purposes.
