GW Instek GUT-6600A User Manual

GUT-6600A
Handy Digital IC Tester

USER MANUAL

CONTENTS

-1-

I.GENERAL SPECIFICATION ....................................2

II.FUNCTION KEYS ................................................... .3

III.OPERATION ............................................................ 4

IV.SUPPORTED DEVICES .......................................... 6

*Getting Started

The GUT-6600A can be powered in two ways:

1.Insert TWO 9V batteries (in the bottom of the GUT-6600A, polarity as indicated).

2.Connect a 9 Volt 500 mA DC adapter to the power connector on the back. Use a

2.1 mm plug with the positive pole outside.

*Do not use batteries or adapters with other plug types, polarity or voltages, your

equipment may be damaged.

I. GENERAL SPECIFICATION

Test Voltage:
Average Search Time:
Power Supply:

Dimensions:
Net weight:
Operating temperature:
Storage Temperature:

16 characters in 1 line(LCD Dot Matrix)

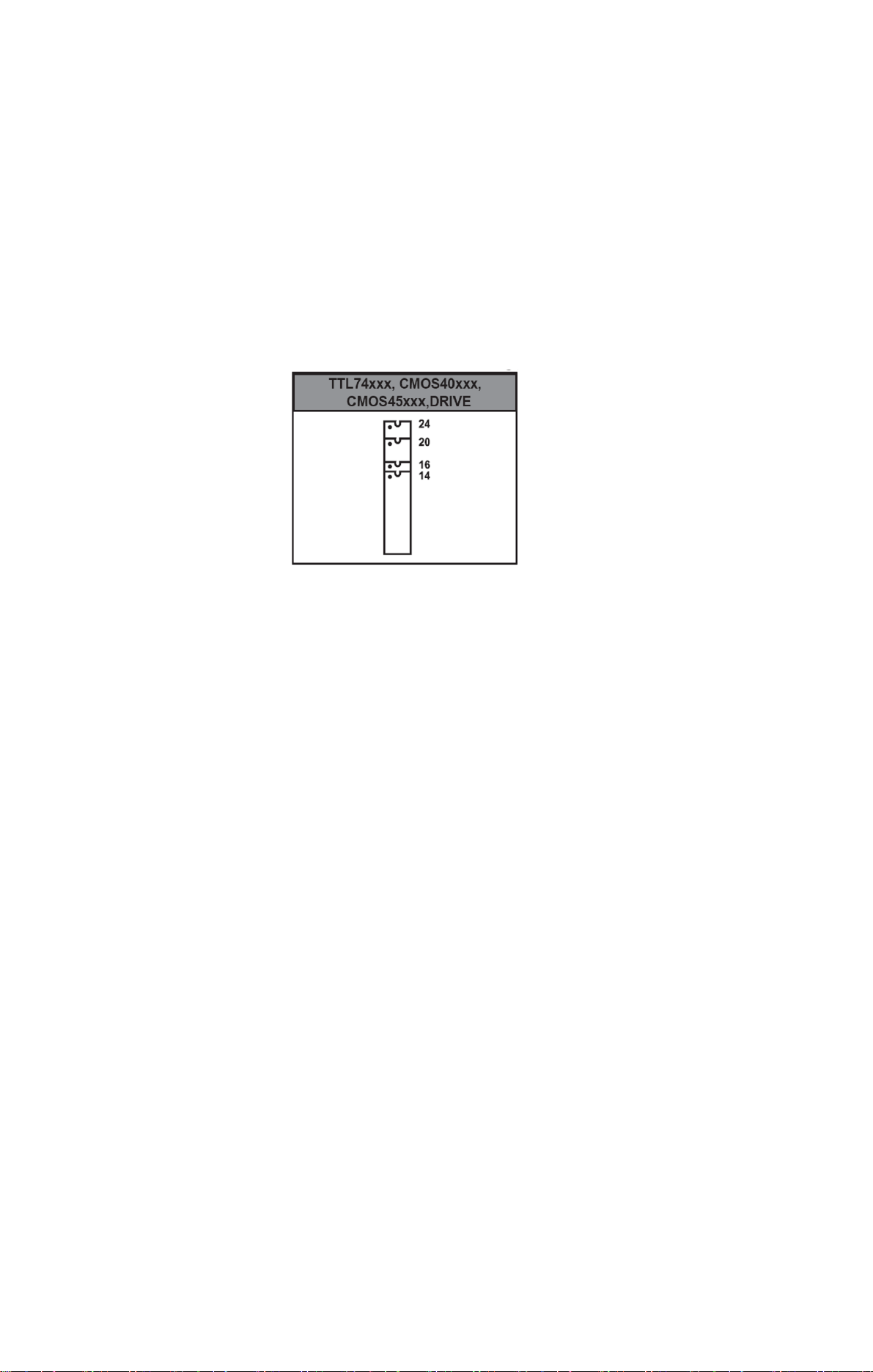

14 to 24 pins
TTL74xxx, CMOS40xxx, CMOS45xxx,
DRIVER2xxx

5.0V, 3.3V, 3.0V, 2.5V

0.6 second
2 x 9 volt battery
9V / DC 500mA adapter

160 × 110 × 45 mm (L W H)

0.4 kg(not included battery)

10 °C to 50 °C

-20 °C to 80 °C

-2-

Display:
Test Pins:
Testable IC series:
