GSI PNEG-1295 User Manual

16" - 36" Platforms

Installation Manual

PNEG-1295

Date: 04-12-07

PNEG-1295

Use of the Equipment Information page will help you identify your equipment in the case that
you need to call your dealer or installer. This information should be filled out and kept on record.

Equipment Information

Model Number:

Serial Number:

Date Purchased:

Dealer / Distributor Name and Phone Number:

Material Handling

1004 East Illinois Street
Assumption, Illinois 62510 USA
Phone: [phone]
FAX: [phone]
e-mail: [e-mail]

2 PNEG-1295 16" - 36" Platforms

C

O

D

O

U

1

.

READ THIS MANUAL carefully to learn how to properly use and install equipment. Failure to do
so could result in personal injury or equipment damage.

INSPECT the shipment immediately upon arrival. The Customer is responsible for ensuring that
all quantities are correct. Report any damage or shortages by recording a detailed description
on the Bill of Lading to justify the Customer’s claim from the Transport Firm. Our responsibility
for damage to the equipment ends with acceptance by the delivering carrier. Save all paperwork
and documentation furnished with any of the equipment.

THIS MANUAL SHOULD BE CONSIDERED a permanent part of your equipment and should be
easily accessible when needed.

WARRANTY is provided as part of the company’s support program for customers who use and
properly maintain their equipment. The warranty is explained on the warranty page located on
the inside back cover of this manual.

This warranty provides you the assurance that the company will back its products where defects
appear within the warranty period. In some circumstances, the company also provides field
improvements, often without charge to the customer, even if the product is out of warranty.
Should the equipment be abused, or modified to change its performance beyond the factory
specifications, the warranty will become void and field improvements may be denied.

R

I

N

T

N

T

I

PNEG-1295 16" - 36" Platform 3

2. SAFETY

Safety Guidelines

This manual contains information that is important for you, the owner/operator, to know and
understand. This information relates to protecting personal safety and preventing equipment
problems. It is the responsibility of the owner/operator to inform anyone operating or working in
the area of this equipment of these safety guidelines. To help you recognize this information, we
use the symbols that are defined below. Please read the manual and pay attention to these
sections. Failure to read this manual and it’s safety instructions is a misuse of the equipment and
may lead to serious injury or death.

This is the safety alert symbol. It is used to alert you
to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.

DANGER

WARNING

CAUTION

CAUTION

NOTE

DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.

WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.

CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury.

CAUTION used without the safety alert symbol indicates
a potentially hazardous situation which, if not avoided,
may result in property damage.

NOTE indicates information about the equipment that
you should pay special attention to.

4 PNEG-1295 16" - 36" Platform

Follow Safety Instructions

Carefully read all safety messages in this manual and
on your machine safety signs. Keep signs in good
condition. Replace missing or damaged safety signs.
Be sure new equipment components and repair parts
include the current safety signs. Replacement safety
signs are available from the manufacturer.

Learn how to operate the machine and how to use
controls properly. Do not let anyone operate without
instruction.

Keep your machinery in proper working condition.
Unauthorized modifications to the machine
may impair the function and/or safety and affect
machine life. All service accessories are intended
for the proper use in which they were
designed. Any misuse of the equipment or
accessories will void the warranty. Misuse can
cause failure, severe injury or death to the user.
The manufacturer cannot be responsible for the
erection or use of the bucket elevator and it’s
accessories.

2. SAFETY

If you do not understand any part of this manual and
need assistance, contact your dealer.

Practice Safe Maintenance

Understand service procedures before doing
work. Keep area clean and dry.

Never lubricate, service, or adjust machine while
it is in operation. Keep hands, feet, and clothing from
rotating belt and idlers.

Keep all parts in good condition and properly
installed. Fix damage immediately. Replace worn or
broken parts. Remove any build up grease, oil, or
debris.

PNEG-1295 16" - 36" Platform 5

2. SAFETY

Prepare for Emergencies

Be prepared if fire starts.

Keep a first aid kit and fire extinguisher
handy.

Keep emergency numbers for doctors,
ambulance service, hospital, and fire
department near your telephone.

Wear Protective Clothing

Wear close fitting clothing and safety
equipment appropriate to the job.

Safety glasses should be worn at all times
to protect eyes from debris.

Keep Emergency Equipment Quickly
Accessible.

Eye Protection

Wear gloves to protect your hands from
sharp edges on plastic or steel parts.

Wear steel toe boots to help protect your
toes from falling debris.

A respirator may be needed if a hog house
has poor ventilation. Waste fumes can be
toxic.

Remove all jewelry.

Tuck in any loose or dangling shoe strings.

Gloves

Steel Toe Boots

Respirator

Long hair should be tied up and back.

Wear hard hat to help protect your head.

Hard Hat

6 PNEG-1295 16" - 36" Platform

Table of Contents

Contents

Chapter 1 Introduction ....................................................................................................................... 3

Chapter 2 Safety .................................................................................................................................. 4

Safety Guidelines ................................................................................................................ 4

Chapter 3 Decal Location ................................................................................................................... 8

Chapter 4 16"- 24" Platform Assembly ............................................................................................. 9

Main Support Channels ....................................................................................................... 9

Decking ............................................................................................................................. 10

Toeboards ......................................................................................................................... 11

Handrail Posts ................................................................................................................... 11

Hatch Door ........................................................................................................................ 12

Handrails ........................................................................................................................... 13

Chapter 5 36" Platform Assembly ................................................................................................... 14

Deck Support Channel ...................................................................................................... 14

Decking ............................................................................................................................. 15

Toeboards ......................................................................................................................... 15

Handrail Posts ................................................................................................................... 16

Hatch Door ........................................................................................................................ 17

Handrails ........................................................................................................................... 18

Chapter 6 Ladder Assembly ............................................................................................................ 19

Tie Angle Attachment ........................................................................................................ 19

Tie Angle and Cross Braces ............................................................................................. 20

Ladder Stand Off Bracket .................................................................................................. 21

Ladder Attachment ............................................................................................................ 22

Safety Cage Hoop Assembly ............................................................................................ 23

14' Ladder Assembly ......................................................................................................... 24

Safety Cage Vertical Bar Attachment ................................................................................ 25

Safety Cage Flare Attachment Painted ............................................................................. 26

Chapter 7 Rest Platform Assembly ................................................................................................. 27

Mounting Channels ........................................................................................................... 27

Cross Channels .................................................................................................................28

Rest Platform Deck Plate .................................................................................................. 29

Platform Corner Post ......................................................................................................... 30

Short and Long Handrail ................................................................................................... 31

14' Complete Rest Platform Assembly .............................................................................. 32

Chapter 8 4 x 5 Distributor Platform ................................................................................................ 33

Platform Clamps ................................................................................................................33

Support Channels & Knee Braces .................................................................................... 34

Platform Deck .................................................................................................................... 35

Vertical Posts & Toeboard ................................................................................................ 36

Handrail ............................................................................................................................. 37

Chapter 9 6 x 6 Distributor Platform ................................................................................................ 38

Platform Clamps ................................................................................................................38

Support Channels & Knee Braces .................................................................................... 39

Toeboards ......................................................................................................................... 40

Platform Decking ...............................................................................................................41

Handrails ........................................................................................................................... 42

Crossbraces for Knee Braces ........................................................................................... 43

Chapter 10 Warranty ......................................................................................................................... 45

PNEG-1295 16" - 36" Platform 7

3. DECAL LOCATION

Decal located on bottom of platform access door.

8 PNEG-1295 16" - 36" Platform

R

M

A

L

A

T

P

2

4

6

4

Main Support Channels

When laying out the ladder, safety cage, and platforms be sure to always start from the head
service platform and work your way down the leg. Keep in mind a rest platform needs to be
located at every 30' of vertical descent to comply with O.S.H.A Standards.

Take time now and review all instructions and drawings before attempting to assemble the
platforms. Layout all parts for easy identification. Determine if your equipment is left or right hand
shaft. The support channels will mount in the same location for right hand or left hand drive
setup. The support channels will extend same distance on each side of the head. Start the head
service platform assembly by attaching two support channels to the head platform clips.
Use 3/8" x 1" bolts and whiz nuts (See Figure 4A).

"

.

1

"

-

O

F

L

Y

B

M

S

E

S

Channel, 16/*24" Main Support

Figure 4A

PNEG-1295 16" - 36" Platform 9

4. 16"- 24" PLATFORM ASSEMBLY

Decking

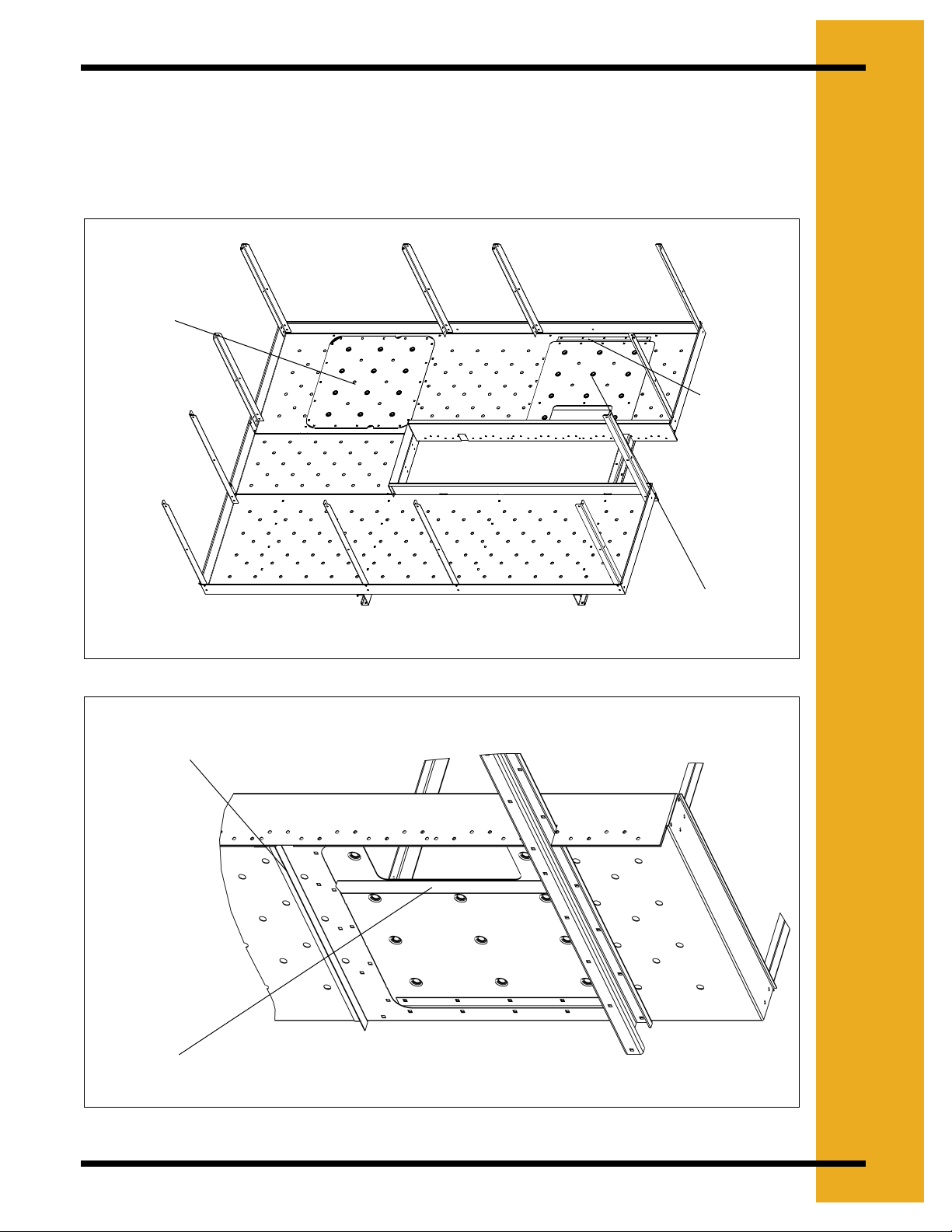

The drive deck and hatch deck sections are interchangeable. All shown views are consistent for
a right hand drive elevator. If you are assembling a left hand drive elevator the hatch deck would
be closest to you and the drive deck farthest in Figure 4B. Place outside floor sections
(Drive Attach) on support channels in location shown below and fasten using 3/8" x 1" carriage
bolts and whiz nuts. Fasten mid drive deck to the two outside floor sections with 3/8" x 1" bolts
and whiz nuts. Make sure not to tighten the hardware until assembly is complete.

Deck, 16/24"
Hatch (HP1624HD)

Deck, 16/14" Mid Drive
(HP1624MDD)

Deck, 16/24" Drive
(HP1624DD)

Deck, 16/24"
Hatch (HP1624HD)

Deck, 16/14" Mid
Drive (HP1624MDD)

Deck, 16/24" Drive
(HP1624DD)

Figure 4B 24" Platform

Bracket, 16/24"
HP Adapter
(HP1624AB)

Figure 4C 16" Platform

10 PNEG-1295 16" - 36" Platform

4. 16"- 24" PLATFORM ASSEMBLY

Toeboards

Fasten toeboards to floor sections in the position shown position using 3/8" x 1" bolts and whiz
nuts. Make sure not to tighten hardware until assembly is complete.

Toeboard, 16/24"
Side (HP1624STB)

Figure 4D 24" Platform

Handrail Posts

Place vertical posts in position as shown. Fasten with 3/8" x 1" bolts and whiz nuts. Make sure
not to tighten hardware until assembly is complete.

Post, 48(26) Hand Rail,
HP482HP

Figure 4E 24" Platform

PNEG-1295 16" - 36" Platform 11

4. 16"- 24" PLATFORM ASSEMBLY

Hatch Door

Attach the hatch door hinges to the hatch deck door using 3/8" x 1" carriage bolts and whiz nuts.
Next attach the door hinge to the hatch deck using 3/8" x 1" carriage bolts and whiz nuts. Attach
hatch deck support and hatch support as shown in Figure 4F using 3/8" x 1" carriage bolts and
flange nuts. Attach hatch deck filler with 3/8" x 1" carriage bolts.

Filler, 16/24"
Hatch Deck
(HP1624HDF)

Hinge, 16/24"
Hatch
(HP1624HH)

Door, 16/24"

Support 16/24" HP
Hatch Deck (2)
(HP1624HDS)

Hatch Deck
(HD1624HDD)

Figure 4F 24" Platform

Support 16/24" HP
Hatch (HP1624HS)

Figure 4G 16" Platform

12 PNEG-1295 16" - 36" Platform

4. 16"- 24" PLATFORM ASSEMBLY

Handrails

Attach handrails to vertical posts in position as shown in Figure 4H with 3/8" x 1" hardware.
Attach latch assembly for deck hatch door to lower handrail next to the center vertical post using
5/16" x 1" hardware. Now go back and tighten all hardware.

Handrail, 16/24" Long
(HP1624LH)

Handrail, 16/24" Short
(HP1624SH)

Latch Assembly
(GSB30120)

Figure 4H 24" Platform

Figure 4I 16" Platform

PNEG-1295 16" - 36" Platform 13

5. 36" PLATFORM ASSEMBLY

Deck Support Channel

When laying out the ladder, safety cage, and platforms be sure to always start from the head
service platform and work your way down the leg. Keep in mind a rest platform needs to be
located at every 30' of vertical descent to comply with O.S.H.A Standards.

Take time now and review all instructions and drawings before attempting to assemble the
platforms. Layout all parts for easy identification. Determine if your equipment is left or right hand
shaft. The support channels will mount in the same location for right hand or left hand drive
setup. The support channels will extend same distance on each side of the head. Start the head
service platform assembly by attaching two support channels to the head platform clips.
Use 3/8" x 1" bolts and whiz nuts (See Figure 5A).

Channel, 36" Cross Deck
Support (HP36CDSC)

Figure 5A 36" Platform

14 PNEG-1295 16" - 36" Platform

5. 36" PLATFORM ASSEMBLY

Decking

The drive deck and hatch deck sections are interchangeable. All shown views are consistent for
a right hand drive elevator. If you are assembling a left hand drive elevator the hatch deck would
be closest to you and the drive deck farthest in Figure 5B. Place outside floor sections
(Drive Attach) on support channels in location shown below and fasten using 3/8" x 1" carriage
bolts and whiz nuts. Fasten mid drive deck to the two outside floor sections with 3/8" x 1" carriage
bolts and whiz nuts. Make sure not to tighten the hardware until assembly is complete.

Deck, 36" Hatch
(HP36HD)

Deck, 36" Mid Drive
(HP36MDD)

Deck, 36" HP Drive
(HP36DD)

Toeboards

Figure 5B 36" Platform

Fasten toeboards to floor sections in the position shown position using 3/8" x 1" bolts and whiz
nuts. Make sure not to tighten hardware until assembly is complete.

Toeboard, 36" Hatch
(HP36STB)

Figure 5C 36" Platform

PNEG-1295 16" - 36" Platform 15

5. 36" PLATFORM ASSEMBLY

Handrail Posts

Place Handrail posts in position as shown Figure 5D. Fasten with 3/8" x 1" bolts and whiz nuts.
Make sure not to tighten hardware until assembly is complete.

Post, 48 (26)
Handrail
(HP482HP)

Figure 5D 36" Platform

16 PNEG-1295 16" - 36" Platform

5. 36" PLATFORM ASSEMBLY

Hatch Door

Attach the hatch door hinges to the hatch deck door using 1" carriage bolts and whiz nuts. Next
attach the door hinge to the hatch deck using 3/8 x 1" carriage bolts and whiz nuts. Attach hatch
deck support and hatch support as shown in Figure 5F using 3/8" x 1" bolts and flange nuts.
Attach hatch deck filler with 3/8" x 1" carriage bolts.

Filler, 16/24"
Hatch Deck
(HP1624HDF)

Hinge,

16/24" Hatch

(HP1624HH)

Support, 16/24" HP Hatch
Deck (HP1624HDS)

Door, 16/24"
Hatch Deck
(HD1624HDD)

Figure 5E 36" Platform

Support, 16/24" HP Hatch
(HP1624HS)

Figure 5F 36" Platform

PNEG-1295 16" - 36" Platform 17

5. 36" PLATFORM ASSEMBLY

Handrails

Attach handrails to handrail posts in position as shown in Figure 5D with 3/8" x 1" hardware.
Attach latch assembly for deck hatch door to lower handrail next to the center vertical post using
5/16" x 1" hardware. Now go back and tighten all hardware.

Handrail, 36"
Short (HP36SH)

Latch Assembly
(GSB30120)

Handrail,

36" Discharge

(HP36DH)

Spacer, 36" Discharge
Handrail (HP36DHS)

Handrail, 36" HP
Long (HP36LH)

Figure 5G 36" Platform

18 PNEG-1295 16" - 36" Platform

6

D

A

.

D

L

E

R

A

L

B

M

S

E

S

Tie Angle Attachment

Attach the up and down legs together with the tie angles. Position the tie angles as shown and
fasten with the 1/2" - 13 x 1" bolts.

Y

Painted

Galvanized

Figure 6A

1. Trunking Section

2. 1/2" - 13 Hex Nut

3. Tie Angle

4. 1/2" - 13 x 1" Hex Bolt

PNEG-1295 16" - 36" Platform 19

6. LADDER ASSEMBLY

Tie Angle and Cross Braces

Figure 6B

20 PNEG-1295 16" - 36" Platform

Ladder Stand Off Bracket

Attach the ladder stand off bracket to the tie angles.

6. LADDER ASSEMBLY

Painted

Galvanized

Figure 6C

1. 1/2" - 13 x 1" Hex Bolt

2. 1/2" - 13 Hex Nut

3. Ladder Stand off Bracket

4. Tie Angle

PNEG-1295 16" - 36" Platform 21

6. LADDER ASSEMBLY

Ladder Attachment

When attaching the ladder to the standoffs the ladder is attached through the second hole down
from the end of the ladder. The first hole is used to attach the safety cage hoop.

Note: On 16" & 24" the stand off angles and cages mount inside ladder. On 30" & 36" the

stand off Angle and cages mount to outside of ladder.

Painted Galvanized

Figure 6D

1. 1/2" - 13 x 1" Hex Bolt

2. 1/2" - 13 Hex Nut

3. 10' Ladder section**

4. 27" Safety Cage Hoop**

22 PNEG-1295 16" - 36" Platform

6. LADDER ASSEMBLY

Safety Cage Hoop Assembly

Bolt all safety cage hoops to ladder as shown below. Leave all bolts loose until the vertical bars
are in place and then tighten all hardware.

Painted

Galvanized

Figure 6E

PNEG-1295 16" - 36" Platform 23

6. LADDER ASSEMBLY

14' Ladder Assembly

Painted

Galvanized

Figure 6F

24 PNEG-1295 16" - 36" Platform

6. LADDER ASSEMBLY

Safety Cage Vertical Bar Attachment

Bolt all safety cage vertical bars to the cage hoops as shown below.

Painted

Galvanized

Figure 6G

1. 1/2" - 13 x 1" Hex Bolt

2. 1/2" - 13 Hex Nut

3. Safety Cage Vertical Nut

PNEG-1295 16" - 36" Platform 25

6. LADDER ASSEMBLY

Safety Cage Flare Attachment Painted

Painted

Galvanized

Figure 6H

1. 1/2" - 13 x 1" Hex Bolt 1. 1/2" - 13 x 1" Hex Bolt

2. 1/2" - 13 Hex Nut 2. 1/2" - 13 Hex Nut

3. Safety Cage Tapper Vertical Bar 3. Safety Cage Tapper Vertical Bar

4. 30" Safety Cage Hoop 4. 31" Safety Cage Hoop

5. 27" Safety Cage Hoop 5. 27" Safety Cage Hoop

6. 3/8 - 16 Hex Bolt

7. 3/8 - 16 Flange Nut

26 PNEG-1295 16" - 36" Platform

R

M

A

L

A

T

P

S

T

.

R

E

7

Mounting Channels

The first step to assemble the rest platform is to attach the mounting channels to the tie angles
with 1/2" x 3/4" bolts and whiz nuts. For 16" & 24" special tie angles are in rest platform packages
(GECT1640FCRP) and must be mounted in place of standard tie angles.

Tie Angle, 16/24" Formed RP
(GECT1640FCRP)

O

F

L

B

M

S

E

S

Y

Channel, 16/36" RP Mounting
(RP1636MC)

Figure 7A

PNEG-1295 16" - 36" Platform 27

7. REST PLATFORM ASSEMBLY

Cross Channels

The next step is to attach the cross channels to the mounting channels with 3/8" x 3/4" bolts and
hex nuts as shown in Figure 7B.

Channel,16/36" RP Cross
(RP1636CC)

Figure 7B

28 PNEG-1295 16" - 36" Platform

7. REST PLATFORM ASSEMBLY

Rest Platform Deck Plate

With 3/8" x 3/4" Bolts and Flange nuts, bolt the deck plate to the mounting and cross channels
as shown in Figure 7C. With 1/2" x 1" Hex bolts and Flange nuts, snug the ladder clips in place.
Mounting with the flange nuts on the bottom of the deck plate will make adjusting the ladder clips
easier in the air.

Clip, 16/36" RP Ladder
(RP1636LC)

Plate, 16/36" RP Deck
(RP1636DP)

Figure 7C

PNEG-1295 16" - 36" Platform 29

7. REST PLATFORM ASSEMBLY

Platform Corner Post

Next attach the handrail posts to the mounting and cross channels as shown with 3/8" x 3/4" bolts
and whiz nuts as shown in Figure 7D. Leaving hardware loose will help fit other parts in place.

Post, 48 (26) Handrail,
(HP482HP)

Figure 7D

30 PNEG-1295 16" - 36" Platform

7. REST PLATFORM ASSEMBLY

Short and Long Handrail

Bolt on all the Short and Long Handrails. As shown in Figure 7E using 3/8" x 3/4" hex bolts and

nuts.

flange

Handrail, 16/36" RP Short
(RP1636SH)

Handrail, 16/36" RP Long
(RP1636LH)

Figure 7E

PNEG-1295 16" - 36" Platform 31

7. REST PLATFORM ASSEMBLY

14' Complete Rest Platform Assembly

Figure 7F

32 PNEG-1295 16" - 36" Platform

T

O

R

L

X

D

5

8

.

4

Platform Clamps

This assembly is designed to be located at any elevation on trunking that’s needed to provide
access to other equipment. Determine elevation of platform surface and work from there. Locate
all parts required for assembly by using the charts shown in the following figures.

Locate all parts to assemble clamps onto the trunking. Measure the distance between the
clamps to assure proper location for support channels and knee brace attachment. Attach a
clamp half and support clip on one end of the support channel using 1/2" hardware. Next attach
the clamp rod weldment onto the clamp half using 1/2" nuts. Next place this assembly around
trunk and attach other clamp half and support clip using 1/2" hardware.

Note: When tightening clamps onto trunking, do not overtighten and collapse the

trunking.

R

I

S

T

O

U

I

B

T

A

P

M

R

F

Figure 8A

PNEG-1295 16" - 36" Platform 33

8. 4 X 5 DISTRIBUTOR PLATFORM

Support Channels & Knee Braces

With clamps fastened securely to the trunk, attach the platform support channels to the middle
clamp, use 1/2" hardware with this assembly. The knee braces will attach in the upper set of
holes on side of support channel and to the lower clamp. Attach knee brace diagonals to bottom
side of knee braces. Before tightening hardware the support channels must be perpendicular to
the trunk, now tighten all hardware.

Figure 8B

34 PNEG-1295 16" - 36" Platform

8. 4 X 5 DISTRIBUTOR PLATFORM

Platform Deck

With support assembly attached to trunk and hardware tightened, proceed with attaching floor
deck weldment to the support channels using 1/2" hardware.

Figure 8C

PNEG-1295 16" - 36" Platform 35

8. 4 X 5 DISTRIBUTOR PLATFORM

Vertical Posts & Toeboard

Locate the toeboard cover plate and bolt over unused notched toeboard area using 3/8"
hardware. Next attach all vertical posts in position shown with 3/8" hardware. Now bolt the
handrail brace plate to the vertical post as shown below. Make sure not to tighten hardware till
handrail assembly is complete.

Figure 8D

36 PNEG-1295 16" - 36" Platform

8. 4 X 5 DISTRIBUTOR PLATFORM

Handrail

Attach all handrails in position shown below using 3/8" hardware. Next attach handrail brace
using 3/8" hardware. Now go back and tighten all hardware.

Figure 8E

PNEG-1295 16" - 36" Platform 37

9. 6 X 6 DISTRIBUTOR PLATFORM

Platform Clamps

This assembly is designed to be located at any elevation on trunking that’s needed to provide
access to other equipment. Determine elevation of platform surface and work from there. Locate
all parts required for assembly by using the charts shown in the following figures.

Locate all clamp halves, clamp brackets, threaded rods, and hardware to assemble clamps onto
the trunking. Measure the distance between the clamps to assure proper location for support
channels and knee brace attachment. See clamp detail for hardware orientation. Place 5/8" nuts
and lock washers on a threaded rod (one from each end). Place a clamp half on each end of the
rod and thread another nut and lock washer to hold clamp in place. Now place that assembly
around trunk and place a clamp bracket onto the opposite end of the clamp assembly and use
1/2" hardware to fasten parts together. Adjust the position of the inside nuts of the rod assembly
to allow the clamps to be tightened onto the trunking.

Note: Tighten clamps onto trunking, do not overtighten and collapse the trunking.

Position inside nuts back to the clamp and tighten.

Figure 9A

38 PNEG-1295 16" - 36" Platform

9. 6 X 6 DISTRIBUTOR PLATFORM

Support Channels & Knee Braces

With clamps fastened securely to the trunk, attach the platform support channels to the middle
clamp, use 1/2" hardware with this assembly. The knee braces will attach in the upper set of
holes on side of support channel and to the lower clamp. Before tightening hardware the support
channels must be perpendicular to the trunk, now tighten all hardware.The toeboards will not be
centered on trunking but should be offset to the ladder side. The platform is designed to work for
either side of trunking access.

Figure 9B

PNEG-1295 16" - 36" Platform 39

9. 6 X 6 DISTRIBUTOR PLATFORM

Toeboards

With support assembly attached to trunk and hardware tightened, proceed by attaching the
notched toeboard and unnotched toeboard to the top of the support channel using the 5/16"
hardware provided. (Leave hardware loose) (See Figure 9D).

Figure 9C

40 PNEG-1295 16" - 36" Platform

9. 6 X 6 DISTRIBUTOR PLATFORM

Platform Decking

Attach the floor deck panels to the support channels. Then attach end toeboards to the platform
decking with the 5/16" hardware provided. After all pieces have been attached and positioned
properly, tighten all hardware.

Figure 9D

PNEG-1295 16" - 36" Platform 41

9. 6 X 6 DISTRIBUTOR PLATFORM

Handrails

Locate the toe board cover plate (DSP36001) and bolt over the unused notched toe board area.
Attach handrail posts to the toe boards as shown using the 5/16" hardware provided. (Leave
hardware loose until all handrails are in place). Attach all handrail angles and brace angle.

(See Figure 9F). After all pieces have been attached go back and tighten all hardware.
See Chart below for part numbers and lengths of all handrails.

Figure 9E

Model Size

Handrail DSP36009 - 51.1/2"

Handrail DSP36010 - 74.7/8"

Handrail DSP36011 - 74"

Post DSP36012 - 43.1/2"

Brace DSP36013 - 37.3/4"

42 PNEG-1295 16" - 36" Platform

9. 6 X 6 DISTRIBUTOR PLATFORM

Crossbraces for Knee Braces

Attach knee brace diagonals to bottom side of the knee braces, this will add extra stability to the
distributor platform (See Figure 9F).

Figure 9F

PNEG-1295 16" - 36" Platform 43

NOTES

44 PNEG-1295 16" - 36" Platform

a

n

a

W

r

.

1

0

THE GSI GROUP, INC. (GSI) WARRANTS ALL PRODUCTS WHICH IT MANUFACTURES TO
BE FREE OF DEFECTS IN MATERIAL AND WORKMANSHIP UNDER NORMAL USAGE AND
CONDITIONS FOR A PERIOD OF 12 MONTHS AFTER RETAIL SALE TO THE ORIGINAL
END USER. THE PURCHASER’S SOLE REMEDY AND GSI’S ONLY OBLIGATION SHALL BE
TO REPAIR OR REPLACE, AT GSI’S OPTION AND EXPENSE, PRODUCTS THAT, IN GSI’S
SOLE JUDGMENT, CONTAIN A MATERIAL DEFECT DUE TO MATERIALS OR
WORKMANSHIP. ALL DELIVERY AND SHIPMENT CHARGES TO AND FROM GSI’S
FACTORY WILL BE PURCHASER’S RESPONSIBILITY. EXPENSES INCURRED BY OR ON
BEHALF OF THE PURCHASER WITHOUT PRIOR WRITTEN AUTHORIZATION FROM AN
AUTHORIZED EMPLOYEE OF GSI SHALL BE THE SOLE RESPONSIBILITY OF THE
PURCHASER.

EXCEPT FOR THE LIMITED WARRANTY EXPRESSED ABOVE, GSI MAKES NO FURTHER
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR
USE IN CONNECTION WITH (I) PRODUCT MANUFACTURED OR SOLD BY GSI OR (I) ANY
ADVICE, INSTRUCTION, RECOMMENDATION OR SUGGESTION PROVIDED BY AN
AGENT, REPRESENTATIVE OR EMPLOYEE OF GSI REGARDING OR RELATED TO THE
CONFIGURATION, INSTALLATION, LAYOUT, SUITABILITY FOR A PARTICULAR
PURPOSE, OR DESIGN OF SUCH PRODUCTS.

GSI SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF
ANTICIPATED PROFITS OR BENEFITS. PURCHASER’S SOLE AND EXCLUSIVE REMEDY
IS AS SET FORTH IN THE LIMITED WARRANTY EXPRESSED ABOVE, WHICH SHALL NOT
EXCEED THE AMOUNT PAID FOR THE PRODUCT PURCHASED. THIS WARRANTY IS NOT
TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER. GSI SHALL HAVE
NO OBLIGATION OR RESPONSIBILITY FOR ANY REPRESENTATIONS OR WARRANTIES
MADE BY OR ON BEHALF OF ANY DEALER, AGENT OR DISTRIBUTOR OF GSI.

t

r

y

GSI ASSUMES NO RESPONSIBILITY FOR CLAIMS RESULTING FROM ERECTION
DEFECTS OR UNAUTHORIZED MODIFICATIONS TO PRODUCTS WHICH IT
MANUFACTURED. MODIFICATIONS TO PRODUCTS NOT SPECIFICALLY DELINEATED IN
THE MANUAL ACCOMPANYING THE EQUIPMENT AT INITIAL SALE WILL NULLIFY THE
PRODUCT WARRANTY THAT MIGHT HAVE BEEN OTHERWISE AVAILABLE.

THE FOREGOING WARRANTY SHALL NOT EXTEND TO PRODUCTS OR PARTS WHICH
HAVE BEEN DAMAGED BY NEGLIGENT USE, MISUSE, ALTERATION OR ACCIDENT. THIS
WARRANTY EXTENDS SOLELY TO ONLY PRODUCTS MANUFACTURED BY GSI. THIS
WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR
IMPLIED. GSI RESERVES THE RIGHT TO MAKE DESIGN OR SPECIFICATION CHANGES
AT ANY TIME.

PRIOR TO INSTALLATION, PURCHASER HAS THE RESPONSIBILITY TO COMPLY WITH
ALL FEDERAL, STATE AND LOCAL CODES WHICH MAY APPLY TO THE LOCATION AND
INSTALLATION OF PRODUCTS MANUFACTURED OR SOLD BY GSI.

PHLEGAL: #1832020 v1 (139LG01!.DOC) (revised December 2005)

PNEG-1295 16" - 36" Platform 45

This equipment shall be installed in accordance with

the current installation codes and applicable

regulations which should be carefully followed in all

cases. Authorities having jurisdiction should be

consulted before installations are made.

Internet: http://www.grainsystems.com

Copyright © 2007 by the GSI Group
Printed in the USA

GSI Group, Inc.

1004 E. Illinois St.

Assumption, IL 62510-0020

Phone: [phone]

Fax: [phone]
