GSi GS-PTZ-2210, GS-PTZ-1010 User Manual

GS-PTZ-1010

GS-PTZ-2210

GOLDEN STATE
INSTRUMENT CO.

User’s Manual

Outdoor PTZ Color

Dome Camera

Please read this manual carefully before operating the high speed integrated video camera.

LIST

Precautions……………………………………………………………2

1.0 Installation…………………………………………………………4

1.1 Indoor type…………………………………………………………4

1.2 Indoor ceiling installation…………………………………………4

1.3 Indoor boom installation……………………………………………5

1.4 Indoor wall installation……………………………………………6

1.5 Indoor embedded installation………………………………………6

1.6 Accessories for indoor installation…………………………………7

2.0 Outdoor type…………………………………………………………8

2.1 Outdoor installation…………………………………………………8

2.2 Accessories of the outdoor installation………………………………12

3.0 Operation mode………………………………………………………14

3.1 Technical parameter…………………………………………………14

3.2 Connection method………………………………………………16

3.3 Address code setting………………………………………………17

3.4 Protocol code setting………………………………………………19

3.5 Indication light description…………………………………………20

4.0 Normal function……………………………………………………20

4.1 Description of icons of the video camera…………………………26

4.2 Solution of common failures………………………………………27

4.3 Connection style of RS-485 bus……………………………………28

5.0 Selection of code dialing switch……………………………………29

1

2

Precautions
1． Never disassemble the video camera without authorization.

Never disassemble the screws or protection cover to avoid electrical

shock.. No part inside the machine can be repaired by the users

themselves.

Related maintenance and repair work shall be carried out by qualified

maintenance persons.

2． Use your video camera carefully.

Never use the video camera at random. Protect the camera from being

impacted and vibration. The video camera may be damaged if it is used

or stored in an improper way.

3． Never let the video camera get wet in the rain or be used in moist

place.

The indoor spherical video camera is designed for indoor use, so set it in

a place not under rain or moist. It should be maintained by the qualified

maintenance person after cutting off the power. Moisture may damage

the camera and cause electric shock.

4． Never use strong cleanser with polishing property when cleaning the

camera body.

Wipe the camera with dry and soft cloth when it gets dirt. If the dirt is

serious, slightly wipe it off with neutral cleanser. While wiping, be

careful not to scratch the round protection housing. Then, wipe out the

remainder of the cleanser with dry cloth.

5． Never aim at the sun with the video camera

Never aim at the bright object with the video camera. The video camera

should not be aimed at the sun or other very bright objects not matter

whether it is in use or not. Otherwise, the image may be faint or have

halation.

6． Never aim the camera at strong light or expose under the light

source for a long time.

3

If the spot light source such as shooting light forms a facula on the

display screen, the CCD color filter of the camera may be fading.

7． Don't install the video camera upside down.

This video camera is designed to be installed on the ceiling or wall. If

installing the camera upside down, e. g., on the floor, the camera may

fail.

8． Never use the video camera in conditions exceeding the temperature

and humidity limit or the power supply specification.

Never use this device in the extreme environment of high temperature

and humidity. Never put it near the radiator, stove or other equipments

that generate heat.

9． Don't install the video camera near the air outlet of the air

conditioner.

In the following conditions the lens may get mist due to water vapor

condensation.

(a) Rapid change between high and low temperatures due to the

from-time-to-time on and off state of the air conditioner.

(b) Rapid change between high and low temperatures due to the

from-time-to-time opening and close of the door.

(c) Used in an environment that easily makes the glasses get mist.

(d) Used in a room full of smoke or dust.

When the lens gets mist due to water vapor condensation, take off the

housing and wipe the surface with a piece of soft cloth to remove all the

moist.

10． Consumables

Parts with contacts such as the lens driving motor, cooling fan motor,

and built-in sliding rings may be worn out after long time of use. For the

replacement and maintenance of these parts, please consult the nearby

maintenance center.

11． Don’t aim the video camera at the same object for a long time.

It may burn a shadow of the object on the screen of the CRT.

1.0 Installation

1.1 Indoor type Structure

1.2 Indoor ceiling installation:

(1)Use the dimension provided by the Note: If the ceiling installation is out

manufacturer mark out the position of the line, drill the line holes on the

of the 3 installation screws on the ceiling, but no hole is necessary if it

ceiling as shown in the figure below. is out of the line on the side.

4

(3) Fix the base plate of the video (4) Install the spherical housing on the

camera on the ceiling plate with base plate of the video camera

3 screws. according to the figure and then,

push the decoration ring up into

the slot.

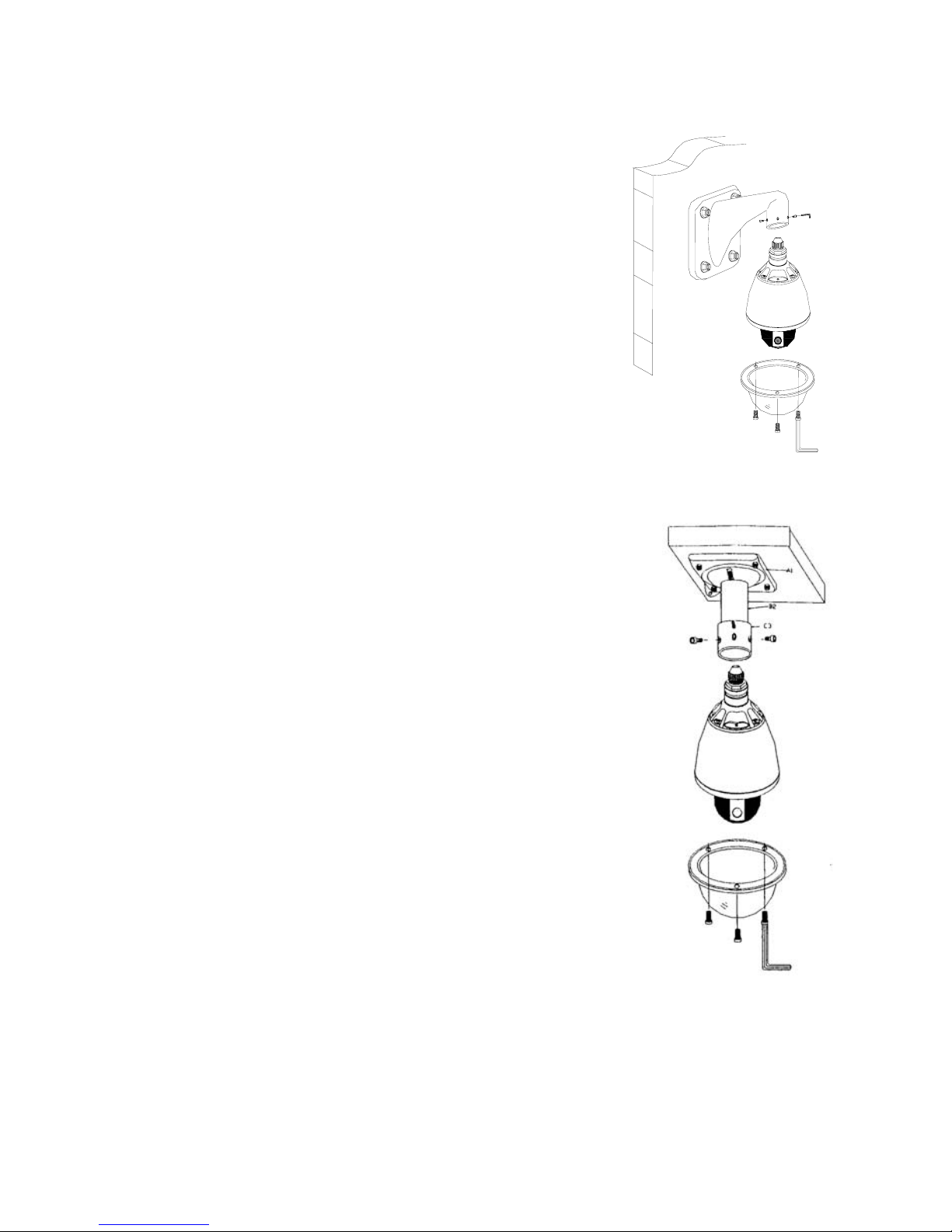

1.3 Indoor boom installation

clamp screw

(1) Connect the installation base plate

A1

(A1) to the fixity with screw driver;

turn on the connecting tube (B2); and

then, turn tight the clamp screw and turn

B2

on the flange connecting sleeve (C3) and clamp

turn tight the clamp screw.

(2) Connect the base plate of the spherical

C3

upward

device to the spherical flange with the 3

supplied screws according to the figure.

Note: all the wiring should reach at the

plane of the base plate after passing

through the flange. Connect the spherical

flange and (C3) with the supplied M5 screws

5

and wrench as shown in the following figure.

Turn on the housing after the installation.

1.4 The installation of the wall support of the indoor spherical

(1) Fix the wall support to the fixity with screws. (2) Connect the bottom

spherical device plate with the spherical flange with the 3 supplied screws

according to the figure. Note: all the wiring should pass through the flange

outlet. (3) Connect the spherical flange and the wall support with the supplied

M5 screws and wrench. Turn on the housing after the installation.

1.5 Indoor embedded installation:

(1) Drill a hole on the ceiling according (2)Install the spherical device on the

to the dimension on the drawing. telescopic embedded support with

3 screws.
翻

6

7

decoration ring

(3)Install the embedded support into

the installation holes and adjust the three

pressing legs to fix the embedded support.

(4)Install the decoration ring on the spherical device.

1.6 The selection of the accessories of the indoor installation

Ceiling installation support Indoor wall installation support

Telescopic embedded Extended support for

installation support indoor wall installation

2.0 Outdoor type Configuration

2.1 Outdoor installation

8

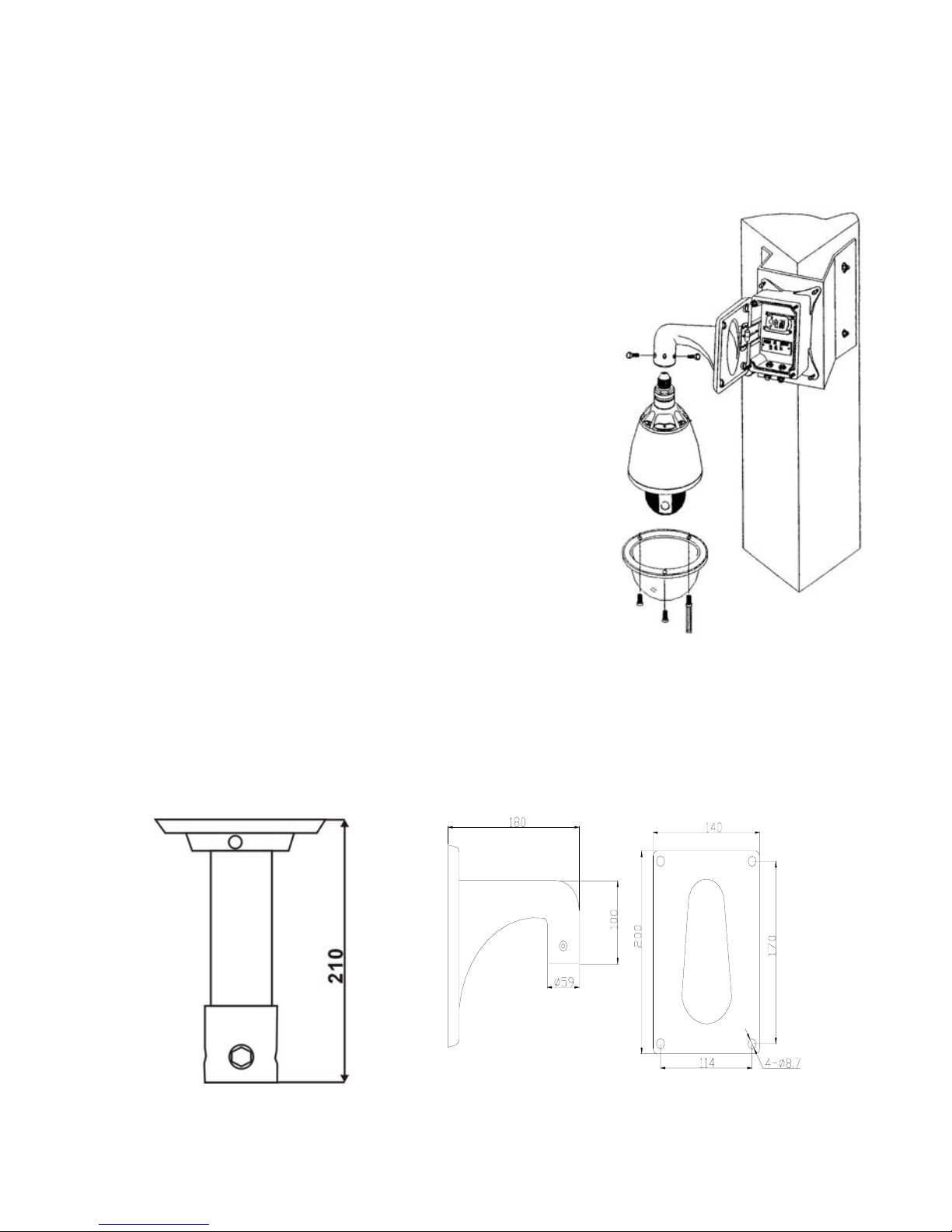

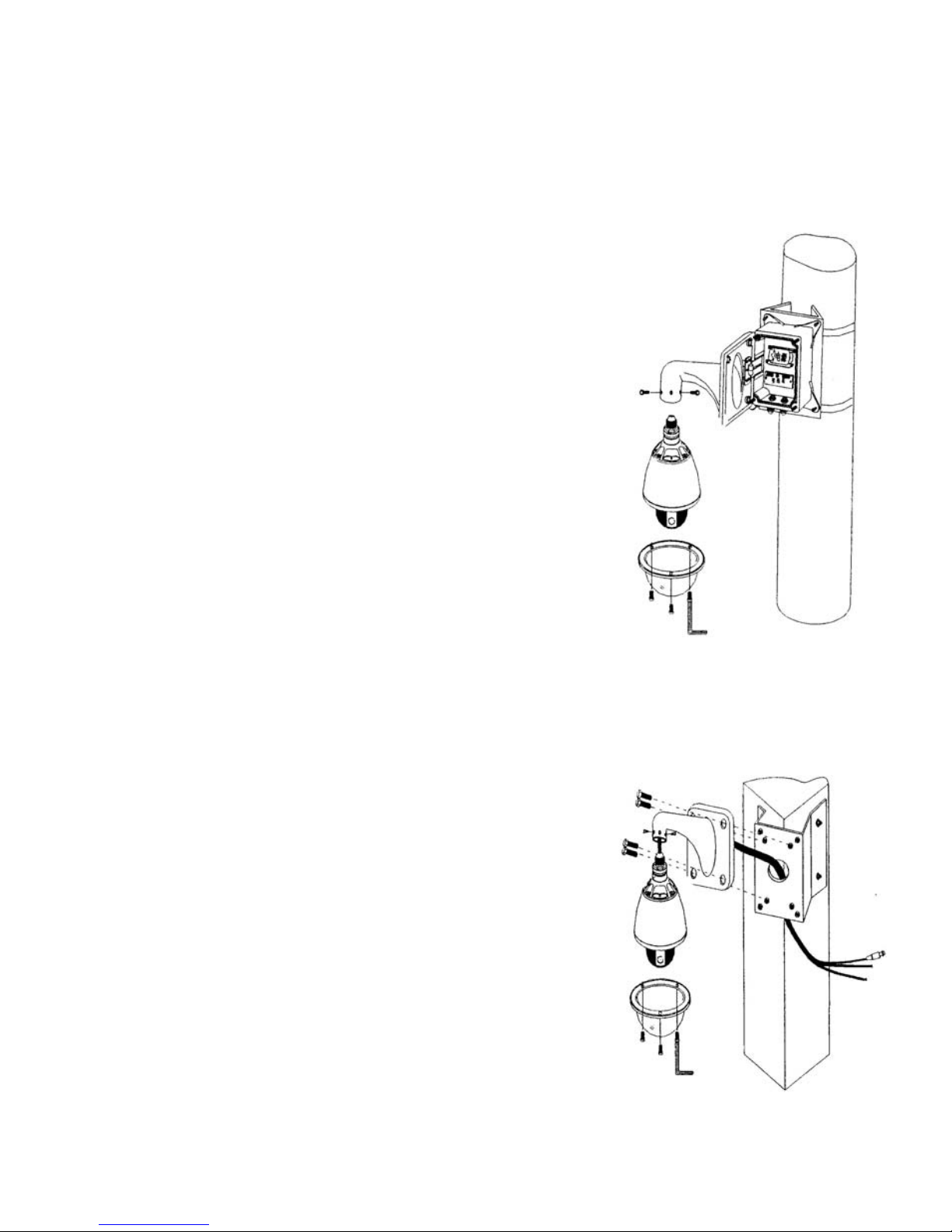

Outdoor wall installation

Outdoor power supply box

(1)Connect the outdoor wall installation

connection box to the fixity with screws

and connect the wall support with hinges.

(2)Connect the wall support and the outdoor

spherical with the supplied M5 screws

and wrench. Note: all the wires should reach

at the connection box through the support.

(3)Plug all the plugs of all the wiring into the

corresponding sockets in the connection box.

(4)Close the box cover and tighten up the four lock nuts.

(5) Disassemble transparent case with the supplied

wrench. Select the protocol and address codes and install the transparent case.
