ENGLISH

15

Please note the following instructions when using
the appliance.

7

The appliance is designed for domestic use
only. Claims on the guarantee are not valid if
the appliance is used for industrial or commer­cial purposes.

7

Observe these instructions in order to prevent
damage to the appliance or danger arising
from improper use. Keep them in a safe place.

7

Do not use on wet surfaces and do not attempt
to use it on wet objects.

7

Do not use the appliance in wet surroundings.

7

Do not use the appliance with wet hands.

7

This appliance is designed for vacuuming dirt
and dust particles. Do not attempt to use it on
large objects which could block the appliance
and damage it.

7

Do not use it on cigarette stubs, ash from a fire­place or matches. This could cause a fire.

7

This appliance is not designed for cleaning
people or animals.

7

Do not insert any foreign objects into the suc­tion intake. Always keep the suction intake free
of any objects.

7

Do not stand the appliance upright while you
are cleaning.

7

Do not roll the appliance over the power cord.

7

Do not close any doors on top of the power cord.

7

Do not pull the power cord round sharp edges
and do not squash it.

7

If you move the appliance to another room,
always disconnect the power cord and carry
the appliance by the handle.

7

Never move the appliance by pulling on the
power cord.

7

Never operate the appliance without the dust
container or filter.

7

Change the filter when necessary.

7

Only use original GRUNDIG accessories when
exchanging parts.

7

Always pull out the power cord before cleaning
or carrying out any maintenance on the
appliance.

7

Whenever possible, insert the power cord plug
directly into the socket. Avoid using extension
cables or multipoint connectors.

7

Pull out the power plug after use. Do not dis­connect the plug by pulling on the cable.

7

Never use the appliance if it or the power cord
is visibly damaged. This also applies if the
appliance has become accidentally wet. Please
contact your specialist dealer if this is the case.

7

If the power cord is damaged, it must be
replaced by the manufacturer, its service centre
or a similarly qualified person to prevent
danger arising.

7

Keep the appliance away from children.

7

The device may not be used by the following
people, including children: those with limited
physical, sensory or mental capabilities and
also those with a lack of experience and
knowledge. This does not apply to the latter if
they were instructed in the use of the device or
if they use it under the supervision of a person
responsible for safety. Children should always
be supervised to ensure that they do not play
with the device.

7

Do not open the appliance under any circums­tances. No warranty claims are accepted for
damage caused by incorrect handling.

SAFETY

___________________________________________________________________

16

ENGLISH

Dear customer,
We hope you enjoy using your new GRUNDIG

bagless vacuum cleaner with its built-in Microban

®

hygiene protection.

Special features

– Microban® hygiene protection in dust container

and filters
– Operating radius approx. 8 meters
– Filtering in four stages using washable filters

with integrated Microban®hygiene protection
– Multi-level extendable telescopic tube for adjus-

ting to individual height
– Multi-floor brush and a cleaning roller (fabric

master)
– Small nozzle for places that are difficult to reach
– Suction brush attachment especially for furnitu-

re, picture frames, etc.
Additional contents include:

– a Microban® HEPA filter
– a Microban® pre-motor filter

What is Microban®?

Microban® is odourless, colourless and tasteless.
Microban® inhibits the growth of micro-organisms

by permeating the cell walls and destroying the
micro-organism cells. These cells are then no lon­ger able to reproduce and growth is prohibited.

Grundig offers an effective way to clean hygieni­cally with the impressive technology from Micro­ban®. The Grundig dust filter is equipped with
the integrated Microban® hygiene protection.

This inhibits the spread of even tiny microscopic
particles including house mites, pollen and dust.

Dangerous bacteria can barely survive with the
integrated Microban® hygiene protection in the
container and filter.

Microban

®

technology has been tested in indepen­dent laboratories and certified, thus making a sig­nificant contribution towards a healthier house­hold.

Controls

See the illustration on page 2.

Multi-level extendable telescopic suction tube.
Handle for guiding the suction tube (curved

tube).
Flexible suction hose.
Dust container cover.
Button for extending and retracting the power

cord.
Switch for adjusting the suction power.
Button for switching on and off.
Handle for carrying the appliance.
Wheels.
Housing.
Dust container catch.
Floor brush.

L

K

J

I

H

G

F

E

D

C

B

A

OVERVIEW

____________________________________________________________

ENGLISH

17

Multi-level extendable telescopic
suction tube

1 Extend the telescopic suction tube by pres-

sing the catch forwards and pull the tube to the
length you require.

2 Release the catch to stop.

Brushes

A multi-floor brush and a cleaning roller (fabric
master) are supplied:
– Multi-floor brush: floor brush with adjustable

height for carpets or hard floors.

– Fabric master: cleaning roller for cleaning texti-

les and material such as curtains (does not suck
up the material).

Depending on your requirement, use the multi­floor brush supplied or the fabric master.

1 Insert the brush or the fabric master into the

telescopic suction tube .

2 Depending on the depth of the carpet pile,

move the switch to the multi-floor brush.

A

A

Small nozzle

Use the small nozzle for cleaning joints, crevi­ces, corners and creases that are difficult to reach.

1 Insert the small nozzle into the telescopic suction

tube .

Note

7

The nozzle can also be inserted onto the curved
tube if needed.

B

A

1

INDIVIDUAL PARTS

_____________________________________________

1

18

ENGLISH

Suction brush attachment

Use the suction brush attachment for cleaning
furniture, picture frames, books, etc.

1 Insert the suction brush attachment into the

telescopic suction tube .

Note

7

The small suction tube and the suction brush
attachment are stored in the holder for accesso­ries on the curved tube .

B

A

2

2

INDIVIDUAL PARTS

_____________________________________________

2

ENGLISH

19

Check that the mains voltage on the type plate
(on the bottom of the appliance) corresponds to
your local mains supply.

Setting up

Your appliance is supplied with a fitted dust con­tainer. Once you have assembled the individual
parts, the appliance is ready to operate.

1 Insert the contact of the flexible hose into the

socket on the dust container until it latches in.

Note

7

To remove the flexible hose , press the catch
on the top of the contact and pull it out.

2 Plug in both suction tubes firmly with and

by turning slightly.

B

A

C

C

3 At the top of the suction tube, insert the grip

of the suction hose onto the lower end of the
floor brush.

4 Press and turn all the plug connectors to plug

in and release again by pulling and turning.

OPERATION

__________________________________________________________

20

ENGLISH

Switching on and off

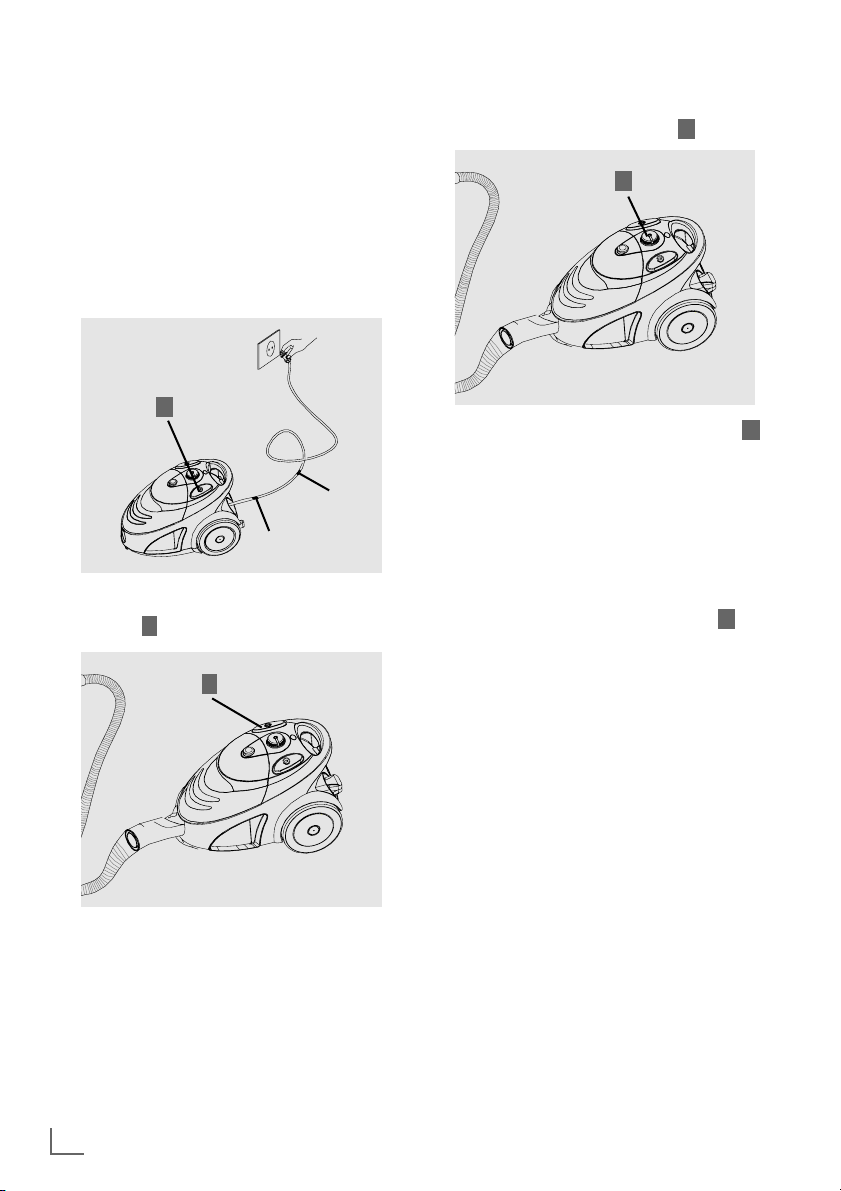

1 Pull out the power cord to the length you require.

Caution

7

A yellow marking appears at the end of the
cord. A red marking shows the the maximum
cord length.
Never attempt to pull out the power cord
beyond the red marking.

2 Plug the power cord into the wall socket.
3 Press the button to switch on the appliance.

G

4 Set the suction power with switch .

5 After use, switch off the appliance with the

button and disconnect the power cord from the
wall socket.

Caution

7

Always disconnect the power cord if the
appliance is not being used.

Suction control

A suction control is located on the handle ,
which you can operate with your thumb. If the
control is fully closed, the maximum suction
power is reached.

However, in some cases such as when cleaning
material or upholstery, it is advisable to have less
suction power. Open the control if and when
required.

B

G

F

OPERATION

__________________________________________________________

E

Red

Yellow

G

F

ENGLISH

21

Retracting the power cord

1 Disconnect the power cord plug from the wall

socket.

2 Hold the power cord in one hand and press

and hold down the button.

3 Guide the power cord carefully into the

appliance.

Caution

7

Always retract the power cord carefully,
as pressing fully on the button and
retracting it very quickly can cause
unpredictable cable movements.

E

E

OPERATION

__________________________________________________________

E

22

ENGLISH

Cleaning the dust container

1 Disconnect the power cord plug from the

wall socket.

2 Remove the flexible hose from the socket on

the dust container.

3 Take the dust container out by pressing on

the catch and pull up the dust container with
the handle.

4 Open the catch flap on the dust container over

a dustbin by pressing the »PUSH« button
under the HEPA filter on the dust container.

K

C

5 Close the dust container by shutting the catch

flap until it latches in.

Note

7

You can clean the inside of the dust container
with a damp cloth. Ensure the dust container is
completely dry before putting it back in.

Note

7

Check the appliance works after cleaning the
dust container. If the suction power is still ina­dequate, the attachment tools, tubes or filter
could be blocked (see the following section).

Caution

7

Never operate the appliance without the dust
container.

Removing blockages

1 Disconnect the power cord plug from the

wall socket.

2 Check the following parts for blockages:

– The contact on the flexible hose .
– The contact between the flexible hose and

the handle .

– The contact between the telescopic suction

tube and the floor brush or other attach­ments.

Note

7

If you have not found the blockage, it might be
at the end of the handle in the connecting piece.
Disconnect the handle for the tool and release
the locking hooks using a flat screwdriver or
something similar. Dismantle the parts and
remove any dirt. Reassemble the parts so that
the locking hooks latch in.

L

B

C

CLEANING AND CARE

________________________________________

ENGLISH

23

Cleaning or replacing the filter

Caution

7

The dust container and filter must be fitted befo­re use, otherwise this could damage the motor.

The dust container

1 Take out the dust container by pressing on the

catch and pull it out with the handle.

2 Remove the holder for the air inlet filter.

3 Remove the filter from the holder.

K

4 Shake the filter vigorously, then clean it in warm

soapy water, rinse thoroughly and leave it to
dry.

Caution

7

Never put the filter in the washing machine or
dry it with a hair dryer.

Caution

7

Ensure the filter is completely dry before refit­ting it.

5 If required, fit a new filter in the holder and

insert the holder again.

6 Fit the dust container back in.

CLEANING AND CARE

________________________________________

24

ENGLISH

The air outlet blower

1 Remove the grille over the air outlet opening

(on the back of the appliance).

2 Remove the air outlet filter.
3 Shake the filter vigorously, then clean it in

warm soapy water, rinse thoroughly and leave
it to dry.

Caution

7

Ensure the filter is completely dry before refit­ting it.

4 Put back all the parts carefully.

Notes

7

The filter in the dust container should be repla­ced every six months, or sooner if necessary.
The air outlet filter should be replaced every six
to nine months, or sooner if necessary.
Frequent washing causes wear and tear on the
filter.
Please note: the air outlet filter is equipped with
active hygiene protection from Microban®, as
well as the air inlet filter and the dust container.

Troubleshooting

This appliance is fitted with a safety switch which
automatically switches off the motor when it over­heats. In the event of overheating, proceed as
follows:

1 Turn the appliance off and unplug the power

supply unit from the mains.

2 Look for the cause of the overheating (blocked

hose/tube, dirty filter, etc.).

3 Remove the blockage, clean dust container or

filter.

4 Allow the motor to cool down for approx. 30

to 40 minutes.

5 Plug in the appliance again and switch it on.

It should now work properly.

6 If the appliance does not switch on, wait a

further 20 minutes and then try again.

7 If it still does not work, contact your specialist

dealer or get in touch with the GRUNDIG
Service Center.

CLEANING AND CARE

________________________________________

ENGLISH

25

Environmental note

This product has been made from high-quality
parts and materials which can be re-used and
recycled.

Therefore, do not throw the product away with
normal household waste at the end of its service
life. Take it to a collection point for recycling elec­trical and electronic devices. This is indicated by
this symbol on the product, in the operating
manual and on the packaging.

Please find out about collection points operated
by your local authority.

Help protect the environment by recycling
used products.

Technical data

This product fulfils the European
directives 2004/108/EU and
2006/95/EU.

Serial number

GMM 1800

Power supply

220-240 V~ 50 Hz

Power

Maximum 2000 W
Nominal 1800 W

Protection class

II

INFORMATION

_____________________________________________________

Technical and design modifications reserved.

Grundig Multimedia B.V.

Atrium, Strawinskylaan 3105 • NL-1077 ZX Amsterdam • http://www.grundig.com
