INTERNET RADIO

Cosmopolit 3F WEB iP

CONTENTS

----------------------------------------------------------------------------------------------------------------------------------

4 COSMOPOLIT 3F WEB iP

4 Packing contents 4 Special features

5 SET-UP AND SAFETY

6 OVERVIEW

6 The device controls 9 The remote control 11 The display

12 CONNECTION AND PREPARATION

12 Connecting external devices 12 Connecting an MP3 player or a USB

memory stick 12 Connecting the iPod/iPhone 12 Connecting the headphones 13 LAN connection to the internet 13 WLAN connection to the internet 14 Connecting to the mains supply 14 Putting battery in the remote control

15 JOG-SHUTTLE

15 Functions and operation using the Jog-

Shuttle on the device 15 The functions 15 Example – Setting the time and date

automatically

16 SETTINGS

16 Menu navigation 16 First Installation using the installation

assistant “Wizard” 18 Searching for and saving FM stations 19 Setting the sound effect “My EQ”

20 GENERAL FUNCTIONS

20 Switching on and off 20 Selecting the input source 20 Adjusting the volume 20 Selecting sound settings 20 Muting 20 Setting stereo or mono reception (only in

FM radio mode)

21 INTERNET RADIO MODE

21 Listening to an Internet radio station 21 Selecting the internet radio stations’ input

source

21 Selecting Internet radio stations according

to search criteria 23 Storing Internet radio stations on presets 23 Opening preset Internet stations 24 Opening the most recently selected

Internet stations 24 Displaying information about Internet

radio stations 24 Listening to a Podcast

25 INTERNET RADIO TUNING SERVICE

25 Registering on the GRUNDIG homepage 25 Creating lists of favourites

28 SHARED MEDIA MODE

28 Shared media server (audio streaming) 28 Selecting the shared media input source 28 Other playback functions 28 Playlist 29 Playback of media and "remote control"

of Cosmopolit via the PC

31 iPod/iPhone MODE

31 Supported models 31 Playing the contents of an iPod/iPhone 32 Displaying information 32 Navigate with the iPod/iPhone menu 32 Repeating the current track 32 Selecting another track or file 32 Searching for a passage within a track or

file

33 USB MODE

33 Playing the contents of a USB memory

stick 33 Pausing and resuming playback 33 Selecting another track 33 Searching for a passage within a file or

track 34 Repeating all files or tracks (Repeat All) 34 Playing tracks in random order

ENGLISH

CONTENTS

----------------------------------------------------------------------------------------------------------------------------------

35 FM MODE

35 Selecting the tuner input source 35 Selecting stations – from presets 35 Selecting stations – from the list Recall

Preset 35 Stereo and mono reception 35 Displaying RDS station information

36 AUX MODE

36 Listening to an external source

37 TIMER MODE

37 Switch-on timer 38 Sleep timer

39 SPECIAL SETTINGS

39 Displaying Software and ID information 39 Displaying information and network status 39 Installing an additional network 40 Setting the WLAN region 40 Deleting servers which cannot be

accessed 41 Registering the device with the WLAN

router with individual network settings 43 Setting the time, time zone and date

manually 43 Updating the device software 44 Changing the menu language 44 Restoring the default settings (reset)

45 INFORMATION

45 Glossary 47 Licence conditions 47 “Real enabled” licence conditions for end

users 47 Venice 6.2 licence conditions for end

users 48 USBware from Jungo Ltd. 51 Cleaning the device 51 Environmental note 51 Technical data 52 General Faults 52 Made for iPod/iPhone 52 Troubleshooting 53 Internet faults 53 Messages from the device

ENGLISH

COSMOPOLIT 3F WEB iP

Packing contents

Cosmopolit 3F WEB iP

Remote control

2 batteries (Micro, R 03 /UM 4/AAA, 2x1,5V)

Operating manual

Mains adapter 6 V, 1800 mA

Special features

Your device provides access to numerous internet radio stations via a router. You can connect the device to the internet using a LAN cable or WLAN.

For Internet operation, a DSL connection and DSL ﬂat rate are recommended.

Music titles archived on a PC or hard drive (NAS

- Network Attached Storage) can be played on the device using a UPnP server or enabled folders via LAN or WLAN (audio streaming).

The cosmopolit supports the industry standard DLNA (Digital Living Network Alliance) 1.5 digital media renderer.

This allows you to "Play To" other devices around your home and combine media streaming with controlling a connected media receiver while streaming content to it from another Windows 7 PC on a home network.

The device features a retractable iPod dock, to which you can connect your iPod/iPhone and play your music using the device.

The MP3 and WMA music data formats can also be played back via the USB input using a USB memory stick or an MP3 player.

Use the Aux input to connect any other audio sources.

-------------------------------------------------------------------------------

ENGLISH

SET-UP AND SAFETY

-----------------------------------------------------------------------------------------------

Please note the following instructions when setting up the system:

The device is designed for the playback of audio signals. Any other use is expressly prohibited.

If you want to set up the device on wall shelves or in cupboards, please ensure that it is adequately ventilated. There must be at least 10 cm of space at the side, above and behind the device.

Do not cover the device with newspapers, table cloths, curtains, etc.

When setting up the device, remember that furniture is often coated with various types of varnish and plastic, which often contain chemical additives. These additives may cause corrosion to the feet of the unit. This may leave stains on the surface of the furniture which can be diﬃcult or impossible to remove.

If the device is exposed to sudden changes in temperature, for example when taken from the cold into a warm room, wait at least two hours before using it.

The device is designed for use in dry rooms. If you do use it outdoors, make sure it is protected from moisture such as dripping or splashing water.

Only use the device in a moderate climate.

Do not place the device close to heating units or in direct sunlight, as this will impair cooling.

Do not place any vessels containing liquids, such as vases, on the device.

Do not place any objects such as burning candles on the device.

Thunderstorms are a danger to all electrical devices. Even if the device is switched oﬀ, it can be damaged by a lightning strike to the mains or the antenna cable. Always disconnect the mains during a storm.

Continuous use at high volume level can cause damage to the user’s hearing.

If malfunctions occur due to static electricity charges or brief mains voltage surges, reset the device. To do this, pull out the mains adapter and connect it again after a few seconds.

Do not open the device casing under any cir-

cumstances. Warranty claims are excluded for damage resulting from improper handling.

When the main plug or an appliance coupler

is used as the disconnect device, the disconnect device shall remain readily operable.

Note:

Do not connect any other equipment while

the device is switched on.

Switch oﬀ the other devices as well before

connecting them.

Only plug the device into the mains socket

after you have connected the external devices.

Make sure the power plug is freely acces-

sible.

ENGLISH

OVERVIEW

----------------------------------------------------------------------------------------------------------------------------------

The device controls

The front of the device

iPod dock drawer

Jog-Shuttle Rotate the Jog-Shuttle to set

and to conﬁrm the preferred options. Press to activate and conﬁrm the functions and the menus. For more details, please see “Jog-Shuttle” section.

+ Turn left or right to select

menu options or to adjust the volume.

Press for conﬁrming the

selected option.

Display of the device, for

more details, please see “The device displays” section.

Infrared sensor for remote

control signals.

iPod dock Press to open the iPod dock, drawer and to connect the iPod/

iPhone.

LCD Display

IR sensor Jog-Shuttle +

ENGLISH

OVERVIEW

----------------------------------------------------------------------------------------------------------------------------------

The top of the device

MENU Opens the main menu and

main screen which shows time, date and information line. Switches back to the previous menu option in the menu.

FAV Stores a station as a preset

and opens the preset menu.

MODE Selects the diﬀerent audio

sources for Internet radio, Music player, FM radio, iPod/ iPhone and Aux In modes.

ON/OFF Switches the device to and

from standby mode.

FM Telescopic antenna for ANTENNA FM reception.

MODE

ON/OFF

FM Antenna

FAV MENU

ENGLISH

OVERVIEW

----------------------------------------------------------------------------------------------------------------------------------

The back of the device

Wi-Fi Antenna

Wi-Fi Antenna for wireless internet ANTENNA reception.

LINE OUT Audio signal output for con-

necting to an external source.

AUX IN Audio signal input for connect-

ing an external source.

U Headphone socket for connect-

ing a stereo headphone set with a jack plug (ø 3.5 mm). This automatically switches oﬀ the loudspeakers.

USB USB port type A. For connect-

ing MP3 player, a USB memory stick or a card-reading device.

LAN LAN socket for connecting to

internet.

LED Network status display. Green/Yellow

DC IN For connecting the power sup-

ply unit.

Note

The only way to fully disconnect the device

from the mains is to pull out the plug.

USB LANAUX IN

DC INLINE OUT

ENGLISH

OVERVIEW

----------------------------------------------------------------------------------------------------------------------------------

The remote control

8 Switches the device to standby

mode and from standby mode to the last input source selected.

M Selects the audio sources for

Internet radio, Music player, FM radio, iPod/iPhone and Aux In modes.

1-0 Number buttons, stores and selects

presets for Internet and FM stations (in Internet and tuner mode).

FAV Stores a station as a preset and

opens the preset menu.

Switches the loudspeaker of the

device to mute and back on again.

İ Displays information on the Internet

and FM radio stations as well as when using an iPod/iPhone and the music archive.

Changes the brightness of display

to one of the three levels (bright, medium, dim).

EQ Opens the sound setting options,

which are: »Normal«, »Flat«, »Jazz«, »Rock«, »Movie«, »Classic«, »Pop«, »News«, »My EQ« and »My EQ profile setup«.

MENU Opens the main menu (depending

on the operating mode selected) and switches back to the display for the time, date and other information.

/ Moves the cursor in the menu up or

down. In radio mode: Switches the frequency backwards or forwards in 50 kHz steps.

ENGLISH

OVERVIEW

----------------------------------------------------------------------------------------------------------------------------------

Switches in the menu one step

forwards.

Switches in the menu one step

backwards.

OK Confirms selected option. _

+ Sets the volume.

Starts and pauses playback.

7 Interrupts the playback (in USB/

iPod/iPhone mode).

/ In FM radio mode: Press to start

the station search, it stops when a station is found. In USB/iPod/iPhone mode: Briefly press to search backwards or forwards for files or tracks; press and hold to search backwards and forwards for a certain passage of a track.

In iPod/iPhone mode: Switches

between repeating the current track and repeating all file modes. In USB mode: Repeats all files or tracks in the current list.

AL1 AL2 Opens Alarm 1 or Alarm 2 menu.

When the timer is sounding, stops the timer signal.

S Sets and deactivates the sleep timer.

ENGLISH

OVERVIEW



----------------------------------------------------------------------------------------------------------------------------------

The display

Time/Date

87.65 MHz

The dot-matrix display provides information required during operation.

In standby: Displays the time.

87.65 MHz

Displays the source (e.g. FM radio), the current time and date. Displays the volume setting, preset sound settings, total playing time, elapsed playing time. Displays other performing functions of the device. In tuner mode: Displays the frequency band and frequency, the station name and the station type, provided RDS information is being received, the preset for a saved radio station. USB/iPod/iPhone mode: Displays elapsed playing time, total playing time and information in the file.

11:17

Pause.

The switch-on timer is active.

The sleep timer is active.

Mute function is active.

In USB/iPod/iPhone mode: All

files in the current album are repeated.

In Internet mode: Wi-Fi signal

strength.

ENGLISH

CONNECTION AND PREPARATION

---------------------------------------

Connecting external devices

Notes:

Switch the device off before you connect

external devices.

1 Use a standard audio cable to connect the au-

dio output of the external device to the socket »AUX IN« on the back of the device.

Connecting an MP3 player or a USB memory stick

The device supports most MP3 Players or USB memory sticks.

Note:

The device must be switched off while the

USB connection is being made. If it is not switched off, data could be lost.

1 Connect the USB interface of the MP3 player

to the »USB« socket on the device (on the back) using a standard USB cable; or insert the USB plug of the USB memory stick in the »USB« socket on the device (on the back).

Notes:

To remove the MP3 player or the USB

memory stick, switch off the device and pull out the cable for the data medium.

The USB socket on the device does not

support a connection for a USB extension cable and is not designed for directly connecting to a computer.

ENGLISH

Connecting the iPod/iPhone

The device uses the iPod Universal Dock connector, developed for use with iPod/iPhone.

1 Press the »iPod dock drawer« on the front

side of the device to open it.

2 Insert the iPod/iPhone into the »iPod dock«

connector carefully until it latches into place.

Connecting the headphones

1 Insert the headphone plug (ø 3.5 mm) into

the »U« socket on the back of the device. – The loudspeakers of the device are switched

off.

Note:

Excessive sound pressure from the ear-

phones or headphones can cause hearing loss.

CONNECTION AND PREPARATION

LAN connection to the internet

Telephone socket

Splitter

Media servers on the computer

Modem/router

Cosmopolit 3F WEB iP

---------------------------------------

Note:

Switch the device off before you connect it

to the internet.

1 Connect the Ethernet socket of the modem/

router to the »LAN« socket of the device using a standard network cable (Twisted pair, RJ45 plug).

– The data throughput level is 10/100 Mbit.

WLAN connection to the internet

Telephone socket

Media servers on hard drive (NAS-Network Attached Storage)

Note:

The quality of the radio signal depends on

the distance between the device and your modem/router.

The substance of the building at the installa-

tion site can also affect this.

Splitter

Modem/router

Note:

The lines represent the function.

Internet radio Media servers (audio streaming)

Laptop

Cosmopolit 3F WEB iP

Note:

The lines represent the function.

Internet radio Music archive (audio streaming) WLAN

ENGLISH

CONNECTION AND PREPARATION

---------------------------------------

Connecting to the mains supply

Notes:

Check that the mains voltage on the type

plate (on the back of the power adapter) corresponds to your local mains supply. If this is not the case, contact your specialist dealer.

Before connecting the power adapter plug

to the wall socket, ensure that all other connections have been made.

1 Insert the plug of the supplied power adapter

cable into the »DC IN« socket on the back of the device.

2 Plug the power adapter into the wall socket.

Caution:

The device is connected to the mains with the

power adapter. Pull out the power adapter plug if you want to completely disconnect the device from the mains.

Make sure that the power adapter plug is

easily accessible during operation and not hindered by other objects.

Putting battery in the remote control

1 Open the battery lid by pressing on the arrow

and sliding the lid out.

2 Insert two batteries (2 x 1.5 V, R 03 /UM 4/

AAA) into the battery compartment with the correct polarity.

3 Close the lid of the battery compartment.

Notes:

Do not expose the batteries to extreme heat,

caused for example by direct sunlight, heaters or fire.

Remove the batteries when they are flat or

when you know that the device will not be used for a long period of time.

Environmental note:

Batteries, including those which do not con-

tain heavy metal, should not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations.

ENGLISH

JOG-SHUTTLE

------------------------------------------------------------------------------------------------------------------------

Functions and operation using the Jog-Shuttle on the device

As an alternative to using the remote control, you can also select and conﬁrm the selected operations and functions using the Jog-Shuttle.

The functions

If no menu is selected, you can adjust the volume with the Jog-Shuttle.

If a menu is activated, by turning the Jog-Shuttle you can select several menu options or enter digits/characters.

Conﬁrm the selection by pressing the Jog-Shuttle.

You can activate the main menu by pressing the »MENU« button, after ﬁnishing the settings, switch back to the previous menu by pressing the »MENU« button again.

Switch back from the respective submenu to the main menu by pressing the »MENU« button.

Example – Setting the time and date automatically

1 Press »MENU« to open the menu.

– The menu appears; the content depends on

the the current operating mode.

2 Select »Main menu« by turning the Jog-Shuttle

and conﬁrm by pressing the Jog-Shuttle.

– The »Main menu« appears.

Time/Date

Main menu Internet radio Music player FM radio iPod Auxiliary Input

3 Select the option »System settings« by turning

the Jog-Shuttle.

4 Conﬁrm the option »System settings« by press-

ing the Jog-Shuttle.

5 Select the option »Time/Date« by turning the

Jog-Shuttle.

6 Conﬁrm the option »Time/Date« by pressing

the Jog-Shuttle.

7 In the »Time/Date« menu, select »Auto update«

by turning the Jog-Shuttle and conﬁrm by pressing the Jog-Shuttle.

8 In the »Auto update« menu, select »Update

from FM« or »Update from Network« by turning the Jog-Shuttle and conﬁrm by pressing the Jog-Shuttle.

9 Press »MENU« to end the setting.

ENGLISH

SETTINGS

---------------------------------------------------------------------------------------------------------------------------------------

Menu navigation

Press »MENU« on the device or on the remote control, select »Main menu« using » « or » « or by turning the Jog-Shuttle, and conﬁrm by pressing the Jog-Shuttle or »OK« on the remote control.

In the main menu, you can select several sources Internet radio, Music player, FM radio, iPod/iPhone, Auxiliary Input and the »Sleep«, »Alarms« and »System settings« menus.

Select the sources or submenus by pressing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing the Jog-Shuttle or »OK« on the remote control.

If you wish to view the previous menu, press » « on the remote control.

The menus Internet radio, Music player, FM radio, iPod/iPhone, Auxiliary Input, Sleep, Alarms and System settings have their own submenus which you can open by pressing the JogShuttle or »OK« on the remote control.

First Installation using the installation assistant “Wizard”

When you connect the device to the mains, or after factory reset, the display will show the Grundig logo. The Wizard installation assistant then appears, which guides you through the installation step by step.

Notes:

For Wi-Fi connection, please make sure, that

the Wi-Fi router is switched on.

The network name (SSID) must be visible

and the MAC address of the device may be entered in the Wi-Fi router.

Perform the registration process in the prox-

imity of the router in order to avoid problems with the Wi-Fi range.

If you wish to use a LAN cable for internet

access, the device has to be connected to the router via LAN cable (see “Connection and Preparation” section).

Start First Installation

1 First switch on the device by pressing »8« on the

remote control or »ON/OFF« on the device. – Display: »Setup wizard« menu opens.

Time/Date

Setup wizard

Start now?

YES NO

2 Select the push button »YES« by pressing » «

or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – Display: »Date/Time« menu opens.

Time/Date

Date/Time

12/24 hour format

12 24#

3 Select the hour format »12« or »24« by press-

ing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – Display: »Auto update« menu opens.

Time/Date

Auto update

Update from FM

Update from Network

No update

4 Select the input source from which the automat-

ic time synchronisation should be performed. Selection options: – »Update from FM« (Time synchronisation

from an FM station); or

– »Update from Network« (Time synchronisa-

tion from an Internet station), or

– »No update« (No automatic time synchro-

nisation).

ENGLISH

SETTINGS

---------------------------------------------------------------------------------------------------------------------------------------

Select one of the options by pressing » « or » « or by turning the Jog-Shuttle and confirm by pressing on the Jog-Shuttle or »OK« on the remote control. – The menu »Set timezone« appears (only if

»Update from Network« was selected).

Note:

If »Update from FM« was selected, con-

tinue from point 7.

5 Select the time zone (ex. »UTC +00:00 Dub-

lin, London«) by pressing » « or » « or by turning the Jog-Shuttle and confirm by pressing »OK«. – Display: »Daylight savings« menu opens.

Time/Date

Daylight savings

Daylight saving

ON OFF#

6 Select Daylight savings (for Central Europe)

by pressing » « or » « or by turning the JogShuttle to select »ON«, and conﬁrm by pressing »OK«. Winter time is set using »OFF«. – The menu »Wlan region« appears.

Time/Date

Wlan region

Most of Europe USA Canada Spain France

7 Select one of the WLAN regions by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

(This setting depends on the location where

you are operating your Cosmopolit 3.)

– The »SSID« menu appears, and the avail-

able networks (access points) are displayed.

Time/Date

SSID

ED-wifi arts-pmd rd-linksys (Rescan)

Note:

If the network name (SSID) is suppressed on

the WLAN router for security reasons, the network cannot be found. It must then be entered manually. Cancel the setting using »8« and continue with the chapter “Special Settings” – “Manual Configuration”.

Note:

If you wish to connect via a LAN cable, select

the option »Wired« using » « or » « or by turning the Jog-Shuttle, and confirm by pressing »OK«. The initial set-up is then finished.

8 Select your wireless network (SSID) by press-

ing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – WEP or WPA Key menu opens, the cursor is

positioned in the first input position.

Time/Date

Key:

0123456789 abcdefghijklmn opqrstuvyzABCD DEFGHIJKLMN

BKSP

CANCEL

Note:

If the network is encrypted, the network

key (security code WEP or WPA) must be entered.

9 Enter your wireless security code:

Select the ﬁrst character (capital and small let-

ters, numbers, symbols) by pressing » «, » «, » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. Repeat the procedure for all characters. After you finish entering all characters, select the push button »OK« by pressing » «, » «, » « or » « or by turning the Jog-Shuttle and confirm by pressing »OK«. – The menu »Internet Setup« appears, the net-

work registration is processed.

ENGLISH

SETTINGS

---------------------------------------------------------------------------------------------------------------------------------------

Notes:

You can choose between numbers, lower and

upper case letters, and special characters.

Press » «, » « to scroll through the menu

pages (numbers, letters, special characters, etc.).

If you make a mistake during entry, press

» «, » «, » « or » « to select the push button »BKSP« and press »OK« to confirm. The last character is deleted.

If you wish to exit the menu prematurely,

press » «, » «, » « or » « to select the push button »CANCEL« and press »OK« to confirm.

– After successful registration, the message

»Setup wizard completed« appears.

10 Press »OK« to end the setting.

Selecting the menu language

After the ﬁrst installation, you can choose your preferred menu languages. The preset setting is »English«.

1 Press »MENU« to open the menu. 2 Select the option »Main menu« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – The »Main menu« menu opens.

3 Select the option »System settings« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

4 Select the option »Language« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

Time/Date

Language

English German French Italien Spanish

5 Select your preferred language by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

6 Press »MENU« to end the setting.

Searching for and saving FM stations

Setting the search mode

There are two diﬀerent automatic station search modes.

1 Press »M« repeatedly on the remote control or

»MODE« on the device until »FM radio« appears on display.

2 Press »MENU« to open the »FM« menu.

Time/Date

FM Radio Scan setting Audio setting System settings Main menu

3 Select the option »Scan setting« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – Display: »Strong stations only?«.

4 Select your setting (»Yes« or »No«) using

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

5 Press »MENU« to end the setting.

Automatic station search

1 Press and hold » « or » « or press the Jog-

Shuttle. When you release the button, the automatic search stops at the next station. – If RDS information is transmitted by the

broadcaster, then the device saves the station name. If station and title information is transmitted, it will appear as ticker text after a short time.

Tuning stations manually

1 Move the frequency forward in brief steps by

repeatedly pressing » « or » «. – The frequency goes up or down in 50 kHz

steps.

ENGLISH

SETTINGS

---------------------------------------------------------------------------------------------------------------------------------------

Saving FM radio stations on presets

You can use the remote control to ﬁll 10 presets with the FM radio stations of your choice. If you assign the presets again, the previously saved stations are overwritten.

1 Search for the FM station as described. 2 To save stations, keep pressing the number but-

ton »1...0« until »Preset stored« appears in the display. – The stored station with a preset number then

appears in the display.

Note:

Button »0« is used for preset 10.

3 To store more stations, repeat steps 1 and 2 as

many times as necessary.

Setting the sound effect “My EQ”

1 Press »EQ« on the remote control to open the

»Equaliser« menu.

2 Select the option »My EQ proﬁle setup« by

pressing » « or » « or by turning the JogShuttle and conﬁrm by pressing »OK«.

Time/Date

Equaliser Normal Flat Jazz Rock Movie

3 Select the option »Bass« by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

4 Select the preferred setting for the bass by

pressing » « or » « or by turning the JogShuttle, and conﬁrm by pressing »OK«.

Note:

Repeat the setting for the treble.

5 Select the option »Loudness« by pressing » «

or » « or by turning the Jog-Shuttle. Switch the Loudness function on or oﬀ by pressing »OK«.

6 Switch oﬀ the menu by pressing » «.

7 Conﬁrm the security query by selecting the

push button »YES« using » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

Note:

If the »NO« button is selected, then the set-

tings will not be saved.

8 Press »MENU« to end the setting.

Adjusting the brightness of the display

1 Press » « repeatedly on the remote control

to change the brightness of the display in three levels (bright, medium, dim).

Note:

Minimum power consumption in standby

mode is only achieved if the backlighting in the display is switched to minimum.

ENGLISH

GENERAL FUNCTIONS

---------------------------------------------------------------------------------------

Switching on and off

1 Switch on the device from standby mode

by pressing »8« on the remote control or »ON/OFF« on the device.

– Display: The system switches to the last

source selected.

2 Switch the device to standby mode by pressing

»8« on the remote control or »ON/OFF« on the device.

– Display: The current time and date.

Note:

The only way to disconnect the device from

the mains supply is to pull out the plug from the wall socket.

Selecting the input source

1 Press »M« repeatedly on the remote control or

»MODE« on the device to select »Internet Radio«, »iPod«, »Music player«, »FM Radio« or »Aux In« on the display.

Note:

The input source can also be displayed us-

ing the »Main menu«.

Adjusting the volume

1 Adjust the volume by pressing »_« or »+« on

the remote control; or

rotate the Jog-Shuttle on the device.

Selecting sound settings

You can choose between diﬀerent preset sound settings.

By using »EQ« button on the remote control

1 Press »EQ« repeatedly on the remote control

to select the menu »Equaliser«.

2 Select your required sound setting (»Normal«,

»Flat«, »Jazz«, etc.) by pressing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

ENGLISH

By using the menu

1 Press »MENU« to open the menu. 2 Select the »Main menu« by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

3 Select the option »System settings« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

4 Select the option »Equaliser« by pressing » «

or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

Time/Date

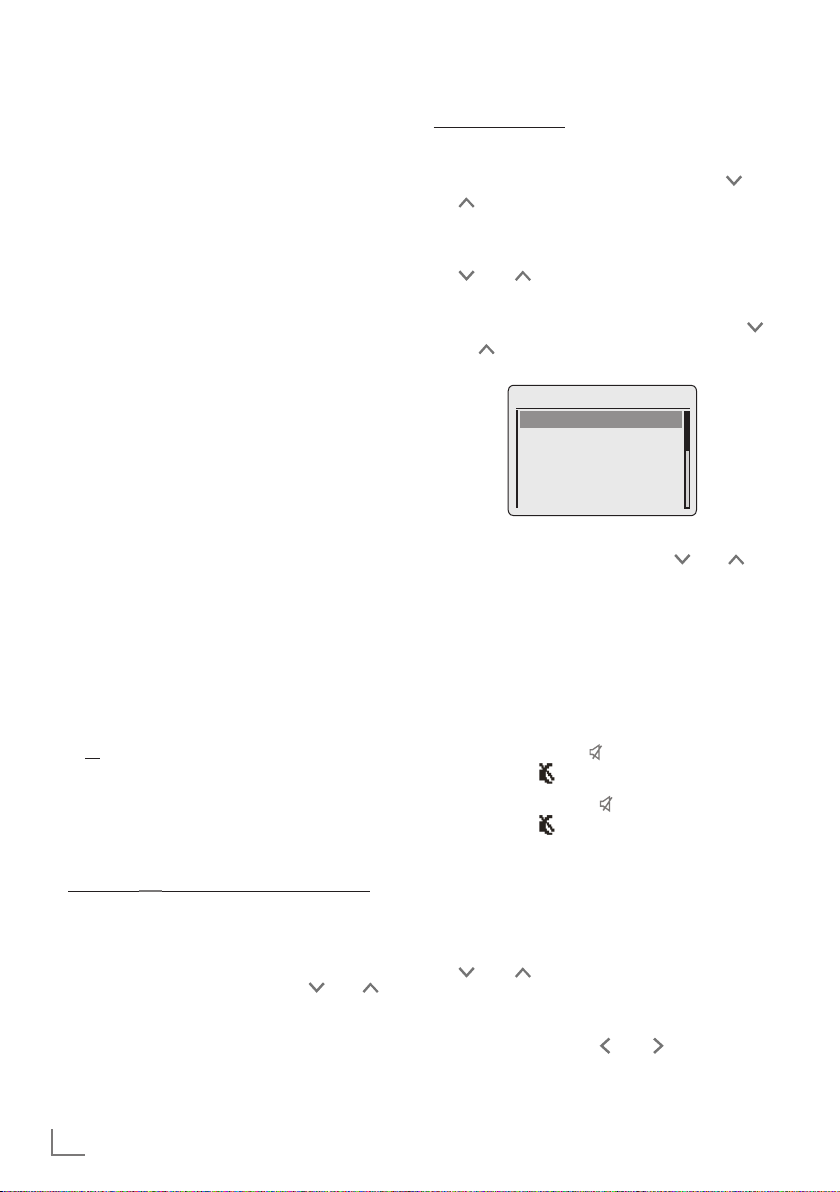

Equaliser Normal Flat Jazz Rock Movie

5 Select your required sound setting (»Normal«,

»Flat«, »Jazz«, etc.) by pressing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

6 Press »MENU« to end the setting.

Muting

You can switch the device speaker to and from mute mode using this function.

1 Activate mute with » « on the remote control.

– Display: » «.

2 Deactivate mute with » « on the remote control.

– Display: » « disappears.

Setting stereo or mono reception (only in FM radio mode)

1 Press »MENU« to open the menu. 2 Select the option »Audio setting« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

3 Switch to mono reception by selecting the

»YES« button using » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. Stereo reception is set using the »NO« button.

4 Press »MENU« to end the setting.

INTERNET RADIO MODE

--------------------------------------------------------------------------------

Listening to an Internet radio station

You can browse the catalogue of Internet radio stations and classify them by genre (style of music), by country or by popularity.

The stations are organized in a hierarchical menu in the same way ﬁles are organized in directories on a computer.

After successfully connecting to the Internet, select the »Internet radio« menu in the »Main menu« and then a category such as »Last listened«.

After successfully connecting to the Internet, open the option »Station list« and then »Stations« via the »Internet radio« menu, and select your preferred music style or a country from the list.

Note:

Some Internet radio stations do not broad-

cast 24 hours per day, and some are not always online.

Selecting the internet radio stations’ input source

1 Press »M« repeatedly on the remote control or

»MODE« on the device to select the »Internet radio« input source.

– Display: »Connecting« and then »Loading«.

Selecting Internet radio stations according to search criteria

Selecting the Internet radio menu 1 Press »MENU« to open the menu. 2 Select the option »Station list« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

3 Select the option »Stations« by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

Time/Date

Stations Location > Genre > Search stations Popular stations > New stations >

Note:

Additional operations are explained in the following chapters.

Searching for Internet radio stations in »Location« category

1 In the »Stations« menu, select the option »Loca-

tion« by pressing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK.

Time/Date

Location Africa > Asia > Caribbean > Central > America >

2 Press » « or » « or turn the Jog-Shuttle to se--

lect the search criteria (e.g. »Africa«, »Asia«, »Caribbean« etc.) and conﬁrm by pressing »OK«. – The submenu for the selected location opens.

3 Press » « or » « or turn the Jog-Shuttle to

select the country and conﬁrm by pressing »OK«.

4 Press » « or » « or turn the Jog-Shuttle to

select the search criteria (e.g. »All Stations«, »Highlighted stations«, »Alternative« etc.) and conﬁrm by pressing »OK«.

Notes:

The subdivision by search criteria can differ

depending on country group. For example, for the country group North America, you can choose between Canada, Mexico and the United States, and afterwards the different states can be selected.

There are no further search criteria for the

different states.

5 Select the station using » « or » « or by turn--

ing the Jog-Shuttle and conﬁrm by pressing »OK. – »Connecting…« and then »Loading« ap-

pears in the display, after a short time the station is played.

ENGLISH

INTERNET RADIO MODE

--------------------------------------------------------------------------------

Searching for Internet radio stations in the »Genre« category

1 In the »Stations« menu, select the »Genre« op-

tion by pressing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

Time/Date

Genre Alternative > Ambient > Big Band > Bluegrass > Blues >

2 Press » « or » « or turn the Jog-Shuttle to

select the search criteria (e.g. »Alternative«, »Ambient«) and conﬁrm by pressing »OK«. – A country selection is displayed.

3 Select the country by pressing » « or » « or

by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – The first radio stations for the country chosen

are displayed.

4 Select the station by pressing » « or » « or

by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – »Connecting…« and then »Loading« ap-

pears in the display, after a short time the station is played.

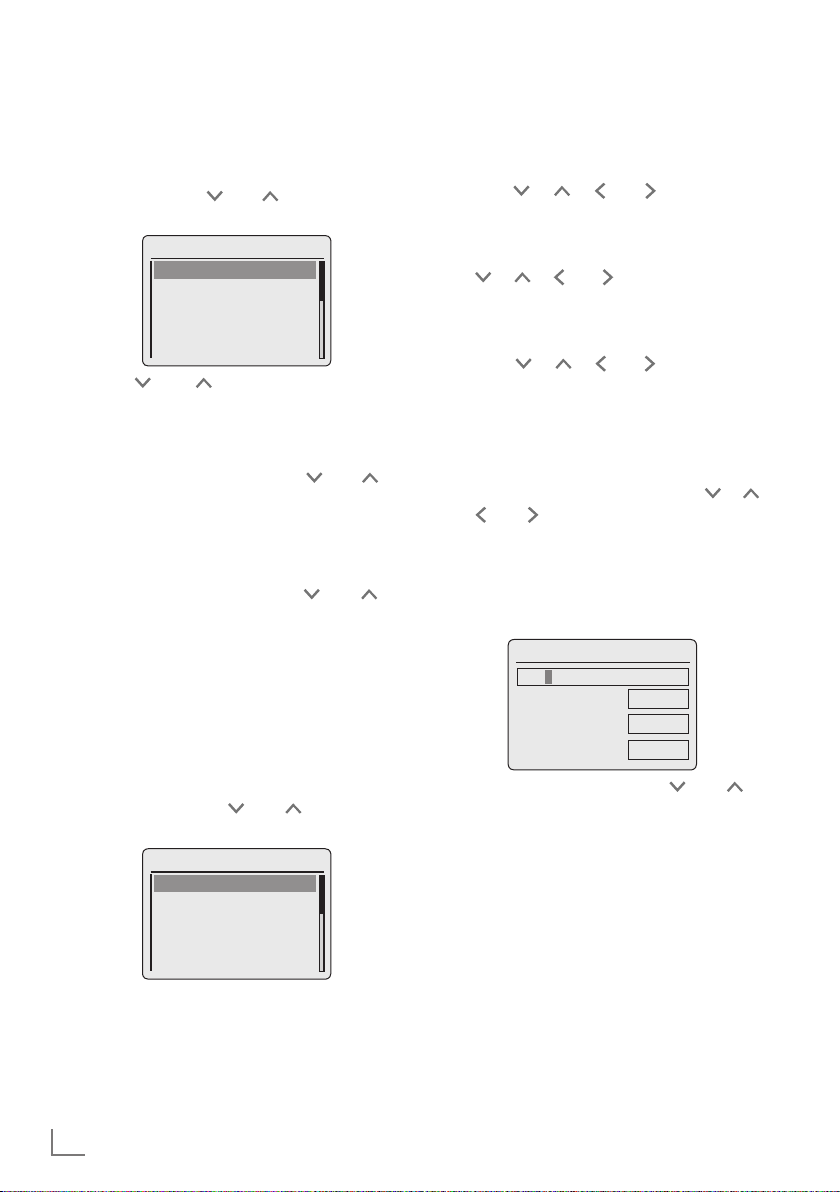

Searching for Internet radio stations by name

1 In the »Stations« menu, select »Search stations«

option by pressing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

Time/Date

Stations Location > Genre > Search stations > Populer stations > New stations >

Notes:

You can choose between numbers and up-

per case letters.

Press » «, » «, » « or » « to select letters

and confirm by pressing »OK«. The cursor jumps to the next input position.

If you make a mistake during entry, press

» «, » «, » « or » « or turn the Jog-Shuttle to select the push button »BKSP« and press »OK« to confirm. The last character is deleted.

If you want to exit the menu prematurely,

press » «, » «, » « or » « or turn the JogShuttle to select the push button »CANCEL« and press »OK« to confirm.

In many cases, you only need to enter an ab-

breviation of the station name (e.g. »FAN« instead of »FANTASY«).

If the station name is entered, press » «, » «,

» « or » « or turn the Jog-Shuttle to select the push button »OK« and press »OK« to confirm. »Please wait Loading« then appears in the display.

A list of the station names is then displayed

which match the search item.

Time/Date

Stations

BBC 0123456789 AB CDEFGHIJKLMN OPQRSTUVW

BKSP

CANCEL

2 Select the station by pressing » « or » « or

by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – »Connecting…« and then »Loading« ap-

pears in the display, after a short time the station is played.

ENGLISH

INTERNET RADIO MODE

--------------------------------------------------------------------------------

Selecting the most popular Internet radio stations

You can use this function to select radio stations that are most frequently listened to.

1 In the »Stations« menu, select the »Popular sta-

tions« option by pressing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – Display: The list of popular stations appears

in the display.

2 Select the radio station by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – »Connecting…« and then »Loading« ap-

pears in the display, after a short time the station is played.

Selecting Internet radio stations which the Internet provider has added recently

1 In the »Stations« menu, select the »New stations«

option by pressing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – Display: The list of the new stations appears

in display.

2 Select the radio station by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – »Connecting…« and then »Loading« ap-

pears in the display, after a short time the station is played.

Storing Internet radio stations on presets

You can use the remote control to ﬁll 10 presets with the Internet radio stations of your choice. If you assign the presets again, the previously saved stations are overwritten.

1 Search for the Internet radio station as de-

scribed.

2 To save stations, keep pressing the number but-

ton »1...0« until »Preset stored« appears in the display. – The stored station with a preset number then

appears in the display.

Note:

Button »0« is used for preset10.

3 To store more stations, repeat steps 1 and 2 as

many times as necessary.

Opening preset Internet stations

Direct selection using a preset

1 Open the Internet radio station by pressing

one of the number buttons »1...0« on the remote control. – »Connecting…« and then »Loading« ap-

pears in the display, after a short time the station is played.

Selecting manually-added Internet radio stations

You can ﬁnd out how you add these radio stations in the chapter “INTERNET RADIO TUNING SERVICE”.

1 In the »Internet radio« menu, select »My Add-

ed Stations« option with » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

2 Select the radio station using » « or » « or turn

the Jog-Shuttle and conﬁrm by pressing »OK«. – »Connecting…« and then »Loading« ap-

pears in the display, after a short time the station is played.

ENGLISH

INTERNET RADIO MODE

--------------------------------------------------------------------------------

Opening the most recently selected Internet stations

The device saves the 10 most recently selected radio stations in a folder which you can open at the same time as the station list.

1 In the »Station list« menu, select the »Last lis-

tened« option by pressing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

2 Select the radio station by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – »Connecting…« and then »Loading« ap-

pears in the display, after a short time the station is played.

Displaying information about Internet radio stations

1 While an Internet radio station is playing,

press »i« repeatedly. – The information provided by the broadcaster

is displayed.

Listening to a Podcast

Unlike a radio station that is broadcast live, a podcast can contain several programs which are updated regularly and automatically. The podcast and associated programs can be played at any time.

These programs may date back several weeks or they may have just appeared.

1 Press »MENU« to open the menu. 2 Select the »Main menu« by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

3 Select the input source »Internet radio« by

pressing » « or » « or by turning the JogShuttle and conﬁrm by pressing »OK«. – »Connecting…« and then »Loading« ap-

pears in the display.

4 Open the »Internet radio« menu using

»MENU«.

5 Select the option »Station list« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

6 Select the option »Podcasts« by pressing » «

or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – The submenu for the Podcast options opens.

Time/Date

Podcasts Location > Genre > Search podcasts

ENGLISH

Notes:

You can now also search for, and play, Pod-

casts by country (Option »Location«), by genre (Option »Genre«) or by name (Option »Search podcasts«).

The structure and the content may differ.

INTERNET RADIO TUNING SERVICE

--------------------------------------

Registering on the GRUNDIG homepage

You need to complete a one-time registration of your device on the GRUNDIG page “GRUNDIG INTERNET RADIO TUNING SERVICE” stating the MAC address of your device.

You can search for stations on this web page and listen to them. When logging on, the device must be connected to the Internet (see the section “Start First Installation”).

If you wish to create a favourites list for your favourite radio stations, then you also need to register your e-mail address and the password of your choice. This takes you to the members’ area.

1 Start the internet browser on your PC. 2 Enter the address “www.grundig.radiosetup.

com”. – The “GRUNDIG INTERNET RADIO TUN-

ING SERVICE” page appears.

3 Enter the twelve-digit MAC address of your de-

vice and click on the push button »5«.

Note:

The MAC address (Radio ID) can be ac-

cessed, see »Main menu« and then select the options »System settings« and »Info«.

4 Enter your e-mail address and a password of

your choice under »Member Login« and click on the push button »5«. – The e-mail address and the password are

saved.

Creating lists of favourites

You can sort radio stations which the V-Tuner Internet service provides to GRUNDIG customers into a favourites list. This gives you swift access to your favourite radio stations.

You can only conduct this process on a PC. The current list is loaded when the device is

switched on.

Preparation 1 Start the Internet browser on your PC.

2 Enter the address “www.grundig.radiosetup.com”.

– The “GRUNDIG INTERNET RADIO TUN-

ING SERVICE” page appears.

3 Enter your e-mail address and password and

click the push button »5«.

If several devices are registered, click on the

desired MAC address.

Notes:

Radio stations can only be played back in

MP3, WMA or Real Audio format.

You have several options for searching for

radio stations for a favourites group.

In the “Search” search field you can search

for radio stations by name or you can select radio stations using search criteria such as “Music, “Location” and “Language”.

Selecting radio stations using the search function

1 In the “Search” ﬁeld, enter the name of the pre-

ferred provider (station name and radio programme) and then click the push button »5«. – The radio station is displayed if it is available.

ENGLISH

INTERNET RADIO TUNING SERVICE

--------------------------------------

Note:

You can start listening to the radio station by

pressing the push button »5«. Prerequisite for this is that you have suitable software installed (e.g. Nero Media Home, Windows Media Player).

2 Highlight the radio station using the »❤+« but-

ton. – The “Favourite Stations” menu is displayed.

Note:

You can now create a new favourites group

or add the selected radio station to an existing favourites group.

3 Enter the name of a new favourites group in

the entry ﬁeld and conﬁrm with the »5« button; or

open the name ﬁeld, select a favourites group

and conﬁrm by pressing the »5« button. – The radio station is stored in the favourites

group.

4 Close the “Favourite Stations” menu. 5 Repeat the procedure for additional stations.

Note:

To check the radio stations, select the start

page and click on the favourites group. You will see the new radio stations.

6 Exit the “GRUNDIG INTERNET RADIO TUN-

ING SERVICE” Internet page using the »Logout« button.

Note:

Radio stations that are no longer required

can be deleted from the favourites group. To do so, select the radio station and then click on the »❤–« button.

Selecting a radio station from the available genres

1 Select the preferred genre in the “Music”

genre. – A list of the radio stations featuring the se-

lected style is displayed.

Note:

Instead of the search criterion “Music“, you

can also click “Location” or “Language” and search for radio stations. Several search criteria can be combined.

2 Select the preferred radio station from the list

and highlight it using the »❤+« button. – The “Favourite Stations” menu is displayed.

Note:

You can now create a new favourites group

or add the selected radio station to an existing favourites group.

3 Enter the name of a new favourites group in

the entry ﬁeld and conﬁrm by pressing the »5« button; or

open the name ﬁeld, select a favourites group

and conﬁrm by pressing the »5« button. – The radio station is stored in the favourites

group.

4 Close the “Favourite Stations” menu. 5 Repeat the procedure for additional stations.

Note:

To check the radio stations, select the start

page and click on the favourites group. You will see the new radio stations.

ENGLISH

INTERNET RADIO TUNING SERVICE

--------------------------------------

6 Exit the “GRUNDIG INTERNET RADIO TUN-

ING SERVICE” Internet page using the »Logout« button.

Note:

Radio stations that are no longer required

can be deleted from the favourites group. To do so, select the radio station and then click on the »❤–« button.

Searching for radio stations that are not provided by V-Tuner

You can also add radio stations to your favourites list that are not provided by the V-Tuner Internet service.

You can ﬁnd information about this on the Internet. In Windows Media Player, you can view the parameters for these (for example, the URL) in the “Properties” submenu.

You can only conduct this process on a computer.

You cannot play back every radio station on your device that you can listen to on your computer. These radio stations require a special media player that can only be installed on a PC.

1 Start the Internet browser on your PC. 2 Enter the address “www.grundig.radiosetup.

com”. – The “GRUNDIG INTERNET RADIO TUN-

ING SERVICE” page appears.

3 Enter your e-mail address and password and

conﬁrm.

4 Click the “My added radio stations” line;

if radio stations are already available, click the

»5« button after the line “Add Another Station”. – The “My Added Stations” menu is displayed.

5 Enter the station name, URL of the radio sta-

tion, location and music genre and conﬁrm by pressing the »5« button.

– The new radio station is displayed in the

overview under “My Added Stations”.

Notes:

If details of the radio station need to be

changed, click »Edit« and make the changes in the “My Added Stations” menu.

To open these radio stations on the device,

go to the Internet menu and press »Station list«, »My Added Stations«.

ENGLISH

SHARED MEDIA MODE

--------------------------------------------------------------------------------------

Shared media server (audio streaming)

This function allows you to make a selection by artist and track, as well as by album, genre, etc.; this selection depends on the structure of the music archive and on the UPnP server software in use (e.g. Nero Media Home, Windows Media Player 12). Access times may be prolonged depending on the size of the music archive, and this make usage inconvenient. While the UPnP server is importing the complete music archive, only limited operation of the device is possible, if at all.

You can select a track based on the ID3 tag information (track, artists, album, genre etc.). This information is displayed during playback.

It is recommended that you maintain this ID3 tag information.

Your device must be authorised on the UPnP server of the computer or hard drive. The UPnP server must be enabled in any ﬁrewalls that may be installed. Several UPnP servers can be used in parallel.

Selecting the shared media input source

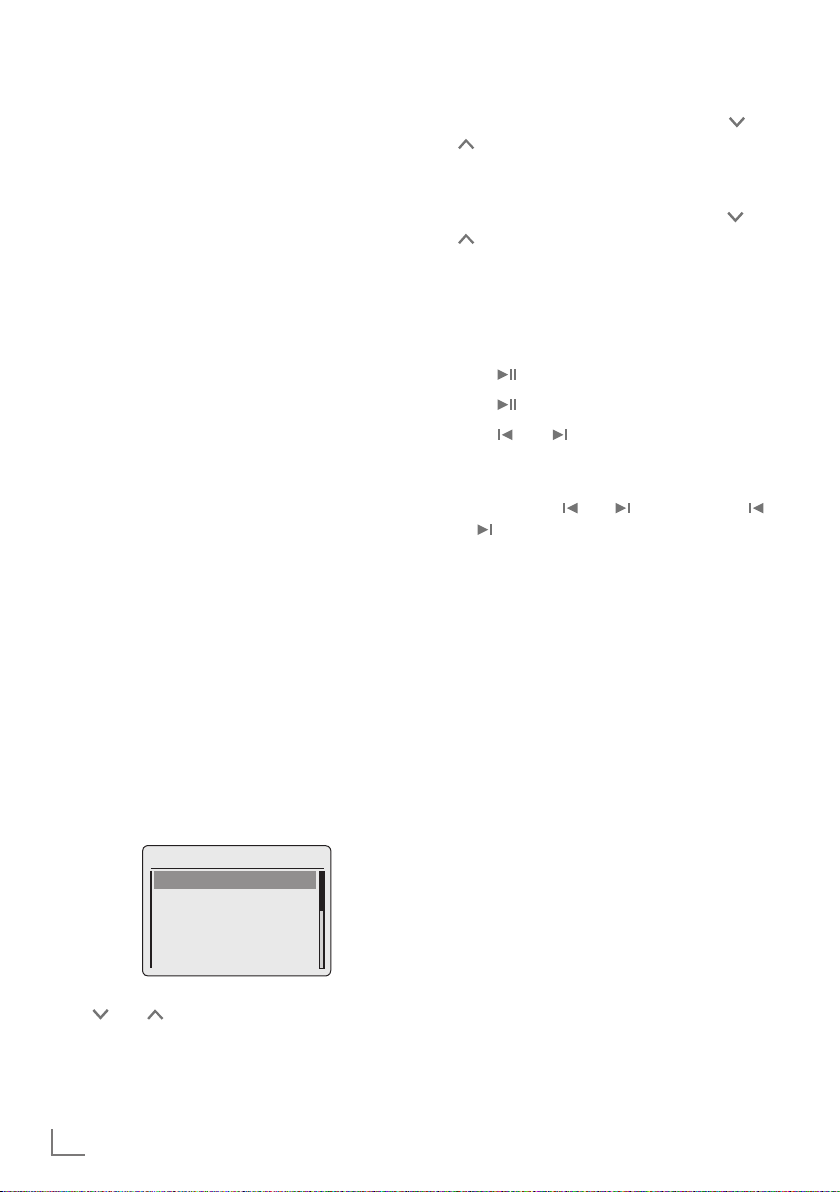

1 Press »M« repeatedly on the remote control or

»MODE« on the device until »Music player« appears on display. – The »Music player« menu appears. – The display shows the list of servers, media

and media titles or the list of approved networks, clients, paths and folders.

Time/Date

Music player Shared media > USB playback My playlist > Repeat play: Off Shuffle play: Off

2 Select the option »Shared media« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – The display shows the list of servers, media

and media titles or the list of approved networks, clients, paths and folders.

3 Select the required option by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – The selection list appears in the display.

4 Select the required track by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – If a title is selected, playback of the track

starts.

Other playback functions

1 Press » « to pause playback. 2 Press » « to resume normal playback. 3 Press » « or » « repeatedly until the desired

track or ﬁle is reached.

4 To search for a passage within a ﬁle or track,

press and hold » « or » «. Stop pressing » « or » « when the passage has been found. – Playback continues.

5 Press »7« to stop playback.

Playlist

You can copy up to 500 ﬁles or tracks into the playlist. These ﬁles or tracks can be obtained from both the music archive as well as a USB data medium. Please note that no data is copied, only the “Contents”.

Adding tracks or files 1 In the »Music player« menu, select the option

»Shared media« or »USB playback«.

2 Select a ﬁle/track. 3 Add the ﬁle/track to the playlist by pressing

and holding »OK«.

Notes:

The input source from which the file or tracks

are copied must be active, or connected.

The files/tracks also remain in the playlist

in standby mode or when the input sources »Shared media« or »USB playback« are used.

ENGLISH

SHARED MEDIA MODE

--------------------------------------------------------------------------------------

Playing playlists 1 Select the input source »Music player« by

pressing »M« on the remote control or using »MODE« on the device.

2 Select the option »My playlist« by pressing

» « or » « or by turning the Jog-Shuttle on the device, and conﬁrm by pressing »OK«. – The selection list appears in the display.

3 Select a ﬁle/track by pressing » « or » « or

by turning the Jog-Shuttle on the device, and conﬁrm by pressing »OK«. – When a track has been selected, playback

of the track begins automatically.

Deleting one or all tracks/files from the playlist

1 Select the input source »Music player« by

pressing »M« on the remote control or using »MODE« on the device.

2 Select the option »My playlist« by pressing

» « or » « or by turning the Jog-Shuttle on the device and conﬁrm by pressing »OK«. – The selection list appears in the display.

3 Select a ﬁle/track by pressing » « or » « or

by turning the Jog-Shuttle on the device.

4 Delete the selected ﬁle/track by pressing and

holding »OK«.

5 Select the push button »YES« by pressing

» « or » « or by turning the Jog-Shuttle on the device and conﬁrm by pressing »OK«.

Playback of media and "remote control" of Cosmopolit via the PC

With a PC running on Windows 7 operating system and the DLNA 1.5 industry standard (Digital Living Network Alliance), you can play back media stored on the PC using the Cosmopolit. Windows 7 provides the function "Play to..." for this purpose.

At the same time, you can remotely control several Cosmopolit functions such as adjusting the volume, pause, continue and stop playing, select the next or previous title, and use the Repeat function.

To enable this, the Cosmopolit must be logged on to the same home network as the PC.

Only limited functions are currently possible on the Cosmopolit.

You can also use a DLNA-compatible mobile phone logged on to the same home network as a "remote control".

Note:

Your Cosmopolit must be enabled on the UPnP server used for the PC. The UPnP server must be enabled in any existing firewalls.

Note:

The entire content of »My playlist« can be deleted using the option »Empty playlist« by selecting the option and the push button »YES« by pressing » « or » « or by turning the Jog-Shuttle on the device, and confirm by pressing »OK«.

ENGLISH

SHARED MEDIA MODE

--------------------------------------------------------------------------------------

Play using the "Play to ..." function in the Windows Media Player

With the Windows Media Player, you can manage your media data and quickly ﬁnd the required album or song that you want to play.

1 Start the »Windows Media Player« on the PC.

Note:

If the Media Player is already open and

you are in Play mode, click on the "Media Library" button.

2 If the playback list is closed or if the "Burn"

or "Synchronize" function is active, click on the "Now playing" button.

3 Select the required album/song and drag to

the "Playlist".

4 Click the »Play to...« button, then click on the

name or symbol for Cosmopolit 3F.

– Playing starts

Note:

Operation via the Cosmopolit 3F is no lon-

ger possible.

5 The following functions are available in the

Windows Media Player for operating the Cos-

mopolit 3F: – Adjust volume; – Pause, continue, and stop play; – Select next or previous title; – Select the Repeat function.

Play using the "Play to ..." function without the Windows Media Player

You can also play albums or songs from the PC on the Cosmopolit 3F without using the Windows Media Player.

1 Click on the required album/song. 2 Press the right mouse button and click on the

"Play to..." menu option.

– Playing starts.

3 The following functions are available for oper-

ating the Cosmopolit 3F: – Adjust volume; – Pause, continue, and stop playing; – Select next or previous title; – Select the Repeat function.

Display information

1 During playback, the name of the song (UPnP),

the total playing time, and the elapsed playing

time are displayed.

2 Additional information can be displayed with

»i«.

ENGLISH

iPod/iPhone MODE

-------------------------------------------------------------------------------------------------

The device features an iPod/iPhone dock which allows you to play digital audio ﬁles and video sound tracks stored on your iPod/iPhone using the device’s speaker.

Notes:

The device is able to recharge the internal

battery of your iPod/iPhone. In standby mode, the device cannot recharge iPod/ iPhone because of minimised power consumption. If you need to recharge your iPod/iPhone, please power up the device.

Your iPod/iPhone will use its backlight set-

tings as configured. If these need changing, use the Settings menu on your iPod/iPhone.

Using the buttons of the remote control and

the menus of the iPod/iPhone, you can select the existing structures (Playlists, Artists, Albums, etc.) and tracks.

Supported iPod/iPhone models

The software is made to support the following iPod/iPhone models:

– iPod touch (4th Generation) – iPod touch (3rd Generation) – iPod touch (2nd Generation) – iPod touch (1st Generation) – iPod classic – iPod with video – iPod nano (6th Generation) – iPod nano (5th Generation) – iPod nano (4th Generation) – iPod nano (3rd Generation) – iPod nano (2nd Generation) – iPod nano (1st Generation) – iPod mini – iPod photo – iPod (5th Generation) – iPod (4th Generation) – iPhone 4 – iPhone 3GS – iPhone 3G – iPhone

Playing the contents of an iPod/ iPhone

1 Open the »iPod dock drawer« by pressing

on it.

2 Connect your iPod/iPhone into the »iPod

dock connector« until it latches into place

(see the “Connecting the iPod/iPhone” sec-

tion).

3 Switch on the device from standby mode by

pressing »8« on the remote control or using

»ON/OFF« on the device.

– If the device is in Internet radio, Music play-

er, FM or Aux In mode, the display shows: »iPod attached- Switch to iPod mode?«

Time/Date

iPod

iPod attached -

Switch to iPod mode?

YES NO

4 Conﬁrm by pressing »YES« using the Jog-Shuttle

or »OK« on the remote control.

Note:

If you do not make your selection within a

few seconds, this message disappears. You can then select iPod mode by using the »MODE« button.

Press »M« repeatedly on the remote control

or »MODE« on the device until »iPod« appears on display.

– Display: »Docked« appears after connec-

tion and playback starts automatically with the last played passage.

5 To pause playback, press » «. 6 To resume playback, press » « again. 7 Press »7« on the remote control to stop play-

back.

ENGLISH

iPod/iPhone MODE

-------------------------------------------------------------------------------------------------

Displaying information

You can check whether the iPod/iPhone model used displays information on the device display.

1 Press »i«.

– Display: »Authentication: Success«, the infor-

mation is displayed.

– Display: »Authentication: - -«, the information

is not displayed.

2 Display further information using »i«.

– The following displays appear in succession:

Elapsed playing time and total playing time of the track, artist, track name, album, current date.

Note:

The respective information is displayed con-

tinually if »i« is not pressed again.

Navigate with the iPod/iPhone menu

You can navigate with the iPod/iPhone menu and the buttons of the remote control.

1 During playback, press » « for switching one

menu level backwards.

2 Select the menu item (e.g. Artists) by pressing

» « or » «.

3 Activate the menu item by pressing »OK«

on the remote control or by turning the JogShuttle.

Repeating the current track

1 During playback, press » « on the device or

on the remote control. – The track is repeated from the beginning.

The playing time is »0:00«.

Searching for a passage within a track or file

1 During playback, press and hold » « or » «

to move through the current ﬁle or track.

2 Release » « or » « when the passage has

been found.

– Playback continues.

Repeating a track (Repeat One) 1 During playback, press » « once on the re-

mote control.

– The iPod/iPhone display shows » «.

– The current file/track is repeated.

Note:

While repeat is active, you cannot select an-

other file/track.

2 To quit this function, press » « on the remote

control repeatedly until » « disappears from

the display of the iPod/iPhone.

Repeating all tracks or files (Repeat All) 1 During playback, press » « on the remote

control repeatedly until » « appears on the

display of the iPod/iPhone.

– The iPod/iPhone display shows » «.

– All the tracks or files in the playlist/album

are played back repeatedly.

2 To quit this function, press » « on the remote

control repeatedly until » « disappears from

the display.

Selecting another track or file

1 During playback, press » « or » « on the re-

mote control repeatedly until the track or ﬁle is reached. – Playback of the selected track or file starts

automatically.

ENGLISH

USB MODE

----------------------------------------------------------------------------------------------------------------------------------

Playing the contents of a USB memory stick

1 Switch oﬀ the device from standby mode

by pressing »8« on the remote control or »ON/OFF« on the device.

2 Connect the USB interface of the MP3 player

to the »USB« socket on the device (on the

back side), using a standard USB cable; or insert the USB plug of the USB memory stick

in the »USB« socket (on the back side) on the

device.

3 Switch on the device from standby mode

by pressing »8« on the remote control or

»ON/OFF« on the device.

4 Press »MODE« repeatedly on the device or

»M« on the remote control until »Music play-

er« appears on the display.

– Display: »Music player« submenu opens.

5 Select the option »USB playback« by pressing

» « or » « or by turning the Jog-Shuttle and

conﬁrm by pressing »OK«.

– The content of the USB appears in the dis-

play.

Time/Date

USB playback Hotel California.MP3 My Heart will GO ON.MP3 Pretty Woman.MP3 Right Here Waiting.MP3

8 Press »7« on the remote control to stop play-

back.

Pausing and resuming playback

1 Press » « during playback to pause.

– Display: »II«, playing time stops, track or ﬁle

information remains in the display.

2 Continue playback by pressing » «.

Repeating the current track

1 During playback, press » « on the remote

control.

– Display: »0:00«, the track is played again

from the start.

Selecting another track

During playback

1 During playback, press » « or » « on the re-

mote control repeatedly until the desired track or ﬁle is reached.

– Playback of the selected track starts auto-

matically.

In stop mode

1 In stop mode, press » « or » « or turn the

Jog-Shuttle until the desired track or ﬁle is reached.

2 Start playback of the track by pressing »OK«

or using » « on the remote control.

Note:

If no USB memory stick has been inserted,

» No USB device found« appears in the display after a short time. Insert the USB by referring to the “Connecting an MP3 player or a USB memory stick” section.

6 Select the ﬁle or track by pressing » « or » «

or by turning the Jog-Shuttle.

7 Press »OK« to start playback.

– Display: Playback starts, elapsed playing

time, total playing time and ﬁle information appears in the display.

Searching for a passage within a file or track

1 During playback, press and hold » « or » «. 2 Stop pressing » « or » « when the passage

has been found.

– Playback continues.

ENGLISH

USB MODE

----------------------------------------------------------------------------------------------------------------------------------

Repeating all files or tracks (Repeat All)

1 During playback press » « once on the re-

mote control. – Display: »«. – All the tracks or ﬁles are played back repeat-

edly.

2 To quit this function, press » « on the remote

control. – Display: »« disappears from the display.

Playing tracks in random order

1 Open the »Music player« menu by pressing

»MENU«.

2 Select the option »Shuﬄe play« by pressing

» « or » « or by turning the Jog-Shuttle on

the device.

3 Switch on the shuﬄe function by pressing

»OK«.

– Display: » «.

– All tracks in the file are played once in ran-

dom order.

4 To end the option, switch oﬀ »Shuﬄe play« in

the »Music player« menu by pressing »OK«.

– The display » « disappears.

Notes:

The USB socket on the device does not sup-

port a connection for a USB extension cable and is not designed for direct connection to a computer.

The USB socket of this device is a standard

socket. Due to rapid advances in technology and new manufacturers appearing every day, the compatibility of USB memory sticks can only be partially guaranteed.

If USB operation is impaired or is not possi-

ble, this does not indicate a device malfunction.

Bi-directional data transfer as defined for ITE

devices in EN 55022/EN 555024 is not possible.

USB transfer is not in itself an operating

mode. It is only an additional function.

Never remove USB devices during opera-

tion. This could damage the USB device and the device. Any such damage will invalidate your warranty.

ENGLISH

FM MODE

--------------------------------------------------------------------------------------------------------------------------------------

Selecting the tuner input source

1 Press »M« repeatedly on the remote control or

»MODE« on the device until »FM radio« ap-

pears on the display.

Selecting stations – from presets

1 In the »FM radio« mode, press »1« to »0« on

the remote control to select the presets from 1

to 10;

– The frequency of the station and the preset

number appear in the display and the station is then played.

Selecting stations – from the list Recall Preset

1 Press »FAV«. 2 Select the presets from 1 to 10 by pressing

» « or » « or by turning the Jog-Shuttle.

3 Conﬁrm the preset by pressing »OK«.

– The preset number appears in the display

and the station is then played.

Stereo and mono reception

The device has an auto mode, which switches automatically between stereo and mono depending on the strength of the reception signal.

1 Press »MENU« to open the FM menu. 2 Select the option »Audio setting« by pressing

» « or » « or by turning the Jog-Shuttle and

conﬁrm by pressing »OK«.

3 Select the push button »No« by pressing » «

or » « or by turning the Jog-Shuttle, and con-

ﬁrm by pressing »OK«.

– The auto mode is activated;

or select the push button »YES« by pressing » « or » « or by turning the Jog-Shuttle, and confirm by pressing »OK«.

– The device is switched to mono reception;

unwanted noise interference is suppressed.

Displaying RDS station information

If the device is receiving a RDS station, the station name and »R.D.S« appear in the display (if no information is available, the reception frequency appears in the display).

Station and track information appear as ticker text (radio text). If radio text is not available, other information can be displayed as an alternative.

1 To display information on the current RDS sta-

tion, press »i« repeatedly. – The following displays appear in succession:

The current programme type (PTY), e.g. »Pop Music«. »[No PTY]« appears if no information is available;

the frequency; the current date.

Note:

The information is displayed continuously

until »i« is pressed again.

ENGLISH

AUX MODE

--------------------------------------------------------------------------------------------------------------------------------

Listening to an external source

You can listen to the audio signal from the external device connected through your system’s speakers.

1 Switch on the device from standby mode

by pressing »8« on the remote control or

»ON/OFF« on the device.

2 Use a standard audio cable (not supplied)

to connect »AUX IN« on the back of the de-

vice to an AUDIO OUT socket on the external

equipment.

3 Press »M« repeatedly on the remote control or

»MODE« on the device until »Aux in« appears

in the display.

4 Start playback on the external device.

ENGLISH

TIMER MODE

--------------------------------------------------------------------------------------------------------------------------

Your device has 2 timer modes: – The switch-on timer, which switches the de-

vice on at the set time and wakes you with the input source you selected.

– The sleep timer, which switches the device

oﬀ at a preset time.

Switch-on timer

Setting the timer 1 Switch on the device from standby mode

by pressing »8« on the remote control or

»ON/OFF« on the device.

2 Press »MENU« to open the menu. 3 Select the »Main menu« by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm

by pressing »OK«.

4 Select the option »Alarms« by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm

by pressing »OK«.

5 Select the option »Alarm 1« by pressing » «

or » « or by turning the Jog-Shuttle and con-

ﬁrm by pressing »OK«.

– »Alarm 1« submenu appears on display.

Time/Date

Alarm 1

Enable: Off Time: 0:00 Mode: Internet radio Preset: last listened

Volume: 24

6 Select the option »Enable« on the display by

pressing » « or » « or by turning the Jog-

Shuttle and conﬁrm by pressing »OK«.

Select the preferred option (»Daily«, »Once«,

»Weekends« or »Weekdays«,) by pressing

» « or » « or by turning the Jog-Shuttle and

conﬁrm by pressing »OK«.

– Display: The previous menu reappears

automatically.

7 Select the option »Time« by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm

by pressing »OK«.

– Display: The clock digits for the hours flash.

Press » « or » « or turn the Jog-Shuttle to set

the alarm hour and conﬁrm by pressing »OK«. – Display: The clock digits for the minutes

flash.

Press » « or » « or turn the Jog-Shuttle to

set the alarm minute and conﬁrm by pressing »OK«. – Display: The previous menu reappears au-

tomatically.

8 To set the timer source, select the option

»Mode« by pressing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

Press » « or » « or turn the Jog-Shuttle to se-

lect the timer source from »Buzzer«, »Internet radio«, »iPod« or »FM« and conﬁrm by pressing »OK«. – Display: The previous menu reappears au-

tomatically.

Note:

If you select one of the »Internet radio« or

»FM« options, »Alarm preset« submenu opens. Press » « or » « or turn the JogShuttle to select »Last listened« or one of the presets and confirm by pressing »OK«.

9 Select the option »Volume« by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

Press » « or » « or turn the Jog-Shuttle to

set the volume level and conﬁrm by pressing »OK«.

10 Select the option »Save« by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

– »Alarm saved« appears in the display.

Notes:

To set the second alarm time (»Alarm 2«)

repeat steps 5 to 10.

The setting for the alarm times 1 and 2 can

also be opened directly using the buttons »AL1« and »AL2« on the remote control.

ENGLISH

TIMER MODE

If no button is pressed for 10 seconds while

--------------------------------------------------------------------------------------------------------------------------

setting, the system will quit the process automatically, and you have to start again.

If you select “iPod” as the timer source, make

sure that an iPod has been inserted. Otherwise the device activates the buzzer.

11 Switch the device to standby by pressing »8«

on the remote control or »ON/OFF« on the device.

– Display: Date, time and »« or »« with

the alarm time.

– The alarm sounds at the set time with the

alarm signal selected.

Interrupting the timer 1 While the timer is sounding, press »AL1« or

»AL2«.

– If the timer is set to »Once«, the timer signal

stops and »

« or »

« disappears.

– If the timer is set to »Daily«, »Weekends« or

»Weekdays«, the timer signal stops and »

« or »

« appear for the next day.

Activating and deactivating the timer

1 Open the option »Alarm« using »AL1« and

»AL2« on the remote control.

– The »Alarm« menu appears.

2 Select the option »Enable« by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm

by pressing »OK«.

3 To deactivate »Alarm 1« or »Alarm 2«, select

»Oﬀ« by pressing » « or » « or by turning

the Jog-Shuttle and conﬁrm by pressing »OK«.

4 Select the option »Save« by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm

by pressing »OK«.

– Display: »« or »« disappears.

Note:

To activate the alarm time, reselect the alarm

cycle in the »Cycle« menu and store it.

Sleep timer

Setting the sleep timer

By using the button »S«

1 Switch on the device by pressing »8« on the

remote control or »ON/OFF« on the deviceand select the preferred sound source.

2 Open the sleep menu by pressing »S« on the

remote control.

3 To set the switch-oﬀ time from »15«, »30«,

»45«, »60«, press »S« repeatedly on the remote control or turn the Jog-Shuttle and conﬁrm by pressing the Jog-Shuttle or »OK« on the remote control. – Display: » « and the switch-off time appears. – After the selected time has elapsed

» Going to sleep…« appears, and the device switches off, » « disappears.

By using the Menu

1 Switch on the device by pressing »8« on the

remote control or »ON/OFF« on the device.

2 Press »MENU« and select the »Main menu«

by pressing » « or » « or by turning the JogShuttle and conﬁrm by pressing »OK«.

3 Select the option »Sleep« by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

4 To set the switch-oﬀ time from »15«, »30«,

»45«, »60«, press » « or » « or turn the JogShuttle and conﬁrm by pressing on the JogShuttle or »OK« on the remote control. – Display: » « and the switch-off time appear. – After the selected time has elapsed

» Going to sleep…« appears, and the device switches off,» « disappears.

Cancelling the sleep timer 1 To switch oﬀ the sleep timer before the set

switch-oﬀ time, refer to previous section and

select »Sleep oﬀ« at step 3; or switch the device to standby mode by pressing

»8« on the remote control or »ON/OFF« on

the device.

ENGLISH

SPECIAL SETTINGS

-----------------------------------------------------------------------------------------------------

Displaying Software and ID information

1 Press »MENU« to open the menu. 2 Select the option »System settings« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

3 Select the option »Info« by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

Time/Date

SW version: GRUNDIG_CP_3F_IP Version 1.20 Radio ID:

00226XXXXXXX

Info

– The software version and the Radio ID (MAC

address) are displayed.

4 Press »MENU« to end the display.

Displaying information and network status

You can display information about your device and the network used. Settings cannot be made in this menu.

1 Press »MENU« to open the menu. 2 Select the option »System settings« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

3 Select the option »Network« by pressing » «

or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

4 Select the option »View settings« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

5 Select the required information by pressing

» « or » « or by turning the Jog-Shuttle. – Display: »Active connection« e.g. WLAN is

active; »WLAN region:« e.g. Most of Europe; »DHCP:« e.g. DHCP enabled; »SSID:« network name, e.g. »Netgear«; »IP address:« (e.g. 192.168.99.131);

»Subnet mask:« (e.g. 255.255.255.0); »Gateway address:« (e.g. 192.168.2.1); »Primary DNS:« (e.g. 192.168.2.1) »Secondary DNS:« (e.g. 0.0.0.0).

6 Press »MENU« to end the display.

Installing an additional network

Use this function when you wish to operate your device at a diﬀerent location using a diﬀerent network.

The ﬁrst network (home network) is retained.

1 Press »MENU« to open the menu. 2 Select the option »System settings« by pressing

» « or » « or by turning the Jog-Shuttle, and open using »OK«.

3 Select the option »Network« by pressing » «

or » « or by turning the Jog-Shuttle, and open using »OK«.

Time/Date

Internet Setup Internet Wizard PBC Wlan setup View settings Wlan region > Manual settings

4 Select the option »Internet Wizard« (if a stand-

ard router is used) or the option »PBC Wlan setup« (if a router with WPS-PBC/Push-ButtonConﬁguration is used) by pressing » « or » « or by turning the Jog-Shuttle, and open using »OK«.

Note:

If the option »PBC Wlan setup« has been

selected, press the WPS button on the router and then continue the registration using »OK«.

Your device is registered on the router auto-

matically. No further settings are required.

ENGLISH

SPECIAL SETTINGS

-----------------------------------------------------------------------------------------------------

5 Select the network by pressing » « or » «

or by turning the Jog-Shuttle, and conﬁrm by pressing »OK«. – The »Key« menu appears (if the network is

encrypted), and the cursor is positioned at

the first input field.

Note:

If the network is encrypted, the network

key (security code WEP or WPA) must be

entered.

6 Enter network key:

Enter the ﬁrst character by pressing » «, » «,

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

Repeat entry for the remaining characters. When the network key has been entered

completely, select the push button »OK« by pressing » «, » «, » « or » « and conﬁrm by pressing »OK«. – The »Internet Setup« menu appears, the reg-

istration on the network is processed.

Notes:

Numbers, capital and lower case letters as

well as special characters are available for

input.

Scroll through the menu pages by pressing

» « or » « in order to select other char-

acters.

If you make a mistake during entry, press

» «, » «, » « or » « to select the push but-

ton »BKSP« and confirm by pressing »OK«.

The last character is deleted.

If you wish to exit the menu prematurely,

press » «, » «, » « or » « to select the

push button »CANCEL« and confirm by

pressing »OK«. The device switches back

one menu level. – After successful registration, the message

»Setup wizard completed« appears.

7 End the setting by pressing »OK«.

Setting the WLAN region

You must set the WLAN region in accordance with the location of the device.

1 Press »MENU« to open the menu. 2 Select the option »System settings« by pressing

» « or » « or by turning the Jog-Shuttle and open using »OK«.

3 Select the option »Network« by pressing » «

or » « or by turning the Jog-Shuttle and open using »OK«.

4 Select the option »Wlan region« by pressing

» « or » « or by turning the Jog-Shuttle and open using »OK«.

Time/Date

Internet Setup Internet Wizard PBC Wlan setup View settings Wlan region > Manual settings

5 Select the appropriate WLAN region using

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

Deleting servers which cannot be accessed

This function allows you to delete servers for which access data is still stored in the device, although they are no longer available.

1 Select the input source »Music player« by

pressing »M« on the remote control or by pressing »MODE« on the device.

2 Select the option »Prune servers« by pressing

» « or » « or by turning the Jog-Shuttle on the device, and conﬁrm by pressing »OK«.

3 Select the push button »YES« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

Note:

If the push button »NO« is selected and

confirmed, then the deletion process will be cancelled.

ENGLISH

SPECIAL SETTINGS

-----------------------------------------------------------------------------------------------------

Registering the device with the WLAN router with individual network settings

These settings require advanced knowledge of network conﬁguration.

1 Press »MENU« to open the menu. 2 Select the option »System settings« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

3 Select the option »Network« by pressing » «

or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

4 Select the option »Manual settings« by press-

ing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

Time/Date

Internet Setup Internet Wizard PBC Wlan setup View settings Wlan region > Manual settings

5 Select the option »Wired« or »Wireless« by

pressing » « or » « or by turning the JogShuttle and conﬁrm by pressing »OK«.

6 Select the option »DHCP enable« or »DHCP

disable« by pressing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

Notes:

Setting »DHCP disable« means all address-

es must be entered manually.

If »DHCP enable« is set, the addresses are

automatically assigned by the router. If you

have selected »DHCP enable«, continue

with step 12.

7 Enter the IP address.

Select the ﬁrst number by pressing » « or

» « or by turning the Jog-Shuttle.

Select the next digit position by pressing » «

or by turning the Jog-Shuttle (you can switch back by pressing » « on the remote control).

Repeat the procedure for all characters. Conﬁrm the IP address by pressing »OK«.

Time/Date

IP settings 3/9

IP adress 10 . 134 . 10 . 254 Subnet mask 255 . 255 . 254 . 0

8 Enter the Subwork mask.

Select the ﬁrst number by pressing » « or

» « or by turning the Jog-Shuttle.

Select the next digit position by pressing » «

or by turning the Jog-Shuttle (you can switch back by pressing » « on the remote control).

Repeat the procedure for all characters. Conﬁrm the number by pressing »OK«.

9 Enter the Gateway address.

Select the ﬁrst number by pressing » « or

» « or by turning the Jog-Shuttle.

Select the next digit position by pressing » «

or by turning the Jog-Shuttle (you can switch back by pressing » « on the remote control).

Repeat the procedure for all characters. Conﬁrm the number by pressing »OK«.

Note:

The primary and secondary DNS (Domain

Name System) are the network address of the server allocated by the provider.

10 Enter the Primary DNS.

Select the ﬁrst number by pressing » « or » « or by turning the Jog-Shuttle. Select the next digit position by pressing » « or by turning the Jog-Shuttle (you can switch back by pressing » « on the remote control). Repeat the procedure for all characters. Conﬁrm the number by pressing »OK«.

ENGLISH

SPECIAL SETTINGS

-----------------------------------------------------------------------------------------------------

11 Enter the Secondary DNS.

Note:

The SSID (Service Set Identifier) is the

WLAN network code, and is used to identify

this wireless network.

12 Enter the SSID:

Enter the ﬁrst character by pressing » «, » «, » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. Repeat entry for all other characters. Once the network key has been entered completely, press » «, » «, » « or » « to select the push button »OK« and conﬁrm by pressing »OK«.

Notes:

Numbers, capital and lower case letters and

special characters are available for input.

Scroll through the menu pages by pressing

» « or » « to select all other characters.

If you make a mistake during entry, press

» «, » «, » « or » « to select the push but-

ton »BKSP« and confirm by pressing »OK«.

The last character is deleted.

If you wish to exit the menu prematurely,

press » «, » «, » « or » « to select the

push button »CANCEL« and confirm by

pressing »OK«. The device switches back

one menu level.

Note:

The encryption settings of the device must

match those of the router.

13 Select the encryption level by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

Note:

You can select different encryption levels:

»Open« – Choose between »Disabled« and

»WEP«.

»Pre-Shared Key« – Choose between »Disa-

bled« and »WEP«. »WPA« – Choose between »TKIP« and »AES«. »WPA2«: highest security level – Choose

between »TKIP« and »AES«.

14 Enter encryption level.

Notes:

»Please wait, processing« now appears in

the display. The connection to the WLAN

router and therefore to the Internet is being

established.

If connection is successful, » Connected« ap-

pears on the display.

If connection has failed, » Failed to con-

nect« appears on the display.

ENGLISH

SPECIAL SETTINGS

-----------------------------------------------------------------------------------------------------

Setting the time, time zone and date automatically

1 Press »MENU« to open the menu. 2 Select the option »System settings« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

3 Select the option »Time/Date« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

4 Select the option »Auto update« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

5 Select the required option (»Update from FM«,

»Update from Network«) by pressing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – Time and date are set automatically after a

power failure.

6 Press »MENU« to end the setting.

Setting the time, time zone and date manually

1 Press »MENU« to open the menu. 2 Select the option »System settings« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

3 Select the option »Time/Date« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

4 Select the option »Set format« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing on the Jog-Shuttle or »OK« on the remote control.

Select »12« or »24 #« by pressing » « or

» « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – Display: The previous menu reappears au-

tomatically.

5 Select the option »Set Time/Date« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – Display: The menu »Set Time/Date« ap-

pears, the day flashes.

6 Set the day, the month, the year, the hour and

the minutes by pressing » « or » « or by turning the Jog-Shuttle and conﬁrm every input by pressing »OK«. – The menu disappears, the time appears at

the upper right of the display.

Updating the device software

This function enables you to use the device with the latest software.

1 Press »MENU« on the device or on the remote

control, and select the »Main menu« by pressing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

2 In the »Main menu«, select the option »System

settings« by pressing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

3 Select the option »Software update« by press-

ing » « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – The »Software update« menu appears, two

options are available for selection. – If »Auto-check setting« is selected, the device

checks in one cycle whether new software is

available, and updates it. – If »Check now« is selected, the device

checks the software version. If a new version

is available, this can be loaded by selecting

the push button »YES«. Selecting the push

button »NO« cancels the update.

ENGLISH

SPECIAL SETTINGS

-----------------------------------------------------------------------------------------------------

Changing the menu language

1 Open the menu for the current input source by

pressing »MENU«.

2 Select the option »System settings« by pressing

» « or » « or by turning the Jog-Shuttle on the device and conﬁrm by pressing »OK«.

3 Select the option »Language« by pressing

» « or » « or by turning the Jog-Shuttle on the device and conﬁrm by pressing »OK«.

Time/Date

Language English German French Italien Spanish

4 Select the preferred language by pressing

» « or » « or by turning the Jog-Shuttle on the device and conﬁrm by pressing »OK«.

5 End the setting by pressing »MENU«.

Restoring the default settings (reset)

This function enables you to reset all the custom settings back to the default settings (Internet and FM stations, time, alarm times and network access data are deleted).

1 Press »MENU« to open the menu. 2 Select the option »System settings« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«.

3 Select the option »Factory Reset« by pressing

» « or » « or by turning the Jog-Shuttle and conﬁrm by pressing »OK«. – Display: »Proceed? YES – NO«

4 Select »YES« by pressing » « or » « or by

turning the Jog-Shuttle and conﬁrm by pressing »OK«. – If you confirm, »Restarting« appears on dis-

play and the device restarts to reset the set-

tings.

ENGLISH

INFORMATION

------------------------------------------------------------------------------------------------------------------

Glossary

Boot loader version

Boot loader is a software application that is loaded by the device ﬁrmware from a bootcapable medium and then executed. The boot loader then loads further parts of the operating system.

Domain name system

The domain name system (DNS) is one of the most important services on the Internet. Its main function is to convert an Internet address into the corresponding IP address.

Firmware version

Firmware is the term used for software that is embedded in a programmed chip (microcontroller). It is mostly stored in a ﬂash memory, an EPROM or an EEPROM. The ﬁrmware contains functions for controlling the device.

Gateway IP

A gateway allows networks, which may be based on completely diﬀerent protocols, to communicate with each other.

In the home area, a combination of the router and the DSL modem are used as an Internet gateway.

Hardware version

Hardware in this context means the device. This includes all components such as processor, display, etc.

IP address

An IP address (Internet protocol address) is used to uniquely identify the address of computers and other devices in an IP network. The most well-known network in which IP addresses are used is the Internet. Here, for example, web servers are addressed using the IP address.

The IP address can be provided automatically by the router (automatic address) or can be entered manually in the router (static address). If it is entered manually, this address must also be entered in the hi-ﬁ system.

NAS (network access storage)

The abbreviation NAS is used for devices that provide data from a hard drive to a network.

Network name (SSID)

The network name (SSID – service set identiﬁer) is the term used for the identiﬁcation of a wireless network that is based on IEEE 802.11.

Every wireless LAN has a conﬁgurable SSID, which uniquely identiﬁes the wireless network.

The character sequence of the network name can be up to 32 characters in length. It is conﬁgured in the base station (access point) of a wireless LAN and set on all clients which access it.

Network mask

The network mask or net mask, sometimes also referred to as a subnet mask, is a bit mask that separates an IP address into a network part and a device/host part. It is used in IP networks to make routing decisions.

Private IP address

Private IP addresses belong to particular IP address ranges that are not routed in the Internet. They can be used by anybody for private Networks, such as LANs.

Many computer networks require complete connectivity at IP level, but only limited access to the Internet. If such a computer network has a private IP address range, it forms an intranet which cannot be accessed from the Internet as the Internet routers ignore private address ranges. A gateway or router that is placed in this private network and which has a public address in the Internet as well as a private IP address makes the connection to the Internet. This can be performed by a proxy or using NAT/PAT/Masquerading.

As the address range used can only be viewed within the private network, the same range can also be used in other private networks. The unique nature of an IP address required by the Internet protocol is ensured by this restricted visibility.

ENGLISH

INFORMATION

------------------------------------------------------------------------------------------------------------------

Proxy server

A proxy or proxy server is a service program for computer networks that administers data transfer. It makes data transfer faster, and can also increase security by implementing access control mechanisms.

The transfer is conducted between computers or programs in computer networks. On the server side, the proxy acts as a client; on the client side, it acts as a server.

Router

A router is a network component that links several computer networks.

The router analyses (on the basis of layer 3 information) the network packages of a protocol it receives and forwards it to the intended destination network.

Conventional routers work on layer 3 of the application layer. A router has an interface for every network connected to it. When data is received, the router determines the correct path to the destination and thereby the suitable interface via which the data can be transferred. For this it uses a locally available routing table that speciﬁes via which router connection a particular network can be reached.

Security (WEP/WPA)

WEP (wired equivalent privacy) is the standard encryption algorithm for WLAN. It controls both access to the network as well as ensuring the conﬁdentiality and integrity of data. This procedure is considered insecure nowadays.

For this reason, more recent WLAN installations should use the more secure WPA encryption.

Wi-Fi

The Wi-Fi Alliance is an organisation that has taken on the task of certifying products from different manufacturers on the basis of the IEEE-

802.11 standard, thereby ensuring that diﬀerent wireless devices can operate in parallel.

On 31 October 2002, the consortium announced a new encryption technology – Wi-Fi Protected Access (WPA) – a part of the (then) forthcoming IEEE standard 802.11i which would replace the WEP encryption procedure, which was already regarded as insecure before the new standard came into force. After 802.11i came into force, the Wi-Fi group coined the term WPA2.

IEEE 802.11e is an industrial standard issued by the Institute of Electrical and Electronics Engineers (IEEE) and a supplement to the wireless LAN standard IEEE 802.11 for supporting the quality of service.

802.11e works according to a similar principle as the QoS procedure DiﬀServ. Data packages in the WLAN are marked by the sender and the access point is stopped in order to handle packages with higher priority.

With the aid of 802.11e, real-time application such as Voice over IP are better supported as they require a certain bandwidth in the network to ensure the connection is not interrupted if other network traﬃc creates too great a burden on the available data transfer rate.

V-Tuner

Service provider that provides Internet radio stations.

ENGLISH

INFORMATION

------------------------------------------------------------------------------------------------------------------

Licence conditions

This product is protected by the intellectual property rights of the Microsoft Corporation. The use or distribution of such technology outside of this product is prohibited unless under licence from Microsoft or an authorised subsidiary.

Content providers use the digital rights management technology for Windows Media contained in this device (“WM-DRM”) to protect the integrity of their content (“Secure Content”) so that their intellectual property, including copyright, in such content is not misappropriated. This device uses WM-DRM software to play Secure Content (“WM-DRM Software”). If the security of the WM-DRM Software in this device has been compromised, owners of Secure Content (“Secure Content Owners”) may request that Microsoft revoke the WM-DRM Software’s right to acquire new licenses to copy, display and/or play Secure Content. This revocation does not aﬀect the ability of the WM-DRM software to playback unprotected content. A list of revoked WM-DRM Software is sent to your device whenever you download a license for Secure Content from the Internet or from a PC. Microsoft may, in conjunction with such license, also download revocation lists onto your device on behalf of Secure Content Owners.

“Real enabled” licence conditions for end users

End users a. May not modify, technically reconstruct or take

apart the device, or make any other attempts to decode the source code or imitate the functions of the customer code. This clause is only invalid if speciﬁcally prohibited by law.

b. Will resign all claims and conditions in the

name of Real Networks Inc. that are not speciﬁed in these license conditions for end consumers; this explicitly includes claims or conditions for the purpose or marketing, and suitability for certain purposes. No liability will be accepted for indirect, speciﬁc, random and resulting damage, such as loss of value.

c. Have to conﬁrm that “this product is protected

for Microsoft by intellectual property rights. The use or distribution of this technology outside of this product is prohibited unless under licence from Microsoft or an authorised subsidiary”.

Venice 6.2 licence conditions for end users

By using this product user agrees to the following End User License conditions:

1 Refrain from modifying, translating, reverse en-

gineering, decompiling, disassembling or using other means to discover the Source Code or otherwise replicate the functionality of the Client Code, except to the extent that this restriction is expressly prohibited by applicable law.

2 This agreement disclaims on behalf of Real

Networks Inc. all warranties and conditions other than those set forth in this End User License, express and implied, including implied warranties or conditions of merchantability and ﬁtness for a particular purpose; and eﬀectively exclude all liability for indirect, special, incidental and consequential damages, such as lost proﬁts.

3 This product is protected by certain intellectual

property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

3rd Party License Acknowledgements

Mp3 codec from Thomson Licensing

Notice required:

"Supply of this product does not convey a license under the relevant intellectual property of Thomson and/or Fraunhofer Gesellschaft nor imply any right to use this product in any ﬁnished end user or ready-to-use ﬁnal product. An independent license for such use is required. For details, please visit http://www.mp3licensing.com."

ENGLISH

INFORMATION

------------------------------------------------------------------------------------------------------------------

USBware from Jungo Ltd.

Notice required:

Redistribution and use in source and binary forms, with or without modiﬁcation, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the

above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce

the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

This software is provided by the freebsd project "as is" and any express or implied warranties, including, but not limited to, the implied warranties of merchantability and ﬁtness for a particular purpose are dtsclaimed. In no event shall the freebsd project or contributors be liable for any direct, indirect, incidental, special, exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services; loss of use, data, or proﬁts; or business interruption) however caused and on any theory of liability, whether in contract, strict liability, or tort (including negligence or otherwise) arising in any way out of the use of this software,even if advised of the possibility of such damage.”

WPA Supplicant from Jouni Malinen

Notice required:

Redistribution and use in source and binary forms, with or without modiﬁcation, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the

above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce

the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. Neither the name(s) of the above-listed copy-

right holder(s) nor the names of its contributors may be used to endorse or promote products derived from this software without speciﬁc prior written permission.

This software is provided by the copyright holders and contributors "as is" and any express or implied warranties, including, but not limited to, the implied warranties of merchantability and ﬁtness for a particular purpose are disclaimed. In no event shall the copyright owner or contributors be liable for any direct, indirect, incidental, special, exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services; loss of use,data, or proﬁts; or business interruption) however caused and on any theory of liability, whether in contract, strict liability, or tort (including negligence or otherwise) arising in any way out of the use of this software, even if advised of the possibility of such damage.”

LWIP from LWIP Licensors

Notice required:

Redistribution and use in source and binary forms, with or without modiﬁcation, are permitted provided that the following conditions are met:

ENGLISH

INFORMATION

------------------------------------------------------------------------------------------------------------------

1. Redistributions of source code must retain the

above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce

the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. The name of the author may not be used to

endorse or promote products derived from this software without speciﬁc prior written permission.

This software is provided by the author "as is" and any express or implied warranties, including, but not limited to, the implied warranties of merchantability and ﬁtness for a particular purpose are disclaimed. In no event shall the author be liable for any direct, indirect, incidental, special, exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services; loss of use, data, or proﬁts; or business interruption) however caused and on any theory of liability, whether in contract, strict liability, or tort (including negligence or otherwise) arising in any way out of the use of this software, even if advised of the possibility of such damage.”

FLAC from Xiph.org Foundation

Notice required:

Redistribution and use in source and binary forms, with or without modiﬁcation, are permitted provided that the following conditions are met: – Redistributions of source code must retain

the above copyright notice, this list of conditions and the following disclaimer.

– Redistributions in binary form must repro-

duce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

– Neither the name of the Xiph.org Founda-

tion nor the names of its contributors may

be used to endorse or promote products derived from this software without speciﬁc prior written permission.

This software is provided by the copyright holders and contributors ``as is'' and any express or implied warranties, including, but not limited to, the implied warranties of merchantability and ﬁtness for a particular purpose are disclaimed. In no event shall the foundation or contributors be liable for any direct, indirect, incidental, special, exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services; loss of use, data, or proﬁts; or business interruption) however caused and on any theory of

Liability, whether in contract, strict liability, or tort (including negligence or otherwise) arising in any way out of the use of this software, even if advised of the possibility of such damage.”

OpenSSL from The OpenSSL Project

Notice required:

Redistribution and use in source and binary forms, with or without modiﬁcation, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the

above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce

the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features

or use of this software must display the following acknowledgment:

"This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)"

ENGLISH

INFORMATION

------------------------------------------------------------------------------------------------------------------

4. The names "OpenSSL Toolkit" and "OpenSSL

Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact openssl-core@openssl.org.

5. Products derived from this software may not

be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.

6. Redistributions of any form whatsoever must

retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)"

This Software Is Provided By The Openssl Project ``As Is'' And Any Expressed Or Implied Warranties, Including, But Not Limited To, The Implied Warranties Of Merchantability And Fitness For A Particular Purpose Are Disclaimed. In No Event Shall The Openssl Project Or Its Contributors Be Liable For Any Direct, Indirect, Incidental, Special, Exemplary, Or Consequential Damages (Including, But Not Limited To, Procurement Of Substitute Goods Or Services; Loss Of Use, Data, Or Proﬁts; Or Business Interruption) However Caused And On Any Theory Of Liability, Whether In Contract, Strict Liability, Or Tort (Including Negligence Or Otherwise) Arising In Any Way Out Of The Use Of This Software, Even If Advised Of The Possibility Of Such Damage.”

Redistribution and use in source and binary forms, with or without modiﬁcation, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the

2. Redistributions in binary form must reproduce

the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features

or use of this software must display the following acknowledgement: "This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)" The word 'cryptographic' can be left out if the rouines from the library being used are not cryptographic related.

4. If you include any Windows speciﬁc code (or

a derivative thereof) from the apps directory (application code) you must include an acknowledgement: "This product includes software written by Tim Hudson (tjh@cryptsoft. com)"

This software is provided by eric young ``as is'' and any express or implied warranties, including, but not limited to, the implied warranties of merchantability and ﬁtness for a particular purpose are disclaimed. In no event shall the author or contributors be liable for any direct, indirect, incidental, special, exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services; loss of use, data, or proﬁts; or business interruption) however caused and on any theory of liability, whether in contract, strict liability, or tort (including negligence or otherwise) arising in any way out of the use of this software, even if advised of the possibility of such damage.”

LPTT Software

The LPTT software is licensed on a non-exclusive, non-transferable/non-assignable basis with no right to sell, assign, loan, lease or otherwise transfer it. The licence comes with very limited warranties.

ENGLISH

INFORMATION

------------------------------------------------------------------------------------------------------------------

Cleaning the device

Pull out the power cord from the wall socket. Clean the device by using a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Environmental note

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling.

Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. This is indicated by this symbol on the product, in the operating manual and on the packaging.

Please consult your local authorities to learn the nearest collection point.

Help protect the environment by recycling used products.

Technical data

This device is noise–suppressed according to the applicable EU directives.

This product fulfils the European directives 1999/5/EC and 2009/125/EC.

The type plate is located on the bottom of the device.

Do not open the device casing under any circumstances. No warranty claims are accepted for damage caused by incorrect handling.

System

Operating voltage: 100 – 240 V~ , 50/60 Hz

with adapter

Input: 100 – 240V~ 50/60Hz

650mA Output: 6 V > 1800 mA Adapter model no: OH-1018A0601800U-VDE Max. power

consumption: 20 W Power consumption

in standby: ≤ 1.8 W

Amplifier unit Output

Sine wave power: 1 x 2 W

Audio power: 1 x 3 W

Receiver unit

Reception range: FM 87.5 ...108.0 MHz

File format

MP3, WMA, AAC, FLAC, WAV

WLAN

Network standard IEEE 802.11b IEEE 802.11g

Transfer rate 802.11b:11, 5.5, 2,1 Mbps

802.11g: 54, 48, 36, 24, 18, 12,12, 9, 6 Mbps

Operating channels: 13 (based on the router)

Safety: Hardware-WEP-Engine

(64/128Bit); WEP-WeakKey-Avoidance (WEPplus), TKIP, Hardware-AES-Engine with support for CCM and OCB, 802.1x, SSN

USB

USB 2.0 compatible FAT 32/16

Dimensions and weight

Dimensions: W x H x D

275 x 147 x 86 mm

Weight: 0.92 kg

Technical and design modiﬁcations reserved.

ENGLISH

INFORMATION

------------------------------------------------------------------------------------------------------------------

Made for iPod/iPhone

“Made for iPod/iPhone” means that an electronic accessory has been designed to connect speciﬁcally to an iPod/iPhone, and has been certiﬁed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

iPhone, iPod, iPod classic, iPod nano, iPod shufﬂe, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Troubleshooting

Not every kind of sound interference is caused by a defect in your device. Cables that have accidentally been disconnected and ﬂat batteries for the remote control will impair functioning. If the following measures do not resolve the problem satisfactorily, please visit www.gru ndig.com , product range :audio, internet radios or contact your specialist dealer.

General Faults

Problem

No sound.

The device does not react when the buttons are pressed.

Poor radio reception.

ENGLISH

Possible cause/remedy

The volume setting is too low – increase the volume. The headphones are plugged in – disconnect the headphones. Power cable is not properly connected, connect the power cable properly. Mute is activated, deactivate mute.

Static electrical discharge. Switch oﬀ the device, disconnect the power cable and plug it in again after a few seconds.

The remote control does not work. The batteries are ﬂat. Replace the batteries. The remote control is out of range of the device.

Weak antenna signal, check antenna. Interference from electrical devices such as televisions, video recorders, computers, neon lamps, thermostats or motors. Keep the device away from such equipment.

INFORMATION

------------------------------------------------------------------------------------------------------------------

Internet faults

Problem

Desired WLAN network not found.

Connection to router not established.

Music playback is briefly interrupted.

Possible cause/remedy

– WLAN network is deactivated, switch on the WLAN network. – SSID is suppressed on the router; display SSID on the router. – Distance to router is too large; reduce distance to router.

– MAC address of the device is not enabled on the router;

enable MAC address (see menu item »Info«) on the router.

– Data transfer from the router is encrypted; Enter the network key (WEP or

WPA) on the device.

If this does not help, check the entire router configuration.

High network usage on the radio station server.

Messages from the device

Message

Connection failed

Please wait

Network error

Insufficient power to USB

Possible cause/remedy

– WLAN network is deactivated; switch on the WLAN network – Range Problem: move the device closer to the router or install an external

repeater.

– Other networks are transmitting on the same channel; change channel

settings on the router, then repeat the registration procedure

– Indicates a search in the netwotk for the selected radio station.

When this is displayed, navigation in the menu is not possible.

– The selected radio station is currently not available. The broadcaster has

ceased operation or only broadcasts at certain times or the maximum permitted numer of users has been reached.

– The selected file is currently not avaiable. The file has been deleted,

moved ore renamed on the storage medium.

– The connected USB device is not supplied with sufficient power.

Switch off the Cosmopolit, remove the USB device and charge.

Streaming problems

Problem

No UPnP server is displayed in the »Shared media« menu.

The music archive (UPnP server) is displayed, however no connection is made.

The music archive is empty.

Display: »List not complete«

Possible cause/remedy

– Switch on the PC or external hard drive (NAS). – Start UPnP server.

– Check the setting of the ﬁrewall (if installed) for the UPnP server and cor-

rect if necessary.

– Enable the device on the UPnP server in use.

– Enable the folder on the UPnP server.

The list of the music archive (UPnP server) is not completely sorted. Please wait until the UPnP server software in use has completely sorted the music archive.

ENGLISH

www.grundig.com

03/11 72011 411 0100

Grundig Cosmopolit 3F WEB iP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
