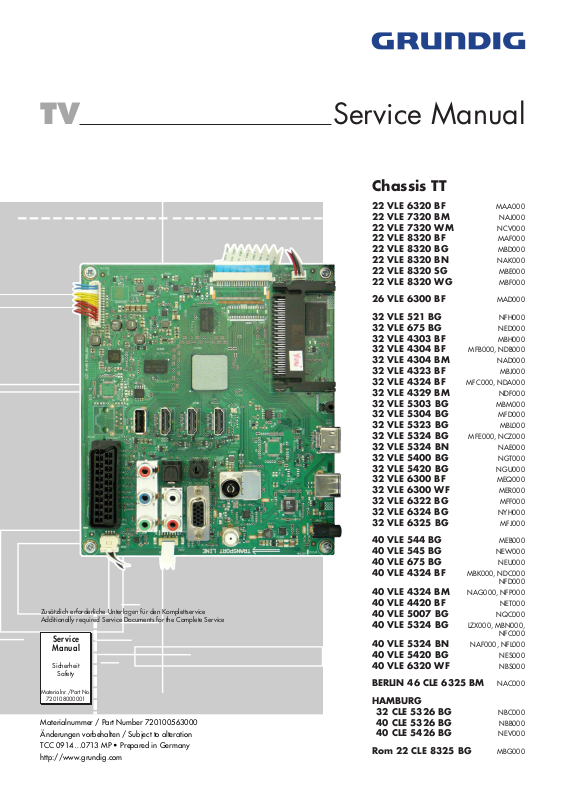

Grundig 22VLE6320 Schematic

TV Service Manual

Service
Manual

Chassis TT

22 VLE 6320 BF MAA000
22 VLE 7320 BM NAJ000
22 VLE 7320 WM NCV000
22 VLE 8320 BF MAF000
22 VLE 8320 BG MBD000
22 VLE 8320 BN NAK000
22 VLE 8320 SG MBE000
22 VLE 8320 WG MBF000

26 VLE 6300 BF MAD000

32 VLE 521 BG NFH000
32 VLE 675 BG NED000
32 VLE 4303 BF MBH000
32 VLE 4304 BF MFB000, NDB000
32 VLE 4304 BM NAD000
32 VLE 4323 BF MBJ000
32 VLE 4324 BF MFC000, NDA000
32 VLE 4329 BM NDF000
32 VLE 5303 BG MBM000
32 VLE 5304 BG MFD000
32 VLE 5323 BG MBL000
32 VLE 5324 BG MFE000, NCZ000
32 VLE 5324 BN NAE000
32 VLE 5400 BG NGT000
32 VLE 5420 BG NGU000
32 VLE 6300 BF MEQ000
32 VLE 6300 WF MER000
32 VLE 6322 BG MFF000
32 VLE 6324 BG NYH000
32 VLE 6325 BG MFJ000

Zusätzlich erforderliche Unterlagen für den Komplettservice
Additionally required Service Documents for the Complete Service

Sicherheit

Safety

Materialnr./Part No.

720108000001

Materialnummer / Part Number 720100563000
Änderungen vorbehalten / Subject to alteration

TCC 0914…0713 MP • Prepared in Germany

http://www.grundig.com

40 VLE 544 BG MEB000
40 VLE 545 BG NEW000
40 VLE 675 BG NEU000
40 VLE 4324 BF MBK000, NDC000

NFD000

40 VLE 4324 BM NAG000, NFP000
40 VLE 4420 BF NET000
40 VLE 5007 BG NQC000
40 VLE 5324 BG LZX000, MBN000,

NFC000

40 VLE 5324 BN NAF000, NFL000
40 VLE 5420 BG NES000
40 VLE 6320 WF NBS000

BERLIN 46 CLE 6325 BM NAC000

HAMBURG
32 CLE 5326 BG NBC000
40 CLE 5326 BG NBB000
40 CLE 5426 BG NEV000

Rom 22 CLE 8325 BG MBG000

GRUNDIG Service Chassis TT

Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Material­nummer 720108000001, sowie zusätzlich die even­tuell abweichenden, landesspezifischen Vorschriften!

Inhaltsverzeichnis

Allgemeiner Teil

Allgemeine Hinweise .....................................................................1-2

Spezial-Funktionen
Geräte- und Display-Varianten
Technische Daten
Bedienhinweise
Service- und Sonderfunktionen

.................................. 1-2…1-44

........................................................................1-3

......................................................1-4

..........................................................................1-5

...........................................................................1-35

...................................................1-41

Seite

Platinenabbildungen
und Schaltpläne

Chassisplatte VTT190R-2 .............................................................2-1

– Blockschaltplan ..........................................................................2-9

– Netzteil .....................................................................................2-10

– HDMI........................................................................................2-11

– SCART, VGA, CV, YUV ............................................................2-12

– Tuner / DVB-T2 ........................................................................2-13

– DVB-S ......................................................................................2-14

– PCMCIA-Interface ....................................................................2-15

– LAN ..........................................................................................2-15

– USB .........................................................................................2-15

– Scaler.......................................................................................2-16

– RAM .........................................................................................2-18

– LVDS ........................................................................................2-19

– Keyboard-Anschluss ................................................................2-19

– Verstärker .................................................................................2-20

Netzteil DPS-110A.......................................................................2-21

Netzteil DPS-125MP....................................................................2-24

Netzteil DPS-174BP
Netzteil FSP115-3F02
Netzteil FSP139-3F02
Netzteil VRA194-07
Netzteil VTC194-05/24
Netzteil VDD194-06
Netzteil VZL194-02
DC-DC Converter VSZ198R
IR-/LED-Platten

Keyboards....................................................................................2-54

.................................. 2-1…2-54

....................................................................2-27

.................................................................2-30

.................................................................2-33

.....................................................................2-36

................................................................2-39

.....................................................................2-45

......................................................................2-49

........................................................3-53

...........................................................................2-53

The regulations and safety instructions shall be valid
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
national deviations.

Table of Contents

General Section

General Notes ...............................................................................1-2

Special Functions
Product and Display Variants
Technical Data
Operating Hints
Service and Special Functions

...............................................................................1-5

.................................. 1-2…1-44

..........................................................................1-3

.........................................................1-4

............................................................................1-38

....................................................1-41

Page

Layout of the PCBs
and Circuit Diagrams

Chassis Board VTT190R-2 ............................................................2-1

– Block Circuit Diagram ................................................................2-9

– Power Supply ...........................................................................2-10

– HDMI........................................................................................2-11

– SCART, VGA, CV, YUV ............................................................2-12

– Tuner / DVB-T2 ........................................................................2-13

– DVB-S ......................................................................................2-14

– PCMCIA Interface ....................................................................2-15

– LAN ..........................................................................................2-15

– USB ........................................................................................2-15

– Scaler.......................................................................................2-16

– RAM .........................................................................................2-18

– LVDS ........................................................................................2-19

– Keyboard Connection ..............................................................2-19

– Amplifier ...................................................................................2-20

Power Supply DPS-110A
Power Supply DPS-125MP
Power Supply DPS-174BP
Power Supply FSP115-3F02
Power Supply FSP139-3F02
Power Supply VRA194-07
Power Supply VTC194-05/24
Power Supply VDD194-06
Power Supply VZL194-02
DC-DC Converter VSZ198R

IR / LED Boards...........................................................................2-53

Keyboards....................................................................................2-54

......................... 2-1…2-54

.............................................................2-21

..........................................................2-24

..........................................................2-27

.......................................................2-30

.......................................................2-33

...........................................................2-36

......................................................2-39

...........................................................2-45

............................................................2-49

........................................................3-53

Ersatzteillisten .................................... 3-1…3-34

Allgemeiner Teil

Allgemeine Hinweise

Vor dem Öffnen des Gehäuses den Netzstecker ziehen!

Achtung: ESD-Vorschriften beachten

Leitungsverlegung

Bevor Sie die Leitungen und insbesondere die Masseleitungen lösen,
ist die Leitungs ver legung zu den einzelnen Baugruppen zu beachten.
Nach erfolgter Reparatur ist es notwendig, die Leitungsführung wieder
in den werkseitigen Zustand zu versetzen um evtl. spätere Ausfälle
oder Störungen zu vermeiden.

Durchführen von Messungen

Bei Messungen mit dem Oszilloskop an Halb leitern sollten Sie nur
Tast köpfe mit 10:1 - Tei ler verwen den. Außerdem ist zu beachten, dass
nach vorheriger Messung mit AC-Kopp lung der Koppelkondensator
des Oszillo skops auf geladen sein kann. Durch die Ent ladung über das
Messobjekt können Bau teile beschä digt werden.

Spare Parts Lists ................................ 3-1…3-34

General Section

General Notes

Before opening the cabinet disconnect the mains plug!

Attention: Observe the ESD safety regulations

Wiring

Before disconnecting any leads and especially the earth connecting
leads observe the way they are routed to the individual assemblies.
On completion of the repairs the leads must be laid out as originally
fitted at the factory to avoid later failures or disturbances.

Carrying out Measurements

When making measurements on semi-con duc tors with an oscillo scope,
ensure that the test probe is set to 10:1 dividing factor. If the previous
measurement was made on AC input, please note that the coupling
capacitor in the oscilloscope will be charged. Discharge via the item
being checked can damage the components.

1 - 2

GRUNDIG Service Chassis TT

Messwerte und Oszillogramme

Bei den in den Schaltplänen und Oszillogrammen angegebenen
Messwerten handelt es sich um Näherungswerte!

Austausch der Chassisplatte

Nach Austausch der Chassisplatte müssen alle Einstellungen im
Service Mode nach Tabelle "Grundeinstellwerte" (Punkt 1 im Kapitel
"Service- und Sonderfunktionen" auf Seite 1-37) eingestellt werden.

Spezial-Funktionen

Kindersicherung

Mit der Master-Pin 2356 kann die Einstellung der persönlichen Pin
geändert werden.

Hotel-Mode

Bei aktiviertem Hotel-Mode ist die maximale Lautstärke begrenzt
und das Menü "
denspezifischen Einstellungen (z.B. Signalquelle, Sprache) werden
beim Einschalten des Gerätes auf die eingestellten Werte bei der
Aktivierung des Hotel-Modes zurückgesetzt.
Aufruf: MENU –> 8500 –> 4 "
–> 1 2 "Ein" –> MENU –> MENU –> 43 "HOTEL-TV-EINSTELLUN-
GEN" –> Werte prüfen und gegebenenfalls einstellen.

Hotel-Mode temporär ausschalten

Bei dieser Funktion ist der Hotel-Mode bis zum nächsten Ausschalten
(Standby) des Gerätes deaktiviert.
Aufruf: MENU –> 4658 –> MENU –> MENU –> 43 "
EINSTELLUNGEN
In dem zusätzlich erscheinenden Menü
sind folgende Einstellungen möglich:
– Maximale Lautstärke
– Einschaltlautstärke
– Erstes Einschalten (Standby / Einschalten)

Cloning-Funktion

Mit dieser Funktion können folgende Daten auf den extern angeschlos­senen USB-Speicher gesichert und zurück kopiert werden:
–

My Channel List

–

Channel Set.

–

Service Set.

–

User Set.

– Ubersicht (

Daten auf USB-Stick kopieren:
Leeren USB-Speicher anschließen –> MENU –> 8500 –> 43 "
Configuration
Item

" –> 1 2

"Start Cloning" –> starten mit 2 –> am Ende wird "

Daten von USB-Stick in das Gerät zurück speichern:

Gegebenenfalls Hotel-Mode kurzzeitig ausschalten (s.o.) –> USB-Stick
anschließen –> MENU –> 8500 –> 43 "

4 "

Kopieren
Set., Service Set., User Set
starten mit 2 –> am Ende wird "

INSTALLATION

" –> OK

Programmtabellen - sind übertragbar auf ein

weiteres Gerät das

Programmtabellen und Einstellungen der Si-

gnalquellen - sind übertragbar auf ein weiteres
Gerät gleicher Serie.

Geräte-Einstellwerte der Service- und Sonder-

Kundenspezifische Einstellungen.

"–> 4658 –> 4 "

" –> 1 2

Funktionen ohne Display-Einstellwerte.

alles)

Für den Servicefall: sollte die defekte Chassis-

platte noch so weit funktionieren, können alle
Einstellwerte gespeichert werden um diese
dann in die neue Chassisplatte zu übertragen.

Channel/Video Set., Service Set., User Set

USB to TV

" ist nicht mehr vorhanden. Alle kun-

System Configuration

Kopieren

" –> 1 2

Cloner Configuration

–> 4 "

oder

Copy Item

Übersicht (alles)

Erfolgreich

" –> OK –> 43 "

HOTEL-TV-EINSTELLUNGEN

My Channel List

TV to USB

oder

Erfolgreich

" –> 1 2

–> 4 "

" angezeigt.

Channel/Video

Start Cloning

HOTEL-TV-

unterstützt.

–> 4 "

ALLE

" angezeigt.

"–> 4658 –>

Hotel

Cloner

Copy

–> 4

" –>

Measured Values and Oscillograms

The measured values given in the circuit diagrams and oscillograms
are approximates!

Change of the Chassis Board

After changing the chassis board all settings in the service mode must
be done according to the table "Basic Settings" (point 1 in chapter
"Service and Special Functions" on page 1-37).

Special Functions

Parental Control

The personal pin can be changed with master pin 2356.

Hotel Mode

Maximum volume is limited and Menu "
at activated hotel mode. After switch on the TV set, all user settings
(e.g. signal source, language) are set back to values by activation of
the Hotel Mode.
Call up: MENU –> 8500 –> 4 "

"On" –> MENU –> MENU –> 43 "HOTEL TV

–> 1 2

"

check and adjust the values.

Switching off the Hotel Mode temporarily

At this function the activated hotel mode is deactivated until the set
is switched off (standby).
Call up: MENU –> 4658 –> MENU –> MENU –> 43 "
TINGS

" –> OK
Following adjustment are available in the additionally menu
TV SETTINGS
– Maximum Volume
– Start-Up Volume
– First Power (Standby / Power On)

Cloning Function

It is possible to copy following data to an external USB stick and back
to TV set:
–

My Channel List

–

Channel/Video Set.

–

Service Set.

–

User Set.

–

All

In case of service: If the defective chassis

Copy data to USB stick:
Connect empty USB memory –> MENU –> 8500 –> 43 "
figuration

1 2

Channel/Video Set., Service Set., User Set

–> start with 2 –> "

Copy data from USB stick into TV set:

If necessary switch off Hotel Mode temporarily (see above) –> MENU
–> 8500 –> 43 "
to TV

–> 4 "

ALL

–> 4 "

:

Programme tables - they are transferable into

Programme tables and settings of signal

TV adjustments of service and special func-

User settings.

"–> 4658 –> 4 "

Success

Cloner Configuration

Copy Item

Start Cloning

" –> 1 2

System Configuration

further TV set thats supports

sources - they are transferable into further TV
set of same version.

tions without panel values.

board are still operate, it is possible to save all
adjustments / settings and copy into new chas­sis board.

Copy

" –> 1 2

" is showing at the end.

Channel/Video Set., Service Set., User Set

" –> start with 2 "

SOURCE SETUP

" –> OK –> 43 "

TV to USB

"–> 4658 –> 4 "

Success

–> 4 "

or

ALL

" is showing at the end.

" is no available

SETTINGS"

HOTEL TV SET-

HOTEL

My Channel List

Cloner Con-

Copy Item

–> 4 "

Start Cloning

Copy

" –> 1 2

Hotel

–>

.

" –>

USB

"

"

or

1 - 3

GRUNDIG Service Chassis TT

Geräte- und Display-Varianten

Display- und Product Code

Je nach Verfügbarkeit werden
Displays verschiedener Her­steller eingebaut. Dies führt zu
unterschiedlichen Chassis-Bestü­ckungen, sowie zu Änderungen
in der Software. Bei Ersatzteil­bestellungen und Software­Updates achten Sie bitte auf das
eingebaute Display, sowie auf den
"Product Code". Angaben dazu
finden Sie auf der Geräterück­seite. Sollte in der Ersatzteilliste
des Service Manuals Ihr "Product
Code" oder Ihre Display-Variante
nicht aufgeführt sein, können
Sie eine aktualisierte Version auf
dem GRUNDIG Service-Portal
"http://service.grundig.de" fin­den.

Überprüfen Sie vor Platinen­Tausch, ob die Aufkleber der
Platinen identisch sind (z.B. PCB
Code).

Product Code

Display Type

Display Code

Product and Display Variants

Bestellnummer / Order Number

Chassis

Serialnummer /
Serial Number

PCB Code

Display- und Product Code

Depending on availability displays
of different manufacturer are built
in. This results in different chassis
mountings as well as a different
software. On spare parts orders
as well as software updates take
care of the fitted display as well as
of the "Product Code". Therefore
you can find information on the
labels on the rear side. If your
"Product Code" or display vari­ant is not mentioned in the spare
parts list of the service manual,
please look for a current version
at the GRUNDIG service portal
"http://service.grundig.de".

Before changing any board please
check whether the labels on the
boards are identical (eg. PCB
Code).

26"

1 - 4

Technische Daten / Technical Data 22"

22 VLE 6320 BF 22 VLE 7320 BM 22 VLE 7320 WM

Order No.
Product Code
Destination
Approbations
IM-Languages
IM-Languages 2
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
Dynamic contrast
Picture Perfection rate
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter

Digital Luminance Transition Improv. (DLTI)

Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
PAT: Split screen (PICTURE + TEXT)
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Dolby digital
Subwoofer
Balance Adjustment
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
Childlock

Menue languages OSD
OSD-style

Service mode
Game mode
Hotel mode

Digi Link
WLAN internal / external
DLNA
Internet Applications
Easy use remote control compatible
TUNING

Autom. Tuning System with country selection

Frequency Based Auto Search
Automatic Micro-search
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
7 Day Electronic Programme Guide

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
TV/Radio programmes

OSD languages
Teletext VBI insertion

VPS - VBI insertion
Programme table
Factory station list
Common Interface
CI +

MAA000

MAA

NAJ000

NAJ

NCV000

NCV

CE CE CE

RC 23

40 13833-63603 8

RC23

40 13833-17037 2

glossy black glossy black

21.5" / 55cm
EDGE LED

21.5" / 55cm
EDGE LED







RC23

40 13833-87321 1

glossy white

21.5" / 55cm
EDGE LED




Dynamic Contrast Plus

100Hz

Dynamic Contrast Plus

100Hz

WUXGA 1920 x 1080 (full HD) WUXGA 1920 x 1080 (full HD)



3D DeInterlacer



3D DeInterlacer







Dynamic Contrast Plus

100Hz

WUXGA 1920 x 1080 (full HD)



3D DeInterlacer






3D



3D







user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama

user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama









3D




user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama



















/  / 

/  /





2 wide band at the front side



2 wide band at the front side








/  /





2 wide band at the front side

TruSurround HD



TruSurround HD










5 Band



5 Band



cinema, music, sport, speech, user



cinema, music, sport, speech, user

TruSurround HD






5 Band



cinema, music, sport, speech, user

2 x 3/6W nominal/music power (R/L) 2 x 6/12W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

TT

PLL frequency synthesizer tuning

Sapphire 13+

4 keys: Volume/Programm, +/-, stand-by

Sapphire 13+

4 keys: Volume/Programm, +/-, stand-by

blue LED blue LED

2 x 6/12W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

Sapphire 13+

4 keys: Volume/Programm, +/-, stand-by

blue LED

7 days via DVB-T, DVB-C



7 days via DVB-T, DVB-C















100 Analog / 1000 T / 1000 C / AV



/  /



100 Analog / 1000 T / 1000 T2 / 1000 C / AV



/  /



7 days via DVB-T, DVB-C







100 Analog / 1000 T / 1000 T2 / 1000 C / AV



/  /



1000 pages



1000 pages




24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

1000 pages




24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment





/

 

/











full automatic sorting



full automatic sorting







/







full automatic sorting






































EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting









If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting





If broadcasted
If broadcasted
If broadcasted

1000

Same as analogue languages

1000

Same as analogue languages

or decoding

PDC based

or decoding
PDC based

full automatic sorting



full automatic sorting









1000

Same as analogue languages

or decoding

PDC based

full automatic sorting





Chassis TTGRUNDIG Service

1 - 5

22 VLE 6320 BF 22 VLE 7320 BM 22 VLE 7320 WM

DVB-T2 Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Hierarchical modulation
DVB-S2 Front end
Input frequency range

Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
Video Decoder

MPEG profiles
Resolution
OSD colors
Picture formats
Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Navigator
Last station memory
Favourite mode
Mute function
Swap function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Energy class

Power consumption

Cabinet (WxHxD)
Cabinet with stand (WxHxD)
Weight (netto)

REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB
Antenna for terrestrial reception
Antenna for satellite reception
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual

Wall fixture
Stand

Cleaning tissue



177 - 862 VHF & UHF




-75 to -35dBm / 75Ohm

QPSK, 16QAM, 64QAM, 256QAM




LDPC + BCH 1/2, 3/5, 2/3, 3/4, 4/5, 5/6



177 - 862 VHF & UHF /



177 - 862 VHF & UHF /



177 - 862 VHF & UHF

-75 to -35dBm / 75Ohm

QPSK, 16QAM, 64QAM, 256QAM

LDPC + BCH 1/2, 3/5, 2/3, 3/4, 4/5, 5/6



177 - 862 VHF & UHF /



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



1/2, 2/3, 3/4, 5/6, 7/8





Hierarchical - non hierarchical









-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



Hierarchical - non hierarchical





























47 - 862 VHF & UHF 47 - 862 VHF & UHF













47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0 MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i

Fitting to TV-OSD

576i, 576p, 720p, 1080i

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MPEG 4 , MPEG 2 layer I & II



MPEG 4 , MPEG 2 layer I & II



Mono, Dual Mono, Stereo, Joint Stereo

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



Dynamic PMT



DVB enhanced profile

via menu

DVB enhanced profile

via menu

MPEG 4 , MPEG 2 layer I & II



Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

via menu

from stand-by, as TV

4x free

from stand-by, as TV

4x free














from stand-by, as TV

4x free










1920 x 1080



1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65 230V, 50Hz; in accordance to IEC 65

140V - 265V



140V - 265V





1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65

140V - 265V





B



B

32W, 0,50W Standby, 47kWh

annual on-mode energy consumption

52,5x35,1x5,5cm

52,5x38,4x15,7cm

ca. 3,5kg

32W, 0,50W Standby, 47kWh

annual on-mode energy consumption

52,3x35,6x6,9cm

52,3x38,0x16,0cm

ca. 4,3kg

Full wired Full wired

via Euro AV

3x Cinch socket in

via Euro AV

3x Cinch socket in



B

32W, 0,50W Standby, 47kWh

annual on-mode energy consumption

52,3x35,6x6,9cm

52,3x38,0x16,0cm

ca. 4,3kg

Full wired

via Euro AV

3x Cinch socket in



Video-in: 3 x Cinch, Audio-in: 2 x Cinch



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



WXGA



2x

via HDMI

2x

via HDMI

1 slot

3.5mm jack

1 slot

3.5mm jack



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



2x

via HDMI

1 slot

3.5mm jack






via Headphone

USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325











via Headphone

USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325






RC 23



RC 23 & Comfort Remote







non grounded



Prepared for VESA standard adaptor

75 x 75



Prepared for VESA standard adaptor

75 x 75





RC 23 & Comfort Remote



non grounded



Prepared for VESA standard adaptor

75 x 75




Chassis TTGRUNDIG Service

1 - 6

Technische Daten / Technical Data 22"

22 VLE 8320 BF 22 VLE 8320 BG 22 VLE 8320 BN

Order No.
Product Code
Destination
Approbations
IM-Languages
IM-Languages 2
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
Dynamic contrast
Picture Perfection rate
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter

Digital Luminance Transition Improv. (DLTI)

Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
PAT: Split screen (PICTURE + TEXT)
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Dolby digital
Subwoofer
Balance Adjustment
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
Childlock

Menue languages OSD
OSD-style

Service mode
Game mode
Hotel mode

Digi Link
WLAN internal / external
DLNA
Internet Applications
Easy use remote control compatible
TUNING

Autom. Tuning System with country selection

Frequency Based Auto Search
Automatic Micro-search
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
7 Day Electronic Programme Guide

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
TV/Radio programmes

OSD languages
Teletext VBI insertion

VPS - VBI insertion
Programme table
Factory station list
Common Interface
CI +

MAF000

MAF

MBD000

MBD

NAK000

NAK

CE

D, A

CE CE

D,G B

RC 23

40 13833-63608 3

glossy black

RC 23

40 13833-63626 7

RC23

40 13833-17036 5

glossy black glossy black

21.5" / 55cm
EDGE LED




21.5" / 55cm
EDGE LED

21.5" / 55cm
EDGE LED







Dynamic Contrast Plus

100Hz

WUXGA 1920 x 1080 (full HD)

Dynamic Contrast Plus

100Hz

Dynamic Contrast Plus

100Hz

WUXGA 1920 x 1080 (full HD) WUXGA 1920 x 1080 (full HD)



3D DeInterlacer






3D DeInterlacer



3D DeInterlacer









3D






3D



3D







user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama




user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama

user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama




























/  /





2 wide band at the front side



/  / 

/  /





2 wide band at the front side



2 wide band at the front side

TruSurround HD





TruSurround HD



TruSurround HD











5 Band



cinema, music, sport, speech, user



5 Band



5 Band



cinema, music, sport, speech, user



cinema, music, sport, speech, user

2 x 3/6W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

2 x 3/6W nominal/music power (R/L) 2 x 6/12W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

TT

PLL frequency synthesizer tuning

Sapphire 13+

4 keys: Volume/Programm, +/-, stand-by

blue LED

Sapphire 13+

4 keys: Volume/Programm, +/-, stand-by

Sapphire 13+

4 keys: Volume/Programm, +/-, stand-by

blue LED blue LED

7 days via DVB-T, DVB-C





7 days via DVB-T, DVB-C, DVB-S2



7 days via DVB-T, DVB-T2, DVB-C, DVB-S2












100 Analog / 1000 T / 1000 C / AV



/  /










100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /



100 Analog / 1000 T / 1000 T2 / 1000 C / 6000 S2 / AV



/  /



1000 pages




24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

1000 pages



1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

OEM-style with Grundig look



OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment





/










/

 

/











full automatic sorting





full automatic sorting



full automatic sorting




































EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting




EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting









If broadcasted
If broadcasted
If broadcasted



If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted

1000

Same as analogue languages

or decoding

PDC based

1000

Same as analogue languages

1000

Same as analogue languages

or decoding

PDC based

or decoding

PDC based

full automatic sorting





full automatic sorting



full automatic sorting









Chassis TTGRUNDIG Service

1 - 7

Chassis TTGRUNDIG Service

1 - 7

22 VLE 8320 BF 22 VLE 8320 BG 22 VLE 8320 BN

DVB-T2 Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Hierarchical modulation
DVB-S2 Front end
Input frequency range

Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
Video Decoder

MPEG profiles
Resolution
OSD colors
Picture formats
Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Navigator
Last station memory
Favourite mode
Mute function
Swap function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Energy class

Power consumption

Cabinet (WxHxD)
Cabinet with stand (WxHxD)
Weight (netto)

REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB
Antenna for terrestrial reception
Antenna for satellite reception
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual

Wall fixture
Stand

Cleaning tissue







177 - 862 VHF & UHF




-75 to -35dBm / 75Ohm

QPSK, 16QAM, 64QAM, 256QAM




177 - 862 VHF & UHF /






LDPC + BCH 1/2, 3/5, 2/3, 3/4, 4/5, 5/6



177 - 862 VHF & UHF /



177 - 862 VHF & UHF /



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



1/2, 2/3, 3/4, 5/6, 7/8











Hierarchical - non hierarchical

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)









QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical - 22 KHz generation

Overload Protection



13/18V Selection / Vertical - 22 KHz generation

Overload Protection





47 - 862 VHF & UHF

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



47 - 862 VHF & UHF 47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0 MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

576i, 576p, 720p, 1080i

Fitting to TV-OSD

576i, 576p, 720p, 1080i

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MPEG 4 , MPEG 2 layer I & II



Mono, Dual Mono, Stereo, Joint Stereo

MPEG 4 , MPEG 2 layer I & II



MPEG 4 , MPEG 2 layer I & II



Mono, Dual Mono, Stereo, Joint Stereo Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

via menu

Dynamic PMT



Dynamic PMT



DVB enhanced profile

via menu

DVB enhanced profile

via menu

from stand-by, as TV

4x free




from stand-by, as TV

4x free

from stand-by, as TV

4x free




















1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB



1920 x 1080



1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65

140V - 265V



230V, 50Hz; in accordance to IEC 65 230V, 50Hz; in accordance to IEC 65

140V - 265V



140V - 265V





B

32W, 0,50W Standby, 47kWh

annual on-mode energy consumption

52,5x35,1x5,5cm

52,5x38,4x15,7cm

ca. 3,5kg



B



B

32W, 0,50W Standby, 47kWh

annual on-mode energy consumption

52,5x35,1x5,5cm

52,5x38,4x15,7cm

ca. 3,5kg

32W, 0,50W Standby, 47kWh

annual on-mode energy consumption

52,5x35,1x5,5cm

52,5x38,4x15,7cm

ca. 5kg

Full wired

via Euro AV

3x Cinch socket in

Full wired Full wired

via Euro AV

3x Cinch socket in

via Euro AV

3x Cinch socket in



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA





Video-in: 3 x Cinch, Audio-in: 2 x Cinch



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



WXGA



2x

via HDMI

1 slot

3.5mm jack

2x

via HDMI

2x

via HDMI

1 slot

3.5mm jack

1 slot

3.5mm jack




USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325






via Headphone

USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325






1 x F-connector



1 x F-connector





RC 23






RC 23



RC 23





non grounded



Prepared for VESA standard adaptor

75 x 75




Prepared for VESA standard adaptor

75 x 75



Prepared for VESA standard adaptor

75 x 75




Chassis TTGRUNDIG Service

1 - 8

Chassis TTGRUNDIG Service

1 - 8

Technische Daten / Technical Data 22"

22 VLE 8320 SG 22 VLE 8320 WG Rom 22 CLE 8325 BG

Order No.
Product Code
Destination
Approbations
IM-Languages
IM-Languages 2
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
Dynamic contrast
Picture Perfection rate
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter

Digital Luminance Transition Improv. (DLTI)

Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
PAT: Split screen (PICTURE + TEXT)
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Dolby digital
Subwoofer
Balance Adjustment
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
Childlock

Menue languages OSD
OSD-style

Service mode
Game mode
Hotel mode

Digi Link
WLAN internal / external
DLNA
Internet Applications
Easy use remote control compatible
TUNING

Autom. Tuning System with country selection

Frequency Based Auto Search
Automatic Micro-search
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
7 Day Electronic Programme Guide

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
TV/Radio programmes

OSD languages
Teletext VBI insertion

VPS - VBI insertion
Programme table
Factory station list
Common Interface
CI +

MBE000

MBE

MBF000

MBF

MBG000

MBG

D, A

CE

D, A

CE

D,G B D,G B

D, A

CE

D,G B

RC 23

EAN 40 13833-63627 4

RC 23

EAN 40 13833-69362 8

silver glossy white

RC 23

EAN 40 13833-63629 8

glossy black

21.5" / 55cm
EDGE LED

21.5" / 55cm
EDGE LED







21.5" / 55cm
EDGE LED




Dynamic Contrast Plus

100Hz

Dynamic Contrast Plus

100Hz

WUXGA 1920 x 1080 (full HD) WUXGA 1920 x 1080 (full HD)

Dynamic Contrast Plus

100Hz

WUXGA 1920 x 1080 (full HD)



3D DeInterlacer



3D DeInterlacer









3D DeInterlacer






3D



3D









3D




user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama

user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama







user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama
























/  / 

/  /





2 wide band at the front side



2 wide band at the front side



/  /





2 wide band at the front side

TruSurround HD



TruSurround HD









TruSurround HD







5 Band



5 Band



cinema, music, sport, speech, user



cinema, music, sport, speech, user



5 Band



cinema, music, sport, speech, user

2 x 3/6W nominal/music power (R/L) 2 x 3/6W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

TT

PLL frequency synthesizer tuning

2 x 3/6W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

Sapphire 13+

4 keys: Volume/Programm, +/-, stand-by

Sapphire 13+

4 keys: Volume/Programm, +/-, stand-by

blue LED blue LED

Sapphire 13+

4 keys: Volume/Programm, +/-, stand-by

blue LED

7 days via DVB-T, DVB-C, DVB-S2



7 days via DVB-T, DVB-C, DVB-S2









7 days via DVB-T, DVB-C, DVB-S2











100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /



100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /







100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /



1000 pages



1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment





/

 

/













/








full automatic sorting



full automatic sorting





full automatic sorting






































EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting







EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting






If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted



If broadcasted
If broadcasted
If broadcasted

1000

Same as analogue languages

1000

Same as analogue languages

or decoding

PDC based

or decoding

PDC based

1000

20 Languages: D, GB,F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

full automatic sorting



full automatic sorting









full automatic sorting





Chassis TTGRUNDIG Service

1 - 9

Chassis TTGRUNDIG Service

1 - 9

22 VLE 8320 SG 22 VLE 8320 WG Rom 22 CLE 8325 BG

DVB-T2 Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Hierarchical modulation
DVB-S2 Front end
Input frequency range

Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
Video Decoder

MPEG profiles
Resolution
OSD colors
Picture formats
Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Navigator
Last station memory
Favourite mode
Mute function
Swap function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Energy class

Power consumption

Cabinet (WxHxD)
Cabinet with stand (WxHxD)
Weight (netto)

REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB
Antenna for terrestrial reception
Antenna for satellite reception
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual

Wall fixture
Stand

Cleaning tissue



















177 - 862 VHF & UHF /



177 - 862 VHF & UHF /







177 - 862 VHF & UHF /



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



1/2, 2/3, 3/4, 5/6, 7/8



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8





950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)



950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical - 22 KHz generation

Overload Protection



13/18V Selection / Vertical - 22 KHz generation

Overload Protection

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical - 22 KHz generation

Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



47 - 862 VHF & UHF 47 - 862 VHF & UHF

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0 MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i

Fitting to TV-OSD

576i, 576p, 720p, 1080i

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

576i, 576p, 720p, 1080i

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MPEG 4 , MPEG 2 layer I & II



MPEG 4 , MPEG 2 layer I & II



Mono, Dual Mono, Stereo, Joint Stereo Mono, Dual Mono, Stereo, Joint Stereo

MPEG 4 , MPEG 2 layer I & II



Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



Dynamic PMT



DVB enhanced profile

via menu

DVB enhanced profile

via menu

Dynamic PMT



DVB enhanced profile

via menu

from stand-by, as TV

4x free

from stand-by, as TV

4x free







from stand-by, as TV

4x free

















1920 x 1080



1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB



1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65 230V, 50Hz; in accordance to IEC 65

140V - 265V



140V - 265V



230V, 50Hz; in accordance to IEC 65

140V - 265V





B



B

32W, 0,50W Standby, 47kWh

annual on-mode energy consumption

52,5x35,1x5,5cm

52,5x38,4x15,7cm

ca. 3,5kg

32W, 0,50W Standby, 47kWh

annual on-mode energy consumption

52,5x35,1x5,5cm

52,5x38,4x15,7cm

ca. 3,5kg



B

32W, 0,50W Standby, 47kWh

annual on-mode energy consumption

52,5x35,1x5,5cm

52,5x38,4x15,7cm

ca. 3,5kg

Full wired Full wired

via Euro AV

3x Cinch socket in

via Euro AV

3x Cinch socket in

Full wired

via Euro AV

3x Cinch socket in



Video-in: 3 x Cinch, Audio-in: 2 x Cinch



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



WXGA





Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



2x

via HDMI

2x

via HDMI

1 slot

3.5mm jack

1 slot

3.5mm jack

2x

via HDMI

1 slot

3.5mm jack







USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325




USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

1 x F-connector



1 x F-connector





1 x F-connector





RC 23



RC 23









RC 23





Prepared for VESA standard adaptor

75 x 75



Prepared for VESA standard adaptor

75 x 75




Prepared for VESA standard adaptor

75 x 75




Chassis TTGRUNDIG Service

1 - 10

Chassis TTGRUNDIG Service

1 - 10

Technische Daten / Technical Data 26"…32"

26 VLE 6300 BF 32 VLE 521 BG 32 VLE 675 BG

Order No.
Product Code
Destination
Approbations
IM-Languages
IM-Languages 2
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
Dynamic contrast
Picture Perfection rate
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter

Digital Luminance Transition Improv. (DLTI)

Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
PAT: Split screen (PICTURE + TEXT)
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Dolby digital
Subwoofer
Balance Adjustment
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
Childlock

Menue languages OSD
OSD-style

Service mode
Game mode
Hotel mode

Digi Link
WLAN internal / external
DLNA
Internet Applications
Easy use remote control compatible
TUNING

Autom. Tuning System with country selection

Frequency Based Auto Search
Automatic Micro-search
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
7 Day Electronic Programme Guide

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
TV/Radio programmes

OSD languages
Teletext VBI insertion

VPS - VBI insertion
Programme table
Factory station list
Common Interface
CI +

MAD000

MAD

CE

NFH000

NFH

NED000

NED

D, A

CE CE

D,G B D,G B

TP6

40 13833-63606 9

glossy black

26" / 66cm

EDGE LED




TP6

40 13833-87438 6

TP6

40 13833-87366 2

glossy black glossy black

32" / 80cm

EDGE LED

32" / 80cm

EDGE LED








Dynamic Contrast Plus

100Hz

WXGA 1366 x 768 (HD Ready)



3D DeInterlacer




Dynamic Contrast Plus

200Hz

Dynamic Contrast Plus

200Hz

WUXGA 1920 x 1080 (full HD) WUXGA 1920 x 1080 (full HD)



3D DeInterlacer



3D DeInterlacer










3D




user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama






3D



3D








user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama

user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama















/  /





2 wide band at the front side

















/  / 

/  /





2 wide band at the front side



2 wide band at the front side

TruSurround HD






5 Band



cinema, music, sport, speech, user

TruSurround HD



TruSurround HD












5 Band



5 Band



cinema, music, sport, speech, user



cinema, music, sport, speech, user

2 x 7/14W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED

2 x 10/20W nominal/music power (R/L) 2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

TT

PLL frequency synthesizer tuning

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED blue LED

7 days via DVB-T, DVB-C







100 Analog / 1000 T / 1000 T2 / 1000 C / AV



/  /



7 days via DVB-T, DVB-C, DVB-S2



7 days via DVB-T, DVB-C, DVB-S2

















100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /



100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /



1000 pages




24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

1000 pages



1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment





/







full automatic sorting







/



/












full automatic sorting



full automatic sorting





















For cable tuning can be done by entering the frequency

(MHz) in digital search menu



For cable tuning can be done by entering the frequency

(MHz) in digital search menu










EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting





If broadcasted
If broadcasted
If broadcasted

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting










If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted

1000

Same as analogue languages

or decoding

PDC based

full automatic sorting





1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

or decoding

PDC based

full automatic sorting



full automatic sorting









Chassis TTGRUNDIG Service

1 - 11

Chassis TTGRUNDIG Service

1 - 11

Chassis TTGRUNDIG Service

1 - 11

26 VLE 6300 BF 32 VLE 521 BG 32 VLE 675 BG

DVB-T2 Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Hierarchical modulation
DVB-S2 Front end
Input frequency range

Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
Video Decoder

MPEG profiles
Resolution
OSD colors
Picture formats
Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Navigator
Last station memory
Favourite mode
Mute function
Swap function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Energy class

Power consumption

Cabinet (WxHxD)
Cabinet with stand (WxHxD)
Weight (netto)

REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB
Antenna for terrestrial reception
Antenna for satellite reception
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual

Wall fixture
Stand

Cleaning tissue







177 - 862 VHF & UHF /

















177 - 862 VHF & UHF /



177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



Hierarchical - non hierarchical





-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



1/2, 2/3, 3/4, 5/6, 7/8



Hierarchical - non hierarchical Hierarchical - non hierarchical

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)













47 - 862 VHF & UHF

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical - 22 KHz generation

Overload Protection



13/18V Selection / Vertical - 22 KHz generation

Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



47 - 862 VHF & UHF 47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0 MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

via menu

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



Dynamic PMT



DVB enhanced profile

via menu

DVB enhanced profile

via menu

from stand-by, as TV

4x free








from stand-by, as TV

4x free

from stand-by, as TV

4x free
















1920 x 1080

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe, .vob,

.dat, .trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65

140V - 265V





1920 x 1080



1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65 230V, 50Hz; in accordance to IEC 65

140V - 265V



140V - 265V





B

40W, 0,50W Standby, 58kWh

annual on-mode energy consumption

64,1x41,2x4,3cm

64,1x46,0x21,0cm

ca. 7kg

Full wired

via Euro AV

3x Cinch socket in



A



A

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg

Full wired Full wired

via Euro AV

3x Cinch socket in

via Euro AV

3x Cinch socket in



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



3x

via HDMI

1 slot

3.5mm jack



Video-in: 3 x Cinch, Audio-in: 2 x Cinch



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



WXGA



3x

via HDMI

3x

via HDMI



3.5mm jack

1 slot

3.5mm jack




2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325












2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

1 x F-connector



1 x F-connector





TP 6 black






Prepared for VESA standard adaptor

100 x 100

swivel type glass stand



TP 6 black



TP 6 black









Prepared for VESA standard adaptor

200 x 100



Prepared for VESA standard adaptor

200 x 100




Chassis TTGRUNDIG Service

1 - 12

Chassis TTGRUNDIG Service

1 - 12

Chassis TTGRUNDIG Service

1 - 12

Technische Daten / Technical Data 32"

32 VLE 4303 BF 32 VLE 4304 BF 32 VLE 4304 BM

Order No.
Product Code
Destination
Approbations
IM-Languages
IM-Languages 2
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
Dynamic contrast
Picture Perfection rate
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter

Digital Luminance Transition Improv. (DLTI)

Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
PAT: Split screen (PICTURE + TEXT)
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Dolby digital
Subwoofer
Balance Adjustment
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
Childlock

Menue languages OSD
OSD-style

Service mode
Game mode
Hotel mode

Digi Link
WLAN internal / external
DLNA
Internet Applications
Easy use remote control compatible
TUNING

Autom. Tuning System with country selection

Frequency Based Auto Search
Automatic Micro-search
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
7 Day Electronic Programme Guide

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
TV/Radio programmes

OSD languages
Teletext VBI insertion

VPS - VBI insertion
Programme table
Factory station list
Common Interface
CI +

MBH000

MBH

MFB000/NDB000

MFB/NDB

CE

D, A

CE

D,G B D,G B

RC 23

40 13833-63630 4

RC 23

40 13833-63695 3/-87324 2

glossy black glossy black

32" / 80cm

EDGE LED

32" / 80cm

EDGE LED








Dynamic Contrast Plus

100Hz

Dynamic Contrast Plus

100Hz

WXGA 1366 x 768 (HD Ready) WXGA 1366 x 768 (HD Ready)



3D DeInterlacer



3D DeInterlacer










3D



3D







user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama

user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama





















/  / 

/  /





2 wide band at the front side



2 wide band at the front side

TruSurround HD



TruSurround HD












5 Band



5 Band



cinema, music, sport, speech, user



cinema, music, sport, speech, user

2 x 10/20W nominal/music power (R/L) 2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

TT

PLL frequency synthesizer tuning

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED blue LED

7 days via DVB-T, DVB-C



7 days via DVB-T, DVB-C















100 Analog / 1000 T / 1000 C / AV



/  /



100 Analog / 1000 T / 1000 C / AV



/  /



1000 pages



1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment





/

 

/












full automatic sorting



full automatic sorting











For cable tuning can be done by entering

the frequency (MHz) in digital search menu



For cable tuning can be done by entering

the frequency (MHz) in digital search menu









EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting









If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

or decoding

PDC based

full automatic sorting



full automatic sorting









NAD000

NAD

CE

TP6

40 13833-87247 4

glossy black

32" / 80cm

EDGE LED




Dynamic Contrast Plus

100Hz

WXGA 1366 x 768 (HD Ready)



3D DeInterlacer





3D




user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama










/  /





2 wide band at the front side

TruSurround HD






5 Band



cinema, music, sport, speech, user

2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED

7 days via DVB-T, DVB-T2, DVB-C







100 Analog / 1000 T / 1000 T2 / 1000 C / AV



/  /



1000 pages




24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment





/







full automatic sorting






For cable tuning can be done by entering the frequency

(MHz) in digital search menu





EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting





If broadcasted
If broadcasted
If broadcasted

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

full automatic sorting





Chassis TTGRUNDIG Service

1 - 13

Chassis TTGRUNDIG Service

1 - 13

Chassis TTGRUNDIG Service

1 - 13

Chassis TTGRUNDIG Service

1 - 13

32 VLE 4303 BF 32 VLE 4304 BF 32 VLE 4304 BM

DVB-T2 Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Hierarchical modulation
DVB-S2 Front end
Input frequency range

Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
Video Decoder

MPEG profiles
Resolution
OSD colors
Picture formats
Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Navigator
Last station memory
Favourite mode
Mute function
Swap function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Energy class

Power consumption

Cabinet (WxHxD)
Cabinet with stand (WxHxD)
Weight (netto)

REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB
Antenna for terrestrial reception
Antenna for satellite reception
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual

Wall fixture
Stand

Cleaning tissue























177 - 862 VHF & UHF /



177 - 862 VHF & UHF /



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



1/2, 2/3, 3/4, 5/6, 7/8



Hierarchical - non hierarchical



Hierarchical - non hierarchical
































47 - 862 VHF & UHF 47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



Dynamic PMT



DVB enhanced profile

via menu

DVB enhanced profile

via menu

from stand-by, as TV

4x free

from stand-by, as TV

4x free


















1920 x 1080



1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65 230V, 50Hz; in accordance to IEC 65

140V - 265V



140V - 265V




A



A

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg

Full wired Full wired

via Euro AV

3x Cinch socket in

via Euro AV

3x Cinch socket in



Video-in: 3 x Cinch, Audio-in: 2 x Cinch



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



WXGA



3x

via HDMI

3x

via HDMI

1 slot

3.5mm jack

1 slot

3.5mm jack








USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325













RC 23



RC 23









Prepared for VESA standard adaptor

200 x 200



Prepared for VESA standard adaptor

200 x 100




177 - 862 VHF & UHF

-75 to -35dBm / 75Ohm

QPSK, 16QAM, 64QAM, 256QAM

LDPC + BCH 1/2, 3/5, 2/3, 3/4, 4/5, 5/6



177 - 862 VHF & UHF /



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



Hierarchical - non hierarchical

















47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

via menu

from stand-by, as TV

4x free









1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65

140V - 265V




A

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg

Full wired

via Euro AV

3x Cinch socket in



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



3x

via HDMI

1 slot

3.5mm jack



via Headphone

USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325






RC 23





Prepared for VESA standard adaptor

200 x 200




Chassis TTGRUNDIG Service

1 - 14

Chassis TTGRUNDIG Service

1 - 14

Chassis TTGRUNDIG Service

1 - 14

Chassis TTGRUNDIG Service

1 - 14

Technische Daten / Technical Data 32"

32 VLE 4323 BF 32 VLE 4324 BF 32 VLE 4329 BM

Order No.
Product Code
Destination
Approbations
IM-Languages
IM-Languages 2
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
Dynamic contrast
Picture Perfection rate
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter

Digital Luminance Transition Improv. (DLTI)

Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
PAT: Split screen (PICTURE + TEXT)
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Dolby digital
Subwoofer
Balance Adjustment
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
Childlock

Menue languages OSD
OSD-style

Service mode
Game mode
Hotel mode

Digi Link
WLAN internal / external
DLNA
Internet Applications
Easy use remote control compatible
TUNING

Autom. Tuning System with country selection

Frequency Based Auto Search
Automatic Micro-search
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
7 Day Electronic Programme Guide

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
TV/Radio programmes

OSD languages
Teletext VBI insertion

VPS - VBI insertion
Programme table
Factory station list
Common Interface
CI +

MBJ000

MBJ

MFC000/NDA000

MFC/NDA

NDF000

NDF

CE

D,G B

CE CE

D,G B

RC 23

40 13833-63631 1

glossy black

RC 23

40 13833-63696 0/-87324 2

TP6

40 13833-87348 8

glossy black glossy black

32" / 80cm

EDGE LED





32" / 80cm

EDGE LED

32" / 80cm

EDGE LED







Dynamic Contrast Plus

100Hz

WUXGA 1920 x 1080 (full HD)

Dynamic Contrast Plus

100Hz

Dynamic Contrast Plus

200Hz

WUXGA 1920 x 1080 (full HD) WUXGA 1920 x 1080 (full HD)



3D DeInterlacer







3D DeInterlacer



3D DeInterlacer









3D






3D



3D







user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama




user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama

user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama




























/  /





2 wide band at the front side



/  / 

/  /





2 wide band at the front side



2 wide band at the front side

TruSurround HD







TruSurround HD



SRS Studio Sound HD











5 Band



cinema, music, sport, speech, user



5 Band



5 Band



cinema, music, sport, speech, user



cinema, music, sport, speech, user

2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

2 x 10/20W nominal/music power (R/L) 2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

TT

PLL frequency synthesizer tuning

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED blue LED

7 days via DVB-T, DVB-C





7 days via DVB-T, DVB-C



7 days via DVB-T, DVB-T2, DVB-C












100 Analog / 1000 T / 1000 C / AV



/  /










100 Analog / 1000 T / 1000 C / AV



/  /



100 Analog / 1000 T / 1000 T2 / 1000 C / AV



/  /



1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

1000 pages



1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

OEM-style with Grundig look



OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment





/











/

 

/











full automatic sorting





full automatic sorting



full automatic sorting






For cable tuning can be done by entering the frequency

(MHz) in digital search menu










For cable tuning can be done by entering the frequency

(MHz) in digital search menu



For cable tuning can be done by entering the frequency

(MHz) in digital search menu














EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting




EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting









If broadcasted
If broadcasted
If broadcasted



If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

or decoding

PDC based

full automatic sorting





full automatic sorting



full automatic sorting









Chassis TTGRUNDIG Service

1 - 15

Chassis TTGRUNDIG Service

1 - 15

Chassis TTGRUNDIG Service

1 - 15

Chassis TTGRUNDIG Service

1 - 15

Chassis TTGRUNDIG Service

1 - 15

32 VLE 4323 BF 32 VLE 4324 BF 32 VLE 4329 BM

DVB-T2 Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Hierarchical modulation
DVB-S2 Front end
Input frequency range

Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
Video Decoder

MPEG profiles
Resolution
OSD colors
Picture formats
Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Navigator
Last station memory
Favourite mode
Mute function
Swap function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Energy class

Power consumption

Cabinet (WxHxD)
Cabinet with stand (WxHxD)
Weight (netto)

REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB
Antenna for terrestrial reception
Antenna for satellite reception
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual

Wall fixture
Stand

Cleaning tissue











177 - 862 VHF & UHF




-75 to -35dBm / 75Ohm

QPSK, 16QAM, 64QAM, 256QAM





177 - 862 VHF & UHF /






LDPC + BCH 1/2, 3/5, 2/3, 3/4, 4/5, 5/6



177 - 862 VHF & UHF /



177 - 862 VHF & UHF /



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



1/2, 2/3, 3/4, 5/6, 7/8



Hierarchical - non hierarchical







Hierarchical - non hierarchical Hierarchical - non hierarchical




































47 - 862 VHF & UHF









47 - 862 VHF & UHF 47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0 MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

via menu

Dynamic PMT



Dynamic PMT



DVB enhanced profile

via menu

DVB enhanced profile

via menu

from stand-by, as TV

4x free




from stand-by, as TV

4x free

from stand-by, as TV

4x free





















1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB



1920 x 1080



1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65

140V - 265V



230V, 50Hz; in accordance to IEC 65 230V, 50Hz; in accordance to IEC 65

140V - 265V



140V - 265V





A

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg



A



A

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,2 x 44,5 x 4,25cm
73,2 x 48,8 x 21,0cm

ca. 8,5kg

Full wired

via Euro AV

3x Cinch socket in

Full wired Full wired

via Euro AV

3x Cinch socket in

via Euro AV

3x Cinch socket in



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA





Video-in: 3 x Cinch, Audio-in: 2 x Cinch



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



WXGA



3x

via HDMI

1 slot

3.5mm jack

3x

via HDMI

4x

via HDMI

1 slot

3.5mm jack

1 slot

3.5mm jack




USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325







USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325













RC 23






RC 23



RC 23










Prepared for VESA standard adaptor

200 x 200




Prepared for VESA standard adaptor

200 x 100



Prepared for VESA standard adaptor

200 x 100

swivel type glass stand



Chassis TTGRUNDIG Service

1 - 16

Chassis TTGRUNDIG Service

1 - 16

Chassis TTGRUNDIG Service

1 - 16

Chassis TTGRUNDIG Service

1 - 16

Chassis TTGRUNDIG Service

1 - 16

Technische Daten / Technical Data 32"

32 VLE 5303 BG 32 VLE 5304 BG 32 VLE 5323 BG

Order No.
Product Code
Destination
Approbations
IM-Languages
IM-Languages 2
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
Dynamic contrast
Picture Perfection rate
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter

Digital Luminance Transition Improv. (DLTI)

Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
PAT: Split screen (PICTURE + TEXT)
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Dolby digital
Subwoofer
Balance Adjustment
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
Childlock

Menue languages OSD
OSD-style

Service mode
Game mode
Hotel mode

Digi Link
WLAN internal / external
DLNA
Internet Applications
Easy use remote control compatible
TUNING

Autom. Tuning System with country selection

Frequency Based Auto Search
Automatic Micro-search
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
7 Day Electronic Programme Guide

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
TV/Radio programmes

OSD languages
Teletext VBI insertion

VPS - VBI insertion
Programme table
Factory station list
Common Interface
CI +

MBM000

MBM

MFD000

MFD

MBL000

MBL

CE CE

D,G B D,G B

CE

D,G B

TP6

40 13833-63635 9

TP6

40 13833-63697 7

glossy black glossy black

TP6

40 13833-63634 2

glossy black

32" / 80cm

EDGE LED

32" / 80cm

EDGE LED







32" / 80cm

EDGE LED




Dynamic Contrast Plus

200Hz

Dynamic Contrast Plus

200Hz

WXGA 1366 x 768 (HD Ready) WXGA 1366 x 768 (HD Ready)

Dynamic Contrast Plus

200Hz

WUXGA 1920 x 1080 (full HD)



3D DeInterlacer



3D DeInterlacer









3D DeInterlacer






3D



3D









3D




user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama

user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama







user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama
























/  / 

/  /





2 wide band at the front side



2 wide band at the front side



/  /





2 wide band at the front side

TruSurround HD



TruSurround HD









TruSurround HD







5 Band



5 Band



cinema, music, sport, speech, user



cinema, music, sport, speech, user



5 Band



cinema, music, sport, speech, user

2 x 10/20W nominal/music power (R/L) 2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

TT

PLL frequency synthesizer tuning

2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED blue LED

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED

7 days via DVB-T, DVB-C, DVB-S2



7 days via DVB-T, DVB-C, DVB-S2









7 days via DVB-T, DVB-C, DVB-S2











100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /



100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /







100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /



1000 pages



1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment





/

 

/













/








full automatic sorting



full automatic sorting





full automatic sorting










For cable tuning can be done by entering

the frequency (MHz) in digital search menu







For cable tuning can be done by entering

the frequency (MHz) in digital search menu















EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting







EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting






If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted



If broadcasted
If broadcasted
If broadcasted

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

or decoding

PDC based

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

full automatic sorting



full automatic sorting









full automatic sorting





Chassis TTGRUNDIG Service

1 - 17

Chassis TTGRUNDIG Service

1 - 17

Chassis TTGRUNDIG Service

1 - 17

Chassis TTGRUNDIG Service

1 - 17

Chassis TTGRUNDIG Service

1 - 17

32 VLE 5303 BG 32 VLE 5304 BG 32 VLE 5323 BG

DVB-T2 Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Hierarchical modulation
DVB-S2 Front end
Input frequency range

Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
Video Decoder

MPEG profiles
Resolution
OSD colors
Picture formats
Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Navigator
Last station memory
Favourite mode
Mute function
Swap function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Energy class

Power consumption

Cabinet (WxHxD)
Cabinet with stand (WxHxD)
Weight (netto)

REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB
Antenna for terrestrial reception
Antenna for satellite reception
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual

Wall fixture
Stand

Cleaning tissue



















177 - 862 VHF & UHF /



177 - 862 VHF & UHF /







177 - 862 VHF & UHF /



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



1/2, 2/3, 3/4, 5/6, 7/8



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



Hierarchical - non hierarchical Hierarchical - non hierarchical

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

Hierarchical - non hierarchical

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical - 22 KHz generation

Overload Protection



13/18V Selection / Vertical - 22 KHz generation

Overload Protection

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical - 22 KHz generation

Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



47 - 862 VHF & UHF 47 - 862 VHF & UHF

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 la

yer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo Mono, Dual Mono, Stereo, Joint Stereo

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



Dynamic PMT



DVB enhanced profile

via menu

DVB enhanced profile

via menu

Dynamic PMT



DVB enhanced profile

via menu

from stand-by, as TV

4x free

from stand-by, as TV

4x free







from stand-by, as TV

4x free

















1920 x 1080



1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB



1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65 230V, 50Hz; in accordance to IEC 65

140V - 265V



140V - 265V



230V, 50Hz; in accordance to IEC 65

140V - 265V





A



A

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg



A

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg

Full wired Full wired

via Euro AV

3x Cinch socket in

via Euro AV

3x Cinch socket in

Full wired

via Euro AV

3x Cinch socket in



Video-in: 3 x Cinch, Audio-in: 2 x Cinch



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



WXGA





Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



3x

via HDMI

3x

via HDMI

1 slot

3.5mm jack

1 slot

3.5mm jack

3x

via HDMI

1 slot

3.5mm jack







2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325




2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

1 x F-connector



1 x F-connector





1 x F-connector





TP 6 black



TP 6 black









TP 6 black





Prepared for VESA standard adaptor

200 x 200



Prepared for VESA standard adaptor

200 x 100




Prepared for VESA standard adaptor

200 x 200




Chassis TTGRUNDIG Service

1 - 18

Chassis TTGRUNDIG Service

1 - 18

Chassis TTGRUNDIG Service

1 - 18

Chassis TTGRUNDIG Service

1 - 18

Chassis TTGRUNDIG Service

1 - 18

Technische Daten / Technical Data 32"

32 VLE 5324 BG 32 VLE 5324 BN 32 VLE 5400 BG

Order No.
Product Code
Destination
Approbations
IM-Languages
IM-Languages 2
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
Dynamic contrast
Picture Perfection rate
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter

Digital Luminance Transition Improv. (DLTI)

Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
PAT: Split screen (PICTURE + TEXT)
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Dolby digital
Subwoofer
Balance Adjustment
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
Childlock

Menue languages OSD
OSD-style

Service mode
Game mode
Hotel mode

Digi Link
WLAN internal / external
DLNA
Internet Applications
Easy use remote control compatible
TUNING

Autom. Tuning System with country selection

Frequency Based Auto Search
Automatic Micro-search
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
7 Day Electronic Programme Guide

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
TV/Radio programmes

OSD languages
Teletext VBI insertion

VPS - VBI insertion
Programme table
Factory station list
Common Interface
CI +

MFE000/NCZ000

MFE/NCZ

CE

D,G B

TP6

40 13833-63698 4/-87326 6

glossy black

32" / 80cm

EDGE LED





NAE000

NAE

NGT000

NGT

CE CE

D,G B

TP6

40 13833-17040 2

TP6

40 13833-87466 9

glossy black glossy black

32" / 80cm

EDGE LED

32" / 80cm

EDGE LED








Dynamic Contrast Plus

200Hz

WUXGA 1920 x 1080 (full HD)



3D DeInterlacer






3D




user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama




Dynamic Contrast Plus

200Hz

Dynamic Contrast Plus

200Hz

WUXGA 1920 x 1080 (full HD) WXGA 1366 x 768 (HD Ready)



3D DeInterlacer



3D DeInterlacer










3D



3D








user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama

user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama















/  /





2 wide band at the front side

TruSurround HD








5 Band



cinema, music, sport, speech, user

















/  / 

/  /





2 wide band at the front side



2 wide band at the front side

TruSurround HD



TruSurround HD












5 Band



5 Band



cinema, music, sport, speech, user



cinema, music, sport, speech, user

2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED

7 days via DVB-T, DVB-C, DVB-S2







100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /



2 x 10/20W nominal/music power (R/L) 2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

TT

PLL frequency synthesizer tuning

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED blue LED

7 days via DVB-T, DVB-T2, DVB-C, DVB-S2



7 days via DVB-T, DVB-C, DVB-S2

















100 Analog / 1000 T / 1000 T2 / 1000 C / 6000 S2 / AV



/  /



100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /



1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment





/









full automatic sorting



1000 pages



1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment





/



/












full automatic sorting



full automatic sorting






For cable tuning can be done by entering

the frequency (MHz) in digital search menu





EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting





If broadcasted
If broadcasted
If broadcasted










For cable tuning can be done by entering the frequency

(MHz) in digital search menu



For cable tuning can be done by entering the frequency

(MHz) in digital search menu










EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting










If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

full automatic sorting





1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

or decoding

PDC based

full automatic sorting



full automatic sorting









Chassis TTGRUNDIG Service

1 - 19

Chassis TTGRUNDIG Service

1 - 19

Chassis TTGRUNDIG Service

1 - 19

Chassis TTGRUNDIG Service

1 - 19

Chassis TTGRUNDIG Service

1 - 19

32 VLE 5324 BG 32 VLE 5324 BN 32 VLE 5400 BG

DVB-T2 Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Hierarchical modulation
DVB-S2 Front end
Input frequency range

Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
Video Decoder

MPEG profiles
Resolution
OSD colors
Picture formats
Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Navigator
Last station memory
Favourite mode
Mute function
Swap function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Energy class

Power consumption

Cabinet (WxHxD)
Cabinet with stand (WxHxD)
Weight (netto)

REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB
Antenna for terrestrial reception
Antenna for satellite reception
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual

Wall fixture
Stand

Cleaning tissue













177 - 862 VHF & UHF /



177 - 862 VHF & UHF



-75 to -35dBm / 75Ohm

QPSK, 16QAM, 64QAM, 256QAM





LDPC + BCH 1/2, 3/5, 2/3, 3/4, 4/5, 5/6







177 - 862 VHF & UHF /



177 - 862 VHF & UHF /



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



Hierarchical - non hierarchical

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical - 22 KHz generation

Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



47 - 862 VHF & UHF

-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



1/2, 2/3, 3/4, 5/6, 7/8



Hierarchical - non hierarchical Hierarchical - non hierarchical

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical - 22 KHz generation

Overload Protection



13/18V Selection / Vertical - 22 KHz generation

Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



47 - 862 VHF & UHF 47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

via menu

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0 MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



Dynamic PMT



DVB enhanced profile

via menu

DVB enhanced profile

via menu

from stand-by, as TV

4x free










1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65

140V - 265V



from stand-by, as TV

4x free

from stand-by, as TV

4x free
















1920 x 1080



1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65 230V, 50Hz; in accordance to IEC 65

140V - 265V



140V - 265V





A

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg

Full wired

via Euro AV

3x Cinch socket in



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



3x

via HDMI

1 slot

3.5mm jack



A



A

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg

Full wired Full wired

via Euro AV

3x Cinch socket in

via Euro AV

3x Cinch socket in



Video-in: 3 x Cinch, Audio-in: 2 x Cinch



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



WXGA



3x

via HDMI

3x

via HDMI

1 slot

3.5mm jack



3.5mm jack




2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

1 x F-connector





TP 6 black






Prepared for VESA standard adaptor

200 x 200






via Headphone




2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

1 x F-connector



1 x F-connector





TP 6 black



TP 6 black









Prepared for VESA standard adaptor

200 x 200



Prepared for VESA standard adaptor

200 x 100




Chassis TTGRUNDIG Service

1 - 20

Chassis TTGRUNDIG Service

1 - 20

Chassis TTGRUNDIG Service

1 - 20

Chassis TTGRUNDIG Service

1 - 20

Chassis TTGRUNDIG Service

1 - 20

Technische Daten / Technical Data 32"

32 VLE 5420 BG 32 VLE 6300 BF 32 VLE 6300 WF

Order No.
Product Code
Destination
Approbations
IM-Languages
IM-Languages 2
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
Dynamic contrast
Picture Perfection rate
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter

Digital Luminance Transition Improv. (DLTI)

Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
PAT: Split screen (PICTURE + TEXT)
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Dolby digital
Subwoofer
Balance Adjustment
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
Childlock

Menue languages OSD
OSD-style

Service mode
Game mode
Hotel mode

Digi Link
WLAN internal / external
DLNA
Internet Applications
Easy use remote control compatible
TUNING

Autom. Tuning System with country selection

Frequency Based Auto Search
Automatic Micro-search
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
7 Day Electronic Programme Guide

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
TV/Radio programmes

OSD languages
Teletext VBI insertion

VPS - VBI insertion
Programme table
Factory station list
Common Interface
CI +

NGU000

NGU

MEQ000
MEQ000

CE CE

D,G B

MER000

MER

CE

TP6

40 13833-87467 6

TP6

40 13833-63685 4

glossy black glossy black

32" / 80cm

EDGE LED

32" / 80cm

EDGE LED







TP6

40 13833-68686 1

glossy white

32" / 80cm

EDGE LED





Dynamic Contrast Plus

200Hz

Dynamic Contrast Plus

200Hz

WUXGA 1920 x 1080 (full HD) WUXGA 1920 x 1080 (full HD)



3D DeInterlacer



3D DeInterlacer







Dynamic Contrast Plus

200Hz

WUXGA 1920 x 1080 (full HD)



3D DeInterlacer







3D



3D







user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama

user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama









3D





user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama



















/  / 

/  /





2 wide band at the front side



2 wide band at the front side











/  /





2 wide band at the front side

TruSurround HD



TruSurround HD











5 Band



5 Band



cinema, music, sport, speech, user



natural, music, sport, speech, user

TruSurround HD









5 Band



natural, music, sport, speech, user

2 x 10/20W nominal/music power (R/L) 2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

TT

PLL frequency synthesizer tuning

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

MSTAR

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED blue LED (brightness adjustable)

2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

MSTAR

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED (brightness adjustable)

7 days via DVB-T, DVB-C, DVB-S2



7 days via DVB-T, DVB-C















100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /



100 Analog / 1000 T / 1000 C / AV



/  /



7 days via DVB-T, DVB-C











100 Analog / 1000 T / 1000 C / AV



/  /



1000 pages



1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment





/



/











full automatic sorting



full automatic sorting







/









full automatic sorting











For cable tuning can be done by entering the frequency

(MHz) in digital search menu



For cable tuning can be done by entering the frequency

(MHz) in digital search menu















For cable tuning can be done by entering the frequency

(MHz) in digital search menu







EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting









If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting





If broadcasted
If broadcasted
If broadcasted

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

or decoding

PDC based

full automatic sorting



full automatic sorting









1000

Same as analogue languages

or decoding

PDC based

full automatic sorting





Chassis TTGRUNDIG Service

1 - 21

Chassis TTGRUNDIG Service

1 - 21

Chassis TTGRUNDIG Service

1 - 21

Chassis TTGRUNDIG Service

1 - 21

Chassis TTGRUNDIG Service

1 - 21

Chassis TTGRUNDIG Service

1 - 21

32 VLE 5420 BG 32 VLE 6300 BF 32 VLE 6300 WF

DVB-T2 Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Hierarchical modulation
DVB-S2 Front end
Input frequency range

Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
Video Decoder

MPEG profiles
Resolution
OSD colors
Picture formats
Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Navigator
Last station memory
Favourite mode
Mute function
Swap function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Energy class

Power consumption

Cabinet (WxHxD)
Cabinet with stand (WxHxD)
Weight (netto)

REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB
Antenna for terrestrial reception
Antenna for satellite reception
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual

Wall fixture
Stand

Cleaning tissue















177 - 862 VHF & UHF /



177 - 862 VHF & UHF /









177 - 862 VHF & UHF /



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



1/2, 2/3, 3/4, 5/6, 7/8



Hierarchical - non hierarchical Hierarchical - non hierarchical

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)





-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



Hierarchical - non hierarchical





QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2







13/18V Selection / Vertical - 22 KHz generation

Overload Protection





Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10







47 - 862 VHF & UHF 47 - 862 VHF & UHF













47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0 MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



Dynamic PMT



DVB enhanced profile

via menu

DVB enhanced profile

via menu

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

via menu

from stand-by, as TV

4x free

from stand-by, as TV

4x free














from stand-by, as TV

4x free










1920 x 1080



1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

.m4a, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg, .mpe,

.vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65 230V, 50Hz; in accordance to IEC 65

140V - 265V



140V - 265V





1920 x 1080

.m4a, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg, .mpe,

.vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65

140V - 265V





A



A

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,2x42,5x4,4cm

73,2x48,8x21,0cm

ca. 8,5kg

Full wired Full wired

via Euro AV

3x Cinch socket in

via Euro AV

3x Cinch socket in



A

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,2x42,5x4,4cm

73,2x48,8x21,0cm

ca. 8,5kg

Full wired

via Euro AV

3x Cinch socket in



Video-in: 3 x Cinch, Audio-in: 2 x Cinch



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



WXGA



3x

via HDMI

3x

via HDMI



3.5mm jack

1 slot

3.5mm jack



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



3x

via HDMI

1 slot

3.5mm jack







2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

1 x F-connector











2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325






TP 6 black



TP 6 black









Prepared for VESA standard adaptor

200 x 100



Prepared for VESA standard adaptor

200 x 100

swivel type



TP 6 black





Prepared for VESA standard adaptor

200 x 100

swivel type



Chassis TTGRUNDIG Service

1 - 22

Chassis TTGRUNDIG Service

1 - 22

Chassis TTGRUNDIG Service

1 - 22

Chassis TTGRUNDIG Service

1 - 22

Chassis TTGRUNDIG Service

1 - 22

Chassis TTGRUNDIG Service

1 - 22

Technische Daten / Technical Data 32"

32 VLE 6322 BG 32 VLE 6324 BG 32 VLE 6325 BG

Order No.
Product Code
Destination
Approbations
IM-Languages
IM-Languages 2
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
Dynamic contrast
Picture Perfection rate
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter

Digital Luminance Transition Improv. (DLTI)

Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
PAT: Split screen (PICTURE + TEXT)
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Dolby digital
Subwoofer
Balance Adjustment
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
Childlock

Menue languages OSD
OSD-style

Service mode
Game mode
Hotel mode

Digi Link
WLAN internal / external
DLNA
Internet Applications
Easy use remote control compatible
TUNING

Autom. Tuning System with country selection

Frequency Based Auto Search
Automatic Micro-search
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
7 Day Electronic Programme Guide

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
TV/Radio programmes

OSD languages
Teletext VBI insertion

VPS - VBI insertion
Programme table
Factory station list
Common Interface
CI +

MFF000

MFF

NYH000

NYH

MFJ000

MFJ

CE

D,G B

CE CE

D,G B D,G B

TP6

40 13833-63691 1

glossy black

TP6

40 13833-00315 1

TP6

40 13833-63702 8

glossy black glossy black

32" / 80cm

EDGE LED





32" / 80cm

EDGE LED

32" / 80cm

EDGE LED








Dynamic Contrast Plus

200Hz

WUXGA 1920 x 1080 (full HD)

Dynamic Contrast Plus

200Hz

Dynamic Contrast Plus

200Hz

WUXGA 1920 x 1080 (full HD) WUXGA 1920 x 1080 (full HD)



3D DeInterlacer







3D DeInterlacer



3D DeInterlacer










3D






3D



3D








user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama




user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama

user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama





























/  /





2 wide band at the front side



/  / 

/  /





2 wide band at the front side



2 wide band at the front side

TruSurround HD







TruSurround HD



TruSurround HD











5 Band



cinema, music, sport, speech, user



5 Band



5 Band



cinema, music, sport, speech, user



cinema, music, sport, speech, user

2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

2 x 10/20W nominal/music power (R/L) 2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

TT

PLL frequency synthesizer tuning

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED blue LED

7 days via DVB-T, DVB-C, DVB-S2





7 days via DVB-T, DVB-C, DVB-S2



7 days via DVB-T, DVB-C, DVB-S2












100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /










100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /



100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /



1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

1000 pages



1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

OEM-style with Grundig look



OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment





/











/

 

/











full automatic sorting





full automatic sorting



full automatic sorting






For cable tuning can be done by entering

the frequency (MHz) in digital search menu










For cable tuning can be done by entering the frequency

(MHz) in digital search menu



For cable tuning can be done by entering the frequency

(MHz) in digital search menu














EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting






N 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting









If broadcasted
If broadcasted
If broadcasted



If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

1000

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

or decoding

PDC based

full automatic sorting





full automatic sorting



full automatic sorting









Chassis TTGRUNDIG Service

1 - 23

Chassis TTGRUNDIG Service

1 - 23

Chassis TTGRUNDIG Service

1 - 23

Chassis TTGRUNDIG Service

1 - 23

Chassis TTGRUNDIG Service

1 - 23

Chassis TTGRUNDIG Service

1 - 23

Chassis TTGRUNDIG Service

1 - 23

32 VLE 6322 BG 32 VLE 6324 BG 32 VLE 6325 BG

DVB-T2 Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Hierarchical modulation
DVB-S2 Front end
Input frequency range

Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
Video Decoder

MPEG profiles
Resolution
OSD colors
Picture formats
Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Navigator
Last station memory
Favourite mode
Mute function
Swap function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Energy class

Power consumption

Cabinet (WxHxD)
Cabinet with stand (WxHxD)
Weight (netto)

REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB
Antenna for terrestrial reception
Antenna for satellite reception
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual

Wall fixture
Stand

Cleaning tissue





















177 - 862 VHF & UHF /










177 - 862 VHF & UHF /



177 - 862 VHF & UHF /



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



1/2, 2/3, 3/4, 5/6, 7/8



Hierarchical - non hierarchical

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

Hierarchical - non hierarchical Hierarchical - non hierarchical

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical - 22 KHz generation

Overload Protection

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical - 22 KHz generation

Overload Protection



13/18V Selection / Vertical - 22 KHz generation

Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



47 - 862 VHF & UHF

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



47 - 862 VHF & UHF 47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

via menu

Dynamic PMT



Dynamic PMT



DVB enhanced profile

via menu

DVB enhanced profile

via menu

from stand-by, as TV

4x free




from stand-by, as TV

4x free

from stand-by, as TV

4x free





















1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB



1920 x 1080



1920 x 1080

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe, .vob,

.dat, .trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65

140V - 265V



230V, 50Hz; in accordance to IEC 65 230V, 50Hz; in accordance to IEC 65

140V - 265V



140V - 265V





A

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg



A



A

40W, 0,50W Standby, 58kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg

Full wired

via Euro AV

3x Cinch socket in

Full wired Full wired

via Euro AV

3x Cinch socket in

via Euro AV

3x Cinch socket in



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA





Video-in: 3 x Cinch, Audio-in: 2 x Cinch



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



WXGA



3x

via HDMI

1 slot

3.5mm jack

3x

via HDMI

3x

via HDMI



3.5mm jack

1 slot

3.5mm jack




2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325







2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

1 x F-connector





1 x F-connector



1 x F-connector





TP 6 black






TP 6 black



TP 6 black









Prepared for VESA standard adaptor

200 x 200




Prepared for VESA standard adaptor

200 x 100



Prepared for VESA standard adaptor

200 x 100




Chassis TTGRUNDIG Service

1 - 24

Chassis TTGRUNDIG Service

1 - 24

Chassis TTGRUNDIG Service

1 - 24

Chassis TTGRUNDIG Service

1 - 24

Chassis TTGRUNDIG Service

1 - 24

Chassis TTGRUNDIG Service

1 - 24

Chassis TTGRUNDIG Service

1 - 24

Technische Daten / Technical Data 32"/40"

Hamburg 32 CLE 5326 BG 40 VLE 544 BG 40 VLE 545 BG

Order No.
Product Code
Destination
Approbations
IM-Languages
IM-Languages 2
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
Dynamic contrast
Picture Perfection rate
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter

Digital Luminance Transition Improv. (DLTI)

Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
PAT: Split screen (PICTURE + TEXT)
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Dolby digital
Subwoofer
Balance Adjustment
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
Childlock

Menue languages OSD
OSD-style

Service mode
Game mode
Hotel mode

Digi Link
WLAN internal / external
DLNA
Internet Applications
Easy use remote control compatible
TUNING

Autom. Tuning System with country selection

Frequency Based Auto Search
Automatic Micro-search
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
7 Day Electronic Programme Guide

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
TV/Radio programmes

OSD languages
Teletext VBI insertion

VPS - VBI insertion
Programme table
Factory station list
Common Interface
CI +

NBC000

NBC

MEB000

MEB

NEW000

NEW

D, A

CE

D, A

CE

D,G B D,G B

D, A

CE

D,G B

TP6

40 13833-87261 0

TP6

40 13833-63673 1

glossy black glossy black

TP6

40 13833-87410 2

glossy black

32" / 80cm

EDGE LED

40" / 102cm

EDGE LED








40" / 102cm

EDGE LED





Dynamic Contrast Plus

200Hz

Dynamic Contrast Plus

200Hz

WUXGA 1920 x 1080 (full HD) WUXGA 1920 x 1080 (full HD)

Dynamic Contrast Plus

200Hz

WUXGA 1920 x 1080 (full HD)



3D DeInterlacer



3D DeInterlacer










3D DeInterlacer







3D



3D









3D





user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama

user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama







user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama



























/  / 

/  /





2 wide band at the front side



2 wide band at the front side



/  /





2 wide band at the front side

TruSurround HD



TruSurround HD










TruSurround HD









5 Band



5 Band



cinema, music, sport, speech, user



cinema, music, sport, speech, user



5 Band



cinema, music, sport, speech, user

2 x 10/20W nominal/music power (R/L) 2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

TT

PLL frequency synthesizer tuning

2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED blue LED

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED

7 days via DVB-T, DVB-C, DVB-S2



7 days via DVB-T, DVB-C, DVB-S2









7 days via DVB-T, DVB-C, DVB-S2













100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /



100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /







100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /



1000 pages



1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment





/

 

/














/









full automatic sorting



full automatic sorting





full automatic sorting











For cable tuning can be done by entering the frequency

(MHz) in digital search menu



For cable tuning can be done by entering the frequency

(MHz) in digital search menu







For cable tuning can be done by entering the frequency

(MHz) in digital search menu















EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting







EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting







If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted



If broadcasted
If broadcasted
If broadcasted

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

or decoding

PDC based

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

full automatic sorting



full automatic sorting









full automatic sorting





Chassis TTGRUNDIG Service

1 - 25

Chassis TTGRUNDIG Service

1 - 25

Chassis TTGRUNDIG Service

1 - 25

Chassis TTGRUNDIG Service

1 - 25

Chassis TTGRUNDIG Service

1 - 25

Chassis TTGRUNDIG Service

1 - 25

Chassis TTGRUNDIG Service

1 - 25

Chassis TTGRUNDIG Service

1 - 25

Hamburg 32 CLE 5326 BG 40 VLE 544 BG 40 VLE 545 BG

DVB-T2 Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Hierarchical modulation
DVB-S2 Front end
Input frequency range

Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
Video Decoder

MPEG profiles
Resolution
OSD colors
Picture formats
Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Navigator
Last station memory
Favourite mode
Mute function
Swap function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Energy class

Power consumption

Cabinet (WxHxD)
Cabinet with stand (WxHxD)
Weight (netto)

REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB
Antenna for terrestrial reception
Antenna for satellite reception
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual

Wall fixture
Stand

Cleaning tissue

























177 - 862 VHF & UHF /



177 - 862 VHF & UHF /







177 - 862 VHF & UHF /



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



1/2, 2/3, 3/4, 5/6, 7/8



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



Hierarchical - non hierarchical Hierarchical - non hierarchical

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

Hierarchical - non hierarchical

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical - 22 KHz generation

Overload Protection



13/18V Selection / Vertical - 22 KHz generation

Overload Protection

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical - 22 KHz generation

Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



47 - 862 VHF & UHF 47 - 862 VHF & UHF

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Mono, Dual Mono, Stereo, Joint Stereo

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



Dynamic PMT



DVB enhanced profile

via menu

DVB enhanced profile

via menu

Dynamic PMT



DVB enhanced profile

via menu

from stand-by, as TV

4x free

from stand-by, as TV

4x free







from stand-by, as TV

4x free




















1920 x 1080



1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB



1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65 230V, 50Hz; in accordance to IEC 65

140V - 265V



140V - 265V



230V, 50Hz; in accordance to IEC 65

140V - 265V





A



A

41W, 0,50W Standby, 60kWh

annual on-mode energy consumption

73,8x45,3x8,5cm

73,8x50x18,6cm

ca. 8kg

63W, 0,50W Standby, 92kWh

annual on-mode energy consumption

92,8x56x8,5cm

92,8x61x20,6cm

ca. 11kg



A

63W, 0,50W Standby, 92kWh

annual on-mode energy consumption

92,8x56x8,5cm

92,8x61x20,6cm

ca. 11kg

Full wired Full wired

via Euro AV

3x Cinch socket in

via Euro AV

3x Cinch socket in

Full wired

via Euro AV

3x Cinch socket in



Video-in: 3 x Cinch, Audio-in: 2 x Cinch



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



WXGA





Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



3x

via HDMI

3x

via HDMI

1 slot

3.5mm jack

1 slot

3.5mm jack

3x

via HDMI

1 slot

3.5mm jack







2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325




USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

1 x F-connector



1 x F-connector







1 x F-connector





TP 6 black



TP 6 black










TP 6 black





Prepared for VESA standard adaptor

200 x 100



Prepared for VESA standard adaptor

200 x 200





Prepared for VESA standard adaptor

200 x 200




Chassis TTGRUNDIG Service

1 - 26

Chassis TTGRUNDIG Service

1 - 26

Chassis TTGRUNDIG Service

1 - 26

Chassis TTGRUNDIG Service

1 - 26

Chassis TTGRUNDIG Service

1 - 26

Chassis TTGRUNDIG Service

1 - 26

Chassis TTGRUNDIG Service

1 - 26

Chassis TTGRUNDIG Service

1 - 26

Technische Daten / Technical Data 40"

40 VLE 675 BG 40 VLE 4324 BF 40 VLE 4324 BM

Order No.
Product Code
Destination
Approbations
IM-Languages
IM-Languages 2
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
Dynamic contrast
Picture Perfection rate
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter

Digital Luminance Transition Improv. (DLTI)

Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
PAT: Split screen (PICTURE + TEXT)
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Dolby digital
Subwoofer
Balance Adjustment
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
Childlock

Menue languages OSD
OSD-style

Service mode
Game mode
Hotel mode

Digi Link
WLAN internal / external
DLNA
Internet Applications
Easy use remote control compatible
TUNING

Autom. Tuning System with country selection

Frequency Based Auto Search
Automatic Micro-search
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
7 Day Electronic Programme Guide

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
TV/Radio programmes

OSD languages
Teletext VBI insertion

VPS - VBI insertion
Programme table
Factory station list
Common Interface
CI +

NEU000

NEC-NEU

CE

D,G B

MBK000/NDC000/NFD000

MBK/NDC/NFD

NAG000/NFP000

NAG/NFP

CE CE

D,G B

TP6

40 13833-87407 2

glossy black.

40" / 102cm

EDGE LED




RC 23

40 13833-63632 8/-87341 9/-87425 6

TP6

40 13833-17038 9/-87440 9

glossy black glossy black

40" / 102cm

EDGE LED

40" / 102cm

EDGE LED







Dynamic Contrast Plus

200Hz

WUXGA 1920 x 1080 (full HD)



3D DeInterlacer




Dynamic Contrast Plus

100Hz

Dynamic Contrast Plus

100Hz

WUXGA 1920 x 1080 (full HD) WUXGA 1920 x 1080 (full HD)



3D DeInterlacer



3D DeInterlacer









3D




user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama






3D



3D







user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama

user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama














/  /





2 wide band at the front side

















/  / 

/  /





2 wide band at the front side



2 wide band at the front side

TruSurround HD






5 Band



cinema, music, sport, speech, user

TruSurround HD



TruSurround HD












5 Band



5 Band



cinema, music, sport, speech, user



cinema, music, sport, speech, user

2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED

2 x 10/20W nominal/music power (R/L) 2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

TT

PLL frequency synthesizer tuning

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED blue LED

7 days via DVB-T, DVB-C, DVB-S2







100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /



7 days via DVB-T, DVB-C



7 days via DVB-T, DVB-T2, DVB-C

















100 Analog / 1000 T / 1000 C / AV



/  /



100 Analog / 1000 T / 1000 T2 / 1000 C / AV



/  /



1000 pages




24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

1000 pages



1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment





/







full automatic sorting







/

 

/












full automatic sorting



full automatic sorting






For cable tuning can be done by entering the frequency

(MHz) in digital search menu














For cable tuning can be done by entering the frequency

(MHz) in digital search menu



For cable tuning can be done by entering the frequency

(MHz) in digital search menu










EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting





If broadcasted
If broadcasted
If broadcasted

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting










If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

full automatic sorting





1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

or decoding

PDC based

full automatic sorting



full automatic sorting









Chassis TTGRUNDIG Service

1 - 27

Chassis TTGRUNDIG Service

1 - 27

Chassis TTGRUNDIG Service

1 - 27

Chassis TTGRUNDIG Service

1 - 27

Chassis TTGRUNDIG Service

1 - 27

Chassis TTGRUNDIG Service

1 - 27

Chassis TTGRUNDIG Service

1 - 27

Chassis TTGRUNDIG Service

1 - 27

Chassis TTGRUNDIG Service

1 - 27

40 VLE 675 BG 40 VLE 4324 BF 40 VLE 4324 BM

DVB-T2 Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Hierarchical modulation
DVB-S2 Front end
Input frequency range

Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
Video Decoder

MPEG profiles
Resolution
OSD colors
Picture formats
Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Navigator
Last station memory
Favourite mode
Mute function
Swap function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Energy class

Power consumption

Cabinet (WxHxD)
Cabinet with stand (WxHxD)
Weight (netto)

REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB
Antenna for terrestrial reception
Antenna for satellite reception
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual

Wall fixture
Stand

Cleaning tissue







177 - 862 VHF & UHF /





177 - 862 VHF & UHF




-75 to -35dBm / 75Ohm

QPSK, 16QAM, 64QAM, 256QAM




LDPC + BCH 1/2, 3/5, 2/3, 3/4, 4/5, 5/6



177 - 862 VHF & UHF /



177 - 862 VHF & UHF /



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



Hierarchical - non hierarchical

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



1/2, 2/3, 3/4, 5/6, 7/8



Hierarchical - non hierarchical Hierarchical - non hierarchical









QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical - 22 KHz generation

Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



47 - 862 VHF & UHF

























47 - 862 VHF & UHF 47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0 MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

via menu

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



Dynamic PMT



DVB enhanced profile

via menu

DVB enhanced profile

via menu

from stand-by, as TV

4x free








from stand-by, as TV

4x free

from stand-by, as TV

4x free
















1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65

140V - 265V





1920 x 1080



1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65 230V, 50Hz; in accordance to IEC 65

140V - 265V



140V - 265V





A

63W, 0,50W Standby, 92kWh

annual on-mode energy consumption

92,8x56x8,5cm

92,8x61x20,6cm

ca. 11kg

Full wired

via Euro AV

3x Cinch socket in



A



A

63W, 0,50W Standby, 92kWh

annual on-mode energy consumption

92,8x56x8,5cm

92,8x61x20,6cm

ca. 11kg

63W, 0,50W Standby, 92kWh

annual on-mode energy consumption

92,8x56x8,5cm

92,8x61x20,6cm

ca. 11kg

Full wired Full wired

via Euro AV

3x Cinch socket in

via Euro AV

3x Cinch socket in



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



3x

via HDMI

1 slot

3.5mm jack



Video-in: 3 x Cinch, Audio-in: 2 x Cinch



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



WXGA



3x

via HDMI

3x

via HDMI

1 slot

3.5mm jack

1 slot

3.5mm jack




2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

1 x F-connector










via Headphone

USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325









TP 6 black





Prepared for VESA standard adaptor

200 x 200




RC 23



RC 23










Prepared for VESA standard adaptor

200 x 200



Prepared for VESA standard adaptor

200 x 200





Chassis TTGRUNDIG Service

1 - 28

Chassis TTGRUNDIG Service

1 - 28

Chassis TTGRUNDIG Service

1 - 28

Chassis TTGRUNDIG Service

1 - 28

Chassis TTGRUNDIG Service

1 - 28

Chassis TTGRUNDIG Service

1 - 28

Chassis TTGRUNDIG Service

1 - 28

Chassis TTGRUNDIG Service

1 - 28

Chassis TTGRUNDIG Service

1 - 28

Technische Daten / Technical Data 40"

40 VLE 4420 BF 40 VLE 5007 BG 40 VLE 5324 BG

Order No.
Product Code
Destination
Approbations
IM-Languages
IM-Languages 2
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
Dynamic contrast
Picture Perfection rate
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter

Digital Luminance Transition Improv. (DLTI)

Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
PAT: Split screen (PICTURE + TEXT)
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Dolby digital
Subwoofer
Balance Adjustment
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
Childlock

Menue languages OSD
OSD-style

Service mode
Game mode
Hotel mode

Digi Link
WLAN internal / external
DLNA
Internet Applications
Easy use remote control compatible
TUNING

Autom. Tuning System with country selection

Frequency Based Auto Search
Automatic Micro-search
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
7 Day Electronic Programme Guide

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
TV/Radio programmes

OSD languages
Teletext VBI insertion

VPS - VBI insertion
Programme table
Factory station list
Common Interface
CI +

NET000

NET

NQC000

NQC

CE CE

D,G B D,G B

RC 23

40 13833-87405 8

TP6

40 13833-87664 9

glossy black glossy black

40" / 102cm

EDGE LED

40" / 102cm

EDGE LED







LZX000/MBN000

LZX/MBN

CE

D,G B

TP6

40 13833-63600 7/-63636 6

glossy black

40" / 102cm

EDGE LED




Dynamic Contrast Plus

100Hz

Dynamic Contrast Plus

200Hz

WUXGA 1920 x 1080 (full HD) WUXGA 1920 x 1080 (full HD)



3D DeInterlacer



3D DeInterlacer









3D



3D







user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama

user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama







Dynamic Contrast Plus

200Hz

WUXGA 1920 x 1080 (full HD)



3D DeInterlacer





3D




user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 16:9 / 14:9 / LetterBox / Subtitle / Panorama



















/  / 

/  /





2 wide band at the front side



2 wide band at the front side

TruSurround HD



TruSurround HD










5 Band



5 Band



cinema, music, sport, speech, user



cinema, music, sport, speech, user








/  /





2 wide band at the front side

TruSurround HD






5 Band



cinema, music, sport, speech, user

2 x 10/20W nominal/music power (R/L) 2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

TT

PLL frequency synthesizer tuning

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED blue LED

7 days via DVB-T, DVB-C



7 days via DVB-T, DVB-C, DVB-S2















100 Analog / 1000 T / 1000 C / AV



/  /



100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /



2 x 10/20W nominal/music power (R/L)

TT

PLL frequency synthesizer tuning

Sapphire 13+

7 keys: +/- Programm, Source / Menu, +/- Volume, stand-by

blue LED

7 days via DVB-T, DVB-C, DVB-S2







100 Analog / 1000 T / 1000 C / 6000 S2 / AV



/  /



1000 pages



1000 pages




24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment





/



/











full automatic sorting



full automatic sorting



1000 pages




24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR,

PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE

OEM-style with Grundig look



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment





/







full automatic sorting










For cable tuning can be done by entering the frequency

(MHz) in digital search menu



For cable tuning can be done by entering the frequency

(MHz) in digital search menu









EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



N 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting









If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted





For cable tuning can be done by entering the frequency

(MHz) in digital search menu





EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting





If broadcasted
If broadcasted
If broadcasted

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

or decoding

PDC based

full automatic sorting



full automatic sorting









1000

20 Languages: D, GB, F,I,E,NL,TR,DK,FIN,N,

S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER

or decoding

PDC based

full automatic sorting





Chassis TTGRUNDIG Service

1 - 29

Chassis TTGRUNDIG Service

1 - 29

Chassis TTGRUNDIG Service

1 - 29

Chassis TTGRUNDIG Service

1 - 29

Chassis TTGRUNDIG Service

1 - 29

Chassis TTGRUNDIG Service

1 - 29

Chassis TTGRUNDIG Service

1 - 29

Chassis TTGRUNDIG Service

1 - 29

40 VLE 4420 BF 40 VLE 5007 BG 40 VLE 5324 BG

DVB-T2 Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Hierarchical modulation
DVB-S2 Front end
Input frequency range

Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
Video Decoder

MPEG profiles
Resolution
OSD colors
Picture formats
Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Navigator
Last station memory
Favourite mode
Mute function
Swap function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Energy class

Power consumption

Cabinet (WxHxD)
Cabinet with stand (WxHxD)
Weight (netto)

REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB
Antenna for terrestrial reception
Antenna for satellite reception
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual

Wall fixture
Stand

Cleaning tissue















177 - 862 VHF & UHF /



177 - 862 VHF & UHF /









177 - 862 VHF & UHF /



-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



1/2, 2/3, 3/4, 5/6, 7/8



Hierarchical - non hierarchical Hierarchical - non hierarchical





950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)





QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2







13/18V Selection / Vertical - 22 KHz generation

Overload Protection





Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



47 - 862 VHF & UHF 47 - 862 VHF & UHF

-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm
COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



Hierarchical - non hierarchical

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical - 22 KHz generation

Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0 MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



Dynamic PMT



DVB enhanced profile

via menu

DVB enhanced profile

via menu

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support (EN 300 429)

4,0…7,2 Msymbols/s

MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i, 1080p

Fitting to TV-OSD

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

via menu

from stand-by, as TV

4x free

from stand-by, as TV

4x free
















1920 x 1080



1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65 230V, 50Hz; in accordance to IEC 65

140V - 265V



140V - 265V



from stand-by, as TV

4x free









1920 x 1080

.m4a, .wma, .aac, .jpg, .jpe, .bmp, .png, .mov, .divx, .mpg,

.mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, .div

SRT, SSA, ASS, SMI, Video SUB

230V, 50Hz; in accordance to IEC 65

140V - 265V





A



A

63W, 0,50W Standby, 92kWh

annual on-mode energy consumption

92,8x56x8,5cm

92,8x61x20,6cm

ca. 11kg

63W, 0,50W Standby, 92kWh

annual on-mode energy consumption

92,8x56x8,5cm

92,8x61x20,6cm

ca. 11kg

Full wired Full wired

via Euro AV

3x Cinch socket in

via Euro AV

3x Cinch socket in



Video-in: 3 x Cinch, Audio-in: 2 x Cinch



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



WXGA



3x

via HDMI

3x

via HDMI

1 slot

3.5mm jack



3.5mm jack



A

63W, 0,50W Standby, 92kWh

annual on-mode energy consumption

92,8x56x8,5cm

92,8x61x20,6cm

ca. 11kg

Full wired

via Euro AV

3x Cinch socket in



Video-in: 3 x Cinch, Audio-in: 2 x Cinch

WXGA



3x

via HDMI

1 slot

3.5mm jack







USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325




1 x F-connector





RC 23



TP 6 black









Prepared for VESA standard adaptor

200 x 200



Prepared for VESA standard adaptor

200 x 200 or 300 x 300mm







2 x USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

1 x F-connector





TP 6 black





Prepared for VESA standard adaptor

200 x 200




Chassis TTGRUNDIG Service

1 - 30

Chassis TTGRUNDIG Service

1 - 30

Chassis TTGRUNDIG Service

1 - 30

Chassis TTGRUNDIG Service

1 - 30

Chassis TTGRUNDIG Service

1 - 30

Chassis TTGRUNDIG Service

1 - 30

Chassis TTGRUNDIG Service

1 - 30

Chassis TTGRUNDIG Service

1 - 30
