Page 1

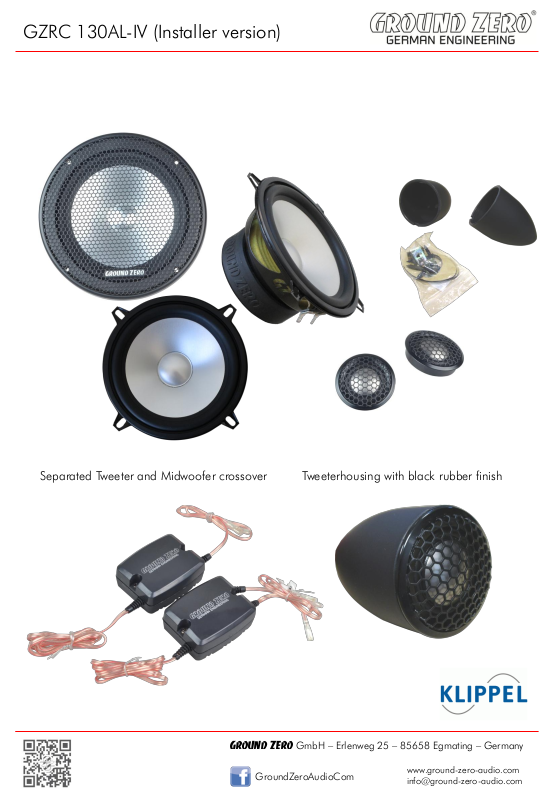

GZRC 130AL-IV (Installer version)
Separated Tweeter and Midwoofer crossover Tweeterhousing with black rubber finish
GROUND ZERO GmbH – Erlenweg 25 – 85658 Egmating – Germany
GroundZeroAudioCom
www.ground-zero-audio.com
info@ground-zero-audio.com
Page 2
GZRC 130AL-IV (Installer version)
Model
GZRC 130AL-IV (Installer version)
Impedance
3 Ohm
Frequency response
50Hz – 26kHz
Cut-off frequency
3500 Hz ( 12 dB )
SPL 1W/1M
90 dB
Power Watt RMS
100
Power Watt Maximum
160
Crossover
2- Way
Crossover parts
MOX resistors / MET & Elko capacitors / PTC
Crossover function
Adjustable Tweeterlevel
Midwoofer
Tweeter (GZRT 25T)
Cone (Dome)
Aluminum
Titanium
Cone color
Silver
Titanium
Surround
Rubber
Rubber
Dustcap
Aluminum
-
Basket / Frame material
Euro-Din steel GZ basket
Machined aluminum
Basket / Frame color
Black gloss powder coated
Black anodized
Terminal
Zinc plated solder terminal
Cable
Magnet
1 x Ferrit 80 x 15 mm (3.15“ x 0.59“)
1 x Neodymium
Voice coil
25 mm / 1“ copper round wire
25 mm / 1“ copper round wire
Voice coil former
Aluminum
Aluminum
RE
2.8 Ohm
3 Ohm
SPL
88 dB
92 dB
FS
77.8 Hz
1500 Hz
QMS
5.75
QES
0.91
QTS
0.79
VAS
5.5L / 0.19 cu.ft
MMS
8.7 Gr
BL
3.6 N/A
RMS
0.7 kg/s
CMS
0.48 mm/N
LE
0.12 mH
Linear Excursion
+ / - 4 mm / 0.157“
X Max
9 mm / 0.35“
Frequency response
50 Hz – 4 kHz
3 – 26 kHz
Powerhandling
90 / 130 W
70 / 110 W
Outer diameter
130 mm / 5.25”
49.5 mm / 1.95”
Mounting diameter
117.5 mm / 4.63”
43.10 mm / 1.7”
Mounting depth
59 mm / 2.32”
10 mm / 0.39”
TECHNICAL SPECIFICATIONS
GROUND ZERO GmbH – Erlenweg 25 – 85658 Egmating – Germany
GroundZeroAudioCom
www.ground-zero-audio.com
info@ground-zero-audio.com
Page 3
A
130 mm / 5.25”
B
117.5 mm / 4.63”
C
59 mm / 2.32”
D
85 mm / 3.35“ (80 mm / 3.15“)
E
4 mm / 0.157“
I
49.5 mm / 1.95“
J
18.8 mm / 0.74“
K
10 mm / 0.39“
L
44 mm / 1.73“
F
60 mm / 2.36“
G
48 mm / 1.89“
H
27 mm / 1.06“
GZRC 130AL-IV (Installer version)
TECHNICAL SPECIFICATIONS
A
E
C
D
B
F
G
H
I
J
K
L
GROUND ZERO GmbH – Erlenweg 25 – 85658 Egmating – Germany
GroundZeroAudioCom
www.ground-zero-audio.com
info@ground-zero-audio.com
Page 4
TW-Level
Effect
- 2 dB / 0 dB / + 2 dB
3 stepped individual tweeter adjustment
GZRC 130AL-IV (Installer version)
CROSSOVER FUNCTIONS
TW-Level
+2 dB
0 dB
-2 dB
