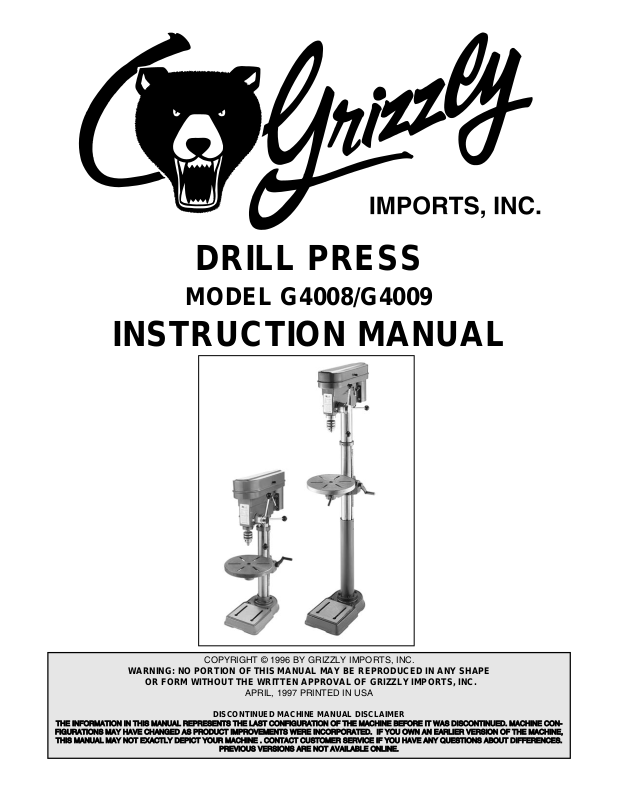

DRILL PRESS
MODEL G4008/G4009
INSTRUCTION MANUAL
COPYRIGHT © 1996 BY GRIZZLY IMPORTS, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY IMPORTS, INC.
APRIL, 1997 PRINTED IN USA
DISCONTINUED MACHINE MANUAL DISCLAIMER
TTHHEE IINNFFOORRMMAATTIIOONN IINN TTHHIISS MMAANNUUAALL RREEPPRREESSEENNTTSS TTHHEE LLAASSTT CCOONNFFIIGGUURRAATTIIOONN OOFF TTHHEE MMAACCHHIINNEE BBEEFFOORREE IITT WWAASS DDIISSCCOONNTTIINNUUEEDD.. MMAACCHHIINNEE CCOONN--
FFIIGGUURRAATTIIOONNSS MMAAYY HHAAVVEE CCHHAANNGGEEDD AASS PPRROODDUUCCTT IIMMPPRROOVVEEMMEENNTTSS WWEERREE IINNCCOORRPPOORRAATTEEDD.. IIFF YYOOUU OOWWNN AANN EEAARRLLIIEERR VVEERRSSIIOONN OOFF TTHHEE MMAACCHHIINNEE,,
TTHHIISS MMAANNUUAALL MMAAYY NNOOTT EEXXAACCTTLLYY DDEEPPIICCTT YYOOUURR MMAACCHHIINNEE .. CCOONNTTAACCTT CCUUSSTTOOMMEERR SSEERRVVIICCEE IIFF YYOOUU HHAAVVEE AANNYY QQUUEESSTTIIOONNSS AABBOOUUTT DDIIFFFFEERREENNCCEESS..
PPRREEVVIIOOUUSS VVEERRSSIIOONNSS AARREE NNOOTT AAVVAAIILLAABBLLEE OONNLLIINNEE..
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and
other masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such
as those dust masks that are specially designed to filter out microscopic particles.
G4008/G4009 Drill Press -1-
Table Of Contents
PAGE
1. SAFETY ....................................................................................................................2
SAFETY RULES FOR ALL TOOLS ....................................................................2
ADDITIONAL SAFETY INSTRUCTIONS FOR DRILL PRESSES ......................3
2. CIRCUIT REQUIREMENTS...................................................................................... 4
110V OPERATION ..............................................................................................4
GROUNDING ......................................................................................................4
3. GENERAL INFORMATION ...................................................................................... 5
UNPACKING ........................................................................................................6
PIECE INVENTORY ............................................................................................6
CLEAN UP............................................................................................................7
SITE CONSIDERATIONS ....................................................................................7
4. ASSEMBLY .............................................................................................................. 8
BEGINNING ASSEMBLY ....................................................................................8
BASE/COLUMN ..................................................................................................8
HEADSTOCK/COLUMN ......................................................................................9
WORKING TABLE..............................................................................................10
MOTOR ..............................................................................................................11
MOTOR WIRING................................................................................................11
DRILL CHUCK....................................................................................................12
5. ADJUSTMENTS...................................................................................................... 13
SPEED CHANGES ............................................................................................13
DEPTH STOP ....................................................................................................13
TABLE ADJUSTMENTS ....................................................................................14
CHUCK REMOVAL ............................................................................................15
6. OPERATIONS ........................................................................................................ 16
TEST RUN..........................................................................................................16
DRILL CHANGES ..............................................................................................16
DRILL SPEED ....................................................................................................17
DRILLING METAL ..............................................................................................17
DRILLING WOOD ..............................................................................................18
MORTISE ATTACHMENT..................................................................................18
7. MAINTENANCE........................................................................................................19
GENERAL ..........................................................................................................19
BELT TENSION..................................................................................................19
LUBRICATION ..................................................................................................19
8. CLOSURE................................................................................................................20
GENERAL MACHINE DATA ..............................................................................21
PART BREAKDOWN ........................................................................................22
PART LIST ........................................................................................................23
WARRANTY AND RETURNS............................................................................24
-2- G4008/G4009 Drill Press
WARNING: For Your Own Safety Read
Instruction Manual Before Operating Drill Press
Safety Instructions For Power Tools
These safety rules cannot cover every situation in a work shop. Consider your conditions when setting up
or operating your drill press
SECTION 1: SAFETY
a) Always wear eye protection.
b) Do not wear gloves, necktie or loose cloth-
ing.
c) Clamp workpiece or brace against the col-
umn to prevent rotation.
d) Use recommended speed for drill accesso-
ry and workpiece material.
9. USE PROPER EXTENSION CORD. Make
sure your extension cord is in good condition. When using an extension cord, be sure
it is rated Hard Service (grade S) or better.
Conductor size must be 16 A.W.G. for cords
up to 100 feet in length. An undersized cord
will cause a drop in line voltage resulting in
loss of power and overheating. Your extension cord must also contain a ground wire
and plug pin. Always repair or replace
extension cords if they become damaged.
Minimum Gage for extension cord:
16 A.W.G. 50ft
16 A.W.G. 100ft
14 A.W.G. 200ft
12 A.W.G. 300ft
10. WEAR PROPER APPAREL Do not wear
loose clothing, gloves, neckties, rings,
bracelets, or other jewelry which may get
caught in moving parts. Non-slip footwear is
recommended. Wear protective hair covering
to contain long hair.
11. ALWAYS USE SAFETY GLASSES. Also
use face or dust mask if cutting operation is
dusty. Everyday eyeglasses only have
impact resistant lenses, they are NOT safety
glasses.
1. KEEP GUARDS IN PLACE and in working
order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of checking to see
that keys and adjusting wrenches are
removed from tool before turning on.
3. KEEP WORK AREA CLEAN. Cluttered
areas and benches invite accidents.
4. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use power tools in damp or
wet locations, or expose them to rain. Keep
work area well lighted.
5. KEEP CHILDREN AWAY. All visitors
should be kept a safe distance from work
area.
6. MAKE WORK SHOP KID PROOF with
padlocks, master switches, or by removing
starter keys.
7. DON’T FORCE TOOL. It will do the job bet-
ter and safer at the rate for which it was
designed.
8. USE RIGHT TOOL. Don’t force tool or
attachment to do a job for which it was not
designed.
G4008/G4009 Drill Press -3-
Additional Safety Instructions For Drill Presses
17. USE RECOMMENDED ACCESSORIES.
Consult the owner’s manual for recommended accessories. The use of improper accessories may cause risk of injury to persons.
18. CHECK DAMAGED PARTS. Before further
use of the tool, a guard or other part that is
damaged should be carefully checked to
determine that it will operate properly and
perform its intended function - check for alignment of moving parts, binding of moving
parts, breakage of parts, mounting, and any
other conditions that may affect its operation.
A guard or other part that is damaged should
be properly repaired or replaced.
19. DIRECTION OF FEED. Feed work into a
blade or cutter against the direction of rotation of the blade or cutter only.
20. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. Don’t leave
tool until it comes to a complete stop.
4. Feed the drill bit evenly into the workpiece.
Back the bit out of deep cuts to cool and
clean the bit.
5. Never attempt to clean wood or metal cut-
tings from drill bits while the drill press is running.
6. Work should be secured in such a way so as
to avoid drilling into the table.
1. Never use a bit with a tapered shank or
square bit in a drill chuck.
2. Remove metal cuttings with a brush, never
by hand.
3. Never drill sheet metal unless it is securely
clamped to the table.
12. SECURE WORK. Use clamps or a vise to
hold work when practical. It’s safer than
using your hand and frees both hands to
operate tool.
13. DON’T OVERREACH. Keep proper footing
and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep tools
sharp and clean for best and safest performance. Follow instructions for lubricating and
changing accessories.
15. DISCONNECT TOOLS before servicing and
changing accessories, such as blades, bits,
cutters, and the like.
16. REDUCE THE RISK OF UNINTENTIONAL
STARTING. Make sure switch is in off posi-
tion before plugging in.
Figure 1.
Under no circumstances should the grounding
pin from any three-pronged plug be removed. If it
will not fit the outlet, have the proper outlet
installed by a qualified electrician.
Check with a qualified electrician or one of our
service personnel if the grounding instructions
are not completely understood, or if in doubt as to
whether the tool is properly grounded. Use only
3-wire extension cords that have 3-prong grounding type plugs and 3-hole receptacles that accept
the tool’s plug. FIgure 1.
Repair or replace damaged or worn cord immediately.
-4- G4008/G4009 Drill Press
110V Operation
The G4008/G4009 Drill Press is supplied with a
U.S made 110V/220V motor. Under normal use,
the motor draws approximately 9 amps @ 110V.
We recommend using a 15 amp circuit breaker or
a 15 amp slow blow fuse for 110V operation. This
should be satisfactory for normal use, while preventing motor damage from high heat caused by
overload. If frequent circuit failures occur when
using the drill press, contact our service department or your local electrical contractor.
220V: Contact the service department for further
instruction on wiring for 220V.
Grounding
CAUTION: THIS TOOL MUST BE GROUNDED
WHILE IN USE TO PROTECT THE OPERATOR
FROM ELECTRIC SHOCK.
In the event of a malfunction or breakdown,
grounding provides a path of least resistance for
electric current to reduce the risk of electric
shock. This tool is equipped with an electric cord
having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into a
matching outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
Improper connections of the electrical-grounding
conductor can result in risk of electric shock. The
conductor with green or green and yellow striped
insulation is the electrical-grounding conductor. If
repair or replacement of the electric cord or plug
is necessary, do not connect the equipment
grounding conductor to a live terminal.
SECTION 2: CIRCUIT REQUIREMENTS
Grounded Outlet Box
Current
Carrying
Prongs
Grounding Blade Is
Longest Of the Three Blades
G4008/G4009 Drill Press -5-
Grizzly Imports, Inc. is proud to offer the Model
G4008/G4009 Drill Press. This drill press is a part
of Grizzly’s growing family of fine woodworking
and metalworking machinery. When used according to the guidelines stated in this manual, you
can expect years of trouble-free, enjoyable operation.
The Model G4008/G4009 is intended for home
and medium-duty professional use. This drill
press features a 1,725 R.P.M.,
1
⁄2 H.P. capacitorstart motor, mechanical ON/OFF switch and a
cast iron working table.
All running parts utilize shielded ball bearings,
which require no lubrication for the life of the
bearings.
We are also pleased to provide this manual with
the Model G4008/G4009. It was written to guide
you through assembly, review safety considerations, and cover general operating procedures. It
represents our latest effort to produce the best
documentation possible. If you have any criticisms that you feel we should pay attention to in
our next printing, please write to us at the
Bellingham, WA address at the end of this section.
SECTION 3: GENERAL INFORMATION
Most important, we stand behind our machines.
We have an excellent service department at your
disposal should the need arise. If you have any
service questions or parts requests, please call or
write to us at the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone:(570) 546-9663
Fax:(800) 438-5901
E-Mail: techsupport@grizzly.com
Web Site: http://www.grizzly.com
To comment on this manual write to:
Grizzly Industrial, Inc.
C
⁄O Technical Documentation
P.O. Box 2069
Bellingham, WA 98227
To operate this or any power tool safely and efficiently, it is essential to become as familiar with it
as possible. The time you invest before you begin
to use your Model G4008/G4009 will be time well
spent. DO NOT operate this machine until you
are completely familiar with the contents of this
manual.
-6- G4008/G4009 Drill Press
Unpacking
The Model G4008/G4009 Drill press is shipped
from the manufacturer in a carefully packed carton. If you discover the machine is damaged after
you’ve signed for delivery, please call Customer
Service immediately for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise filing a freight claim can be difficult.
Caution: The G4008/G4009 is a heavy machine
(G4008-155 lbs. shipping weight; G4009-205 lbs.
shipping weight). DO NOT over-exert yourself
while unpacking or moving your machine – get
assistance. In the event that your drill press must
be moved up or down a flight of stairs, be sure
that the stairs are capable of supporting the combined weight of people and the machine.
When you are completely satisfied with the condition of your shipment, you should inventory its
parts.
Piece Inventory
After all the parts have been removed from the
carton, you should have:
• Working Table
• Column (Separate box for G4009)
• Base
• Headstock Assembly
• Motor (Separate Box)
• Motor Pulley
• Crank Handle
• Column Lock Handle
• Table Bracket
• Working Table
• Handle Bar (3)
• Hex Bolt M10 - 1.5 x 40mm (4)
• Lock Washers 10mm
• Cap Screw M16-2.0 x 40
• Wedge Shifter
• Chuck Key
• Drill Chuck
• Drill Chuck Arbor
• 4 & 12mm Allen Wrenches
In the event that any non-proprietary parts are
missing (e.g. a nut or a washer), we would be
glad to replace them, or, for the sake of expediency, replacements can be obtained at your local
hardware store.
Figure 2. Overview of all the parts.
G4008/G4009 Drill Press -7-
Clean up
The column and other unpainted parts of the
Model G4008/G4009 are coated with a waxy oil
that protects them from corrosion during shipment. Remove the protective coating with mineral spirits and paper towels. Do not use gasoline or
other petroleum based solvents because of their
extremely low flash points. Do not use chlorinebased solvents – if you happen to splash some
onto a painted surface, you’ll ruin the finish.
WARNING!
Follow the safety rules listed below when
working with solvents:
1. Read and follow all directions and warnings
on the solvent label.
2. Work only in a well ventilated area.
3. Do not work near any type of open flame
(e.g., pilot lights, kerosene heaters, and so
on).
4. DO NOT smoke while working with flamma-
ble material.
5. Paper towels from the cleaning process are
extremely combustible. Dispose of waste
towels so they do not create a fire hazard.
Site Considerations
1. Floor Load: Your G4008/G4009 Drill press
represents a large weight load in a small
footprint. Most commercial floors are suitable
for the Model G4008/G4009. Some residential floors may require additional build-up to
support both machine and operator.
2. Working Clearances: Consider existing and
anticipated needs, size of material to be
processed through each machine, and
space for auxiliary stands, work tables or
other machinery when establishing a home
for your drill press. Allow sufficient room to
safely run your machines in any foreseeable
operation.
3. Lighting and Outlets: Lighting should be
bright enough to eliminate shadow and prevent eye strain. Electrical circuits should be
dedicated or large enough to handle amperage requirements. Outlets should be located
near each machine so power or extension
cords are clear of high-traffic areas. Observe
local electrical codes for proper installation
of new lighting, outlets, or circuits.
-8- G4008/G4009 Drill Press
Beginning Assembly
Most of the Drill Press has been pre-assembled
at the factory. The few remaining pieces should
go together quickly and easily. This manual is
written for both the G4008 and G4009. The only
difference between the two regarding assembly is
the length of the column.
CAUTION: All die-cut metal parts have a sharp
edge (called “flashing”) on them after they are
formed. This is removed at the factory.
Sometimes though, a bit of flashing might escape
inspection. Please examine the edges of all diecut metal parts before handling them.
Tools Required: Only a few common tools are
needed to assemble this machine. Specifically, a
14mm open end wrench, Phillips screwdriver and
3mm and 4mm Allen wrench.
SECTION 2: ASSEMBLY
Figure 3.
Base/Column
1. Place the base on the floor (if G4009) or on a
suitable bench (if G4008). In either case, be
sure the surface is flat and stable.
2. Place the column onto the base, line up the
four holes and secure with the four M10-1.5 x
40mm Hex Head Bolts and lock washers pro-
vided. Figure 3.
G4008/G4009 Drill Press -9-
Figure 4.
Headstock/Column
1. Place the Headstock assembly onto the top of
the column and lower it until it is seated on the
column as far as it will go. CAUTION: The
head assembly is quite heavy; get assistance
when lifting.
2. Rotate the headstock until it lines up with the
base.
3. Secure the headstock to the column by tight-
ening the setscrews located on the side.
Figure 4.
4. Screw the three handle bars into the tapped
holes in the handle body. Figure 9.
Figure 5.
-10- G4008/G4009 Drill Press
Figure 8.
Figure 6.
Figure 9.
1. Place the crank handle onto the raise/lower
shaft and tighten down. Figure 6.
5. Thread the column lock handle into the col-
umn bracket. Leave the lock handle loose for
now. Figure 9.
Working Table
Figure 7.
2. Insert the M16-2.0 x 40 cap screw through the
hole located on the bottom/rear of the table
bracket.
3. Thread the cap screw into the column bracket
and tighten down. Figure 7.
4. Place the table into the hole in the table brack-
et and secure with the table lock handle.
Figure 8.
G4008/G4009 Drill Press -11-
Figure 10.
1. Remove the motor mount bolts from the
motor mount.
2. You will need help for this step: Attach the
motor to the motor mount using the hardware
removed in Step 1. Lightly tighten down the
bolts.
3. Slide the motor pulley onto the motor shaft
lining up the setscrew with the flat spot on
the motor shaft. Tighten the setscrew.
4. Install the V-Belt and adjust the motor as
necessary so the pulleys line up correctly.
Figure 10.
Motor
Figure 11.
1. Remove the wire box cover located at the
end of the motor.
2. Wire the motor per the diagram in Figure 11.
NOTE: The wires from the switch, besides the
ground wire, are interchangeable; therefore their
colors are not specified.
3. Attach the ground wire securely to the green
screw located on the back of the motor.
4. Attach motor wire cover.
5. If the motor runs backwards, reverse the
positions of motor wires #5 and #8.
Motor Wiring
-12- G4008/G4009 Drill Press
Drill Chuck
Figure 12.
To mount the drill chuck on the drill press:
1. Thoroughly clean all of the oil from both ends
of the arbor, inside the drill chuck and the drill
press spindle.
2. The short taper on the end of the drill chuck
arbor is called a ‘Jacobs Taper’. In this case,
a ‘Jacobs Taper #3’. Slide the short taper into
the drill chuck and tap lightly with a soft hammer or block of wood.
3. The long taper of the drill chuck arbor is
called a ‘Morse Taper’. In this case, a ‘Morse
Taper #3’. Slide the arbor and chuck into the
drill press spindle and turn it until the tang
slips into the slot in the spindle.
4. While holding onto the drill chuck, tap lightly
on the bottom of the chuck with a soft hammer or a block of wood. The drill chuck
should now be quite snug in the drill press. If
not, repeat steps 1-3, making sure all oil is
removed.
Tang
G4008/G4009 Drill Press -13-
To stop the vertical travel of the drill bit at a
desired depth, loosen the scale set knob located
on the feed shaft assembly, rotate the collar to
the desired depth and tighten the scale set knob.
Figure 14.
To hold a stationary depth, loosen the scale set
knob and rotate the feed shaft to the desired
depth. Then, rotate the collar clockwise until it
stops and tighten the scale set knob. This will lock
the spindle at the desired depth.
Figure 14.
Depth Stop
Speed Change
Remember to disconnect the drill press from the
power source before attempting any adjustments.
1. Loosen the two lock knobs, one on either side
of the head. Figure 13.
2. Turn the cam lever so the motor pulley moves
toward the center pulley. Figure 13.
3. Select the desired speed. Open the top cover
and move the belts into the corresponding
position for the selected speed.
4. Rotate the cam lever so the motor pulley
moves away from the center pulley and tighten locking screws on both sides of the head.
CAUTION: Never run the drill press with the
cover open.
Figure 13.
SECTION 5: ADJUSTMENTS
Scale Set Knob
-14- G4008/G4009 Drill Press
Table Adjustments
1. To adjust the table up or down, loosen the col-
umn lock handle and turn the crank handle to
the desired height. Tighten the column lock
handle. Figure 15.
2. To swing the table, loosen the column lock
handle and swing the table to the desired
position. Tighten the column lock handle. For
long workpieces, swing the work table away
180° and use the base as your table.
3. To rotate the table, loosen the table lock han-
dle, rotate the table to the desired position
and tighten the table lock handle. Figure 16.
Figure 15.
Lock Handle
Lock Handle
Figure 17.
Figure 16.
4. To tilt the table, loosen the pivot bolt with the
12mm Allen wrench supplied. Figure 17. Tilt
the table to the desired angle (up to 45°).
Tighten the pivot bolt.
Pivot Bolt
G4008/G4009 Drill Press -15-
1. Adjust the stationary depth to three inches
(see depth setting instructions).
2. Rotate the spindle manually and line up the
internal spindle slot with the slot on the side of
the quill. The end of the drill chuck (the tang)
should be visible through the slot at this point.
3. Insert the wedge shifter through the slot in the
spindle with the tapered edge facing down.
Figure 18.
4. When the tapered edge of the wedge shifter
contacts the top of the taper, tap the wedge
shifter lightly with a hammer until the taper
and chuck are loose. Do not allow the taper
and chuck to fall onto the table.
Figure 18.
Chuck Removal
-16- G4008/G4009 Drill Press
Drill Changes
To insert or change a bit, care must be taken to
secure the bit firmly in place. When changing bits,
proceed as follows:
1. Disconnect the machine from the power
source.
2. Open the chuck wide enough to accept the
bit.
3. Install the bit so the chuck jaws will grab the
major portion of the bit shank. Do not allow
the chuck to grab the fluted body of the drill
bit.
4. Tighten the chuck with the chuck key using all
three key locations.
5. Remove the chuck key and reconnect to the
power source.
6. Reverse steps to remove drill bit.
SECTION 6: OPERATIONS
Once the assembly is complete and the adjustments are done to your satisfaction, you are
ready to test the machine.
Turn on the power supply at the main panel.
Press the START button. Make sure that your finger is poised on the STOP button, just in case
there’s a problem. The drill press should run
smoothly, with little or no vibration or rubbing
noises. Strange or unnatural noises should be
investigated and corrected before operating the
machine further.
WARNING: DO NOT attempt to investigate or
adjust the machine while it is running. Wait until
the machine is turned off, unplugged and all
working parts have come to a rest before you do
anything!
Test Run
G4008/G4009 Drill Press -17-
Drilling Metal
When drilling metal, use clamps to hold the workpiece securely in place. The workpiece should
never be held in place by bare hands. The cutting
edge can catch in the material at any time, resulting in serious injury. Any movement of the workpiece during the drilling operation may result in a
rough or misplaced hole and increase the chance
of drill bit breakage.
For flat work, lay the workpiece on a wooden
base and clamp it firmly to the table. Use a Vblock and clamp for round stock. A drill press vise
with prismatic jaws can also be used to hold flat
or round material.
Drill Speed
The best speed to use in any drill press operation
is determined by; material, size of drill bit, type of
drill bit or cutter and quality of cut desired. The
smaller the drill bit, the greater the speed. In soft
materials, the speed should be higher than for
hard materials. Refer to the chart below.
Recommended RPM
Drill Cast
Diameter
Iron Steel Aluminum Wood
1
⁄8" 1900 2620 2620 2620
3
⁄16" 1550 1620 2620 2620
1
⁄4" 990 1350 1550 2620
5
⁄16" 650 990 1550 1550
3
⁄8" 600 990 990 1550
7
⁄16" 510 650 990 990
1
⁄2" 510 650 650 990
9
⁄16" 390 600 650 990
5
⁄8" 390 510 510 650
3
⁄4" 340 390 510 350
7
⁄8" 250 340 390 510
1" — 340 390 510
1
1
⁄8"—250 340 390
1
1
⁄4"——340 390
-18- G4008/G4009 Drill Press
Figure 19.
Mortise Attachment
The optional Grizzly G1083 Mortise Attachment
was specifically designed to fit the G4008/G4009
Drill Press. Refer to our current catalog for ordering information.
Drilling Wood
Twist bits, which are intended for metal, may also
be used for boring holes in wood. Machine spur
bits are generally preferred, they cut a square
bottomed hole and are designed for removal of
wood chips. Do not use hand bits which have a
screw tip; at drill press speeds they turn into the
wood too fast and tend to lift the workpiece off the
table and spin it.
For through boring, line up the hole in the work
table with the bit to avoid damaging its tip. Scribe
a vertical line on the column and a matching line
on the table bracket so the table can be clamped
in the center position at any height. Use a piece
of scrap wood under your workpiece and feed the
bit into the wood slowly to prevent splintering the
bottom side of the workpiece.
When using your drill press for operations such
as shaping, sanding or mortising, use jigs, fixtures or hold-downs that are appropriate. For
more information, review reference materials pertaining to your specific application.
The chuck will accept any tool with up to a
5
⁄8"
shank. Do not attempt to open the chuck wider by
forcing it.
G4008/G4009 Drill Press -19-
SECTION 7: MAINTENANCE
Lubrication
Belt Tension
Shielded and pre-lubricated ball bearings require
no lubrication for the life of the bearings. In a continuous-use environment, expect the bearings to
last for several years. With intermittent use, bearings can be expected to last much longer. All
bearings are standard sizes and can be easily
replaced.
For other items on this machine, such as the quill
(ref. #56 in the part breakdown), table and column, an occasional shot of light machine oil is all
that is necessary. Before applying lubricant,
clean off sawdust and metal chips. Use a light
grease on the rack, both on the teeth and
between the rack and column.
The goal is to achieve adequate lubrication. Too
much lubricant will attract dirt and sawdust, and
clog the drill press mechanism.
Proper belt tension is achieved by tightening the
belt adjusting cam so the belt has a slight tension
on it. Excessive tension will create heat and
shorten belt life. Too little tension will cause the
belt to slip and squeal.
Make a habit of inspecting your drill press each
time you use it. Check for the following conditions
and repair or replace when necessary.
1. Loose mounting bolts.
2. Worn switch.
3. Worn or damaged cords and plugs.
4. Damaged V-belt.
5. Any other condition that could hamper the
safe operation of this machine.
General
-20- G4008/G4009 Drill Press
SECTION 8: CLOSURE
The following pages contain parts diagram, parts
list, general machine data, troubleshooting guide
and Warranty/Return information for your Model
G4008/G4009 Drill Press.
If you need parts or help in assembling your
machine, or if you need operational information,
we encourage you to call our Service
Department. Our trained service technicians will
be glad to help you.
If you have comments dealing specifically with
this manual, please write to our Bellingham,
Washington location using the address in the
Introduction. The specifications, drawings, and
photographs illustrated in this manual represent
the Model G4008/G4009 as supplied when the
manual was prepared. However, due to Grizzly’s
policy of continuous improvement, changes may
be made at any time with no obligation on the part
of Grizzly. Whenever possible, though, we send
manual updates to all owners of a particular tool
or machine. Should you receive one, add the new
information to this manual and keep it for reference.
We have included some important safety measures that are essential to this machine’s operation. While most safety measures are generally
universal, Grizzly reminds you that each workshop is different and safety rules should be con-
sidered as they apply to your specific situation.
We recommend you keep a copy of our current
catalog for complete information regarding
Grizzly's warranty and return policy. If you need
additional technical information relating to this
machine, or if you need general assistance or
replacement parts, please contact our Service
Department listed in the introduction.
Additional information sources are necessary to
realize the full potential of this machine. Trade
journals, woodworking magazines, and your local
library are good places to start.
WARNING!
Like all power tools, there is danger associated
with the Model G4008/G4009 Drill press. Use the
tool with respect and caution to lessen the possibility of mechanical damage or operator injury. If
normal safety precautions are overlooked or
ignored, injury to the operator or others in the
area is likely.
The Model G4008/G4009 was specifically
designed for drilling operations. DO NOT MODI-
FY AND/OR USE THIS DRILL PRESS FOR
ANY OTHER PURPOSE. Modifications or
improper use of this tool will void the warranty. If you are confused about any aspect of this
machine, DO NOT use it until you have answered
all your questions.
G4008/G4009 Drill Press -21-
GENERAL MACHINE DATA
Design Type ....................................................................................................Bench Model/Floor Model
Overall Dimensions:
Table Size ........................................................................................................................................12
1
⁄2''
Overall Height ................................................................................................................................40"/64"
Overall Width ........................................................................................................................................14"
Overall Depth ........................................................................................................................................27"
Weight (Net) ....................................................................................................................145 lbs./195 lbs.
Construction:
Table ............................................................................................................................................Cast Iron
Column......................................................................................................................................Steel Tube
Base and Head ............................................................................................................................Cast Iron
Motor:
Type ........................................................................................................................TEFC Capacitor Start
Horsepower ......................................................................................................................................
1
⁄2 HP
Phase/Cycle ................................................................................................................Single Phase/60Hz
Voltage ..............................................................................................................................................110V
Amps ....................................................................................................................................................4.2
RPM....................................................................................................................................................1720
Bearings ......................................................................................................Sealed & Lubricated For Life
Capacities:
Spindle Travel ......................................................................................................................................3
3
⁄4"
Max. Spindle-to-base ......................................................................................................................18"/44"
Max. Spindle-to-table ................................................................................................................16
1
⁄2"/381⁄2"
Morse Taper ..........................................................................................................................................#3
Spindle Taper ......................................................................................................................................JT 3
Swing....................................................................................................................................................6
7
⁄8"
Chuck Size ............................................................................................................................................
5
⁄8"
Speeds ............................................210, 305, 340, 460, 500, 560, 1030, 1240, 1305, 1720, 1970, 2720
Quill Diameter ..................................................................................................................................52mm
Maximum Drill Capacity ........................................................................................................................
3
⁄
4''
Features:
Table Tilt ..................................................................................................................0°-45° Left and Right
Table Swing ........................................................................................................................................360°
Drive ................................................................................................................................Four Step Pulley
Table Locks....................................................................................................................................Positive
Table Height Adjustment ........................................................................................................Worm Gear
Specifications, while deemed accurate, are not guaranteed.
-22- G4008/G4009 Drill Press
69
99
93
92
91
64
63
62
61
57
56
70
65
68
66
67
66
68
89
88
53
49
86
52
51
55
54
21
87
85
47
95
17
48
18
78
22
38
48
36
77
100
29
42
99
45
46
80
81
79
75
76
44
41
43
37
39
90
96
98
34
32A
32B
26
26
25
82
23
6
16
24
19
9
10
33
7
74
35
31
30
8
11
13
14
15
4
5
3
2
1
12
59
58
71
72
73
20
G4008/G4009 Drill Press -23-
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P4008001 BASE
2 P4008002 COLUMN HOLDER
3 P4008003 SET SCREW
4 P4008004 COLUMN
5 PB31M HEX BOLT
6 P4008006 BRACKET
7 P4008007 PINION GEAR
8 P4008008 GEAR SHAFT
9 P4008009 WORM PINION
10 P4008010 CRANK HANDLE
11 P4008011 HEX BOLT
12 P4008012 TABLE BRACKET
13 P4008013 HEX BOLT
16 P4008016 ANGLE SCALE
17 P4008017 CENTERING SCALE
18 P4008018 RIVET
19 P4008019 COLUMN LOCK HANDLE
20 P4008020 TABLE LOCK HANDLE
21 P4008021 TABLE
22 P4008022 RACK
23 P4008023 RACK RING
24 P4008024 SET SCREW
25 P4008025 HEAD CASTING
26 P4008026 SET SCREW
28 P4008028 HEX BOLT
29 P4008029 CAM HANDLE
30 P4008030 CAM
31 P4008031 HEX BOLT
32 P4008032 SLIDE BAR
33 P4008033 SLIDE BAR BOLT
34 P4008034 MOTOR BASE
35 P4008035 LOCK WASHER
36 P4008036 HEX NUT
37 P4008037 HANDLE BODY
38 P4008038 FEED SHAFT
39 P4008039 FEED SHAFT SET PIN
40 P4008040 SCALE SET PIN
41 P4008041 SCALE GUIDE
42 P4008042 SLIDE BAR BOLT
43 P4008043 HANDLE BAR
44 P4008044 KNOB
45 P4008045 SPINDLE DEPTH
46 P4008046 SCALE
47 P4008047 SCALE
48 P4008048 RIVET
49 P4008049 SPRING & HOUSING
51 P4008051 SPRING SEAT
52 P4008052 SPECIAL SET SCREW
53 P4008053 HEX NUT
54 P4008054 SPECIAL SET SCREW
55 P4008055 HEX NUT
56 P4008056 QUILL
57 P4008057 RUBBER WASHER
58 P4008058 SPINDLE SHAFT
59 P4008059 BEARING
60 P4008060 NAME PLATE
61 P4008061 BEARING
62 P4008062 SPECIAL WASHER
63 P4008063 SPECIAL LOCK NUT
64 P4008064 SPECIAL NUT
65 P4008065 DRIVE SLEEVE
66 P4008066 BEARING
67 P4008067 COLLAR
68 P4008068 SPECIAL SNAP RING
69 P4008069 HEX NUT
70 P4008070 PULLEY
71 G1676 ARBOR
72 G1650 CHUCK
72A P4008072A
1
⁄2'' CHUCK KEY
73 P4008073 WEDGE SHIFTER
74 P4008074 MOTOR
75 P4008075 WIRE
76 P4008076 HEX BOLT
77 P4008077 FLAT WASHER
78 P4008078 HEX NUT
79 P4008079 MOTOR PULLEY
80 P4008080 KEY
81 P4008081 SET SCREW
82 P4008082 WIRE INSULATOR
83 P4008083 WIRE CLIP
84 P4008084 CLIP SCREW
85 P4008085 CORD
86 P4008086 CLIP TERMINAL
87 P4008087 SWITCH
88 P4008088 SWITCH COVER
89 P4008089 SCREW
90 P4008090 PULLEY COVER
91 P4008091 FLAT WASHER
92 P4008092 SCREW
93 P4008093 COVER KNOB
95 P4008095 CENTER PULLEY
96 P4008096 BEARING
98 P4008098 CENTER PULLEY SHAFT
99 P4008099 V-BELT
100 P4008100 SNAP RING
--G4009 SPECIAL PARTS-01 P4009001 BASE
02 P4009002 COLUMN HOLDER
04 P4009004 COLUMN
-24- G4008/G4009 Drill Press
Grizzly Imports, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the
date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and
any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that
the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In
no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any
legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then
issue you a “Return Number’’, which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
WARRANTY AND RETURNS
Loading...
