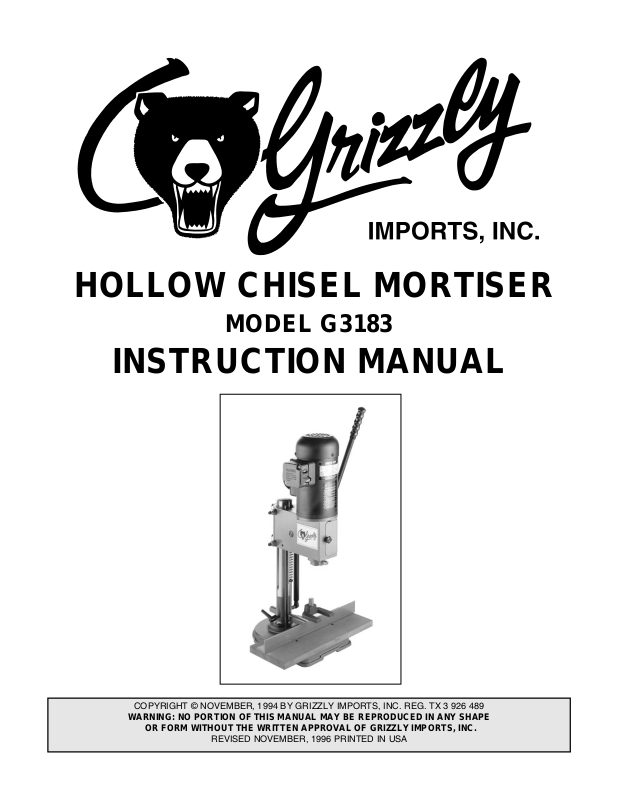

HOLLOW CHISEL MORTISER
MODEL G3183
INSTRUCTION MANUAL
COPYRIGHT © NOVEMBER, 1994 BY GRIZZLY IMPORTS, INC. REG. TX 3 926 489
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY IMPORTS, INC.
REVISED NOVEMBER, 1996 PRINTED IN USA
G3183 Hollow Chisel Mortiser -1-
Table Of Contents
PAGE
1. INTRODUCTION........................................................................................................2
SAFETY RULES FOR ALL TOOLS ....................................................................3
UNPACKING ........................................................................................................4
PIECE INVENTORY ............................................................................................4
CLEAN UP............................................................................................................5
SITE CONSIDERATIONS ..................................................................................5
CIRCUIT REQUIREMENTS ................................................................................6
TOOLS REQUIRED ............................................................................................6
2. ASSEMBLY .............................................................................................................. 7
HYDRAULIC CYLINDER......................................................................................7
TABLE ..................................................................................................................8
FENCE ................................................................................................................8
HOLD DOWN ......................................................................................................9
CHISEL INSTALLATION ................................................................................9-10
CHUCK EXTENDER ..........................................................................................11
3. ADJUSTMENTS .................................................................................................... 12
HEADSTOCK ....................................................................................................12
FENCE ..............................................................................................................12
HOLD DOWN ....................................................................................................13
DEPTH STOP ....................................................................................................13
HEAD ADJUSTMENT ........................................................................................14
4. OPERATIONS ........................................................................................................ 15
G3183 SAFETY RULES ....................................................................................15
TEST RUN..........................................................................................................16
MORTISING ................................................................................................16-17
5. MAINTENANCE ......................................................................................................18
GENERAL ..........................................................................................................18
LUBRICATION ..................................................................................................18
6. CLOSURE................................................................................................................19
PART BREAKDOWN ........................................................................................20
PART LISTS ......................................................................................................21
MACHINE DATA ................................................................................................22
TROUBLESHOOTING ......................................................................................23
WARRANTY AND RETURNS............................................................................24
-2- G3183 Hollow Chisel Mortiser
Grizzly Imports, Inc. is proud to offer the Model
G3183 Hollow Chisel Mortiser. This Model G3183
is a part of Grizzly’s growing family of fine woodworking machinery. When used according to the
guidelines stated in this manual, you can expect
years of trouble-free, enjoyable operation.
The Model G3183 is intended for home and medium-duty professional use. This Model G3183 features a 3450 R.P.M.,
1
⁄2 H.P. capacitor-start
motor, mechanical ON/OFF switch and an
adjustable depth stop.
All running parts utilize shielded ball bearings,
which require no lubrication for the life of the
bearings.
We are also pleased to provide this manual with
the Model G3183. It was written to guide you
through assembly, review safety considerations,
and cover general operating procedures. It represents our latest effort to produce the best documentation possible. If you have any criticisms that
you feel we should address in our next printing,
please write to us:
Grizzly Industrial, Inc.
c
⁄o Technical Documentation
P.O. Box 2069
Bellingham, WA 98227
SECTION 1: INTRODUCTION
Most important, we stand behind our machines.
We have two excellent regional service departments at your disposal should the need arise. If
you have any service questions or parts requests,
please call or write to us at the location listed
below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: (570) 546-9663
Fax: (800) 438-5901
E-Mail: techsupport@grizzly.com
To operate this or any power tool safely and efficiently, it is essential to become as familiar with it
as possible. The time you invest before you begin
to use your Model G3183 will be time well spent.
DO NOT operate this machine until you are com-
pletely familiar with the contents of this manual.
G3183 Hollow Chisel Mortiser -3-
12. USE SAFETY GLASSES AND EAR PROTECTION. Also use a DUST MASK if the
operation is dusty.
13. DO NOT OVERREACH. Keep proper footing
and balance at all times.
14. MAINTAIN TOOLS IN TOP CONDITION.
Keep tools sharp and clean for best and
safest performance. Follow instructions for
lubricating and changing accessories.
15. DISCONNECT TOOLS FROM POWER
before servicing and when changing accessories.
16. AVOID ACCIDENTAL STARTING. Make
sure the switch is in the “OFF” position
before plugging in the cord.
17. CHECK DAMAGED PARTS. Do not operate
the machine until you are certain it is in perfect running condition.
18. NEVER LEAVE THE TOOL RUNNING
UNATTENDED - TURN POWER OFF. Do
not leave the tool until it comes to a full stop.
19. DO NOT OPERATE THE TOOL IF USING
DRUGS, ALCOHOL, OR MEDICATION.
20. DO NOT WORK IN HASTE or operate
machine if you are fatigued.
21. IF THERE IS SOMETHING YOU DO
NOT KNOW OR UNDERSTAND
ABOUT THIS TOOL, DO NOT OPERATE IT! Ask for help first. Confusion
can lead to disaster.
22. BAD HABITS ARE DANGEROUS. Review
all safety procedures often.
These safety rules cannot cover every situation in
a woodshop. Consider your conditions when setting up or operating your Hollow Chisel Mortiser.
1. KNOW YOUR POWER TOOL. Read the
owner’s manual carefully. Learn the tool’s
applications and limitations, as well as its
particular hazards.
2. KEEP ALL GUARDS IN PLACE and in
working order.
3. GROUND ALL TOOLS. If an adapter is
used to accommodate a two-prong receptacle, the adapter plug must be attached to a
known ground. Never remove the grounding
prong.
4. REMOVE ADJUSTING KEYS AND
WRENCHES. Make it a habit to check that
keys and wrenches are removed from the
machine before turning it on.
5. KEEP WORK AREA CLEAN. Cluttered
areas and benches invite accidents.
6. AVOID DANGEROUS ENVIRONMENTS.
Do not use power tools in damp or wet locations or expose them to rain. Keep your work
area well lighted.
7. KEEP CHILDREN AND VISITORS AWAY.
All children and visitors should be kept a safe
distance away from your work area.
8. MAKE WORKSHOP CHILD-PROOF with
padlocks, master switches, or by removable
starter keys.
9. DO NOT FORCE TOOL. Tools work better
and safer when they are allowed to perform
at their own speed.
10. WEAR PROPER APPAREL. Do not wear
loose clothing, gloves, neckties, or jewelry
that can get caught in moving parts. Non-slip
footwear must be worn. Long hair should be
tied back or wear a hat.
11. NEVER STAND, OR LEAN ON THE TOOL.
Doing so could cause injury.
Safety Rules For All Tools
-4- G3183 Hollow Chisel Mortiser
Unpacking
The Model G3183 Hollow Chisel Mortiser is
shipped from the manufacturer in a carefully
packed carton. If you discover the machine is
damaged after you’ve signed for delivery, please
call Customer Service immediately for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise filing a freight claim can be difficult.
Caution: The Model G3183 is a heavy machine,
45 lbs. shipping weight. DO NOT over-exert your-
self while unpacking or moving your machine –
get assistance. In the event that your Hollow
Chisel Mortiser must be moved up or down a
flight of stairs, be sure that the stairs are capable
of supporting the combined weight of people and
the machine.
When you are completely satisfied with the condition of your shipment, you should inventory its
parts.
Piece Inventory
After all the parts have been removed from the
carton, you should have:
• Mortising Machine
• Hydraulic Cylinder
• Handle Bar
•
5
⁄
8'' Chisel Bushing
•
3
⁄
4'' Chisel Bushing
• Chuck Key
• Spindle Extension
• Wood Table
• Hold Down
• Fence
• 4 & 5mm Allen Wrenches
• Flat Head Screw M6-1.0x20mm(2)
In the event that any non-proprietary parts are
missing (e.g. a nut or a washer...), we would be
glad to replace them, or, for the sake of expediency, replacements can be obtained at your local
hardware store.
G3183 Hollow Chisel Mortiser -5-
Clean up
The column and other unpainted parts of the
Model G3183 are coated with a waxy oil that protects them from corrosion during shipment.
Remove the protective coating with mineral spirits and paper towels. Do not use gasoline or other
petroleum based solvents because of their
extremely low flash points. Do not use chlorinebased solvents – if you happen to splash some
onto a painted surface, you’ll ruin the finish.
WARNING!
Follow the safety rules listed below when
working with solvents:
1. Read and follow all directions and warnings
on the solvent label.
2. Work only in a well ventilated area.
3. Do not work near any type of open flame
(e.g., pilot lights, kerosene heaters, and so
on).
4. DO NOT smoke while working with flamma-
ble material.
5. Paper towels from the cleaning process are
extremely combustible. Dispose of waste
towels so they do not create a fire hazard.
Site Considerations
1. Mounting: We recommend mounting your
Hollow Chisel Mortiser to a bench. This will
prevent the machine from tipping over and to
allow for maximum leverage when mortising.
2. Working Clearances: Consider existing and
anticipated needs, size of material to be
processed through each machine, and
space for auxiliary stands, work tables or
other machinery when establishing a location for your Hollow Chisel Mortiser.
3. Lighting and Outlets: Lighting should be
bright enough to eliminate shadow and prevent eye strain. Electrical circuits should be
dedicated or large enough to handle amperage requirements. Outlets should be located
near each machine so power or extension
cords are clear of high-traffic areas. Observe
local electrical codes for proper installation
of new lighting, outlets, or circuits.
-6- G3183 Hollow Chisel Mortiser
Circuit Requirements
The motor supplied with the Model G3183 is a
110V single-voltage motor, prewired for 110V.
Under normal use, the motor draws approximately 6 amps @ 110V. We recommend using a 15
amp circuit breaker or a 15 amp slow blow fuse
for 110V operation. This should be satisfactory
for normal use, while preventing motor damage
from high heat caused by overload. If frequent
circuit failures occur when using the Hollow
Chisel Mortiser, contact our service department
or your local electrical contractor. The Hollow
Chisel Mortiser cannot be wired for 220V operation.
This equipment must be grounded. Please
ensure that the Hollow Chisel Mortiser is continuously grounded from the motor to the machine
frame and then to a known ground. Verify that
any existing electrical outlet and circuit you intend
to plug into is actually grounded. If it is not, it will
be necessary to run a separate 12 A.W.G. copper
grounding wire from the outlet to a known ground.
Under no circumstances should the grounding
pin from any three-pronged plug be removed.
Extension Cords: If used, extension cords must
be rated Hard Service (grade S) or better.
Conductor size must be 14 A.W.G. for cords up to
50 feet in length. Your extension cord must also
contain a ground wire and plug pin. Always repair
or replace extension cords if they become damaged.
CAUTION: Be sure that your particular electrical
configuration complies with local and state codes.
The best way to ensure compliance is to check
with your local municipality or licensed electrician.
Tools Required
The Model G3183 Hollow Chisel Mortiser has
been largely pre-assembled at the factory.
However, some components must be assembled
or installed after delivery. We have organized the
assembly process into steps. Please follow along
in the order in which we have presented them
here. We also recommend that you spend some
time with the diagrams and parts lists to become
familiar with all the parts before you begin.
Tools Required: Common hand tools are all that
are necessary to assemble this machine.
Specifically, you will need a screwdriver, 4mm
and 5mm hex wrenches (provided) and a Phillips
screwdriver.
G3183 Hollow Chisel Mortiser -7-
SECTION 2: ASSEMBLY
Hydraulic Cylinder
To install the Hydraulic Cylinder:
1. Screw the handle bar into the adjustable gear
on the right side of the mortising machine and
raise the head to its highest position. Figure 1.
Figure 1.
Figure 2.
2. With the head fully extended above the mortis-
er’s base, snap the hydraulic cylinder into the
fittings located on the right side of the head
and at the base of the column. Figure 2.
-8- G3183 Hollow Chisel Mortiser
Table
To install the table:
1. Position the wood table on the base and
secure with two screws provided. Figure 3.
2. Secure the machine to a suitable work surface
by fastening bolts through the holes provided
in the mortiser’s base. This will eliminate the
possibility of the machine tipping while in use.
Figure 3.
Fence
To install the fence:
Insert the fence bar through the hole in the col-
umn. Figure 4. It may be necessary to back out
the lock knob a few turns so the fence bar will
pass through.
Figure 4.
G3183 Hollow Chisel Mortiser -9-
Hold Down
To install the hold down:
Slide the hold down assembly over the vertical
post so the fingers extend forward of the fence
over the table. Leave the setscrew loose for now.
Figure 5.
Figure 5.
Figure 6.
Figure 7.
Chisel Installation
1. Remove the chuck cover on the mortiser’s
head by loosening the knobs at the front and
side of the cover plate. Figure 6.
2. Mortise chisels have either a
5
⁄8'' or 3⁄4'' mounting shank. Determine which chisel you want
to use and locate the proper chisel bushing.
Remove the brass screw located on the front,
bottom of the headstock. Figure 7.
Figure 8.
Figure 9.
-10- G3183 Hollow Chisel Mortiser
5. Feed the bit into the chuck until the tip of the
bit extends between
1
⁄16'' and 3⁄16'' below the
tip of the chisel edge. Once you have properly aligned the bit and chisel, tighten the
chuck with the chuck key provided in the
package.
NOTE: If the bit extends beyond the maximum
3
⁄16'' below the chisel, even when fully engaged in
the chuck, it will be necessary to shorten the
shank of the bit to achieve proper clearance.
4. Insert the bit into the chisel, then insert both
through the bottom of the bushing. Loosen
the brass screw, if necessary, to allow the
chisel and bit to pass by. Push the chisel as
far as it will go into the head assembly.
Tighten the brass screw to hold the chisel in
position. Figure 9.
3. Place the bushing in the opening directly
under the chuck. Align the hole on the side
of the bushing with the threaded hole in the
front of the headstock. Once in place, thread
in the brass screw. Figure 8.
G3183 Hollow Chisel Mortiser -11-
Figure 10.
Chuck Extender
The use of the chuck extender is only necessary
if the chisel is too short to reach the chuck. The
extender will lower the chuck approximately 1''.
To install the extender:
1. Remove the chuck cover on the mortiser’s
head by loosening the knobs at the front and
side of the cover plate.
2. Hold the motor shaft in place with a 10mm
wrench. Insert a phillips screwdriver into the
chuck key hole and unscrew the chuck in a
clockwise direction. Figure 10.
3. Thread the chuck extender onto the end of
the motor shaft then thread the chuck on.
4. Lightly tighten the chuck onto the extender.
-12- G3183 Hollow Chisel Mortiser
Headstock
SECTION 3: ADJUSTMENTS
The handle bar on the Model G3183 Hollow
Chisel Mortiser raises and lowers the head by
rack-and-pinion gearing. The handle bar can be
adjusted for comfort and maximum leverage by
loosening the nut at the end of the pinion shaft
just enough for the right and left adjustable gears
to disengage. Figure 11.
Figure 11.
Fence
The fence can be moved forward and backward
to adjust for each project. To move the fence,
loosen the lock handle at the side of the column,
move the fence to the desired position and re-
tighten the handle. Figure 12.
Figure 12.
G3183 Hollow Chisel Mortiser -13-
Hold Down
The hold down is designed to prevent the workpiece from lifting when the chisel is retracted. The
hold down should be adjusted so it just comes in
contact with the workpiece – allowing it to move
side-to-side, but not up and down. To adjust the
hold down, loosen the setscrew at the vertical
post, move the hold down to the desired height
and tighten the setscrew. The hold down can be
flipped upside down to accommodate larger
stock. Figure 13.
NOTE: Ensure that the hold down is centered so
its fingers do not interfere with chisel movement.
The vertical post is flattened on one side. Position
the hold down so the setscrew meets the flat surface.
Figure 13.
Depth Stop
The depth stop rod allows you to control the
depth of your mortise cuts by limiting the distance
the head can be lowered. To set the desired mortising depth, lower the head until it is a proper distance from the table. Loosen the setscrew on the
left side of the head and drop the depth stop rod
until it touches the base.Tighten the setscrew.
Figure 14.
Figure 14.
-14- G3183 Hollow Chisel Mortiser
Head Adjustment
Proper adjustment of the head and column is
necessary to ensure that mortiser travel is
smooth and precise. Two bolts located at the
back of the head control the tightness of the head
and column. If movement of the head becomes
sloppy, tighten the bolts until the travel is smooth
and solid. Should the head movement become
too difficult, loosen the bolts until movement is
satisfactory. Figure 15.
Two setscrews mounted just forward of the bolts
ensure that side-to-side movement is minimal. If
head displays excess wiggle from side-to-side,
loosen the locknuts and tighten the setscrews
until movement is eliminated. Tighten the lock-
nuts. Figure 16.
Figure 15.
Figure 16.
G3183 Hollow Chisel Mortiser -15-
Caution
Always wear ANSI-approved safety
glasses or goggles when operating
equipment. Do not allow visitors into
your workshop when testing or operating equipment.
SECTION 4: OPERATIONS
Safety Rules
• Before machine inspection, maintenance or
changing accessories: Turn off switch, unplug
power cord and wait for all moving parts to
stop.
• Keep hands away from the chisel and bit
while this tool is being operated.
• Always have the chisel opening facing away
from the operator or the fence.
• The bit should reach full speed before begin-
ning a cut.
• Always feed chisel evenly and smoothly.
• Do not touch the chisel during the mortising
operation.
• Never leave the mortiser running unattended.
This sums up our review of safety guidelines.
Remember that every shop has its own specific
hazards. Be sure, above all else, to use good
common sense and reasonable caution each
time you start this Hollow Chisel Mortiser, or any
woodworking machinery. Proper safety standards rarely take any more time or energy when
followed religiously. Develop a habit of safety.
Earlier in this manual we covered general shop
and machine safety rules. This section will
address safety rules specific to your mortiser.
• Be sure to observe all electrical requirements
such as fuse sizing, wire sizing, machine
grounding and any other electrical consideration.
• Always wear eye protection while operating
this mortiser. Also use a respirator to avoid
breathing dust. All safety equipment must be
ANSI approved.
• Always be aware of the condition of the wood
you are mortising. Pay particular attention to
knots, splits, and other potentially dangerous
areas.
• Never attempt to operate the mortiser with
bits or chisels that are dull or damaged. They
will burn the wood and cause it to bind.
• Maintain the mortiser in proper working condi-
tion. Perform machine inspections and maintenance services promptly when called for.
• Always put adjustment tools away after use.
-16- G3183 Hollow Chisel Mortiser
Once the assembly is complete and the adjustments are done to your satisfaction, you are
ready to test the machine.
Turn on the power supply at the main panel.
Press the START button. Make sure that your finger is poised on the STOP button, just in case
there’s a problem. The Hollow Chisel Mortiser
should run smoothly, with little or no vibration or
rubbing noises. Strange or unnatural noises
should be investigated and corrected before
operating the machine further.
WARNING: DO NOT attempt to investigate or
adjust the machine while it is running. Wait until
the machine is turned off, unplugged and all
working parts have come to a rest before you do
anything!
If noises occur that cannot be found by visual
inspection, feel free to contact our service department for help.
Test Run
1. Place the workpiece on the table and adjust
so chisel is aligned correctly for desired
mortise cut.
2. Secure the fence so the workpiece is firmly
supported.
3. Position the hold down as described earlier,
so upward movement of the workpiece is
eliminated.
4. Turn power on.
5. Lower the head by pulling the handle bar
down with your right hand, while supporting
the workpiece with your left hand. NOTE:
Be extremely careful to avoid the chisel with
your left hand. It is very sharp, and friction
will make it hot enough to cause burns to
your skin. Figure 17.
Mortising
Figure 17.
G3183 Hollow Chisel Mortiser -17-
Figure 18.
6. The chisel and bit will cause some smoking
as it contacts the workpiece. This is caused
by friction heating resins in the wood. This
does not necessarily mean that the chisel is
dull. More likely, a dull chisel will cause the
head to be difficult to lower.
7. An even pressure on the handle bar will pro-
vide the best mortising results. The rate of
penetration should be fast enough to avoid
burning the tip of the bit, but slow enough to
avoid stalling the motor.
8. Placing a piece of wood between your work-
piece and the mortiser’s table when throughcutting will minimize tear-out.
9. When mortising thin stock, build up the
height of the workpiece enough for it to clear
the fence, so the hold down will function correctly.
10. When making rectangular mortises, we rec-
ommend you follow the sequence of cuts
shown in Figure 18.
123456
-18- G3183 Hollow Chisel Mortiser
SECTION 5: MAINTENANCE
Lubrication
The Model G3183 Hollow Chisel Mortiser
requires a minimum of maintenance. The operator should clear the machine of wood chips after
every use and periodically wipe the machine of
dust and grime. All of the bearings within the
machine are lubricated and sealed at the factory,
so lubrication by the operator is unnecessary. A
periodic application of light oil on the rack-andpinion gearing will insure smooth operation
between the head and column.
Make a habit of inspecting your Hollow Chisel
Mortiser each time you use it. Check for the following conditions and repair or replace when necessary.
1. Loose mounting bolts.
2. Worn switch.
3. Worn or damaged cords and plugs.
4. Any other condition that could hamper the
safe operation of this machine.
General
G3183 Hollow Chisel Mortiser -19-
The following pages contain general machine
data, parts diagram, parts list, troubleshooting guide
and Warranty/Return information for your Model
G3183 Hollow Chisel Mortiser.
If you need parts or help in assembling your
machine, or if you need operational information,
we encourage you to call the appropriate regional Service Department. Our trained service technicians will be glad to help you.
If you have comments dealing specifically with
this manual, please write to our Bellingham,
Washington location using the address in the
Introduction. The specifications, drawings, and
photographs illustrated in this manual represent
the Model G3183 as supplied when the manual
was prepared. However, due to Grizzly’s policy of
continuous improvement, changes may be made
at any time with no obligation on the part of
Grizzly. Whenever possible, though, we send
manual updates to all owners of a particular tool
or machine. Should you receive one, add the new
information to this manual and keep it for reference.
We have included some important safety measures that are essential to this machine’s operation. While most safety measures are generally
universal, Grizzly reminds you that each workshop is different and safety rules should be con-
sidered as they apply to your specific situation.
We recommend you keep a copy of our current
catalog for complete information regarding
Grizzly's warranty and return policy. If you need
additional technical information relating to this
machine, or if you need general assistance or
replacement parts, please contact the appropriate regional Service Department listed in the
introduction.
Additional information sources are necessary to
realize the full potential of this machine. Trade
journals, woodworking magazines, and your local
library are good places to start.
WARNING!
As with all power tools, there is danger associated with the Model G3183 Hollow Chisel Mortiser.
Use the tool with respect and caution to lessen
the possibility of mechanical damage or operator
injury. If normal safety precautions are overlooked or ignored, injury to the operator or others
in the area is likely.
The Model G3183 was specifically designed for
Mortising operations. DO NOT MODIFY AND/OR
USE THIS HOLLOW CHISEL MORTISER FOR
ANY OTHER PURPOSE. Modifications or
improper use of this tool will void the warranty. If you are confused about any aspect of this
machine, DO NOT use it until you have answered
all your questions.
SECTION 6: CLOSURE
142
-20- G3183 Hollow Chisel Mortiser
108
150
132
131
148
147
146
145
107
138
112
105
143
149
154
111
134
135
118
56
144
106
120
121
141
127
128
129
126
119
122
151
152
140
116
103
102
104
130
109
110
101
123
125
137B
136
117
105
153
137A
115
114
113
139
REF PART # DESCRIPTION REF PART # DESCRIPTION
G3183 Hollow Chisel Mortiser -21-
101 P3183001 CASTING BASE
102 PLW04M LOCK WASHER 8mm
103 PSB14M CAP SCREW M8-1.25x20mm
104 P3183104 COLUMN
105 PSS16M SETSCREW M8-1.25x10mm
106 P3183006 HEADSTOCK
107 P3183007 DEPTH STOP ROD
108 P3183008 MOTOR
109 P3183009 RACK
110 PSB26M CAP SCREW M6-1.0x12mm
111 PLN04M LOCK NUT M8-1.25
112 PB26M HEX BOLT M8-1.25x30mm
113 P3183013 TABLE
114 P3183014 FENCE
115 P3183015 HOLD DOWN
116 P3183016 LOCK HANDLE
117 P3183017 BRASS SCREW
118 PSS02M SETSCREW M6-1.0x6mm
119 P3183019 PINION SHAFT
120 PK19M KEY 5x5x14mm
121 P3183021 COLLAR
122 P3183022 GEAR
123 P3183123 LOWER CYL. FITTING
125 P3183125 HYDRAULIC CYLINDER
126 P3183026 LEFT ADJ. GEAR
127 PRP30M ROLL PIN 5x50mm
128 P3183028 HEX NUT M16-2.0
129 P3183029 RIGHT ADJ. GEAR
130 P3183130 UPPER CYL. FITTING
131 P3183031 HANDLE BAR
132 P3183032 HANDLE GRIP
133 PSB24M CAP SCREW M5-0.8x16mm
134 P3183034 SPINDLE EXTENSION
135 P3183035 CHUCK
136 SEE CATALOG
137A P3183037A BUSHING
5
⁄
8''
137B P3183037B BUSHING
3
⁄
4''
138 P3183042 CAP
139 PFH06M FLAT HD SCR M6-1.0x12mm
140 P3183040 COVER
141 P3183041 KNOB
142 P3183047 SWITCH BASE
143 P3183046 SWITCH COVER
144 PSW07 SWITCH
145 P3183044 BRASS PIN
146 P3183048 SPRING
147 PSS10M SETSCREW M10-1.5x20mm
148 PN02M HEX NUT M10-1.5
149 P3183046A SCREW
150 P3183052 POWER CORD
151 P3183051 CHUCK KEY
152 PAW 04M ALLEN WRENCH 4mm
153 PAW 05M ALLEN WRENCH 5mm
154 P3183154 LOGO PLATE
-22- G3183 Hollow Chisel Mortiser
MACHINE DATA
GRIZZLY MODEL G3183 HOLLOW CHISEL MORTISER
Design Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bench Model
Overall Dimensions
Base Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
7
⁄8
'' x 13
1
⁄2
''
Fence Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
9
⁄16
'' x 13
3
⁄4
''
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
1
⁄4
''
Overall Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3
⁄4
''
Overall Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3
⁄8''
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44.8 lbs.
Weight in Place . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42.4 lbs.
Construction
Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .MDF
Column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Precision Ground Cast Iron
Base & Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Cast Iron
Motor
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .TEFC Capacitor Start Induction
Horsepower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
⁄2" HP
Phase/Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Single Phase/60 Hz
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110V
Amps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3450 RPM
Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Toggle ON/OFF with Removable Key
Power Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Direct
Bearings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Shielded & Permanently Lubricated Ball
Capacities
Chuck Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
⁄8''
Chisel Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
⁄8'', 3⁄4'' Shank
Hold Down Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
1
⁄4''
Head Travel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3
⁄4''
Specifications, while deemed accurate, are subject to change without notice.
G3183 Hollow Chisel Mortiser -23-
TROUBLESHOOTING GUIDE
Noisy operation Dry drill bit shaft Lubricate drill bit shaft
Bit burns or smokes 1. Chips not coming out of hole 1. Retract bit frequently
to clear chips
2. Dull bit 2. Sharpen or replace bit
3. Feed rate too slow 3. Feed faster
Excessive drill bit 1. Bent bit. 1. Replace bit
runout or wobble 2. Bit not properly installed 2. Remove bit and install properly
3. Worn or loose chuck 3. Replace chuck
4. Worn spindle bearings 4. Replace bearing
Drill binds in 1. Workpiece twisting or moving 1. Support or clamp workpiece
workpiece piece 2. Excessive feed pressure 2. Reduce pressure and clamp workpiece
-24- G3183 Hollow Chisel Mortiser
Grizzly Imports, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the
date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and
any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that
the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In
no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any
legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then
issue you a “Return Number’’, which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
WARRANTY AND RETURNS
Loading...
