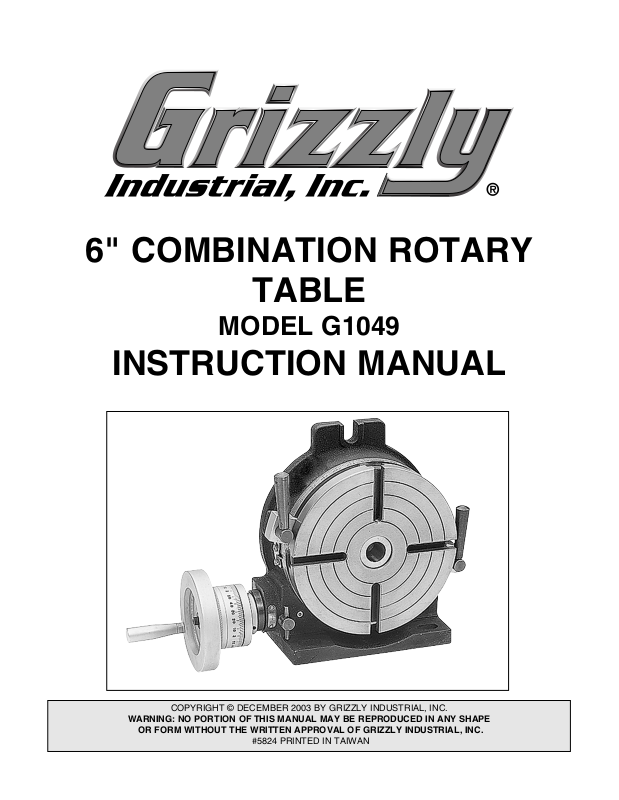

6" COMBINATION ROTARY
TABLE
MODEL G1049
INSTRUCTION MANUAL
COPYRIGHT © DECEMBER 2003 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#5824 PRINTED IN TAIWAN
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and
other masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such
as those dust masks that are specially designed to filter out microscopic particles.
SECTION 1: SAFETY
Safety Instructions For Metalworking Machines
5. KEEP CHILDREN AND VISITORS
AWAY. All children and visitors should be
kept at a safe distance from work area.
6. MAKE WORK SHOP CHILD PROOF with
padlocks, master switches, or by removing
starter keys.
7. DO NOT FORCE TOOL. It will do the job
better and safer at the rate for which it was
designed.
8. USE RIGHT TOOL. DO NOT force tool or
attachment to do a job for which it was not
designed.
1. READ AND UNDERSTAND MACHINE
OWNERS MANUAL FOR THIS EQUIPMENT.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form a habit of checking to
see that keys and adjusting wrenches are
removed from tool before turning on.
3. KEEP WORK AREA CLEAN. Cluttered
areas and benches invite accidents.
4. DO NOT USE IN DANGEROUS ENVIRONMENT. DO NOT use power tools in
damp or wet locations, or where any flammable or noxious fumes may exist. Keep
work area well lighted.
For Your Own Safety Read Instruction
Manual Before Operating This Equipment
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury.
This symbol is used to alert the user to useful information about
proper operation of the equipment or property damage hazards.
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This
manual uses a series of symbols and signal words which are intended to convey the level of
importance of the safety messages. The progression of symbols is described below. Remember
that safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures.
NOTICE
G1049 6" Combination Rotary Table -1-
-2- G1049 6" Combination Rotary Table
9. USE PROPER EXTENSION CORD. Make
sure your extension cord is in good condition. Conductor size should be in accordance with the chart below. The amperage
rating should be listed on the motor or tool
nameplate. An undersized cord will cause
a drop in line voltage resulting in loss of
power and overheating. Your extension
cord must also contain a ground wire and
plug pin. Always repair or replace extension cords if they become damaged.
Minimum Gauge for Extension Cords
10. WEAR PROPER APPAREL. DO NOT
wear loose clothing, gloves, neckties,
rings, bracelets, or other jewelry which
may get caught in moving parts. Non-slip
footwear is recommended. Wear protective hair covering to contain long hair.
11. ALWAYS USE SAFETY GLASSES.
Everyday eyeglasses only have impact resistant lenses, they are NOT safety glasses.
12. SECURE WORK. Use properly secured
clamps or vises to hold work while performing the machining operation.
13. DO NOT OVER-REACH. Keep proper
footing and balance at all times.
14. MAINTAIN TOOLS AND MACHINERY
WITH CARE. Keep tools sharp and clean
for best and safest performance. Follow
instructions for lubricating and changing
accessories.
15. USE RECOMMENDED ACCESSORIES.
Consult the owner’s manual for recommended accessories. The use of improper
accessories may cause risk of injury.
LENGTH
AMP RATING 25ft 50ft 100ft
0-6 16 16 16
7-10 16 16 14
11-12 16 16 14
13-16 14 12 12
17-20 12 12 10
21-30 10 10 No
Safety Instructions For Metalworking Tools
16. REDUCE THE RISK OF UNINTENTIONAL STARTING. On machines with mag-
netic contact starting switches there is a
risk of starting if the machine is bumped or
jarred. Always disconnect from power
source before adjusting or servicing equipment. Make sure switch is in OFF position
before reconnecting.
17. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part
that is damaged should be carefully
checked to determine that it will operate
properly and perform its intended function.
Check for alignment of moving parts, binding of moving parts, breakage of parts,
mounting, and any other conditions that
may affect its operation. A guard or other
part that is damaged should be properly
repaired or replaced.
18. NEVER LEAVE MACHINE RUNNING
UNATTENDED. TURN POWER OFF. DO
NOT leave machine until it comes to a
complete stop.
19. SOME COOLANTS USED FOR MACHINING MAY CONTAIN HAZARDOUS CHEMICALS. Read and understand all user infor-
mation on the coolant container and protect yourself accordingly.
20. NEVER OPERATE A MACHINE WHEN
TIRED, OR UNDER THE INFLUENCE OF
DRUGS OR ALCOHOL. Full mental alert-
ness is required at all times when running
a machine.
No list of safety guidelines can be complete. Every shop environment is different.
Always consider safety first, as it applies to
your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equipment or poor work results.
G1049 6" Combination Rotary Table -3-
Grizzly Industrial, Inc. is proud to offer the Model
G1049 6" Combination Rotary Table. This rotary
table is part of Grizzly’s growing family of fine
metalworking equipment. When used according
to the guidelines stated in this manual, you can
expect years of trouble-free, enjoyable operation,
and proof of Grizzly’s commitment to customer
satisfaction.
We are also pleased to provide this manual for
the Model G1049 6" Combination Rotary Table. It
was written to guide you through assembly,
review safety considerations, and cover general
operating procedures. It represents our latest
effort to produce the best documentation possible.
If you have any comments or criticisms that you
feel we should address in our next printing,
please write to us at:
Grizzly Industrial, Inc.
C
⁄O Technical Documentation
P.O. Box 2069
Bellingham, WA 98227
Most important, we stand behind our machines.
We have excellent regional service departments
at your disposal should the need arise.
If you have any service questions or parts
requests, please call or write to us at the location
listed below.
Grizzly Industrial, Inc
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone:(570) 546-9663
Fax:(800) 438-5901
E-Mail: techsupport@grizzly.com
Web Site: http://www.grizzly.com
The specifications, drawings, and photographs
illustrated in this manual represent the Model
G1049 as supplied when the manual was prepared. However, owing to Grizzly’s policy of continuous improvement, changes may be made at
any time with no obligation on the part of Grizzly.
For your convenience, we always keep current
Grizzly manuals available on our website at
www.grizzly.com
. Any updates to your machine
will be reflected in these manuals as soon as they
are complete.
If you DO NOT read this
entire manual before
operating the machine,
you will greatly increase
your chances of serious
personal injury. To protect yourself, read and
understand this entire
manual!
Commentary
SECTION 2: GENERAL INFORMATION
-4- G1049 6" Combination Rotary Table
After all the parts have been removed from
the box, you should have:
• 6" Combination Rotary Table
• Handwheel Crank Handle
• Handwheel
In the event that any non-proprietary parts are
missing (e.g. nuts or washers), we would be glad
to replace them, or for the sake of expediency,
replacements can be obtained at your local hardware store.
The Model G1049 6" Combination Rotary Table
was carefully packed when it left our warehouse.
If you discover the machine is damaged after you
have signed for delivery, please immediately call
Customer Service at (570) 546-9663 for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the condition of your shipment, you should inventory its
parts.
The purpose of this section is to guide you
through the required steps to get your machine
out of its packaging and into operating condition.
Wear safety glasses during the entire setup
process!
This equipment presents serious injury hazards to untrained users.
Read through this entire
manual to become familiar with the controls and
operations before using
the equipment
Piece Inventory
Unpacking
About this Section
SECTION 3: SET UP
Figure 1. Piece inventory from packing box.
G1049 6" Combination Rotary Table -5-
To install your Model G1049 onto your mill
table:
1. Disconnect power to the milling machine
before installing the rotary table.
2. Position the 1/2" T-bolt slots on the rotary
table over the T-slots in the milling table.
3. Insert the T-slot nuts into the milling table
grooves.
4. Secure the rotary table in place. It is important to secure the rotary table to the mill table
in a very strong and solid set up. This will
help with accuracy, efficiency and general
safety.
Note—
The T-slots for the rotary table are 2"
between centers. You will need to have the
same distance between centers on your
milling table to be able to use T-nuts and
bolts. If your milling table has different T-slot
centers, you will need to incorporate step
blocks or clamps to secure the rotary table.
Installation
Make sure the rotary table is secured to
the milling table. Check the T-slot clamps
before each cutting operation. If rotary
table is not secured, serious personal
injury and damage to your mill and rotary
table could result.
Before installing the Model G1049 6"
Combination Rotary Table, make sure that your
mill table and spindle are aligned correctly as
described in your milling machine instruction
manual.
NOTICE
Make sure the rotary table handle is free of
any obstruction. Depending on your setup
in the vertical or horizontal positions, the
rotary table may have to be blocked up or
mounted so the handle is hanging over the
edge of the milling table. Once making a
setup, check for any possible obstructions
that may interfere with rotary table handle.
-6- G1049 6" Combination Rotary Table
Aligning the center of the rotary table to the spindle is essential for achieving quality results.
There are many ways to align the Model G1049
to a vertical mill spindle. It is up to the machinist
and his capabilities to decide which approach is
best.
Here are a couple of ways to align the spindle
accurately to the center of the rotary table:
1. Using a test indicator, (see Models G9610,
G9611 & G9612 in the current Grizzly catalog) indicate the inside or the outside of the
rotary table. Position the spindle over center
of the rotary table and touch all four sides
(inside or outside) until all sides read “0” on
the indicator (remember to rotate the spindle
and not the rotary table). Using this procedure of indicating, no measuring tools are
needed.
Alignment
Figure 2. Locations for edge finding.
2. Use an edge finder, like the Model H2939, to
locate the center of the rotary table by contacting two outside edges (Figure 2) and
then moving the mill table half of the rotary
table diameter in both directions. Note—
Make sure to account for radius of the edge
finder and use a precision measuring instrument when determining the diameter of the
rotary table.
Wear safety glasses during the entire setup
process!
G1049 6" Combination Rotary Table -7-
NOTICE
The following section was designed to give
instructions on the basic operations of this
equipment. However, it is in no way comprehensive of all of the equipment applications. WE STRONGLY RECOMMEND that
you read books, trade magazines, or get formal training to maximize the potential of
your equipment.
Loose hair and clothing
could get caught in
machinery and cause
serious personal injury.
Keep loose clothing
rolled up and long hair
tied up and away from
moving machinery.
Your safety is important! Please follow the
warnings below:
Table Movement
Operation Safety
SECTION 4: OPERATIONS
The rotary table moves by turning the handwheel
which engages a precision worm gear. The worm
gear ratio is 1:90. One complete turn of the handwheel moves the table 4 degrees. The micro collar is graduated in steps of 1 minute and the
vernier scale can be set to indicate to 20 seconds.
Basic Example:
You are making a flange and you need to index
six holes for the bolt pattern:
Crank turns =
90
⁄N
N = the desired division number (6).
90
/
6 = 15 full crank turns
1. Turn the handwheel before making the first
hole to take up any play in the worm gears.
2. Make your first hole then turn the crank 15
times. Note—When you are cranking to a
desired number and crank too far, do not just
immediately back up to the number. You
must back up one revolution then dial back to
desired number, Then lock the table in place
to locate the second hole. This procedure
eliminates backlash in the worm gear.
3. Repeat step 2 for the remaining holes.
Damage to your eyes, lungs, and ears could
result from failure to wear safety glasses, a
respirator and hearing protection while
using this equipment. Make sure proper filter is worn while wearing respirator.
Rotary Table
Maintenance
Keep oiled to prevent rust. Do not use air to blow
off chips. A few drops of oil before each use will
prevent excessive wear. The worm gear is
greased at the factory.
-8- G1049 6" Combination Rotary Table
1. MT#2—Used for quick setups by placing a
dead center into the taper and aligning centers, picking up hole centers, ect and just
general machining operations.
2. Rotary Table Lock—Used during milling
operations to lock the table solid. This feature keeps the stresses of the milling operations off of the wormgear to extend the life of
the rotary table and ensure that accuracy is
not compromised. Simply tighten the handles
to lock the table.
3. Free Wheeling—This is a convience feature
which allows the operator to rotate the table
by hand and not having to turn the crank
handle. just loosen the lock handle (#3) and
rotate the adjustment ring (#6) C.W. By rotating the adjustment ring, this disengages the
wormgear and allows the table to rotate.
4. Vernier Scale—Allows precise rotary move-
ments. The vernier scale allows graduations
of 20" seconds.
5. Gross Scale—This scale will allow you
keep track of where the rotary table is going
and where its been. The scale reads from 0˚360˚ in one degree graduations.
Figure 3. Main view of rotary table features .
3
2
5
4
2
1
Main Features
FEATURES & CONTROLS
-9-
G1049 6" Combination Rotary Table
The model G1049 comes supplied with a direct
reading scale marked in whole degrees along the
edge of the table as well as the handwheel dial
marked with whole degrees with divisions in minutes. Graduations of 20 seconds can be extracted using the vernier scale.
When the handwheel is rotated clockwise those
markers to the left of the “0” on the vernier scale
are used. When the handwheel is rotated counterclockwise those on the right hand side are
used.
We will be setting the table to 16˚ 42' 20" in the
example below. This exercise assumes the table
position starts at 0˚, as read along the edge of the
table and the “0” on the handwheel dial and the
“0” on the stationary verier scale are aligned.
1. Rotate the handwheel 4 times in the clock-
wise direction. Watch for the “0” marker on
the dial and slow down the rotation as the “0”
comes into view the 4
th
time.
2. Rotate the dial clockwise 2 graduations past
the second “10” (42˚) and align with the “0”.
Be careful not to let the handwheel turn any
further!
It is important to understand that the graduationsbetween each degree on the handwheel dial are
marked in 10’s of minutes and marked as 10, 20,
30, 10, 20 and then the next whole degree. To get
42 minutes in our example we simply added 12
to the 30 minute marker.
3. Finally, rotate the handle until the next near-
est mark aligns with the 20 second mark on
the left hand side of the zero on the vernier
scale. It is important the handwheel is not
rotated past this point. If it is you must rotate
it counterclockwise one full turn and “sneak”
up on the mark again. Once satisfied with the
table postion lock it in place with the table
locks.
Figure 4. This dial reads 0˚ 42 minutes and 20
seconds.
Vernier Scale
20 sec.
42 min.
-10- G1049 6" Combination Rotary Table
Figure 9. Adjustment hex bolts
3. Align the dead center of the tailstock by loos-
ening the hex bolts located on the side of the
tailstock. With a precision level or indicator
(depending on tolerance of work being performed), make the dead center parallel to the
horizontal plane and on center with rotary
table center.
Figure 7. Key placement.
Figure 8. Indicating surface.
Tailstock
Grizzly offers the Model G1763 Tailstock for the
G1049 Rotary Table. This tailstock allows the
operator to support larger workpieces that normally cannot be supported while maintaining a
high level of accuracy. The tailstock is manageable, easy to use and can be found in the Grizzly
catalog or at Grizzly’s website,
www.grizzly.com.
To install the Model G1763 Tailstock to your
milling table:
1. Secure the Model G1049 Rotary Table in the
vertical position on the milling table.
2. Install the tailstock onto the milling table so
the dead center of the tailstock is inline with
the center of the rotary table. Slots are provided for keys to help with alignment of centers. The alignment of the Y and Z axes are
shown in Figures 5 & 6.
Figure 6. Alignment of Z axis.
Figure 5. Alignment of Y axis.
-11- G1049 6" Combination Rotary Table
Dividing Plates
Grizzly offers the Model G1760 Dividing Plates
for this rotary table. These dividing plates can be
installed to achieve a higher precision of hole
placement, spot facing and gear making. These
dividing plates can be found in the Grizzly catalog
or at Grizzly’s website, www.grizzly.com.
This dividing plate assembly is extremely easy to
use and setup, but we recommend that you refer
to the Index table in the instruction sheet that
comes with the G1760 to index complex patterns.
Piece inventory
1. 3 Dividing Plates
2. Crank Handle & Index Pin
3. 2 Piece Sector Arm Assembly w/Set Screw
4. Sector Spring
5. Allen Wrench
Figure 10. Dividing plate parts.
5
1
3
2
4
Loose hair and clothing
could get caught in
machinery and cause
serious personal injury.
Keep loose clothing
rolled up and long hair
tied up and away from
moving machinery.
Damage to your eyes, lungs, and ears could
result from failure to wear safety glasses, a
respirator and hearing protection while
using this equipment. Make sure proper filter is worn while wearing respirator.
-12- G1049 6" Combination Rotary Table
To install the Model G1760 Dividing Plate:
1. Remove the crank handle cap screw as
shown in Figures 11 & 12.
2. Gently tap the crank handle off the shaft with
a rubber mallet.
3. Insert the dividing plate with the holes facing
out and secure it with the provided screw.
4. Place the sector arm assembly over the
shaft, followed by the sector spring.
5. Install the crank handle with the indexing pin
and secure it with the cap screw removed in
step 1.
Figure 11. Crank handle cap screw.
Figure 12. Completed assembly with dividing
plates.
G1049 6" Combination Rotary Table -13-
26
G1049 6" Rotary Table
Parts Breakdown
16
18
15
2
3
17
1
7
31
32
8
33
22
26
36
20
29
9
34
10
11
12
35
14
13
23
19
27
21
28
16
18
17
4
25
24
5
24
30
6
30
G1049 6" Combination Rotary Table -14-
REF PART # DESCRIPTION
1 P1049001 MAIN BODY
2 P1049002 TABLE
3 P1049003 WORM GEAR
4 P1049004 WORM SHAFT
5 P1049005 ECCENTRIC HOUSING
6 P1049006 LOCK COLLAR
7 P1049007 HOLDING COVER
8 P1049008 ADJUSTMENT RING
9 P1049009 VERNIER RING
10 P1049010 MICRO COLLAR
11 P1049011 HANDWHEEL
12 P1049012 SMALL HANDLE
13 P1049013 HANDLE
14 P1049014 SPACER
15 P1049015 BUSHING
16 P1049016 CLAMP BOLT
17 P1049017 CLAMP HANDLE
18 P1049018 CLAMP
REF PART # DESCRIPTION
19 P1049019 LOCK NUT
20 P1049020 LOCK HANDLE
21 P1049021 POINTER
22 P1049022 BEARING 30 X 45 X 20T
23 P1049023 BEARING 25 X 42 X 4T
24 P1049024 SPACER
25 PK65M KEY 4 X 4 X 7MM
26 PSB15M CAP SCREW M5-.8 X 20
27 PSB18M CAP SCREW M4-.7 X 8
28 P4000809 RIVET 2 X 5
29 PSS50M SET SCREW M4-.7 X 20
30 PSS08M SET SCREW M4-.7 X 5
31 PSS08M SET SCREW M4-.7 X 5
32 PSB08M CAP SCREW M4-.7 X 13
34 PSS07M SET SCREW M5-.8 X 5
35 PSB27M CAP SCREW M6-1. X 14
36 PSS07M SET SCREW M5-.8 X 5
G1049 6" Rotary Table
Parts List
G1049 6" Combination Rotary Table -15-
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then
issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
WARRANTY AND RETURNS
CUT ALONG DOTTED LINE
___Other__________________________________________________
9. How many of your woodworking machines are Grizzly? _____________
10. Which benchtop tools do you own? Check all that apply.
___1" x 42" Belt Sander ___6" - 8" Grinder
___5" - 8" Drill Press ___Mini Lathe
___8" Table Saw ___10" - 12" Thickness Planer
___8" - 10" Bandsaw ___Scroll Saw
___Disc⁄Belt Sander ___Spindle⁄Belt Sander
___Mini Jointer
___Other__________________________________________________
11. How many of the machines checked above are Grizzly? ____________
12. Which portable⁄hand held power tools do you own? Check all that apply.
___________________________________________________________
___________________________________________________________
___________________________________________________________
13. What machines⁄supplies would you like Grizzly Industrial to carry?
___________________________________________________________
___________________________________________________________
___________________________________________________________
14. What new accessories would you like Grizzly Industrial to carry?
___Builders Hardware ___Hand Tools
___Fasteners ___Wood Components
___Other__________________________________________________
15. What other companies do you purchase your tools and supplies from?
__________________________________________________________
__________________________________________________________
16. Do you think your purchase represents good value?
___Yes ___No
17. Would you recommend Grizzly Industrial to a friend?
___Yes ___No
18. Would you allow us to use your name as a reference for Grizzly customers
in your area? Note: We never use names more than three times.
___Yes ___No
19. Comments:__________________________________________________
__________________________________________________________
___________________________________________________________
___________________________________________________________
1. How did you learn about us?
___Advertisement ___Friend
___Catalog ___Card Deck
___World Wide Web
___Other__________________________________________________
2. Which of the following magazines do you subscribe to.
___American Woodworker ___Practical Homeowner
___Cabinetmaker ___Shop Notes
___Family Handyman ___Today’s Homeowner
___Fine Homebuilding ___WOOD
___Fine Woodworking ___Wooden Boat
___Home Handyman ___Woodshop News
___Journal of Light Construction ___Woodsmith
___Old House Journal ___Woodwork
___Popular Mechanics ___Woodworker
___Popular Science ___Woodworker’s Journal
___Popular Woodworking ___Workbench
___Other__________________________________________________
3. Which of the following woodworking⁄remodeling shows do you watch?
___Backyard America ___The New Yankee Workshop
___Home Time ___This Old House
___The American Woodworker ___Woodwright’s Shop
___Other__________________________________________________
4. What is your annual household income?
___$20,000-$29,999 ___$60,000-$69,999
___$30,000-$39,999 ___$70,000-$79,999
___$40,000-$49,999 ___$80,000-$89,999
___$50,000-$59,999 ___$90,000 +
5. What is your age group?
___20-29 ___50-59
___30-39 ___60-69
___40-49 ___70 +
6. How long have you been a woodworker?
___0 - 2 Years ___8 - 20 Years
___2 - 8 Years ___20+ Years
7. How would you rank your woodworking skills?
___Simple ___Advanced
___Intermediate ___Master Craftsman
8. What stationary woodworking tools do you own? Check all that apply.
___Air Compressor ___Panel Saw
___Band Saw ___Planer
___Drill Press ___Power Feeder
___Drum Sander ___Radial Arm Saw
___Dust Collector ___Shaper
___Horizontal Boring Machine ___Spindle Sander
___Jointer ___Table Saw
___Lathe ___Vacuum Veneer Press
___Mortiser ___Wide Belt Sander
Name ____________________________________________________________________________________
Street ____________________________________________________________________________________
City ______________________________________________________________State________Zip_________
Phone Number_______________________E-Mail_______________________FAX________________________
MODEL: ________________________ Serial #______________________ Order _______________________
The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. Of
course, all information is strictly confidential.
WARRANTY CARD
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
FOLD ALONG DOTTED LINE
FOLD ALONG DOTTED LINE
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
Place
Stamp
Here
Name_______________________________
Street_______________________________
City______________State______Zip______
Send a Grizzly Catalog to a friend:
Buy Direct and Save with Grizzly
®
– Trusted, Proven and a Great Value!
-OR-
• SECURE ORDERING
• ORDERS SHIPPED WITHIN 24 HOURS
• E-MAIL RESPONSE WITHIN ONE HOUR
Visit Our Website Today And Discover Why
Grizzly
®
Is The Industry Leader!
Call Today For A
FREE
Full Color Catalog
Loading...
