Grindmaster EL-1624 Parts List

ELECTRIC COUNTER TOP
GRIDDLE

OPERATION MANUAL

EL-1624 Shown
CECILWARE CORPORATION
43-05 20th AVENUE, LONG ISLAND CITY, NEW YORK 11105-1295
718-932-1414 FAX 718-932-7860 www.cecilware.com
NN53A 5/05

TABLE OF CONTENTS

Introduction ................................................................. page 2
Packaging .................................................................... page 2
Installation ................................................................... page 2
Operation ..................................................................... page 3
Cleaning, Care and Maintenance ............................... page 3
Safety ........................................................................... page 4
Trouble Shooting ......................................................... page 4-5
Compliance .................................................................. page 5
Electrical Diagram ....................................................... page 6
Explosion View ............................................................ pages 7-8
Spare Parts List ........................................................... page 9
Specifications .............................................................. page 10
1

Introduction

Congratulations on the purchase of your Cecilware Counter Top Griddle. Please take time to carefully read through this manual to ensure the machine is operated and maintained properly. This will enable the best possible performance from the product for many years.
Cecilware will not accept liability for the following if:
* The instructions in this manual have not been followed correctly. * Non-authorized personnel have tampered with the m achine. * Non-original spare parts are used. * The machine has not been handled and cleaned correctly.

Packaging

Cecilware prides itself on quality and service, en suring that at the time of p acking all produ cts are supplied fully functional and free of damage.
Provided in this package are the following:
* Griddle * Waste Tray * Manual
Should you find any damage that occurs in transit, please contact your Cecilware dealer immediately.

Installation

Remove the Cecilware Griddle from the packaging. Be certain that all protective plastics and residues are thoroughly cleaned from its surface.
Place your Cecilware Griddle on a firm level surface; the adjustable feet can assist in leveling. Local standards and regulations should be consulted in order to abide by standards set in relation to
positioning, spacing, and ventilation. Cecilware recommends that you allow no less than 4” for a ventilation gap around the perimeter of this unit. Common sense and initiative should be used when choosing position and operation of this product.
Caution:
Do not position or operate near combustible materials/flammable objects. Once your Griddle has been placed in position, be sure that the stainless steel waste tray is correctly
positioned. Supply the appropriate power and connect to source; your Griddle is now ready to turn on and operate. (For
power supply please see technical specification sheet, page 10).
Preparing the cooking surface:
Be sure the cooking surface is clean; then simply turn the unit on and apply a generous amount of oil to the plates. Using the thermostat, set the grill to 230° F; once the grill has reached that temperature, switch off and with care wipe the plates clean of excess oil.
Caution the grill and oil will be HOT!!!!!!
2

Operation

Your Griddle should be turned on prior to usage to allow the cooking surface to warm up; 5 minutes is sufficient.
To get efficient use from this unit, it is recommended that for intermittent use that the thermostat be turned down when not cooking. This will assist in reducing power consumption and also allow for quicker heat response when needed.
Cecilware recommends that the cooking surface is lightly grease d before each use. Turn the thermostat dial towards the "ON" position; the amber pilot light will activate to confirm this. Adjust the
dial to the required setting. As the grill plate fluctuates in temperature, the thermostat will operate to maintain set temperature; the light will continue to indicate when the elements are heating or have reached the required temperature.
A temperature setting of between 375ºF and 430ºF will be sufficient for general cooking. This may vary for particular food types, individual needs, or experience.
Simply place the food products on the grilling surface and cook to your need s.

Cleaning, Care and Maintenance

*Switch off the power and disconnect from the power source. *The Griddle should be cleaned regularly throughout use, and thoroughly cleaned after each meal period.
Regular cleaning will result in easier cleaning, as the build up will be less. Correct preparation of the cooking surface when first used, will assist in keeping the plates clean.
*For best results clean the plate while still warm using warm soapy water. A nylon cleaning cloth may be used, but it is recommended that you avoid scrapers made from steel, wool, as they will damage the plate. Do not use cold water on warm plates, as buckling ef fect may occur.
*When scrubbing the plates, do not clean too thoroughly; if you do, you must prepare the cooking surface again before use.
*Remove waste tray from unit and discard waste; clean in hot soapy water. *The remainder of the Griddle can be cleaned with a damp cloth using hot, soapy water. *Warm soapy water is recommended for cleaning; prolonged use of cleaning agents may damage stainless
steel. * Do not immerse in water.
3

Safety

*A Cecilware Recommended Qualified Service Technician should carry out repairs if necessary. Do not remove any components or service panels on this product.
*Allow the Griddle to cool down after use before dismantling for cleaning; the unit will be too hot to handle immediately after use.
*When cleaning, switch off power and disconnect fro m the outlet. *Do not immerse unit in water or use hose to clean. *If the power cord is damaged, it must be replaced by a Cecilware Recommended Qualified Service
Technician in order to avoid a hazard.

Trouble Shooting

If the Cecilware Griddle does not operate, please check the following before placing a service call.
Top Griddle El-1624, EL-1636
Problem Cause Remedy
The unit is not working and the indicator light is not on
The unit is heating but the indicator light is not on
1. Mains power supply 1. Check mains power supply
2. Power switch has not been
turned on
3. Fuse in the plug has blown
2. Check the unit is correctly plugged in and
turned on
3. Replace the fuse in the plug with correctly
rated fuse
4. Plug and lead are damaged 4. Call service agent or qualified technician
5. Internal wiring fault 5. Call service agent or qualified technician
6. This is a safety device that has
6. Thermal cut-out has activated
disconnected the power: call a service agent or qualified technician
1. The indicator bulb has blown
1. Replace the indicator light: call a service
agent or qualified technician
4
Trouble Shooting Cont…
Problem Cause Remedy
1. Faulty element(s) 1. Call service agent or qualified technician
Indicator light is on but the unit is not heating
2. Operation of thermostat
3. Faulty thermostat 3. Call service agent or qualified technician
2. Ensure that the thermostat is set correctly,
also ensure the dial is not spinning on the thermostat and giving the wrong reading
1. Ensure that the plates are kept clean and
free of carbon build up
2. Ensure that the thermostat is set correctly,
also ensure the dial is not spinning on the
Slow heat up of the cooking surfaces
1. Carbon build up
2. Thermostat setting
thermostat and giving the wrong reading
3. Faulty element(s) 3. Call service agent or qualified technician
Please ensure:
* There is correct power supply. * Check breaker. * The machine is plugged in correctly and power is switched on. * The timer and thermostat are in the correct position. * The elements are clear of any food particles.
Note: All Cecilware products are tested prior to packing.

Compliance

Cecilware products have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.
As testimony to such compliance, Cecilware products carry the following marks/symbols:
5

Electrical Diagram

Model: EL-1624
240V
on/off switch
thermostat
pilot light
heating element
EL-1636
240V
on/off switch 1
thermostat 1
pilot light 1
heating
element 1
on/off switch 2
thermostat 2
pilot light 2
heating
element 2
The above circuit diagram has been provided to assist qualified technicians. A Recommend Qualified Service Technician should carry out repairs if needed. Do not remove any components or service panels on this product.
6

Explosion View

MODEL: EL -1624
1
2
3
4
5
6
13
12
14
11
10
9
7
8
7

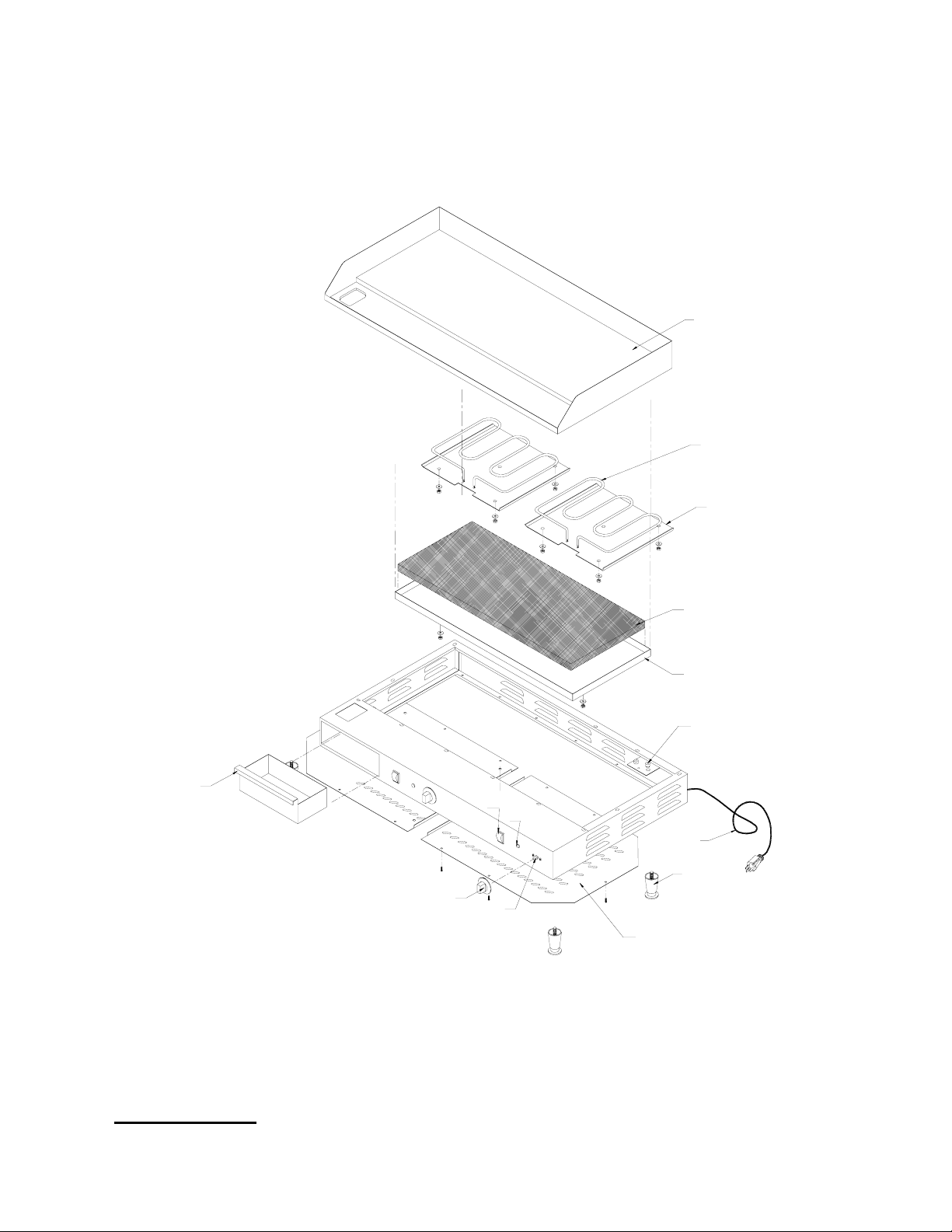

MODELEL – 1636
1
2
3
14
Spare Parts List
11
4
5
6
13
12
7
8
10
9
8
EL-1624 EL-1636
No. Description
1 GRIDDLE PLATE 1
2 HEATING ELEMENT 1 08035 2 08042
3 ELEMENT FIXING PLATE 1 NA 2 NA
4 INSULATION 1 NA 1 NA
5 INSULATION FIXING PLATE 1 NA 1 NA
6 CERAMIC TUBE 2 08077 4 08077
7 CORD AND PLUG 1 08047 1 08047
8 FEET 4 08040 4 08040
9 BASE PLATE 1 NA 2 NA
QTY Part NO. QTY Part NO.
NA
1 NA
10 THERMOSTAT 1 08078 2 08078
11 DIAL 1 08041 2 08041
12 PILOT LIGHT 1 080067 2 08067
13 ON/OFF SWITCH 1 08073 2 08073
14 DRIP TRAY 1 08039 1 08039
*NA = not available except by special order.
9
Specifications
Power
Model Voltage
Amps
(watts)
EL-1624 240V 2400 10A
EL-1636 240V 3600 15A
Dimensions (inches)
WxDxH
24 x 21 1/8 x 8
36 x 21 1/8 x 8
10
CECILWARE CORPORATION
43-05 20th AVENUE, LONG ISLAND CITY, NEW YORK 11105-1295
718-932-1414 FAX 718-932-7860 www.cecilware.com
