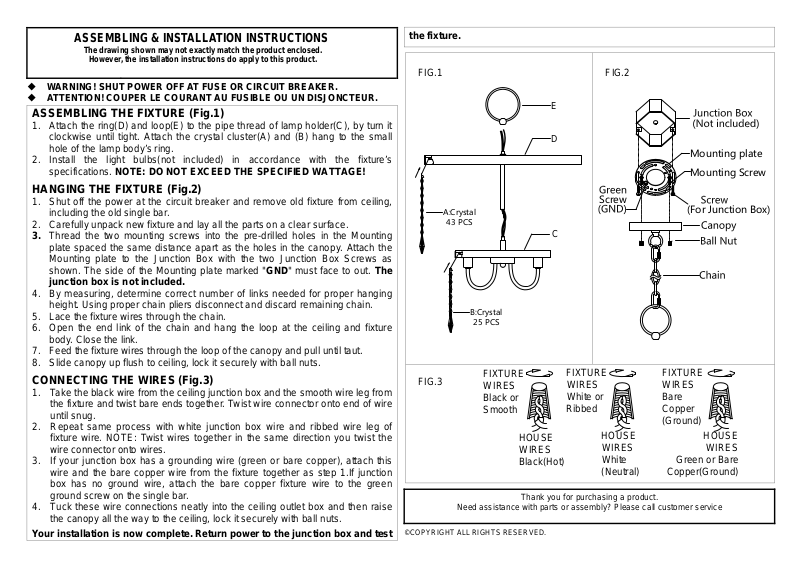

ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.
ASSEMBLING THE FIXTURE (Fig.1)
1. Attach the ring(D) and loop(E) to the pipe thread of lamp holder(C), by turn it
2. Install the light bulbs(not included) in accordance with the fixture’s
HANGING THE FIXTURE (Fig.2)
1. Shut off the power at the circuit breaker and remove old fixture from ceiling,
2. Carefully unpack new fixture and lay all the parts on a clear surface.
3. Thread the two mounting screws into the pre-drilled holes in the Mounting
4. By measuring, determine correct number of links needed for proper hanging
5. Lace the fixture wires through the chain.
6. Open the end link of the chain and hang the loop at the ceiling and fixture
7. Feed the fixture wires through the loop of the canopy and pull until taut.
8. Slide canopy up flush to ceiling, lock it securely with ball nuts.
CONNECTING THE WIRES (Fig.3)
1. Take the black wire from the ceiling junction box and the smooth wire leg from
2. Repeat same process with white junction box wire and ribbed wire leg of
3. If your junction box has a grounding wire (green or bare coppe r), attach this
4. Tuck these wire connections neatly into the ceiling outlet box and then raise
Your installation is now complete. Return power to the junction box and test
clockwise until tight. Attach the crystal cluster(A) and (B) hang to the small
hole of the lamp body’s ring.
specifications. NOTE: DO NOT EXCEED THE SPECIFIED WATTAGE!
including the old single bar.
plate spaced the same distance apart as the holes in the canopy. Attach the
Mounting plate to the Junction Box with the two Junction Box Screws as
shown. The side of the Mounting plate marked "GND" must face to out. The
junction box is not included.
height. Using proper chain pliers disconnect and discard remaining chain.
body. Close the link.
the fixture and twist bare ends together. Twist wire connector onto end of wire
until snug.
fixture wire. NOTE: Twist wires together in the same direction you twist the
wire connector onto wires.
wire and the bare copper wire from the fixture together as step 1.If junction
box has no ground wire, attach the bare copper fixture wire to the green
ground screw on the single bar.
the canopy all the way to the ceiling, lock it securely with ball nuts.
the fixture.
FIG.1
E
D
A:Crystal
43PCS
C
B:Crystal
25PCS
FIXTURE
FIG.3
WIRES
Black or
Smooth
HOUSE
WIRES
Black(Hot)
Thank you for purchasing a product.
Need assistance with parts or assembly? Please call customer service
©COPYRIGHT ALL RIGHTS RESERVED.
Screw
FIXTURE
WIRES
White or
Ribbed
FIG.2
HOUSE
WIRES
White
(Neutral)
Mountingplate
MountingScrew
(ForJunctionBox)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or Bare
Copper(Ground)
