Greyleigh™ W000879127 Assembling & Installation Instructions

ASSEMBLING & INSTALLATION INSTRUCTIONS

(

)

(

)

The drawing shown may not exactly match the product enclosed.

However, the installation instructions do apply to this product.

 WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
 ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.

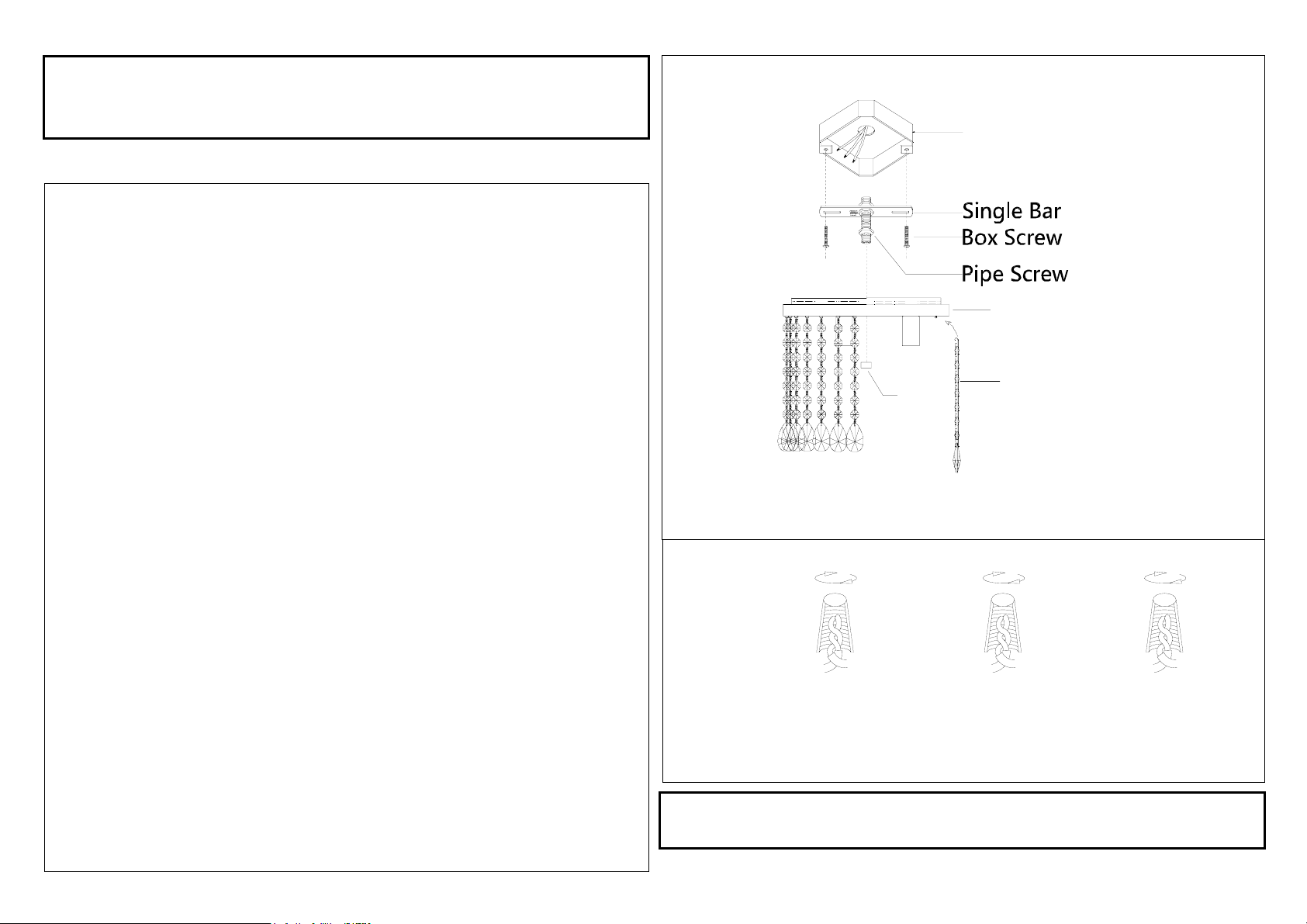

MOUNTING THE FIXTURE (Fig.1)

1. Shut off the power at the circuit breaker box. Remove old fixture and
all hardware from Junction Box.

2. Carefully unpack your new fixture and lay out all the parts on a clear
area. Take care not to lose any small parts necessary for inst allation.

3. Thread the pipe screw part way into the center hole of the single bar
and secure with hex nut.

4. Attach the single bar to the junction box using two box screws as
shown. The side of the single bar marked “GND” must face
out . The junction box is not included.

5. While holding the lamp body towards the ceiling, connect the
electrical wires as Shown in Fig.2, making sure that all wire nuts
are secured. You may have to wrap the connections with electrical
tape. If your outlet has a ground wire (green or bare copper),
connect the fixture ground wire to it. Otherwise connect fixture’s
ground wire directly to the Mounting strap with the green screw
provided. After wires are connected, tuck them carefully inside the
Junction Box.

6. Raise lamp body onto the junction box, aligning pipe screw on
single bar with center hole in plate and lock it securely with the ball
nut. Raise the end grapnel of the crystal cluster hooked the bottom
small ring of the plate.

7. Install the light bulbs(not included) in accordance with the fixture’s
specifications. NOTE: DO NOT EXCEED THE SPECIFIED

WATTAGE!

Your installation is now complete. Return power to the junction
box and test the fixture.

FIG.1

FIG.2

FIXTURE
WIRES

BLACK

HOUSE
WIRES

Black

Hot

Thank you for purchasing a product.

Need assistance with parts or assembly? Please call customer service

©COPYRIGHT ALL RIGHTS RESERVED.
