Page 1

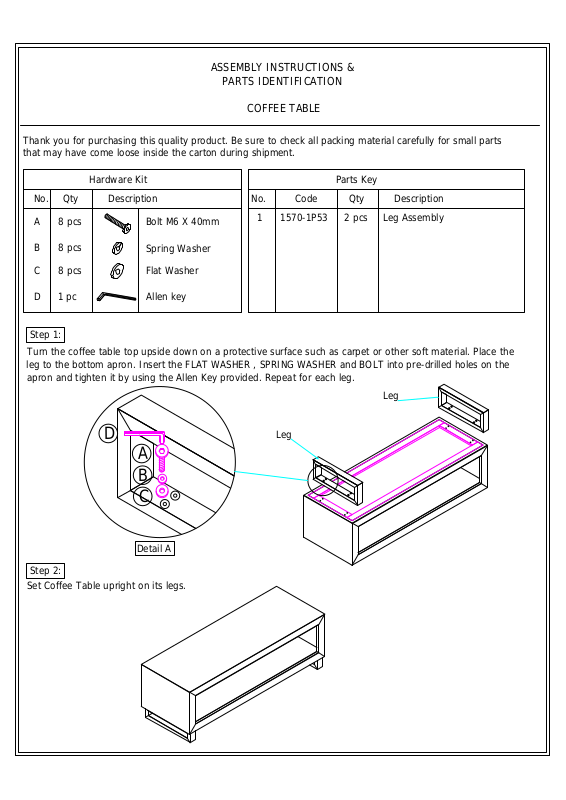

ASSEMBLY INSTRUCTIONS &
Set Coffee Table upright on its legs.
Step 1:
Turn the coffee table top upside down on a protective surface such as carpet or other soft material. Place the
leg to the bottom apron. Insert the FLAT WASHER , SPRING WASHER and BOLT into pre-drilled holes on the
apron and tighten it by using the Allen Key provided. Repeat for each leg.
Step 2:
No.
Qty
Description
A
8 pcs
Bolt M6 X 40mm
B
8 pcs
Spring Washer
C 8 pcs
Flat Washer
D
1 pc
Allen key
Parts Key
No.
Qty
Description
1
2 pcs
Leg Assembly
Code
1570-1P53
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts
that may have come loose inside the carton during shipment.
Detail A
D
A
B
C
Leg
Leg
PARTS IDENTIFICATION
COFFEE TABLE
Hardware Kit
