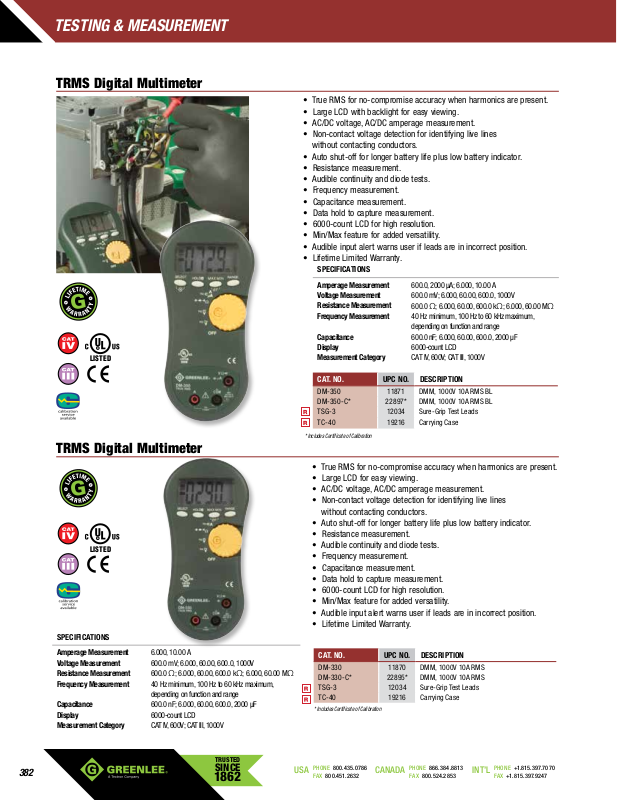

Greenlee TRMS Digital Multimeter Catalog Page

TESTING & MEASUREMENT

LISTED

LISTED

TRMS Digital Multimeter

• True RMS for no-compromise accuracy when harmonics are present.

• Large LCD with backlight for easy viewing.

• AC/DC voltage, AC/DC amperage measurement.

• Non-contact voltage detection for identifying live lines

without contacting conductors.

• Auto shut-off for longer battery life plus low battery indicator.

• Resistance measurement.

• Audible continuity and diode tests.

• Frequency measurement.

• Capacitance measurement.

• Data hold to capture measurement.

• 6000-count LCD for high resolution.

• Min/Max feature for added versatility.

• Audible input alert warns user if leads are in incorrect position.

• Lifetime Limited Warranty.

SPECIFICATIONS

Amperage Measurement 600.0, 2000 μA; 6.000, 10.00 A
Voltage Measurement 600.0 mV; 6.000, 60.00, 600.0, 1000V
Resistance Measurement
Frequency Measurement 40 Hz minimum, 100 Hz to 60 kHz maximum,

Capacitance 600.0 nF; 6.000, 60.00, 600.0, 2000 μF
Display 6000-count LCD
Measurement Category CAT IV, 600V; CAT III, 1000V

600.0 Ω; 6.000, 60.00, 600.0 kΩ; 6.000, 60.00 MΩ

depending on function and range

TRMS Digital Multimeter

SPECIFICATIONS

Amperage Measurement 6.000, 10.00 A
Voltage Measurement 600.0 mV; 6.000, 60.00, 600.0, 1000V
Resistance Measurement
Frequency Measurement 40 Hz minimum, 100 Hz to 60 kHz maximum,

Capacitance 600.0 nF; 6.000, 60.00, 600.0, 2000 μF
Display 6000-count LCD
Measurement Category CAT IV, 600V; CAT III, 1000V

600.0 Ω; 6.000, 60.00, 600.0 kΩ; 6.000, 60.00 MΩ

depending on function and range

CAT. NO. UPC NO. DESCRIPTION

DM-350 1187 1 DMM, 1000V 10A RMS BL
DM-350-C* 22897* DMM, 1000V 10A RMS BL
TSG-3 120 34 Sure-Grip Test Leads
TC-40 192 16 Carrying Case

* Includes Certificate of Calibration

• True RMS for no-compromise accuracy when harmonics are present.

• Large LCD for easy viewing.

• AC/DC voltage, AC/DC amperage measurement.

• Non-contact voltage detection for identifying live lines

without contacting conductors.

• Auto shut-off for longer battery life plus low battery indicator.

• Resistance measurement.

• Audible continuity and diode tests.

• Frequency measurement.

• Capacitance measurement.

• Data hold to capture measurement.

• 6000-count LCD for high resolution.

• Min/Max feature for added versatility.

• Audible input alert warns user if leads are in incorrect position.

• Lifetime Limited Warranty.

CAT. NO. UPC NO. DESCRIPTION

DM-330 1187 0 DMM, 1000V 10A RMS
DM-330-C* 22895* DMM, 1000V 10A RMS
TSG-3 12034 Sure-Grip Test Leads
TC-40 19216 Carrying Case

* Includes Certificate of Calibration
