MSCF

Greenheck MSCF User Manual

Download
• Modular Design
• Ultra-Low Profile
• Easy Access
Modular Small Cabinet Fan
Model MSCF
2
Unique Construction Features
Ultra-Low Profile - Compact design enables unit to be placed in tight ceiling spaces.
reduces the contaminants in the air stream such as mildew and mold. It has a solid interior liner with 1 inch, 1.5 lb. density fiberglass insulation between the walls to prevent unit from sweating or dripping. (3 pound optional)
Lifting Lug/Mounting Bracket - Enable installers to lift unit into place and may be used to fasten the unit to a permanent fixed structure.
Insulated Stainless Steel Drain Pan - Corrosion resistant drain pan utilizes a sloped, double pitched, two connection design to prevent overflowing, directing the condensation to either a main or auxiliary drain connection. It is insulated with an additional 1 inch of 1.5 lb density fiberglass insulation.
Side Access Panels - Two panels on every module are interchangeable and may be removed for inspection or servicing and are bolted to the unit. Bolt holes are threaded to prevent it from stripping out while tightening. Removal of either side panel allows easy access to all internal components. (1/4 turn fastners optional)
Inlet/Outlet Duct Collars - Collars provide for quick, easy duct connection.
Drive Frame - This unique drive frame is mounted to a rail, which allows it to slide making belt tensioning easy.
The drive frame is constructed of heavy gauge steel enabling it to support the motor, scroll, and wheel to ensure long life and durability.
Vibration Isolation - Internal neoprene isolators reduce the transmission of noise and vibration to the building structure. They are placed between the housing and the drive frame rail, which supports the entire drive assembly, wheel, and scroll to assure long life and quiet operation. (Spring isolators are optional)
Motor - Motors are carefully matched to the fan load for every application. In the event that a heating coil is used, the max motor temperature is 40 degrees C (104 degrees F), based on the motor ambient rating.
Belts/Sheaves/Pulleys - Belts and pulleys are sized for 150% of driven horsepower. Machined cast pulleys are adjustable for final system balancing. Belts are static free and oil resistant.
Bearings with Grease Fittings - Sealed cast pillow block bearings are 100% factory tested and designed specifically for air handling applications with minimum (L10) life in excess of 100,000 hours.
Shafts - Turned, ground, and polished to precise tolerances. Close tolerance between the shaft and bearing result in longer life.
Wheel - The MSCF houses a forward curved wheel (FC). All wheels are statically and dynamically balanced to ensure smooth vibration free operation. The FC wheel is constructed of galvanized steel and provides high efficiency with low sound levels.
Name Plate - A mylar name plate is used for model, mark and serial number identification.
3
Table of Contents
Options and Accessories
Sealed Double Wall - Allows the unit to be wiped down with hot water. Eliminates exposed insulation fibers
from entering the air stream and significantly reduces the chance of mildew or mold buildup.
Insulation - Cabinet may also be selected with 1 inch, 3 lb. density hardboard insulation.
Spring Vibration Isolation - Internal spring vibration is available on all units 14 inches and taller.
Base or Hanging isolators - Complete base and hanging isolator kits are available with either neoprene or
spring isolators. The isolators are sized to match the weight of the fan. (Hanging rods supplied by others)
Disconnect Switch - Nema-1 switch is factory mounted and wiring is provided from the motor as standard (other switches are available). All wiring and electrical components comply with the National Electric Codes (NEC) and are either UL listed or recognized.
Coils - Available for both heating and cooling applications. Coil modules may be attach in any order.
Hot Water - 1 or 2 or 4 row Chilled Water - 4, 6, or 8 row Direct Expansion - 4, 6, or 8 row - Sizes 45-85 will have Interlaced DX Coils Steam - 1 or 2 row Electric - See CAPS for more information
Filters - Sloped or vertical pre-filters are available as either aluminum or pleated. Aluminum 2 inch filters are
70% efficient and the 4 inch pleated filters efficiencies are MERV-8 (30%) and MERV-11 (60%).
Mixing Box - The mixing box may be configured in multiple ways. Inlet positions may be selected in any two of the three inlet positions, top, end, or bottom. Selection include dampers, 24 volt actuators and vertical or sloped filter banks.
Plenums - Access plenums may be placed between any module providing additional access, space for mounting controls, or reducing turbulent air.
1/4 Turn Fastners - An option that allows easy access to module without any tools necessary.
Stainless Steel Shafts - are available in all sizes.
Introduction
• Construction Features . . . . . . . . . . . . . . .2
• Options and Accessories . . . . . . . . . . . . .3
General Data
• Dimensions and Weight . . . . . . . . . . . . . .4
• Model Number Description . . . . . . . . . . .4
• Performance . . . . . . . . . . . . . . . . . . . . . . .5
Technical Data
• Fan Data . . . . . . . . . . . . . . . . . . . . . . . .6-12
• Plenums . . . . . . . . . . . . . . . . . . . . . . . . . .13
• Steam Coils . . . . . . . . . . . . . . . . . . . .14-15
• Hot Water Coils . . . . . . . . . . . . . . . . .16-18
• Electrical Coils . . . . . . . . . . . . . . . . . . . . .19
• Chilled Water Coils . . . . . . . . . . . . . .20-21
• Direct Expansion Coils . . . . . . . . . . .22-23
• Filters . . . . . . . . . . . . . . . . . . . . . . . . .24-25
• Mixing Boxes . . . . . . . . . . . . . . . . . . .26-27
• Specifications . . . . . . . . . . . . . . . . . . . . .28
MSCF Weight Information
4
Unit A B C Inlet Outlet
Size w/o Filter w/ Filter 12" 24" Vertical Sloped
DEFG
H
Height Width Height Width
15 11.0 24.5 12.75 24.5 12.75 24.5 12.75 24.5 25 38 11.0 9.0 36 6.75 4.0 20 14.0 24.5 12.75 24.5 12.75 24.5 12.75 24.5 25 38 14.0 12.0 36 6.75 6.5 25 16.0 27.0 12.75 24.5 12.75 27.0 12.75 24.5 29 38 16.0 14.0 36 8.50 8.0 30 18.5 31.0 12.75 24.5 12.75 31.0 12.75 24.5 32 38 18.5 16.5 36 9.00 9.0 45 18.5 32.0 12.75 24.5 12.75 32.0 12.75 24.5 32 50 18.5 16.5 36 10.00 9.0 50 21.0 32.0 12.75 24.5 12.75 32.0 12.75 24.5 38 50 21.0 19.0 48 10.00 6.5 65 26.0 38.0 12.75 24.5 12.75 38.0 12.75 24.5 42 50 26.0 24.0 48 12.75 12.0 85 26.0 38.0 12.75 24.5 12.75 38.0 12.75 24.5 42 62 26.0 24.0 60 15.00 12.0
Unit A B C D E F
Size w/o Filter w/ Filter 12" 24" Vertical Sloped HW CW/DX Fan Motor Total
15 80 107 31 57 34 61 61 145 94 50 144 20 95 126 36 68 41 72 72 171 111 50 161 25 105 140 40 75 45 80 80 190 130 60 190 30 118 157 45 84 50 90 88 209 150 75 225 45 132 176 50 94 55 100 99 234 194 75 269 50 151 202 58 108 64 115 113 269 253 100 353 65 197 263 75 141 77 150 136 323 328 125 453 85 226 302 85 170 90 175 140 350 360 140 500
MSCF Dimensional Data
Model Number Code
Wheel Type
FC - Forward Curved
MSCF - 15 - L FC 5
Modular Small Cabinet Fan
Nominal Face Area
15 - 1.5 sq. ft. 45 - 4.5 sq. ft.
20 - 2.0 sq. ft. 50 - 5.0 sq. ft.
25 - 2.5 sq. ft. 65 - 6.5 sq. ft.
30 - 3.0 sq. ft 85 - 8.5 sq. ft.
Motor HP (Belt Drive only)
4 = 1/4 10 = 1 50 = 5 3 = 1/3 15 = 1 1/2 75 = 7 1/2 5 = 1/2 20 = 2 100 = 10 7 = 3/4 30 = 3
The Model number system is designed to identify the fan. The correct code letters must be specified to designate size, pressure rating, wheel type and horsepower. The remainder of the model number is determined by the size and performance selected from pages 5 through 15.
Pressure Rating
L - Pressures up to 2.5 in. wg H - Pressures up to 4 in. wg
MSCF
Mixing Box Plenum Filter Heating Cooling Fan
A
B
C
D
E
F
G
H
For complete dimensional information, see CAPS submittal drawings. All dimensions are in inches.
For complete dimensional information, see CAPS submittal drawings. All dimensions are in pounds.
General Data
5
MSCF Performance Chart
MSCF
Unit Size 15 20 25 30 45 50 65 85 Nominal CFM 800 1100 1350 1600 2250 2600 3350 4300
Fan/Motor Data
RPM Range 1100 - 3500 1100 - 3500 800 - 3050 750 - 2500 725 - 2400 650 - 2200 500 - 2000 500 - 2200 HP Range .25 - 2 .25 - 2 .25 - 3 .25 - 3 .25 - 3 .25 - 5 .25 - 7.5 .25 - 10 Max. BHP 2.1 2.1 3.15 3.15 3.15 5.25 7.875 10.5 CFM Range 300 - 800 600 - 1100 900 - 1800 1200 - 2400 1500 - 2900 1800 - 3600 2400 - 4200 3000 - 5800
Vertical Filter Data
1-12x12 1-16x16 1-12x24
Qty. & Size - in.
2- 9x18 1-12x24 2-14x18 1-16x20 2-16x24 2-18x24 2-24x24 2-24x24
Area - ft
2
1.8 2.5 3 3.4 4.8 5.4 7.2 8.9
Velocity - ft/min. 444 440 450 471 469 481 465 483
Sloped Filter Data
Qty. & Size - in.
1 - 12x12 1 - 16x16 1 - 12x24 2 - 12x24 1 - 12x24 1 - 16x20 2 - 16x20 1 - 24x24 2 - 24x24 2 - 24x24 4 - 24x24 4 - 24x24
Area - ft
2
2.5 3.4 3.8 5.3 7.2 7.2 14.4 17.8
Velocity - ft/min. 320 324 355 302 313 361 233 242
Coil Data
Area - ft
2
1.6 2.2 2.7 3.2 4.5 5.2 6.7 8.6 Width - in. 7.50 10.00 12.50 15.00 15.00 17.50 22.50 22.50 Length - in. 31.00 31.00 31.00 31.00 43.00 43.00 43.00 55.00 Velocity- ft/min. 500 500 500 500 500 500 500 500
1- Row
Max. gpm 20 28 35 42 42 48 62 62 Dry coil weight - lbs. 6.2 8.1 10.5 12.3 14.7 17.9 24.7 28.2 Wet coil weight - lbs. 7.6 10.0 13.6 16.0 19.2 24.0 33.6 37.5
2- Row
Max. gpm 20 28 35 42 42 48 62 62 Dry coil weight - lbs. 9.5 12.6 16.1 19.2 23.6 28.3 37.5 44.2 Wet coil weight - lbs. 12.1 16.2 20.5 24.4 30.6 38.6 51.6 61
4 - Row
Max. gpm 10 14 16 20 20 24 30 30 Dry coil weight - lbs. 16.2 21.3 27.1 32.3 41.1 50.0 63.7 77.0 Wet coil weight - lbs. 21.5 28.3 35.9 42.7 55.0 69.1 88.1 106.8
6- Row
Max. gpm 10 14 16 20 20 24 30 30 Dry coil weight - lbs. 22.8 30.1 38.3 45.5 58.7 70.5 90.1 110.0 Wet coil weight - lbs. 30.6 40.5 51.3 61.0 79.6 97.6 124.8 152.7
8 - Row
Max. gpm 10 14 16 20 20 24 30 30 Dry coil weight - lbs. 31.3 41.0 50.8 60.5 79.2 92.0 117.6 144.0 Wet coil weight - lbs. 43 56.5 70 83.5 110.6 128.6 164.5 201.5
L - Low Pressure Wheels
H - High Pressure Wheels
General Data
R
ETL Listed for Fan Coil Unit and in accordance with UL/cUL 1995.
5.0
4.0
3.0
2.0
Static Pressure
1.0
0
1000 2000 3000 4000 5000 6000 7000 8000
CFM
Performance shown is for installation type D: ducted inlet, ducted outlet. Power ratings (BHP/kW) does not include drive losses. Performance ratings do not include the effects of appurtenances in the airstream. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 210 and comply with the requirements of AMCA Certified Ratings Program.
6
15 L
20 L
38
25
2
3
2
1
/
2
2
6
3
/
4
15
5
/
8
9
11
36
38
25
4
1
/
2
2
6
3
/
4
15
5
/
8
6
1
/
2
12
14
36
4
Total Static Pressure
0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00 2.50 3.00
CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
350 1311 0.08 1567 0.11 1792 0.15 1994 0.20 2192 0.25 2376 0.30 2546 0.35
400 1421 0.11 1659 0.14 1869 0.18 2063 0.23 2241 0.29 2413 0.34 2583 0.40 2741 0.46 3030 0.58
450 1536 0.14 1761 0.18 1958 0.23 2137 0.27 2311 0.33 2471 0.39 2621 0.45 2777 0.52 3066 0.65 3327 0.78
500 1650 0.18 1865 0.23 2052 0.28 2226 0.32 2384 0.37 2541 0.44 2689 0.50 2827 0.57 3103 0.72 3364 0.86
550 1768 0.23 1975 0.28 2154 0.33 2316 0.39 2472 0.44 2615 0.49 2758 0.56 2895 0.64 3149 0.79 3401 0.95
600 1887 0.28 2088 0.34 2258 0.40 2415 0.46 2562 0.52 2704 0.58 2835 0.63 2966 0.70 3217 0.87 3446 1.03
650 2010 0.35 2203 0.41 2366 0.47 2518 0.54 2658 0.60 2794 0.66 2924 0.73 3046 0.79 3287 0.95
700 2134 0.42 2318 0.49 2478 0.56 2622 0.63 2760 0.70 2888 0.76 3014 0.83 3135 0.90 3358 1.04
750 2259 0.51 2434 0.58 2592 0.66 2730 0.73 2864 0.80 2989 0.87 3107 0.95 3225 1.02 3446 1.17
800 2386 0.61 2553 0.68 2707 0.76 2842 0.84 2969 0.92 3092 1.00 3208 1.07 3318 1.15
Total Static Pressure
0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00 2.50 3.00
CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
650 1627 0.20 1836 0.25 2019 0.29 2183 0.33 2332 0.38 2475 0.43 2614 0.48 2744 0.52
700 1718 0.24 1919 0.30 2096 0.34 2255 0.38 2402 0.44 2538 0.49 2671 0.54 2800 0.59 3039 0.69
750 1810 0.29 2003 0.35 2174 0.40 2330 0.45 2474 0.50 2608 0.55 2733 0.60 2857 0.66 3094 0.77
800 1906 0.34 2089 0.41 2255 0.47 2407 0.52 2547 0.56 2679 0.62 2803 0.68 2919 0.74 3150 0.85 3366 0.97
850 2002 0.40 2177 0.48 2338 0.54 2485 0.59 2623 0.64 2751 0.69 2874 0.76 2989 0.82 3207 0.94 3421 1.07
900 2100 0.46 2266 0.54 2422 0.62 2565 0.67 2700 0.73 2826 0.78 2945 0.84 3060 0.91 3271 1.04 3478 1.17
950 2198 0.53 2356 0.62 2507 0.70 2647 0.77 2778 0.83 2902 0.88 3019 0.94 3131 1.01 3341 1.14
1000 2297 0.61 2447 0.70 2594 0.80 2731 0.87 2857 0.93 2979 0.99 3095 1.05 3204 1.11 3412 1.26
1050 2396 0.70 2539 0.79 2682 0.89 2815 0.97 2939 1.04 3058 1.11 3171 1.17 3279 1.23 3483 1.38
1100 2496 0.79 2635 0.89 2771 0.99 2900 1.09 3023 1.16 3137 1.23 3249 1.30 3356 1.37
3
2
1
/
2
All dimensions are in inches.
All dimensions are in inches.

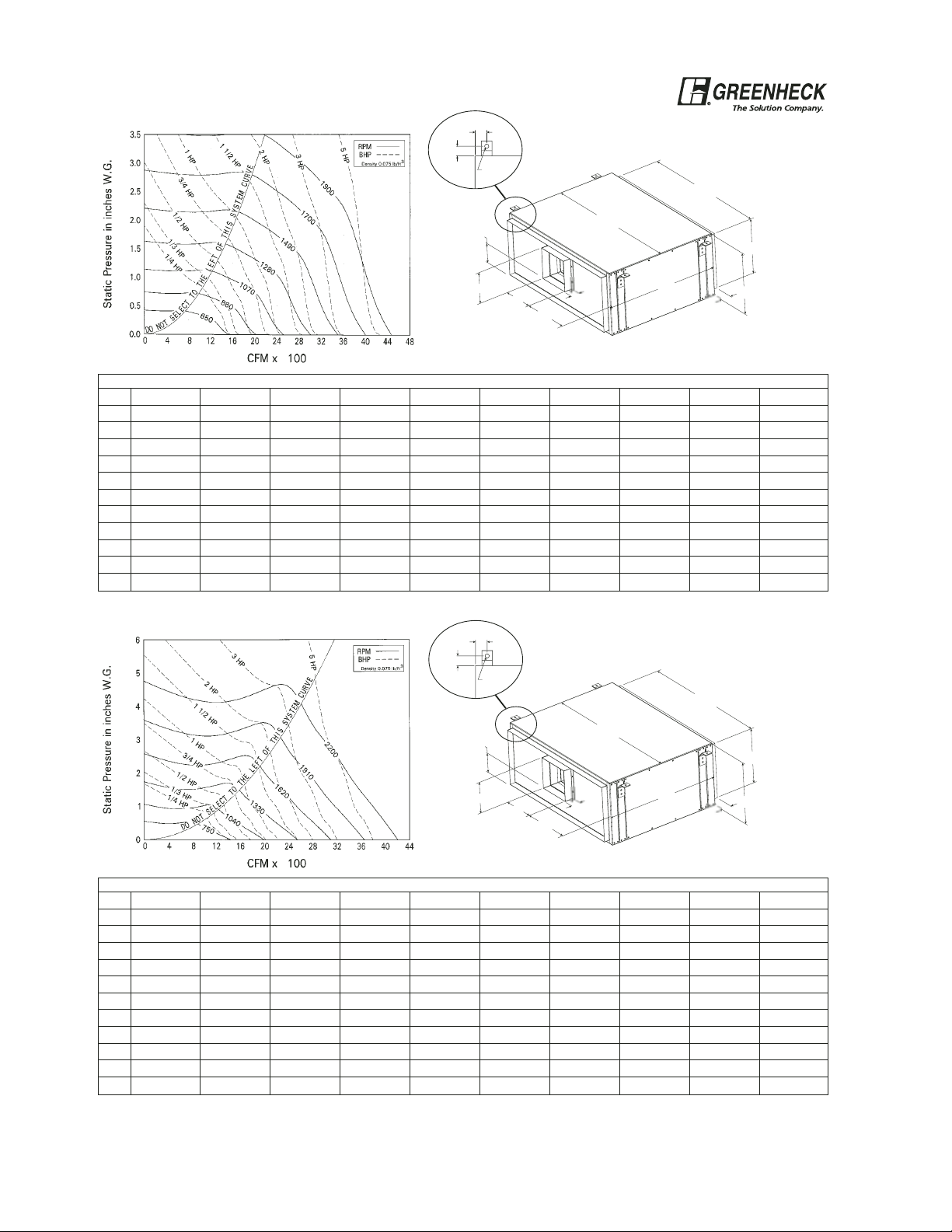

Fan Data
1
1
/
2
1
/
2
1
/
2
1
1
/
2
MSCF
MSCF
Performance shown is for installation type D: ducted inlet, ducted outlet. Power ratings (BHP/kW) does not include drive losses. Performance ratings do not include the effects of appurtenances in the airstream. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 210 and comply with the requirements of AMCA Certified Ratings Program.
7
25 L
25 H
38
29
8
4
1
/
2
2
8
1
/
2
14
3
/
4
14
16
36
38
29
8
4
1
/
2
2
8
1
/
2
14
3
/
4
14
16
36
Total Static Pressure
0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00 2.25 2.50
CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
925 1094 0.24 1252 0.32 1388 0.38 1512 0.44 1628 0.51
1000 1156 0.29 1308 0.38 1438 0.44 1559 0.51 1669 0.58 1777 0.66
1075 1219 0.35 1364 0.44 1492 0.52 1607 0.59 1716 0.67 1817 0.74 1916 0.82
1150 1283 0.42 1422 0.51 1546 0.60 1657 0.68 1764 0.76 1862 0.84 1957 0.92 2049 1.01
1225 1348 0.50 1481 0.59 1602 0.69 1711 0.78 1812 0.86 1910 0.94 2001 1.03 2089 1.11 2176 1.21 2258 1.30
1300 1414 0.58 1540 0.68 1658 0.79 1765 0.89 1863 0.97 1958 1.06 2048 1.15 2133 1.24 2217 1.33 2298 1.43
1375 1479 0.67 1602 0.77 1716 0.89 1820 1.00 1916 1.10 2007 1.19 2096 1.28 2180 1.38 2260 1.47 2339 1.57
1450 1545 0.77 1665 0.89 1774 1.00 1876 1.13 1971 1.23 2059 1.33 2145 1.43 2228 1.53 2307 1.62
1525 1612 0.89 1728 1.01 1833 1.12 1933 1.26 2026 1.38 2113 1.48 2195 1.58 2276 1.69
1600 1678 1.01 1792 1.14 1892 1.26 1991 1.40 2081 1.53 2167 1.64 2248 1.75 2325 1.86
Total Static Pressure
1.00 1.25 1.50 1.75 2.00 2.25 2.50 2.75 3.00 3.50
CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
900 1733 0.48 1837 0.55 1935 0.63 2026 0.70
1000 1837 0.60 1931 0.67 2025 0.74 2115 0.83 2199 0.91
1100 1944 0.73 2035 0.80 2120 0.88 2206 0.97 2289 1.06 2368 1.15 2443 1.24
1200 2049 0.88 2141 0.96 2224 1.05 2302 1.13 2380 1.22 2458 1.32 2532 1.42 2603 1.52 2672 1.62
1300 2153 1.04 2248 1.14 2330 1.24 2406 1.33 2479 1.42 2550 1.51 2623 1.62 2693 1.73 2761 1.83 2889 2.04
1400 2258 1.24 2351 1.34 2438 1.45 2512 1.55 2583 1.65 2651 1.75 2717 1.85 2785 1.96 2851 2.07 2978 2.30
1500 2367 1.45 2456 1.57 2541 1.68 2620 1.79 2689 1.90 2756 2.01 2820 2.11 2882 2.22 2943 2.33
1600 2479 1.69 2562 1.82 2645 1.94 2724 2.06 2797 2.18 2862 2.30 2925 2.41 2986 2.52 3044 2.64
1700 2592 1.95 2672 2.09 2750 2.23 2827 2.36 2901 2.49 2970 2.61 3031 2.73
1800 2707 2.24 2784 2.39 2858 2.54 2932 2.68 3004 2.82
3
2
1
/
2
3
2
1
/
2
All dimensions are in inches.
All dimensions are in inches.
Fan Data
1
1
/
2
1
/
2
1
/
2
1
1
/
2
8
MSCF
30 H
30 L
38
32
9
2
9
6
1
/
2
14
1
/
2
1
/
2
1
/
2
16
1
/
2
18
1
/
2
36
38
32
9
2
9
6
1
/
2
14
1
/
2
16
1
/
2
18
1
/
2
36
Performance shown is for installation type D: ducted inlet, ducted outlet. Power ratings (BHP/kW) does not include drive losses. Performance ratings do not include the effects of appurtenances in the airstream. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 210 and comply with the requirements of AMCA Certified Ratings Program.
Total Static Pressure
0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00 2.25 2.50
CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1200 1057 0.36 1149 0.43 1232 0.49 1321 0.55 1409 0.62 1497 0.70
1300 1130 0.45 1216 0.52 1295 0.59 1375 0.66 1454 0.72 1538 0.80 1618 0.88
1400 1199 0.54 1285 0.62 1361 0.70 1430 0.77 1508 0.85 1580 0.92 1659 1.00 1734 1.09
1500 1267 0.65 1355 0.74 1427 0.82 1495 0.90 1563 0.98 1634 1.06 1701 1.14 1775 1.23 1846 1.33 1913 1.42
1600 1335 0.77 1426 0.88 1495 0.96 1560 1.05 1622 1.13 1688 1.22 1754 1.30 1817 1.38 1887 1.49 1953 1.59
1700 1405 0.91 1497 1.03 1564 1.12 1627 1.21 1686 1.30 1743 1.39 1808 1.48 1869 1.57 1928 1.66 1994 1.76
1800 1474 1.06 1569 1.20 1633 1.29 1694 1.39 1752 1.48 1807 1.58 1863 1.68 1923 1.77 1981 1.87
1900 1545 1.23 1642 1.38 1704 1.48 1762 1.58 1818 1.69 1872 1.79 1923 1.89 1978 1.99
2000 1615 1.41 1709 1.58 1775 1.70 1831 1.80 1886 1.91 1938 2.02 1988 2.13
2100 1687 1.62 1777 1.79 1847 1.93 1901 2.04 1953 2.15
Total Static Pressure
1.00 1.25 1.50 1.75 2.00 2.25 2.50 3.00 3.50 3.75
CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1450 1393 0.81 1461 0.89 1524 0.96 1596 1.05 1679 1.15
1550 1449 0.94 1517 1.03 1579 1.11 1637 1.19 1706 1.28 1784 1.39
1650 1498 1.08 1574 1.18 1635 1.27 1692 1.36 1746 1.44 1811 1.54 1885 1.66
1750 1547 1.22 1628 1.34 1692 1.44 1748 1.54 1801 1.63 1852 1.72 1912 1.82 2050 2.06
1850 1598 1.39 1677 1.51 1749 1.64 1804 1.74 1857 1.83 1907 1.93 1955 2.02 2077 2.26
1950 1648 1.56 1727 1.70 1800 1.83 1862 1.95 1913 2.06 1962 2.16 2010 2.26 2104 2.46 2230 2.74 2290 2.87
2050 1698 1.74 1777 1.90 1849 2.04 1917 2.18 1970 2.30 2019 2.41 2065 2.51 2154 2.72 2257 2.97 2317 3.11
2150 1748 1.93 1828 2.11 1899 2.27 1965 2.41 2028 2.55 2076 2.67 2122 2.79 2209 3.01 2292 3.23 2344 3.37
2250 1798 2.14 1877 2.33 1949 2.51 2015 2.66 2078 2.82 2133 2.96 2179 3.08 2265 3.32 2347 3.55 2386 3.66
2350 1849 2.37 1927 2.57 1999 2.77 2064 2.93 2126 3.09 2186 3.25 2236 3.39 2321 3.64 2402 3.89 2441 4.01
3
2
1
/
2
3
2
1
/
2
All dimensions are in inches.
All dimensions are in inches.
Fan Data
1
1
/
2
1
1
/
2
50
32
9
2
10
4
1
/
2
20
16
1
/
2
18
1
/
2
48
50
32
9
2
10
4
1
/
2
20
16
1
/
2
18
1
/
2
48
9
MSCF
45 L
45 H
1
/
2
1
/
2
Performance shown is for installation type D: ducted inlet, ducted outlet. Power ratings (BHP/kW) does not include drive losses. Performance ratings do not include the effects of appurtenances in the airstream. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 210 and comply with the requirements of AMCA Certified Ratings Program.
Total Static Pressure
0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00 2.50 2.75
CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1500 974 0.43 1104 0.54 1224 0.64 1337 0.74 1446 0.85 1557 0.98
1650 1048 0.55 1162 0.67 1281 0.78 1383 0.89 1487 1.00 1586 1.12 1686 1.26
1800 1123 0.70 1228 0.82 1338 0.94 1439 1.06 1530 1.18 1627 1.31 1718 1.44 1807 1.57
1950 1200 0.86 1297 1.00 1396 1.13 1496 1.26 1586 1.39 1669 1.52 1759 1.66 1844 1.80 2012 2.12 2098 2.31
2100 1277 1.06 1367 1.20 1457 1.35 1553 1.49 1642 1.63 1724 1.76 1801 1.90 1885 2.06 2040 2.35 2118 2.52
2250 1356 1.28 1440 1.43 1525 1.58 1611 1.74 1699 1.89 1780 2.04 1855 2.19 1927 2.33 2081 2.66
2400 1437 1.54 1515 1.69 1594 1.85 1671 2.02 1757 2.19 1837 2.34 1911 2.50 1981 2.66 2122 2.99
2550 1519 1.84 1591 1.98 1664 2.15 1739 2.33 1815 2.51 1894 2.68 1968 2.85 2037 3.02
2700 1601 2.17 1667 2.31 1736 2.49 1807 2.68 1876 2.87 1952 3.05 2025 3.23 2094 3.41
2850 1684 2.54 1744 2.67 1811 2.86 1877 3.05 1944 3.26 2010 3.46 2082 3.65
Total Static Pressure
1.00 1.25 1.50 1.75 2.00 2.25 2.50 2.75 3.00 3.25
CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1700 1434 1.01 1509 1.12 1585 1.22 1656 1.31 1722 1.41
1800 1481 1.15 1556 1.26 1627 1.37 1697 1.47 1763 1.57 1826 1.67
1900 1530 1.30 1603 1.42 1671 1.53 1738 1.65 1804 1.75 1866 1.86 1925 1.96
2000 1578 1.45 1650 1.59 1717 1.71 1781 1.83 1845 1.95 1907 2.06 1966 2.17 2022 2.28
2100 1626 1.62 1698 1.77 1764 1.90 1827 2.03 1887 2.15 1948 2.28 2007 2.40 2063 2.51 2117 2.63
2200 1675 1.80 1746 1.96 1812 2.10 1874 2.24 1932 2.37 1990 2.50 2048 2.63 2104 2.76 2157 2.88 2209 3.00
2300 1724 1.99 1795 2.16 1860 2.32 1921 2.47 1979 2.61 2034 2.75 2090 2.88 2145 3.02 2198 3.15 2249 3.28
2400 1774 2.19 1843 2.37 1908 2.55 1969 2.71 2026 2.86 2080 3.01 2133 3.15 2187 3.29 2239 3.43 2290 3.57
2500 1824 2.42 1893 2.60 1956 2.79 2017 2.97 2073 3.13 2127 3.28 2179 3.43 2229 3.58 2281 3.73 2332 3.88
2600 1873 2.65 1942 2.85 2005 3.04 2065 3.24 2121 3.41 2174 3.57 2226 3.73 2275 3.89 2323 4.05 2373 4.20
3
2
1
/
2
3
2
1
/
2
All dimensions are in inches.
All dimensions are in inches.
Fan Data
1
1
/
2
1
1
/
2
10
MSCF
50 H
50 L
Performance shown is for installation type D: ducted inlet, ducted outlet. Power ratings (BHP/kW) does not include drive losses. Performance ratings do not include the effects of appurtenances in the airstream. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 210 and comply with the requirements of AMCA Certified Ratings Program.
50
42
2
10
8
1
/
2
6
1
/
2
20
19
21
48
50
42
2
10
8
1
/
2
6
1
/
2
20
19
21
48
Total Static Pressure
0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00 2.50 3.00
CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1800 864 0.48 932 0.52 1031 0.60 1128 0.70 1220 0.80 1305 0.88 1387 0.99 1464 1.11
2000 945 0.64 1008 0.69 1082 0.76 1172 0.86 1258 0.97 1342 1.07 1420 1.17 1495 1.28 1635 1.53
2200 1027 0.84 1086 0.90 1140 0.95 1221 1.05 1302 1.16 1380 1.29 1457 1.40 1529 1.51 1665 1.75 1793 2.02
2400 1109 1.07 1165 1.14 1216 1.20 1274 1.28 1350 1.39 1425 1.52 1496 1.65 1566 1.78 1699 2.01 1823 2.28
2600 1192 1.35 1244 1.43 1293 1.50 1339 1.56 1402 1.66 1471 1.78 1540 1.92 1607 2.07 1736 2.34 1855 2.59
2800 1271 1.65 1325 1.76 1371 1.84 1415 1.91 1456 1.97 1523 2.10 1587 2.23 1651 2.38 1773 2.70 1892 2.98
3000 1352 1.99 1406 2.14 1450 2.22 1492 2.30 1532 2.37 1576 2.46 1639 2.60 1698 2.73 1817 3.07
3200 1432 2.38 1488 2.57 1530 2.66 1570 2.75 1609 2.83 1645 2.90 1692 3.01 1750 3.16 1862 3.47
3400 1513 2.82 1571 3.05 1611 3.15 1649 3.25 1686 3.34 1722 3.42 1756 3.50 1803 3.63
3600 1595 3.31 1654 3.60 1692 3.70 1729 3.81 1764 3.90 1799 4.00 1832 4.09 1864 4.17
Total Static Pressure
1.00 1.50 2.00 2.25 2.50 2.75 3.00 3.25 3.50 4.00
CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
2100 1425 1.39 1550 1.63 1663 1.85 1709 1.92 1753 1.99
2200 1470 1.54 1590 1.80 1701 2.04 1753 2.15 1796 2.22 1837 2.29
2300 1515 1.71 1631 1.98 1741 2.24 1792 2.36 1839 2.47 1880 2.54 1920 2.62
2400 1561 1.89 1671 2.18 1780 2.45 1831 2.58 1879 2.70 1924 2.81 1963 2.89 2001 2.97
2500 1607 2.08 1714 2.39 1820 2.67 1870 2.81 1918 2.94 1964 3.07 2006 3.18 2044 3.27 2080 3.35
2600 1652 2.30 1758 2.61 1860 2.91 1910 3.06 1957 3.20 2003 3.34 2047 3.47 2087 3.58 2123 3.67 2193 3.83
2700 1697 2.54 1803 2.84 1901 3.17 1950 3.32 1997 3.47 2042 3.61 2086 3.76 2129 3.90 2167 4.01
2800 1741 2.79 1848 3.09 1942 3.44 1990 3.59 2037 3.75 2082 3.90 2125 4.05 2167 4.20
2900 1787 3.06 1894 3.36 1985 3.72 2031 3.89 2077 4.05 2121 4.21 2164 4.37
3000 1832 3.35 1940 3.64 2029 4.01 2072 4.19 2118 4.37 2161 4.53
3
2
1
/
2
3
2
1
/
2
All dimensions are in inches.
All dimensions are in inches.
1
/
2
1
/
2
Fan Data
1
1
/
2
1
1
/
2
50
42
12
8
3
/
4
2
12
3
/
4
18
5
/
8
24
26
48
50
42
12
8
3
/
4
2
12
3
/
4
18
5
/
8
24
26
48
11
MSCF
65 L
65 H
Performance shown is for installation type D: ducted inlet, ducted outlet. Power ratings (BHP/kW) does not include drive losses. Performance ratings do not include the effects of appurtenances in the airstream. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 210 and comply with the requirements of AMCA Certified Ratings Program.
Total Static Pressure
0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00 2.50 3.00
CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
2575 768 0.66 858 0.79 940 0.93 1018 1.08 1093 1.22 1162 1.36 1231 1.51 1296 1.67
2750 810 0.78 893 0.93 971 1.06 1047 1.22 1119 1.38 1187 1.53 1251 1.67 1315 1.84 1435 2.17
2925 851 0.92 930 1.07 1005 1.22 1077 1.38 1146 1.55 1213 1.72 1276 1.87 1335 2.03 1454 2.38 1562 2.73
3100 894 1.08 967 1.24 1040 1.40 1107 1.56 1175 1.74 1238 1.91 1301 2.09 1360 2.25 1474 2.60 1581 2.98
3275 936 1.26 1005 1.42 1075 1.59 1140 1.76 1205 1.94 1267 2.13 1327 2.31 1385 2.49 1494 2.84 1601 3.24
3450 979 1.45 1044 1.62 1110 1.80 1175 1.98 1235 2.15 1296 2.36 1354 2.55 1411 2.75 1519 3.12 1620 3.51
3625 1022 1.67 1083 1.83 1148 2.03 1209 2.22 1268 2.40 1326 2.60 1383 2.81 1437 3.02 1544 3.42 1642 3.80
3800 1065 1.90 1124 2.08 1185 2.28 1244 2.48 1302 2.67 1357 2.86 1413 3.09 1466 3.31 1569 3.74
3975 1109 2.16 1165 2.35 1223 2.55 1280 2.76 1337 2.96 1390 3.16 1443 3.38 1495 3.61 1595 4.07
4150 1153 2.44 1207 2.64 1261 2.84 1317 3.06 1372 3.28 1424 3.49 1474 3.69 1525 3.94 1622 4.42
Total Static Pressure
1.00 1.50 2.00 2.25 2.50 2.75 3.00 3.25 3.50 4.00
CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
2400 1186 1.30 1280 1.50 1394 1.77 1449 1.90 1501 2.04
2575 1243 1.53 1335 1.75 1430 2.00 1484 2.15 1536 2.30 1586 2.45
2750 1296 1.77 1391 2.04 1471 2.27 1520 2.42 1572 2.58 1621 2.74 1668 2.89 1714 3.05
2925 1349 2.04 1448 2.35 1526 2.60 1563 2.72 1608 2.88 1657 3.05 1704 3.22 1749 3.39 1793 3.55
3100 1403 2.33 1505 2.70 1582 2.97 1618 3.10 1653 3.23 1693 3.38 1740 3.56 1785 3.75 1828 3.92 1911 4.28
3275 1458 2.66 1559 3.06 1638 3.37 1674 3.51 1708 3.65 1741 3.78 1776 3.93 1821 4.13 1864 4.32 1947 4.70
3450 1511 3.01 1612 3.44 1695 3.81 1730 3.96 1763 4.11 1796 4.25 1827 4.39 1858 4.53 1901 4.74 1982 5.14
3625 1563 3.39 1666 3.85 1753 4.29 1787 4.45 1820 4.60 1852 4.76 1882 4.91 1913 5.06 1942 5.21
3800 1616 3.80 1720 4.30 1805 4.76 1845 4.98 1877 5.14 1908 5.31 1938 5.47 1968 5.63 1997 5.78
3975 1669 4.24 1775 4.78 1859 5.27 1898 5.50 1934 5.72 1965 5.90 1995 6.07
3
2
1
/
2
3
2
1
/
2
All dimensions are in inches.
All dimensions are in inches.
1
/
2
1
/
2
Fan Data
1
1
/
2
1
1
/
2
12
MSCF
85 H
85 L
62
42
12
6
1
/
2
2
15
23
1
/
2
24
26
60
62
42
12
6
1
/
2
2
15
23
1
/
2
24
26
60
Performance shown is for installation type D: ducted inlet, ducted outlet. Power ratings (BHP/kW) does not include drive losses. Performance ratings do not include the effects of appurtenances in the airstream. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 210 and comply with the requirements of AMCA Certified Ratings Program.
Total Static Pressure
0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00 2.50 3.00
CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
3000 797 0.85 899 1.03 983 1.22 1056 1.38 1135 1.60 1209 1.81 1278 2.00 1344 2.19 1464 2.54
3200 838 1.00 935 1.19 1018 1.40 1090 1.58 1160 1.78 1233 2.01 1300 2.23 1366 2.44 1486 2.82 1594 3.19
3400 880 1.18 970 1.37 1053 1.60 1124 1.80 1188 1.99 1258 2.22 1325 2.46 1388 2.70 1507 3.12 1616 3.53
3600 923 1.37 1006 1.58 1088 1.81 1159 2.04 1222 2.24 1283 2.45 1350 2.71 1412 2.96 1529 3.44 1638 3.88
3800 965 1.59 1042 1.81 1123 2.04 1194 2.29 1256 2.51 1314 2.73 1375 2.97 1437 3.24 1551 3.77
4000 1008 1.83 1079 2.06 1159 2.29 1228 2.56 1291 2.81 1348 3.04 1402 3.26 1462 3.53 1576 4.10
4200 1052 2.10 1118 2.33 1195 2.58 1264 2.85 1326 3.12 1383 3.37 1436 3.61 1487 3.84 1600 4.44
4400 1096 2.39 1159 2.63 1231 2.89 1299 3.16 1361 3.45 1417 3.73 1470 3.98 1520 4.22 1625 4.80
4600 1141 2.71 1201 2.96 1267 3.23 1335 3.49 1396 3.80 1452 4.10 1504 4.37 1554 4.64
4800 1186 3.06 1243 3.32 1303 3.59 1371 3.87 1431 4.18 1487 4.50 1539 4.80 1588 5.07
Total Static Pressure
1.00 1.50 2.00 2.25 2.50 2.75 3.00 3.25 3.50 4.00
CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
3500 1330 2.54 1424 2.91 1540 3.36 1594 3.57 1658 3.84 1720 4.11 1780 4.38 1838 4.64 1898 4.96 2013 5.58
3750 1398 3.00 1488 3.41 1588 3.85 1641 4.09 1692 4.32 1747 4.58 1807 4.88 1864 5.16 1919 5.44 2030 6.07
4000 1460 3.50 1553 3.96 1636 4.39 1688 4.65 1738 4.90 1787 5.15 1834 5.40 1891 5.72 1946 6.02 2051 6.63
4250 1522 4.06 1620 4.57 1698 5.03 1737 5.26 1786 5.54 1834 5.81 1880 6.07 1924 6.33 1973 6.63 2078 7.29
4500 1586 4.68 1687 5.24 1763 5.73 1799 5.97 1834 6.22 1881 6.51 1927 6.80 1971 7.08 2013 7.36 2105 7.98
4750 1650 5.37 1751 5.97 1828 6.51 1863 6.76 1898 7.02 1931 7.27 1975 7.58 2018 7.88 2060 8.18 2141 8.77
5000 1716 6.12 1813 6.76 1895 7.35 1929 7.62 1962 7.90 1995 8.17 2026 8.43 2066 8.74 2108 9.07 2188 9.70
5250 1785 6.95 1876 7.62 1962 8.27 1996 8.56 2028 8.85 2060 9.13 2091 9.42 2121 9.70 2156 10.01
5500 1853 7.86 1940 8.56 2025 9.25 2063 9.58 2095 9.88
5750 1923 8.84 2004 9.58
3
2
1
/
2
3
2
1
/
2
All dimensions are in inches.
All dimensions are in inches.
1
/
2
1
/
2
Fan Data
1
1
/
2
1
1
/
2
Size A
B
C
Weight
12 24 12 24 15 38 12.75 24.5 11 29 54 20 38 12.75 24.5 14 34 64 25 38 12.75 24.5 16 40 75 30 38 12.75 24.5 18.5 46 86 45 50 12.75 24.5 18.5 53 99 50 50 12.75 24.5 21 61 114 65 50 12.75 24.5 26 70 131 85 62 12.75 24.5 26 80 151
13
MSCF

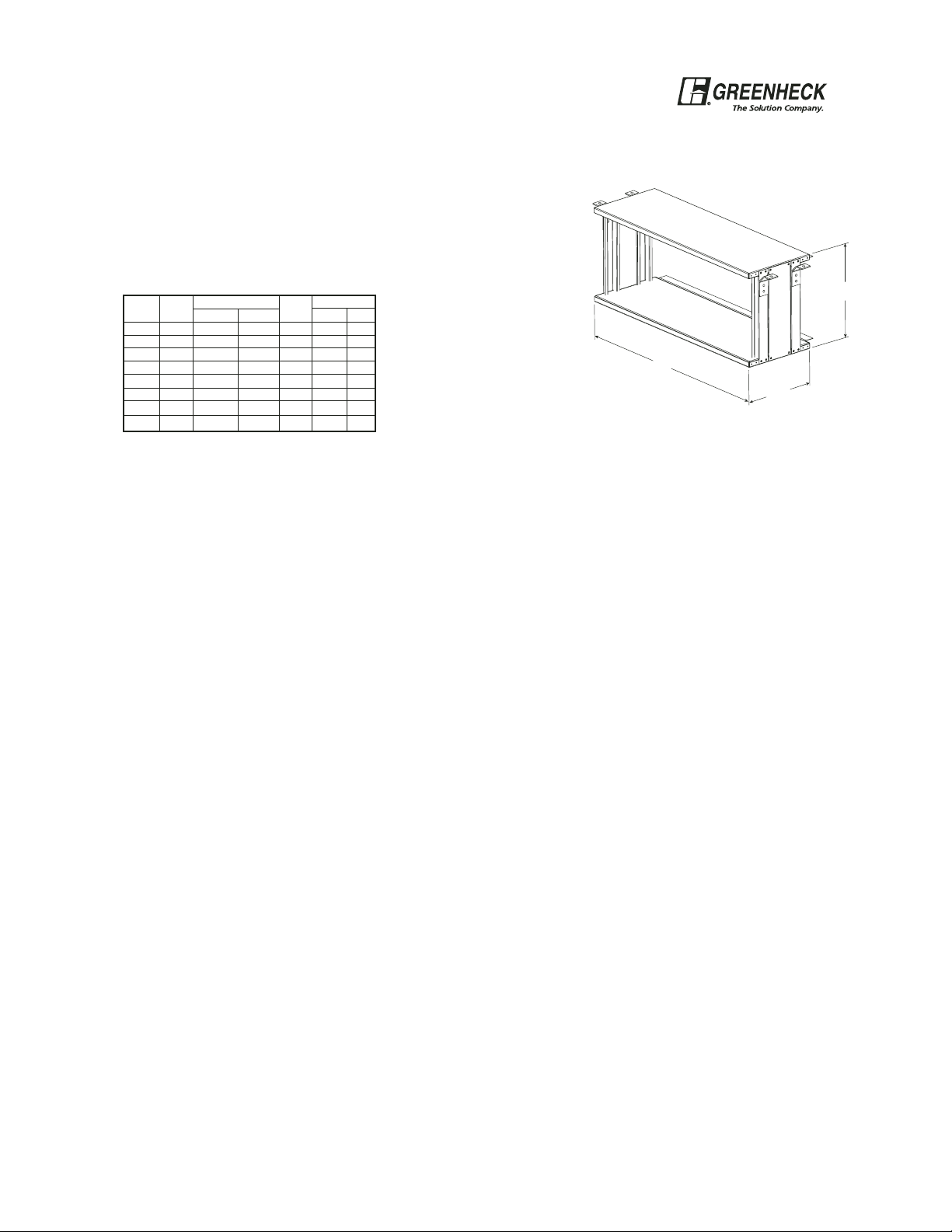

Plenum Module
A
B
C
Access plenums are available to be placed between any module providing additional access, space for mounting controls, or reducing turbulent air.
All dimensions are in inches.
Plenum Data
14
Coil Data
Steam - 1 Row
Dimensional Data
All dimensions are in inches.
B
G
D
F
E
A
C
Refer to CAPS 2.1 for performance data information.
Performance Data
Size Face A B C D E F G
15 1.6 38 15.5 7.75 3.31 1.5 5.18 11.0 20 2.2 38 15.5 7.75 3.00 1.5 6.50 14.0 25 2.7 38 15.5 7.75 3.31 2.5 7.69 16.0 30 3.2 38 15.5 7.75 3.00 2.5 9.00 18.5 45 4.5 50 15.5 7.75 3.00 2.5 9.00 18.5 50 5.2 50 15.5 7.75 4.31 2.5 10.18 21.0 65 6.7 50 15.5 7.75 3.00 2.5 12.50 26.0 85 8.6 62 15.5 7.75 3.00 2.5 12.50 26.0
MSCF
15
MSCF
Coil Data
Steam - 2 Row
Dimensional Data
Refer to CAPS 2.1 for performance data information.
Performance Data
All dimensions are in inches.
Size Face A B C D E F G
15 1.6 38 15.5 7.75 3.31 1.5 5.18 11.0 20 2.2 38 15.5 7.75 3.00 1.5 6.50 14.0 25 2.7 38 15.5 7.75 3.31 2.5 7.69 16.0 30 3.2 38 15.5 7.75 3.00 2.5 9.00 18.5 45 4.5 50 15.5 7.75 3.00 2.5 9.00 18.5 50 5.2 50 15.5 7.75 4.31 2.5 10.18 21.0 65 6.7 50 15.5 7.75 3.00 2.5 12.50 26.0 85 8.6 62 15.5 7.75 3.00 2.5 12.50 26.0
B
G
D
F
E
A
C
16
MSCF
Hot Water - 1 Row
Dimensional Data
MBh - Million British Thermal Units Per Hour LAT - Leaving Air Temperature (°F) - Do not operate at over 105 °F. LWT - Leaving Water Temperature (°F) WPD - Water Pressure Drop GPM - Gallons per Minute
Heating Capacities based on 60°F EAT and 180°F EWT.
Performance Data
1.0 GPM 2.0 GPM 3.0 GPM 4.0 GPM 5.0 GPM
CFM MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD
400 14.0 92.2 151.4 0.08 16.4 97.7 163.3 0.28 17.4 100.1 168. 0.60 18.0 101.4 170.8 1.04 18.3 102.3 172.5 1.60
15 600 16.1 84.8 147.0 0.08 19.4 89.9 160.1 0.28 20.9 92.1 165.7 0.60 21.8 93.4 168.9 1.04 22.3 94.3 170.9 1.60
800 17.6 80.3 144.0 0.08 21.7 85.0 157.8 0.28 23.6 87.2 163.9 0.60 24.7 88.4 167.4 1.04 25.4 89.3 169.6 1.60
700 18.6 84.5 142.0 0.04 23.0 90.3 156.4 0.16 25.1 93.0 162.9 0.35 26.3 94.6 166.5 0.60 27.1 95.7 168.9 0.92
20 900 20.0 80.5 139.1 0.04 25.3 85.9 154.1 0.16 27.8 88.5 161.0 0.35 29.3 90.0 165.0 0.60 30.3 91.1 167.6 0.92
1100 21.1 77.7 136.9 0.04 27.1 82.7 152.3 0.16 30.1 85.2 159.5 0.35 31.8 86.7 163.7 0.60 33.0 87.7 166.5 0.92
1000 22.1 80.3 135.0 0.03 28.5 86.3 150.9 0.11 31.7 89.2 158.4 0.23 33.6 90.9 162.8 0.40 34.8 92.1 165.7 0.60
25 1150 22.8 78.3 133.4 0.03 29.9 84.0 149.5 0.11 33.4 86.8 157.2 0.23 35.5 88.5 161.8 0.40 37.0 89.7 164.9 0.60
1300 23.5 76.7 132.0 0.03 31.1 82.1 148.2 0.11 34.9 84.8 156.2 0.23 37.3 86.5 160.9 0.40 38.9 87.6 164.1 0.60
1200 24.3 78.7 130.5 0.02 32.3 84.8 147.0 0.08 36.4 87.9 155.2 0.16 38.9 89.9 160.1 0.28 40.6 91.2 163.4 0.43
30 1400 25.2 76.6 128.7 0.02 33.9 82.3 145.4 0.08 38.5 85.3 153.8 0.16 41.3 87.2 158.9 0.28 43.2 88.5 162.3 0.43
1600 25.9 74.9 127.2 0.02 35.3 80.3 144.0 0.08 40.3 83.2 152.6 0.16 43.4 85.0 157.8 0.28 45.6 86.3 161.3 0.43
2.0 GPM 4.0 GPM 6.0 GPM 8.0 GPM 10.0 GPM CFM MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD 1650 42.0 83.5 137.2 0.09 51.9 89.0 153.5 0.32 56.4 91.5 160.8 0.69 59.0 93.0 164.9 1.18 60.7 93.9 167.6 1.79
45 1950 44.1 80.9 135.0 0.09 55.2 86.1 151.8 0.32 60.4 88.6 159.4 0.69 63.4 90.0 163.8 1.18 65.4 90.9 166.6 1.79
2250 45.9 78.9 133.2 0.09 58.1 83.8 150.3 0.32 63.9 86.2 158.2 0.69 67.4 87.6 162.8 1.18 69.6 88.5 165.7 1.79
1800 45.2 83.1 133.9 0.07 56.7 89.1 151.0 0.24 62.1 91.8 158.8 0.51 65.3 93.5 163.3 0.88 67.4 94.5 166.2 1.34
50 2200 47.8 80.0 131.3 0.07 61.1 85.6 148.8 0.24 67.4 88.3 157.0 0.51 71.2 89.8 161.8 0.88 73.7 90.9 164.9 1.34
2600 49.9 77.7 129.1 0.07 64.7 82.9 147.0 0.24 71.9 85.5 155.5 0.51 76.2 87.0 160.5 0.88 79.1 88.1 163.8 1.34
4.0 GPM 6.0 GPM 8.0 GPM 10.0 GPM 12.0 GPM CFM MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD 2575 69.8 85.0 144.4 0.15 78.2 88.0 153.4 0.32 78.2 88.0 153.4 0.32 86.7 91.0 162.3 0.83 89.1 91.9 164.8 1.17
65 2925 72.8 82.9 142.9 0.15 82.0 85.8 152.1 0.32 82.0 85.8 152.1 0.32 91.4 88.8 161.3 0.83 94.2 89.7 163.9 1.17
3275 75.4 81.2 141.5 0.15 85.4 84.0 150.9 0.32 85.4 84.0 150.9 0.32 95.7 87.0 160.4 0.83 98.8 87.8 163.2 1.17
3000 82.7 85.7 137.8 0.17 93.5 88.7 148.2 0.35 100.0 90.7 154.4 0.60 104.4 92.1 158.6 0.90 107.6 93.1 161.6 1.27
85 3600 87.6 82.4 135.3 0.17 99.9 85.6 146.0 0.35 107.5 87.5 152.5 0.60 112.7 88.9 157.0 0.90 116.4 89.8 160.1 1.27
4250 92.1 80.0 133.1 0.17 105.8 83.0 144.0 0.35 114.4 84.8 150.8 0.60 120.4 86.1 155.4 0.90 124.7 87.1 158.7 1.27
B
6
D
H
3
E
A
C
Size Face A B C D E H
15 1.6 38 12.75 11.0 2.25 3.0 0.75 20 2.2 38 12.75 14.0 3.19 4.5 0.75 25 2.7 38 12.75 16.0 3.19 4.0 0.88 30 3.2 38 12.75 18.5 3.19 4.0 0.88 45 4.5 50 12.75 18.5 3.19 4.0 0.88 50 5.2 50 12.75 21.0 3.19 4.0 1.13 65 6.7 50 12.75 26.0 3.19 4.0 1.38 85 8.6 62 12.75 26.0 3.19 4.0 1.38
All dimensions are in inches.
COIL Data
17
MSCF
Hot Water - 2 Row
MBh - Million British Thermal Units Per Hour LAT - Leaving Air Temperature (°F) - Do not operate at over 105 °F. LWT - Leaving Water Temperature (°F) WPD - Water Pressure Drop GPM - Gallons per Minute
Heating Capacities based on 60°F EAT and 180°F EWT.
Performance Data
1.0 GPM 2.0 GPM 3.0 GPM 4.0 GPM 5.0 GPM
CFM MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD
400 21.9 110.4 135.4 0.09 25.9 119.8 153.5 0.32 27.6 123.7 161.2 0.67 28.6 125.8 165.4 1.13 29.1 127.2 168.1 1.70
15 600 25.6 99.3 127.8 0.09 31.7 108.8 147.6 0.33 34.4 112.9 156.5 0.68 35.9 115.2 161.6 1.13 36.9 116.7 164.9 1.70
800 28.1 92.4 122.7 0.10 36.0 101.5 143.3 0.33 39.6 105.6 153.0 0.68 41.7 108.0 158.7 1.14 43.1 109.6 162.4 1.70
2.0 GPM 4.0 GPM 6.0 GPM 8.0 GPM 10.0 GPM
CFM MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD
700 37.0 108.8 142.2 0.20 40.7 113.6 152.3 0.42 42.8 116.4 158.1 0.71 44.2 118.2 161.9 1.07 45.2 119.5 164.6 1.49
20 900 41.1 102.2 138.0 0.21 45.9 107.0 148.7 0.43 48.7 109.9 155.1 0.71 50.5 111.8 159.3 1.07 51.8 113.1 162.3 1.49
1100 44.4 97.2 134.7 0.21 50.1 102.0 145.9 0.43 53.6 104.9 152.6 0.72 55.8 106.8 157.2 1.07 57.5 108.2 160.4 1.49
1000 45.6 102.1 133.5 0.14 51.5 107.5 144.9 0.30 55.0 110.7 151.9 0.50 57.4 112.9 156.5 0.75 59.0 114.4 159.9 1.04
25 1150 48.1 98.5 131.0 0.14 54.8 103.9 142.7 0.30 58.8 107.1 150.0 0.50 61.5 109.3 154.8 0.75 63.4 110.9 158.4 1.04
1300 50.2 95.6 128.9 0.14 57.6 100.9 140.8 0.30 62.1 104.1 148.3 0.50 65.2 106.3 153.3 0.75 67.4 107.8 157.0 1.04
1200 - - - - 51.2 99.3 127.8 0.11 63.4 108.8 147.6 0.37 66.6 111.1 152.8 0.56 68.8 112.9 156.5 0.78
30 1400 - - - - 53.9 95.5 125.0 0.11 68.0 104.8 145.3 0.37 71.7 107.2 150.7 0.56 74.3 109.0 154.7 0.78
1600 - - - - 56.2 92.4 122.7 0.11 72.0 101.5 143.3 0.37 76.1 103.9 148.9 0.56 79.2 105.6 153.0 0.78
4.0 GPM 6.0 GPM 8.0 GPM 10.0 GPM 12.0 GPM CFM MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD MBH LAT LWT WPD 1650 83.1 106.5 137.6 0.46 91.6 111.2 148.8 0.96 96.5 113.9 155.3 1.61 99.7 115.7 159.6 2.41 101.9 117.0 162.6 3.36
45 1950 89.1 102.1 134.6 0.46 99.2 106.9 146.2 0.96 105.0 109.7 153.2 1.61 108.9 111.5 157.7 2.42 111.6 112.8 161.0 3.36
2250 94.2 98.6 132.0 0.47 105.8 103.3 144.0 0.96 112.6 106.1 151.2 1.62 117.0 108.0 156.1 2.42 120.2 109.3 159.5 3.37
1800 90.1 106.1 134.1 0.36 100.2 111.3 145.9 0.75 106.0 114.3 152.9 1.26 109.8 116.3 157.5 1.88 112.5 117.6 160.8 2.62
50 2200 97.6 100.9 130.3 0.36 109.9 106.1 142.6 0.75 117.2 109.1 150.1 1.26 121.9 111.1 155.1 1.89 125.3 112.5 158.6 2.63
2600 103.7 96.8 127.1 0.36 118.1 101.9 139.8 0.75 126.7 104.9 147.6 1.26 132.4 107.0 152.9 1.89 136.5 108.4 156.7 2.63
2575 109.7 99.3 124.1 0.24 125.8 105.1 137.2 0.50 83.3 89.8 158.7 0.55 142.0 110.8 151.0 1.25 146.6 112.5 155.0 1.74
65 2925 115.2 95.7 121.3 0.24 132.6 101.8 134.9 0.50 87.6 87.6 157.6 0.55 151.0 107.6 149.1 1.25 156.3 109.3 153.4 1.74
3275 118.8 93.5 119.5 0.24 138.6 99.0 132.9 0.50 91.5 85.8 156.6 0.55 159.1 104.8 147.5 1.25 165.1 106.5 151.9 1.75
3000 126.5 98.9 115.6 0.27 147.2 105.2 130.0 0.56 159.8 109.1 139.2 0.93 168.2 111.7 145.6 1.39 174.3 113.6 150.3 1.94
85 3600 134.0 94.3 111.8 0.27 158.1 100.5 126.3 0.56 173.1 104.3 135.9 0.93 183.3 107.0 142.6 1.40 190.7 108.9 147.5 1.94
4250 140.6 90.5 108.5 0.27 167.9 96.4 123.0 0.56 185.3 100.2 132.8 0.94 197.3 102.8 139.7 1.40 206.0 104.7 144.9 1.94
B
6
D
H
3
E
A
C
COIL Data
Dimensional Data
Size Face A B C D E H
15 1.6 38 12.75 11.0 2.25 3.0 0.75 20 2.2 38 12.75 14.0 3.19 4.5 0.75 25 2.7 38 12.75 16.0 3.19 4.0 0.88 30 3.2 38 12.75 18.5 3.19 4.0 0.88 45 4.5 50 12.75 18.5 3.19 4.0 0.88 50 5.2 50 12.75 21.0 3.19 4.0 1.13 65 6.7 50 12.75 26.0 3.19 4.0 1.38 85 8.6 62 12.75 26.0 3.19 4.0 1.38
All dimensions are in inches.
18
MSCF
Hot Water - 4 Row
Refer to CAPS 2.1 for performance data information.
Performance Data
Dimensional Data
COIL Data
All dimensions are in inches.
Size Face A B C D E F G
15 1.6 38 15.50 9.38 3.188 0.750 4.0 11.0 20 2.2 38 15.50 9.38 3.188 0.750 4.5 14.0 25 2.7 38 15.50 9.38 3.188 0.875 4.0 16.0 30 3.2 38 15.50 9.38 3.188 0.875 4.0 18.8 45 4.5 50 15.50 9.38 3.188 1.375 4.0 21.0 50 5.2 50 15.50 9.38 3.188 1.375 4.0 26.0 65 6.7 50 15.50 9.38 3.188 1.375 4.0 26.0 85 8.6 62 12.75 9.38 3.188 1.375 4.0 26.0
B
G
D
F
E
A
C
19
MSCF
Coil Data
Electrical
Refer to CAPS 2.1 for dimensional and performance data information.
Dimensional and Performance Data
Coil Rows
Unit Size
20
6º F 10º F 16º F 20º F
CFM TC SC LDB LWB GPM WPD TC SC LDB LWB GPM WPD TC SC LDB LWB GPM WPD TC SC LDB LWB GPM WPD
400 17.0 11.1 54.6 53.1 6.0 4.6 15.2 10.3 56.4 54.8 3.6 1.9 12.9 9.4 58.5 56.8 2.3 0.8 11.9 9.0 59.4 57.7 1.8 0.6
4 600 23.1 15.3 56.7 54.6 9.0 9.3 20.6 14.3 58.3 56.0 5.4 3.8 17.7 13.1 60.0 57.8 3.4 1.7 16.3 12.6 60.9 58.5 2.7 1.1
800 28.3 19.0 58.3 55.7 12.1 15.2 25.5 17.8 59.6 57.0 7.2 6.3 22.1 16.5 61.2 58.4 4.5 2.8 20.3 15.8 61.9 59.2 3.6 1.9 400 20.2 12.9 50.6 50.0 6.0 6.9 18.0 11.9 52.7 52.2 3.6 2.9 15.6 11.0 55.0 54.4 2.3 1.3 14.3 10.4 56.1 55.5 1.8 0.9
15 6 600 27.9 18.1 52.4 51.5 9.0 13.9 25.1 16.9 54.3 53.4 5.4 5.8 21.7 15.5 56.3 55.4 3.4 2.5 20.1 14.8 57.4 56.4 2.7 1.7
800 35.0 22.9 53.8 52.6 12.1 22.9 31.3 21.4 55.5 54.3 7.2 9.5 27.3 19.8 57.4 56.2 4.5 4.2 25.3 19.0 58.3 57.0 3.6 2.8 400 22.0 13.8 48.4 48.2 6.0 9.3 19.9 12.9 50.5 50.2 3.6 3.8 17.4 11.8 52.9 52.7 2.3 1.7 16.0 11.3 54.3 54.0 1.8 1.1
8 600 31.1 19.8 49.8 49.4 9.0 18.6 28.1 18.5 51.8 51.4 5.4 7.7 24.5 17.0 54.1 53.7 3.4 1.9 22.6 16.2 55.3 54.9 2.7 2.3
800 39.4 25.4 51.0 50.5 12.1 30.6 35.7 23.7 52.9 52.3 7.2 12.6 31.1 21.9 55.0 54.4 4.5 5.6 28.7 20.9 56.1 55.5 3.6 3.8 700 27.8 18.4 56.0 54.1 10.6 7.5 24.9 17.1 57.6 55.6 3.1 2.7 21.3 15.7 59.5 57.4 4.0 1.4 19.6 15.1 60.3 58.3 3.2 0.9
4 900 33.4 22.3 57.4 55.1 13.6 11.6 30.0 20.9 58.8 56.4 8.1 4.8 25.8 19.2 60.5 58.0 5.1 2.1 23.8 18.4 61.3 58.8 4.1 1.4
1100 38.5 25.9 58.5 55.8 16.6 16.4 34.7 24.3 59.8 57.1 10.0 6.7 30.0 22.5 61.3 58.5 6.2 2.7 27.9 21.6 62.0 59.2 5.0 2.0
700 33.6 21.6 51.8 51.0 10.6 11.2 29.9 20.1 53.8 53.0 6.3 4.6 25.9 18.5 55.9 55.1 4.0 2.0 23.9 17.6 57.0 56.1 3.2 1.4
20 6 900 40.9 26.7 52.9 52.0 13.6 17.3 36.5 24.8 54.8 53.8 8.14 7.1 31.7 22.9 56.8 55.7 5.1 3.2 29.3 21.9 57.7 56.7 4.1 2.1
1100 47.7 31.4 53.9 52.8 16.6 24.5 42.7 29.3 55.7 54.4 10.0 10.1 37.3 27.0 57.5 56.2 6.2 4.5 34.4 25.9 58.4 57.1 5.0 3.0
700 37.0 23.5 49.2 49.0 10.6 14.9 33.5 22.0 51.3 51.0 6.3 6.1 29.2 20.2 53.7 53.4 4.0 2.7 27.0 19.2 54.9 54.5 3.2 1.8
8 900 45.7 29.3 50.2 49.9 13.6 23.0 41.4 27.4 52.2 51.8 8.1 9.5 33.2 24.0 55.6 55.1 4.1 2.8 33.2 24.0 55.6 55.1 4.1 2.8
1100 53.9 34.7 51.2 50.6 16.6 32.6 48.7 32.5 53.0 52.4 10.0 13.4 42.6 29.9 55.1 54.5 6.2 5.9 39.3 28.7 56.2 55.6 5.0 4.0 1000 38.4 25.5 56.7 54.6 15.1 9.6 34.4 23.8 58.3 56.0 9.0 4.0 29.5 21.8 60.0 57.8 5.7 1.7 27.2 20.9 60.9 58.5 4.5 1.2
4 1150 42.5 28.3 57.5 55.1 17.3 12.3 38.2 26.5 58.9 56.5 10.4 5.0 32.8 24.4 60.6 58.1 6.5 2.2 30.2 23.5 61.4 58.8 5.2 1.2
1300 46.3 31.1 58.1 55.6 19.6 15.2 41.6 29.1 59.5 56.9 11.8 6.2 35.9 26.9 61.1 58.4 7.4 2.8 33.3 25.9 61.8 59.1 5.9 1.9 1000 46.6 30.2 52.4 51.5 15.1 14.3 41.8 28.1 54.3 53.4 9.0 5.9 36.2 25.9 56.3 55.4 5.7 2.6 33.5 24.7 57.4 56.4 4.5 1.8
25 6 1150 51.9 33.9 53.0 52.1 17.3 18.3 46.5 31.6 54.9 53.8 10.4 7.5 40.6 29.2 56.8 55.7 6.5 3.3 37.4 27.9 57.8 56.7 5.2 2.2
1300 57.1 37.5 53.6 52.6 19.6 22.6 51.3 34.9 55.4 54.2 11.8 9.3 44.7 32.3 57.3 56.0 7.4 4.1 41.1 30.9 58.3 57.0 5.9 2.8 1000 51.8 33.0 49.8 49.4 15.1 19.0 46.8 30.8 51.8 51.4 9.0 7.8 40.9 28.3 54.1 53.7 5.7 3.5 37.6 27.0 55.3 54.9 4.5 2.3
8 1150 58.2 37.3 50.4 49.9 17.3 24.2 52.6 34.8 52.3 51.9 10.4 10.0 46.0 32.1 54.5 54.0 6.5 4.4 42.3 30.6 55.7 55.2 5.2 3.0
1300 64.2 41.4 50.9 50.4 19.6 29.9 58.1 38.7 52.8 52.2 11.8 12.3 50.9 35.7 54.9 54.3 7.4 5.4 46.8 34.1 56.0 55.5 5.9 3.7 1200 46.1 30.6 56.7 54.6 18.1 9.9 41.3 28.5 58.3 56.0 10.9 4.0 35.4 26.2 60.0 57.8 6.8 1.8 32.7 25.1 60.9 58.5 5.4 1.2
4 1400 51.5 34.4 57.5 55.2 21.1 12.9 46.0 32.2 59.0 56.6 12.7 5.3 32.9 29.6 60.7 58.1 7.9 2.3 36.8 28.4 61.4 58.8 6.3 1.6
1600 56.5 38.0 58.3 55.7 24.1 16.3 50.9 35.7 59.6 57.0 14.5 6.7 44.1 32.9 61.2 58.4 9.1 2.9 40.5 31.6 61.9 59.2 7.2 2.0 1200 55.9 36.3 52.4 51.5 18.1 14.6 50.1 33.7 54.3 53.4 10.9 6.0 43.4 31.1 56.3 55.4 6.8 2.6 40.1 29.7 57.4 56.4 5.4 1.8
30 6 1400 63.0 41.2 53.1 52.1 21.1 19.0 56.4 38.4 54.9 53.9 12.7 7.8 49.2 35.4 56.9 55.8 7.9 3.4 45.3 33.9 57.9 56.7 6.3 2.3
1600 70.0 45.8 53.8 52.6 24.1 24.0 62.6 42.8 55.5 54.3 14.5 9.8 54.5 39.5 57.4 56.2 9.1 4.3 50.6 37.9 58.3 57.0 7.2 2.9 1200 62.2 39.6 49.8 49.4 18.1 19.2 56.7 37.0 51.8 51.4 10.9 7.9 49.0 34.0 54.1 53.7 6.8 3.5 45.2 32.4 55.3 54.9 5.4 2.4
8 1400 70.7 45.3 50.4 50.0 21.1 25.1 63.8 42.3 52.4 51.9 12.7 10.3 55.8 39.0 54.6 54.1 7.9 4.6 51.5 37.1 55.7 55.2 6.3 3.1
1600 78.9 50.8 51.0 50.5 24.1 31.7 71.3 47.5 52.9 52.3 14.5 13.0 62.1 43.7 55.0 54.4 9.1 5.7 57.4 41.8 56.1 55.5 7.2 3.9
MSCF
Chilled Water
MBh - Million British Thermal Units Per Hour SC - Sensible Capacity (MBh) LAT - Leaving Air Temperature (°F) - Do not operate at over 105 °F. LWT - Leaving Water Temperature (°F)
WPD - Water Pressure Drop GPM - Gallons per Minute
Dimensional Data
6.5 J
2
1.5
3.75
A
K
B
C
13.25
18.5
1
3
.75
3.88
4, 6 or 8 Row
Cooling Capacities based on 80°F DB, 67°F WB, and 45°F EWT.
Size Face A B C
JK
4 6 8 4&6 8
15 1.6 38 24.5 11.0 10 12 14 0.75 1.38 20 2.2 38 24.5 14.0 10 12 14 0.75 1.38 25 2.7 38 24.5 16.0 10 12 14 0.88 1.38 30 3.2 38 24.5 18.5 10 12 14 0.88 1.38 45 4.5 50 24.5 18.5 10 12 14 0.88 1.38 50 5.2 50 24.5 21.0 10 12 14 1.38 1.63 65 6.7 50 24.5 26.0 10 12 14 1.38 1.63 85 8.6 62 24.5 26.0 10 12 14 1.38 1.63
Performance Data
All dimensions are in inches.
COIL Data
21
MSCF
Chilled Water
MBh - Million British Thermal Units Per Hour SC - Sensible Capacity (MBh) LAT - Leaving Air Temperature (°F) - Do not operate at over 105 °F. LWT - Leaving Water Temperature (°F)
WPD - Water Pressure Drop GPM - Gallons per Minute
Cooling Capacities based on 80°F DB, 67°F WB, and 45°F EWT.
4, 6 or 8 Row
Performance Data
Coil Rows
Unit Size
6º F 10º F 16º F 20º F
CFM TC SC LDB LWB GPM WPD TC SC LDB LWB GPM WPD TC SC LDB LWB GPM WPD TC SC LDB LWB GPM WPD
1650 65.1 42.9 56.2 54.2 24.9 20.9 59.0 40.2 57.7 55.6 14.9 8.6 51.2 37.0 59.5 57.2 9.3 3.8 47.3 35.5 60.4 58.0 7.5 2.6
4 1950 73.5 48.6 57.2 54.9 29.4 27.9 61.5 45.7 58.6 56.2 17.6 11.4 58.1 42.3 60.2 57.7 11.0 5.0 53.8 40.6 60.9 58.4 8.8 3.4
2250 81.5 54.2 58.0 55.4 33.9 35.9 74.0 51.1 59.2 56.6 20.4 14.7 64.6 47.2 60.8 58.0 12.7 6.5 59.9 45.5 61.5 58.7 10.2 4.4 1650 78.6 50.6 52.0 51.1 24.9 30.8 70.8 47.3 53.8 52.9 14.9 12.7 62.1 43.7 55.8 54.9 9.3 5.6 57.2 41.7 56.9 55.9 7.5 3.8
45 6 1950 89.7 58.1 52.8 51.8 29.4 41.2 81.4 54.5 54.4 53.4 17.6 16.9 71.1 50.3 56.4 55.3 11.0 7.5 65.5 48.1 57.4 56.3 8.8 5.1
2250 100.0 65.3 53.5 52.3 33.9 52.8 90.7 61.3 55.1 53.9 20.4 21.7 79.4 56.6 57.0 55.7 12.7 9.6 73.6 54.2 58.0 56.6 10.2 6.5 1650 87.1 55.2 49.4 49.1 24.9 40.7 79.3 51.8 51.3 50.9 14.9 16.7 69.6 47.7 53.6 53.2 9.3 7.4 64.1 45.5 54.8 54.4 7.5 5.0
8 1950 100.0 63.8 50.1 49.7 29.4 54.4 91.0 59.8 51.9 51.5 17.6 22.4 80.0 55.2 54.1 53.6 11.0 9.9 74.0 52.7 55.3 54.8 8.8 6.7
2250 112.4 72.1 50.7 50.2 33.9 69.7 102.2 67.7 52.5 52.0 20.4 28.6 90.0 62.4 54.6 54.0 12.7 12.6 83.4 59.8 55.7 55.1 10.2 8.6 1800 72.6 47.5 55.9 53.9 27.1 19.0 65.5 44.5 57.4 55.4 16.3 7.8 56.4 40.9 59.2 57.1 10.2 3.4 52.5 39.3 60.1 57.9 8.2 2.3
4 2200 83.9 55.4 57.0 54.7 33.1 27.0 75.7 52.1 58.4 56.0 19.9 11.0 65.9 48.0 60.1 57.6 12.5 4.8 61.0 46.1 60.8 58.4 10.0 3.3
2600 94.2 62.7 58.0 55.4 39.2 36.1 85.5 59.1 59.2 56.6 23.5 14.8 75.0 54.8 60.7 58.0 14.7 6.5 69.2 52.6 61.5 58.7 11.8 4.4 1800 87.0 55.9 51.6 50.8 27.1 27.8 78.5 52.2 53.5 52.7 16.3 11.4 68.6 48.1 55.6 54.7 10.2 5.0 63.2 45.9 56.7 55.8 8.2 3.4
50 6 2200 101.8 65.9 52.6 51.6 33.1 39.5 92.5 62.0 54.3 53.3 19.9 16.2 80.6 57.0 56.3 55.2 12.5 7.1 74.3 54.6 57.3 56.3 10.0 4.8
2600 116.0 75.5 53.4 52.3 39.2 52.8 105.2 71.0 55.0 53.8 23.5 21.6 91.7 65.6 56.9 55.7 14.2 9.5 85.4 62.9 57.9 56.6 11.8 6.5 1800 95.9 60.8 49.1 48.9 27.1 36.7 87.5 56.9 51.1 50.7 16.3 15.1 76.7 52.4 53.4 53.0 10.2 6.6 70.9 50.0 54.6 54.2 8.2 4.5
8 2200 113.5 72.3 49.9 49.6 33.1 52.0 103.3 67.9 51.8 51.4 19.9 21.3 90.5 62.5 54.0 53.6 12.5 9.4 83.8 59.7 55.2 54.7 10.0 6.4
2600 130.3 83.3 50.7 50.1 39.2 69.4 118.5 78.3 52.5 51.9 23.5 28.5 104.0 72.3 54.6 54.0 14.7 12.5 96.3 69.1 55.7 55.1 11.8 8.5 2575 100.9 66.3 56.5 54.3 38.8 24.1 90.9 62.2 57.9 55.7 23.3 9.8 79.1 57.2 59.7 57.2 14.6 4.3 73.0 55.0 60.5 58.1 11.7 2.9
4 2925 110.3 72.9 57.2 54.9 44.1 30.2 99.8 68.6 58.6 56.2 26.5 12.3 87.1 63.4 60.2 57.7 60.6 5.4 80.6 61.0 60.9 58.4 13.2 3.6
3275 119.6 79.5 57.8 55.3 49.3 36.8 108.7 74.7 59.1 56.5 29.6 14.9 94.5 69.2 60.7 58.0 18.5 6.5 87.7 66.7 61.4 58.7 14.8 4.4 2575 121.6 78.6 52.1 51.3 38.8 34.7 109.7 73.4 53.9 53.0 23.3 14.2 96.2 67.6 56.0 55.0 14.6 6.2 88.9 64.8 57.0 56.0 11.7 4.2
65 6 2925 134.5 87.1 52.8 51.8 44.1 43.4 122.1 81.8 54.4 53.4 26.5 17.7 106.7 75.4 56.4 55.3 16.6 7.8 98.3 72.2 57.4 56.3 13.2 5.3
3275 146.5 95.5 53.2 52.2 49.3 52.9 133.0 89.8 54.9 53.8 29.6 21.6 116.5 83.0 56.8 55.6 18.5 9.5 107.6 79.5 57.8 56.6 14.8 6.4 2575 134.8 85.7 49.6 49.2 38.8 45.3 122.7 80.4 51.4 51.1 23.3 18.6 107.8 74.0 53.7 53.3 14.6 8.2 99.6 70.7 54.9 54.5 11.7 5.5
8 2925 150.1 95.7 50.1 49.7 44.1 56.6 136.5 89.7 51.9 51.5 26.5 23.2 120.0 82.8 54.1 53.6 16.6 10.2 111.0 79.1 55.3 54.8 13.2 6.9
3275 164.5 105.3 50.6 50.1 49.3 68.9 149.7 98.9 52.4 51.9 29.6 28.2 131.5 91.4 54.5 54.0 18.5 12.4 121.4 87.4 55.6 55.1 14.8 8.4 3000 122.3 79.7 55.7 53.7 45.2 36.1 111.3 75.1 57.1 55.1 27.1 14.7 96.8 69.1 59.0 56.8 17.0 6.4 89.3 66.2 59.8 57.7 13.6 4.4
4 3600 140.0 91.7 56.7 54.4 54.2 49.8 127.1 86.4 58.0 55.7 32.6 20.3 111.2 79.9 59.7 57.3 20.4 8.9 103.2 76.7 60.5 58.0 16.3 6.0
4250 157.1 103.7 57.7 55.1 64.0 66.6 143.7 98.1 58.9 56.3 38.4 27.1 125.9 90.9 60.4 57.7 24.0 11.9 117.2 87.5 61.2 58.4 19.2 8.0 3000 146.2 93.7 51.4 50.7 45.2 52.2 133.8 88.2 53.1 52.3 27.1 21.3 116.5 81.0 55.3 54.4 17.0 9.4 107.6 77.5 56.4 55.5 13.6 6.3
85 6 3600 169.1 108.9 52.3 51.4 54.2 71.8 154.4 102.6 53.9 52.9 32.6 29.3 135.1 94.5 56.0 54.9 20.4 12.9 124.8 90.7 57.0 55.9 16.3 8.7
4250 191.9 124.7 53.2 52.1 64.0 95.9 175.6 117.5 54.7 53.5 38.4 39.2 153.8108.6 56.6 55.4 24.0 17.2 142.8104.1 57.6 56.3 19.2 11.6 3000 161.0 101.8 49.0 48.7 45.2 68.3 147.4 95.6 50.9 50.5 27.1 28.0 129.9 88.1 53.1 52.8 17.0 12.3 120.0 84.1 54.4 54.0 13.6 8.3
8 3600 187.6 119.2 49.7 49.3 54.2 93.8 171.5 112.1 51.5 51.1 32.6 38.4 151.3103.4 53.7 53.3 20.4 16.9 139.8 98.9 54.9 54.4 16.3 11.4
4250 215.2 137.5 50.4 49.9 64.0 125.2 196.6 129.4 52.2 51.6 38.4 51.2 173.7119.5 54.3 53.7 24.0 22.5 160.6114.2 55.4 54.8 19.2 15.2
Dimensional Data
6.5 J
2
1.5
3.75
A
K
B
C
13.25
18.5
1
3
.75
3.88
Size Face A B C
JK
4 6 8 4&6 8
15 1.6 38 24.5 11.0 10 12 14 0.75 1.38 20 2.2 38 24.5 14.0 10 12 14 0.75 1.38 25 2.7 38 24.5 16.0 10 12 14 0.88 1.38 30 3.2 38 24.5 18.5 10 12 14 0.88 1.38 45 4.5 50 24.5 18.5 10 12 14 0.88 1.38 50 5.2 50 24.5 21.0 10 12 14 1.38 1.63 65 6.7 50 24.5 26.0 10 12 14 1.38 1.63 85 8.6 62 24.5 26.0 10 12 14 1.38 1.63
All dimensions are in inches.
COIL Data
22
MSCF
Direct Expansion (DX)
MBh - Million British Thermal Units Per Hour SC - Sensible Capacity (MBh) LDB - Leaving Dry Bulb (°F) - Do not operate at over 105 °F.
LWB - Leaving Wet Bulb (°F) RPD - Refrigerant Pressure Drop (R-22)
13.25
18.5
1
A
6.5 L
N
P
2*
* Indicates diameter of hole in panel
3.75
3.88
M
B
C
4, 6 or 8 Row
Unit Face
ABC
LMNP
Size Area 4 6 8 All All 4 & 6 8
15 1.6 38 24.5 11.0 8.75 10.75 12.75 5.25 0.63 0.63 1.38 20 2.2 38 24.5 14.0 8.75 10.75 12.75 7.00 0.63 0.63 1.38 25 2.7 38 24.5 16.0 8.75 10.75 12.75 8.00 0.88 1.38 1.38 30 3.2 38 24.5 18.5 8.75 10.75 12.75 9.00 0.88 1.38 1.38 45 4.5 50 24.5 18.5 8.75 10.75 12.75 9.00 0.88 1.38 1.38 50 5.2 50 24.5 21.0 8.75 10.75 12.75 10.25 0.88 1.38 1.63 65 6.7 50 24.5 26.0 8.75 10.75 12.75 13.00 1.13 1.38 1.63 85 8.6 62 24.5 26.0 8.75 10.75 12.75 13.00 1.13 1.38 1.63
Dimensional Data
Performance Data
3
2
1.5
All dimensions are in inches.
Cooling Capacities based on Refrigerant R-22.
COIL Data
40º F Suction Temp. 45º F Suction Temp. 50º F Suction Temp.
CFM TC SC LDB LWB RPD TC SC LDB LWB RPD TC SC LDB LWB RPD
400 18.1 11.7 52.9 52.2 0.4 13.9 10.0 56.8 56.1 0.2 9.9 8.5 60.3 59.5 0.1
4 600 23.6 15.7 55.7 54.4 0.6 17.9 13.5 59.1 57.8 0.3 12.8 11.7 62.0 60.6 0.1
800 27.9 19.2 57.8 56.0 0.8 21.1 16.6 60.8 59.0 0.4 15.2 14.5 63.2 61.4 0.2 400 23.1 14.2 47.1 47.1 0.9 18.6 12.2 51.7 51.7 0.5 13.7 10.2 56.3 56.3 0.3
15 6 600 31.3 19.6 49.7 49.5 1.6 25.0 17.0 53.8 53.5 0.9 18.5 14.4 57.8 57.5 0.5
800 38.0 24.4 51.8 51.3 2.4 30.3 21.2 55.5 55.0 1.4 22.3 18.1 59.0 58.4 0.7 400 25.4 15.4 44.3 44.3 1.4 21.0 13.3 49.1 49.1 0.9 16.1 11.3 53.9 53.9 0.5
8 600 35.1 21.6 46.7 46.7 2.7 28.9 18.8 50.9 50.9 1.7 22.1 16.0 55.3 55.3 0.9
800 43.2 27.0 48.7 48.7 4.1 35.6 23.8 52.5 52.5 2.5 27.2 20.4 56.4 56.3 1.3 700 31.7 20.2 53.2 55.2 5.0 25.8 17.8 56.4 55.3 3.0 19.6 15.5 59.5 58.4 1.5
4 900 36.6 23.9 55.4 53.9 6.6 30.1 21.4 58.0 56.6 4.0 22.8 18.6 60.8 59.3 2.1
1100 40.4 27.1 57.2 55.4 8.1 33.5 24.5 59.4 57.6 5.0 25.4 21.5 61.9 60.1 2.6
700 37.8 23.6 48.8 48.7 1.3 30.4 20.4 53.1 52.9 0.8 24.2 17.9 56.4 56.1 3.5
20 6 900 45.3 28.7 50.5 50.2 1.9 36.2 24.8 54.5 54.1 1.1 28.1 21.7 57.7 57.3 4.8
1100 51.7 33.2 52.0 51.5 2.5 41.3 28.9 55.6 55.1 1.4 31.3 25.1 58.9 58.3 5.9
700 42.0 25.7 46.0 46.0 2.2 34.8 22.5 50.3 50.3 1.4 26.7 19.1 54.8 54.8 0.7
8 900 51.1 31.6 47.5 47.5 3.2 42.0 27.6 51.6 51.6 2.0 32.2 23.6 55.7 55.7 1.0
1100 58.8 36.9 49.0 48.9 4.3 48.5 32.4 52.7 52.6 6.6 36.8 27.7 56.7 56.5 1.4 1000 39.3 26.2 55.7 54.4 0.6 49.8 22.6 59.1 57.8 0.3 21.3 19.5 62.0 60.6 0.1
4 1150 42.7 28.9 56.7 55.2 0.7 32.3 25.0 59.9 58.4 0.4 23.2 21.7 62.6 61.0 0.2
1300 45.9 31.5 57.6 55.9 0.8 34.6 27.3 60.6 58.9 0.4 24.9 23.8 63.1 61.3 0.2 1000 52.1 32.7 49.7 49.5 1.6 41.7 28.3 53.8 53.2 0.9 30.8 24.0 57.8 57.5 0.5
25 6 1150 57.4 36.4 50.7 50.3 2.0 45.9 31.6 54.6 54.2 1.1 35.7 28.7 58.7 58.3 0.6
1300 62.3 39.9 51.6 51.1 2.3 49.8 34.6 55.3 54.8 1.3 36.6 29.6 58.9 58.4 0.6 1000 58.5 36.0 46.7 46.7 2.7 48.2 31.4 50.9 50.9 1.7 36.9 26.7 55.3 55.3 0.9
8 1150 64.9 40.2 47.6 47.6 3.4 53.4 35.2 51.7 51.7 2.0 40.9 30.1 55.8 55.8 1.1
1300 70.8 44.2 48.5 48.5 4.0 58.3 38.8 52.4 52.3 2.4 44.5 33.3 56.3 56.2 1.3 1200 51.4 33.2 54.4 53.1 5.8 42.1 29.5 57.3 56.0 3.5 31.9 25.6 60.2 58.9 1.8
4 1400 55.9 36.7 55.7 54.2 6.9 46.1 32.9 58.3 56.7 4.2 34.8 28.7 61.0 59.5 2.2
1600 59.6 39.9 56.9 55.2 7.9 49.4 36.0 59.2 57.4 4.8 37.4 31.6 61.7 60.0 2.5 1200 62.5 39.3 49.7 49.5 1.6 50.1 34.0 53.8 53.5 0.9 39.4 29.7 57.1 56.8 4.2
30 6 1400 69.6 44.2 50.8 50.4 2.0 53.6 38.3 54.7 54.3 1.1 42.8 33.3 58.0 57.5 4.9
1600 76.1 48.8 51.8 51.3 2.4 60.6 42.4 55.5 55.0 1.4 46.3 36.8 58.7 58.1 5.8 1200 70.2 43.2 46.7 46.7 2.7 57.9 37.7 50.9 50.9 1.7 44.3 32.1 55.3 55.3 0.9
8 1400 78.7 48.8 47.7 47.7 3.4 64.8 42.7 51.8 51.8 2.1 49.5 36.5 55.9 55.8 1.1
1600 86.4 54.1 48.7 48.7 4.1 71.2 47.5 52.5 52.5 2.5 54.4 40.7 56.4 56.3 1.3
Coil Rows
Unit Size
23
MSCF
Direct Expansion (DX)
MBh - Million British Thermal Units Per Hour SC - Sensible Capacity (MBh) LDB - Leaving Dry Bulb (°F) - Do not operate at over 105 °F.
LWB - Leaving Wet Bulb (°F) RPD - Refrigerant Pressure Drop (R-22)
2*
* Indicates diameter of hole in panel
4, 6 or 8 Row
Unit Face
ABC
LMNP
Size Area 4 6 8 All All 4 & 6 8
15 1.6 38 24.5 11.0 8.75 10.75 12.75 5.25 0.63 0.63 1.38 20 2.2 38 24.5 14.0 8.75 10.75 12.75 7.00 0.63 0.63 1.38 25 2.7 38 24.5 16.0 8.75 10.75 12.75 8.00 0.88 1.38 1.38 30 3.2 38 24.5 18.5 8.75 10.75 12.75 9.00 0.88 1.38 1.38 45 4.5 50 24.5 18.5 8.75 10.75 12.75 9.00 0.88 1.38 1.38 50 5.2 50 24.5 21.0 8.75 10.75 12.75 10.25 0.88 1.38 1.63 65 6.7 50 24.5 26.0 8.75 10.75 12.75 13.00 1.13 1.38 1.63 85 8.6 62 24.5 26.0 8.75 10.75 12.75 13.00 1.13 1.38 1.63
Performance Data
40º F Suction Temp. 45º F Suction Temp. 50º F Suction Temp.
CFM TC SC LDB LWB RPD TC SC LDB LWB RPD TC SC LDB LWB RPD
1650 70.6 45.7 54.4 53.1 1.7 55.9 39.8 57.7 56.4 7.8 44.7 35.6 60.0 58.7 4.5
4 1950 78.4 51.4 55.6 54.1 2.1 61.4 44.7 58.8 57.2 1.2 48.4 39.9 61.1 59.5 5.3
2250 84.9 56.5 56.8 55.0 2.5 66.7 49.5 59.7 57.9 1.4 51.7 44.0 61.9 60.1 6.0 1650 87.2 54.5 49.4 49.2 4.0 71.9 48.0 53.1 52.8 2.4 54.2 40.9 57.1 56.8 1.2
45 6 1950 97.2 61.6 50.8 50.4 4.9 80.4 54.5 54.1 53.7 3.0 61.5 47.1 57.6 57.2 1.6
2250 106.4 68.2 51.9 51.4 5.9 87.9 60.6 55.1 54.5 3.6 67.0 52.5 58.4 57.8 1.9 1650 94.6 58.5 47.2 47.2 0.8 79.1 51.6 51.1 51.1 3.9 62.5 47.7 54.9 54.9 2.2
8 1950 107.6 67.1 48.2 48.2 1.0 88.8 58.8 52.1 52.1 4.9 70.2 51.3 55.7 55.6 2.8
2250 119.6 75.2 49.1 49.0 1.2 97.2 65.5 53.0 53.0 5.9 77.1 57.5 56.4 56.2 3.3 1800 79.0 50.8 53.9 52.7 1.6 62.3 44.1 57.3 56.1 0.9 45.0 37.7 60.6 59.4 0.4
4 2200 89.3 58.4 55.4 53.9 2.0 70.3 51.0 58.6 57.1 1.1 50.8 43.8 61.6 60.0 0.5
2600 98.6 65.5 56.7 54.9 2.5 77.4 57.3 59.6 57.8 1.4 56.0 49.6 62.4 60.6 0.6 1800 97.2 60.5 48.9 48.7 3.6 80.1 53.1 52.7 52.5 2.2 61.0 45.5 56.6 56.4 1.2
50 6 2200 111.1 70.2 50.5 50.1 4.7 91.7 62.0 53.9 53.5 2.9 70.1 53.4 57.5 57.1 1.5
2600 123.4 79.1 51.8 51.3 5.8 101.9 70.2 55.0 54.5 3.6 77.7 60.8 58.4 57.8 1.9 1800 104.7 64.6 46.8 46.8 0.7 88.0 57.1 50.7 50.7 3.6 69.4 49.3 54.6 54.6 2.0
8 2200 122.3 76.2 48.0 48.0 1.0 101.3 66.9 51.8 51.8 4.7 80.0 58.2 55.5 55.5 2.7
2600 138.5 87.1 49.0 49.0 1.2 112.7 75.9 53.0 52.9 5.9 89.4 66.6 56.3 56.2 3.3 2575 108.1 70.3 54.7 53.4 1.8 85.4 61.2 58.0 56.6 1.0 61.8 52.5 61.1 59.8 0.5
4 2925 117.7 77.1 55.6 54.1 2.1 92.1 67.1 58.8 57.2 1.2 66.6 57.7 61.7 60.2 0.6
3275 125.3 83.1 56.5 54.8 2.4 98.2 72.6 59.5 57.7 1.3 71.1 62.7 62.3 60.5 0.6 2575 134.3 84.3 49.7 49.4 4.2 110.8 74.2 53.3 53.0 2.6 83.9 63.5 57.2 56.8 1.3
65 6 2925 145.9 92.4 50.8 50.4 4.9 120.5 81.7 54.1 53.7 3.0 92.3 70.6 57.6 57.2 1.6
3275 156.4 100.1 51.7 51.2 5.7 129.4 88.9 54.9 54.4 3.5 98.6 77.0 58.2 57.7 1.8 2575 146.3 90.7 47.4 47.4 0.8 122.0 79.9 51.3 51.3 4.2 96.4 69.3 55.1 55.1 2.3
8 2925 161.3 100.6 48.2 48.2 1.0 133.2 88.2 52.1 52.1 4.9 105.2 76.9 55.7 55.6 2.8
3275 175.5 110.1 48.9 48.9 1.2 143.1 96.1 52.8 52.8 5.7 113.4 84.2 56.2 56.1 3.2 3000 134.1 85.7 53.6 52.4 3.3 108.5 75.3 56.8 55.6 2.0 80.4 64.6 60.1 58.8 1.0
4 3600 149.5 97.0 55.1 53.6 4.2 121.0 85.7 58.0 56.5 2.4 89.6 74.0 61.0 59.5 1.2
4250 163.5 108.1 56.5 54.7 5.0 132.7 96.1 59.1 57.3 2.9 98.4 83.5 61.8 60.0 1.5 3000 156.8 98.5 49.6 49.4 0.9 131.6 87.7 52.9 52.7 4.4 103.2 76.3 56.5 56.2 2.4
85 6 3600 178.6 113.5 50.8 50.5 1.1 147.6 100.4 54.2 53.8 5.5 116.0 87.9 57.4 57.0 3.0
4250 199.9 128.6 52.0 51.5 1.4 162.2 113.1 55.4 54.8 6.6 127.9 99.8 58.3 57.7 3.7 3000 178.5 109.5 46.2 46.2 1.5 145.8 94.7 50.8 50.8 0.9 112.8 81.0 55.0 55.0 3.9
8 3600 205.7 127.1 47.3 47.3 2.0 167.5 110.2 51.7 51.7 1.2 126.8 93.6 55.9 55.9 4.9
4250 232.3 144.9 48.4 48.4 2.5 189.1 126.1 52.5 52.5 1.5 142.3 107.3 56.6 56.5 0.8
Coil Rows
Unit Size
13.25
18.5
1
A
6.5 L
N
P
3.75
3.88
M
B
C
Dimensional Data
3
2
1.5
All dimensions are in inches.
Cooling Capacities based on Refrigerant R-22.
COIL Data
24
MSCF
Size Vertical Qty Face Sloped Qty Face
12x12 1
15 9x18 2 1.8
12x24 1
2.5
12x12 1 16x16 1
20
12x24 1
2.5 16x20 1
3.4
25 14x18 2 3.0 16x20 2 3.8
16x16 1 12x24 1
30
16x20 1
3.4 24x24 1
5.3
45 16x24 2 4.8 24x24 2 7.2 50 18x24 2 5.4 24x24 2 7.2 65 24x24 2 7.2 24x24 4 14.4
12x24 1 12x24 2
85
24x24 2
8.9 24x24 4
17.8
Filter Module Dimensional
Filters Dimensional
A
B
C
A
B
C
In recent years building owner and contractors are have been challenged with designing HVAC systems which provide better indoor air quality (IAQ). A new standard known as ASHRAE 52.2 (Method of Testing General Ventilation Air Cleaning Devices for Removal Efficiency by Particle Size) is offering a significant step forward in filter and IAQ testing. This new standard complements the old standard, it does not replace them, and has established a new controlled method of laboratory testing, which provides us with at Minimum Efficiency Reporting Value (MERV). It is to this standard to which Greenheck filters are tested.
Aluminum filter - Seven layer aluminum mesh 2 inch Pleated filter - MERV-8 (30%) - controls mold spores 2 and 4 inch Box filter - MERV-11 (60%) - controls lead dust, milled flour 2 and 4 inch
Size A
B
C
Weight
Vert. Sloped Vert. Sloped 15 38 12.75 24.5 11.0 33 54 20 38 12.75 24.5 14.0 38 64 25 38 12.75 27.0 16.0 45 75 30 38 12.75 31.0 18.5 52 86 45 50 12.75 32.0 18.5 60 99 50 50 12.75 32.0 21.0 68 114 65 50 12.75 38.0 26.0 79 131 85 62 12.75 38.0 26.0 91 151
All dimensions are in inches.
All dimensions are in inches.
FILTER Data
25
MSCF
Pleated Pleated
Filter Alum.
30% 65%
Filter Alum.
30% 65%
Size CFM
Velocity 2 in.
2 in. 4 in. 2 in. 4 in.
Velocity 2 in.
2 in. 4 in. 2 in. 4 in. 300 167 0.056 0.068 0.065 0.088 0.085 120 0.033 0.040 0.039 0.052 0.050 400 222 0.100 0.121 0.116 0.157 0.151 160 0.059 0.071 0.069 0.093 0.090
15
500 278 0.157 0.188 0.182 0.245 0.236 200 0.093 0.112 0.108 0.145 0.140 600 333 0.226 0.271 0.262 0.353 0.340 240 0.134 0.161 0.155 0.209 0.201 700 389 0.307 0.369 0.356 0.480 0.463 280 0.182 0.219 0.211 0.284 0.274 800 444 0.401 0.482 0.465 0.627 0.604 320 0.238 0.286 0.275 0.371 0.358 600 240 0.117 0.141 0.136 0.183 0.176 176 0.072 0.087 0.084 0.113 0.109 700 280 0.159 0.191 0.185 0.249 0.240 206 0.098 0.118 0.114 0.154 0.148
20
800 320 0.208 0.250 0.241 0.325 0.313 235 0.128 0.154 0.149 0.201 0.194 900 360 0.263 0.316 0.305 0.411 0.397 265 0.163 0.195 0.188 0.254 0.245
1000 400 0.325 0.391 0.377 0.508 0.490 294 0.201 0.241 0.233 0.314 0.303 1100 440 0.393 0.473 0.456 0.614 0.592 324 0.243 0.292 0.282 0.380 0.366
900 300 0.183 0.220 0.212 0.286 0.275 237 0.130 0.157 0.151 0.203 0.196 990 330 0.221 0.266 0.256 0.346 0.333 261 0.157 0.189 0.183 0.246 0.237
25
1080 360 0.263 0.316 0.305 0.411 0.397 284 0.187 0.225 0.217 0.293 0.282 1170 390 0.309 0.371 0.358 0.483 0.465 308 0.220 0.264 0.255 0.344 0.332 1260 420 0.358 0.431 0.415 0.560 0.540 332 0.255 0.307 0.296 0.399 0.384 1350 450 0.411 0.494 0.477 0.643 0.620 355 0.293 0.352 0.340 0.458 0.441 1200 353 0.253 0.304 0.293 0.395 0.381 226 0.119 0.143 0.138 0.186 0.179 1280 376 0.288 0.346 0.334 0.450 0.434 242 0.135 0.163 0.157 0.212 0.204
30
1360 400 0.325 0.391 0.377 0.508 0.490 257 0.153 0.184 0.177 0.239 0.230 1440 424 0.364 0.438 0.422 0.569 0.549 272 0.171 0.206 0.199 0.268 0.258 1520 447 0.406 0.488 0.470 0.634 0.612 287 0.191 0.229 0.221 0.298 0.288 1600 471 0.450 0.541 0.521 0.703 0.678 302 0.211 0.254 0.245 0.331 0.319 1500 313 0.198 0.238 0.230 0.310 0.299 208 0.101 0.121 0.117 0.157 0.152 1650 344 0.240 0.288 0.278 0.375 0.362 229 0.122 0.147 0.141 0.190 0.184
45
1800 375 0.285 0.343 0.331 0.446 0.430 250 0.145 0.174 0.168 0.227 0.219 1950 406 0.335 0.403 0.388 0.524 0.505 271 0.170 0.205 0.197 0.266 0.257 2100 438 0.389 0.467 0.451 0.607 0.586 292 0.197 0.237 0.229 0.309 0.297 2250 469 0.446 0.536 0.517 0.697 0.672 313 0.227 0.272 0.263 0.354 0.342 1800 333 0.226 0.271 0.262 0.353 0.340 250 0.145 0.174 0.168 0.227 0.219 1960 363 0.267 0.322 0.310 0.418 0.403 272 0.172 0.207 0.199 0.269 0.259
50
2120 393 0.313 0.376 0.363 0.489 0.472 294 0.201 0.242 0.233 0.314 0.303 2280 422 0.362 0.435 0.420 0.566 0.545 317 0.233 0.280 0.270 0.364 0.351 2440 452 0.414 0.498 0.481 0.648 0.625 339 0.266 0.320 0.309 0.417 0.402 2600 481 0.471 0.566 0.546 0.736 0.709 361 0.303 0.364 0.351 0.473 0.456 2400 333 0.193 0.310 0.299 0.403 0.389 167 0.064 0.078 0.075 0.101 0.097 2590 360 0.225 0.361 0.348 0.469 0.453 180 0.075 0.090 0.087 0.117 0.113
65
2780 386 0.259 0.416 0.401 0.541 0.521 193 0.086 0.104 0.100 0.135 0.130 2970 413 0.296 0.475 0.458 0.617 0.595 206 0.099 0.119 0.114 0.154 0.149 3160 439 0.335 0.537 0.518 0.699 0.674 219 0.112 0.134 0.130 0.175 0.168 3350 465 0.377 0.604 0.582 0.785 0.757 233 0.126 0.151 0.146 0.196 0.189 3000 337 0.198 0.317 0.306 0.412 0.397 169 0.066 0.079 0.076 0.103 0.099 3260 366 0.233 0.374 0.361 0.487 0.469 183 0.078 0.094 0.090 0.122 0.117
85
3520 396 0.272 0.436 0.421 0.567 0.547 198 0.091 0.109 0.105 0.142 0.137 3780 425 0.314 0.503 0.485 0.654 0.631 212 0.105 0.126 0.121 0.164 0.158 4040 454 0.359 0.575 0.554 0.747 0.721 227 0.120 0.144 0.139 0.187 0.180 4300 483 0.406 0.651 0.628 0.847 0.816 242 0.135 0.163 0.157 0.212 0.204
Max Velocity Limits 2 in. Aluminum - 650 fpm 2 in. Pleated - 500 fpm 4 in. Pleated - 625 fpm
FILTER Data
Vertical Filters
Sloped Filters
26
Mixing Box Dimensional
The 20 is a general purpose damper intended for applications in low to medium pressure and velocity systems under circumstances where low leakage performance is not necessary. This dampers has 3-V style blades for applications as an automatic control or manual balancing damper.
Blades: 16 gauge galvanized steel, reinforced with 3 longitudinal structurally designed vee's.
Linkage: Side linkage out of airstream (concealed in frame) Seals: None
The low leakage control damper intended for applications in low to medium pressure and velocity systems. This damper has 3-V style blades for applications as an automatic control or manual balancing damper.
Blades: 16 gauge galvanized steel, reinforced with 3 longitudinal structurally designed vee's.
Linkage: Side linkage out of airstream (concealed in frame) Seals: Extruded vinyl blade seals flexible metal compression type jamb seals
The Airfoil is designed to meet the highest standards established for commercial control dampers. It is an extremely low leakage damper intended for application in medium to high pressure and velocity systems. May be used for applications as an automatic control or balancing damper.
Blades: 16 gauge galvanized steel, reinforced with 3 longitudinal structurally designed vee's.
Linkage: Side linkage out of airstream (concealed in frame) Seals: Extruded silicone rubber blade seals. Flexible metal compression type jamb seals
3-V Blade
Airfoil Blade
3
5
/
8
1
A
B
C
2
1
/
2
D
E
2
1
/
2
MSCF
Size A
B
CDE
Weight
Vert. Sloped Vert. Sloped 15 38 12.75 24.5 11.0 6.0 33 33 54 20 38 12.75 24.5 14.0 9.0 33 38 64 25 38 12.75 27.0 16.0 11.0 33 45 75 30 38 12.75 31.0 18.5 13.5 33 52 86 45 50 12.75 32.0 18.5 13.5 45 60 99 50 50 12.75 32.0 21.0 16.0 45 68 114 65 50 12.75 38.0 26.0 21.0 45 79 131 85 62 12.75 38.0 26.0 21.0 57 91 151
All dimensions are in inches.
MIXING BOX Data
27
Damper Pressure Drop
Damper Pressure Drop
Pressure Limitations
Velocity Limitations
Velocity Limitations
Pressure Limitations
MSCF
MIXING BOX Data
74
60
48
36
Damper Height (in.)
24
12
15.0
10.0
3000
fpm
2500
fpm
2000
fpm
9.0
8.0
7.0
6.0
5.0
4.0
3.0
0
0 1224364
Damper Width (in.)
5.0 in. wg
5
4.0 in. wg
4
3
2.5 in. wg
2
Pressure (in. wg)
1
0
Damper Width (in.)
74
60
48
3500 fpm
3000
fpm
4000
fpm
36
Damper Height (in.)
24
12
0
0 12243648
Damper Width (in.)
2500
fpm
8
2.0
1.0 .9 .8
.7
.6
.5
.4
.3
Static Pressure Dif ference (in. wg)
.2
1 2 3 4 5 6 7 8 9 1 0 20 30 40 50 60 70 80 90 100 150
VCD-23
VCD-20
Air Leakage (cfm/ft2)
483624120
8.5
8.0
7.0
6.0
5.0
4.0
3.0
60
2.0
8.0 in. wg
8
6.3 in. wg
6
4.7 in. wg
4
3.0 in. wg
Pressure (in. wg)
2
0
Damper Width (in.)
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
Static Pressure Difference (in. wg)
0.2
60
483624120
1 2 3 4 5 6 7 8 9 1 0 20 30 40 50 60 70 80 90 100 150
Air Leakage (cfm/ft2)
28
Fan Coils and Indoor Air Handlers
MSCF White Paper
Rev 2 December 2003
Warranty
Greenheck warrants this equipment to be free from defects in material and workmanship for a period of one year from the purchase date. Any units or parts which prove defective during the warranty period will be replaced at our option when returned to our factory, transportation prepaid.
Motors are warranted by the motor manufacturer for a period of one year. Should motors furnished by Greenheck prove defective during this period, they should be returned to the nearest authorized motor service station. Greenheck will not be responsible for
any removal or installation costs.
Due to continuing research, Greenheck reserves the right to change specifications without notice.
Greenheck • P.O. Box 410 Schofield, WI 54476-0410 • Phone (715) 359- 6171 • Fax (715) 355-2399 • www.greenheck.com
Fans and VentilatorsCentrifugal and Vane Axial Fans Energy Recovery Ventilators &
Make-Up Air Units
Kitchen Ventilation Systems Dampers and Louvers
Number one in air movement and control.
Visit the Greenheck website for the most current information available
www.greenheck.com
®
Copyright © 2003 Greenheck Fan Corp.
MSCF (Modular Small Cabinet Fan) is designed for schools, medical facilities, office buildings, and many other commercial applications. Modules include: mixing boxes (with or with out filters and dampers), plenums (12 or 24 in.), and coils (hot water, chilled water, and direct expansion), filters (2 in. 30% or 4 in. 60% efficiencies). Ultra low profile ranging from 11 to 26 inches. Capacities range from 250 to 5,000 cfm and up to 4 in. wg.
LFC (Low Profile Fan Coil) is a low profile blower coil unit designed as a low cost method of air conditioning/heating buildings or specific spaces. The LFC includes: heating coils (1, 2, or 4 row) and/or cooling coils (4, 6, or 8 row), and an optional (Inlet) vertical pre-filter (2 in. 30% or 4 in. 60% efficiencies). Capacities range from 250 to 5,000 cfm and up to 4 in. wg.
UFT (Underfloor Fan Terminal) is designed for raised floor applications and comes in two standard heights of 10 and 13 inches. The are both available with a single or double power pack. Hot water, electric, or no coiled units are available with a control center as standard. Capacities range from 130 to 1,798 cfm and up to .875 in. wg.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
