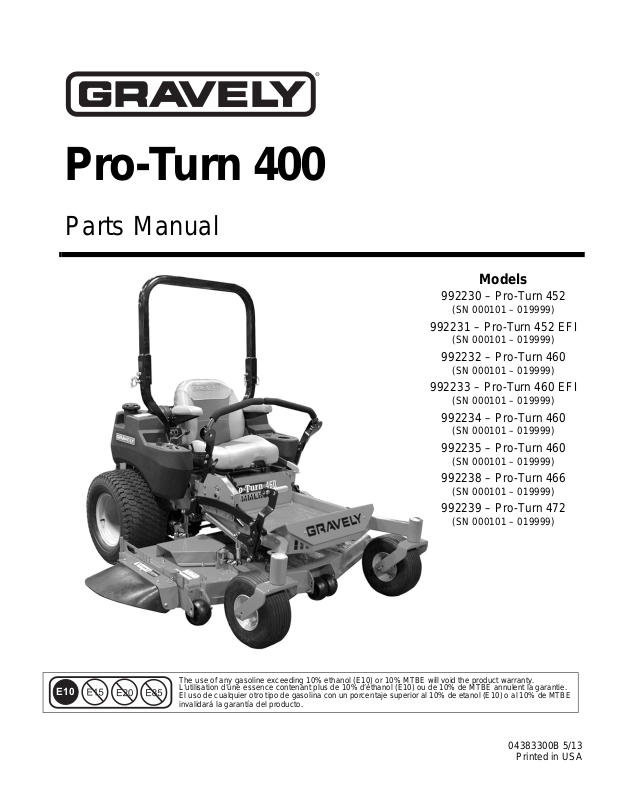

Pro-Turn 400
Parts Manual
Models
992230 – Pro-Turn 452
(SN 000101 – 019999)
992231 – Pro-Turn 452 EFI
(SN 000101 – 019999)
992232 – Pro-Turn 460
(SN 000101 – 019999)
992233 – Pro-Turn 460 EFI
(SN 000101 – 019999)
992234 – Pro-Turn 460
(SN 000101 – 019999)
992235 – Pro-Turn 460
(SN 000101 – 019999)
992238 – Pro-Turn 466
(SN 000101 – 019999)
992239 – Pro-Turn 472
(SN 000101 – 019999)
|
The use of any gasoline exceeding 10% ethanol (E10) or 10% MTBE will void the product warranty. |
E10 |
L’utilisation d’une essence contenant plus de 10% d’éthanol (E10) ou de 10% de MTBE annulent la garantie. |
El uso de cualquier otro tipo de gasolina con un porcentaje superior al 10% de etanol (E10) o al 10% de MTBE |
invalidará la garantía del producto.
04383300B 5/13 Printed in USA
THE MANUAL
Before you operate your unit, carefully and completely read manuals supplied with the unit. The contents will provide you with an understanding of safety instructions and controls during normal operation and maintenance.
For your safety and the safety of others always read, understand, and follow all DANGER, WARNING, and CAUTION messages found in manuals and on safety decals.
Hardware descriptions are given in decimals.
Decimals to Fractions
.063 |
1/16 |
|
.563 |
9/16 |
|
|
|
|
|
.125 |
1/8 |
|
.625 |
5/8 |
|
|
|
|
|
.188 |
3/16 |
|
.688 |
11/16 |
|
|
|
|
|
.250 |
1/4 |
|
.750 |
3/4 |
|
|
|
|
|
.313 |
5/16 |
|
.813 |
13/16 |
|
|
|
|
|
.375 |
3/8 |
|
.875 |
7/8 |
|
|
|
|
|
.438 |
7/16 |
|
.938 |
15/16 |
|
|
|
|
|
.500 |
1/2 |
|
1.00 |
1 |
|
|
|
|
|
SERVICE AND REPLACEMENT PARTS
When ordering replacement parts or making service inquiries, know the Model and Serial numbers of your unit and engine.
Numbers are located on the product registration card in the unit literature package. They are printed on a serial number label, located on the frame of your unit.
•Record Unit Model and Serial numbers here:
•Record Engine Model and Serial numbers here:
Unauthorized Replacement Parts
Use only Gravely replacement parts. The replacement of any part on this vehicle with anything other than a Gravely authorized replacement part may adversely affect the performance, durability, or safety of this unit and may void the warranty. Gravely disclaims liability for any claims or damages, whether warranty, property damage, personal injury or death arising out of the use of unauthorized replacement parts.
PRODUCT REGISTRATION
The Gravely dealer must register the product at the time of purchase. Registering the product will help the company process warranty claims or contact you with the latest service information. All claims meeting requirements during the limited warranty period will be honored, whether or not the product registration card is returned. Keep a proof of purchase if you do not register your unit.
Customer Note: If Dealer does not register your product, please fill out, sign and return the product registration card to Gravely or go to www.gravely.com.
YOUR SATISFACTION IS IMPORTANT
Questions? Please follow these helpful steps:
1.Refer to the manuals supplied with your unit.
They will guide you through safe and proper operation and maintenance.
They contain specifications on your unit.
If your questions are not answered in these manuals, go to step number two.
2.Contact Your Dealer.
Our dealers will be happy to supply any service or advice required to keep your unit operating at peak efficiency.
A factory trained staff is available to support your equipment needs. They stock genuine Gravely parts and lubricants manufactured with the same precision and skill as the original.
If your questions are not resolved by the support staff, ask for the manager or owner.
When contacting your Dealer supply your model and serial numbers.
To Speed Parts Ordering:
3.Know the model and serial numbers of your unit.
4.Know the part number required.
5.Know the quantity required.
6.Know the part description.
2
MODELS
992230 (Pro-Turn 452)
Kawasaki with 52-Inch Mower Deck Serial No. 000101 – 019999
992231 (Pro-Turn 452 EFI)
Kohler EFI with 52-Inch Mower Deck Serial No. 000101 – 019999
992232 (Pro-Turn 460)
Kawasaki with 60-Inch Mower Deck Serial No. 000101 – 019999
992233 (Pro-Turn 460 EFI)
Kohler EFI with 60-Inch Mower Deck Serial No. 000101 – 019999
992234 (Pro-Turn 460)
Kawasaki with 60-Inch Mower Deck Serial No. 000101 – 019999
992235 (Pro-Turn 460)
Kawasaki with 60-Inch Mower Deck Serial No. 000101 – 019999
992238 (Pro-Turn 466)
Kawasaki with 66-Inch Mower Deck Serial No. 000101 – 019999
992239 (Pro-Turn 472)
Kawasaki with 72-Inch Mower Deck Serial No. 000101 – 019999
TABLE OF CONTENTS
DECALS
Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Decals (Cont’d) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
MAIN FRAME
Frame and Subframe . . . . . . . . . . . . . . . . . . . . . . . . . 6
Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Fuel System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
POWER UNIT
Brakes and Transaxles . . . . . . . . . . . . . . . . . . . . . . .12
Transmission Subframe . . . . . . . . . . . . . . . . . . . . . . .13
Transmission – Right Side . . . . . . . . . . . . . . . . . . . . .14
Transmission – Left Side . . . . . . . . . . . . . . . . . . . . . .17
Clutch and Exhaust Deflector. . . . . . . . . . . . . . . . . . .20
Tire Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
ELECTRICAL
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Electrical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
DECK LIFT AND ROPS
Deck Lift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
ROPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
MOWER DECKS
Deck and Deck Mount . . . . . . . . . . . . . . . . . . . . . . . .27
Deck, Belts, Blades and Spindles . . . . . . . . . . . . . . .28
52", 60" and 66" Belt Idlers . . . . . . . . . . . . . . . . . . . .29
72" Belt Idlers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Belt Covers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Mounting Arms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Anti-Scalp Rollers. . . . . . . . . . . . . . . . . . . . . . . . . . . .33
3 |
© Copyright 2013 Ariens Company |
DECALS
Model 992230, 231, 232, 233, 234, 235, 238, 239
Note: This unit may contain any of the following decals.
Order by specific part number.
7 |
14 |
9 |
|
|
07800401
6
15 |
START/RUN |
PTO |
RUN |
POWER SEAT |
8 |
3 |
10AMP |
10AMP |
|||||
RELAY |
RELAY |
CHARGING |
AUX |
|
||
|
|
20AMP GAS ONLY |
15AMP |
|
|
|
|
STARTER |
FUEL |
PTO |
OPTION 1 |
|
|
|
10AMP |
|
|
|||
|
SOLENOID |
RELAY |
|
|
|
|
|
RELAY |
DIESEL ONLY |
04506700 |
OPTION 2 |
|
|
|
4 |
|
|
|
|
07757500A |
12 5
P
10
11
1
04423400 CUT |
HEIGHT |
RELEASE OFF
TRANSPORT LOCK
2 |
13 |
07800403
Item |
Part No. |
Qty. |
Description |
1 |
07742300 |
1 |
Decal, Warning |
2 |
07731400 |
2 |
Decal, Mower Pan Danger |
3 |
07757500 |
1 |
Decal, Parking Brake Lever |
4 |
07756000 |
2 |
Decal, Danger Fan |
5 |
07754100 |
2 |
Decal, Hot Surface |
6 |
02994800 |
1 |
Decal, Warning |
7 |
07700005 |
1 |
Decal, Maintenance Instructions |
8 |
04384900 |
1 |
Decal, Fuel Control Valve |
9 |
07735200 |
2 |
Decal, Danger |
10 |
04423400 |
1 |
Decal, Transport Lock |
11 |
07800402 |
2 |
Decal, Deck Guarding Safety |
12 |
07800403 |
1 |
Decal, Instruction |
13 |
07800340 |
1 |
Decal, Mower Deck Safety |
14 |
07800401 |
1 |
Decal, Safety Guarding |
15 |
04506700 |
1 |
Decal, Fuse Box Layout |
4
DECALS (CONT’D)
Model 992230, 231, 232, 233, 234, 235, 238, 239
7 |
4 |
1
3
9 |
04274700 |
2
5
7
8
04415200
6
|
|
|
|
|
|
|
Item |
Part No. |
Qty. |
Description |
|||
1 |
07800221 |
1 |
Decal, Seat Release |
|||
2 |
07800026 |
1 |
Decal, 52 |
(992230, 231) |
|
|
|
03818400 |
1 |
Decal, 60 |
(992232, 233, 234, 235) |
|
|
|
03992700 |
1 |
Decal, 66 |
(992238) |
|
|
|
05366400 |
1 |
Decal, 72 |
(992239) |
|
|
3 |
07757600 |
1 |
Decal, Instructional Steering |
|||
4 |
08000526 |
1 |
Decal, Gravely Heritage |
|||
5 |
03875000 |
1 |
Decal, Belt Routing (992230, 231, 232, 233, 234, 235, 238) |
|||
|
08000605 |
1 |
Decal, Belt Routing (992239) |
|||
6 |
04381700 |
1 |
Decal, Pro-Turn 452 (992230, 231) |
|||
|
04381800 |
1 |
Decal, Pro-Turn 460 (992232, 233, 234, 235) |
|||
|
04381900 |
1 |
Decal, Pro-Turn 466 (992238) |
|||
|
04382000 |
1 |
Decal Pro-Turn 472 (992239) |
|||
7 |
04415200 |
1 |
Decal, PT-400 Height of Cut |
|||
8 |
05366200 |
2 |
Decal, X-Factor Deck |
|||
9 |
03971800 |
1 |
Decal, Control Panel (992230, 232, 234, 235, 238, 239) |
|||
|
04274700 |
1 |
Decal, Control Panel (992231, 233) |
|||
5
FRAME AND SUBFRAME
Model 992230, 231, 232, 233, 234, 235, 238, 239
|
|
|
|
|
|
|
10 |
13 |
16 |
12 |
|
|
|
|
|
8 |
|
|
|
|
|
||
13 |
|
|
|
|
14 |
22 |
26 |
|
|
|
|
|
|
||
|
|
|
|
19 |
20 |
|
|
16 |
|
|
|
|
1 |
|
18 |
7 |
|
|
|
|
28 |
27 |
|
|
|
19 |
|
|
|||
12 |
|
|
|
|
|
||
|
20 |
20 |
|
|
|
|
|
16 |
|
|
|
|
|
||
|
|
27 |
27 |
|
|
|
|
27 |
28 |
28 |
|
|
|
|
|
|
|
|
|
|
|
25 |
|
|
|
|
|
25 |
|
|
|
2 |
|
|
27 |
|
|
|
|
|
|
|
|
18 |
|
||
|
|
|
|
|
6 |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
30 |
|
|
|
|
30 |
|
|
29 |
|
|
|
|
|
|
|
|
14
26
20 14
14
28
18
27
25 25
23
23
18
18
18
9
BOM ID |
Number |
Qty |
Description |
|
1 |
04412353 |
1 |
WLDMT, FOOT PLATE |
|
2 |
03855553 |
1 |
WLDMT, 200PT AXLE/ENGINE FRAME |
|
3 |
03873100 |
1 |
HOSE, HYD .38-11-OK M6N0-M6N0 |
|
6 |
04364453 |
1 |
WLDMT, PT400 MAIN FRAME (992230, 231, 232, 233, 234, 235, 238) |
|
|
04369653 |
1 |
WLDMT, 72in MAIN FRAME (992239) |
|
7 |
04386351 |
1 |
GUARD, REAR BUMPER FINGER |
|
8 |
04386453 |
1 |
BUMPER, PT400 REAR |
|
9 |
04386551 |
1 |
PLATE, BUMPER LOGO BACKING |
|
10 |
04412253 |
1 |
PANEL, INSPECTION |
|
12 |
05961400 |
4 |
BLT-HEX .38-16X2.75 GR5 YWZC |
|
13 |
06200007 |
2 |
BLT-RDHDSQSHNK .31-18X1.00 G5YWZC |
|
14 |
06222000 |
4 |
BLT-RDHDSQNK .31-18X.50 G5 YWZC |
|
16 |
06436200 |
4 |
WSHR-FL-STL.406X.812X.065 YWZ |
|
18 |
06530400 |
6 |
NUT-SPNLK-FLG .312-18 YWZC |
|
19 |
06545400 |
2 |
NUT-LK-NYL-FLG .31-18 YWZC |
|
20 |
06545500 |
6 |
NUT-LK-NYL-FLG .38-16 YWZC |
|
22 |
07000034 |
2 |
BLT, SHLDR EP .38-16X.30 HEX YZ |
|
23 |
07400034 |
2 |
SCR-TAP .25-20X.50 HWH TR YWZ |
|
25 |
07500214 |
4 |
BUMPER, STUD MOUNTED W/FEMALE INSERT |
|
26 |
07533600 |
2 |
BUMPER, RUBBER |
|
27 |
05500924 |
8 |
BUSHING, FLANGE .75X1.51X1.13X2.0 URE |
|
28 |
03985600 |
4 |
BUSHING, SHEAVE .50X.75X2.23 |
|
29 |
04420553 |
1 |
PT400 GAS BATTERY TRAY |
|
30 |
07415400 |
4 |
SCR-TAP .38-16X.75 HWH |
6
ENGINE
Model 992230, 231, 232, 233, 234, 235, 238, 239
|
|
|
|
39 |
45 |
|
|
|
|
40 |
|
|
|
36 |
|
|
|
|
|
|
|
|
|
|
|
|
43 |
33 |
|
|
|
|
|
|
|
|
|
|
|
|
42 |
|
|
|
|
|
33 |
|
|
46 |
|
31 |
44 |
|
|
|
38 |
|
|
|
|
|
|
|
|
|
47 |
|
|
37 |
30 |
|
32 |
|
|
|
3534 |
|
|
34 |
|
|
|
|
|
|
|
|
|
|
|
35 |
|
|
|
BOM ID |
Number |
Qty |
Description |
||
30 |
03873100 |
1 |
HOSE, HYD .38-11-OK M6N0-M6N0 (992230, 232, 234, 235, 238, 239) |
||
|
04058500 |
1 |
HOSE, HYD .38-14-OK M6N0-M6N0 (992231, 233) |
||
31 |
03873200 |
1 PIPE CAP 3/8 NPT FEMALE |
|||
32 |
03911000 |
1 MUFFLER, 27-31 FX KAW (992230, 232, 234, 238) |
|||
|
04263000 |
1 MUFFLER, 34HP KAW VERT (992235, 239) |
|||
|
04262200 |
1 MUFFLER, KOHLER EFI (992231, 233) |
|||
33 |
03278800 |
2 |
|
CLAMP, FUEL LINE |
|
34 |
06308600 |
4 |
WSHR-LK .31X.078 REG YWZC |
||
35 |
06500018 |
4 |
|
NUT-LK-TOP M8-1.25 YWZC |
|
36 |
06545400 |
2 |
|
NUT-LK-NYL-FLG .31-18 YWZC |
|
37 |
06916000 |
1 |
|
J-CLAMP |
|
38 |
07412900 |
1 |
SCR-TAP .38-16X.50 HWH TR YWZ |
||
39 |
08200723 |
1 |
ENGINE, KAWASAKI FX751 (992230, 232) |
||
|
08200628 |
1 |
ENGINE, KOHLER 747CC EFI (992231, 233) |
||
|
08200724 |
1 |
ENGINE, KAWASAKI FX850 (992234, 238) |
||
|
08200624 |
1 |
ENGINE, KAWASAKI FX921 (992235, 239) |
||
40 |
06900339 |
1 CLAMP, HOSE 2.75 DIA (992230, 232, 234, 235, 238, 239) |
|||
42 |
21538400 |
AR |
|
FUEL FILTER (992230, 232, 234, 235, 238, 239) |
|
|
21547528 |
AR |
|
FUEL FILTER (992231, 233) |
|
43 |
21536100 |
AR |
SPARK PLUG (992230, 232, 234, 235, 238, 239) |
||
|
21544000 |
AR |
SPARK PLUG (992231, 233) |
||
44 |
21538400 |
AR |
OIL FILTER (992230, 232, 234, 235, 238, 239) |
||
|
21397200 |
AR |
OIL FILTER (992231, 233) |
||
45 |
09408700 |
1 |
|
CAP, AIR CLEANER INTAKE |
|
46 |
21545300 |
AR |
ELEMENT, INNER SAFETY (992230, 232, 234, 235, 238, 239) |
||
|
21536900 |
AR |
ELEMENT, INNER SAFETY (992231, 233) |
||
47 |
21545400 |
AR |
ELEMENT, OUTER PRIMARY (992230, 232, 234, 235, 238, 239) |
||
|
21537000 |
AR |
ELEMENT, OUTER PRIMARY (992231, 233) |
||
7
SEAT
Model 992230, 231, 232, 233, 234, 235, 238, 239
8 |
16 |
|
13 |
23 |
|
|
18 |
||
|
24 |
||
6 |
26 |
||
|
24 28 7
BOM ID |
Number |
Qty |
Description |
1 |
03991551 |
1 |
BRKT, SEAT LATCH |
2 |
03991651 |
1 |
WMT, SEAT LATCH |
3 |
03991751 |
1 |
MOUNT, SEAT LATCH - RH |
4 |
03991851 |
1 |
MOUNT, SEAT LATCH - LH |
5 |
03991951 |
1 |
RETAINER-SEAT LATCH |
6 |
04383700 |
1 |
SEAT, AIR SUSPENSION |
7 |
04383953 |
1 |
WLDMT, SEAT ISO MOUNTING |
8 |
04384053 |
1 |
WLDMT, SEAT MOUNTING |
9 |
04443000 |
4 |
WLDMT, SEAT RETAINER |
10 |
05500026 |
1 |
BSHG, SPLIT NYLON |
11 |
05521100 |
1 |
BUSHING, FLANGE NYLON |
12 |
05946800 |
2 |
BLT-HEX .25-20X.75 GR5 YWZC |
13 |
05946900 |
8 |
BLT-HEX .31-18X1.00 GR5 YWZC |
14 |
05947000 |
4 |
BLT-HEX .31-18X.75 GR5 YWZC |
15 |
05948700 |
2 |
BLT-HEX .38-16X1.00 GR5 YWZC |
16 |
05958300 |
4 |
BLT-HEX .38-16X3.0 GR5 FTD YWZ |
17 |
05961100 |
2 |
BLT-HEX .38-16X3.25 GR5 YWZC |
18 |
06437200 |
12 |
WSHR-FL-STL.344X.688X.065YWZC |
19 |
06441100 |
1 |
WSHR-FL-STL .520X.827X.062 YWZC |
20 |
06530400 |
2 |
NUT-SPNLK-FLG .312-18 YWZC |
21 |
06543100 |
4 |
NUT, LK-TOP-FLG .312-18 YWZC |
22 |
06543500 |
2 |
NUT, LK-TOP-FLG .25-20 YWZC |
23 |
06545400 |
12 |
NUT-LK-NYL-FLG .31-18 YWZC |
24 |
06545500 |
4 |
NUT-LK-NYL-FLG .38-16 YWZC |
25 |
06701000 |
2 |
PIN-HAIR INT .08X.38X1.42 YWZC |
26 |
07500213 |
4 |
MOUNT, ISOLATOR |
27 |
07500218 |
2 |
BUMPER, STUD MOUNTED CONE SHAPED |
28 |
07539700 |
1 |
GRIP-VINYL-YELLOW .125 x 1.0 x 3.0 |
29 |
08321100 |
1 |
SPRG, TENSION .043X.44X3.31 WLD 5.8 |
23 |
|
|
|
|
17 |
|
|
|
14 |
|
|
|
|
|
|
29 |
|
9 |
|
|
|
18 |
|
|
|
|
|
||
1 |
|
|
|
12 |
|
15 |
|
|
|
2 |
|
|
|
|
|
||
18 |
14 |
|
|
|
|
11 |
22 |
|
|
19 |
25 |
21 |
|
10 |
|
||
25 |
5 |
|
|
||
4 |
|
|
|||
|
|
21 |
27 |
|
|
27 |
3 |
|
|
|
|
20 |
20 |
|
|
|
|
8
SEAT – SERVICE PARTS
Model 992230, 231, 232, 233, 234, 235, 238, 239
BOM ID |
Number |
Qty |
Description |
1 |
59212300 |
1 |
KIT, SPRING AND SADDLE |
2 |
59212400 |
1 |
KIT, SHAFT/BEARING |
3 |
59212500 |
1 |
KIT, SLIDE |
4 |
59212600 |
1 |
KIT, BACK CUSHION |
5 |
59212700 |
1 |
KIT, SEAT CUSHION |
6 |
59214700 |
1 |
KIT, LABEL |
7 |
59212800 |
1 |
KIT, BACK PANEL |
8 |
59212900 |
1 |
KIT, KNOB |
9 |
59213000 |
1 |
KIT, BOOT |
10 |
59213100 |
1 |
KIT, PIVOT BOLT |
11 |
59213200 |
1 |
KIT, BUMPER |
12 |
59213300 |
1 |
KIT, SUSPENSION BASE WELDMENT |
13 |
59213400 |
1 |
KIT, SEAT FRAME WELDMENT |
14 |
59213500 |
1 |
KIT, LINKAGE ASSEMBLY |
15 |
59213600 |
1 |
KIT, BACK FRAME WELDMENT |
16 |
59213700 |
1 |
KIT, WIRE HARNESS |
17 |
59213800 |
1 |
KIT, COMPRESSOR |
18 |
59213900 |
1 |
KIT, AIR VALVE |
19 |
59214000 |
1 |
KIT, OPS SWITCH |
20 |
59214100 |
1 |
KIT, RH ARMREST ASSEMBLY |
21 |
59214200 |
1 |
KIT, LH ARMREST ASSEMBLY |
22 |
59214300 |
1 |
KIT, ARMREST STOP |
24 |
59214400 |
1 |
KIT, SHOCK ABSORBER |
25 |
59214500 |
1 |
KIT, GEAR |
26 |
59214600 |
1 |
KIT, GEAR |
9
CONTROLS
Model 992230, 231, 232, 233, 234, 235, 238, 239
11
51
|
|
|
|
14 |
|
|
|
38 |
|
|
|
|
|
|
|
|
|
48 |
|
|
|
|
|
42 |
|
|
|
|
|
|
|
|
|
30 |
26 |
|
|
30 |
|
|
|
29 |
|
|
|
|
|
|
|
|
|
|
44 |
|
|
|
|
|
|
|
|
||
|
|
|
49 |
23 |
|
|
|
|
3 |
11 |
|
|
|
27 |
|
|
41 |
|
34 |
29 52 |
|
|
|
|
2 |
|
|
|
|
|
|
|
|
|
58 |
|
|
|
46 |
|
|
|
|
|
26 |
|
|
|
|
|
48 |
|
|
|
|
|
|
|
|
|
|
44 |
30 |
|
|
|
|
|
|
21 |
|
|
|
48 |
30 |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
38 |
|||
|
|
|
|
45 |
31 |
46 |
|
|
51 |
|
23 |
|
|
49 |
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
46 |
9 |
|
|
|
35 |
|
43 |
|
|
|
50 |
|
|
|
|
|
1 |
|
|
|
52 |
|
|
|
||||
|
|
|
|
|
|
|
34 |
|
|
|
43 |
||||
|
|
|
57 |
47 |
|
|
|
|
|
|
|
||||
36 |
35 |
|
|
50 |
33 |
|
3 |
4558 |
|
|
|
|
39 |
||
7 |
|
|
2 |
9 |
|
|
|
|
|
||||||
|
50 |
|
|
|
|
41 |
|
|
|
|
|
|
13 |
50 |
|
33 |
|
|
|
|
|
|
|
|
|
|
31 |
||||
32 |
12 |
43 |
|
|
36 |
|
|
|
|
42 |
1 |
29 |
|
||
|
|
39 |
|
|
|
|
29 |
|
|
||||||
|
|
|
|
|
|
|
|
|
46 |
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
2 |
17 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
46 |
57 |
47 |
|
|
|
|
|
|
|
|
|
|
|
7 32 |
|
|
|
|
|
|
|||
|
|
|
|
|
|
48 46 |
|
|
|
|
|
|
|
|
|
BOM ID |
Number |
Qty |
Description |
1 |
00325400 |
2 |
WAVE WASHER .531X.781X.125 FH |
2 |
03652200 |
4 |
STUD-BALL |
3 |
03769800 |
2 |
DAMPER |
7 |
03885451 |
2 |
BRKT., CONTROL MTG |
9 |
03938500 |
2 |
ROD, STEERING |
11 |
04383600 |
2 |
GRIP, HANDLEBAR |
12 |
04395153 |
1 |
BRKT, RH CONTROL ARM STOP |
13 |
04395253 |
1 |
BRKT, LH CONTROL ARM STOP |
14 |
04413000 |
1 |
WLDMT, RH STEERING ARM |
17 |
04413100 |
1 |
WLDMT, LH LOWER CONTROL ARM |
21 |
04413200 |
1 |
WLDMT, RH LOWER CONTROL ARM |
23 |
04413351 |
2 |
MOUNT, STEERING ARM, ADJUSTABLE |
26 |
04413600 |
2 |
SPCR, STEERING ARM |
27 |
04424000 |
1 |
WLDMT, LH STEERING ARM |
29 |
05501001 |
4 |
BUSHING, PLASTIC |
30 |
05525200 |
4 |
BUSHING, FLANGE |
31 |
05532400 |
2 |
SPACER |
32 |
05946900 |
2 |
BLT-HEX .31-18X1.00 GR5 YWZC |
33 |
05948700 |
2 |
BLT-HEX .38-16X1.00 GR5 |
BOM ID |
Number |
Qty |
Description |
34 |
05957200 |
2 |
BLT-HEX .31-18X2.00 GR5 YWZC |
35 |
05958000 |
2 |
BLT-HEX .38-16X1.25 GR5 YWZC |
36 |
05958700 |
2 |
BLT-HEX .44-14X1.00 GR5 |
38 |
06200213 |
2 |
BLT-RDHDSQSHK, 38-16X2.50 G5YZ |
39 |
05974000 |
2 |
BLT-HEX .38-16X1.75 GR5 FTD YWZ |
41 |
06500009 |
2 |
NUT-LK-NYL-FLG .44-14 YWZC |
42 |
06529800 |
2 |
NUT-LK-CTR .31-18 YWZC |
43 |
06535900 |
4 |
NUT, 3/8-16 JAM GR5 |
44 |
06536100 |
2 |
NUT, 5/16-18 JAM GR5 |
45 |
06536700 |
2 |
NUT-JAM |
46 |
06543100 |
6 |
NUT, LK-TOP-FLG .312-18 YWZC |
47 |
06544300 |
2 |
NUT, JAM -LH .31-24 YWZC |
48 |
06545500 |
4 |
NUT-LK-NYL-FLG .38-16 YWZC |
49 |
07028500 |
4 |
BLT-SERHFWH .38-16X.75 YWZC |
50 |
07415400 |
6 |
SCR-TAP .38-16X.75 HWH TR YWZ |
51 |
07500219 |
2 |
BUMPER, STUD MOUNTED |
52 |
09235700 |
2 |
ECCENTRIC |
57 |
03787200 |
2 |
LH ROD END |
58 |
03787100 |
2 |
RH ROD END |
10
FUEL SYSTEM
7 6 2
4
23
20
5 2
24
13
Model 992230, 231, 232, 233, 234, 235, 238, 239
|
|
|
|
|
4 |
|
|
|
|
20 |
|
|
|
|
|
23 |
5 |
|
|
|
|
|
|
3 |
|
|
|
1c |
24 |
|
|
16 |
2 |
|
|
|
18 |
|
2 |
|
|
|
|
14 17 |
|
|
|
|
1d |
|
|
1b |
|
|
|
|
|
||
16 |
2 |
22 |
19 |
|
18 |
|
|
||||
|
|
|
6 |
|
|
|
14 |
|
1a |
|
|
|
|
|
|
|
|
|
17 |
|
|
|
|
19 |
22 |
|
|
|
|
|
|
|
|
|
|
2
9 2
17 |
17 |
|
16 |
16 |
14 |
14 |
|
|
7 15
15
10 11 2
12
17
16 17
14
14 16
BOM ID |
Number |
Qty |
Description |
1a |
03278100 |
28” |
.25 LOW PERM GAS HOSE (992230, 232, 235, 238, 239) |
|
03278100 |
47” |
.25 LOW PERM GAS HOSE (992231,233) |
1b |
03278100 |
19” |
.25 LOW PERM GAS HOSE |
1c |
03278100 |
24” |
.25 LOW PERM GAS HOSE |
1d |
03278100 |
54” |
.25 LOW PERM GAS HOSE |
2 |
03278800 |
9 |
CLAMP, FUEL LINE |
3 |
03375900 |
30” |
HOSE, .188 LOW-PERM BULK GAS |
4 |
04068910 |
2 |
VALVE, COMBINATION |
5 |
04082700 |
2 |
GROMMET, REMOTE VENT NITRILE |
6 |
04097700 |
2 |
CLAMP - HOSE, SPRING .188 |
7 |
04237300 |
2 |
CAP, 3.50" VENT-IN RATCHET FUEL |
9 |
04306900 |
1 |
TEE, 1/4 HOSE RUN X 3/16 HOSE BRANCH |
10 |
04396053 |
1 |
PLATE, FUEL VALVE MOUNTING |
BOM ID |
Number |
Qty |
Description |
|
11 |
04426400 |
1 |
VALVE, FUEL |
|
12 |
04452000 |
1 |
TANK, LH LARGE FUEL (INCLUDES 20 & 23) |
|
13 |
04452100 |
1 |
TANK, RH LARGE FUEL (INCLUDES 20 & 23) |
|
14 |
05947000 |
8 |
BLT-HEX .31-18X.75 GR5 YWZC |
|
15 |
06100211 |
4 |
SCR, HWH 10-24x.38 STAINLESS |
|
16 |
06308600 |
8 |
WSHR-LK .31X.078 REG YWZC |
|
17 |
06435700 |
8 |
WSHR-FL-STL.38X.875X.083 YWZC |
|
18 |
06909400 |
2 |
J-Clamp |
|
19 |
07500031 |
2 |
GROMMET, RUBBER |
|
20 |
07500034 |
2 |
GROMMET, FUEL GAGE |
|
22 |
07500040 |
2 |
CABLE TIE W/ TREE (.25 HOLE) |
|
23 |
07500223 |
2 |
GUAGE, REMOTE FUEL, 12" |
|
24 |
04320800 |
2 |
ASSEMBLY, LARGE TANK FUEL PICKUP |
11
Loading...
