1. INTRODUCTION

Many thanks for purchasing the Graupner M-G1 HoTT 2.4 module. This module is a direct replacement
for the standard RF module fi tted to your mc-19/mc-19s and mc-22s transmitters.

Please read right through these instructions before you attempt to install and use the system.

Installation requirements

We recommend that you have the module installed by a Graupner Service Centre. It is possible for the
modeller to carry out the conversion himself provided that he has a certain amount of manual skill, but
the transmitter’s fi rmware needs to be updated for the fi rst time in order to integrate the telemetry display
(mc-19s/iFS and mc-22s/iFS only), and this can only be carried out by the Graupner Service Centre Ger­many. Please note that we cannot offer a guarantee for all failures which have been caused by incorrect
installation, if you carry out the conversion work yourself.

2. PREPARING THE SYSTEM

First remove your previous RF module. For details of this procedure please refer to the appropriate
chapter in the operating instructions supplied with your radio control system. If you have previously
used a 35 MHz system, you will also need to replace the telescopic aerial with the Graupner HoTT aerial
supplied in the set. This requires the use of the aerial conversion kit for tray-mounted transmitters, Order
No. 23049 - see Figs. 1 to 5.
If you have previously used a 2.4 GHz system such as Graupner iFS, all you need to do is unplug the
existing aerial from the module.

3. CONNECTION

Front

3

1

2

1. Antenna terminal 4. USB 1 socket

2. Module terminal 4-pin 5. USB 2 socket

3. Earphone socket 6. BIND/RANGE button

7. Status-LED‘s

01

Manual Module M-G1 33300

Rear

5

4

6
7

3

4. ASSEMBLY:





Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8



X

1

4

X

1



2

Fig. 1

Fig. 3





Fig. 2

Fig. 4

3

4



Fig. 5

Fig. 7

Manual Module M-G1 33300 02

Fig. 6

Fig. 8

Fig. 11

Fig. 9





1

2

Fig. 10



2

1. Position the aerial lead and the blue four-pin module plug as shown in Fig. 6.

2. Fig. 7 shows the white rectangular socket for the module plug, and the circular aerial socket.

3. Press the four-pin module plug into the socket on the module using light pressure. The connector sys­ tem is polarised: note the lateral lugs. Ensure that it engages fully (arrows), so that there is no chance
of it working loose in operation (Fig. 8).

4. Position the module in the mounting frame. Locate the loops at the top (marked black), fi t the M3
screws (supplied - marked yellow) and tighten them fully to secure the module (Fig. 9). The 14-pin
plug of the optional interface cable No. 33304 (needed for internal telemetry, only available after
transmitter update) which terminates the interface lead should now be plugged into the socket on the
transmitter circuit board (Fig. 9 - 1). The connector system is polarised: note the lateral lugs. Ensure
that it engages fully, so that there is no chance of it working loose in operation. Finally connect the
plug marked “MODULE” to the USB 1 socket (Fig. 9 - 2); the brown wire must be at the top.

5. Connect the aerial plug to the aerial socket on the module circuit board (Fig. 10). It is best to use
tweezers for this: push the plug into place as straight as possible, to avoid damaging the contacts.

6. Secure the aerial lead by applying a drop of adhesive at the point marked in Fig. 11.

7. Now attach the back panel to the transmitter again.

8. Finally go to the transmitter „basic setup model“ menu and choose „modulation“ PPM 18 (for max. 9
servos) or PPM 24 (for max. 12 servos). Also when using the channel mapping with more than 9
channels choose PPM 24. JOB DONE!



1

Fig. 9

Fig. 11

Fig. 10

To use the internal display telemetry the mc-19s/iFS mc-22s/iFS needs a fi rst-time update of the trans-

mitter fi rmware by the Graupner Service Germany!

03 Manual Module M-G1 33300

5. GENERAL NOTE

MULTIC 1 / 2

Multichannel 1 or 2 (Nautic-Expert-Module Order
No. 4108)

When switching on or adjusting the radio control system it is essential to keep the transmitter aerial at
least 15 cm away from the receiver aerials at all times. If the transmitter aerial is too close to the receiver
aerials, the receiver will be overloaded, causing the red LED on the receiver to light up. The transmitter
responds by emitting a beep once every second; the red LED also goes out. The radio control system
is now in Fail-Safe mode.
If this should occur, simply increase the distance between the aerials until the audible warning signal
ceases, and the red LED on the transmitter lights up again; at the same time the red LED on the receiver
should go out.

Please note: if you wish to switch the transmitter on again just after switching it off, please wait at least
fi ve seconds to ensure that the transmitter has time to shut down completely. If you neglect to do this,
there will be no connection between transmitter and receiver: you will hear a beep repeated about once
per second, and at the same time the red LED on the transmitter will go out, and the LED on the receiver
will fl ash red.

5.1. Transmitter Display (TX-Display)

The telemetry can be programmed directly on all HoTT transmitters whose telemetry menu is integrated
directly into the transmitter’s screen (this is possible with most models after a fi rmware update). If this
update is not carried out, programming is only possible using the SMART-BOX.

The SMART-BOX, Order No. 33700, must be used for programming if you are using any of the
following transmitters: mx-22, Order No. 4801 / 4802, mc-19, Order No. 4821, mc-22, Order No. 4818

and mc-18, Order No. 4835. The Smart Box is used instead of the interface cable connected to the
USB1 socket.The following instructions describe the method using the SMART-BOX; the table below
shows variations which apply to the Telemetry menu for the various models of transmitter:

SMART-BOX mx-12/16/20/32 HoTT mc-19/mc-22/mc-24/mx-24 HoTT

ENTER
ESC
INC
DEC
INC+DEC SET push Rotary

TX: SD-card log ON
A: 11.3 V M: 11.4V m: 11.2V
VARIO TONE: ON
RANGE TEST : OFF 90s
RX BIND : BIND
ALARM VOLT : 9.3V
COUNTRY :GENERAL
MULTIC1: 00 MULTIC2: 00

Display Description Setup

SD-card log Shows the saving process on the SD card ON /OFF automatic

A = TX VOLT Current operating voltage (V) -

M = MAXIMUM
VOLT

m = MINIMUM
VOLT

RX BIND Binding the receiver BINDING

ALARM VOLT voltage setup for transmitter low voltage warning

COUNTRY Country setting GENERAL / FRANCE

RANGE TEST indicates if the range test is engaged, the remai-

MULTIC 1 / 2





scroll: value:  scroll: push Rotary + value: Rotary 
scroll: value:  scroll: push Rotary + value: Rotary 

The TX screen appears when

- the SMART-BOX is connected to the DATA socket and the fi rst line „SETTING
AND DATAVIEW“ is activated by pressing the ENTER button
or

- transmitters with integrated telemetry: the menu item „telemetry“ is selected
press the Rotary

Maximum operating voltage (since the last power
on - V)

Minimum operating voltage (since the last power
on - V)

beep

ning
time also appears

Multichannel 1 or 2 (Nautic-Expert-Module Order
No. 4108)

ENTER
CLEAR

-

-

4 – 15 V in steps of 0.5 V
Factory setting 9.3 V

OFF / ON

Channel select 1-X
(+ PERIOD: 20 msec,
CH OUTPUT TYPE:
SAME)

Manual Module M-G1 33300 04

Transmitter low-voltage warning (ALARM VOLT): you can adjust the low voltage threshold at which
the alarm (continuous beeping) is triggered; the available range is 4 - 15 V.
When the alarm is triggered, “VOLT-E” fl ashes at top right in the SMART-BOX transmitter display, and
the parameters ACTION VOLT and ALARM VOLT are displayed in inverse form.

Please note: the transmitter’s own low-voltage warning (beep), as set in the “General settings”
menu, is triggered independently of the value set under TX-Display!

Binding a receiver (RX BIND):

refer to chapter 6.1. Binding

SD card function (SD SAVE): refer to chapter 6.8. Data storage

Country selection (COUNTRY): The Country setting is present in order to cater for various directives

(FCC, ETSI, IC etc.). The HoTT 2.4 radio system features a restricted frequency band for France. If
you wish to use the RC system in France, the country setting on the transmitter must be set to “France”
mode, as described. It is essential not to use the Universal/EUROPE mode. Factory setting is GENE­RAL. See also point 6.4.

Range checking (RANGE TEST):
switches the range test on or off, the remaining time is displayed. The display also works if the range
check is started with the BIND / RANGE button on the transmitter. See also point 6.2.

Multichannel 1 / 2 (MULTIC 1 / 2: Multi-channel function for the use with the Nautic-Expert-Module
order no. 4108. Up to 2 multi-channel channels can be used, the appropriate channels must be set in
the display under MultiC. If no Nautic module is used, set MULTIC to 00.

RX SERVO < >
OUTPUT CH: 01
REVERSE : ON
CENTER : 1500usec
TRIM : -000usec
TRAVEL- : 100%
TRAVEL+ : 100%
PERIOD : 20msec

RX SERVO TEST <
ALL-MAX : 2000usec
ALL-MIN : 1000usec
TEST : STOP
ALARM VOLT : 3.8V
ALARM TEMP+ : 70°C
ALARM TEMP- : 10°C
CH OUTPUT TYPE: SAME

Note: The cycle time (PERIOD) must be set to
20 msec, the channel sequence (CH OUTPUT
TYPE) to SAME so that the function is activated!

Parameters which have different options in the Settings column of the table can be adjusted using the
SMART-BOX. If there are no options, the screen simply displays the parameter data. If you wish to carry
out an adjustment, you must use the INC or DEC buttons above the screen to select the desired para­meter (e.g. ALARM VOLT) by moving the arrow cursor (INC moves the cursor down, DEC moves it up).
Simultaneously pressing the INC and DEC buttons switches the parameter to be adjusted to inverse
video (white on black); this indicates that it can be programmed: pressing the INC button at this point
increases the value, pressing the DEC button reduces the value. When the adjustment is complete,
save the selected setting by pressing the INC and DEC buttons simultaneously; the dark background
now disappears in order to confi rm this action.
Please note: the labeling of the arrows of the following displays corresponds the top buttons on the
SMART-BOX.

TX: SD-card log ON
A: 11.3 VM: 11.4V m: 11.2V
VARIO TONE: ON
RANGE TEST : OFF 90s
RX BIND : BIND
ALARM VOLT : 9.3V
COUNTRY :GENERAL
MULTIC1: 00 MULTIC2: 00

ESC

ENTER

TX: SD-card log ON
A: 11.3 VM: 11.4V m: 11.2V
VARIO TONE: ON
RANGE TEST : OFF 90s
RX BIND : BIND
ALARM VOLT : 9.3V
COUNTRY :GENERAL
MULTIC1: 00 MULTIC2: 00

INC + DEC

INC

DEC

RX DISPLAY

05 Manual Module M-G1 33300

5.2. RECEIVER DISPLAY

5.2.1 Receiver Data View (RX DATAVIEW)

If you wish to switch to the receiver data display, press the ENTER button repeatedly until RX DATA­VIEW appears on the screen.

RX DATAVIEW >
S-QUA 100% S-dBm -49dBm
S-STR 065% R-TEM. +30°C
L PACK TIME 00005msec
R-VOLT : 05.9V
LR-VOLT : 05.8V
SENSOR1 : 00.0V 00°C
SENSOR2 : 00.0V 00°C

Please note: menus 3.2.1 to 3.2.6 can only be selected when the receiver is
switched on. When you switch the receiver on, it may take a few seconds befo­re the receiver display becomes active and can be selected: > symbol appears
at the top right corner of the transmitter display (TX).
There may be a slight delay in the screen’s response to inputs using the top
buttons, since all the settings are transmitted directly to the receiver by wire­less means.

In the receiver data view display settings can not be made.

Display Description Setup

S-QUA Signal quality in % ­S-dBm Receive performance in dBm ­S-STR Signal strenght in % ­R-TEM Receiver temperature in °C ­L PACK TIME indicates the duration of signal loss of the longest data packet du-

R-VOLT Actual receiver operating voltage in Volt ­L.R-VOLT Minimum receiver operating voltage since it was last switched on;

Sensor 1 the values of the optional telemetry sensor 1 in Volt and °C ­Sensor 2 the values of the optional telemetry sensor 2 in Volt and °C -

ring transmission from transmitter to receiver; stated in msec

stated in Volt

-

-

Signal quallity (S-QUA): shows the signal quality in %

Receive performance (S-dBm): the receive performance is sent “live” to the SMART-BOX via the

receiver’s downlink channel. Note: the receive performance is shown as a negative value, i.e. a value
approaching zero is the maximum (= best reception); the lower the value falls, the worse the receive
performance.
This value is particularly important during the range-check procedure carried out before fl ying the mo-
del.
Please read the corresponding section in the RC system instructions relating to range-checking.
Carry out a range-check before every fl ight, simulating all servo movements which will occur in fl ight: the
range must be at least 50 m on the ground when the transmitter is set to range-check mode; to guaran­tee safe fl ying, the value displayed under S-dBm in the DATAVIEW display should be at least -80 dBm.
If the value is lower (e.g. -85 dBm) you should not even consider fl ying your model: check the receiver
installation and the power supply systems in your model and radio control system.
When operating your model this value should not fall below -90 dBm. If it does, you should reduce the
distance between yourself and the model. However, under normal circumstances the audible range
warning (see below) will be triggered before the value falls to this level, in order to ensure safe ope­rations.

Signal strenght (S-STR): indicates the signal strenght in %.
An audible range warning (continuous beeping at one-second intervals) is always emitted as soon

as the receiver signal in the downlink channel falls to the pre-set threshold. Since the transmitter has a
much higher transmitting power than the receiver, it is still possible to operate the model safely, but in
the interests of security you should always reduce the distance to the model until the audible warning
stops.

Receiver temperature (R-TEMP): it is important that the temperature of your receiver always stays
within the approved range under all fl ight conditions (ideally between 10 and 55°C; please refer to your
RC system instructions).

Manual Module M-G1 33300 06

The limit values for receiver temperature which trigger a warning can be set in the RX SERVO TEST
display under ALARM TEMP+ (50 – 80°C) and ALARM TEMP- (-20 – +10°C).
If the receiver temperature rises above the maximum value or falls below the minimum, the unit genera­tes an audible warning (continuous beeping). At the same time all the Smartbox receiver displays show
a fl ashing “TEMP.E” at top right, and the parameter R-TEM is shown in inverse form in the receiver data
display (RX DATAVIEW).

Data packets (L PACK TIME): indicates the duration of signal loss of the longest data packet during
transmission from transmitter to receiver, stated in msec. In practice this equates to the longest period
which the RC system has spent in fail-safe mode.

Operating voltage (R-VOLT): it is essential to monitor the operating voltage of the receiver constantly.
If it is too low, you must never launch your model or continue fl ying it.
The receiver low voltage warning can be adjusted in the RX SERVO TEST display under ALARM VOLT;
the available range is 3.0 to 6.0 Volt. If battery voltage falls to the threshold level, an audible signal
(continuous beeping) is emitted, and “VOLT.E” fl ashes at top right in all the Smartbox receiver displays.
At the same time the parameter R-VOLT is shown in inverse form in the receiver data display (RX DA­TAVIEW).

Minimum operating voltage (L.R-VOLT): displays the lowest receiver operating voltage since the last
time the receiver was switched on. If this voltage differs signifi cantly from the actual operating voltage
R-VOLT, it is likely that the servos are placing an excessive load on the receiver battery, resulting in vol­tage collapses. If this should occur, you should consider fi tting a larger or more robust receiver battery
in order to obtain maximum operating security.

Telemetry sensor 1 / 2 (SENSOR 1 / SENSOR 2): if these optional sensors are connected, their data
(Voltage / Volt and temperature / °C) is displayed live on the screen.

5.2.2

Servo data (RX SERVO)

To switch to the servo data display, press the ENTER button repeatedly until RX SERVO appears on
the screen.

RX DATAVIEW >
S-QUA 100% S-dBm -49dBm
S-STR 065% R-TEM. +30°C
L PACK TIME 00005msec
R-VOLT : 05.9V
LR-VOLT : 05.8V
SENSOR1 : 00.0V 00°C
SENSOR2 : 00.0V 00°C

ESC

RX SERVO < >
OUTPUT CH: 01
REVERSE : ON
CENTER : 1500usec
TRIM : -000usec
TRAVEL- : 100%
TRAVEL+ : 100%
PERIOD : 20msec

ENTER

INC + DEC

RX SERVO < >
OUTPUT CH: 01
REVERSE : ON
CENTER : 1500usec
TRIM : -000usec
TRAVEL- : 100%
TRAVEL+ : 100%
PERIOD : 20msec

INC + DEC

INC

DEC

Display Description Setup

OUTPUT CH Channel select 1 – X, depends on the connected

REVERSE Servo reverse OFF / ON
CENTER Neutral point in usec. If active (highlighted), according

TRIM Trim position in usec. -120 – 120 usec
TRAVEL- Servo travel in %, negativ 30 – 150%
TRAVEL+ Servo travel in %, positiv 30 – 150%
PERIOD Cycle time in msec. 10 or 20 msec

receiver

to transmitter control position

07 Manual Module M-G1 33300

Channel select (OUTPUT CH): here you select the desired channel; the remainder of the settings in
this display only affect the channel which you select at this point.

Servo reverse (REVERSE): sests the direction of rotation of the connected servo
Normal: REVERSE OFF
Reverse: REVERSE ON

Servo centre (CENTER): The “CENTRE” line displays the current pulse width in μs of the control chan-
nel selected in the “OUTPUT CH” line. The displayed value varies according to the current position of
the transmitter control which affects this control channel, and also its trim position. A pulse width of 1500
μs corresponds to the standard centre position, and therefore the usual servo centre setting.
To change this value, select the “CENTRE” line and touch the INC + DEC buttons simultanously. Move
the corresponding transmitter control to the desired position, and touch the INC + DEC buttons again to
store the current transmitter control position. This position is now stored as the new neutral position.

Trim position (TRIM): The purpose of the “TRIM” line is to provide fi ne adjustment of the neutral po-
sition of a servo connected to the control channel selected in the “OUTPUT CH” line. Adjustments are
made in 1 μs increments using the INC or DEC buttons. The value in the “CENTRE” line can be adjusted
over the range +/- 120 μs around the TRIM value set here.
Servo travel (TRAVEL +/-): this function is used to adjust the maximum servo travel (control surface
travel) of the connected servo. The adjustment is available separately for each direction
Cycle time (PERIOD): at this point it is possible to defi ne the speed of the servos’ response to move-
ments of the transmitter controls. This adjustment applies to all channels.
Note: if you are using analogue servos, you must set a value of 20 msec. If you are using digital servos
exclusively, 10 msec should be selected.

5.2.3 Failsafe Setup (RX FAIL SAFE)

To switch to the Failsafe setup display, press the ENTER button repeatedly until RX FAIL SAFE appears
on the screen.

ENTER

ESC

RX FAIL SAFE < >
OUTPUT CH: 01
INPUT CH : 01
MODE : FAI SAFE
F.S.Pos. : 1400usec
DELAY : 0.75sec
FAIL SAFE ALL : NO
POSITION : 1500usec

Display Description Setup

OUTPUT CH Output channel select 1 – X, depends on the connected

INPUT CH Input channel select 1 – 16
MODE Fail-safe Mode Fail Safe / Hold / Off

F.S. Pos. Failsafe Position 1000 - 2000 usec
DELAY Failsafe response time 0.25, 0.50, 0.75, 1.00sec

FAIL SAFE ALL Stores fail-safe positions for all control

POSITION Failsafe position 1000 - 2000 usec

channels

INC + DEC

RX FAIL SAFE < >
OUTPUT CH: 01
INPUT CH : 01
MODE : FAI SAFE
F.S.Pos. : 1400usec
DELAY : 0.75sec
FAIL SAFE ALL : NO
POSITION : 1500usec

INC + DEC

INC

DEC

receiver

Factory setting Hold

Factory setting 0.75 sec.
NO / SAVE

Output channel select (OUTPUT CH): this is where you select the desired channel; the remainder of
the fail-safe settings only affect the channel selected at this point.

Input channel select (INPUT CH): channel mapping function
The control functions can be distributed over several receivers in any sequence; alternatively multiple
receiver outputs can be assigned to the same control function. For example, this is useful if your aircraft

Manual Module M-G1 33300 08

features two servos acting on each aileron instead of only one.
The SMART-BOX can be used to manage a maximum of sixteen transmitter channels. At this point
you can defi ne how the transmitter channels (INPUT) are assigned to the channels (OUTPUT) of the
receiver(s).
If your model is fi tted with multiple receivers, the Master receiver is the last receiver to be bound.
However, in subsequent operations only the receiver which was bound last is able to make a telemetry
connection to the transmitter. On the other hand, this also means that only the last bound receiver can
be addressed using the Telemetry menu.

Fail-safe mode (MODE): this function is used to select the fail-safe mode for the channel you have se­lected. You can select either a programmed fail-safe position (Fail Safe), hold-mode for the last position
(HOLD) or OFF.
But CAUTION: if the control signal is absent, analogue servos and many digital servos offer no resis­tance to the forces acting on the control surfaces, with the result that the model’s control surface posi­tions are more or less quickly lost.

Please read the corresponding chapter in the RC system instructions on this subject.

F.S.Pos. (Fail-Safe position):

For each OUTPUT CH (receiver servo socket) activate (highlight) the value fi eld by briefl y pressing the
INC + DEC simutanously, then use the INC or DEC buttons in the “F.S.POS.” line to set the servo posi­tion which the servo is to take up in “FAIL-SAFE” mode if interference should occur. The setting can be
entered in increments of 10 μs. Default setting: 1500 μs (servo centre).
Important note:
The “F.S.POS.” function is also signifi cant if the receiver is switched on, but is (not yet) receiving a valid
signal; this applies to all three modes “OFF”, “HOLD” and “FAILSAFE”: The servo immediately runs to
the Fail-Safe position previously set in the “Position” line. This can be exploited, for example, to prevent
the operation of a retractable undercarriage or similar function if the receiver is switched on accidentally.
However, during normal model operations the corresponding servo behaves in accordance with the set
“MODE” if interference should strike.

Fail-safe response time (DELAY): this point is used to select the delay time after which the servos run
to their selected position if interference affects the radio signal. This value is applied to all channels.

FAIL SAFE ALL (global fail-safe setting): This sub-menu can be used to defi ne the Fail-Safe position
of the servos simply by “pressing a button”; and is simple to use: Move to the “FAIL-SAFE ALL” line and
press the INC + DEC buttons simultanously to activate the value fi eld; “NO” is highlighted (black back-
ground). Now set the parameter to “SAVE” using the INC or DEC button. Use the transmitter controls to
move all the servos which you have assigned - or intend to assign later - in the “MODE - FAIL-SAFE”
line, to the desired fail-safe positions. In the extreme bottom line “Position” displays the current position
of the transmitter control for the channel you have just set.
After touching the INC + DEC buttons once more, the display reverts from “SAVE” to “NO”. This indica­tes that the position of all the servos affected by the procedure have now been stored, and have also
been adopted in the “F.S.Pos.” line. At the same time the position for the current OUTPUT CH (servo
socket) is immediately displayed on the screen.
Switch the transmitter off, and check the Fail-Safe positions by observing the servo movements.

Fail-safe position (POSITION): displays the Fail-Safe position for the channel set under OUTPUT
CH.

“Fail-Safe” in combination with “channel mapping”

It is clearly desirable that mapped servos - i.e. servos which are controlled by a common control channel
(INPUT CH) - should respond in the same way when interference occurs, so the corresponding settings
of the INPUT CH determine the behaviour of mapped servos.
For example, if receiver servo sockets 6, 7 and 8 are mapped together, i.e. if the same control channel
“04” is assigned to OUTPUT CH (servo sockets) 06, 07 and 08 then INPUT CH 04 determines the Fail-

09 Manual Module M-G1 33300

Safe behaviour of the three servos connected to control channel 4, regardless of the individual settings
of the OUTPUT CH for INPUT CH 04. This also applies, for example, if it is mapped in turn to INPUT
CH 01.
In this case servo socket 04 would respond in accordance with the Fail-Safe settings for CH 01. In con­trast, the response or delay time set in the “DELAY” line always applies uniformly to all channels which
are set to “FAIL-SAFE”.

CAUTION: if the receiver is switched on and you call up the fail-safe function again using the program­ming button on the transmitter, any settings previously programmed in the FAIL SAFE display using the
SMART-BOX will be lost, including the channel assignment (INPUT CH).

5.2.4 Mixer Setup (RX FREE MIXER / RX WING MIXER)

To switch to the Mixer setup display, press the ENTER button repeatedly until RX FREE MIXER appears
on the screen.

ENTER

ESC

RX FREE MIXER < >
MODE : 1
MASTER CH : 08
SLAVE CH : 08
S-TRAVEL- : 100
S-TRAVEL+ : 100
RX WING MIXER
TAIL TYPE : NORMAL

Display Description Setup

MODE Mode 1, 2, 3
MASTER CH Master channel 0, 1 – 8
SLAVE CH Slave channel 0, 1 – 8
SLAVE TRAVEL- Limit Servo travel, negative 0 – 150%
SLAVE TRAVEL+ Limit Servo travel, positive 0 – 150%

RX WING MIXER

TAIL TYPE

INC + DEC

Tail type Normal, V-Tail, Elevon

RX FREE MIXER < >
MODE : 1
MASTER CH : 08
SLAVE CH : 08
S-TRAVEL- : 100
S-TRAVEL+ : 100
RX WING MIXER
TAIL TYPE : NORMAL

INC + DEC

INC

DEC

RX FREE MIXER

Mode (MODE): a total of up to three mixers can be used simultaneously, and the MODE function is used
to switch between mixer 1, mixer 2 and mixer 3 for the purpose of adjustment. The remainder of the
settings in this display only affect the mixer selected at this point.

Master channel (MASTER CH): here you set the main channel (primary control function); the slave
channel is mixed into the channel you select at this point.

Sub-channel (SLAVE CH): subsidiary channel coupled to the main channel; the sub-channel is mixed
into the main channel to the extent defi ned by the value you set.

Sub-channel servo travel (SLAVE TRAVEL +/-): this point is used to adjust the maximum control
surface travel of the servo connected to the sub-channel; the adjustment is carried out separately for
both directions (EPA).

RX WING MIXER

Tail type (TAIL TYPE): at this point you can select pre-set mixer functions for the appropriate model
type
NORMAL: conventional model aircraft - separate rudder and elevator at the tail - no mixer functions
activated
V-TAIL: For this model type the control functions elevator and rudder are linked together in such a way
that each of the two control surfaces - actuated by a separate servos - carries out superimposed eleva­tor and rudder functions.
ELEVON (delta / fl ying wing models): The servos connected to outputs 2 and 3 assume superimposed

Manual Module M-G1 33300 10

aileron and elevator functions.

5.2.5 Expo Functios (RX CURVE)

To switch to the Expo functions display, press the ENTER button repeatedly until RX CURVE appears
on the screen.

ENTER

ESC

RX CURVE < >
CURVE 1 CH : 01
TYPE : B
CURVE 2 CH : 02
TYPE : B
CURVE 3 CH : 03
TYPE: B

INC + DEC

RX CURVE < >
CURVE 1 CH : 01
TYPE : B
CURVE 2 CH : 02
TYPE : B
CURVE 3 CH : 03
TYPE: B

INC + DEC

INC

DEC

Display Description Setup

CURVE1 CH Channel number, servo curve 1 1 – 8
CURVE1 TYPE Servo curve 1 Type A, B, C
CURVE2 CH Channel number, servo curve 2 1 – 8
CURVE2 TYPE Servo curve 2 Type A, B, C
CURVE3 CH Channel number, servo curve 3 1 – 8
CURVE3 TYPE Servo curve 3 Type A, B, C

The servo curve function is used to manage the exponential function for up to three servos.

CURVE1 CH: this function is used to select the desired channel of the fi rst servo; the remainder of the
settings in CURVE 1 TYPE only affect the channel selected at this point

CURVE1 TYPE: at this point you can select the servo curve for the channel selected under CURVE 1
CH.

+100%

0

Servoweg

–100%

TYP C

Expo = +100%

–100%

Geberweg

+100%

0

A: EXPO = -100% and DUAL RATE = 125%
The servo responds slowly to stick movements around the
neutral position, but the curve becomes
steeper with increasing control travel.
B: linear setting: the servo’s response to stick movements
is linear The servo follows the stick movement with a linear
response.
C: EXPO = +100% and DUAL RATE = 70%

TYP A

Expo = –100%

DR = 125% DR = 70%

+100%

0

Servoweg

–100%

+100%

–100%

0

Geberweg

TYP B

linear

+100%

0

Servoweg

–100%

+100%

–100%

0

Geberweg

The servo responds slowly to stick movements around the
neutral position, but the curve becomes steeper with incre­asing control travel.

Note:

The control characteristics programmed at this point also affect mapped receiver outputs.

CURVE2 CH: this function is used to select the desired channel of the second servo; the remainder of
the settings in CURVE 2 TYPE only affect the channel selected at this point

CURVE2 TYPE: at this point you can select the servo curve for the channel selected under CURVE 2
CH.

CURVE3 CH: this function is used to select the desired channel of the second servo; the remainder of
the settings in CURVE 3 TYPE only affect the channel selected at this point

CURVE3 TYPE: at this point you can select the servo curve for the channel selected under CURVE 3
CH.

11 Manual Module M-G1 33300

5.2.6 Servo test (RX SERVO TEST)

To switch to the Servo test display, press the ENTER button repeatedly until RX SERVO TEST appears
on the screen

ENTER

ESC

RX SERVO TEST <
ALL-MAX : 2000usec
ALL-MIN : 1000usec
TEST : STOP
ALARM VOLT : 3.8V
ALARM TEMP+ : 70°C
ALARM TEMP- : 10°C
CH OUTPUT TYPE: ONCE

Display-Anzeige Erläuterung Einstellungen

ALL MAX Maximum control surface travel position for all servos 1500 – 2000 usec
ALL Min Minimum control surface travel position for all servos 1000 – 1500 usec
TEST Test procedure START / STOP
ALARM VOLT Displays the set voltage at which the low voltage

ALARM TEMP+ Displays the upper limit value at which the warning

ALARM TEMP- Displays the lower limit value at which the warning

CH OUTPUT TYPE Channel sequence ONCE / SAME / SUMI

INC + DEC

INC + DEC

warning signal is triggered

signal is triggered

signal is triggered

RX SERVO TEST <
ALL-MAX : 2000usec
ALL-MIN : 1000usec
TEST : STOP
ALARM VOLT : 3.8V
ALARM TEMP+ : 70°C
ALARM TEMP- : 10°C
CH OUTPUT TYPE: ONCE

INC

DEC

3.0 – 6.0 V
Factory setting 3.8 V

50 – 80° C
Factory setting 70°C

-20 – +10° C
Factory setting -10°C

/ SUMO

Maximum control surface travel position (ALL MAX): this is where you set the maximum control
surface travel for the servo test

Minimum control surface travel position (ALL min): this is where you set the minimum control sur­face travel for the servo test

Test procedure (TEST): START initiates the servo test process; STOP halts it again. You start and stop
the test by simultaneously pressing the INC / DEC buttons (dark background disappears)

Receiver low voltage warning (ALARM VOLT): monitors the receiver voltage, and can be set to any
value within the range 3.0 to 6.0 Volt. If the voltage falls to the threshold value, an audible signal is
emitted (continuous beeping), and “VOLT.E” fl ashes at top right in all the Smartbox’s receiver displays;
at the same time the parameter R-VOLT is displayed in inverse form in the receiver data display (RX
DATAVIEW).

Receiver temperature monitor (ALARM TEMP +/-): monitors the receiver temperature. It is pos­sible to program both a lower limit value ALARM TEMP- (-20 – +10°C) and an upper limit value

ALARM TEMP+ TEMP (50 – 80°C). If the receiver temperature rises above the maximum value or falls
below the minimum, the unit generates an audible warning (continuous beeping). At the same time all
the Smartbox receiver displays show a fl ashing “TEMP.E” at top right, and the parameter R-TEM is
shown in inverse form in the receiver data display (RX DATAVIEW).

It is important that the temperature of your receiver always stays within the approved range under all
fl ight
conditions (ideally between 10 and 55°C; please refer to your RC system instructions). If the tempera­ture rises above maximum or falls below minimum an audible signal is emitted (continuous beeping)

Channel- (CH OUTPUT TYPE): at this point you can select how the receiver signals are sent to the
outputs.
ONCE: the receiver outputs are transmitted in sequence: recommended for analogue servos. This set­ting ensures that the servos are automatically operated using a 20 msec cycle - 30 msec in the case
of the twelve-channel receiver (Order No. 33512) - regardless of the value set and displayed in the RX

Manual Module M-G1 33300 12

SERVO display under the menu point ‘PERIOD’.

SAME: the receiver outputs are transmitted in parallel blocks of four, i.e. channels 1 to 4 and channels
5 to 8 receive the transmitter signal simultaneously in each case: recommended for digital servos. It is
particularly useful where multiple servos are used for a particular function (e.g. ailerons), so that all the
servos move absolutely synchronously.
It is also possible to connect analogue servos; in this case you must set 20 ms in the menu point ‘PE­RIOD’ in the RX SERVO display.

Note: if you select the SAME setting, it is especially important to install a high-capacity receiver power
supply system, as up to four servos are almost always working simultaneously, placing a greater load
on the battery.

SUMI (Sum signal Input): Input for satellite receiver
SUMO (Sum signal output): the receiver outputs are transmitted in sequence, whereby the highest

channel transmits the sum signal; this signal is required by certain optional devices. With this setting the
servos are automatically operated using a 20 msec cycle - 30 msec in the case of the twelve-channel
receiver (Order No. 33512) - regardless of the value set and shown in the menu point ‘PERIOD’ of the
RX SERVO display.
Ex: V-Stabiliser, teacher-student system, Microbeast, fl ight simulator and output satellite receiver

SATELLITE MODE

Two HoTT receivers are inter-connected using a three-core connecting lead (Order No. 33700.1 (300
mm) or 33700.2 (100 mm) by the highest-numbered servo sockets. For more details on this please visit
www.graupner.de on the Internet.
The HoTT receiver which is confi gured as SUMO (see below) is designated the satellite receiver, and
all its channels are transmitted in the form of a sum signal to the second HoTT receiver - the primary
receiver - if reception should fail; the primary receiver must be programmed as “SUMI”. Note that the
signal only ever moves towards SUMI.
The receiver outputs are addressed in sequence at a frame rate of 20 ms (30 ms with the GR-24 re­ceiver, Order No. 33512), even if you have set 10 ms in the “PERIOD” line of the “RX SERVO” screen
page. However, if the receiver programmed as the satellite (SUMO) suffers signal reception failure, the
servos connected to that receiver take up the Fail-Safe positions programmed in the satellite receiver,
regardless of the primary receiver.
This receiver confi guration is recommended in particular circumstances: for example, if one of the two
receivers has to be installed in an unfavourable position in the model, or if there is a danger that the
received signal will be weak in certain fl ight attitudes, perhaps due to a turbine, carbon fi bre in the
airframe, or a similar problem, with the result that sporadic range problems might be expected.
For this reason it is essential to connect the most important control functions to the primary receiver (the
one programmed as SUMI), so that interference to the satellite receiver (SUMO) does not cause the
model to go out of control. Telemetry data, such as the voltage of the airborne power supply, are only
sent to the transmitter by the satellite receiver (confi gured as SUMO), i.e. all telemetry sensors must be
connected to the satellite receiver (SUMO).
Each receiver should be connected to the shared power supply using its own power lead. If high cur­rents can be expected, duplicated power connections are recommended. However, if each of the two
receivers is to be powered by its own battery, then it is essential to withdraw the central (red) wire from
one of the two satellite lead connectors.
If you wish to carry out further programming, such as the Fail-Safe settings, disconnect the three-core
satellite connection between the two receivers, and switch on just the receiver you wish to address. Note
that you may also need to change the binding sequence.

13 Manual Module M-G1 33300

6. FUNCTIONS

6.1. Binding

When you wish to use the Graupner HoTT 2.4 GHz receiver with a particular transmitter, the fi rst step
must always be to “bind” the unit to “its” Graupner HoTT 2.4 GHz RF module (transmitter). However,
the “binding” procedure is only required once for each receiver / RF module combination. Carry out the
following steps when necessary:

• Switch the transmitter and receiver on.

• Without Smart-Box or internal telemetry: Locate the BIND / RANGE button on the back of the mo-
dule, and hold it pressed in while you press and hold the SET button on the receiver. Both LEDs on
the back of the transmitter now glow constantly, and the red LED on the receiver fl ashes. Under
normal circumstances the fl ashing red LED on the receiver will cease to fl ash and switch to a con-
stant green within about ten seconds. This indicates that the binding process is complete. You can
now release both buttons, and your transmitter / receiver combination is ready for use.

With Smart-Box or internal telemetry:• At the Telemetry menu “TX” go to the RX BIND line, then
press the INC + DEC buttons on the SMART-BOX simultaneously (or push rotary): the screen
changes to BINDING, displayed highlighted (black background). Hold the SET button on the recei­ ver pressed. If the fl ashing red LED on the receiver goes out within about ten seconds, the green
LED glows constantly then the binding procedure has been completed successfully.

• However, if the red LED on the receiver continues to fl ash for longer than ten seconds, then the
binding process has failed. If this should occur, repeat the whole procedure.

6.1.1. Binding multiple receivers in one model

If required, it is also possible to bind multiple receivers to the transmitter for a particular model. The fi rst
step is to bind each receiver individually using the procedure already described.
When the system is in use, the receiver which was switched on fi rst, is the Master receiver. Any teleme-
try sensors installed in the model must be connected to this unit, as only the Master receiver transmits
sensor data using the downlink channel. The second and all further receivers operate in parallel with the
Master receiver but in Slave mode, with the downlink channel switched off.
The control functions can also be distributed amongst multiple receivers; this is carried out using the
Channel Mapping function of the SMART-BOX (Order No. 33700). In the same way it is possible to as­sign one control function to multiple receiver outputs; a typical example would be the use of two servos
for each aileron instead of only one, etc.

6.2. Range checking

The method of checking the effective range of the Graupner HoTT 2.4 GHz system is described below.
We recommend that you ask a friend to help you with this procedure.
After binding the receiver to your transmitter, switch the transmitter and the receiver on, and wait until
the green LED on the receiver lights up.

• Install the bound receiver in the model in its fi nal intended position.

• Switch the RC system on, so that you can observe the movement of the servos.

• Set up the model on a fl at surface (pavement, closely mown grass or earth), and ensure that the
receiver aerials are located at least fi fteen cm above the ground. This may require a support for the
model.

• Hold the transmitter at hip-height, away from your body, but do not point the aerial directly at the
model; instead turn and / or angle the aerial tip so that it stands vertical, and keep it there for the
duration of the range check.

• Start the range check mode in the Telemetry menu; the transmitter starts beeping evenly, and the
red and green LEDs next to the BIND / RANGE button fl ash alternately.

• Walk away from the model, operating the transmitter sticks constantly. If you detect an interruption
in the link within a range of about fi fty metres, stand still and attempt to reproduce it.

• If the model is fi tted with a motor, switch it on in order to check whether the power system is gene-
rating interference.

• Continue to walk away from the model until you reach the point where perfect control is no longer
possible.

• Now press the BIND / RANGE button on the transmitter once more; this terminates range-check
Manual Module M-G1 33300 14

mode manually, and the model should respond normally to control commands. If this does not occur
with 100% reliability, the system should not be used. Contact your local Service Department of
Graupner GmbH & Co. KG.

• Range-check mode is usually terminated manually when the user presses the BIND / RANGE but
ton, but it terminates automatically after about ninety seconds in any case. The red LED now glows
constantly again, while the green LED either glows constantly or fl ashes continuously, according to
the Country setting.

• We recommend that you check effective radio range before every fl ight. While you are carrying
out the check, simulate all the servo movements which will take place when the model is in fl ight.
The ground range must always be at least fi fty metres in order to ensure safe, reliable model con-
trol.

Note:

Range-check mode is usually terminated manually when the user presses the BIND / RANGE button,
but it terminates automatically after about ninety seconds in any case.

CAUTION:

During normal operations (i. e. when controlling a model) never press and hold the programming
button on the transmitter module!

6.3. Fail-Safe function (RX Failsafe)

In its default state (as delivered) the receiver is set to “Hold” mode, i.e. if a fail-safe situation occurs, all
the servos connected to it maintain the last position detected as valid. In this mode the red LED on the
receiver lights up when interference occurs, and the red LED on the transmitter goes out. The transmit­ter also starts beeping about once per second as an audible warning.
You can exploit the safety potential of the fail-safe option by at least programming the throttle channel to
respond to a fail-safe situation: the throttle channel of an engine-powered model should be set to idle,
the throttle channel of an electric-powered model to “stop”, and the throttle channel of a model helicop­ter to “Hold”. You can program the fail-safe function either in the Telemetry menu under “RX Failsafe”
(5.2.3), or on the transmitter module: repeated brief presses of the BIND / RANGE button on the trans­mitter module cycle through the fail-safe modes (fail-safe on / off, hold-mode, or standard).

• Fail-Safe mode: when you press the BIND / RANGE button, the transmitter beeps once; the red
and green LEDs glow constantly.
It is now possible to program positions to which the servos will move in a Fail-Safe situation; this
occurs after a “Hold” period of 0.75 seconds: move the corresponding transmitter controls (sticks,
rotary knobs, INC / DEC buttons etc.) to the desired Fail-Safe positions SIMULTANEOUSLY, then
hold the BIND / RANGE button pressed in for three to four seconds. When you release the button,
both the red and green LEDs should light up constantly, and the transmitter should not emit an au­ dible signal: the transmitter now reverts to Control mode. If this does not occur, repeat the procedu­ re.

• Hold mode (recommended for model helicopters): when you press the BIND / RANGE button,
the transmitter beeps twice; the red LED lights up constantly, and the green LED goes out (factory
default setting).
If interference occurs, all servos programmed to “Hold” remain at the last position detected by the
receiver as correct; this situation is maintained until such time as the receiver picks up a new, valid
control signal.
You can save your selection by holding the BIND / RANGE button pressed in for three to four se­ conds. When you release the button, both the red and green LEDs should light up constantly, and
the transmitter should not emit an audible signal: the transmitter now reverts to Control mode. If this
does not occur, repeat the procedure.

• Fail-Safe OFF: when you press the BIND / RANGE button, the transmitter beeps three times; the
green LED glows constantly, the red LED goes out.
You can save your selection by holding the BIND / RANGE button pressed in for three to four se­ conds. When you release the button, both the red and green LEDs should light up constantly, and
the transmitter should not emit an audible signal: the transmitter now reverts to Control mode. If this
does not occur, repeat the procedure.

• Standard mode (suitable for fi xed-wing model aircraft only): when you press the BIND / RAN-
GE button, the transmitter beeps four times; both LEDs are off.

15 Manual Module M-G1 33300

In this mode the throttle servo (channel 1) moves to the Fail-Safe position, i.e. the position you have
programmed for a Fail-Safe situation, while all the other channels remain at “Hold”.
Move the throttle stick to the desired position, then hold the BIND / RANGE button pressed in for
three to four seconds. When you release the button, both the red and green LEDs should light up
constantly, and the transmitter should not emit an audible signal: the transmitter now reverts to
Control mode. If this does not occur, repeat the procedure.

6.4. Country setting (COUNTRY)

The Country setting is present in order to cater for various directives (FCC, ETSI, IC etc.). The HoTT

2.4 radio system features a restricted frequency band for France. If you wish to use the RC system in
France, the country setting on the transmitter must be set to “France” mode, as described. It is essenti-
al not to use the Universal/EUROPE mode. If you select the “France” setting on your transmitter, you
MUST select it again every time you alter the Fail-Safe settings using the programming button.
You can either program the Country setting in the Telemetry menu “TX COUNTRY” (5.1.) or on the
transmitter module: To select a Country setting, you must fi rst switch the transmitter off, then insert the
(FRANCE / GENERAL) programming plug (supplied) in the DATA socket on the back of the transmitter.
Switch the transmitter on: you can now toggle between the “GENERAL” and “France” settings by briefl y
pressing the BIND / RANGE button, always starting with the current setting.

• GENERAL/EUROPE: the transmitter beeps once when you press the BIND / RANGE button, and
the green LED lights up constantly.
Default setting: approved for use in all countries with the exception of France.

• France: the transmitter beeps twice when you press the BIND / RANGE button, and the green
LED fl ashes continuously.

• Once you have selected the Country setting, save it in the transmitter by holding the BIND / RANGE
button pressed in for about three seconds. When you release the button, the transmitter emits a brief
confi rmation tune, and the beeps cease.

• Switch the transmitter off, and remove the programming plug. Do not under any circumstances use
the radio control system with the programming plug inserted!

• If you subsequently wish to check the current Country setting for the transmitter, observe the green
LED on the back of the transmitter when it is switched on:

green LED glowing constantly = “GENERAL”
green LED fl ashing constantly = “France”

6.5. Low voltage warning

If the transmitter voltage falls below 8.0 V (the voltage can be programmed in the Telemetry display
“TX” or with the Smart-Box), the RF module generates an audible low voltage warning in the form of a
steady series of beeps at intervals of around one second. This occurs independently of the transmitter
software.

6.6. Range warning

If the receiver signal in the down-link channel becomes too weak, the transmitter always generates an
audible range warning in the form of a beep emitted about once per second. Since the transmitter’s
output is much higher than that of the receiver, you will still maintain full control of the model, but in the
interests of safety you should fl y the model back towards you until the warning signal ceases again.
If the audible range warning signal does not cease when you reduce the distance, then the transmitter
or receiver low voltage or temperature warning is active! In this case you must land the model and cease
operations without delay.

6.7. DATA socket - Firmware update or SMART-BOX connection

The SMART-BOX is connected to the USB1-socket on the back of the transmitter, also Firmware up­dates for the transmitter RF module can be transferred via the USB1-socket in conjunction with a PC
running Windows XP, Vista or 7. For this you also require the USB interface, Order No. 7168.6, and the
adapter lead, Order No. 7168.6A, which are available separately.
The programs and fi les required for this are available from www.graupner.de in the Download area for
the corresponding products.
See also chapter 7.

Manual Module M-G1 33300 16

6.8. Data Storage

micro-SD and micro-SDHC

the transmitter can be switched on again.

Data recording / saving

Data storage on the SD card automatically starts after a telemetry connection of the receiver exists, as­suming that a compatible memory card is installed in the card slot - and will stop automatically 2 seconds
after the receiver was turned off.
Note: After switching on the receiver a beep will sound after about 2 seconds and the display „SD card
log“ changes to ON - Data recording starts. After switching off the receiver the beep will sound again
after about 2 s and the display changes to OFF. Then switch off the transmitter so that the log data is
stored. If you turn off the transmitter before the beep / display OFF appears, no log data is saved!
By default, always the transmitter and receiver data (with integrated telemetry) or transmitter only (wit­hout integrated telemetry) are recorded. To log the connected sensor or receiver, go to Start Recording
in the menu „Model Select“ of the Smart-Box and select the connected sensor - with built-in telemetry
transmitters, turn the Rotary from the basic display to the right.
After concluding a data save process you will fi nd a folder entitled “LogData” on the memory card. This
folder stores log fi les which are named according to the following scheme: 0001, 0002.bin etc. (sequen-
tial numbers) in the folder named “No-Name”. The data can subsequently be analysed on a compatible
PC using the PC programs which can be found on the download page for the associated transmitter at
www.graupner.de.

Any standard commercial micro-SD memory card with a capacity of up
to 2 GB can be used, and also any micro-SDHC card of up to 32 GB.
However, the manufacturer recommends the use of memory cards with
capacities up to only 4 GB, as these are completely adequate in all normal
circumstances.
The memory cards for which the transmitter is intended are familiar from
their use in digital cameras and mobile telephones. Place the card in the
slot with the contacts facing to the outside, and push it in until it locks. Now,

6.9. Earphone socket

The vario tones are activated as follows:

- The Vario output can be switched ON or OFF via the transmitter in the „TX“ display under the menu
item „VARIO TONE“ - select ON here.

- Go to the menu „Model Select“ of smart box and select the connected sensor - with built-in telemetry
transmitters, turn the Rotary from the basic display to the right.

The “EARPHONE” socket is designed to accept standard earphones or
headphones fi tted with a 3.5 mm barrel connector (not included).
Signals associated with the Telemetry menu, such as the audible Vario
output, are present at this socket in addition to the transmitter’s audible
signals.

17 Manual Module M-G1 33300

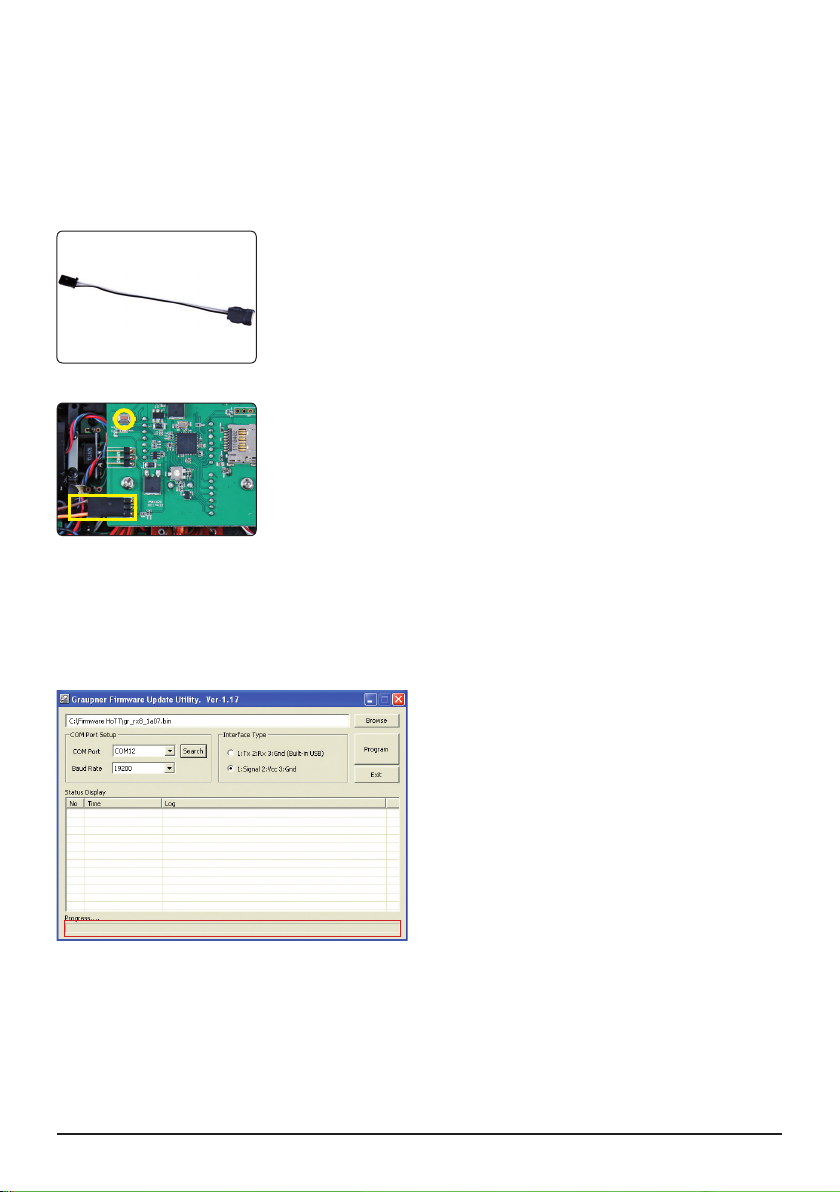

7. Firmware Update Graupner-HoTT Module M-G1

BIND/RANGE button

USB 1 socket

Firmware updates for the transmitter RF module can be transferred via the USB1-socket in conjunc­tion with a PC running Windows XP, Vista or 7. For this you also require the USB interface, Order No.

7168.6, and the adapter lead, Order No. 7168.6A, which are available separately.
The programs and fi les required for this are available from www.graupner.de in the Download area for
the corresponding products.
Install the Firmware Update Utility Graupner and the USB drivers on your computer. Check the system
requirements!

The fi rst step is to cut through the central red wire in the adapter lead,
Order No. 7168.6A, then connect the lead to the USB interface, Order
No. 7168.6. This socket is also polarised; note the small chamfer on one
edge. Never use force - the plug should engage easily and fully.

BIND/RANGE button

Insert the adapter lead in the USB 1 socket on the rear of the module, as
shown in the photo. Take care to maintain correct polarity!
The black (or brown) braid (-) is at the top, the white (or orange) braid (S)
at the bottom.

USB 1 socket

7.1. Update procedure

Ensure that the adapter lead is confi gured as shown in the illustrations, and is connected correctly to
the transmitter or receiver.

Start the Graupner Firmware Update Utility.

Under [COM Port Setup] select the correct COM
port, i.e. the one to which the USB lead is connec­ted. If you are not sure of this, press the button
„Search“ and select in the pop-up window „Silicon
Labs CP210x USB to UART Bridge“ and press „OK“.
Baud Rate: 19200.

Under [Interface Type] click on Signal 2:Vcc3:Gnd.
Now click on the “Browse” button and select the fol­der containing the previously loaded fi rmware fi le
ending in *.bin. If everything is correct, the fi le will
appear in the corresponding window.
The fi rmware fi les are encoded in product-specifi c

form, i.e. if you accidentally select a fi le which does
not match the product (e.g. transmitter update fi le instead of receiver fi le), then the pop-up window “Pro-
duct code error” will appear, and you will not be able to start the update procedure.
Press the “Program” button in the software. Wait briefl y until you see movement in the progress bar. This
may take up to fi ve seconds, depending on the computer.

Transmitter: press the BIND / RANGE button, and switch the transmitter on while you hold it pressed
in.

After a few seconds the Status screen displays the message “Found target device…”; you can now

Manual Module M-G1 33300 18

release the button, and the fi rmware update process commences.
If the device is not recognised, if the pop-up window “Target device ID not found” appears, or if the
process fails before 100% is reached, you must restart the update procedure. Repeat all the steps as
described above.

The Status display and the Progress bar show the progress of
the fi rmware update. The update is completed when the mes-
sage “Complete…100%” or “Complete!!” appears.

During the update process both LEDs on the transmitter glow
constantly. When it is complete, the red LED goes out and you
will hear a brief confi rmation melody. Both LEDs on the receiver
also light up; when the process is complete, the green LED
goes out, and the red LED starts fl ashing.

Switch your transmitter / receiver off, and disconnect the ad­apter lead.

Caution: after completing an update process, you must in­itialise the device before using it, i.e. reset it to the factory
default values.

Initialisation:

To initialise the transmitter, or to reset it to the factory default settings, press and hold the BIND / RAN­GE button on the module while you switch the transmitter on, then release the BIND / RANGE button
again.

Please note:

When initialisation is complete, the transmitter will be in Fail-Safe set-up mode. You can therefore imme­diately continue by programming your fail-safe settings.
If you previously set your transmitter’s Country setting to “France” mode, you must also re-enter the
Country setting.

19 Manual Module M-G1 33300

Konformitätserklärung gemäß dem Gesetz über Funkanlagen und

Telekomunikationsendeinrichtungen (FTEG) und der Richtlinie 1999/5/EG (R&TTE)

Declaration of Conformity in accordiance with the Radio and Telecomunikations Terminal Equipment

Act (FTEG) and Directive 1999/5/EG (R&TTE)

Graupner GmbH & Co. KG
Henriettenstraße 94-96

D-73230 Kirchheim/Teck

erklärt, dass das Produkt:

declares that the product

Module M-G1 HoTT - No. 33300
Module mx-16 HoTT - No. 33301
Module M-G2 HoTT - No. 33302

Geräteklasse: 2

Equipment class

den grundlegenden Anforderungen des § 3 und den übrigen einschlägigen Bestimmungen des
FTEG (Artikel 3 der R&TTE) entspricht.

complies with the essential requirements of § 3 and the other relevant provisions of the FTEG (Article 3 of the
R&TTE Directive).

Angewendete harmonisierte Normen:

Harmonised standards applied

EN 60950:2006

EN 301 489-1 V1.7.1

Health and safety requirements pursuant to § 3 (1) 1. (Article 3 (1) a))

EN 301 489-3 V1.4.1

Protection requirement concernig electromagnetic compatibility

§ 3 (1) 2, Artikel 3 (1) b))

EN 300 328 V1.7.1

Measures for the efficient use of the radio frequency spectrum

§ 3 (2) (Article 3 (2))

Gesundheit und Sicherheit gemäß § 3 (1) 1. (Artikel 3 (1)a))

Schutzanforderungen in Bezug auf elektromagnetische
Verträglichkeit § 3 (1) 2, Artikel 3 (1) b))

Maßnahmen zur effizienten Nutzung des Frequenzspektrums

§ 3 (2) (Artikel 3 (2))

Kirchheim, 06. Juni 2011

Stefan Graupner, Geschäftsführer

Stefan Graupner, Managing Director

Graupner GmbH & Co. KG Henriettenstraße 94-96 D-73230 Kirchheim/Teck Germany
Tel: [phone] EMail: [e-mail]: 07021/722-188

Manual Module M-G1 33300 20

Environmental Protection Notes

When this product comes to the end of its useful life, you must not dispose of it in the or­dinary domestic waste. The correct method of disposal is to take it to your local collection
point for recycling electrical and electronic equipment. The symbol shown here, which may
be found on the product itself, in the operating instructions or on the packaging, indicates
that this is the case.

Individual markings indicate which materials can be recycled and re-used. You can make

product, recycling the basic materials or recycling redundant equipment in other ways.

Remove batteries from your device and dispose of them at your local collection point for batteries.

In case of R/C models, you have to remove electronic parts like servos, receiver or speed controller
from the product in question, and these parts must be disposed of with a corresponding collection point
for electrical scrap.

If you don’t know the location of your nearest disposal centre, please enquire at your local council of­fi ce.

an important contribution to the protection of our common environment by re-using the

21 Manual Module M-G1 33300

Wir gewähren auf dieses Erzeugnis eine /

This product is /

Sur ce produit nous accordons une

Garantie von

warrantied for

garantie de

Die Fa. Graupner GmbH & Co. KG, Henriettenstraße 94-96,
73230 Kirchheim/Teck gewährt ab dem Kaufdatum auf
dieses Produkt eine Garantie von 24 Monaten. Die Garan­tie gilt nur für die bereits beim Kauf des Produktes vorhan­denen Material- oder Funktionsmängel. Schäden, die auf
Abnützung, Überlastung, falsches Zubehör oder unsach­gemäße Behandlung zurückzuführen sind, sind von der
Garantie ausgeschlossen. Die gesetzlichen Rechte und
Gewährleistunsansprüche des Verbrauchers werden durch
diese Garantie nicht berührt. Bitte überprüfen Sie vor ei­ner Reklamation oder Rücksendung das Produkt genau
auf Mängel, da wir Ihnen bei Mängelfreiheit die entstan­denen Unkosten in Rechnung stellen müssen.

Graupner GmbH & Co. KG, Henriettenstraße 94-96, 73230
Kirchheim/Teck, Germany guarantees this product for a pe­riod of 24 months from date of purchase. The guarantee
applies only to such material or operational defects witch
are present at the time of purchase of the product. Dama­ge due to wear, overloading, incompetent
use of incorrect accessories is not covered by the guaran­tee. The user´s legal rights and claims under garantee are
not affected by this guarantee. Please check the product
carefully for defects before you are make a claim or send
the item to us, since we are obliged to make a charge for
our cost if the product is found to be free of faults.

La société Graupner GmbH & Co. KG, Henriettenstraße
94-96, 73230 Kirchheim/Teck, Allemagne, accorde sur ce
produit une garantie de 24 mois à partir de la date d´achat.
La garantie prend effet uniquement sur les vices de fonc­tion-nement et de matériel du produit acheté. Les dom­mages dûs à de l´usure, à de la surcharge, à de mauvais
accessoires ou à d´une application inadaptée, sont ex­clus de la garantie. Cette garantie ne remet pas en cau­se les droits et prétentions légaux du consommateur.
Avant toute réclamation et tout retour du prouit, veuillez
s.v.p. cotrôler et noter exactement les défauts ou vices.

handling or the

Monaten
months

24

mois

Servicestellen / Service / Service après-vente

Graupner-Zentralservice
Graupner GmbH & Co. KG
Henriettenstrasse 94-96
D-73230 Kirchheim / Teck

Belgie/Nederland Luxembourg
Jan van Mouwerik
Slot de Houvelaan 30
NL 3155 Maasland VT

([phone]

Republika
RC Service Z. Hnizdil
Letecka 666/22
CZ-16100 Praha 6 - Ruzyne

([phone]

Anguera Hobbies
C/Terrassa 14
E 43206 Reus (Tarragona)

([phone]

France UK
Graupner Service France
Gérard Altmayer
86, rue St. Antoine
F 57601 Forbach-Oeting

([phone]

Italia
GiMax
Via Manzoni, no. 8
I 25064 Gussago

([phone]

Servicehotline

([phone]
Montag - Freitag 7:30 -11:45
und 12:30 -16:00 Uhr

Kit Flammang
129, route d’Arlon
L 8009 Strassen

([phone]

SchweizCeská Republika/Slovenská
Graupner Service Schweiz
CD-Electronics GmbH
Kirchweg 18
CH-5614 Sarmenstorf

([phone]

SverigeEspana
Baltechno Electronics
P.O. Box 5307
S 40227 Göteborg

([phone]

Graupner Service UK
Brunel Drive
GB, NEWARK, Nottingham­shire
NG242EG

([phone]

Garantie-Urkunde

Warranty certifi cate / Certifi cate de garantie

33300 Module M-G1

Übergabedatum
Date of purchase/delivery

Date de remise

Name des Käufers
Owner´s name
Nom de I`achateur

Firmenstempel und Unterschrift

Straße, Wohnort
Complete adress

Domicie et rue

Manual Module M-G1 33300 22

des Einzelhändlers
Stamp and signature of dealer
Cachet de la fi rme et signature
du detailant

Graupner GmbH & Co. KG
Henriettenstraße 94 – 96
D-73230 Kirchheim/Teck
Germany
www.graupner.de

Änderungen sowie Liefermöglichkeiten vorbehalten. Lieferung durch den Fachhandel. Bezugsquellen
werden nachgewiesen. Für Druckfehler kann keine Haftung übernommen werden.

Specifi cations and availability subject to change. Supplied through specialist model shops only. We will
gladly inform you of your nearest supplier. We accept no liability for printing errors.

Sous réserve de modifi cations et de possibilité de livraison. Livraison uniquement au travers de maga-
sins spécialisés en modélisme. Nous pourrons vous communiquer l’adresse de votre revendeur le plus
proche. Nous ne sommes pas responsables d’éventuelles erreurs d’impression.

Con riserva di variazione delle specifi che e disponibilità del prodotto. Fornitura attraverso rivenditori
specializzati.Saremmo lieti di potervi indicare il punto vendita più vicino a voi. Si declina qualsiasi res­ponsabilità per errori di stampa.

33300 / July 2011 - EN V1.1
