GRASS VALLEY Profile PDR 100 Installation Manual

FIBRE CHANNEL NETWORKING

Installation Manual

PROFILE PDR100

PROFESSIONAL DISK RECORDERS

071-8072-00

NOVEMBER 2000

Copyright Copyright © 2000 Grass Valley Group Inc. All rights reserved. Printed in the United

States of America.
This do cument m ay not be copied i n whole o r in part , or other wise repr oduced

except as sp ec ifi ca ll y permitt ed un de r U. S. co py r i gh t law, withou t the prior wr it ten
consent of Grass Valley Group Inc., P.O. Box 59900, Nevada City, California
95959-7900

Trademarks Grass Valley, GRASS VALLEY GROUP, Profile and Profile XP are either

registe red trad em arks or trad ema rk s of Gras s Va ll ey Gr oup in the Uni ted Stat es
and/or other countries. Other trademarks used in this document are either
registered trademarks or trademarks of the manufacturers or vendors of the
associated products. Grass Valley Group products are covered by U.S. and foreign
patents, issued and pending. Additi onal information regarding

Grass Valley Grou p's tradem arks and oth er propri etary right s may be fou nd at
www.grassvalleygroup.com.

Disclaimer Product options and specifications subject to change without notice. The

informati on in this manual is furnished for informatio nal use only, is subjec t to
chang e witho ut notic e, an d shou ld not b e cons trued as a com mitme nt by G rass
Valley Group. Grass Valley Group as sumes no res ponsibility or liability f or any
errors or inaccuracie s that may appear in this publication.

U.S. Government
Restricted Rights
Legend

Use, duplication, or disclosure by the United States Government is subject to
restrictions as set forth in s ubparagraph (c )(1)(ii) of t he Rights in Tech nical Data
and Comp ut er So ftwa re clau se at DFA RS 25 2.277 -7 013 or in su bpara gra ph c(1 )
and (2) of the Comm ercial Co mputer So ftware Re stricte d Rights cl ause at FAR

52.227-19, as applicable. Manufacturer is Grass Valley Group Inc., P.O. Box
59900, Nevada City, California 95959-7900 U.S.A.

Revision Status

Rev Date Description

February 1997 Initial Issue, Manual P/N 070-9674-00.
September 1997 Move user information, roll P/ N to 070-9674-01.
November 2000 Revised Product Support contact information.

Part Number 071-8072-00.

PDR 100 Fibre Channel Installation 3

Contents

Grass Valley Group Product Support ............... ............ ............ ............ ......... ............ .. 7

General Safe ty Su mm ary............................... ........................................... .................. 8

Certifications and Compliances................................................................................... 11

Introduction.................................................................................................................. 13

Related Documents..................................................................................................... 13

System Requireme n ts.......... ........................................... ............................................ 14

Tools Required......................................................................... ................................... 14

Receiving Insp e ction of the Kit.... ..................... ........................................................... 15

Receiving Insp e ction.......... ................................... ............................................... 15

Unpacking Inspection.......................................................................................... 15

Fibre Channel Upgrade Kits................................................ .......... ....... .. ....... .......... .. .. 16

Fibre Channel Kit Description...................................................................................... 18

Fibre Channel Board................................................................ ....... ....... ..... ....... .. 18

Master Enhanced Disk Recorder Board ... ..... ..... ....... .. ..... ....... ..... .. ..... ....... ..... .. .. 18

Slave Enhanced Disk Reco r d er Board................................................................ 18

10/100 BaseT Ethernet Board ............................................................................. 18

PCI Interconnect Board ....................................................................................... 18

Front Panel Cable Assembly............................................................................... 19

LED Cable .................................................................................. ......................... 19

EMI Foam Gasket.............................................................................................. .. 19

Fibre Channel Cable...................................... ....... ....... ..... ....... ....... ..... ....... ....... .. 19

Ethernet Cable..................................................................................................... 20

Sticker Sets.......................................................................................................... 20

Accessori e s............ .................................................. ................................................... 21

Networking Overview................................................................................................... 23

Network Configurations....................................................................................... 23

Network Models................................................................................................... 23

Networking Several Profile Systems ............................................................ 24

Networking Sev eral Hubs ............................................................................ 25

Building a Fibre Channel Network ......................................................... .......... .. .. 26

Electro sta tic Precautio n s...... ..................... .................................................. ................ 27

Installation Procedures................................................................................ ............ .... 28

Preparing the Profile System............................................................................... 29

Enable the Network...................................................................................... 29

System Shutdo wn........................................................ ................................ 29

External Cab les Disconnect......................................................................... 30

Profile Chassis Removal..... ........................................... .............................. 30

Covers Removal .......... ................................................................................ 30

Board Retaine r Br a cke ts Removal......... ....... ............................................... 32

Removing Inter n a l Cable s................. ........................................................... 34

Removing Old Board s...................................... ............................................ 36

Board Location Guide.............................................. .......................................... .. 38

Contents

4 PDR 100 Fibre Channel Inst allation

Video Router to Motherboard Relationship ........................................ ....... ... 38

Board I/O Requirements and Restrictions..................................... ..... ....... ... 38

Video Router I/O Connections...................................................................... 40

Selecting a Locat ion................................................. .................................... 42

Example 1...... ....... ........................................... .......................................... ... 43

Example 2...... ....... ........................................... .......................................... ... 46

Audio Clock Cabling............................................................................................. 48

Installing the Fibre Channel Upgrade........................................................................... 50

Installing the Ethernet 10/100 BaseT Board......................................................... 53

Installing the EDR Boards.................................................................................... 55

Installing the Fibre Channel Board..................................... .......... ....... ....... ....... ... 58

Reinstalling Internal Cables.................................................................................. 59

Installi n g th e PCI Interconnect Board.......... ............................ ............................. 60

Reinstalling Board Retainer Br a cke ts................................................................... 62

Installing EMI Compliance Components .............................................................. 64

Attaching Slot ID Stickers..................................................................................... 69

Replacing the Profile Covers................................................................................ 70

Reinstalling the Profile Chassis into the Rack...................................................... 71

Cable Connections................................................................................ ............... 71

Installation Verification................................. ................................................. ............... 72

Configuring the System.......... ............... ........................................................ ............... 73

System Set-up fo r Eth e rn e t...... .............. ........................................... ................... 74

Configuring the Ethernet Board for TCP/IP.......................................................... 75

Testing Your Ethernet Connection ....................................................................... 75

Configuring Your Fibre Channel Network............................................................. 76

If a Problem Occurs..................................................................................................... 77

Contents

PDR 100 Fibre Channel Installation 5

Figures

1 4-Channel Fibre Channel Kit Contents....................................................... 17

2 Example - Profile System Fibre Channel Connections...............................21

3 Fibre Channel and Ethernet Hubs ..............................................................22

4 Copper-to-Fiber Cable Adapter ............................... ....... ..... ....... .. .......... .. ..22

5 Basic Hub Connect ion s........ ......................................................................24

6 Using Several Hubs....................................................................................25

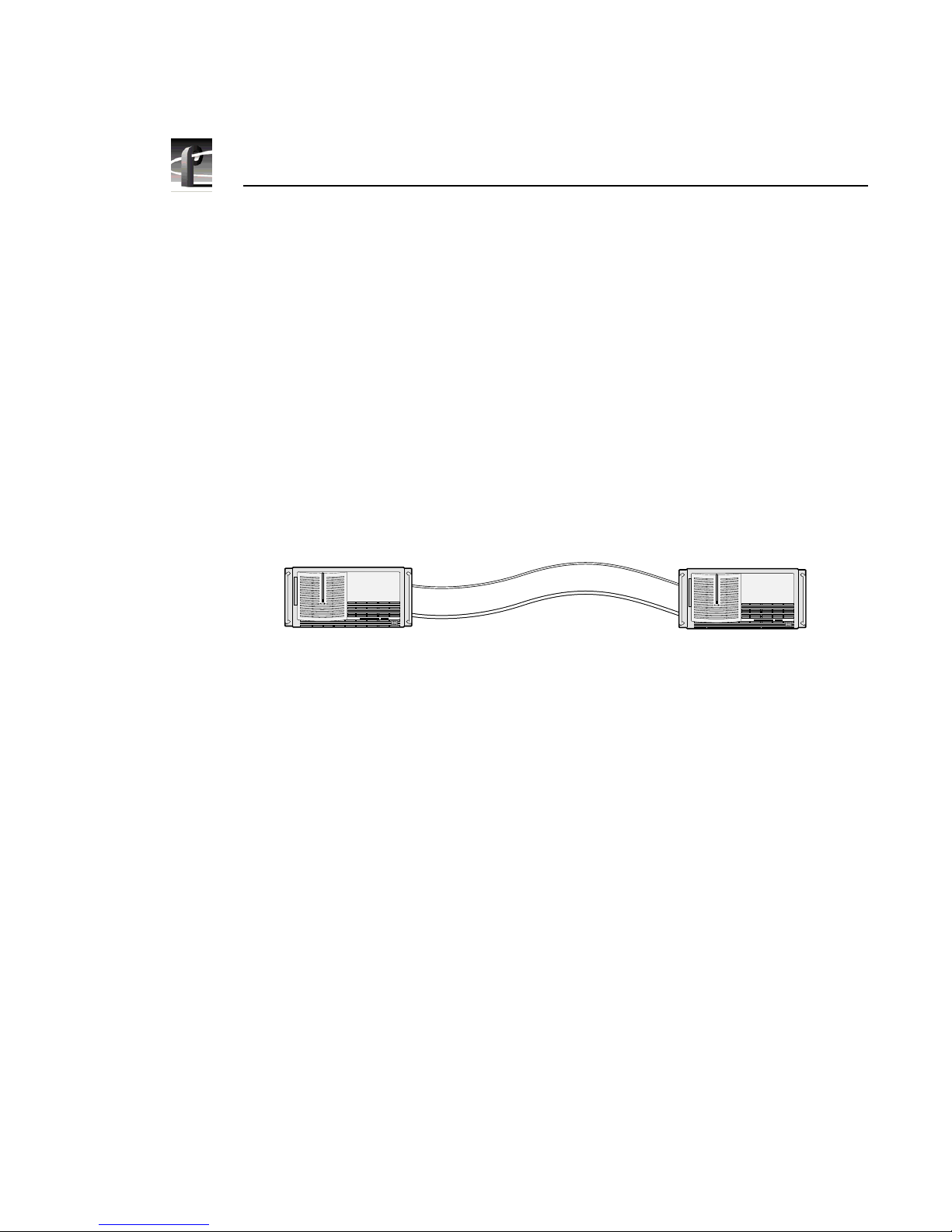

7 Point-to-point Fibre Channel Network Connection .....................................26

8 Profile Top Covers Re mo va l.......... .............................................................31

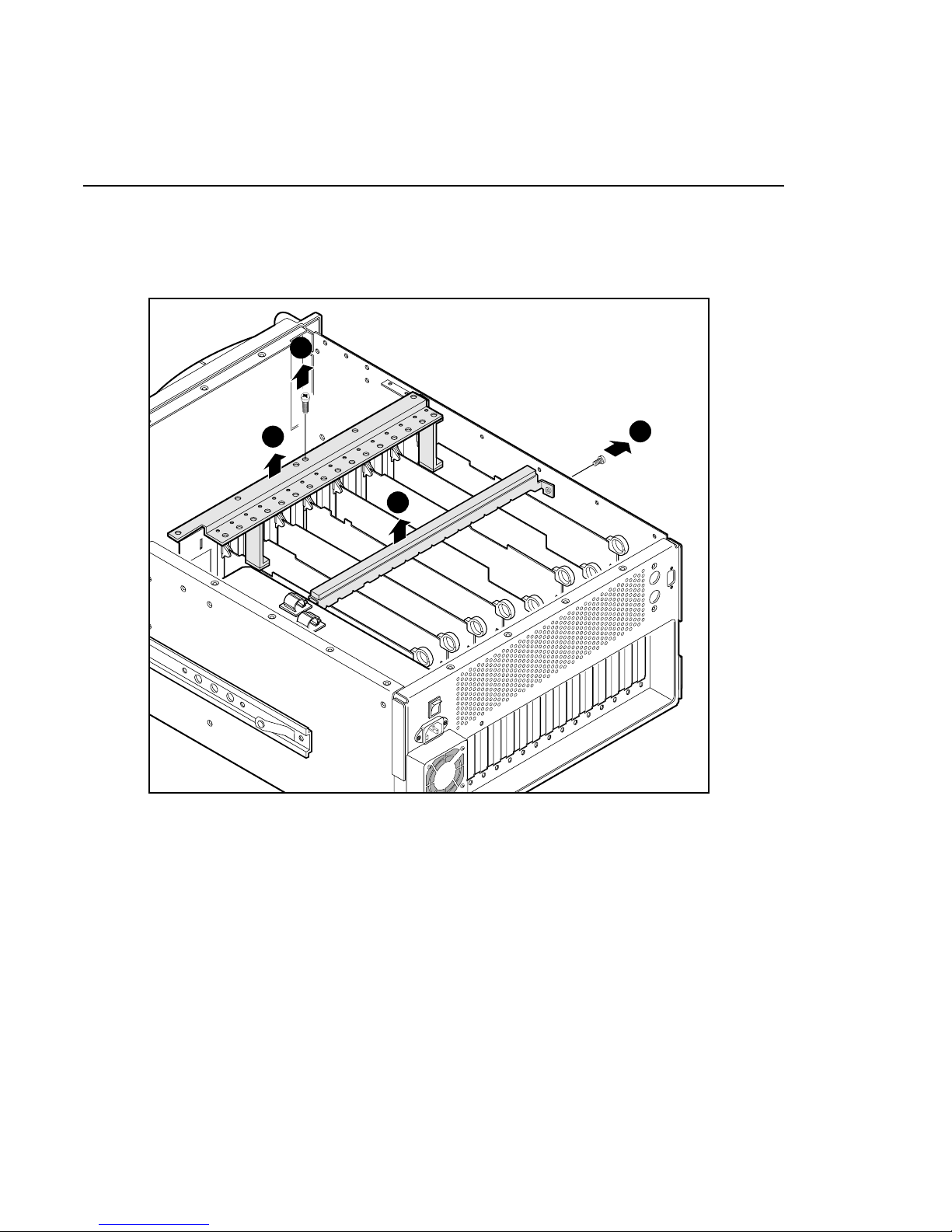

9 Board Retainer Brackets Removal .............................................................33

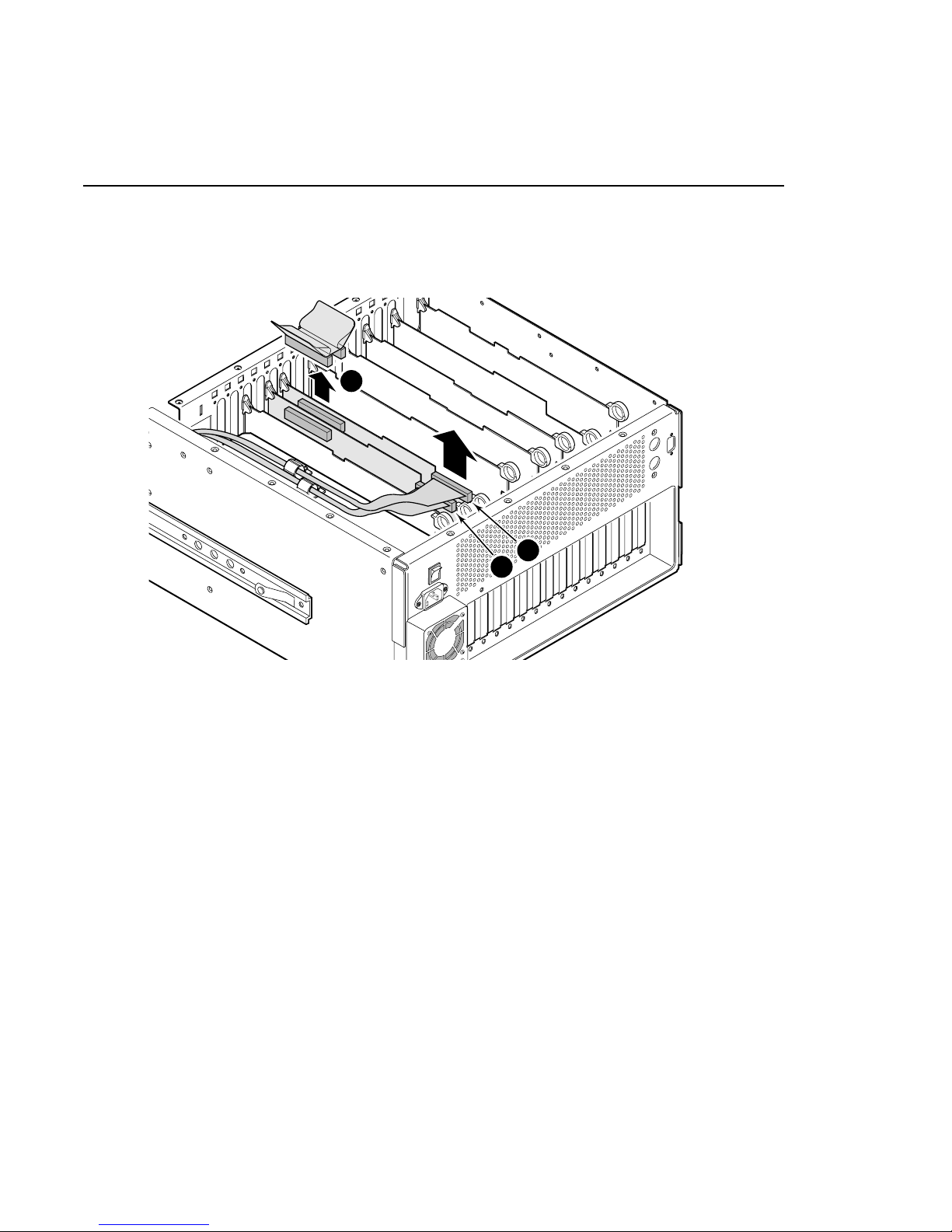

10 Internal SCSI Cables Removal...................................................................35

11 Typical Remova l of a Full Size Board...... ................................... ................36

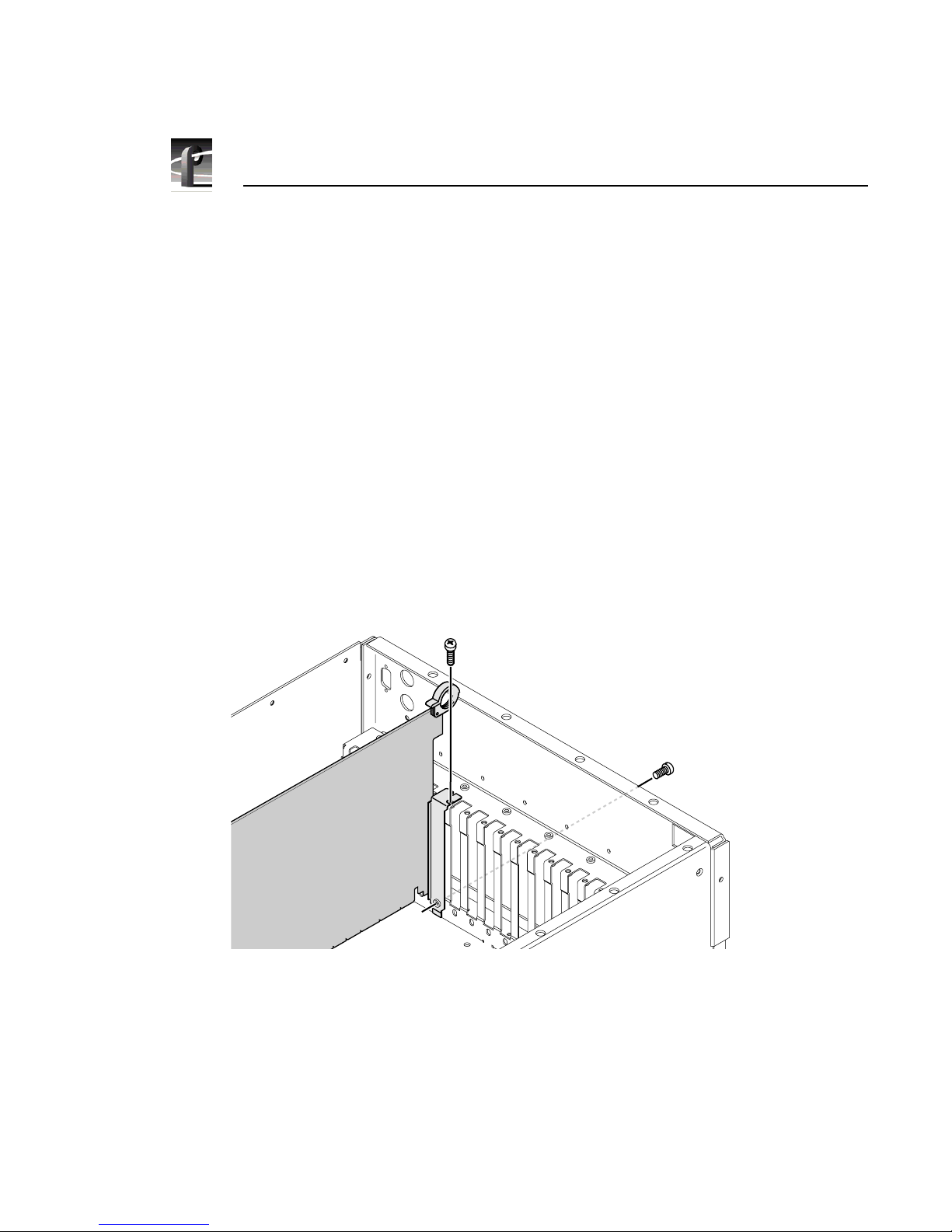

12 Typical Remova l of a Shor t Bo a rd..............................................................37

13 Example of Audio Clock Cabling ................................................................49

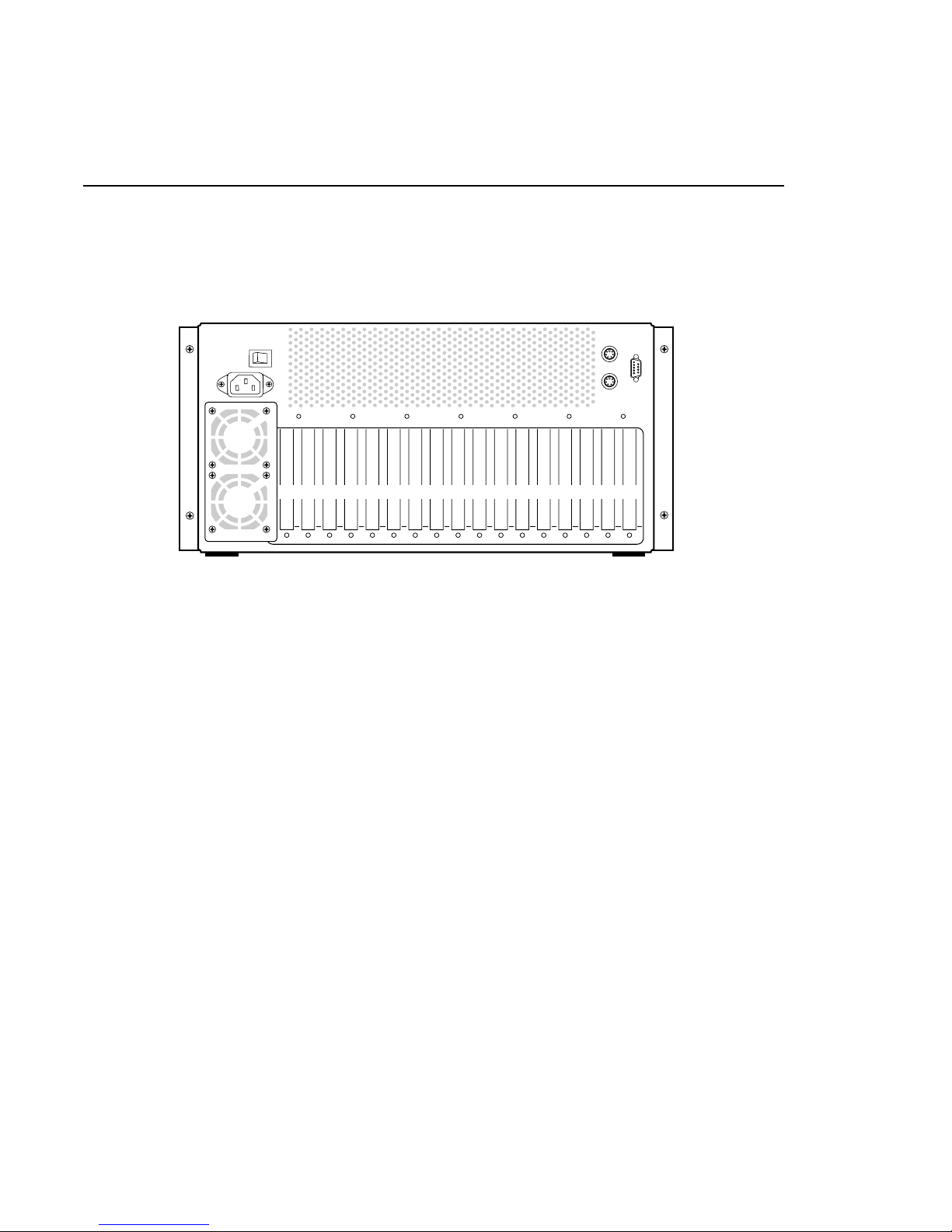

14 Board Slot IDs (Rear Panel).......................................................................51

15 Slave EDR, Master EDR, and Fibre Channel Board Locations..................52

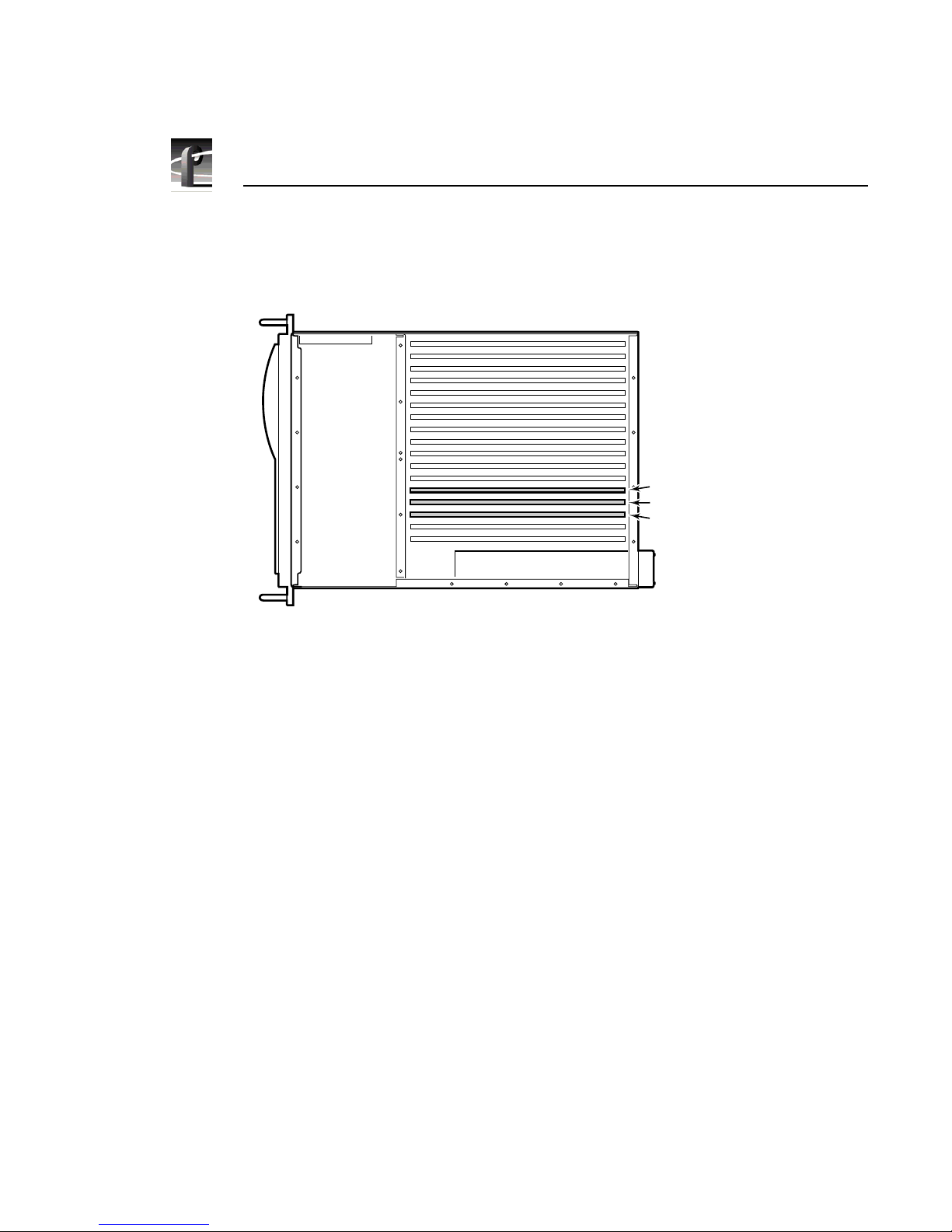

16 Short Board Installation Example (Top View).............................................54

17 Distinguishing Between Master and Slave EDRs.......................................56

18 Installi n g a Full Si ze Board Exa mp l e..........................................................57

19 SCSI Cable Connections............................................................................ 59

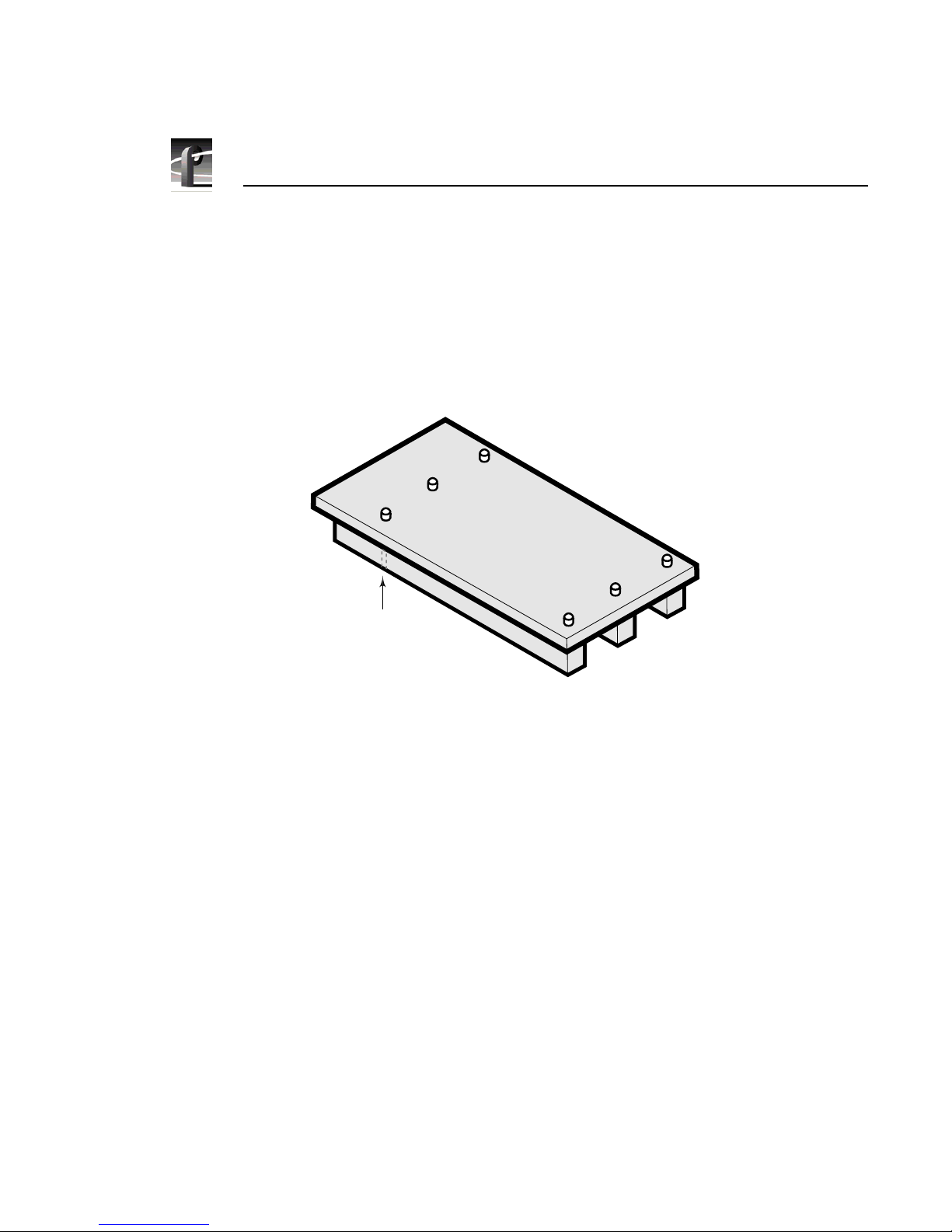

20 PCI Interconnection Board ..........................................................................60

21 PCI Interconnect Board Installation ............................................................ 61

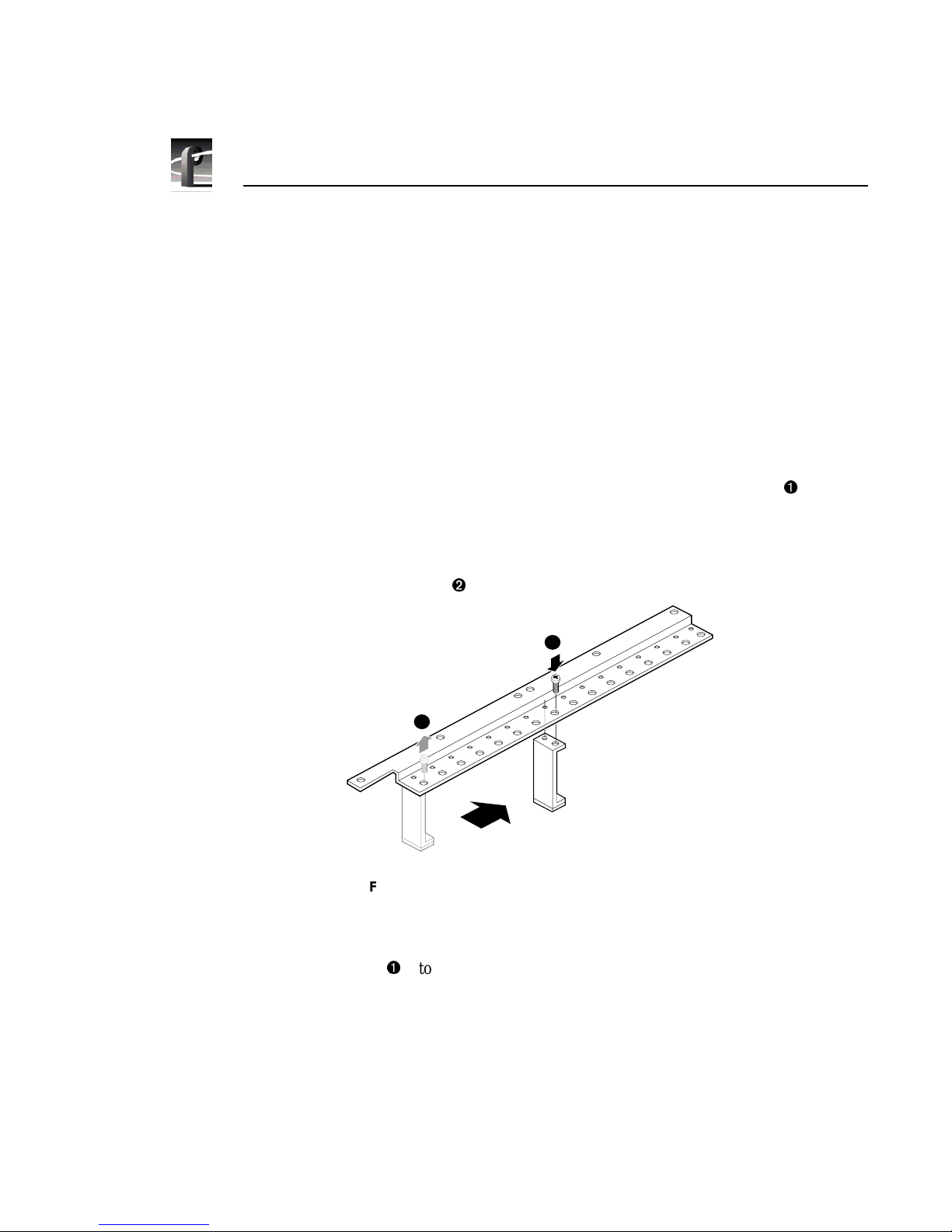

22 Short Board Retainer Bracket and Extender ..............................................62

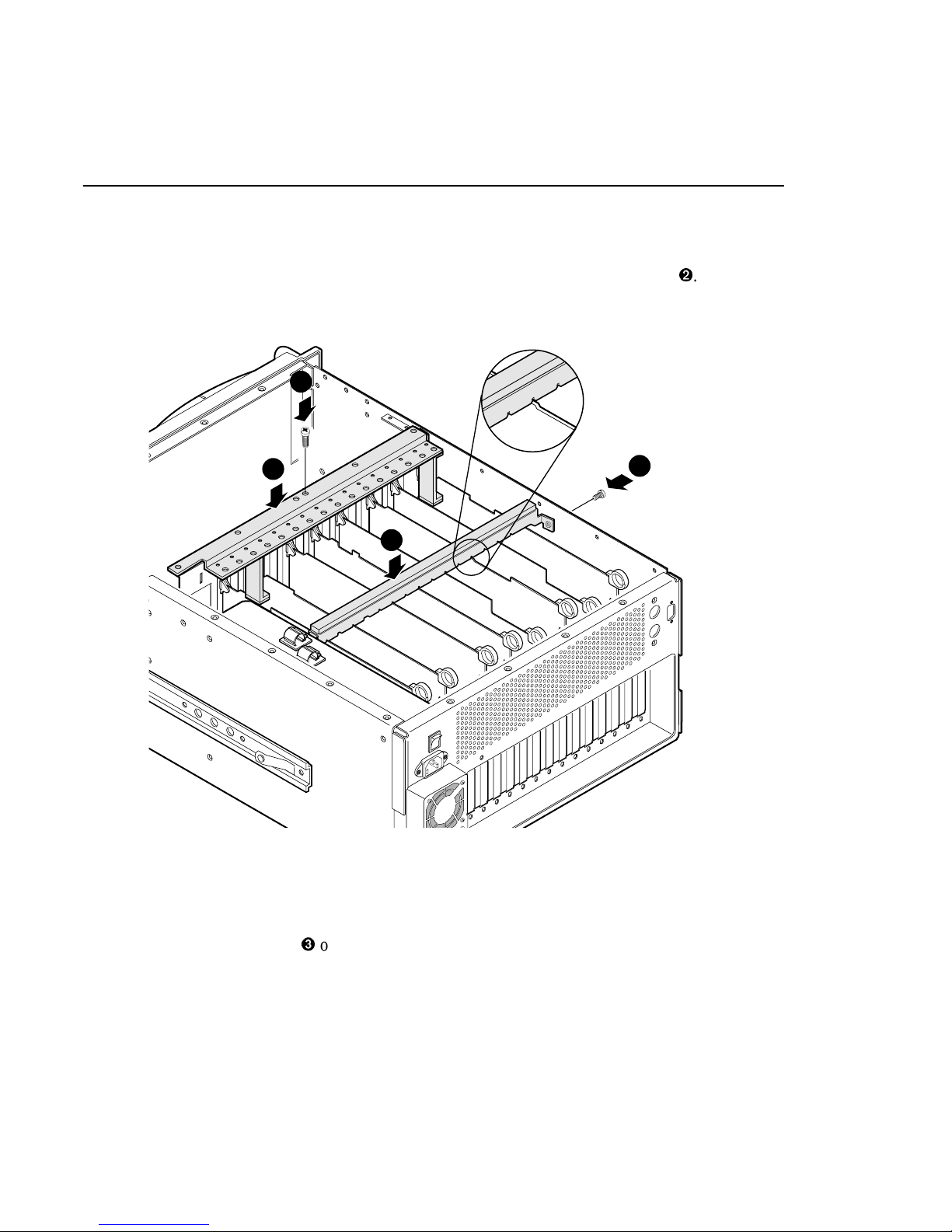

23 Board Retainer Bra cke t installat io n......... ............................ .......................63

24 Front Panel Cable Assembly......................................................................64

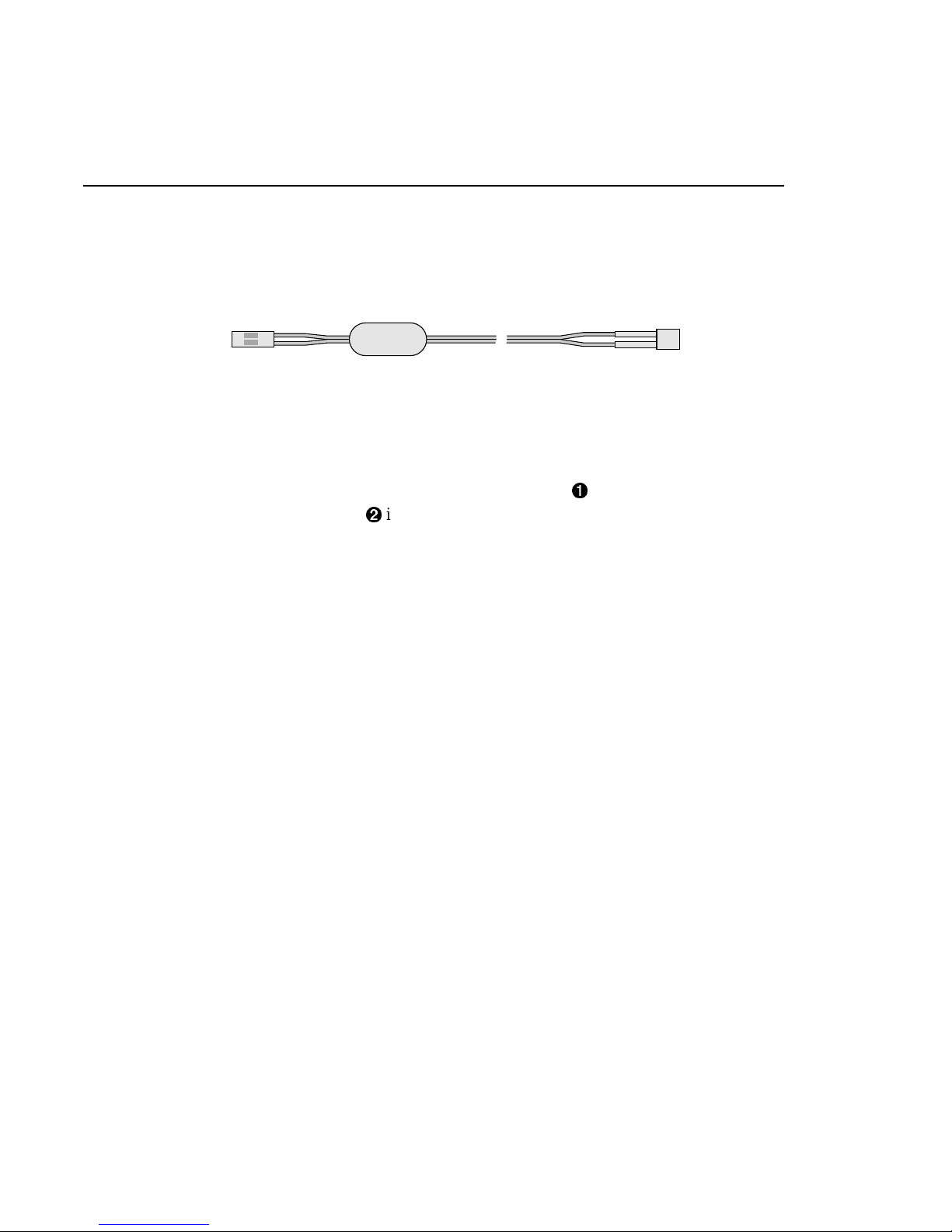

25 LED Cable Assembly................................................................................ ..65

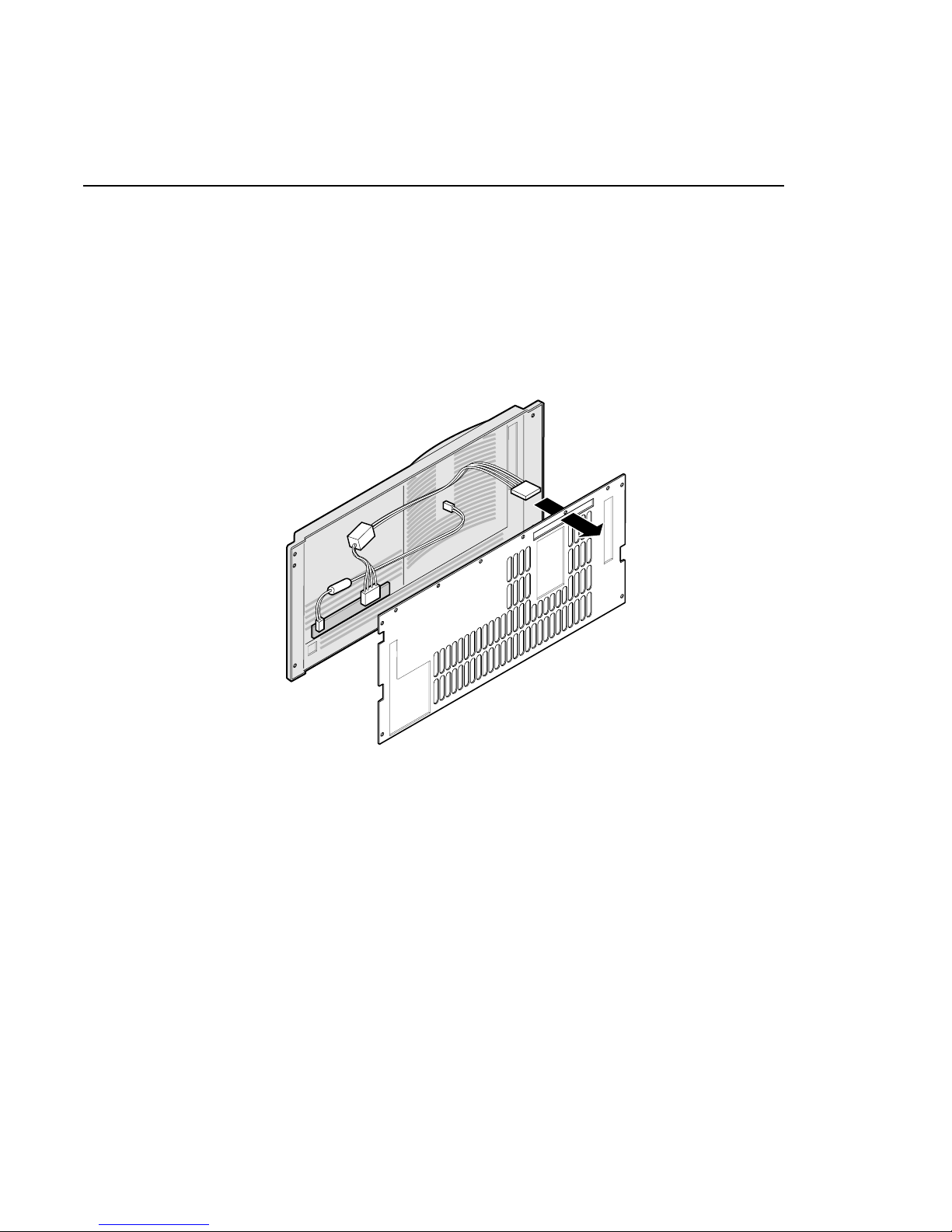

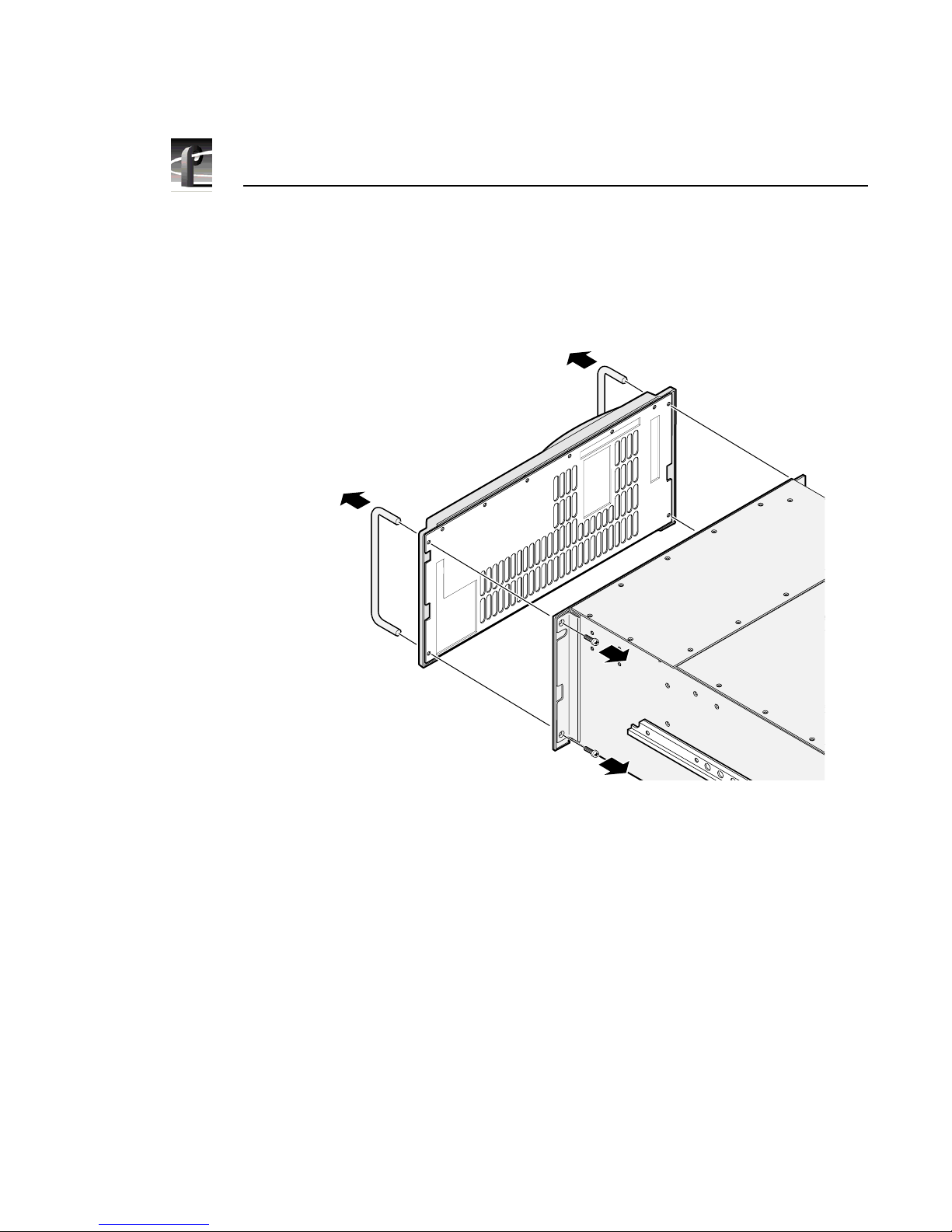

26 Removing the Front Panel and Bezel....................................................... ..66

27 Installing the Front Panel and LED Cable Assemblies ............................... 67

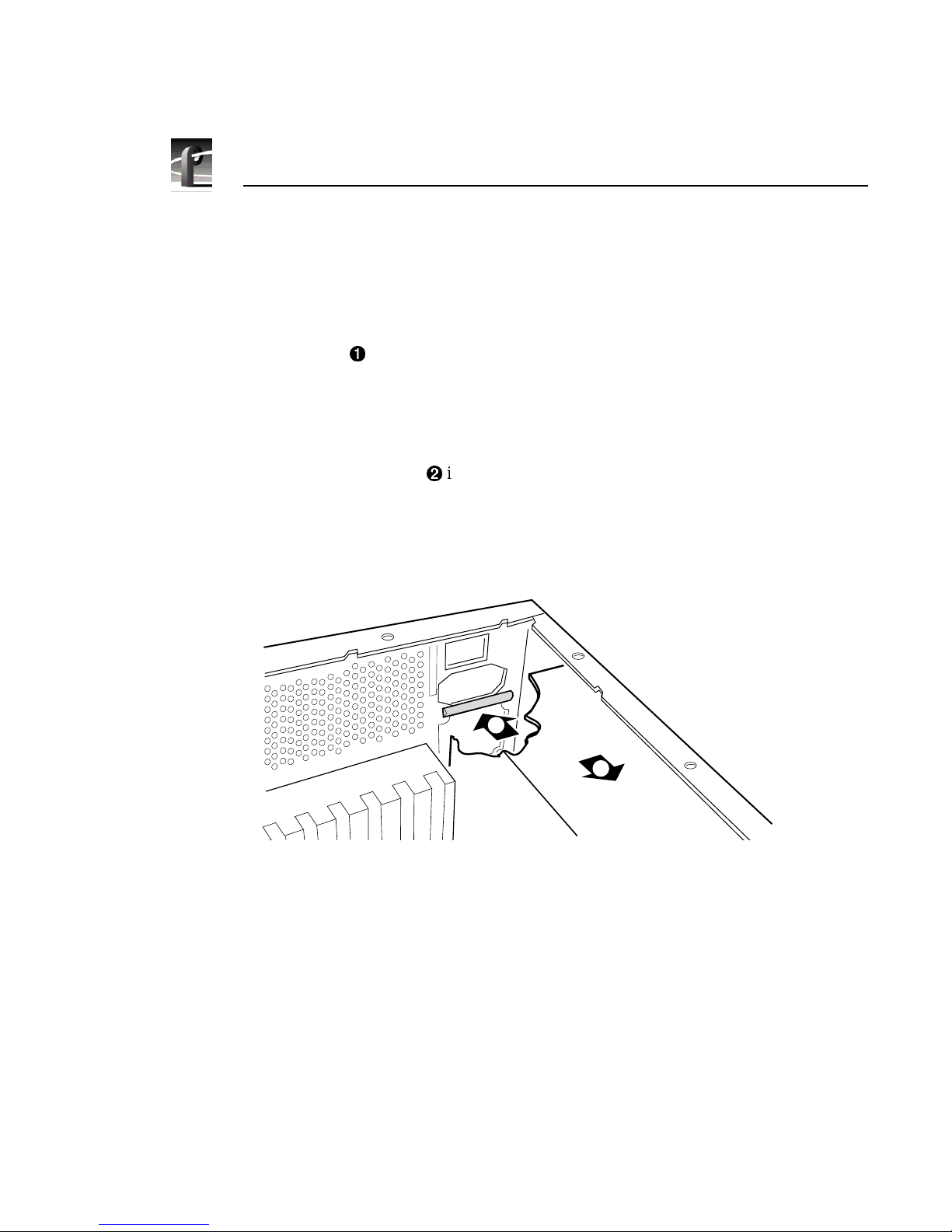

28 Installing the EMI Gasket............................................................................ 68

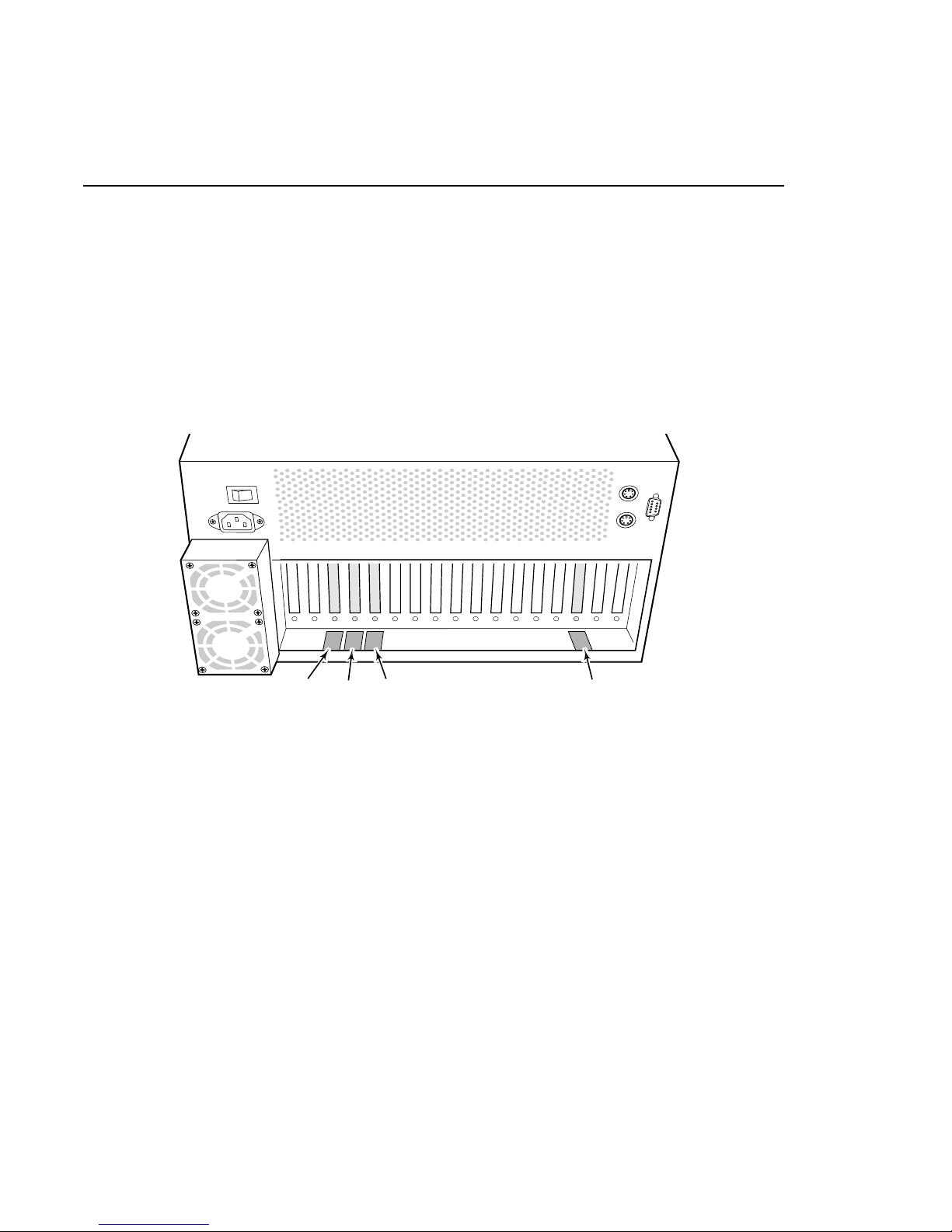

29 Sticker Slot IDs for New Boards .................................................................69

30 Profile Cov er Replace me n ts... ....................................................................70

31 Diagnostics Window Board Recognition Example...................................... 73

Contents

6 PDR 100 Fibre Channel Inst allation

Tables

1 4-Channel Profile Fibre Channel Upgrade Kit Contents .. ...........................16

2 Fibre Channel Networking Accessories .....................................................22

3 Board I/O Requirements and Restrictions ..................................................39

4 Board location chart ...................................................................................41

5 Example 1 - Installing the Fibre Channel Upgrade .....................................45

6 Example 2 - Instal ling a Mix Effects Board ........ .........................................47

PDR 100 Fibre Channel Installation 7

Grass Valley Group Product Support

You can get technical assist ance, check on the status of problems, or report new
problems by contacting our Produc t Support Group.

Unit ed States and Canada

Monday–Friday 5:30AM–5:00PM Pa cific Time
[phone]

Europe

Monday–Friday 9:00AM–5:30PM

Asia and South America

World Wide

24-hour Emergency Hotline [phone] (Con tract and warr anty customers)

Worl d Wide Web http://www.grassvalleygroup.com/support//
FTP Site ftp.grassvalleygroup.com
E-mail [e-mail]

France

01 45 29 73 00

United Ki ngdom 01628 405830
Germany 49 221 1791 234 Other [phone]
Italy 02 25086606

Australia

- from overseas

02-9888 0100
61-2-9888 0100

Japan 81-3-3448-3111
Korea 82-2-528-5299

Beijing 86-10-62351230

ext. 711

Mexico 52-5-666-6333

Singapore 65-356-3900
Brazil 55-11-3741-8422 Taiwan 886-2-27571571
Hong Kong 852-2585-6579

PDR 100 Fibre Channel Installation

8 PDR 100 Fibre Channel Inst allation

General Safety Summary

WARNING: These instructions are for use by qualified
service personnel only. To avoid personal injury, do not
perform any servicing unless you are qualifie d to do so.
Refer to all safety summaries before performing service.

Review the following safety precautions to avoid personal
injury and prevent damage to this product or any products
connected to it.

While using this product, you may need to access other parts
of the system. Read the general safety summary in other
system manuals for warnings and cautions related to
operating the system.

Injury Precautions

Do Not Service

Alone

Do not perform inte rnal se rvice or a dju stment of this product
unless another person capable of render ing first aid and
resuscitation is pres ent.

Disconnect Power To avoid electric shock while servi cing, disconne ct the main

power by means of the power cord.

Use Care W h en

Ser vicin g Wit h

Power On

Dangerous voltages or currents may exist in this product.
Disconnect power and remove battery (if applicable) before
removing protective panels, soldering, or replacing
components.

Avoid Exposed

Circuitry

To avoid injury while servicing, remove jewelry such as
rings, watches, and other metallic objects. Do not touch
exposed connections a nd compone nts when p ower is pres ent.

Do Not Operate

Without Product

Covers in Place

To avoid electric shock or fire hazard, do not operate this
product with covers or panels removed.

!

Product Damage Precautions

PDR 100 Fibre Channel Installation 9

Do Not Operate in

Wet/Damp

Conditions

To avoid electric shock, do not op erate this pr oduct in we t or
damp conditions.

Do Not Opera te i n an

Explosive

Atmosphere

To avoid injury or fire hazard, do not operate this pro duct in
an explosive atmosphere .

Product Damage Precautions

Use the Proper

Voltage Setting

Ensure that the line selec tor is in the proper position for the
power source before applying power.

Provide Proper

Ventilation

Prevent product overhea ting by providing proper vent ilation.

Do Not O p er ate If

You Suspect

Product Failures

If you suspect there is damage to this product, have it
inspected by qualifie d servic e personnel.

Safety Terms and Symbols

Terms in This

Manual

These terms may appear in this manual:

WARNING: Warning statements identify conditions or
practices that can result in personal injury or loss of life.

CAUTION: Caution statements identify conditions or
practices tha t can result in damage to the equipment or other
property.

!

!

PDR 100 Fibre Channel Installation

10 PDR 100 Fibre Channel Install ation

Terms on the

Product

These terms may appear on the product:

DANGER indicates a personal injury hazard imme diately
accessible as you read the marking.

WARNING indicates a personal injury hazard not
immediately accessible as you read the marking.

CAUTION indicates a hazard to property, including the
product.

Symbols on the

Product

The following symbols may appear on the product:

DANGER high voltage

Protective ground (eart h) ter minal

ATTENTION – refer to manual

!

Certifications and Compliances

PDR 100 Fibre Channel Installation 11

Certifications and Compliances

FCC Emission

Control

This equipment has bee n tested and found to co mply with the
limits for a Class A digital de vice, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against ha rmful interference when the equipment
is operated in a comm ercial environment. This equip m en t
generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with this installation
manual, may cause harmful interf erence to radio
communications. Oper ation of t his equipment in a residential
area is lik ely to cause harmful interference in which case the
user will be requi red t o corr ect the interference at his or her
own expense. Changes or modifications not expressly
approved by Grass Valley Group can affect emission
compliance and could void the user’s author ity to operate this
equipment.

Canadian EMC

Notice of

Compliance

This digital appar atus does not exceed the Class A limits f or
radio noise emissions from a digital apparatus set out in the
Radio Interferenc e Regulations of the Canadian Department
of Communications.

Le présent appareil num érique n’émet pas de bruit s
radioélectriques dépassant les li mites applicables aux apparei ls
numériques de la classe A préscrites dans le Règlement sur le
brouillage radioélectrique édicté par le ministère des
Communications du Canada.

EN55022 Class A

Warning

For products that comply with Class A. In a domestic
environment, this product may cause radio interference , in
which case the user may be required to take adequate
measures.

PDR 100 Fibre Channel Installation

12 PDR 100 Fibre Channel Install ation

Certification

Category Standard

Safety Designe d /te s te d fo r co m p liance with:

UL1950 – Sa fety of Inf ormation Technolo gy Equipm ent, in cluding E lectric al
Business Equipment (Third Edition, 1995)

IEC 950 – Safety of Information Technology Equipment, including
Electrical Business Equipment (Second edition, 1991)

CAN/CSA C22.2, No. 950-95 – Safety of Information Technology
Equipment , including Electrical Business Equipment

EN60950 – Safety of Information Technology Equi pm ent, inclu ding
Electrical Business E quipment (includes Appendix ZB)

PDR 100 Fibre Channel Installation 13

PDR 100 Fibre Channel Installation

Introduction

Fibre Channel adds high speed video networking capability to Profile systems,
allowing clips to be transferred between Profile systems. This manual contains
instructions on how to install the Fibre Channel kit in your PDR100. The
instructions include:

• Related documents.

• System Requirements.

• Receiving inspecti on of the Fibre Channel Kit.

• Kit Contents.

• Installation Proc edure

• Configuring the system for Ethernet.

• Verifying that the Fibre Channel is correctly installed.

Once you have installed the Fibre Channel upgrade, your Profile system must be
configured t o use the F ibre C hannel network. Se e the Pr ofile Family User Manual
for Fibre Channel configuration and use information.

NOTE: The Fibre Channel upgrade should only be installe d by qualified
personnel.

Related Documents

Profile Rele ase N o tes
Profile Family User Guide
PDR100 Installation Manual
PDR100 Service Manual

PDR 100 Fibre Channel Installation

14 PDR 100 Fibre Channel Install ation

System Requirements

The system requirements for installing and using the PDR100 Fibre Channel
upgrade are:

• Window NT operating system V3.51 or higher.

• Profile System Software V2.1 or higher.

• An Ethernet LAN board.

Tools Required

Tools required, but not supplied, to install the kit are:

• Torx screwdriver with T10 and T15 tips.

• Static discharge wri st strap.

Receiving Inspection of the Kit

PDR 100 Fibre Channel Installation 15

Receiving Inspection of the Kit

Receiving Inspection

After receiving the Fibr e Channel upgrade kit, carefully inspect the container. If
any damage is noted, contact the shipping agent immediately.

Unpacking Inspection

Grass Valley Group has made every effort to ensure that you receive a complete
and intact kit. Carefully unpack the kit and check the contents against the invoice
or shipping manifest. If any discrepancies are found, notif y your Grass Valley
Group representative immediately.

Inspect each component for any signs of damage. Especially note that cables are
not kinked and that con nector pins are not br oken or bent. I f any damage i s found,
notify your Grass Valley Group representative immediately and DO NOT

proceed further unless instructed to do so.

PDR 100 Fibre Channel Installation

16 PDR 100 Fibre Channel Install ation

Fibre Channel Upgrade Kits

There are two Fibre Channel upgrade kits f or the PDR100: one for a 4-channel
Profile system and the other for a 2-channe l Profile system.

The Fibre Channel upgr ade kit for a 4-channe l Profile syste m consists of the items
listed in Table 1 and shown in Figure 1.

The 2-channel upgr ade kit consists of all the items listed in Table 1 and shown in
Figure 1 except the EDR Slave board.

Table 1. 4-Channel Profile Fibre Channel Upgrade Kit Contents

Name Part Number

Fibre Channel Board 672-1462- X X
Master EDR Board 671-3795-X X
Slave EDR Board 671-3757-XX
10/100 Base T Ethernet Boar d 118-9403- X X
PCI Interconnect Board 671-3794-XX
Front Panel Cable Assy w/Fer rite Bead 174-3459- XX
LED Cable Assy w/F errite Bead 174-3471-X X
Gasket, EMI Foam 348-1543-XX
5M Fibre Channel Copper Cable 174-3629-X X

5.49M Ethernet 10/100 BaseT Cable 174-3738- XX
Standard Sticker Set 334-8982- X X
Fibre Channel Sticker Set 334-9461- X X
Installation Manual 070-9674-XX

Fibre Channel Upgrade Kits

PDR 100 Fibre Channel Installation 17

Figure 1. 4-Channel Fibre Channel Kit Contents

9674-1

Enhanced Disk

Recorder Boards

PCI Board

Fibre Channel

Board

10/100 Base T

Board

LED Cable

Front Panel Cable

Label Sets

EMI Gasket

5.49 meter

Ethernet Cable

5 meter Fibre

Channel Cable

PDR 100 Fibre Channel Installation

18 PDR 100 Fibre Channel Install ation

Fibre Channel Kit Description

The Fibre Channel upgr ade provides for connect ivity and high speed data t ransfers
between Profile systems. A LAN network (or Ethernet hub) and a Fibre Channel
hub are required to connect groups of grea ter than two Profile systems and, in
general, one set of hu bs is requ ired fo r each g roup of Profile systems to be
connected.

Fibre Cha nn e l Boa r d

The Fibre Channel (FC) board is a networkin g device which uses the Fibre
Channel Arbitrated Loop ( FCAL) protocol. The FC board is compatible with the
Peripheral Component I nterc onnect (PCI) local bus. With the on-boar d Gigabau d
Link Module (GLM), the FC board provides the functionality to network
numerous Profile systems.

Master Enhanced Disk Recorder Board

The Master Enhanced Disk Recorder (MEDR) board provides high bandwidth
data transfe rs from disk to and from video channels and the Fibre Channel board.
Additionally the i960 enhancements include a Global PCI, a Local PCI (LPCI),
and the i960 processor.

Slave Enhanced Disk Recorder Board

The Slave Enhanced Disk Recorder (SEDR) board is the same as the MEDR with
the following exceptions:

• It does not have the i960 processor section.

• Arbitration, interrupt, and clock lines are from the MEDR.

10/100 BaseT Ethernet Board

This board provides the Ethernet connection for the Profile system.

PCI Interconnect Board

This is a passive 3-conne ctor boa rd which provi des local bus connection betwee n
the Master ED R bo ard , the Slav e EDR , an d the FC board. It is attached to
connectors on the top edges of these boards.

Front Panel Cable Assembly

PDR 100 Fibre Channel Installation 19

Front Panel Cable Assembly

This is a r eplac ement c able wit h an at tached ferr ite bea d to in sur e that your Profi le
system remains EMI compliant. Replacement of this cable is only necessary on

Profile systems with serial n umbers lower than B041685.

LED Cable

This is a r eplac ement c able wit h an at tached ferr ite bea d to in sur e that your Profi le
system remains EMI compliant. Replacement of this cable is only necessary on

Profile systems with serial n umbers lower than B041685.

EMI Foam Gas ket

This is EMI foam gasket is ins talled to insure that yo ur Profile system remains EM I
compliant. Installation of this gasket is onl y necess ary on Profile sys tems with

serial numbers lower than B041685.

Fibre Cha nn e l Cab le

The cable connecting the Profile system to a Hub is a 5 meter, copper wire cable
with a DB-9 connect or on each end. Note that other lengths of cable are available
from your Grass Valley Group representative. Also note that for distances greate r
than 25 meters, quality will begin to deteriorate and a fiber-optic cable with
copper-to-fi ber adapters is then recommended.

NOTE: Minimum cable distances should be used to redu ce signal degradation
and error rates.

PDR 100 Fibre Channel Installation

20 PDR 100 Fibre Channel Install ation

Ethernet Cable

The Ethernet cable is a 5.49 mete r standard Ethe rnet cable with RJ-45 connectors
on each end.

Sticker Sets

A standard set of stic kers and a Fibre Channel set of stickers are provided so that
your Profile board IDs at the back of the chassis can be updated after the
installation of the Fibre Channel kit.

Accessories

PDR 100 Fibre Channel Installation 21

Accessories

A Profile Video Network requires a n Etherne t Local Ar ea Network (LAN) to
communi cate co m mand and status info rm at ion b et ween s ystems. If your Profile
systems are not connected to an existing LAN, Grass Valley Group recommends
Ethernet connecti on to a LAN hub or switch.

Similarly, connecting more than two Profile systems to a Fibre Channel Network
requires the use of a Fibre Channel hub or switc h. In addit ion, each Profil e s ystem
more than 25 meters f rom the Fibr e C hannel hub, switch o r an other P rofil e syst em
needs a fiber-optic cable and copper-to-fiber cable adap ters. Figure 2 shows an
example of connecting Profile systems up to and more than 25 meters apart.

Figure 2. Example - Profile System Fibre Channel Connections

The hubs, switches, and the adapters are not part of this Fibr e Channel kit, but m ay
be purchased separate ly by contac ting your Grass Valley Group representative.
Figure 3 shows the two hubs and Figure 4 shows a copper-to-fiber cable adapter.
Table 2 lists the Hub and Adapte r part numbers.

0033-8

Up to 25m

(use copper cable)

From 25m to 500m

(use fiber-optic cable)

Profile3

Profile1 Profile2

Fibre Channel Hub

PDR 100 Fibre Channel Installation

22 PDR 100 Fibre Channel Install ation

.

Figure 3. Fibre Channel and Ethernet Hubs

Figure 4. Copper-to-Fiber Cable Adapter

CAUTION: The laser diode in the Copper-to-Fiber Cable Adapter is made
from Gallium-Aluminum-Arsenide. Check with your local environmental
authorities for proper disposal of a malfunctioning adapter.

Table 2. Fibre Channel Netw orking Accessories

Name Part Number

Ethernet Hub PNETHUB
Fibre Channel Hub PNFCHUB
Cable Ada pter, Co pper- to-Fi ber PNF0MIA

9674-2

Ethernet Hub

Fibre Channel Hub

9674-21

Fiber-optic
Connector

Covers

!

Networking Overview

PDR 100 Fibre Channel Installation 23

Networking Overview

This section contain s information about networking Profile systems and Ethernet.

Network Configurations

Ethernet and Fibre Channel provide two types of networking. Etherne t provides a
path for command and status signals from one device to another. It also allows
Windows NT file transfers between devices.

Fibre Channel provide s connectivity for high speed media data transfers between
Profile system s .

Using Fibre Channel to network groups of greater than two Profile systems
requires an existing Ethernet network (LAN) or an Ethernet hub and a Fibre
Channel hub.

Network Models

The following discusses two example s of Ethernet and Fibre Channel networking.
The first example shows connect ion of several Profile systems with an Etherne t
hub (or existing Ethernet network) and a Fibre Channel hub. The second example
of Ethernet and Fibre Channel networking shows connection of several hubs.

PDR 100 Fibre Channel Installation

24 PDR 100 Fibre Channel Install ation

Networking Several Profile Systems

Hubs provide an easy and efficient method for the connection and disconnection
of machines without rewiri ng. I f you want to connect more than two Profile
systems togethe r for video ne tworking, you will need t o connect each sys tem to an
Ethernet hub or an existing Ether net network and a Fibre Channel Hub. Figure 5
shows an example of this networking.

Figure 5. Basic Hub Connections

0033-9

Profile1

Profile2

Profile3

Ethernet Hub

Fibre Channel Hub
