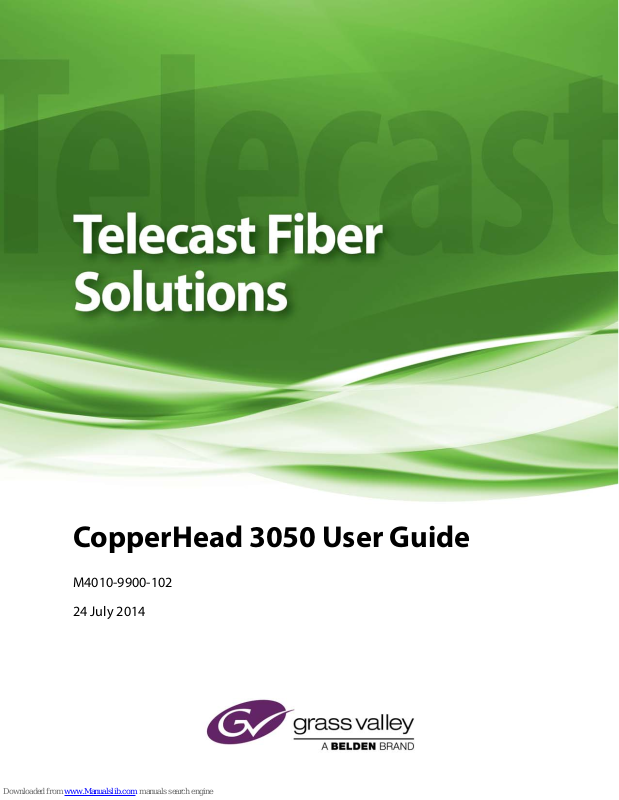

GRASS VALLEY M4010-9900-102, CopperHead 3050 User Manual

CopperHead 3050 User Guide

M4010-9900-102

24 July 2014

Notices

Belden, Belden Sending All The Right Signals, and the Belden logo are trademarks or registered trademarks of Belden Inc. or its affiliated companies in the United States and other jurisdictions. Grass Valley, CopperHead 3050 are trademarks or registered trademarks of Grass Valley. Belden Inc., Grass Valley, and other parties may also have trademark rights in other terms used herein.

Terms and Conditions

Please read the following terms and conditions carefully. By using CopperHead 3050 documentation, you agree to the following terms and conditions.

Grass Valley, a Belden Brand (“Grass Valley”) hereby grants permission and license to owners of CopperHead 3050 to use their product manuals for their own internal business use. Manuals for Grass Valley products may not be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose unless specifically authorized in writing by Grass Valley.

A Grass Valley User Guide may have been revised to reflect changes made to the product during its manufacturing life. Thus, different versions of a User Guide may exist for any given product. Care should be taken to ensure that one obtains the proper User Guide version for a specific product serial number.

Information in this document is subject to change without notice and does not represent a commitment on the part of Grass Valley.

Warranty information is available in the Support section of the Grass Valley Web site

www.miranda.com).

(

Title CopperHead 3050 User Guide

Part Number M4010-9900-102

Revision 24 July 2014

Table of Contents

1 About CopperHead 3050. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

About the CopperHead 3050 Transceiver System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Unpacking the CopperHead 3050 Transceiver System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Product Returns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

About this User Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Safety and Fiber Optic Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Optical Fiber Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Power Fuses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2 System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Fiber Cable Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Fiber Optic Connector Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Signal paths in the CopperHead 3050 Transceiver System. . . . . . . . . . . . . . . . . . . . . . . . . . . 8

CopperHead 3050 Transceiver System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CopperHead 3050 Camera Unit Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CopperHead 3050 Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CopperHead 3050 Transceiver System Additional Components . . . . . . . . . . . . . . . .10

3 Detailed Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

CopperHead 3050 Camera Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

CopperHead 3050 Camera Unit Back Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Area A - Connector Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Area B - Audio/Intercom Connector Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Area C - Intercom Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Area D - Fiber Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Area E - Battery Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

CopperHead 3050 Camera Unit Front Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Area A - Camera Mounting Plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Area B - Signal/Data Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Area C - Optical Link Signal Strength Indicator & Power Switch . . . . . . . . . . . . . . . . 19

CopperHead 3050 Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

CopperHead 3050 Base Station Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Area A - Front Panel Optical Connector (Optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Area B - Audio Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Area C - Video/Data Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Area D - Signal Strength Indicators/Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Area E - Status/Power Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

CopperHead 3050 Base Station Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Area A - Power & Fiber Connectors (Power Module) . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Area B - Video/Ethernet Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Area C - Audio/Intercom Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

iii

Table of Contents

Additional CopperHead 3050 Transceiver System Items. . . . . . . . . . . . . . . . . . . . . . . . . . . .29

"Power Wafer" Camera Adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

MPS External Power Wafer Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

4 Physical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Mounting the CopperHead 3050 Camera Unit to the Camera . . . . . . . . . . . . . . . . . . . . . .32

Mounting the Power Wafer Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Relocation of the CopperHead 3050 Base Station Fiber connector. . . . . . . . . . . . . . . . . .34

5 Connection of the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Connections between the Base Station and the Camera Unit. . . . . . . . . . . . . . . . . . . . . . .36

Camera Powered: Tactical Fiber between Base Station and Camera Unit. . . . . . . .36

PowerWafer Scenarios #1 and #2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Hybrid Fiber direct between Powered Base Station and Camera Unit . . . . . . . . . . 37

Infrastrucure Copper & Fiber between Powered Base Station and Camera Unit. 37

SMPTE Hybrid Fiber between the MPS Power Unit and Camera Unit. . . . . . . . . . . .39

Connections to the CopperHead 3050 Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Connectors into and out of the CopperHead 3050 Base Station . . . . . . . . . . . . . . . .40

Connections to the CopperHead 3050 Camera Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Camera Unit Connection Example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Camera Unit Video Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Camera Unit Audio and Intercom Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

6 Operation of the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Set Up of the CopperHead 3050 Transceiver System for operation . . . . . . . . . . . . . . . . .48

Powering the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Understanding Intercom Usage with the CopperHead 3050. . . . . . . . . . . . . . . . . . . . . . . .50

CopperHead 3050 Camera Unit Intercom Operation . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Adjusting Intercom Sidetone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

CopperHead 3050 Camera Unit Audio/Intercom/IFB 4-Switch Panel. . . . . . . . . . . .53

Using Digital Displays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Measuring Fiber Optic Signal Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

The CopperHead 3050 Base Station Digital Display . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

The CopperHead 3050 Camera Unit Digital Display . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Best Practices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Shutting Down the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

7 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

A Connector Pin Assignments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Base Station Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Camera Unit Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

CopperHead 3050 Transceiver System

B Multi-Pin Connectors: Suggested Wiring. . . . . . . . . . . . . . . . . 72

Base Station 25-Pin Audio Input Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Base Station 25-Pin Audio Output Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

C Available Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Units and Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Wider Illustrations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Adaptors and Plugs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Wider Illustrations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Plates, Panels, and Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Available Accessories – Cable Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Base Station Audio Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

D Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

CopperHead 3050 Transceiver System Base Station Back Panel. . . . . . . . . . . . . . . . . . . . .83

CopperHead 3050 Transceiver System Camera Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

Camera Unit Indicators and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Base Station Front Panel Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Block Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

High Powered Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Low Powered Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

User Guide

Table of Contents

About CopperHead 3050

This chapter provides an overview of the CopperHead 3050 Transceiver System and includes the safety and warranty information about it.

About the CopperHead 3050 Transceiver System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Unpacking the CopperHead 3050 Transceiver System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Safety and Fiber Optic Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

About CopperHead 3050

About the CopperHead 3050 Transceiver System

The CopperHead 3050 Transceiver System is a camera video, audio, and intercom multiplexing system that installs itself between a portable video camera and its power source.It connects via a single fiber optic cable to a Base Station in a truck, studio or other video production setup. All video, audio and communications usually carried on multiple

coax and audio cables are sent, bi-directionally, over a single lightweight fiber over

distances as long as 5 km or more.

The Camera Unit fits between the battery or optional power supply and the camera. The CopperHead Camera Unit is configured at time of purchase with special interface plates to accommodate the appropriate camera battery type.

The camera battery or optional power source attaches to the Camera Unit, which in turn, attaches to the video camera. Batteries accommodated are Sony V, PAG, and Anton-Bauer.

• The CopperHead 3050 Transceiver System consists of two main components:

• The CopperHead 3050 Camera Unit – this unit has two options:

• a) the battery physical interface system

• b) the fiber connector

The CopperHead 3050 Base Station – this unit has three options:

• a) the power configuration

• b) the fiber connector

• c) the intercom module

Typically options are determined at the time of product order and the units are delivered pre-configured. Options can be field changed by qualified personnel. This User Guide describes each of the possible options.

Unpacking the CopperHead 3050 Transceiver System

Please consult your packing slip and purchase order to ensure that you have received all of the expected components.

Inspect all components for scratches and other mechanical damage, and inspect the electrical connectors for bent or damaged pins and latches. Report any missing or

damaged components to Grass Valley Technical Support. Leave the protective caps on the optical connectors whenever the fiber is disconnected.

Product Returns

In the unlikely event of damage to your CopperHead 3050 Transceiver System during shipping or delivery, please note the damage with the delivery or shipping service and document the packaging and product where you see damage. If any component does not work correctly out of the box, please contact Grass Valley Technical Support (see on page 65).

If the problem cannot be remedied through a service telephone call, you will receive an RMA (Return of Merchandise Authorization) number. Please note this RMA number inside and outside of all shipping boxes and on all documentation provided with the items to be returned.

CopperHead 3050

User Guide

About this User Guide

This CopperHead 3050 Fiber Optic Transceiver System can be delivered in a number of configurations depending on the Power and Battery Mount options selected. This User Guide is designed to cover all of the various options and so not every page in this Guide will apply to your specific system.

Safety and Fiber Optic Systems

Optical Fiber Safety

Never look directly into the end of the optic fiber while either end of the system is operating.

Always use cable connector caps when the cables are not connected. This protects the connector from damage and the unlikely event of exposure to an operating optical link. Keeping the caps in place when the connectors are not in use will prevent dirt and dust from entering the connector and degrading the performance of the optical link.

About CopperHead 3050

Power Fuses

The CopperHead 3050 Transceiver System Base Stations CHG3-BS-3050-95VD-xxx-xxx are equipped with Dual Cartridge fuses located next to the AC Power receptacle at the left rear of the unit. Refer to information.

NEVERoperatetheCopperHead3050CHG3‐BS‐3050‐95VD‐xxx‐xxxBaseStation withoutproperlyinstalledandratedfuses.Severeelectricalandheatdamagecould resultaswellaspersonalinjuryordeath.

Connector Pin Assignments on page 66 for specific fuse and location

System Overview

This chapter provides a system overview about the Fiber Cables and the Transceiver System.

Fiber Cable Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Signal paths in the CopperHead 3050 Transceiver System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

CopperHead 3050 Transceiver System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

System Overview

Fiber Cable Overview

Fiber Optics and Fiber Optic Cable are the core technologies at the heart of the TelePort 3G System. The ability to multiplex and de-multiplex multiple ranges of fiber optic signals carrying SDI, Audio, and Data is what enables the TelePort 3G. The specific theory and operation of Fiber Optics is beyond the scope of this document.

Tactical Fiber cable is heavy duty, Kevlar protected and capable of carrying CopperHead signals extended distances. The cable can generally withstand a variety of environmental hazards such as being crushed or run-over. Tactical Fiber can be used in the field mounted on Portable Fiber Reels in lengths up to 2000 feet.

Fig. 2-1: Single Mode Fiber Optic Cable Cross-Section

Hybrid Fiber Cable has the same Fiber Optic characteristics with the addition of copper cables. This allows the transmission of power through the cable. This increases weight and reduces operating distance. Hybrid Fiber Cable also includes a pair of Sense/Signal wires that allow systems to determine if there is an open or shorted cable. Hybrid Fiber Cable is also larger in diameter then Tactical Fiber Cable.

Fig. 2-2: Hybrid Fiber Optic Cable Cross-section

Fiber Optic Connector Types

ST Cable

Connectors

ST Panel

Connectors

ST Panel w/

Molex

OpticalCON

Cable

OpticalCON

Panel

LC Connectors

SMPTE 304M

Cable

SMPTE 304M

Panel

MX Expanded

Beam Cable

MX Expanded

Beam Panel

Depending on the type of Fiber Optic Cable used, different Connector types can be configured. The following table summarizes the various types of connectors typically used in a CopperHead 3050 Transceiver System Transceiver System configuration and the allowed Fiber Optic Cable usage.

CopperHead 3050

User Guide

Tactical

ConnectorType

FiberUse

ST Fiber Connectors Ye s Not

Hybrid FiberUse

Typically

Camera UnitUse

BaseStation Use

Notes

No Ye s Less Expensive – not as

durable as OpticalCON, SMPTE 304M or MX

ST Fiber Connectors with Molex Power

No Not

Typically

No Ye s Used with separate Fiber

and Power cables

Plug

LC Connectors No No No No Infrastructure and Internal

Equipment Use

SMPTE 304M No Yes (up

Yes Ye s

to 95V)

OpticalCON Cable

Ye s Ye s Yes Yes

Connector (Neutrik)

OpticalCON Panel

Ye s Ye s No No Infrastructure Use Only

Connector (Neutrik)

MX Expanded Beam

Ye s No Yes Yes

Connector

Fig. 2-3: Fiber Optic Connectors

System Overview

Signal paths in the CopperHead 3050 Transceiver System

The CopperHead 3050 Transceiver System uses an optical fiber link between the Base Station and the Camera Unit to carry all of the required signals necessary for operation of the camera and associated production equipment. The Camera Unit multiplexes electrical signals from the camera and other remote sources and converts them to an optical signal for transmission over the fiber.

Simultaneously, an optical return signal is received at the Camera Unit from the Base Station. This signal is then converted to electrical analog information for use by the camera, camera operator, and auxiliary equipment at the camera location.

Fig. 2-4: Base Station to Camera Unit Connection

When you use the hybrid fiber cable option, the link also provides power to the Camera Unit and the camera itself. Only the single fiber link or hybrid fiber link is required between the Base Station and the Camera Unit.

CopperHead 3050 Transceiver System Components

Camera Unit Front Side (attached to the camera)

Back Side (attached to the battery/power supply)

CopperHead 3050 Camera Unit Overview

CopperHead 3050

User Guide

The actual appearance of your CopperHead 3050 Camera Unit will vary depending on the battery mount and fiber cable connection options specified at the time of purchase.

CopperHead 3050 Base Station

Fig. 2-6: CopperHead 3050 Base Station Front Panel

Fig. 2-7: CopperHead 3050 Base Station Connector or Back Panel

The actual appearance of your CopperHead 3050 Base Station will vary depending on the fiber cable connection and power options specified at the time of purchase.

Fig. 2-5: Camera Unit Front and Back Side

System Overview

CopperHead 3050 Transceiver System Additional Components

In addition to the CopperHead 3050 Camera Unit and Base Station, the system consists of:

• External Power Supply or Power Cord for the Base Station (depending the unit configuration)

• Hardware kits for rack mounting the Base Station

• Portable fiber reel with fiber per your purchase order

• Optional "Power Wafer" Camera Adaptor with optional external power supply

• Optional "PowerPlus" Camera Adaptor and Power Adaptor

• Optional Universal Camera Control Unit

For additional accessories see Available Accessories on page 76.

Note: You must use your own cables to make connections for the Base Station monitor, and other ancillary signals and equipment. See

Accessories on page 76 for suggestions.

Available

Detailed Description

This chapter describes in detail each element on the Camera Unit and Base Station of the CopperHead 3050 Transceiver System. Physical installation of the system and system connections and practical operation are covered in following chapters.

For an overall view of component location, see the CopperHead 3050 Transceiver System overall diagrams in

CopperHead 3050 Camera Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

CopperHead 3050 Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Additional CopperHead 3050 Transceiver System Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Diagrams on page 82.

Detailed Description

CopperHead 3050 Camera Unit

CopperHead 3050 Camera Unit Back Side

Fig. 3-1: CopperHead 3050 Camera Unit Back Side

The back side of the Camera Unit has five features:

• Area A – Connector Panel (see Area A - Connector Panel on page 13)

• Area B - Audio/Intercom Connector Panel (see Area B - Audio/Intercom Connector

Panel on page 14)

• Area C - Audio/Intercom Controls (see Area C - Intercom Controls on page 14)

• Area D – Fiber Connector (see Area D - Fiber Connector on page 15)

• Area E– Battery Mount (see Area E - Battery Mount on page 16)

Area A - Connector Panel

Fig. 3-2: Camera Rear Connector Panl

• 7: SD-HD/SDI In (to Base Station)

• 8: SD-HD/SDI Digital Video Outputs A & B (from Base Station)

• 9: VBS In (to Base Station) VBS signal paths typically carry analog video

• 10: VBS Out (from Base Station)

• 11: Ethernet (100Mbs)

• 13: Power Wafer Connector

CopperHead 3050

User Guide

For additional information about the signals carried on these connectors, see Area D - Fiber

Connector on page 15.

Throughout this document component Key Numbers are coordinated with the overall system diagrams found in

Diagrams on page 82.

Detailed Description

CopperHead 3050 Camera Unit Back Side

Area B - Audio/Intercom Connector Panel

• 3- Intercom Head Set Connector

•4 - IFB Out: carries the IFB Circuit Signal typically for reporter use

• 5 - Audio 1 Input (Line Level) - (to Base Station): typically audio program from camera line outputs

• 6 - Audio 2 Input (Line Level) - (to Base Station): typically audio program from camera line outputs

Fig. 3-3: Audio/Intercom Connector Panel

For information on the Audio/Intercom Connector Panel operation, see Set Up of the

CopperHead 3050 Transceiver System for operation on page 48.

Area C - Intercom Controls

Fig. 3-4: Intercom Controls

• 9 - Intercom 1 Monitor Level Control and Activity Indicator

• 10- Intercom 2 Monitor Level Control and Activity Indicator

• 11 - Return Program Monitor Level Control and Activity Indicator

• 12 - Intercom & Return Program Output: mini-phone jack with no microphone

functionality

•13 - Sidetone Control

• 14 - Intercom Talk Control

CopperHead 3050

User Guide

•15 - Intercom Local/Remote

• LOCAL- Switch 18 is enabled

• REMOTE- Remote Push-to-Talk Switch enabled

For information on the Audio/Intercom Connector Panel operation, see Set Up of the

CopperHead 3050 Transceiver System for operation on page 48.

Area D - Fiber Connector

The CopperHead 3050 Camera Unit is shipped with one of the three Fiber Connectors shown in

Figure 3-5.

Fig. 3-5: Three types of Fiber Connectors

• 15A - SMPTE 304M, powered

• 15B - OpticalCON, powered or unpowered

• 15C - MX Expanded Beam, unpowered

Detailed Description

Anton-Bauer Type Battery Mount V-type Battery Mount

CopperHead 3050 Camera Unit Back Side

Area E - Battery Mount

The CopperHead 3050 Camera Unit is shipped with a variety of Battery Mount to camera types. The Anton Bauer mount and the Sony V-mount are the most common. PAG and other battery mount systems are available by special order. Please contact Grass Valley Technical Support (see

• 1, 2 - Battery release latch

Fig. 3-6: Camera Unit Battery Mount

CopperHead 3050 Camera Unit Front Side

CopperHead 3050

User Guide

Fig. 3-7: CopperHead 3050 Camera Unit Front Side

The front side of the Camera Unit has three areas of interest:

• A - Camera Mounting Plate (see Area A - Camera Mounting Plate on page 18)

• B - Signal/Data LED Activity Indicators (see Area B - Signal/Data Indicators on page 18)

• C - Digital Status Display & Power Switch (see Area C - Optical Link Signal Strength

Indicator & Power Switch on page 19)

Detailed Description

Anton-Bauer Camera Mount V-type Camera Mount

CopperHead 3050 Camera Unit Front Side

Area A - Camera Mounting Plate

The CopperHead 3050 Camera Unit is shipped with a variety of Camera Mount to camera types. The Anton Bauer mount and the Sony V-mount are the most common. PAG and other battery mount systems are available by special order. Please contact Grass Valley Technical Support (see

Fig. 3-8: CopperHead 3050 Transceiver System Camera Mount

Area B - Signal/Data Indicators

Fig. 3-9: CopperHead 3050 Transceiver System Camera Unit Indicator Panel

The CopperHead 3050 Transceiver System Camera Unit Indicator Panel has a series of LED displays that monitor the various signal paths between the Camera Unit and the Base Station.

• For signals remain constant, such as time code and video, the LED remains on as a steady Green.

• For signals that fluctuate (such as audio), the LED will reflect the varying signal activity.

CopperHead 3050

User Guide

• If the LED is off, either the signal has been lost or it is not in use.

The LED indicators on the left side of the panel indicate signal paths from the Base Station to the Camera Unit. Right side LEDs indicate signal paths from the Camera Unit to the Base Station

• 1 - SDI Digital Video Signal: monitors camera SDI Video to Base Station and SDI return video to the Camera Unit

• 2 - VBS 1 - Analog Video Signals 1: VBS 1 is used for Camera Monitor video from the Camera Unit to the Base Station.It is also used for Return Video to the Base Station from the Camera Unit

• 3 - Program Audio Channels 1-2: monitors program audio from Camera Unit to Base Station. It is also used for Return Audio from Base Station to Camera Unit

• 4 - IFB Signal Path Monitor: monitors an IFB circuit typically fed to and IFB amplifier and then to a reporter's earpiece

Area C - Optical Link Signal Strength Indicator & Power Switch

• 5- Optical Link Indicator: indicates the status of the optical connection from base to camera and camera to base

• Green: both the Base Station and camera control unit have optical power within normal range.

• Red: either the Base Station or camera control unit optical power is not within normal range.

• 6- Rx Optical Display (Digital Status Display): four-character display in one of five modes (see

• 7- Base Rx/Dim Push Button: change four-character display mode.

Push and release changes display mode.

• Push and hold adjusts LED indicator brightness

Fig. 3-10: Optical Link Signal Strength Indicator & Power Switch

Using Digital Displays on page 54)

Detailed Description

CopperHead 3050 Camera Unit Front Side

• 8- Power Indicator LED

• Green indicates power is applied to the camera control unit.

• Blinking Green indicates a camera control unit error.

See Using Digital Displays on page 54.

• 9- Power On/Off Switch: toggle switch to enable or disable camera power.

High voltage Base Station: enables or disables camera power.

• Low voltage Base Station: turns camera power on and off

CopperHead 3050 Base Station

OpticalCON SMPTE 304M Molex and STs ST Connectors

The CopperHead 3050 Base Station is available with a number of options. The unit is ordered with a specified Power Module, Audio/Intercom Module and Fiber Connector. For an overall view of component location please see the overall diagrams in page 82.

CopperHead 3050 Base Station Front Panel

Fig. 3-11: CopperHead 3050 Base Station Front Panel

• A - Optical Connector (see Area A - Front Panel Optical Connector (Optional) on page 21)

• B - Audio/Ethernet Indicators (see Area B - Audio Indicators on page 22)

• C - Video Indicators (see Area C - Video/Data Indicators on page 22)

• D - Signal Strength Indicators/Setup (see Area D - Signal Strength Indicators/Setup on page 23)

• E - Status/Power Indicators (see Area E - Status/Power Indicators on page 23)

CopperHead 3050

User Guide

Diagrams on

Area A - Front Panel Optical Connector (Optional)

Area A of the CopperHead 3050 Base Station provides for the optional mounting of the Fiber Optical Connector on the front of the Base Station instead of the rear of the Base Station.

For information on how to convert the Base Station from Rear to Front Fiber Connector, see

Connections between the Base Station and the Camera Unit on page 36.

Three types of Fiber Connectors are available for use with the CopperHead 3050 Base Station. Typically one of these Fiber Connectors is pre-configured at the time of delivery.

Fig. 3-12: Fiber Connector Types

Detailed Description

CopperHead 3050 Base Station Front Panel

Area B - Audio Indicators

LED Indicators to the left side of the label indicate signal paths from the Camera Unit to the Base Station.The right side LEDs indicate signal paths from the Base Station to the Camera Unit.

• 2 - Program Audio Channels 1-2: monitors Program audio from Camera Unit to Base Station and Return audio from Base Station to Camera Unit.

• 3 - Intercom Channels 1-2 : monitors Intercom audio from Camera Unit to Base Station and from Base Station to Camera Unit.

• 4 - Ethernet Signal:indicates IP Data traffic to and from Camera Unit to and from Base Station.

• 5 - IFB Signal:monitors IFB signal coming from Base Station to Camera Unit.

Fig. 3-13: Audio Indicators

Area C - Video/Data Indicators

Fig. 3-14: Video/Data Indicators

•6 - SDI Digital Video Signal: monitors camera SDI video to Base Station and SDI return video to the Camera Unit.

• 7 - VBS 1-3 – Analog Video Signals 1-3: VBS is typically used for Camera video from the Camera Unit to the Base Station, and Return video to the Camera Unit from the Base Station.

CopperHead 3050

Area D - Signal Strength Indicators/Setup

Fig. 3-15: Signal Strength Indicators/Setup

• 8- Signal Strength Readout in dBm: this display changes between display modes when selected.

•9- Select Button: chooses between three modes of operation.

• 10 - Readout Function Indicator:

• BASE RX – Optical Link signal strength received at Base Station from Camera Unit

• CAM RX – Optical Link signal strength received at Camera from Base Station

• DIAG – Digital display is in Diagnostic mode

User Guide

For details on how the setup/Diagnostic functions operate, see The CopperHead 3050

Camera Unit Digital Display on page 58.

Area E - Status/Power Indicators

Hybrid Power Indicators are present only on a hybrid power unit

Fig. 3-16: Status/Power Indicators

• 11 - System Status Indicators:

• BASE POWER - indicates the status of all power levels in the Base Station:

• Green when all power levels are normal

• Red when any power level is not normal

• SYSTEM LOCK - indicates that the Base Station is communicating with the Camera Unit:

• Green when communicating with Camera Unit

• Red when it is not communicating with the Camera Unit

• FIBER LINK - indicates the optical power status of the Base Station and Camera Unit:

Detailed Description

CopperHead 3050 Base Station Front Panel

• Green when both the Base Station and Camera Unit optical power are within a normal range

• Red when both the Base Station and camera optical power are not within a normal range

• Orange when either the Base Station or camera optical power are not within a normal range

• ALARM - indicates that some error condition exists in either the Base Station or the Camera Unit:

• Red if there is a Base Station error. Refer to the Base Station DIAG for details on the error (see

• Orange if there is a Camera Unit error. Refer to CAM DIAG for details for the error (see

• 13 - Hybrid Power Indicators

Note: Hybrid Power Indicators are present only on a hybrid power unit.

The Hybrid Power indicators are only applicable to units with the internal power supply (for configurations using the MPS power supply - see

Supply on page 30).

• CAMERA POWER - indicates that high voltage is applied to the Hybrid Cable connector (OpticalCONN or SMPTE 304M), which powers the Power Wafer at the Camera Unit.

• Green when high voltage is being supplied to the Hybrid cable connector

• Off when there is no high voltage applied to the Hybrid cable connector

• CABLE OPEN - indicates that there is no hyrbid cable connected to a Camera Unit equipped with a Power Wafer.

• Green when the hybrid cable is properly connected from the Base Station to the Camera Unit equipped with Power Wafer

• Red when there no cable connected to the camera or the cable is connected but open

High voltage will not be applied to the camera until the open condition is corrected.

• CABLE SHORT - indicates that the hybrid cable connected is shorted.

• 14 - Power Switch & Power Indicator

Toggle switch to enable or disable Base Station power.

LED turns Green when ON/OFF switch is changed to the ON position. With a hybrid power system (power supplied by the Base Station), this switch will control power to the Camera and the Camera Unit

For the hybrid system to be properly powered, the AC Mains switch on the rear of Base Station must be in the ON position.

The CopperHead 3050 Base Station Digital Display on page 54)

The CopperHead 3050 Camera Unit Digital Display on page 58)

MPS External Power Wafer Power

CopperHead 3050 Base Station Back Panel

Fig. 3-17: CopperHead 3050 Base Station Back Panel

• A - Power & Fiber Connectors (see Area A - Power & Fiber Connectors (Power Module) on page 25)

• B - Video/Ethernet Connectors (see Area B - Video/Ethernet Connectors on page 27)

• C - Audio/Intercom Connectors (see Area C - Audio/Intercom Connectors on page 27)

Area A - Power & Fiber Connectors (Power Module)

The CopperHead 3050 Base Station can be configured with one of five different Power Module Options.

• The connection and practical use of each of these options is covered in Connection of

the System on page 35.

• Multi-pin connector wiring suggestions are covered in Multi-Pin Connectors:

Suggested Wiring on page 72.

CopperHead 3050

User Guide

External Power Options

Fig. 3-18: External Power with OpticalCON Connector

• External Power with OpticalCON Connector

• 14 - 12V DC External Power Supply input connector (XLR 4 Pin)

• 15 - 12V DC Input - terminal block

See Connector Pin Assignments on page 66 for connection details.

• 2 - For Future Use

• 4 - OpticalCON Connector

• External Power with STs Connector

• 4 - ST Fiber Connectors

Detailed Description

CopperHead 3050 Base Station Back Panel

Internal Power Options

• Internal Power with OpticalCON Connector

• 1 - AC Power Receptacle and 4AMP Dual Fuse Assembly: 100-240V 50/60 Hz See Page 8 for the Fuse Specification.

• 2 - For Future Use

• 3 - AC Mains Switch

• 4 - OpticalCON Connector

• Internal Power with STs and Molex Connectors

Fig. 3-19: Internal Power panels

Fig. 3-20: Internal Power with STs and Molex Connectors

• 4 - STs Connector with Molex for Camera power

• Internal Power with SMPTE 304M Connector

Fig. 3-21: Internal Power with SMPTE 304M Connector

• 4 - SMPTE 304M Connector

Area B - Video/Ethernet Connectors

Fig. 3-22: Video/Ethernet Connectors

• 5 - Ethernet connector - 10BaseT/100BaseT

•6 - VBS Output from Camera

• 7 - VBS Return Video source Input to Camera

• 8 - HD/SDI Program from Camera Unit outputs 1-2

• 9 - SDI Return Video source Input to Camera

Area C - Audio/Intercom Connectors

CopperHead 3050

User Guide

The CopperHead 3050 Base Station can be configured with one of three different Intercom Options:

• Four Wire Intercome Module (see Four Wire Intercom Module on page 27)

• RTS TW Intercom Module (see RTS TW Intercom Module on page 28)

• Clear-Com Intercom Module(see Clear-Com Intercom Module on page 28)

The connection and practical use of each of these options is covered in Connection of the

System on page 35. Multi-pin connector wiring is covered in Multi-Pin Connectors: Suggested Wiring on page 72.

Four Wire Intercom Module

Fig. 3-23: Four Wire Intercom Module

• 10 - Ch-1 Intercom connector

• 11 - Ch-2 Intercom connector

• 12 - Audio In Multi-pin connector

• 13 - Audio Out Multi-pin connector

Detailed Description

CopperHead 3050 Base Station Back Panel

RTS TW Intercom Module

• 10 - Intercom Input

• 11- Intercom Loop Through

Clear-Com Intercom Module

Fig. 3-24: RTS TW Intercom Module

Fig. 3-25: Clear-Com Intercom Module

• 10 - Ch-A Intercom Connector

• 11 - Ch-B intercom Connector

Additional CopperHead 3050 Transceiver System Items

Hybrid Fiber Cable

Your CopperHead 3050 Transceiver System may consist of one or more of the following items:

• Portable fiber reel with fiber per your purchase order

• Optional Universal Camera Control Unit (please refer to the User's guide supplied with this product)

• Optional "Power Wafer" Camera Adaptor

• Optional MPS External Power Wafer Power Supply

• Optional "PowerPlus" Camera Adaptor and Power Adaptor (please refer to the User's guide supplied with this product or refer to a Technical Bulletin available at

http://www.miranda.com/support)

• Optional HDX Power Unit (please refer to the User's guide supplied with this product or refer to a Technical Bulletin available at

"Power Wafer" Camera Adaptor

The CopperHead 3050 Camera Unit can be powered by the optional "Power Wafer" Camera Adaptor. The Power Wafer replaces the local camera battery and any local AC power supply adaptor. The Power Wafer gets its power from the Hybrid fiber cable and the CopperHead 3050 Base Station equipped with the internal power supply or from the MPS external supply.

http://www.miranda.com/support)

CopperHead 3050

User Guide

Fig. 3-26: Power Wafer and Hybrid Fiber Cable

Detailed Description

MPS External Power Wafer Power Supply

Up to 95 watts of power can be delivered to the camera, Camera Unit, and camera powered accessories. Up to 780 feet (240 meters) of cable can be used when the Camera Unit is powered directly from the Base Station.

The use of an external power supply can extend Base Station to Camera range and increase camera power flexibility. The MPS "Throw Down" device or Wafer Power Adaptor provides this functionality. This unit is described on page 30.

The Power Wafer replaces the battery or local battery mount AC adaptor (Figure 3-26 displays the V-Mount Battery Mount option).

A short jumper cable carries power from the Camera Unit to the Power Wafer. The power comes to the camera on the power section of the Hybrid Fiber Cable.

MPS External Power Wafer Power Supply

The CopperHead MPS external power supply provides 95 watts of 12VDC power and fiber cable signal connectivity from the Base Station to the Camera. From the MPS unit to the camera can be configured using either a Hybrid OpticalCON connector or a SMPTE 304M connector. The length available is up to 780 feet or 240 meters.

MPS External Power Wafer Power Supply on

From the MPS unit to the Base Station can be configured using a non-hybrid OpticalCON connector or two ST connectors. The length available is up to 5 kilometers (3 miles).

The MPS is powered locally with standard AC power. The unit is free standing.

Fig. 3-27: MPS External Power Wafer Power Supply

All MPS Units require the Power Wafer to provide power to the Camera Unit. Four variations are available with a different set of fiber cable connectors. All MPS units provide 95 watts of 12VDC power.

Fiber Connection to Base

Part Number Fiber Connection to Camera

CH2-MPS-95VD-2ST-NEU OpticalCON 2 STs

Station

CH2-MPS-95VD-2ST-304 SMPTE 304M 2 STs

CH2-MPS-95VD-NEU-NEU OpticalCON (with power) OpticalCON (no power)

CH2-MPS-95VD-NEU-304 SMPTE 304 (with power) OpticalCON (no power)

Physical Installation

This chapter describes the physical installation of the CopperHead 3050 Transceiver System.

Mounting the CopperHead 3050 Camera Unit to the Camera . . . . . . . . . . . . . . . . . . . . . . . . . 32

Mounting the Power Wafer Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Relocation of the CopperHead 3050 Base Station Fiber connector . . . . . . . . . . . . . . . . . . . . . 34

Physical Installation

Battery or AC Power Supply

Battery-to-4 pin adaptor (such as A/B SO23)

Mounting the CopperHead 3050 Camera Unit to the Camera

This example illustrates the mounting of an Anton-Bauer battery mount system, but your system may differ. This case illustrates a configuration where the camera is powered locally at the camera position either by battery or by a local power source. This assumes a tactical fiber connection with no hybrid power on the cable.

Fig. 4-1: Mounting the CopperHead 3050 Camera Unit to the Camera

• Position your camera (1) so that you can easily access the battery mounting plate at the rear of the camera. Ensure that the camera is well supported and stable. If a battery is mounted, remove it and put it to one side.

• Attach the CopperHead 3050 Camera Unit (2) to the camera battery mounting plate. The mounting is mechanically identical to attaching a battery. For instructions on how to attach the required cables between the camera and the 3050 Camera Unit,see

Connections to the CopperHead 3050 Camera Unit on page 43.

• If you are powering the camera and 3050 Camera Unit by battery, mount the battery (3) to the CopperHead 3050 Camera Unit battery mounting plate (2) exactly as you would mount the battery to your camera.

• If you are powering the camera and 3050 Camera Unit by local power supply, mount the power supply (4-Pin) adaptor plate (4) to the CopperHead 3050 Camera Unit battery mounting plate (2) exactly as you would mount a battery to your camera. You will supply the external local power supply.

For configuration please see Connection of the System on page 35.

Mounting the Power Wafer Unit

PowerWafer for use with Powered Base Station and Hybrid cable

The Power Wafer to Camera Unit cable is supplied with the CopperHead Power Wafer Unit. For configuration please see Connection

of the System on page 35.

This example illustrates the use of a camera with an Anton-Bauer battery mount system, but your system may differ. This case illustrates a configuration where the camera is powered through the Power Wafer option. The Power Wafer is powered through a Hybrid fiber cable, which is powered from the CopperHead 3050 Base Station or MPS External Power Supply.

CopperHead 3050

User Guide

Fig. 4-2: Mounting the Power Wafer Unit to the CopperHead 3050 Camera Unit

• The CopperHead 3050 Camera Unit is mounted to the camera as described Mounting

the CopperHead 3050 Camera Unit to the Camera on page 32.

• The Power Wafer (3) is attached to the CopperHead 3050 Camera Unit in place of the battery. It is attached in the same manner as the camera battery.

• When the Power Wafer is securely mounted to the CopperHead 3050 Camera Unit you must connect the supplied Power Wafer connector cable between the Power Wafer (1) and the Power Wafer connector on the Camera Unit (15).

Fig. 4-3: Power Wafer to Camera Unit cable

Physical Installation

Relocation of the CopperHead 3050 Base Station Fiber connector

The CopperHead 3050 Base Station may be configured with the Fiber Connector mounted either on the back or the front of the Base Station. You may order your Base Station in either configuration and it is possible to relocate the Fiber Connector from one position to the other in the field.

Fig. 4-4: CopperHead 3050 Base Station with Rear Mounted Fiber Connector

Fig. 4-5: CopperHead 3050 Base Station with Front Mounted Fiber Connector

The Fiber Connector relocation process can be completed by a qualified Grass Valley Fiber technician in about 15 minutes or less. If you perform this task yourself, you shoul budget about one hour.

For a complete illustrated step-by-step procedure, go to http://www.miranda.com/support and click on the CopperHead 3050 Technical Notes link or Grass Valley support directly.

Connection of the System

Prior to connecting your CopperHead 3050 Transceiver System please ensure that each of the required cables is available for use. This includes standard video, audio and data cables as well as custom multi-pin cable sets required for your particular installation.

Please see the Available Accessories on page 76 for information regarding cables, signals, and custom multi-pin cable fabrication.

Connections between the Base Station and the Camera Unit . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Connections to the CopperHead 3050 Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Connections to the CopperHead 3050 Camera Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Camera Unit Connection Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Connection of the System

Connections between the Base Station and the Camera Unit

The following table summarizes the various Fiber Cable connection options between the CopperHead 3050 Transceiver System Base Station and the Camera Unit.

Base Station

Cable Type

Tac tical Fi b er Internal Local Battery or AC

SMPTE Hybrid Fiber Internal Power Wafer Camera

SMPTE Hybrid Fiber External – Wafer

SMPTE Hybrid Fiber External – HDX

Power

Power Supply 95

Watts

Power Supply – 150 Watts

Camera Unit Power

Power

Adaptor

Power Wafer Camera Adaptor

CopperHead PowerPlus Camera Adaptor

• The external Wafer Power Supply must be equipped with the required Fiber Cable connectors depending on your system requirements.

• The external HDX Power Supply provides two ST Fiber Connectors for connection between the HDX and the Base Station and a SMPTE 304M Connector for connection between the HDX and the Camera Unit.

Distance Range Between Camera and Base

Up to 10 KM

(This range can be extended to greater than 20 KM through use of the optional High Power Laser - must be ordered at time of purchase)

240 meters

5 KM between base and power supply

240 meters between power supply and camera

5 KM between base and power supply

3.2 KM between power supply and camera

The following fiber connection scenarios do not take into account any customized cable and connector installations you may have at your facility. For assistance regarding more complex connection situations, contact Grass Valley, a Belden Brand (see

page 65) or your local authorized dealer.

Camera Powered: Tactical Fiber between Base Station and Camera Unit

Fig. 5-1: Tactical Fiber between the Base Station and Camera Unit

Between the Base Station (1) the Camera Unit (2), connect a length of Tactical Fiber Cable (3). At each end of the fiber cable, there is either an OpticalCON (4) or MX Fiber Connector (5).

The Base Station connector (4) may be mounted either on the front or back of the Base Station. The camera must be powered by local power, either a Battery or a local AC Power Supply (6).

Note: Your configuration may have the OpticalCON or MX Fiber

Connector directly mounted on the Base Station Chassis.

PowerWafer Scenarios #1 and #2

• PowerWafer Scenario #1: Hybrid Fiber direct between Powered Base Station and

Camera Unit on page 37

• PowerWafer Scenario #2: Infrastrucure Copper & Fiber between Powered Base Station

and Camera Unit on page 37

Hybrid Fiber direct between Powered Base Station and Camera Unit

CopperHead 3050

User Guide

Fig. 5-2: SMPTE Hybrid Fiber between the Base Station (powered) and Camera Unit

Between the Base Station (1) and the Camera Unit (2) connect a length of SMPTE Hybrid Fiber Cable (3). At each end of the fiber cable,there is either an OpticalCON or SMPTE 304M Connector (4) and (5).

The Base Station connector (4) may be mounted either on the front or back of the Base Station. The camera will be powered by the (6).

CopperHead Power Wafer Camera Power Supply

Infrastrucure Copper & Fiber between Powered Base Station and Camera Unit

Infrastructure Wiring Built-In to a Facility using OpticalCON Connectors

Connection of the System

PowerWafer Scenarios #1 and #2

Fig. 5-3: SMPTE Hybrid Fiber between Base Station and Camera Unit (Infrastructure Wiring)

Panel mounted fiber connectors can be used for permanent installations such as communications closets, truck connector panels, and sports facilities. A panel mounted OpticalCON or SMPTE 304M receptacle (4) is connected to the Base Station (1) through infrastructure grade wiring. Two LC Fiber Optic connectors and four soldered AWG18 copper power wires (3) connect to the Base Station through a Molex and ST receptacle (2).

Between the panel mounted receptacle and the Camera Unit is standard Hybrid Fiber Optic cable (5). This cable is matched to the panel mounted receptacle with either an OpticalCON or SMPTE 304M connector (4) to (6).

CopperHead 3050

SMPTE Hybrid Fiber between the MPS Power Unit and Camera Unit

ST Fiber Connectors between Base Station and External Power Unit Camera powered by Power Wafer.

Fig. 5-4: SMPTE Hybrid Fiber between the MPS Power Unit and Camera Unit

Between the Base Station (1) and the External Wafer Power Supply (4), connect a pair of ST Fiber Cables (5).

Power the External Wafer Power Supply locally by connecting to AC Power. Between the External Wafer Power Supply (4) and the Camera Unit, connect a length of SMPTE Hybrid Fiber Cable (3). At each end of the fiber cable,there will be either an OpticalCON or SMPTE 304M Connector (7).

User Guide

The Base Station connector (1) may be mounted either on the front or back of the Base Station. The camera will be powered by the

CopperHead Power Wafer Camera Power Supply

(2).

The Base Station will be powered by connection to local AC power (6).

Connection of the System

Connections to the CopperHead 3050 Base Station

Fig. 5-5: CopperHead 3050 Base Unit Connections

Multi-pin cable assemblies used with the CopperHead 3050 Base Station:

• A - Audio In Connector: Connect Intercom Program Audio and IFB Intercom Audio (see

Base Station 25-Pin Audio Input Cable on page 73).

• B - Audio Out Connector: Carries audio back from the camera location - connect to an audio processing chain or monitors (see

Base Station 25-Pin Audio Output Cable on

page 74).

Connectors into and out of the CopperHead 3050 Base Station

This information duplicates some of that from above sections. It is presented here to provide a single list of all Base Station connections. Key numbers refer to the diagram above and to the Overview Diagram found in

Diagram # Description

1 & 14 Power In

Connect a standard 12V DC ADAP power source (4 Pin) or a standard 3 conductor AC Cable (IEC Plug) 100-240V 50/60 Hz

4 Fiber Connector

This connector can be mounted on the Base Station Front Panel (see

Relocation of the CopperHead 3050 Base Station Fiber connector on

page 34).

Connect the fiber connector from either the Fiber Cable connected directly to the camera or from the external power unit designated for your system. The type of Fiber Connector will vary depending on your system configuration.

Diagrams on page 82.

Diagram # Description

5 Ethernet Connector – 10Bt/100Bt capable

Designed to carry IP traffic data between the Base Station and the Camera Unit. A laptop PC or other device such as a Wireless Access Point can be connected to the Production Environment IP network.

6 VBS Out

BNC Connector -Typically used for SD Monitoring Video return from the Camera

7 VBS In

BNC Connector – Typically used to send SD return video to the camera – an example is monitor out from the Production Switcher

8 SDI Out 1 & 2 (this carries the HD feed from the camera)

BNC Connectors – Two identical video feeds from the camera – typically one may be used for local HD monitoring and one is fed to the Production Switcher environment.

9 SDI In

BNC Connector – Typically used to send HD return video to the camera – an example is program out from the Production Switcher

10 & 11 Intercom Connectors #1 & #2

XLR 3 pin or 5 pin Connector depending on configuration. One of three options will be installed (4-wire intercom, RTS or Clear-Com).

CopperHead 3050

User Guide

12 Audio In- Multi-Pin Connector

DB25 – 25 pin Connector follows the Tascam TDIF standard. The

CopperHead 3050 Transceiver System accommodates up to two Audio

Channels at Line Level. This connector handles return audio to the Camera location as well as intercom Program Audio. See

Suggested Wiring on page 72.

13 Audio Out- Multi-Pin Connector

DB25 – 25 pin Connector follows the Tascam TDIF standard. The

CopperHead 3050 Transceiver System accommodates up to two Audio

Channels at Line Level. This connector handles Program audio from the Camera location. See

Multi-Pin Connectors: Suggested Wiring on page 72 for

sample wiring.

15 12V Terminal Block

Terminal Block – bare wire connector. This can be used in place of the ADAP power connection in installations that have 12V power distributed as part of their infrastructure. Do not use this at the same time as the ADAP power connection.

Multi-Pin Connectors:

Connection of the System

Connectors into and out of the CopperHead 3050 Base Station

Diagram # Description

16 ST Fiber Connectors (used in place of connector 4)

Two ST Connector receptacles – Used as the Fiber Optic connection typically when infrastructure wire or with one of the two external power supply option (MPS or HDX Power Adaptors)

17 Molex Power Connectors (used in place of 4 and only if so configured with

ST Fiber Connectors)

Five Conductor Molex Connectors provide power to the Hybrid Fiber Optic Cable. Typically installed with infrastructure wiring with cable leading from Molex connector to a panel mounted OpticalCON receptacle.

Connections to the CopperHead 3050 Camera Unit

CopperHead 3050

User Guide

Fig. 5-6: CopperHead 3050 Camera Unit Back Side Connections

This information duplicates some of that from above sections. It is presented here to provide a single list of all Camera Unit connections. Key numbers refer to the diagram above and to the Overview Diagram found in

Diagrams on page 82.

Diagram # Description

3 Intercom Headset Out

XLR 5 Pin Female Connector – Provides two channels of two-way intercom and the Intercom Program audio feed

4 IFB Signal Out

XLR 3 Pin Male Connector – Provides IFB Audio Out from Base Station. Typically connected to an IFB audio belt unit for IFB feed to talent.

5 Audio 1 Input

XLR 3 Pin Female Connector – Line level audio input. Typically fed by a short audio jumper cable from the Camera Audio 1 output

Connection of the System

Connections to the CopperHead 3050 Camera Unit

Diagram # Description

6 Audio 2 Input

XLR 3 Pin Female Connector – Line level audio input. Typically fed by a short audio jumper cable from the Camera Audio 2 output

7 HD-SD/SDI Input

BNC Connector – Carries camera video from the Camera to the Camera Unit. This requires a short BNC jumper cable between the Camera Unit and the Camera.

8 HD-SD/SDI Outputs #1 & #2

BNC Connector – Carries return video from the Base Station to the Camera Unit. Typically this will feed a camera viewfinder or an HD viewing monitor at the camera location.

9 VBS In

BNC Connector – Carries SD Analog video from the Camera to the Camera Unit. This requires a short BNC jumper cable between the Camera Unit and the Camera. Can be used to provide technical monitoring from camera as with superimposed camera menus and other information.

10 VBS Out

BNC Connector – Carries SD Analog video from the Base Station the Camera Unit. Typically this will feed an analog viewing monitor at the camera location.

11 Ethernet Out

RJ45 Connector – Carries IP Data. Typically connects to a Laptop computer or perhaps a wireless access point at the camera location. Any IP traffic controlled equipment can be handled through this signal path.

12 Intercom Headset Connector

Mini-phone Jack – Provides listen only Intercom audio.

13 Power Wafer Connector

Multi-Pin Connector C – Supplies power to the Camera Unit from the Power Wafer (if so configured). This cable is supplied with the Power Wafer Power Adaptor.

14 Fiber Connector

Swivel Mounted Fiber Optic Cable receptacle – specific connector depends on your configuration.

Camera Unit Connection Example

Your CopperHead 3050 Camera Unit and your camera will look something like this once you have connected the various signal paths. Each camera setup will be different depending on your model.

See the following section for an overview of Camera Unit to Camera & Peripheral Equipment connections.

CopperHead 3050

User Guide

Fig. 5-7: Camera Unit (Power Adaptor or Battery Facing Side) to Camera Connections

Camera Unit Video Connections

Fig. 5-8: Camera Unit Video Connections

Connection of the System

Camera Unit Audio and Intercom Connections

Fig. 5-9: Camera Unit Audio and Data/Control Connections

Operation of the System

This chapter describes in detail the operation of CopperHead 3050 Transceiver System. Please keep in mind that a wide variety of options and variations are available in using this product and so not every possible operational environment can be described.

Variations in camera type, battery and powering, fiber cable connections, and intercom allow for an enormous number of slightly different operational modes.

Set Up of the CopperHead 3050 Transceiver System for operation . . . . . . . . . . . . . . . . . . . . . 48

Powering the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Understanding Intercom Usage with the CopperHead 3050 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Using Digital Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Best Practices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Operation of the System

Set Up of the CopperHead 3050 Transceiver System for operation

This section explainshow to setup the CopperHead 3050 Transceiver System for operation.

It is important that you do an initial setup and test your CopperHead 3050 Transceiver System as soon as your receive in order to confirm proper operation.You also need to provide training prior to an actual production.

Use the following list of items as an overall checklist for setup.

•It is highly recommended that you do not attempt to power up the system until all connections are made and in particular the Fiber Optic Cable has been connected at both ends. If you need to power up either the CopperHead 3050 Base Station or Camera Unit, make sure that the Fiber Connectors are securely capped. This will protect them from damage or dirt and protect you from eye damage.

• If it is the first time setting up the CopperHead 3050 Base Station, or your setup is not permanent (in a remote truck, stadium control room or similar), connect all required cables according to order in which you connect the cables makes no difference.

• Make sure to connect the Camera Remote Control cable to the Base Station and Remote Control Panel when the Base Station power is turned off.

• Keep Fiber Optic cable connectors capped until actually connecting the Fiber Cable.

• When setting up the CopperHead 3050 Camera Unit and associated Camera, you must do the following:

• If your unit is so configured, setup the external power supply as required. For the MPS power supply used with the CopperHead 3050 Power Wafer, see

Power Wafer Power Supply on page 30. Make sure all cables running between the

CopperHead 3050 Base Station and the Power Supply and local AC power cords are properly managed and secured.

• Mount the Camera and CopperHead 3050 Camera Unit (see Mounting the

CopperHead 3050 Camera Unit to the Camera on page 32).

• Connect all required cables according to Connections to the CopperHead 3050

Camera Unit on page 43. The order in which you connect the cables makes no

difference.

• Set up the Intercom Talk Back switches and level controls as desired (see

Understanding Intercom Usage with the CopperHead 3050 on page 50).

• Deploy the Fiber Cable.

You should read the Using Fiber Optics Guide for information on how to manage and deploy your fiber optics cabling, safety precautions, tips & tricks, and recommendations for creating complex fiber optic networks. You can find a copy of this document on the Support portal (see

• You are now ready to Power Up the system (see Powering the System on page 49).

Connections to the CopperHead 3050 Base Station on page 40. The

MPS External

Powering the System

The CopperHead 3050 Transceiver System Base Station and the CopperHead 3050 Transceiver System Camera Unit each have a power up routine which tests the equipment and performs a system diagnostic.

To power the CopperHead 3050 Transceiver System Base Station:

1 Turn on the Base Station Power Mains Switch located at the rear left (when facing the

back of the Base Station-- #3 on the overall diagram, see page 67). This switch is only on Base Station units with internal power. The front panel power light will come on and be Red until the next step.

2 Turn on the Front Panel Power Switch located at the front right(#15 on the overall

diagram -- see from Red to Green.

3 The four-character display indicates TEST and all front panel LEDs turn, Red, then

Green, then orange, then off.

4 The LED color test is followed by REV and the revision of the display microcontroller

firmware.

5 The REV indication is followed by miranda.com scrolling across the four-character

display.

If there's no scrolling, please contact Grass Valley, a Belden Brand support for assistance

(see

6 The scroll is followed by a three-second pause which synchronizes all the

microcontrollers in the Base Station.

7 The front panel will cycle through the diagnostics displays (see Using Digital Displays

on page 54).

8 After the three-second pause, all the front panel displays update with current status. If

the Camera Unit is not powered on the camera related status lights will show Red.

CopperHead 3050

User Guide

Base Station Connectors on

Base Station Connectors on page 67). The power monitor indicator turns

To power the CopperHead 3050 Transceiver System Camera Unit:

1 Turn on the Camera Unit Power Switch.

2 Turn on the Camera Power and also any peripheral equipment connected to the

camera or the CopperHead 3050 Transceiver System Camera Unit such as monitors and microphones.

3 On Power-On, the four-character display indicates the current Revision Version (REVA).

Your unit will display the current Revision Version, followed by the Fiber Link strength (a typical display for Fiber Link strenth is -8 to -13 which indicates Fiber link strength of from -8 to -13 dBm).

Both the Camera Unit and the Base Station have a digital display selector button which allows multiple functions for the digital display. These functions are described in

Fiber Optic Signal Strength on page 54.

Measuring

Operation of the System

Understanding Intercom Usage with the CopperHead 3050

The CopperHead 3050 Transceiver System is delivered pre-configured with one of three intercom options:

• Standard Four Wire Intercom

• Clear-Com Intercom

•RTS intercom

Wiring for each of these options is described in Multi-Pin Connectors: Suggested Wiring on page 72.

The operation of your specific intercom system is beyond the scope of this User's Guide. Please see the documentation provided with your intercom or consult your intercom provider.

User settings for the Intercom system occur on the CopperHead 3050 Camera Unit at the top of the Audio Interface box on the back (not camera facing) side of the Camera Unit Please see the

This Audio Interface box provides the following functionality:

• Volume control through the Intercom headsets for two Intercom channels and for Program audio carried on the Intercom line.

• Side Tone setting control. Side tone is the volume of your voice heard on your local intercom headset. It does not affect how others on the intercom line hear you.

• LEDs provide activity monitoring of traffic on the two Intercom channels and Program audio. These are activity only monitors and do not represent audio levels.

Diagrams on page 82 - Reference Numbers 9-15.

In addition to the Intercom controls, a 4-switch panel allows adjustment of various Audio Input and IFB settings.

Note: The CopperHead 3050 Camera Unit acts as the last component of any intercom beltpack chain. An Intercom beltpack cannot be plugged into the CopperHead 3050 Camera Unit. Only an intercom headset can be plugged into the Camera Unit.

CopperHead 3050 Camera Unit Intercom Operation

Fig. 6-1: Audio Interface Box Detail (Camera Unit)

•LISTEN:

To set listening level for an intercom channel or the PROGRAM Audio, adjust the desired LISTEN control knobs at the top of the Audio Interface box (

16). The LISTEN indicator LEDs indicate activity on the Intercom channel(s) and the Program audio feed. These LEDs illuminate even if your LISTEN control knobs are turned down.

•TALK:

The Intercom TALK toggle switch (Figure 6-1, #18) opens the headset microphone onto Intercom Channel 1, Channel 2, or both channels. This switch does not control which Intercom audio channel is heard in the headset.

• Momentary Mode: To activate the headset mic, press and hold the TALK toggle switch (#18) up (for Channel 1) or down (for Channel 2). The corresponding Green talk LED will remain lit while the TALK switch is held. The microphone is turned off when the TALK switch is released and the TALK indicator turns off.

• Latching Mode (for Hands-free Conversation): Press the TALK toggle switch quickly , up (for Channel 1) or down (for Channel 2). The mic will turn on and remain on, as will the corresponding Green TALK LED. To turn the mic off, push the TALK toggle switch again quickly in the same direction (up or down). The talk indicator will also turn off.

CopperHead 3050

User Guide

Figure 6-1: #14, 15,

Operation of the System

The intercom LEDs with the mic open and audio activity on channel 1.

The intercom LEDs with the mic open and audio activity on channels 1 & 2.

Adjusting Intercom Sidetone

The middle position allows both channels to remain in the OFF position.

Fig. 6-2: Local Activation of Channel 1 Talk Back and Both Intercom Channels

Adjusting Intercom Sidetone

The intercom SIDE TONE adjustment controls the level of your own voice that you hear locally in your headset. It does not affect how others on the intercom circuit hear you. With the TALK control activated on CH1 and/or CH2, use a "Tweaker" type screwdriver to adjust the Side Tone Level until you are comfortable with the level of your own voice in your headset.

Fig. 6-3: Setting Intercom Side Tone

CopperHead 3050

CopperHead 3050 Camera Unit Audio/Intercom/IFB 4-Switch Panel

Fig. 6-4: Audio/Intercom/IFB switch panel

1 Audio Input LINE/MIC Switch

• Left position sets audio inputs to line level (+4dB)

• Right position switches audio inputs to MIC level and enables Switch #2

2MIC Input Level Switch

• Left position sets MIC input level to -60dB

• Right position sets MIC input level to -10dB

3 IFB WET/DRY Switch

• Left position sets IFB output XLR3M connector to Powered ("Wet"), which will provide power to an IFB beltpack (or "talent amplifier) via the audio cable

• Right position sets IFB connector to Unpowered ("Dry")

4For Future Use

User Guide

Operation of the System

Using Digital Displays

Measuring Fiber Optic Signal Strength

The decibel (dB) is a logarithmic unit of measurement that expresses the magnitude of a physical quantity (usually power or intensity) relative to a specified or implied reference level. Since it expresses a ratio of two quantities with the same unit, it is a dimensionless, relative unit. A decibel is one tenth of a bel, a seldom-used unit. Typically dB has been employed in Audio Measurement and Fiber Optics among many uses.

Proper measurement of signal strength requires an absolute measurement and the dBm provides this measurement. Since it is referenced to the milliwatt, it is an absolute unit, used when measuring absolute power. By comparison, the decibel (dB) is used for quantifying the ratio between two values, such as signal-to-noise ratio

The CopperHead 3050 Transceiver System operates within a defined range of Fiber Optic Link signal strength. The minimum recommended signal strength is -22 dBm or better. Typically the system should operate at levels between -8 dBm and -20 dBm. The standard CopperHead 3050 laser output strength is -6 dBm. Cable length affects signal strength as does the number of connections between the Camera Unit and the Base Station. For example, using a Power Supply such as the MPS or HDX produces a minimal signal loss through each connection.

The digital readouts on both the CopperHead 3050 Base Station and Camera Unit provide direct signal strength measurements in dBm. These readouts also provide a wide range of diagnostic information (below).

The CopperHead 3050 Base Station Digital Display

The Base Station digital display has three functions selected by the Display Mode Selector (see #14 on the diagram in on page 83). These functions are indicated by the Display Mode LEDs.

• BASE RX – Base Station Optical Power or Signal Strength that is being received at the Base Station. Displayed in units of –dBm. The acceptable range for operation is -7dBm down to -22dBm. *

• CAM RX – Optical Power or Signal Strength being received at the Camera Unit. Displayed in units of –dBm. The acceptable range for operation is -7dBm down to 22dBm. *

• DIAG – One of four diagnostics modes:

• TEMP – displays operating temperature in degrees Centigrade of each circuit board that reports temperature

• POWR – displays power level from monitored circuit boards

• REV – displays microcontroller firmware version from each circuit board with a microcontroller

• CAM – displays the error status reported by the Camera Unit

CopperHead 3050 Transceiver System Base Station Back Panel

To select the different display modes, push the Display Mode Selector. The transition from one mode to another may take a moment with the transition into the Diagnostic mode taking slightly longer. The Selector is cyclical rotating through each of the modes. Once in

CopperHead 3050

User Guide

the Diagnostic mode, a quick push of the Selector cycles through the various diagnostic sub-modes described above.

The following table describes the expected readouts in each of the above Base Station display modes. By following the sequence, you can understand what the various readouts and four-character abbreviations mean for the system.

Display Mode Readout Base Station Digital Display Activity Explanation

(assumes after initial power up - see Page xx for a description of the Power Up sequence)

BASE RX (Base Station Receive Signal Strength)

BASE RX -9 Indicates that the Base Station signal strength is -9 dBm

BASE RX OPT Indicates that the Display is showing Optical link signal

strength

BASE RX -9 Repeat of the Base Station signal strength

BASE RX OPT Repeat that the display is showing Optical link signal

strength

This display cycle repeats itself and depending on timing may start with either OPT of the strength measurement

CAM RX (Camera Unit Receive Signal Strength)

CAM RX COPT Sequence starts with COPT to indicate camera optical

signal strength

CAM RX -9 Indicates that the signal strength from the Camera Unit is

CAM RX OPT Indicates that the Display is showing Optical link signal

CAM RX -9 Repeat of the Camera Unit signal strength

CAM RX OPT Repeat that the display is showing Optical link signal

-13 dBm

strength Note: the only way to distinguish between BASE RX and CAM RX is to check the Display Mode LED indicator

strength

This display cycle repeats itself and depending on timing may start with either OPT of the strength measurement COPT does not reappear in the repeating cycle

DIAGNOSTIC MODE Temperature (TEMP)

DIAG When first entering the Diagnostic mode the DIAG display

mode indicator LED will blink - the first sub-mode is TEMP (Temperature). The Digital Display Characters will glow Green when the temperature is normal and Red when outside of normal range.

DIAG/TEMP TEMP Indicates the display is in the TEMP sub-mode

DIAG/TEMP PS The Power Supply (PS) temperature will be displayed

DIAG/TEMP TEMP Repeats that the display is in the TEMP sub-mode

DIAG/TEMP 37C Temperature display in Centigrade for Power Supply

circuit board

DIAG/TEMP BASE The Base Station main circuit board temperature will be

DIAG/TEMP TEMP Repeats that the display is in the TEMP sub-mode

displayed

Operation of the System

The CopperHead 3050 Base Station Digital Display

Display Mode Readout Base Station Digital Display Activity Explanation

DIAG/TEMP 47C Temperature display in Centigrade for Base Station circuit

DIAG/TEMP PS The Power Supply (PS) temperature will be again

DIAG/TEMP TEMP Repeats that the display is in the TEMP sub-mode

DIAG/TEMP 36C Temperature display in Centigrade for Power Supply

DIAGNOSTIC MODE Power Supply Voltage Status (POWER)

DIAG/POWER A quick push of the Display Mode Selector advances to

DIAG/POWER POWR Indicates the display is in the POWER sub-mode

DIAG/POWER BASE Indicates that the Base Station main controller board is

DIAG/POWER POWER Indicates the display is in the POWER sub-mode

DIAG/POWER OK Indicates that the item is in an OK State

DIAG/POWER DISP Indicates that the LED Display controller board is being

DIAG/POWER POWER Indicates the display is in the POWER sub-mode

DIAG/POWER OK Indicates that the item is in an OK State

DIAG/POWER CHAR Indicates that the Four-character controller board is being

DIAG/POWER POWR Indicates the display is in the POWER sub-mode

DIAG/POWER OK Indicates that the item is in an OK State

DIAG/POWER AUD Indicates that the Audio controller board is being

DIAG/POWER POWR Indicates the display is in the POWER sub-mode

DIAG/POWER OK Indicates that the item is in an OK State

DIAG/POWER VBS Indicates that the VBS (analog Video) controller board is

DIAG/POWER POWR Indicates the display is in the POWER sub-mode

DIAG/POWER OK Indicates that the item is in an OK State

DIAG/POWER Exception

DIAG/POWER ERR Instead of OK, the display will show ERR if a power level is

DIAGNOSTIC MODE Microcontroller Board Revision Version (REV)

board

displayed

circuit board Note: the PS temperature has dropped one degree

This display cycle repeats until the Display Mode Selector is pushed

the Power (POWR) diagnostic sub-mode. Digital Display Characters are Green when all power levels are normal and Red when any power level is outside normal level

being measured

measured

being measured

outside of normal - ERR is followed by a Hexadecimal code. Please note the error code. A list of Hexadecimal codes is available in a Technical Bulletin at

www.miranda.com.

CopperHead 3050

User Guide

Display Mode Readout Base Station Digital Display Activity Explanation

DIAG/REV A quick push of the Display Mode Selector advances to

the Power (POWR) diagnostic sub-mode. This sub-mode displays the microcontroller firmware revision of every board in the Base Station that has a microcontroller.

Note: the REV versions noted here were current as of August 1, 2010. Your system may have different REV versions

DIAG/REV REV Initial display of REV after Display Mode Selector being

DIAG/REV DISP Indicates the Display microcontroller board is revision is
