3922 496 31301 August 2009 v1.0

LDK 3000

User’s Guide

HD camera

Declaration of Conformity

We, Grass Valley Nederland B.V., Kapittelweg 10, 4827 HG Breda, The Netherlands, declare under our sole responsibility that this product is in compliance with the following standards:

- EN60065 : Safety

- EN55103-1: EMC (Emission)

- EN55103-2: EMC (Immunity)

following the provisions of:

a. the Low Voltage directive 2006/95/EC b. the EMC directive 2004/108/EC

FCC Class A Statement

This product generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause interference to radio communications.

It has been tested and found to comply with the limits for a class A digital device pursuant to part 15 of the FCC rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.

Operation of this product in a residential area is likely to cause interference in which case the user at his own expense will be required to take whatever measures may be required to correct the interference.

Copyright Grass Valley Nederland B.V. 2009. Copying of this document and giving it to others, and the use or communication of the contents thereof, are forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved in the event of the grant of a patent or the registration of a utility model or design. Liable to technical alterations in the course of further development.

Trademarks

Grass Valley and Infinity are trademarks of Grass Valley, Inc. All other tradenames referenced are service marks, trademarks, or registered trademarks of their respective companies.

Website

Visit the Grass Valley public website to download the latest user’s guide updates and additional information about your broadcast product:

www.grassvalley.com

LDK 3000 HD camera User’s Guide (v1.0) 3

Table of contents

Chapter 1 – Introduction

1.1 Welcome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

1.1.1 About this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

1.1.2 Related documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

1.2 Technology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

1.2.1 CMOS imagers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

1.2.2 Digital processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1.2.3 Focus assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1.3 Transmission system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1.3.1 LDK 5630 TriaxHD Adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1.3.2 LDK 4580 TriaxHD Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1.3.3 LDK 4488 SuperXpander and LDK 4489 Xpander . . . . . . . . . . . . . . . . . . . . . . . 13

1.4 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

1.5 List of accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Chapter 2 – Installation

2.1 Mounting a lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

2.2 LDK 5302/60 2-inch viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

2.2.1 Mounting viewfinder and microphone holder . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.2.2 Positioning the viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

2.3 2-inch viewfinder accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2.3.1 LDK 5390/00 Wide angle eyepiece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2.3.2 LDK 5390/10 Left eye adaptor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2.4 AJ-MC700 Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2.5 LDK 5301/10 Tripod adaptor plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2.6 Adjusting the shoulder pad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

2.7 Exchanging the camera adaptor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

2.8 LDK 5020/05 Universal transport case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

2.9 Packing for return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Chapter 3 – Configurations

3.1 TriaxHD transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3.2 Stand-alone mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3.3 Multiple cameras in C2IP network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Chapter 4 – Operating instructions

4.1 Using the camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4.1.1 Switching on the power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4.1.2 Controlling the camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

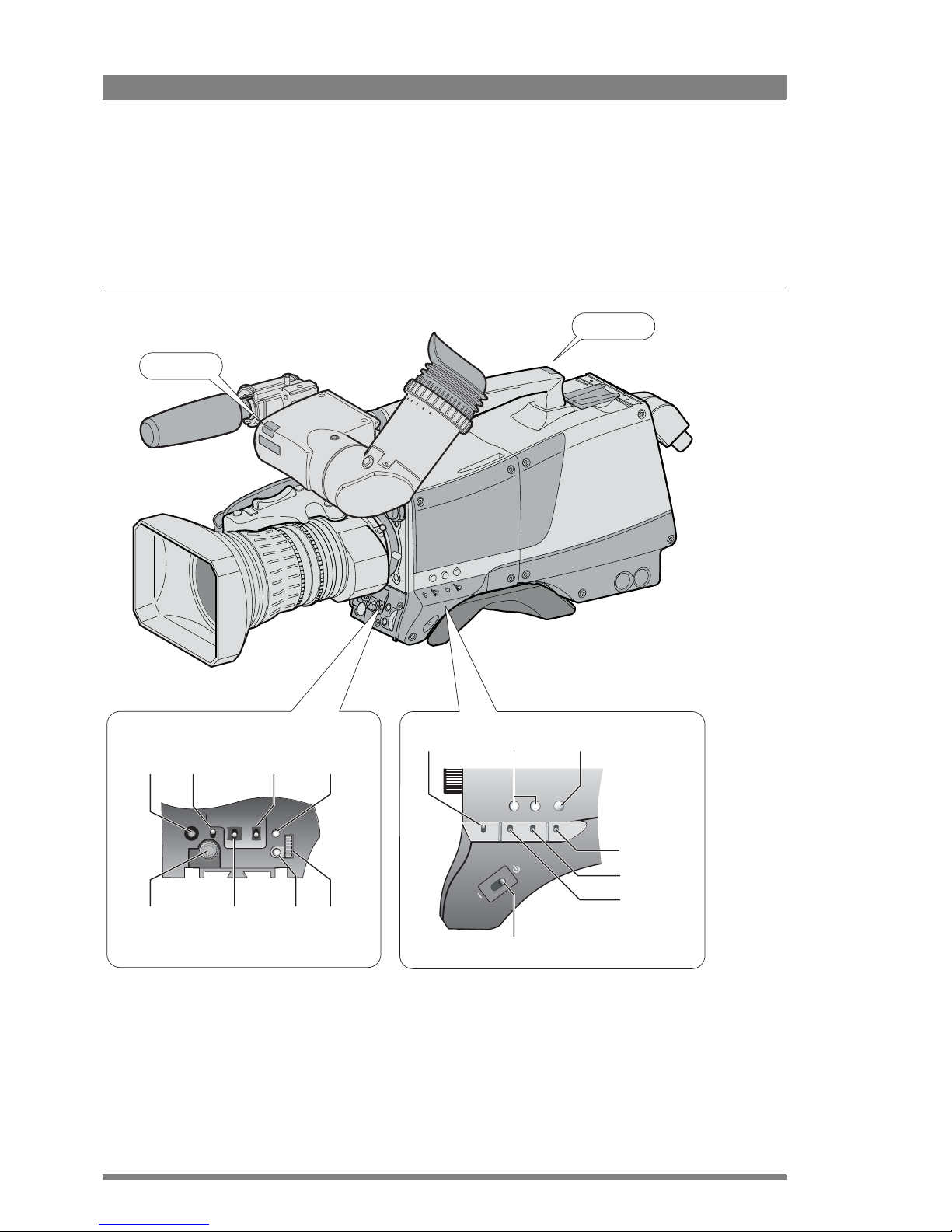

4.2 Location of controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4.2.1 Camera head controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4 LDK 3000 HD camera User’s Guide (v1.0)

4.3 System Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

4.3.1 Entering the System menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

4.3.2 Finding your way . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

4.3.3 Leaving the System Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

4.3.4 Making changes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

4.3.5 Undoing changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

4.4 User buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

4.5 Viewfinder preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

4.5.1 Tally on/off switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

4.5.2 Zebra (exposure indication) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

4.5.3 VF Option switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

4.5.4 Viewfinder picture quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

4.5.5 Dioptre adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

4.5.6 Viewfinder screen markers, screen indicators and LED indicators . . . . . . . . . .38

4.5.7 Focussing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

4.6 Lens operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

4.6.1 Auto iris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

4.6.2 Extended auto iris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

4.6.3 Precision focus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

4.6.4 Lens indicators in the viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

4.7 Controls on the LDK 5630 TriaxHD adaptor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

4.7.1 Powering the camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

4.7.2 Selecting monitoring signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

4.7.3 Using audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

4.7.4 Intercom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

4.8 Managing files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

4.8.1 Scene files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

4.8.2 Operator files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

4.8.3 Standard files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

4.8.4 Customer standard files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

4.9 Access and security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

4.9.1 User level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

4.9.2 Selecting the user level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

4.9.3 Disable camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

4.9.4 Access control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Chapter 5 – Video setup

5.1 Video acquisition modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

5.2 Video settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

5.2.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

5.2.2 Standard settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

5.2.3 Non-standard indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

5.3 Test signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

5.4 Gain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

5.4.1 Gain selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

5.4.2 Variable gain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

5.4.3 Digital noise reducer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

5.5 Optical filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

5.6 Color temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

5.6.1 Selecting the color temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

5.6.2 Variable color temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

5.6.3 Auto-white balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

LDK 3000 HD camera User’s Guide (v1.0) 5

5.7 Exposure time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

5.7.1 Selecting the exposure time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

5.7.2 Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

5.7.3 Clean scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

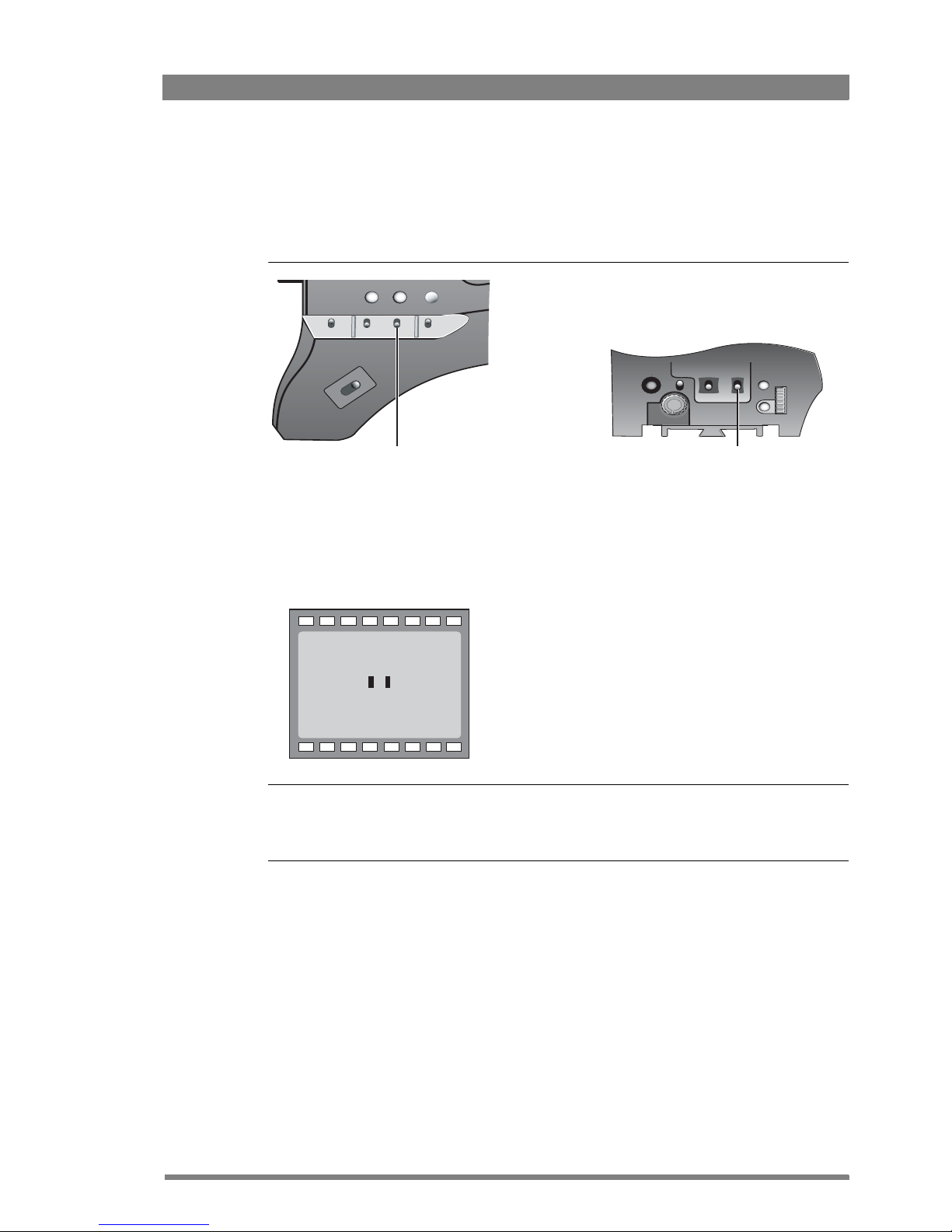

5.8 Freeze frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

5.9 Black stretch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

5.10 Auto skin detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Chapter 6 – Menu structure and contents

6.1 Menu structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

6.1.1 Top menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

6.1.2 Viewfinder menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

6.1.3 Lens menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

6.1.4 Video menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

6.1.5 Video menu structure (continued) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

6.1.6 Install menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

6.1.7 Files menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

6.1.8 Security menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

6.1.9 Diagnostics menu structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

6.1.10 Service menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

6.2 Menu contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

6.2.1 Viewfinder menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

6.2.2 Lens menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

6.2.3 Video menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

6.2.4 Install menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

6.2.5 Files menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

6.2.6 Security menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

6.2.7 Diagnostics menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

6.2.8 Service menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Chapter 7 – Connectors

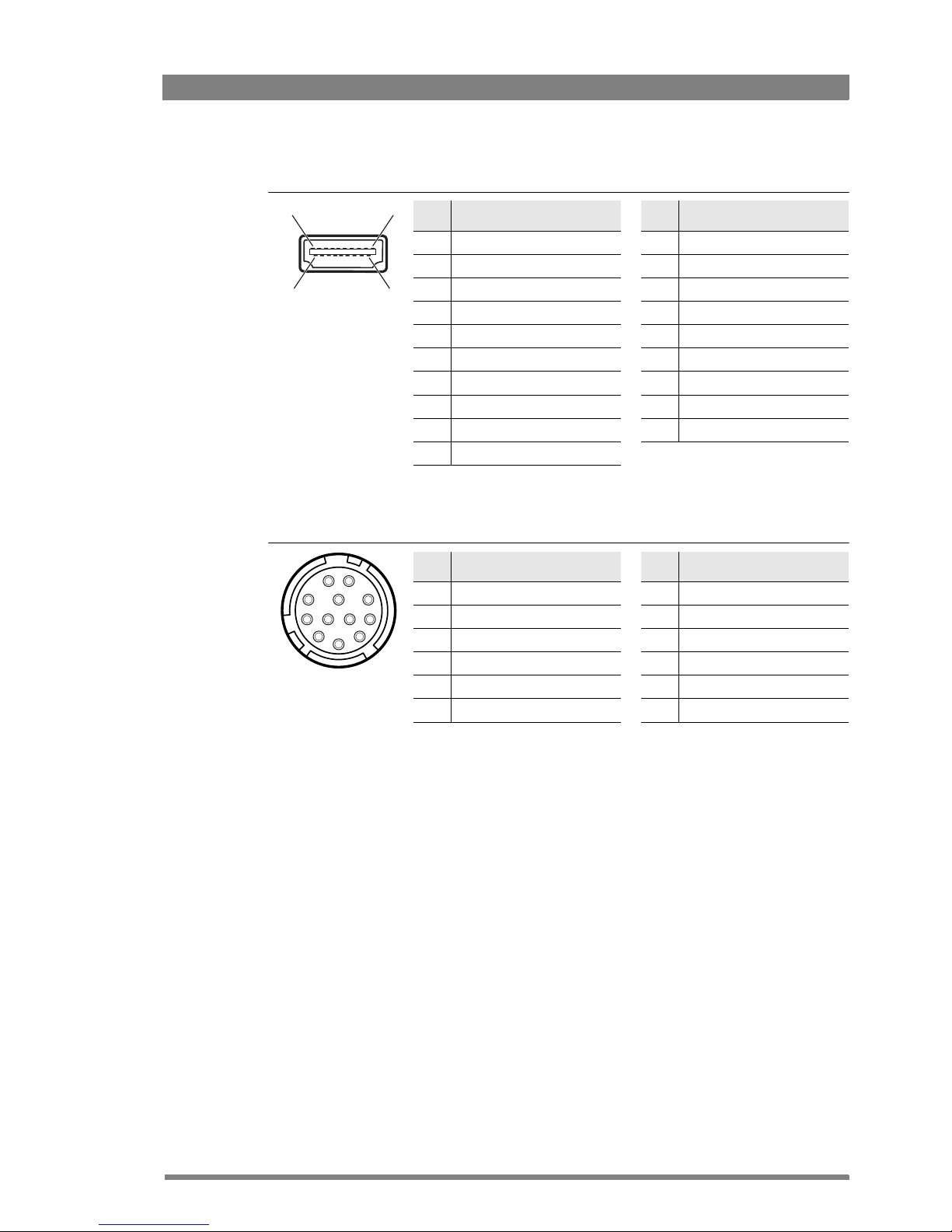

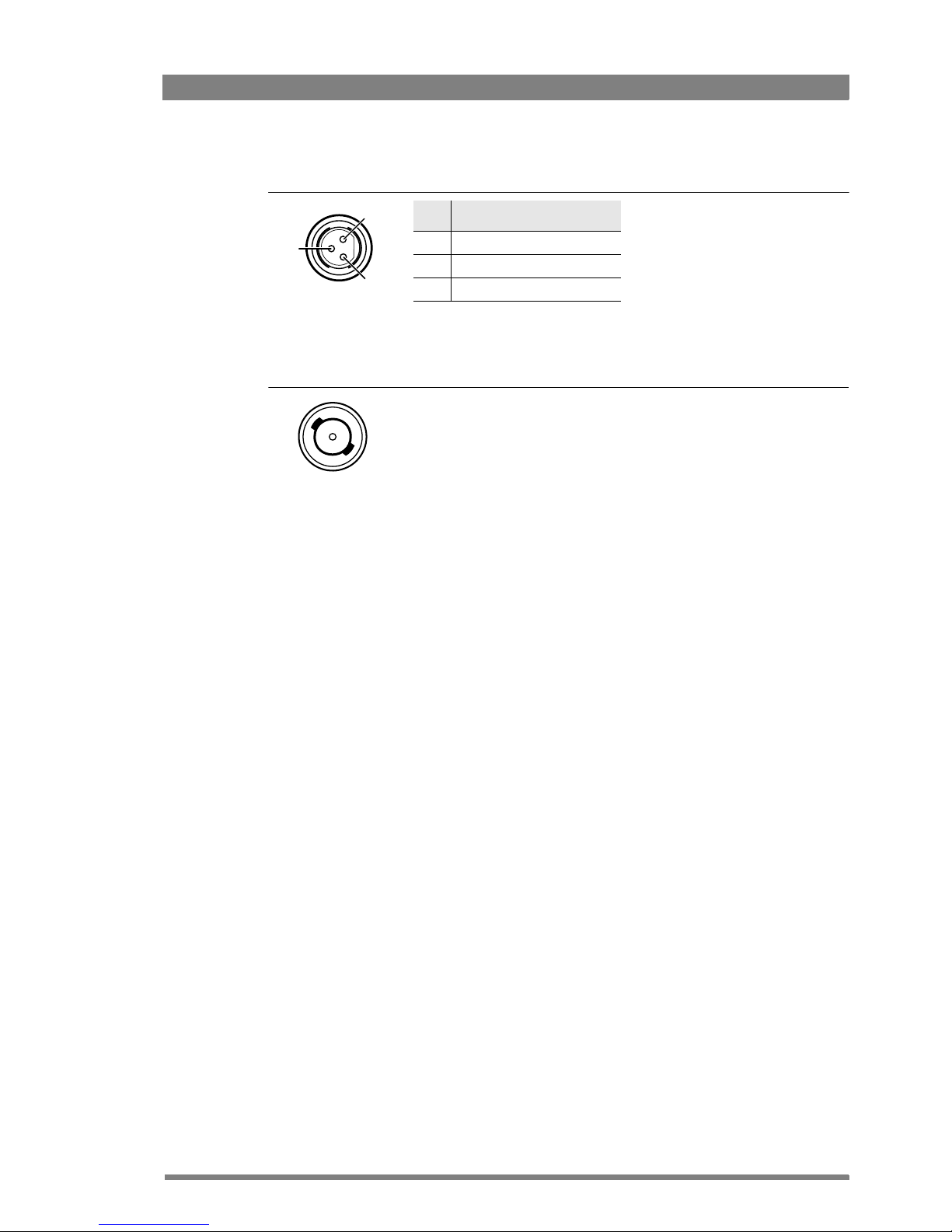

7.1 Camera head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

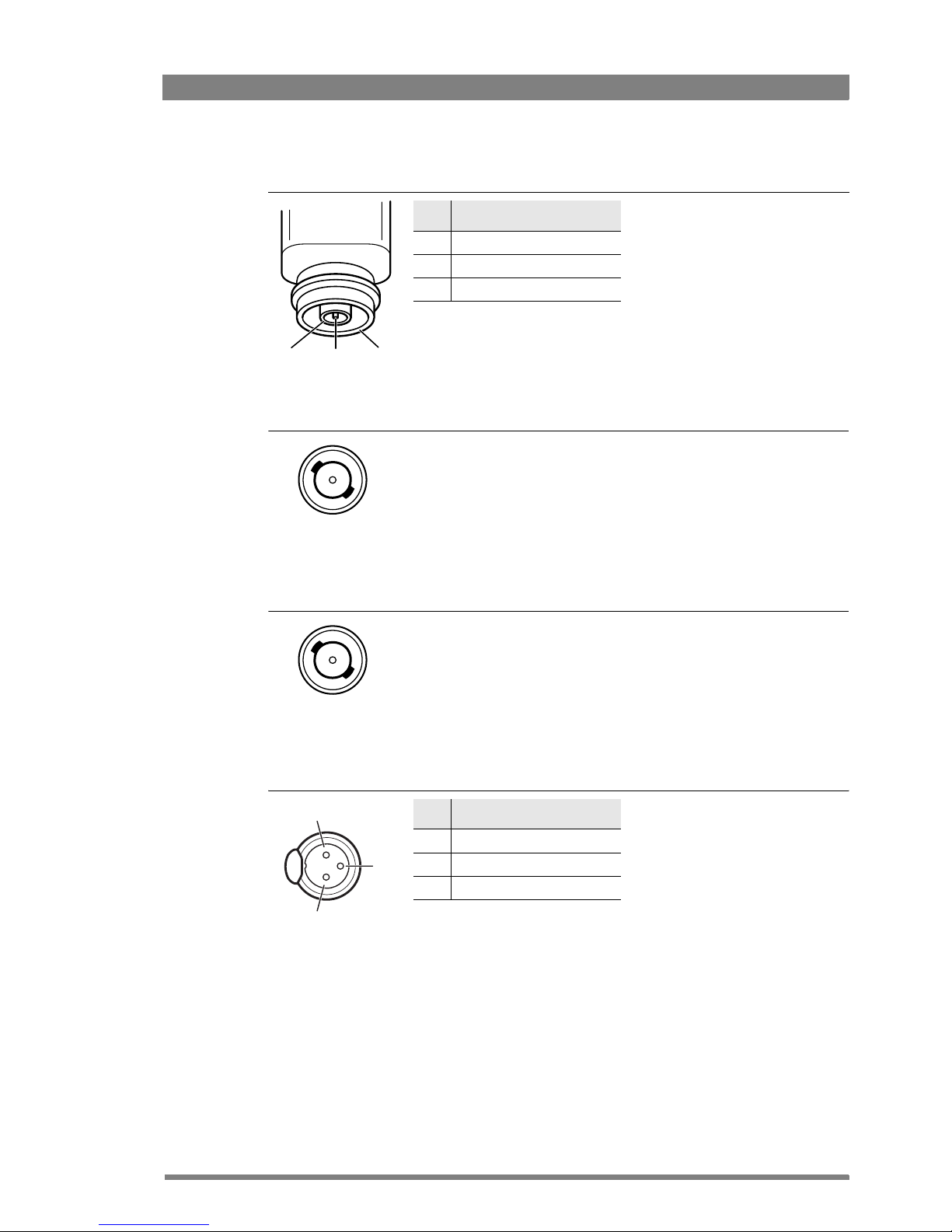

7.1.1 Connectors on the LDK 3000 camera head. . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

7.2 Camera adaptors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

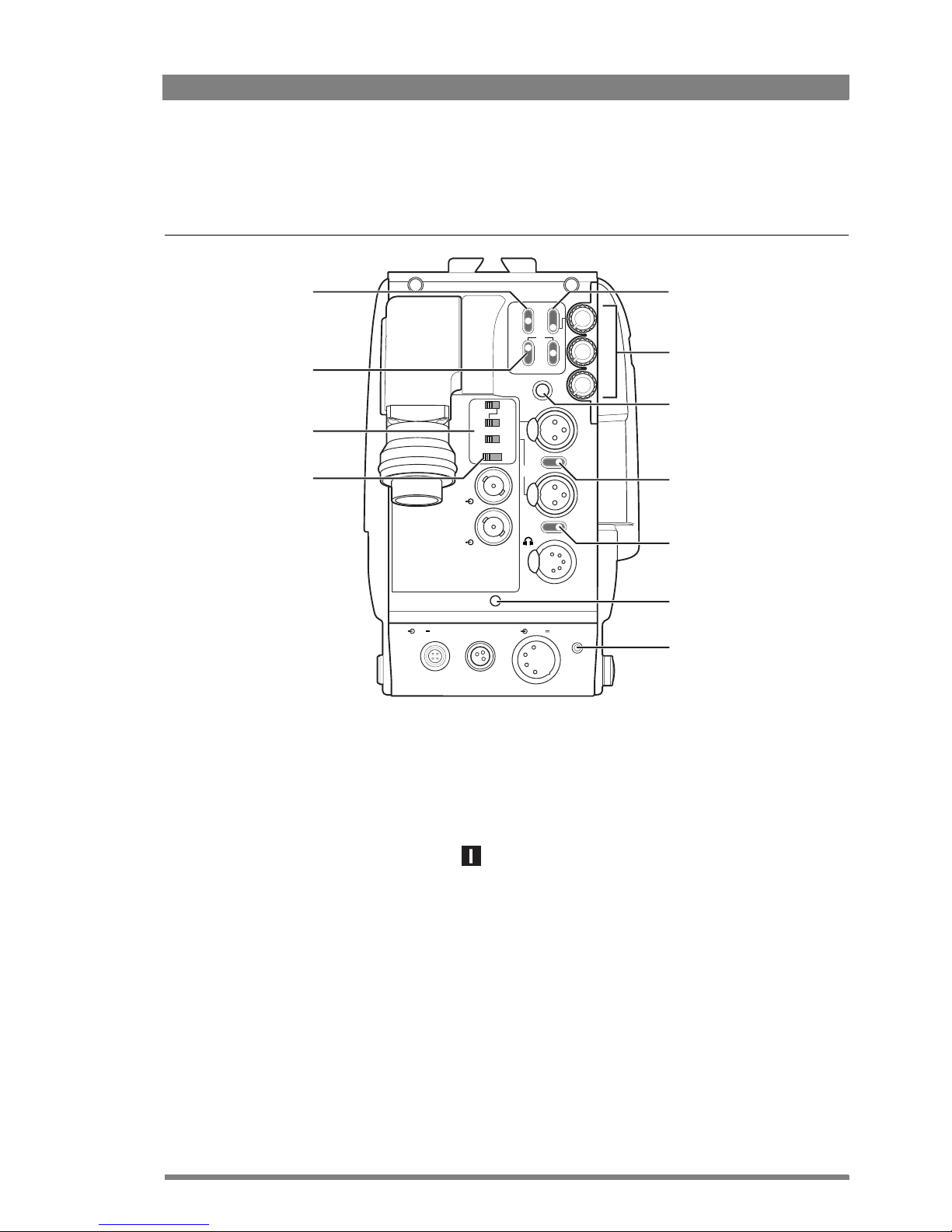

7.2.1 Connectors on the LDK 5630 TriaxHD adaptor . . . . . . . . . . . . . . . . . . . . . . . . . 92

Chapter 8 – Specifications

8.1 Specifications for LDK 3000 camerahead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

8.1.1 Technical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

8.1.2 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

8.2 Specifications for LDK 5360 TriaxHD adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

8.2.1 Technical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

8.2.2 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

6 LDK 3000 HD camera User’s Guide (v1.0)

End-of-life product recycling

Grass Valley’s innovation and excellence in product design also extends to the programs we’ve established to manage the recycling of our products. Grass Valley has developed a comprehensive end-of-life product take back program for recycle or disposal of end-of-life products. Our program meets the requirements of the European Union’s WEEE Directive and in the United States from the Environmental Protection Agency, individual state or local agencies.

Grass Valley’s end-of-life product take back program assures proper disposal by use of Best Available Technology. This program accepts any Grass Valley branded equipment. Upon request, a Certificate of Recycling or a Certificate of Destruction, depending on the ultimate disposition of the product, can be sent to the requester.

Grass Valley will be responsible for all costs associated with recycling and disposal, including freight, however you are responsible for the removal of the equipment from your facility and packing the equipment ready for pickup.

For further information on the Grass Valley product take back system please contact Grass Valley at + 800 80 80 20 20 or +33 1 48 25 20 20 from most other countries. In the US and Canada please call 800-547-8949 or 530-478-4148. Ask to be connected to the EH&S Department. In addition, information concerning the program can be found at:

www.grassvalley.com/environment

LDK 3000 HD camera User’s Guide (v1.0) 7

Important information

Read these instructions carefully and retain them for future reference. Regularly check the Grass Valley website (www.grassvalley.com) for new updates of this and other user’s guides.

During installation and operation of this equipment, local building safety and fire protection standards must be observed.

Whenever it is likely that safe operation is impaired, the apparatus must be made inoperative and secured against any unintended operation. The appropriate servicing authority must then be informed. For example, safety is likely to be impaired if the apparatus fails to perform the intended function or shows visible damage.

Any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Cautions and Warnings

Read and comply with the warning and caution notices that appear in the manual.

Warnings indicate danger that requires correct procedures or practices to prevent death or injury to personnel.

Cautions indicate procedures or practices that should be followed to prevent damage or destruction to equipment or property.

8 LDK 3000 HD camera User’s Guide (v1.0)

Warnings

To prevent fire or shock hazard, do not expose the unit to rain or moisture. If the unit is in a wet or damp environment, a rain cover must be used to protect it for personal safety reasons.

To avoid electrical shock, do not remove covers or panels. Refer servicing to qualified personnel only.

In case of an emergency ensure that the power is disconnected.

Connect the product only to a power source with the specified voltage rating.

To prevent risk of overheating, ventilate the camera correctly. Do not block the hot airflow coming from the outlets on the right side of the camera head and camera adaptor.

LDK 3000 HD camera User’s Guide (v1.0) 9

Precautions

To ensure continual high performance from the camera take the following precautions into consideration:

• Avoid damp places. If the environment is wet or damp a rain cover must be used to protect the unit.

• Do not subject the unit to severe shocks or vibration.

• Do not expose the camera to extremes of temperature.

• Do not leave the unit in direct sunlight or close to heating appliances for extended periods.

• Do not allow sunlight to shine into the viewfinder.

• Do not allow laser beams to shine into the lens as this could damage the imagers.

• Avoid extreme highlights as these can cause various kinds of optical reflections.

• Be careful when connecting and disconnecting Triax cables.

– Do not mix units from different types of camera systems (HD with SD, Triax with

digital Triax)

– Do not connect Grass Valley camera systems with other manufacturer’s camera

system parts.

• Make connections swiftly and firmly to avoid false error messages.

10 LDK 3000 HD camera User’s Guide (v1.0)

Triax cable systems

• Only connect a Triax cable from the same LDK camera family to the unit.

• Do not allow system earth currents to exceed 1.5 A in the outer shield of the Triax cable or

0.2 A in other cable shields.

• To avoid excessive earth currents in a Triax system, galvanically separate the power earth connection of equipment connected to the camera from the camera earth.

• It is strictly prohibited to short circuit the inner and outer shields of a Triax cable used to connect a camera to a base station.

Galvanic separation

Because of the nature of Triax systems, with long distances between camera and Base Station, the risk of earth currents flowing is greater. These earth currents can result in damage to the equipment.

For example, a monitor connected directly to the CVBS output of the camera is powered locally. The earthing point of the monitor’s power supply can be at a different potential with respect to the earthing point of the Base Station. If the power earth of the monitor is also the video earth, then this earth potential is transferred to the camera via the shield of the BNC connector. The difference in earth potential between the camera and the Base Station results in an earth current in the Triax system.

To prevent earth currents from flowing in the Triax system, we recommend galvanic separation of earthed equipment connected to the camera. This separation can be achieved by using an isolation transformer between the local power outlet and the equipment connected to the camera. Alternatively, use equipment that has a double insulation and therefore does not require an earth connection.

LDK 3000 HD camera User’s Guide (v1.0) 11

Chapter 1 - Introduction

Chapter 1

Introduction

1.1 Welcome

The LDK 3000 is a high definition, multi-format camera head that offers great flexibility and high picture quality combined with a favorable cost of ownership. The LDK 3000 has three 2/3inch, 2.4 million pixels CMOS imagers specially developed for broadcast applications.

Transmission of the full bandwidth HD signal is based on Grass Valley’s well proven, highly robust and reliable TriaxHD system.

1.1. 1 About this manual

The purpose of this manual is to present a detailed description of how to operate the LDK

3000

camera equipped with a dockable transmission adaptor. It provides the information

necessary to use the camera in different configurations and with various attachments. This

manual describes all operating features of the camera so it can be used to its full potential.

This guide is so designed that it can be used as an introduction to those who are new to the camera, as a simple procedural guide to those who wish to set-up and start shooting immediately, and as a reference work to be consulted as required during the long life of the camera.

1.1. 2 Related documents

Before proceeding, check the Grass valley website at www.grassvalley.com for the latest version of this user’s guide and additional information:

• Online versions of documentation; updated versions of user’s guides, data sheets, brochures, application notes in pdf-format are available for download.

• Software downloads; camera software updates, release notes and installation instructions are available for download.

12 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 1 - Introduction

1.2 Technology

1.2 . 1 CMOS imagers

The camera’s multi-format capability is realized with innovative 2/3-inch, 2.4 million pixel CMOS imagers specially developed for broadcast applications. Many unique features have been designed into these imagers such as DDS—Double Digital Sampling—and dual integrated A/D converters which create high-quality, razor-sharp pictures. The multi-format HD acquisition system supports both 1080i50/59.94 and 720p50/59.94 formats.

1.2 . 2 Digital processing

The advanced digital processing of the camera is based on on-chip A/D converters and 34-bit accurate internal processing. All major camera functions are processed in the digital domain, including gamma, knee, detail and advanced selectable color matrix. A full digital noise reduction system is implemented.

The intelligent continuous automatics function provides automatic control of black levels and black shading. Each imager provides black reference signals that are used to monitor temperature changes. This means that continuous automatic correction is applied without operator intervention.

To make images look their best, the LDK 3000 contains powerful colorimetry and colormatching capabilities. It also contains two independent skin detail circuits. These circuits allow you to select any two color values and adjust detail processing in those areas, thus allowing improvement in the appearance of facial tones or of any selected tone.

1.2 . 3 Focus assist

With HDTV, focusing is even more critical than before. The LDK 3000 has special patented focusing aids. A unique viewfinder zoom function enlarges the viewfinder image instantly with a simple press-button action, thus providing improved means for focusing.

Additionally, a patented crawler circuitry adds motion in the viewfinder to objects in sharp focus.

LDK 3000 HD camera User’s Guide (v1.0) 13

Chapter 1 - Introduction

1.3 Transmission system

1.3 .1 LDK 5630 TriaxHD Adaptor

TriaxHD, which is a further development of the Emmy Award winning Triax transmission system, makes the camera compatible with industry standard Triax cables. This allows the reuse of existing, reliable and valuable cable inventories.

TriaxHD allows video transmission and remote control of cameras up to a distance of 1,200 m (3,900 ft) and beyond, using industry standard 14 mm (0.55 in) Triax cables. It is based on 30

MHz full-bandwidth 4:2:2 transmission (Y/Cr/Cb components).

The double side band modulation technique used in combination with Y/Cr/Cb transmission ensures linearity, resolution and an optimal signal-to-noise ratio over the maximum cable length. Bandwidth efficient channel combining and equalization techniques minimize cross-talk and interference. Teleprompter and viewfinder signals maintain high performance with relatively long cable lengths.

The communication facilities provide for two-wire or four-wire high quality intercom signals. Full camera control is provided via a C2IP Ethernet-based control network.

The LDK 5630 TriaxHD adaptor is equipped with a rotary Triax connector which provides freedom of movement during portable use of the camera and protects the connector from being damaged in near-floor conditions.

1.3 .2 LDK 4580 TriaxHD Base Station

The TriaxHD Base Station, as well as providing high definition studio outputs, optionally offers simultaneous high quality SD outputs. The Base Station is equipped with a robust power

supply to ensure reliable operation of the connected camera system over long cable runs.

1.3 .3 LDK 4488 SuperXpander and LDK 4489 Xpander

The optional available SuperXpander together with the LDK 4021 7-inch CRT B/W viewfinder or the LDK

4025 8-inch LCD color viewfinder turns the portable camera into a full-featured studio

camera for studio and EFP situations.

14 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 1 - Introduction

1.4 Features

• Economic high picture quality HD acquisition with three 2/3-inch, 2.4 million pixel CMOS imagers.

• On-chip dual A/D conversion and 34-bit digital signal processing.

• Unique DDS – Double Digital Sampling – for improved FPN performance.

• Superior all digital highlight handling with a wide dynamic range.

• Unique circuitry for pivoting knee and True Color Knee.

• Variable gain control and variable color temperature.

• Wide range of presets and variable 6-point digital matrix assure accurate color matching.

• Advanced selectable color matrix.

• User definable noise reduction.

• Digital gamma with unique standard preset values and highest accuracy.

• Digital detail with an extensive range of parameters.

• Advanced detail correction includes two automatic skin settings.

• Intelligent Continuous Automatics black levels, black shading and video levels - no set-up time required.

• Digital contrast with standard black stretch and black press.

• International standard 2/3-inch broadcast lens interface.

• Optical servo-controlled four-position neutral density filter wheel plus one programmable position.

• Electronic color filter can be used for creating a special look (warm/cold) of a scene, or for a smooth color temperature control around the white balance setting.

• Protected, easy-to-operate controls and switches with read-out of all settings.

• Viewfinder status read-out of primary camera functions.

• Clean scan feature allows capture of monitor and projection screen pictures.

LDK 3000 HD camera User’s Guide (v1.0) 15

Chapter 1 - Introduction

1.5 List of accessories

LDK 4489 Xpander

LDK 4488 SuperXpander

LDK 6517 7-inch viewfinder support

LDK 4800 HD/HS Triax Repeater

LDK 5302/60 2-inch viewfinder HDTV

LDK 5305 5-inch viewfinder HDTV

LDK 5308 8.4-inch EFP viewfinder

LDK 4021 7-inch viewfinder HDTV for use with SuperXpander

LDK 4025 8-inch LCD viewfinder for use with SuperXpander

LDK 5390/00 Wide angle adaptor for LDK 5302/60 2-inch viewfinder

LDK 5390/10 Left eye adaptor for LDK 5302/60 2-inch viewfinder

LDK 6992/02 Sunhood for LDK 5305 5-inch viewfinder

LDK 5021/05 Raincover for camera with LDK 5305 5-inch viewfinder

LDK 5031/10 Tripod plate

LDK 8111/37 Headset dynamic XLR-5 (double muff)

LDK 8111/51 Headset dynamic XLR-5 (single muff)

LDK 6985/21 Scriptboard with light

LDK 5020/05 Universal transport case

LDK 5020/01 Carrying bag

LDK 5901/00 AC power supply 100 W

16 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 1 - Introduction

LDK 3000 HD camera User’s Guide (v1.0) 17

Chapter 2 - Installation

Chapter 2

Installation

2.1 Mounting a lens

To attach a lens to the camera head proceed as follows:

1. Ensure that the lens locking ring (1) is in the unlocked position - turned counterclockwise.

2. Remove the dust protection cap (2).

3. Slot the lens into the lens mount (3).

4. Turn the lens locking ring (1) clockwise to lock the lens in place.

5. Connect the lens cable to the lens connector (4) at the right side of the camera.

6. Place the lens cable into the bottom clip at the front of the camera and clip (5) located at

the side.

Figure 2-1. Lens mounting

18 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 2 - Installation

Caution

Do not attach a lens weighing more than 5 kg (11 lbs) to the camera without a proper lens support.

When a new lens is fitted to the camera it may be necessary to carry out some adjustments to optimize its use, for example, back focus or shading. For more information about these adjustments refer to the lens manufacturer’s documentation.

☞

Note

☞

Note

Always mount the dust protection cap when the lens is not connected to the camera.

2.2 LDK 5302/60 2-inch viewfinder

2.2.1 Mounting viewfinder and microphone holder

To mount the viewfinder proceed as follows:

1. Loosen locking ring (1) of viewfinder support bracket (2) at the front of the camera handgrip. (As seen from the rear of the camera, turning the locking ring counterclockwise moves it towards the handgrip.)

2. Slide the viewfinder onto the viewfinder support bracket.

3. Tighten the locking ring (1) by turning it clockwise (as seen from rear) so that the

viewfinder is mounted securely to the support.

4. Connect the viewfinder cable to the viewfinder connector socket (6) at the top right of the camera.

5. Slide the microphone holder (4) onto the viewfinder and secure with the knurled screw (5).

☞

Note

☞

Note

Always fit the microphone holder as it functions as a safety stop for the viewfinder.

6. To improve the comfort of the skin contact when using the viewfinder, fit the eye piece cover (3) to the rubber eyepiece. Spare eye piece covers (ordering number 3922

405 00461) are available via your Grass Valley representative.

LDK 3000 HD camera User’s Guide (v1.0) 19

Chapter 2 - Installation

Figure 2-2. Viewfinder mounting

2.2.2 Positioning the viewfinder

The horizontal position of the viewfinder can be adjusted as follows to suit your requirements:

1. Loosen the locking ring (1). (As seen from the rear of the camera, turning the locking ring

counterclockwise moves it towards the handgrip.)

2. Slide the viewfinder horizontally along the rail to the desired position.

3. Tighten the locking ring (1) by turning clockwise.

The dioptre hood and eyepiece of the viewfinder can be rotated vertically.

The viewfinder can be positioned backwards and forwards along the camera axis. Loosen the support bracket round bar retaining lever (2) and slide the round bar (3) forwards or backwards. When the desired position is reached tighten the support bracket round bar retaining lever (2) again.

To use the viewfinder at a distance press the button (4) below or above the eyepiece tube and swing it free of the associated clip (5). The display can now be seen from further away.

Figure 2-3. Viewfinder positioning

20 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 2 - Installation

2.3 2-inch viewfinder accessories

2.3.1 LDK 5390/00 Wide angle eyepiece

If you regularly use the viewfinder at a distance, for example, when you use the camera in the hand-held position, it is recommended that you fit the optionally available wide angle eyepiece. To fit the wide angle eyepiece proceed as follows:

1. Hold the eyepiece (1) securely.

2. Press the button (2) below the eyepiece tube and swing it free of the button clip (3).

3. Press the button (4) above the eyepiece tube and remove the eyepiece.

4. Fit the wide angle eyepiece (1) to the two clips (3) ensuring that they both click into place.

Figure 2-4. Viewfinder wide angle eyepiece

2.3.2 LDK 5390/10 Left eye adaptor

A left eye adaptor is optionally available to allow the viewfinder to be used with the left eye. Before mounting the viewfinder onto the camera, attach the left eye adaptor (1) to the viewfinder and secure it using the screw (2). Do not forget to mount the microphone support bracket (3) at the end of the left eye adaptor.

Figure 2-5. Viewfinder left eye adaptor

LDK 3000 HD camera User’s Guide (v1.0) 21

Chapter 2 - Installation

2.4 AJ-MC700 Microphone

To attach the optional microphone to the camera proceed as follows:

1. Open the microphone holder by unscrewing the knurled screw (2) of the microphone

support bracket (1) on the viewfinder and open.

2. Slide the microphone into the split tube until the microphone shoulder reaches the mark

(5) in the tube.

3. Place the tube with the microphone into the holder with the split facing upwards. Mount

the microphone as straight as possible.

4. Ensure that the rubber supports at the back and front of the holder fit into the rims (6)

around the tube.

5. Close the holder and tighten the knurled screw at the top. Don’t allow the wind hood to

touch the holder (7) as this reduces the damping effect.

6. Connect the microphone cable to the MIC audio connector (3) on the right side of the

camera. To avoid mechanical pick-up, do not let the microphone cable touch the holder.

7. Place the microphone cable into the top clip at the front of the camera and into clip (4) at

the side of the camera. (Pull and twist clip to open it.)

Other microphones with a diameter of 21 mm can also be used, however, ensure that the sensitivity of the input that match that type of microphone are correctly selected in the camera INSTALL menu. When a longer microphone is used, it is not necessary to place it in the split tube. Phantom power is always present on the front microphone socket.

Figure 2-6. Microphone mounting

22 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 2 - Installation

2.5 LDK 5301/10 Tripod adaptor plate

To mount the camera on a tripod, the tripod plate must first be attached to the tripod. Follow the tripod manufacturer’s instructions to mount the wedge plate supplied with the tripod and the tripod adaptor plate firmly onto the tripod. Attach the camera to the tripod adaptor plate as follows:

1. Slide the camera horizontally along the tripod adaptor plate from back to front ensuring that the front of the camera engages the V-slot (1) at the front of the tripod adaptor plate, and that the slot on the bottom of the camera engages the stud (2) at the rear of the tripod adaptor plate.

2. Firmly push the camera forward until it clicks into place.

3. When the camera is mounted firmly, the locking lever (5) swings around fully to the rear of

the plate. If the lever does not travel the full distance, you should manually lock it into place.

Caution

Failure to attach the camera to adaptor plate in the correct manner could result in an unsecured camera. Ensure that the rear stud (2) is engaged and that the camera clicks into place.

Figure 2-7. Tripod adaptor plate

Remove the camera from the tripod as follows:

1. Open the locking lever (5) to free the rear stud (2).

2. Press and hold the red locking lever (3) against the release handle (4).

3. Ensure that you have a firm hold of the camera.

4. Pull the release handle (4) forward.

5. Move the camera backwards and up.

LDK 3000 HD camera User’s Guide (v1.0) 23

Chapter 2 - Installation

2.6 Adjusting the shoulder pad

To change the position the shoulder pad press and hold lever (1). The shoulder pad can now be moved backwards and forwards along the axis of the camera. Adjust the shoulder pad when all units have been mounted to get the best balanced shoulder position.

Figure 2-8. Shoulder pad

24 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 2 - Installation

2.7 Exchanging the camera adaptor

Caution

Be extremely careful with the connectors between the camera head and the adaptor. Do not allow the metal guide pins to damage the pins of the connector.

Caution

Follow the indicated steps in the order given below. Tightening or loosening the screws in the wrong order could result in mechanical damage to the camera.

Caution

Exchange the adaptor in a safe area, preferably indoors. Make sure your working area is clean and dust free.

To detach the adaptor from the camera head proceed as follows:

1. Unscrew the vertical screw (5) in the handgrip of the camera head.

2. Unscrew the two horizontal screws (4) at the front of the camera head.

3. Unscrew the two horizontal screws (3) at the top of the camera head.

4. Carefully disconnect the adaptor from the camera head.

Figure 2-9. Exchanging the camera adaptor

LDK 3000 HD camera User’s Guide (v1.0) 25

Chapter 2 - Installation

To attach the adaptor to the camera head proceed as follows:

1. Fit the guide pin at the top rear of the camera head and the guide pins on either side of

the camera connector into the corresponding slots (1 and 2) of the adaptor.

2. First, tighten the two horizontal screws (3) on the top of the camera head.

3. Next, tighten the two horizontal screws (4) at the front of the camera head.

4. Lastly, tighten the vertical screw (5) in the handgrip of the camera head.

2.8 LDK 5020/05 Universal transport case

Both your camera and its accessories are sensitive equipment, so it is important to protect these against damage when transporting it. To do this, a universal transport case is optionally available for the camera, lens, viewfinder and some accessories.

Figure 2-10. Universal transport case

The camera is packed in the case as shown in the figure above. This ensures that the camera is not damaged during transport. Turn the LDK5302/60 2-inch viewfinder downwards so that it does not protrude above the top of the camera.

Several foam packing inserts are provided to enable different configurations of the camera to be packed securely. These inserts are used to support the rear of the camera. Make sure you use the correct foam inserts for your particular configuration.

Caution

To prevent damage always remove the lens from the camera head before transporting.

user’s guide

packing inserts

top light

tripod plate

power supply unit

additional

supplies

26 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 2 - Installation

2.9 Packing for return

If a unit is being returned to Grass Valley for servicing, try to use the containers and materials of the original packaging. Attach a tag indicating the type of service required, return address, model number, full serial number and the return number which will be supplied by your Grass Valley service centre.

If the original packing can no longer be used, the following general instructions should be used for repacking with commercially available materials:

1. Wrap unit in heavy paper or plastic.

2. Use strong shipping container.

3. Use a layer of shock-absorbing material around all sides of the unit to provide firm

cushioning and prevent movement inside container.

4. Seal shipping container securely.

5. Mark shipping container FRAGILE to ensure careful handling.

LDK 3000 HD camera User’s Guide (v1.0) 27

Chapter 3 - Configurations

Chapter 3

Configurations

3.1 TriaxHD transmission

A camera head with the LDK 5630 TriaxHD adaptor is connected to an LDK 4580 TriaxHD Base Station using a Triax cable. The maximum length of cable that can be used without significant degradation of the video signal is 1,200 m (3,900 ft) for a 14 mm (0.55 in) Triax cable.

The power supply is applied to the Base Station and via the Triax cable to the camera. An OCP 400 operational control panel or an MCP 400 master control panel can be connected via the C2IP Ethernet infrastructure or directly to the Base Station using a cross-over Ethernet cable.

Figure 3-1. Camera in TriaxHD configuration

Triax cable lenghts

The approximate maximum cable lengths between a Base Station and a camera are given in the table below. The signal degrades gradually when these lengths are exceeded. Reduce these lengths by approximately 20% when a teleprompter signal is sent to the camera.

The maximum length is given for cables of the highest quality. The quality of some cables and the number of connections can adversely affect this maximum length.

HD-SDI out A HD-SDI out B Viewfinder out HDMI out Audio mic 1 in Audio mic 2 in Front mic in Intercom headset i/o Reference in Teleprompter out 12 VDC in Scriptlight out 12 VDC Utility out 12 VDC 1.5A

HD-SDI out 3x CVBS viewing out Text out Tally signal Private data

Intercom i/o

EXT SD video in SD-RGB/YUV/SDI out Audio 1 out Audio 2 out

Monitoring out

LDK 3000 HD

camera head

LDK 5630 TriaxHD

camera adaptor

OCP 400 MCP 400

LDK 4580 TriaxHD

Base St ation

C2IP Camera Control

Ethernet infrastructure

LDK 4800 TriaxHD

Repeater

28 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 3 - Configurations

*) The maximum cable length for 8 mm Triax is adversely influenced by the power consumption of the camera.

Tip

✎

An LDK 4800 TriaxHD Repeater can be used to extend the maximum length of the Triax connection.

3.2 Stand-alone mode

A camera head with the LDK 5630 TriaxHD adaptor can be used in the stand-alone mode i.e. without a Base Station. The DC power supply is applied directly to the adaptor. An OCP 400 operational control panel can be connected directly to the camera head using an RS-232 connection. A reference signal can be applied to genlock the camera. The HD-SDI (B) / VF connector at the rear carries the HD-SDI viewfinder signal.

Figure 3-2. Camera in stand-alone mode

Cable diameter Max. length (w/o repeater) Max. length (w. repeater)

14 mm (0.55 in) 1,200 m (3,900 ft) 2,400 m (7,800 ft)

11 mm (0.43 in) 700 m (2,300 ft) 1,400 m (4,600 ft)

8 mm (0.33 in) 500 m (1,640 ft) *) 1000 m (3,280 ft) *)

HD-SDI out A HD-SDI out B Viewfinder out HDMI out Audio mic 1 in Audio mic 2 in Front mic in Reference in

Scriptlight out 12 VDC Utility out 12 VDC 1.5A

LDK 3000 HD

camera head

LDK 5630 TriaxHD

camera adaptor

External Power

supply unit

OCP 400

LDK 3000 HD camera User’s Guide (v1.0) 29

Chapter 3 - Configurations

3.3 Multiple cameras in C2IP network

The Base Stations are each connected to a network hub or router via an Ethernet cable (straight through, not cross-over). The OCP 400 operational control panels and, if required the MCP 400 Master Control Panel, are also connected to the Ethernet network via a hub or router.

Figure 3-3. Multiple cameras in C2IP network

SuperXpander

A camera head with an LDK 5630 TriaxHD adaptor can be mounted in the LDK 4488 SuperXpander (or in the LDK 4489 Xpander). This enables large box lenses to be used with the camera. The LDK 4021 7-inch CRT or LDK 4025 8-inch LCD viewfinder can be mounted on the SuperXpander.

The camera with the adaptor connects to the SuperXpander via a flying lead. The power supply for the camera is supplied via this lead. The SuperXpander is connected to the TriaxHD Base Station using a Triax cable. This configuration can be powered either:

– from the Base Station via the Triax cable, or

– locally with the mains power supply connected directly to the SuperXpander.

To control the configuration an OCP 400 operational control panel can be connected directly to the Base Station using a cross-over Ethernet cable. The Base Station is powered by a mains power supply.

LDK 3000 HD

camera head

LDK 4021 7-inch HD viewfinder

OCP 400 MCP 400

LDK 4580 TriaxHD

Base Station

C2IP Camera Control Ethernet infrastructure

LDK 4580 TriaxHD

Base Station

LDK 4580 TriaxHD

Base St ation

LDK 3000 HD

camera head

LDK 4488 SuperXpander +

LDK 3000 HD camera head

30 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 3 - Configurations

LDK 3000 HD camera User’s Guide (v1.0) 31

Chapter 4 - Operating instructions

Chapter 4

Operating instructions

4.1 Using the camera

Attach a lens, viewfinder, microphone and any other accessories to the camera. Attach the Triax cable or supply the adaptor with power.

4.1.1 Switching on the power

1. On the Base Station set the master power switch to the on position (I). The green power

light lights.

2. Set the camera Power switch of the camera to the on position .

3. Allow a few moments for the camera to perform a self-test and for the system to

establish communications.

☞

Note

☞

Note

To switch the camera to stand-by, set the Power switch of the camera to the position.

4.1.2 Controlling the camera

There are several ways of controlling the camera:

• Using a Master Control Panel (MCP 400) connected to the C2IP network or Base Station.

• Using an Operational Control Panel (OCP 400) connected to the C2IP network or Base Station.

• Using the switches on the camera itself.

• Using the menu system to select functions.

☞

Note

☞

Note

If you cannot access some camera functions or you wish to restrict access, refer to “Access

and security” on page 50.

32 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 4 - Operating instructions

4.2 Location of controls

4.2.1 Camera head controls

Figure 4-1. Camera head controls

Power

SW1

SW 2

Std. File

Gain

Bars

Off

Col. Temp.

Black Str.

VRT start

Audio Level

Select

shift

Clean

scan

Exp. Time

White

Bal.

Tally indicator

Gain

switch

Assignable

buttons

Standard

file button

Black stretch switch

Color bars switch

Powe r s witch

Audio

volume

control

Exposure

time

switch

Menu select

button

Menu rotary

control

Assignable

button

V-shi ft switch

(not used)

Auto White

balance

switch

Clean

scan

button

Color temp witch

LDK 3000 HD camera User’s Guide (v1.0) 33

Chapter 4 - Operating instructions

4.3 System Menu

The camera is operated via the viewfinder text display and the control system menu switches. The systems menu is viewed in the viewfinder and navigated by means of the Rotary control and the Select button which are both located at the front of the camera.

Figure 4-1. Menu control buttons

The functions of the camera are grouped into menus and sub-menus. There are seven different menus that are listed in the main menu as follows:

Each of these menus gives you access to a particular group of functions. Spend some time using the controls and menus to discover the various functions. You will quickly learn to operate the camera intuitively.

☞

Note

☞

Note

Some of the menu items may not appear if the user level is not set to 3.

Viewfinder (VF) menu >>

Lens menu >>

Video menu >>

Install menu >>

Files menu >>

Security menu >>

Diagnostics menu >>

Service menu >>

VTR start

Audio Level

Select

shift

Clean

scan

Exp. Time

White

Bal.

Menu select

button

Menu rotary

control

34 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 4 - Operating instructions

4.3.1 Entering the System menu

Press the Select button after the camera is switched on, the message Menu off appears in the viewfinder. Press the Select button again while this text is showing, the MAIN menu appears in the viewfinder.

Figure 4-2. Main menu

The MAIN menu screen shows five items. The name of the menu is shown below these. Four more items are hidden but become visible when you scroll down using the Rotary control. A cursor shows your position in the menu. The Rotary control moves the cursor up and down.

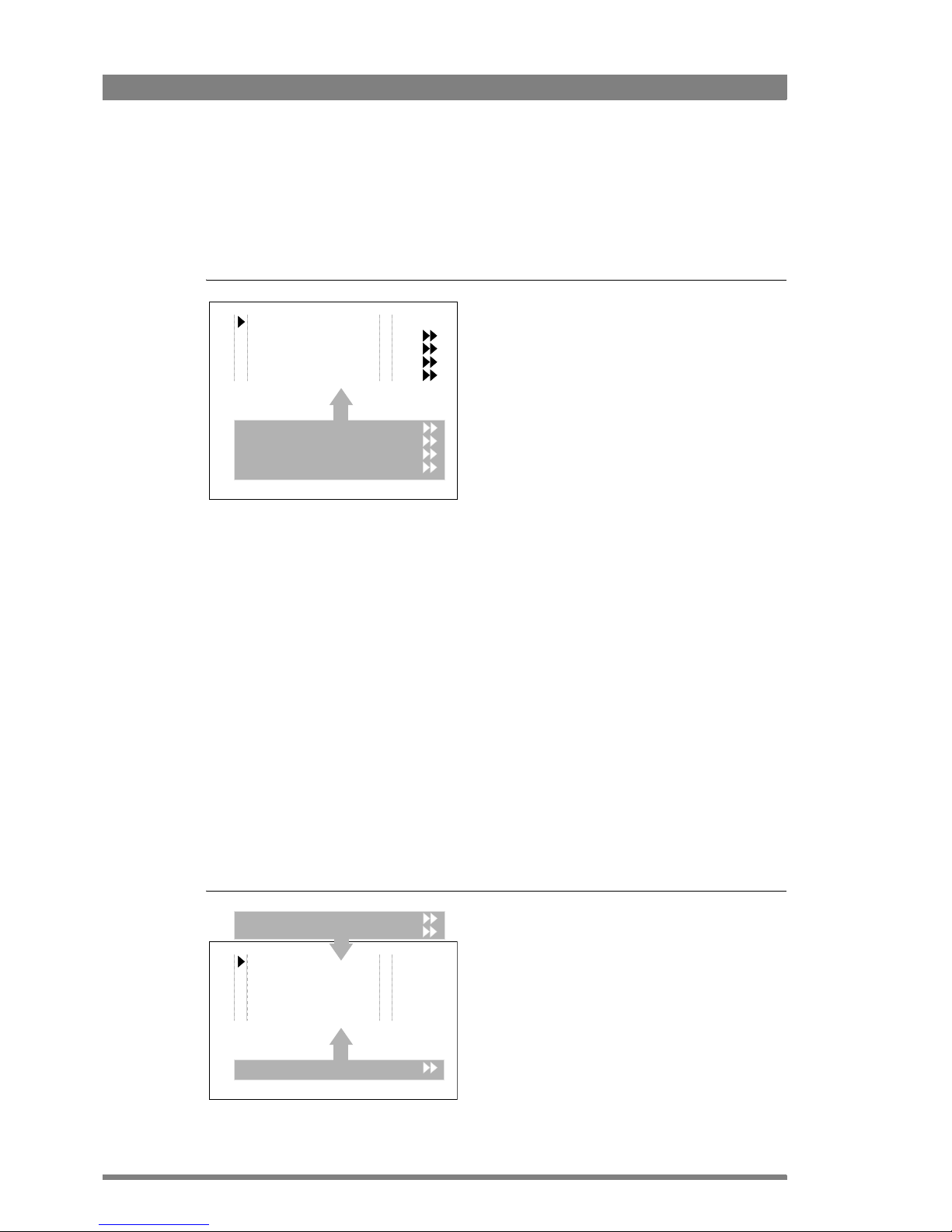

4.3.2 Finding your way

Use the Rotary control to move the cursor through the menu items. If a double arrow (>>) is visible, then pressing the Select button brings you one level lower in the menu system. Only five items are visible in each menu. Scroll up or down to see any additional items. When you first enter a menu (other than the MAIN menu) the cursor is positioned next to the first item.

The TOP and PREVIOUS entries are not immediately visible but are located above the first item. Use the Rotary control to scroll up to them.

• Select TOP to bring you back to the MAIN menu.

• Select PREVIOUS to go back to the menu that you were in before the current one. The LENS menu, for example, shows the items displayed when you first enter the menu. The

other items are available by scrolling up or down with the Rotary control.

Figure 4-3. Lens menu

Menu off exec VF Lens Video Install

Files Security Diagnostics Service

MENU: MAIN

Lens type Std Auto Iris On Peak/Average 65 Auto iris setp. 35 Mom. iris setp. 50

Extended Iris

MENU: LENS

TOP PREVIOUS

LDK 3000 HD camera User’s Guide (v1.0) 35

Chapter 4 - Operating instructions

4.3.3 Leaving the System Menu

If you are deep within the menu structure, the recommended way of leaving the System menu is:

1. If necessary move the cursor to the left column with the Select button.

2. Scroll upwards with the Rotary control until the cursor points to TOP (this is the MAIN

menu).

3. Press the Select button. The cursor now points to the MENU OFF item of the MAIN menu.

4. Press the Select button to leave the System menu.

If you do not use the menu it disappears after a few seconds. (This delay can be programmed in the VF menu.) However, when you press the Select button again you enter the System menu at the last position of the cursor and not at the top of MAIN menu. To prevent confusion the next time you enter the System menu, it is advisable to leave the menu by returning to the MAIN menu (TOP) and selecting MENU OFF.

4.3.4 Making changes

To find out where you have to go to change a function, consult the appendix to discover under which menu group or sub-group the function you want to change is located. If the cursor points to an item (and there are no double arrows to indicate a sub-menu) then the item pointed to has a value. The value can be:

• a toggle value (only two values)

• a list value (more than two values)

• an analog value (variable from 00 to 99)

• unavailable (---).

If the value is unavailable it cannot be changed. This is indicated by three dashes (---). This can occur, for example, when a function is switched off. The analog values associated with that function are then unavailable.

If there are only two values associated with the function, then pressing the Select button toggles between these two values. If a value is displayed next to a function that is one of several possible values, then pressing the Select button places the cursor in a list menu indicating the value currently selected. Use the Rotary control to point to a new value. Press the Select button to return the cursor to the function list.

If an analog value is displayed next to a function name, then pressing the Select button places the cursor in front of the value and the Rotary control is used to change the analog value. Press the Select button to return the cursor to the function list.

4.3.5 Undoing changes

If you make changes to the video settings in the Systems menu and you decide not to keep them, use the Standard button at the side of the camera to recall a standard set of values for the video parameters.

36 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 4 - Operating instructions

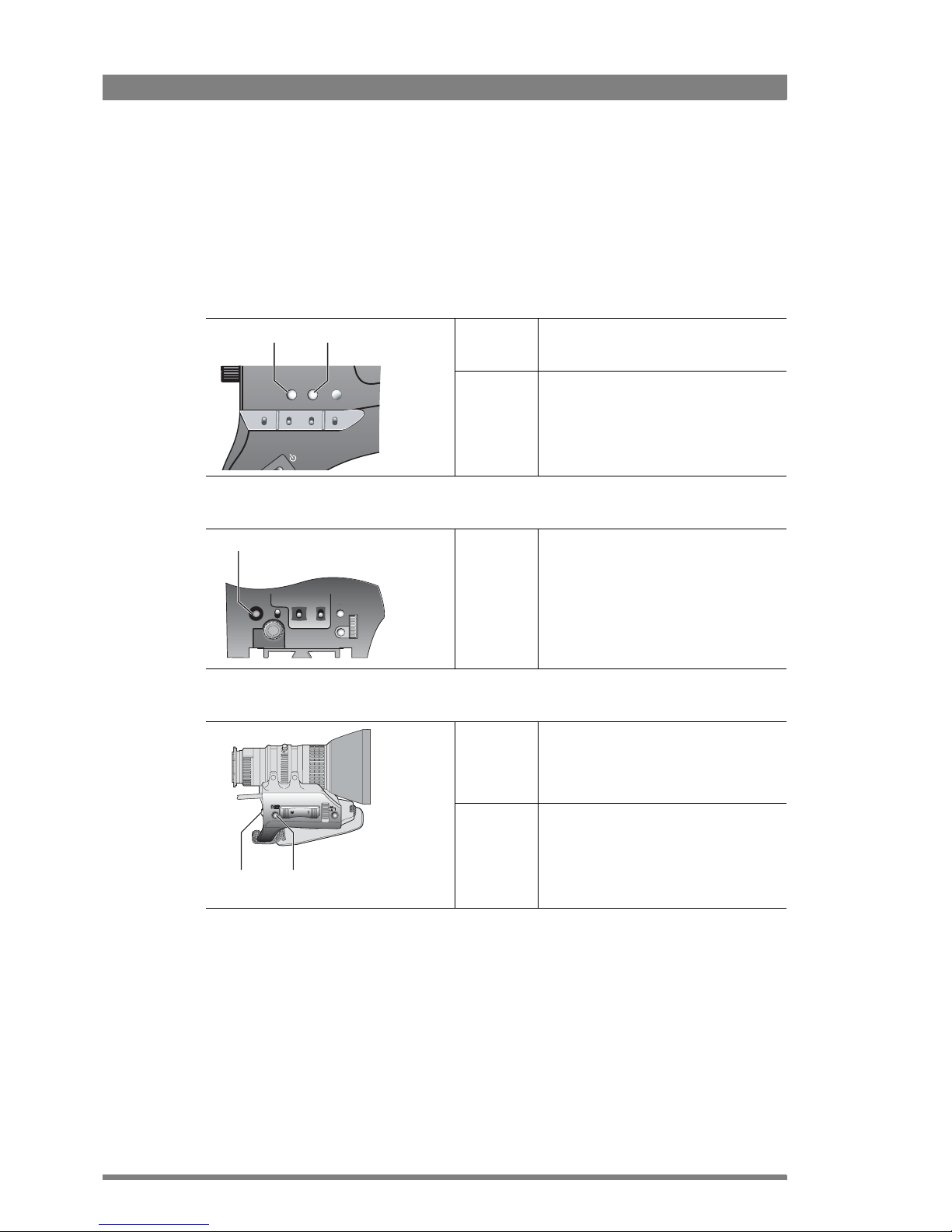

4.4 User buttons

The camera head has four assignable buttons, two on the side panel (SW1) and (SW2), one on the lower front panel (VTR start) and one under the handgrip. The operation of the RET and the VTR button on the lens can also be assigned. The function and behaviour (momentary or alternating) of these buttons are set in the INSTALL > BUTTONS menu.

Side panel

Front

Lens

SW1 • Intercom Call (Call)

• Switch to external video signal 1 (Ext1)

• Switch to external video signal 2 (Ext2)

SW2 • Extended Auto Iris (EIris)

• Focus Assist (FocAst)

• Switch to external video signal 1 (Ext1)

• Switch to external video signal 2 (Ext2)

VTR Start • Production intercom (Prod)

• Engineering intercom (Eng)

• Viewfinder zoom (Zoom)

• Switch to external signal 1 (Ext1)

• Switch to external signal 2 (Ext2)

VTR button • Production intercom (Prod)

• Engineering intercom (Eng)

• Viewfinder zoom function (Zoom)

• Switch to external video signal 1 (Ext1)

• Switch to external video signal 2 (Ext2)

RET button • Viewfinder zoom function (Zoom)

• Switch to external video signal (Ext)

• Focus Assist (FocAst)

SW1

SW2

Std.

Recall

Power

SW1

SW2

VTR start

Audio Level

Select

shift

Clean

scan

Exp.

Time

White

Bal.

VTR Start

RET

button

VTR

button

LDK 3000 HD camera User’s Guide (v1.0) 37

Chapter 4 - Operating instructions

4.5 Viewfinder preferences

Set up the viewfinder according to your own preferences; adjust viewing parameters, select markers, message boxes and on-screen display times in the VF menu.

Figure 4-4. Viewfinder controls

4.5.1 Tally on/off switch

The red Tally indicators at the front of the viewfinder and at the rear of the handgrip light to indicate that the camera is On Air. The Tally switch is used to control the Tally indicators at the front of the viewfinder and the rear of the handgrip. When this switch is set to the Off position, the Tally indicator does not light even when the camera is On Air.

When the camera is On Air, the REC indicator in the viewfinder lights. When the studio ISO signal is received, the MEDIA indicator lights.

4.5.2 Zebra (exposure indication)

The Zebra function displays a zebra pattern in the viewfinder in areas where highlights occur. This diagonal line pattern warns you that the area affected has risen above a preset level of the full scale video exposure. Go to the VF > ZEBRA menu to turn Zebra on or off and to set the video levels at which the Zebra function works.

4.5.3 VF Option switch

Not used.

4.5.4 Viewfinder picture quality

Adjust the Brightness and Contrast controls according to your preferences. If you wish, use the Crispening (peaking) control to adjust the sharpness of the viewfinder picture (reduce the crispening when the gain is set to +++).

4.5.5 Dioptre adjustment

The dioptre of the viewfinder can be adjusted to suit your eyesight by turning the Dioptre adjustment ring. The range of the dioptre is 3- to +3.

Crisp

Tally Zebra Option

Contr. Bright.

Tally o n/off

switch

Zebra on/off

switch

VF Option

switch

Crispening

control

Contrast

control

Brightness

control

Dioptre

adjustment ring

38 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 4 - Operating instructions

4.5.6 Viewfinder screen markers, screen indicators and LED indicators

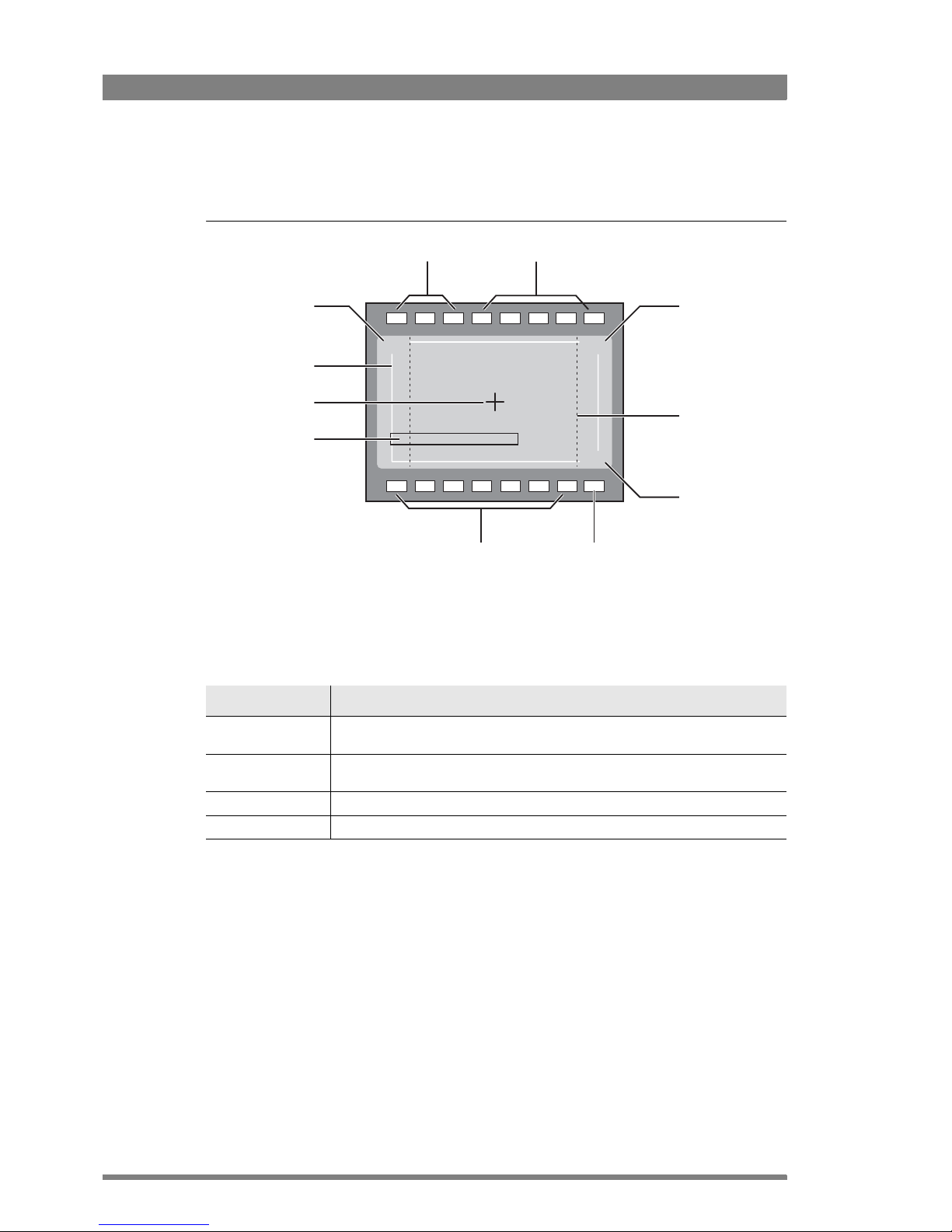

Figure 4-5. Viewfinder markers and indicators

Markers

Go to the VF menu to select the markers you wish to see in the viewfinder screen. The following markers can be set up:

Marker Description

Cadre marker A dotted white line or a shaded area that shows the limits of a 4:3 (15:9 or 14:9)

picture.

Safe area marker Encloses an area that represents 80% of the whole viewfinder picture area. This is the

minimum area seen on a TV-set.

Message box Displays information messages.

Centre cross Marks the centre of the picture

ND/RE

BATT

MEDIAREC

AW2AW1AWFL7.55.63.2

FOC+

4.7

Iris indicator or Focus indicator

Cadre marker

Safe area

marker

Non-standard

indicator

Zoom indicator

Centre cross

Message box

Gain preset indicators Top indicators

Color temperature

indicators

Box downright: Filter indicator or Quality of service indicator

LDK 3000 HD camera User’s Guide (v1.0) 39

Chapter 4 - Operating instructions

Screen indicators

Go to the VF menu to select the indicators you wish to see in the viewfinder screen. The following indicators can be set up:

☞

Note

☞

Note

Either the Iris indicator or the Focus indicator can be displayed in the viewfinder. When one of the indicators is turned on, the other is automatically turned off.

☞

Note

☞

Note

Go to the VF > BOX DOWNRIGHT item to select the Filter or the Quality of Service indicator to be displayed in the viewfinder screen. You can also switch off the indicator.

Gain preset indicators

The gain preset indicators at the top of the viewfinder light as follows:

Indicator Description

Zoom indicator Indicates the percentage to which the lens has been zoomed out or in, ranging from 0

(wide angle) to 99 (telezoom). It shows 50 if the lens does not support this feature.

Iris indicator Indicates the iris opening (F -value) of the lens. Typical range is 1.4 to 25. Displays

‘Closed’ when the lens is closed or capped.

Focus indicator Indicates the percentage of the focus distance range from 0 (close-up) to 99 (infinity).

Filter indicator Indicates the selected optical filter.

Quality of Service indicator

When a wireless system is in use, this indicator shows the quality of the transmission link between the wireless camera and the WCU.

Indicator Function

– Gain is – (-6 dB or -3 dB)

off Gain is 0 dB

+ Gain is + (3 dB, 6 dB or 9 dB)

++ Gain is ++ (6 dB, 9 dB or 12 dB)

+ and ++ Gain is +++ (12 dB)

40 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 4 - Operating instructions

Top indicators

The top indicators provide status information about the camera:

Color temperature indicators

The color temperature indicators light as follows:

Non-standard indicator (!)

The non-standard video settings indicator (!) lights when one of the following conditions occur:

– exposure time is not set to the nominal value;

– black stretch is on;

– extended auto iris is on;

– AWC or FL color temperature is on.

4.5.7 Focussing

A focus assist function can be switched on or off in the VF menu. This function adds motion in the viewfinder to objects in sharp focus. The FOC+ indicator in the viewfinder lights when this function is on.

The viewfinder zoom function is another feature that helps you focus. This function enlarges the centre of the viewfinder image. Choose one of the following buttons and the way it operates (momentary or toggle) to control this function in the INSTALL menu:

• The VTR button on the camera,

• The VTR button on the lens,

• The RET switch on a zoom control when a large lens adaptor is used.

When the viewfinder zoom function is in use, many of the viewfinder markers are switched off to improve the clarity of the display. The FOC+ indicator in the viewfinder flashes when the viewfinder zoom function is active.

Indicator Function

REC lights when the camera is On Air

MEDIA lights when studio ISO recording has started

BATT lights if the camera supply voltage is less than 11.5 V (when using an external supply).

ND/RE lights when an ND optical filter or the range extender is selected.

FOC+ lights when the focus assist function is on.

Indicator Function

3.2 lights when preset temperature of 3200 K is selected

5.6 lights when preset temperature of 5600 K is selected

7. 5 lights when preset temperature of 7500 K is selected

AWFL lights when a memory for fluorescent light (FL50 or FL60) is selected

AW1 lights when Auto white balance memory 1 is selected

AW2 lights when Auto white balance memory 2 is selected

LDK 3000 HD camera User’s Guide (v1.0) 41

Chapter 4 - Operating instructions

4.6 Lens operation

When you fit a lens to the camera you may need to adjust the back focus. Refer to the lens manufacturer's instructions to find out how to do this. The LENS menu allows you to choose and, if necessary, adjust other parameters to suit your lens type and your personal preferences.

4.6.1 Auto iris

If required switch on the auto iris function in the LENS menu. You can also select the parameters associated with the auto and the momentary iris in this menu.

☞

Note

☞

Note

When your lens has an auto iris switch, make sure it is set to the On position.

4.6.2 Extended auto iris

The extended auto iris function automatically regulates the video signal level by adjusting the iris opening and the gain level to suit the ambient lighting conditions.

☞

Note

☞

Note

Make sure that the SW2 button is assigned to EIris Extended Auto Iris in the

INSTALL > BUTTONS > SW2 menu.

To switch on the extended auto iris function use the assignable button SW2 at the left-front side of the camera. When this button is pressed once, the current value of the automatic extended auto iris function is displayed. Press the button twice in quick succession to toggle between on and off.

When extended auto iris is on, the Non-standard indicator in the viewfinder lights, and gain and exposure controls are blocked. The parameters for the extended auto iris function can be set in the LENS menu.

Tip

✎

Use the Extended Auto Iris function to keep a constant depth of field while shooting.

42 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 4 - Operating instructions

4.6.3 Precision focus

☞

Note

☞

Note Set the Lens I/F to digital in the LENS menu before using precision focus.

The camera supports the precision focus feature which is offered by some advanced (digital) lenses. This system automatically focuses the image within a user defined focus frame on the screen. When precision focus is enabled on the lens, the focus frame is superimposed on the viewfinder image. The frame can be moved and resized by the controls on the lens or on the focus handle.

An indicator in the bottom left corner of the viewfinder screen shows the current focus information:

Refer to the documentation of the lens manufacturer for more information about the precision focus feature.

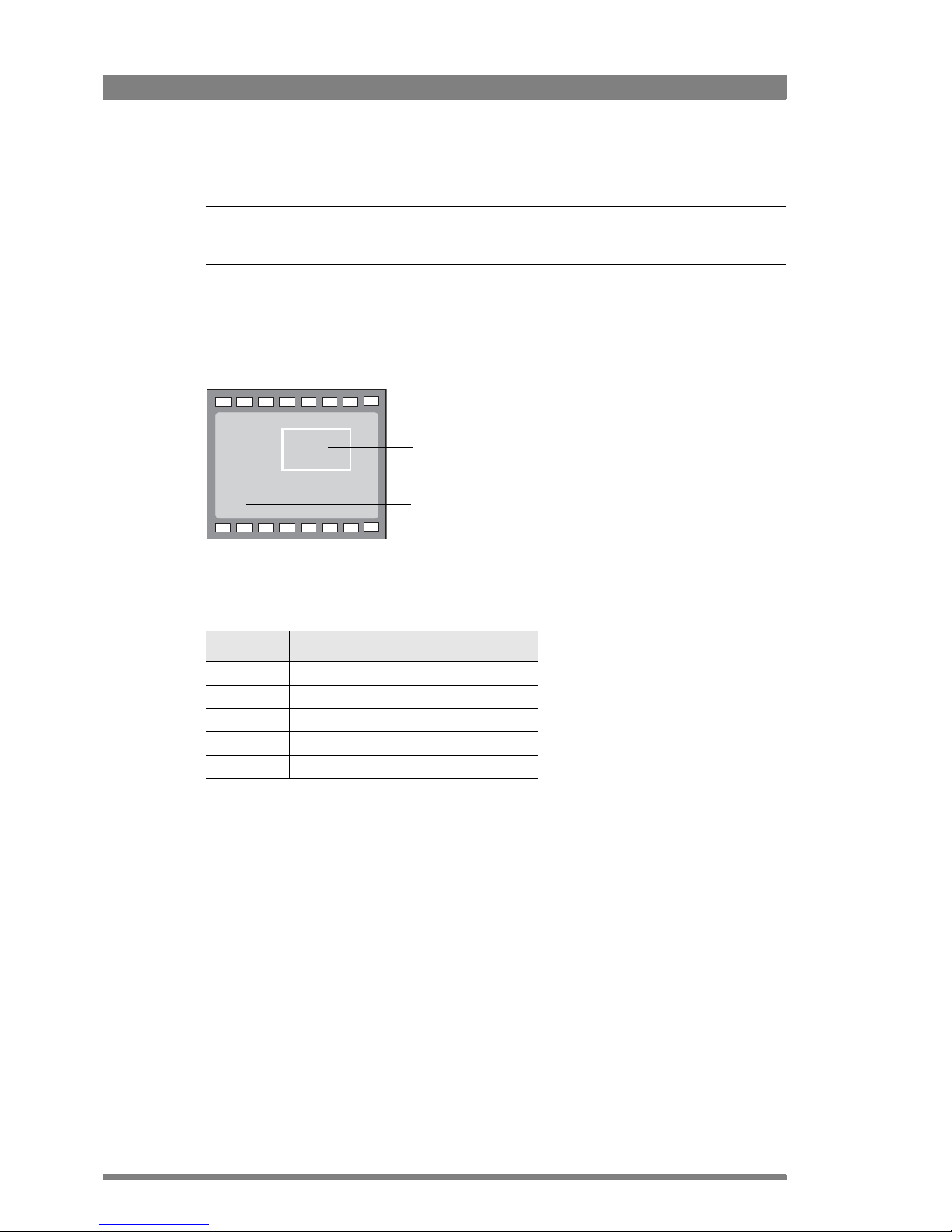

4.6.4 Lens indicators in the viewfinder

The ND/RE indicator in the viewfinder lights when a lens Range Extender is selected.

The Iris indicator in the viewfinder shows the value of the iris opening (when enabled in the VF menu).

The Zoom indicator in the viewfinder shows the percentage to which the lens has been zoomed out or in, ranging from 0 (wide angle) to 99 (telezoom). It shows 50 if the lens does not support this feature.

The Focus indicator shows the percentage of the focus distance range from 0 (close-up) to 99 (infinity). This feature is only available when a digital lens is used.

Indication Focus information

- - focus is behind

- focus is behind

0 area is in focus

+ focus is in front

+ + focus is in front

ND/RE

BATT

MEDIA

REC

AW2AW1

7.55.63.2

FOC+

4.7

auto focus frame

focus indicator

LDK 3000 HD camera User’s Guide (v1.0) 43

Chapter 4 - Operating instructions

4.7 Controls on the LDK 5630 TriaxHD adaptor

Figure 4-2. TriaxHD adaptor controls

4.7.1 Powering the camera

The power supply for the camera and its adaptor is normally supplied via the Triax cable from the Base Station. The Power On indicator lights when power is supplied and the camera power switch is set to the on position .

When power is supplied via the Triax cable, the output power socket supplies 12 VDC (max

1.5 A) for powering accessories.

It is also possible to operate the camera without a Triax cable by supplying a 12 VDC supply to the DC input socket. The BATT indicator in the viewfinder lights if the camera supply voltage is less than 11.5 VDC when using an external supply.

If excessive current flows in the camera or adaptor, the circuit breaker trips and shuts off power to all the units. If this happens check the units for faults and if necessary take corrective actions before pressing the circuit breaker button to reset the power.

HD-SDI (B)/VF

+48V

Mic.

Line

Ext. HD

Front

Rear

Mic 2

Call

Mic 1

Eng

Off

Prod

Front

Rear

Ext1

Ext2

Loc

Mix

Ext

Eng Progr Prod

Power on

Script Light

Breaker

12V 1.5A max.

11-17V 5A

Ext. SD

Intercom

routing switch

Headset production volume control selection

Headset volume controls

Call button

Microphone phantom power switch

Powe r O n indicator

Circuit breaker button

Viewfinder display

signal selection

Audio microphone

switches

VF connector signal

selection switch

Microphone phantom power switch

44 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 4 - Operating instructions

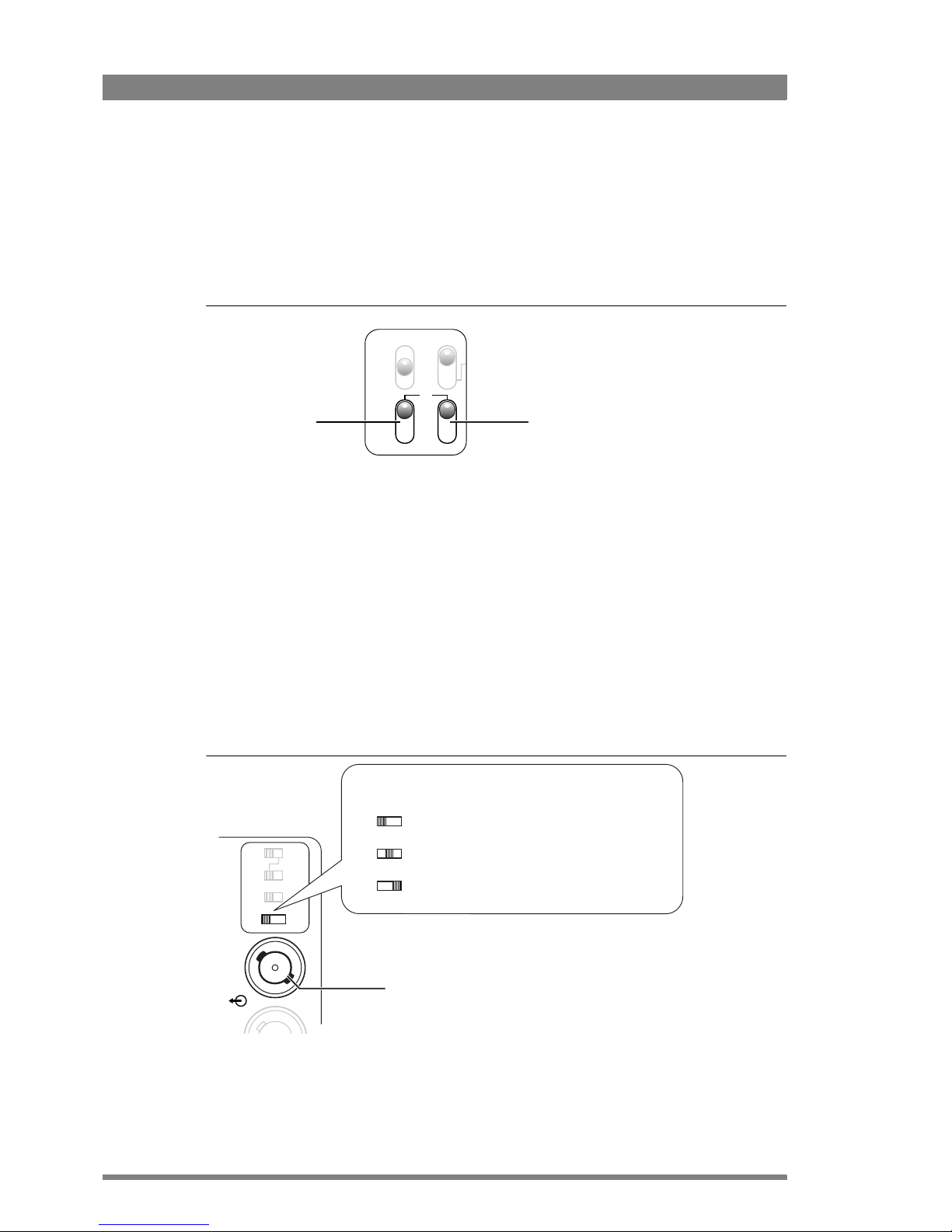

4.7.2 Selecting monitoring signals

Viewfinder display signal

The viewfinder can display local (from camera) or external (from Base Station) video. Two switches at the back of the adaptor determine the signal that is displayed in the viewfinder.

Figure 4-6. Viewfinder signal display switches

The viewfinder display switch determines how the local and external signals are displayed in the viewfinder:

– Loc: displays the local signal (Y only) in the viewfinder,

– Mix: displays a mix (-½A + ½B) of the local (Y only) and external signal or

– Ext: displays the external signal.

When the viewfinder display switch is set to Mix or Ext, the external signal selection switch determines which external signal from the Base Station is displayed in the viewfinder:

– Ext1: displays external signal Ext1 or

– Ext2: displays external signal Ext2.

VF connector signal selection

Eng

Off

Prod

Front

Rear

Ext1

Ext2

Loc Mix

Ext

External signal

selection switch

Viewfinder display switch

Mic.

Line

Front

Rear

Ext. SD

Ext. HD

Ext. SD

Ext. HD

Ext. SD

Ext. HD

Ext. SD

Ext. HD

VF connector

analog viewfinder signal (Y only)

external signal from the Base Station

scaled external signal from the Base Station (HD-format, Y only).

Use the switch to select the function of the VF connector:

LDK 3000 HD camera User’s Guide (v1.0) 45

Chapter 4 - Operating instructions

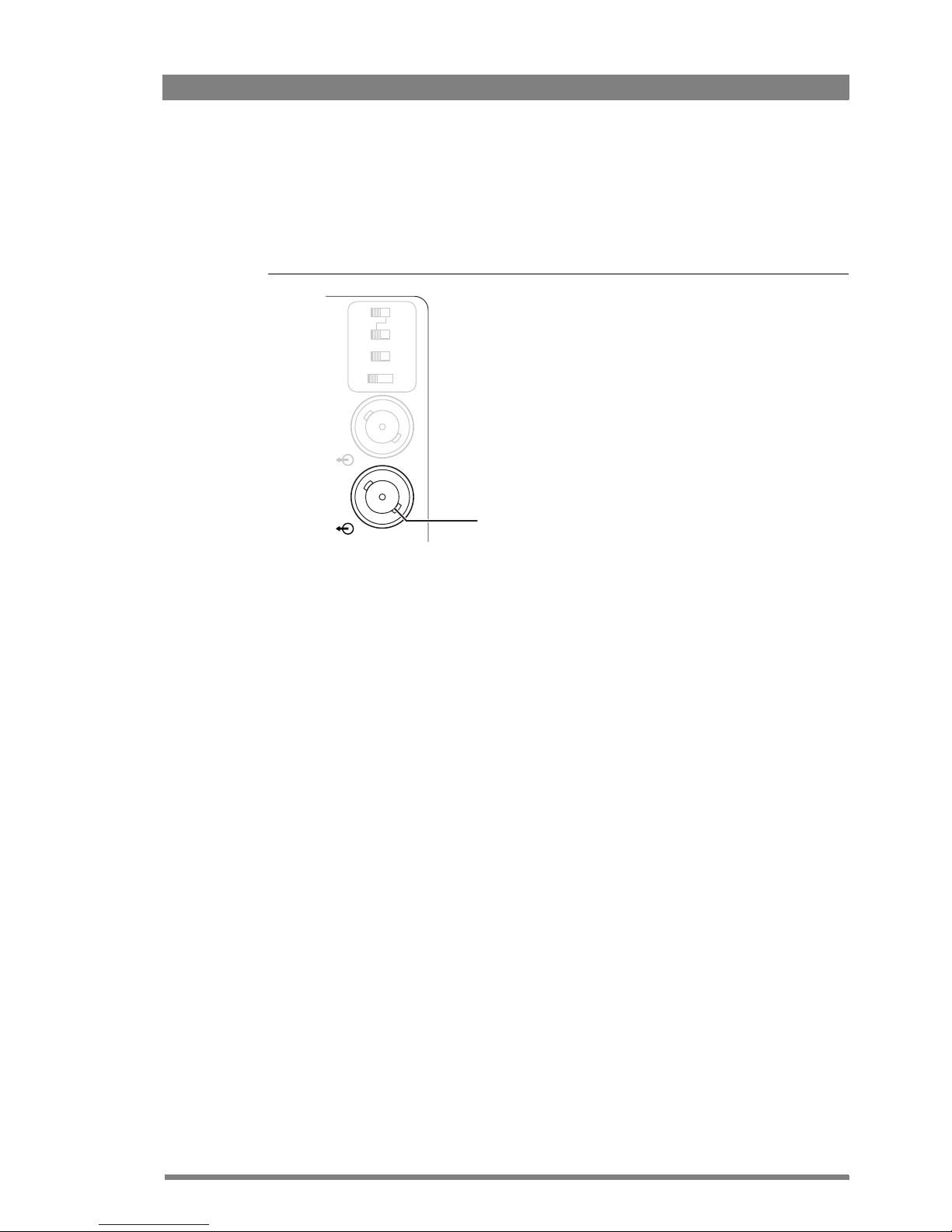

HD-SDI(B)/VF connector signal selection

The HD-SDI(B)/VF connector can be used to output the camera’s main video signal or to connect an external monitor or extra viewfinder.

Figure 4-7. VF connector signal selection

The output on the HD-SDI(B)/VF connector can be set with the INSTALL > HD-SDI(B)VIDEO

item in the viewfinder menu. There are two settings:

– Main: main HD-SDI video signal (high quality) from the camera or

– VF: HD-SDI viewfinder signal (viewing quality).

HD-SDI(B)/VF

Mic.

Line

Ext. SD

Ext. HD

Front

Rear

HD-SDI(B)/VF connector

46 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 4 - Operating instructions

4.7.3 Using audio

Analog audio channels

Set the gain levels (-22 to -64 dB) for these channels in the AUDIO section of the INSTALL menu. A high-pass filter for each channel can also be switched on via this menu.

The channel 1 input socket selection switch selects either:

• the socket at the front-right of the camera, or

• the Mic 1 audio channel 1 connector at the rear of the adaptor

as the input for channel 1.

The rear input level switch selects either a line level input or a microphone level input for the channel 1 rear connector. The line level input sensitivity is 32 dB lower than the microphone input sensitivity.

The switch under the Mic 1 socket selects a phantom power supply (+48 V) for the rear socket. Phantom power (+48 V) is always present on the front-right microphone socket.

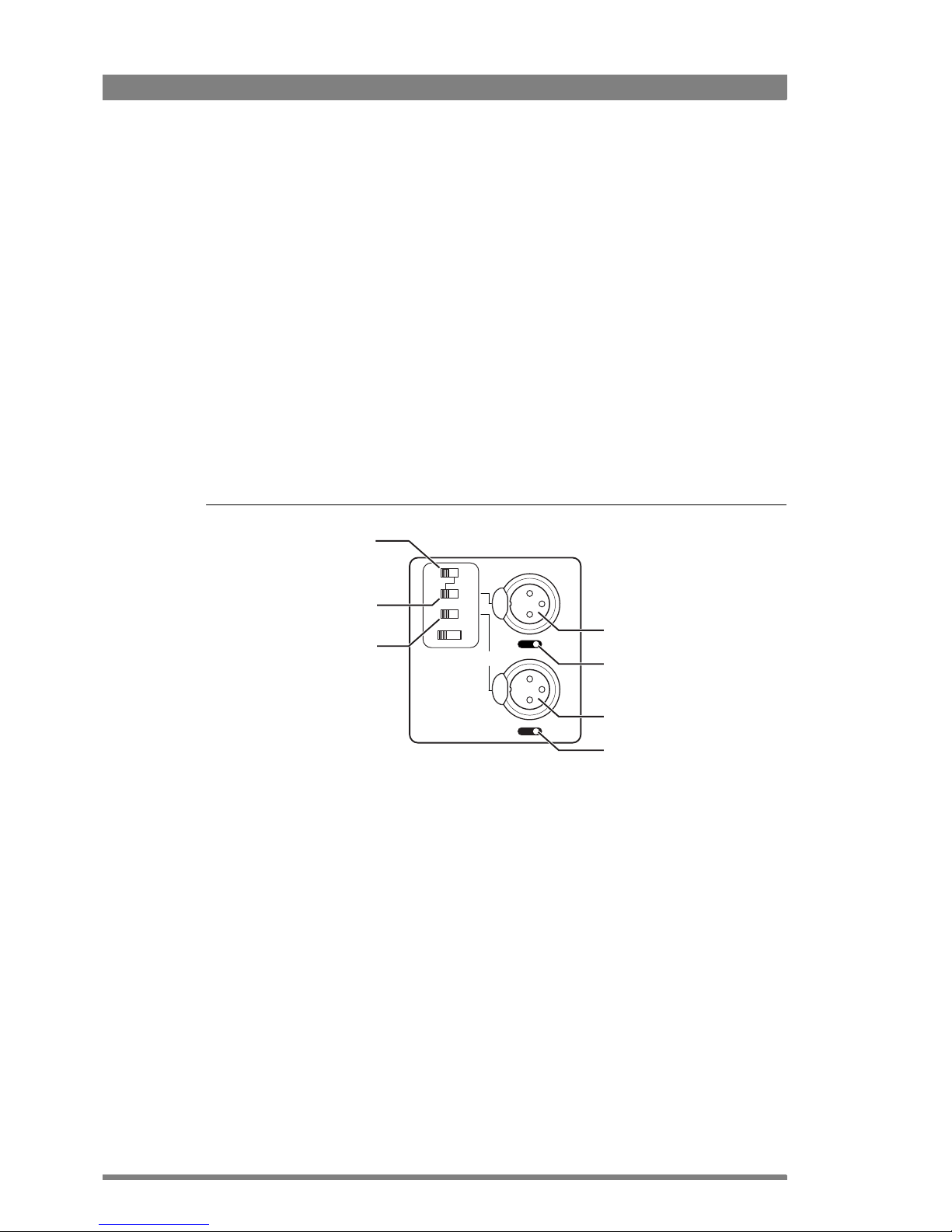

Figure 4-8. Audio channel switches

The channel 2 rear input level switch selects either a line level input or a microphone level input for the channel 2 rear connector (Mic 2). The switch under the Mic 2 socket selects a phantom power supply (+48 V) for the rear socket.

Audio channels 1 and 2 are available on the audio output 1 and 2 connectors (XLR-3) at the Base Station.

Mic 2

Mic 1

+48V

Mic.

Line

Front

Rear

Audio channel 1 connector

Channel 1 phantom power switch

Audio channel 2 connector

Channel 2 phantom power switch

Channel 1 input socket

selection switch

Rear input level selection

switch (channel1)

Channel 2 input level

selection switch

LDK 3000 HD camera User’s Guide (v1.0) 47

Chapter 4 - Operating instructions

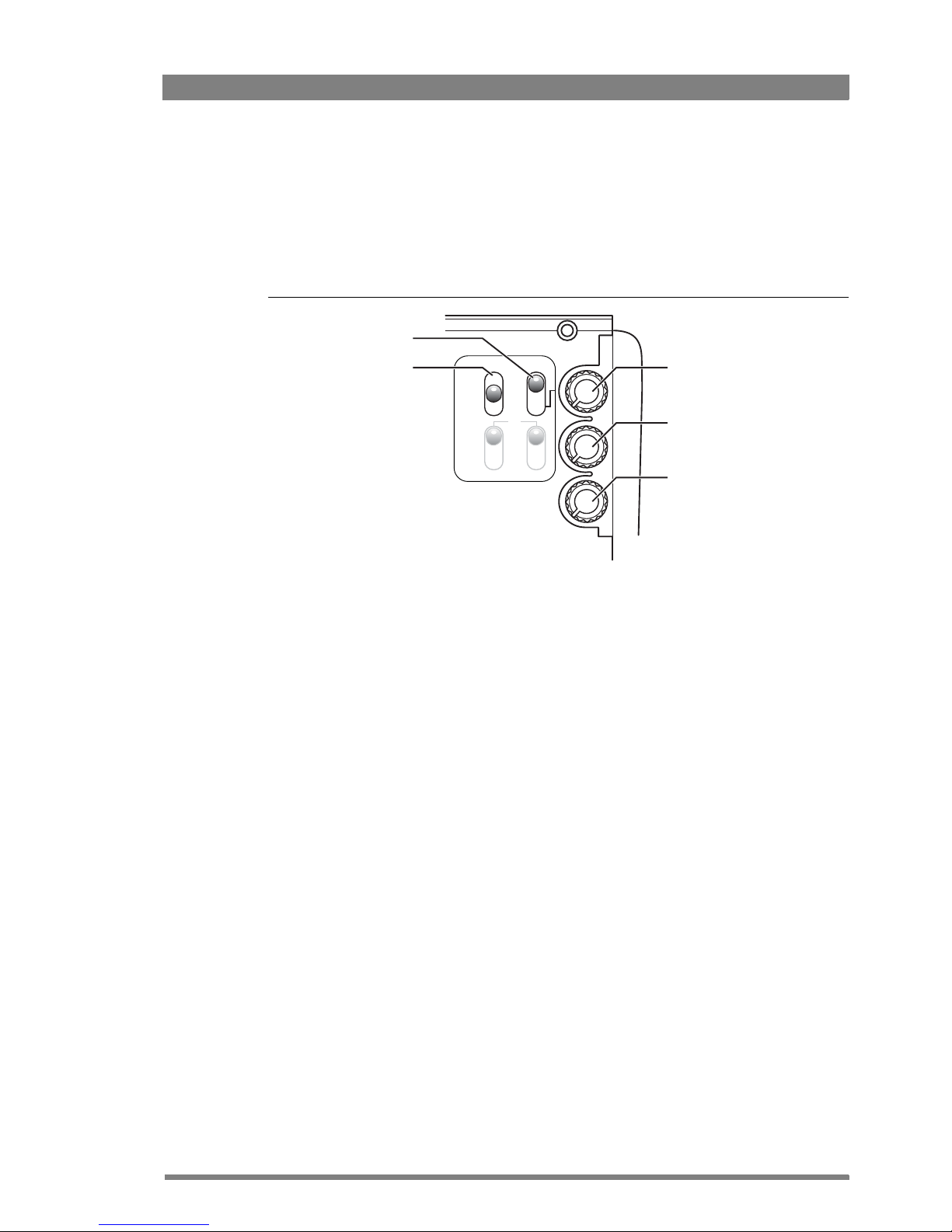

4.7.4 Intercom

Three intercom channels – production (Prod), program sound (Prog) and engineering (Eng) – are sent from the Base Station to the camera operator's headset. The camera operator's intercom microphone signal is sent to the Base Station. Routing and volume controls for the intercom are on the back of the adaptor.

Figure 4-9. Intercom controls

Production intercom volume control switch

Use this 2-position switch to control the volume of the production signal in the intercom either at the front of the camera or at the rear of the adaptor.

Intercom microphone routing switch

This 3-position switch routes the camera operator's intercom microphone signal to Engineering (Eng position, momentary) or production (Prod position, latched), or turns it off (mid-position).

The VTR Start button at the front of the camera or the VTR button on the lens can be assigned to send the intercom signal to Production or Engineering, regardless of the position of this switch. Go to the INSTALL > BUTTONS > VTR START item and select PROD or ENG.

Intercom headset volume controls

• Prod - adjusts the volume of the production signal to the camera headset when selection switch is in the REAR position.

• Prog - adjusts the volume of the programme signal to the camera headset.

• Eng - adjusts the volume of the engineering intercom signal to the camera headset.

The INTERCOM section of the INSTALL menu contains various settings for these channels. Signals for left and right headset muffs and sidetone levels can be selected. Intercom microphone amplification levels, phantom power and mic on/off switches are available.

Call button

Press this momentary button to send a signal to the control panels calling for attention. The ND/RE indicator in the viewfinder shows when a call signal is sent or received. The call button can also be used to playback a voice mail message that has been recorded in the Base Station. Press once to start playback; press again to stop.

Eng Progr Prod

Eng

Off

Prod

Front

Rear

Ext1

Ext2

Loc Mix

Ext

Production channel volume control (only active when the adjacent control switch is set to Rear)

Program channel volume control

Engineering channel volume control

Production intercom

volume control switch

Intercom microphone

routing switch

48 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 4 - Operating instructions

4.8 Managing files

You can have access to 15 different files. The Files menu is used to recall and store these files. There are two types of file:

• scene files

• operator files

A scene file contains values related to the picture performance. The operator file contains values related to the set-up of the camera (viewfinder, lens and installation parameters). The tables in “Menu structure and contents” on page 63 and further indicate the functions that are stored in the scene file and those functions that are stored in an operator file.

4.8.1 Scene files

Four scene files are stored in the camera itself (SCAM1..4). The STANDARD scene file (preselected as either factory or customer defined) is stored in the camera.

☞

Note

☞

Note

The standard customer scene file is stored via the SECURITY menu, not the FILES menu. The decision to use the factory defined file or the customer defined file as the standard file is also made in this menu.

The FILES menu enables the scene files to be stored and recalled using the store and recall entries of the menu system. If the message NOK is displayed, then the old values are restored. If the camera is On Air when a scene file is recalled, then the recalled values do not become active until the camera goes off air.

4.8.2 Operator files

The FILES menu also allows the recall of the operator file stored in the camera (OCAM1..4). These files contain information for setting up the non-video configuration of the camera. A STANDARD operator file (factory or customer defined) is stored in the camera.

☞

Note

☞

Note

The standard customer operator file is stored via the SECURITY menu, not the FILES menu. The decision to use the factory defined file or the customer defined file as the standard file is also made in this menu.

LDK 3000 HD camera User’s Guide (v1.0) 49

Chapter 4 - Operating instructions

4.8.3 Standard files

The green STD button on the left-front side of the camera recalls the standard scene file. This file contains standard parameters for the picture performance. A standard operator's file can be recalled via the FILES menu. This file contains parameters for the set-up of the camera.

4.8.4 Customer standard files

You can define a customer standard file for the standard scene file and for the standard operator's file. The contents of the customer files for both these standard files is stored via the SECURITY menu. The selection of a factory defined or a customer defined file for use as a standard file is also made in this menu. You can only access the functions of the SECURITY menu with an owner's card or the PIN code of the camera.

50 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 4 - Operating instructions

4.9 Access and security

4.9.1 User level

The user level function in the SECURITY menu restricts access, in varying degrees, to the operational controls of the camera. You can only access the functions of the SECURITY menu with an owner's card or the PIN code of the camera.

4.9.2 Selecting the user level

There are four user levels: user0, user1, user2 and user3. The purpose of the user levels is to restrict the set of functions which can be changed by whoever is using the camera. In this way a more centralized and uniform control can be achieved and the danger of the camera operator accidentally changing critical functions while shooting is reduced.

User level 0 is a special protection level which locks most of the operational controls of the camera. Use this level to ensure that a camera that has been set-up is not tampered with. User level 0 is not normally used for operational purposes as it is too restrictive for normal circumstances. The recommended minimum user level is 1. For full control set the level to 3. When you switch off the power, the access rights that were obtained by the use of the PIN code are disabled and the camera starts at the assigned user level when switched on again.

4.9.3 Disable camera

The disable camera function is a protection function which prevents unauthorised interference with the camera and provides an additional level of security. Setting disable camera to ON is similar to using User level 0 to protect the settings of the camera.

4.9.4 Access control

The PIN code of the camera can be viewed and changed in the Security menu. The camera's PIN code when it leaves the factory is set to 0000. It is strongly advised that this code be changed by the owner on receipt of the camera. This ensures added protection against unaurthorised access to the Security menu.

LDK 3000 HD camera User’s Guide (v1.0) 51

Chapter 5 - Video setup

Chapter 5

Video setup

5.1 Video acquisition modes

Go to the INSTALL > VIDEO MODE menu item and choose the video mode you wish to use for acquisition. The table below show the possible output signals available for each video mode:

Although the camera has excellent picture performance, in some circumstances (e.g. when

using test charts) the 720p video modes may show artifacts in unnatural scenes.

Select the signal with the VF connector signal selection switch (see also “VF connector

signal selection” on page 44).

Select the signal in the INSTALL > HD-SDI(B)VIDEO item in the VF menu (see also “HD-

SDI(B)/VF connector signal selection” on page 45).

Video mode

Acquisition

format

Camera adaptor Base Station

HD-SDI(B)/VF

HD-SDI outputs

720p50/59

720p50/59.94

VF signal (Y only)

720p50/59.94

SMPTE 292M

@ 1.5 Gbit/s 720p50/59.94

SMPTE 292M

@ 1.5 Gbit/s

External signal (SD/HD) HD-SDI VF signal

(viewing quality)

1080i50/59 1080i50/59.94

VF signal (Y only)

1080i50/59.94 SMPTE 292M

@ 1.5 Gbit/s 1080i50/59.94

SMPTE 292M

@ 1.5 Gbit/s

External signal (SD/HD) HD-SDI VF signal

(viewing quality)

52 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 5 - Video setup

5.2 Video settings

5.2.1 Overview

The means used to control the camera depends on your work methods. A remote Operational Control Panel OCP 400 can be used and a low user level can be selected to restrict the available camera functions. Alternatively, video functions can be controlled on the camera itself. The following functions are available on the camera:

• Standard settings

• Test signals

• Gain selection

• Optical filter selection

• Color temperature and Auto white balance

• Exposure time including Clean scan

• Freeze frame

• Black stretch

• Auto skin detail

Many other video functions such as detail, black, gain, knee, gamma, matrix and white limiter functions are available in the VIDEO menu.

5.2.2 Standard settings

To ensure that some of the camera functions are not set to unusual values, a standard file has been defined that contains the default values for most video functions. The chapter “Menu

structure and contents” on page 63 lists the values that are set when the standard file is

recalled.

To recall the standard values for the various video functions, press the green Standard file button on the left-front side of the camera and hold it for two seconds. The standard values only take effect when the camera is not On Air.

The standard file can be selected as either a factory or a customer standard file. Changing the standard file can only be done in the System security menu if the owner card or the PIN code is used.

5.2.3 Non-standard indicator

The non-standard indicator in the viewfinder (the lights when one of the following conditions occur:

– Exposure time is not set to the nominal value;

– Black stretch is on;

– Extended auto iris is on;

– AWC or FL50/FL60 color temperature is on.

LDK 3000 HD camera User’s Guide (v1.0) 53

Chapter 5 - Video setup

5.3 Test signals

The left-front side panel of the camera has a Color bars switch for switching on a color bar test signal. The color bar is the standard test signal that is used to set up and check the camera before use. When the color bar is selected the following functions are temporarily set to Off:

• Black stretch

• White limiter

• Zebra

• Safe area (VF) and cadre (VF)

The lens iris closes automatically when the color bar is switched on.

5.4 Gain

5.4.1 Gain selection

Depending on the available light level it may be necessary to adjust the gain of the camera. Setting the gain level higher may introduce more noise into the image. The gain is selected via the Gain switch on the left-front side of the camera.

1. When this switch is pressed initially, the current value of the gain in dB is displayed in the viewfinder.

2. Holding the switch in the up or down position for a short moment selects one of the five master gain settings: -, 0, +, ++ and +++.

– The actual value of the gain in dB is assigned to these symbols in the INSTALL menu.

– The Gain indicators in the viewfinder light to indicate the value selected. (The + and

++ indicators light when the gain is +++.)

5.4.2 Variable gain

The gain switch can also be used to vary the gain continuously between its minimum and maximum value.

1. Hold the switch continuously in the up or down position until you see the value in the viewfinder change in steps of 0.1 dB.

2. Release the switch when you reached the value you want. This exits the value selection mode.

3. Using the switch momentarily again sets the gain to the nearest standard value.

Preset Gain

- can be set to -6 or -3 dB

0 is always 0 dB

+ can be set to +3, +6 or +9 dB

++ can be set to +6, +9 or +12 dB

+++ is always +12 dB

54 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 5 - Video setup

5.4.3 Digital noise reducer

Although the CMOS imagers of the camera have low noise, circumstances may require extra video noise reduction. To do this, a user-definable digital noise reducer is available. In the VF menu, go to the VIDEO menu and select the NOISE REDUCTION item.

Select one the presets 1, 2, 3 or 4 or Off to turn off the noise reducer. Preset 1 produces the lowest noise reduction while preset 4 produces the highest. Try and select the best option for your situation.

☞

Note

☞

Note

High noise reduction may introduce unwanted artifacts in the image.

5.5 Optical filters

A neutral density and an effect filter can be placed in the path of the optical signal to modify the incoming light. The filter is selected via the Filter switch at the top-front of the camera. The filter can be used, for example, to control depth of field or exposure levels.

The camera does not need color optical filters to be able to white balance correctly. The range of the auto-white balance is so wide (from 2500 K to 20000 K) that there is never any need to use color filters to obtain the correct white. Rotate the switch to move the optical filter wheel.

The filter switch has four positions:

☞

Note

☞

Note

Filter position 4 can be programmed to select an ND 1/64 filter or a 4-point star filter. Go to the INSTALL > BUTTONS > FILTER POS4 menu item and select ND 1/64 or Star 4P.

The status of the filter wheel is displayed in the viewfinder for a few seconds. The ND/RE indicator in the viewfinder lights when an ND (Neutral Density) filter is selected.

Position Filter

1Clear

2 ND 1/4 filter (2 stops)

3 ND 1/16 filter (4 stops)

4 ND 1/64 filter (6 stops) or 4-point star filter (Star 4P)

see note)

LDK 3000 HD camera User’s Guide (v1.0) 55

Chapter 5 - Video setup

Optical filter selection using the OCP 400

Selecting the optical filter on the OCP 400 operational control panel is slightly different. Press the FILTERS button to open the Filters menu:

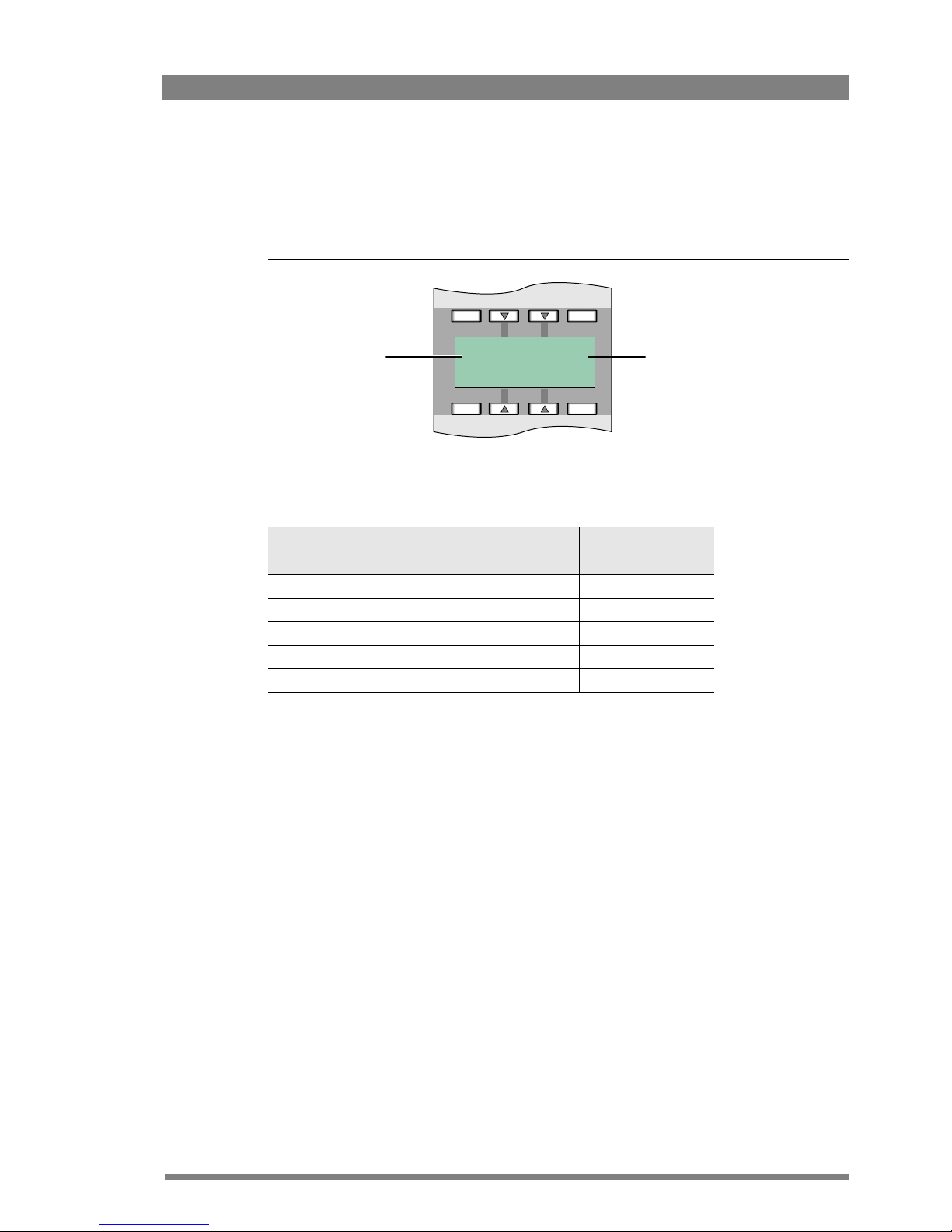

Figure 5-1. Optical filter selection on the OCP 400.

Use the Menu arrow buttons to select a combination of filterwheel position to obtain the desired optical filter:

5.6 Color temperature

For true color reproduction the ambient lighting conditions must be compensated for by selecting a value for the color temperature. The standard file setting is 3200 K (normally used for tungsten and indoor lighting). Two other reference color temperatures are available: 5600 K (for outdoors, clouded conditions) and 7500 K (for outdoors, clear blue skies).

The memory positions (FL50, FL60, AW1 and AW2) are available to store the results of the auto-white measurement process. The memory positions store measured values using the automatic white balance switch at the front. The FL positions are recommended for shooting with fluorescent light.

A continuous automatic white balance position (AWC) is also available. This function continuously measures the white balance and adjusts accordingly. It can be used when a constant color balance is required under changing lighting temperatures (sunsets, indoors/ outdoors use).

In the auto-white positions an electronic color filter can be adjusted in the VIDEO menu. This varies the color balance to obtain warmer or colder color effects. When an automatic white balance process is performed, the electronic color filter is reset to its default value.

Selected optical filter

ND filterwheel position

FX filterwheel position

Clear Clear Clear

ND 1/4 filter ND 1/4 filter Clear

ND 1/16 filter ND 1/16 filter Clear

ND 1/64 filter ND 1/64 filter Clear

4-point star filter Clear 4P Star

Exit

Toggle

ND1/16

ND down

ND up FX up

4pstar

FX down

Neutral Density

(ND) filter wheel

Effects (FX) filter wheel

56 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 5 - Video setup

5.6.1 Selecting the color temperature

The up/down Color temperature switch on the left-front side of the camera allows a choice between:

Three preset color temperatures:

– 3200 K (3.2 K) - for indoor lighting conditions

– 5600 K (5.6 K) - for outdoors, clouded conditions

– 7500 K (7.5 K) - for outdoors, clear blue skies

Four memory positions:

– FL50 - memory position for 50 Hz fluorescent light (matrix is set to CoolFL and

exposure to 50 Hz.)

– FL60 - memory position for 60 Hz fluorescent light (matrix is set to CoolFL and

exposure to 60 Hz.)

– AW1 - memory position 1

– AW2 - memory position 2

An automatic continuous white position:

– AWC - continuous measurement (from 2500 K to 20000 K)

When the switch is first pressed, the viewfinder displays the current value.

Select a new value by scrolling up or down through the available values.

The Color temperature indicators in the viewfinder light to show which position is selected. None of these indicators light when AWC is selected, but the Non-standard indicator lights.

The viewfinder also displays the actual value of a measured color temperature. The range of the auto-white balance is from 2500K to 20000 K.

5.6.2 Variable color temperature

The Color temperature switch on the left-front side of the camera can also be used to vary the color temperature continuously between its minimum and maximum value (2500 K to 20000 K).

1. Hold the switch continuously in the up or down position until you see the value in the

viewfinder change in steps of 10.

2. Release the switch when you reach the value you want. This exits the value selection

mode.

3. Using the switch momentarily again sets the color temperature to the nearest standard

value.

LDK 3000 HD camera User’s Guide (v1.0) 57

Chapter 5 - Video setup

5.6.3 Auto-white balance

If the reference color temperatures do not match your lighting conditions carry out the autowhite procedure as follows:

Figure 5-2. Auto white balance switches

1. Use the Color temperature switch to select one of the memory positions FL50, FL60,

AW1 or AW2 in which to store the measured color temperature value.

2. Press once on the White balance switch at the front of the camera to start the automatic white balance procedure. The following appears in the viewfinder:

☞

Note

☞

Note

If you did not select one of the memory positions FL50, FL60, AW1 or AW2, the ’Precondition fail’ message appears in the viewfinder.

3. Point the camera so that the reference white surface is between the two small black boxes.

4. Press the White balance switch again to start the measurement procedure. A message indicating that the process is runnning appears.

SW1

File

VTR start

Audio Level

Select

shift

Clean

scan

Exp. Time

White

Bal.

Gain

Bars

Off

Col. Temp.

Black Str.

Color temperature

selection switch

Auto white balance

switch

ND/RE

BATT

MEDIA

REC

AW2AW1

7.55.63.2

FOC+

4.7

AWHITE: window

58 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 5 - Video setup

☞

Note

☞

Note

If there is insufficient light, the ’Light level too low’ message appears in the viewfinder.

5. When the process is completed (within a few seconds) the OK message and the

measured temperature appears in the viewfinder.

The measured color temperature is now stored in the selected memory position and can be recalled as required.

☞

Note

☞

Note

During the auto-white measurement process iris is set to Auto and 90% and the knee is turned off.

☞

Note

☞

Note

Black balance is not necessary because of the continuous automatic black control circuits.

ND/RE

BATT

MEDIA

REC

AW2AW1

7.55.63.2

FOC+

4.7

AWHITE: running

ND/RE

BATT

MEDIA

REC

AW2AW1

7.55.63.2

FOC+

4.7

AWHITE: OK 3700K

LDK 3000 HD camera User’s Guide (v1.0) 59

Chapter 5 - Video setup

5.7 Exposure time

The exposure time values of 1/200, 1/500, 1/1000 and 1/2000 of a second are used to capture fast moving objects so that these can be played back sharply in slow motion. The value selected depends on the speed of the moving object.

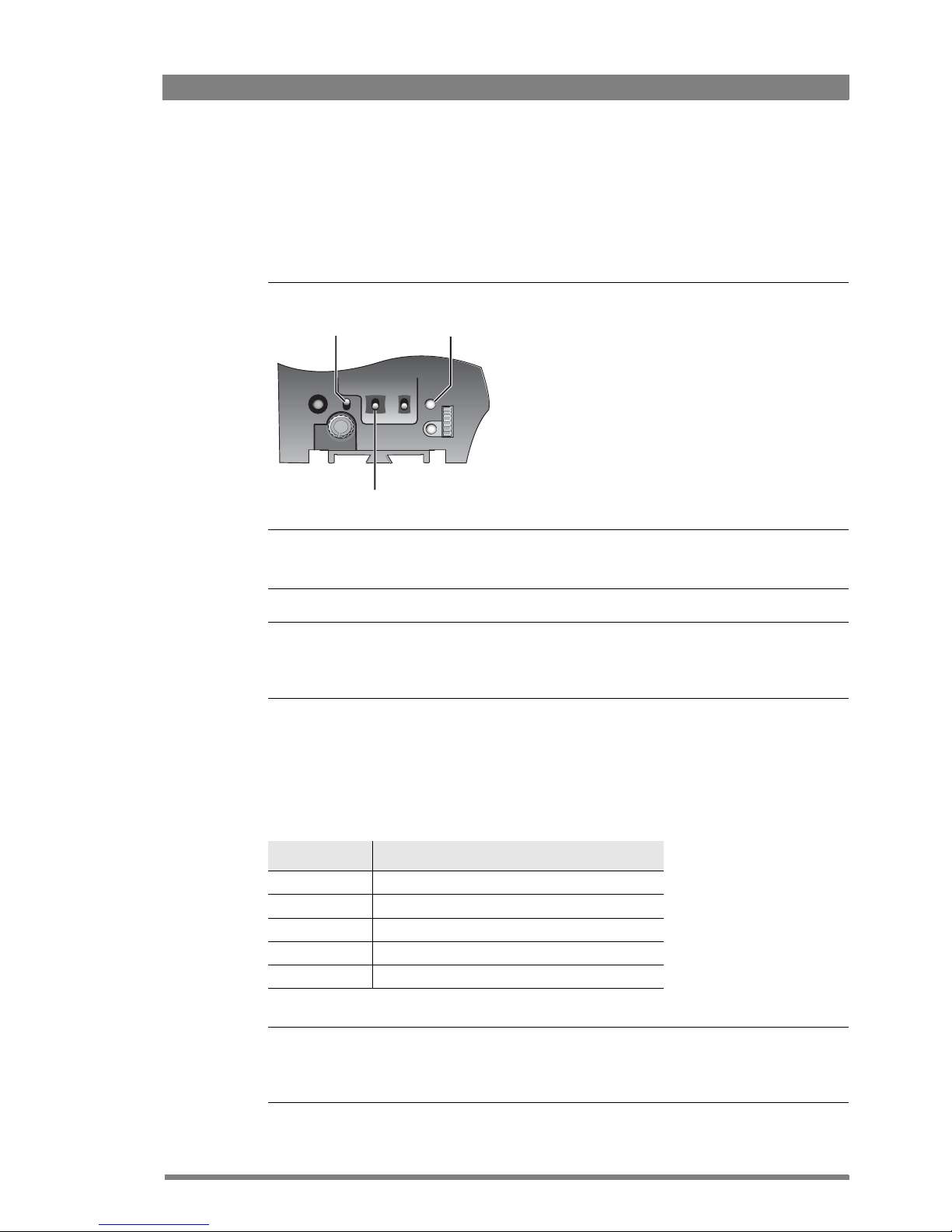

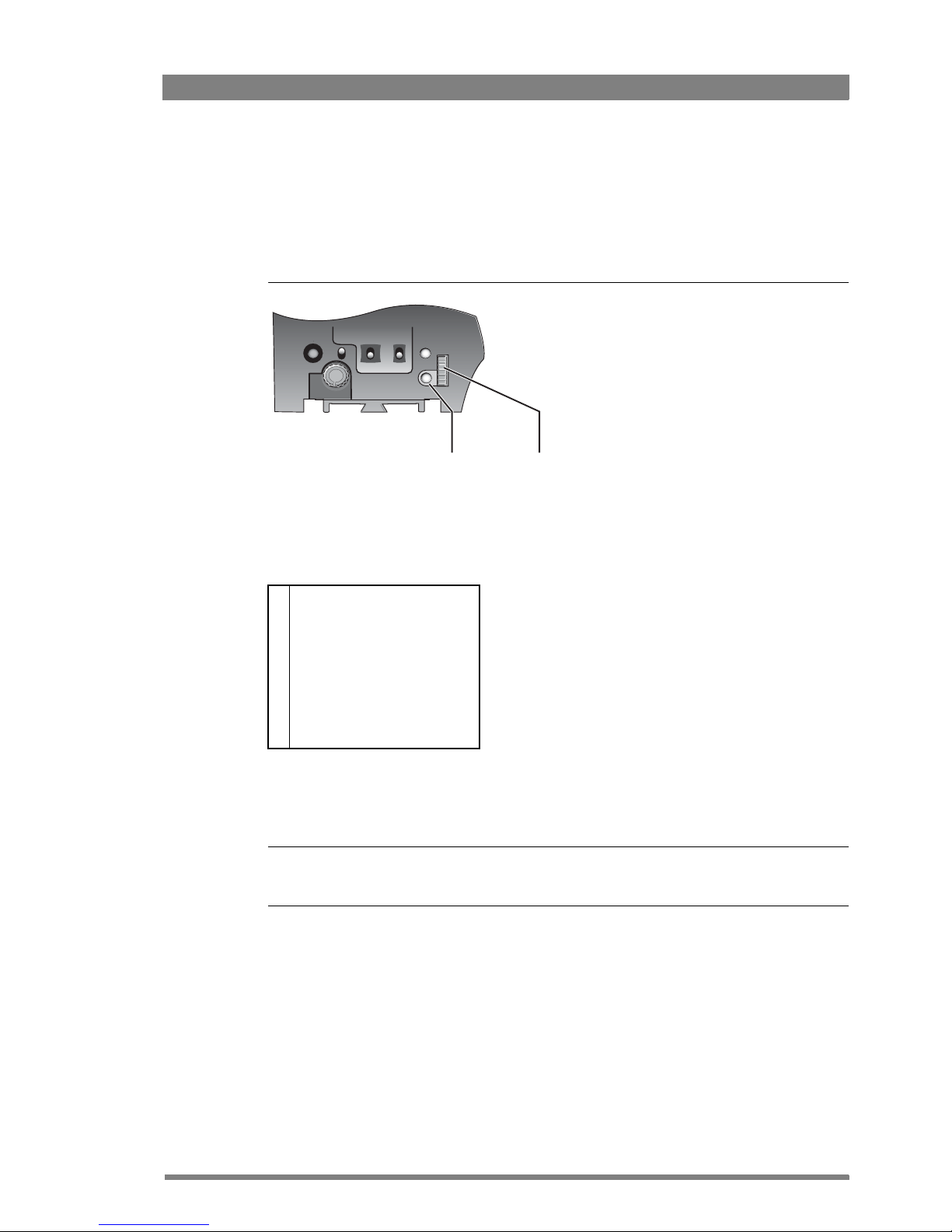

Figure 5-3. Exposure time controls

☞

Note

☞

Note

Increasing the exposure speed lowers the camera’s sensitivity proportionally.

☞

Note

☞

Note

The V-shift function has been disabled. Due to the nature of the CMOS sensor the V-shift function is not necessary.

5.7.1 Selecting the exposure time

The momentary up/down Exposure time switch gives a choice of exposure time settings. If an exposure time other than nominal is selected, the Non-standard indicator (!) in the viewfinder lights.

☞

Note

☞

Note

When the exposure time is changed, a very short interference in the video signal may occur. This is due to the nature of the CMOS sensor and does not indicate a defect.

VTR start

Audio Level

Select

shift

Clean

scan

Exp. Tim e

White

Bal.

V-shift switch

(not used)

Clean scan

button

Exposure time switch

Val ue Function

Nom. nominal setting

Clean scan enables the exposure to be varied

1/200 .. 1/2000 for fast moving objects

50 Hz shooting under 50 Hz lighting (adjustable)

60 Hz shooting under 60 Hz lighting (adjustable)

60 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 5 - Video setup

5.7.2 Lighting

The exposure selection also includes lighting control positions which can be used when shooting with lighting that is operating at a different frequency to the camera. There are two positions; 50 Hz and 60 Hz. Each of these positions can be varied further in a range from -10 to +10 Hz. To reduce flicker select the frequency closest to the frequency of the lights and then vary the lighting control in the INSTALL menu to obtain the best result.

5.7.3 Clean scan

When shooting computer monitors with higher frame frequencies than the camera’s use the Clean Scan function to avoid horizontal bars in the picture:

1. Press the Clean Scan button at the front of the camera for about two seconds to directly

access the variable exposure (clean scan) function. The

CLEAN SCAN submenu appears in

the viewfinder.

2. Use the Rotary control to change the value and so remove the noise bar.

3. If a more accurate adjustment is required set the CL.SCAN item to EXTENDED. (Set the

mode to

NORMAL if a smear effect occurs.)

4. Set the UNIT item to the preferred read out, Hz or mSec.

When you are finished shooting the monitor press the Clean Scan button for two seconds to switch off the Clean Scan function. The Exposure time returns to its previous non-variable setting.

When Clean Scan is on, the Non-standard indicator in the viewfinder lights.

LDK 3000 HD camera User’s Guide (v1.0) 61

Chapter 5 - Video setup

5.8 Freeze frame

Go to the INSTALL > FREEZE FRAME menu to turn this function on or off. When turned on, the freeze frame function freezes the current video frame so that video functions can be set up off line. The following functions are NOT available in freeze frame mode:

– Iris settings

– Painting RGB

– Master and variable gain

– Skin detail selection

– Clean scan

5.9 Black stretch

The black stretch function changes the level of detail in the shadow areas of the picture without effecting the rest of the picture. Set the Black stretch switch at the front left side of the camera to the On position to switch on the black stretch function. Go to the VIDEO > BLACK > BLACKSTRETCH item to adjust the black stretch level from 0 to 99.

When black stretch is switched on the Non-standard indicator in the viewfinder lights.

5.10 Auto skin detail

Use skin detail to change the detail level in a selected color range. Decreasing the detail level of a person’s skin color softens only the skin tones. But not only skin colors can be selected, for example, decrease the detail level of a soccer field to accentuate the soccer players or increase the skin detail level to accentuate a rough surface.

Carry out the Auto skin detail procedure as follows:

1. In the VIDEO > SKIN > SKIN menu, select the memory position skin 1 or skin 2 (not 1+2).

2. Place the cursor in front of the VIDEO > SKIN > AUTO item.

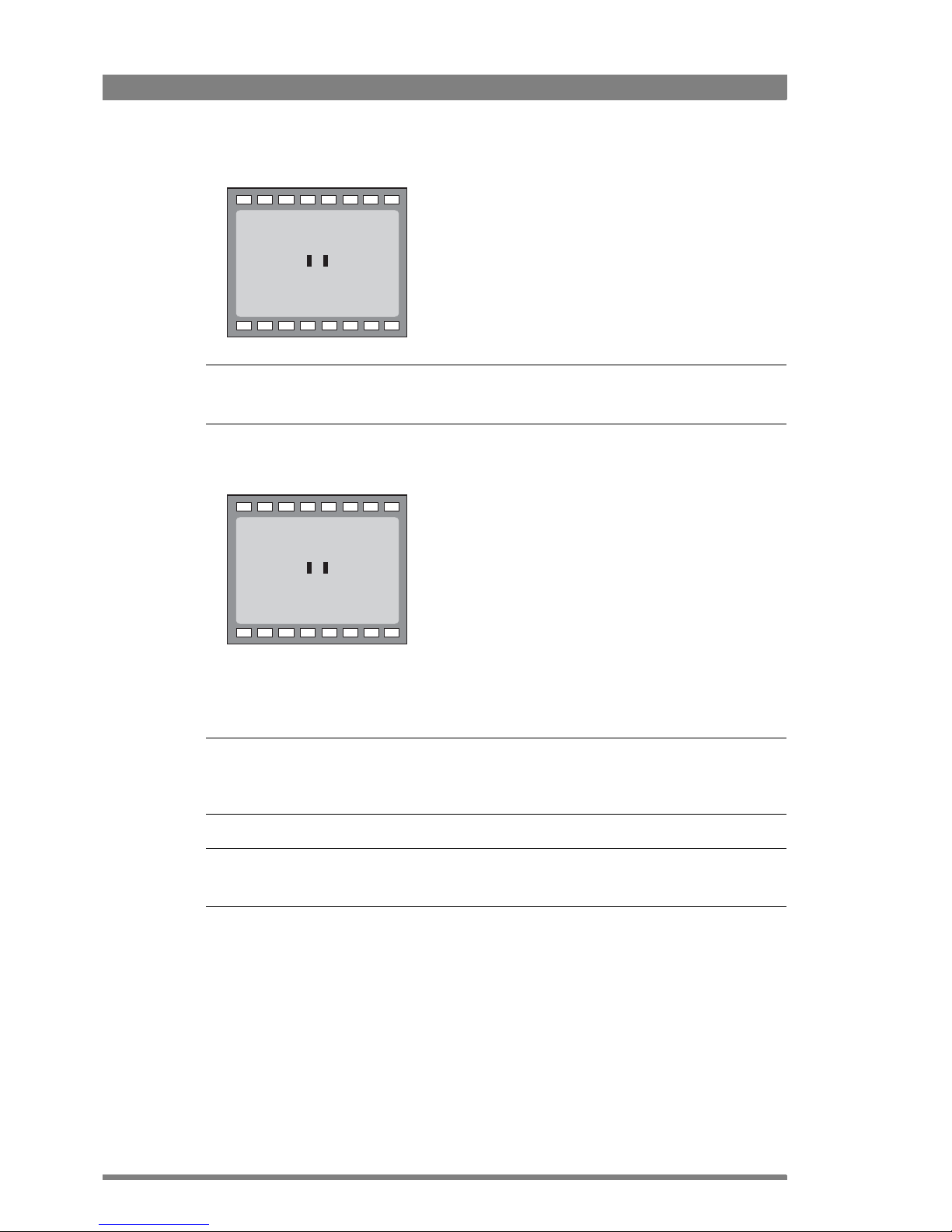

3. Press the Select button. The following appears in the viewfinder:

4. Point two small black boxes at the intended surface.

ND/RE

BATT

MEDIA

REC

AW2AW1

7.55.63.2

FOC+

4.7

ASKIN: window

62 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 5 - Video setup

5. Press the Select button to start the measurement procedure (the iris is set to Auto). The

process running message appears:

6. When the process is completed (within a few seconds) the OK message appears in the

viewfinder.

7. Adjust the skin detail level with the VIDEO > SKIN > SKIN LEVEL item. Decrease the

value below 50 to soften the selected area. Increase the value above 50 to add extra detail.

ND/RE

BATT

MEDIA

REC

AW2AW1

7.55.63.2

FOC+

4.7

ASKIN: running

LDK 3000 HD camera User’s Guide (v1.0) 63

Chapter 6 - Menu structure and contents

Chapter 6

Menu structure and contents

6.1 Menu structure

The structure of the main menus and their submenus are shown on the following pages. The first column shows the user level (0 to 3). You only see menu functions whose user level is equal to or less than the user level set on your camera. Where appropriate, the default value of the function in the standard factory file is shown after the function.

6.1.1 Top menu structure

Viewfinder menu - contains the functions which determine how items in the viewfinder are

displayed.

Lens menu - controls various aspects of the lens.

Video menu - contains those functions which affect the picture quality.

Install menu - contains the functions that are used to set up the general configuration of the

camera.

Files menu - allows values to be stored in scene and operator files, and allows these files to

be recalled as required.

Security menu - used by the camera owner to set user levels and to control access to the

camera, or to store the customer (scene and operator) default files.

Diagnostics menu - provides information on the current status of the camera. No values can

be changed in this menu.

Service menu - contains service item for advanced camera configuration.

Viewfinder menu >>

Lens menu >>

Video menu >>

Install menu >>

Files menu >>

Security menu >>

Diagnostics menu >>

Service menu >>

64 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 6 - Menu structure and contents

6.1.2 Viewfinder menu structure

U Function name Default

0VF Detail On

2 VF Monitoring Y 0 Level 50

0VF Detail >>

0 Focus assist Off

0 Zebra >> 0 Zebra Off

0 Center Cross Off 3 Zebra mode Level

0 QoS bar *) Off 3 Zebra level (%) 90

0 Iris ind. Off 3 Zebra contrast 15

0 Focus Ind. Off

0 Zoom Ind. Off

0Box downright Off

0 Safe area Off

0 Safe area type 16:9

0Marker Off

0 Marker type 4:3

0 Marker style Dot

0 Marker shading Shad

2 Ind. White 70

2 Ind. Black 30

2 Display Time

3 Menu Time 10

3 Rotary speed 5

0Notch EXT Off

0 EXT AspectRatio 4:3

*) Wireless adaptor only

LDK 3000 HD camera User’s Guide (v1.0) 65

Chapter 6 - Menu structure and contents

6.1.3 Lens menu structure

0 Lens type Std

0AutoIris Off

3 Peak/Average 64

3 AutoIris Setpoin 35

3 Mom. Iris Setpoin 50

0 RE Iris Comp. Off 3 AutoIris Gain 5

3 AutoIris Const >>

3 Ext. Iris Off S Gain Speed 5

3 Ext.Iris Const >> 3 Min Iris F16

3 Lens I/F Analog 3 Max Iris F2

3 Lens I/F State OK 3 Min. Gain (dB) -6

3 Max. Gain (dB) 15

66 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 6 - Menu structure and contents

6.1.4 Video menu structure

2 Color Filter 50

2 Col. Temp Level 3200

SDetail On

2 Level 30 3 Vert Detail 50

3 Source Select R+G 3 Coarse/Fine 5

3 MORE > S Level 30

S Level dep. 40

2 Soft Detail On S Noise Slicer 10

2 Level 70

2Skin Off

2Auto Skin Off

2View Off

2 Skin1 Level 50 3 width1 Red 50

2 Color Temp >> 2 Skin2 Level 50 3 width1 Blue 50

2 Detail >> 3 width1 Red 50 3 color1 Red 50

2 Soft Detail >> 3 MORE >> 3 color1 Blue 50

3 Knee Detail Off 3 width2 Red 50

2 Skin >> S Flare Off 3 width2 Blue 50

2 Flare >> S Red 10 3 color2 Red 50

2 Black >> S Green 15 3 color2 Blue 50

2 Gain >> S Blue 25

3Knee >>

3 Blackstretch 50

2Master 50 3Red 50

3 MORE >> 3 Green 50

3Blue 50

2 Red 50 3 Master 50

2 Green 50

2Blue 50

2 Range 3dB

2 Mastergain (dB) 0.00

2 Knee Off

3 Knee Type Y

3 Slope M 50

3 Point M 60 S Knee Limit 99

SMORE >> SAuto Point 30

SAuto Ref 30

Continued on next page

LDK 3000 HD camera User’s Guide (v1.0) 67

Chapter 6 - Menu structure and contents

6.1.5 Video menu structure (continued)

3 Curve ARD

2Preset 50

3 Master 50

3 Red 50

3 Green 50

3Blue 50

3Matrix Skin

2 Saturation 50

S R>G ... B>G 50

SMat/Gam G/M

S White Limit On

2 Gamma >> S Master 80

2Matrix >>

S White Limiter >> S White shading On

S Shading >> S HSawRed 50

2 Freeze Off S HSawGreen 50

2 Noise reduction Off S HSawBlue 50

S VSawRed 50

S VSawGreen 50

S VSawBlue 50

SHParRed 0

S HParGreen 0

SHParBlue 0

SVParRed 0

S VParGreen 0

SVParBlue 0

68 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 6 - Menu structure and contents

6.1.6 Install menu structure

3 SideTone Level 50

1Cam Mic Swt.

1 Cam Mic Gain 40dB

1Cam Mic power Off

3 Video mode ### 1 Cam PROD Both 1 Audio Gain Mode Ext

0 Disable camera Off 1 Cam ENG Both 1 Audio 1 Source Front

1 Intercom >> 1 Cam PROG Both 1 Audio 1 Level -64dB

1 Audio >> 1 Audio 1 HPF Off

3 Tally >> 3 Tally Lock On 1 Audio 2 Source Front

1 Exposure >> 1 Audio 2 Level -64dB

2 Gain preset >> 1 Lighting 0 1 Audio 2 HPF Off

S AutoWhite >> 1 Clean Scan >>

S PCI id 1 1 Value 50/60

3 MainTextInsert Auto 1 Units Hz

3 HD-SDI(B) Video VF

0 Buttons >> 0 Filter Pos4 ND64

3 Transmis. Power On 0 Ext2 Assign Ext2

2 Gain - (dB) -3dB 0 SW1 EXT1

2 Gain + (dB) 3dB 0 SW1 Control Mom.

2 Gain ++ (dB) 6dB 0 SW2 EXT2

0 SW2 Control Mom.

S Awb Speed 4 1 VTR Start PRoD

S Awb Gain 10 1 VTR St. Control Mom.

1 VTR Lens PRoD

1 VTR L. Control Mom.

1 RET Lens EXT

1 RET Control Mom.

1 RET2 Switch EXT2

1 RET2 Control Mom.

1 Handgrip Left Prod

LDK 3000 HD camera User’s Guide (v1.0) 69

Chapter 6 - Menu structure and contents

6.1.7 Files menu structure

6.1.8 Security menu structure

2 FileSelect

2Store exec

1 FileSelect

1Recall exec

1 FileSelect

2 Store Scenefile >> 1 Store exec

1 Recall Scenefile >>

1 Store Oper.file >> 1 FileSelect

1 Recall Oper.file >> 1 Recall exec

2 Attributes >>

2 FileSelect ###

2 FileName ###

2 Attribute R/W

0 Store Cust.Scene exec

0 Installed Level Usr3 0 Cust. Scene attrib R

0 PIN code #### 0 Store Cust.Oper exec

0 Customer Files >>

0 Green button >> 0 Standard Fact

S Factory Defaults Exec 0 Fact. Filetype Std

0 Scene File Yes

0 Operator File No

70 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 6 - Menu structure and contents

6.1.9 Diagnostics menu structure

2 BS Connected No

2 C2IP Panels ###

2 Head temp C ###

2 Head temp F ###

2 Communication >> 2 Head fan Off

2 Cam. config ### 2 Head fan (V) n.n

2 Camera ID ### 2 Adaptor temp C ###

2 Camera Number 17 2 Adaptor temp F ###

2 Adaptor type Triax 2 Adaptor fan Off

2 Adaptor nr <nr> 2 Adaptor fan (V) n.n

2 Sensor Voltage none

2 Front Power OK 2 Board ###

2 Y Carrier OK 2 Board PID ###

2 Cam. 12NC ### 2 Board 12NC ###

S Cam. Version ### 2 Board Status ###

2 Cam. Status ### 2 BootSw Ver. ###

2 Cam. Temp >> 2 FPGA Ver. ###

2 PCB Status >> 2 Firmw 12NC ###

2 System Status >> 2 Firmw Status ###

S Firmw Version ###

2 Softw 12NC ###

2 Softw Status ###

S Softw Version ###

2System

HDLC

2Camera HDLC

2 Head HW HDLC

2 Adaptor HDLC

2 Basestation HDLC

LDK 3000 HD camera User’s Guide (v1.0) 71

Chapter 6 - Menu structure and contents

6.1.10 Service menu structure

3Test Signal Off

S Test Input DVP

3 Test Select SawT

3 Test signal >>

S Calibrations >> S 3200K Off

S 3200K Reset Fact

SBlack Calib Off

SStatus Unkn

S Cal. Temp (C) 55

S Act. Temp (C) 0

72 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 6 - Menu structure and contents

6.2 Menu contents

The user level (user 0, 1, 2, 3 or Service) in the Level column indicates the user level at which this item is visible in the menu; items with numbers higher than the user level that is set on the camera are not visible in the menu. For example, if user level 2 is set, items marked with a 3 are not visible. The Service level is the highest level.

• If an item is not relevant it is not visible in the menu.

• In the Values column, the default value of the item is shown in bold.

• The File column indicates that the value of this item is stored in the Scene, Operator or Lens file.

☞

Note

☞

Note

The items available in the camera menu depend on the version of the software loaded in your camera. The software version used to reproduce the menu items in this manual may differ from that of your camera.

6.2.1 Viewfinder menu

Viewfinder menu Values Description Level File

VF Monitoring Y, R, G, B, -G Selects type of signal to view in viewfinder. User 2 Oper

VF Detail User 0

VF Detail Off, On, Boost Turns detail for viewfinder signal on or off.

Set to Boost to add extra detail to the viewfinder signal.

User 0 Oper

Level 0..99 (50) Sets detail level for viewfinder signal. User 0 Oper

Focus Assist On, Off Adds a crawling effect in the focused areas

in the viewfinder to assist focussing.

User 0 Oper

Zebra User 0

Zebra On, Off Turns zebra indication on or off. Zebra is

a diagonal line pattern that indicates that the area affected has risen above a preset level of the full scale video exposure value. Not available when the 2-inch viewfinder is used (this viewfinder has a zebra button)

User 0 Oper

Zebra Mode Level, Band Selects zebra mode:

Level = zebra indication appears in areas are brighter than the set level; Band = zebra indication appears in a

2.5% band around the set level.

User 3 Oper

Zebra Level (%) 0..117 (90) Sets the exposure level at which zebra

pattern is shown. When level is higher than 100% the zebra indicates overexposed areas.

User 3 Oper

Zebra Contrast 0..99 (15) Sets the zebra indication contrast. User 3 Oper

Center Cross On, Off Turns the centre marker on or off. User 0 Oper

QoS bar On, Off Turns Quality of Service bar on or off (only

when a Wireless adaptor is installed).

User 0 -

LDK 3000 HD camera User’s Guide (v1.0) 73

Chapter 6 - Menu structure and contents

Focus ind. On, Off Turns the focus indicator in the viewfinder

on or off. This indicator shows the focus distance of the lens: 0 = close-up; 99 = infinity. Note: when the Focus indicator is turned on, the Iris indicator is turned off.

User 0 -

Iris ind. On, Off Turns the iris indicator in the viewfinder on

or off. This indicator shows the F - stop value of the iris opening of the lens. Note: when the Iris indicator is turned on, the Focus indicator is turned off.

User 0 -

Zoom ind. On, Off Turns the zoom indicator in the viewfinder

on or off (if supported by the lens). This indicator shows the zoom range of the lens: 0 = wide angle; 99 = tele.

User 0 -

Box downright Off, Fltr, QoS Selects information displayed at the bottom

right of the viewfinder: Off = no indicator is shown; Fltr = selected optical filter is shown; QoS = Quality of service bar is shown (only when a Wireless adaptor is installed).

User 0 Oper

Safe area On, Off Turns the safe area marker on or off. This

marks the screen area that represents 80% of the whole viewfinder picture.

User 0 Oper

Safe area type 16:9, 15:9, 14:9, 4:3 Selects the aspect ratio of the safe area

marker.

User 0 Oper

Marker On, Off Turns the cadre marker on or off. User 0 Oper

Marker type 15:9, 14:9, 4:3 Sets the aspect ratio of the cadre

marker.

User 0 Oper

Marker style Dot, Shad, Both Sets the style of the cadre marker:

Dot = dotted lines; Shad = shaded areas; Both = dotted lines and shaded areas.

User 0 Oper

Marker shading Shad, Black Sets shading style for the cadre marker

(when cadre marker style is set to Shad or Both): Shading = transparent area; Black = black area.

User 0 Oper

Ind. white 0..99 (70) Sets the white level of the characters:

0 = low intensity; 99 = high intensity.

User 2 Oper

Ind. black 0..99 (30) Sets the black (shading) level of the

characters: 0 = black; 99 = no shading.

User 2 Oper

Display On, Time Selects the menu display to be permanently

on or to disappear after a set time.

User 2 Oper

Menu time 3..30 (10) Sets the length of time the menu is

displayed when the OSD mode is set to Time.

User 3 Oper

Rotary Speed 1..10 (5) Adjust the sensitivity of the rotary control

wheel.

User 3 Oper

Notch EXT On, Off Turns external notch filter on or off. User 0 -

Viewfinder menu Val ues Description Level File

74 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 6 - Menu structure and contents

6.2.2 Lens menu

EXT AspectRatio 16:9, 4:3 Aspect ratio converter for external video

displayed in the viewfinder.

User 0 Oper

Viewfinder menu Values Description Level File

Lens menu Value( s) Description Level File

Lens type Std, WA Select a standard (Std) or wide angle (WA)

type lens. This setting affects the white shading compensation for the lens.

User 0 Oper

AutoIris On, Off Turns auto iris on or off. User 0 -

Peak/Average 0..99 (64) Sets the balance between peak and

average video level.

User 3 Scene

AutoIris SetPoint 0..99 (35) Sets auto iris exposure level. User 3 Scene

Mom. Iris SetPoint 0..99 (50) Sets momentary iris setpoint level. User 3 -

RE Iris Comp On, Off Turns the iris compensation on or off. Use

this setting to compensate for iris level when a range extender is used.

User 0 -

Auto Iris Const

AutoIris Gain 5..10 (5) Sets auto iris response speed: Lower values

give slower speeds.

User 3 -

Ext.Iris On, Off Turns Extended Auto Iris on of off. User 3

Ext.Iris Const

Gain Speed 1..20 (5) Sets the gain speed for extended auto iris. Service

Min. Iris F5.6, F8.0, F11.0, F16.0 Sets the minimum iris value for extended

auto iris.

User 3 -

Max. Iris F1.4, F2.0, F2.8, F4.0,

F5.6

Sets the maximum iris value for extended auto iris.

User 3 -

Min. Gain (dB) -6..0 (-6) Sets the minimum gain value for extended

auto iris.

User 3 -

Max. Gain (dB) 0..15 (15) Sets the maximum gain value for extended

auto iris.

User 3 -

Zoom/Focus Loc, Rem Selects local or remote control of the Zoom/

Focus function. (Only when a SuperXpander is installed)

User 0 -

Lens I/F Analog, Digital Select an analog or digital lens interface. User 0 -

Lens I/F State OK, NotOK Displays the status of the lens interface

(when a digital lens interface is used).

User 0 -

LDK 3000 HD camera User’s Guide (v1.0) 75

Chapter 6 - Menu structure and contents

6.2.3 Video menu

Video menu Val ues Description Level File

Colour temp

Colour filter 0..99 (50) This electronic colour filter varies the color

balance to obtain warmer or colder effects for the auto-white memory positions. It resets to 50 when the next automatic white balance process is carried out.

User 2 -

Col. Temp Level 2500..20000 (3200) Shows current variable colour temperature. User 2 Scene

Detail

Detail On, Off Turns detail enhancement on or off. Service Scene

Level 0..99 (30) Sets detail enhancement level. User 2 Scene

Source Select R+G, R, G, Y Selects the source to be used for detail

generation.

User 3 Scene

Vert Detail 0..99 (50) Sets the level of the vertical component in

the detail signal.

User 3 Scene

Coarse/Fine 0..99 (5) Sets the coarseness of the detail

enhancement (0 = very fine).

User 3 Scene

Level 0..99 (30) Sets detail enhancement level. Service Scene

Level dep 0..99 (40) Sets the level above dark where the detail

function starts to work.

Service Scene

Noise Slicer 0..99 (10) Sets the level of the noise slicer. Service Scene

Soft Detail

Soft Detail On, Off Turns soft detail on or off. This function

reduces the amount of detail added for large transitions.

User 2 Scene

Level 0..99 (70) Sets the upper limit level of detail

enhancement for soft detail.

User 2 Scene

Knee Detail 1, 2, 3, 4, Off Selects a level of detail enhancement for

the compressed signal above the knee.

User 3 Scene

Skin

Skin Off, 1, 2, 1+2 Turns skin detail off or on and selects the

memory position. Use skin detail to change the detail level within a selected color range.

User 2 Scene

Auto Skin On, Off Turns auto skin detail mode on or off. User 2 -

View On, Off Turn on to view the selected skin detail

area.

User 2 Oper

Skin1 Level 0..99 (50) Sets skin gate 1 detail level User 2 Scene

Skin2 Level 0..99 (50) Sets skin gate 2 detail level User 2 Scene

Width1 Red 0..99 (50) Sets width level for skin gate 1 (red) User 3 Scene

Width1 Blue 0..99 (50) Sets width level for skin gate 1 (blue) User 3 Scene

76 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 6 - Menu structure and contents

Color1 Red 0..99 (50) Sets color level for skin gate 1 (red) User 3 Scene

Color1 Blue 0..99 (50) Sets color level for skin gate 1 (blue) User 3 Scene

Width2 Red 0..99 (50) Sets width level for skin gate 2 (red) User 3 Scene

Width2 Blue 0..99 (50) Sets width level for skin gate 2 (blue) User 3 Scene

Color2 Red 0..99 (50) Sets color level for skin gate 2 (red) User 3 Scene

Color2 Blue 0..99 (50) Sets color level for skin gate 2 (blue) User 3 Scene

Flare

Flare On, Off Turns flare compensation on or off. Service Scene

Red 0..99 (10) Sets flare compensation level (red). Service Scene

Green 0..99 (15) Sets flare compensation level (green). Service Scene

Blue 0..99 (25) Sets flare compensation level (blue). Service Scene

Black

Blackstretch 0..99 (50) Sets black stretch level. User 3 Scene

Master 0..99 (50) Sets black level (master). User 2 Scene

Red 0..99 (50) Sets black level (red). User 3 Scene

Green 0..99 (50) Sets black level (green). User 3 Scene

Blue 0..99 (50) Sets black level (blue). User 3 Scene

Master 0..99 (50) Sets black level (master). User 3 Scene

Gain

Red 0..99 (50) Sets gain level (red). User 2 Scene

Green 0..99 (50) Sets gain level (gree). User 2 Scene

Blue 0..99 (50) Sets gain level (blue). User 2 Scene

Range 3dB, 6dB Selects gain control step size. User 2 Scene

Mastergain (dB) -6.00..12.00 Sets video gain in dB (in steps of 0.1 dB) User 2 Scene

Knee

Knee Off, Var, Auto Sets knee mode:

Auto = automatic; Var = variable (manual); Off = no knee function.

User 2 Scene

Knee Type Y, NAM Selects signal on which knee acts:

Y = luminance; NAM = (non-additive mix) level of highest RGB component.

User 3 Scene

Slope M 0..99 (50) Sets the slope of the knee gamma curve

(when knee mode = Var).

User 3 Scene

Point M 0..99 (60) Sets the point where the knee gamma

curve begins (when knee mode = Var).

User 3 Scene

Knee Limit 0..99 (99) Selects the level above which the knee

limiter is active (when Knee mode is Var)

Service Scene

Video menu Values Description Level File

LDK 3000 HD camera User’s Guide (v1.0) 77

Chapter 6 - Menu structure and contents

Auto Point 0..30 (30) Sets the point where the knee gamma

curve begins (when knee mode is Auto).

Service Scene

Auto Ref 0..99 (30) Sets the slope of the knee gamma curve

(when knee mode is Auto).

Service Scene

Gamma

Curve BBC04, BBC05, BBC06,

ARD, 6xARD, RAI, CCIR, 709-J, 709-S

Selects a standard curve for gamma correction.

User 3 Scene

Preset 1, 2, Lin, Var Selects gamma preset:

1 = Nominal curve; 2 = Low curve; Lin = Linearised curve; Var= variable (manual) curve.

User 2 Scene

Master 0..99 (76) Sets gamma level (master). User 3 Scene

Red 0..99 (76) Sets gamma level (red). User 3 Scene

Green 0..99 (76) Sets gamma level (green). User 3 Scene

Blue 0..99 (76) Sets gamma level (blue). User 3 Scene

Matrix

Matrix EBU, Skin, B/W, RAI,

BBC, 1:1, CoolFL, Var1, Var2, XG L

Selects a preset for color matrix: EBU = color matrix according to EBU Skin = EBU optimised for skin tone reproduction; B/W: monochrome picture; RAI: RAI TV optimisation; BBC = BBC optimisation; 1:1 = matrix is off; CoolFL= optimised for mixed fluorescent and incandescent lighting. Var1 = variable setting 1; Var2 = variable setting 2; XGL = Asian and Sony reproduction (advised to combine with M/G setting)

User 3 Scene

Saturation 0..99 (50) Sets saturation level for color matrix. User 2 Scene

R>G 0..99 (50) Sets the red to green ratio. Service Scene

G>R 0..99 (50) Sets the green to red ratio. Service Scene

R>B 0..99 (50) Sets the red to blue ratio. Service Scene

B>R 0..99 (50) Sets the blue to red ratio. Service Scene

G>B 0..99 (50) Sets the green to blue ratio. Service Scene

B>G 0..99 (50) Sets the blue to green ratio. Service Scene

Mat/Gam G/M, M/G Selects the order of the matrix and gamma

functions: G/M = first gamma correction, then matrix; M/G = first matrix, then gamma correction (advised to use when matching to cameras of other manufacturers)

Service Scene

White limiter

White Limit Off, On Turns white limiter on or off. Use to limit

highlight levels in the video signal.

Service Scene

Video menu Val ues Description Level File

78 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 6 - Menu structure and contents

Master 0..99 (80) Sets the white limiter level. This is the

luminance level at which white limiting occurs.

Service Scene

Shading

White shading Off, On Turns the white shading compensation on

or off.

Service -

HSawRed 0..99 (50) Sets the horizontal sawtooth value (red). Service -

HSawGreen 0..99 (50) Sets the horizontal sawtooth value (green). Service -

HSawBlue 0..99 (50) Sets the horizontal sawtooth value (blue). Service -

VSawRed 0..99 (50) Sets the vertical sawtooth value (red). Service -

VSawGreen 0..99 (50) Sets the vertical sawtooth value (green). Service -

VSawBlue 0..99 (50) Sets the vertical sawtooth value (blue). Service -

HParRed 0..99 (0) Sets the horizontal parameter (red). Service -

HParGreen 0..99 (0) Sets the horizontal parameter (green). Service -

HParBlue 0..99 (0) Sets the horizontal parameter (blue). Service -

VParRed 0..99 (0) Sets the vertical parameter (red). Service -

VParGreen 0..99 (0) Sets the vertical parameter (green). Service -

VParBlue 0..99 (0) Sets the vertical parameter (blue). Service -

Freeze Off, On Turns image freeze on or off. Use to assist

off line setup and configuration of the camera.

User 2 -

Noise reduction Off, 1, 2, 3, 4 Turns noise reduction off or on and selects

the noise reduction level: Off: no reduction; 1: low reduction; 2: medium reduction; 3: strong reduction; 4: maximum reduction.

User 2 -

Video menu Values Description Level File

LDK 3000 HD camera User’s Guide (v1.0) 79

Chapter 6 - Menu structure and contents

6.2.4 Install menu

Install Valu es Description Level File

Video Mode <available modes> Selects a video acquisition mode (available

modes depend on your camera version).

User 3 -

Disable Camera Off, On Turn disable camera function on or off.

When on, the camera’s user panel is locked.

User 0 -

Intercom

SideTone Level 0..99 (50) Sets the sidetone level (audio feedback to

the headphone) in the camera operator’s headphone.

User 3 Oper

Cam Mic Off, Switch, Track, Prod Selects the camera operator’s intercom mic

routing: Off = no routing; Switch = intercom route depends on switch at the rear of the adaptor; Track = route signal to tracker channel; Prod = route signal to production channel.

User 1 Oper

Cam Mic Gain 0dB, 40dB Selects gain of camera operator’s intercom

mic.

User 1 Oper

Cam Mic Power Off, On Turns +12V bias Tee power to camera

operator’s intercom mic on or off.

User 1 Oper

Prod volume Front, Rear Selects volume control used to adjust

Production channel volume.

User 1 Oper

Cam P ROD O ff, Left , Righ t, Both Selects the camera operator’s ear muff(s)

for the production channel.

User 1 Oper

Cam ENG Off, Le ft, Right , Both Selects the camera operator’s ear muff(s)

for the engineering channel.

User 1 Oper

Cam P ROG O ff, Left , Righ t, Both Selects the camera operator’s ear muff(s)

for the program channel.

User 1 Oper

Audio

Audio Gain Mode Loc, Ext Selects audio gain mode:

Loc: audio gain levels is controlled by the camera (local); Ext: audio gain level is controlled by the base station (external).

User 1 Oper

Audio 1 Level -22dB, -28dB, -34dB,

-40dB, -46dB, -52dB,

-58dB, -64dB

Sets input gain level for audio channel 1 (when audio gain mode is set to local).

User 1 Oper

Audio 1 HPF Off, On Turns high-pass filter for audio channel 1 on

or off. Use to reduce 50 Hz and 60 Hz hum or low frequency noise.

User 1 Oper

Audio 2 Level -22dB, -28dB, -34dB,

-40dB, -46dB, -52dB,

-58dB, -64dB

Sets input gain level for audio channel 2 (when audio gain mode is set to local).

User 1 Oper

Audio 2 HPF Off, On Turns high-pass filter for audio channel 2 on

or off. Use to reduce 50 Hz and 60 Hz hum or low frequency noise.

User 1 Oper

Tally

80 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 6 - Menu structure and contents

Tally Lock Off, On Turns tally lock function on or off. When tally

lock is on, some camera controls are locked when camera is On Air.

User 3 -

Exposure

Lighting -10..+10 (0) Sets the exposure correction to fine-adjust

for ambient lighting frequency when exposure mode is 50 Hz or 60 Hz.

User 1 Scene

Clean Scan

Cl.Scan Mode Extended, Normal Selects clean scan mode:

Normal (VAR2 on OCP/MCP) = shutter is running (no smear); Extended (VAR1 on OCP/MCP) = shutter is not running (more accurate clean scan but possible vertical smear).

User 1 -

Val ue 50.8 .. 2000 Hz (50 Hz) /

61.0 .. 2000 Hz (60 Hz) or

19.6 .. 0.5 ms (50 Hz) /

16.3 .. 0.5 ms (60 Hz)

Select clean scan frequency. User 1 -

Units Hz, mSec Selects display units for clean scan. User 1 -

Gain Preset

Gain - (dB) -6dB, -3dB Selects gain value for - preset. User 2 Oper

Gain + (dB) 3dB, 6dB, 9dB Selects gain value for + preset. User 2 Oper

Gain ++ (dB) 6dB, 9dB, 12dB Selects gain value for ++ preset. User 2 Oper

AutoWhite

Awb Speed 0..99 (4) Sets the speed for the auto white balance

procedure.

Service -

Awb Gain 0..99 (10) Sets the gain value for the auto white

balance procedure.

Service -

PCI id 0..8 (1) Selects ID for external PC operation. Service -

MainTextInsert Auto, On, Off Selects VF text insert mode:

Auto = inserts VF text at the Base Station video output when activated from the OCP/ MCP; On = always inserts VF text; Off = never inserts VF text.

User 3 -

HD-SDI(B) Video Main, VF Selects the output signal on the HD-SDI(B)/

VF connector: Main: the main camera signal is output VF: the viewfinder signal (with markers, indicators and text overlay) is output.

User 3 -

Buttons

Filter Pos4 ND1/64, Star 4P Selects the optical filter to be selected

when filter wheel is set to position 4.

User 0 -

SW1 Call, EXT1, EXT2 Assigns a function to Switch 1:

Call = activate call signal; EXT1 = switch VF to external signal 1; EXT2 = switch VF to external signal 2.

User 0 Oper

Install Valu es Description Level File

LDK 3000 HD camera User’s Guide (v1.0) 81

Chapter 6 - Menu structure and contents

SW1 Control Mom., Alt. Selects behaviour of Switch 1:

momentary or alternating..

User 0 Oper

SW2 EIris, FocAst, EXT1, EXT2 Assigns a function to Switch 2:

EIris = Turns extended auto iris on or off; FocAst = Turns focus assist on or off; EXT1 = switch VF to external signal 1; EXT2 = switch VF to external signal 2.

User 0 Oper

SW2 Control Mom., Alt. Selects behaviour of Switch 2

momentary or alternating..

User 0 Oper

VTR Start PROD, ENG , Zoom,

EXT1, EXT2

Assigns a function to VTR Start switch: PROD = Production intercom; ENG = Engineering intercom; Zoom = Viewfinder zoom function; EXT1 = switch VF to external signal 1; EXT2 = switch VF to external signal 2.

User 1 Oper

VTR St. Control Mom., Alt. Selects behaviour of VTR Start switch:

momentary or alternating.

User 1 Oper

VTR Lens PROD, ENG , Zoom,

EXT1, EXT2

Assigns a function to VTR Lens switch: PROD = Production intercom; ENG = Engineering intercom; Zoom = Viewfinder zoom function; EXT1 = switch VF to external signal 1; EXT2 = switch VF to external signal 2.

User 1 Oper

VTR L. Control Mom., Alt. Selects behaviour of VTR Lens switch:

momentary or alternating.

User 1 Oper

RET Lens Zoom, EXT, FocAst Assigns a function to RET Lens switch:

Zoom = Viewfinder zoom function; EXT = switch VF to external signal (select EXT1 or 2 with the switch at the rear of the camera); FocAst = Focus assist function.

User 1 Oper

RET Control Mom, Alt. Selects behaviour of RET Lens switch:

momentary or alternating.

User 1 Oper

RET2 Switch Zoom, EXT Assigns a function to RET Lens switch:

Zoom = Viewfinder zoom function; EXT = switch VF to external signal (select EXT1 or 2 with the switch at the rear of the camera);

User 1 Oper

RET2 Control Mom., Alt. Selects behaviour of RET2 Lens switch:

momentary or alternating..

User 1 Oper

2” VF Option None, Disab Selects behaviour of the Option switch on

the control panel of the 2-inch viewfinder.

User 1 Oper

Install Valu es Description Level File

82 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 6 - Menu structure and contents

6.2.5 Files menu

Files menu Values Description Level File

Store scenefile

FileSelect SCam1, SCam2, SCam3,

SCam4

Selects a camera-stored scene file to be restored.

User 2 -

Store exec Stores the current scene settings in the

selected scenefile.

User 2 -

Recall scenefile

FileSelect Standard, SCam1,

SCam2, SCam3, SCam4

Selects a standard or camera-stored scene file to recall.

User 1 -

Recall exec Recalls the selected scene file to the

camera. Overwrites current scene settings.

User 1 -

Store oper.file

FileSelect OCam1, OCam2, OCam3,

OCam4

Selects a camera-stored operator file to be restored.

User 1 -

Store exec Stores the current scene settings in the

selected operator file.

User 1 -

Recall oper.file

FileSelect Standard, OCam1,

OCam2, OCam3, OCam4

Selects a standard or card-stored operator file to recall.

User 1 -

Recall exec Recalls the selected operator file to the

camera. Overwrites current operator settings.

User 1 -

LDK 3000 HD camera User’s Guide (v1.0) 83

Chapter 6 - Menu structure and contents

6.2.6 Security menu

Security menu Val ues Description Level File

Installed level User 0, User 1, User 2,

User 3

Selects the user level. User 0 -

PIN Code **** (0000) Enter four digit PIN code to enable access

to the S level.

User 0 -

Customer files

Store Cust. Scene exec Stores the current scene settings to the

customer scene file.

User 0 -

Cust. Scene attrib. R/W, R Selects the attribute for the customer scene

file: R/W = Read and write; R = Read only.

User 0 -

Store Cust.Oper exec Stores the current operator settings to the

customer operator file.

User 0 -

Green button

Standard Fact, Cust Selects file to be recalled when the green

button is pressed: Fact = factory defaults; Cust = Customer file; Note: this setting is valid for both the Scene file and the Operator file (when selected).

User 0 -

Scene file Yes , No Determines if the scene file should be

recalled when the Green button is pressed.

User 0 -

Operator file Ye s , No Determines if the operator file should be

recalled when the Green button is pressed.

User 0 -

Factory Defaults exec Resets the camera to the factory defaults

for all functions.

Service -

84 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 6 - Menu structure and contents

6.2.7 Diagnostics menu

Diagnostics menu Value(s ) Description Level File

Communication

BS Connected Ye s , No Displays base station connection status. User 2 -

C2IP Panels 0..99 Displays amount of C2IP control panels

connected to the camera.

User 2 -

Cam. Config INVALID, 3000 Displays camera system configuration. User 2 -

Camera ID xxxxxxx Displays camera indentification code. User 2 -

Camera Number 0..99 Displays logical camera number in the

network.

User 2 -

Adaptor type Tr ia x Displays type of the attached camera

adaptor.

User 2 -

Adaptor Number LDK5630 Displays adaptor type number User 2 -

Front Power OK, NotOK Displays front (imager) power status. User 2 -

Y Carrier OK, NotOK Displays Y carrier status. User 2 -

Cam. 12NC #### Displays last 4 digits of the camera 12NC. User 2 -

Cam. Version <version> Displays camera version. Service -

Cam. Status 0..99 Displays camera status. User 2 -

Cam Temp

Head temp C -55..128 Displays camera head temperature in C. User 2 -

Head temp F -67..262 Displays camera head temperature in F. User 2 -

Adaptor temp C -55..128 Displays adaptor temperature in C. User 2 -

Adaptor temp F -67..262 Displays adaptor temperature in F. User 2 -

Adaptor fan (V) n.n Displays adaptor fan voltage. User 2 -

PCB Status

Board DVP, SyncM, PPG, PPGsb,

SeDa, LSP, RCB, PrePr, FSP, DaCam, FrDri, DacOu, FwDri, Front

Selects a board to display detailed information.

User 2

Board PID <id> Displays Product Identification Code of the

selected board.

User 2

Board 12NC #### Displays the last 4 digits of the 12NC of the

selected board.

User 2

Board Status 0..99 Displays the hardware status of the

selected board.

User 2

BootSw Ver. 0..99 Displays the boot software version of the

selected board.

User 2

FPGA Ver. 0..99 Displays the FPGA version of the selected

board.

User 2

Firmw 12NC #### Displays the last 4 digits of the firmware

12NC of the selected board.

User 2

Firmw Status 0..99 Displays the firmware status of the selected

board.

User 2

LDK 3000 HD camera User’s Guide (v1.0) 85

Chapter 6 - Menu structure and contents

Firmw Version 0..99 Displays the firmware version of the

selected board.

Service

Softw 12NC #### Displays the last 4 digits of the 12NC of the

selected board.

User 2

Softw Status 0..99 Displays the software status of the selected

board.

User 2

Softw Version 0..99 Displays the software version of the

selected board.

Service

System Status

System Unknown, HD-LC, Illegal Displays the system configuration. User 2

Camera Unknown, HD-LC, Illegal Displays the camera configuration. User 2

Head HW Unknown, HD-LC, Illegal Displays the camera head hardware

configuration.

User 2

Adaptor Unknown, HD-LC, Illegal Displays the adaptor configuration. User 2

Basestation Unknown, HD-LC, Illegal Displays the base station configuration. User 2

Diagnostics menu Va lue(s) Description Level File

86 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 6 - Menu structure and contents

6.2.8 Service menu

Service menu Value (s) Description Level File

Test Signal

Tes t S i g n al Off, On Turns video test signal on or off. User 3 -

Test Input DacO, DVP Selects test input point. Service -

Tes t S e l e ct SawT, Step Selects test waveform type at DVP. User 3 -

Tes t S e l e ct SawT, Bars Selects test waveform type at DAC O. Service -

Calibrations

3200K

Off, On Runs 3200K calibration procedure. Service -

3200K Reset

Fact, Cust Selects reset mode for 3200K calibration. Service -

Black Calib

Off, Running Starts black calibration process. Service

Status

Unknown, OK, Error, Needed, Warming up, Busy, Ready, Failed, Aborted

Displays status during and after black calibration process.

Service

Cal. Temp (C)

55, <actual> Sets the calibration temperature. Service

Act. Temp (C)

-128 .. 127 (0) Displays actual temperature during black

calibration process.

Service

LDK 3000 HD camera User’s Guide (v1.0) 87

Chapter 6 - Menu structure and contents

88 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 6 - Menu structure and contents

LDK 3000 HD camera User’s Guide (v1.0) 89

Chapter 7 - Connectors

Chapter 7

Connectors

7. 1 Camera head

7. 1 . 1 Connectors on the LDK 3000 camera head

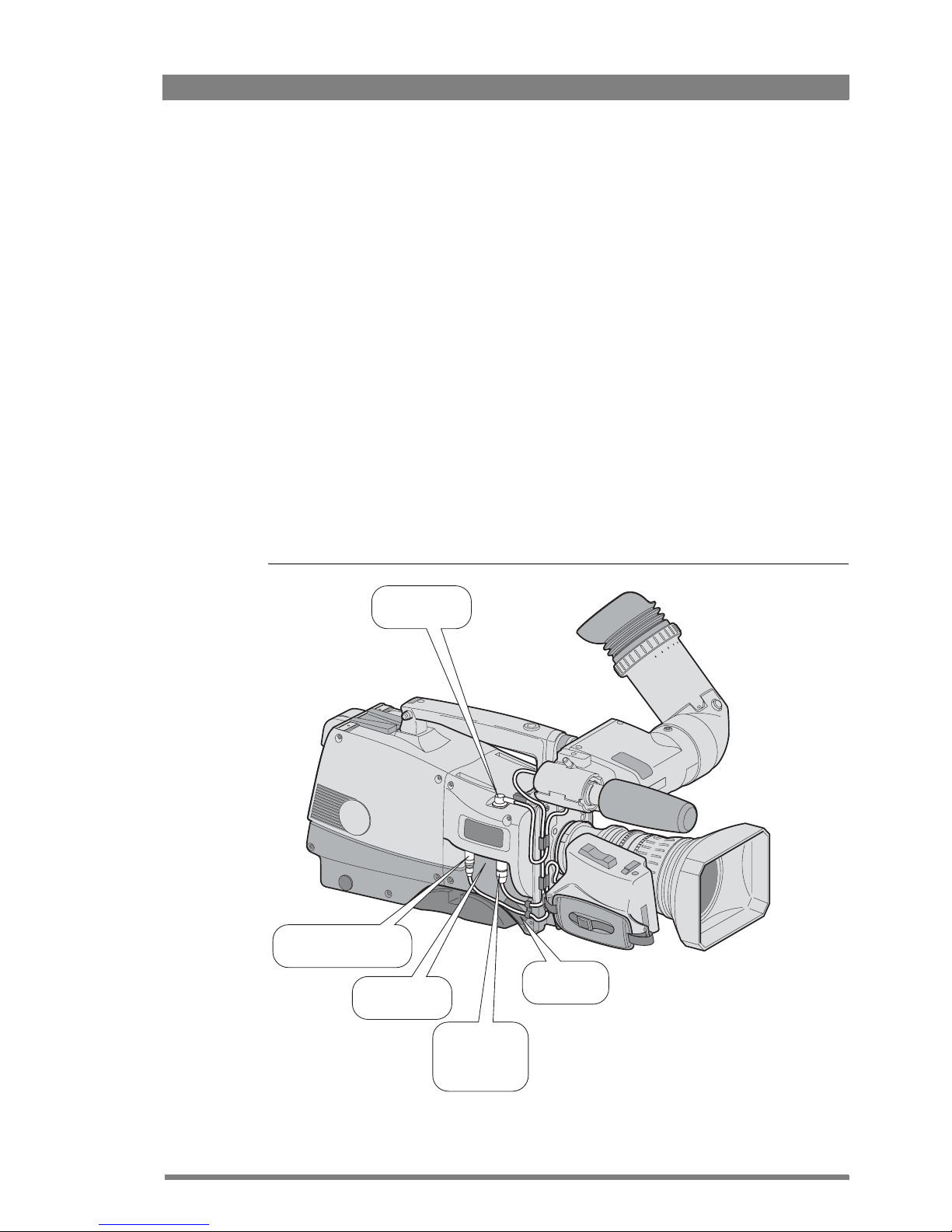

Figure 7-1. Camera connector location

Viewfinder

connector

Lens interface

connector

VF/Mon

connector

RS232

connector

Front

microphone

connector

90 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 7 - Connectors

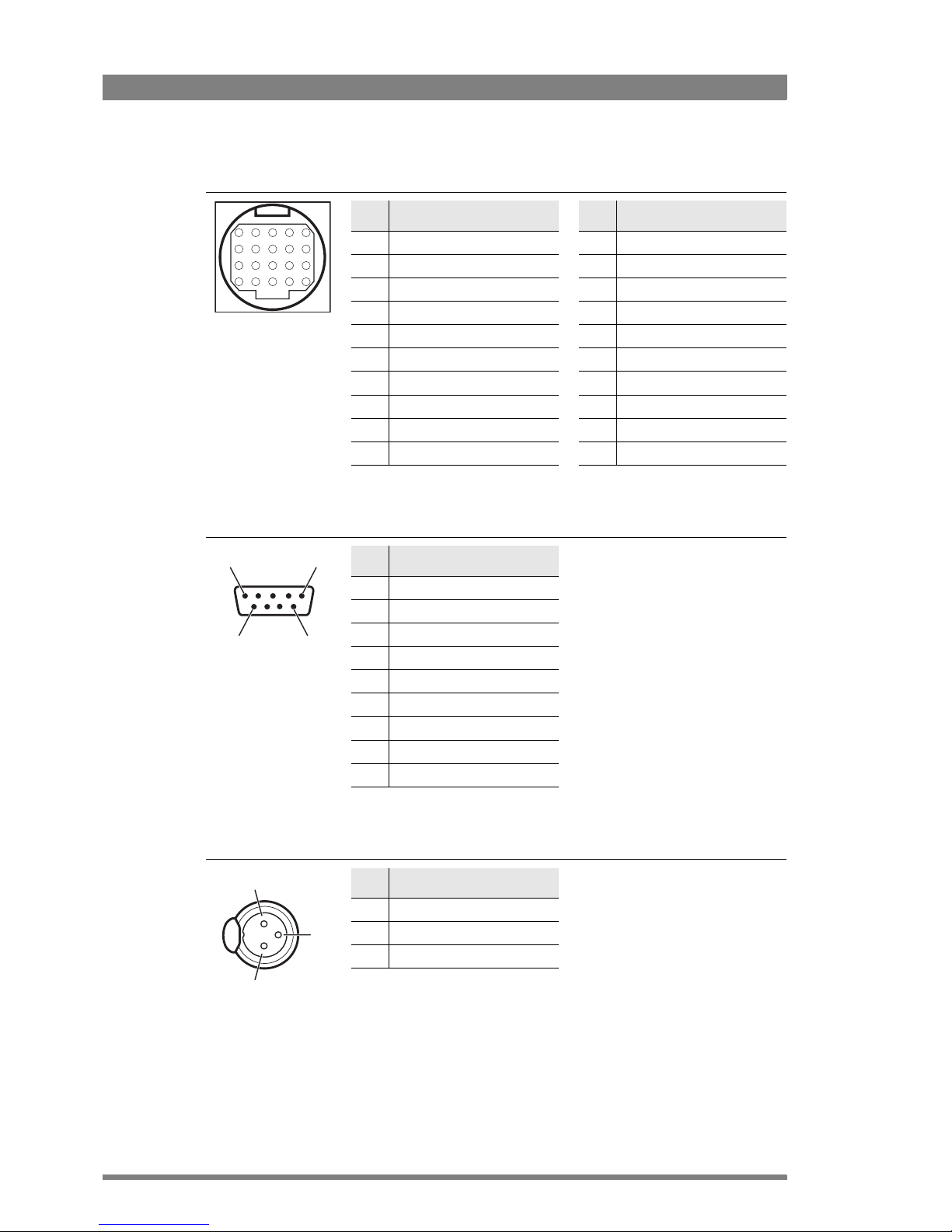

VF -connector

RS-232 connector

Front microphone connector

Pin Description

1 -80 VDC

2 Not connected

3GND

4INTN-D

5 VF Ext video

6 Not connected

7 VF video return

8SDA-D

9SCL -D

10 VF Ext video return

20-pin female VF-

connector

Pin Description

11 GND

12 VF video

13 Pb VF return

14 Pr VF re turn

15 GND

16 + Batt

17 + B att

18 Pb VF

19 +Pr V F

20 Shield

3412 5

8967 10

13 1411 12 15

18 1916 17 20

Pin Description

1 Not connected

2RxD

3TxD

4DTR

5DGND

6DSR

7RTS

8CTS

9+12 VDC

SubD 9-pin male

connector

6 9

Pin Description

1 Audio shield

2 Audio In (+)

3 Audio Return (-)

XLR 3-pin female

connector

Microphone impedance >200 Ω

Sensitivity range: -70 to -28 dBm

Signal at pin 2 of audio input is in phase with signal at pin 2 of audio output.

LDK 3000 HD camera User’s Guide (v1.0) 91

Chapter 7 - Connectors

VF/Mon connector

Lens interface connector

Pin Description

1TDMS Data 2+

2TDMS Data 2 Shield

3TDMS Data 2 -

4TDMS Data 1+

5TDMS Data 1 Shield

6TDMS Data 1-

7TDMS Data 0+

8 TDMS Data 0 shield

9TDMS Data 0-

10 TDMS Clock+

19-pin HDMI-

connector

Pin Description

11 TDMS Clock shield

12 TDMS clock -

13 C EC

14 Not connected

15 S CL

16 S DA

17 GND

18 +5 VDC power

19 Hot Plug Detect

119

18 2

Pin Description

1 Ext. Video On/Off

2 VTR Trigger Switch

3- Batt

4 Momentary Iris

5 IrisControl

6+ Batt

Pin Description

7Iris Follow

8 Lens Servo

9 Range Extender

10 Zoom follow

11 F o c u s f o l l ow * )

12 Not connected

*) this is not a default function of all types of lenses.

12-pin Hirose male

connector

1112

92 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 7 - Connectors

7. 2 Camera adaptors

7. 2 . 1 Connectors on the LDK 5630 TriaxHD adaptor

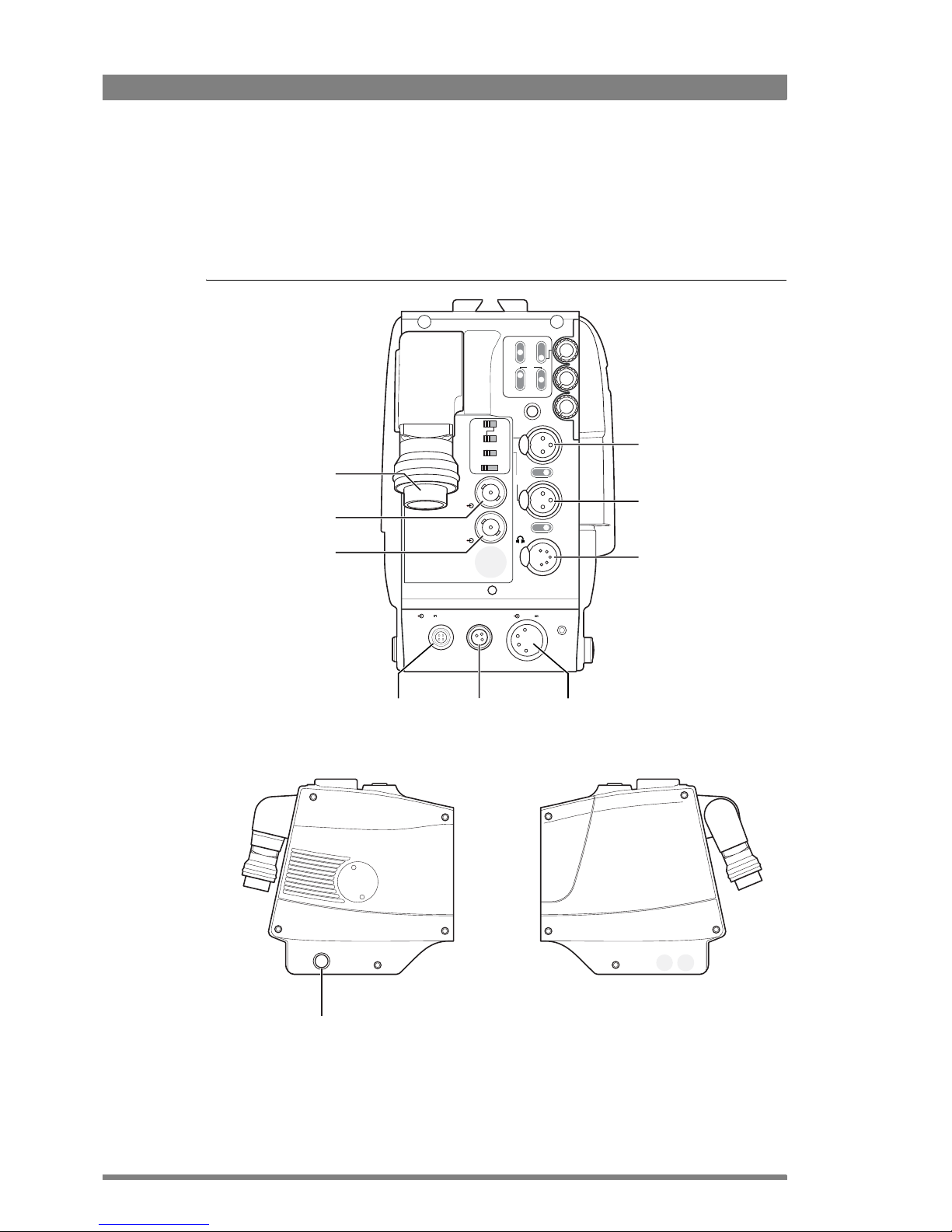

Figure 7-2. Adaptor connector location

HD-SDI (B)/VF

+48V

Mic.

Line

Front

Rear

Mic 2

Call

Mic 1

Eng

Off

Prod

Front

Rear

Ext1

Ext2

Loc

Mix

Ext

Eng Progr Prod

Power on

Script Light

Breaker

12V 1.5A max.

11-17V 5A

Ext. SD

Ext. HD

Microphone 1 connector

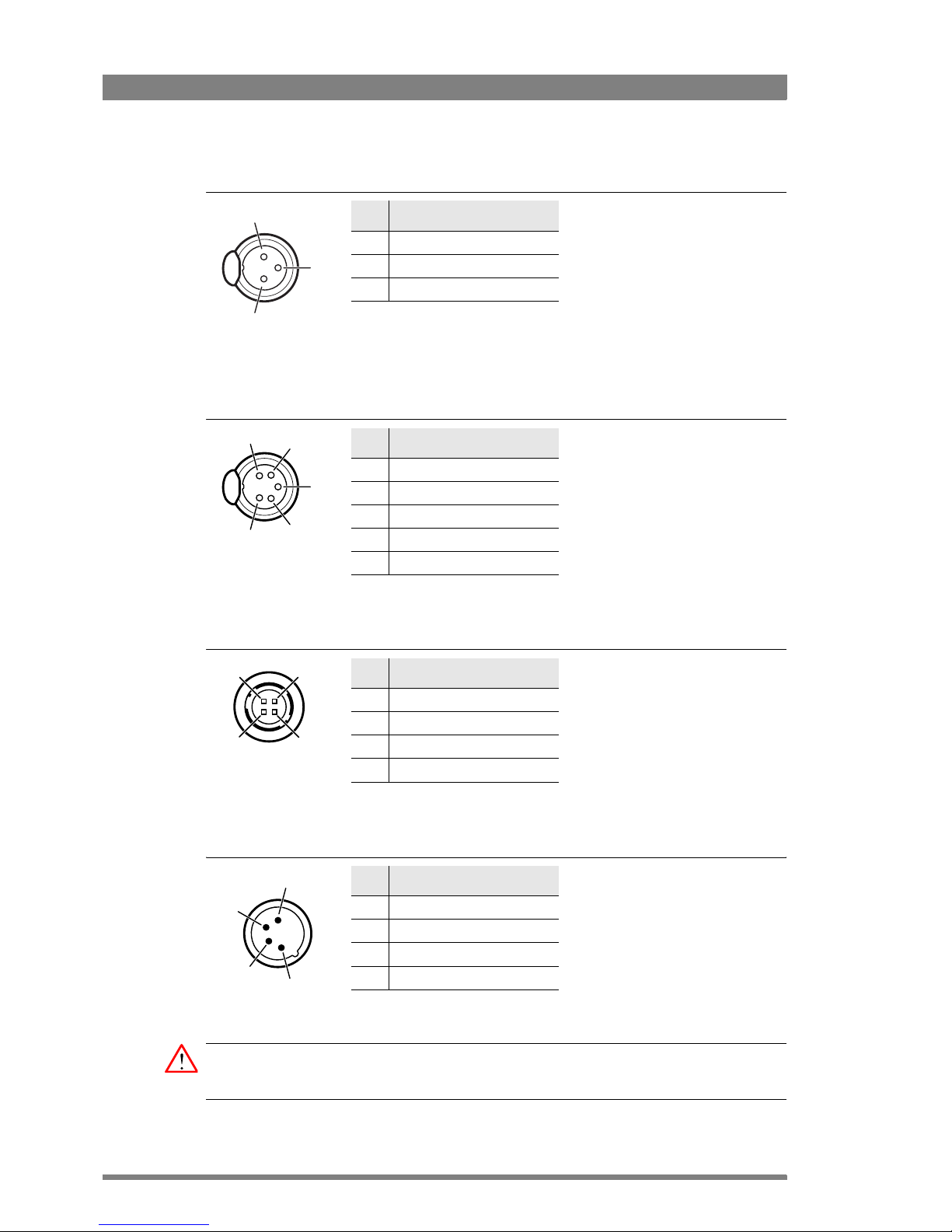

Microphone 2 connector

Intercom headset connector

Triax connector

VF/External video

output connector

HD-SDI (B) /

VF connector

Power output

connector

Script light

connector

Power input

connector

Reference in / Teleprompter out

connector

LDK 3000 HD camera User’s Guide (v1.0) 93

Chapter 7 - Connectors

Triax connector

VF connector

HD-SDI (B) / VF connector

Microphone 1 connector

Pin Description

1 Centre pin: Power and signals

2 Inner shield: Return

3 Outer shield: housing

Note: Various types of Triax connector are available.

This socket provides an analog (1.0 Vpp) output viewfinder signal or an external video signal from the Base Station.

A switch selects either the VF signal (Yonly), an SD external signal (CVBS) or a scaled HD external signal (Y-only).

BNC connector

This socket provides the main HD-SDI video signal from the camera or the HDSDI viewfinder signal.

BNC connector

Pin Description

1 Audio shield

2 Audio In (+)

3 Audio Return (-)

XLR 3-pin female

Microphone impedance > 200 Ω Phantom power +48V switchable Sensitivity range microphone: -64 to -22 dBu

Sensitivity range line: +10 to +42 dBu

Signal at pin 2 of audio input is in phase with signal at pin 2 of audio output.

94 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 7 - Connectors

Microphone 2 connector

Intercom headset connector

Power output connector

Power input connector

Caution

The input voltage must not exceed +17 VDC.

Pin Description

1 Audio shield

2 Audio In (+)

3 Audio Return (-)

XLR 3-pin female

Microphone impedance > 200 Ω Phantom power +48 V switchable Sensitivity range microphone: -64 to 22 dBu

Sensitivity range line: +10 to +42 dBu

Signal at pin 2 of audio input is in phase with signal at pin 2 of audio output.

Pin Description

1 Microphone return

2 Microphone

3 Telephone return

4 Telephone left

5 Telephone right

XLR 5-pin female

Microphone level: -64 dBu / -24 dBu switchable microphone impedance: > 600 Ω

Output level: +6 dBu nominal Output impedance: < 50 Ω

Shield of cable directly to the connector housing.

The socket provides access to an internal tally switch. When the camera is On Air, the contact of the internal relay is closed (contact between pen 1 and pen 2).

Hirose 4-pin female

Pin Description

1GND

2On Air

3 Not connected

4 +12 VDC (max.18 W)

This socket accepts a DC voltage of 15 VDC nominal.

XLR 4-pin male

Pin Description

1GND

2 GND (bridged to pin 1)

3 11.5 - 17 VDC (bridged to pin 4)

4 11.5 - 17 VDC

LDK 3000 HD camera User’s Guide (v1.0) 95

Chapter 7 - Connectors

Script light connector

Reference input / teleprompter output connector

Fischer 3-pin female

Pin Description

1 +12 VDC (max. 3 W)

2GND

3 Shield

Reference input (Stand alone mode)

This connector is used to genlock the camera to a 0.6 Vpp HD tri-level reference input signal.

Teleprompter output (Base Station connected)

This socket supplies the 1.0 Vpp teleprompter video signal coming from the Base Station.

BNC connector

96 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 7 - Connectors

LDK 3000 HD camera User’s Guide (v1.0) 97

Chapter 8 - Specifications

Chapter 8

Specifications

8.1 Specifications for LDK 3000 camerahead

8.1.1 Technical

Item Val ue

Power requirements supplied via camera adaptor or DC power supply

Power consumption 40 W (LDK 3000 camera head + LDK 5630 TriaxHD adaptor +

LDK 5302/60 2-inch viewfinder)

Operating temperature -20 to +45° C (-4 to +113° F)

Storage temperature -20 to +60° C (-4 to +140° F)

Dimensions (H x W x L) 241 x 164 x 242 mm (9.5 x 6.5 x 9.5 in)

Weight (approx.) 5.3 kg (11.1 lbs) incl. LDK 5630 TriaxHD adaptor and LDK 5302/60

2-inch viewfinder

Imagers 3 x 2/3-inch CMOS imagers, 1920 (H) x 1080 (V) pixels effective

Picture elements 2.4 million pixels per imager

Digital signal processing 34-bit accurate

Sensitivity 2,000 lux (186 ft cd) at F9.0 typical

Exposure Electronic exposure down to 1/2000 s

Clean scanning 50 to 2,000 Hz

Optical system F1.4 prism system

Optical filters Clear, 1/4 ND, 1/16 ND, 1/64 ND, 4-point star

Modulation depth 50% at 27 MHz (typical) in 1080i/720p mode

S/N ratio 56 dB typical

Gain selection -6 to +12 dB (in 3 dB steps or continuously variable)

Color matrices 6 standard, 2 variable

Color temperature 4 standard, 4 memories and continuously variable

White balance range 2500 to 20000 K

Highlight compression Pivoting knee; digital True Color knee

Digital contrast Black stretch and black press

98 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 8 - Specifications

8.1.2 Dimensions

Figure 8-1. Dimension sketch

detail enhancement Full amplitude RGB, extended dynamic range circuit

Skin tone memories 2

Viewfinder option types (Model LDK 5302 2-inch) resolution >600 TV lines (centre)

(Model LDK 5305 5-inch) resolution >650 TV lines (centre) (Model LDK 4021 7-inch) resolution >800 TV lines (centre) (Model LDK 5308 8.4-inch color)

Item Val ue

164 mm

242 mm

147.5 mm

182 mm

206 mm

241 mm

adjusting

range

70 mm

adjusting

range

23.5 mm

99 mm

LDK 3000 HD camera User’s Guide (v1.0) 99

Chapter 8 - Specifications

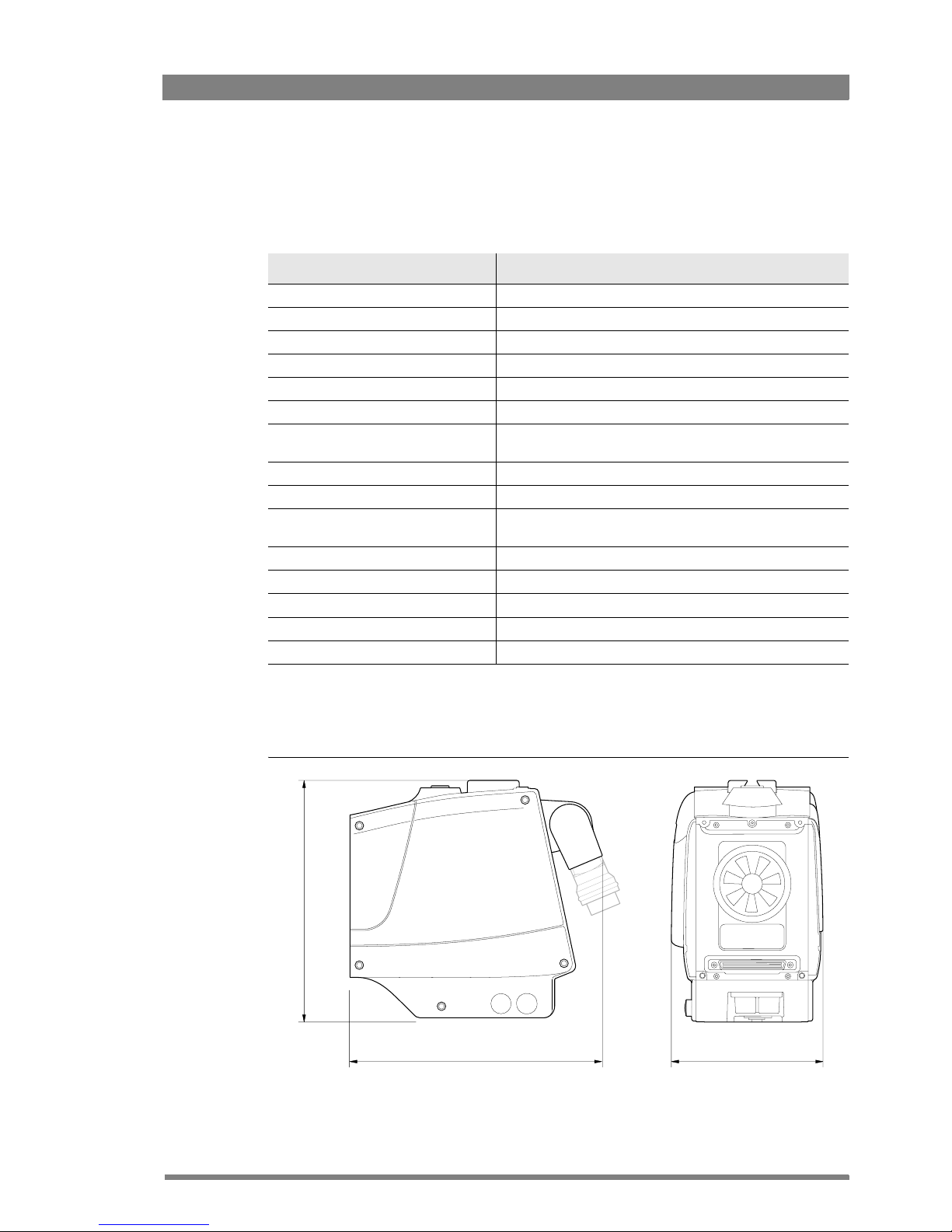

8.2 Specifications for LDK 5360 TriaxHD adaptor

8.2.1 Technical

8.2.2 Dimensions

Figure 8-2. Dimension sketch

Item Valu e

Power requirements Triax powered or +12 VDC external

Operating temperatures -20 to +45° C (-4 to +113° F)

Storage temperatures -20 to +60° C (-4 to +140° F)

Weight (approx.) 2.1 kg (4.6 lbs)

Dimensions (L x W x H) 223 x 132 x 212 mm (8.3 x 5.2 x 8.3 in) without handgrip

Triax connection Swivel Triax connector; type Fischer, ARD, Lemo or Trilock

Triax cable length 1,200 m (3,900 ft) max. with 14 mm (0.55 in) cable (specified for

DRAKA Triax cable)

Video output 1x BNC HD-SDI 1.5 Gb/s 0.8 Vpp (SMPTE 292M)

Monitor output 1x BNC VF connector 1.0 Vpp; 75 Ω

Teleprompter out or Reference in (local mode)

1x BNC connector 1.0 Vpp; 75 Ω or 0.6 Vpp HD tri-level reference signal.

Rear microphone inputs 2x XLR-3, balanced, +48 V phantom power

Intercom XLR-5 with channels Eng/Prod/Prog

DC power input 12 VDC, XLR-4 male

Script light power output 12 VDC, 0.25 A, 3-pin Fischer

DC power output 12 VDC, 1.5 A, 4-pin Hirose

223 mm 132 mm

212 mm

100 LDK 3000 HD camera User’s Guide (v1.0)

Chapter 8 - Specifications
