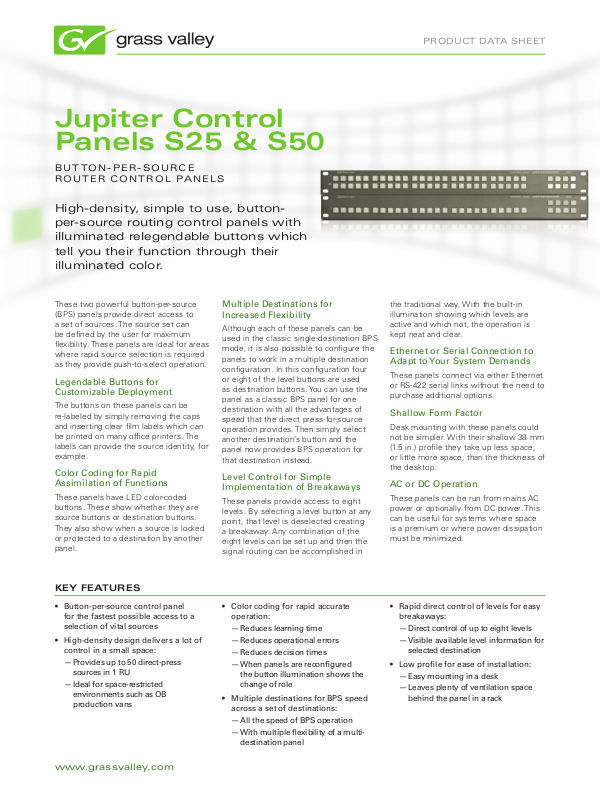

GRASS VALLEY JUPITER CONTROL PANEL S25, Jupiter Control Panel S50 Datasheet
Jupiter Control
Panels S25 & S50
BUTTON-PER-SOURCE
ROUTER CONTROL PANELS
High-density, simple to use, buttonper-source routing control panels with
illuminated relegendable buttons which
tell you their function through their
illuminated color.
PRODUCT DATA SHEET
These two powerful button-per-source
(BPS) panels provide direct access to
a set of sources. The source set can
be defined by the user for maximum
flexibility. These panels are ideal for areas
where rapid source selection is required
as they provide push-to-select operation.
Legendable Buttons for
Customizable Deployment
The buttons on these panels can be
re-labeled by simply removing the caps
and inserting clear film labels which can
be printed on many office printers. The
labels can provide the source identity, for
example.
Color Coding for Rapid
Assimilation of Functions
These panels have LED color-coded
buttons. These show whether they are
source buttons or destination buttons.
They also show when a source is locked
or protected to a destination by another
panel.
KEY FEATURES
Multiple Destinations for
Increased Flexibility
Although each of these panels can be
used in the classic single-destination BPS
mode, it is also possible to configure the
panels to work in a multiple destination
configuration. In this configuration four
or eight of the level buttons are used
as destination buttons. You can use the
panel as a classic BPS panel for one
destination with all the advantages of
speed that the direct press-for-source
operation provides. Then simply select
another destination’s button and the
panel now provides BPS operation for
that destination instead.
Level Control for Simple
Implementation of Breakaways
These panels provide access to eight
levels. By selecting a level button at any
point, that level is deselected creating
a breakaway. Any combination of the
eight levels can be set up and then the
signal routing can be accomplished in
the traditional way. With the built-in
illumination showing which levels are
active and which not, the operation is
kept neat and clear.
Ethernet or Serial Connection to
Adapt to Your System Demands
These panels connect via either Ethernet
or RS-422 serial links without the need to
purchase additional options.
Shallow Form Factor
Desk mounting with these panels could
not be simpler. With their shallow 38 mm
(1.5 in.) profile they take up less space,
or little more space, than the thickness of
the desktop.
AC or DC Operation
These panels can be run from mains AC
power or optionally from DC power. This
can be useful for systems where space
is a premium or where power dissipation
must be minimized.
Button-per-source control panel •
for the fastest possible access to a
selection of vital sources
High-density design delivers a lot of •
control in a small space:
Provides up to 50 direct-press —
sources in 1 RU
Ideal for space-restricted —
environments such as OB
production vans
www.grassvalley.com
Color coding for rapid accurate •
operation:
Reduces learning time —
Reduces operational errors —
Reduces decision times —
When panels are reconfigured —
the button illumination shows the
change of role
Multiple destinations for BPS speed •
across a set of destinations:
All the speed of BPS operation —
With multiple flexibility of a multi- —
destination panel
Rapid direct control of levels for easy •
breakaways:
Direct control of up to eight levels —
Visible available level information for —
selected destination
Low profile for ease of installation:•
Easy mounting in a desk —
Leaves plenty of ventilation space —
behind the panel in a rack
PRODUCT DATA SHEET
SPECIFICATIONS
S25 S50
Operating Modes
BPS – Single Destination Yes Yes
BPS – Multiple Destination Yes Yes
Category Entry No No
X-Y – Select & Take No No
X-Y – Scroll & Take No No
Maximum Number of Sources 25 50
Maximum Number of Destinations 8 8
Total Sources + Destinations 33 58
Breakaways – Single Destination 8 levels 8 levels
– 4 Destinations 4 levels 4 levels
– 8 Destinations No levels No levels
Sequences No No
Overrides No No
Audio Modes No No
Lock & Protect No No
Chop No No
Undo No No
Passwords No No
Menu No No
Sticky Levels Yes Yes
Sticky Outputs No No
Gang Switching No No
GPIO Option Yes Yes
Mounting Size 19" rack mount 1 RU 19" rack mount 1 RU
Overall Width 483 mm 483 mm
Overall Height 38 mm 38 mm
Depth (AC version) 108 mm 108 mm
Depth (DC version) 32 mm 32 mm
Power Consumption 12 W 12 W
Voltage Range 100V to 240V 100V to 240V
Button Legend Label 79 mm x 79 mm 79 mm x 79 mm
ORDERING
INFORMATION
S25 – 25-Button BPS Panel
JUP-CP-S25-AC
with AC power supply
JUP-CP-S25-DC
with DC power supply
JUP-CP-S25-AC-GP
with GPIO and AC power supply
JUP-CP-S25-DC-GP
with GPIO and DC power supply
S50 – 50-Button BPS Panel
JUP-CP-S50-AC
with AC power supply
JUP-CP-S50-DC
with DC power supply
JUP-CP-S50-AC-GP
with GPIO and AC power supply
JUP-CP-S50-DC-GP
with GPIO and DC power supply
CUSTOMER SUPPORT & PROFESSIONAL SERVICES
Our customer support and professional services offerings ensure optimal system performance and maximize uptime. These services include call centers staffed around the clock,
commissioning, professional training courses, and technical maintenance programs and service agreements.
www.grassvalley.com/support
© Copyright 2011 Grass Valley USA, LLC. All rights reserved. Grass Valley and Jupiter are trademarks of GVBB Holdings S.a.r.l. All other tradenames referenced
are service marks, trademarks, or registered trademarks of their respective companies. Specifications subject to change without notice. RMC-4010D-2
