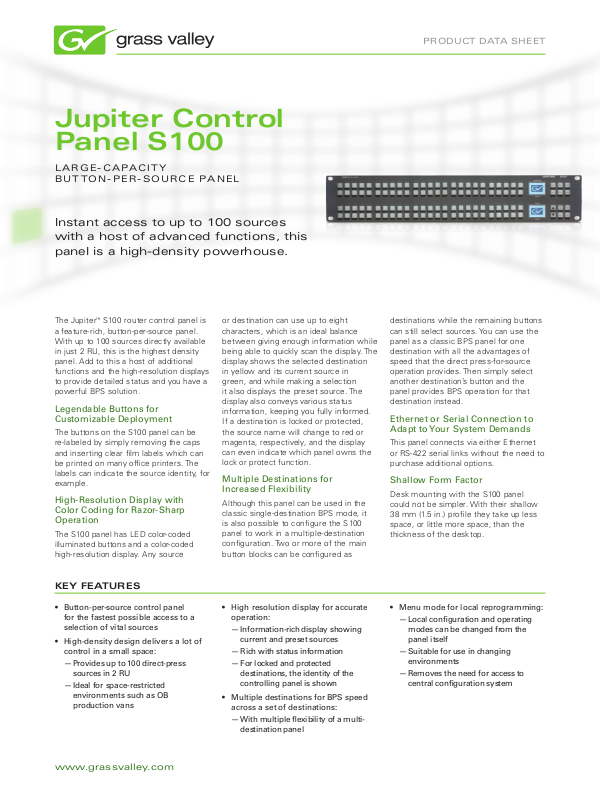

GRASS VALLEY JUPITER CONTROL PANEL S100 Datasheet

Jupiter Control
Panel S100

L A RG E - C A PAC I T Y
BUTTON-PER-SOURCE PANEL

Instant access to up to 100 sources
with a host of advanced functions, this
panel is a high-density powerhouse.

PRODUCT DATA SHEET

The Jupiter™ S100 router control panel is
a feature-rich, button-per-source panel.
With up to 100 sources directly available
in just 2 RU, this is the highest density
panel. Add to this a host of additional
functions and the high-resolution displays
to provide detailed st atus and you have a
powerful BPS solution.

Legendable Buttons for
Customizable Deployment

The buttons on the S100 panel can be
re-labeled by simply removing the caps
and inserting clear film labels which can
be printed on many office printers. The
labels can indicate the source identity, for
example.

High-Resolution Display with
Color Coding for Razor-Sharp
Operation

The S100 panel has LED color-coded
illuminated buttons and a color-coded
high-resolution display. Any source

KEY FEATURES

Button-per-source control panel •
for the fastest possible access to a
selection of vital sources

High-density design delivers a lot of •
control in a small space:

Provides up to 100 direct-press —
sources in 2 RU

Ideal for space-restricted —
environments such as OB
production vans

or destination can use up to eight
characters, which is an ideal balance
between giving enough information while
being able to quickly scan the display. The
display shows the selected destination
in yellow and its current source in
green, and while making a selection
it also displays the preset source. The
display also conveys various status
information, keeping you fully informed.
If a destination is locked or protected,
the source name will change to red or
magenta, respectively, and the display
can even indicate which panel owns the
lock or protect function.

Multiple Destinations for
Increased Flexibility

Although this panel can be used in the
classic single-destination BPS mode, it
is also possible to configure the S100
panel to work in a multiple-destination
configuration. Two or more of the main
button blocks can be configured as

High resolution display for accurate •
operation:

Information-rich display showing —
current and preset sources

Rich with status information —
For locked and protected —

destinations, the identity of the
controlling panel is shown

Multiple destinations for BPS speed •
across a set of destinations:

With multiple flexibility of a multi- —
destination panel

destinations while the remaining buttons
can still select sources. You can use the
panel as a classic BPS panel for one
destination with all the advantages of
speed that the direct press-for-source
operation provides. Then simply select
another destination’s button and the
panel provides BPS operation for that
destination instead.

Ethernet or Serial Connection to
Adapt to Your System Demands

This panel connects via either Ethernet
or RS-422 serial links without the need to
purchase additional options.

Shallow Form Factor

Desk mounting with the S100 panel
could not be simpler. With their shallow
38 mm (1.5 in.) profile they take up less
space, or little more space, than the
thickness of the desktop.

Menu mode for local reprogramming:•

Local configuration and operating —
modes can be changed from the
panel itself

Suitable for use in changing —
environments

Removes the need for access to —
central configuration system

www.grassvalley.com

PRODUCT DATA SHEET

Sequences for Complex Control in One Button Push

The S100 panel can be used to launch sequences. One button
can be assigned to set up a default routing pattern suitable
for the start of operations or as a single-button control for
use during a crucial task. Each button can be programmed
to trigger a sequence, allowing the panel to be deployed
as a reconfiguration selector with each button setting up a
programmed set of paths.

SPECIFICATIONS

Operating Modes

BPS – Single Destination Yes

BPS – Multiple Destination Yes

Category Entry No

X-Y – Select & Take Yes

X-Y – Scroll & Take No

Maximum Number of Sources 100

Maximum Number of Destinations 99

Breakaways Yes

Sequences Yes

Overrides Yes

Audio Modes No

Lock & Protect Yes

Chop No

Undo Yes

AC or DC Operation

This panel can be run from mains AC power or optionally from
DC power. This can be useful for systems where space is a
premium or where power dissipation must be minimized.

Passwords No

Menu Yes

Sticky Levels Yes

Sticky Outputs No

Gang Switching Yes

GPIO Option Yes

Mounting Size 19" rack mount 2 RU

Overall Width 483 mm

Overall Height 76 mm

Depth (AC version) 108 mm

Depth (DC version) 32 mm

Power Consumption 12 W

Voltage Range 100V to 240V

Button Legend Label 79 mm x 79 mm

ORDERING INFORMATION

S100 – Full-Function X-Y Panel

JUP-CP-S100-AC

With AC power supply

JUP-CP-S100-DC

With DC power supply

JUP-CP-S100-AC-GP

With GPIO and AC power supply

JUP-CP-S100-DC-GP

With GPIO and DC power supply
