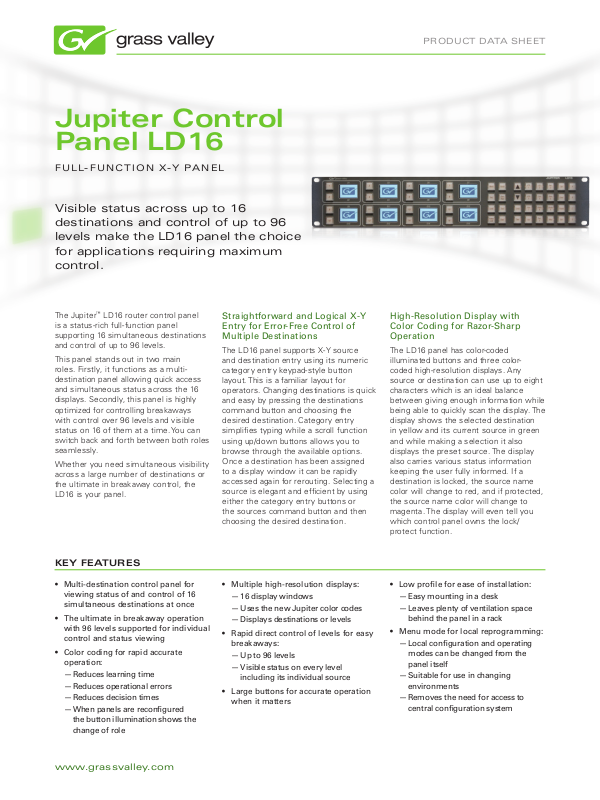

GRASS VALLEY JUPITER CONTROL PANEL LD16 Datasheet

Jupiter Control
Panel LD16

FULL-FUNCTION X-Y PANEL

Visible status across up to 16
destinations and control of up to 96
levels make the LD16 panel the choice
for applications requiring maximum
control.

PRODUCT DATA SHEET

The Jupiter™ LD16 router control panel
is a status-rich full-function panel
supporting 16 simultaneous destinations
and control of up to 96 levels.

This panel stands out in two main
roles. Firstly, it functions as a multi­destination panel allowing quick access
and simultaneous status across the 16
displays. Secondly, this panel is highly
optimized for controlling breakaways
with control over 96 levels and visible
status on 16 of them at a time. You can
switch back and forth between both roles
seamlessly.

Whether you need simultaneous visibility
across a large number of destinations or
the ultimate in breakaway control, the
LD16 is your panel.

KEY FEATURES

Multi-destination control panel for •
viewing status of and control of 16
simultaneous destinations at once

The ultimate in breakaway operation •
with 96 levels supported for individual
control and status viewing

Color coding for rapid accurate •
operation:

Reduces learning time —
Reduces operational errors —
Reduces decision times —
When panels are reconfigured —

the button illumination shows the
change of role

Straightforward and Logical X-Y
Entry for Error-Free Control of
Multiple Destinations

The LD16 panel supports X-Y source
and destination entry using its numeric
category entry keypad-style button
layout. This is a familiar layout for
operators. Changing destinations is quick
and easy by pressing the destinations
command button and choosing the
desired destination. Category entr y
simplifies typing while a scroll function
using up/down buttons allows you to
browse through the available options.
Once a destination has been assigned
to a display window it can be rapidly
accessed again for rerouting. Selecting a
source is elegant and efficient by using
either the category entry buttons or
the sources command button and then
choosing the desired destination.

Multiple high-resolution displays: •

16 display windows —
Uses the new Jupiter color codes —
Displays destinations or levels —

Rapid direct control of levels for easy •
breakaways:

Up to 96 levels —
Visible status on every level —

including its individual source

Large buttons for accurate operation •
when it matters

High-Resolution Display with
Color Coding for Razor-Sharp
Operation

The LD16 panel has color-coded
illuminated buttons and three color­coded high-resolution displays. Any
source or destination can use up to eight
characters which is an ideal balance
between giving enough information while
being able to quickly scan the display. The
display shows the selected destination
in yellow and its current source in green
and while making a selection it also
displays the preset source. The display
also carries various status information
keeping the user fully informed. If a
destination is locked, the source name
color will change to red, and if protected,
the source name color will change to
magenta. The display will even tell you
which control panel owns the lock/
protect function.

Low profile for ease of installation:•

Easy mounting in a desk —
Leaves plenty of ventilation space —

behind the panel in a rack

Menu mode for local reprogramming:•

Local configuration and operating —
modes can be changed from the
panel itself

Suitable for use in changing —
environments

Removes the need for access to —
central configuration system

www.grassvalley.com

PRODUCT DATA SHEET

Individual Control of 96 Levels Supports the Most
Complex Multiformat Systems

The LD16 panel not only allows you to select or deselect levels
for breakaways but it can also show you detailed status on 96
of them. When routing involves a large number of complex
breakaways or needs to control a deeper number of levels then,
the LD16 is the perfect panel to use.

Function-Per-Button for Fast, Expert-Level
Comprehensive Control

The LD16 panel has all the power you’ll need with 20
categories, a numeric keypad, dedicated sequence buttons,
and up/down scrolling. There is even an undo button that can
toggle back to the last entry allowing not only a rapid undo but
a continuous A-B switch for quality check or content verification
purposes.

SPECIFICATIONS

Operating Modes

BPS – Single Destination No

BPS – Multiple Destination No

Category Entry Yes

X-Y – Select & Take Yes

X-Y – Scroll & Take No

Maximum Number of Sources System limit

Maximum Number of Destinations System limit

Total Sources + Destinations System limit

Breakaways Up to 96 levels

Sequences Yes

Overrides Yes

Lock & Protect Yes

Ethernet or Serial Connection to Adapt to Your
System Demands

This panel connects via either Ethernet or RS-422 serial links
without the need to purchase additional options.

Shallow Form Factor

Desk mounting with the LD16 panel could not be simpler. With
its shallow 38 mm (1.5 in.) profile it takes up less space, or little
more space, than the thickness of the desktop.

AC or DC Operation

This panel can be run from mains AC power or optionally from
DC power. This can be useful for systems where space is a
premium or where power dissipation must be minimized.

Undo Yes

Menu Yes

Sticky Levels Yes

Gang Switching Yes

GPIO Option Yes

Mounting Size 19" rack mount 2 RU

Overall Width 483 mm

Overall Height 76 mm

Depth (AC version) 108 mm

Depth (DC version) 32 mm

Power Consumption 12 W

Voltage Range 100V to 240V

Button Legend Label 9.6 mm x 9.6 mm

ORDERING INFORMATION

LD16 – Full-Function X-Y Panel

JUP-CP-LD16-AC

With AC power supply

JUP-CP-LD16-DC

With DC power supply

JUP-CP-LD16-AC-GP

With GPIO and AC power supply

JUP-CP-LD16-DC-GP

With GPIO and DC power supply
