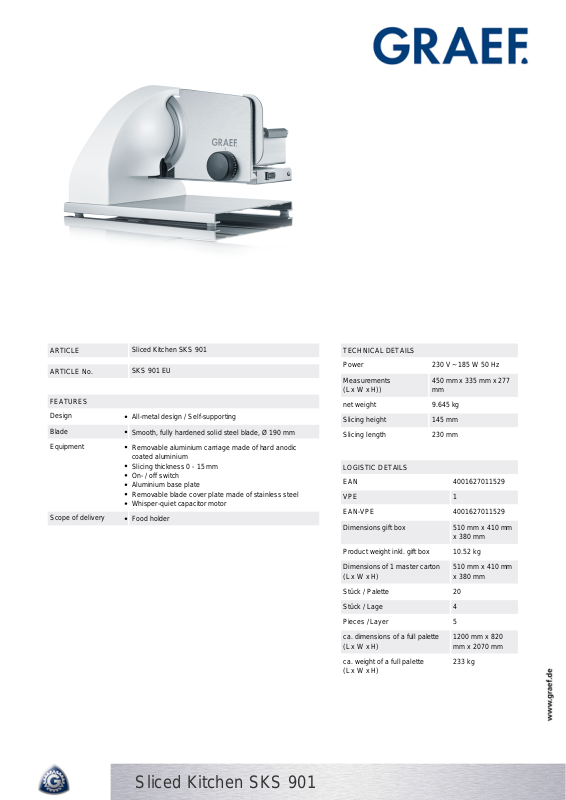

Graef SKS 901 User Manual

ARTICLE

ARTICLE No.

FEATURES
Design

Blade
Equipment

Scope of delivery

Sliced Kitchen SKS 901

SKS 901 EU

All-metal design / Self-supporting
Smooth, fully hardened solid steel blade, Ø 190 mm
Removable aluminium carriage made of hard anodic

coated aluminium
Slicing thickness 0 - 15 mm
On- / off switch
Aluminium base plate
Removable blade cover plate made of stainless steel
Whisper-quiet capacitor motor

Food holder

TECHNICAL DETAILS
Power 230 V ~ 185 W 50 Hz

Measurements
(L x W x H))

net weight 9.645 kg
Slicing height 145 mm
Slicing length 230 mm

LOGISTIC DETAILS
EAN 4001627011529

VPE 1
EAN-VPE 4001627011529
Dimensions gift box 510 mm x 410 mm

Product weight inkl. gift box 10.52 kg
Dimensions of 1 master carton

(L x W x H)
Stück / Palette 20
Stück / Lage 4
Pieces / Layer 5
ca. dimensions of a full palette

(L x W x H)
ca. weight of a full palette

(L x W x H)

450 mm x 335 mm x 277
mm

x 380 mm

510 mm x 410 mm
x 380 mm

1200 mm x 820
mm x 2070 mm

233 kg

Sliced Kitchen SKS 901
