Graco Xtreme 244463, Xtreme 245113, 245116, 245117, 309362 Operation Manual

OPERATION

309362

Rev. E

U.S. Patent Pending

Zinc Sprayer

List of Models, page 2

For Maximum Working Pressure see page 2

Related manuals

309340. . . . . . .

309092, 308438. . . . . . .

.. 307049

. . 309342

IMPORTANT WARNINGS AND
INFORMATION.
Read and keep for reference.

INSTRUCTIONS

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441

ECOPYRIGHT 2001, GRACO INC.

Graco Inc. is registered to I.S. EN ISO 9001

HD = Heavy Duty Cart
LW = Light Weight Cart

List of Models

Part
No.

244463 A

245113 A

Series Ratio /

Pump

33:1

Bulldog

24:1

Bulldog

Pump No. Gun Hose HD LW Maximum Fluid

Working Pressure

245117 X X X

245116 X X X

20.7 MPa

(207 bar) (3000 psi)

23.4 MPa

(234 bar) (3400 psi)

Maximum Air

Input Pressure

.7 MPa

(7.0 bar) (100 psi)

.7 MPa

(7.0 bar) (100 psi)

2 309362

Symbols

When you see a symbol in the manual, for example

refer to the WARNINGS on pages 3–4.

WARNING

EQUIPMENT MISUSE HAZARD

Equipment misuse can cause the equipment to rupture, malfunction, or start unexpectedly and result in serious

INSTRUCTIONS

injury.

D Read all instruction manuals, tags, and labels before operating the equipment.

D Do not exceed the maximum working pressure of the lowest rated system component. See page 2 for maxi-

mum working pressure of each package.

D Do not alter or modify equipment.

D Do not use hoses to pull equipment.

D Wear hearing protection when operating this equipment.

D Moving parts can pinch or amputate your fingers.

D Follow all local, state, and national fire, electrical, and safety regulations.

WARNING

PRESSURIZED FLUID AND INJECTION HAZARD

Spray from the gun, hose leaks, or ruptured components can splash fluid in the eyes or on the skin and cause
serious injury. High pressure spray or leaks can inject fluid into the body.

D Follow Pressure Relief Procedure on page 10 when you stop spraying or begin servicing sprayer.

D Fluid injected into the skin might look like a cut, but is a serious injury. Get immediate medical attention.

D Do not put your hand or fingers over the spray tip, or point gun at anyone or any part of body. Do not stop or

deflect leaks with your hand, body, glove, or rag.

D Check the hoses, tubes, and couplings daily. Tighten all fluid connections before each use.

D Know the specific hazards of the fluid you are using. Read the fluid manufacturer’s warnings.

D Wear appropriate protective clothing, gloves, eyewear, and respirator.

D Always have the tip guard and the trigger guard on the gun when spraying.

D Check hoses and couplings daily. Replace worn or damaged parts immediately. Do not repair high pressure

couplings; you must replace entire hose.

3309362

Symbols

WARNING

FIRE AND EXPLOSION HAZARD

Solvent and paint fumes can ignite or explode. To help prevent a fire and explosion:

D Ground the equipment and the object being sprayed. See Grounding on page 7.

D Use in extremely well ventilated area.

D Hold gun firmly to side of grounded pail when triggering into pail.

D Use only electrically conductive paint hose.

D If there is any static sparking while using the equipment, stop spraying immediately. Identify and correct the

problem.

D Eliminate all ignition sources such as pilot lights, cigarettes, and static arcs from plastic drop cloths. Do not plug

in or unplug power cords or turn lights on or off in the spray area.

D To reduce the risk of static arcing which could result in a fire or explosion and serious injury, use only non–

sparking tools.

4 309362

5309362

Loosen nut

1

Adjust Air

2

3

Tighten nut

Pump Air Regulator

Overview

ON

OFF

Air Supply Valve

(Must be Bleed Type)

Grounding Wire

6 309362

Return System

Grounding

Use only electrically conductive hoses.

1.

2.

Connect ground wire clamp to a true earth ground.

Ground object being sprayed, fluid supply containers,
solvent pails, waste pails, and all other equipment in spray
area. Use only metal pails. Do not place on non-conductive
surface such as paper, cardboard, or plastic.

TI1102

PAINT
TINTA

PEINTURE

INTURA

TI1102

7309362

Setup

Complete before using the equipment for the
first time.

1.

Tools Required:

1. Two adjustable wrenches

2. Non–sparking hammer or plastic mallet

3. Torque wrench

4. Grounding wires and clamps for pails

5. Two 5 gallon metal pails

1.

Ground sprayer. See page 7.

2. 3. 4.

5.

2.

Check packing nut. Fill with Throat Seal Liquid
(TSL).Torque to 25–30 ft–lb (34–41 NS m).

8 309362

Setup

3.

4.

5.

Attach electrically conductive fluid hose to pump and tighten.

Attach electrically conductive fluid hose to gun and tighten.

Connect main air supply to air supply valve.

6.

7.

Flush. See page 11.

Prime. See page 14.

FLUSH

PAINT

WASTE

WASTE

9309362

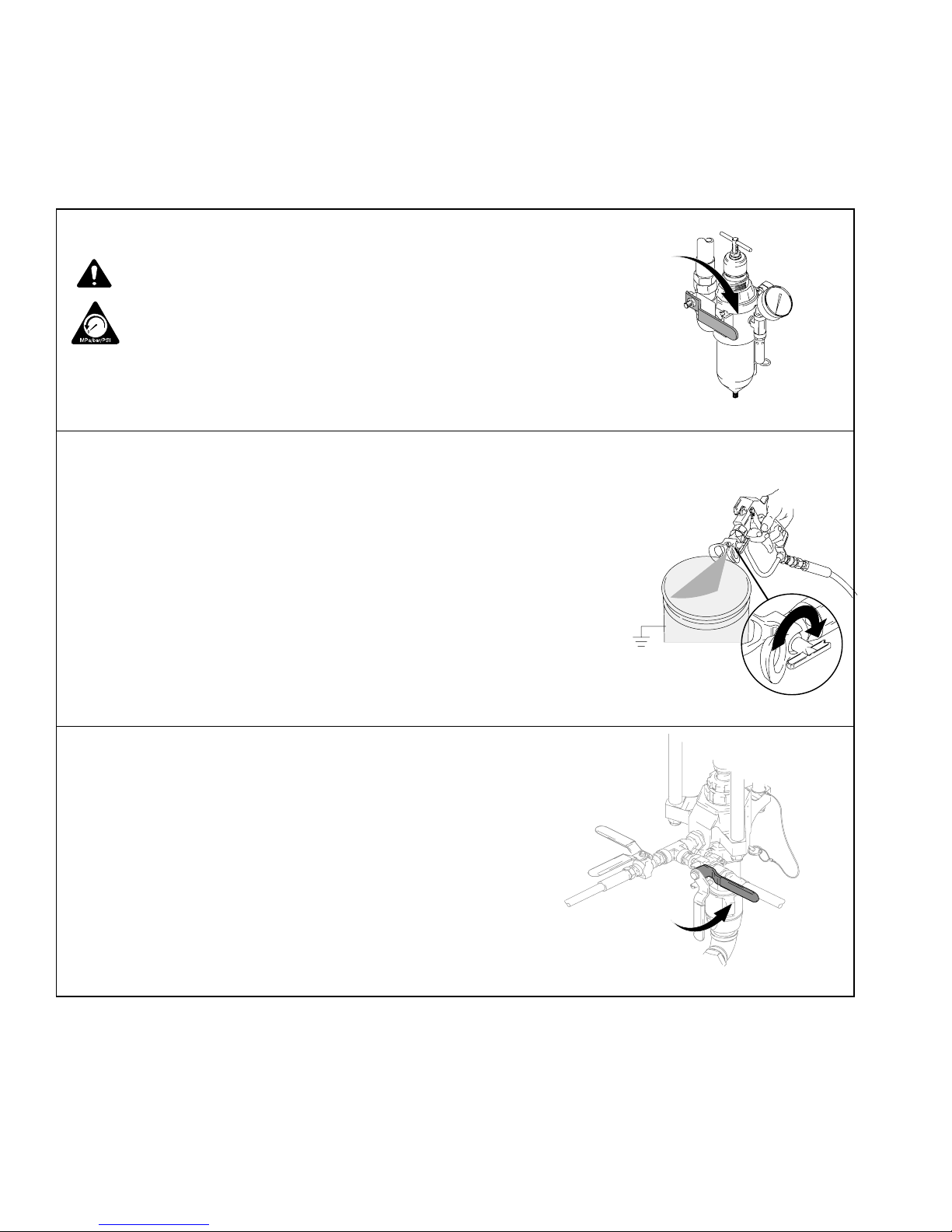

Pressure Relief

Follow steps 1–3 when you stop spraying and
before cleaning, checking, or servicing the
equipment.

1.

2.

Close bleed type air supply valve.

Hold gun firmly against a grounded metal
pail and trigger gun.

3.

10 309362

Open return valve.

Flush

Flush before using for the first-time, changing
colors, before fluid can dry or settle out, and
before storing the system.

1.

2.

3.

Relieve pressure. See page 10.

Remove tip and guard.

...... 309092, 308438

TI1114

Place suction tube in solvent.

FLUSH

11309362

Flush

4.

5.

6.

Adjust air regulator by turning handle counter–clockwise.

Open air valve. Always use lowest air pressure possible when

flushing.

Flush hose and gun.

309092, 308438. . . . . . .

7.

WASTE

Put recirculation tube in a grounded
waste pail. Slowly open return valve.

WASTE

12 309362

Flush

8.

9.

When clean solvent flows from tube, close return
valve. Pump will stall.

WASTE

Relieve pressure. See page 10.

TI1217

10.

Store sprayer with solvent inside, or prime with
another fluid to continue spraying.

13309362

Prime

1.

2.

3.

Shut off bleed type air supply valve.

Adjust air regulator by turning handle counter–clockwise.

Replace tip and guard.

...... 309092, 308438

4.

TI1114

Place suction tube in fluid.

PAINT

14 309362

Prime

5.

6.

Place recirculation tube in a grounded fluid pail.
Open return line valve.

PAINT

Open air valve.

7.

Adjust air regulator by turning handle clockwise until
pump starts. Use lowest air pressure to run pump.

15309362

Prime

8.

9.

Close return valve when material starts flowing.

Hold gun firmly against a grounded metal pail and
trigger gun until fluid flow is steady. Release trigger.
Place recirculation tube into fluid to be sprayed. Equip­ment is ready to spray.

....309092, 306686,

308438

16 309362

Spraying

1.

2.

3.

Replace tip and guard.

TI1114

Set air pressure regulator.

Slowly open bleed type air valve.

4.

Test spray pattern. Read fluid
manufacturer’s recommendations.
Adjust as necessary.

. . 309092, 306686, 308438

17309362

Spraying

5.

6.

When not spraying, reduce air
pressure to 30 psi. Open recir­culation tube and close gun
valve.

PAINT

Flush and relieve pressure when done spraying. See page 10 and 11.

18 309362

Daily

1.

Maintenance

FLUSH

2.

3.

Relieve pressure. See page 10.

Check packing nut. Adjust packings
and replace TSL as necessary.
Torque to 25–30 ft–lb (34–41 NSm).

19309362

Maintenance

4.

5.

Drain water from air filter.

Clean suction tube using a compatible solvent. Clean
outside of sprayer using a cloth and compatible solvent.

20 309362

Maintenance

6.

Check hoses, tubes, and cou­plings. Tighten all fluid connec­tions before each use.

Troubleshooting

. . . 309340

21309362

Dimensions

(For mounting hole layout see air pump manual )

Pump

Model

Bulldog 33:1

Bulldog 24:1

A

C

A

mm (in.)

1257 (49.5) 795 (31.3) 660 (26) 236 (107)

1257 (49.5) 795 (31.3) 660 (26) 236 (107)

B

mm (in.)

C

mm (in.)

B

Weight (approx.)

kg (lbs)

22 309362

23309362

Graco Standard Warranty

Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on the
date of sale by an authorized Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited
warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment
determined by Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accor­dance with Graco’s written recommendations.

This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or sub­stitution of non–Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of
Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.

This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.

THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.

Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection
with accessories, equipment, materials or components sold but not manufactured by Graco. These items sold, but not manufactured
by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide
purchaser with reasonable assistance in making any claim for breach of these warranties.

In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.

FOR GRACO CANADA CUSTOMERS

The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings
entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnais­sent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires
exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les procedures concernées.

Graco Information

TO PLACE AN ORDER, contact your Graco distributor, or call one of the following numbers

to identify the distributor closest to you:

1–800–367–4023 Toll Free

612–623–6921

612–378–3505 Fax

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

International Offices: Belgium, Korea, Hong Kong, Japan

PRINTED IN USA 309362 06/2001, Revised 01/2004
