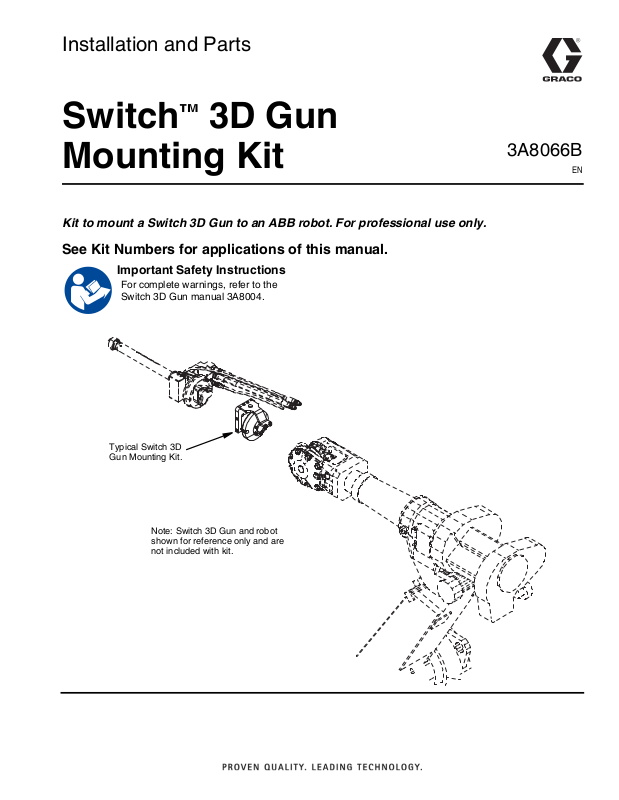

Installation and Parts
Switch™ 3D Gun
Mounting Kit
Kit to mount a Switch 3D Gun to an ABB robot. For professional use only.
See Kit Numbers for applications of this manual.
Important Safety Instructions
For complete warnings, refer to the
Switch 3D Gun manual 3A8004.
3A8066B
EN
Typical Switch 3D
Gun Mounting Kit.
Note: Switch 3D Gun and robot
shown for reference only and are
not included with kit.
Page 2
Contents
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Switch 3D Gun Installation for ABB Robot . . . . . . 3
Parts for ABB Robot Mounting Installation Kit,
25T598. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Recycling and Disposal . . . . . . . . . . . . . . . . . . . . . . 5
End of Product Life . . . . . . . . . . . . . . . . . . . . . . . . 5
Technical Specifications . . . . . . . . . . . . . . . . . . . . . 5
California Proposition 65 . . . . . . . . . . . . . . . . . . . . . 5
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . . 6
Related Manuals
Manual in English Description
3A8004 Switch 3D Gun
Kit
Kit No. Description
25T598 ABB, Bracket and anti rotation kit
NOTE: The details shown in this Switch 3D Gun mounting kit manual are only for the mounting kit parts and
installation. For information regarding the Switch 3D Gun including warnings, maintenance, repair, operation, trouble
shooting or parts, please refer to the Switch 3D Gun manual 3A8004.
2 3A8066B
Page 3
Switch 3D Gun Installation for ABB Robot
Switch 3D Gun Installation for ABB Robot
Mounting Flange
1. Attach the mounting flange (106) onto the sixth axis
of the robot with the six M6 x 12 screws (105).
Torque to 98.2 in-lb/11.1 N•m.
2. Insert the 6 mm x 12 mm dowel (109) into mounting
flange.
3. Attach the mounting flange to the body of the Switch
3D Gun using the three M6x20 hex socket screws
(108) and three plain washers (107). Torque to 98.2
in-lbs (11.1 N•m).
101
1
103
2
Note: Switch 3D Gun and robot
shown for reference only and are
not included with kit.
Anti-Rotation Brackets
1. Attach the anti rotation lower bracket (104) to the
Switch 3D Gun swivel chamber housing with the two
M6 x 25 hex socket screws (103). Torque to 98.2
in-lbs (11.1 N•m).
2. Line up the anti rotation upper bracket (102) with
both the anti rotation lower bracket (104), and the
fixation points on the robot. Secure the anti rotation
upper bracket to both the robot and lower bracket
with the four M5 x 0.8 x 12mm (101) screws. Torque
to
57.5 in-lb/6.5 N•m.
102
104
Switch 3D Gun
swivel chamber
housing
105
2
106
108
107
103
2
Torque to 57.5 in-lb/6.5 N•m
1
Torque to 98.2 in-lb/11.1 N•m
2
FIG. 1
3A8066B 3
Page 4
Parts for ABB Robot Mounting Installation Kit, 25T598
Parts for ABB Robot Mounting Installation Kit, 25T598
101
102
103
109
104
106
107
103
108
105
ABB Robot Mounting Installation Parts List
Ref. Part Description Qty.
101 17V969 SCREW, BHCS, M5x.0.8x12mm,CS
102 18C872 BRACKET, anti-rotation, upper, ABB
103 112556 SCREW, socket head, M6x20
104 25T600 BRACKET, anti-rotation, lower, ABB
105 132906 SCREW, SCHS, M6x12, ultra low head
106 25T601 ADAPTER, robot , mounting, ABB
107 105314 WASHER, plain
108 132903 PIN, dowel, 6mm Dia.x 12mm lg.
109 113500 ADHESIVE, anaerobic
4
1
5
1
6
1
3
1
1
4 3A8066B
Page 5
Recycling and Disposal
End of Product Life
At the end of a product’s useful life, recycle it in a
responsible manner.
Technical Specifications
Torque Requirement
M 5, Screw 57.5 in-lb 6.5 N•m
M 6, Screw 98.2 in-lb 11.1 N•m
California Proposition 65
CALIFORNIA RESIDENTS
Recycling and Disposal
WARNING: Cancer and reproductive harm – www.P65warnings.ca.gov.
