Instructions
EM Drive
3A0415D
Lubricators
Provides a continuous, precise and temperature independent supply of grease or oil
lubrication to all lubrication points of sliding- and roller bearings, drive- and transport
chains, sliding guideways, open gears and seals. For professional use only.
Not approved for use in European explosive atmospheres.
75 psi (0.5 MPa, 5 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
ENG
This equipment is suitable for use in Class I,
Division 2, Groups A, B, C and D, Class II, Division
2, Groups F and G and Class III Hazardous
Locations or non-hazardous locations only.
EXPLOSION HAZARD
Substitution of components may impair
suitability for Class I, Division 2.
CUS
BAYZ,BAYZ7
92 UM
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer
to procedure-specific risks. When these symbols appear in the body of this manual, refer back to
these Warnings. Product-specific hazard symbols and warnings not covered in this section may
appear throughout the body of this manual where applicable.
WARNING
WARNINGWARNINGWARNING
FIRE AND EXPLOSION HAZARD
When flammable fluids are present in the work area, such as gasoline and windshield
wiper fluid, be aware that flammable fumes can ignite or explode. To help prevent fire
and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources, such as cigarettes and portable electric lamps.
• Keep work area free of debris, including rags and spilled or open containers of sol-
vent and gasoline.
• Do not plug or unplug power cords or turn lights on or off when flammable fumes are
present.
• Ground all equipment in the work area.
• Use only grounded hoses.
• If there is static sparking or you feel a shock, stop operation immediately. Do not
use equipment until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin,
inhaled, or swallowed.
• Read MSDSs to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applica-
ble guidelines.
PRESSURIZED EQUIPMENT HAZARD
Fluid from the equipment, leaks, or ruptured components can splash in the eyes or on
skin and cause serious injury.
• Follow the Pressure Relief Procedure before cleaning, checking, or servicing
equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses, tubes, and couplings daily. Replace worn or damaged parts
immediately.
2 3A0415D
WARNING
WARNINGWARNINGWARNING
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest
rated system component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See
Technical Data in all equipment manuals. Read fluid and solvent manufacturer’s
warnings. For complete information about your material, request MSDS from
distributor or retailer.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is
not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with
genuine manufacturer’s replacement parts only.
• Do not alter or modify equipment.
• Do not puncture, open or take lubricator apart.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot
surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in
the operating area of the equipment to help protect you from serious injury, including
eye injury, hearing loss, inhalation of toxic fumes, and burns. This equipment includes
but is not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and sol-
vent manufacturer.
3A0415D 3
Component Identification
Pressure Relief Procedure
1. Cover lubrication point (A) and lubricator
(B) with a heavy rag to absorb any fluid that
may leak out while loosening the adapter.
2. Carefully unscrew support adapter (D) from
the lubrication point (A).
Component Identification
A
D
A Lubrication Point
B Lubrication Canister
CDrive Unit
D Support Adapter
B
C
A
A Plug
B Lubrication Canister
NOTE: Canister cannot be refilled.
C † Drive Unit (Includes gear motor and
circuit board)
◆ New batteries must be used for every lubrication cartridge replacement. Never reuse batteries.
† Reusable part
4 3A0415D
B
C
D ◆battery pack (includes 3 size AA
batteries, each 1.5V)
E † Cover
D
E
Installation and Setup
Determining Correct Mounting Method
Installation and Setup
NOTE:
• Direct mounting should be used for lubrica-
tion points that are easily accessible.
• Remote mounting is recommended if you
answer YES to any of the questions below.
1. Is the ambient temperature at the lubrication point higher than +40°C (104°F)?
2. Is it necessary to remove protective
screens, walls or other types of protection
in order to reach the lubrication point?
3. Is the lubrication point exposed to high
vibrations?
4. Is it difficult to access the lubrication point
during operation of the machine?
5. Is the lubrication point exposed to any of
the following:
NOTE:
• Be sure to use a lubricant cartridge that
contains the same grease used in the
application.
• The best measurement results are
achieved during operation.
Checking the Counter Pressure
1. Clean the lubrication point to remove any
potential contaminants.
2. Prime the grease line and all accessories
with the same grease that is contained in
the lubricator (See Parts, page 16 for a
complete list of available grease cartridges).
3. Remove the plug (A).
• water jets for high-pressure cleaning
machines?
• corrosive chemicals?
• high temperatures?
• falling materials?
Preparing Lubricator for Installation
The lubricator has a self-protection mechanism which shuts off the drive unit at counter
pressures higher than 5 bar (72.5 psi). Most
bearings require 0.5 - 2 bar (7.2 to 29 psi)
pressure (without tubes, extensions, angles,
etc.).
Use the following procedure to check the counter pressure of the application prior to installation.
4. Install lubricator unit
into adapter (B).
5. Install reducers,
extensions, grease
line, etc. (if necessary).
6. Screw a pressure
manometer into the
lubrication point (dd)
IG. 1, page 6).
(F
A
B
3A0415D 5
Installation and Setup
A pressure manometer is a simple device that
measures pressure output. To build a pressure
manometer you need a pressure gage (aa),
tee fitting (bb) and stop valve (cc). FIG. 1
shows a correctly assembled pressure
manometer, connected to the lubricator and a
lubrication point.
FIG. 1
aa
bb
cc
dd
ee
ff
dd
cc
aa
Pressure Gauge
Tee Fitting
Stop Valve
Lube Point
Lubricator
ON / OFF Switch
bb
ff
ee
7. Ensure the stop valve (cc) of the pressure
manometer is open.
8. Attach lubricator and adapter (B) to the
pressure manometer (aa - cc) and turn the
switch to “ON” (ff) (F
IG. 1).
9. Run the manometer for about 20 seconds.
Observe the gauge and repeat this procedure until the pressure registered on the
gauge stays constant.
10.To determine the counter pressure, wait
approximately 5 minutes until the system
has relaxed. Do one
more discharge by
turning the unit OFF; then ON again until it
dispenses for no more than 5 seconds.
12.To disconnect lubricator from manometer,
follow pressure relief procedure provided
on page 4.
NOTE: In this application, you will be disconnecting adapter (B) from manometer
instead of lubrication point.
NOTICE
Do NOT disconnect lubricator from adapter
(B). Screwing anything into lubricator end a
second time will damage self-sealing threads.
13.If the counter pressure is 5 bar (72.5 psi) or
higher, flush the lubrication point with a
grease gun.
If the counter pressure does not decrease
you may need a different lubricant or size
lubricator canister. Contact Graco Customer service for assistance.
Priming/Prefilling Fittings and
Grease Lines
All accessories and grease lines must be
primed/pre filled. Without this priming/pre filling, the lubricator would first have to fill the
accessories with lubricant.
Example: A tube that is one meter long
requires about 28 cm3 of lubricant. It would
take the lubricator with a 12 month setting and
an EM-120 grease canister about 3 months to
fill this 1 meter tube.
IG. 2 illustrates one way to pre fill using a
F
grease gun to dispense the grease.
11.Wait approximately 5 more minutes to
make sure the system does not lose pressure and remains constant.
FIG. 2
6 3A0415D
Installation and Setup

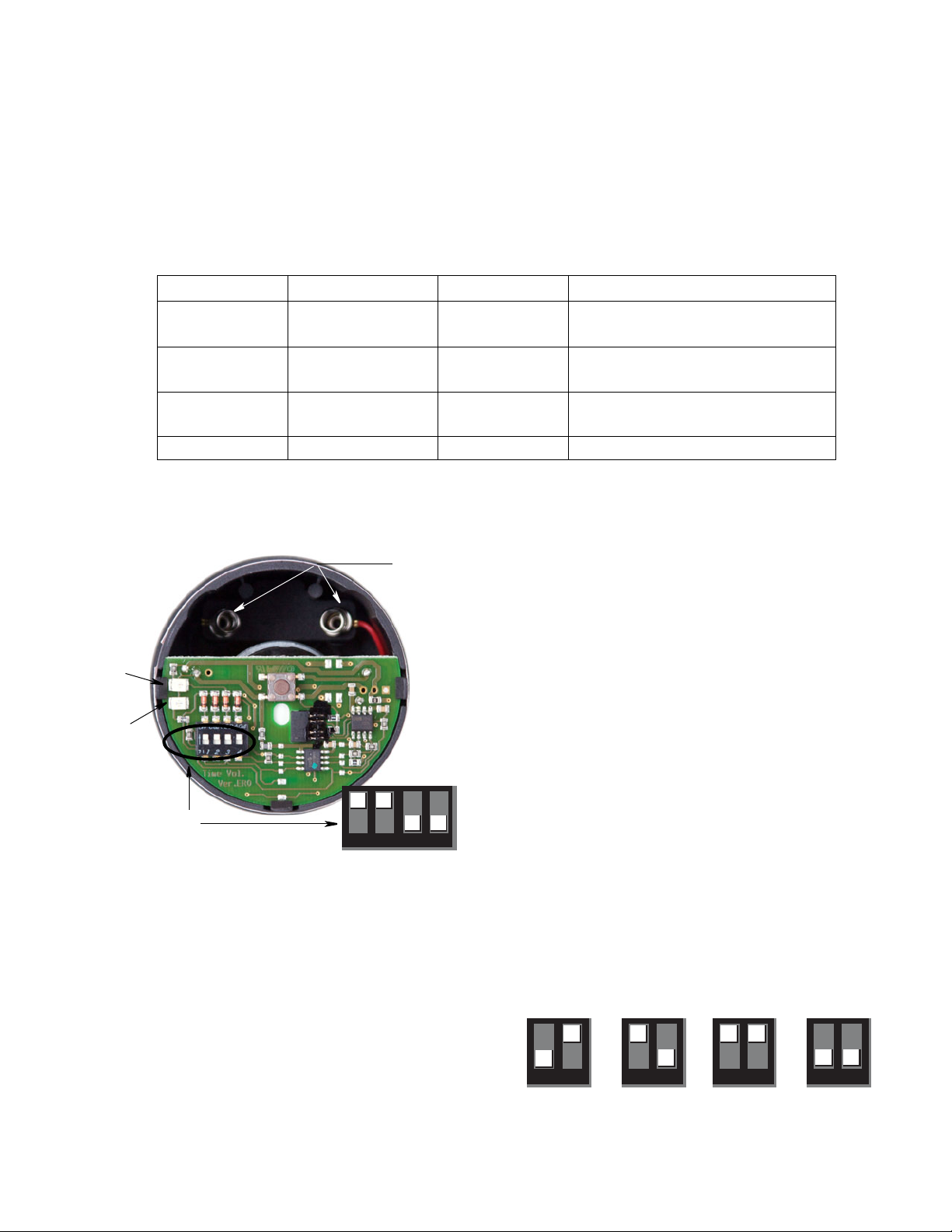

Circuit Board Settings
Function Display
Red and green LED’s (Light Emitting Diodes) are on the circuit board and visible through the
transparent cover. The following signals about operating conditions/malfunctions are displayed by
these LED’s for the user:
LED Signal Signal Time Meaning
Green Blinking
Red Blinking
Green
and Red
Blinking
Red Steady signal Steady Unit is discharging lubricant.
There is a 4-way code switch on the circuit board. TIME switches 1 + 2 are used to set the discharge period. VOL switches 3 + 4 are used to set the size of the lubrication canister.
Every 15
seconds
Every 8
seconds
Every 3
seconds
System functions OK
Malfunction / error
Lubricator unit is empty.
Change canister.
A
B
C
FIG. 3
ALED Red
BLED Green
C 4-way code switch
D battery pack contacts
D
12 34
Setting Dip Switches
1. Unscrew and remove the cover.
Setting the Discharge Period (TIME)
2. Use a small screwdriver or your finger to
move dip switches to the desired position.
Refer to FIG. 4.
• The discharge period is pre-set to 6
months.
• Dip switches 1+2 marked “TIME” are
used to set the discharge period.
• In FIG. 4 the white square indicates dip
switch position.
Dip Switch Position Options: Time
There are 4 switch position options: 1, 3, 6 and
12 months. Refer to FIG. 4 for correct position
for each option.
1 Months
3 Months
6 Months
12 Months
12
Time
FIG. 4
3A0415D 7
12
Time
12
Time
12
Time
Installation and Setup

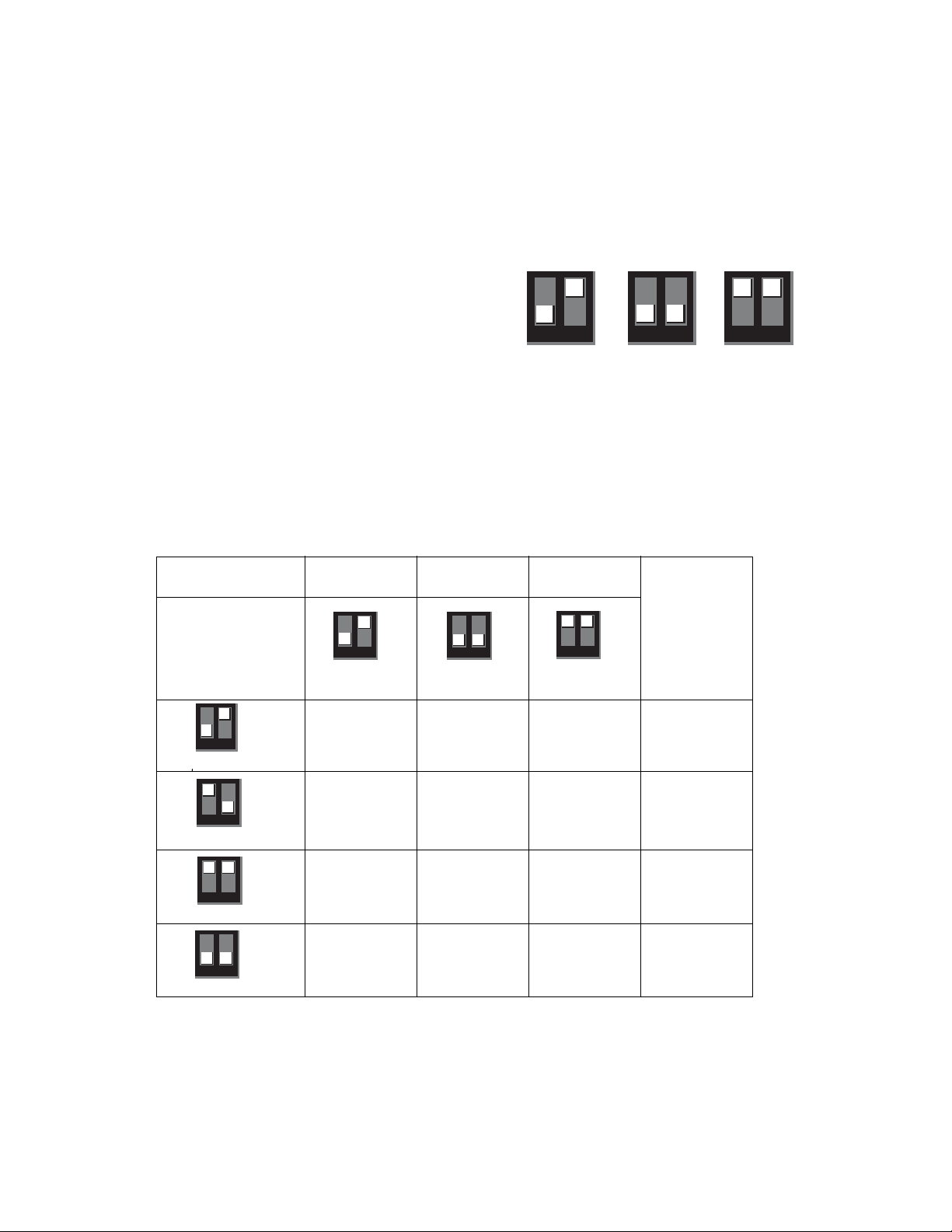

Setting the Lubrication Canister Volume
3. Use a small screwdriver or your finger to
move dip switches to the desired position.
Refer to FIG. 5.
Dip Switch Position Options: Volume
There are 3 switch position options. These
positions correspond to each of the 3 lubrication canister sizes: 60 cc, 120 cc, 250 cc. Refer
to FIG. 5 for correct position for each option.
• Dip switches 3+4 marked “VOL” are
used to set the lubrication canister size.
60 cc
120 cc
If the 4-way code switch does not correspond to the actual size of the lubrication canister, it will lead to a wrong
signal and over or under lubrication.
• In FIG. 5 the white square indicates dip
FIG. 5
34
Vol.
switch position.
TABLE 1: Dip Switch Settings
• Amount of discharge shown in cc (1cc = 0.9 gram lubricant) per day.
• The white square indicates dip switch position.
Lubrication
Canister Size
60 cc 120 cc 250 cc
34
Vol.
250 cc
34
Vol.
Dip Switch
Position
12
TIME
12
TIME
12
TIME
12
TIME
34
VOL
34
VOL
34
VOL

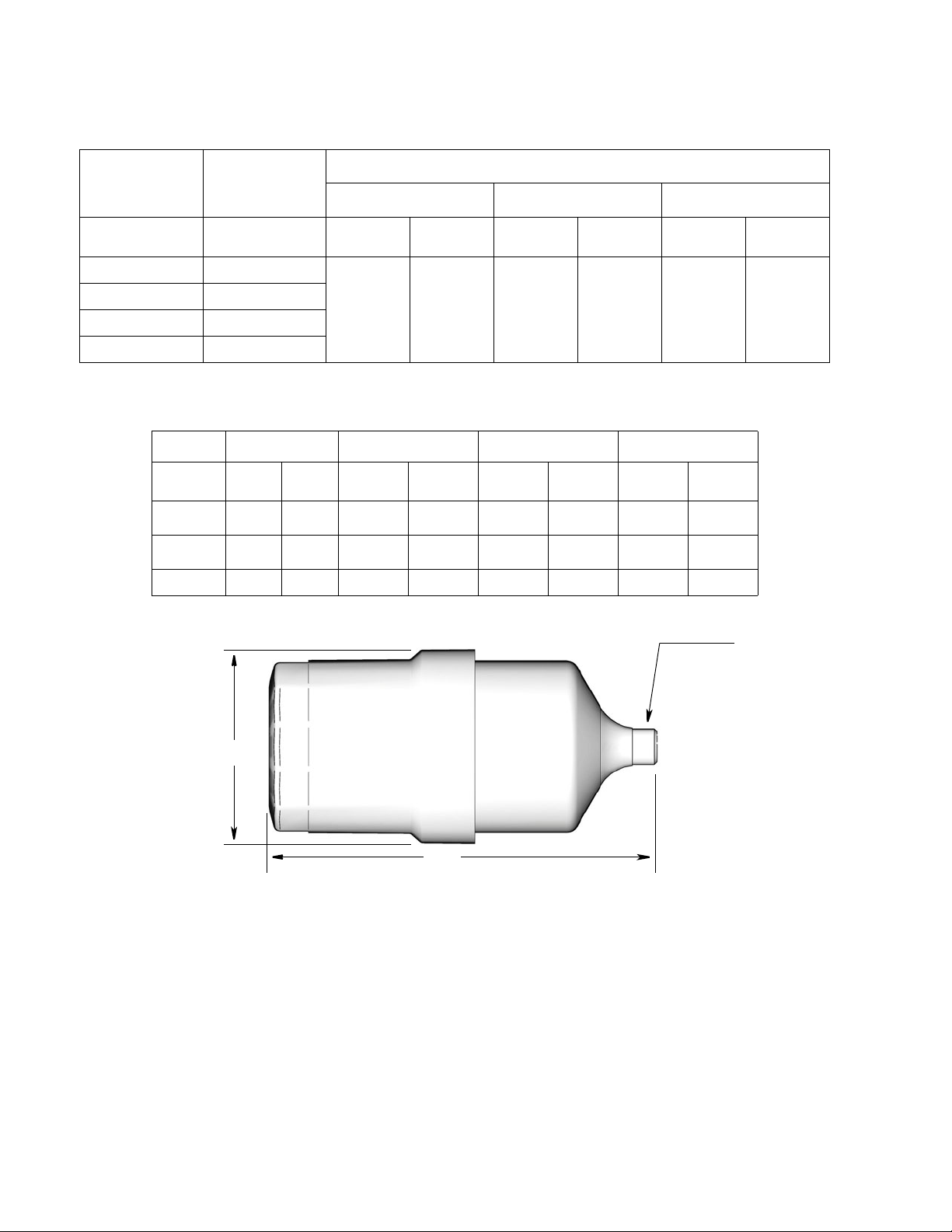

Discharge
period
2.00 4.00 8.33 1 month
0.67 1.33 2.78 3 months
0.33 0.67 1.39 6 months
0.17 0.33 0.69 12 months
8 3A0415D
Installation and Setup
Changing the Dip Switch Setting
The discharge period (Time) and/or lubrication
canister size (Volume) can only be changed
when a new lubrication canister is attached. If
settings must be changed during current operation; i.e., after discharge was started, you
must attach a new, completely filled lubrication
canister and a new battery pack.
Changing settings during operation interferes
with the controls and monitoring electronics;
making it impossible to guarantee precise
lubrication.
Always use a new, completely full
lubrication canister and new battery pack
after each setting change. Never use a
partially empty lubrication canister or old
batteries.
• For horizontal mounting a bracket clip must
be used to hold the lubricator in place. A
horizontal clip bracket part number 124086
is available from Graco. See Parts, page 16
• For vertical installations always use a sup-
port adapter part number 124105 is available from Graco. See Parts, page 16.
• The grease nozzle of the lubricator has a
npt 1/4 inch male thread. If your application
has a different thread you may need to use
an adapter. See Parts, page 16 for a complete list of available adapters.
• Do not overtighten the plastic thread of the
lubricator.
• For all metal to metal connections (i.e.,
extensions, reducers, etc.) make sure to
use LOCTITE® 243* (semi-tight screw lock-
ing).
Selecting Mounting Location
Installation Guidelines
• Before installing the lubricator, the lubrica-
tion points and any extensions must be
adequately pre-lubricated with the same
lubricant contained in the lubricator. A 400
gram lubricant cartridge for grease guns is
available from Graco. See Parts, page 16
for a complete list of available lubricant cartridges.
• Install one lubricator per lubrication point.
• When oil is used for lubrication, a
non-return valve (oil throttle) must be
installed. This will prevent oil leakage from
the lubricator. An oil throttle, part number
124102 is available from Graco. See Parts,
page 16.
*Loctite
Corporation.
®
is a registered trademark of the Loctite
Direct Mounting Installation
Refer to FIG. 6 for examples of correct and
incorrect direct mounting installations.
Correct
Incorrect
• An oil-filled lubricator must be installed ver-
FIG. 6
tically (outlet down).
3A0415D 9
Installation and Setup
Remote Mounting Installations
Refer to FIG. 7 and FIG. 8 for examples of correct remote mounting installations.
• Remote installations require a grease line.
Graco recommends using a 5/16 inch flexible hose.
• Select a position for the lubricator that is
easy to access and protected from
high-pressure water jets, falling materials,
corrosive chemicals and extreme temperatures.
Grease Lubrication with Tube
A
B
C
D
E
F
FIG. 7
A Clip, 124086
B Support adapter, 124105
C Bracket, 124087
D Tube connector◆, (User supplied)
E Nylon tube◆ (User supplied)
F Tube connections◆ (User supplied)
◆ Must be at least 5/16 inch diameter tube.
10 3A0415D

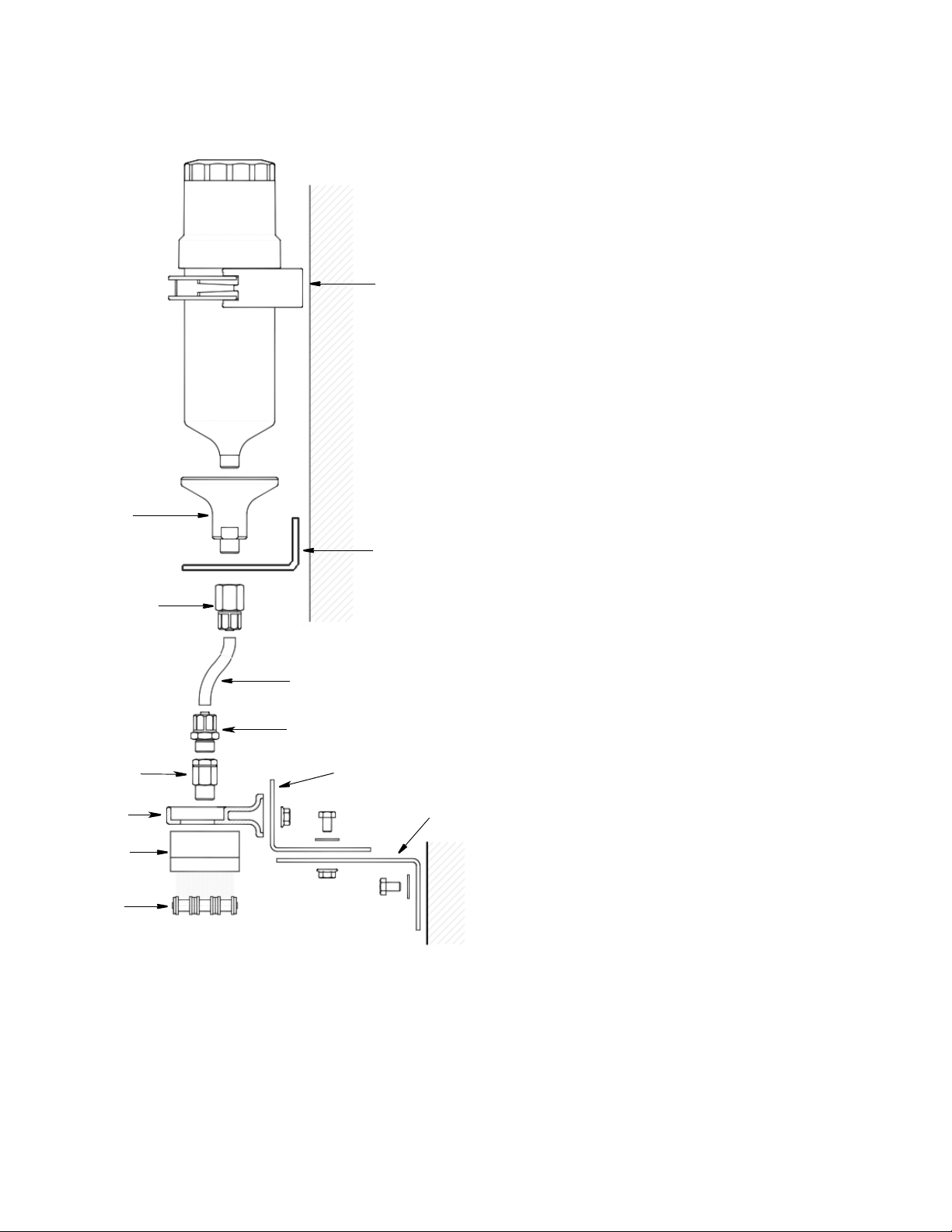

From-top-lubrication of a Chain with Oil
A
B
Installation and Setup
A Clip, 124086
B Support adapter, 124105
C Bracket, 124087
D Tube connector◆ (User supplied)
E Nylon tube◆ (User supplied)
F Tube connections◆ (User supplied)
G Oil throttle, 124102*
H L-Bracket, 124098
J Bulkhead mounting plate, 124099
K Oil brush, 1”x 1.5”, 124090
LChain
*The non-return valve (oil throttle (G) should
always be placed at the lowest point of the
application.
◆ Must be at least 5/16 inch diameter tube.
C
K
L
FIG. 8
G
C
D
E
F
H
J
3A0415D 11
Operation
Installing Lubricator to Lubrication Point
1. Clean the lubrication point to remove any
potential contaminants.
2. Verify the thread of the lubricator corresponds to the thread of the screw point.
3. Verify Dip Switches are correctly set. See
Table 1, page 8.
4. Prime the grease line and all accessories
with the same grease that is contained in
the lubricator (See Parts, page 16 for a
complete list of available grease cartridges).
5. Install reducers, extensions, grease line,
etc. (if necessary).
6. Place drive unit on top of new lubrication
canister until the teeth of both pieces are
locked.
7. Screw the cover of the drive unit onto the
lubrication canister - hand tighten only.
9. Install lubricator unit
into adapter (B) (if it is
not already installed).
10.Screw lubricator to
lubrication point,
hand tight only.
B
NOTICE
To ensure optimal lubrication:
• Seal threads of all connecting parts with a
suitable, standard sealant.
• Mount oil filled lubricators properly with the
outlet pointing down.
• Never screw in the lubricator a second time
or the self-sealing threads will be damaged.
• For remote mounting installations, make
sure bracket does not squeeze the lubrication canister as this could block the piston
inside the canister.
8. (If the plug is not
already removed),
remove the plug (A).
A
Operation
Before operation verify:
• The lubricator does not have any visible
damage.
• The lubricator canister is filled with the
requested grease or oil.
• For oil filled lubrication canisters, an oil
throttle must be attached.
• New batteries have been installed.
• The “VOL” switches 3 and 4 of the 4-way
code switch match the correct size of the
lubrication canister.
12 3A0415D
Maintenance
• The “TIME” switches 1 and 2 of the 4-way
code switch in the drive unit match the
desired discharge period.
• All components are properly assembled
and screwed together hand tight.
To begin the discharge:
Turn the rotary switch from the
OFF position to the ON position.
Maintenance
Changing the Lubrication
Removing Lubrication Canister
1. Switch the rotary switch
position from ON to OFF.
2. To disconnect adapter from lubrication
point, follow pressure relief procedure
provided on page 4.
3. Unscrew and completely remove adapter
(B) from the lubricator. Adapter will be
reused.
Canister
When the red and green LED light up at the
same time, the lubrication canister is empty
and should be replaced.
NOTICE
• The battery pack must be replaced
every time you change a lubrication
canister to ensure correct lubricator
operation.
• The drive unit and circuit board must
always be protected from moisture to
prevent damaging these components.
Always change the lubrication canister
in a dry place.
B
FIG. 9
4. Unscrew cover from drive unit.
5. Remove drive unit from the lubrication canister.
6. Remove old battery pack from drive unit.
3A0415D 13
Maintenance
Installing the New Lubrication
Canister
Sparking can occur when changing the battery pack. Only replace the battery pack in a
non-hazardous location, away from flammable
fluids or fumes.
1. Install new battery pack in drive unit in the
direction of the arrows as shown in FIG. 10.
NOTE: Only replace the battery pack with a
Graco battery pack for EM Drive Lubricators,
part number 124261. Handle and dispose of
the battery pack properly.
7. Remove the plug (A).
8. Install lubricator unit
into adapter (B).
9. Screw lubricator into
the lubrication point hand tighten only.
B
NOTICE
To ensure optimal lubrication:
A
Direction Arrow
FIG. 10
2. If a different size lubrication canister or discharge period is going to be used, change
dip switches to reflect the new canister size
and/or time change. See Table 1, page 8.
3. Prime the grease line and all accessories
with the same grease that is contained in
the lubricator (See Parts, page 16 for a
complete list of available grease cartridges).
4. Install reducers, extensions, grease line,
etc. (if necessary).
5. Place drive unit on top of new lubrication
canister until the teeth of both pieces are
locked.
• Seal threads of all connecting parts with a
suitable, standard sealant.
• Mount oil filled lubricators properly with the
outlet pointing down.
• Never screw in the lubricator a second time
or the self-sealing threads will be damaged.
• For remote mounting installations, make
sure bracket does not squeeze the lubrication canister as this could block the piston
inside the canister.
10.To begin the discharge refer to Operation,
page 12.
6. Screw the cover of the drive unit onto the
lubrication canister - hand tighten only.
14 3A0415D
Troubleshooting
Lubrication Canister Disposal
Dispose of hazardous fluid in approved containers, and according to applicable guidelines.
Read the MSDS to know the specific hazards
of the fluids you are using.
Troubleshooting
Malfunction Possible Cause Solution
Switches on the cover are in
the OFF position
No batteries are installed in the
drive unit
Lubricator does not function
Old batteries were used Install new battery pack
Storage
When lubricators are not immediately installed,
they must be stored for a maximum of 1 year in
a dry, dust free, sunlight protected room,
indoors. The room temperature cannot exceed
70°F (21°C).
Move switches to ON position
Install new battery pack
The red and green blinking
LED display signals “end of
discharge period” but lubrication unit is not empty yet
Unit does not discharge
The green blinking LED display
signals “system in operation”
but the lubrication unit is empty
Batteries are leaking Replace drive unit
Parts are not correctly screwed
together
Settings were changed during
the currently running operation
or adjusted wrong at the beginning
Old batteries were used Install new battery pack
Unit has been operating below
-10°C (14°F) for a long period
of time
Settings were changed during
the currently running operation
or adjusted wrong at the beginning
Settings were changed during
the currently running operation
or adjusted wrong at the beginning
Correctly screw parts together
or screw tighter
Replace with full lubrication
canister. Install new battery
pack and restart.
Operate the unit within the
specified temperature range
Replace with full lubrication
canister. Install new battery
pack and restart.
Replace with full lubrication
canister. Install new battery
pack and restart.
The red blinking LED display
signals “system malfunction”
3A0415D 15
Clogged line and/or connection
parts
Counter-pressure is too high Lower counter-pressure
Clean line and connection
parts. Turn unit OFF and then
ON again.
Parts
Parts
Miscellaneous Accessories
Part No. Description Qty.
123949 MOTOR, EM-Drive 1
124086 CLIP, support 1
124087 BRACKET, plastic 1
124089 BRUSH, pig hair, 1/4 fnpt - 3/4 1
124090 BRUSH, oil, 1 x 1.5 1
124091 BRUSH, oil, 1 x 2.4 1
124092 BRUSH, oil, 1 x 4 1
124093 BRUSH, link chain 1
124100 CLAMP, beam, 1” 1
124101 BRACKET, dual unit 1
124102 VALVE, check, oil throttle
124109 KIT, accessory, purge 1
124110 CAP, wet, EM-Drive 1
124111 CAP, full, 60 - 120 cc 1
124112 CAP, full, 250 cc 1
124113 APPLICATOR, chain, felt 1
124114 BRUSH, nylon, 1/8 mnpt x 5/8 1
124115 BRUSH, nylon, 1/8 mnpt x 2 1
124116 KIT, SA heavy green 1
124119 PADDLE, open gear lube 1
Mounting Brackets
Replacement Cap
Part No. Description Qty.
124110 CAP, top 1
124111 CAP, full, 60-120 cc 1
124112 CAP, full, 250 cc 1
400 Gram Lubricant Cartridges
Part No. Description Qty.
124176 CARTRIDGE, lubricant, lith-
ium EP-2
124177 CARTRIDGE, lubricant, con-
struction
124178 CARTRIDGE, lubricant, bear-
ing
124179 CARTRIDGE, lubricant, milling 1
124180 CARTRIDGE, lubricant, food
grade H1
124181 CARTRIDGE, lubricant, syn-
thetic industrial
124182 CARTRIDGE, lubricant, ultra
spindle
124183 CARTRIDGE, lubricant, lith-
ium EP-1
1
1
1
1
1
1
1
Part No. Description Qty.
124094 BRACKET, mounting, small 1
124095 BRACKET, mounting, medium 1
124096 BRACKET, mounting, large 1
124097 BRACKET, mounting, flat 1
124098 BRACKET, mounting, L 1
124099 BRACKET, mounting, bulkhead 1
Fitting Adapter
Part No. Description Qty.
124105 ADAPTER, 1/4 fnpt x 1/4 mnpt 1
124106 ADAPTER, 1/4 fnpt x 1/8 mnpt 1
Pressure Relief Valve
Part No. Description Qty.
124107 VALVE, relief, 1/8 m, 5 lb 1
124108 VALVE, relief, 1/8 m, 1 lb 1
16 3A0415D
Refill Kits
Technical Data
Part No. Description Qty.
24E582 KIT, refill, 60 cc, lithium EP-2 1
24E583 KIT, refill, 60 cc, construction 1
24E584 KIT, refill, 60 cc, bearing 1
24E585 KIT, refill, 60 cc, milling 1
24E586 KIT, refill, 60 cc, food grade H1 1
24E587 KIT, refill, 60 cc, synthetic 1
24E588 KIT, refill, 60 cc, ultra spindle 1
24E589 KIT, refill, 60 cc, lithium EP-1 1
24E590 KIT, refill, 120 cc, lithium EP-2 1
24E591 KIT, refill, 120 cc, construction 1
24E592 KIT, refill, 120 cc, bearing 1
24E593 KIT, refill, 120 cc, milling 1
24E594 KIT, refill, 120 cc, food grade H1 1
24E595 KIT, refill, 120 cc, synthetic 1
24E596 KIT, refill, 120 cc, ultra spindle 1
Part No. Description Qty.
24E597 KIT, refill, 120 cc, lithium EP-1 1
24E598 KIT, refill, 250 cc, lithium EP-2 1
24E599 KIT, refill, 250 cc, construction 1
24E600 KIT, refill, 250 cc, bearing 1
24E601 KIT, refill, 250 cc, milling 1
24E602 KIT, refill, 250 cc, food grade H1 1
24E603 KIT, refill, 250 cc, synthetic 1
24E604 KIT, refill, 250 cc, ultra spindle 1
24E605 KIT, refill, 250 cc, lithium EP-1 1
24H340 KIT, refill, 120 cc, EM bearing 1
24H341 KIT, refill, 250 cc, EM bearing 1
Technical Data
Power Supply 3 AA, 1.5V batteries
Temperature range -10° C to +50° C (+14° F to +122° F)
Maximum output pressure 5 bar (75 psi)
Storage
Conditions Dry, dust free
Temperature +20° C ± 5° C (+68° F ± 9° F)
Noise data: Sound pressure level <70 dB(A) measured at distance of 1m (39.4 in.) / height 1.6m
(63 in.)
Loctite
®
is a registered trademark of the Loctite Corporation.
3A0415D 17
Technical Data
Discharge Amount per Cycle
Discharge
Period
Pause
Time
Months h:min
11:30
34:37
69:17
12 18:36
Weights and Measurements
Type Volume Diameter (D)
3
cm
EM-60 60 2.03 71 2.8 142 5.60 0.376 0.829
EM-120 120 4.06 71 2.8 165 6.50 0.386 0.851
EM-250 250 8.45 71 2.8 215 8.46 0.417 0.919
fl. oz mm in. mm in. kg lbs
Discharge Amount per Discharge Cycle
EM-60 EM-120 EM-250
cm
3
fl. oz.
cm
3
fl oz.
cm
3
fl. oz.
0.13 0.004 0.26 0.008 0.53 0.17
Length (L) Weight (empty)
1/4 npt
D
Drive
L
LC unit
18 3A0415D
Notes
Notes
3A0415D 19
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will
be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6928 or Toll Free: 1-800-533-9655, Fax: 612-378-3590
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A0415
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 2010, Graco Inc. is registered to ISO 9001
www.graco.com
12/2010
Loading...
