Graco 3A0411F User Manual

Download

Repair/Parts

Important Safety Instructions

Read all warnings and instructions in this manual. Save these instructions.

ti16556a

ti16561a

Polypropylene

Aluminum

Stainless Steel

ti17454a

Husky

3300 Air-Operated

3A0411F

Diaphragm Pump

Heavy-duty 3-inch pump with large flow paths for fluid transfer applications, including high-viscosity materials. For professional use only.

See page 4 for model information, including approvals.

125 psi (0.86 MPa, 8.6 bar) Maximum Working Pressure, Aluminum or Stainless Steel Pumps with Aluminum Center Section 100 psi (0.7 MPa, 6.9 bar) Maximum Working Pressure, Polypropylene or Stainless Steel Pumps with Polypropylene Center Section

Related Manuals

Contents

Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

To Find Your Nearest Distributor . . . . . . . . . . . . . . 3

To Specify the Configuration of a New Pump . . . . 3

To Order Replacement Parts . . . . . . . . . . . . . . . . . 3

Distributor Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Configuration Number Matrix . . . . . . . . . . . . . . . . . 4

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Pressure Relief Procedure . . . . . . . . . . . . . . . . 10

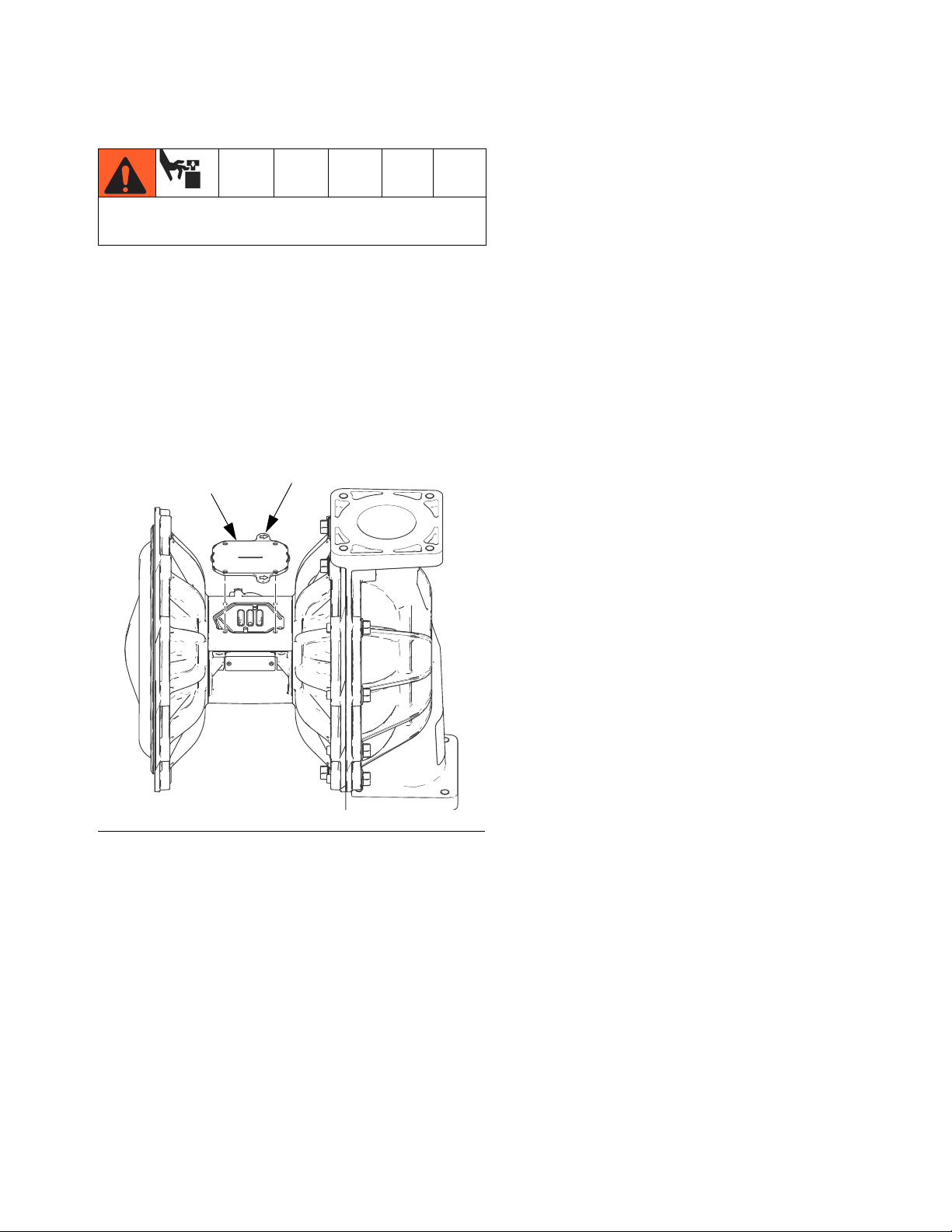

Repair or Replace Air Valve . . . . . . . . . . . . . . . 10

Check Valve Repair . . . . . . . . . . . . . . . . . . . . . . 12

Diaphragms and Center Section . . . . . . . . . . . . 14

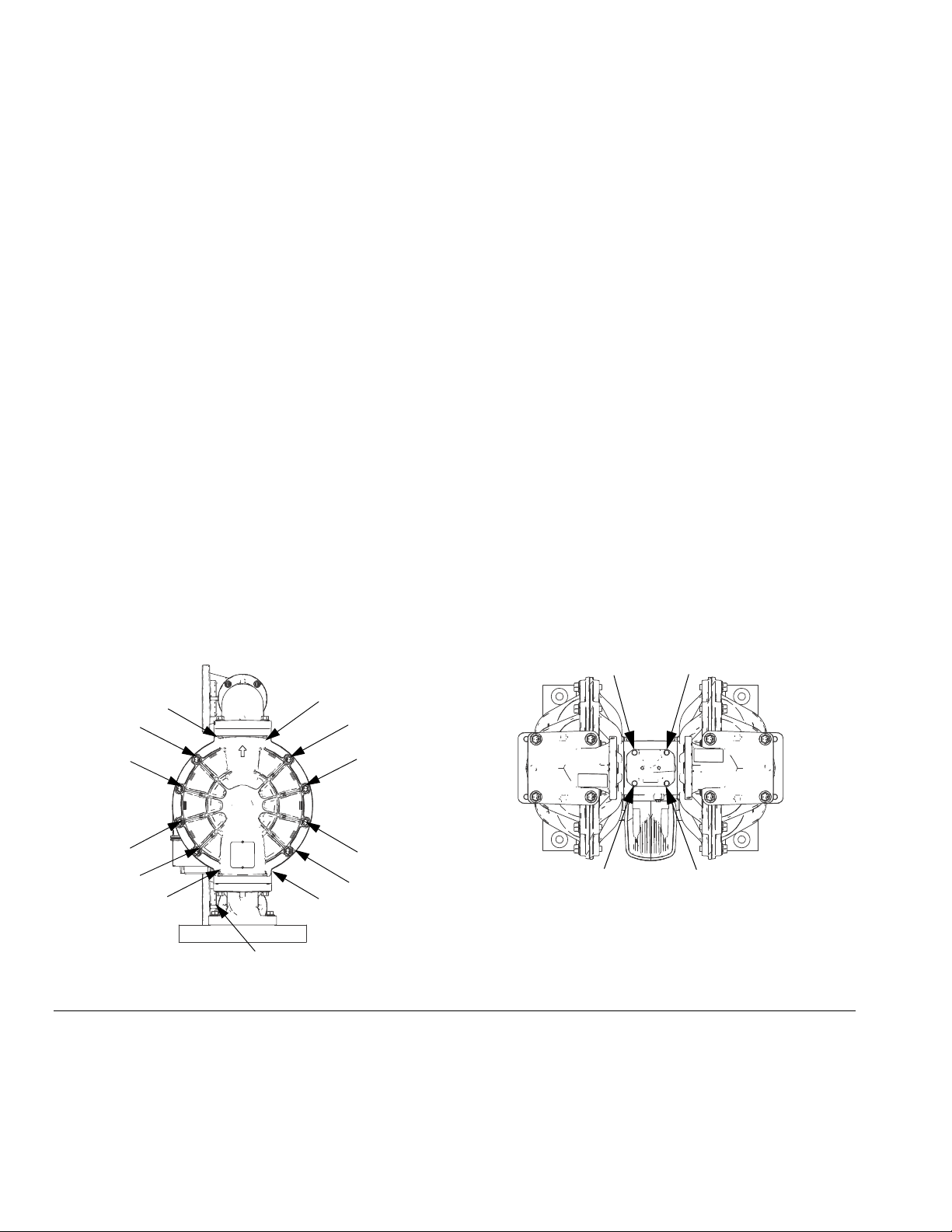

Torque Instructions . . . . . . . . . . . . . . . . . . . . . . 20

Related Manuals

Manual Description

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

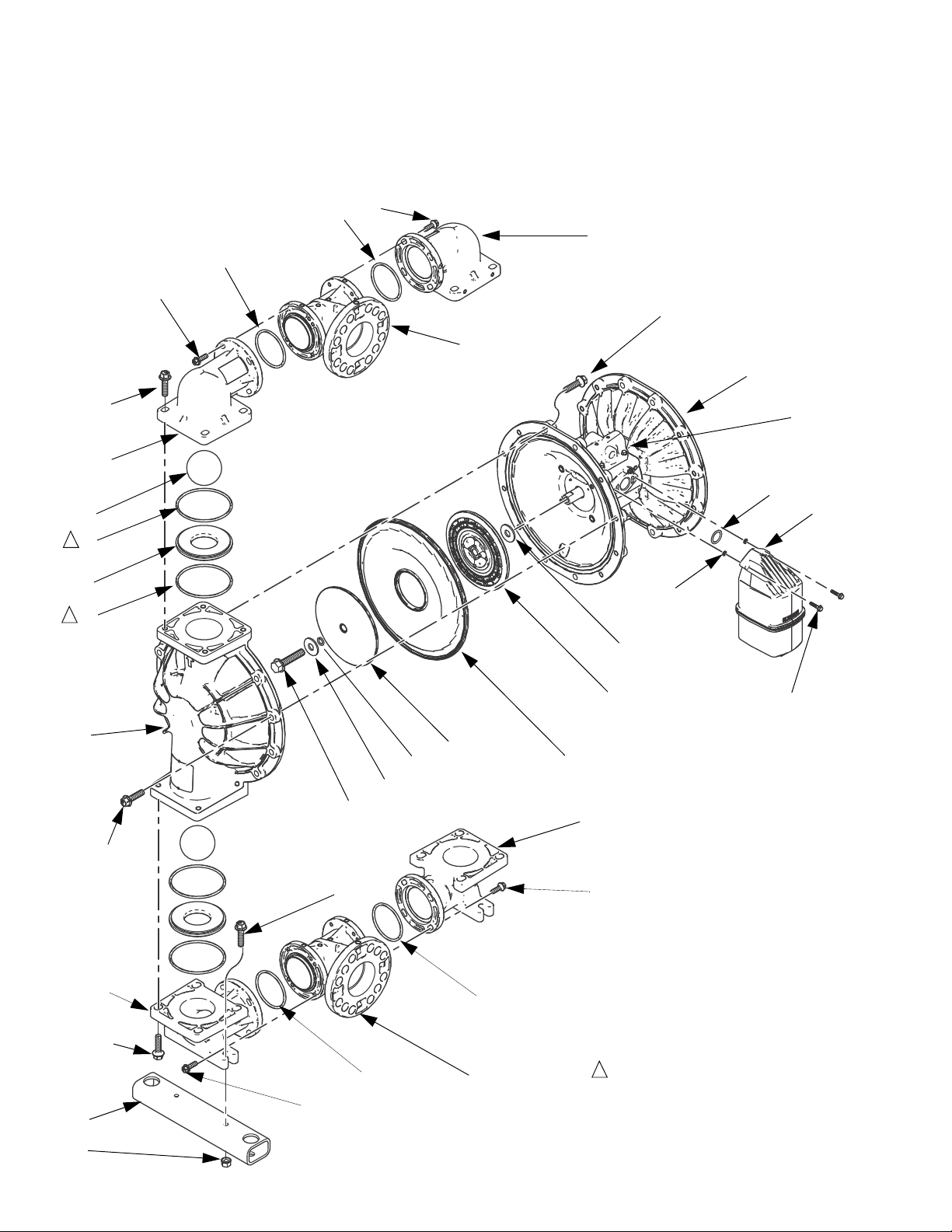

3300A, Aluminum . . . . . . . . . . . . . . . . . . . . . . . 22

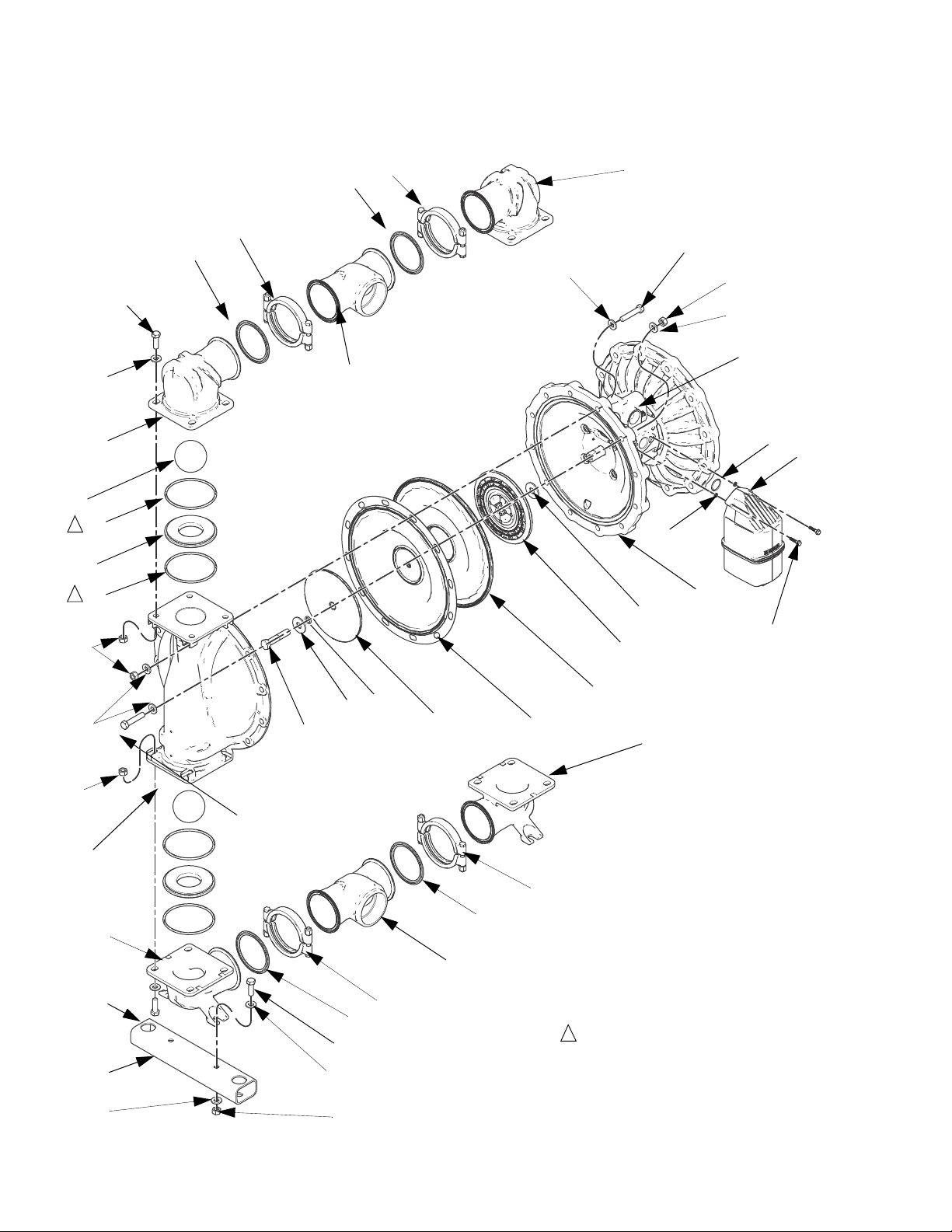

3300P, Polypropylene . . . . . . . . . . . . . . . . . . . . 23

3300S, Stainless Steel . . . . . . . . . . . . . . . . . . . 24

Parts/Kits Quick Reference . . . . . . . . . . . . . . . . 25

Center Section . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Air Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Fluid Covers and Manifolds . . . . . . . . . . . . . . . . 32

Seats and Check Balls . . . . . . . . . . . . . . . . . . . 34

Diaphragms . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Manifold and Seat Seals . . . . . . . . . . . . . . . . . . 37

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Graco Standard Husky Pump Warranty . . . . . . . . 42

Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 42

3A0410

Husky 3300 Air-Operated Diaphragm Pump, Operation

2 3A0411F

To Find Your Nearest Distributor

1. Visit www.graco.com.

2. Click on Where to Buy and use the Distributor Locator.

To Specify the Configuration of a New Pump

Please call your distributor.

1. Use the Online Husky Selector Tool at wwwd.graco.com/training/husky/index.html.

2. If the link does not work, you will find the selector tool on the Process Equipment page at www.graco.com.

To Order Replacement Parts

Please call your distributor.

Distributor Note

1. To find part numbers for new pumps or kits, use the Online Husky Selector Tool.

2. To find part numbers for replacement parts: a. Use the 20-digit number from the ID plate on the pump. If you only have the Graco 6-digit part number, use

the selector tool to find the corresponding 20-digit number.

b. Use the Configuration Number Matrix on the next page to understand which parts are described by each

digit.

c. Refer to the main Parts illustration and to the Parts/Kits Quick Reference. Follow the page references on

these two pages for further ordering information, as needed.

3. Please call Graco Customer Service to order.

3A0411F 3

Configuration Number Matrix

&21),*85$7,21123$5712 6(5,$/12

6(5,(6'$7(&2'(

0$;:3536,EDU

Pump Configuration

Number

ti17770a

II 2 GD c IIC T4

Configuration Number Matrix

Check the identification plate (ID) for the 20-digit Configuration Number of your pump. Use the following matrix to define the components of your pump.

Sample Configuration Number: 3300A-A01AA1TPACTPBN

3300A A01A A1 TP AC TP BN

Pump Model

Pump

3300A★

Aluminum

3300P†

Polypropylene

3300S★

Stainless Steel

★ 3300A (aluminum) and 3300S (stainless steel) pumps with aluminum center sections are certified:

Center Section and Air Valve

Fluid Covers and Manifolds

Seats Balls Diaphragms Manifold

and Seat Seals

Center Section and Air

Valve Material

For Use With Fluid Covers and Manifolds

Aluminum A01A Standard Diaphragms A1 Aluminum, center flange, npt

A01E Optional FKM seals with

A2 Aluminum, center flange, bspt

Standard Diaphragms

A01G Overmolded Diaphragms P1 Polypropylene, center flange

Polypropylene† P01A Standard Diaphragms S1 Stainless steel, npt

P01G Overmolded Diaphragms S2 Stainless steel, bspt

† Pumps with polypropylene fluid or center sections are not ATEX certified.

Check Valve Seats Check Valve Balls Diaphragm Manifold and Seat Seals*

AC Acetal AC Acetal BN Buna-N BN Buna-N AL Aluminum BN Buna-N CO Polychloroprene

PT PTFE

Overmolded

BN Buna-N CR Polychloroprene

CR Polychloroprene

Standard

FK FKM Fluoroelastomer CW Polychloroprene

FK FKM Fluoroelastomer

Weighted

Geolast

FK FKM Fluoroelastomer GE Geolast

PP Polypropylene GE Geolast PO PTFE/EPDM

Overmolded

Santoprene

PT PTFE PT PTFE/Santoprene

Two-Piece

SS 316 Stainless Steel SP Santoprene SP Santoprene TP TPE TP TPE TP TPE

* Models with Buna-N, FKM Fluoroelastomer or TPE seats do not use o-rings.

4 3A0411F

Warnings

The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. When these symbols appear in the body of this manual, refer back to these Warnings. Additional, product-specific warnings may be found throughout the body of this manual where applicable.

WARNING

FIRE AND EXPLOSION HAZARD

Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire and explosion:

• Use equipment only in well ventilated area.

• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop cloths (potential static arc).

• Keep work area free of debris, including solvent, rags and gasoline.

• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes are present.

• Ground all equipment in the work area. See Grounding instructions.

• Use only grounded hoses.

• Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless they are antistatic or conductive.

• Stop operation immediately if static sparking occurs or you feel a shock. Do not use equipment until you identify and correct the problem.

• Keep a working fire extinguisher in the work area.

• Route exhaust away from all ignition sources. If diaphragm ruptures, fluid may be exhausted with air.

Static charge may build up on plastic parts during cleaning and could discharge and ignite flammable vapors. To help prevent fire and explosion:

• Clean plastic parts only in a well ventilated area.

• Do not clean with a dry cloth.

• Do not operate electrostatic guns in equipment work area.

PRESSURIZED EQUIPMENT HAZARD

Fluid from the equipment, leaks, or ruptured components can splash in the eyes or on skin and cause serious injury.

• Follow the Pressure Relief Procedure when you stop spraying/dispensing and before cleaning, checking, or servicing equipment.

• Tighten all fluid connections before operating the equipment.

• Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.

3A0411F 5

Warnings

WARNING

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Do not operate the unit when fatigued or under the influence of drugs or alcohol.

• Do not exceed the maximum working pressure or temperature rating of the lowest rated system

component. See Technical Data in all equipment manuals.

• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all

equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information about your material, request MSDS from distributor or retailer.

• Do not leave the work area while equipment is energized or under pressure.

• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.

• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manufacturer’s replacement parts only.

• Do not alter or modify equipment. Alterations or modifications may void agency approvals and create safety hazards.

• Make sure all equipment is rated and approved for the environment in which you are using it.

• Use equipment only for its intended purpose. Call your distributor for information.

• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.

• Do not kink or over bend hoses or use hoses to pull equipment.

• Keep children and animals away from work area.

• Comply with all applicable safety regulations.

THERMAL EXPANSION HAZARD

Fluids subjected to heat in confined spaces, including hoses, can create a rapid rise in pressure due to the thermal expansion. Over-pressurization can result in equipment rupture and serious injury.

• Open a valve to relieve the fluid expansion during heating.

• Replace hoses proactively at regular intervals based on your operating conditions.

PRESSURIZED ALUMINUM PARTS HAZARD

Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or property damage.

• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids containing such solvents.

• Many other fluids may contain chemicals that can react with aluminum. Contact your material supplier for compatibility.

PLASTIC PARTS CLEANING SOLVENT HAZARD

Many solvents can degrade plastic parts and cause them to fail, which could cause serious injury or property damage.

• Use only compatible water-based solvents to clean plastic structural or pressure-containing parts.

•See Technical Data in this and all other equipment instruction manuals. Read fluid and solvent manufacturer’s MSDSs and recommendations.

6 3A0411F

Warnings

WARNING

TOXIC FLUID OR FUMES HAZARD

Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swallowed.

• Read MSDSs to know the specific hazards of the fluids you are using.

• Route exhaust away from work area. If diaphragm ruptures, fluid may be exhausted into the air.

• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.

BURN HAZARD

Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe burns:

• Do not touch hot fluid or equipment.

PERSONAL PROTECTIVE EQUIPMENT

Wear appropriate protective equipment when in the work area to help prevent serious injury, including eye injury, hearing loss, inhalation of toxic fumes, and burns. This equipment includes but is not limited to:

• Protective eyewear, and hearing protection.

• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.

3A0411F 7

Troubleshooting

Problem Cause Solution

Pump cycles but will not prime. Pump is running too fast, causing

cavitation before prime. Check valve ball severely worn or

wedged in seat or manifold. Seat severely worn. Replace ball and seat. See page 12. Outlet or inlet clogged. Unclog. Inlet or outlet valve closed. Open. Inlet fittings or manifolds loose. Tighten. Manifold o-rings damaged. Replace o-rings. See page 12.

Pump cycles at stall or fails to hold pressure at stall.

Pump will not cycle, or cycles once and stops.

Pump operates erratically. Clogged suction line. Inspect; clear.

Air bubbles in fluid. Suction line is loose. Tighten.

Worn check valve balls, seats, or o-rings.

Air valve is stuck or dirty. Disassemble and clean air valve.

Check valve ball severely worn and wedged in seat or manifold.

Pilot valve worn, damaged, or plugged.

Air valve gasket damaged. Replace gasket. See page 10. Dispensing valve clogged. Relieve pressure and clear valve.

Sticky or leaking check valve balls. Clean or replace. See page 12. Diaphragm (or backup) ruptured. Replace. See page 14. Restricted exhaust. Remove restriction. Pilot valves damaged or worn. Replace pilot valves. See page 14. Air valve damaged. Replace air valve. See page 10. Air valve gasket damaged. Replace air valve gasket. See

Air supply erratic. Repair air supply. Exhaust muffler icing. Use drier air supply..

Diaphragm (or backup) ruptured. Replace. See page 14. Loose manifolds, damaged seats or

o-rings. Diaphragm shaft bolt o-ring dam-

aged. Pump cavitation. Reduce pump speed or suction lift. Loose diaphragm shaft bolt. Tighten.

Reduce air inlet pressure.

Replace ball and seat. See page 12.

Replace. See page 12.

See page 10. Use filtered air. Replace ball and seat. See page 12.

Replace pilot valve. See page 14.

page 10.

Tighten manifold bolts or replace seats or o-rings. See page 12.

Replace o-ring.

8 3A0411F

Troubleshooting

Problem Cause Solution

Exhaust air contains fluid being pumped.

Diaphragm (or backup) ruptured. Replace. See page 14. Loose diaphragm shaft bolt. Tighten or replace. See page 14. Diaphragm shaft bolt o-ring dam-

Replace o-ring. See page 14.

aged. Moisture in exhaust air. High inlet air humidity. Use drier air supply. Pump exhausts excessive air at stall. Worn air valve cup or plate. Replace cup and plate. See page 10.

Damaged air valve gasket. Replace gasket. See page 10.

Damaged pilot valve. Replace pilot valves. See page 14.

Worn shaft seals or bearings. Replace shaft seals or bearings. See

page 14.

Pump leaks air externally. Air valve or fluid cover screws loose. Tighten.

Diaphragm damaged. Replace diaphragm. See page 14.

Air valve gasket damaged. Replace gasket. See page 10.

Air cover gasket damaged. Replace gasket. See page 14. Pump leaks fluid externally from

joints.

Loose manifold screws or fluid cover

screws.

Tighten manifold screws or fluid cover screws. See page 20.

Manifold o-rings worn out. Replace o-rings. See page 12.

3A0411F 9

Repair

Pressure Relief Procedure

Follow the Pressure Relief Procedure whenever you see this symbol.

This equipment stays pressurized until pressure is relieved manually. To help prevent serious injury from pressurized fluid, such as splashing in the eyes or on skin, follow the Pressure Relief Procedure whenever you stop pumping and before you clean, check, or service the equipment.

1. Shut off the air supply to the pump.

2. Open the dispensing valve, if used.

3. Open the fluid drain valve to relieve fluid pressure. Have a container ready to catch the drainage.

Repair or Replace Air Valve

Replace Seals or Rebuild Air Valve

NOTE: Repair kits are available. See page 31 to order

the correct kit(s) for your pump. Air Valve Seal Kit parts are marked with a †. Air Valve Repair Kit parts are marked with a ◆. Air Valve End Cap Kit parts are marked with a ✠.

Disassemble the Air Valve

1. Perform steps 1-3 under Replace Complete Air Valve, page 10.

2. See F

3. Pull the cup (213) off of the base (212). Remove the

4. See F

IG. 2. Use a Torx screwdriver (T8 for aluminum

centers, T10 for plastic centers) to remove two screws (209). Remove the valve plate (205), cup assembly (212-214), spring (211), and detent assembly (203).

o-ring (214) from the cup.

IG. 2. Remove the retaining ring (210) from

each end of the air valve. Use the piston (202) to push the end cap (207) out of one end. Remove the u-cup seal (208). Pull the piston out the end and remove the other u-cup seal (208). Remove the other end cap (207) and the end cap o-rings (206).

Replace Complete Air Valve

1. Stop the pump. Relieve the pressure. See Pressure Relief Procedure in previous section.

2. Disconnect the air line to the motor.

3. Remove screws (104, metal pumps) or nuts (116, plastic pumps). Remove the air valve and gasket (113).

4. To repair the air valve, go to Disassemble the Air Valve, step 1, in next section. To install a replacement air valve, continue with step 5.

5. Align the new air valve gasket (113*) on the center housing, then attach the air valve. See Tor que Instructions, page 20.

6. Reconnect the air line to the motor.

5. Remove the detent cam (204) from the air valve housing (201).

10 3A0411F

Repair

Lips face down

Lips face up

208◆†

202◆

ti12754a

210✠

207✠

206◆†✠

208◆†

202◆

209◆†

205◆

212◆

◆ 211 203 ◆

204◆

ti17765a

201

Apply lithium-based grease.

U-cup lips must face piston.

207✠

214◆

213◆

Apply lithium-based grease to contact surface.

Reassemble the Air Valve NOTE: Apply lithium-based grease whenever instructed

to grease. Order Graco PN 111920.

1. Use all parts in the repair kits. Clean other parts and inspect for damage. Replace as needed.

2. Grease the detent cam (204◆) and install into housing (201).

3. Grease the u-cups (208◆†) and install on the piston with lips facing toward the center of the piston.

4. Grease both ends of the piston (202◆) and the housing bore. Install the piston in the housing (201), with the flat side toward the cup (213◆). Be careful not to tear u-cups (208◆†) when sliding piston into housing.

5. Grease new o-rings (206◆†✠) and install on the end caps (207✠). Install the end caps into the housing.

6. Install a retaining ring (210✠) on each end to hold end caps in place.

IG. 1. Air valve u-cup installation

FIG. 2. Air valve assembly

3A0411F 11

Repair

ti19286a

214

213

212

211

7. Grease and install the detent assembly (203◆) into the piston. Install the o-ring (214◆) on the cup (213◆). Apply a light film of grease to the outside surface of the o-ring and the inside mating surface of the base (212◆).

Orient the end of the base that has a magnet toward the end of the cup that has the larger cutout. Engage the opposite end of the parts. Leave the end with the magnet free. Tilt the base toward the cup and fully engage the parts, using care so that the o-ring remains in place. Install the spring (211◆) onto the protrusion on the cup. Align the magnet in the base with the air inlet and install the cup assembly.

Check Valve Repair

NOTE: Kits are available for new check valve balls and

seats in a range of materials. See page 34 to order kits in the material(s) desired. O-ring and fastener kits also are available.

NOTE: To ensure proper seating of the check balls, always replace the seats when replacing the balls. Also, on models with seat o-rings, replace the o-rings every time the manifold is removed.

Disassembly

1. Follow the Pressure Relief Procedure on page 10.

Disconnect all hoses.

NOTE: The pump is heavy. Always use two people or a lift to move it.

2. Remove the pump from its mounting.

IG. 3. Cup assembly

8. Grease the cup side and install the valve plate (205◆). Align the small hole in the plate with the air inlet. Tighten the screws (209◆†) to hold it in place.

NOTE: For plastic pumps (3300P), use hand tools until thread-locking adhesive patch releases.

3. Use a 3/4 in. (19 mm) socket wrench to remove the outlet elbow fasteners (8), then remove the manifold assembly. See F

4. Remove the o-rings (13, not used on some models), seats (11), and balls (12).

5. Turn the pump over and remove the inlet manifold. The mounting brackets will remain attached.

6. Remove the o-rings (13, not used on some models), seats (11), and balls (12).

IG. 4.

Reassembly

1. Clean all parts and inspect for wear or damage. Replace parts as needed.

2. Reassemble in the reverse order, following all notes in F

IG. 4. Put the inlet manifold on first. Be sure the

ball checks (11-13) and manifolds are assembled exactly as shown. The arrows (A) on the fluid covers must point toward the outlet manifold.

12 3A0411F

Torque to 40-45 ft-lb (54-61 N•m) for Polypropylene models. Torque to 55-60 ft-lb (75-81 N•m) for Aluminum models.

Torque to 40-45 ft-lb (54-61 N•m) for Stainless Steel models. See Torque Instructions, page 20.

Not used on some models.

ti17808a

Arrow (A) must point toward outlet manifold.

Polypropylene pump shown

Repair

FIG. 4. Ball check valve assembly

3A0411F 13

Repair

Diaphragms and Center Section

Disassembly

NOTE: Diaphragm kits are available in a range of mate-

rials and styles. See page 35 to order the correct diaphragms for your pump. A Center Rebuild Kit also is available. See page 29. Parts included in the Center Rebuild Kit are marked with an *. For best results, use all kit parts.

1. Follow the Pressure Relief Procedure on page 10.

2. Remove the manifolds and disassemble the ball check valves as explained on page 12.

NOTE: You may wish to remove the inner fluid cover bolts (37) as you remove each manifold, for convenience.

3. Overmolded Diaphragms (PO and CO models)

b. Plastic Pumps: Hold the hex of one fluid side

diaphragm plate (15) with a 1-5/8 socket or box end wrench. Use another wrench (same size) on the hex of the other plate to remove. Then remove all parts of the diaphragm assembly. See F

IG. 7.

Metal Pumps: Turn the pump on its side. Hold one diaphragm shaft bolt (16) with a wrench, then use a 15/16 socket to remove the other bolt. Remove all parts of the diaphragm assembly. See F

c. Disassemble the other diaphragm assembly.

5. Use an o-ring pick to remove the u-cup packings (101) from the center housing. Bearings (109) can remain in place.

6. If necessary, remove the pilot valves (110).

Air Covers

Remove air covers only if a serious air leak suggests that the gaskets need to be replaced.

1. Remove pilot valves (110).

IG. 7, page 17.

a. Orient the pump so one of the fluid covers faces

up. Use a 3/4 in. (19 mm) socket wrench to remove the fluid cover bolts (36, 37), then pull the fluid cover (2) up off the pump.

b. The exposed diaphragm (20) will screw off by

hand. The shaft will either release and come off with this diaphragm, or remain attached to the other diaphragm. If the diaphragm shaft bolt (16) remains attached to the shaft (108), remove it. Remove the air side diaphragm plate (14) and washer (18).

c. Turn the pump over and remove the other fluid

cover. Remove the diaphragm (and the shaft, if necessary).

d. If the shaft is still attached to either diaphragm,

grasp the diaphragm firmly and use a wrench on the flats of the shaft to remove. Also remove the air side diaphragm plate (14) and washer (18). Continue with Step 5.

4. All Other Diaphragms

2. Use a 3/8 allen wrench (aluminum) or a 5/8 socket (polypropylene) to remove two bolts (103), then remove one air cover (105). Repeat for the other air cover.

3. Remove and replace the gasket (107).

4. Inspect the diaphragm shaft (108) for wear or scratches. If it is damaged, inspect the bearings (109) in place. If they are damaged, use a bearing puller to remove them.

NOTE: Do not remove undamaged bearings.

a. Orient the pump so one of the fluid covers faces

up. Use a 3/4 in. (19 mm) socket wrench to remove the fluid cover screws (36, 37), then pull the fluid cover (2) up off the pump. Turn the pump over and remove the other fluid cover.

14 3A0411F

Repair

113*

101*

110*

116*

106

117

118

111

119

Lips must face out of housing.

ti17769a

109*

107*

108*

119

103

112*

105

Polypropylene Model Shown

Torque to 20-25 in.-lb (2.3-2.8 N•m).

Aluminum: Torque to 30-40 ft-lb. (41-54 N•m). Poly: Torque to 25-35 ft-lb. (34-47 N•m).

Apply lithium-based grease.

Reassembly of Housing Parts and Air Covers

Follow all notes in FIG. 7. These notes contain important information.

NOTE: Apply lithium-based grease whenever instructed to grease. Order Graco PN 111920.

1. Clean all parts and inspect for wear or damage. Replace parts as needed.

NOTICE

Unwanted pressurized air due to worn seals can lead to reduced diaphragm life.

2. Grease and install the diaphragm shaft u-cup packings (101*) so the lips face out of the housing.

3. If removed, insert the new bearings (109*) into the center housing. Use a press or a block and rubber mallet to press-fit the bearing so it is flush with the surface of the center housing.

4. Assemble air covers, if removed:

a. Put one air cover on the bench. Install the align-

ment pins (112*) and a new gasket (107*).

b. Carefully place the center section on the air

cover.

c. Install second set of alignment pins (112*) and

gasket (107*) in the center section. Lower the second air cover onto the center housing.

d. Aluminum Centers: Apply medium-strength

(blue) thread locker on the bolts (103). Install two bolts and torque to 30-40 ft-lb (41-54 N•m). Turn the pump over on the bench and install and torque the other two bolts. Polypropylene Centers: Apply medium-strength (blue) thread locker on the bolts (103) and install a washer (119) on each bolt. Turn the assembly on its side. The alignment pins will help hold it together. Slide one bolt (103) through from one air cover to the other. Install a washer (119) and nut (118), hand tight. Repeat for the other three bolts, then torque to 25-35 ft-lb (34-47 N•m).

5. Grease and install the pilot valves (110*). Torque to 20-25 in.-lb (2.3-2.8 N•m). Do not over-torque.

FIG. 5. Assemble Center Section.

3A0411F 15

Repair

ti18621a

Reassembly of Standard Diaphragms

NOTE: If your pump has overmolded diaphragms, see

page 19.

PTFE Diaphragms

1. Clean all parts and inspect for wear or damage. Replace parts as needed.

2. Clamp the shaft flats in a vise.

3. For metal pumps, install the washer (18) and o-ring (17) on the shaft bolt (16).

4. Assemble the fluid side plate (15), the diaphragm (20), the backup diaphragm (305), the air side diaphragm plate (14), and the washer (18) on the bolt exactly as shown in F

5. Apply medium-strength (blue) Loctite or equivalent to the bolt (16) threads. Assemble into shaft. Torque the bolt to 110 -120 ft-lb (149-163 N•m) at 100 rpm maximum.

6. Grease the shaft u-cups (101*) and the length and ends of the diaphragm shaft (108*). Slide the shaft into the housing.

7. Repeat Steps 3 and 4 for the other diaphragm assembly.

8. Apply medium-strength (blue) Loctite or equivalent to the bolt (16) threads. Screw the bolt into the shaft hand tight.

IG. 7.

IG. 6. Place bolts to keep PTFE diaphragms aligned.

12. Torque the shaft bolt on the second side to 110 -120 ft-lb (149-163 N•m) at 100 rpm maximum.

13. Remove the bolts used for alignment.

14. Reattach one fluid cover (2). Arrow (A) must point toward the air valve. See Torque Instructions, page 20.

15. Follow directions under Attach Second Fluid Cover, page 19.

16. Reassemble the ball check valves and manifolds as explained on page 12.

9. To keep the diaphragms properly aligned, place 4 bolts on the side that has been torqued. Screw into the air cover just enough to engage two threads.

NOTE: The fluid cover bolts may work well, or use shop bolts. Do not use bolts that are long enough to deform the diaphragm manually.

10. Clamp the torqued side in a vise.

11. Again align the diaphragm and air cover holes on the second side and place 4 more bolts.

16 3A0411F

Repair

ti17811a

104*

ti14037b

PO and CO models

108*

ti17812a

PT models

(Metal pumps)

(Plastic pumps)

(Metal pumps)

Rounded side faces diaphragm.

Apply lithium-based grease.

Torque to 110-120 ft-lb. (149-163 N•m) at 100 rpm maximum.

AIR SIDE markings on diaphragm must face center housing.

If screw comes loose or is replaced, apply permanent (red) Loctite® or equivalent to diaphragm side threads. Apply primer and medium-strength (blue) Loctite

or equivalent to shaft side threads.

TP, SP, BN, FK, CR, and GE models

(Plastic pumps)

ti17813a

305

108

FIG. 7. Assemble diaphragms

3A0411F 17

Repair

All Other Standard Diaphragms - Metal Pumps:

1. Install the washer (18) and o-ring (17) on the shaft bolt (16).

2. Assemble the fluid side plate (15), the diaphragm (20), the air side diaphragm plate (14), and the washer (18) on the bolt exactly as shown in F

IG. 7.

3. Apply medium-strength (blue) Loctite or equivalent to the bolt (16) threads. Screw the bolt into the shaft hand tight.

4. Grease the shaft u-cups (101*) and the length and ends of the diaphragm shaft (108*). Slide the shaft into the housing.

5. Repeat Steps 1-5 for the other diaphragm assembly.

6. Hold one shaft bolt with a wrench and torque the other bolt to 110-120 ft-lb (149-163 N•m) at 100 rpm maximum. Do not over-torque.

7. Reattach one fluid cover (2). Arrow (A) must point toward the air valve. See Torque Instructions, page 20.

8. TP, SP, and GE Models: Follow directions under

Attach Second Fluid Cover, page 19.

CR, BN, and FK Models: Reattach the second fluid

cover (2). Arrow (A) must point toward the air valve. See Torque Instructions, page 20.

9. Reassemble the ball check valves and manifolds as explained on page 12.

All Other Standard Diaphragms - Plastic Pumps:

1. Assemble the diaphragm (20), the air side diaphragm plate (14), and the washer (18) on the fluid side plate (15) exactly as shown in F

IG. 7.

2. Apply medium-strength (blue) Loctite or equivalent to the threads of the screw on the fluid side plate. Screw the assembly into the shaft hand-tight.

3. Grease the shaft u-cups (101*) and the length and ends of the diaphragm shaft (108*). Slide the shaft into the housing.

4. Repeat for the other diaphragm assembly.

5. Hold one of the plates with a wrench, and torque the other plate to 110-120 ft-lb (149-163 N•m) at 100 rpm maximum. Do not over-torque.

6. Reattach one fluid cover (2). Arrow (A) must point toward the air valve. See Torque Instructions, page 20.

7. TP, SP, and GE Models: Follow directions under

Attach Second Fluid Cover, page 19.

CR, BN, and FK Models: Reattach the second fluid

cover (2). Arrow (A) must point toward the air valve. See Torque Instructions, page 20.

8. Reassemble the ball check valves and manifolds as explained on page 12.

18 3A0411F

Repair

302

ti18299a

Attach Second Fluid Cover

To reduce the risk of serious injury, do not put your fingers or hand between the air cover and the diaphragm.

To ensure proper seating and help attain expected diaphragm life, attach the second fluid cover with air pressure on the pump. This procedure is needed for overmolded diaphragms (PO and CO) and for the following standard diaphragms: TP, SP, GE, PT.

1. Place the supplied tool (302) where the air valve gasket (113*) normally goes. Arrows (A) must face toward the fluid cover that is already attached.

NOTE: If you are replacing the diaphragms but not the air valve, you still must remove the air valve, and replace the gasket with the tool so the air valve can be used for proper installation of the second fluid cover. Remember to remove the tool and replace the gasket when finished.

Reassembly of Overmolded Diaphragms

NOTE: If your pump has standard diaphragms, see

page 16.

1. Clamp the shaft flats in a vise.

2. If diaphragm setscrew comes loose or is replaced, apply permanent (red) Loctite

phragm side threads. Screw into diaphragm until tight.

3. Assemble the air side plate (14) and washer (18) onto the diaphragm. The rounded side of the plate must face the diaphragm.

4. Apply medium-strength (blue) Loctite or equivalent to the threads of the diaphragm assembly. Screw the assembly into the shaft as tight as possible by hand.

or equivalent to dia-

IG. 8. Diaphragm Installation Tool

2. Reattach the air valve.

3. Supply the pump with low pressure air, just enough to move the diaphragm. For standard diaphragms, use about 10 psi (0.07 MPa, 0.7 bar); for overmolded diaphragms use about 20 psi (0.14 MPa,

1.4 bar). Shop air may be used. The diaphragm will shift so the second fluid cover will seat properly. Keep air pressure on until the second fluid cover is attached.

4. Attach the second fluid cover (2). See Torque Instructions, page 20.

5. Grease the shaft u-cups (101*) and the length and ends of the diaphragm shaft (108*). Slide the shaft into the housing.

6. Reattach the first fluid cover (2). Arrow (A) must point toward the air valve. See Torque Instruc- tions, page 20.

7. Repeat Steps 2 - 4 for the other diaphragm assembly.

8. Follow directions under Attach Second Fluid Cover, page 19.

9. Reassemble the ball check valves and manifolds as explained on page 12.

5. Remove the air valve and the tool (302), replace the

gasket (113), and reattach the air valve. See Torque Instructions, page 20.

3A0411F 19

Repair

Fluid Cover Screws

Air Valve Screws

ti16558a

ti16560a

Torque Instructions

See FIG. 9 for fluid cover and air valve fasteners. See F

IG. 10 for manifold fasteners.

NOTE: Fluid cover and manifold fasteners on the polypropylene pumps have a thread-locking adhesive patch applied to the threads. If this patch is excessively worn, the fasteners may loosen during operation. Replace screws with new ones or apply medium-strength (blue) Loctite or equivalent to the threads.

If fluid cover or manifold fasteners have been loosened, it is important to torque them using the following procedure to improve sealing.

NOTE: Always completely torque fluid covers, then torque the manifold pieces together, then torque the assembled manifolds to the fluid covers.

Start all fluid cover screws a few turns. Then turn down each screw just until head contacts cover. Then turn each screw by 1/2 turn or less working in a crisscross pattern to specified torque. Repeat for manifolds.

Fluid cover fasteners:

Polypropylene and Stainless Steel: 40-45 ft-lb

(54-61 N•m)

Aluminum: 55-60 ft-lb (75-81 N•m)

Manifold fasteners: Polypropylene: 40-45 ft-lb (54-61 N•m) Aluminum:

Refs 1-8: 11-21 ft-lb (15-28 N•m) Refs 9-16: 55-60 ft-lb (75-81 N•m)

Stainless Steel:

Refs 1-4: 110-120 in-lb (12-13 N•m) Refs 5-12: 40-45 ft-lb (54-61 N•m)

Retorque the air valve fasteners in a crisscross pattern to specified torque.

Air Valve fasteners

Plastic Center Sections: 45-55 in-lb (5-6.2 N•m) Aluminum Center Sections: 75-85 in-lb

(8.5-9.6 N•m)

Also check and tighten the nuts or bolts (X) holding the manifold feet to the mounting brackets.

FIG. 9. Torque instructions, Fluid Covers and Air Valve Fasteners (all models, aluminum shown)

20 3A0411F

Repair

Polypropylene

ti16564a

Aluminum

ti16559a

1110

1-8

Stainless Steel

ti17457a

1-8

FIG. 10. Torque Instructions - Manifold Fasteners

3A0411F 21

Parts

ti17766a

Not used on some models.

see page 27

see page 30

see page 32

see page 33

see page 32

see page 33

12 13

21a

see page 32

see page 33

see page 32

see page 35

21b

21c

21d

Parts

3300A, Aluminum

22 3A0411F

3300P, Polypropylene

ti17767a

Not used on some models.

see page 27

see page 30

see page 32

see page 33

see page 32

see page 33

21a

see page 32

305

see page 35

see page 32

21b

21c

21d

Parts

3A0411F 23

Parts

ti18613a

Not used on some models.

see page 27

see page 30

see page 32

see page 33

see page 32

see page 33

see page 32

see page 33

see page 32

see page 35

305

21a

21b

21c

21d

3300S, Stainless Steel

24 3A0411F

Parts/Kits Quick Reference

Use this table as a quick reference for parts/kits. See pages indicated in table for full description of kit contents.

Parts

Ref. Part/Kit Description

1a CENTER SECTION, not sold separately, see

page 27

----- Aluminum

----- Polypropylene 1b AIR VALVE; see page 30 2 FLUID COVER KITS; see page 32

24K871 Aluminum 24K873 Polypropylene 24K876 Stainless Steel

3 MANIFOLD, outlet elbow kits; see page 32.

24K885 Aluminum 24K888 Polypropylene 24K892 Stainless Steel

4 MANIFOLD, inlet elbow kits; see page 32.

24K886 Aluminum 24K889 Polypropylene 24K893 Stainless Steel

5 MANIFOLD, center kits, see page 32.

24K884 Aluminum, npt 24K969 Aluminum, bspt 24K890 Polypropylene 24K894 Stainless Steel, npt 24K970 Stainless Steel, bspt

6 SEAL, manifold joint, see page 37

24K880 Buna-N, for aluminum and poly 24K879 PTFE, for aluminum and poly 24K882 PTFE, for stainless steel

7 BOLTS, manifold elbows to center; not used

on stainless steel, see page 32 24K887 Aluminum 24K891 Polypropylene

8 FASTENERS, manifold to fluid cover, see

page 33 24K956 Aluminum 24K883 Polypropylene 24K896 Stainless Steel

9 ----- WASHER, included with fastener kits 10 ----- NUT, included with refs 36 and 37

Ref. Part/Kit Description

11 SEATS; 4-pack, see page 34

24K928 Acetal 24K929 Aluminum 24K930 Buna-N 24K936 FKM Fluoroelastomer 24K931 Geolast 24K933 Polypropylene 24K934 Santoprene 24K935 Stainless Steel 24K932 TPE

12 CHECK BALLS; 4-pack, see page 34

24K937 Acetal 24K938 Buna-N 24K941 Polychloroprene, standard 24K942 Polychloroprene, weighted 24K945 FKM Fluoroelastomer 24K939 Geolast 24K943 PTFE 24K944 Santoprene 24K940 TPE

13 O-RING, seat (not used on some models);

8-pack, see page 37 24K909 Buna-N 24K927 PTFE

14 24K975 PLATE, air side diaphragm, includes o-ring

(17) and washer (18)

15 PLATE, fluid side diaphragm, see page 36

24K906 Aluminum 24K907 Polypropylene 24K908 Stainless steel

16 ----- SCREW, hex washer head,

3/8-11x 3 in., carbon steel, included with Ref.

17 ----- O-RING, included with Refs. 14 and 15 18 ----- WASHER, included with Refs. 14 and 15 20 DIAPHRAGM Kits; see page 35

24K897 Buna-N Standard 24K903 FKM Standard 24K900 Geolast Standard 24K898 Polychloroprene Overmolded 24K904 Polychloroprene Standard 24K899 PTFE Overmolded 24K905 PTFE/Santoprene Two-Piece 24K902 Santoprene Standard 24K901 TPE Standard

Continued

3A0411F 25

Parts

Ref. Part/Kit Description

21a-

24P932 MUFFLER, includes o-ring and mounting

21d 23 BRACKET, mounting, see page 37

24K973 Aluminum 24K972 Polypropylene and Stainless Steel

24 ----- BOLT, mounting, 1/2-13 , included in bracket

25▲ 188621 LABEL, warning (not shown) 33▲ TAG, warning, retorque (not shown)

16F337 Aluminum 16F338 Polypropylene

16F742 Stainless Steel 34 24K895 KIT, manifold clamp, used on stainless steel 36

and 37

24K872 Aluminum

24K874 Polypropylene, with poly center

24K875 Polypropylene, with alum center

24K877 Stainless Steel with alum center

24K878 Stainless Steel with poly center 38▲ 198382 LABEL, warning, multilingual (not shown)

hardware

kit

FASTENERS, fluid cover to air cover, see

page 33

▲Replacement Warning labels, signs, tags, and cards

are available at no cost.

26 3A0411F

Center Section

Sample Configuration Number

Pump Size

and Material

Center Section Fluid Covers

and Manifolds

Seats Check

Balls

Diaphragm Manifold and

Seat Seals

3300A

A01A

A1 TP BN TP BN

101*

102

104*

103

105

106

107*

108*

109*

110*

111

112*

113*

ti17768a

Aluminum

103

Lips must face out of housing.

Torque to 20-25 in.-lb (2.3-2.8 N•m).

Aluminum: Torque to 30-40 ft-lb. (41-54 N•m).

Apply lithium-based grease.

2 8

Parts

Aluminum Center Section

Ref. Description Qty.

101* U-CUP, center shaft 2 102 SCREW, ground 4 103 BOLT, socket head, 7/16-14 x 6.25,

zinc-plated carbon steel 104* SCREW, M6 x 25, stainless steel 4 105 COVER, air 2 106 HOUSING, center, not sold separately 1 107* GASKET, air cover 2 108* SHAFT, center 1 109* BEARING, shaft 2 110* VALVE, pilot, assembly 2

3A0411F 27

Ref. Description Qty.

111 VALVE, air, see page 31 1

112* PIN, dowel, stainless steel 4 113* GASKET, air valve 1 114 LUBRICANT, thread, not shown 1 115 SEALANT, anaerobic, not shown 1

* Included in Center Section Rebuild Kit. The center housing (106) is not sold separately.

Parts

Sample Configuration Number

Pump Size

and Material

Center Section Fluid Covers

and Manifolds

Seats Check

Balls

Diaphragm Manifold and

Seat Seals

3300A

A01A

A1 TP BN TP BN

ti17769a

Polypropylene

113*

101*

110*

116*

106

117

118

111

119

109*

107*

108*

119

103

112*

105

Lips must face out of housing.

Torque to 20-25 in.-lb (2.3-2.8 N•m).

Apply lithium-based grease.

Torque to 25-35 ft-lb. (34-47 N•m).

Polypropylene Center Sections

Ref. Description Qty.

101* U-CUP, center shaft 2 103 BOLT, hex head, 7/16-14 x 6.25,

stainless steel 105 COVER, air 2 106 HOUSING, center, not sold separately 1 107* GASKET, air cover 2 108* SHAFT, center 1 109* BEARING, shaft 2 110* VALVE, pilot, assembly 2 111 VALVE, air, see page 31 1 112* PIN, dowel, stainless steel 4 113* GASKET, air valve 1

28 3A0411F

Ref. Description Qty.

114 LUBRICANT, thread, not shown 1 116* NUT, serrated 4

117 SCREW, hi-lo stud 4 118 NUT, jam, 7/16, stainless steel 4 119 WASHER, 7/16, stainless steel 8

* Included in Center Section Rebuild Kit. The center housing (106) is not sold separately.

Parts

Sample Configuration Number

Pump Size

and Material

Center Section Fluid Covers

and Manifolds

Seats Check

Balls

Diaphragm Manifold and

Seat Seals

3300A

A01A

A1 TP BN TP BN

Center Section Rebuild Kits (*)

A01A, P01A

A01E

A01G, P01G

Kits include:

• 2 center shaft u-cups (101)

• 4 screws, M6 x 25, for A01x pumps (104)

• 2 air cover gaskets (107)

• 1 center shaft (108)

• 2 center shaft bearings (109)

• 2 pilot valve assemblies (110)

• 4 dowel pins (112)

• 1 air valve gasket (113)

• 4 nuts, serrated, for P01x pumps (116)

• 1 grease packet

Pilot Valve Assembly Kits

A01A, P01A, A01G, P01G

A01E

24K850

24K955

24K851

24A366

24K946

Center Shaft Bearing Kits

A01A, P01A, A01G, P01G

A01E

Kit includes:

• 2 center shaft u-cups (101)

• 2 center shaft bearings (109)

Air Cover Kits

A01x

P01x

Kits include:

• 1 air cover (105)

• 1 air cover gasket (107)

• 2 dowel pins (112)

Air Cover Center Bolt Kits

Aluminum Center

Polypropylene Center

24K854

24K951

24K867

24K868

24K869

24K870

Kits include:

• 2 pilot valve assemblies (110)

Center Shaft Kits

A01A, P01A

A01E

A01G, P01G

Kit includes:

• 2 center shaft u-cups (101)

• 1 center shaft (108)

• 2 center shaft bearings (109)

3A0411F 29

Aluminum Kit includes:

• 4 bolts (103), 7/16-14 x 6.25 in.

Polypropylene Kit includes:

• 4 bolts (103), 7/16-14 x 6.25 in.

• 4 jam nuts (118)

• 8 washers (119)

24K852

24K950

24K853

Parts

Sample Configuration Number

Pump Size

and Material

Center Section Fluid Covers

and Manifolds

Seats Check

Balls

Diaphragm Manifold and

Seat Seals

3300A

A01A

A1 TP BN TP BN

210✠

207✠

206◆†✠

206◆†

✠

208◆†

202◆

209◆†

205◆

212◆

211◆

203◆

204◆

ti17765a

201

Apply lithium-based grease.

U-cup lips must face piston.

207✠

213◆

214◆

Apply lithium-based grease to contact surface.

Air Valve

Ref. Description

201 HOUSING, not sold separately 1 202◆ PISTON 1 203◆ DETENT PISTON ASSEMBLY 1 204◆ CAM, detent 1 205◆ PLATE, air valve 1 206◆†✠ O-RING 2 207✠ CAP, end 2 208◆† U-CUP 2 209◆†SCREW 2

30 3A0411F

210✠ RETAINING RING 2 211◆ DETENT SPRING 1

Qty .

Ref. Description

212◆ BASE, cup 1 213◆ CUP 1 214◆ O-RING, cup 1

◆ Parts included in Air Valve Repair Kit. See page 31. † Parts included in Air Valve Seals Kit. See page 31. ✠ Parts included in Air Valve End Cap Kit. See page

31.

Qty .

Parts

Sample Configuration Number

Pump Size

and Material

Center Section Fluid Covers

and Manifolds

Seats Check

Balls

Diaphragm Manifold and

Seat Seals

3300A

A01A

A1 TP BN TP BN

Air Valve Seal Kits (†)

A01A, P01A, A01G, P01G

A01E

All Models

Kit includes:

• 2 end cap o-rings (206)

• 2 piston u-cups (208)

• 2 screws, M3, shorter (209, for metal pumps)

• 2 screws, #4, longer (209, for plastic pumps)

• 1 air valve gasket (113)

• 1 grease packet

• 1 solenoid release button o-ring (not shown), used only with optional DataTrak kit.

24K859

24K948

Air Valve Repair Kits (◆)

A01A, P01A, A01G, P01G 24K860 A01E 24K954

Kits include:

• 1 air valve piston (202)

• 1 detent piston assembly (203)

• 1 detent cam (204)

• 1 air valve plate (205)

• 2 end cap o-rings (206)

• 2 piston u-cups (208)

• 2 screws, M3, shorter (209, for metal pumps)

• 2 screws, #4, longer (209, for plastic pumps)

• 1 detent spring (211)

• 1 air cup base (212)

• 1 air cup (213)

• 1 air cup o-ring (214)

• 1 solenoid release button o-ring (not shown), used only with optional DataTrak kit.

• 1 air valve gasket (113)

• 1 grease packet

Air Valve Replacement Kits

A01A, A01G 24K855 A01E 24K947 P01A, P01G 24K857

Kits include:

• 1 air valve assembly (1b)

• 1 air valve gasket (113)

• 4 screws (109; models with aluminum centers)

• 4 nuts (112; models with plastic centers)

Air Valve End Cap Kits (✠)

A01x 24A361 P01x 24C053

Kits include:

• 2 end caps (207)

• 2 retaining rings (210)

• 2 o-rings (206)

NOTE: If you have the optional DataTrak on your pump, see Accessories, page 38, for Air Valve Replacement kits.

3A0411F 31

Parts

Sample Configuration Number

Pump Size

and Material

Air Valve and

Center Section

Fluid Covers

and Manifolds

Seats Check

Balls

Diaphragm Manifold and

Seat Seals

3300A A01A

TP AC TP BN

ti17800a

ti17803a

ti18628a

ti17799a

ti17804a

ti18629a

ti17801a

ti17806a

ti18630a

ti17802a

ti17805a

ti18632a

Fluid Covers and Manifolds

Fluid Cover Kits

A1, A224K871 P1 24K873 S1, S224K876

Kits include:

• 1 fluid cover (2)

Outlet Manifold Elbow Kits

A1, A224K885 P1 24K888 S1, S224K892

Manifold Center Kits

A1 24K884 P1 24K890 S1 24K894 A2 24K969 S2 24K970

Kits include:

• 1 manifold center (5)

Manifold Center Fastener Kits

A1, A2 24K887 P1 24K891 S1, S2 24K895

Aluminum kit includes:

• 8 bolts (7) , hex head with flange base, 3/8-16 x

1.25 in., zinc-plated carbon steel

Kits include:

• 1 outlet manifold elbow (3)

Inlet Manifold Elbow Kits

A1, A224K886 P1 24K889 S1, S224K893

Kits include:

• 1 inlet manifold elbow (4)

32 3A0411F

Polypropylene kit includes:

• 8 bolts (7), hex head, 1/2-13 x 2.5 in., stainless steel

• 16 washers (9)

•8 nuts (10)

Stainless steel kit includes:

• 2 clamps (7a), 4 in., tri-clamp

• 2 gaskets (7b), 4 in., PTFE

Sample Configuration Number

Pump Size

and Material

Air Valve and

Center Section

Fluid Covers

and Manifolds

Seats Check

Balls

Parts

Diaphragm Manifold and

Seat Seals

3300A A01A

Manifold to Fluid Cover Fastener Kits

A1, A2 24K956 P1 24K883 S1, S2 24K896

Aluminum kit includes:

• 8 bolts (7) , hex head with flange base, 1/2-13 x

1.25 in., zinc-plated carbon steel

Polypropylene kit includes:

• 16 bolts (7), hex head, 1/2-13 x 4 in., stainless steel

• 32 washers, 1/2 in., stainless steel

• 16 nuts, 1/2 in., stainless steel

Stainless steel kit includes:

• 8 bolts, hex head, 1/2-13 x 1.5 in., stainless steel

• 8 washers, 1/2 in., stainless steel

• 8 nuts, 1/2 in., stainless steel

TP AC TP BN

Fluid Cover to Air Cover Fastener Kits

A1, A2 24K872 P1, with poly center 24K874 P1, with aluminum center 24K875 S1, S2, with poly center 24K878 S1, S2, with aluminum center 24K877

Aluminum kit Includes:

• 12 bolts (36 and 37), hex head with flange, 1/2-13 x 2 in., zinc-coated carbon steel

Polypropylene with Poly Center kit includes:

• 8 bolts (36), hex head, 1/2-13 x 4 in., stainless steel

• 4 bolts (37, hex head, 1/2-13 x 2.5 in., stainless steel

• 20 washers (9), stainless steel

• 8 nuts (10), hex, stainless steel

Polypropylene with Aluminum Center kit includes:

• 8 bolts (36), hex head, 1/2-13 x 3.25 in., stainless steel

• 4 bolts (37), hex head, 1/2-13 x 2.25 in., stainless steel

• 12 washers (9), stainless steel

Stainless Steel with Aluminum Center Kit includes:

• 8 bolts (36), hex head, 1/2-13 x 1.5 in., stainless steel

• 4 bolts (37), hex head, 1/2-13 x 2.25 in., stainless steel

• 12 washers (9), stainless steel

Stainless Steel with Polypropylene Center Kit includes:

• 12 bolts (36 and 37), hex head, 1/2-13 x 2.5 in., stainless steel

• 20 washers (9), stainless steel

• 8 nuts, hex, 1/2 in., stainless steel

3A0411F 33

Parts

Sample Configuration Number

Pump Size

and Material

Air Valve and

Center Section

Fluid Covers

and Manifolds

Seats Check

Balls

Diaphragm Manifold and

Seat Seals

3300A A01A A1

TP AC

TP BN

Seats and Check Balls

Seat Kits

AC* 24K928 AL* 24K929

BN 24K930

FK 24K936

GE* 24K931

PP* 24K933 SP* 24K934 SS* 24K935

TP 24K932

Kits include:

• 4 seats (10), material indicated in table

* These seats require o-rings, which are sold

separately. See page 37.

NOTE: Some kits may not be available for your model. See the selector tool at www.graco.com or speak with your distributor.

Check Ball Kits

AC 24K937 BN 24K938 CR 24K941

CW 24K942

FK 24K945 GE 24K939

PT 24K943

SP 24K944

TP 24K940

Kits Include:

• 4 balls (11), material indicated in table

NOTE: Some kits may not be available for your model. See the selector tool at www.graco.com or speak with your distributor.

34 3A0411F

Parts

Sample Configuration Number

Pump Size

and Material

Air Valve and

Center Section

Fluid Covers

and Manifolds

Seats Check

Balls

Diaphragm Manifold and

Seat Seals

3300A A01A A1 TP AC

ti17811a

108

(Plastic pumps)

(Metal pumps)

302

(not to scale)

108

302

(not to scale)

ti17813a

Diaphragms

NOTE: Some kits may not be available for your model. See the selector tool at www.graco.com or speak with your

distributor.

Standard Diaphragm Kits

BN 24K897 CR 24K904 FK 24K903 GE 24K900 SP 24K902 TP 24K901

Kits include:

• 2 diaphragms (20, material indicated in table)

• 2 o-rings (17) for the bolt (used only on metal pumps)

• 1 diaphragm install tool (302), not included with rubber diaphragms

Overmolded Diaphragm Kits

CO 24K898 PO 24K899

Kits include:

• 2 overmolded diaphragms (20, material indicated in table)

• 2 diaphragm set screws, stainless steel (16)

• 1 diaphragm install tool (302)

• I Loctite packet

NOTE: Air plates (14) and washer (18) are sold in a separate kit. See page 36. The shaft (108) is part of Kit 24K851, the Center Section Rebuild Kit.

NOTE: Diaphragm plates (14, 15), washer (18) and diaphragm shaft bolts (16) are sold in separate kits. See page 36. The shaft (108) is part of Kit 24K850, the Center Section Rebuild Kit.

3A0411F 35

Parts

Sample Configuration Number

Pump Size

and Material

Air Valve and

Center Section

Fluid Covers

and Manifolds

Seats Check

Balls

Diaphragms Manifold and

Seat Seals

3300A A01A A1 TP AC

108

305

ti17812a

(Metal pumps)

(Plastic pumps)

302

(not to scale)

Diaphragms (continued)

Two-Piece Diaphragm Kits

PT 24K905

Kits include:

• 2 diaphragms (20), PTFE

• 2 backup diaphragms (305), Santoprene

• 2 o-rings for the bolt (17, used only on metal pumps)

• 1 diaphragm install tool.

NOTE: Diaphragm plates (14, 15), washer (18) and diaphragm shaft bolts (16) are sold in separate kits. See page 36. The shaft (108) is part of Kit 24K850, the Center Section Rebuild Kit.

Fluid Plate Kits

3300A 24K906 3300P 24K907 3300S 24K908

Kits for aluminum and stainless steel pumps include:

• 1 fluid side diaphragm plate (15)

•1 washer (18)

• 1 o-ring (17)

•1 bolt (16)

Kits for polypropylene pumps include:

• 1 air side diaphragm plate (14)

• 1 fluid side diaphragm plate (15)

•1 washer (18)

Air Plate Kits

All Models 24K975

Kits include:

• 1 air side diaphragm plate (14)

•1 washer (18)

• 1 o-ring (17)

36 3A0411F

Manifold and Seat Seals

Sample Configuration Number

Pump Size

and Material

Air Valve and

Center Section

Fluid Covers

and Manifolds

Seats Check

Balls

Diaphragm Manifold and

Seat Seals

3300A A01A A1 TP AC TP

Manifold Center Seal Kits

Aluminum and Poly Pumps Stainless Steel Pumps

PT 24K879 24K882 BN 24K880 not available FK 24K881

Kits for Aluminum or Polypropylene pumps include:

• 4 o-rings (6)

• 1 grease packet

Parts

Kit for Stainless Steel pumps includes:

• 4 gaskets (6)

Seat O-Ring Kits

PT 24K927 BN 24K909 FK 24K926

Kit Includes:

• 8 o-rings (13)

Mounting Bracket Kits

Aluminum 24K973 Polypropylene and

Stainless Steel

Kit Includes:

• 2 mounting brackets (23)

• 4 bolts (24)

• 4 nuts (10) and 8 washers (9), polypropylene or stainless steel pumps

24K972

3A0411F 37

Parts

Accessories

Grounding Wire Assembly Kit 238909

Includes ground wire and clamp.

Muffler 111897

Legacy or remote exhaust muffler option.

NOTE: See DataTrak Manual 313840 for:

• Pulse Count Conversion Kits 24B794 and 24B795

• DataTrak Conversion Kits 24K861 and 24K862

• All other data monitoring parts, including reed switches and solenoids.

Replacement Air Valve Kit 24K856, Aluminum, DataTrak Compatible

Kit includes screws, air valve, and gasket.

Replacement Air Valve Kit 24K858, Polypropylene, DataTrak Compatible

Kit includes screws, air valve, and gasket.

Replacement Air Valve Kit 24K949, Aluminum, DataTrak Compatible, with FKM Seals

Kit includes screws, air valve, and gasket.

38 3A0411F

Technical Data

Husky 3300

US Metric

Maximum fluid working pressure

Aluminum or Stainless Steel with

Aluminum Center Section

Polypropylene or Stainless Steel with

Polypropylene Center Section

Air pressure operating range**

Aluminum or Stainless Steel with

Aluminum Center Section

Polypropylene or Stainless Steel with

Polypropylene Center Section

Air consumption

All pumps

Maximum air consumption*

Aluminum or Stainless Steel with

Aluminum Center Section

Polypropylene or Stainless Steel with

Polypropylene Center Section

Maximum free-flow delivery*

Standard diaphragms 300 gpm at 125 psi 1135 lpm at 8.6 bar Standard diaphragms 280 gpm at 100 psi 1059 lpm at 7 bar Overmolded diaphragms 270 gpm at 125 psi 1022 lpm at 8.6 bar Overmolded diaphragms 260 gpm at 100 psi 984 lpm at 7 bar

Maximum Pump Speed*

Standard diaphragms 103 cpm at 125 psi 103 cpm at 8.6 bar Standard diaphragms 97 cpm at 100 psi 97 cpm at 7 bar Overmolded diaphragms 135 cpm at 125 psi 135 cpm at 8.6 bar Overmolded diaphragms 130 cpm at 100 psi 130 cpm at 7 bar

Maximum suction lift (varies widely based on ball/seat selection and wear, operating speed, material properties, and other variables)*

Dry Wet Recommended cycle rate for continuous duty 35-50 cpm

Recommended cycle rate for circulation systems 20 cpm Maximum size pumpable solids 1/2 in. 13 mm

Fluid flow per cycle**

Standard diaphragms 2.9 gal 11.0 l Overmolded diaphragms 2.0 gal 7.6 l

Noise (dBa)***

Sound Power

Sound Pressure

125 psi 0.86 MPa, 8.6 bar

100 psi 0.7 MPa, 7 bar

20-125 psi 0.14-0.86 MPa, 1.4-8.6 bar

20-100 psi 0.14-0.7 MPa, 1.4-7 bar

90 scfm at 70 psi, 100 gpm 2.5 m

335 scfm

275 scfm

8 ft. 2.4 meters 28 ft. 8.5 meters

99.1 at 50 psi and 50 cpm,

106.1 at 125 psi and full flow

91.5 at 50 psi and 50 cpm

98.2 at 125 psi and full flow

/min at 4.8 bar, 379 lpm

/min

9.5 m

/min

7.8 m

99.1 at 3.4 bar and 50 cpm

106.1 at 8.6 bar and full flow

91.5 at 3.4 bar and 50 cpm

98.2 at 8.6 bar and full flow

3A0411F 39

Technical Data

Inlet/Outlet Sizes

Fluid inlet - Polypropylene Fluid inlet - Aluminum

3 in.-8 npt or 3 in.-11 bspt with 3 in. ANSI/DIN flange

3 in. ANSI/DIN flange

Fluid inlet - Stainless Steel 3 in.-8 npt or 3 in.-11 bspt Air Inlet - all pumps 3/4 in. npt(f)

Wetted parts

All pumps Materials chosen for seat, ball, and diaphragm options,

plus the pump’s material of construction - aluminum, poly-

propylene, or stainless steel. Aluminum pumps also have

carbon-coated steel.

Non-wetted external parts

Polypropylene stainless steel, polypropylene Aluminum aluminum, coated carbon steel Stainless Steel stainless steel, polypropylene or aluminum

(as used in center section)

Weight

Polypropylene 200 lb 91 kg Aluminum 150 lb 68 kg Stainless Steel 255 lb 116 kg

Notes

* Maximum values with water as media at ambient temperature. Water level is approximately 3 feet above pump

inlet.

** Startup pressures and displacement per cycle may vary based on suction condition, discharge head, air pres-

sure, and fluid type.

*** Sound power measured per ISO-9614-2. Sound pressure was tested 3.28 ft (1 m) from equipment.

Santoprene® is a registered trademark of the Monsanto Co.

Loctite® is a registered trademark of the Loctite Corporation.

40 3A0411F

Technical Data

Fluid Temperature Range

NOTICE

Temperature limits are based on mechanical stress only. Certain chemicals will further limit the fluid operating temperature range. Stay within the temperature range of the most-restricted wetted component. Operating at a fluid temperature that is too high or too low for the components of your pump may cause equipment damage.

Fluid Temperature Range

Diaphragm/Ball/Seat Material

Acetal Buna-N FKM Fluoroelastomer*

Geolast

Polychloroprene overmolded diaphragm

Aluminum Pumps Polypropylene Pumps

10° to 180°F -12° to 82°C 32° to 150°F 0° to 66°C 10° to 180°F -12° to 82°C 32° to 150°F 0° to 66°C

-40° to 275°F -40° to 135°C 32° to 150°F 0° to 66°C

-40° to 150°F -40° to 66°C 32° to 150°F 0° to 66°C 0° to 180°F -18° to 82°C 32° to 150°F 0° to 66°C

or Polychloroprene check balls Polypropylene PTFE overmolded diaphragm PTFE check balls

Santoprene® or two-piece PTFE/Santo-

32° to 150°F 0° to 66°C 32° to 150°F 0° to 66°C 40° to 180°F 4° to 82°C 40° to 150°F 4° to 66°C 40° to 220°F 4° to 104°C 40° to 150°F 4° to 66°C

-40° to 180°F -40° to 82°C 32° to 150°F 0° to 66°C

prene diaphragm TPE

* The maximum temperature listed is based on the ATEX standard for T4 temperature classification. If you are operating in a non-explosive environment, FKM fluoroelastomer’s maximum fluid temperature in aluminum pumps is 320°F (160°C).

-20° to 150°F -29° to 66°C 32° to 150°F 0° to 66°C

3A0411F 41

Graco Standard Husky Pump Warranty

Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of five years from the date of sale, repair or replace any part of the equipment determined by Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.

This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.

This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.

THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within six (6) years of the date of sale.

GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to

the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.

In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or otherwise.

FOR GRACO CANADA CUSTOMERS

The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec les procédures concernées.

Graco Information

For the latest information about Graco products, visit www.graco.com. For patent information, see www.graco.com/patents.

TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor. Phone: 612-623-6921 or Toll Free: 1-800-328-0211 Fax: 612-378-3505

All written and visual data contained in this document reflects the latest product information available at the time of publication.

GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA

Graco reserves the right to make changes at any time without notice.

Original instructions. This manual contains English. MM 3A0411

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

www.graco.com

Revision F, May 2014

Graco 3A0411F User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Related Manuals

To Find Your Nearest Distributor

To Specify the Configuration of a New Pump

To Order Replacement Parts

Distributor Note

Configuration Number Matrix

Warnings

Troubleshooting

Repair

Pressure Relief Procedure

Repair or Replace Air Valve

Check Valve Repair

Diaphragms and Center Section

Torque Instructions

Parts

3300A, Aluminum

3300P, Polypropylene

3300S, Stainless Steel

Parts/Kits Quick Reference

Center Section

Air Valve

Fluid Covers and Manifolds

Seats and Check Balls

Diaphragms

Manifold and Seat Seals

Accessories

Technical Data

Graco Standard Husky Pump Warranty

Graco Information
