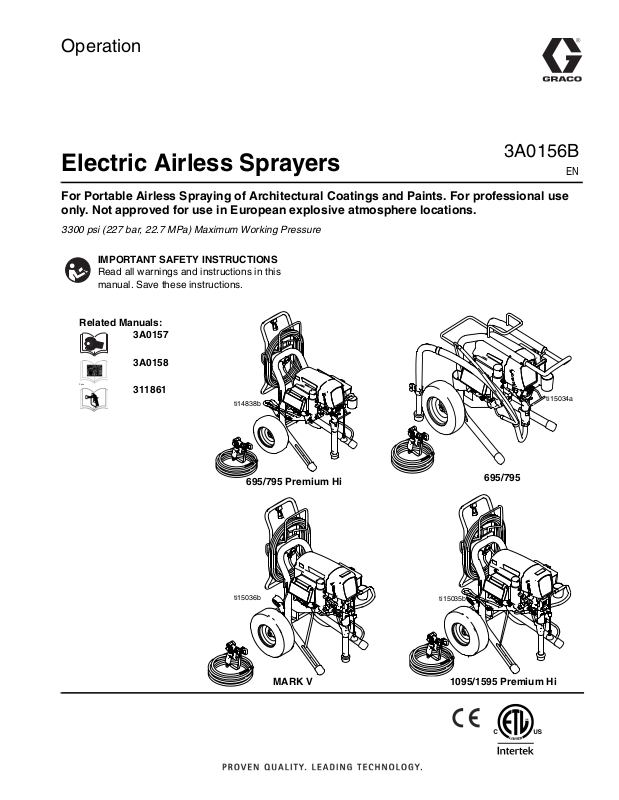

Graco 3A0156B User Manual

Operation

3A0156B

Electric Airless Sprayers

For Portable Airless Spraying of Architectural Coatings and Paints. For professional use only. Not approved for use in European explosive atmosphere locations.

3300 psi (227 bar, 22.7 MPa) Maximum Working Pressure

IMPORTANT SAFETY INSTRUCTIONS

Read all warnings and instructions in this manual. Save these instructions.

Related Manuals:

3A0157

3A0158

Parts

311861

ti14838b

695/795 Premium Hi

ti15036b

ti15034a

695/795

ti15035b

MARK V

1095/1595 Premium Hi

Models:

695 ULTRA MAX lIl

Model QuikReel Hi-Boy Lo-Boy 258719 ✓✓ 258720 ✓ 258722 ✓ 258872 ✓ 258873 ✓ 258874 ✓ 258876 ✓ 258877 ✓✓ 826124 ✓✓ 826125 ✓ 826127 ✓

795 ULTRA MAX III

Model QuikReel Hi-Boy Lo-Boy 258723 ✓✓ 258724 ✓ 258878 ✓✓ 258879 ✓ 258881 ✓ 258882 ✓✓ 826128 ✓✓ 826129 ✓

1095 ULTRA MAX III

Model QuikReel Hi-Boy Lo-Boy 258727 ✓✓ 258728 ✓ 258883 ✓✓ 258884 ✓ 258886 ✓✓ 826130 ✓✓ 826131 ✓

1595 ULTRA MAX III

Model QuikReel Hi-Boy Lo-Boy 258763 ✓✓ 258764 ✓ 258765 ✓✓ 258766 ✓ 826132 ✓✓ 826133 ✓ 826134 ✓✓ 826135 ✓

MARK IV

Model QuikReel Hi-Boy Lo-Boy 258729 ✓✓

MARK V

Model QuikReel Hi-Boy Lo-Boy 258730 ✓✓ 258887 ✓✓

2 3A0156B

Warnings

The following warnings are for the setup, use, grounding, maintenance and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risks. Refer back to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where applicable.

WARNING

GROUNDING

This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

• Improper installation of the grounding plug is able to result in a risk of electric shock.

• When repair or replacement of the cord or plug is required, do not connect the grounding wire to either

flat blade terminal.

• The wire with insulation having an outer surface that is green with or without yellow stripes is the ground-

ing wire.

• Check with a qualified electrician or serviceman when the grounding instructions are not completely

understood, or when in doubt as to whether the product is properly grounded.

• Do not modify the plug provided; if it does not fit the outlet, have the proper outlet installed by a qualified

electrician.

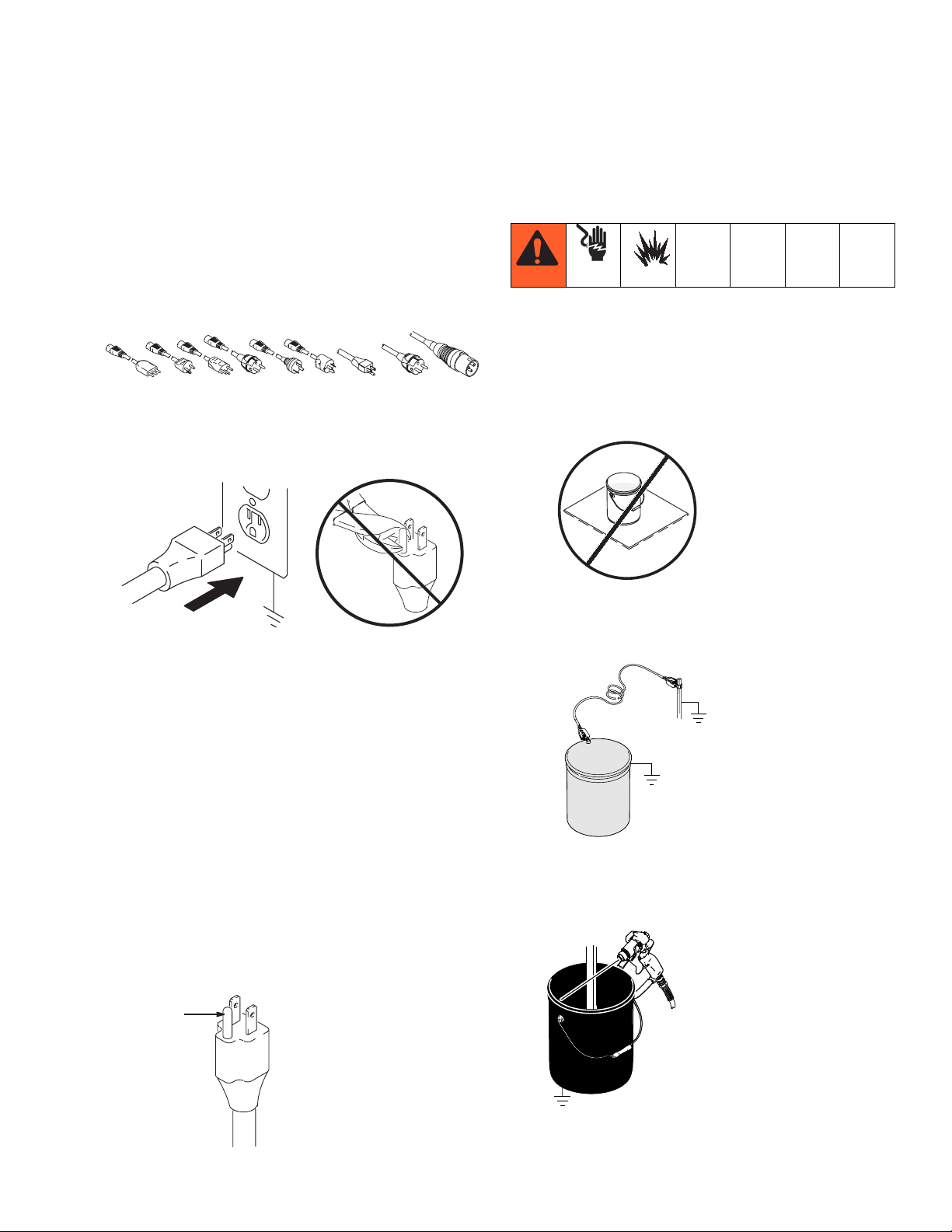

• This product is for use on a nominal 120V circuit and has a grounding plug similar to the plug illustrated

in the figure below.

• Only connect the product to an outlet having the same configuration as the plug.

• Do not use an adapter with this product.

Extension Cords:

• Use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that accepts

the plug on the product.

• Make sure your extension cord is not damaged. If an extension cord is necessary, use 12 AWG

(2.5 mm

• An undersized cord results in a drop in line voltage and loss of power and overheating.

3A0156B 3

) minimum to carry the current that the product draws.

Warnings

WARNING

FIRE AND EXPLOSION HAZARD

Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire and explosion:

• Do not spray flammable or combustible materials near an open flame or sources of ignition such as cig-

arettes, motors, and electrical equipment.

• Paint or solvent flowing through the equipment is able to result in static electricity. Static electricity cre-

ates a risk of fire or explosion in the presence of paint or solvent fumes. All parts of the spray system, including the pump, hose assembly, spray gun, and objects in and around the spray area shall be properly grounded to protect against static discharge and sparks. Use Graco conductive or grounded high-pressure airless paint sprayer hoses.

• Do not clean with materials having flash points lower than 70° F (21° C). Use water-based material or

mineral spirits-type material only. For complete information about your fluid, request the MSDS from the fluid distributor or retailer.

• Verify that all containers and collection systems are grounded to prevent static discharge.

• Connect to a grounded outlet and use grounded extensions cords. Do not use a 3-to-2 adapter.

• Do not use a paint or a solvent containing halogenated hydrocarbons.

• Keep spray area well-ventilated. Keep a good supply of fresh air moving through the area. Keep pump

assembly in a well ventilated area. Do not spray pump assembly.

• Do not smoke in the spray area.

• Do not operate light switches, engines, or similar spark producing products in the spray area.

• Keep area clean and free of paint or solvent containers, rags, and other flammable materials.

• Know the contents of the paints and solvents being sprayed. Read all Material Safety Data Sheets

(MSDS) and container labels provided with the paints and solvents. Follow the paint and solvents manufacturer’s safety instructions.

• Fire extinguisher equipment shall be present and working.

• Sprayer generates sparks. When flammable liquid is used in or near the sprayer or for flushing or clean-

ing, keep sprayer at least 20 feet (6 m) away from explosive vapors.

SKIN INJECTION HAZARD

• Do not aim the gun at, or spray any person or animal.

• Keep hands and other body parts away from the discharge. For example, do not try to stop leaks with

any part of the body.

• Always use the nozzle tip guard. Do not spray without nozzle tip guard in place.

• Use Graco nozzle tips.

• Use caution when cleaning and changing nozzle tips. in the case where the nozzle tip clogs while spray-

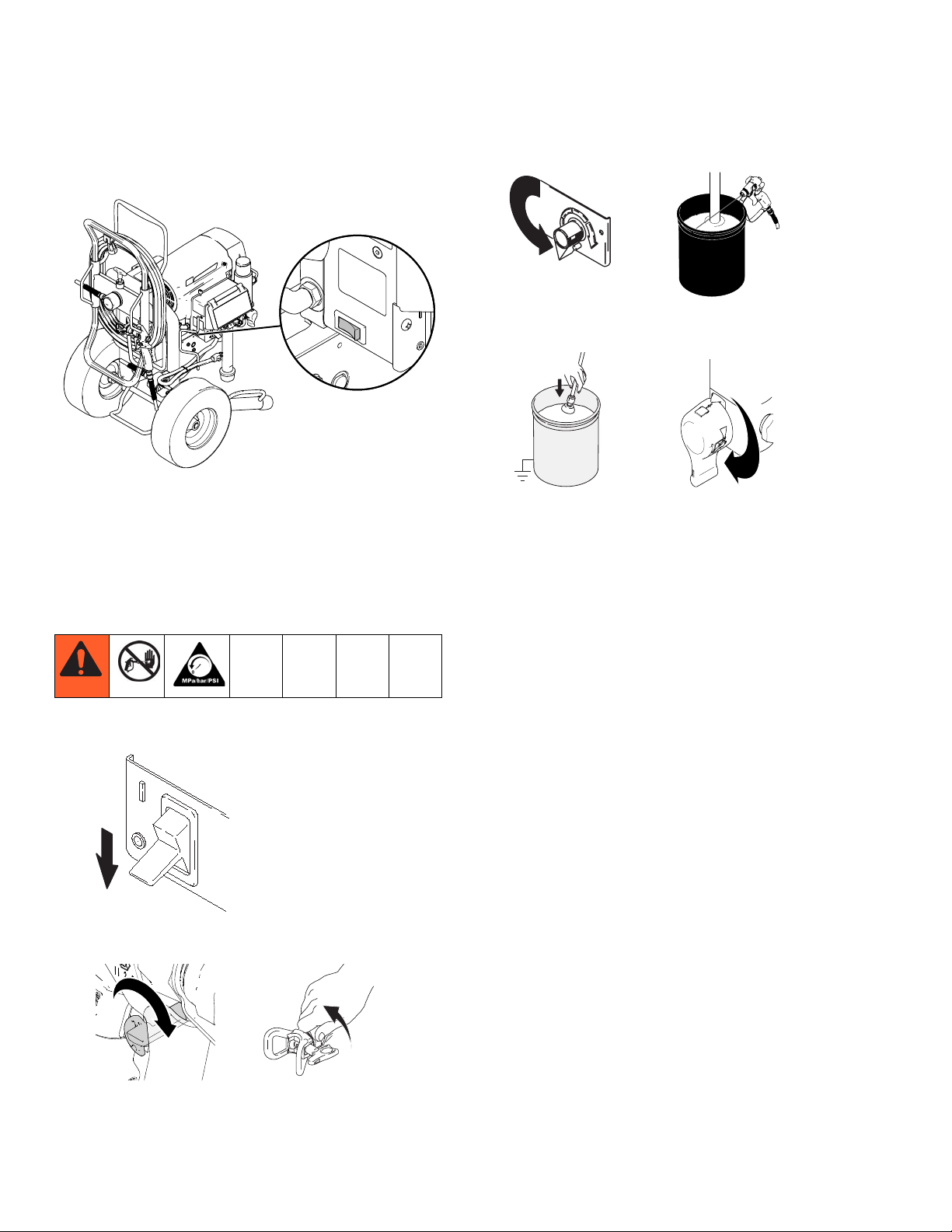

ing, follow the Pressure Relief Procedure for turning off the unit and relieving the pressure before removing the nozzle tip to clean.

• Do not leave the unit energized or under pressure while unattended. When the unit is not in use, turn off

the unit and follow the Pressure Relief Procedure for turning off the unit.

• High-pressure spray is able to inject toxins into the body and cause serious bodily injury. In the event

that injection occurs, get immediate surgical treatment.

• Check hoses and parts for signs of damage. Replace any damaged hoses or parts.

• This system is capable of producing 3300 psi. Use Graco replacement parts or accessories that are

rated a minimum of 3300 psi.

• Always engage the trigger lock when not spraying. Verify the trigger lock is functioning properly.

• Verify that all connections are secure before operating the unit.

• Know how to stop the unit and bleed pressure quickly. Be thoroughly familiar with the controls.

4 3A0156B

Warnings

WARNING

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Always wear appropriate gloves, eye protection, and a respirator or mask when painting.

• Do not operate or spray near children. Keep children away from equipment at all times.

• Do not overreach or stand on an unstable support. Keep effective footing and balance at all times.

• Stay alert and watch what you are doing.

• Do not leave the unit energized or under pressure while unattended. When the unit is not in use, turn off

the unit and follow the Pressure Relief Procedure for turning off the unit.

• Do not operate the unit when fatigued or under the influence of drugs or alcohol.

• Do not kink or over-bend the hose.

• Do not expose the hose to temperatures or to pressures in excess of those specified by Graco.

• Do not use the hose as a strength member to pull or lift the equipment.

ELECTRIC SHOCK HAZARD

This equipment must be grounded. Improper grounding, setup, or usage of the system can cause electric shock.

• Turn off and disconnect power at main switch before disconnecting any cables and before servicing

equipment.

• Connect only to grounded power source.

• All electrical wiring must be done by a qualified electrician and comply with all local codes and regula-

tions.

PRESSURIZED ALUMINUM PARTS HAZARD

Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or property damage.

• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids

containing such solvents.

• Many other fluids may contain chemicals that can react with aluminum. Contact your material supplier

for compatibility.

MOVING PARTS HAZARD

Moving parts can pinch, cut or amputate fingers and other body parts.

• Keep clear of moving parts.

• Do not operate equipment with protective guards or covers removed.

• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment, fol-

low the Pressure Relief Procedure and disconnect all power sources.

PERSONAL PROTECTIVE EQUIPMENT

You must wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect you from serious injury, including eye injury, hearing loss, inhalation of toxic fumes, and burns. This equipment includes but is not limited to:

• Protective eyewear, and hearing protection.

• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.

3A0156B 5

Component Identification

13.

12.

11.

1 Premium Digital Display

2 ON/OFF Switch

WatchDog

™

Switch (not available on Mark V or Standard Units)

4 Pressure Control

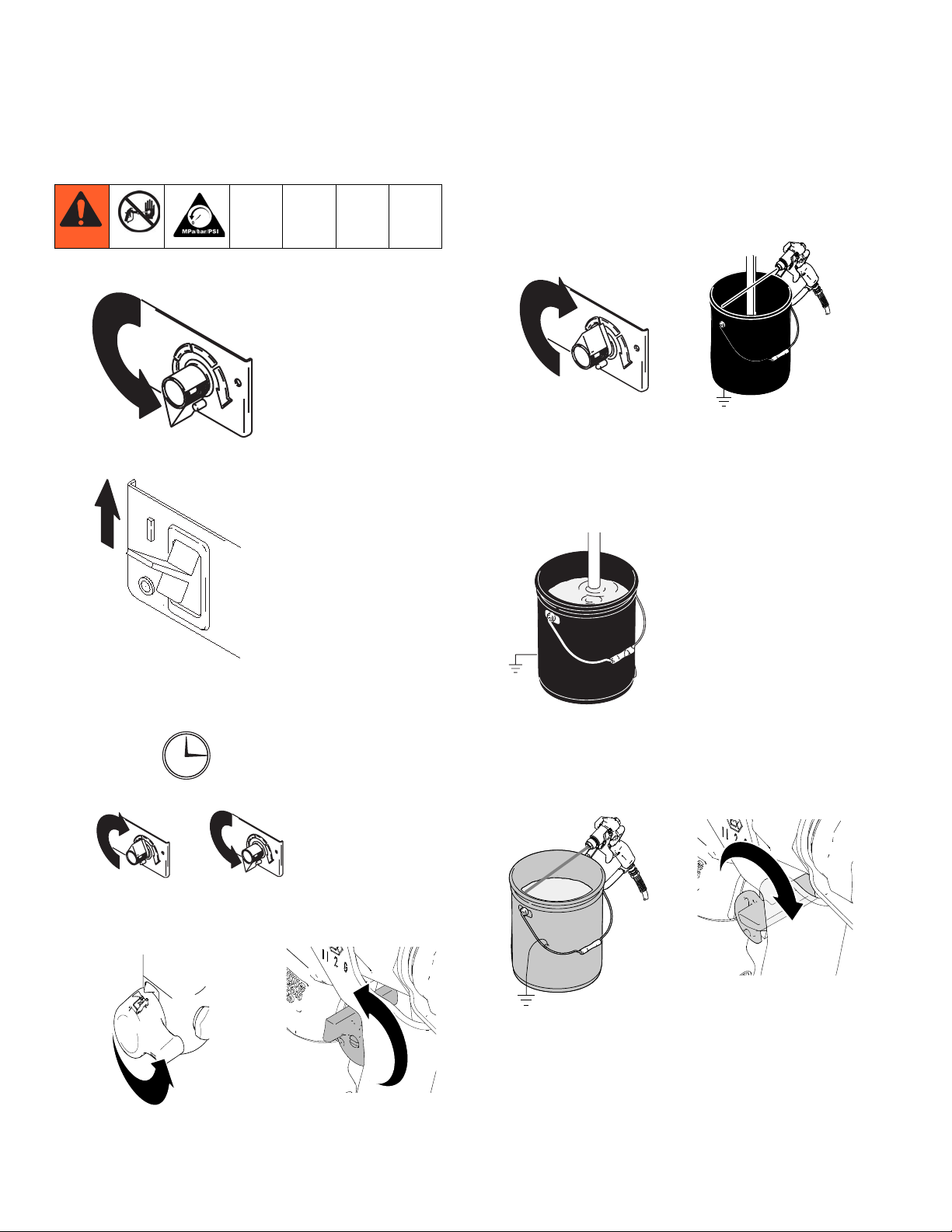

5 Prime / Spray Valve

6 Filter

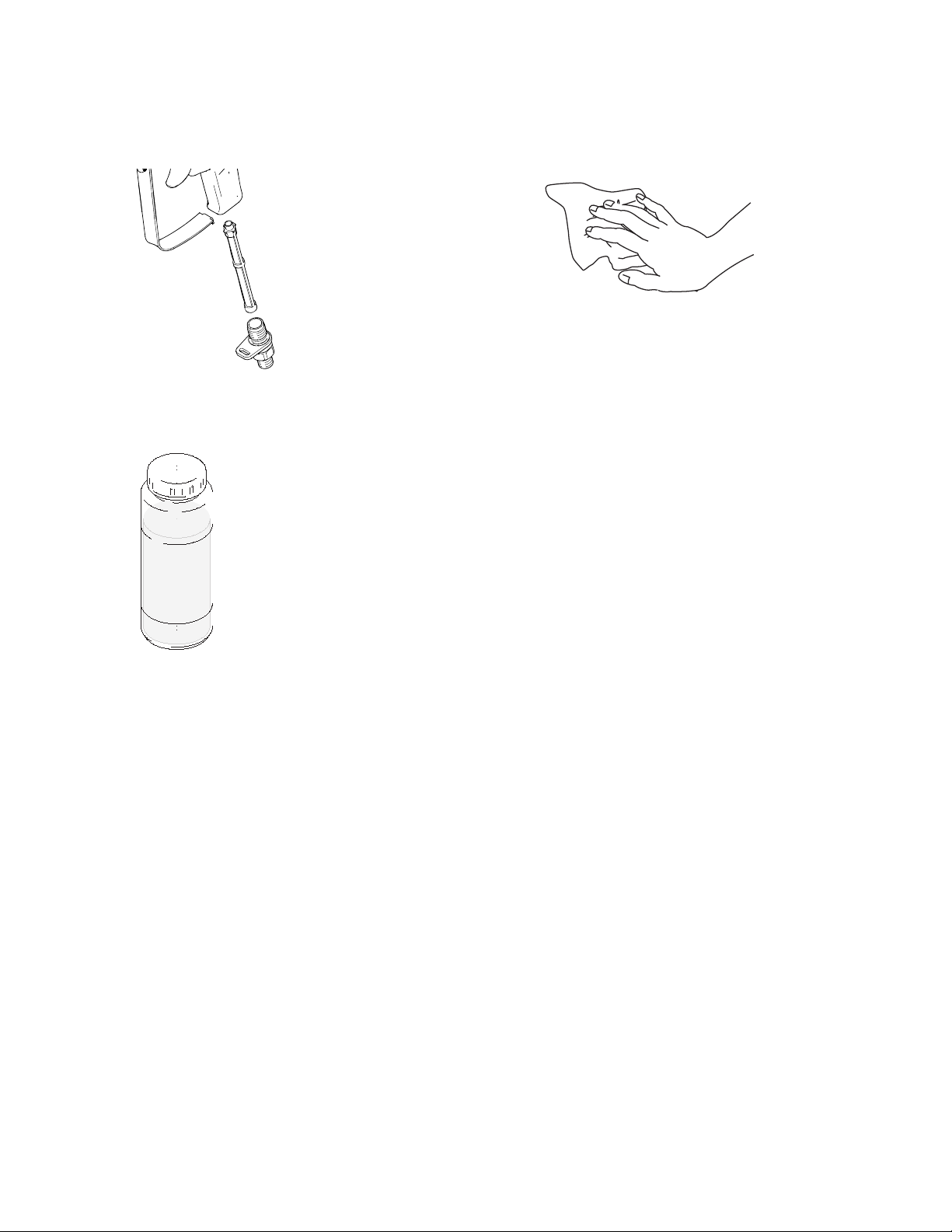

7 Siphon Tube

8Pump

Bearing Housing / ProConnect

10 Drain Tube

11 Trigger Lock

6. 7.

™

10.

ti14839b

12 Model/Serial Tag

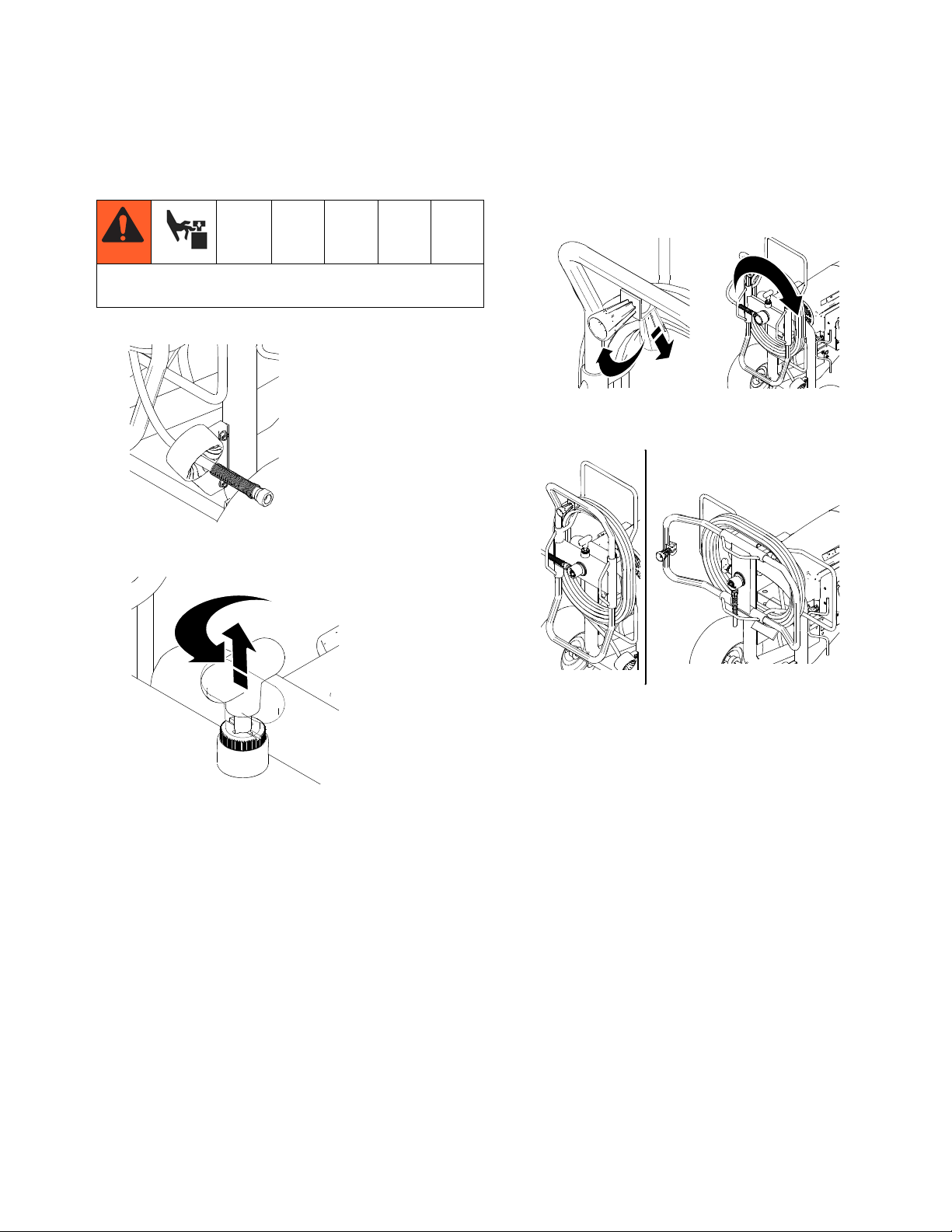

13 Hose Reel

6 3A0156B
