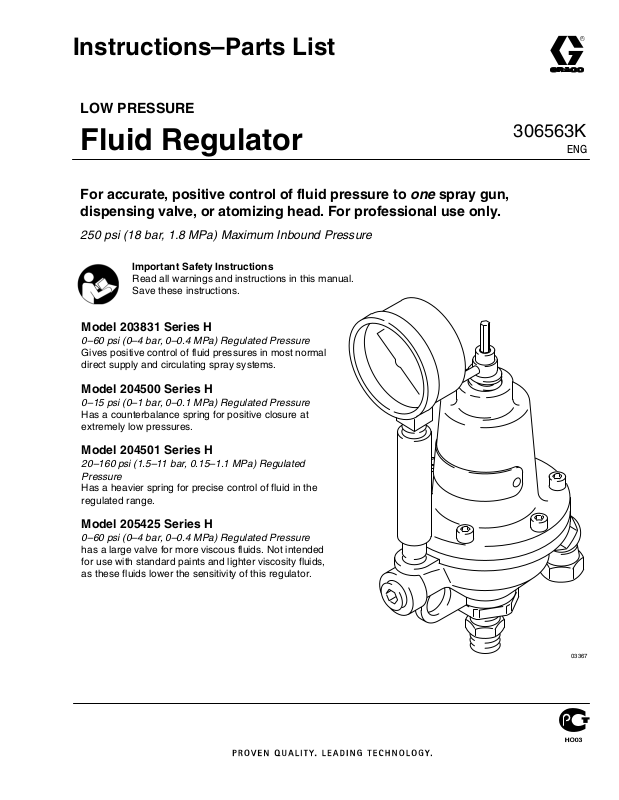

Graco 204501, 204500, 203831 User Manual

Instructions–Parts List
LOW PRESSURE
Fluid Regulator
250 psi (18 bar, 1.8 MPa) Maximum Inbound Pressure
Important Safety Instructions
Read all warnings and instructions in this manual. Save these instructions.
306563K
ENG
Model 203831 Series H
0–60 psi (0–4 bar, 0–0.4 MPa) Regulated Pressure
Gives positive control of fluid pressures in most normal direct supply and circulating spray systems.
Model 204500 Series H
0–15 psi (0–1 bar, 0–0.1 MPa) Regulated Pressure
Has a counterbalance spring for positive closure at extremely low pressures.
Model 204501 Series H
20–160 psi (1.5–11 bar, 0.15–1.1 MPa) Regulated Pressure
Has a heavier spring for precise control of fluid in the regulated range.
Model 205425 Series H
0–60 psi (0–4 bar, 0–0.4 MPa) Regulated Pressure
has a large valve for more viscous fluids. Not intended for use with standard paints and lighter viscosity fluids, as these fluids lower the sensitivity of this regulator.
03367
Table of Contents
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Symbols
Warning Symbol
WARNING
This symbol alerts you to the possibility of serious injury or death if you do not follow the instructions.
WARNING
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.
D This equipment is for professional use only.
Service 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Phone Number 12. . . . . . . . . . . . . . . . . . . . . . . . . .
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to or destruction of equipment if you do not follow the instructions.
D Read all instruction manuals, tags, and labels before operating the equipment.
D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor.
D Do not alter or modify this equipment.
D Check equipment daily. Repair or replace worn or damaged parts immediately.
D Do not exceed the maximum working pressure stated on the equipment or in the Technical Data
for your equipment. Do not exceed the maximum working pressure of the lowest rated component in your system.
D Use fluids and solvents which are compatible with the equipment wetted parts. Refer to the Tech-
nical Data section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.
D Handle hoses carefully. Do not pull on hoses to move equipment.
D Route hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not expose
Graco hoses to temperatures above 66_C (150_F) or below –40_C (–40_F).
D Wear hearing protection when operating this equipment.
D Do not move or lift pressurized equipment.
D Comply with all applicable local, state, and national fire, electrical, and safety regulations.
2 306563
WARNING
SKIN INJECTION HAZARD
Spray from the gun, leaks or ruptured components can inject fluid into your body and cause extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also cause serious injury.
D Fluid injected into the skin is a serious injury. The injury may look like just a cut, but it is a serious
injury. Get immediate surgical attention.
D Do not stop or deflect leaks with your hand, body, glove or rag.
D Always have the tip guard and the trigger guard on the gun when spraying.
D Check the gun diffuser operation weekly. Refer to the gun manual.
D Be sure the gun trigger safety operates before spraying.
D Lock the gun trigger safety when you stop spraying.
D Follow the Pressure Relief Procedure for your equipment if the spray tip clogs and before clean-
ing, checking or servicing the equipment.
D Tighten all fluid connections before operating the equipment.
D Check the hoses, tubes, and couplings daily. Replace worn or damaged parts immediately. Do not
repair high pressure couplings; you must replace the entire hose.
D Fluid hoses must have spring guards on both ends, to help protect them from rupture caused by
kinks or bends near the couplings.
MOVING PARTS HAZARD
Moving parts can pinch or amputate your fingers.
D Keep clear of all moving parts when starting or operating the pump.
D Before checking or servicing the equipment, follow the Pressure Relief Procedure for your sys-
tem to prevent the equipment from starting unexpectedly.
3306563
WARNING
FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and re­sult in a fire or explosion and serious injury.
D If there is any static sparking or you feel an electric shock while using this equipment, stop spray-
ing immediately. Do not use the equipment until you identify and correct the problem.
D Provide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid
being sprayed.
D Keep the spray area free of debris, including solvent, rags, and gasoline.
D Before operating this equipment, electrically disconnect all equipment in the spray area.
D Before operating this equipment, extinguish all open flames or pilot lights in the spray area.
D Do not smoke in the spray area.
D Do not turn on or off any light switch in the spray area while spraying or while operating if fumes
are present.
D Do not operate a gasoline engine in the spray area.
TOXIC FLUID HAZARD
Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin, inhaled, or swallowed.
D Know the specific hazards of the fluid you are using.
D Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,
state and national guidelines.
D Always wear protective eyewear, gloves, clothing and respirator as recommended by the fluid and
solvent manufacturer.
4 306563
KEY
A
Regulator
B
Dispensing Unit
C
Gauge
D
Regulator Inlet
E
Regulator Outlet
F
Air Regulator
G
Supply Line
H
Accessory Outlet
Installation
C
G
A
E
B
D
H
F
Fig. 1
TYPICAL INSTALLATION
CAUTION
Before installing the regulator, check the tightness of the screws (1). Refer to Fig. 3 for the tightening sequence and the torque value. If the regulator leaks during operation, check and torque the screws again.
In order to prevent damaging the regulator, blow out and flush the supply line to remove any particles.
D Install regulator (A) in fluid supply line as close as
possible to spray gun or dispensing valve (B) for easy operator control.
03363
D Mount the regulator in an upright position so that
the gauge (C) can be easily read.
D If turning the gauge, reapply sealer to the threads,
and use a wrench on the inlet stud to turn gauge. Regulator inlet (D) is 3/8 npsm (f) swivel and outlet (E) is 3/8 npsm (m) rigid.
D Connect a fluid hose to regulator outlet (E) and
spray gun. Connect an air atomizing hose to the spray gun and air regulator (F) See Fig. 1.
D To mount the regulator in a circulating system
supply line (G), install an accessory outlet (H). One outlet (H) and air regulator (F) are required for each spray gun. The accessory outlet (Part No. 204819) may be ordered separately.
5306563
Operation
WARNING
To reduce the risk of component rupture, which can cause a fire or explosion and result in serious bodily injury, including splashing in the eyes, never exceed 250 psi (18 bar, 1.8 MPa) Maximum Inbound Fluid Pressure to this regula­tor.
CLEANING THE REGULATOR
Note: Flush the regulator every four weeks, or as
necessary for the amount and type of use.
1. Clear regulator of paint or other fluid by blowing back fluid through the gun and hose.
2. Shut off supply pump and relieve line pressure by opening back pressure regulator or other by-pass valve.
CAUTION
Do not pressure test the regulator with air; use solvent. Air may cause leaks between the fluid seals and result in fluid leaks during normal operation.
If the rest of the system must be pressure tested with air, loop past the regulator during the test.
1. Insert hex end of key (25) in adjusting screw (20) and turn counterclockwise until spring tension is relieved. See Figs 2 and 3.
2. Start pump and open shutoff valve of outlet (H) to admit fluid to regulator. Turn key (25) clockwise until desired fluid pressure shows on gauge.
CAUTION
Do not exceed the Regulated Pressure specification of your regulator. Pressures higher than specified can damage the gauge.
Note: When reducing pressure, relieve pressure in gun and supply line to ensure a correct gauge reading.
3. Open regulator valve by screwing the threaded portion of key (25) as far as possible into the cap. See Fig. 2.
4. Loosen air cap ring of spray gun three turns, hold a rag firmly over the end of the cap and trigger the gun. Air will force fluid back through the gun, hose and regulator.
5. After blow-back, remove the adjusting key (25)
Note: Do not use the threaded end of key (25) to adjust pressure.
6. Flush regulator until clean.
25
Blow Back Position Regulating Position
Fig. 2
03369
6 306563
Troubleshooting
Problem Cause Solution
No pressure regulation Damaged diaphragm Replace diaphragm (31).
Fluid leaks under cap Loose cap, worn gasket Tighten screws (1), replace gasket
(32).
Damaged diaphragm Replace diaphragm (31).
Pressure creeps above setting Loose cap Tighten screws (1).
Worn gasket Replace gasket (32).
Damaged diaphragm Replace diaphragm (31).
Worn or held open fluid valve Flush regulator, replace fluid
valves (26 & 27) if worn excessively.
Pressure drops below setting Loose cap Tighten screws (1).
Worn gasket Replace gasket (32).
Blocked fluid supply line or valve Flush supply line and valve,
service if necessary.
Using regulator beyond capacity Do not use regulator beyond its rated
capacity.
7306563

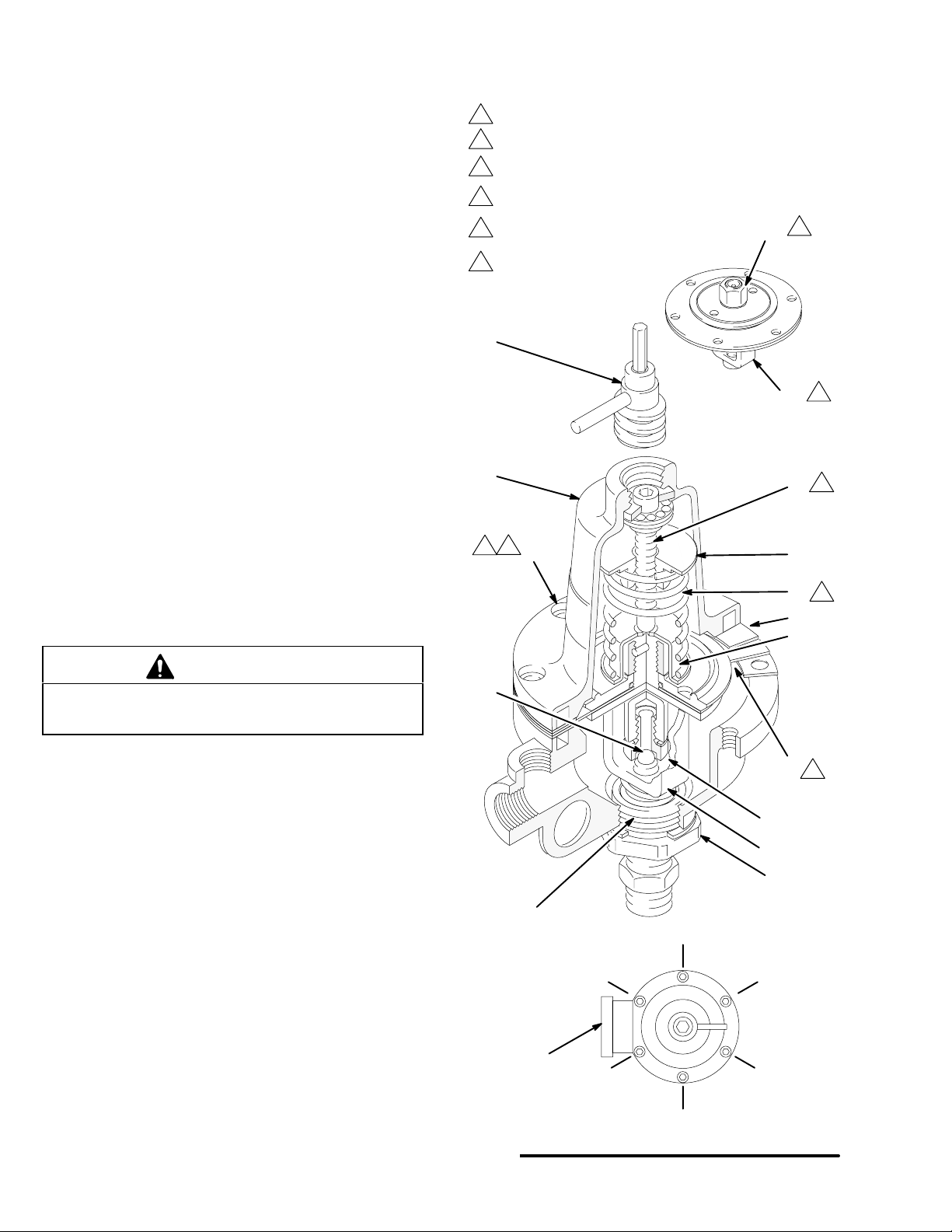

Service
Regulator Disassembly
Shut off pump, close shutoff valve and relieve pressure in regulator by triggering the spray gun. Remove the regulator from the system.
1. Using the hex end of key (25), adjust screw (20) all the way counterclockwise to relieve regulator spring tension.
2. Remove outlet bushing (15) and counter-balance spring (29) (Model 204500 only) from the body.
3. Unscrew valve stem (27) from diaphragm hanger (28) with adjusting key. See Fig. 3.
4. Remove screws (1), regulator cap (17), spring adjusting screw (20), spring (13), and spring cap (30) (Model 204500 only).
5. Lift diaphragm (31) and hanger from body. Disas­semble the hanger and diaphragm only if dam­aged.
6. Unscrew valve seat (26) from body with a 9/16” socket wrench. See Fig. 3.
See TOP VIEW for tightening sequence.
1
Lubricate with oil.
2
3
Lubricate with grease.
Torque to 20 ft-lb (27 NSm).
4
Hanger must be parallel
5
to diaphragm holes. Torque to 120–130 in-lb
6
(13.6–14.7 NSm).
25
17
1
1
6
03371
10
28
4
20
12
5
3
7. Thoroughly inspect all parts and inspect for wear or damage, replacing as necessary.
CAUTION
Use special care in handling the valve stem and seat to avoid damaging the hard carbide parts.
Regulator Reassembly
Reassemble regulator in reverse order of Disassem­bly. When inserting the diaphragm and hanger, be
sure that all surfaces are clean and smooth. Any dirt or roughness could damage the diaphragm.
Note: Hold hanger (28) and valve stem (27) in place with a finger so that the valve stem is correctly lined up with the valve seat (26).
The hanger should be in line with one set of holes and the nut should be torqued to 20 ft-lb (27 NSm). Turn the valve stem snugly against the seat and then back off 1/2 turn on model 204500 and 3/4 turn on other mod­els to set valve clearance. When installing the cap (17), line up finger of spring adjusting nut (12) with the groove in the cap (17) . Torque the six screws (1) evenly to 120–130 in-lb (13.6–14.7 NSm) three times consecutively, in the order shown in the TOP VIEW, to compensate for diaphragm relaxation. See Fig. 3.
Note: If further service is needed, see notes on lu­brication, thread sealant, and torque values in Fig. 4.
8 306563
27
Gauge
Fig. 3
29
1
TOP VIEW
13 3 32 30
2
31
26
28
15
03372
5
23
4
03370
6
Notes
9306563
See torque sequence in Fig. 3.
PTFE
1
2
Lubricate with grease.

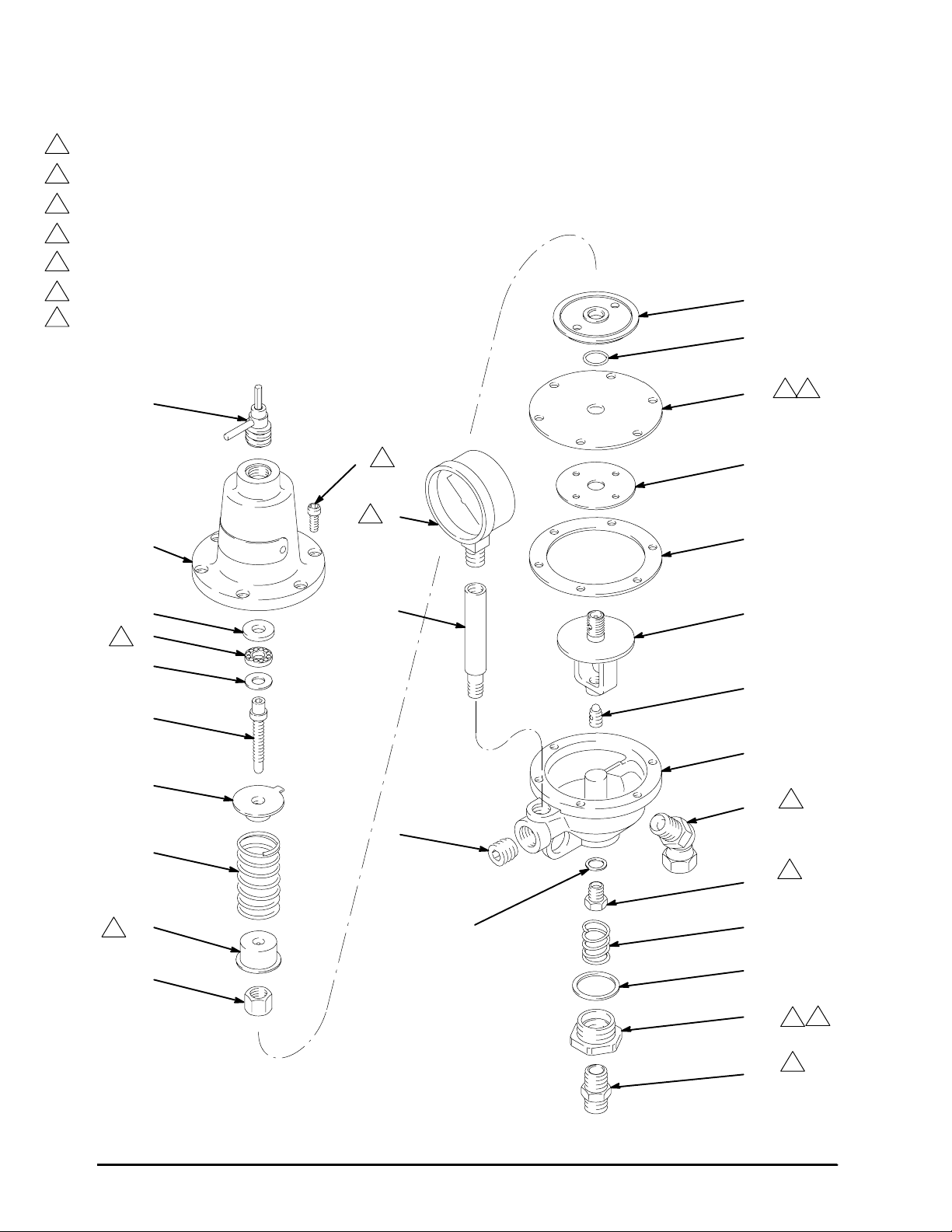

Parts
3
4
5
6
7
side down.
Apply sealant to threads.
Torque to 70–80 in-lb (8–9 NSm).
Lubricate with oil. Torque to 30–35 ft-lb (41–47 NSm)
25
17
34
4
2
1 1
11
21
9
6
3
31
33*
*54
32*
28*
3
27*
20
16
12
14
4
2
13
5
26
2
30
*7
29
22*
10
15
19
7
4
4
Fig. 4
10 306563
03374
Parts
Ref No. Part No. Description Qty.
1 101682 SCREW, soc hd cap; 1/4–20 x 5/8 6 2 101754 PLUG, pipe; hex soc; 3/8 npt 1 3 101971 RACE, thrust; adjusting nut 1 4 101972 BEARING, needle thrust 1 5* 187875 GAUGE, fluid pressure; 0–30 psi
(0–2 bar) (Model 204500 only) 1
101180 GAUGE, fluid pressure; 0–200 psi
(0–13 bar) (Model 204501 only) 1
101176 GAUGE, fluid pressure; 0–60 psi
(0–4 bar) (Models 205425 &
203831 only) 1 7* 150670 GASKET, copper 1 9* 157277 SEAL, o-ring; thiokol 1 10 160741 NUT, lock; diaphragm 1 11 160745 TUBE, gauge mounting 1 12 161349 NUT, spring adjusting 1 13 161351 SPRING, flat compression (Models
203831 & 205425 only) 1
166617 SPRING, helical compression (Model
204500 only) 1
160034 SPRING, helical compression (Model
204501 only) 1 14 161889 UNION 45_ swivel; 3/8 npt(m) x
3/8 npsm(f) 1 15 161357 BUSHING, fluid outlet 1 16 161358 BODY, regulator 1
Ref No. Part No. Description Qty.
17 171194 CAP, regulator 1 19 162485 ADAPTER; 3/8 npt x 3/8 npsm 1 20 164863 SCREW, adjusting 1 21* 164864 PLATE, diaphragm 1 22* 171198 GASKET, acetal 1 25 204522 KEY, regulating (removable) 1 26* 204523 SEAT, valve (Models 203831 &
204501 only) 1 206523 SEAT, valve (Model 204500 only) 1 212030 SEAT, valve (Model 205425 only) 1
27* 206920 STEM, valve (Model 204500 only) 1
204524 STEM, valve (Models 204501 &
203831 only) 1 205183 STEM, valve (Model 205425 only) 1
28* 206921 HANGER, diaphragm 1 29 153996 SPRING, helical compression (Model
204500 only) 1
30 166618 CAP, spring (Model 204500 only) 1 31* 172193 DIAPHRAGM 1 32* 171912 GASKET; cellulose fiber 1 33* 171913 GASKET; cellulose fiber 1 34 171193 WASHER, plain 1
* Recommended “tool box” spare parts. Keep on hand to
reduce down time.
Model 204500:
11.25” (285.8 mm)
Models 203831,
204501, & 205425
9.75” (247.7 mm)
Dimensions
5.5” (140 mm)
Weight:
Model 204500: Model 203831: Model 204501: Model 205425:
.62” (15.8 mm)
4 lb (1.7 kg) 5 lb (2.3 kg) 5 lb (2.3 kg) 5 lb (2.3 kg)
Fig. 5
3/8 NPSM (F) INLET3/8 NPSM (M) OUTLET
11306563
The Graco Warranty and Disclaimers
WARRANTY
Graco warrants all equipment listed in this manual which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defec­tive. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written rec­ommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the im­proper design, manufacture, installation, operation or maintenance of structures, accessories, equipment or materials not sup­plied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PUR­POSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or prop­erty, or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS, OR COMPONENTS SOLD BUT NOT MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors,
switches, hose, etc.) are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assis­tance in making any claim for breach of these warranties.
For Sales to Canadian Customers:
Except as expressly stated herein, Graco makers no representations, warranties or conditions, express, implied or collateral, con­cerning any goods or services sold, and GRACO SHALL NOT BE LIABLE IN ANY MANNER FOR any other representation, warranty or condition of any kind, whether arising by operation of law or otherwise, including but not limited to, WARRANTIES OF
MERCHANTABLE QUALITY OR FITNESS FOR A PARTICULAR PURPOSE.
LIMITATION OF LIABILITY
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equip­ment hereunder, or for the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or otherwise.
Graco Information
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the distributor closest to you: Phone: 612–623–6921 or Toll Free: 1–800–328–0211 Fax: 612–378–3505
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 306563
12 306563
International Offices: Belgium, China, Japan, Korea
Graco Headquarters: Minneapolis
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
Copyright 1996, Graco Inc. is registered to ISO 9001
www.graco.com
Revised 01/2010
Loading...
