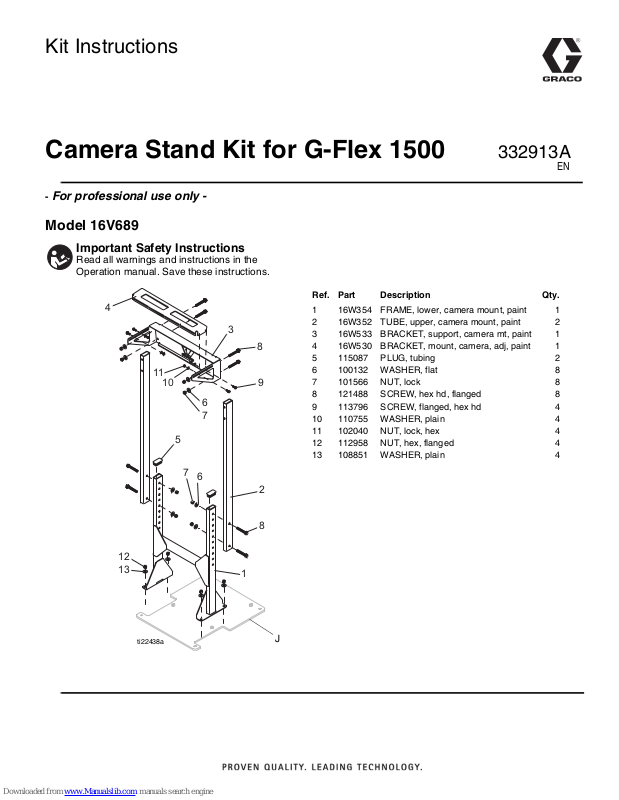

Graco 16V689 Kit Instructions

Kit Instructions

Camera Stand Kit for G-Flex 1500

-

For professional use only -

Model 16V689

Important Safety Instructions

Read all warnings and instructions in the
Operation manual. Save these instructions.

Ref. Part Description Qty.

4

3

8

11

10

6
7

5

9

1 16W354 FRAME, lower, camera mount, paint 1
2 16W352 TUBE, upper, camera mount, paint 2
3 16W533 BRACKET, support, camera mt, paint 1
4 16W530 BRACKET, mount, camera, adj, paint 1
5 115087 PLUG, tubing 2
6 100132 WASHER, flat 8
7 101566 NUT, lock 8
8 121488 SCREW, hex hd, flanged 8
9 113796 SCREW, flanged, hex hd 4
10 110755 WASHER, plain 4
11 102040 NUT, lock, hex 4
12 112958 NUT, hex, flanged 4
13 108851 WASHER, plain 4

332913A

EN

12
13

ti22438a

7

6

2

8

1

J

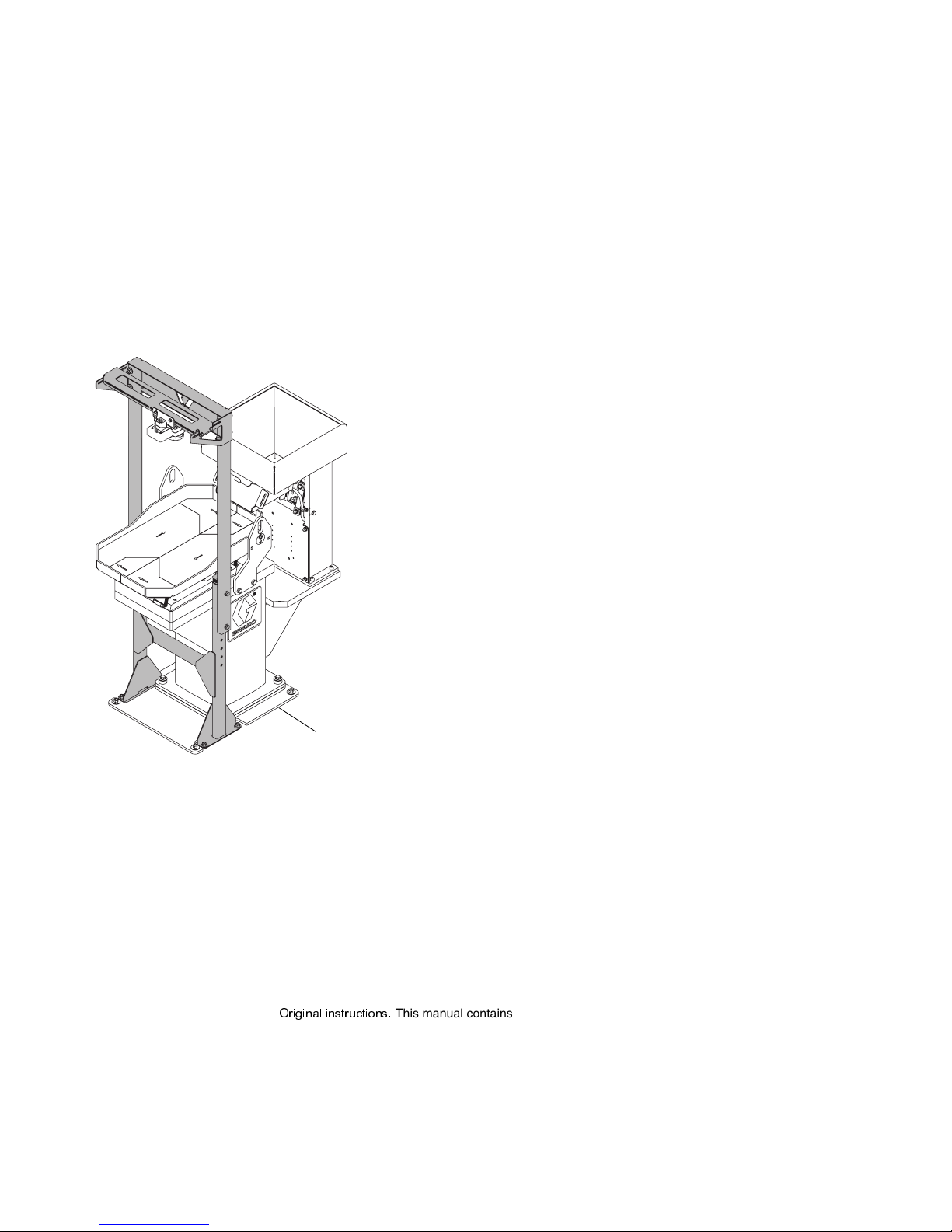

Installation

Installation

NOTE: To reduce vibration transmitted to the camera,

the camera stand must not touch the G-Flex Floor
Mounting Plate (J).

1. Assemble the camera stand per illustration.

2. To mount camera stand, position it in the cutouts in
the G-Flex 155 Floor Mounting Plate (J). The cam­era stand is designed to be anchored using four 3/8
in. concrete anchor bolts.

3. Use a concrete drill bit of the size recommended by
the anchor bolt manufacturer. Drill four holes in the
concrete using the camera stand holes as a guide.
Install the anchor bolts per the manufacturer’s
instructions.

4. A minimum of 1 in. stud length must protrude from
the floor for proper installation.

5. Install four washers (13) and four nuts (12) provided
to secure the G-Flex 1500 to the concrete surface.

6. Torque to anchor bolt manufacturer recommenda­tions.

J
