User Manual
Rechargeable Lithium Ion Battery System
Lynx Home U Series
V 1.7-2023-03-20
Page 2
User Manual V1.7-2023-03-20
Copyright Statement
Copyright ©GoodWe Technologies Co., Ltd., 2023. All rights reserved
No part of this manual can be reproduced or transmitted to the public platform in any form or
by any means without the prior written authorization of GoodWe Technologies Co., Ltd.
Trademarks
and other GOODWE trademarks are trademarks of GoodWe Technologies
Co.,Ltd. All other trademarks or registered trademarks mentioned in this manual are owned by
GoodWe Technologies Co.,Ltd.
NOTICE
The information in this user manual is subject to change due to product updates or other
reasons. This guide cannot replace the product labels or the safety precautions in the user
manual unless otherwise specied. All descriptions here are for guidance only.
Page 3
Content
User Manual V1.7-2023-03-20
TABLE OF CONTENTS
01 About This Manual ..................................................................... 01
1.1 Applicable Model ......................................................................................... 01
1.2 Target Audience .......................................................................................... 01
1.3 Symbol Denition ........................................................................................ 01
02 Safety Precaution ....................................................................... 03
2.1 General Safety ............................................................................................. 03
2.2 Battery Safety .............................................................................................. 04
2.3 Emergency Measures ................................................................................ 05
2.4 EU Declaration of Conformity .................................................................... 06
03 Product Introduction .................................................................07

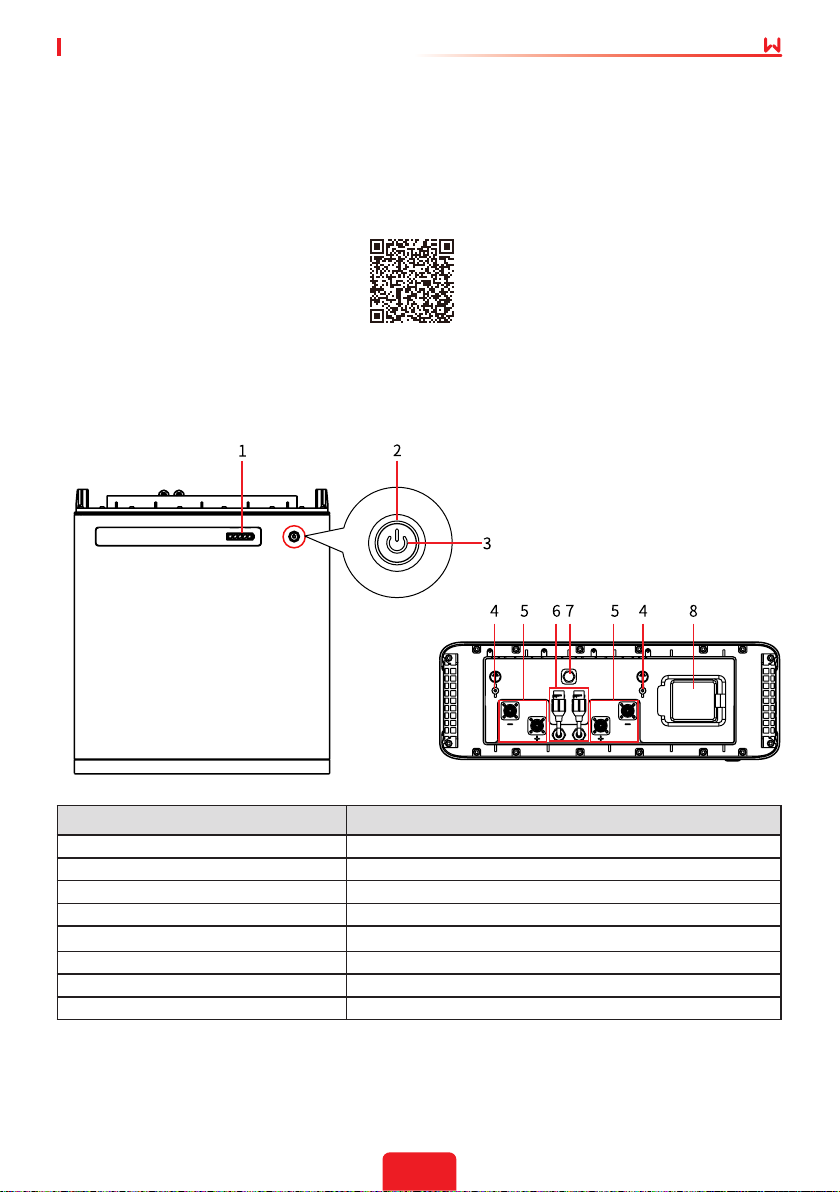

3.1 Appearance ................................................................................................... 07

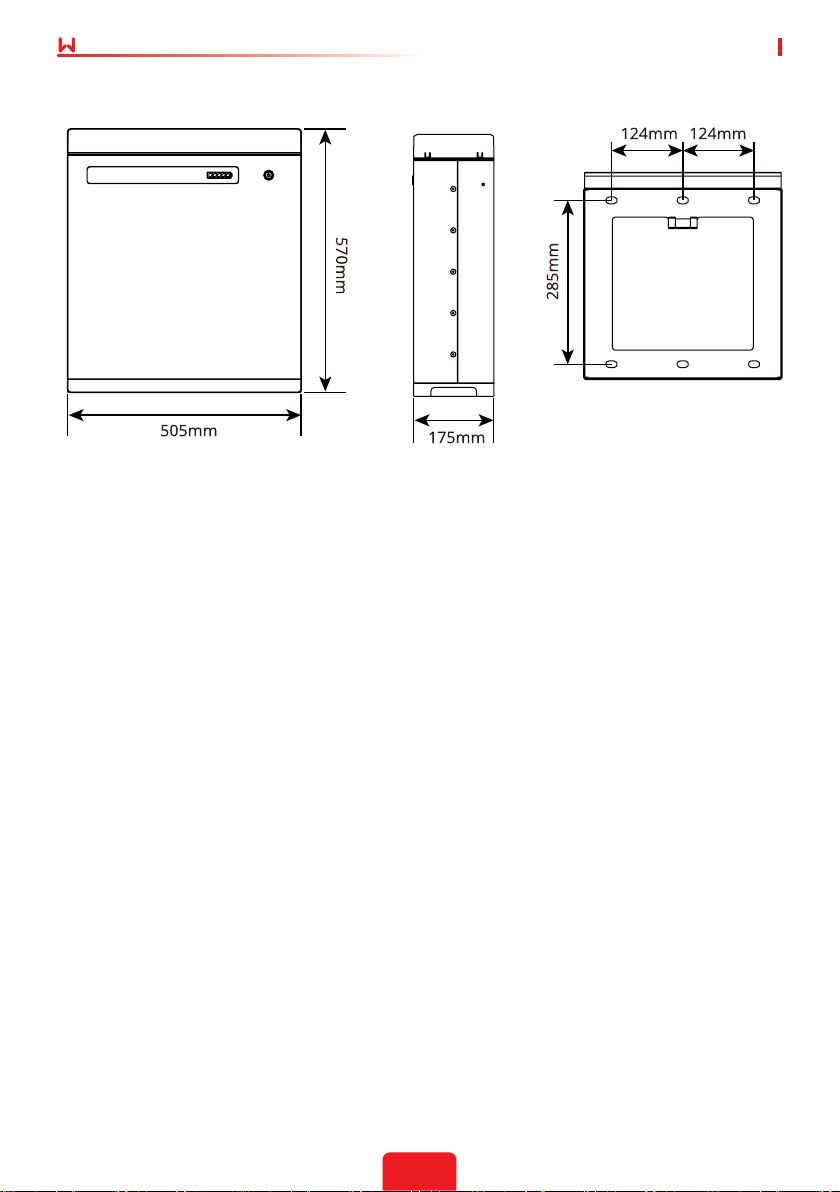

3.2 Dimensions ................................................................................................... 08
04 Storage and Package .................................................................09
4.1 Storage Environment ................................................................................... 09

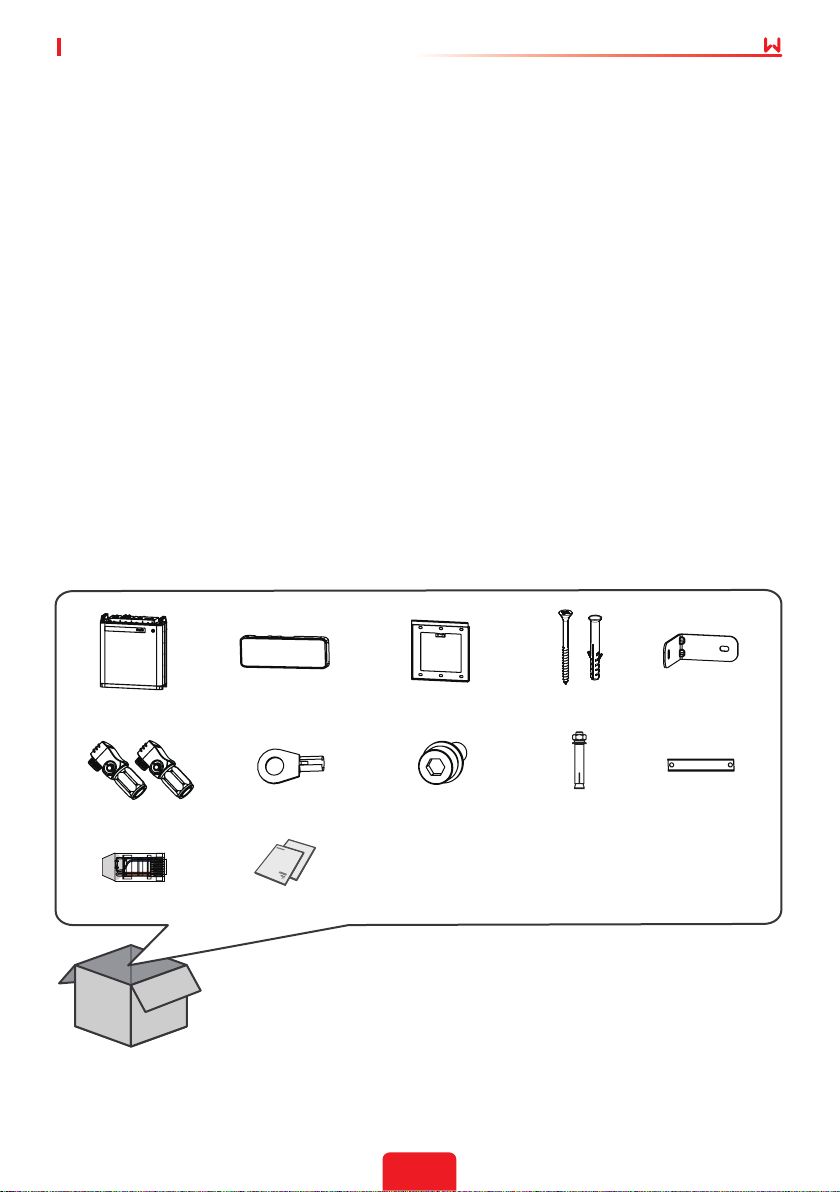

4.2 Packing List ................................................................................................... 09
05 System Installation .................................................................... 10

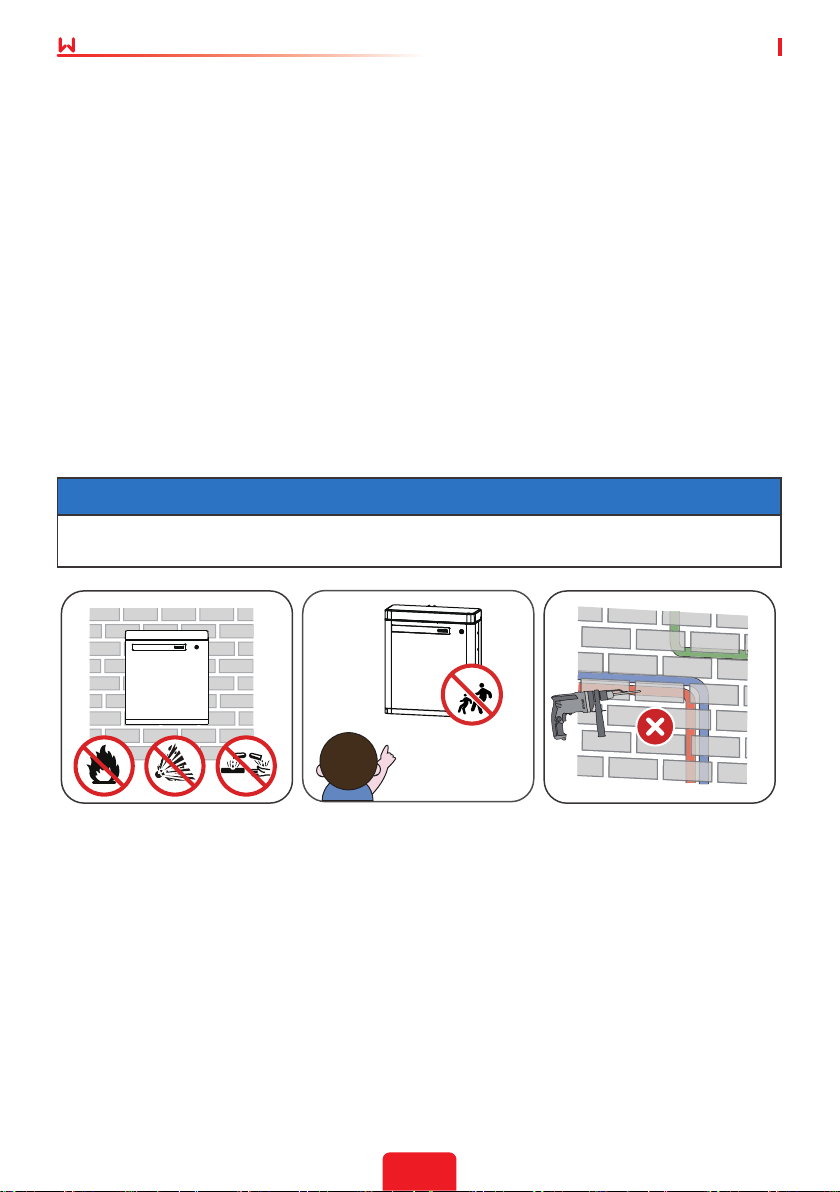

5.1 Installation Environment ............................................................................. 10

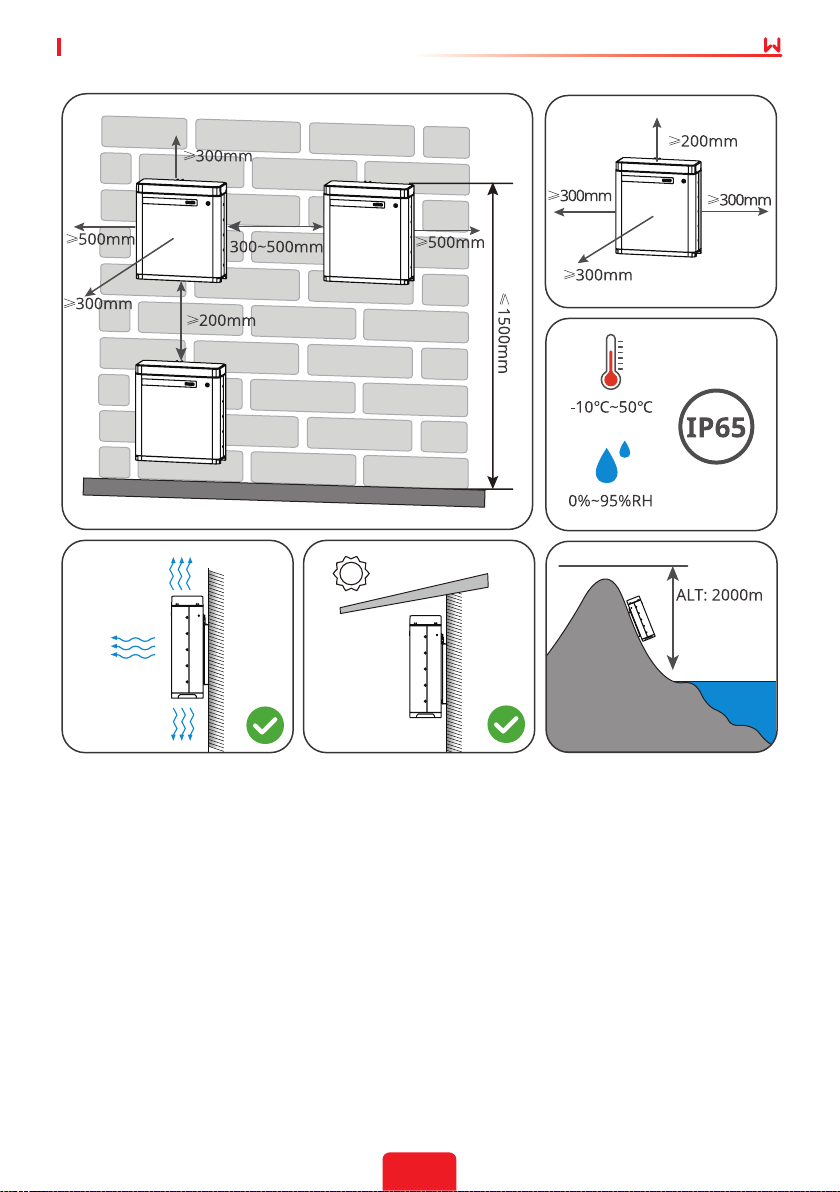

5.2 Space Requirements .................................................................................... 10
5.3 System Installation ...................................................................................... 12
5.3.1 Floor Mounting ...................................................................................................... 12

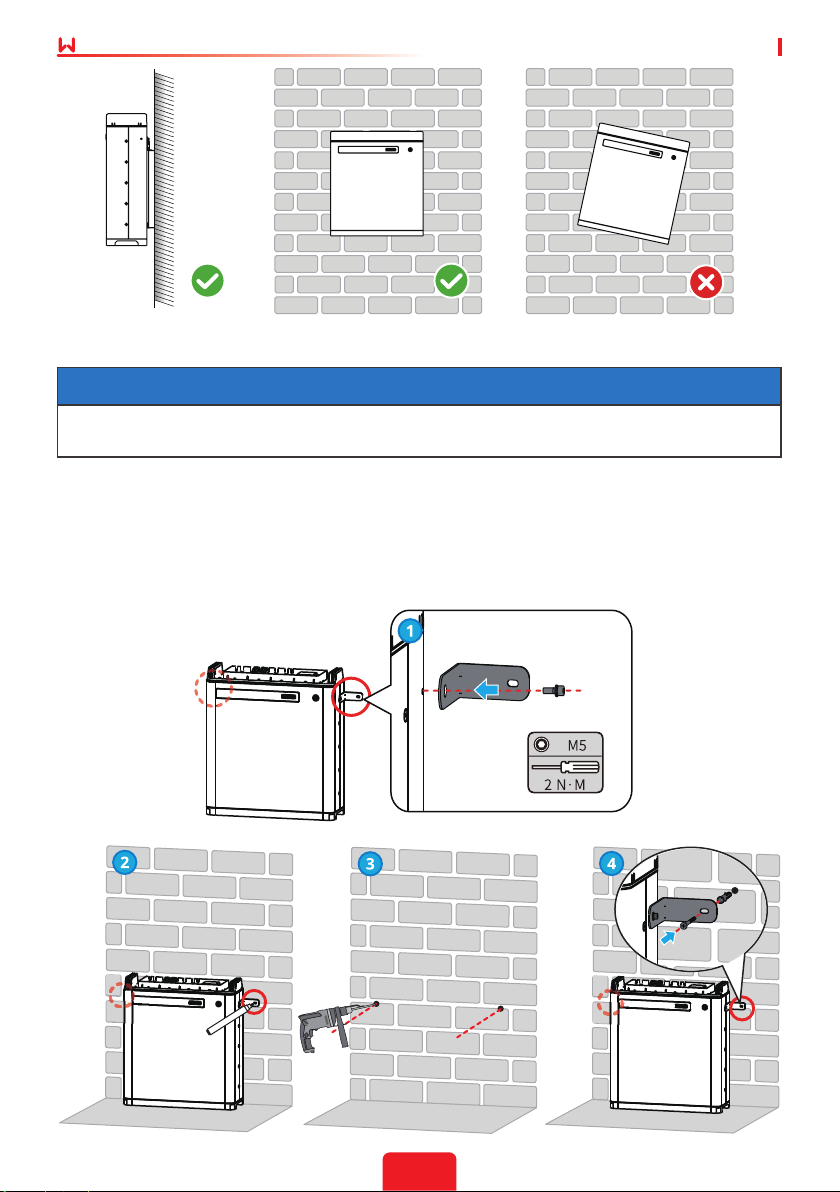

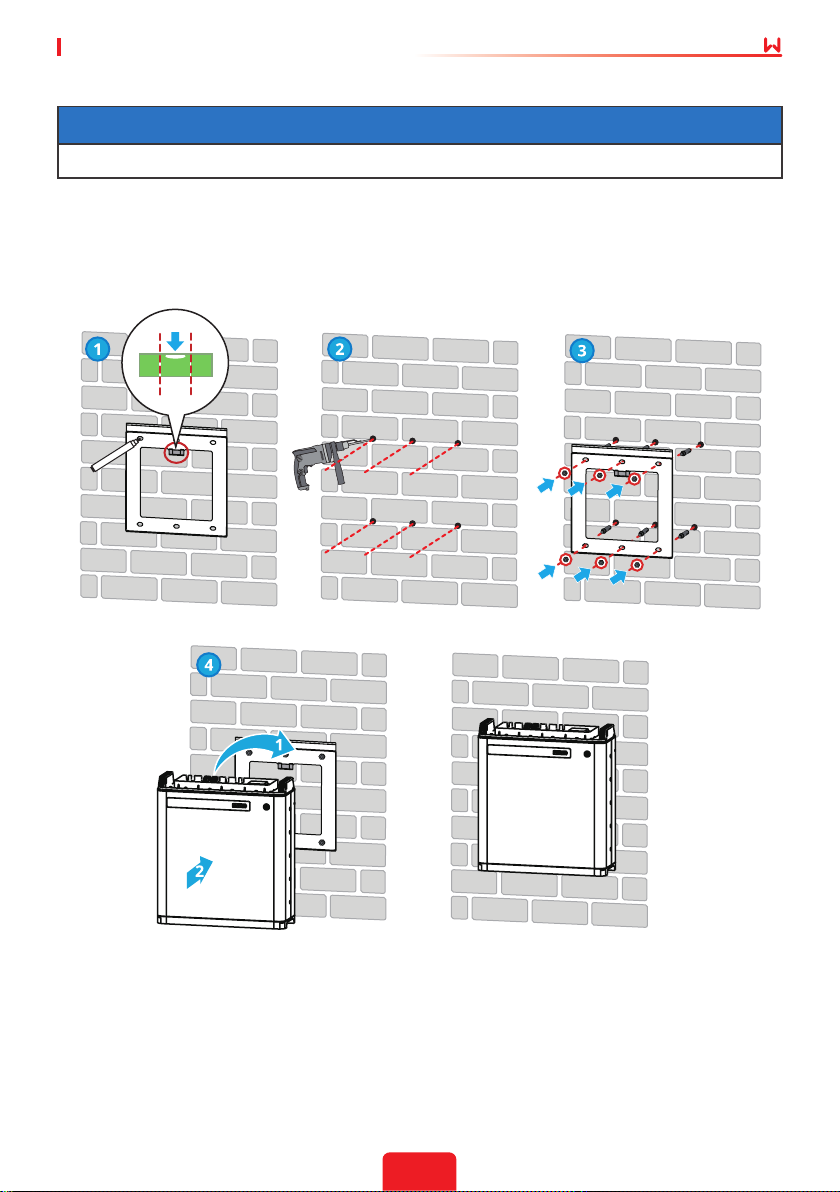

5.3.2 Wall Mounting ........................................................................................................ 13

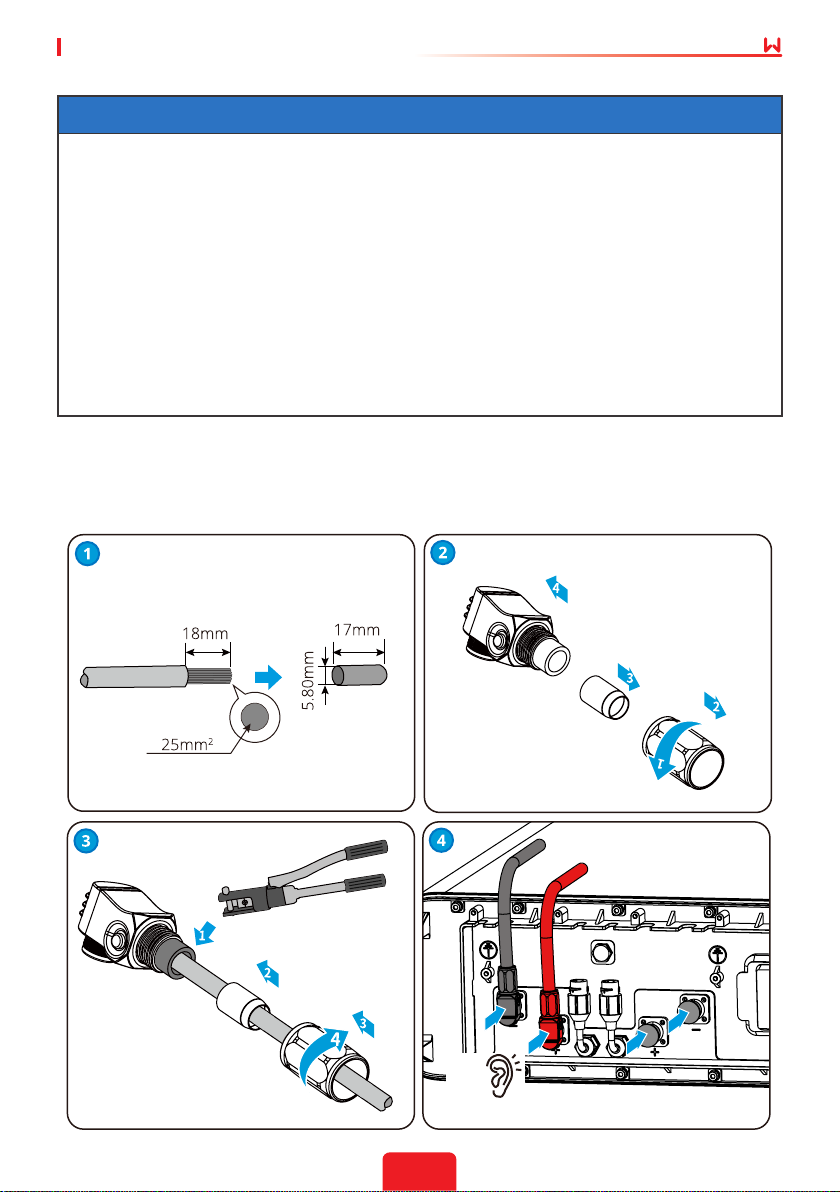

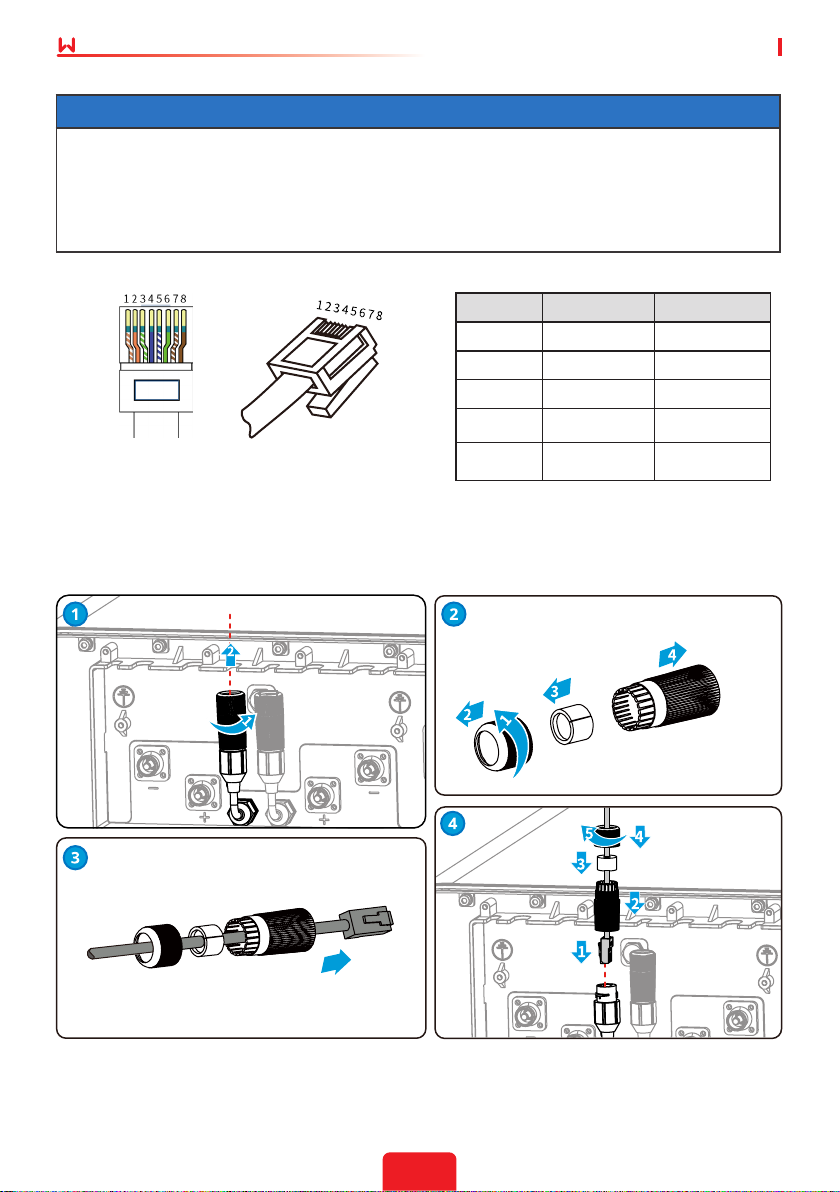

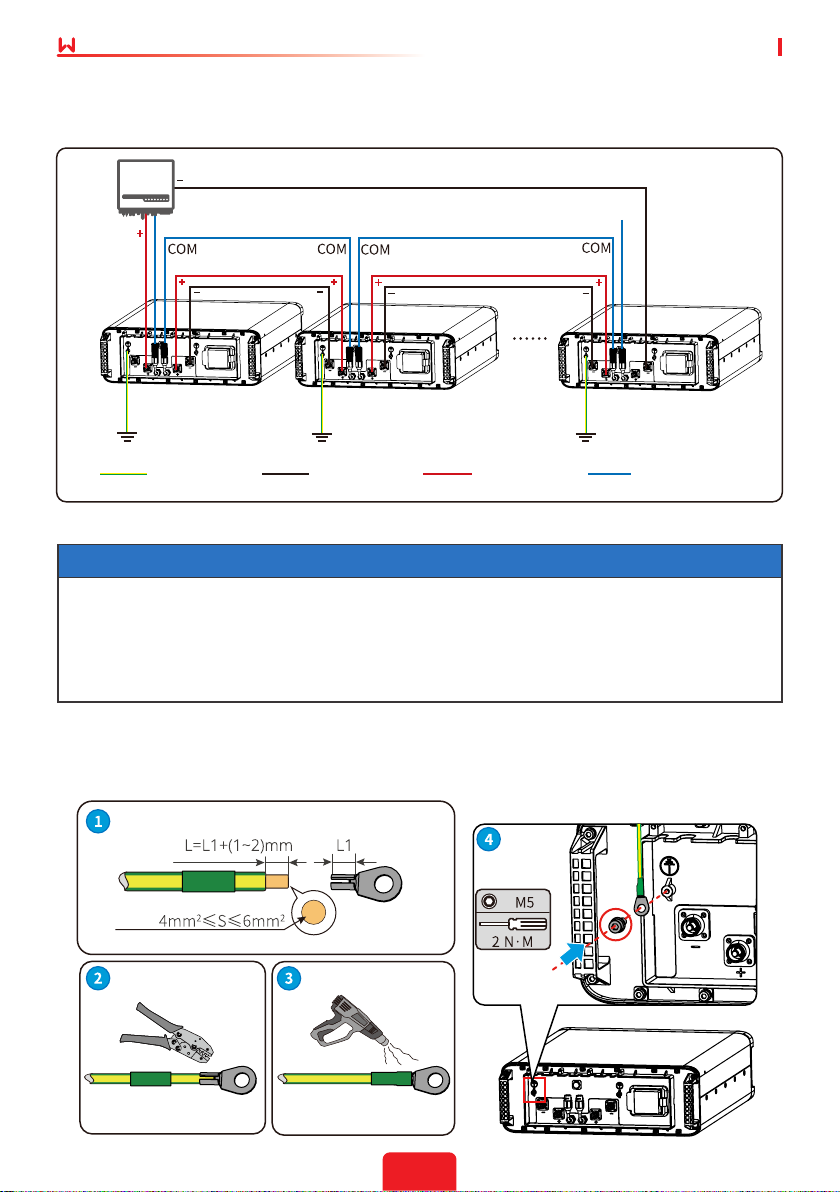

5.3.3 Cable Connection .................................................................................................. 14

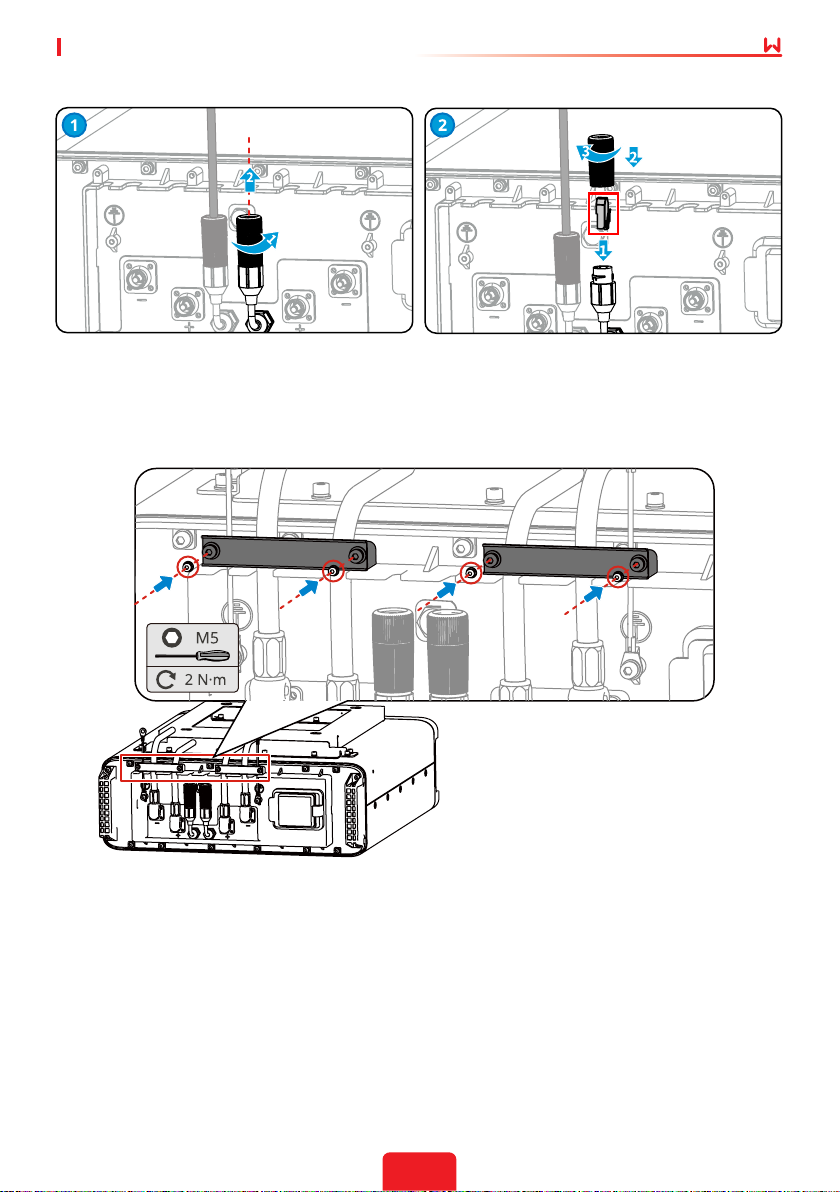

5.3.4 Install the Wire Harness Fix Bar ........................................................................... 17
06 System Operation ......................................................................18
6.1 Check Before Power On .............................................................................. 18

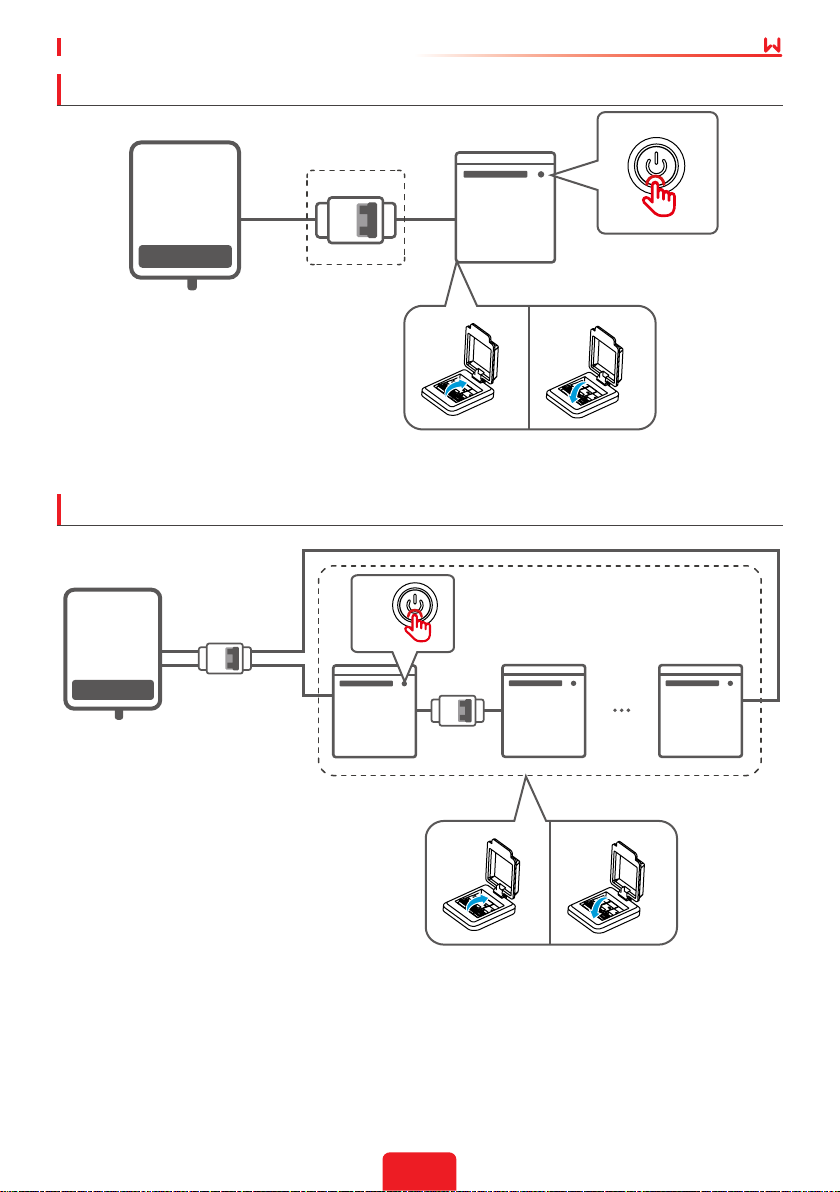

6.2 Power On ....................................................................................................... 18

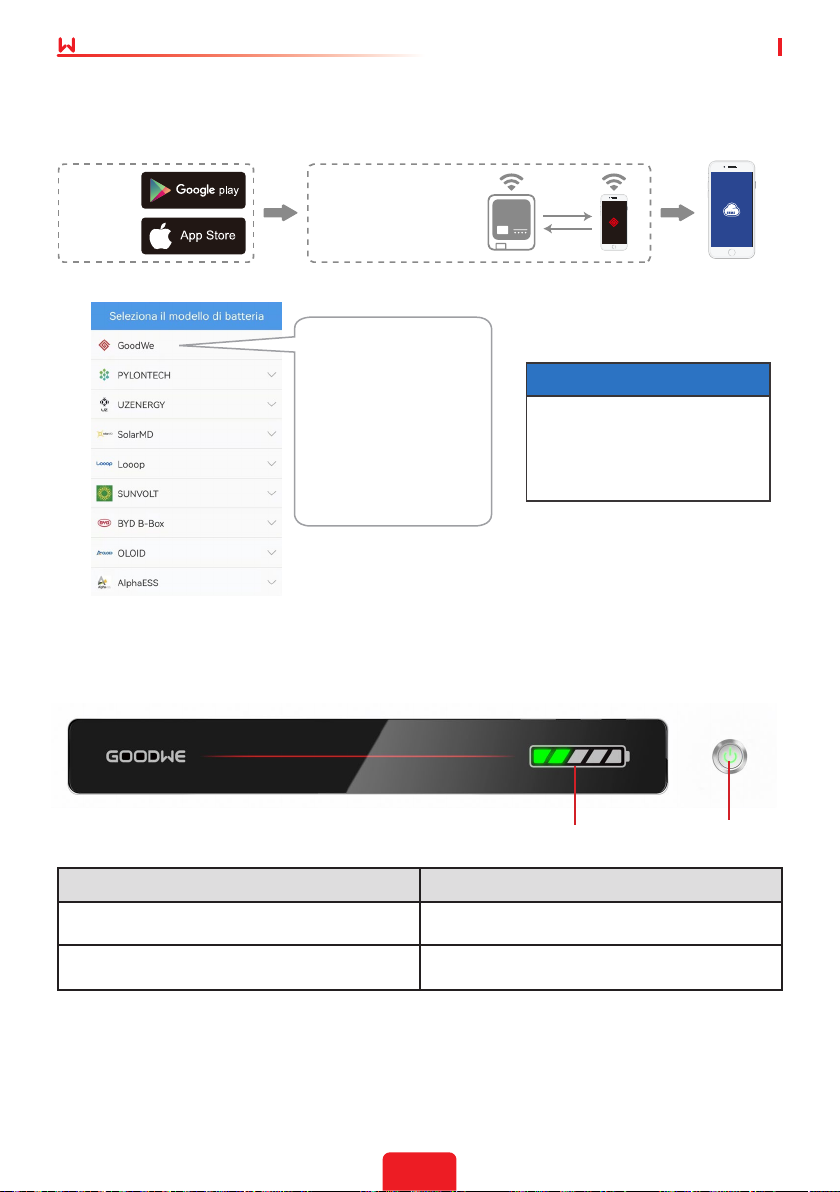

6.3 Battery Parameter Settings ........................................................................ 20

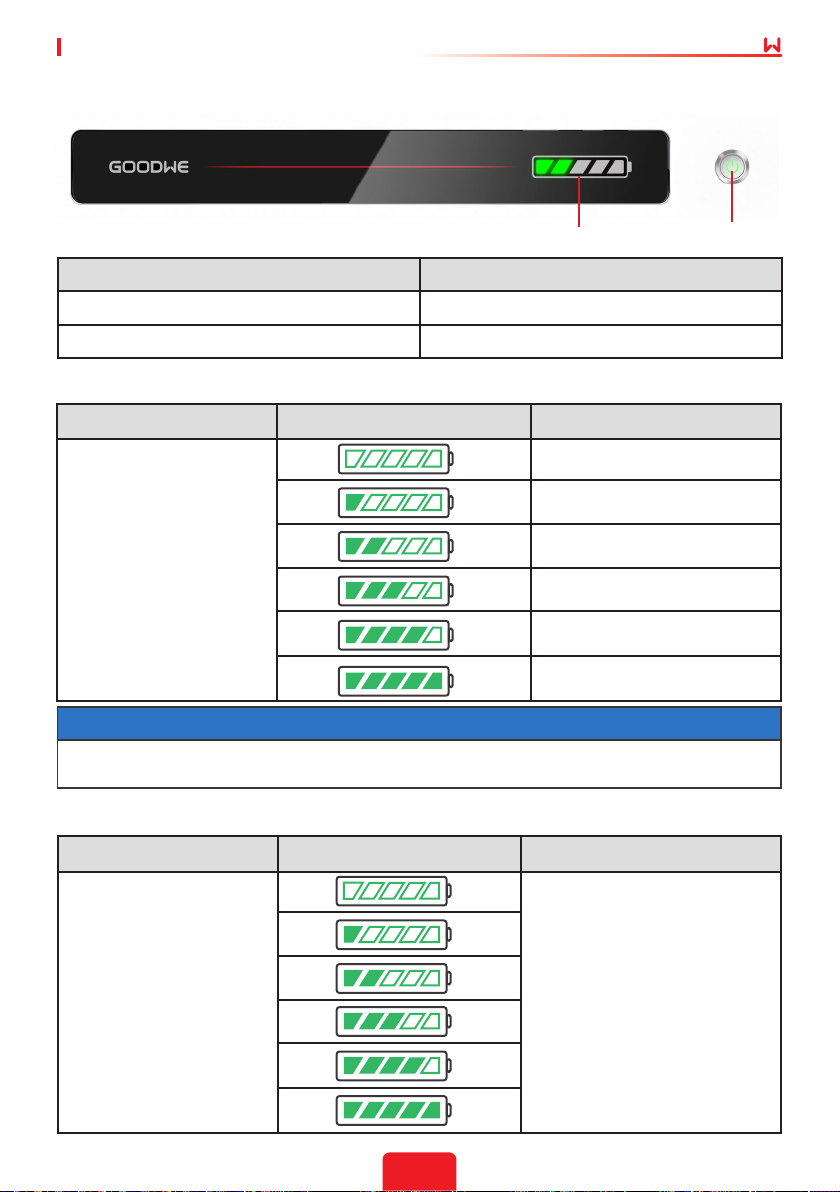

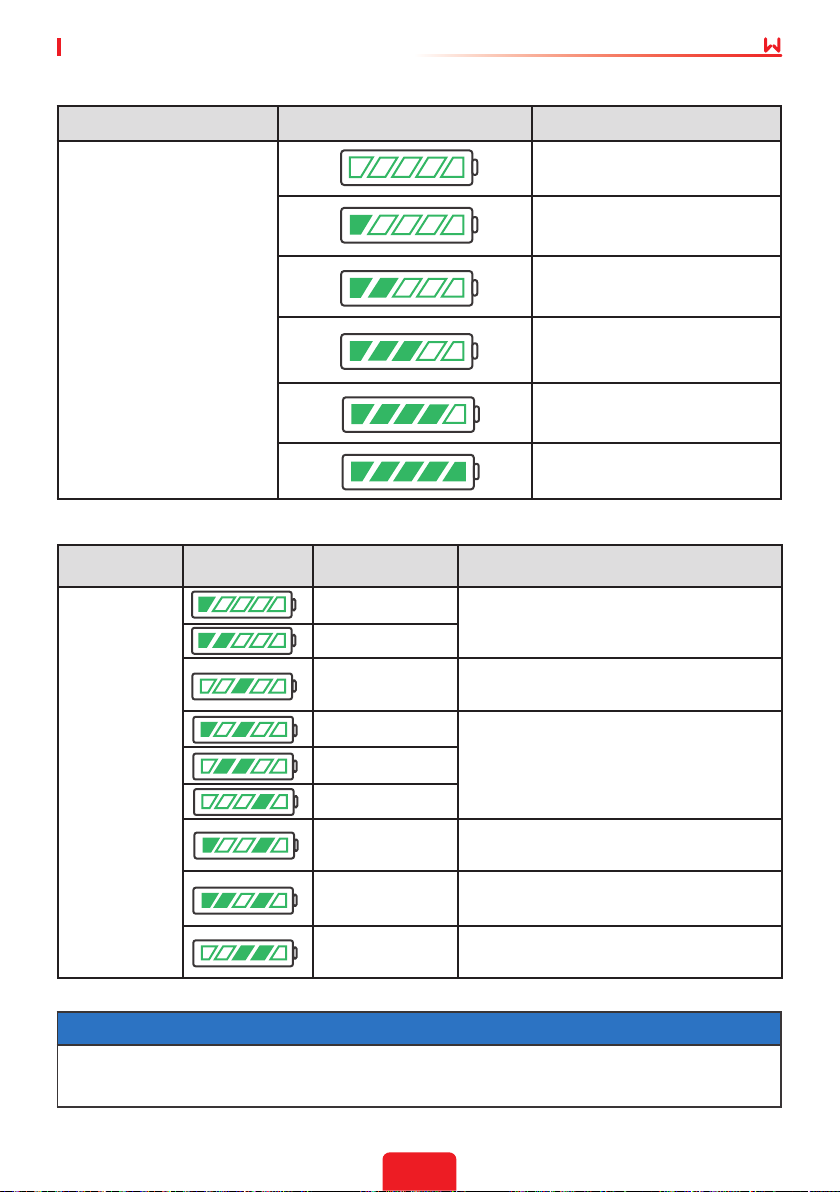

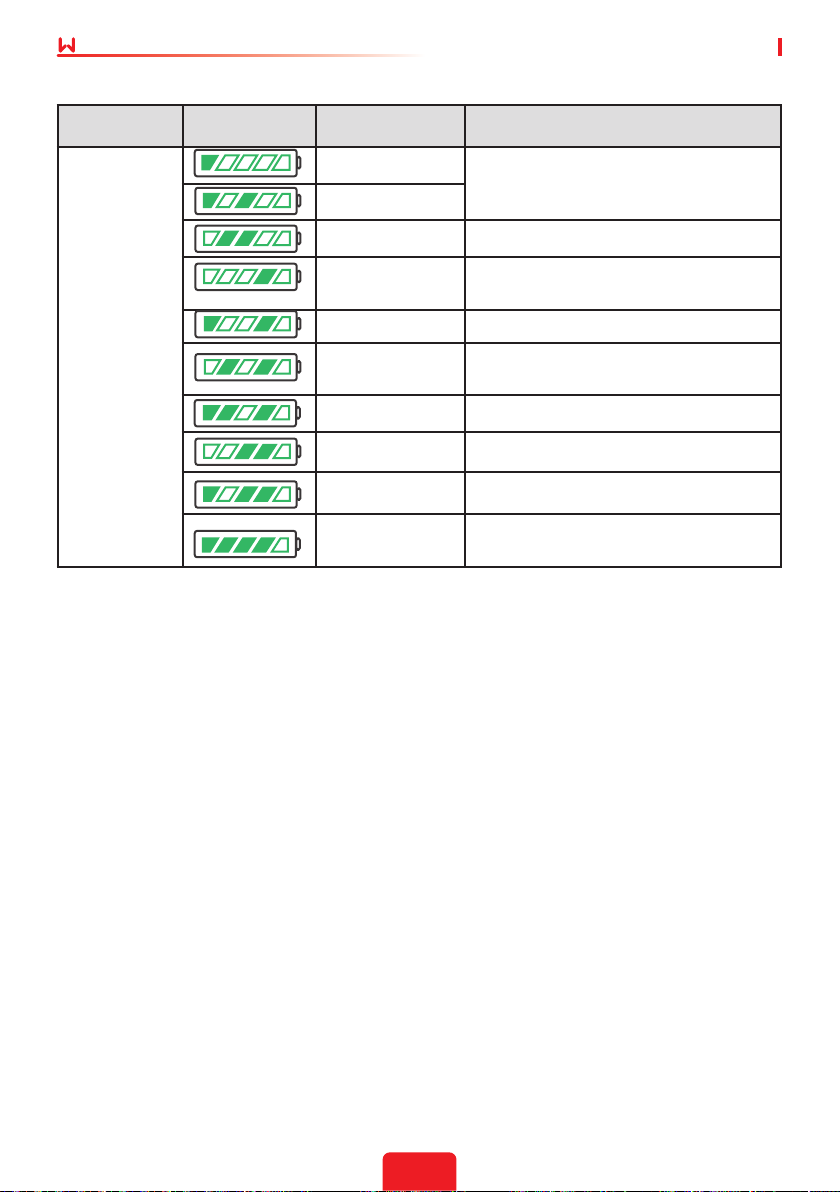

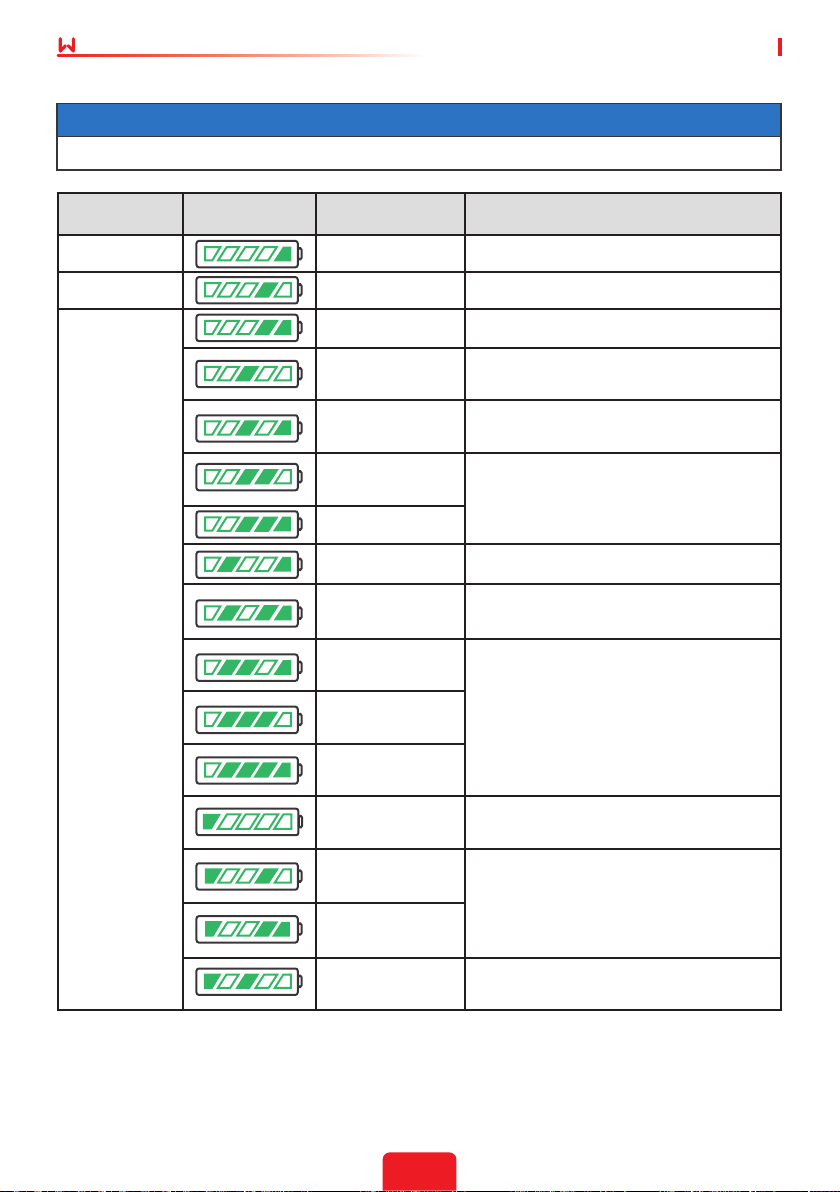

6.4 Indicator Status(LX U5.4-L).......................................................................... 20
6.4.1 Normal State .......................................................................................................... 21
6.4.2 Alerting ................................................................................................................... 21
6.4.3 Faulty ....................................................................................................................... 22
II
Page 4
User Manual V1.7-2023-03-20
6.5 Indicator Status(LX U5.4-20) ....................................................................... 23
6.5.1 Normal State .......................................................................................................... 23
6.5.2 Alerting ................................................................................................................... 23
6.5.3 Faulty ....................................................................................................................... 24
6.6 Power O ...................................................................................................... 25

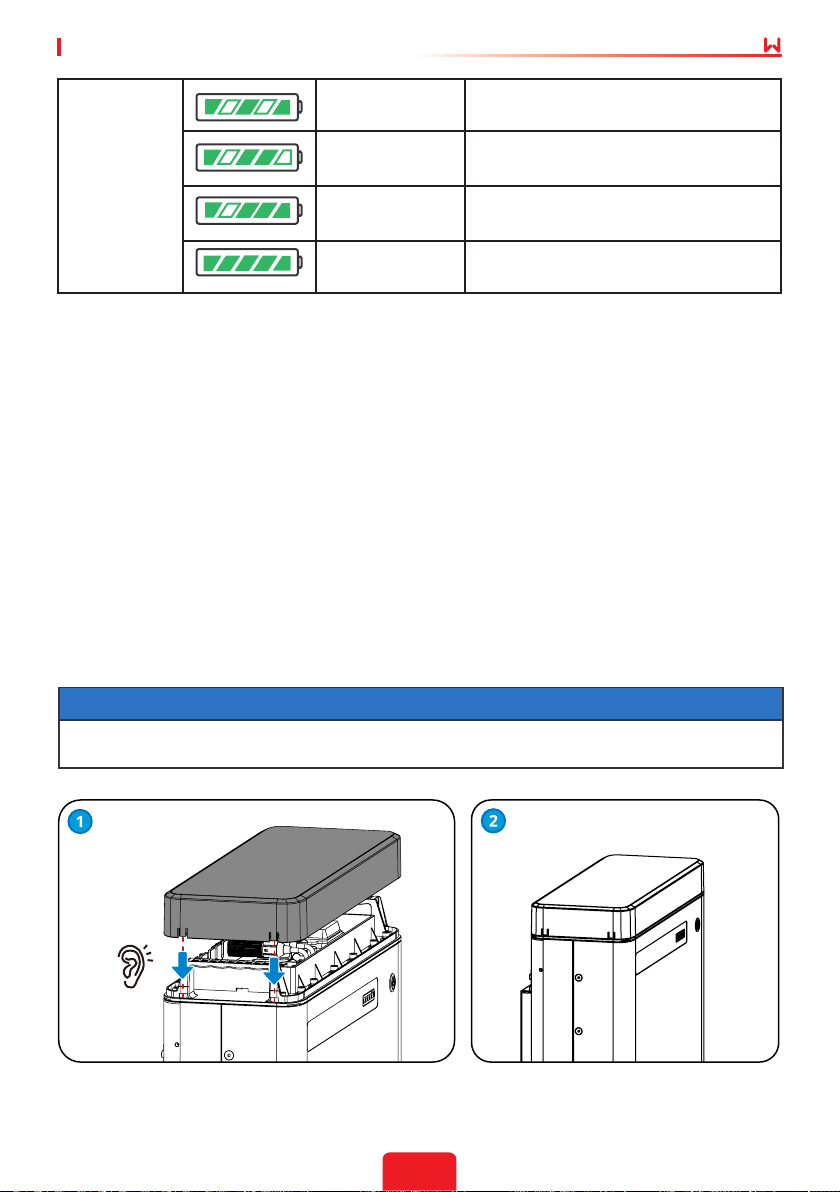

6.7 Install the Plastic Cover ............................................................................... 25
07 Technical Parameters ................................................................26
08 Maintenance ............................................................................... 29

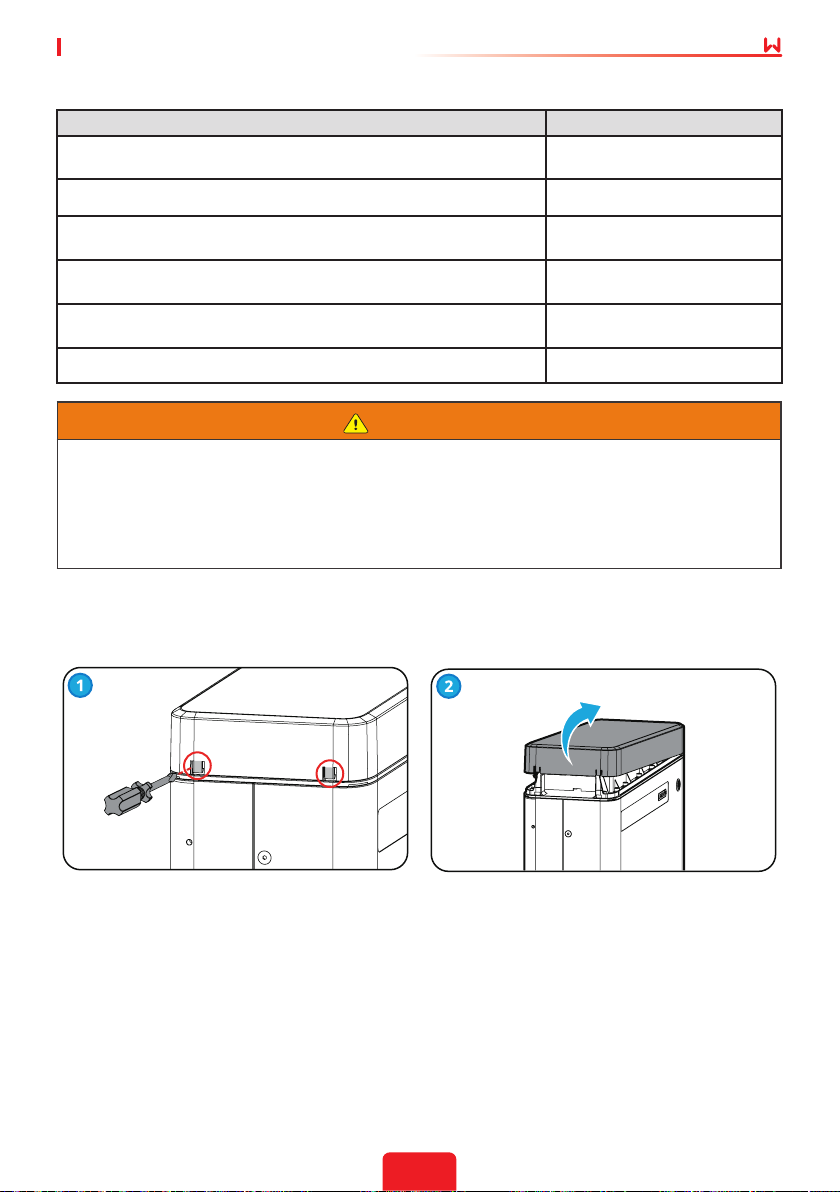

Remove the Plastic Cover ............................................................................................... 29
Content
III
Page 5
User Manual V1.7-2023-03-20
01 About This Manual
01 About This Manual
This manual describes the product information, installation, electrical connection,
commissioning, troubleshooting and maintenance. Read through this manual before
installing and operating the product. All the installers and users have to be familiar with the
product features, functions, and safety precautions. This manual is subject to update without
notice. For more product details and latest documents, visit https://en.goodwe.com.
1.1 Applicable Model
This manual applies to the listed models below:
• LX U5.4-L
• LX U5.4-20
1.2 Target Audience
This manual applies to trained and knowledgeable technical professionals. The technical
personnel has to be familiar with the product, local standards, and electric systems.
1.3 Symbol Denition
Dierent levels of warning messages in this manual are dened as follows:
DANGER
Indicates a high-level hazard that, if not avoided, will result in death or serious injury.
WARNING
Indicates a medium-level hazard that, if not avoided, could result in death or serious injury.
CAUTION
Indicates a low-level hazard that, if not avoided, could result in minor or moderate injury.
NOTICE
Highlights and supplements the texts. Or some skills and methods to solve product-related
problems to save time.
01
Page 6
01 About This Manual
Updates
The latest document contains all the updates made in earlier issues.
V1.0 2021-03-30
• First release.
V1.1 2021-07-19
• Updated 5.3 System Installation.
V1.2 2022-03-15
• Updated 2.2 Symbol Description.
V1.3 2022-08-30
• Updated 5.3.3 Cable Connection.
• Updated 6.2 Power On.
• Updated 6.5 Power O.
• Updated 07 Technical Parameters.
V1.4 2022-12-15
• Updated 5.2 Space Requirements.
• Updated 6.2 Power On.
V1.5 2023-01-15
• Updated 07 Technical Parameters.
V1.6 2023-02-15
• Updated 4.1 Storage Environment.
V1.7 2023-03-20
• Updated 4.1 Storage Environment.
User Manual V1.7-2023-03-20
02
Page 7
User Manual V1.7-2023-03-20
02 Safety Precaution
02 Safety Precaution
Please strictly follow these safety instructions in the user manual during the operation.
NOTICE
The products are designed and tested strictly to comply with related safety rules. Read and
follow all the safety instructions and cautions before any operations. Improper operation might
cause personal injury or property damage as the products are electrical equipment.
2.1 General Safety
NOTICE
• The information in this user manual is subject to change due to product updates or other
reasons. This guide cannot replace the product labels or the safety precautions in the user
manual unless otherwise specied. All descriptions here are for guidance only.
• Before installations, read through the user manual to learn about the product and the
precautions.
• All operations should be performed by trained and knowledgeable technicians who are
familiar with local standards and safety regulations.
• Use insulating tools and wear personal protective equipment (PPE) when operating the
equipment to ensure personal safety. Wear anti-static gloves, cloths, and wrist strips when
touching electronic devices to protect the equipment from damage.
• Strictly follow the installation, operation, and conguration instructions in this manual. The
manufacturer shall not be liable for equipment damage or personal injury if you do not
follow the instructions. For more warrant information, please visit: https://en.goodwe.com/
warranty.
03
Page 8
02 Safety Precaution
User Manual V1.7-2023-03-20
2.2 Battery Safety
DANGER
• The battery system exists low voltage during the equipment running. Please keep Power
O before any operations to avoid danger. Strictly follow all safety precautions outlined in
this manual and safety labels on the equipment during the operation.
• The inverter used with the battery shall be approved by the battery manufacturer. The
approved list of battery and the matched inverter can be obtained through the ocial
website.
• Do not disassemble, modify, or replace any part of the battery or the power control unit
without ocial authorization from the manufacturer. Otherwise, it will cause electrical
shock or damages to the equipment, which shall not be borne by the manufacturer.
• Do not hit, pull, drag, squeeze or step on the equipment or put the battery into re.
Otherwise, the battery may explode.
• Do not place the battery in a high temperature environment. Make sure that there is
no direct sunlight and no heat source near the battery. When the ambient temperature
exceeds 60 ℃, it will cause re.
• Do not use the battery or the power control unit if it is defective, broken, or damaged.
Damaged battery may leak electrolyte.
• To protect the battery pack and its components from damage during transportation,
please ensure that the transportation personnel are professionally trained. All operations
during the transportation have to be recorded. The equipment shall be kept in balance,
thus avoiding falling down.
• The battery equipment is heavy. Please equip the corresponding personnel according to its
weight, so that the equipment does not exceed the weight range of the human body can
carry, and cause personnel injury.
• Contact after-sale service immediately if the battery is not able to be started. Otherwise,
the battery might be damaged permanently.
• Do not move the battery system if it is connected with external battery modules. Contact
after-sales service if the battery shall be replaced or added.
CAUTION
• Protect the battery system from damage during transportation and storage.
• The transportation must be carried out by trained professionals. All operations during the
process have to be recorded.
• Keep the equipment stable to avoid dumping, which can result in equipment damage and
personal injuries.
• Place the cables at least 30mm away from the heating components or heat sources,
otherwise the insulation layer of the cables may be aging or broken due to high
temperature.
• Tie the cables of the same type together, and place cables of dierent types at least 30mm
apart. Do not place the cables entangled or crossed.
04
Page 9
User Manual V1.7-2023-03-20
02 Safety Precaution

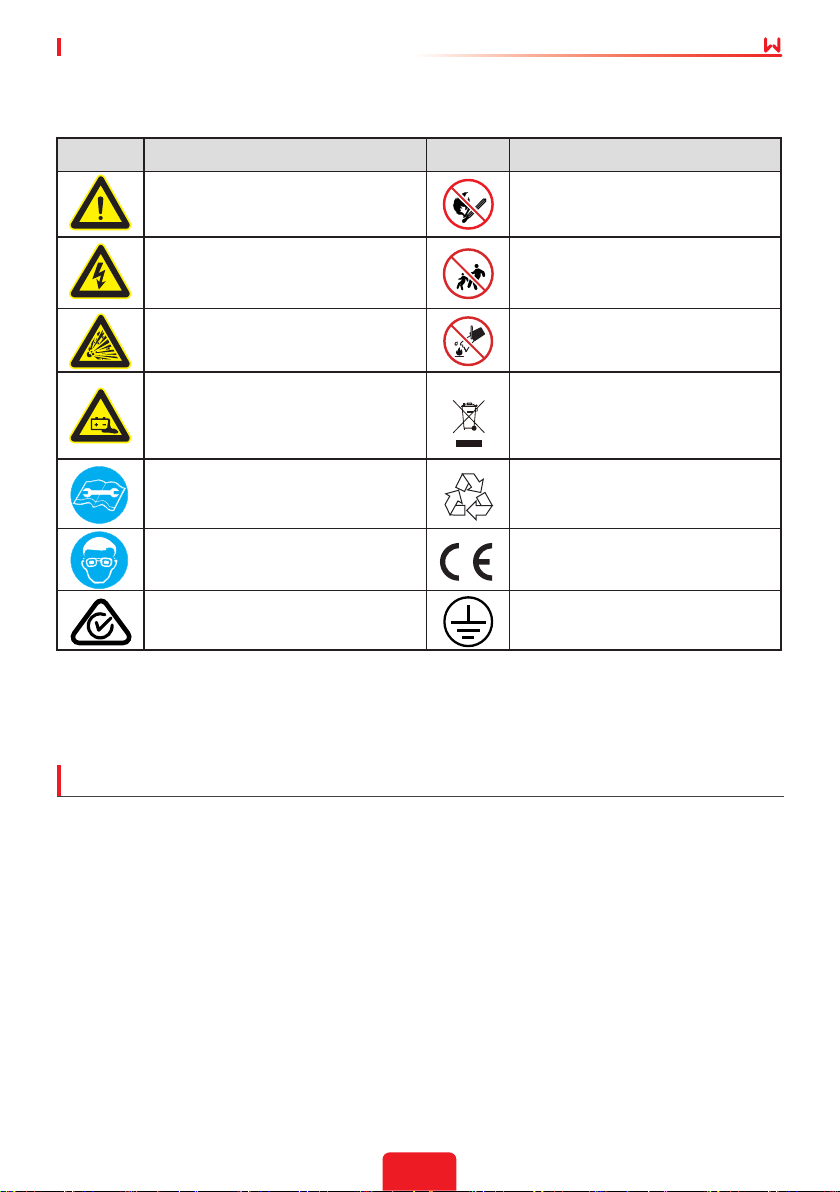

Label Description
Symbol Description Symbol Description
Potential risks exist. Wear proper
PPE before any operations.
Install the equipment away from
re sources.
High voltage hazard. Power o
The equipment contains corrosive
the equipment rst before any
operations.
Operate the equipment properly to
avoid explosion danger.
electrolytes. In case of a leak in
the equipment, avoid contact the
leaked liquid or gas.
Read through the user manual
before any operations.
Pay attention to safety protection
during installation
RCM Mark
Keep the equipment away from
children.
No extinguishing with water.
Do not dispose of the equipment
with household garbage at its end
of life.
Put the battery in the right place
and recycle it in compliance with
local environmental regulations.
CE Mark
Grounding. To indicate PE cable
connection position.
2.3 Emergency Measures
Battery Electrolyte Leakage
If the battery module leaks electrolyte, avoid contact with the leaking liquid or gas. The
electrolyte is corrosive. It will cause skin irritation or chemical burn to the operator. Anyone
contact the leaked substance accidentally has to do as following:
• Breath in the leaked substance: Evacuate from the polluted area, and seek immediate
medical assistance.
• Eye contact: Rinse your eyes for at least 15 minutes with clean water and seek immediate
medical assistance.
• Skin contact: Thoroughly wash the touch area with soap and clean water, and seek
immediate medical assistance.
• Ingestion: Induce vomiting, and seek immediate medical assistance.
05
Page 10
02 Product Introduction
User Manual V1.7-2023-03-20
Fire
• The battery may explode when the ambient temperature exceeds 150℃. Poisonous and
hazard gas may be released if the battery is on re.
• In the event of a re, please make sure that the carbon dioxide extinguisher or Novac1230 or
FM-200 is nearby.
• The re cannot be put out by water or ABC dry powder extinguisher. Fireghters are required
to wear full protective clothing and self-contained breathing apparatus.
2.4 EU Declaration of Conformity
GoodWe Technologies Co., Ltd. hereby declares that the inverter without wireless
communication modules sold in the European market meets the requirements of the following
directives:
• Electromagnetic compatibility Directive 2014/30/EU (EMC)
• Electrical Apparatus Low Voltage Directive 2014/35/EU (LVD)
• Battery Directive 2006/66/EC and Amending Directive 2013/56/EU
• Waste Electrical and Electronic Equipment 2012/19/EU
• Registration, Evaluation, Authorization and Restriction of Chemicals (EC) No 1907/2006
(REACH)
You can download the EU Declaration of Conformity on the ocial website:https://en.goodwe.
com.
06
Page 11
User Manual V1.7-2023-03-20
03 Battery Introduction
03 Product Introduction
• This manual introduces Lynx Home U Series(LV) Battery System (hereinafter referred to as
the Battery System), including the product introduction, application, installation, commission,
and technical parameters, etc.
• At most 6 batteries can be connected in this Battery System.
• The battery system can be compatible with the following inverter series:
Goodwe Inverter
3.1 Appearance
No. Parts
1 SOC Indicator
2 Switch Button
3 Button Indicator
4 Grounding Teminal
5 Power Cable Port
6 CAN COM Port
7 Ventilation Valve
8 Circuit-Breaker
07
Page 12
03 Battery Introduction
3.2 Dimensions
User Manual V1.7-2023-03-20
08
Page 13
User Manual V1.7-2023-03-20
04 Storage and Package
04 Storage and Package
4.1 Storage Environment
If the equipment is not to be installed or used immediately, please ensure that the storage
environment meets the following requirements:
• Pack the equipment using a packing box and put some desiccant in the box before sealing.
• Put the equipment back to the packing box if it is not to be installed in 3 days after
unpacking.
• Storage SOC: 25%~50%SOC. Charge and discharge the battery every 6 months.
• Recommended storage temperature: 0℃~35℃ (less than one year), -20℃~0℃ or 35℃~40℃
(less than one month).
•
• Recommended storage humidity: 0%~95%RH(no condensation). Do not install the battery if
any moist or condensation is found.
• Place the quipment in a cool place where away from direct sunlight.
• Keep the equipment away from inammable, explosive, and corrosive matters.
• Keep the equipment away from the rain.
4.2 Packing List
• Check outer packing for damage and model before unpacking it. If you nd any damage or
the model is not what you requested, do not unpack the product and contact the after-sales
service as soon as possible.
• Check whether the deliverables are intact and complete rst after unpacking the battery.If
anything wrong, contact the after-sales service as soon as possible.
Battery x 1
Power
Connector x 2
Terminal
Resistor x 1
Plastic Cover x 1
Grounding
Terminal x 4
User Manual x 1
Wall Mounting
Plate x 1
M5 Assembling
Bolt x 8
09
Expanshion
Bolt x 2
M10 Expansion
Bolt x 6
Anti-dumping
Bracket x 2
Wire Harness
Fix Bar x 2
Page 14
05 System Installation
User Manual V1.7-2023-03-20
05 System Installation
5.1 Installation Environment
• Install the Battery System on the ground with sucient bearing capacity and atness.
Increase the bearing capacity and atness of the ground by laying the foundation, adding
bearing plates and so on.
• The optimal temperature for the battery is 20~40℃.
• Avoid exposing the equipment to direct sunlight or rain.
• Install the equipment away from heat/cold source.
• Do not install the equipment in the place where the temperature changes extremely.
• Install the equipment away from strong interferences to ensure its regular work.
• Keep children away from the equipment.
• Do not install the equipment in places prone to accumulate water.
• Do not put inammable or explosive matters near the equipment.
5.2 Space Requirements
NOTICE
The space between the left and the right battery is a recommened distance. Keep the distance
as short as you can if there is no inuence to the operation.
Keep the
equipment away
from children.
10
Page 15
User Manual V1.7-2023-03-20
05 System Installation
The installation distance shall statisfy the requirements of the battery and the inverter at the
same time when an inverter is connected with the battery system. For the installation distance
requirement of the inveter, please refer to the related inverter's user manual.
Mounting Support Requirements
• The mounting support shall be nonammable and reproof.
• Install the equipment on a surface that is solid enough to bear the product weight.
• Put the battery system near the wall and install the locking brackets to prevent the battery
from falling down
Installation Angle Requirements
• Install the equipment vertically, no tilt or upside down.
11
Page 16
05 System Installation
User Manual V1.7-2023-03-20
5.3 System Installation
NOTICE
If multi batteries are to be connected, check and select batteries with similar production date
and a same cell grade.
5.3.1 Floor Mounting
Step1 Screw the anti-dumping bracke on the battery.
Step2 Align the battery and the wall, then put the anti-dumping bracket close to the wall. Mark
the drilling position and remove the battery.
Step3 Drill a hole on the wall using the driller. Hole diameter 10mm and depth 80mm.
Step4 Fix the expansion bolts, tightening torque: 10N·m.
12
Page 17
User Manual V1.7-2023-03-20
05 System Installation
5.3.2 Wall Mounting
NOTICE
Wall mounting needs to be done by two persons.
Step1 Place the wall mounting plate close to the wall rmly, mark the drilling position and
remove the wall mounting plate.
Step2 Drill a hole on the wall using the driller. Hole diameter 13mm and depth 65mm.
Step3 Fix the M10 expansion bolts, tightening torque: 10N·m.
Step4 Install the battery on the mounting plate.
13
Page 18
05 System Installation
5.3.3 Cable Connection
Overview of the cable connection
Take SBP inverter series as an example connection here.
Battery 1 Battery 2 Battery N
User Manual V1.7-2023-03-20
Terminal resistor
2≤N≤6
Ground
Cable
Standard
Net Cable
Power Cable
for Negative
Pole
Power Cable
for Positive
Pole
Ground Cable Connection
NOTICE
• Connect the PE cable rst before installing the equipment. Disconnect the PE cable before
dismantling the equipment.
• The drawing force of the cables after crimping is at least 400N.
• Connect any one of the two ground cables to the ground. Reserve the other ground cable.
• The cross-sectional area of the PE cable conductor: 4-6mm2. The cable should meet
standards for outdoor use.
Step1 Prepare PE cable.
Step2 Crimp the PE cable.
Step3 Install the Heat shrink tube.
Step4 Connect the PE cable to the battery.
Cooper,
14
Page 19
User Manual V1.7-2023-03-20
05 System Installation
Power Cable Connection
NOTICE
• Connect the red power cable to the red wire harness, and the black power cable to the black wire
harness. The cross-sectional area of the crimping part is 25mm².
• Withstand Voltage: DC1500V; Temperature: -40℃~200℃.
• Stripped conductor length: 18±1mm.
• Secure the back shell and check whether there is any gap.
• Recommended tool: manual hydraulic press plier(mould:25mm²)
• Drawing force after crimping≥1200N.
• If a single battery is applied, you are suggested to connect any one of the two power ports and
cover the other port using the protective cover.
• Connect power cables between multi batteries in parallel, which means connect postive
pole of one battery to the positive pole of the next battery, and negative pole to negative
pole. Cover and protect the reserved power port of the last battery.
• The power cable between the batteries should be as short as it can be and meet installation
requirements.
Step1 Prepare Power cable.
Step2 Disassemble the Power connector.
Step3 Insert the Power Cable into the Power connector.
Step4 Plug the Power connector into the Power Cable Port.
15
Click
Page 20
05 System Installation
User Manual V1.7-2023-03-20
Communication Cable Connection
NOTICE
The two communication cables are the same.
• Do not use RJ45 cable with protective cover.
• When one battery is applied, connect one communication cable to the inverter by RJ45
connector and connect the other cable to the terminal resistance.
• When multiple batteries are applied, connect the communication ports in series using net
cables. Connect one communication cable of the last battery to the terminal resistance.
RJ45 Registered Jack CAN COM Port
PIN LX U5.4-L LX U5.4-20
1 N/A RS485_A
2 N/A RS485_B
4 CAN_H CAN_H
5 CAN_L CAN_L
3,6,7,8 N/A N/A
Step1 Remove the waterproof module.
Step2 Disassemble the waterproof module.
Step3 Route the cable through the waterproof module.
Step4 Connect the communication cable to the battery.
16
Page 21
User Manual V1.7-2023-03-20
Installing the terminal resistor
5.3.4 Install the Wire Harness Fix Bar
05 System Installation
17
Page 22
06 System Operation
User Manual V1.7-2023-03-20
06 System Operation
6.1 Check Before Power On
Check the following items before power on. Otherwise, the Battery System may be damaged.
No. Items
The equipment is installed rmly in a place where is convenient for operation and
1
maintenance. The installation place is clean and well ventilated.
The ground cable, power cable, communication cable and terminal resistance are
2
connected correctly and securely.
The cable ties meet the cabling requirements and are reasonably distributed. No
3
cables or ties are broken.
Unused ports are sealed.
4
6.2 Power On
NOTICE
• The DC breaker between the inverter and the battery, and between the two batteries, shall
be installed in accordance with local laws and regulations.
• The breaker should isolate both positive and negative conductors simultaneously.
LX U5.4-L
Step1 (Optional) Turn on the breaker between the inverter and the battery system.
Step2 (Optional) Turn on the breaker between the batteries (For parallelized batteries).
Step3 Turn on the inverter in the system following the instructions in the user manual of the
inverter.
Step4 Turn on the Circuit-Breaker.
Step5 Press the switch button of all batteries in 30s, otherwise the equipment will start
alarming.
LX U5.4-20
Step1 (Optional) Turn on the breaker between the inverter and the battery system.
Step2 (Optional) Turn on the breaker between the batteries (For parallelized batteries).
Step3 Turn on the Circuit-Breaker.
Step4 Press the battery buttons. (Only press one battery's button when batteries are in
parallelized connection.)
Step5 Turn on the inverter in the system following the instructions in the user manual of
the inverter.
18
Page 23
User Manual V1.7-2023-03-20
Single battery
06 System Operation
Inverter
Parallelized batteries
Inverter
DC Breaker
(Only for Australia )
DC Breaker (Only
for Australia )
Battery1 Battery2
Battery
DC Breaker
(Only for
Australia )
2≤N≤6
Battery N
19
Page 24
06 System Operation
User Manual V1.7-2023-03-20
6.3 Battery Parameter Settings
Select the right options on SolarGo after connecting the battery and the inverter.
APP Installatin and Connection:
Download
and Install
SolarGo
Connect the smartphone
with the inverter.
Wi-Fi SSID: Solar-WiFi**
Passwaord: 12345678
Select the battery model on SolarGo:
LX U5.4-L*1 or LX U5.4-20*1
LX U5.4-L*2 or LX U5.4-20*2
LX U5.4-L*3 or LX U5.4-20*3
LX U5.4-L*4 or LX U5.4-20*4
LX U5.4-L*5 or LX U5.4-20*5
LX U5.4-L*6 or LX U5.4-20*6
6.4 Indicator Status(LX U5.4-L)
Select “LX U5.4-L or LX U5.4-20”
on SolarGo.
NOTICE
"Battery Selection Abnormal"
will be displayed if you select
the wrong battery model.
Please select the right battery
model accordingly.
SOC Indicator
Button Indicator Status
Green Light Standby, Working, Alert
Red Light Faulty
20
Button Indicator
Page 25
User Manual V1.7-2023-03-20
06 System Operation
6.4.1 Normal State
Button Indicator SOC Indicator Description
SOC
﹤5%
Standby:green light
blinking for 1s
Working:green light on
6.4.2 Alerting
Button
Indicator
Green light
blingking for 3s
5%≤SOC
25%≤SOC
50%≤SOC
75%≤SOC
SOC≥95%
SOC Indicator Alerting Solutions
Temperature
Exception
High Temperature
Low Temperature
Discharging
Overcurrent When
Charging
Overcurrent When
Discharging
Overvoltage
Under voltage
Low Temperature
Charging
The cell voltage
dierence is
extremely high
Power o and restart after 2 hours.If the
problem persists, please contact GoodWe.
Power o and Wait for the temperature to
increase. Restart the battery. If the problem
persists, please contact GoodWe.
Restart the battery. If the problem persists,
please contact GoodWe.
Press the button consecutively for 5 times in 10s
if you can charge the battery. The voltage will
recover to normal.
Power o and Wait for the temperature to
increase. Restart the battery. If the problem
persists, please contact GoodWe.
Power o and restart after 2 hours.If the
problem persists, please contact GoodWe.
﹤25%
﹤50%
﹤75%
﹤95%
NOTICE
• Restart the battery by pressing the switch button.
• If the batteries power o under undervoltage protection and multiple batteries are
connected, just press the button of any one battery consecutively for 5 times to activate them.
21
Page 26
06 System Operation
6.4.3 Faulty
Button
Indicator
Red light blinking
for 3s
User Manual V1.7-2023-03-20
SOC Indicator Fault Solution
Temp. sensor failure
MOS Failure
Circuit-Breaker
Failure
Slaver Control
Communication Lost
SN Failure Contact GoodWe for help.
Master Control
Communication Lost
Inconsistent Software
Version
Multi Master Control
Failure
MOS
Overtemperature
Communication
Failure
Restart the battery. If the problem persists,
please contact GoodWe for help.
Turn on the Circuit-Breaker.If the problem
persists, please contact GoodWe.
Power o and check the communication cable.
Restart the battery.If the problem persists,
please contact GoodWe.
Power o and check the communication cable.
Restart the battery.If the problem persists,
please contact GoodWe.
Contact GoodWe for help.
Start all batteries in 30s after shutting down.
Power o for 2 hours.If the problem persists,
please contact GoodWe.
Power o and check the communication cable.
Restart the battery. If the problem persists,
please contact GoodWe.
22
Page 27
User Manual V1.7-2023-03-20
06 System Operation
6.5 Indicator Status(LX U5.4-20)
SOC Indicator Button Indicator
Button Indicator Status
Green Light Standby, Working
Red Light Alert, Faulty
6.5.1 Normal State
Button Indicator SOC Indicator Description
SOC
﹤5%
Idle: green light blink 2
times in 1 second
Standby: green light
blink 1 time in 1
second
Working: Steady green
NOTICE
• The SOC indicator keeps on when charging.
• The SOC indicator blinks one time when discharging.
6.5.2 Alerting
Button Indicator SOC Indicator Solution
The alerting is dealt by the
Red light blink 1 time in 1
second
battery system itself. For more
detailed information, you can
check via SolarGo App.
5%≤SOC
25%≤SOC
50%≤SOC
75%≤SOC
SOC≥95%
﹤25%
﹤50%
﹤75%
﹤95%
23
Page 28
06 System Operation
6.5.3 Faulty
NOTICE
• Restart the battery by pressing the switch button.
User Manual V1.7-2023-03-20
Button
Indicator
SOC Indicator Fault Solution
Steady red Overvoltage
Red light blink 1
time in 1 second
Under voltage
Cell High
Temperature
Low Temperature
Charging
Low Temperature
Discharging
Overcurrent When
Charging
Overcurrent When
Discharging
Temperature
Exception
The cell voltage
dierence is
extremely high
Steady red
Harness Abnormal
MOS Open-Circuit
Fault
MOS Short-Circuit
Fault
Power o for 2 hours.If the problem persists,
please contact GoodWe.
Contact GoodWe for help.
Power o for 2 hours.If the problem persists,
please contact GoodWe.
Power o the equipment and wait until the
temperature recovers. If the problem persists
after restarting, please contact GoodWe.
Power o the equipment and wait until the
temperature recovers. If the problem persists
after restarting, please contact GoodWe.
Restart the battery. If the problem persists,
please contact GoodWe for help.
Power o for 2 hours.If the problem persists,
please contact GoodWe.
Power o for 12 hours.If the problem persists,
please contact GoodWe.
Restart the battery. If the problem persists,
please contact GoodWe for help.
Parallelized
Connection Fault
BMU
Communication
Fault
MCU Internal
Communication
Fault
Air Switch Short-
Circuit Fault
24
Check the battery model. If the battery model
is not correct, please contact GoodWe.
Restart the battery. If the problem persists,
please contact GoodWe for help.
Contact GoodWe for help.
Page 29
User Manual V1.7-2023-03-20
06 System Operation
Restart the battery. If the problem persists,
please contact GoodWe for help.
Power o for 2 hours.If the problem persists,
please contact GoodWe.
Power o for 2 hours.If the problem persists,
please contact GoodWe.
Contact GoodWe for help.
Steady red
Precharge Failure
MOS
Overtemperature
Fault
Current Sensor
Overtemperature
Fault
Microelectronic
Fault
6.6 Power O
Please follow the steps to power o the Battery System, otherwise, the System may be
damaged.
LX U5.4-L
Step1 Press the switch button for at least 5s until the indicator lights o. Press the button of any
one battey if multi batteries are connected.
Step2 Turn o the Circuit-Breaker.
Step3 Make sure that the SOC indicator of the battery is o.
LX U5.4-20
Step1 Disconnect the circuit breakers of all batteries.
Step2 Make sure that the SOC indicator of the battery is o.
6.7 Install the Plastic Cover
NOTICE
• Ensure that the battery can work normally before installing the cover.
• Do not press the cables during installation.
Click
25
Page 30
07 Technical Parameters
User Manual V1.7-2023-03-20
07 Technical Parameters
Technical Data LX U5.4-L 2*LX U5.4-L 3*LX U5.4-L 4*LX U5.4-L 5*LX U5.4-L 6*LX U5.4-L
Rated Energy (kWh)*1 5.4 10.8 16.2 21.6 27 32.4
Usable Energy (kWh)*2 4.8 9.6 14.4 19.2 24 28.8
Cell Type LFP(LiFePO4)
Cell Conguration 16S1P 16S2P 16S3P 16S4P 16S5P 16S6P
Rated Voltage (V) 51.2 V
Operating Voltage Range (V) 48~57.6
Max. Continuous Discharge
Current (A)*3
Max. Discharge Power
(kW)*3
Short-Circuit Current [email protected]
Communication CAN
Weight (Kg) 57 114 171 228 285 342
Dimensions (W*D*H) (mm) 505×570×175 (LX U5.4-L)
Operating Temperature (℃) Charge:0~+50 / Discharge:-10~+50
Storage temperature (℃) -20~+40 (≤One Month) / 0~+35 (≤One Year)
50 100
2.88 5.76
Humidity 0~95%
Altitude (m) 2000
Protection Degree IP65
Installation Location Wall-Mounted / Ground-Mounted
Round-trip Eciency 93.0%
Cycle Life
Standard
and
Certication
*1: Test conditions, Cell Voltage 2.5~3.65V, 0.5C charge & discharge at +25±2 °C for battery system at
beginning life. System Usable Energy may vary with dierent Inverter.
*2: Test conditions, 90% DOD, 0.5C charge & discharge at +25±2 °C.
*3: Nominal Dis-/Charge Current and power derating will occur related to Temperature and SOC.
*4: Based on Cell under 0.5C/0.5C @ 25±2℃ test condition and 80% EOL.
*4
Safety IEC62619, IEC 62040, CEC
EMC CE, RCM
Transportation UN38.3
≥ 4000 @0.5C/0.5C
26
Page 31
User Manual V1.7-2023-03-20
07 Technical Parameters
Technical Data LX U5.4-20 2*LX U5.4-20 3*LX U5.4-20 4*LX U5.4-20 5*LX U5.4-20 6*LX U5.4-20
*1
Usable Energy (kWh)
5.4 kWh 10.8 kWh 16.2 kWh 21.6 kWh 27 kWh 32.4 kWh
Cell Type LFP(LiFePO4)
Cell Conguration 16S1P 16S2P 16S3P 16S4P 16S5P 16S6P
Nominal Voltage (V) 51.2
Operating Voltage Range (V) 47.5~57.6
Nominal Dis-/Charge
Current (A)
*2
Nominal Power (kW)
*2
50 100
2.56 5.12
Short-Circuit Current [email protected]
Communication CAN, RS485
Weight (Kg) 57 114 171 228 285 342
Dimensions (W*D*H mm) 505×570×175 (LX U5.4-20)
Operating Temperature
Range (℃)
Charge:0~+50 / Discharge:-10~+50
Storage Temperature (℃) -20~+40 (≤ One Month) / 0~+35 (≤One Year)
Relative Humidity 0~95%
Max. Operating Altitude (m) 2000
Ingress Protection Rating IP65
Mounting Method Wall-Mounted / Grounded
Round-trip Eciency 95.0%
Cycle Life
*3
≥ 4000 @0.5C/0.5C
Safety IEC62619, IEC63056, IEC 62040, CEC
Standard
and
EMC CE, RCM
Certication
Transportation UN38.3
*1: Test conditions, Cell Voltage 2.5~3.65V, 0.5C charge & discharge at +25±3 °C for battery system at
beginning life. System Usable Energy may vary with dierent Inverter.
*2: Nominal Dis-/Charge Current and power derating will occur related to Temperature and SOC.
*3: Based on Cell under 0.5C/0.5C @ 25±2℃ test condition and 80% EOL.
27
Page 32
07 Technical Parameters
User Manual V1.7-2023-03-20
For Australia:
Technical Data LX U5.4-20 2*LX U5.4-20 3*LX U5.4-20 4*LX U5.4-20 5*LX U5.4-20 6*LX U5.4-20
Rated Energy (kWh) 5.4 10.8 16.2 21.6 27.0 32.4
Usable Energy (kWh)
Cell Type LFP(LiFePO4)
Cell Conguration 16S1P 16S2P 16S3P 16S4P 16S5P 16S6P
Rated Capacity (Ah) 105 210 315 420 525 630
Nominal Voltage (V) 51.2
Rated DC Power (kW) 2.56 5.12
Operating Voltage Range (V) 47.5~57.6
Max. Charging / Discharging
Current (A)
Max. Charging / Discharging
Power (kW)
Fault current (A) 990 1265 1393 1469 1518 1552
Operating Temperature (°C) Charge: 0 ~ +50; Discharge: -10 ~ +50
Relative Humidity 0 ~ 95%
Max. Operating Altitude (m) 2000
Communication CAN, RS485
Weight (Kg) 57 114 171 228 285 342
*1
5.4 10.8 16.2 21.6 27.0 32.4
50 100
2.56 5.12
Dimensions (W×H×D mm) 505×570×175 (LX U5.4-20)
Ingress Protection Rating IP65
Mounting Method Wall Mounted / Grounded
Warranty 10 Years (Performance Warranty) / 10 Years (Product Warranty)
Safety IEC62619, IEC63056, IEC 62040, CEC
Standard
and
Certication
*1: Test conditions, Cell Voltage 2.5~3.65V, 0.5C charge & discharge at +25±2 °C for battery system at
beginning life. System Usable Energy may vary with dierent Inverter.
EMC CE, RCM
Transportation UN38.3
28
Page 33
User Manual V1.7-2023-03-20
08 Maintenance
08 Maintenance
Item Period
Fully charge the battery and discharge it to 25~50% if the
battery is not in use.
Check the wall mounting plate, x it if it is not secured. Once Every 6 months
Check whether the outer shell is broken. Repair the painting or
contact after-sales service if there is any broken.
Check whether there is an exposed cable. Replace the exposed
cable or contact after-sales service for help.
Check whether there is debris accumulation around the battery
to avoid aecting heat dissipation.
Check for water and pest to avoid prolonged intrusion. Once Every 6 months
WARNING
• Please contact after-sales for help if you nd any problems that may inuence the battery
or the inverter. Disassemble without permission is strictly forbidden.
• Please contact after-sales for help if the conductive wire is exposed because high voltage
danger exists. Do not touch or disassemble privately.
• In case of other emergencies, contact the after-sales as soon as possible. Please operate
following the guidance of the after-sales, or just wait for the after-sales service operators.
Remove the Plastic Cover
Gently pry up two clips on one side using a screwdriver to remove the plastic cover.
Once Every 3 months
Once Every 6 months
Once Every 6 months
Once Every 6 months
29
Page 34
GoodWe Technologies Co., Ltd.
No. 90 Zijin Rd., New District, Suzhou, 215011, China
www.goodwe.com
Local Contacts
Loading...
