Godrej 5160 User's Guide

This air conditioner meets strict safety and operating
standards. The installer of this unit must install or service
this unit so it operates safely and efficiently.

The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulat­ed dangerous voltage within the product’s
enclosure that may be of sufficient magni­tude to constitute a risk of electric shock to
persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and main­tenance (servicing) instructions in the liter­ature accompanying the appliance.

Contact Installer if Necessary:
The installation instructions are for a experienced
installer. If you are not an experienced installer, contact a
local installer for help. If you require help with service,
contact your certified dealer or Daewoo Electronics for
additional instructions.

If Unit is Installed Improperly:
The manufacturer shall in no way be responsible for
improper installation or maintenance service, including
failure to follow the instructions in this manual.

Precautions When Wiring:

• Do not plug in the unit until all connections (tubing,
drain hose, mounting, etc.) have been made and dou­ble-checked.

• High voltages are present in this unit and are very dan­gerous. Please refer to these instructions and diagrams
when wiring. Improper connections or inadequate
grounding can cause accidental injury.

• This unit must be grounded in accordance with local
electrical codes.

• Connect wires and pipes securely and tightly as loose
connections/wiring may cause overheating at connec­tions and a possible fire hazard.

Precautions When Transporting:

• When transporting the unit, be very careful and get help
as the units are very heavy. Be careful of sharp edges
on the units also.

Precautions When Installing:

• When installing in a ceiling or wall, make sure the

ceiling/wall is strong enough to hold the unit’s weight. A
frame may be necessary for added support.

• When installing in a room, make sure the tubes are
well insulated to protect the walls and furniture from
sweating of the tubes.

• When installing in moist or uneven locations, make
sure to use a raised level concrete pad or concrete
blocks to provide a level, solid foundation for the out­door unit; this prevents water damage and vibration.

• When installing in an area of high winds, make sure
to securely anchor the outdoor unit down with bolts and
a metal frame.

When Connecting Refrigerant Tubing:

• Keep all tubing as short as possible.

• Use the flare method for connecting tubing.

• Apply refrigerant lubricant to the matching surfaces of
the flare and union tubes before connecting them, then
tighten , making sure not to overtighten.

• Check the tubes carefully for leaks before starting the
test run.

When Servicing:

• Make sure the power is off and the unit is unplugged
before opening the unit to troubleshoot or repair electri­cal parts and wiring.

• Keep your fingers and clothing away from any moving
parts.

• Clean up the sight after you finish, making sure no
metal scraps and wiring are left in the unit.

• The Air conditioner shall be installed in accordance with
the nationed wiring regulation.

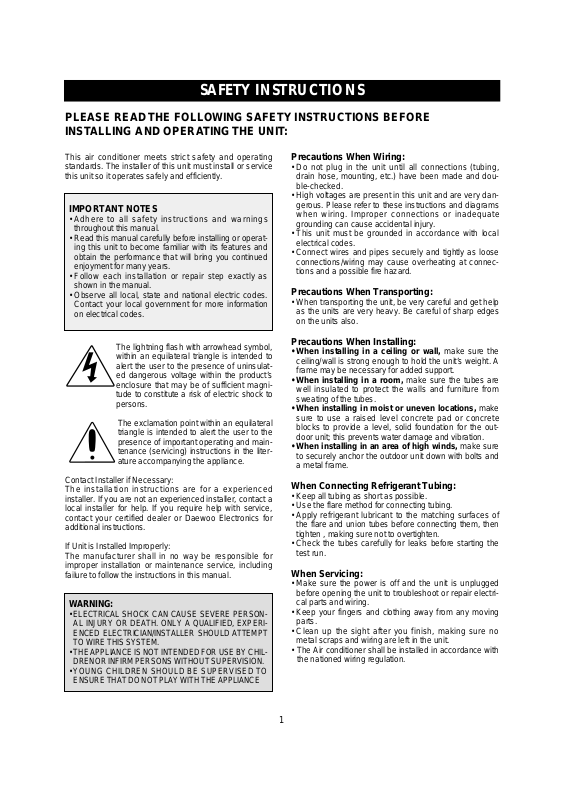

SAFETY INSTRUCTIONS

1

PLEASE READ THE FOLLOWING SAFETY INSTRUCTIONS BEFORE
INSTALLING AND OPERATING THE UNIT:

IMPORTANT NOTES

• Adhere to all safety instructions and warnings
throughout this manual.

• Read this manual carefully before installing or operat­ing this unit to become familiar with its features and
obtain the performance that will bring you continued
enjoyment for many years.

• Follow each installation or repair step exactly as
shown in the manual.

• Observe all local, state and national electric codes.
Contact your local government for more information
on electrical codes.

WARNING:

• ELECTRICAL SHOCK CAN CAUSE SEVERE PERSON-

AL INJURY OR DEATH. ONLY A QUALIFIED, EXPERI­ENCED ELECTRICIAN/INSTALLER SHOULD ATTEMPT
TO WIRE THIS SYSTEM.

• THE APPLIANCE IS NOT INTENDED FOR USE BY CHIL-

DRENOR INFIRM PERSONS WITHOUT SUPERVISION.

• YOUNG CHILDREN SHOULD BE SUPERVISED TO

ENSURE THAT DO NOT PLAY WITH THE APPLIANCE

CONTENTS

2

It is recommended that you read the Installation and Operating instructions fully before installing and/or operating this
unit.

Safety Instructions...............................................................................................................................................................1

Contents ..............................................................................................................................................................................2

Basic Accessories ...............................................................................................................................................................3

Optional Accessories...........................................................................................................................................................4

Location of Controls.............................................................................................................................................................5

Indoor Unit....................................................................................................................................................................5

Outdoor Unit.................................................................................................................................................................5

Remote Controller........................................................................................................................................................7

Remote Display............................................................................................................................................................7

Operation.............................................................................................................................................................................8

Connecting the AC Cord..............................................................................................................................................8

How to Install Batteries ................................................................................................................................................8

Setting the Unit for Remote Operation.........................................................................................................................8

Celsius to Fahrenheit Conversion Chart......................................................................................................................9

To Set Auto Mode........................................................................................................................................................9

To Set Quick Mode ....................................................................................................................................................10

To Set Cool Mode......................................................................................................................................................10

To Set Fan Only Mode...............................................................................................................................................11

To Set Dehumidifier Mode.........................................................................................................................................11

To Select the Fan Direction .......................................................................................................................................12

To Set On Timer Mode ..............................................................................................................................................13

To Set Off Timer Mode ..............................................................................................................................................13

To Set Sleep Mode ....................................................................................................................................................14

To Set Turbo/Mild Mode ............................................................................................................................................14

Emergency Operation................................................................................................................................................14

Changing/Cleaning the Air Filters .....................................................................................................................................15

Cleaning the Indoor Cover................................................................................................................................................15

Installing the Remote Bracket...........................................................................................................................................16

Care and Maintenance......................................................................................................................................................16

Troubleshooting Guide......................................................................................................................................................17

Specifications ....................................................................................................................................................................18

This Installation section explains how and where to connect this new air conditioner. Please read make sure all acces­sories are included as shown below and read manual thoroughly. This Installation section is provided to assist the per­son knowledgeable in air conditioner installation and should not be installed by anybody who is not thoroughly familiar
with this type of installation. Please contact a professional installer if necessary.

ACCESSORIES SUPPLIED WITH THE UNIT:

COPPER TUBING:

Copper tubing supplied is available at most dealers or A/C shops. Make sure the new copper tubing has the exact same
specifications and diameter as the original copper tubing and is as short as possible.

BASIC A CCESSORIES

3

ON OFF ENTER CANCEL

TIMER RESET

SWING

FAN SPEED

MODE

SLEEP

ON/OFF

TEMP.

1

2

8

6

7

9

3

10

11

12

5

4

No. Description Qty.

1 Wall Bracket 1
2 Outdoor Unit Cover 1
3 Remote Controller 1
4 Deodorizing Filter 1
5 Electrostatic Filter 1
6 Remote Holder 1

No. Description Qty.

7 Foot Cushion 4
8 Concrete Nails 5

9 Remote Holder Screws 3
10 Wall Bracket Screws 8
11 Wall Cap 2
12 Battery 2

OPTIONAL A CCESSORIES

4

1 2

4

3

5 76

ACCESSORIES NOT SUPPLIED WITH THE UNIT:

No. Description Part No. Qty Material Size

1 Drain Hose Extension 3103200400 1 ID19.6 X 2m PVC Pipe
2 Tape 2TQ1008000 1 PVC 80W X 0.1T X 3.5m
3 Copper Tubing Extension 3100002600 1 1/2", 1/4" Copper Tube
4 Insulator Plate 3103301000 1 F-US 225 X 120 X 8T
5 Putty 2221040001 1 80g
6 Connection Cord 3102796400 1 3P X 6m
7 Signal line Cord 3102796500 1 3P X 6m

Complete Optional 3100400000 1
Accessories (1, 2, 3, 4, 5, 6, 7)

(5160 Heat Only)

5

LOCATION OF CONTROLS

Indoor Cover

Electrostatic Filter

Removes dust
particles from the air.

Deodorizing Filter

Removes bad
smells from the air.

Emergency/
Remote Switch

Slide to select
the desired position.

Indicators

Indicate the
AC setting.

Remote Sensor

Power Plug

Air Cleaning
Filters

Removes dust
and prohibits
germs.

AIR OUT

Air In

Sensor Wire

(DSB-181LH Only)

Fan Direction

(Up/Down)

Fan Direction

(Left/Right)

O

N

O

F

F

E

N

T

E

R

C

A

N

C

E

L

T

I

M

E

R

R

E

S

E

T

F

A

N

D

I

R

.

F

A

N

S

P

E

E

D

M

O

D

E

S

L

E

E

P

O

N

/

O

F

F

T

E

M

P

.

LCD Remote Controller

INDOOR UNIT

Connection Cover

Remove cover to access the AC connection
to the indoor unit.

Service Valves

The indoor and outdoor units
are connected by copper tubes
which are connected here.

AIR IN

AIR OUT

OUTDOOR UNIT

6

INDOOR UNIT

󱇲Remote Control Signal Receiver

This place is the part to receive the signal if it receive
the signal, you can hear the signal “beep. beep”.

■

When the remote controller is lost or out­of-order, push the emergency button
(EMERGENCY) to operate by hand.

Open the front panel on emergency operating.
Remocon switch is usually used with remote con-

troller.

Indoor Unit Display Switch Panel

ON (Red)

Lights-on
during the operation

Air clean (Green)

Lights-on
during the operation

Timer (Green)

Lights-on during the time

of reservation mode.

Quick (Green)

Lights-on during the time

of Quick Mode.

TIMER
QUICK

AIR CLEAN

ON

EMERGENCY REMOTE

7

5160

REMOTE CONTR OLLER

MODE Indicators (Auto/Quick/Cool/Fan/Dehumidifier)

Lights to indicate the mode selected.

TIMER Indicators (Include sleep)

Lights to indicate the timer function mode.

TEMPERATURE & RESERVATION TIME lndicat

Lights to indicate the temperature or time.

FAN DIRECTION Indicators

Lights to indicate the
fan direction.

NATURAL Indicator

Lights to indicate the
speeds simulating a breeze.

FAN Indicators

Lights to indicate
the fan speed.

AUTO

REMOTE DISPLAY

FAN SPEED Button

Press to select the fan speed
(High " ", Middle " ", Low " ",
Natural).

MODE Button

Press to cycle through the modes
(Auto/Quick/Cool/Fan/Dehumidifier)

SLEEP Button

Press to set the unit for
the sleep mode.

TIMER ON/OFF Button

Press to set the unit of or on time.
(0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 8,
10, 12, 16, 20, 24hr)

TIMER ENTER/CANCEL Button

Press to enter a timer setting or
to cancel timer setting

AUTO

MODE

SLEEP

ON/OFF

FAN SPEED

TIMER

ENTER/
CANCEL

FAN DIR.

FAN DIR.

TURBO/MILD

Display

Displays information
pertaining to unit.

ON/OFF Button

Press to turn the unit
on or off.

TEMPERATURE Buttons

Press to raise or lower
the desired temperature.

FAN DIR. Button

Press to select up/down
direction for fan.

FAN DIR. Button

Press to select left/right
direction for fan.

TURBO/MILD

Press to be colder the unit.

COVER

Slide down to access most
of the remote buttons.
Slide down further to
access the battery
compartment.

OPERATION

8

1. Insert the attached
AC plug into a 2­pronged 220V~ 240V
AC outlet.

NOTES:

• Never connect the AC line cord plug to other than the speci­fied voltage (220V~240V).

• Use the attached power cord only.

• If the outlet is a 3-pronged type or other, have an electrician

install a new outlet.

• The new air conditioner system should be on it’s own 220V
circuit. Contact your local electrical installer for installation.

CONNECTING THE AC CORD

The outdoor unit is connected to the indoor unit through the AC connecting wire or connection cord. To connect the
indoor unit to AC, follow the procedures below:

BATTERY PRECAUTIONS

The precautions below should be followed when using batteries in this device:

1. Use only the size and type of batteries specified.

2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment.
Reversed batteries may cause damage to the device.

3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.

4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from pos­sible battery leakage.

5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manu­facturer’s directions).

HOW TO INSTALL BATTERIES

To install the batteries, follow the procedures below:

Plug into 220V~240V AC Outlet.

1. Slide down the cover to access
most of the remote buttons.
Slide down further to access the
battery compartment.

2 . Insert two “AAA” size

Alkaline batteries following
the polarity diagram below.

1. Open the indoor unit’s cover and make sure the EMER-

GENCY/REMOTE switch
is set to the REMOTE
position; this will allow the
unit to operate with the
remote controller.

2. Press the ON/OFF button on the remote controller to turn
on the unit. The On LED will light on the indoor unit and
“ON” will light in the remote display.
To select the various modes and
settings, read the following pages.

SETTING THE UNIT FOR REMOTE OPERATION

After the unit is fully connected and plugged in, it can be turned on. To turn the unit on and set it for remote operation,
follow the procedures below:

THREE MINUTE COMPRESSOR DELAY

• After turning the indoor unit on and setting it for air condi­tioner operation, the compressor (outdoor unit) will not
come on for three minutes. This is a feature that will protect
the compressor from damage due to quick start and stops.

EMERGENCY/REMOTE Switch

AC Outlet
and Plug

Plug into 220V AC Outlet

TIMER

ON/OFF

ENTER/

TURBO/MILD

CANCEL

+–

+–

TEST/EMERGENCY/REMOTE Switch

EMERGENCY REMOTE

9

CELSIUS TO FAHRENHEIT CONVERSION CHART

CELSIUS FAHRENHEIT

18 64.4
19 66.2
20 68
21 69.8
22 71.6
23 73.4
24 75.2
25 77

CELSIUS FAHRENHEIT

26 78.8
27 80.6
28 82.4
29 84.2
30 86
31 87.8
32 89.6

NOTES:

• When operating the remote controller, make sure there are no obstructions between the remote controller
and the remote sensor.

• After a while the display goes blank to conserve battery power. To check the settings, press the ON/OFF
button once.

1. Press the ON/OFF button on the remote control to

turn the unit on; the On LED will light on the indoor
unit and “ON” will light in the remote display.

2. Make sure the AUTO indicator appears in the
remote display. Using the TEMP. ▼ or ▲ buttons, set
the desired temperature. The desired temperature can
be changed up or down 1 degree from the actual
room temperature. For temperature setting: 24~28°C

AUTO

3.Then the unit will automatically operate.

TO SET AUTO MODE

This unit will automatically operate the unit according to its surroundings while in the Auto mode. All you have to set is
the desired temperature and it will control the fan, coolness and dehumidifier. Follow procedures below:

AUTO

10

1. Press the ON/OFF button on the remote control to
turn the unit on; the On LED will light on the indoor
unit and “ON” will light in the remote display.

2.Press the MODE button until the Quick indicator
blinks.

3.The unit will then start cooling or heating the room at
the highest power.

TO SET QUICK MODE

To set this unit to cool or heat at the highest power, follow the procedures below:

AUTO

1. Press the ON/OFF button on the remote control to
turn the unit on; the On LED will light on the indoor
unit and “ON” will light in the remote display.

2.Press the MODE button until the Cool indicator
appears in the display.

3. Using the TEMP. ▼ or ▲ buttons, set the desired
temperature. The desired temperature can be
changed up to 32°C and down to 18°C.

4.To select the fan speed, press the FAN SPEED button
until the desired speed appears in the display (see
below).

FAN SPEEDS

“AUTO” The fan will automatically select the fan speed.
“” The fan will operate on low speed.
“” The fan will operate on medium speed.
“” The fan will operate on high speed.
“NATURAL” The fan will randomly cycle through the

speeds simulating a cool breeze.

TO SET COOL MODE

To set the unit to cool the room to a desired temperature, follow the procedures below:

11

TO SET FAN ONLY MODE

To operate only the fan so the unit will circulate the air, proceed as follows:

1. Press the ON/OFF button on the remote control to
turn the unit on; the On LED will light on the indoor
unit and “ON” will light in the remote display.

2.Press the MODE button until the Fan indicator
appears in the display. No allowance setting tempera­ture

3. To select a fan speed, press the FAN SPEED button
until the desired speed appears in the display (see
below).

FAN SPEEDS

“” The fan will operate on low speed.
“” The fan will operate on medium speed.
“” The fan will operate on high speed.

“NATURAL” The fan will randomly cycle through the

speeds simulating a breeze.

NOTE:

• If “NATURAL” is selected, the NATURAL” indicator on
the indoor unit will light.

1. Press the ON/OFF button on the remote control to
turn the unit on; the On LED will light on the indoor
unit and “ON” will light in the remote display.

2.Press the MODE button until the Dehumidifier indica­tor appears in the display.

3.

Using the TEMP. ▼or▲buttons, set the desired tem­perature. The desired temperature can be changed up
to 32°C and down to 18°C.

TO SET DEHUMIDIFIER MODE

Select this mode when there is high humidity. To select, follow the procedures below.

12

FAN DIR.

The air will flow up

First Press

and down.

Second

Normal air direction.

Press

1. Press the ON/OFF button on the remote control to
turn the unit on; the On LED will light on the indoor
unit and “ON” will light in the remote display.

2.Press the MODE button to select the desired mode.

3.Press the FAN DIR. button to select the fan direction.
See chart below for detailed information on each of
the three settings.

TO SELECT THE FAN DIRECTION

Regardless of the mode the unit is set for, the fan direction can be changed so it moves up and down, left and right or
both. Follow procedures below to set fan direction.

FAN DIR.

The air will flow left

First Press

and right.

Second Normal air direction.
Press

FAN DIR.

FAN DIR.

13

2.While the unit is off, press the
TIMER ON button; the display will
light waiting input for the timer, but
the actual unit will not turn on.

3. Repeatedly press the TIMER ON button until the
desired hour that you want the unit to
turn on appears on the display. For
example, if it is 1:00 P.M. and you
want the unit to turn on at 4:00 P.M.,
select 3 hours.

4.

Press the ENTER button to input the setting into
memory; the unit will beep, the
TIMER indicator will light on the unit
and the TIMER indicator on the
remote will light to indicate the unit is
in the timer mode.

1. Press the ON/OFF button of timer on the remote control to set the on timer mode, “HOUR” and “ON” on the remote display will be dis­played and “TIMER” will be flicked. When you increase to press “ON/OFF” you will get desired time. Then, if pressing “ENTER/CAN­CEL” button, ON TIMER Mode will be started. If you want to stop ON TIMER Mode, please press “ENTER/CANCEL” again.

TO SET ON TIMER MODE

This unit can be set to automatically turn on after a predetermined amount of hours (up to 24) in the order of 0.5, 1, 1.5,
2, 2.5, 3, 3.5, 4, 5, 6, 8, 10, 12, 16, 20, 24.

5.

Place the remote controller so it is facing the unit.
When the desired hour is reached, the unit will turn on
to the selected mode.

NOTE : Press the ENTER button within 5 seconds

of selecting the desired time. If mote than 5 seconds
elapse, steps 3 and 4 must be repeated.

2.Press the TIMER OFF button once to
enter the Timer screen.

1. Press the ON/OFF button of timer on the remote control to set the off timer mode, “HOUR” and “OFF” on the remote display will be dis­played and “TIMER” will be flicked. When you increase to press “ON/OFF” you will get desired time. Then, if pressing “ENTER/CAN­CEL” button, OFF TIMER Mode will be started. If you want to stop OFF TIMER Mode, please press “ENTER/CANCEL” again.

TO SET OFF TIMER MODE

This unit can be set to automatically turn off after a predetermined amount of hours (up to 12) in the order of 0.5, 1, 1.5,
2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 11, 12.

AUTO

3. Repeatedly press the TIMER OFF button until the desired
hour that you want the unit to shut off
appears on the display. For example, if
it is 8:00 P.M. and you want the unit to
turn off at 10:00 P.M., select 2 hours.

4.

Press the ENTER button to input the setting into memory;
the unit will beep, the TIMER indicator
will light on the unit and the TIMER indi­cator on the remote will light to indicate
the unit is in the timer mode.

5.

Place the remote controller so it is facing the unit. When
the desired hour is reached, the unit will turn off.

NOTE: Press the ENTER button within 5 seconds

of selecting the desired time. If mote than 5 seconds
elapse, steps 3 and 4 must be repeated.

AUTO

AUTO

14

1. Press the ON/OFF button on the remote control to
turn the unit on; the On LED will light on the indoor
unit and “ON” will light in the remote display.

2. Press the MODE button to select the desired mode.
Then, set the desired temperature using the TEMP.
▲ or ▼ buttons.

3.

Press the SLEEP button on the remote controller. The
unit will then be in the sleep mode and will cool the
room to the desired temperature. After a while the unit
will increase the temperature again.
This process will then repeat.

TO SET SLEEP MODE

When you are going to sleep, select this feature and the unit will cool off the room to the desired temperature and then
increase that temperature throughout the night.

1.Open the indoor unit’s cover and make sure the
EMERGENCY/REMOTE switch is set to the EMER­GENCY position.

3.

To turn the unit off, slide the

EMERGENCY/ REMOTE

switch to the REMOTE position.

2.The unit will then turn on and depending on the room
temperature, it will select the cool or dehumidifier
mode, fan speed and fan direction automatically.

EMERGENCY OPERATION

If the remote control is lost, broken or has no batteries, follow the procedures below:

EMERGENCY/REMOTE Switch

TEST/EMERGENCY/REMOTE Switch

EMERGENCY/REMOTE Switch

TO CANCEL SLEEP MODE:

To cancel sleep mode,
press the SLEEP button
again; the SLEEP indicator
will disappear in the dis­play.

1. The unit is tixed “MILD” mode on production.

2. Press the “TURBO/MILD” button for powerful cooling.

3. When press the “TURBO/MILD” button one more time, it will be back to “MILD” mode.

TO SET TURBO/MILD MODE

AUTO

TEST/EMERGENCY/REMOTE Switch

15

CHANGING/CLEANING THE AIR FIL TERS

To change or clean the two black air filters, follow the procedures below:

1. Open the indoor unit’s
cover and remove both
black air filters by
bending them slightly
backward and the lift­ing out.

2.Remove the two small fil­ters (Deodorizing and
Electrostatic) from the
indoor unit.

3. Examine the filters and determine if they need to be
cleaned or replaced. To clean filters, use a vacuum and
clean off dust. Use water and mild soap also if necessary.

NOTE: The filters should be changed every 6 months. If in

a climate with cold winters, once a year is adequate.

5.Insert cleaned or new
black filters back into the
unit.

4.Insert cleaned or new
small filters (Deodorizing
and Electrostatic) back
into the unit.

CLEANING THE INDOOR COVER

To clean the indoor cover, follow the procedures below:

1. Remove the left and right side to open the indoor
cover upward by two
hands.

NOTE:

Please remove
and insert the
indoor cover by
two hands.

2.Pushing forward the indoor cover.

3.Remove the indoor cover.

3.(Remove it when cleaning.)

4.Cleaning the indoor cover.

NOTES:

• Wipe the indoor cover with soft sponge or soft cloth.

• When cleaning up it in the state of opening the indoor cover, wipe it with soft cloth.

• After drying it completely in the shade, assemble it.

• If you do not so, it may cause a trouble.

• Reassemble the indoor cover is reverse process of assemble

CARE AND MAINTENANCE

16

Clean the casing and front of the indoor unit with a vacuum brush or wipe with a clean damp cloth.

• NEVER USE Solvents, harsh chemicals or hot water to clean the unit.

• Some metal edges on the unit are sharp. Be careful when cleaning or handling.

• Internal parts in the outdoor unit may need cleaning or routine maintenance from time to time. Consult your local ser-

vice center for more details.

AFTER THE SEASON:

• Operate the fan, then dry the indoor unit.

• Shut off the indoor unit and then unplug it from the wall.

• Clean the air filters.

• Cover the outdoor unit with the supplied cover; this is very important to protect this unit.

BEFORE THE SEASON:

• Make sure the air filters are clean.

• Make sure the inlet and outlet on the indoor and outdoor units are not blocked by obstructions.

• Make sure the unit is grounded. Consult a serviceman for help.

PRECAUTIONS:

• Do not use this unit for animal or plant storage.

• In a lightning or thunder storm, immediately unplug it from the wall.

warning

• Make sure the AC cord is unplugged and the unit is off before cleaning.

• Do not use water on the unit to clean it. This is a shock hazard and the unit can be damaged.

INSTALLING THE REMOTE BRACKET

To install the remote bracket, insert one of the 2 supplied screws into top hole of the bracket and into the wall. Level the
remote bracket and insert the other screw into the bottom hole.

Insert the remote controller when not using it.

TROUBLESHOOTING GUIDE

17

Before requesting service, please refer to the chart below for possible solutions:

SYSPTOMS POSSIBLE CAUSE POSSIBLE SOLUTIONS

No power. Power failure. Restore the power

Line voltage too low. Contact electrician to install new outlet.
Unit is unplugged or not completely Insert plug all the way.

plugged in.
Unit is off. Turn unit on.
Batteries in remote are weak or dead. Replace remote’s batteries.
EMERGENCY/REMOTE Slide EMERGENCY/REMOTE

switch is not set to REMOTE. to REMOTE.

The compressor does When the unit is first plugged in Wait 3 minutes for the unit to operate.
not turn on. and turned on, the compressor
(no cool air at cooling) will delay turn on for 3 minutes.
(no heat air at heating)

If the unit is turned off and then Wait 3 minutes for the unit to operate.
immediately back on, the compressor
will delay for 3 minutes.

The air filter(s) is dirty or clogged. Clean or replace filter(s).
A door or window is open. Shut door or window.
There is an obstacle in front of Remove obstacle.

intake or indoor unit.
The temperature has been set Check and reset if necessary.

improperly.

Strange sounds occur. During operation, especially after This is normal.

turning it on or off, refrigerant flows
inside the unit.

Strange smells occur. The fan is bringing out the The smell should go away shortly.

smells of the carpet, walls, etc.

No remote operation. Batteries are weak, dead or Replace batteries.

inserted improperly.
Remote is out of range. Move closer to unit.
Remote not aimed at sensor. Aim remote at sensor.
There is an obstruction between Remove obstruction.

unit and remote.

18

SPECIFICATIONS

MODEL 5160

Function Cooling
Power Supply AC 220-240V, 50Hz
Cooling Capacity (Heating Mode)

4,400 Kcal/h

Operating Current (Heating Mode)

9.9 A

Power Consumption (Heating Mode)

2.050 W
Indoor Unit Dimensions W 1035 x H 322 x D 205 mm
Outdoor Unit Dimensions W 800 x H 615 x D 277 mm

Net Weight

Indoor

11.7 kg

Outdoor

50 kg

Connection

Type Flare

the piping

Gas 1/2" (12.7 mm)

Liquid 1/4" (6.35 mm)
Air Cleaning Anti-bacteria Filter, Electrostatic Filter, Deodorizing Filter
Operating Indoor side (Heating Mode) min 21˚C~max 32˚C (min 15˚C~max 27˚C)
Condition Outdoor side (Heating Mode) min 21˚C~max 50˚C

Design and specification are subject to change without notice for product improvemont.

Godrej Appliances Ltd.

Pirojshanagar, Vikhroli, Mumbai - 400079.

MODEL #:

5160

OWNER'S MANUAL

SPLIT AIRCONDITIONING SYSTEM

S1
