GN 9050
2.4 GHz Wireless Headset System
Charge battery for 3 hours prior to initial use.
User Guide
1
2
3
Components
1 Remote Beltpack
2 Base
3 Base Stand
4 Telephone Cord
5 Remote Battery
4
7 8
5
6
6 AC Power Adapter
7 Headset
(included with System purchase
or as an option)
8 Remote Headset Adapter
(Quick Disconnect to 2.5mm cord
adapts your existing headset for
remote use-included with
non-System purchase)
1

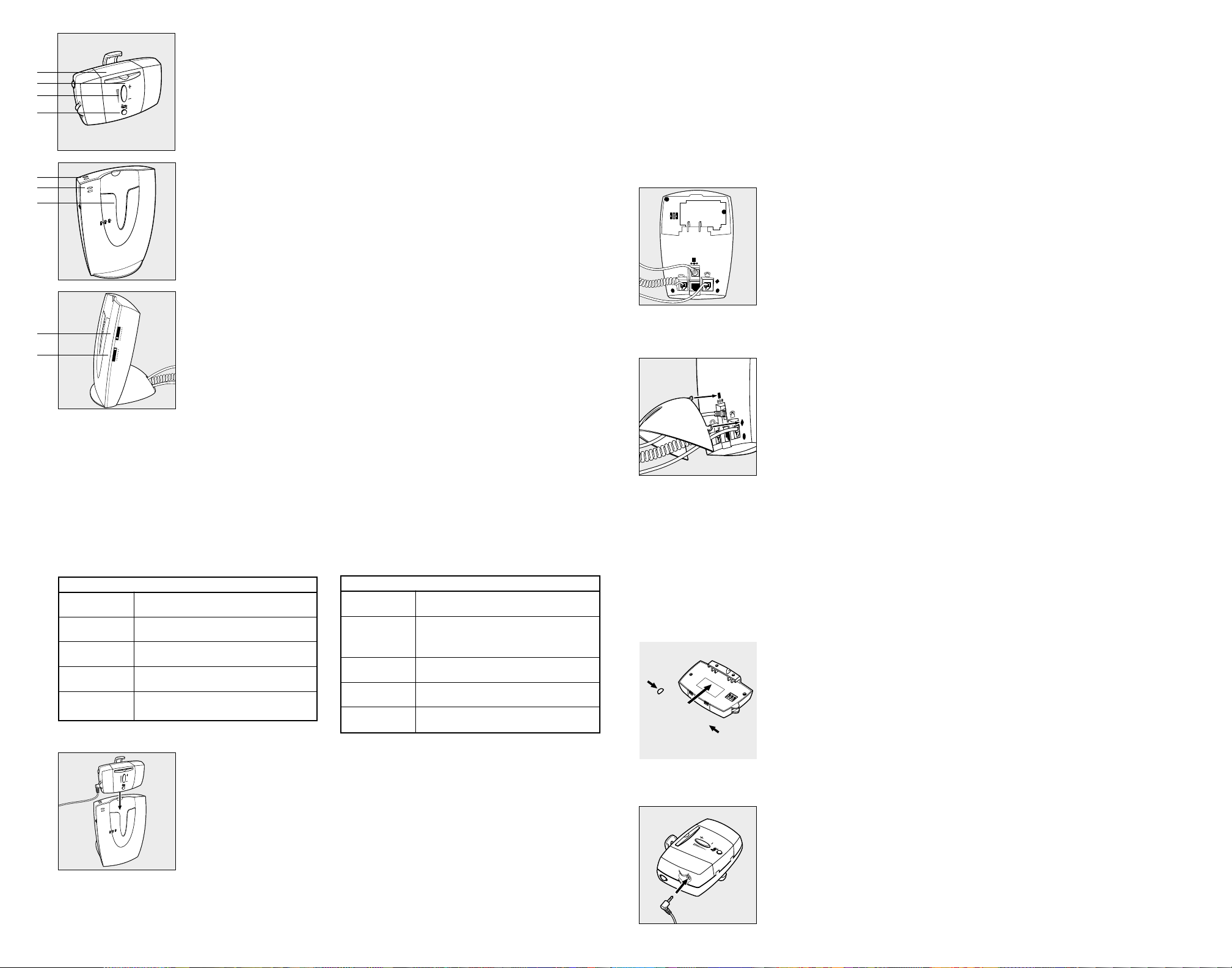

Remote Beltpack Functions
Setting Up
1 Headset/Handset Button/
1
2
3
4
7
6
5
Optional Handset Lifter Button:
Press to enter Headset or Handset Mode as
desired (LED on Remote blinks and LED on Base lights
in Headset Mode; no lights in Handset Mode).
Also for use with optional Remote Handset Lifter; see
Remote Handset Lifter user guide for instructions.
2 Headset Mode Indicator:
Blinks when the system is in Headset Mode;
no light in Handset Mode.
3 Volume Control:
Press + to increase volume.
Press - to decrease volume.
4 Mute Button:
Press to activate mute and disable the
transmit/microphone; press again to enable
transmit/microphone.
1
.
Base Functions/Indicators
5 Headset Mode/Online Indicator:
Lights when the system is in Headset Mode;
no light in Handset Mode.
6 Battery Charge Indicator:
Lights red when the Remote is properly seated in the
Base Charger (if LED blinks, battery is not charging:
remove the Remote, wipe the battery charging contacts
and replace); turns green when Battery is fully charged.
1
2
3
4
8
9
5
6
7
8
A
B
C
D
E
F
G
7 Spare Battery Charge Indicator:
Lights red when the Battery is properly seated in the Base
Spare Battery Charger (if LED blinks, battery is not charging:
remove the Remote, wipe the battery charging contacts
and replace); turns green when Battery is fullycharged.
8 Transmit Settings:
Adjusts the volume of your voice.
1 is the softest, 8 is the loudest.
9 Telephone Compatibility Settings:
Fine tunes the system to your telephone system.
10 Bass/Treble Tone Settings:
3-position switch to customize receive tone.
2.
Audio Indicators
Out of Range
Mute
Low Battery
Volume
Headset/Handset
Mode
Tone sounds in headset every 10 seconds
Tone sounds in headset every 15 seconds
Tone sounds in headset every 20 seconds
Tone sounds in headset at maximum and minimum setting
Tone sounds in headset when entering Headset
or Handset Mode
Battery Information
Battery Type
Capacity On-Line
Capacity Off-Line
Recharging Time
Battery Life
Nickel Metal Hydride (NiMH), 3.6 V 450 mAH
(GN Netcom part number 1601-809)
Fully charged battery provides minimum of 6 hours
continuous use without recharging.The base has two charging
ports; additional battery can be purchased for longer operation.
Fully charged battery provides minimum 80 hours
without recharging.
Maximum 3 hours to completely recharge a discharged
battery; battery cannot be overcharged.
2 years if battery is recharged when not in use
and never completely discharged.
Recharging the Battery
Slide the Remote into the Charger on the front of the Base. To use your Headset while charging, put the system in Headset Mode.
To charge overnight, put the system in the Handset Mode.
2
Use the charging port on the rear of the Base to charge a second battery (optional).
3.
4
3
10.
4
5
6
7
8
A
B
C
D
E
F
G
8.

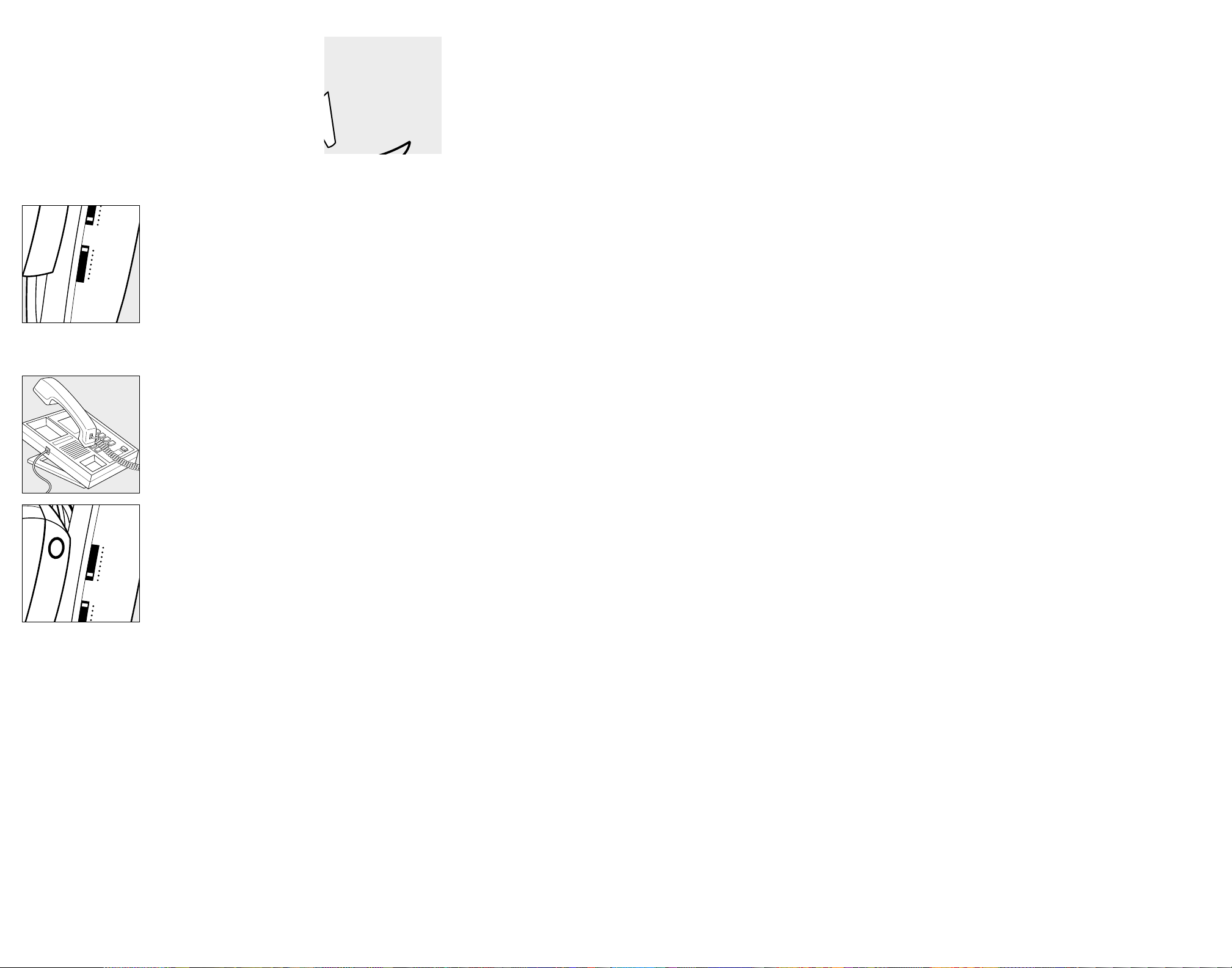

Put the Headset on and select a
telephone compatibility setting
until dial tone is clear. If dial tone
is clear for both A and G, set to A.
Most phones will require setting A or G.
Remove the handset and make a call.
9.
While switching between the Headset
and Handset, adjust the transmit
(microphone) setting until your voice
is the same volume on both devices
(1 is the softest, 8 is the loudest).
Disconnect the optional Remote Handset Lifter
from the Base while setting the volume.
1
2
3
4
5
6
7
8
A
B
C
4
5
Frequently Asked Questions
What should I check if I don’t hear a dial tone?
• Check to see that all cords and jacks are connected.
• Make sure that the Headset cord is fully inserted into the Remote.
• Make sure that the AC Adapter is plugged in and has power.
• Try the compatibility setting on A and G.
• Make sure the system is in Headset Mode.
• Make sure that the Battery is properly installed in the Beltpack.
• Make sure that the Battery is fully charged (3 hours minimum).
• Check that the serial numbers on the bottom of the Base unit and back of Beltpack
units match; because of the security circuits, the Beltpack and Base unit must match
for operation.
What should I check if the other party has a hard time hearing me?
• Make sure the Mute on the Beltpack is off.
• Increase the transmit level (1 is the softest, 8 is loudest).
• Check the position of the Headset Microphone and make sure that it is placed at
the corner of your mouth.
What should I do if I hear a buzz or humming sound in my Headset?
• Move the Base farther away from the telephone.
What should I do if I hear an echo in my Headset while speaking?
• Lower your transmit adjustment. If this makes the transmit too weak, try adjusting
the Telephone Compatibility Switch setting.
• Lower the receive volume on your telephone.
What should I do if I hear noise or static or if the signal is weak?
• You may be out of range; move closer to the Base for a stronger signal.
What should I do if my battery is not charging?
• Remove the Remote from the Base Charger and wipe the battery charging
contacts on the back of the Remote/Battery. (Battery Charge Indicator LED
lights solid red while charging; if LED blinks, clean contacts as indicated.)
Do I need to lift the handset to make calls?
• Some telephone systems allow on-hook dialing; refer to your telephone system
user guide for instructions.
How many GN Netcom wireless systems, can be used in one location?
• The number varies greatly due to environmental factors; no specific count can be provided.
Accessories
Battery
To prolong operating time from 6 to 12 hours, an additional Battery can be purchased (GNNetcom part number 1601-809).
ReadiLine Remote Handset Lifter with GN ReadiLine Interface Kit
The Remote Handset Lifter lifts the handset from your telephone enabling you to answer and hang up calls without returning to your desk.
Remote Handset Lifter
The Remote Handset Lifter lifts the handset from your telephone enabling you to answer and hang up calls without returning to your desk.
6
7
For more information and technical specifications:
www.gnnetcom.com
