HYBRID COMPACT

System Installation

Dual-energy system

for heating and hot water

www.glow-worm.co.uk

Page 2

Page 3

TABLE OF CONTENTS

INTRODUCTION

1 Instructions guidance .........................................................................................................................3

1.1 Product documentation...........................................................................................3

1.2 Associated documents ...........................................................................................3

1.3 Explanation of symbols...........................................................................................3

1.4 Guarantee registration ............................................................................................3

2 System description .............................................................................................................................3

2.1 Concept of operation ..............................................................................................3

2.2 Example of Installation – Diagram 9 (9.1) : HYBRID COMPACT with 1 low heating

temperature zone (30-40°C) or 1 high heating temperature zone (< 80°C) ...........4

2.3 Example of Installation – Diagram 9 (9.2) : HYBRID COMPACT with 2 low heating

temperature zones (30-40°C) or 2 high heating temperature zones (< 80°C) .......5

2.4 Example of Installation – diagram 9 (9.3) : HYBRID COMPACT with 3 low heating

temperature zones (30-40°C) or 3 high heating temperature zones (< 80°C) .......6

3 Safety instructions and regulations ....................................................................................................7

3.1 Safety instructions ..................................................................................................7

3.2 Regulations.............................................................................................................7

INSTALLATION

4 System appliance installation ............................................................................................................8

4.1 Recommendations before installing .......................................................................8

4.2 Mounting .................................................................................................................9

5 Hydraulic connection ..........................................................................................................................9

5.1 Heat pump circuit....................................................................................................9

5.2 Boiler circuit .......................................................................................................... 10

5.3 Heating circuit ....................................................................................................... 11

6 Electrical connections ...................................................................................................................... 11

6.1 Heat pump ............................................................................................................ 11

6.2 Electrical wiring.....................................................................................................12

6.3 Hydraulic module ..................................................................................................12

6.4 Boiler .................................................................................................................... 13

6.5 Systempro control unit ..........................................................................................13

- 1 -

Page 4

TABLE OF CONTENTS

COMMISSIONING

7 Filling the glycol circuit .....................................................................................................................15

8 Filling the heating circuit ..................................................................................................................16

9 Activating the heat pump .................................................................................................................16

10 Activating the boiler ..........................................................................................................................16

11 Activating the room thermostat ........................................................................................................16

12 Activating the control unit .................................................................................................................16

12.1 Conﬁ guring the installation ................................................................................... 17

12.2 Wiring summary....................................................................................................18

12.3 "Thermostat / sensor" menu ................................................................................. 18

12.4 Thermostat(s) .......................................................................................................18

12.5 Outdoor sensor .....................................................................................................18

12.6 Self check ............................................................................................................. 19

12.7 Settings.................................................................................................................20

12.8 Commissioning ..................................................................................................... 23

12.9 Status reports .......................................................................................................26

12.10 Options .................................................................................................................27

12.11 Heating system test .............................................................................................. 28

12.12 Finishing ...............................................................................................................28

13 Re-check and restart ........................................................................................................................29

14 User information ...............................................................................................................................29

MAINTENANCE

15 Trouble-shooting ..............................................................................................................................29

15.1 Fault diagnosis ..................................................................................................... 29

15.2 Fault codes ........................................................................................................... 29

15.3 Status .................................................................................................................. 30

16 Servicing ..........................................................................................................................................31

16.1 Annual Maintenance .............................................................................................31

16.2 Control unit maintenance menu ...........................................................................31

- 2 -

Page 5

INTRODUCTION

1 Instructions guidance

1.1 Product documentation

The instructions are an integral part of the system appliances and must be handed to the user on completion of the installation in order to comply with the current regulation.

• Carefully read the manual, to understand all the information to enable safe installation, use and servicing. No liability can be accepted in the event of damage for not complying with the guidance in this instruction manual.

These instructions consist of, Installation, Servicing, Fault Finding. The instructions are an integral part of the appliance and must be handed to the user on completion of the installation.

1.2 Associated documents

- Heat pump use and installation instructions

- Hydraulic module use and installation instructions

- Systempro Control unit use and installation instructions

- Climapro2 RF programmable Room thermostat use and

installation instructions

- Wireless outdoor sensor installation instructions

- Accessories installation instructions (motorized 2 port valve...)

2 System description

2.1 Concept of operation

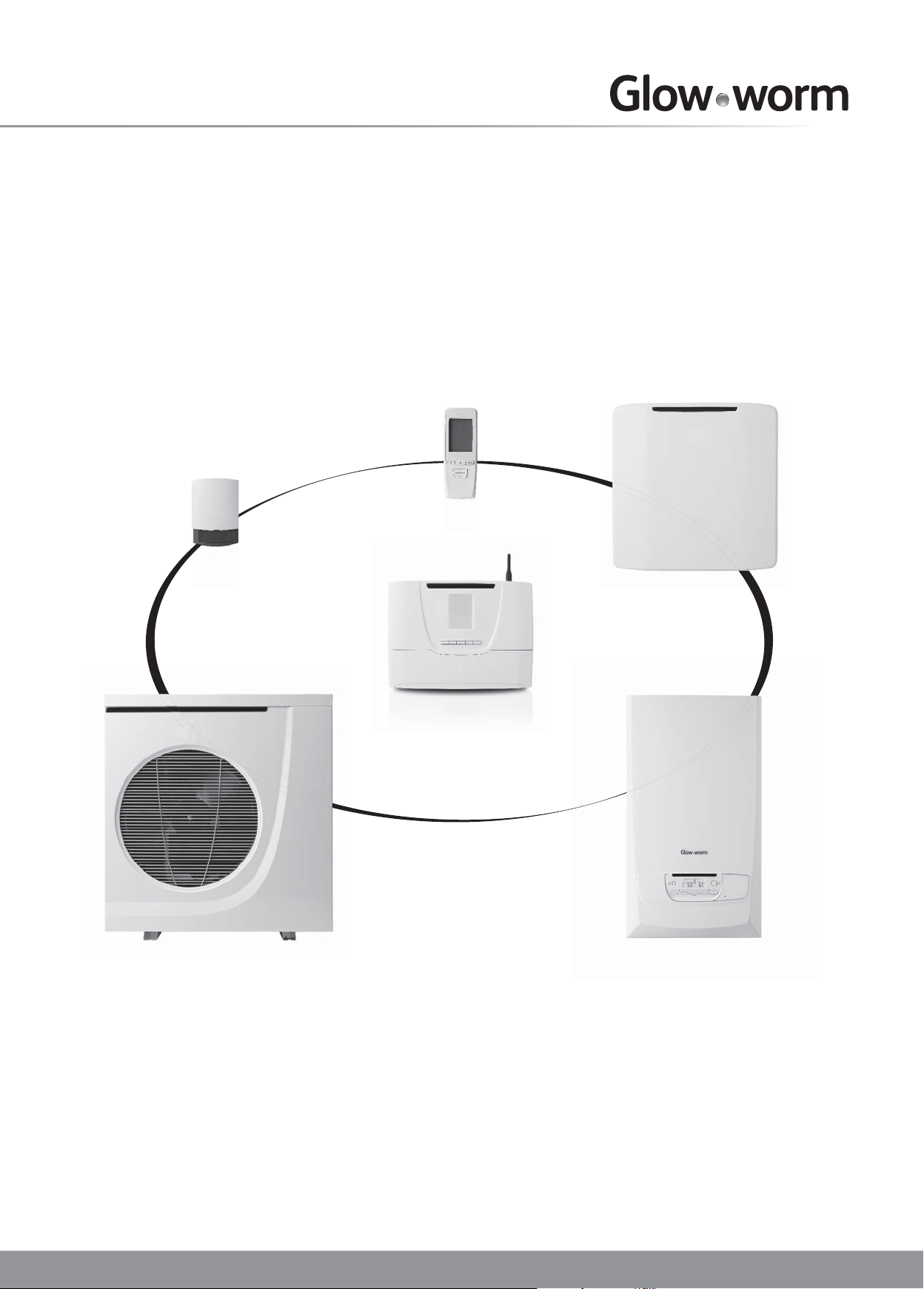

The hybrid system consists of the following components:

-A Glow-worm Envirosorb 5 heat pump,

- A "Compact" hydraulic module,

- A boiler,

- The Systempro control unit

- A Climapro2 RF wireless programmable room thermostat,

- A wireless photovoltaic outdoor sensor

The following options may be added to the system:

- 2 port valves for zoning,

- A domestic hot water cylinder

The hybrid system’s concept of operation is as follows:

- The home's heat is generated by either the heat pump or the boiler, dependant on outdoor weather conditions, and the energy prices paid for gas and electricity.

- The software in the Systempro control unit constantly monitors outdoor temperature, and the co-efﬁ cient of Performance (COP). The control unit then decides when to switch between the heat pump or the boiler to maintain comfort levels, whilst maximising the efﬁ ciency of the system.

The switchover point must be determined in accordance with the respective energy costs (see the "Activation of control unit > Settings> Energy management" chapter).

1.3 Explanation of symbols

a e b i

DANGER: Risk of injuries.

DANGER: Risk of electric shock.

ATTENTION: Risk of damage to the appliance or to its surroundings.

IMPORTANT: Important information.

1.4 Guarantee registration

We recommend you complete and return as soon as possible your guarantee registration card (delivered with the hydraulic module). If your guarantee registration card is missing you can obtain a copy or record your registration by telephoning the Glow-worm Customer Service number 01773 596510.

0020096883_01 - 06/10 - Glow-worm

- 3 -

Page 6

INTRODUCTION

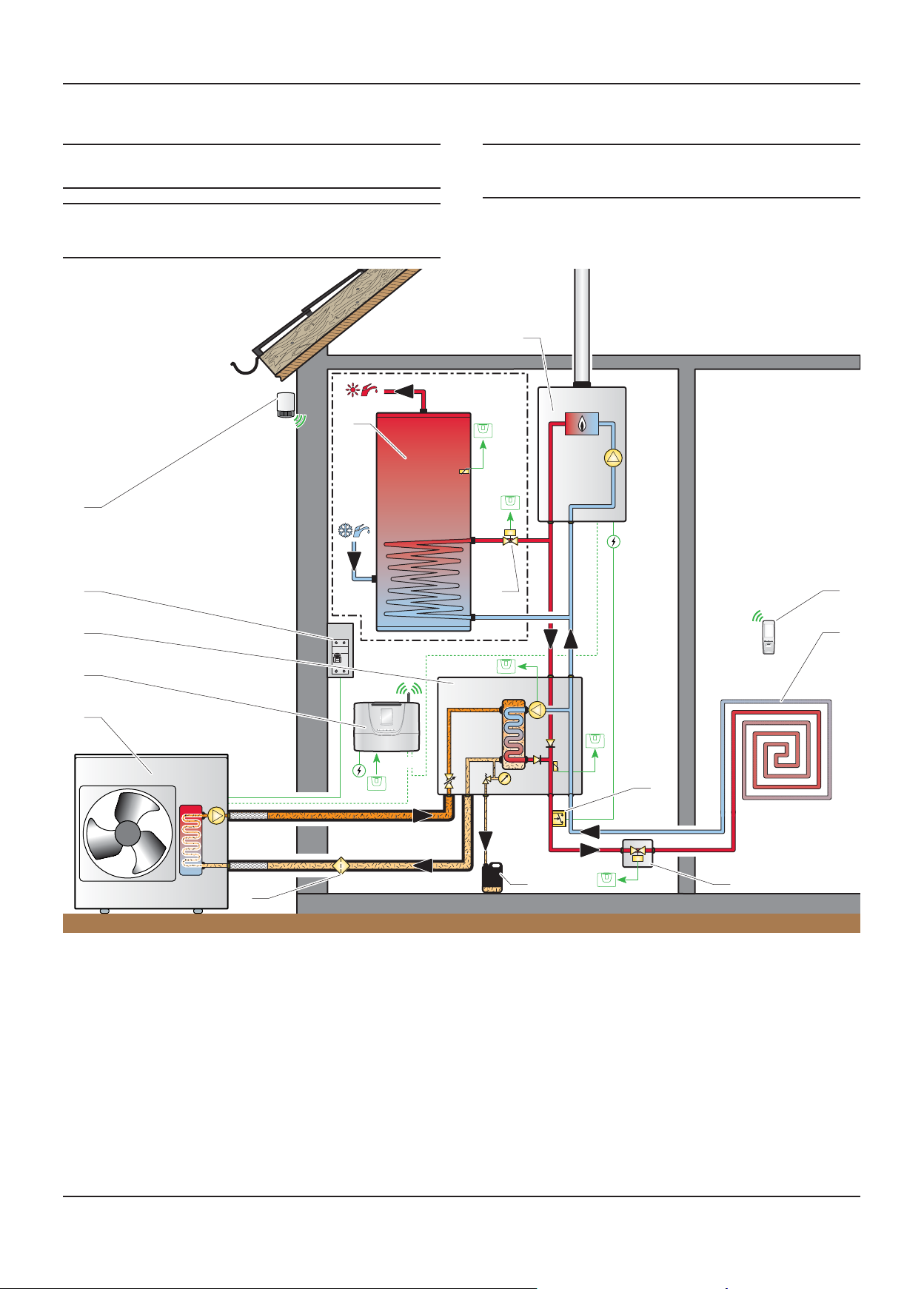

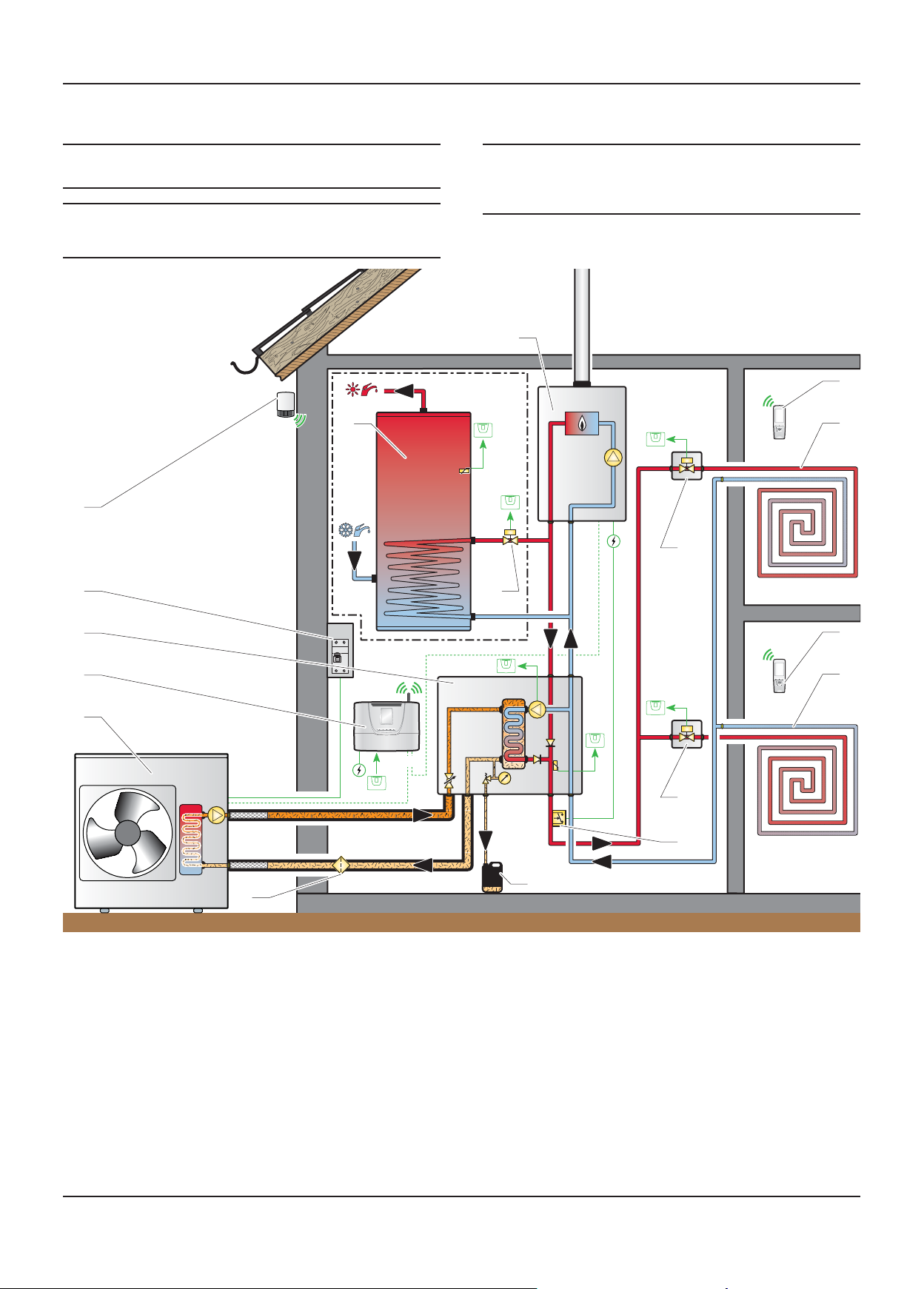

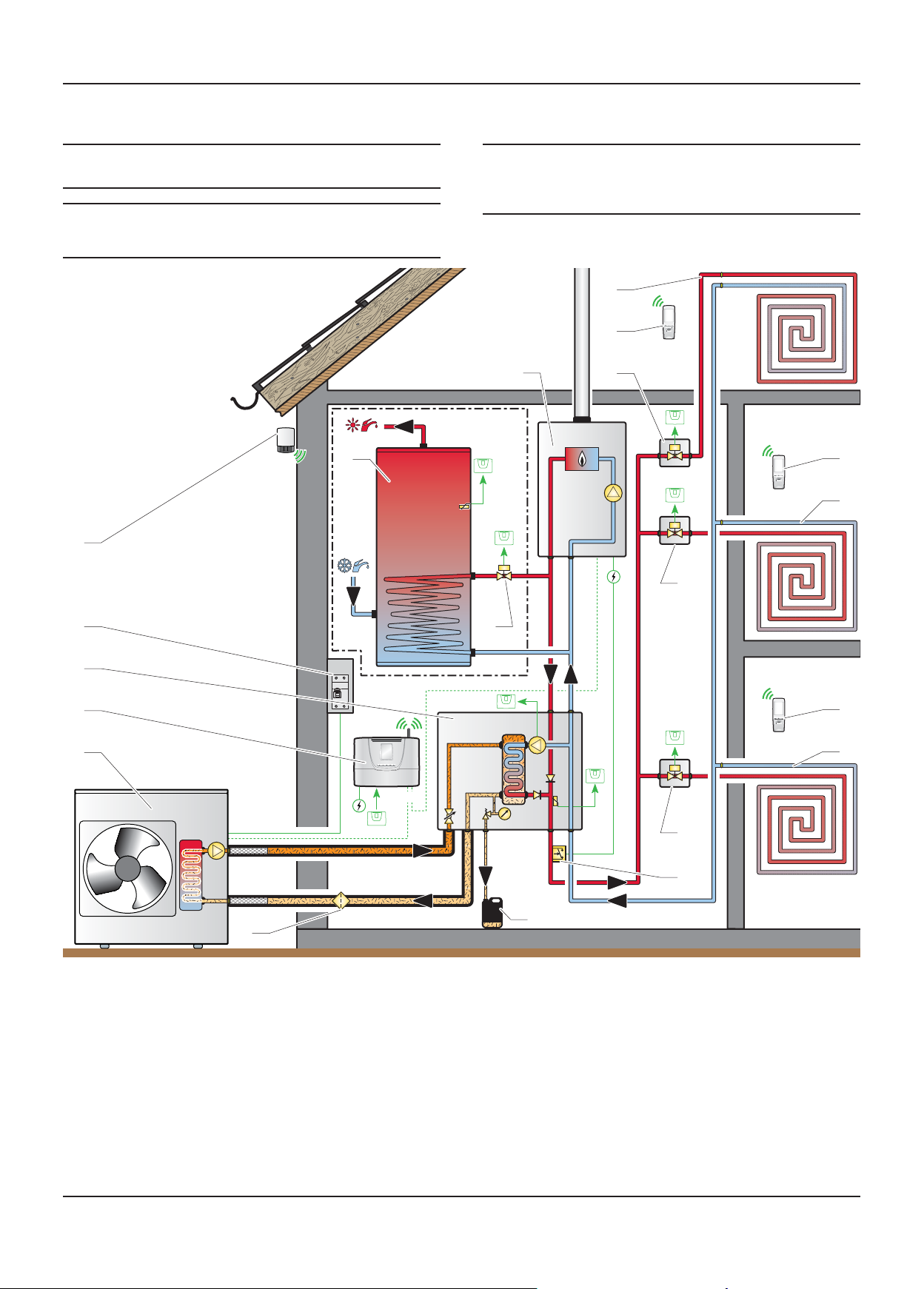

2.2 Example of Installation – Diagram 9 (9.1) : HYBRID COMPACT with 1 low heating temperature zone (30-40°C) or 1 high heating temperature zone (< 80°C)

This diagram shows the case of an installation with a single zone low temperature heating ﬂ oor (= outlet temperature < 40°C).

i i

Refer to the chapters “Hydraulic connection” and “Electrical Connection” to connect the system.

DHW components only necessary with sealed system or open vented installations. Hot water production can be via a combi boiler instead.

4 8

230V

EBUS

13 12

Key 1 Heat pump 2 Systempro control unit 3 "Compact" hydraulic module 4 Heat pump electrical supply + protection (This must have it's

own single isolation) 5 Wireless outdoor sensor 6 Domestic hot water cylinder 7 EBUS boiler 8 Domestic hot water cylinder 2 port valve 9 Climapro2 RF programmable wireless room thermostat 10 Heating circuit (UFH shown, but can be underﬂ oor or

radiators) 11 Overheating safety (if underﬂ oor heating) 12 Heating circuit 2 port valve 13 Glycol PRV discharge 14 Heat pump circuit ﬁ lter (not supplied)

- 4 -

A Heat pump circuit return B Heat pump circuit ﬂ ow C Cold water supply D Domestic hot water ﬂ ow E Boiler circuit ﬂ ow F Boiler circuit return G Heating circuit ﬂ ow H Heating circuit return I Heat pump circuit safety valve discharge

0020096883_01 - 06/10 - Glow-worm

Page 7

INTRODUCTION

2.3 Example of Installation – Diagram 9 (9.2) : HYBRID COMPACT with 2 low heating temperature

zones (30-40°C) or 2 high heating temperature zones (< 80°C)

This diagram shows the case of an installation with a dual zone low temperature heating ﬂ oor (= outlet temperature < 40°C). Zones must be same temperatures.

i i

Refer to the chapters “Hydraulic connection” and “Electrical Connection” to connect the system.

DHW components only necessary with sealed system or open vented installations. Hot water production can be via a combi boiler instead.

4 11

230V

EBUS

Key 1 Heat pump 2 Systempro control unit 3 "Compact" hydraulic module 4 Heat pump electrical supply + protection (This must have it's

own single isolation) 5 Wireless outdoor sensor 6 Domestic hot water cylinder 7 EBUS boiler 8 Climapro2 RF programmable wireless room thermostat "zone 2" 9 Heating circuit "zone 2" (UFH shown, but can be underﬂ oor or

radiators) 10 2 port valve "heating zone 2" 11 Domestic hot water cylinder 2 port valve 12 Climapro2 RF programmable wireless room thermostat "zone 1" 13 Heating circuit "zone 1" (UFH shown, but can be underﬂ oor or

radiators)

0020096883_01 - 06/10 - Glow-worm

14 2 port valve "heating zone 1" 15 Overheating safety (if underﬂ oor heating) 16 Glycol PRV discharge 17 Heat pump circuit ﬁ lter (not supplied)

- 5 -

Page 8

INTRODUCTION

2.4 Example of Installation – diagram 9 (9.3) : HYBRID COMPACT with 3 low heating temperature

zones (30-40°C) or 3 high heating temperature zones (< 80°C)

This diagram shows the case of an installation with a three zone low temperature heating ﬂ oor (= outlet temperature < 40°C). Zones must be same temperatures.

i i

Refer to the chapters “Hydraulic connection” and “Electrical Connection” to connect the system.

DHW components only necessary with sealed system or open vented installations. Hot water production can be via a combi boiler instead.

4 14

230V

EBUS

Key 1 Heat pump 2 Systempro control unit 3 "Compact" hydraulic module 4 Heat pump electrical supply + protection (This must have it's

own single isolation) 5 Wireless outdoor sensor 6 Domestic hot water cylinder 7 EBUS boiler 8 2 port valve "zone 3" 9 Climapro2 RF programmable wireless room thermostat "zone 3" 10 Heating circuit "zone 3" (*) 11 Climapro2 RF programmable wireless room thermostat "zone 2" 12 Heating circuit "zone 2" (*) 13 2 port valve "zone 2" 14 Domestic hot water cylinder 2 port valve

- 6 -

15 Climapro2 RF programmable wireless room thermostat "zone 1" 16 Heating circuit "zone 1" (*) 17 2 port valve "zone 1" 18 Overheating safety (if underﬂ oor heating) 19 Glycol PRV discharge 20 Heat pump circuit ﬁ lter (not supplied) A Heat pump circuit return B Heat pump circuit ﬂ ow C Cold water supply D Domestic hot water ﬂ ow E Boiler circuit ﬂ ow F Boiler circuit return G Heating circuit ﬂ ow H Heating circuit return I Heat pump circuit safety valve discharge (*) UFH shown, but can be underﬂ oor or radiators

0020096883_01 - 06/10 - Glow-worm

Page 9

INTRODUCTION

3 Safety instructions and regulations

3.1 Safety instructions

Incorrect installation can cause electric shock or

• Never disable security devices and do not try to adjust them.

• Be sure to consider the following handling techniques and

- Grip the appliance at its base

- Use safety clothing where appropriate, e.g. gloves, safety

• Ensure safe lifting techniques are used:

- Keep back straight.

- Avoid twisting at the waist.

- Avoid upper body/top heavy bending.

- Always grip using the palm of the hand.

- Use designated hand holds.

- Keep load as close to body as possible.

- Always use assistance if required.

• Under no circumstances must the user interfere with or

• When assembling the connections, correctly position the

• This appliance contains metal parts. Care should be taken

The basic safety instructions must be followed before attempting to maintain or replace spare parts:

• Stop the appliance.

• Electrically isolate the appliance from the power supply.

• Hydraulically isolate the appliance using the isolation valves

• Should you need to replace hydraulic components, drain the

• Protect all the electrical components from water while

• Use only original spare parts.

appliance damage.

precautions:

footwear.

adjust sealed parts.

seals to avoid any leakage of water.

with regard to edges.

if provided.

appliance.

working on the appliance.

R410A Refrigerant Fluid

Important: any action carried out on the

• Use only R410A refrigerant.

refrigerant circuit must be performed by qualiﬁ ed authorised personnel.

Venting refrigerating ﬂ uid into the atmosphere is prohibited. The refrigerant must be properly recovered in a container suitable for recycling.

The draining and reﬁ lling operations must be performed in a well-ventilated area and with the necessary protective equipment (risk of burns).

3.2 Regulations

3.2.1 Statutory requirements

IMPORTANT

Where no British Standards exists, materials and equipment should be ﬁ t for their purpose and of suitable quality and workmanship. The installation of this appliance must be carried out by a competent person in accordance the rules in force in the countries of destination. Manufacturer’s instructions must not be taken as overriding statutory requirements.

Standards

On installing and commissioning the appliance you must adhere to the technical rules, standards and provisions in effect at the time.

Reminder of existing regulatory acts

- EC regulation No. 20372000 from the 29th of June 2000 This European regulation repeals regulation No. 3093/94 and presents the elimination schedules of CFC and HCFC. It also deals with the collection of refrigerants, system leaks, particularly systems containing more than 3 kg of CFC or HCFC, as well as the minimum level of qualiﬁ cation required by the technicians.

- EC regulation No. 0842/2006 from the 17th of May 2006 regarding the containment, use, collection and disposal of the ﬂ uorinated greenhouse gases, the labelling and elimination of the products and equipment containing these gases, the restriction of use and banning of certain products from the market, as well as the training and certiﬁ cation of personnel and companies operating in the activities targeted by this regulation: refrigeration, air-conditioning, heat pumps and ﬁ re protection systems containing greenhouse gases.

• Use only new O-rings and gaskets.

• After having completed work on water carrying components, check for their tightness.

• When work on the appliance is completed, perform an operational test and check for safety.

0020096883_01 - 06/10 - Glow-worm

3.2.2 Other regulations

Control of Substances Hazardous to Health

Under Section 6 of The Health and Safety at Work Act 1974, we are required to provide information on substances hazardous to health. The adhesives and sealants used in this appliance are cured and give no known hazard in this state.

The refrigerant used in this appliance is R410a the use of which is strictly controlled by F Gas regulation EN842/2006.

- 7 -

Page 10

INSTALLATION

4 System appliance installation

4.1 Recommendations before installing

4.1.1 Heating circuit design

General

The heat transmitters may be low temperature (eg underﬂ oor heating or high temperature (radiator...).

The pipe sections are to be determined using a ﬂ ow / pressure curve (refer to the chapter Commissioning ► Heating circuit adjustment"). The distribution will be determined by the ﬂ ow corresponding to the power actually required, regardless of the maximum power that can be provided by the installation’s generators.

We recommend that you allow for sufﬁ cient ﬂ ow

to ensure that the temperature difference between the ﬂ ow and the return is equal to 7 K for ﬂ oor heating and 15 K for radiators.

"Activating the control unit" ►

Chapter 2 - System description). Connect the overheating safety device to the boiler power supply.

Water treatment

Existing system- It is essential that prior to installing the new appliances the system is thoroughly ﬂ ushed.

New system- For optimum performance after installation, the appliances and its associated central heating system should also be ﬂ ushed.

Flushing shall be carried out in accordance with BS 7593, a chemical cleanser can be used either Sentinel X300, X400 or Fernox F3 are suitable.

It is recommended to ﬂ ush existing systems ﬁ rst before ﬁ tting the new appliances.

• Ensure all cleanser is removed from the whole system before adding an inhibitor.

For long-term corrosion protection after ﬂ ushing, an inhibitor suitable for stainless steel heat exchangers can be used. Either Sentinel X100 or Fernox F1 inhibitor can be used.

The module is suitable for use on systems using softened water.

4.1.2 Heat pump circuit design

Make sure the heating circuit water ﬂ ow is greater

Installation pipework must be designed and installed to ensure venting of air from the system is possible.

The total volume of water for the heating circuit depends, among other factors, on the cold static load of the boiler’s expansion vessel.

- In GB, Guidance on vessel sizing is also given in the current

It is recommended that a drainage valve be installed at the lowest point of the installation.

- Drain taps shall be to the current issue of BS2879.

• Install the following components in the return of the heating

• In the case of a heated ﬂ oor, install a manual reset overheat

than 900 l / h.

TRVs must be ﬁ tted on all radiators, with the exception to reference rooms.

The heating system volume should be calculated to ensure that the expansion vessel is suitable, it may be necessary to add an additional vessel.

issue of BS5449 and BS7074 Part 1.

In the event of insolating the boiler, the boiler expansion vessel will also be isolated from the heating circuit. In such an event, adopt the necessary precautions.

circuit (not supplied):

- a heating ﬁ lter

- a ¼ turn shut-off valve,

- an air separator (if necessary),

- an anti-sludge ﬁ lter (if necessary).

safety device (55°C) on the heating circuit ﬂ ow (refer to the

Installation pipework must be designed and installed to ensure venting of air from the system is possible.

Make sure the circuit’s water ﬂ ow corresponds

• Install the following components to the hydraulic module, in

• Install a ¼ turn shutoff valve in the ﬂ ow of the heat pump.

4.1.3 Domestic hot water circuit design

The maximum working pressure of the domestic hot water circuit is 10 bar. If the cold water supply pressure exceeds this, then a pressure-reducing valve must be ﬁ tted in the supply to the boiler.

In areas where the water is ‘hard’ (i.e. more than 200 mg/L of calcium carbonate), it is recommended that the hot water setting is reduced and that a scale reducer is ﬁ tted, refer to the manufacturer’s instructions or consult the local water company for additional advice.

to the appliance’s nominal water ﬂ ow.

the direction of the heat pump (not supplied):

- a ﬁ lter,

- a ¼ turn shut –off valve on each side of the ﬁ lter,

In order to avoid the transmission of vibrations to surrounding structures, use hoses for the hydraulic connections at least 1 metre from the heat pump.

Insulate the pipes with an UV- and hightemperature-resistant insulation.

Water pressure

‘Hard’ water areas

- 8 -

0020096883_01 - 06/10 - Glow-worm

Page 11

INSTALLATION

4.2 Mounting

Install the Systempro control unit near the hydraulic

• Consult the corresponding installation manual and install the

module to facilitate system commissioning.

following elements:

- the heat pump,

- the hydraulic module,

- the boiler,

- the Systempro control unit,

- the Climapro2 wireless room thermostat,

- the wireless outdoor sensor.

5 Hydraulic connection

• Take care to clean the pipes before assembly removing any debris or burrs. Grease and oils may need to be removed they are not possible to remove by cleansing and ﬂ ushing. Foreign bodies in the system may enter the appliance and interrupt its operation.

• Do not use any solvent products, due to the risk of damaging the circuit.

• Only use original seals supplied with the appliance.

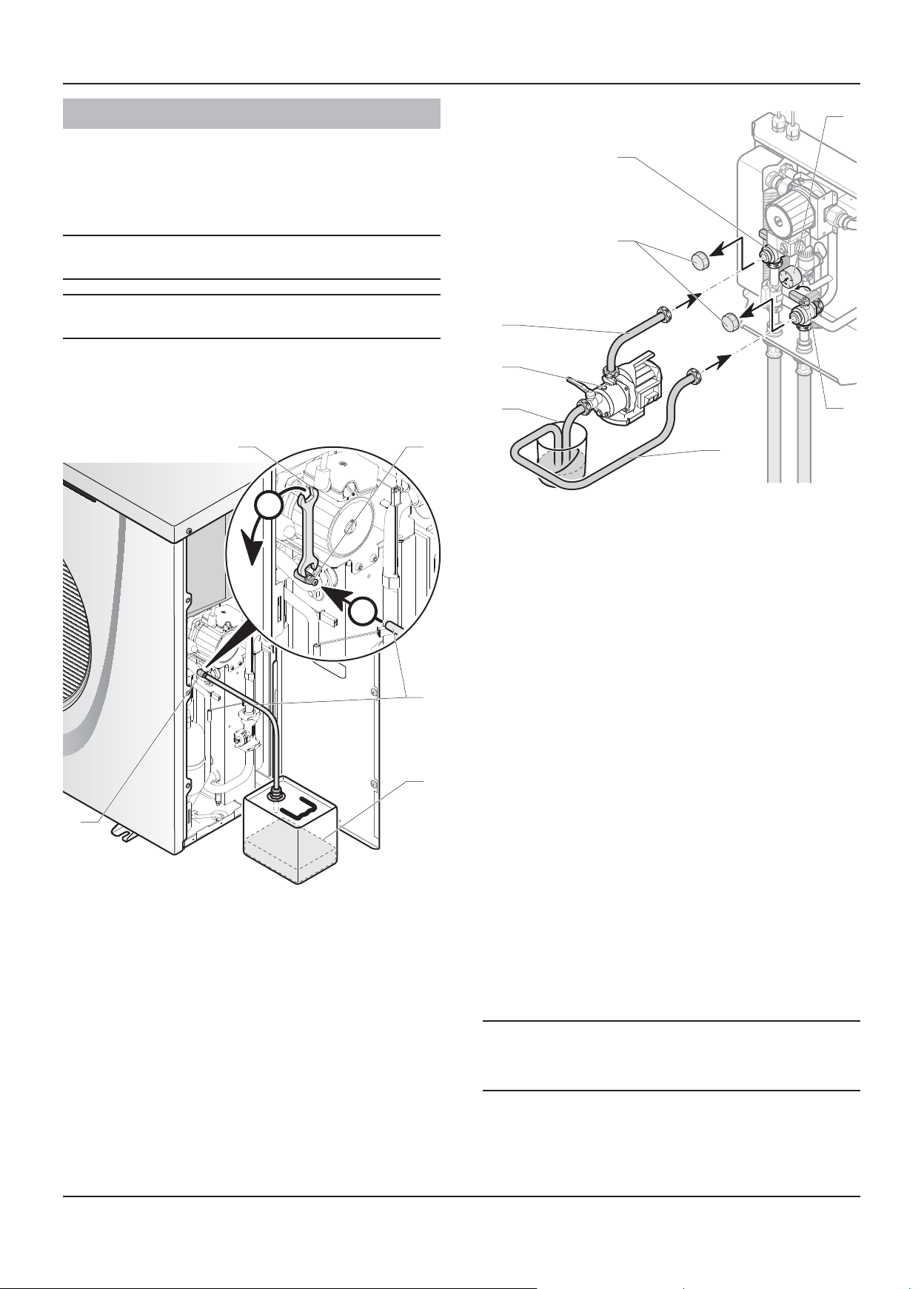

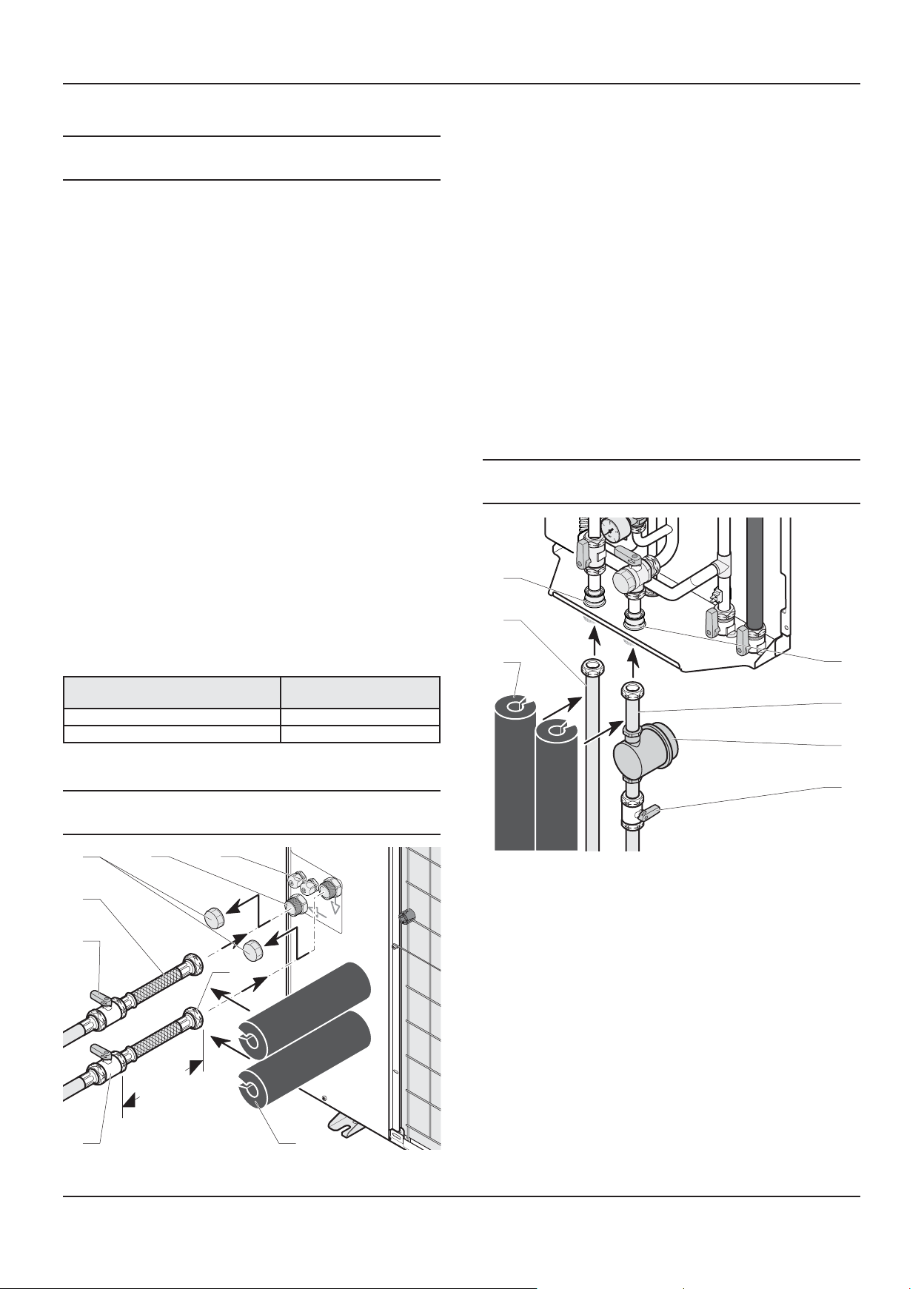

key 1 Heat pump ﬂ ow circuit ¼ turn shut-off valve in the direction of

the building (not included)

2 Return circuit ¼ turn shut-off valve in the direction of the heat

pump (not included)

3 Return circuit hose in the direction of the heat pump (not

supplied) 4 Cap 5 Return connection (Ø1 ") to the heat pump 6 Flow heat pump connection (Ø1 ") to the building 7 Flow heat pump circuit hose in the direction of the building

(not supplied)) 8 Insulation (not supplied)

• Remove the protection caps (4) located on the connections.

• Connect a hose (3) and a shut-off valve (2) to the return

connection (5) to the heat pump.

• Connect a hose (7) and a shut-off valve (1) to the ﬂ ow heat

pump connection (6) in the direction of the building.

5.1.2 Connection to the hydraulic module

Insulate the pipes with an UV- and high-

temperature-resistant insulation.

• Check that there are no leaks. Repair if necessary.

5.1 Heat pump circuit

• Comply with the values given in the table below when making the hydraulic connections of the heat pump circuit.

Linear distance (without elbows or

additional pressure drops)

≤ 20 m Ø ¾" ≤ 30 m Ø 1"

5.1.1 Connection to the heat pump

Insulate the pipes with an UV- and high-

temperature-resistant insulation.

5 6

Min. diameter of tubes to

be installed

Key 1 Insulation (not supplied) 2 Flow heat pump circuit to the building 3 Flow heat pump connection (Ø1 ") to the building 4 Return connection (Ø1 ") to the heat pump 5 Heat pump return circuit 6 Filter (not supplied) 7 Return circuit ¼ turn shut-off valve in the direction of the heat

pump (not included)

1m min.

0020096883_01 - 06/10 - Glow-worm

• Install a ﬁ lter to the circuit returning to the heat pump. Install it between the 2 shut-off valves in order to be able to remove it from the circuit and clean it periodically.

• Connect the ﬂ ow heat pump circuit (2).

• Connect the return circuit (5) to the heat pump.

- 9 -

Page 12

INSTALLATION

5.1.3 Removal of condensate

When the heat pump is operational, it will produce condensation that needs to be drained off.

5.2 Boiler circuit

5.2.1 Connection from the hydraulic module to

the boiler

Make the connection limiting the load losses to a

minimum (the circuit should be as short as possible, avoid bends and narrow sections...).

Refer to the installation manual delivered with the boiler for domestic hot water system connections.

Key A Conﬁ guration with inclination to the left B Conﬁ guration with inclination to the right 1 Heat pump 2 Plug 3 Drainage elbow

• Insert the drainage elbow (3) and pipe into the correct opening depending on the angle of the heat pump.

• Seal off the other opening with the supplied plug (2).

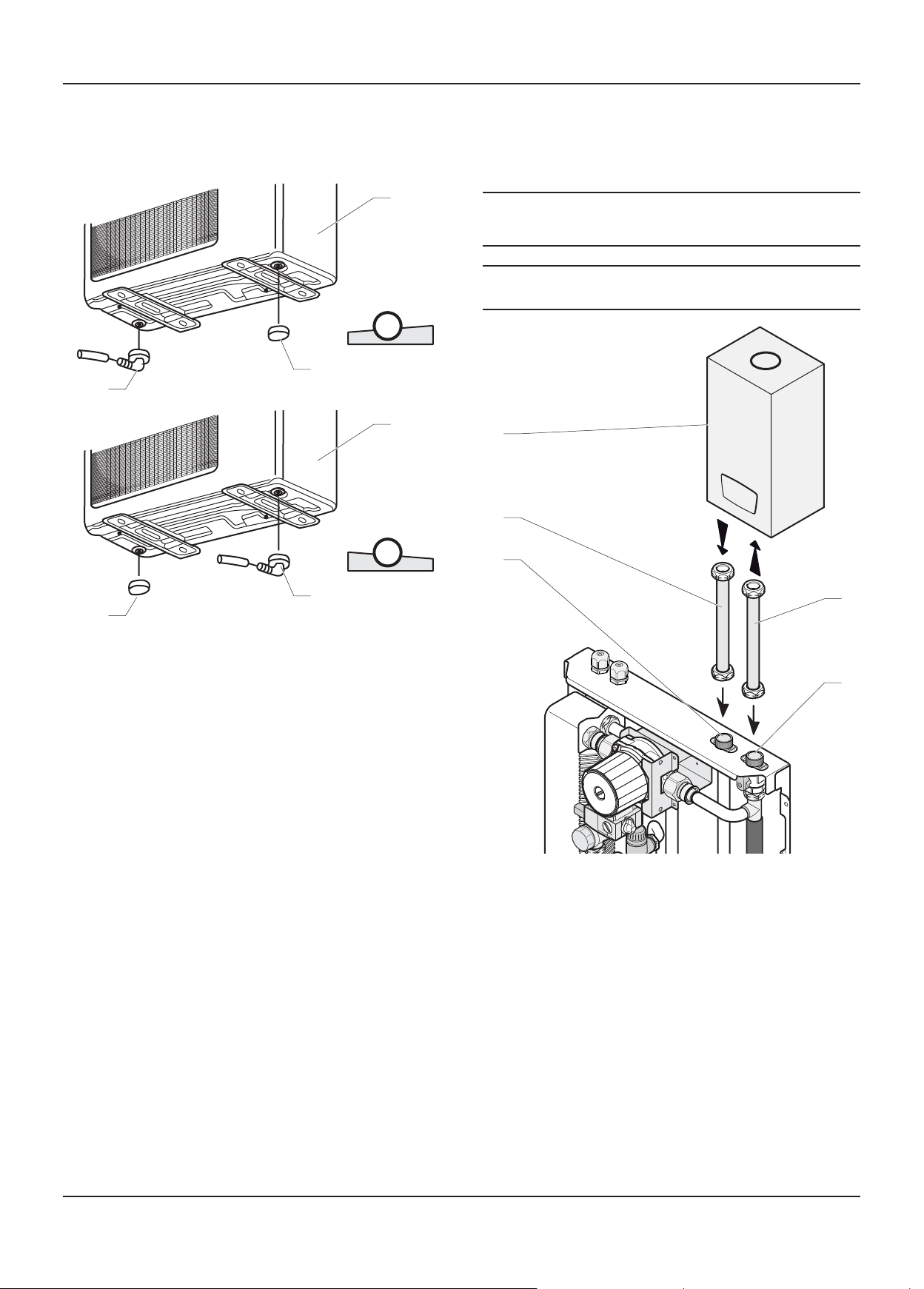

Key 1 Flow boiler connection (Ø ¾") 2 Flow boiler tubing (not included) 3 Boiler 4 Return tubing leading to the boiler (not included) 5 Return connection (Ø¾") leading to the boiler

• Connect a pipe (4) to the return connection (5) leading to the boiler.

- 10 -

• Connect a pipe (2) to the ﬂ ow connection (1) leading away from the boiler.

• Refer to the boiler instructions to connect the pipes (2) and (4) to the boiler.

0020096883_01 - 06/10 - Glow-worm

Page 13

INSTALLATION

5.2.2 Connection of the domestic hot water cylinder (option)

• Refer to the instructions supplied with the 2-way valve

and the domestic hot water cylinder for their hydraulic connections to the boiler circuit.

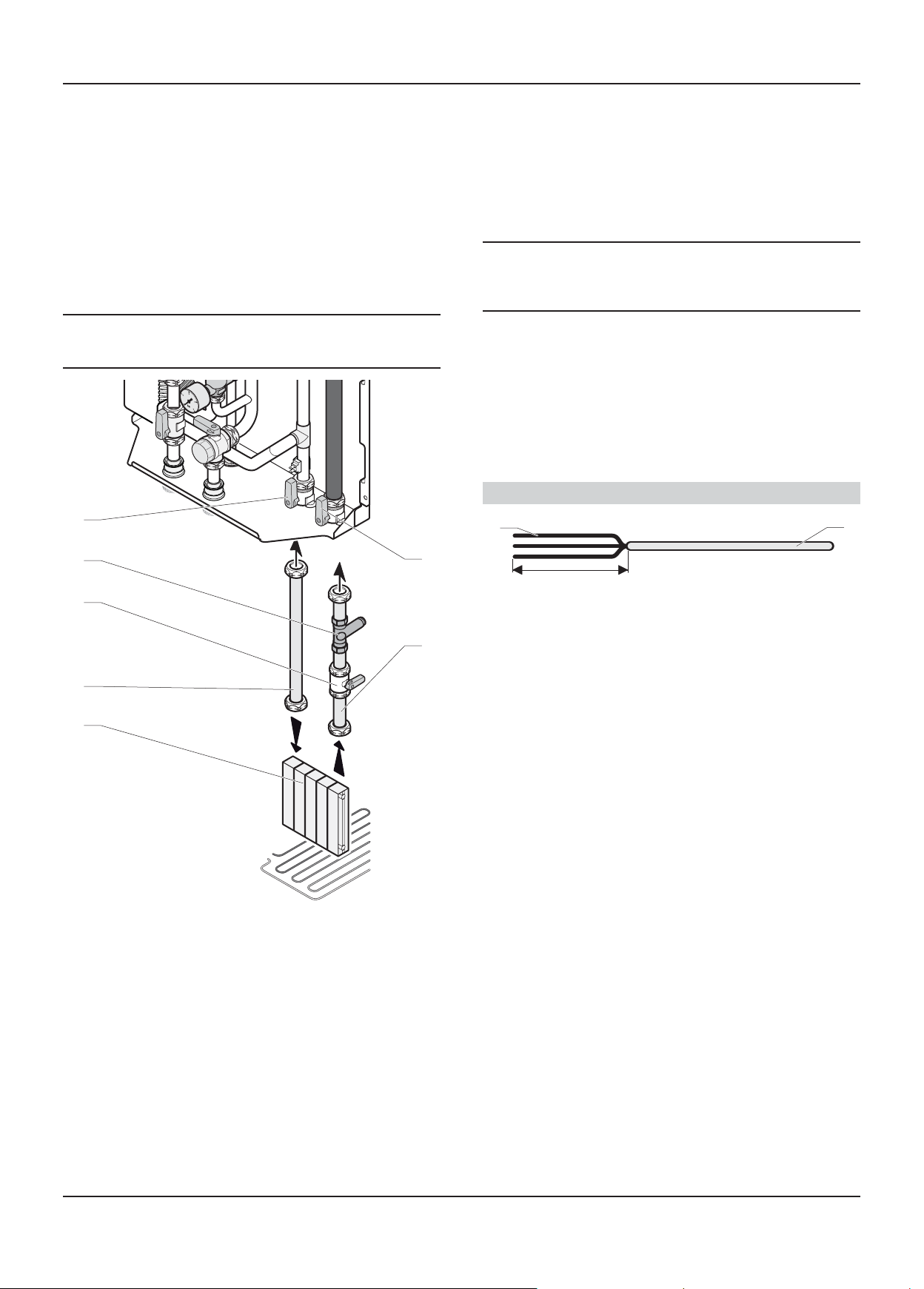

5.3 Heating circuit

5.3.1 Connection from the hydraulic module to the heating circuit

Make the connection limiting the load losses to a

minimum (the circuit should be as short as possible, avoid bends and narrow sections...).

• Connect a pipe (7) to the ﬂ ow connection (6) leading away from the hydraulic module.

• Connect the pipes (2) and (7) to the heating circuit.

6 Electrical connections

Incorrect installation can cause electric shock or

The appliance must be connected directly to an accessible, ﬁ xed, switched, electrical outlet.

The manufacturer declines any responsibility for damages to persons or others caused by the incorrect installation of the appliance earthing. This includes failure to comply with current standards.

Electrical components have been tested to meet the equivalent requirements of BSEN 7671 and the BEAB regulations.

appliance damage. The electrical connection of the appliance must be made only by a qualiﬁ ed engineer.

Main board

Key 1 Heating circuit 2 Flow heating tubing leading to the hydraulic module (not

included)

3 Return heating circuit ¼ turn shut-off valve leading to the

hydraulic module (not included)

4 Return heating circuit ﬁ lter leading to the hydraulic module

(not supplied)

5 Flow heating connection (Ø ¾") leading to the hydraulic

module

6 Return heating connection (Ø ¾") leading to the hydraulic

module

7 Return heating tubing leading to the hydraulic module (not

included)

20 mm max.

Key 1 Electrical wires 2 Insulation

When you connect the electrical wires to a connector on the electronic board:

• Maintain a maximum distance of 20 mm between the connector and the outer insulation.

• If using single core wires are used ensure that they are wrapped together in an insulating sheath.

6.1 Heat pump

The cables connecting the isolator and the heat pump must be:

- suitable for a ﬁ xed installation.

- weather resistant.

- equipped with wires adapted to appliance’s power rating.

• Connect the heat pump to an electrical panel via an independent protection system (20A differential breaker with at least 3 mm between each contact).

Additional protection may be required during installation to ensure overvoltage category II.

• Connect a pipe (2) to the return connection (5) leading to the hydraulic module.

0020096883_01 - 06/10 - Glow-worm

- 11 -

Page 14

INSTALLATION

6.1.1 Access to main board

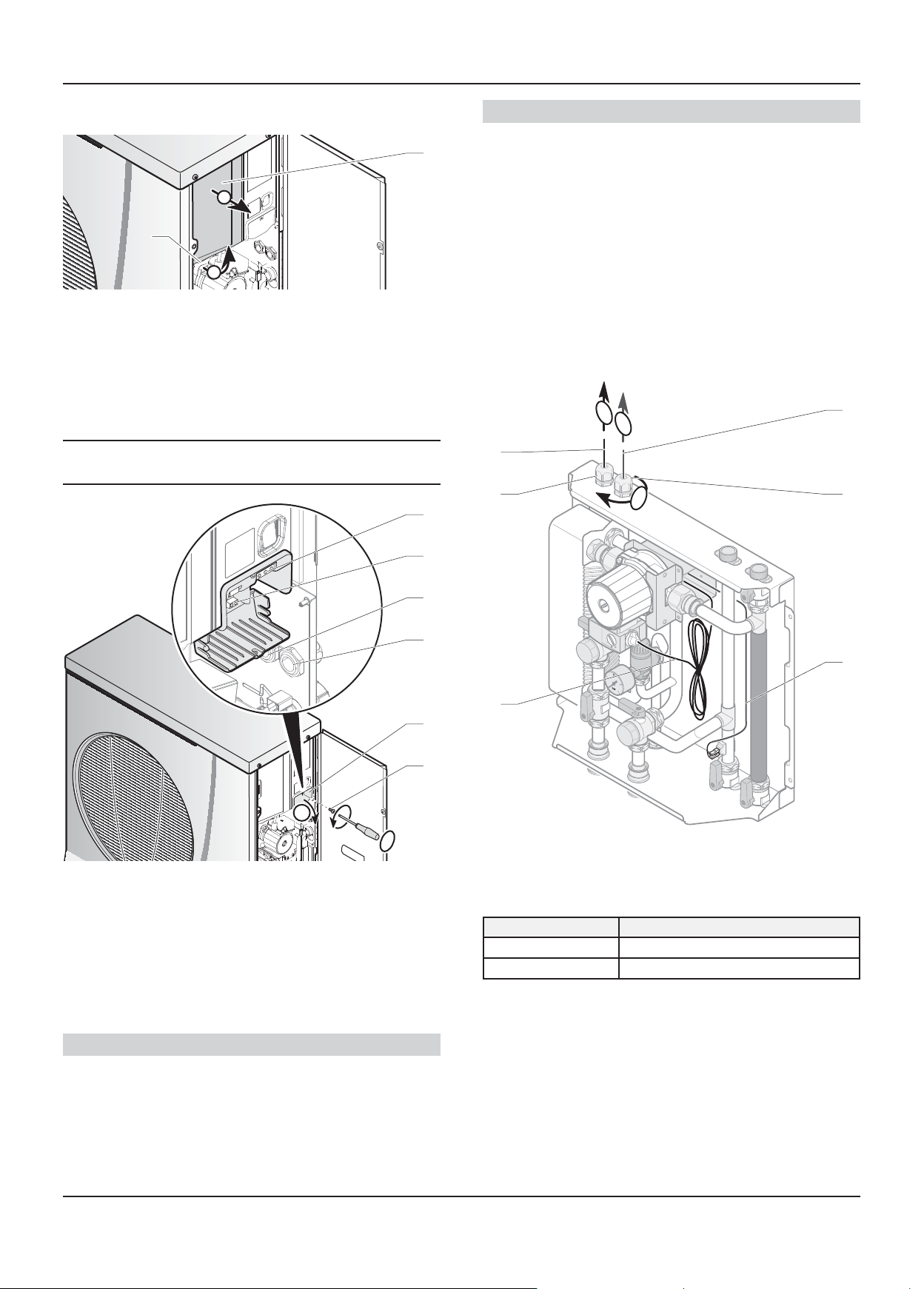

Key 1 Handle 2 Box

• Remove the box (2) by pulling it toward you using the handle (1).

6.2 Electrical wiring

Insert the Ebus 24V cable and 230V power cable

in different casings.

230V Connection

• Connect a 3 x 2.5 mm ² cable to the heat pump’s power terminal 230V (1).

• Pass the cable through the cable clamp (4).

• Connect the heat pump’s power cable to the installation’s electrical panel: single-phase network 230V + neutral + earth.

• Close the access hatch with the screw (6).

• Tighten the clamp.

6.3 Hydraulic module

NTC1REL1

Key 1 230 V supply connection terminal block 2 Ebus connection terminal 3 Clamp for Ebus cable 4 Clamp for 230 V power cable 5 Access hatch to electrical connections 6 Access hatch screw

• Remove the screw (6) from the access hatch (5).

• Open the access hatch (5).

Ebus Connection

Key 1 Pump cable 2 Pump cable clamp 3 Flow heating temperature sensor cable 4 Flow heating temperature sensor cable clamp

Component Voltage (cable section)

Pump 230 V (3 x 0.75 mm²)

Temperature sensor 3.3 V (2 x 0.34 mm²)

• Pass the pump cable (1) through the cable clamp (2).

• Connect the cable (1) to the REL1 terminal in the Systempro control.

• Connect a 2 x 0.75 mm ² cable to the heat pump’s BUS terminal (2).

• Pass the cable through the cable clamp (3).

• Connect the Ebus cable to the Systempro control unit.

• Tighten the clamp.

- 12 -

• Tighten the clamp (2).

• Pass the temperature sensor cable (3) through the clamp (4).

• Connect the cable (3) to the NTC1 terminal in the

Systempro control.

• Tighten the clamp (4).

0020096883_01 - 06/10 - Glow-worm

Page 15

INSTALLATION

6.4 Boiler

• Consult the installation manual supplied with the boiler in order to connect the boiler to the electricity circuit.

6.5 Systempro control unit

• The electrical installation in the dwelling must permit the power supply to the equipment to be isolated by a double pole isolation switch and be fused. The double pole isolation switch must incorporate a gap of 3mm between the contacts.

• Use a power cable suitable for the mains connection, minimum 0.75 mm. If the cable is damaged, it must be replaced by a qualiﬁ ed engineer.

6.5.1 Wiring to the Systempro control unit

6.5.2 Internal connection

230V connection (High voltage)

230V~

REL1

REL2

REL3

REL4

REL5

Key 1 230 V connector (3-pin: earth / neutral / live) 2 Connectors (3 pins: earth / neutral / live): REL1, REL2 and

REL3

3 Connectors (2 pins: live / neutral): REL4, REL5 and IN1

IN1

321

Key 1 230 V power cable 2 Break out tab 3 Anti-tamper connection 4 Power connection 5 Control unit

• Gently remove the break out tab (2) from the control unit with pliers (A).

• Connect the control unit following the order (B) to (D).

• Pass the power cable (1) through the anti-tamper connector (3).

24V connection (Low voltage)

OUT1

OUT2

OUT3

IN2

IN3

NTC1

NTC2

NTC3

NTC4

EBUS

Key 1 Connectors (2 pins) OUT1, OUT2, OUT3, IN2, IN3, NTC1, NTC2,

NTC3 and NTC4

2 EBUS connectors (2 pins)

• Connect the power supply to the 230 V connector (4) following the instructions given on the connector.

• Tighten the power cable (1) in the anti-tamper connector (3).

0020096883_01 - 06/10 - Glow-worm

- 13 -

Page 16

INSTALLATION

6.5.3 System connection

• Refer to the table below for the wiring of the systempro.

- Diagram 9 (9.1) : HYBRID COMPACT with 1 low heating

temperature zone (< 40°C) or 1 high heating temperature zone (< 80°C)

Key Description Cable min.

230V~ Control unit electrical supply 3 x 0.75 mm² REL1 Pump of the hydraulic module 3 x 0.75 mm² REL2 DHW cylinder 2 port valve (*) 3 x 0.75 mm² REL5 Heating circuit 2 port valve 2 x 0.75 mm² IN1 DHW cylinder thermostat (*) 2 x 0.75 mm²

NTC1

NTC2 DHW cylinder thermistor (*) 2 x 0.75 mm² EBUS EBUS connection of the heat pump 2 x 0.75 mm²

EBUS

(*) Not applicable for combi installations

- Diagram 9 (9.2) : HYBRID COMPACT with 2 low heating

Heating ﬂ ow thermistor of the hydraulic module

EBUS connection of the boiler (respect the polarity +/-)

2 x 0.34 mm²

2 x 0.75 mm²

temperature zone (< 40°C) or 2 high heating temperature zone (< 80°C)

6.5.4 Connection of the 2 port valve

230V~

REL1

REL2

REL3

REL4

REL5

When the 2 port valve is connected to REL3:

• Connect the neutral wire (blue) of the valve to the “N” of the REL3 connector.

• Connect the live wire (brown) of the valve to the “L” of the REL3 connector.

• Connect the earth wire (yellow/green) of the valve to the earth of the REL3 connector.

• Electrically insulate the red and grey wires of the valve as they are not used.

When the 2 port valve is connected to REL4 or 5:

• Connect the neutral wire (blue) of the valve to the “N” and the live wire (brown) of the valve to the “L” of the REL4 or 5 connector.

• Connect the earth wire (yellow/green) of the valve to the earth of the REL3 connector.

IN1

Key Description Cable min.

230V~ Control unit electrical supply 3 x 0.75 mm² REL1 Pump of the hydraulic module 3 x 0.75 mm² REL2 DHW cylinder 2 port valve (*) 3 x 0.75 mm² REL4 Heating circuit 2 port valve "area 2" 2 x 0.75 mm² REL5 Heating circuit 2 port valve "area 1" 2 x 0.75 mm² IN1 DHW cylinder thermostat (*) 2 x 0.75 mm²

NTC1

Heating ﬂ ow thermistor of the hydraulic module

2 x 0.34 mm²

NTC2 DHW cylinder thermistor (*) 2 x 0.75 mm² EBUS EBUS connection of the heat pump 2 x 0.75 mm²

EBUS

EBUS connection of the boiler (respect the polarity +/-)

2 x 0.75 mm²

(*) Not applicable for combi installations

- Diagram 9 (9.3) : HYBRID COMPACT with 3 low heating temperature zone (< 40°C) or 3 high heating temperature zone (< 80°C)

Key Description Cable min.

230V~ Control unit electrical supply 3 x 0.75 mm² REL1 Pump of the hydraulic module 3 x 0.75 mm² REL2 DHW cylinder 2 port valve (*) 3 x 0.75 mm² REL3 Heating circuit 2 port valve "area 3" 2 x 0.75 mm² REL4 Heating circuit 2 port valve "area 2" 2 x 0.75 mm²

REL5 Heating circuit 2 port valve "area 1" 2 x 0.75 mm²

IN1 DHW cylinder thermostat (*) 2 x 0.75 mm²

• Electrically insulate the red and grey wires of the valve as they are not used.

NTC1

Heating ﬂ ow thermistor of the hydraulic module

2 x 0.34 mm²

NTC2 DHW cylinder thermistor (*) 2 x 0.75 mm² EBUS EBUS connection of the heat pump 2 x 0.75 mm²

EBUS

EBUS connection of the boiler (respect the polarity +/-)

2 x 0.75 mm²

(*) Not applicable for combi installations

- 14 -

0020096883_01 - 06/10 - Glow-worm

Page 17

INSTALLATION

Commissioning

• Open all the hydraulic circuits’ valves.

7 Filling the glycol circuit

Warning! Do not dispose of glycol into drains

b b

• Mix 1 part propylene glycol with 2 parts water. This

• Use an antifreeze test kit to ensure accurate dosing.

and the environment.

We recommend that you use propylene glycol enriched with corrosive inhibitors.

mixture ensures antifreeze protection down to an exterior temperature of -15 °C.

Ø14

Key 1 Glycol container (*) 2 Filling pump (*) 3 Hose leading to the ﬁ lling pump output (*). 4 Cap 5 3-way valve with shut-off valve for ﬁ lling 6 Manometer 7 3-way valve with shut-off valve for ﬁ lling 8 Hose leading to the ﬁ lling pump return (*) (*) Not supplied with the appliance

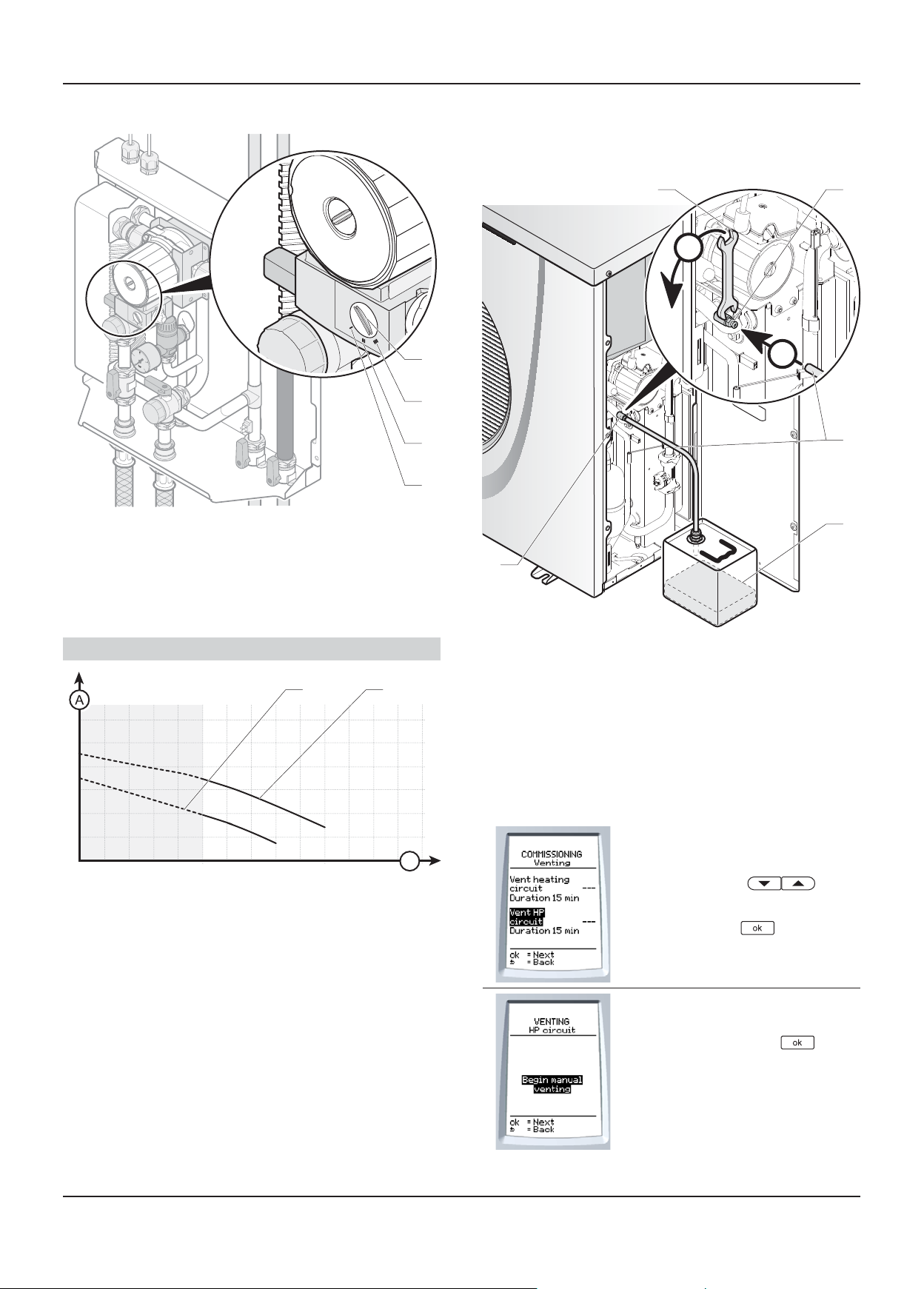

Key 1 Air trap 2 Ø 14 mm ﬂ at wrench (*) 3 Hose 4 Deposit (*) (*) Not included

• Connect one end of the hose (3) to the trap (1).

• Insert the other end of the hose (3) into the container (4) in order to recover any residual brine during the ﬁ lling of the circuit.

• Using a ﬂ at wrench (2), open the trap (1) a ¼ turn.

• In order to drain the glycol circuit after ﬁ lling, use a ﬁ ll pump (2).

• Remove the caps (4) from the valves (5) and (7).

• Connect the ﬁ lling pump hose (3) to the valve (5).

• Insert the hose (8) into the container and (1) and connect it to the valve (7).

• Open valves (5) and (7) as shown in the illustration above.

• Start the ﬁ ll pump (2) and ﬁ ll the glycol circuit.

• Continue running the ﬁ lling pump until completely purged of air (8).

• Close the air trap located on the heat pump.

• Close the valve (7) and ensure the glycol circuit is left with a pressure of between 1.5 and 2 bars with the aid of the manometer (6).

• Close the valve (5) and stop the ﬁ lling pump.

The level of glycol may decrease during the

Any residue of glycol solution should be kept in an appropriate container to be re-used for the next ﬁ lling.

ﬁ rst month following the commissioning of the installation. It may also vary in accordance with the outdoor temperature.

0020096883_01 - 06/10 - Glow-worm

• Ensure any leftover glycol solution is left with the end user and retained in a safe place.

- 15 -

Page 18

INSTALLATION

8 Filling the heating circuit

In the case of a multi-zone installation, ﬁ ll the

• For single zone installations (diagram 9.1), please refer to

• For mutiple zone installations (diagram 9.2, 9.3) please refer

heating circuit using the “Filling” mode when commissioning the control box. “Filling” mode ensures ﬁ lling by automatically opening all of the circuit. Refer to the chapter “Commissioning the

Systempro control unit ► Commissioning ► Filling

the heating circuit".

your boiler installation manual for ﬁ lling of the heating circuit.

to chapter "Commissioning ► Filling the heating circuit" for instructions on conﬁ guring the systempro control box for ﬁ lling multiple zones.

9 Activating the heat pump

11 Activating the room thermostat

Key

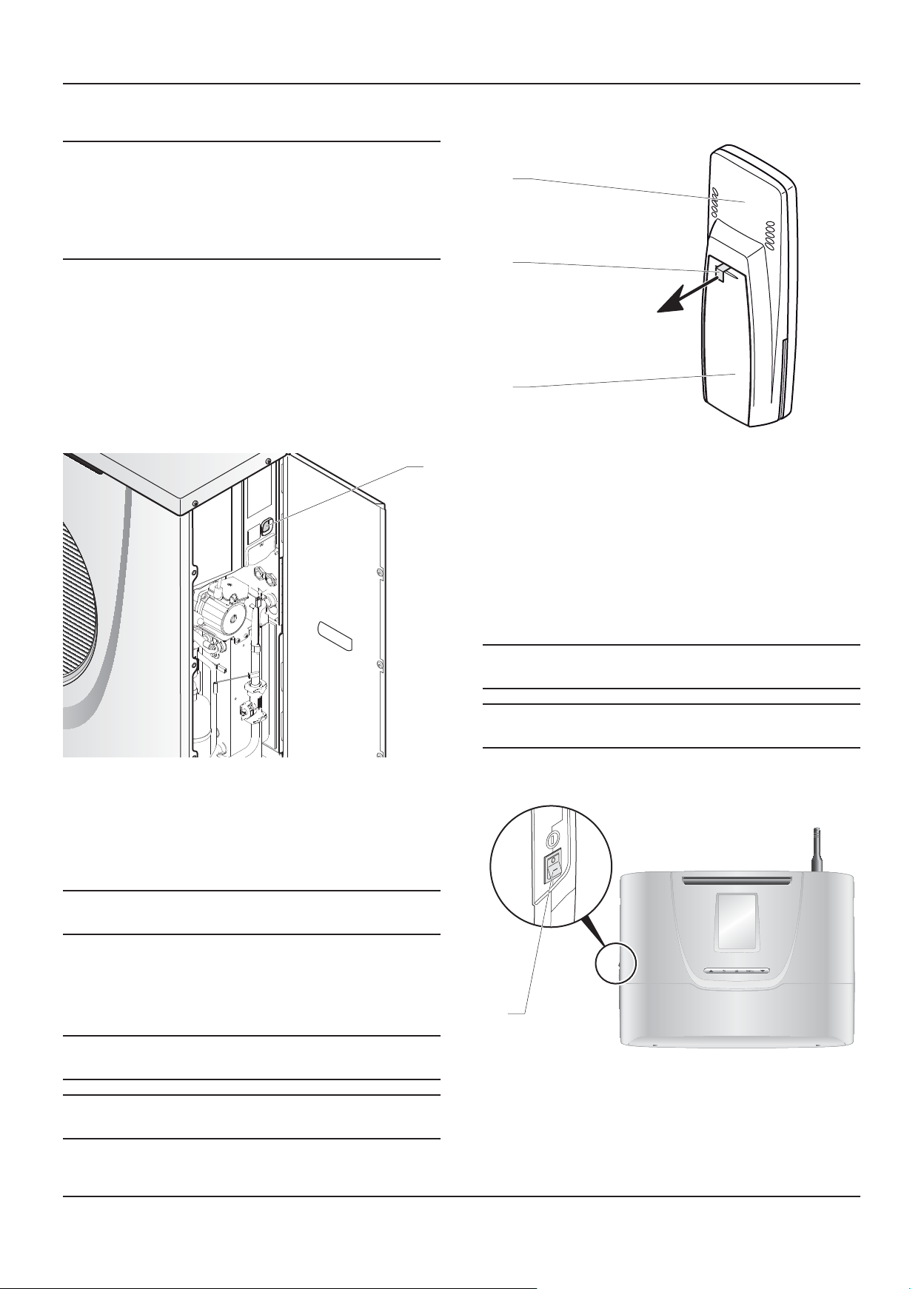

1 Battery cover 2 Protective cover 3 Room thermostat

• Remove the protective cover (2) located in the battery compartment following the order (A) to (C).

Key 1 ON/OFF button

• Switch ON the circuit breaker which is located on the electrical panel and connected to the heat pump.

• Switch ON the heat pump button (1). Check that the green LED located on the heat pump’s motherboard is on.

To locate the LEDs on the PCB, see the "Wiring

diagram" chapter in the heat pump instructions.

10 Activating the boiler

• The main screen of the room thermostat is displayed.

12 Activating the control unit

Ensure that the heat pump and heating circuits

a e

• Switch ON the circuit breaker which is located on the

have been ﬁ lled.

Ensure that all the electrical connections have been made.

electrical panel and connected to the control unit.

• Refer to the boiler instructions in order to adjust the boiler.

Ensure that the maximum heating temperature is

b b

compatible with the installation.

Make sure the boiler pump is not in permanent mode.

- 16 -

Key 1 Switch On (I) / Off (O)

• Turn on the control unit (1) with the switch (2) in position (I).

0020096883_01 - 06/10 - Glow-worm

Page 19

INSTALLATION

When connected for the ﬁ rst time, the installation

menu is displayed.

• Use the buttons to select a language.

• Press the button

• Enter the installer access code 96 with the buttons .

• Press the button

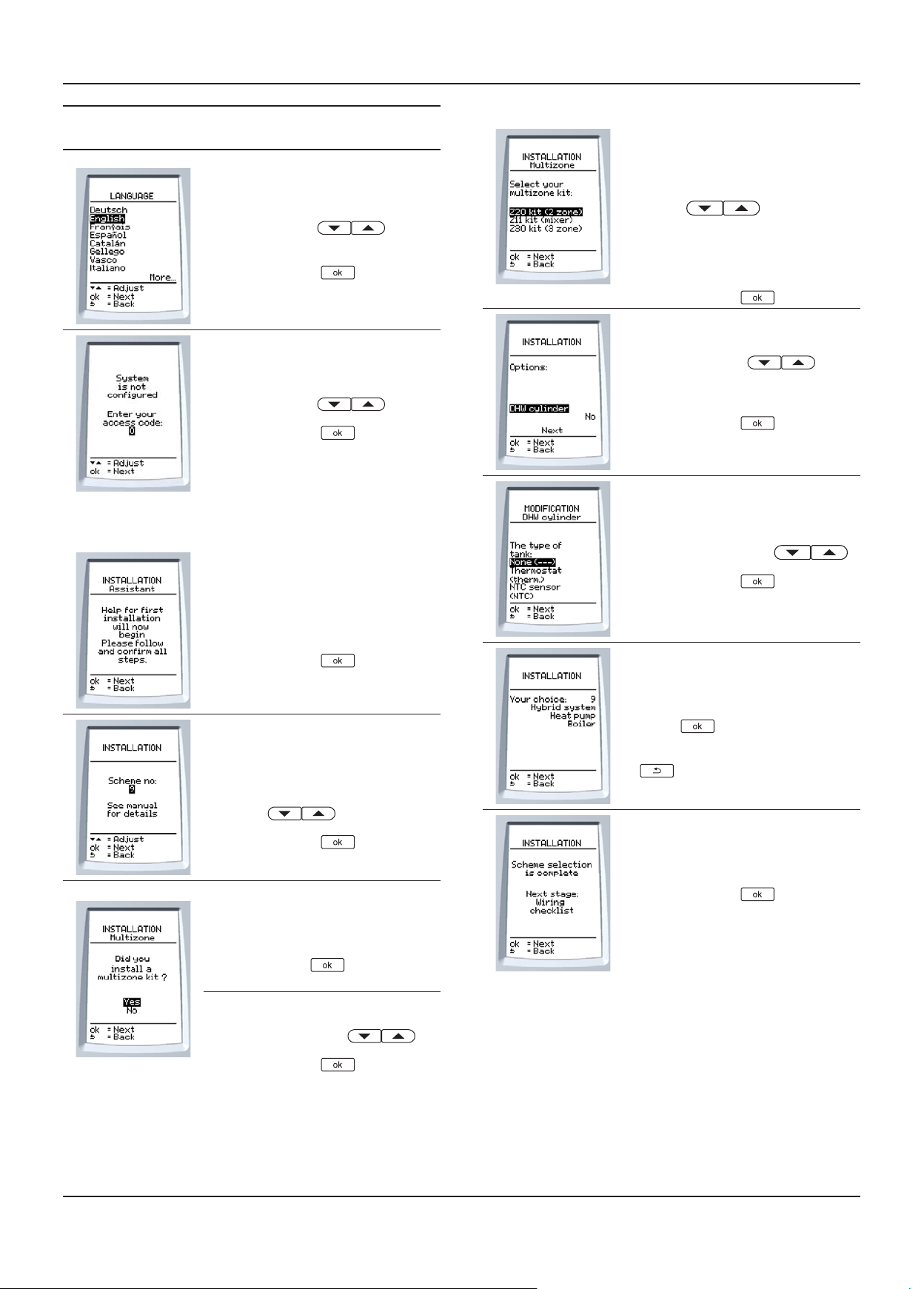

12.1 Conﬁ guring the installation

to conﬁ rm.

This screen is only displayed if you answered “YES” to the previous question.

• Select number of heating zones present on the system using the buttons

- Z20 kit = 2 heating zones

- Z11 kit = not available

- Z30 kit = 3 heating zones

• Press the button

• Using the buttons , select DHW cylinder on the screen, if the option is installed.

• Press the button

• Select the corresponding cylinder type using the buttons

to conﬁ rm.

• Follow and conﬁ rm the steps prompted by the initial installation aid.

• Press the button

Your system corresponds to diagram number "9" in the control unit.

• Choose diagram number "9" with the buttons

• Press the button

Multizone kit' refers to zone valves for more than one heating zone.

• If so, choose "YES".

• Use the button follow the control unit instructions.

• If this is not the case and the installation has only one zone, choose "NO" with the buttons

to conﬁ rm.

to conﬁ rm and

• Press the button to conﬁ rm.

The control unit summarizes your installation.

• If this is correct, conﬁ rm with the button

• If it is not correct, press the button

introduced.

• Press the button .

and change the data you

• Press the button to conﬁ rm.

0020096883_01 - 06/10 - Glow-worm

- 17 -

Page 20

INSTALLATION

12.2 Wiring summary

To check or modify a connection:

• Set the control box switch to the Off (O) position.

• Set the circuit breaker located on the electrical panel and connected to the control box to the Off position.

• Press the button .

Via the screen, you will be asked to verify, step by step, the connections you made to the control unit.

• If the connections are correct, conﬁ rm with the button

• If they are not correct, disconnect the control unit’s power supply and complete the necessary wiring as indicated.

• Once completed, connect on the control unit’s power supply and conﬁ rm with the button

Once the control unit has been reconnected, it returns to the current control function.

12.4 Thermostat(s)

• Using the buttons ,

select Roomstat(s) on the screen.

• Press the button

• Using the buttons , select the area controlled by the room thermostat.

• Press the button

On the room thermostat:

• Press the button

seconds.

• Enter the professional access code (96).

• Via the installer menu > select > RF > pairing.

• Press the room thermostat button

The control unit and the room thermostat display “Connection ﬁ nished " on the respective screen.

If the message "Connection failed" is displayed, press the button repeat the operation.

to conﬁ rm.

for 7

and

• Press the button .

12.3 "Thermostat / sensor" menu

• Using the buttons ,

select Rmstat/sensor on the screen.

• Press the button

- 18 -

to conﬁ rm.

• Repeat these operations for each room thermostat (the zone number is displayed on the thermostat at the end of pairing).

• Press the button

twice.

12.5 Outdoor sensor

• Using the buttons , select Outdoor sensor on the screen.

• Press the button

to conﬁ rm.

0020096883_01 - 06/10 - Glow-worm

Page 21

• Using the buttons ,

select Connection on the screen.

• Press the button

to conﬁ rm.

INSTALLATION

This setting is automatically modiﬁ ed in the installer room thermostat menu.

• Increase or decrease with the buttons desired correction.

to display the

to conﬁ rm.

• Press the button

twice.

12.6 Self check

• Press the button on the outdoor sensor to connect.

The automatic test allows you to check:

- EBUS inputs,

- NTC inputs,

- the RF connection with the room thermostat,

- the outdoor sensor radio connection.

Do not modify the cables when connected to the mains.

The other connections are not tested and should be visually inspected during installation or conﬁ guration modiﬁ cations.

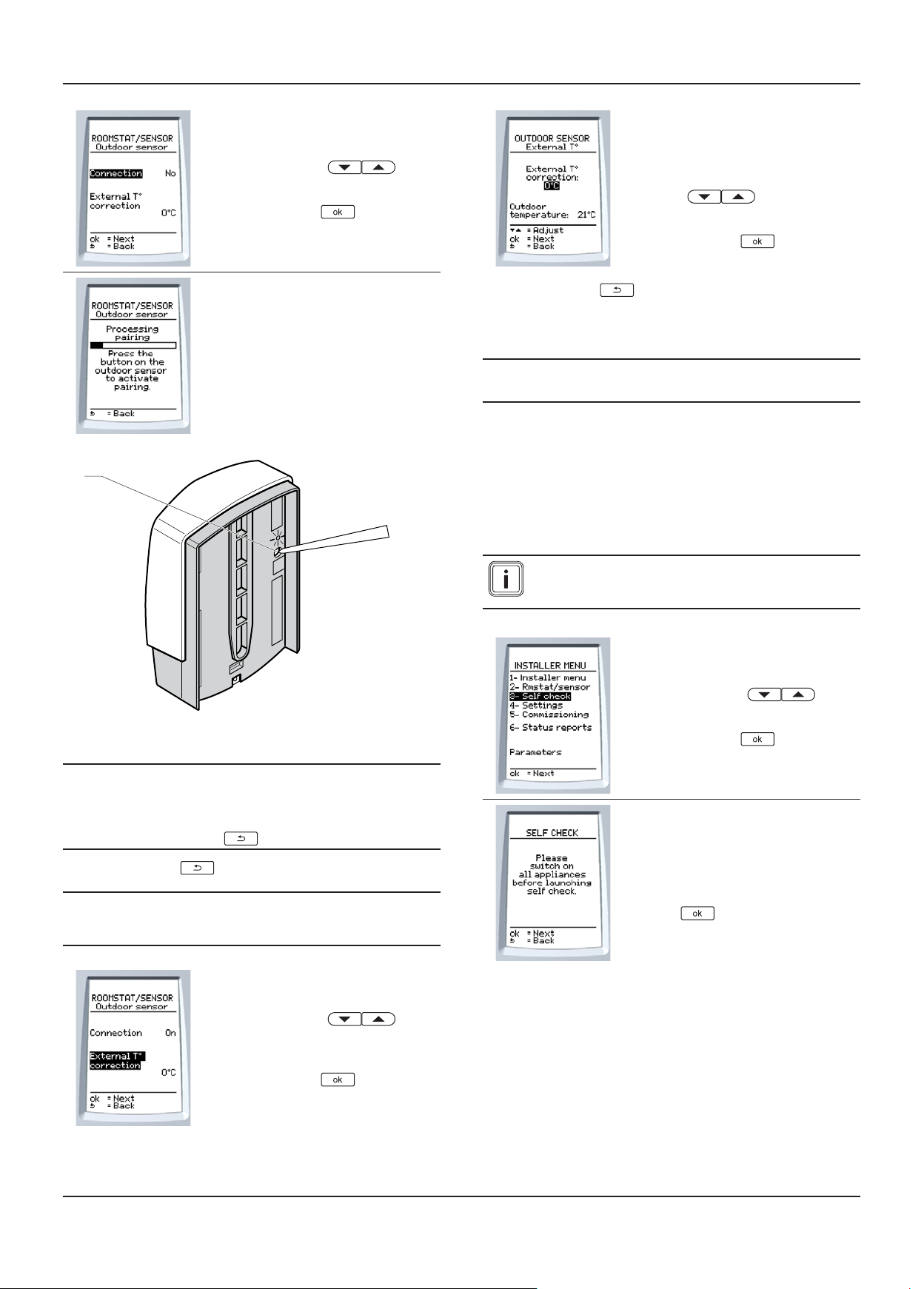

Key 1 Outdoor sensor button

Once the sensor is detected, the message

• Press the button

«Connection completed» is displayed. If unsuccessful, the message "Connection failure" is displayed. Press the button

The External T°C Correction allows you to correct the temperature measured by the outdoor sensor (+/- 5 ° C, at intervals of 1 ° C - factory setting: 0).

• Using the buttons ,

• Press the button

and repeat the operation.

select External T ºC correction on the screen.

to conﬁ rm.

• Using the buttons ,

select Self check on the screen.

• Press the button

• Check that all installation’s components are switched on.

• Conﬁ rm the start of the test with the button

to conﬁ rm.

0020096883_01 - 06/10 - Glow-worm

- 19 -

Page 22

INSTALLATION

The automatic test will start.

The results appear in seconds, indicating the status of each component.

This menu allows you to adjust the installation’s maximum heating output temperature (value adjustable between 30 ° C and 80 ° C - factory setting: 73°C).

• Press the button



- If the connection is correct, the message "OK" appears opposite the component.

- If the connection is not correct, the message "Not OK" appears opposite the component. In this case, check the connections.

12.7 Settings

This menu allows you to adjust different functions in accordance with the connected appliances and to reset all the parameters.

• Using the buttons ,

select Settings on the screen.

• Press the buttony

to conﬁ rm.

• Press the button .

• Increase or decrease with the buttons desired value.

• Press the button

• Press the button .

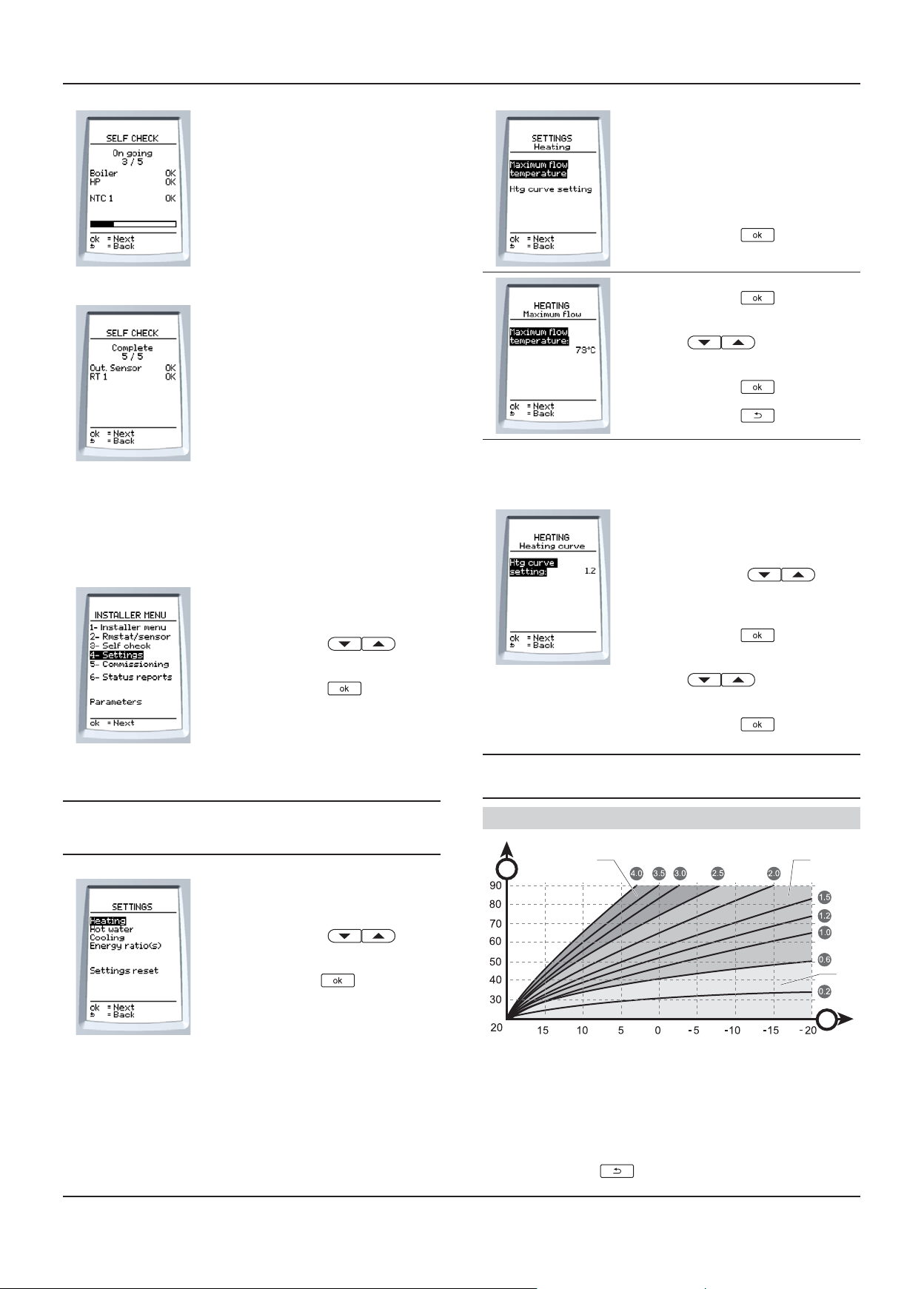

This menu allows you to select the heating curve (value adjustable between 0.2 and 4 - factory setting:

1.2), which allows you to obtain the

maximum heating demand for the usual minimum outdoor temperature for the region in which the sensor is installed.

• Using the buttons select Heating curve adjustment on the screen.

• Press the button

• Increase or decrease with the buttons desired value(s).

to display the

to conﬁ rm.

twice.

to display the

12.7.1 Heating

The maximum heating output temperature must be

adjusted in accordance with the characteristics of your installation.

• Using the buttons ,

select Heating on the screen.

• Press the button

to conﬁ rm.

• Press the button

Ensure that the heating curve setting is

Key 1 Older properties with radiators 2 Standard/modern house with radiators 3 Highly insulated modern house with low temperature radiators

A Heating ﬂ ow temperature (°C) B External temperature

compatible with the installation.

Heating curve

or underﬂ oor heating

1 2

to conﬁ rm.

- 20 -

• Press the button twice.

0020096883_01 - 06/10 - Glow-worm

Page 23

INSTALLATION

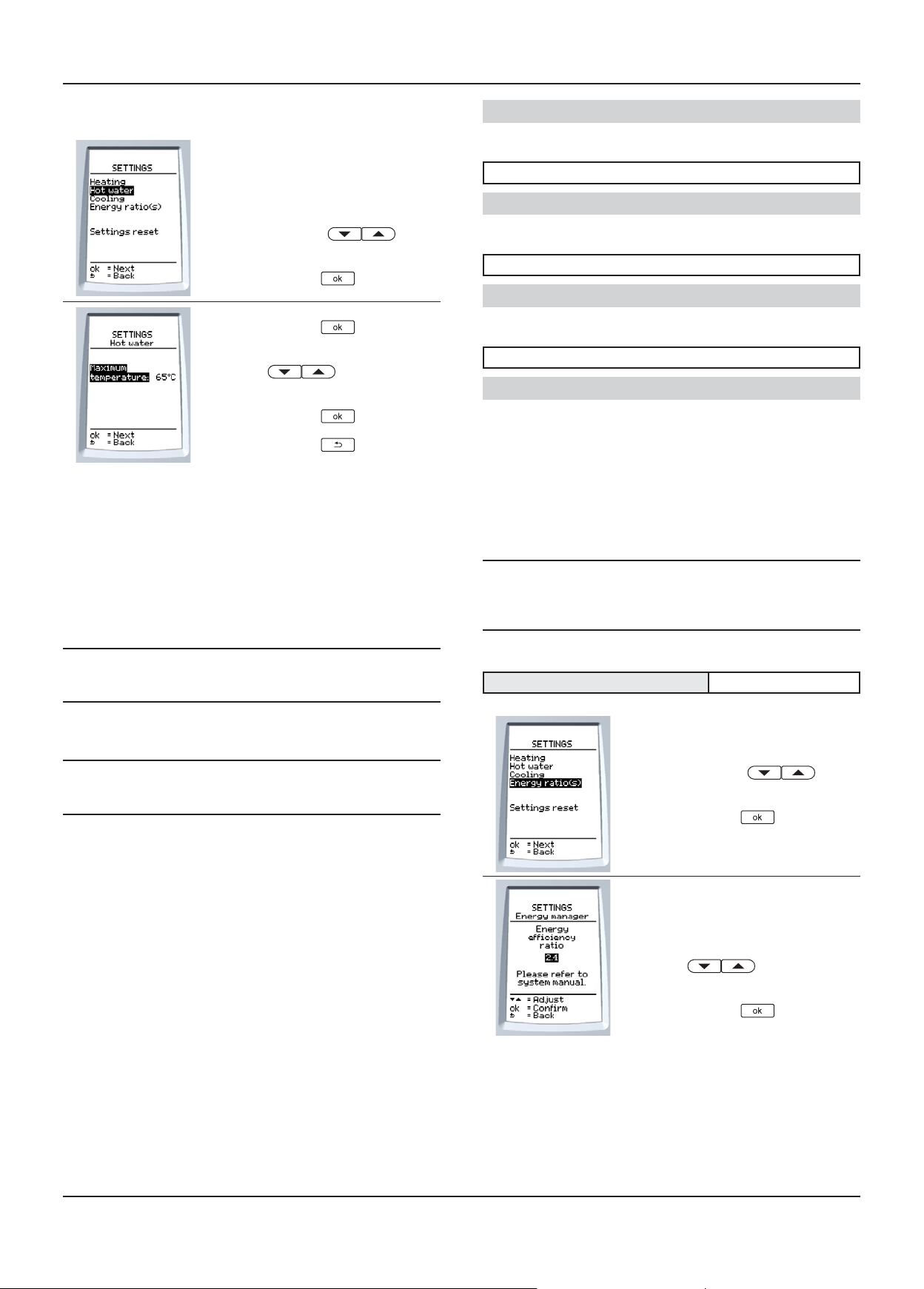

12.7.2 Domestic hot water

This menu allows you to adjust the maximum hot water temperature (value adjustable between 35 °C and 65 °C factory setting: 65°C).

• Using the buttons

select Hot water on the screen.

• Press the button

• Press the button .

• Increase or decrease with the buttons desired value.

• Press the button

12.7.3 Cooling (*)

(*) Function not active for the UK

to conﬁ rm.

to display the

to conﬁ rm.

Consult the electricity bill

• Find and note down the unit price per kWh, excluding VAT.

Unit price per kWh excluding VAT:

Consult the natural gas bill

• Find and note down the unit price per kWh excluding VAT.

Unit price per kWh excluding VAT (customer invoice):

Consult the propane gas bill

• Find and note down the unit price per ton excluding VAT.

Unit price per ton excluding VAT:

Determine the energy efﬁ ciency ratio

• Choose the table corresponding to the type of gas used by your installation.

• Look for the column which corresponds to the price paid for electricity.

• Now, on the same table, ﬁ nd the price band that corresponds to the gas price paid, and where the 2 intersect determines the energy ratio.

12.7.4 Energy management

The energy efﬁ ciency coefﬁ cient determines the switching point between two energies (gas, electricity), in accordance with their respective costs.

The systempro makes a selection in accordance

The adjustment requires certain information that can be easily found in home owners energy bills (electricity and gas).

• Disregard the price of the ﬁ rst energy tier for example, the

• Depending on your installation, obtain:

- the price exc VAT per kWh for electricity and natural gas,

- the price exc VAT per ton of propane gas.

• Enter the information and the values in the tables below.

with the energy efﬁ ciency coefﬁ cient.An incorrect setting will adversely affect the system efﬁ ciency.

Accurate price information is key to the correct operation of the hybrid system. Always use the most recent energy prices from your energy provider.

rate paid for the ﬁ rst energy units used in a given billing period. See example below.

If the values you noted down do not correspond to

• Please note the result (s) in the table below

the values shown in the tables opposite, this means that there is probably an error. Contact the energy providers for conﬁ rmation of prices excluding VAT.

Energy efﬁ ciency coefﬁ cient =

• Using the buttons ,

select Energy ratio(s) on the screen.

• Press the button

In the case of dual tariffs, indicate the 2 energy efﬁ ciency coefﬁ cients.

• Increase or decrease with the buttons desired value.

to conﬁ rm.

to display the

0020096883_01 - 06/10 - Glow-worm

• Press the button

to conﬁ rm.

- 21 -

Page 24

INSTALLATION

NATURAL GAS with electricity

Price (GBP) of electricity per kWh excluding VAT

0,080 to 0,090

0,0200 to 0,0225 4,0 4,5* 5,0* 5,4* 5,9* 6,4* 6,8* 7,3* 7,8* 8,3* 8,7* 9,2*

0,0226 to 0,0250 3,6 4,0 4,4* 4,9* 5,3* 5,7* 6,1* 6,5* 7,0* 7,4* 7,8* 8,2*

0,0251 to 0,0275 3,2 3,6 4,0 4,4* 4,8* 5,2* 5,5* 5,9* 6,3* 6,7* 7,1* 7,4*

0,0276 to 0,0300 3,0 3,3 3,7 4,0 4,4* 4,7* 5,1* 5,4* 5,7* 6,1* 6,4* 6,8*

0,0301 to 0,0325 2,7 3,1 3,4 3,7 4,0 4,3* 4,6* 5,0* 5,3* 5,6* 5,9* 6,2*

0,0326 to 0,0350 2,5 2,8 3,1 3,4 3,7 4,0 4,3* 4,6* 4,9* 5,2* 5,5* 5,8*

0,0351 to 0,0375 2,3 2,6 2,9 3,2 3,5 3,7 4,0 4,3* 4,6* 4,8* 5,1* 5,4*

0,0376 to 0,0400 2,2 2,5 2,7 3,0 3,2 3,5 3,8 4,0 4,3* 4,5* 4,8* 5,0*

0,0401 to 0,0425 2,1 2,3 2,6 2,8 3,0 3,3 3,5 3,8 4,0 4,2* 4,5* 4,7*

0,0426 to 0,0450 1,9 2,2 2,4 2,6 2,9 3,1 3,3 3,6 3,8 4,0 4,2* 4,5*

0,0451 to 0,0475 1,8 2,1 2,3 2,5 2,7 2,9 3,1 3,4 3,6 3,8 4,0 4,2*

0,0476 to 0,0500 1,7 2,0 2,2 2,4 2,6 2,8 3,0 3,2 3,4 3,6 3,8 4,0

0,0501 to 0,0525 1,7 1,9 2,1 2,3 2,4 2,6 2,8 3,0 3,2 3,4 3,6 3,8

0,0526 to 0,0550 1,6 1,8 2,0 2,1 2,3 2,5 2,7 2,9 3,1 3,3 3,4 3,6

0,0551 to 0,0575 1,5 1,7 1,9 2,1 2,2 2,4 2,6 2,8 2,9 3,1 3,3 3,5

0,0576 to 0,0600 1,4 1,6 1,8 2,0 2,1 2,3 2,5 2,6 2,8 3,0 3,2 3,3

0,0601 to 0,0625 1,4 1,6 1,7 1,9 2,0 2,2 2,4 2,5 2,7 2,9 3,0 3,2

price excluding VAT (GBP) of natural gas in kWh

0,0626 to 0,0650 1,3 1,5 1,7 1,8 2,0 2,1 2,3 2,4 2,6 2,8 2,9 3,1

0,0651 to 0,0675 1,3 1,4 1,6 1,7 1,9 2,0 2,2 2,3 2,5 2,6 2,8 2,9

0,0676 to 0,0700 1,2 1,4 1,5 1,7 1,8 2,0 2,1 2,3 2,4 2,6 2,7 2,8

* Not recommended

0,091 to 0,100

0,101 to 0,110

0,111 to 0,120

0,121 to 0,130

0,131 to 0,140

0,141 to 0,150

0,151 to 0,160

0,161 to 0,170

0,171 to 0,180

0,181 to 0,190

0,191 to 0,200

PROPANE GAS with electricity

Price (GBP) of electricity per kWh excluding VAT

0,080 to 0,090

0,0350 to 0,0375 1,5 1,7 1,9 2,1 2,3 2,5 2,6 2,8 3,0 3,2 3,4 3,6

0,0376 to 0,0400 1,4 1,6 1,8 2,0 2,1 2,3 2,5 2,6 2,8 3,0 3,2 3,3

0,0401 to 0,0425 1,4 1,5 1,7 1,8 2,0 2,2 2,3 2,5 2,6 2,8 3,0 3,1

0,0426 to 0,0450 1,3 1,4 1,6 1,7 1,9 2,0 2,2 2,3 2,5 2,6 2,8 2,9

0,0451 to 0,0475 1,2 1,4 1,5 1,6 1,8 1,9 2,1 2,2 2,4 2,5 2,6 2,8

0,0476 to 0,0500 1,1 1,3 1,4 1,6 1,7 1,8 2,0 2,1 2,2 2,4 2,5 2,6

0,0501 to 0,0525 1,1 1,2 1,4 1,5 1,6 1,7 1,9 2,0 2,1 2,3 2,4 2,5

0,0526 to 0,0550 1,0 1,2 1,3 1,4 1,5 1,7 1,8 1,9 2,0 2,2 2,3 2,4

0,0551 to 0,0575 1,0 1,1 1,2 1,4 1,5 1,6 1,7 1,8 1,9 2,1 2,2 2,3

0,0576 to 0,0600 1,0 1,1 1,2 1,3 1,4 1,5 1,6 1,7 1,9 2,0 2,1 2,2

0,0601 to 0,0625 0,9 1,0 1,1 1,2 1,4 1,5 1,6 1,7 1,8 1,9 2,0 2,1

0,0626 to 0,0650 0,9 1,0 1,1 1,2 1,3 1,4 1,5 1,6 1,7 1,8 1,9 2,0

0,0651 to 0,0675 0,8 1,0 1,1 1,1 1,2 1,3 1,4 1,5 1,6 1,7 1,8 1,9

0,0676 to 0,0700 0,8 0,9 1,0 1,1 1,2 1,3 1,4 1,5 1,6 1,7 1,8 1,9

0,0701 to 0,0725 0,8 0,9 1,0 1,1 1,2 1,3 1,3 1,4 1,5 1,6 1,7 1,8

price excluding VAT (GBP) of LPG per litre

0,0726 to 0,0750 0,8 0,9 0,9 1,0 1,1 1,2 1,3 1,4 1,5 1,6 1,7 1,7

0,0751 to 0,0775 0,7 0,8 0,9 1,0 1,1 1,2 1,3 1,3 1,4 1,5 1,6 1,7

0,0776 to 0,0800 0,7 0,8 0,9 1,0 1,1 1,1 1,2 1,3 1,4 1,5 1,6 1,6

0,091 to 0,100

0,101 to 0,110

0,111 to 0,120

0,121 to 0,130

0,131 to 0,140

0,141 to 0,150

0,151 to 0,160

0,161 to 0,170

0,171 to 0,180

0,181 to 0,190

0,191 to 0,200

- 22 -

0020096883_01 - 06/10 - Glow-worm

Page 25

12.7.5 Resetting parameters

This feature allows you to reset the parameters of the control unit (factory setting).

The resetting of factory settings is irreversible.

Any customised conﬁ guration of the control unit will be lost.

• Using the buttons ,

select Settings reset on the screen.

INSTALLATION

The screen shows the pressure measured in the system.

• Activate ﬁ lling mode by pressing the button

• Refer to the boiler instructions for ﬁ lling the boiler.

The screen displays the pressure measured in the system and that installation ﬁ lling is in progress.

• Press the button

• Increase or decrease with the buttons to display the desired value.

• Press the button

to conﬁ rm.

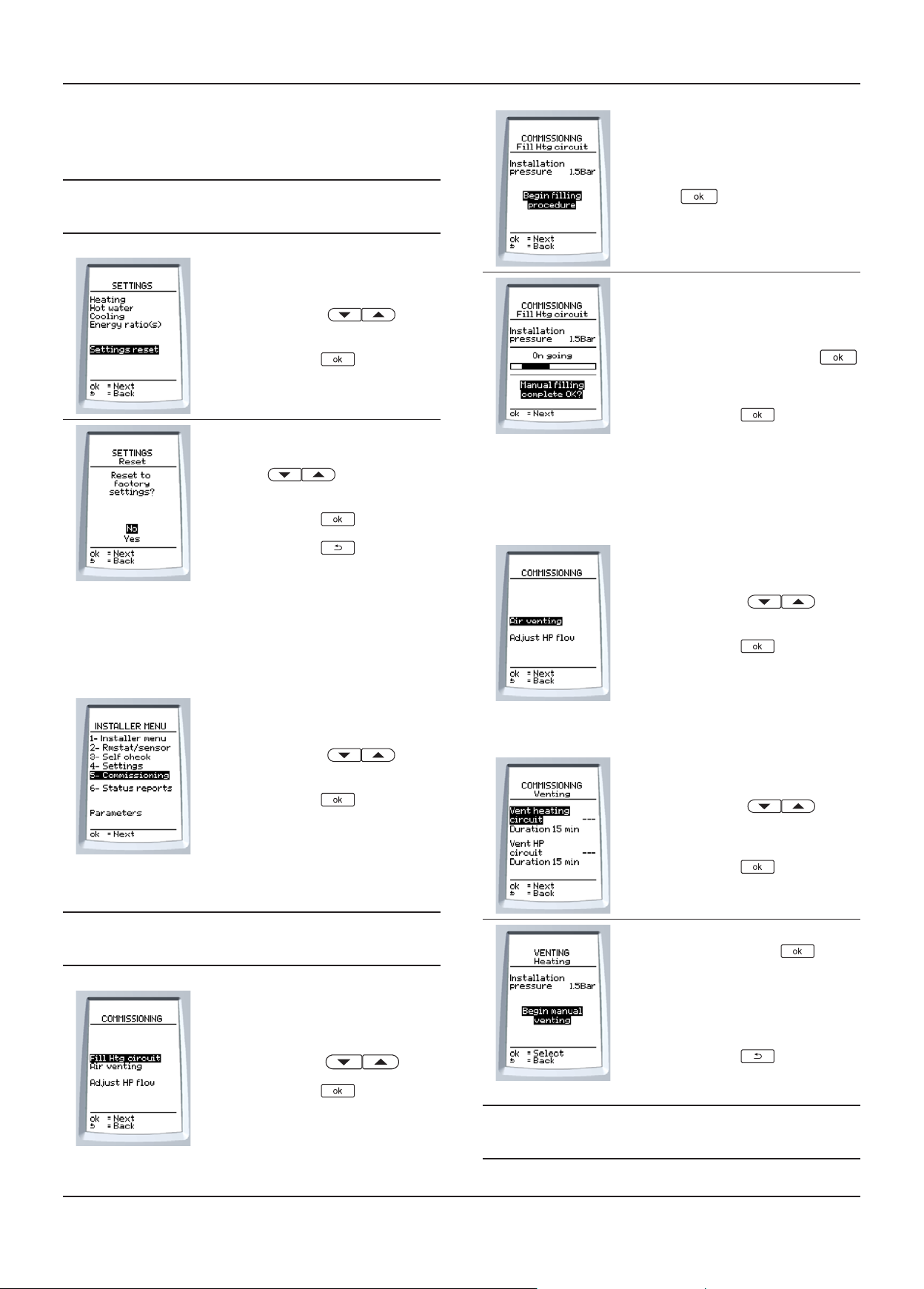

12.8 Commissioning

This menu allows you to carry out the necessary operations on the appliances following installation.

• Using the buttons , select Commissioning on the screen.

• To stop ﬁ lling press the button .

• Close the ﬁ lling loop.

• Press the button

to conﬁ rm.

12.8.2 Venting the heating circuit

Venting of the heating circuit enables the purging of any air in the heating circuit.

• Using the buttons ,

select Air venting on the screen.

• Press the button

• Open the different heating circuit air vent.

to conﬁ rm.

• Press the button

12.8.1 Filling the heating circuit

The Systempro control unit is used to open the

0020096883_01 - 06/10 - Glow-worm

valves of each zone during ﬁ lling, if more than one heating zone is installed.

• Select Fill htg circuit on the screen using the buttons .

• Press the button

to conﬁ rm.

• Using the buttons ,

select Vent heating circuit on the screen.

• Press the button

• Conﬁ rm with the button in

order to begin the venting process.

The venting process is carried out for 15 minutes. You can simultaneously run the venting of the HP circuit.

• Press the button

When venting is complete, close the different heating circuit air vent.

to conﬁ rm.

- 23 -

Page 26

INSTALLATION

12.8.3 Heating circuit adjustment

Key 1 Speed control 2 Speed III (factory setting) 3 Speed II 4 Speed I (not applicable to this system)

12.8.4 Venting the HP circuit

The venting of the HP circuit allows you to purge any air in the HP circuit.

Ø14

• Turn the control (1) to select pump speed II or III, in accordance with the ﬂ ow / pressure curve below.

Hydraulic module pump ﬂ ow / pressure curve

60 50

40 30 20 10

Key 1 Speed 2 2 Speed 3 A Available pressure (kPa) B Flow within the circuit (l/h)

300 600 900 1200

Key 1 Air trap 2 Ø 14 mm ﬂ at wrench (*)

3 Hose 4 Container (*) (*) Not included

• Connect one end of the hose (3) to the trap (1).

• Insert the other end of the hose (3) into the container (4) in order to recover any residual glycol during the venting of the circuit.

• Using the buttons ,

select Vent HP circuit on the screen.

• Press the button

to conﬁ rm.

- 24 -

• Conﬁ rm with the button in order to begin the venting process.

You can start the heating circuit bleed at the same time.

0020096883_01 - 06/10 - Glow-worm

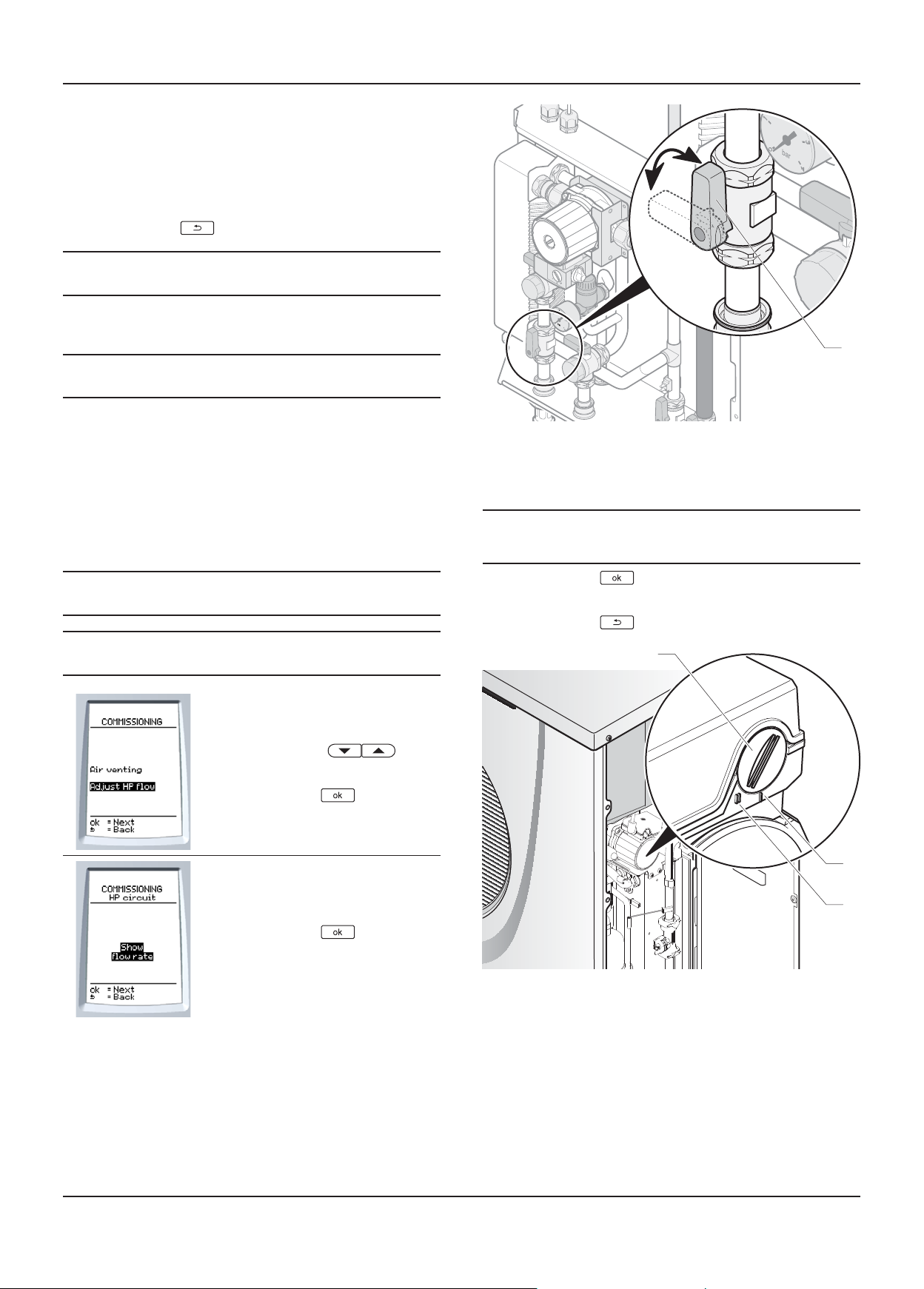

Page 27

• Using a ﬂ at wrench (2), open the trap (1) a ¼ turn in order to remove the air present in the glycol circuit, then close it quickly (in order to avoid emptying the circuit).

The venting process is carried out for 15 minutes.

• Repeat this last operation at the end of the venting procedure.

• Press the button .

The venting may result in a drop in the glycol

• Ensure that the glycol circuit pressure is between 1.5 and

circuit pressure.

2bars. If it not, top up the glycol circuit.

When venting is complete, make sure that the various heating circuit air vent are open.

INSTALLATION

12.8.5 Adjustment of HP circuit ﬂ ow

The heat pump is designed to operate with a minimum ﬂ ow of 750 l / h. If the ﬂ ow is less than 500 l / h, the heat pump will stop and the boiler will begin to function. Heating comfort will always be guaranteed, but energy saving will be compromised.

The heat pump is equipped with a ﬂ ow sensor and it is possible to read the water ﬂ ow directly via the control unit.

i i

The HP circuit ﬂ ow should be between 750 and 850 l / h.

Incorrect venting of the installation may lead to variations in ﬂ ow.

• Using the buttons ,

select HP circuit ﬂ ow on the screen.

• Press the button

to conﬁ rm.

Key 1 Flow control valve

• Use the control valve (1) to adjust the ﬂ ow of the HP circuit to between 750 and 850 l/h.

If you are unable to obtain a ﬂ ow of between 750 and

• Press the button

850l/h using the ﬂ ow control valve (1), change the speed of the hydraulic pump module.

to stop the ﬂ ow reading via the

control unit.

• Using the button , launch the reading of the heat pump circuit ﬂ ow.

0020096883_01 - 06/10 - Glow-worm

Key 1 Speed control 2 Speed I 3 Speed II (not applicable to this system)

- 25 -

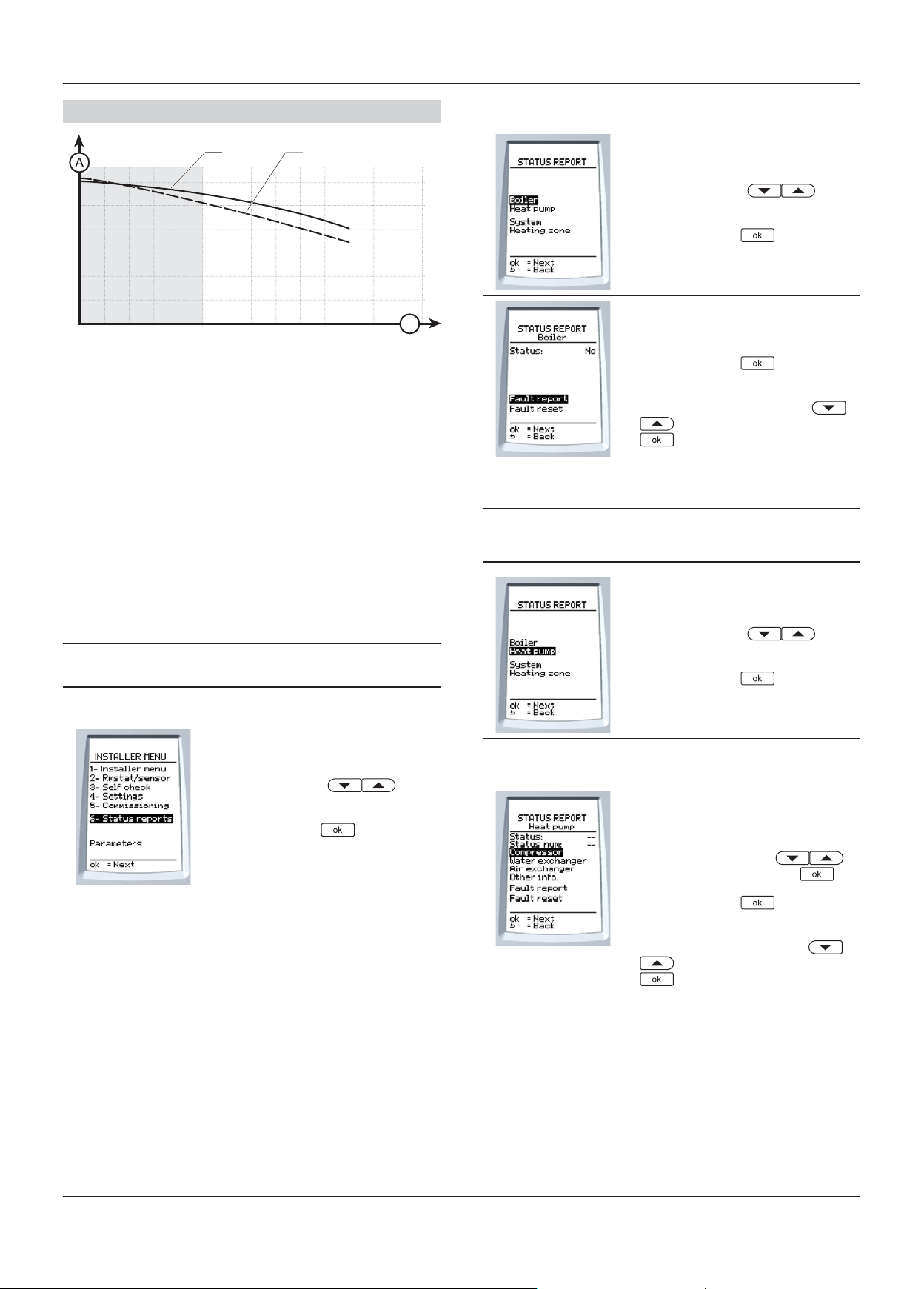

Page 28

INSTALLATION

"Heat pump" ﬂ ow / pressure curve

1 2

60 50

40 30 20 10

Key 1 With water 20°C 2 With glycol solution (mix at 30%) at 20°C A Available pressure (kPa) B Flow within the circuit (l/h)

300 600 900 1200

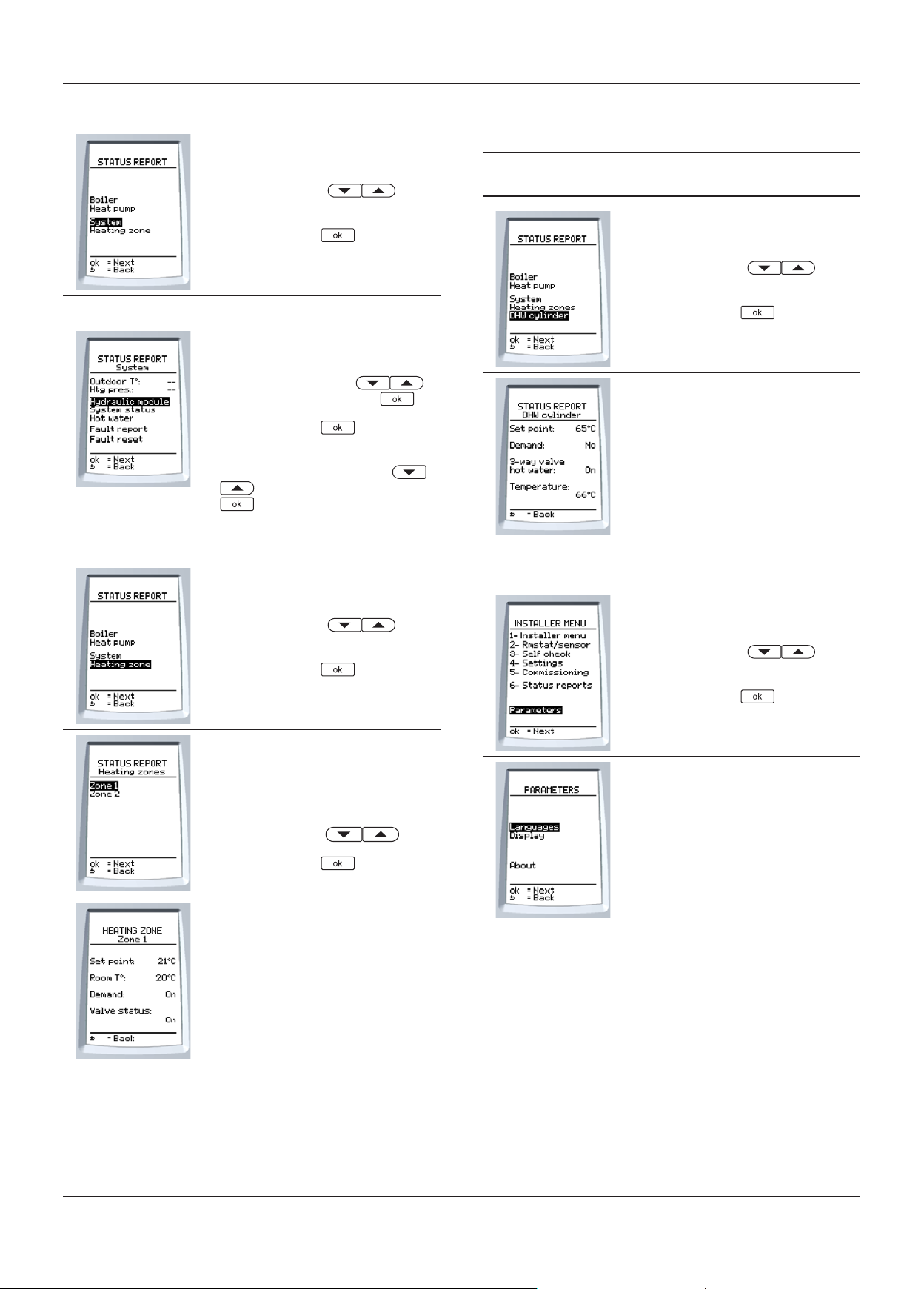

12.9 Status reports

This menu enables real-time access to:

- the status of the appliances responding to a request (ON/ OFF)

- the information available from the appliances (temperature, pressure, ﬂ ow, ...),

12.9.1 Information on the boiler

• Using the buttons ,

select Boiler on the screen.

• Press the button

This screen indicates whether the boiler responds to a request (ON or OFF).

• Press the button fault report.

• To reset the fault report, press

and conﬁ rm with the button .

12.9.2 Information on the heat pump

Refer to "Troubleshooting> Heat pump status" for

a description of the status report displayed on the screen.

to conﬁ rm.

to consult a

- register of last 5 faults recorded for each appliance (failure code and description)

Refer to the "Troubleshooting> fault codes" chapter for

- to reset the report for each appliance.

a description of the fault code displayed on the screen.

• Using the buttons ,

select Status reports on the screen.

• Press the button

to conﬁ rm.

• Using the buttons ,

select Heat pump on the screen.

• Press the button

This screen indicates:

- whether the heat pump responds to a request (ON or OFF)

- the heat pump status report (ON or OFF).

• To access the information relative to the components, press and conﬁ rm with the button .

• Press the button fault report.

• To reset the fault report press

and conﬁ rm with the button .

to conﬁ rm.

to consult a

- 26 -

0020096883_01 - 06/10 - Glow-worm

Page 29

INSTALLATION

12.9.3 System information

• Using the buttons ,

select System on the screen.

• Press the button

This screen indicates:

- the external temperature,

- the heating circuit pressure.

• To access the information relative to the components, press and conﬁ rm with the button

• Press the button to consult the fault report.

• To reset the fault report, press

and conﬁ rm with the button .

to conﬁ rm.

12.9.5 Information about the domestic hot water cylinder option

This menu is only available if you have chosen the

domestic hot water tank option.

• Using the buttons ,

select DHW cylinder on the screen.

• Press the button

This screen indicates:

- The set point of the DHW cylinder.

- whether the DHW cylinder respond to a demand (ON or OFF),

- The status of the domestic hot water tank valve (ON or OFF),

- The temperature of the hot water measured by the tank sensor.

to conﬁ rm.

12.9.4 Information on heating zone

• Using the buttons ,

select Heating zone on the screen.

• Press the button

This screen is only displayed if you have installed more than one heating zone.

• Select the zone you want to consult using the buttons

• Press the button

This screen indicates:

- the heating circuit temperature setting,

- the temperature of the room in which

the room thermostat is located,

- whether the heating zones respond to

a demand (ON or OFF),

- the status of the 2-way valve (ON or

OFF).

to conﬁ rm.

12.10 Options

• Using the buttons ,

select Parameters on the screen.

• Press the button

This menu allows you to:

- change the language of the control unit menus

- adjust the brightness and contrast of the screen

- to display the versions of system’s software.

to conﬁ rm.

0020096883_01 - 06/10 - Glow-worm

- 27 -

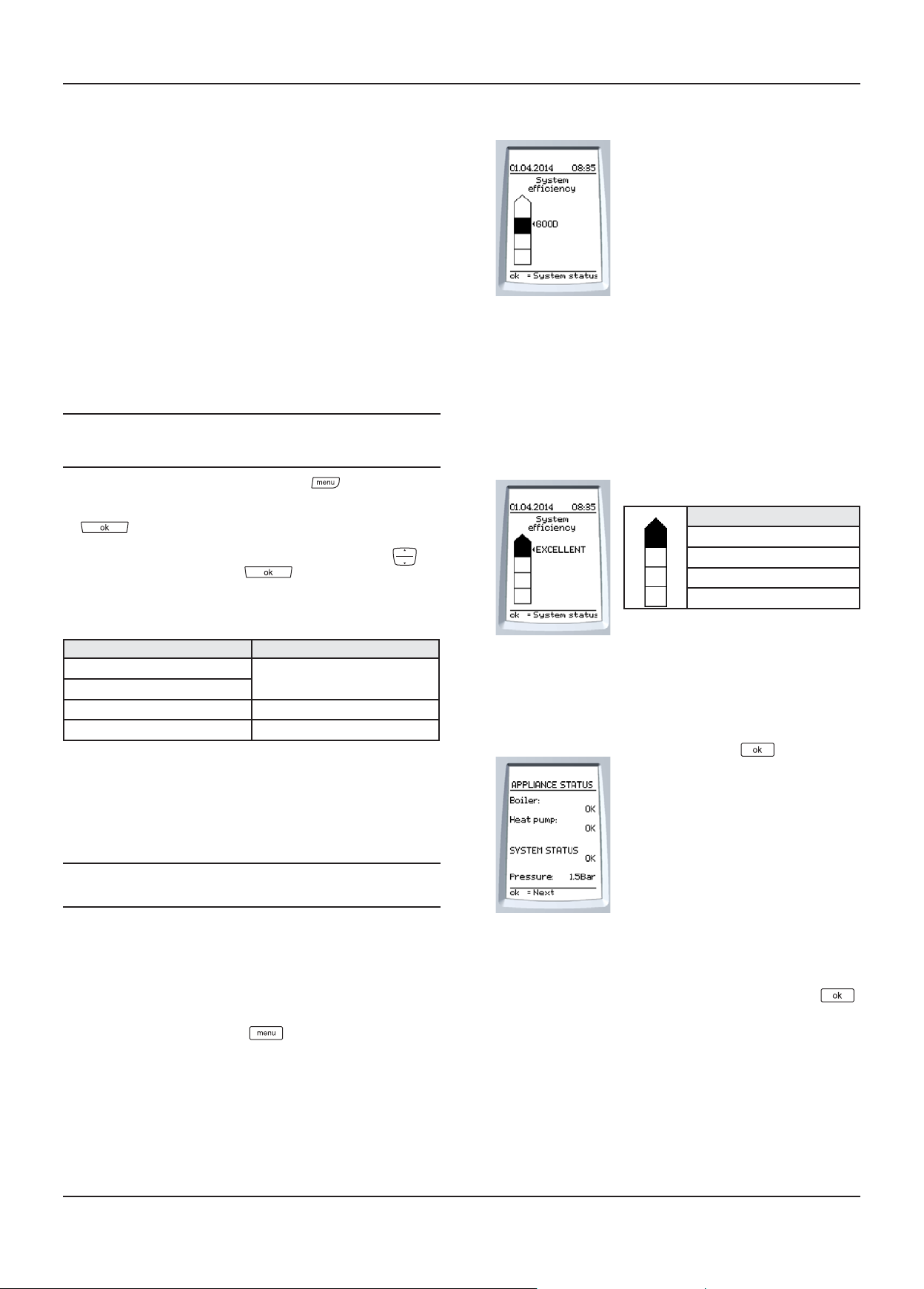

Page 30

INSTALLATION

12.11 Heating system test

• Ensure that there is a heating demand to the control unit. In the case of a multi-zone conﬁ guration, perform the test zone by zone and ensure that the appropriate zone gets warmer.

• Ensure that all the heating circuit’s thermostatic valves are open.

• Balance the heat emitters, if necessary.

12.12 Finishing

12.12.1 Radio signal test

• Put the room thermostats in place and ensure that the quality of their radio signal is optimal.

Wait about ﬁ fteen minutes after commissioning

• Hold down the room thermostat button

• Enter the installer code "96" and conﬁ rm with the button

• Select on the screen > radio > test using the buttons

The room thermostat will show the signal quality for the room thermostat and the outside sensor.

the thermostat(s) and the outdoor sensor before performing the test.

for 7 seconds.

and conﬁ rm with the button .

12.12.3 Description of the main screen

This screen indicates:

- the overall system efﬁ ciency,

- the current date,

- the time.

The date and time settings are conﬁ gured via the room thermostat.

• Consult the room thermostat instructions in order to adjust settings.

12.12.4 System Performance Display

The performance indicator is based on the effectiveness of the appliances during the past 24 hours.

Comment

Excellent

Good

Standard

Signal quality Comments

Excellent

Good

Low Operational limit

None Will not operate

• If the signal quality is none or bad, check that:

- the room thermostat batteries are properly installed in their compartment,

- the polarity of the batteries is not reversed,

- the batteries are not exhausted. If so, replace them with fresh batteries.

If the signal quality does not improve, move the

• Repeat these operations for each room thermostat.

thermostat to limit distances and obstacles.

Normal operation

12.12.2 Reinitialisation of fault log

• Reset the fault reports of all system appliances (see chapter "Activation of control unit > Component Info").

• Press the control unit button to display the main screen.

for more than 3 seconds

12.12.5 Status of appliances and system

The status of each of the installation’s components is checked continuously. The result is displayed automatically every minute.

• Press the button to immediately obtain the status of the installation.

After checking the installation, the control unit displays the result for each component and for the heating system pressure. The result can be:

- OK,

- NOT OK,

- _ _ (component not connected).

If the control unit displays "OK" for all appliances, no particular action is required.

• If the control unit indicates <FAULT>, press the button

• If the control unit shows "_ _", check that the appliances are switched on and connected to the control unit.

• Follow the indications on the control unit screen and consult the "Troubleshooting" chapter for the corresponding failure code.

- 28 -

0020096883_01 - 06/10 - Glow-worm

Page 31

MAINTENANCE

13 Re-check and restart

• Once the system is installed, check the operation of each appliance.

• Start the system to ensure that any adjustments operate correctly and check that the appliances operate safely.

• Reset the fault reports for all appliances. To do this, see chapter "Activation > Components Info”.

• Check the water-tightness of the appliances and eliminate any leaks.

• Check the entire control and safety system, settings and operation.

• Start the "Self check" procedure to test the system connections (refer to the chapter “Commissioning the control unit > Self check”).

14 User information

At the end of the installation, the installer must:

- explain the operation of the appliances and its safety devices to the user, if necessary provide a demonstration and answer any questions;

MAINTENANCE

15 Trouble-shooting

15.1 Fault diagnosis

The following checks should be performed before proceeding onto speciﬁ c diagnostics:

- Make sure that the electricity supply has not been interrupted and that the appliance is connected correctly.

- Ensure that the isolating valves are open.

- Check that all external controls are connected correctly.

15.2 Fault codes

The faults described in this chapter should be

carried out by a qualiﬁ ed engineer and if needed by the After Sales Service.

- hand over to the user all the required documentation,

- ﬁ ll in the documents where necessary;

- advise the user of the precautions necessary to prevent damage to the system, appliances and the building;

- remind the user to service the appliances annually.

- The user shall not interfere with or adjust sealed components.

- Any servicing must be carried out by a competent person approved at the time by the Health and Safety Executive.

0020096883_01 - 06/10 - Glow-worm

- 29 -

Page 32

MAINTENANCE

15.2.1 System fault codes

Fault

codes

Description Cause Solution

Failure in Ebus communication between with the

001

boiler

Failure in Ebus communication between with the

002

heat pump

Failure in Ebus communication between with the

003

hydraulic module

Heating circuit ﬂ ow temperature sensor failure

010

(open circuit)

Heating circuit ﬂ ow temperature sensor failure

011

(short circuit)

Heating circuit ﬂ ow temperature sensor failure low

012

temperature (open circuit)

Heating circuit ﬂ ow temperature sensor failure low

013

temperature (short circuit)

Domestic water tank temperature sensor failure

014

(open circuit)

Domestic water tank temperature sensor failure

015

(short circuit)

021 Pressure too low <0.5 bar

Failure in communication with the zone 1 wireless

030

room thermostat.

Failure in communication with the zone 2 wireless

031

room thermostat.

Failure in communication with the zone 3 wireless

032

room thermostat.

Failure in communication with the zone 4 wireless

033

room thermostat.

Failure in communication with the zone 5 wireless

034

room thermostat.

Failure in communication with the zone 6 wireless

035

room thermostat.

Failure in communication with the wireless

036

outdoor sensor

The boiler is not connected to the control unit. The cable polarity is reversed. The boiler is off.

The heat pump is not connected to the control unit. The heat pump is off.

The hydraulic module is not connected to the control unit. The hydraulic module is off.

The sensor is defective or not properly connected to the control unit management or hydraulic module.

The sensor is shorted.

The sensor is defective or not properly connected to the control unit.

The sensor is shorted.

The sensor is defective or not properly connected to the control unit.

The sensor is shorted.

There is a leak in the heating circuit.The venting was not carried out correctly.

The room thermostat is too far from the control unit. There is a problem with the batteries in room thermostat.

The wireless outdoor sensor is too far from the control unit.

Check that the boiler is connected to the control unit. Check the connection’s + / - polarity. Ensure that there is no interruption to the electricity network and that the boiler is properly connected and turned on.

Make sure the heat pump is connected to the control unit. Ensure that there is no interruption to the electricity network and that the heat pump is properly connected and turned on.

Make sure that the hydraulic module is connected to the control unit. Ensure that there is no interruption to the electricity network and that the hydraulic module is properly connected and turned on.

Check the sensor’s connections. Verify that the position and the operation of the sensor are correct. Check the sensor’s resistance.

Check that there are no leaks. Drain the heating circuit. Remove air. Fill the installation.

Check the RF signal quality via the Climapro2 RF installer menu. Check the location of the thermostat. Check that the thermostat’s batteries are installed in their compartment. Make sure the battery polarity is not reversed. Make sure the batteries are not dead. If so, replace them with new batteries

Check the location of the outdoor sensor. Check that the sensor’s power supply is correctly provided by a photovoltaic cell.

15.2.2 Boiler fault codes

• Consult the boiler installation manual for information about the fault codes.

15.2.3 Heat pump fault codes

• Consult the heat pump installation manual for information about the fault codes.

- 30 -

15.3 Status

15.3.1 Boiler status

• Consult the boiler installation manual for information about the status codes.

15.3.2 Heat pump status

• Consult the heat pump installation manual for information about the status codes.

0020096883_01 - 06/10 - Glow-worm

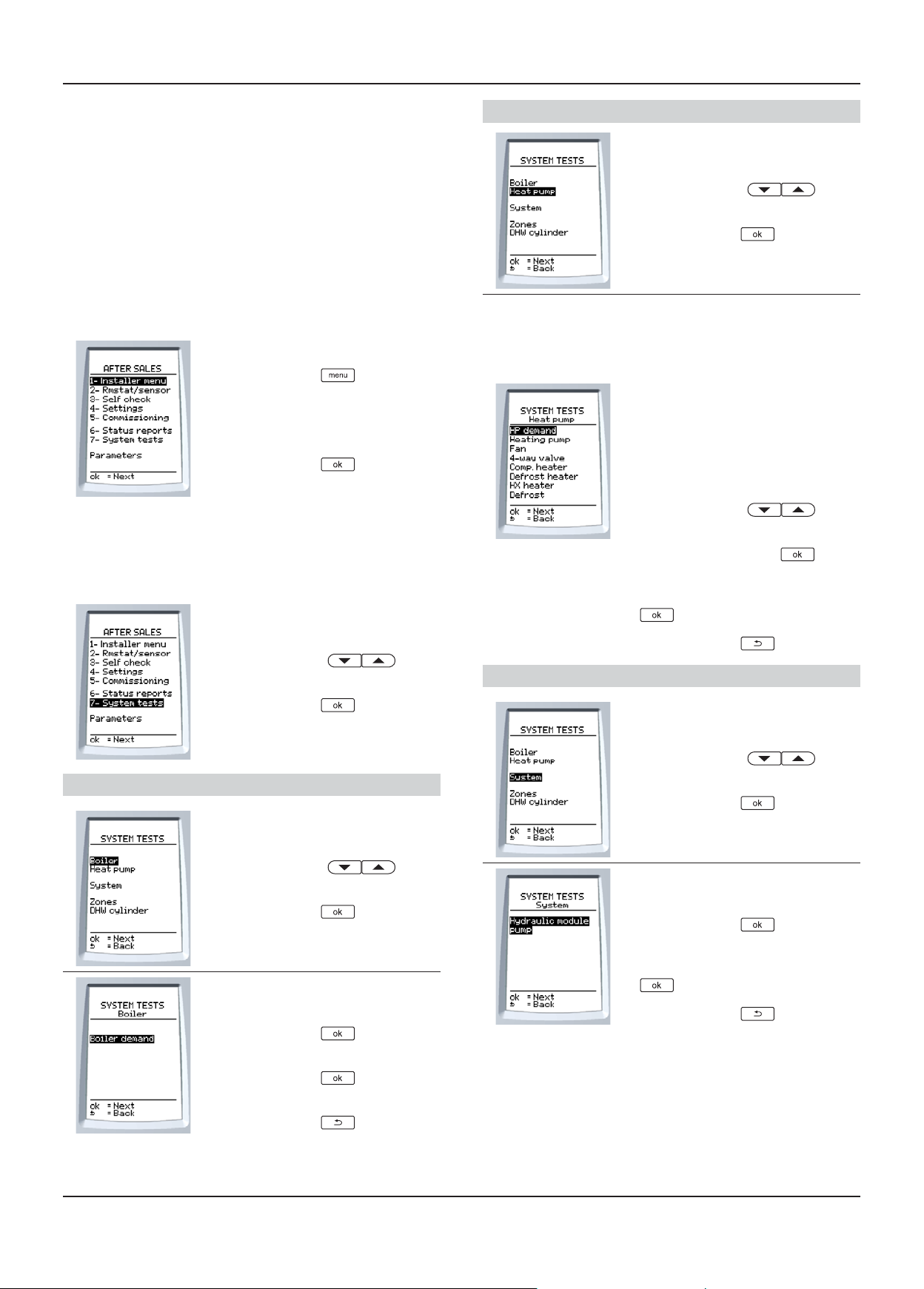

Page 33

MAINTENANCE

16 Servicing

16.1 Annual Maintenance

• Consult each of the system component’s instructions for more information about the corresponding maintenance operations.

16.2 Control unit maintenance menu

The maintenance menu includes the installation menu function, plus 2 additional functions.

• Press the button for 7 seconds.

• Enter the installer maintenance access code (35).

• Press the button

16.2.1 Test menu

This menu allows you to test the operation of all appliances and the system (boiler, HP, zone valves,) present in the installation.

to conﬁ rm.

Heat pump test

• Using the buttons ,

select Heat pump on the screen.

• Press the button

This menu allows you to:

- issue a heating demand to the heat pump,

- activate the pump

- activate the fan

- activate the 4-way valve

- activate the crankcase heater

- activate the electrical resistance heater

- activate the heat exchanger’s resistance heater

- activate the defrosting

• Using the buttons your selection on the screen.

• Conﬁ rm with the button the test.

• To stop the test, press the button

to conﬁ rm.

, make

to start

• Using the buttons ,

select System tests on the screen.

• Press the button

Boiler test

• Using the buttons ,

select Boiler on the screen.

• Press the button to conﬁ rm.

This menu allows you to issue a heating demand to the boiler.

• Press the button the heating demand.

to conﬁ rm.

to activate

• Press the button

System test

• Using the buttons ,

select System on the screen.

• Press the button

This menu allows to activate the hydraulic module pump.

• Press the button the test.

• To disable the test, press the button

• Press the button

to conﬁ rm.

to activate

• Press the button heating demand.

• Press the button

0020096883_01 - 06/10 - Glow-worm

to disable the

- 31 -

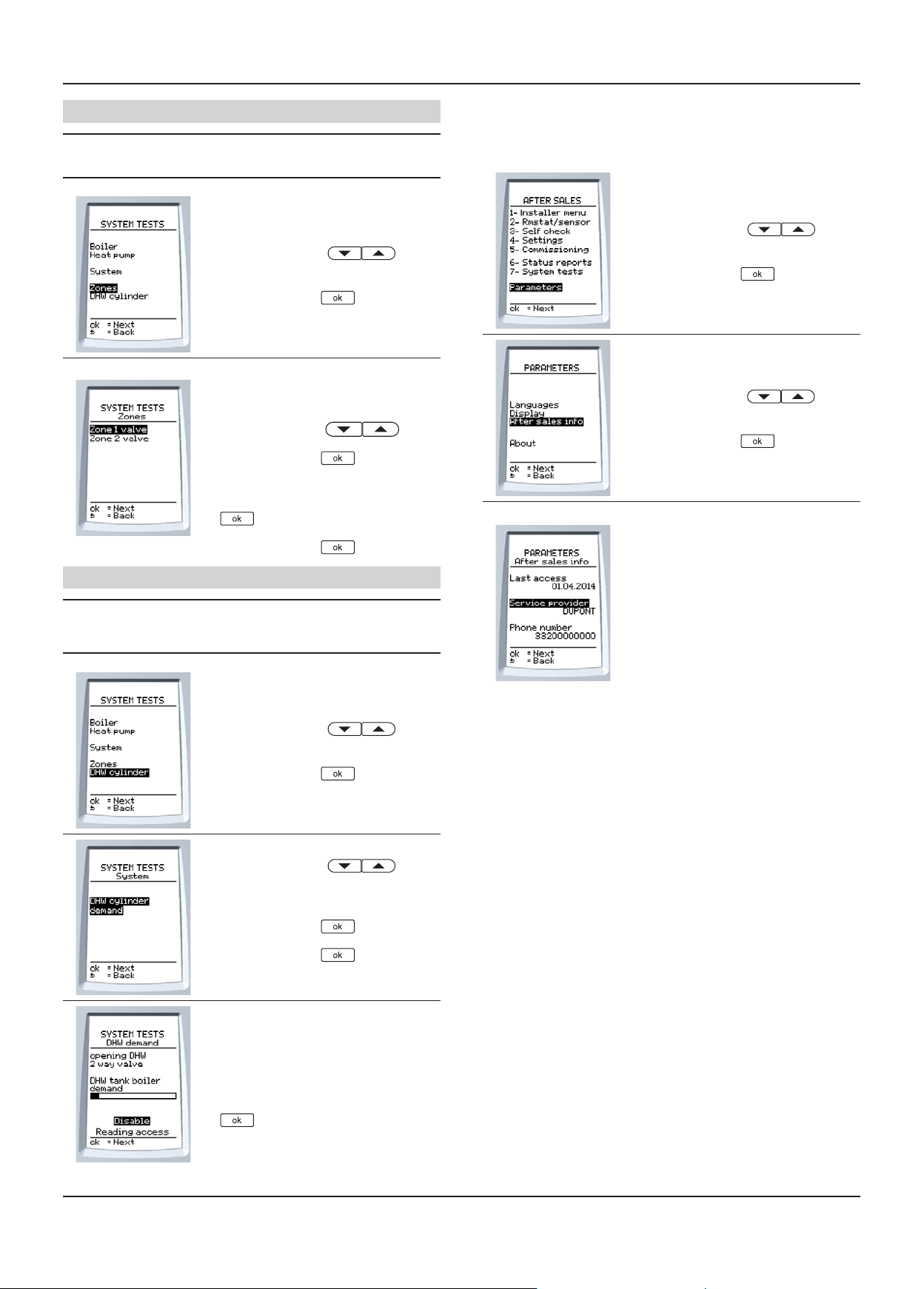

Page 34

MAINTENANCE

Heating zones test

The heating zones can only be tested if you have installed multiple zone valves.

• Using the buttons , select Zones on the screen.

• Press the button to conﬁ rm.

This menu is used to activate the 2 port valve for each zone.

• Select the zone you want to test using the buttons

• Press the button the test.

• To disable the test, press the button

• Press the button

DHW cylinder test

to activate

to conﬁ rm.

16.2.2 Aftersales information

This menu provides access to Aftersales Service information.

• Using the buttons ,

select Parameters on the screen.

• Press the button

• Using the buttons , select

After sales info on the screen.

• Press the button

You can view or edit the following information:

- date of last access to installer menus,

to conﬁ rm.

The domestic hot water cylinder test is only possible if you have selected the domestic hot water cylinder option.

• Using the buttons ,

select DHW cylinder on the screen.

• Press the button

• Using the buttons ,

select DHW cylinder demand on the screen.

• Press the button

• Press the button the test.

to conﬁ rm.

to activate

- the name of the company which provides the after sales service if entered,

- the telephone number of the company which provides the after sales service if entered.

- 32 -

The domestic hot water cylinder 2-way valve opens and the heat pump heats the domestic hot water cylinder circuit.

• To disable the test, press the button .

0020096883_01 - 06/10 - Glow-worm

Page 35

Page 36

Because of our constant endeavour for improvement, details may vary slightly from those shown in these instructions.

Glow-worm, Nottingham Road, Belper, Derbyshire. DE56 1JT

0020096883_01 - 06/10
