The energy you need
Instructions for
Installation
Climapro
Climapro1 RF
1
TABLE OF CONTENTS
INTRODUCTION
1 Product documentation ....................................................................................... 3
2 CE Mark .............................................................................................................. 3
INSTALLER
3 Climapro
installation .......................................................................................... 3
1
3.1 List of contents ........................................................................................... 3
3.2 Fixing ........................................................................................................ 3
4 Electrical connections ......................................................................................... 4
4.1 Wired room thermostat ............................................................................... 5
4.2 Wireless room thermostat ........................................................................... 5
5 Commissioning .................................................................................................. 5
INSTALLER MENU
6 Accessing the installer menu ............................................................................... 6
7 Returning to the user menu .................................................................................. 6
8 Installer menu .................................................................................................... 6
8.1 New functions ............................................................................................ 6
8.2 Tree diagram .............................................................................................. 7
8.3 Summary of menus and functions available .................................................. 8
8.4 Compatibility of the room thermostat ........................................................... 8
MAINTENANCE
9 Trouble-shooting................................................................................................. 9
9.1 Fault diagnosis ........................................................................................... 9
9.2 Resetting the room thermostat ...................................................................10
TECHNICAL DATA
10 Climapro
..........................................................................................................11
1
11 Climapro1 RF ......................................................................................................11
EN
- 2 -
INTRODUCTION
INTRODUCTION
1 Product documentation
The instructions are an integral part of the
Climapro
completion of the installation in order to comply
with the current regulation.
RF and must be handed to the user on
1
• Carefully read the manual, to enable safe
installation, use and servicing. No liability
can be accepted in the event of damage
for not complying with the guidance in this
instruction manual.
2 CE Mark
The CE mark indicates that the units described in
this manual are in compliance with the following
directives:
- European Directive Num. 2004-108 of
the European Parliament and the Council
regarding electromagnetic compatibility
- European Directive Num. 2006-95 of the
European Parliament and the Council
regarding low voltage
- Directive regarding telecommunications
equipment ( Directive R & TTE 99/5/ EEC of
the Council of the European Community)

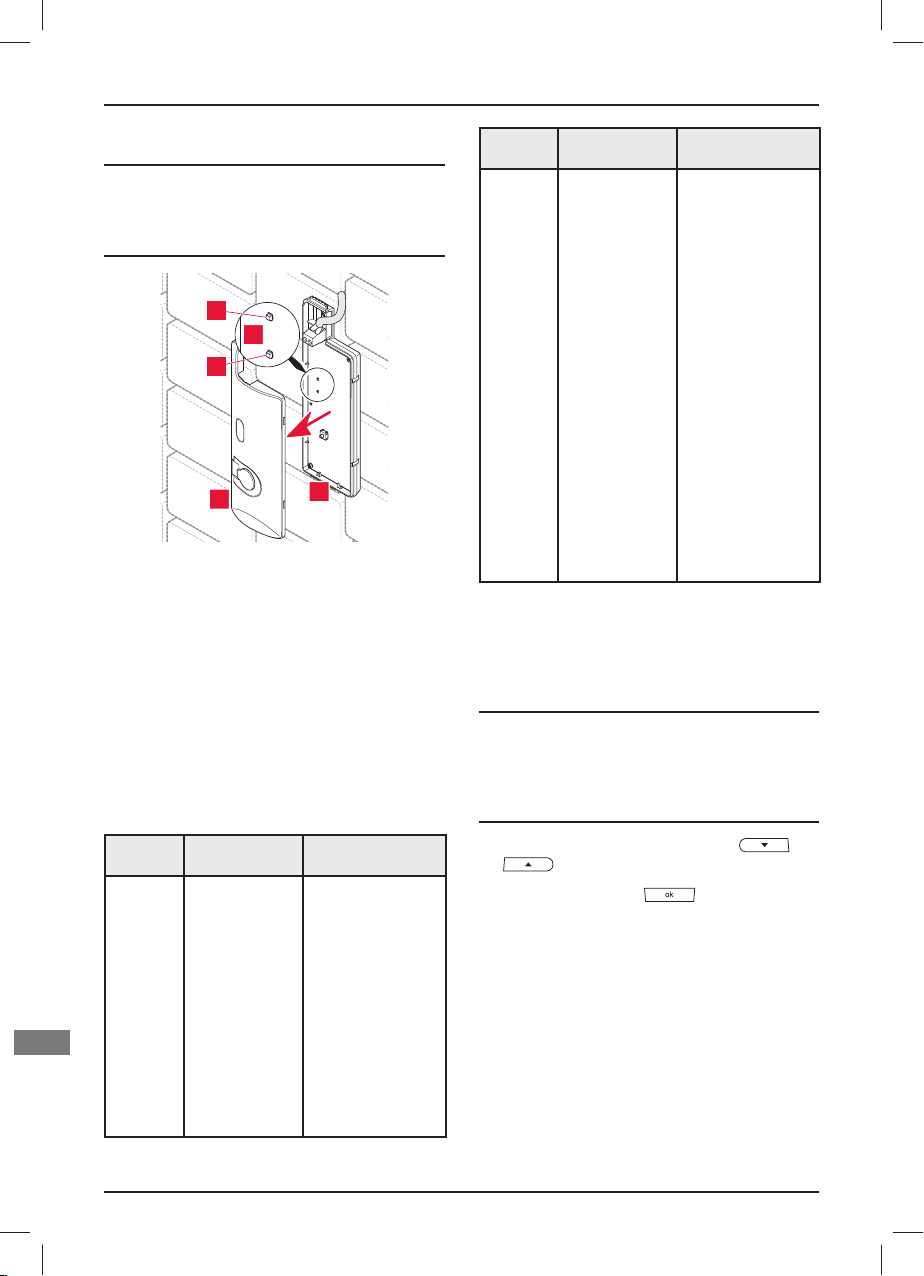

3.2 Fixing
3.2.1 Wired room thermostat
3.2.2 Wireless room thermostat
3.2.3 Radio receiver
radio receiver on control box unit
INSTALLER
3 Climapro
3.1 List of contents
Climapro1 programmable room thermostat (x1)
Wall support for the Climapro1 (*) (x1)
Radio receiver (x1)
AA LR6 "alkaline batteries" (*) (x4)
(*) delivered with the wireless version
0020140263_00 - 11/11 - Glow-worm
installation
1
2
2
Key
1 Control box unit
2 Radio receiver
1
• Slide the radio receiver into the notches.
IMPORTANT:
i
It is easier to pass the EBUS cable if the
pre-cut part is removed.
EN
- 3 -
INSTALLER
A
B
1
Key
1 Pre-cut part of the electrical box
radio receiver in the control box unit
B
A
2
2
radio receiver outside appliance
3
2
Key
1 Radio receiver
2 Fixing screw
3 Drilling
1
4 Electrical connections
DANGER:
e
1
b
Incorrect installation can cause electric
shock or damage to the equipment.
The electrical connection must be
made only by a qualifi ed engineer.
ATTENTION:
Do not connect the room thermostat to
a 230V terminal.
230 V
RT
FPLN
EN
Key
1 Control box unit
2 Radio receiver
IMPORTANT:
i
The receiver should be installed
outside the appliance if the appliance
control box does not have a location for
the radio receiver.
- 4 -
230
V
IMPORTANT:
i
Do not remove the link (RT 24V) from
the room thermostat connection on the
boiler main pcb.
• Use a connecting cable that complies with the
technical specifi cations (refer to the technical
data chapter).
IMPORTANT:
i
The location of the EBUS terminal block
varies according to the heating system.
It is always identifi ed by having «BUS»
written on it.
0020140263_00 - 11/11 - Glow-worm
INSTALLER
4.1 Wired room thermostat
connected to a boiler
A
BUS
24 V
BUS
RT 24V T° ext
230
V
B1 B2
B
24 V
RT AQ
BUS
Key
A connection on the room thermostat:
B connection to the EBUS 24V terminal on the boiler
(examples B1 & B2)
connected to Smart Wiring Centre 2
A
4.2 Wireless room thermostat
connected to a boiler
A
BUS
24 V
BUS
RT 24V T° ex t
2
3
0
V
B1 B2
B
24 V
RT AQ
BUS
Key
A connection on the radio receiver:
B connection to the EBUS 24V terminal on the boiler
(examples B1 & B2)
connected to Systempro
The radio receiver function is integrated into
the Systempro. There is no electrical connection
to be made in an installation including a
Systempro.
B
EBUS
12
-+
Key
A connection on the room thermostat:
B connection to the EBUS 24V terminal on the
control box
0020140263_00 - 11/11 - Glow-worm
5 Commissioning
Switch on the appliances that make up the
•
installation (see the installation manuals).
• If using the Climapro
tab in the room thermostat battery compartment.
RF, remove the insulating
1
• Follow the instructions given by the
installation assistant.
• Make the adjustments and select the necessary
options depending on the installation.
• Finalise the installation in the installer menu.
• Check that these main settings are
compatible with the installation.
• Check the installation by issuing a heating
demand.
- 5 -
EN
INSTALLER MENU
INSTALLER MENU
6 Accessing the installer menu
The installation menu is still accessible after
commissioning.
• Press the button for 7 seconds .
• Enter the installer access code (96).
7 Returning to the user menu
Press the button for 3 seconds to
•
return to the main user screen.
8 Installer menu
The installer menu customises itself depending
on the appliance it is connected to and the
connection method.
8.1 New functions
Automatic heating curve
(if an outdoor sensor is connected)
The automatic heating curve function continually
seeks the most suitable value to ensure your
comfort and the effi ciency of your heating
system. The optimum value is obtained
approximately 24 hours after the system is
started. It is recommended that you activate
this function. If the function is deactivated,
the heating curve can be set manually by the
installer.
Thermostat function
(if an outside sensor is connected)
Anticipation
The heating system anticipates the fi rst
programmed setting change in the morning.
This function allows it to reach the programmed
temperature rapidly (the function is available and
independent for each zone).
Performance index
The performance indicator is calculated from the
effi ciency of all appliances over the last 24 hours.
The cursor moves along a scale graduated.
Service reminder
This function reminds the end user to service the
appliance. The user must plan the maintenance
of their system.
The date must be entered into the installer menu
during installation and after each maintenance.
The icon «
thermostat screen 30 days before the date
entered into the installer menu.
» is displayed on the room
The heating system alters the water temperature
in the heating circuit depending on:
the ambient temperature,
the outside temperature.
If this function is deactivated, the heating
system no longer takes into account the ambient
temperature. The heating system uses just the
EN
outside temperature.
- 6 -
0020140263_00 - 11/11 - Glow-worm
8.2 Tree diagram
INSTALLER MENU
Heating
Hot water
Cooling
Option
Radio *
INSTALLER
MENU
FUNCTIONS
AVAILABLE
Outdoor sensor
Modulating control
Room T° function
Anticipation
Maximum room T°
Room T° correction
Activate/deactivate the
function
Maximum T°
Activate/deactivate the
programme
Recirculation (**)
Activate/deactivate the
function
Activate/deactivate the
programme
Effi ciency info
Auto time
date/time
Language
Phone
Service indicator
About
Connexion
Radio test
automatic heating curve management
correct the measured outdoor temperature
manually set the heating curve
Main settings
Heating
Maximum room T° 30°C
Room T° correction 0°C
Modulating control on
Room T° function on
Anticipation off
Domestic hot water
On/Off on
Program off
Maximum T° 60°C
Recirculation (**) off
Cooling
On/Off off
Program off
if an outdoor sensor is connected
Automatic heating curve on
Correct the outdoor temperature 0°C
Settings
Effi ciency info off
Auto time on
Service indicator off
(*) extra menu in wireless connection mode.
(**) Not applicable for Glow-worm
0020140263_00 - 11/11 - Glow-worm
EN
- 7 -
INSTALLER MENU
8.3 Summary of menus and functions
available
Climapro
thermostat:
can be the master or secondary room
1
- The “master” room thermostat of the
installation has all functions available. The
installation comprises only one main room
thermostat. It is in general in the principal
part of the dwelling (zone 1).
Secondary
- The “secondary” room thermostat located
in another part has a limited number of
functions.
Menus and functions
( = available depending on the associated
appliance and the status of the thermostat)
Heating
Auto heating curve
Modulating control
Room T° function
Anticipation
Max. ambient temp.
Ambient temp. correction
Hot water
Activate/deactivate the function
Activate/deactivate the programme
Maximum T°
Recirculation
Cooling
Activate/deactivate the function -
Activate/deactivate the programme -
Options
Effi ciency info -
Auto time
EN
Date/time
Language
Service indicator -- -
About
Radio
Connection
Radio test --
Master
8.4 Compatibility of the room thermostat
Room
thermostat
version
wired
wireless -
The room thermostat is connected to:
Boiler Systempro control unit
the status of the room thermostat is:
master master secondary master secondary
----
----
----
--
-- -
-- -
Appliance Systempro
-
¨Smart wiring centre 2¨
control unit
- -
- -
- -
--
--
--
- -
--
Smart
wiring
center 2
- 8 -
0020140263_00 - 11/11 - Glow-worm
MAINTENANCE
MAINTENANCE
9 Trouble-shooting
9.1 Fault diagnosis
The following checks should be performed before
proceeding onto specifi c diagnostics
• Check the error messages in the room
temperature thermostat’s display zone
9.1.1 Wired room thermostat
IMPORTANT:
i
If the room thermostat becomes
disconnected from the boiler,
the heating system uses its own
operational settings. Check that these
settings are compatible with the
installation.
Cause Solution
Check that there is no power
cut.
No display on
screen
The ambient
temperature
does not reach
the programmed
temperature.
The ambient
temperature
exceeds the
programmed
temperature.
The installation
assistant is
not displayed
during the
Commissioning.
Check that:
- the boiler is properly
connected and switched on,
- the wiring centre is properly
connected and switched on,
Check that the thermostat
valves on the radiators are fully
open.
Check that:
- The setting of the outside
sensor heating curve is suitable
for the installation,
- the setting of the max. heating
outlet temperature is suitable
for the installation.
Reset the room thermostat.
See chapter "Reinitialisation of
the room thermostat".
9.1.2 Wireless room thermostat
IMPORTANT:
i
The settings are recorded in the room
thermostat and the wireless receiver.
IMPORTANT:
i
If the wireless receiver becomes
disconnected from the boiler,
the heating system uses its own
operational settings.
Check that these settings are
compatible with the installation.
Cause Solution
Check that the room thermostat
is not in standby mode.
Check that there is no power
cut.
Check that:
- the boiler is properly
No display on
screen
The ambient
temperature
does not reach
the programmed
temperature.
The ambient
temperature
exceeds the
programmed
temperature.
connected and switched on,
- The room thermostat
batteries are properly
installed in their
compartment
- The battery polarity is not
reversed
- The batteries are not
exhausted. If so, replace with
new batteries.
Check that the thermostat
valves on the radiators are fully
open.
Check that:
- The setting of the outside
sensor heating curve is suitable
for the installation,
- the setting of the max. heating
outlet temperature is suitable
for the installation.
EN
0020140263_00 - 11/11 - Glow-worm
- 9 -
MAINTENANCE
9.1.3 Radio receiver
IMPORTANT:
i
Faults described in this chapter should
be rectifi ed by a qualifi ed engineer and
if needed by the After Sales Service.
5
4
3
2
Key
1 Radio receiver
2 Cover for radio receiver
3 Red LED
4 Radio receiver circuit board
5 Green LED
1
In the event of a problem:
• Remove the cover (2) from the radio receiver
(1) to see the 2 LEDs.
• Check the state of the 2 LEDs (green (5) and
red (3) located on the electronic board (4) in
the radio receiver.
Radio
receiver
Red LED
switched
on
Cause Solution
- Appliance fault
- Radio signal
transmission
error
- EBUS
communications
error
- Defective radio
transmitter or
receiver
- EBUS
connecting cable
defective
• Check that:
- The appliances
functioning status is
correct
- The room
thermostat batteries
are properly
installed in their
compartment - The
battery polarity is
not reversed
- The batteries are
not exhausted. If so,
replace with new
batteries.
• Check the
electrical connection
between the receiver
and the appliance.
• Check the radio
communication
between the
thermostat and the
receiver.
9.2 Resetting the room thermostat
This function is used to return the room
thermostat to factory settings.
This restarts the installation assistant.
ATTENTION:
b
The resetting of factory settings
is irreversible. All customised
confi guration of the room thermostat
will be lost.
EN
Radio
receiver
Green LED
off
Red LED
off
- 10 -
Cause Solution
-Failure of
electrical
supply
- Defective EBUS
connection cable
Ensure that there is
no interruption
to the
electricity supply
and that
the appliance is
properly
connected and
turned on.
• Check the
electrical
connection between
the
receiver and the
appliance.
• Simultaneously press the buttons
for 10 seconds.
• Confi rm by pressing .
0020140263_00 - 11/11 - Glow-worm
MAINTENANCE
TECHNICAL DATA
10 Climapro
Description Unit Climaplus RF
Room temperature authorized
in the room where the control
is installed
Maximum authorised
temperature of domestic water
Power-supply voltage EBUS V 24
Electrical connection cable
section
Max. length of electric
connection cables
Electrical protection IP20
Pollution rating 2
Dimensions:
Height mm 97
Width mm 146.5
Depth mm 35
1
°C 50
°C 65
mm² 2 x 0.75
m 300
11 Climapro1 RF
Description Unit Climaplus
Room temperature authorized
in the room where the control is
installed
Maximum authorised
temperature of domestic water
Power-supply voltage EBUS V 24
Electrical connection cable
section
Max. length of electric
connection cables
Transmission/reception
frequency
Electrical protection IP20
Pollution rating 2
Frequency of communication
with outdoor sensor
Frequency of communication
with the control box
Average unobstructed working
range (*)
Average range within the home
(*)
Thermostat dimensions:
Height mm 115
Width mm 146.5
Depth mm 41
Wireless receiver dimensions:
Height mm 20
Width mm 171
Depth mm 58
(*) Can vary according to installation conditions and
electromagnetic environment
°C 50
°C 65
mm² 2 x 0.75
m 300
MHz 868
min 15
min 10
m 100
m25
0020140263_00 - 11/11 - Glow-worm
EN
- 11 -
*2703017_rev0*
GLOW-WORM
Nottingham Road,
Belper, Derbyshire.
DE56 1JT
www.glow-worm.co.uk
0020140263_00 - 11/11 Subject to engineering changes
Because of our constant endeavour for
improvement, details may vary slightly
from those shown in these instructions.
The energy you need
Loading...
