condens
Instructions for Use
Easicom 24
G.C. No. 47-019-18
Easicom 28
G.C. No. 47-019-19
table of contents
READ CAREFULLY BEFORE USING
1 |
Read me.................................................................................................. |
|
3 |
|
1.1 |
Welcome........................................................................................ |
3 |
|
1.2 |
Guarantee Pack.............................................................................. |
3 |
|
1.3 |
Servicing....................................................................................... |
3 |
|
1.4 |
Benchmark.................................................................................... |
3 |
|
1.5 |
Quickreference guide..................................................................... |
4 |
2 |
Introducing your appliance....................................................................... |
4 |
|
|
2.1 |
Appliance description..................................................................... |
4 |
|
2.2 |
Accessories................................................................................... |
4 |
3 |
Product documentation............................................................................ |
4 |
|
|
3.1 |
Document storage.......................................................................... |
4 |
|
3.2 |
Explanation of symbols................................................................... |
5 |
4 |
Safety..................................................................................................... |
|
5 |
|
4.1 |
What to do ifyou smell gas?............................................................ |
5 |
|
4.2 |
Safety recommendations................................................................ |
5 |
|
4.3 |
Safety regulations.......................................................................... |
6 |
5 |
Guarantee / Responsibility....................................................................... |
7 |
|
|
5.1 |
Detailed guarantee ........................................................................ |
7 |
|
5.2 |
Appliance use / manufacturer responsibility.................................... |
7 |
6 |
Recycling................................................................................................ |
|
8 |
|
6.1 |
Appliance...................................................................................... |
8 |
|
6.2 |
Packaging...................................................................................... |
8 |
7 |
Clearances.............................................................................................. |
|
8 |
|
|
||
HOW TO USE YOUR APPLIANCE |
|
||
|
|
|
|
8 |
Overview................................................................................................. |
|
9 |
|
8.1 |
Fascia............................................................................................ |
9 |
|
8.2 |
Display.......................................................................................... |
9 |
|
8.3 |
Switching On................................................................................ |
10 |
|
8.4 |
Turning off..................................................................................... |
10 |
|
8.5 |
User Controls ............................................................................... |
10 |
|
8.6 |
TIMER........................................................................................... |
11 |
- 1 -
table of contents
ANY ASSISTANCE?
9 |
Fault Finding |
.......................................................................................... |
12 |
10 |
Appliance safety ........................................................................devices |
13 |
|
|
10.1 ........................................................................... |
Boiler Shutdown |
13 |
|
10.2 ................................................................. |
Protecting against frost |
13 |
|
10.3 ........................................................... |
Condensate Drain Blockage |
13 |
|
10.4 .................................................................. |
Safety Discharge Valve |
13 |
11 |

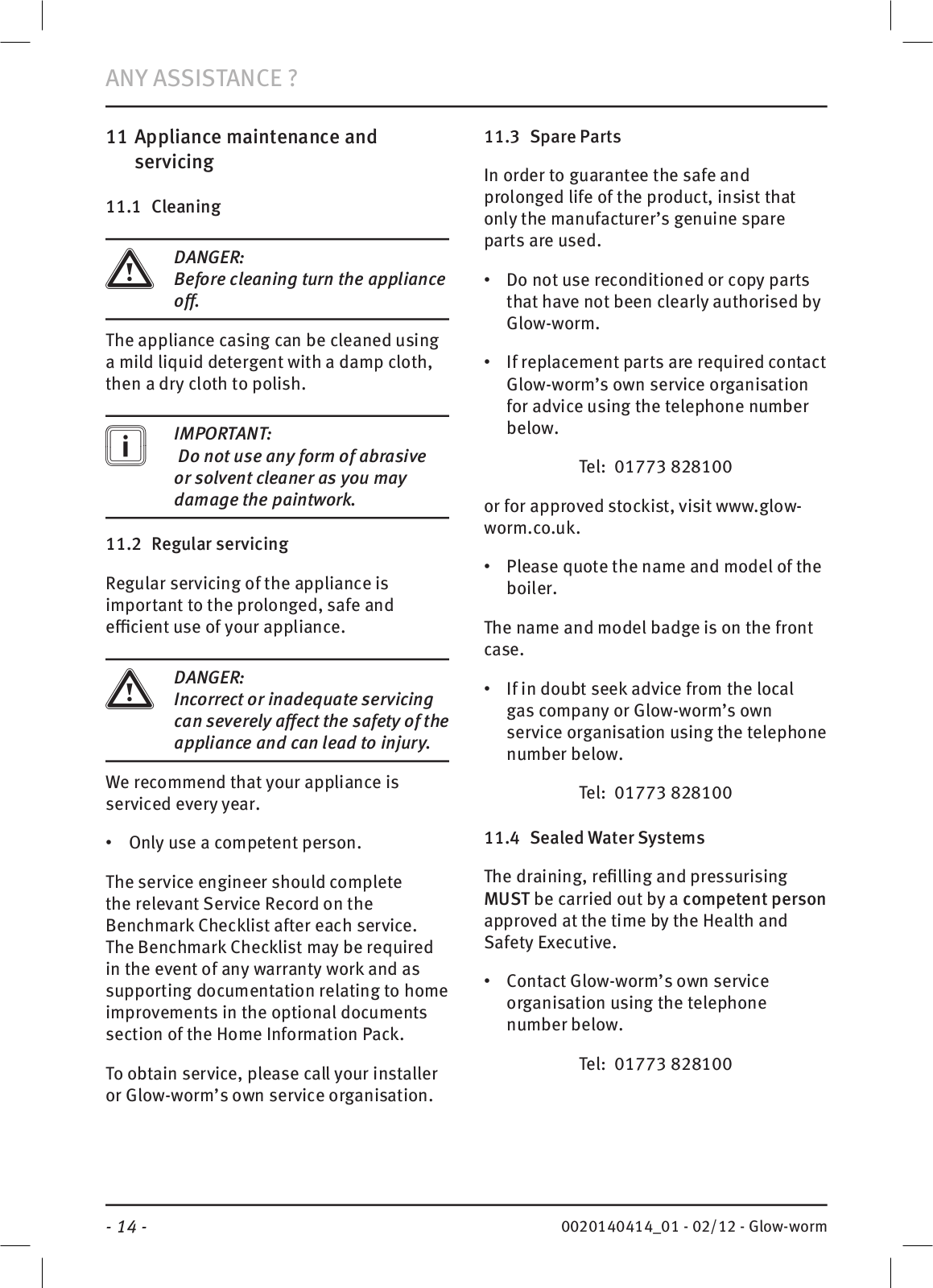

Appliance maintenance .....................................................and servicing |
14 |
|
|
11.1 ....................................................................................... |
Cleaning |
14 |
|
11.2 .......................................................................... |
Regular servicing |
14 |
|
11.3 ................................................................................... |
Spare Parts |
14 |
|
11.4 ................................................................... |
Sealed Water Systems |
14 |
12 |
Tips for saving ............................................................................energy |
15 |
|
13 |
Contactyour ......................................................after-sales organisation |
15 |
|
- 2 -
READ CAREFULLY BEFORE USING
READ CAREFULLY BEFORE USING
1 Read me
1.1Welcome
These instructions are an integral part of the boiler and must, to comply with the current issue of the Gas Safety (Installation and Use) Regulations, be left with the user.
Please ensure that the installer has fully completed the BenchmarkChecklist in the centre pages of the installation instructions supplied with the product and thatyou have signed it to say thatyou have received a full and clear explanation of its operation. The installer is legally required to complete a commissioning checklist as a means of complying with the appropriate Building Regulations (England andWales).
All installations must be notified to Local Area Building Control either directly or through a Competent Persons Scheme. A Building Regulations Compliance Certificate will then be issued to the customer who should, on receipt, write the Notification Number on the BenchmarkChecklist.
•Please read these instructions and follow them carefully for the safe and economical use ofyour boiler.
i IMPORTANT:
Do not forget to read the chapters “Safety” and “Guarantee” where you will find important information foryoursafety.
1.2Guarantee Pack
The packcontains the letter of introduction and the guarantee. The extended guarantee is supplied loose and we recommend that you should read it.
•Completeandreturnassoonaspossible yourguaranteeregistrationcard.
Ifyour guarantee registration card is missing you can obtain a copy or record your registration by telephoning
the Glow-worm Customer Service number 0800 073 2142.
1.3Servicing
This product should be serviced regularly to optimise its safety, efficiency and performance. The service engineer should complete the relevant Service Record on the BenchmarkChecklist after each service. The BenchmarkChecklist may be required in the event of any warranty workand as supporting documentation relating to home improvements in the optional documents section of the Home Information Pack.
To ensure the continued efficient and safe operation of the boiler it is recommended that it is checked and serviced at regular intervals. The frequency of servicing will depend upon the site conditions and usage, but in general, once a year should be enough.
•To obtain service, please callyour installer or Glow-worm’s own service organisation.
1.4Benchmark
Glow-worm is a licensed member of the BenchmarkScheme which aims to
improve the standards of installation and commissioning of domestic heating and hot water systems in the UKand to encourage regular servicing to optimise safety, efficiency and performance.
Benchmarkis managed and promoted by the Heating and Hotwater Industry Council.
•For more information visit www.centralheating.co.uk
0020140414_01 - 02/12 - Glow-worm |
- 3 - |
READ CAREFULLY BEFORE USING
1.5Quickreference guide
We designed this Quickreference guide so thatyou can start using your appliance right away.
This Quickreference guide assumes that the appliance have been installed and commissioned by a competent person.
NOTES: If the central heating (C.H.) pressure falls below 0.4bar the display will flash the current pressure and the boiler will not operate, refer to fault finding section.
If fault persists contactyour Installation/ Servicing company or Glow-worm Service.
2 Introducing your appliance
2.1Appliance description
The Easicom range of boilers are designed for use as part of a sealed water central heating system with fully pumped circulation. The pump, expansion vessel and associated safety devices are all fitted within the boiler.
The domestic hot water is delivered directly to the tap without the need for storage.
Intelligent controls are available as accessories from Glow-worm.
Contactyour Installer or Glow-worm sales for further information.
The Easicom boiler is an appliance that uses condensing technology, which recoversheatfromthefluegases,this operatingprinciple,consumeslessenergy andcontributestothereductionofyour household CO2 emissions.
This appliance is a room-sealed type equipped with a flue system for air supply and the removal of combustion products. This flue system offers the possibility to
install the appliance in any room without the need for additionalventilation.
Installation and commissioning of the appliance should only be carried out by a competent person. They are responsible for the installation and the commissioning in accordance with standards in force.
You should also consult a competent person for maintenance and repair of the appliance as well as for any adjustment necessary.
2.2Accessories
The Easicom is compatible with most makes of programmable room thermostats. The boiler can supply either 230Vor 24V depending on the type.
For increased system compatibility and increased energy saving with intelligent control Glow-worm offer a range of controls dedicated to workusing a unique communication system - eBus.
•For further details please contactyour installer.
3 Product documentation
3.1Document storage
•Make sure that this manual is stored close to your appliance for future reference. Shouldyou move home ensure that this manual is handed over to the new home owners.
•Read these instructions and follow them carefully for the safe and efficient use of your appliance.
No responsibility or liability can be accepted for damages caused by failure to follow the instructions in this manual.
- 4 - |
0020140414_01 - 02/12 - Glow-worm |
