www.glow-worm.co.uk
Instructions for Use
Climapro
Programmable Room Thermostat
Climapro RF
Radio Controlled Programmable
Room Thermostat
2
3
Customer Service:
01773 828100
Technical Helpline:
01773 828300
General and Sales enquiries:
Tel. 01773 824639
Fax: 01773 820569
The instructions are an integral part of the control
and must, to comply with the current issue of the Gas
Safety (Installation and Use) Regulations, be handed
to the user on completion of the installation.
General
4
Page
General Information
General, Documents, Application,
Servicing & Recycling 4-5
Instructions for Use
Control buttons 7
Main display 7
Description of buttons 8
Display symbols 9
Choosing the operating mode 10
Setting the Comfort temperature 11
Setting the “Eco” temperature 12
Domestic hot water temperature adjustments 13
Domestic hot water advance 14
“Holiday” function 15
Setting the day, time and date 16
Setting the 7 day central heating programme 17
Setting the 7 day DHW heating programme 20
Central Heating Temporary Override 24
Information menu 25
Battery Replacement 27
Fault nding 29
Contents
5
Controls Description
The Climapro is a programmable room thermostat with
separate 7 day programmes for heating and hot water.
This control gives you personalised heating comfort
according to your requirements and will improve the energy
efciency of your heating system.
The modulating regulation built into this thermostat changes
the temperature of the radiators to suit the desired ambient
temperature.
Any other use is considered as inappropriate and is
forbidden.
The manufacturer will not be responsible for any damage
caused by another use. In that case the user shall be
responsible.
General
The installation and the commissioning of the control has
to be carried out by a competent person who is responsible
for the compliance of the installation and the commissioning
according to current regulations.
Maintenance should be carried out by a competent person
in accordance with the rules in force.
Documents
Please keep this manual as well as any documents
enclosed with it safe for future reference.
We accept no liability in case of damage due to the noncompliance of the instructions of the present manual.
General Information
6
Cleaning
DO NOT use any abrasive cleaning products as they could
damage the housing or plastic case.
Clean the case of the Climapro with damp cloth.
Make sure that no water goes inside the Climapro.
Recycling
The Climapro comprises of many recyclable parts and
should be disposed of according to the current WEEE
regulations.
The packaging should also be disposed of according to the
current regulations.
General Information
7
Control Buttons
Diagram 1
Main Display
The LCD will display the following as shown in diagram 2.
(*) Display only possible if an outside sensor is connected to
the boiler.
DISPLAY
MODE
BUTTON
MINUS
BUTTON
PLUS
BUTTON
PROGRAMME
BUTTON
Diagram 2
Current operating
mode
Ambient room
temperature
Current time
Current day
Outside
temperature (*)
Outside sensor
present symbol (*)
Domestic hot
water programme
(when in use)
8

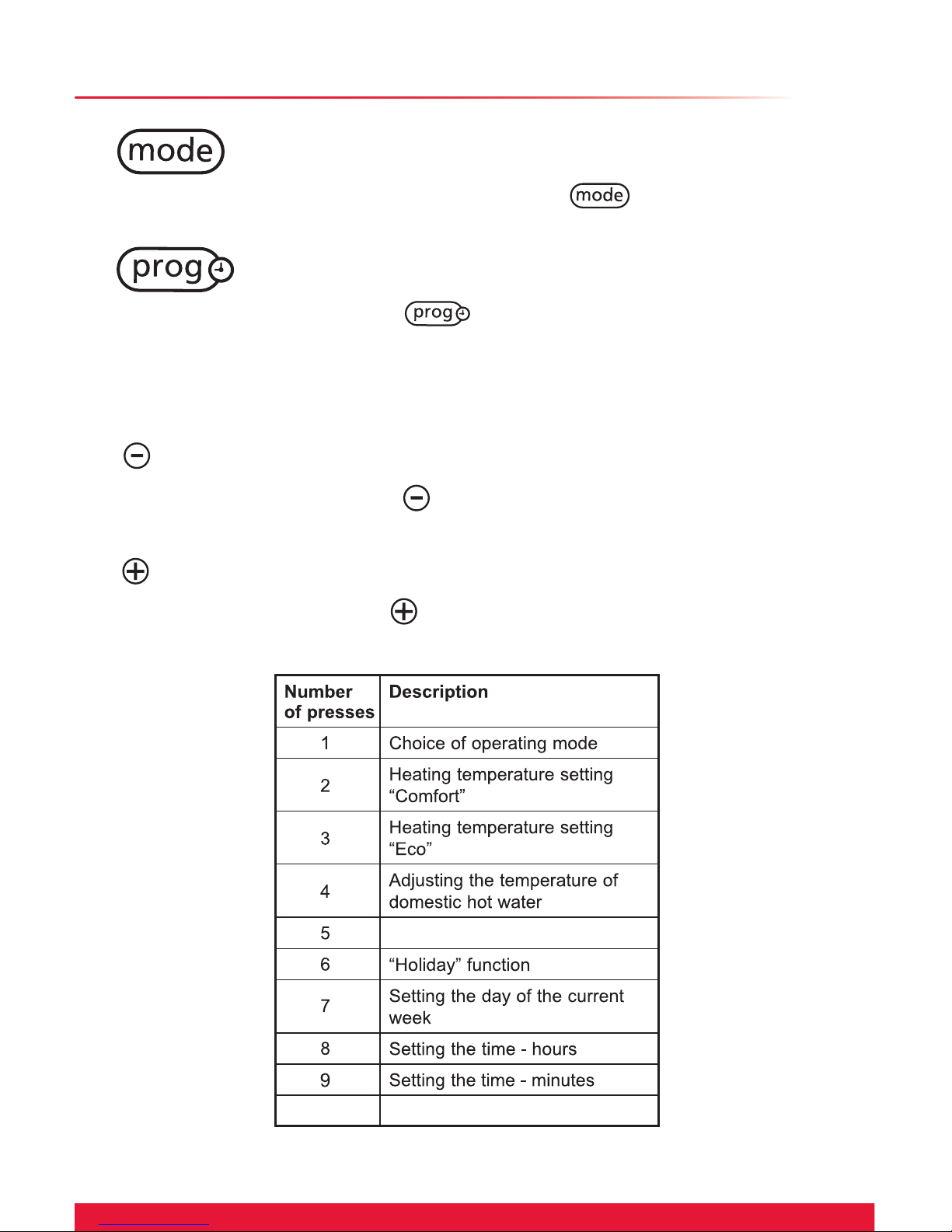

Description of Buttons
9
Display Symbols
Button
By pressing several times on the
button, you will
access the following settings, see table below.
Button
By pressing on the
button several times you can
see the different programmes.
By pressing and holding for 5 seconds you can modify
the heating programme.
Button
By pressing on the
button, you reduce the value of
the setting.
Button
By pressing on the
button, you increase the value of
the setting.
10 Setting the date
Domestic hot water advance
Mode button settings
10
Choosing the Operating Mode
1. To change the operating mode, press once.
2. Press
until the desired mode ashes.
3. The setting is saved after 10 seconds or by pressing the
button, which will then continue to the next setting.
Off: Heating is off but the domestic hot water is
still operating at the set temperature.
Eco: Heating on at Eco (minimum)
temperature
Comfort: Continuous heating on at Comfort
(desired) temperature
Timed:
The heating will operate to the
programmed on and off times Comfort or
Eco.
